Identification of the OGLE Blazars behind the Large and Small Magellanic Clouds

Astronomical Observatory, Jagiellonian University, ul. Orla 171, 30-244 Kraków, Poland
Warsaw University Observatory, Al. Ujazdowskie 4, 00-478 Warszawa, Poland
Author to whom correspondence should be addressed.
Galaxies 2017, 5(4), 88;
Received: 30 October 2017 / Revised: 11 November 2017 / Accepted: 22 November 2017 / Published: 28 November 2017
(This article belongs to the Special Issue Polarised Emission from Astrophysical Jets)


We report the selection of blazar candidates behind the Large and Small Magellanic Clouds. Both flat spectrum radio quasar and BL Lacreate objects were selected based on the long-term, multi-colour Optical Gravitational Lensing Experiment photometric data. We cross-correlated the Magellanic Quasar Survey catalogue of spectroscopically confirmed quasars and quasar candidates located behind the Magellanic Clouds with the radio data at six frequencies from 0.8 to 20 GHz. Among the 1654 objects visible in optical range, we identified a sample of 44 newly selected blazar candidates, including 27 flat spectrum radio quasars and 17 BL Lacs. We examined selected objects with respect to their radio, optical, and mid-infrared properties.

1. Introduction

The Optical Gravitational Lensing Experiment (OGLE) has observed a few million stars in the area of both Magellanic Clouds (MCs). The Magellanic Quasars Survey (MQS) [1] is based on an OGLE-III phase of the experiment and was designed to increase the number of the identified active galactic nuclei (AGN) behind both MCs. This survey covers 100% of the LMC and 70% of the SMC OGLE-III areas, i.e., 42 deg2. The AGN candidates found in the MC fields were analysed in a four-step selection process: mid-infrared properties, optical variability, ROSAT X-ray counterparts, and, finally, optical spectroscopy study. Eventually, the MQS catalogue contains 758 quasars; around 10–15% of them should be radio loud [2] and several of them may be the flat spectrum radio quasar (FSRQ) type blazars according to the AGN unification scheme [3]. During the selection process of the MQS quasars, some of the AGN candidates were rejected in the spectroscopic analysis due to the lack of particular emission lines in their optical spectra and were listed in the separate list of featureless sources (FS), although still obeying any of the mid-infrared and optical variability criteria. The FS list consists of 669 and 229 objects from the LMC and the SMC fields, respectively, and some of them may be blazars of the BL Lac type.
Below, we present the selection procedure of blazars among the OGLE-detected AGN and AGN candidates. In particular, we cross-matched the MQS catalogue and the FS list with four radio catalogues, the Sydney University Molonglo Sky Survey (SUMSS) [4] at 0.843 GHz, the Australia Telescope 20 GHz (AT20G) [5] at 5, 8, and 20 GHz, the Parkes–MIT–NRAO (PMN) [6] at 4.85 GHz, and the Australia Telescope PMN follow-up (ATPMN) [7] at 4.8 and 8.6 GHz, to disclose both types of blazars.

2. Methodology

The blazar candidates were selected based on the MQS catalogue and the FS list via (i) the radio and optical positioning; (ii) the cross-matching procedure; and (iii) the parameters examination of identified objects.
The positions of the selected quasars from the MQS catalogue and the sources from the FS list were examined against the positions of radio sources from the two radio catalogues: the SUMSS at 0.84 GHz and the ATCA at 4.8 and 8.6 GHz.
The cross-matching procedure was based on the archival data from four sky surveys: the SUMSS, AT20G, ATPMN, and PMN. We searched for the radio counterparts by cross-matching the optical positions of the MQS and FS sources with the positions of radio sources listed in the radio catalogues, using the standard spherical trigonometric distance procedure. Since various radio and optical surveys have different resolutions, we chose an error circle within which a source can be identified to be coincident with the same source from different catalogues: if the computed radius of the error circle, Δr, was found to be less than the square root of the quadratic sum of 1/3rd of optical and radio resolutions (∼1″ is assumed at optical frequencies), the radio counterpart was considered to be coincident with the optical source.
The further examination of the selected objects was based on the three parameters: the radio loudness (R), the radio spectral index ( α r ), and the mid-infrared spectral index ( α I R ). OGLE I-band photometric observations and radio ATPMN, AT20G, or SUMSS data were used to calculate R, while α r were obtained for all the sources observed at at least two different frequencies. Mid-infrared data were provided by the Infrared Array Camera (IRAC) and Multiband Imaging Photometer for SIRTF (MIPS) instruments onboard the Spitzer Space Telescope, at 3.6, 4.5, 5.8, and 8.0 microns.
Figure 1 shows the radio contours overlayed on the gray scale optical images for the two exemplary identified blazar candidates. We used the Digitized Sky Survey (DSS) R-band optical images as grey scales and the radio data at 8.6, 4.85 or 0.845 GHz as contours. A black cross marks the optical position from the MQS catalogue or the FS list of each blazar candidate. All sources, which were found exclusively in the PMN catalogue, as well as other sources which were not associated with the peak of the radio emission, are considered as dubious and marked with the “a” symbol in the final list of the blazar candidates.
We searched for the fractional linear polarization degree (PDr) and linear polarization angle (PAr) of all the selected candidates to further verify if the selected objects are indeed blazars. We have examined the AT20G catalogue and analyzed polarized flux densities on 4.8 and 8.6 GHz radio maps of the MCs. Finally, we extracted nine objects from the selected sample: six FSRQs and three BL Lacs (listed in Table 1), noting that all of them are strongly polarized radio sources with PDr,4.8GHz > 3%.

3. Results

The sky distribution of our blazar candidates sample is presented in Figure 2. The main results of blazar identification are listed below:
  • We define two samples of 44 blazar candidates including 27 FSRQs and 17 BL Lacs.
  • All objects in our sample are optically faint with the V band magnitude between 18 and 22. All the FSRQ candidates are distant sources with redshifts from 0.286 up to 3.320. The redshift distribution for BL Lacs is unknown due to the lack of the emission lines in their optical spectra.
  • The R parameter for the selected sources varies from 12 to 4.45 × 103 for the FSRQ candidates and from 1.71 × 102 to 7.02 × 103 for the BL Lac candidates meaning that all the candidates are radio-loud indeed.
  • The estimated values of α r vary from −0.57 to 1.37. Since we used the non-simultaneous archival radio data in the analysis, the α r may indicate radio flux variability for the sampled sources, as it is expected for blazars.
  • The estimated values of α I R are between −0.44 and 3.07. The infrared colours indicate that the infrared continua of the selected sources are non-thermal in origin, as expected for blazars.
  • The PDr and PAr at 5, 8, and 20 GHz were taken from the AT20G catalogue and were measured by us from the archival 4.8 and 8.6 GHz radio maps. All the blazar candidates for which we have found polarimetric data are strongly polarized sources with the average polarization of PDr,4.8∼ 6.8% at 4.8 GHz. The 4.8 and 5 GHz data were obtained with the same telescope but presumably on different dates. The fact that, for the two objects, i.e., J0512-6732 and J0111-7302, observed at both 4.8 and 5 GHz, there are very different PDr in these close radio bands, suggests polarization variability, which is a further indication that they are blazar like objects.
Considering the α I R , R, and PDr parameters together, we suggest that nine candidates, including six FSRQ and three BL Lac type objects, can be safely recognized as newly identified blazars.


N.Ż. ackowledges support of the Polish National Science Centre (NCN) through the grant 2014/15/N/ST9/05171. A.G. and M.O. acknowledge support from the NCN through the grant 2012/04/A/ST9/00083. A.G. also acknowledges partial support from 2013/09/B/ST9/00026. Ł.S. was supported by the Polish NSC grant 2016/22/E/ST9/00061. The OGLE project has received funding from the NCN MAESTRO grant No. 2014/14/A/ST9/00121 to A.U. S.K. also acknowledges financial support from the NCN OPUS grant No. 2014/15/B/ST9/00093.

Author Contributions

S.K. and A.U. provide the optical data form the OGLE survey; N.Ż. conducted the data gathering, data analysis, correlations studies, and discussion; M.J. and A.G. were involved in data gathering and analysis; and Ł.S. and M.O. were involved in the interpretation of the obtained results.

Conflicts of Interest

The authors declare no conflict of interest.


The following abbreviations are used in this manuscript:
AGNActive Galactic Nuclei
BL LacBL Lacertae
FSFeatureless Sources
FSRQFlat Spectrum Radio Quasar
LMCLarge Magellanic Cloud
MQSMagellanic Quasars Survey
OGLEOptical Gravitational Lensing Experiment
SMCSmall Magellanic Cloud


  1. Kozłowski, S.; Onken, C.A.; Kochanek, C.S.; Udalski, A.; Szymański, M.K.; Kubiak, M.; Pietrzyński, G.; Soszyński, I.; Wyrzykowski, Ł.; Ulaczyk, K.; et al. The Magellanic Quasars Survey. III. Spectroscopic Confirmation of 758 Active Galactic Nuclei behind the Magellanic Clouds. Astrophys. J. 2013, 775, 92. [Google Scholar]
  2. Kellermann, K.I.; Sramek, R.; Schmidt, M.; Shaffer, D.B.; Green, R. VLA observations of objects in the Palomar Bright Quasar Survey. Astron. J. 1989, 98, 1195–1207. [Google Scholar] [CrossRef]
  3. Urry, C.M.; Padovani, P. Unified Schemes for radio-loud active galactic nuclei. Publ. Astron. Soc. Pac. 1995, 107, 803–845. [Google Scholar] [CrossRef]
  4. Bock, D.C.-J.; Large, M.I.; Sadler, E.M. SUMSS: A Wide-Field Radio Imaging Survey of the Southern Sky. I. Science Goals, Survey Design, and Instrumentation. Astron. J. 1999, 117, 1578–1593. [Google Scholar] [CrossRef]
  5. Murphy, T.; Sadler, E.M.; Ekers, R.D.; Massardi, M.; Hancock, P.J.; Mahony, E.; Ricci, R.; Burke-Spolaor, S.; Calabretta, M.; Chhetri, R.; et al. The Australia Telescope 20 GHz Survey: The source catalogue. Mon. Not. R. Astron. Soc. 2010, 402, 2403–2423. [Google Scholar] [CrossRef]
  6. Condon, J.J.; Griffith, M.R.; Wright, A.E. The Parkes-MIT-NRAO surveys. IV—Maps for the Southern Survey covering delta in the range -88 to -37 deg. Astron. J. 1993, 106, 1095–1100. [Google Scholar] [CrossRef]
  7. McConnell, D.; Sadler, E.M.; Murphy, T.; Ekers, R.D. ATPMN: Accurate positions and flux densities at 5 and 8 GHz for 8385 sources from the PMN survey. Mon. Not. R. Astron. Soc. 2012, 422, 1527–1545. [Google Scholar] [CrossRef]
  8. Bothun, B.D.; Thompson, I.B. Observations with the parking lot camera. I – Surface photometry and color distribution of the Magellanic Clouds. Astrophys. J. 1988, 96, 877–883. [Google Scholar] [CrossRef]

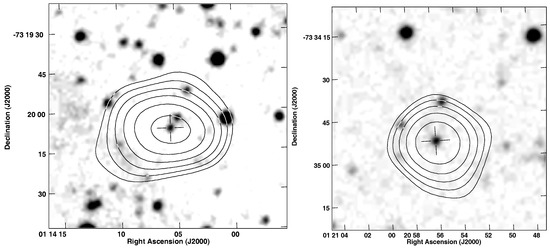

Figure 1. Exemplary contour maps of two identified blazar candidates, J0114-7320 and J0120-7334.
Figure 1. Exemplary contour maps of two identified blazar candidates, J0114-7320 and J0120-7334.
Galaxies 05 00088 g001

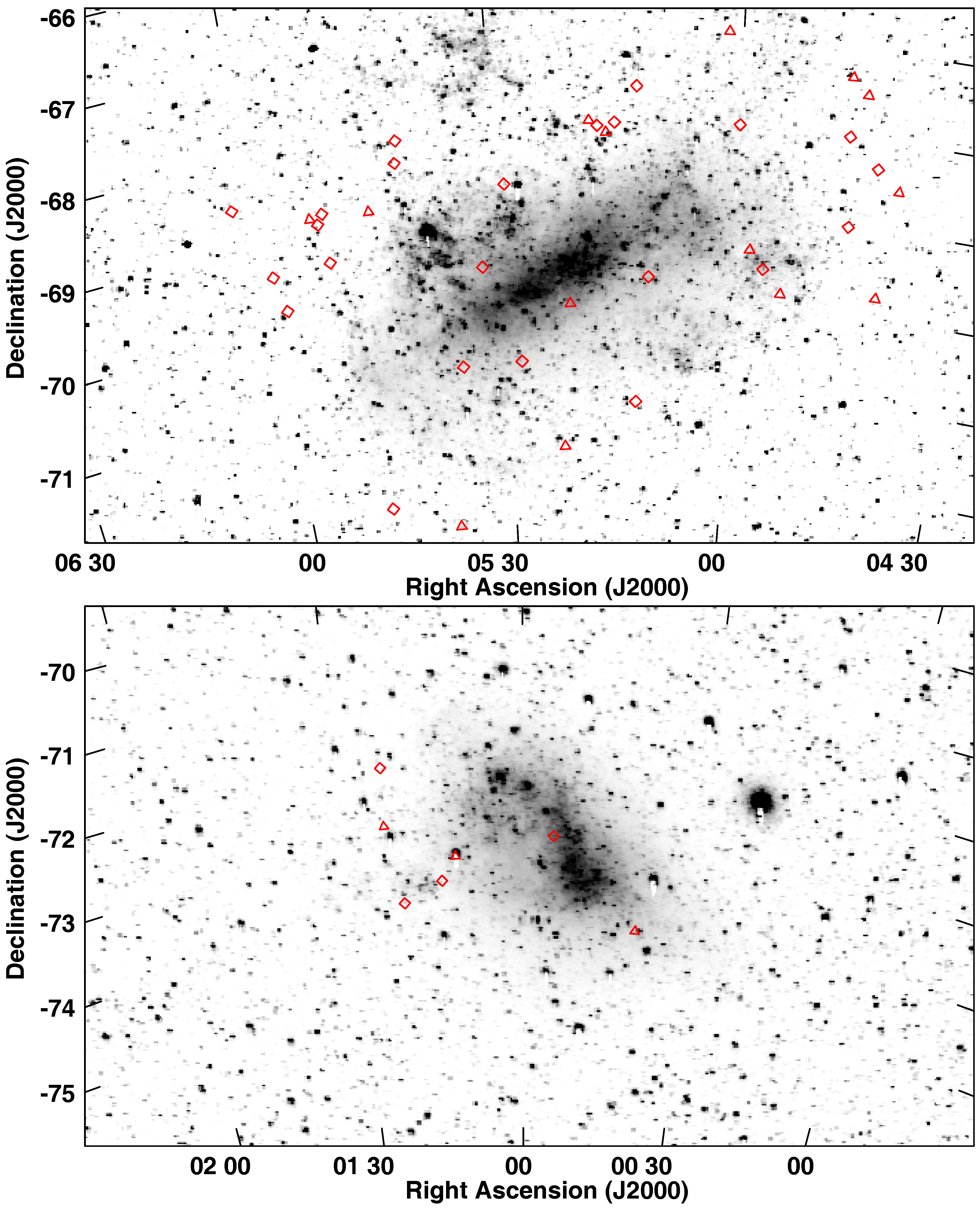

Figure 2. The distribution of the selected blazar candidates behind the Large (top panel) and the Small (bottom panel) MCs. The FSRQ candidates are shown with red open diamond symbols and BL Lac candidates are shown with red open triangular symbols. The gray scales of both MC optical images are taken from [8].
Figure 2. The distribution of the selected blazar candidates behind the Large (top panel) and the Small (bottom panel) MCs. The FSRQ candidates are shown with red open diamond symbols and BL Lac candidates are shown with red open triangular symbols. The gray scales of both MC optical images are taken from [8].
Galaxies 05 00088 g002
Table 1. The degree of linear polarization and the polarization angle of the FSRQ and BL Lac blazar type candidates.
Table 1. The degree of linear polarization and the polarization angle of the FSRQ and BL Lac blazar type candidates.
4.8 GHz5 GHz8 GHz8.6 GHz20 GHz4.8 GHz8.6 GHz
FSRQ blazar type candidates
J0114-73209.5 ± 0.57.0 ± 0.470.7 ± 14.7−12.9 ± 14.3
J0120-73345.0 ± 0.3−52.2 ± 0.7
J0512-67323.3 ± 0.212.710.713.613.6 ± 2.1
J0551-69167.3 ± 0.48.3 ± 38.2
J0551-68439.1 ± 0.5−3.9 ± 40.4
BL Lac blazar type candidates
J0111-73024.1 ± ± 34.1
J0501-665310.6 ± 0.522.7 ± 1.1−2.8 ± 25.6−11.1 ± 46.1
J0518-6755 a12.6 ± 0.6−16.6 ± 11.0
NOTE—a Dubious object. Columns: (1) source designation, (2)–(6) linear polarization degree (PDr) at 4.8, 5, 8, 8.6, and 20 GHz, (7) and (8) linear polarization angle (PAr) at 4.8 and 8.6 GHz.
