Parsec-Scale Structure and Kinematics of Faint TeV HBLs
1
Department of Physics and Astronomy, Whittier College, Whittier, CA 90608, USA
2
CSIRO Astronomy and Space Science, Epping 2121, Australia
*
Author to whom correspondence should be addressed.
Academic Editors: Jose L. Gómez, Alan P. Marscher and Svetlana G. Jorstad
Received: 6 September 2016 / Accepted: 30 September 2016 / Published: 11 October 2016

Abstract

:
We present new multi-epoch Very Long Baseline Array (VLBA) observations of a set of TeV blazars drawn from our VLBA program to monitor all TeV-detected high-frequency peaked BL Lac objects (HBLs) at parsec scales. Most of these sources are faint in the radio, so they have not been well observed with VLBI by other surveys. Our previous measurements of apparent jet speeds in TeV HBLs showed apparent jet speeds that were subluminal or barely superluminal, suggesting jets with velocity structures at the parsec-scale. Here we present apparent jet speed measurements for eight new TeV HBLs, which for the first time show a superluminal tail to the apparent speed distribution for the TeV HBLs.
Keywords:
TeV blazars; VLBI; active galactic nuclei

1. Introduction

At TeV energies (10 12 eV), three orders of magnitude higher than those studied by satellite-based detectors, gamma-ray astronomy is conducted with ground based telescopes such as H.E.S.S., VERITAS and MAGIC. Over 175 TeV gamma-ray sources have now been catalogued (http://tevcat.uchicago.edu/), with over one third of these being extragalactic objects. The majority of these (46 of 69) are classified as HBL (High-frequency–peaked BL Lac) objects, for which the synchrotron peak of the Spectral Energy Distribution (SED) lies at frequencies above 10 16 . 5 Hz.
Many of the well-studied HBL TeV sources have shown dramatic variability in their gamma-ray emission [1,2]. The most rapid variations suggest extremely small emitting volumes and/or time compression by large relativistic Doppler factors of up to ∼100 and challenge our understanding of relativistic jets [2,3,4].
The only way to directly obtain information on the parsec-scale structure of these blazar jets is by imaging the radio sources using the technique of Very Long Baseline Interferometry (VLBI). However, many HBLs are fainter at radio wavelengths (typically tens of milli-janskys—see Table 1) than the more powerful quasars and BL Lac objects, and are not included in VLBI monitoring programs such as MOJAVE [5] and TANAMI [6]. Properties that can be measured from VLBI images—the apparent jet speed, radio core brightness temperature, core dominance, and jet-to-counter-jet brightness ratio—provide information on fundamental properties of the jet, such as the bulk Lorentz factor and viewing angle.
Yet, despite the high Doppler factors inferred from TeV observations, our previous VLBA observations have established that TeV sources have only modest brightness temperatures, and jet component motions that are sub-luminal or only slightly superluminal [7,8,9,10,11,12,13,14,15]. This has been called the “doppler crisis” [16] or “bulk Lorentz factor crisis” [17].
Of the 46 HBLs detected at TeV energies:
  • 11 have jet kinematics published previously by us. (Some of these are also in MOJAVE.)
  • 7 have, or soon will have, speeds determined by the MOJAVE program [5].
  • 20 are included in the current phase of our program, with first epoch VLBA results for all 20 published [15]. We present here the kinematic results for the first portion of these sources.
  • 4 are too far south to be studied with the VLBA, with several of these are part of the TANAMI monitoring program [6].
  • 4 are recent detections which are yet to be monitored with VLBI.
The 39 TeV sources for which we have at least one VLBA image are listed in Table 1, together with their redshift, association in the NRAO VLA Sky Survey (NVSS) catalog [20], 1.4 GHz flux density, and details of our VLBA observations. Images and data available at the project website: www2.whittier.edu/facultypages/gpiner/research/archive/archive.html.
TeV photons are attenuated by the infrared background [21] and, as is apparent in Table 1, the majority of extragalactic TeV sources are at relatively low redshift ( z < 0.2). Conversely, studies of TeV gamma-ray spectra have offered a means of constraining the infrared background [21,22].

2. Results

Images of four of the sources currently being monitored are shown in Figure 1. All show parsec-scale morphologies typical of this class: a compact core (which hosts the supermassive black hole powering the source), and a weaker, one-sided jet that transitions to a decollimated structure with larger opening angle at a few tens of milli-arcseconds from the core (see image of 0229+200). Multi-epoch studies of these jets over the course of several years allow the apparent speeds of the jet components to be determined.
Our previous VLBA studies indicated the absence of rapidly moving features in the jets of TeV HBLs; jet components were either nearly stationary or slowly moving ( < 1 c ) [14]. With the addition of multi-epoch data from eight previously unpublished sources, including the four sources in Figure 1, the revised distribution of apparent jet speeds is shown in Figure 2. This Figure incorporates the results of our previously published data and jet speeds for four sources that have been monitored as part of the MOJAVE project [5].
With the addition of new data, the tail of the distribution now extends to mildy superluminal apparent speeds for the first time; however, the majority of the TeV HBLs have peak apparent speeds of only about 1c. Combining these slow apparent speeds with the high Doppler factors (δ) implied by the TeV data to solve for the Lorentz factor (Γ) and viewing angle (θ) results in unreasonbly small viewing angles ( θ < < 1 ). This would imply tiny jet opening angles, enormous linear sizes, and huge numbers of parent objects, and indicates that the combination of both high Doppler factor and slow apparent speed in the same jet region is unphysical. If more realistic viewing angles of a few degrees are assumed, then the observed apparent speeds imply more modest Lorentz and Doppler factors for the radio jet. The lack of detection of counterjets in the VLBI images for any TeV HBL [15,23] requires that the Doppler factor cannot be arbitrarily low, and values of δ and Γ of a few degrees are most consistent with the combined VLBI data.

3. Discussion

A variety of mechanisms have been proposed to try and reconcile the Doppler crisis [24,25,26,27,28,29]. The most natural explanation is for a range of Doppler factors to coexist in the same jet on parsec scales through jet stratification. One example is a jet that decelerates along its length [24]. In such a jet, the fast inner part sees blueshifted photons from the slower outer part, reducing the high Lorentz factor required in the fast portion. This is a general feature of models with velocity structures; radiative interaction among the different regions allows the SED to be reproduced without the extremely high Lorentz factors and Doppler factors characterizing single-zone models. Another alternative is a transverse velocity structure with a fast central spine and a slower outer sheath. Radiative interaction between the spine and sheath naturally decelerates the spine, producing both radial and transverse velocity structures in the same jet [26].
If such spine–sheath jets are present in TeV HBLs, then the outer layer is expected to dominate the radio emission due to its SED shape, even with a lower Doppler factor than the spine [26]. An observational signature of this would be a limb-brightened transverse profile for the jet in VLBI images. There is evidence for limb-brightening close to the core in a number of HBLs, e.g., Mkn 501 [11], 1ES 0502+675 [15], and H 1722+119 [15].
Other possible jet velocity structures have also been proposed, including multiple blobs [30] fast moving “needles” within the main jet [4], “minijets” powered by magnetic reconnection events [31], and turbulent subregions within the jet [29].

4. Conclusions

Our on-going VLBA monitoring of the growing number of TeV gamma-ray emitting HBLs has revealed that the distribution of peak apparent jet speeds in these sources extends to moderate superluminal speeds, ∼6c, but the majority display subluminal speeds, in contrast with the distribution for other classes of active galactic nuclei [5]. It has recently been proposed that jet kinematics may offer a better classification for blazars than the SED peak frequency [32], with HBLs tending to display quasi-stationary knots arising from recollimation shocks.
A possible physical explanation for this is based on TeV blazars having intrinsically weak jets that interact with the external medium forming a slow surrounding layer. Radiative interaction between the spine and the sheath decelerates the spine, and eventually disrupts the jet. Such jets are prominent in TeV-selected samples because selection favors rare high-synchrotron peak sources, which are drawn from the low end of the luminosity function where the source density is largest [33].

Acknowledgments

The National Radio Astronomy Observatory is a facility of the National Science Foundation operated under cooperative agreement by Associated Universities, Inc. This research has made use the TeVCat online source catalog (http://tevcat.uchicago.edu). This research has made use of NASA’s Astrophysics Data System. This research has made use of the NASA/IPAC Extragalactic Database (NED) which is operated by the Jet Propulsion Laboratory, California Institute of Technology, under contract with the National Aeronautics and Space Administration.

Author Contributions

Glenn Piner and Philip Edwards conceived and designed the observations; Glenn Piner reduced and imaged the data presented in this paper; Philip Edwards prepared the first draft of the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Krawczynski, H.; Hughes, S.B.; Horan, D.; Aharonian, F.; Aller, M.F.; Aller, H.; Boltwood, P.; Buckley, J.; Coppi, P.; Fossati, G.; et al. Multiwavelength Observations of Strong Flares from the TeV Blazar 1ES 1959+650. Astrophys. J. 2004, 601, 151–164. [Google Scholar] [CrossRef]
  2. Aharonian, F.; Akhperjanian, A.G.; Bazer-Bachi, A.R.; Behera, B.; Beilicke, M.; Benbow, W.; Berge, D.; Bernlöhr, K.; Boisson, C.; Bolz, O.; et al. An Exceptional Very High Energy Gamma-Ray Flare of PKS 2155-304. Astrophys. J. Lett. 2007, 664, L71–L74. [Google Scholar] [CrossRef]
  3. Begelman, M.C.; Fabian, A.C.; Rees, M.J. Implications of very rapid TeV variability in blazars. Mon. Not. R. Astron. Soc. 2008, 384, L19–L23. [Google Scholar] [CrossRef]
  4. Ghisellini, G.; Tavecchio, F. Rapid variability in TeV blazars: The case of PKS2155-304. Mon. Not. R. Astron. Soc. 2008, 386, L28–L32. [Google Scholar] [CrossRef]
  5. Lister, M.L.; Aller, M.F.; Aller, H.D.; Homan, D.C.; Kellermann, K.I.; Kovalev, Y.Y.; Pushkarev, A.B.; Richards, J.L.; Ros, E.; Savolainen, T. MOJAVE: XIII. Parsec-scale AGN Jet Kinematics Analysis Based on 19 years of VLBA Observations at 15 GHz. Astron. J. 2016, 152, 12. [Google Scholar] [CrossRef]
  6. Ojha, R.; Kadler, M.; Böck, M.; Booth, R.; Dutka, M.S.; Edwards, P.G.; Fey, A.L.; Fuhrmann, L.; Gaume, R.A.; Hase, H.; et al. TANAMI: Tracking active galactic nuclei with austral milliarcsecond interferometry. I. First-epoch 8.4 GHz images. Astron. Astrophys. 2010, 519, A45. [Google Scholar] [CrossRef]
  7. Piner, B.G.; Unwin, S.C.; Wehrle, A.E.; Edwards, P.G.; Fey, A.L.; Kingham, K.A. VSOP and Ground-based VLBI Imaging of the TeV Blazar Markarian 421 at Multiple Epochs. Astrophys. J. 1999, 525, 176–190. [Google Scholar] [CrossRef]
  8. Edwards, P.G.; Piner, B.G. The Subluminal Parsec-Scale Jet of Markarian 501. Astrophys. J. Lett. 2002, 579, L67–L70. [Google Scholar] [CrossRef]
  9. Giroletti, M.; Giovannini, G.; Feretti, L.; Cotton, W.D.; Edwards, P.G.; Lara, L.; Marscher, A.P.; Mattox, J.R.; Piner, B.G.; Venturi, T. Parsec-Scale Properties of Markarian 501. Astrophys. J. 2004, 600, 127–140. [Google Scholar] [CrossRef]
  10. Piner, B.G.; Edwards, P.G. The Parsec-Scale Structure and Jet Motions of the TeV Blazars 1ES 1959+650, PKS 2155-304, and 1ES 2344+514. Astrophys. J. 2004, 600, 115–126. [Google Scholar] [CrossRef]
  11. Piner, B.G.; Edwards, P.G. VLBA Polarization Observations of Markarian 421 after a Gamma-Ray High State. Astrophys. J. 2005, 622, 168–177. [Google Scholar] [CrossRef]
  12. Piner, B.G.; Pant, N.; Edwards, P.G. The Parsec-Scale Jets of the TeV Blazars H1426+428, 1ES 1959+650, and PKS 2155-304: 2001–2004. Astrophys. J. 2008, 678, 64–77. [Google Scholar] [CrossRef]
  13. Piner, B.G.; Pant, N.; Edwards, P.G.; Wiik, K. Significant Limb-Brightening in the Inner Parsec of Markarian 501. Astrophys. J. Lett. 2009, 690, L31–L34. [Google Scholar] [CrossRef]
  14. Tiet, V.C.; Piner, B.G.; Edwards, P.G. Increasing the Number of TeV Blazars with Parsec-Scale Kinematics. 2012; arXiv:1205.2399. [Google Scholar]
  15. Piner, B.G.; Edwards, P.G. First-epoch VLBA Imaging of 20 New TeV Blazars. Astrophys. J. 2014, 797, 25. [Google Scholar] [CrossRef]
  16. Tavecchio, F. Extragalactic Jets: The High Energy View. In Proceedings of the Tenth Marcel Grossmann Meeting, Rio de Janeiro, Brazil, 20–26 July 2003; Novello, M., Perez Bergliaffa, S., Ruffini, R., Eds.; World Scientific Publishing Co.: Singapore, 2006; p. 512. [Google Scholar]
  17. Henri, G.; Saugé, L. The Bulk Lorentz Factor Crisis of TeV Blazars: Evidence for an Inhomogeneous Pileup Energy Distribution? Astrophys. J. 2006, 640, 185–195. [Google Scholar] [CrossRef]
  18. Piner, B.G.; Edwards, P.G. The Parsec-Scale Structure of the Newer TeV Blazars. In Proceedings of the European Physical Journal Web of Conferences, Granada, Spain, 10–14 June 2013; Volume 61, p. 04021.
  19. Piner, B.G.; Pant, N.; Edwards, P.G. The Jets of TeV Blazars at Higher Resolution: 43 GHz and Polarimetric VLBA Observations from 2005 to 2009. Astrophys. J. 2010, 723, 1150–1167. [Google Scholar] [CrossRef]
  20. Condon, J.J.; Cotton, W.D.; Greisen, E.W.; Yin, Q.F.; Perley, R.A.; Taylor, G.B.; Broderick, J.J. The NRAO VLA Sky Survey. Astron. J. 1998, 115, 1693–1716. [Google Scholar] [CrossRef]
  21. Aharonian, F.; Akhperjanian, A.G.; Bazer-Bachi, A.R.; Beilicke, M.; Benbow, W.; Berge, D.; Bernlöhr, K.; Boisson, C.; Bolz, O.; Borrel, V.; et al. A low level of extragalactic background light as revealed by γ-rays from blazars. Nature 2006, 440, 1018–1021. [Google Scholar] [CrossRef] [PubMed][Green Version]
  22. Stecker, F.W.; Scully, S.T.; Malkan, M.A. An Empirical Determination of the Intergalactic Background Light from UV to FIR Wavelengths Using FIR Deep Galaxy Surveys and the Gamma-Ray Opacity of the Universe. Astrophys. J. 2016, 827, 6. [Google Scholar] [CrossRef]
  23. Giroletti, M.; Giovannini, G.; Cotton, W.D.; Taylor, G.B.; Pérez-Torres, M.A.; Chiaberge, M.; Edwards, P.G. The jet of Markarian 501 from millions of Schwarzschild radii down to a few hundreds. Astron. Astroph. 2008, 488, 905–914. [Google Scholar] [CrossRef]
  24. Georganopoulos, M.; Kazanas, D. Decelerating Flows in TeV Blazars: A Resolution to the BL Lacertae-FR I Unification Problem. Astrophys. J. Lett. 2003, 594, L27–L30. [Google Scholar] [CrossRef]
  25. Gopal-Krishna; Dhurde, S.; Wiita, P.J. Do the Mildly Superluminal VLBI Knots Exclude Ultrarelativistic Blazar Jets? Astrophys. J. Lett. 2004, 615, L81–L84. [Google Scholar]
  26. Ghisellini, G.; Tavecchio, F.; Chiaberge, M. Structured jets in TeV BL Lac objects and radiogalaxies. Implications for the observed properties. Astron. Astrophys. 2005, 432, 401–410. [Google Scholar] [CrossRef]
  27. Gopal-Krishna; Wiita, P.J.; Dhurde, S. Bulk motion of ultrarelativistic conical blazar jets. Mon. Not. R. Astron. Soc. 2006, 369, 1287–1292. [Google Scholar] [CrossRef]
  28. Gopal-Krishna; Dhurde, S.; Sircar, P.; Wiita, P.J. Influence of the jet opening angle on the derived kinematical parameters of blazar jets having uniform and stratified bulk motion. Mon. Not. R. Astron. Soc. 2007, 377, 446–452. [Google Scholar]
  29. Marscher, A.P. Turbulent, Extreme Multi-zone Model for Simulating Flux and Polarization Variability in Blazars. Astrophys. J. 2014, 780, 87. [Google Scholar] [CrossRef]
  30. Tavecchio, F.; Becerra-Gonzalez, J.; Ghisellini, G.; Stamerra, A.; Bonnoli, G.; Foschini, L.; Maraschi, L. On the origin of the γ-ray emission from the flaring blazar PKS 1222+216. Astron. Astrophys. 2011, 534, A86. [Google Scholar] [CrossRef]
  31. Giannios, D. Reconnection-driven plasmoids in blazars: Fast flares on a slow envelope. Mon. Not. R. Astron. Soc. 2013, 431, 355–363. [Google Scholar] [CrossRef]
  32. Hervet, O.; Boisson, C.; Sol, H. An innovative blazar classification based on radio jet kinematics. Astron. Astrophys. 2016, 592, A22. [Google Scholar] [CrossRef]
  33. Giommi, P.; Padovani, P.; Polenta, G.; Turriziani, S.; D’Elia, V.; Piranomonte, S. A simplified view of blazars: Clearing the fog around long-standing selection effects. Mon. Not. R. Astron. Soc. 2012, 420, 2899–2911. [Google Scholar] [CrossRef]
Figure 1. VLBA images at 8 GHz of four Tev blazars in out VLBA monitoring program: (a) RGB J0152+017; (b) 1ES 0229+200; (c) RBS 0413 (0317+185); (d) 1ES 0347−121.
Figure 1. VLBA images at 8 GHz of four Tev blazars in out VLBA monitoring program: (a) RGB J0152+017; (b) 1ES 0229+200; (c) RBS 0413 (0317+185); (d) 1ES 0347−121.
Galaxies 04 00044 g001

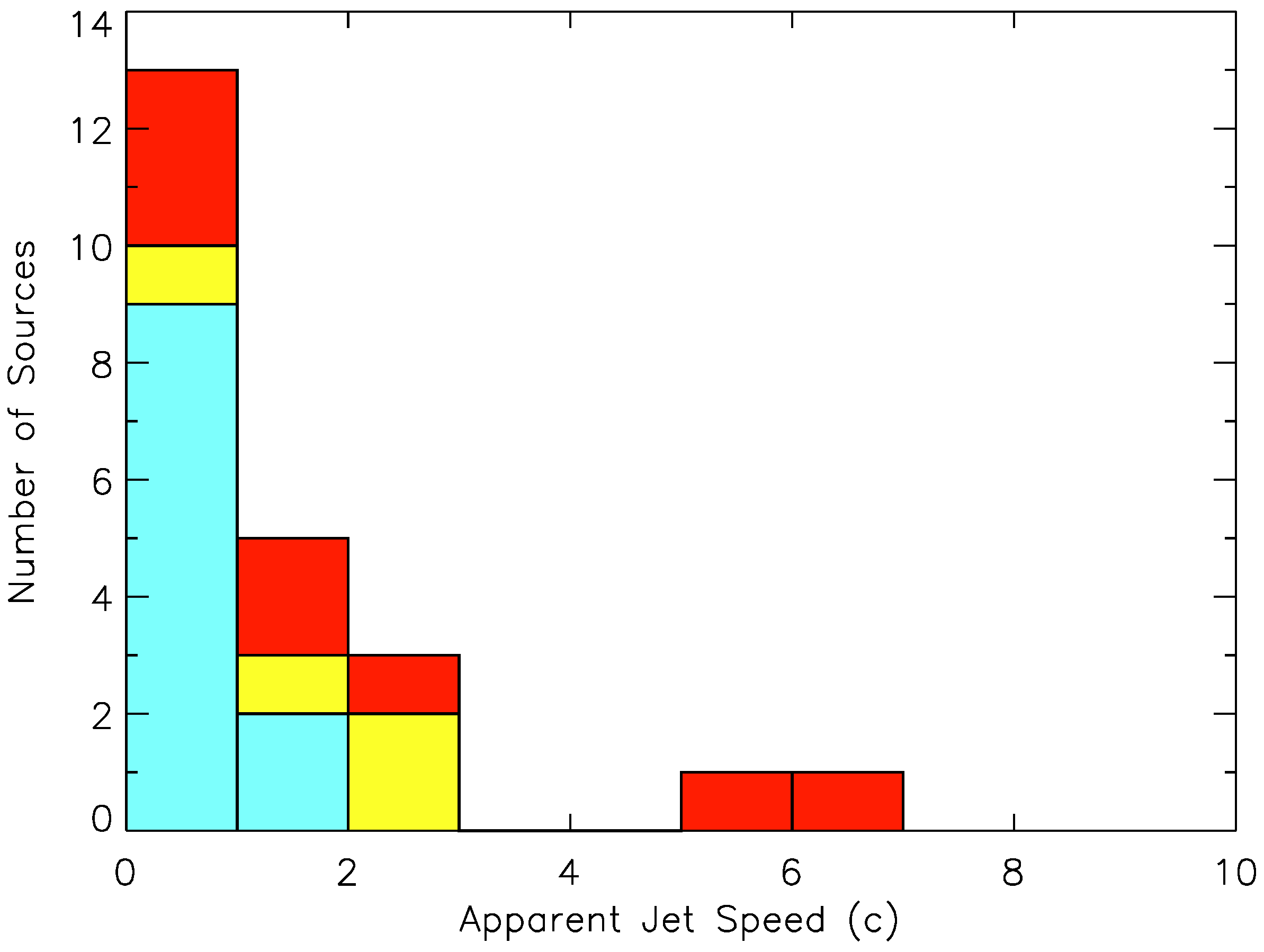

Figure 2. A histogram of the peak jet speeds in TeV blazars. Blue denotes sources from our previously published data, red are from this work, and yellow are from MOJAVE. The highest apparent speed are observed in RBS 0413, (6.0 ± 1.2) c, and RGB J0710+591, (5.8 ± 1.5) c.
Figure 2. A histogram of the peak jet speeds in TeV blazars. Blue denotes sources from our previously published data, red are from this work, and yellow are from MOJAVE. The highest apparent speed are observed in RBS 0413, (6.0 ± 1.2) c, and RGB J0710+591, (5.8 ± 1.5) c.
Galaxies 04 00044 g002
Table 1. Current status of our Very Long Baseline Array (VLBA) monitoring program. TeV source names are those used by TeVCat, redshifts are those given in [15], where an asterisk denotes a tentative value or limit. The NRAO VLA Sky Survey (NVSS) flux density is measured at 1.4 GHz. The number of epochs refers to the number of VLBA images made in our monitoring program. References are to papers presenting these image.
Table 1. Current status of our Very Long Baseline Array (VLBA) monitoring program. TeV source names are those used by TeVCat, redshifts are those given in [15], where an asterisk denotes a tentative value or limit. The NRAO VLA Sky Survey (NVSS) flux density is measured at 1.4 GHz. The number of epochs refers to the number of VLBA images made in our monitoring program. References are to papers presenting these image.
TeV Source NameRedshiftNVSS CounterpartNVSS Flux Density (mJy)Number of EpochsReferences
SHBL J001355.9 − 1854060.094NVSS J001356 − 18540629.24[15]
KUV 00311 − 19380.506 *NVSS J003334 − 19213318.54[15]
1ES 0033 + 5950.240 *NVSS J003552 + 595005147.35[15]
RGB J0136 + 3910.400 *NVSS J013632 + 39055960.04[15]
RGB J0152 + 0170.080NVSS J015239 + 01471761.45[15]
1ES 0229 + 2000.140NVSS J023248 + 20171682.45[15,18]
PKS 0301 − 2430.266NVSS J030326 − 240710700.22-
IC 3100.019NVSS J031642 + 411928168.12-
RBS 04130.190NVSS J031951 + 18453620.95[15,18]
1ES 0347 − 1210.188NVSS J034922 − 11591423.95[15,18]
1ES 0414 + 0090.287NVSS J041652 + 010526119.65[15,18]
1ES 0502 + 6750.314NVSS J050755 + 67372425.45[15,18]
PKS 0548 − 3220.069NVSS J055040 − 321620343.75[15,18]
RX J0648.7 + 15160.179NVSS J064847 + 15162564.24[15]
1ES 0647 + 2500.450NVSS J065046 + 25025996.25[15]
RGB J0710 + 5910.125NVSS J071030 + 590817158.45[15,18]
1ES 0806 + 5240.138NVSS J080949 + 521858182.43[18]
RBS 07230.198NVSS J084712 + 11335032.81-
1RXS J101015.9 − 3119090.143NVSS J101015 − 31190673.54[15]
1ES 1011 + 4960.212NVSS J101504 + 492601377.73[18]
1ES 1101−2320.186NVSS J110337 − 232924120.35[14]
Markarian 4210.031NVSS J110427 + 381232767.417[7,11,19]
Markarian 1800.045NVSS J113626 + 700925327.17[14]
RX J1136.5 + 67370.134NVSS J113629 + 67370645.31-
1ES 1215 + 3030.130NVSS J121752 + 300700571.62-
1ES 1218 + 3040.184NVSS J122121 + 30103671.05[14]
MS 1221.8 + 24520.218NVSS J122424 + 24362324.54[15]
H 1426 + 4280.129NVSS J142832 + 42402258.05[12,19]
1ES 1440 + 1220.163NVSS J144248 + 12004068.84[15]
PG 1553 + 1130.500 *NVSS J155543 + 111124312.07[14]
Markarian 5010.034NVSS J165352 + 3945361558.09[8,13,19]
H 1722 + 1190.170 *NVSS J172504 + 115215120.44[15]
1ES 1727 + 5020.055NVSS J172818 + 501311200.72-
1ES 1741 + 1960.083NVSS J174357 + 193508301.24[15]
1ES 1959 + 6500.047NVSS J195959 + 650854249.613[10,11,19]
PKS 2155 − 3040.116NVSS J215852 − 301330489.37[10,11,19]
B3 2247 + 3810.119NVSS J225005 + 382437103.44[15]
1ES 2344 + 5140.044NVSS J234705 + 514217250.48[10,19]
H 2356 − 3090.165NVSS J235907 − 30374062.15[14]
