Galaxies 2015, 3(3), 113-128; doi:10.3390/galaxies3030113

Article
The Flyby Anomaly in an Extended Whitehead’s Theory
Instituto Universitario de Matemática Multidisciplinar, Building 8G, 2o Floor, Camino de Vera, Universitat Politècnica de València, Valencia, Spain
Academic Editor: Lorenzo Iorio
Received: 18 June 2015 / Accepted: 24 July 2015 / Published: 30 July 2015

Abstract

: In this paper, we consider an extended version of Whitehead’s theory of gravity in connection with the flyby anomaly. Whitehead’s theory is a linear approximation defined in a background Minkowski spacetime, which gives the same solutions as standard general relativity for the Schwarzschild and Kerr metrics cast in Kerr–Schild coordinates. For a long time and because it gives the same results for the three classical tests—perihelion advance, light bending and gravitational redshift—it was considered a viable alternative to general relativity, but as it is really a linear approximation, it fails in more stringent tests. The model considered in this paper is a formal generalization of Whitehead’s theory, including all possible bilinear forms. In the resulting theory, a circulating vector field of force in the low velocities' approximation for a rotating planet is deduced, in addition to Newtonian gravity. This extra force gives rise to small variations in the asymptotic velocities of flybys around the Earth to be compared to the recently reported flyby anomaly.
Keywords:
experimental tests of gravitational theories; modified theories of gravity; perihelion precession
PACS classifications:
04.80.-y; 04.80.Cc; 04.50.Kd

1. Introduction

A few years after Einstein’s epic proposal of the general theory of relativity, there was an attempt to formulate an alternative theory without the methodological complications of general relativity concerning the modification of spacetime geometry. This theory was developed by A. N. Whitehead, best known for his work in philosophy, in a book entitled The Principle of Relativity [1,2]. Whitehead was interested in preserving the underlying Minkowski geometry as the real structure of spacetime, while gravitation was understood as a symmetric covariant tensor g μ ν , μ, ν = 0 , 1 , 2 , 3 , which is not related to spacetime’s topology, but is invariant under the Poincaré group.

The effect of this tensor field manifests itself through the equations of motion of test particles defined in terms of the geodesic lines generated by the Christoffel symbols associated with the tensor g μ ν . To build his proposal for the field tensor, Whitehead begins defining the null vector:

L α = x α - x ^ α
where x α are the spacetime coordinates of the test particle and x ^ α are the coordinates of the intersection of the past cone corresponding to the event x α and the world-line, W, of the point-like source. If u α is the fourth velocity along this world-line, we also define the scalar r and the reduced null vector l α as follows:
r = - u α L α l α = 1 r L α

Whitehead’s proposal is not a proper field theory, but instead, it is entirely based on the following symmetric covariant tensor:

g μ ν = η μ ν - 2 G m c 2 r l μ l ν
where η μ ν is the diagonal Minkowski metric: η 00 = - 1 , η 11 = η 22 = η 33 = 1 , η μ ν = 0 , μ ν . For a point-like mass source at rest, the tensor g μ ν is given by:
g i j = δ i j + 2 G m c 2 r 3 x i x j
g i 0 = - 2 G m c 2 r 2 x i
g 00 = - 1 - 2 G m c 2 r

Eddington noticed that this metric can be transformed into the standard Schwarzschild metric with coordinates ( T , r , θ , ϕ ) by the transformation:

t = T - M ln r 2 M - 1

Moreover, Russell and Wassermann [3,4] showed that the Kerr solution for a rotating black hole is of Whitehead’s form when expressed in terms of advanced null coordinates. This is not strange, because the tensor in Equation (3) is written in the Kerr–Schild form [5]. A consequence of this mathematical similarity is that Whitehead’s theory makes the same predictions as Einstein’s GR for the so-called classical tests: the bending of stellar light rays grazing the surface of the Sun, the anomalous advance of Mercury’s perihelion and gravitational redshift [2]. On the other hand, Shapiro’s echo delay [6] and the most recent test for the geodetical and gravitomagnetic precession of orbiting superconducting gyroscopes transported by the Gravity Probe B [7,8] are also in agreement with Whitehead’s theory, as well as GR [10].

For all of these reasons, Whitehead’s theory has been greatly valued for many decades after its formulation in 1922 [2,11,12]. Thirty years later, a series of lectures was given by Synge, who still recognized this alternative as a serious contender to GR as the fundamental theory of gravity [2]. However, other authors showed later on that anti-damping of binary pulsars' orbits is also predicted in contrast to the ( v / c ) 5 damping effect of GR due to the radiation of gravitational waves. The GR prediction was proven right, beyond any doubt, in the careful observations of the pulsar B1913+16 by Hulse and Taylor [9,10]. Anisotropy in the gravitational constant, violations of the weak equivalence principle and Birkhoff’s theorem have also been invoked as irrecoverable inconsistencies with experience in Whitehead’s model [10].

Being a linear model, it is not surprising that incorrect predictions arise when applied to strong fields, but there are still reasons to study it, because some important phenomena not contemplated by GR could be revealed at this level. For example, Coleman suggested that a distortion of the Coulomb potential near the mass of the Sun, predicted by Whitehead’s theory, could explain the, still unexplained, Limb effect (the difference between the redshift of a line emitted at the center of the solar disk and the average of the redshift of lines emitted at the east and west sides of the solar disk) [2,14,15].

In this paper, we consider an extension of Whitehead’s theory in terms of the more general Poincaré invariant tensor, h μ ν , including the l α vector and the fourth velocity of the source, u α . The objective of this paper is to show that this extended theory predicts an anomalous variation in the velocity of a spacecraft flying by the Earth. This is to be compared, in sign and order of magnitude, to the recently-reported anomalous orbital-energy changes in several gravity assist maneuvers involving flybys of the Earth [16,17].

2. The Extended Whitehead Theory

In this section, we briefly review the proposal of an extended Whitehead formalism as given by Bel [22,23]. Firstly, we define the fourth velocity u α for a point source moving in a Galilean frame of reference, α = 0 , 1 , 2 , 3 . A particular event in the trajectory of the source is denoted by x ^ α , while an event in the future of x ^ α , where we want to calculate the gravitational field, is denoted by x α . By using all possible combinations of l α as defined in Equation (2) and the fourth velocity, u α , we arrive at the following expression for the symmetric tensor g μ ν :

g μ ν = η μ ν + 1 r A 0 u μ u ν + A 1 η μ ν + A 2 l μ u ν + l ν u μ - A 3 l μ l ν
where η μ ν denotes Minkowski’s metric as usual and A 0 ,..., A 3 are constants to be determined in order to agree with observations. In the first place, the condition imposed by Einstein’s vacuum equations, R μ ν = 0 , can be used to find the relation A 0 = 2 ( A 1 - A 2 ) . Consistency with the Newtonian limit also implies that A 1 - A 3 = 2 G m , G being the gravitational constant and m the mass of the source.

The equations of motion are given in terms of the Christoffel symbols:

d w μ d τ = - Γ ^ μ α β w α w β
where τ is the proper time, w μ is the fourth velocity of the test particle and Γ ^ μ α β are the Christoffel symbols in the linear approximation:
Γ ^ μ α β = 1 2 η μ λ ^ α h β λ + ^ β h α λ - ^ λ h α β
where the hat superscript denotes Synge’s derivatives defined as follows:
^ α = δ α β + 1 r u β L α β

If the spatial components of the velocities are small compared to the speed of light, we have the following simplification (as deduced by Bel [23]):

d w i d t = - G m L 3 L i + G m c L 2 u i - 3 L i u i L 2 L i = f i
where L 2 = L i L i and w i , u i , i = 1 , 2 , 3 are, respectively, the spatial components of the velocity of the test particle and the source. We now consider two cases: a source moving with uniform velocity and a uniformly rotating source. We are going to see that only in the second case (corresponding to rotational acceleration), effects different from the Newtonian prediction are found.

2.1. A Source Moving at Constant Speed

We consider a point-like source moving at constant speed V along the x axis of an inertial system of reference, S. The location of the source at time t 0 is x ^ ( t 0 ) = V t 0 , y ^ = z ^ = 0 , as shown in Figure 1. We are interested in calculating the gravitational acceleration induced upon a test particle located at point P at time t, with coordinates x, y, z.

The velocity of the test particle is given by u x = V , u y = u z = 0 . We can now use Equation (12) to calculate (to first order in V / c ) the acceleration of a test particle located at P at time t. A straightforward calculation of the retarded terms yields:

d w x d t = - G M L 3 ( t ) x - V t
d w y d t = - G M L 3 ( t ) y
d w z d t = - G M L 3 ( t ) z
where we have ignored terms O ( ( V / c ) 2 ) and the relation among the retarded and present distances has been used:
L ( t 0 ) = L ( t ) + x - V t V c + O V c 2

Therefore, from Equations (13)–(15), we deduce that the gravitational forces exerted upon the test particle in point P apparently emanate from the present position of the source as it would happen in Newton’s theory of action at a distance. This was already pointed out (in the context of a Lorentz-invariant model of gravity) by Poincaré [18]. Aberration is also absent in general relativity up to order O ( V 3 / c 3 ) [21]. In the next section, we see that, in the case of accelerating sources, extra non-Newtonian forces appear.

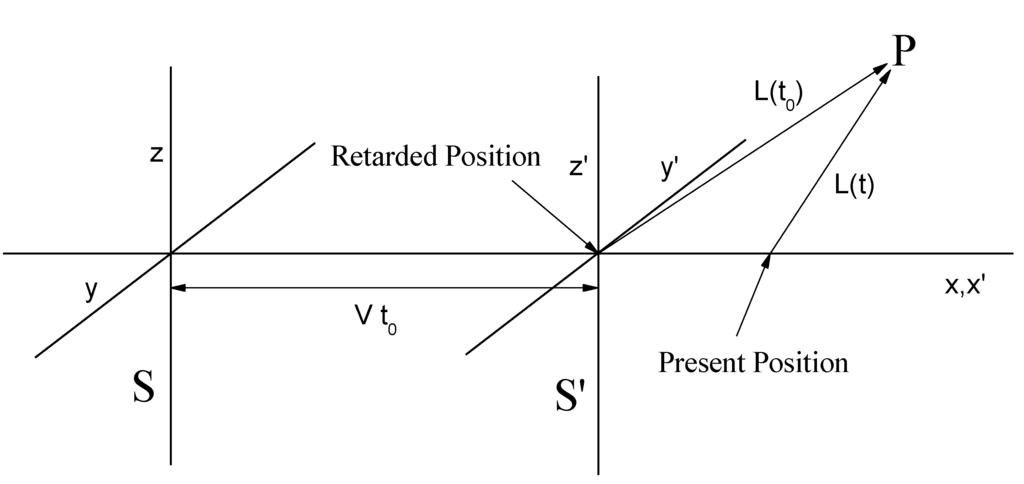

Figure 1. Two inertial systems of reference: S and S . The source is at the origin of S , which moves at constant speed V in the x direction with respect to S. L ( t 0 ) is the retarded path to the test particle at P, and L ( t ) is the distance from the present position of the source at the time t (we are interested in measuring the gravitational force at this time, t).
Figure 1. Two inertial systems of reference: S and S . The source is at the origin of S , which moves at constant speed V in the x direction with respect to S. L ( t 0 ) is the retarded path to the test particle at P, and L ( t ) is the distance from the present position of the source at the time t (we are interested in measuring the gravitational force at this time, t).
Galaxies 03 00113 g001 1024

2.2. The Uniformly-Rotating Source

The velocity of an element of mass at a distance r from the center of a rotating planet can be written as follows:

u 1 = - ω r sin θ sin ϕ u 2 = ω r sin θ cos ϕ u 3 = 0
ω being the rotational angular velocity of the planet. Here, the third axis corresponds to the rotation axis of the planet. We have also that:
L 1 = D cos δ - r sin θ sin ϕ L 2 = - r sin θ cos ϕ L 3 = D sin δ - r cos θ
where D denotes the distance of the test particle from the center of the planet. By integrating f i in Equation (12) over the whole volume of the planet, assumed of uniform density, we obtain the following components of the force acting upon the test particle [23]:
F 1 = - G m D 2 cos δ
F 2 = - G m D 2 ω R 2 5 D c cos δ
F 3 = - G m D 2 sin δ
where δ is the declination of the test particle. Notice that Equations (19) and (21) correspond to the standard Newtonian force, but Equation (20) is an extra force term perpendicular to the planes of constant right ascension. In the next section, we will show that this non-Newtonian term gives rise to an anomalous variation of the asymptotic flyby velocities of the same order of magnitude as those studied by Anderson et al. [16].

We must also take into account that the approximation in Equation (20) is only good for D R , and it can become quite crude when the spacecraft is close to the perigee. In this region, the integration over the mass elements of the Earth (considered of uniform density) must be calculated numerically. The expression for the non-Newtonian force is then given by:

F 2 = 3 G M 4 π R 2 ω R c 0 1 d r 0 π d θ 0 2 π d ϕ F ( x , d , θ , ϕ , δ ) x 2 sin 2 θ
where d = D / R and:
F ( x , d , θ , ϕ , δ ) = x sin θ cos ϕ Q ( x , d , θ , δ ) - x d sin θ cos δ ( 2 + sin 2 ϕ ) Q ( x , d , θ , δ ) - 2 x d sin θ cos ϕ cos δ 2
with:
Q ( x , d , θ , δ ) = x 2 + d 2 - 2 x d cos θ sin δ

In Section 4, we will compare the results of the simplified perturbing force in Equation (20) and the exact one in Equation (22) obtained by numerical integration.

3. Idealized Polar Flyby

In this section, we consider an idealized polar flyby in which the trajectory of the spacecraft is confined to a plane perpendicular to the equator and containing the center of the Earth. For this particular orbit, the calculations can be performed explicitly, and it can, approximately, be applied to the NEAR flyby of 23 January 1998. This ideal trajectory is plotted in Figure 2.

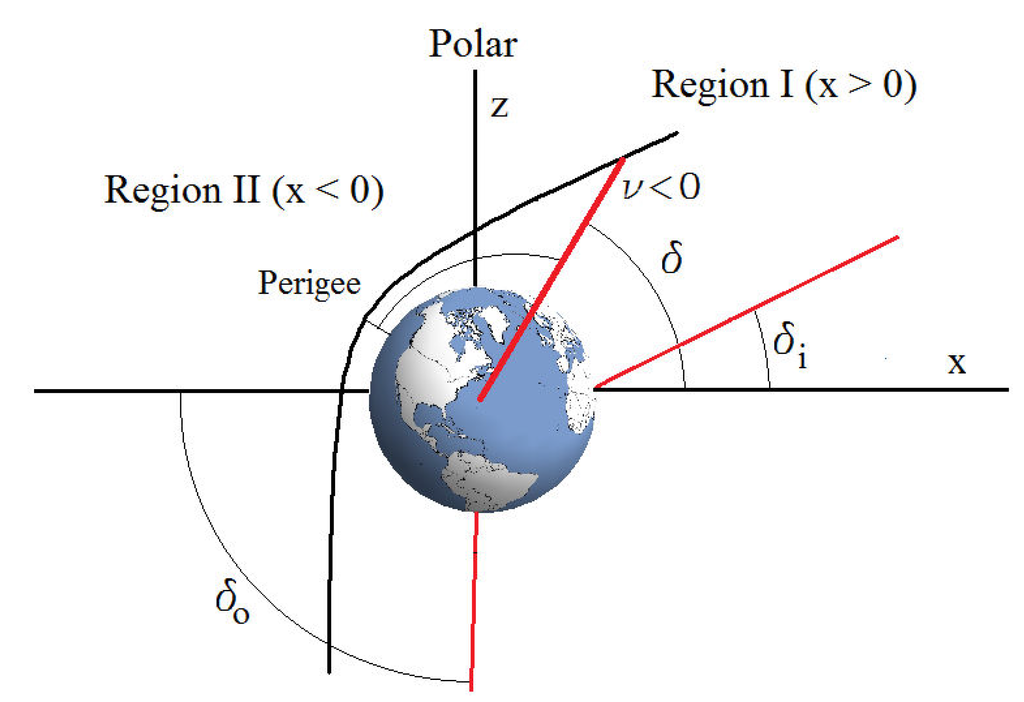

Figure 2. An ideal flyby in a plane with constant right ascension, α. The true anomaly is denoted by ν; ϕ is the perigee’s latitude, and δ i , δ o are the declinations for the incoming and outgoing directions, respectively. The Region I( I I ) corresponds to the section of the orbit with ν < ν pole , ν > ν pole , where ν pole is the true anomaly of the orbital point located just in the rotation axis of the Earth.
Figure 2. An ideal flyby in a plane with constant right ascension, α. The true anomaly is denoted by ν; ϕ is the perigee’s latitude, and δ i , δ o are the declinations for the incoming and outgoing directions, respectively. The Region I( I I ) corresponds to the section of the orbit with ν < ν pole , ν > ν pole , where ν pole is the true anomaly of the orbital point located just in the rotation axis of the Earth.
Galaxies 03 00113 g002 1024

We now consider a perturbing force of the form mentioned in the previous section for D R :

F = A D 3 sin θ ϕ ^
where A = - G M ω R 2 / ( 5 c ) , M being the mass of Earth and R its radius. We have also used the polar angle for convenience, because, in this ideal orbit, the polar angle, θ, and the declination, δ, are complementary, δ = π / 2 - θ . The perturbing force in Equation (25) is a circulating vector field that follows the celestial parallels, i.e., the sign of the component F 2 changes when we consider the reversal of the x, y coordinates in the Earth’s equatorial plane.

The impulse imparted to the spacecraft by this non-Newtonian gravitational interaction yields the total variation of the velocity vector:

Δ v = - F d t
where F denotes the perturbing force. To perform this integral, it is useful to recall some useful relations in celestial mechanics [19,20]:
d t = T ( ϵ cosh u - 1 ) d u = T ( ϵ 2 - 1 ) 3 / 2 1 1 + ϵ cos ν 2 d ν
where u is the eccentric anomaly, ν is the true anomaly, ϵ is the orbital eccentricity and T = - a 3 / ( G M ) is the characteristic timescale of the hyperbolic Keplerian orbit. The distance from the spacecraft to the center of the Earth can also be written as follows:
D = | a | ϵ 2 - 1 1 + ϵ cos ν
with a < 0 denoting the semi-major axis. We must also take into account that the polar angle, θ, is related to the true anomaly, ν, by different expressions in Region I ( ν i ν ν pole ) and Region I I ( ν pole ν ν o ):
θ = ϕ - ν - π 2 , for   ν i ν ν pole θ = π 2 + ν - ϕ , for   ν pole ν ν o

By using Equations (25)–(29), we deduce the variation of the component of the spacecraft’s velocity normal to the osculating plane arising from the perturbing force in Equation (25):

Δ v y = T A | a | 3 ν i ν o ( 1 + ϵ cos ν ) cos ( ν - ϕ ) ( ϵ 2 - 1 ) 3 / 2 d ν
in which the prefactor can also be simplified to:
T A | a | 3 = - ω R 5 c R T

The explicit evaluation of the integral in Equation (30) finally yields:

Δ v y = ω R c R 5 T 1 ( ϵ 2 - 1 ) 3 / 2 I ν i , ν o
where:
I ν i , ν o = sin ( ν o - ϕ ) - sin ( ν i - ϕ ) + ϵ 2 ν o - ν i cos ϕ + ϵ 4 sin ( 2 ν o - ϕ ) - sin ( 2 ν i - ϕ )

Notice that the incoming and outgoing true anomalies can be obtained in terms of the declinations of the initial and final directions of the spacecraft and the latitude of the perigee:

ν i = δ i + ϕ - π ν o = ϕ - δ o

The phenomenological fitting suggested by Anderson et al. [16] for the anomalous perturbation in the asymptotic velocity of the spacecraft flying by the Earth can be written as follows:

Δ V = 2 ω R c | a | T ( cos δ i - cos δ o )

The prefactor in Equation (35) is of the same order of magnitude as the one in Equation (32), because for flybys grazing the Earth, the semi-major axis is not very different from the Earth’s radius. Another interesting feature of Equation (33) is that it becomes null for a symmetric flyby over the poles corresponding to ϕ = ± π / 2 , ν i = - ν o . This is also predicted by Anderson’s phenomenological formula.

The ratio of the Earth’s equatorial velocity and the speed of light is ω R / c = 1 . 5454 × 10 - 6 . The parameters for the NEAR and other flybys are listed in Table 1. Using Equations (29), (32) and (33) with these parameters for NEAR, we get | Δ v y | = 1 . 232 mm/s, i.e, approximately 10% of the observed value amounting to 13 . 46 mm/s, which, on the other hand, is fitted well by Anderson’s formula in Equation (35).

Table 1. Parameters for the spacecraft flybys of the Earth: date corresponding to the perigee, eccentricity (ϵ), semi-major axis (a), polar angle for the incoming ( θ in ) and outgoing ( θ out ) directions, polar angle for the perigee ( θ p ), velocity at closest approach, V p , right ascension for the perigee ( α p ) and orbital inclination, I.
Table 1. Parameters for the spacecraft flybys of the Earth: date corresponding to the perigee, eccentricity (ϵ), semi-major axis (a), polar angle for the incoming ( θ in ) and outgoing ( θ out ) directions, polar angle for the perigee ( θ p ), velocity at closest approach, V p , right ascension for the perigee ( α p ) and orbital inclination, I.
SpacecraftDateϵa (km) θ in θ out θ p V p (km/s) α p I
NEAR1/23/19981.8135-8494.8769.24°161.96°57°12.74358.25°108°
Galileo I12/8/19902.4729-4977.2477.48°124.25°64.8°13.7411.48°142.9°
Galileo II12/8/19922.3194-5058.3155.74°94.87°123.8°14.0877.56°138.7°
Cassini8/18/19995.8525-1555.09102.92°94.99°113.5°19.03221.90°25.4°
Rosetta3/4/20051.3118-26,710.992.8°124.29°69.8°10.52324.28°144.9°
Messenger8/2/20051.3606-24,174.8121.44°121.92°43.08°10.34347.94°133.05°
Juno9/10/20134.6489-3645.92104.21°50.59°123.39°13.01291.85°47.13°

4. Numerical Integration and Perturbations on Closed Orbits.

For the rest of the flybys, we can obtain the asymptotic perturbations in the outgoing velocity with respect to the ingoing velocity of the spacecraft by performing a numerical integration. We will also consider both the approximation for D R in Equation (20) and the exact result in Equations (22)–(24).

As has already been discussed in previous works [24], it is convenient to define a Cartesian system of reference anchored to the Earth in which the z axis is the rotation axis of the planet, x is directed towards the point of Aries (defined by the intersection of the ecliptic and equatorial planes) and y is finally chosen to form a right-handed system.

We also define the non-dimensional time τ = t / T , radio vector r = δ r / | a | and velocity v = T δ v / | a | . The perturbations in the spacecraft position and velocity are then obtained by solving the following equations of motion:

d δ r d τ = δ v d δ v d τ = a E + a w
where a w is the anomalous acceleration imparted by the extra effect predicted by the extended Whitehead theory as given in Equation (25) and a E is the perturbation in the Newtonian acceleration imparted by the Earth as a consequence of the deviation of the trajectory from the Keplerian hyperbolic orbit [24]. Integrations are performed by using the eccentric anomaly variable, which runs from u = - to u = during the flyby. The distance to the center of the Earth is then expressed as in Equation (28), and the polar angle can be calculated as:
cos θ = r · k ^ | r |
where r is the orbital radio vector of the spacecraft. We can approximate r by the position in the ideal hyperbolic orbit:
r ( u ) = a ( cosh u - ϵ ) s ^ - a ϵ 2 - 1 sinh u n ^
where u is the eccentric anomaly, s ^ is a unit vector pointing from the center of the Earth towards the perigee and n ^ is another unit vector in the osculating plane of the orbit at perigee, normal to s ^ and pointing towards the incoming direction of the flyby [24].

From Equations (25) and (36), we can write explicitly the system of equations that we have used to integrate the motion of the spacecraft:

d δ r d τ = δ v d δ v d τ = - δ r D 3 + 3 D · δ r D D 5 - ω R 5 c R | a | sin θ D 3 ϕ ^
where D is the radio vector of the spacecraft from the center of the Earth (in units of the semi-major axis, | a | ) for the unperturbed Keplerian orbit as given in Equation (38). Instead of the scaled time, τ, we use the eccentric anomaly, u, as the integration variable. The relation among these two variables is given by:
τ = ϵ sinh u - u

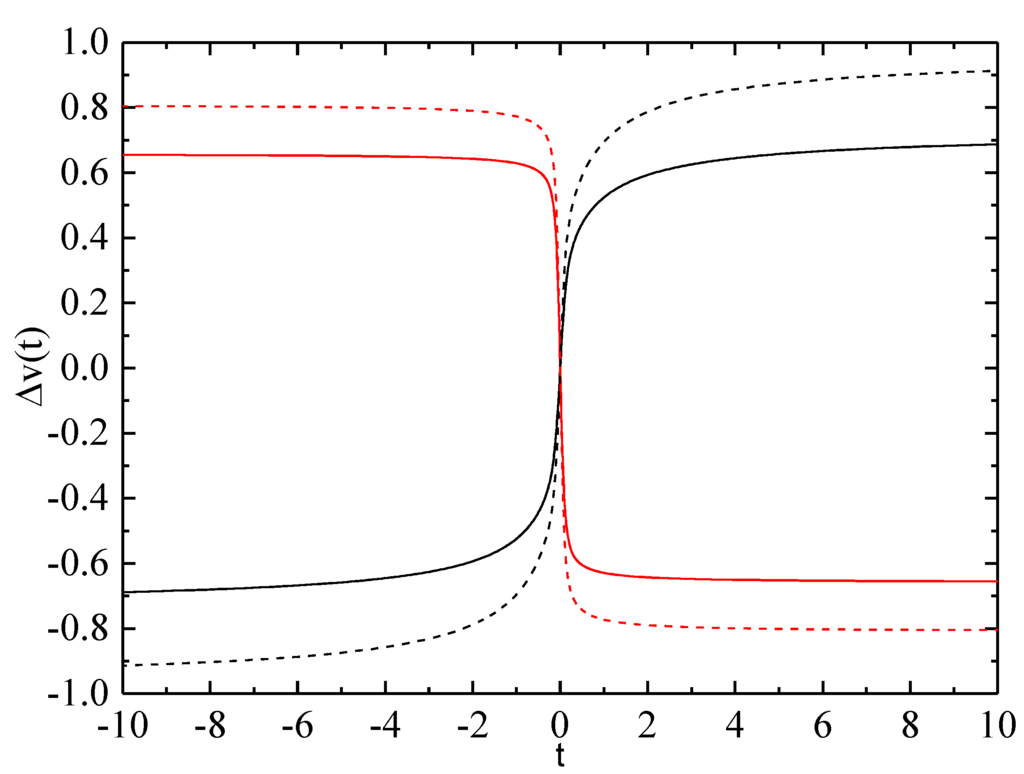

In Figure 3, we have plotted the results for the NEAR and Cassini flybys. In the case of the NEAR flyby, a small increase of 1 . 454 mm/s is obtained, and for the Cassini flyby, we have a decrease of - 1 . 317 mm/s in the interval running from u = - 5 to u = 5 , which corresponds to 44 . 63 hours before and after the flyby for NEAR and 11 . 58 hours for Cassini. If we use the force integral in Equation (22), we find the values 1 . 922 mm/s and - 1 . 615 mm/s for NEAR and Cassini, respectively. The results in Figure 3 for the anomalous variation of the velocity modulus are expressed in terms of time, t, in hours. Notice that most of the variation is taking place two hours before and after the instant of closest approach.

Figure 3. Perturbation in the modulus of the orbital velocity (in mm/s) as a consequence of the force term in Equation (25) vs. time (in hours). The black and red lines correspond to the NEAR and Cassini flybys, respectively. Dashed lines correspond to the integration using the exact expression of the force in Equation (22). The perigee ( t = 0 ) has been taken as the reference to determine the osculating plane containing the ideal Keplerian orbit.
Figure 3. Perturbation in the modulus of the orbital velocity (in mm/s) as a consequence of the force term in Equation (25) vs. time (in hours). The black and red lines correspond to the NEAR and Cassini flybys, respectively. Dashed lines correspond to the integration using the exact expression of the force in Equation (22). The perigee ( t = 0 ) has been taken as the reference to determine the osculating plane containing the ideal Keplerian orbit.
Galaxies 03 00113 g003 1024

In Table 2, we compare the predictions of the model (from Equations (25) and (22)) with the values deduced from the analysis of Doppler residuals and the fitting obtained by Anderson et al. [16]. In Figure 4, we compare the scaled perturbing force, normalized with the factor a 2 / ( G M ) ( ϵ cosh u - 1 ) , for the rigorous expression in Equation (22) and the approximation of Equation (25) for the Cassini flyby. As this spacecraft reached its perigee only at 303 km from Earth’s surface, we see that the approximation D R is quite crude. However, the impact on the total perturbation is not very noticeable.

Table 2. Observed increments/decrements of the asymptotic velocity of several spacecraft during flybys of the Earth (first column) compared to the prediction of Anderson’s formula in Equation (35) and the result of the extended Whitehead theory.
Table 2. Observed increments/decrements of the asymptotic velocity of several spacecraft during flybys of the Earth (first column) compared to the prediction of Anderson’s formula in Equation (35) and the result of the extended Whitehead theory.
Spacecraft Δ v obs Δ v Anderson Δ v Whitehead Equation (25) Δ v Whitehead Equation (22)
NEAR13.4613.281.4541.922
Galileo I3.924.122.3893.015
Galileo II-4.6-4.672.7413.815
Cassini-2-1.07-1.317-1.615
Rosetta1.802.075.1876.046
Messenger0.020.063.7014.236
Junonot reported yet6.38-0.497-0.523

The agreement is reasonable in the case of the Cassini and Galileo II flybys, but is far too small for NEAR. However, from a theoretical standpoint, it is remarkable that such an effect can be derived from minimum premises as those assumed in Whitehead’s theory [2] and the extension by Bel [22,23].

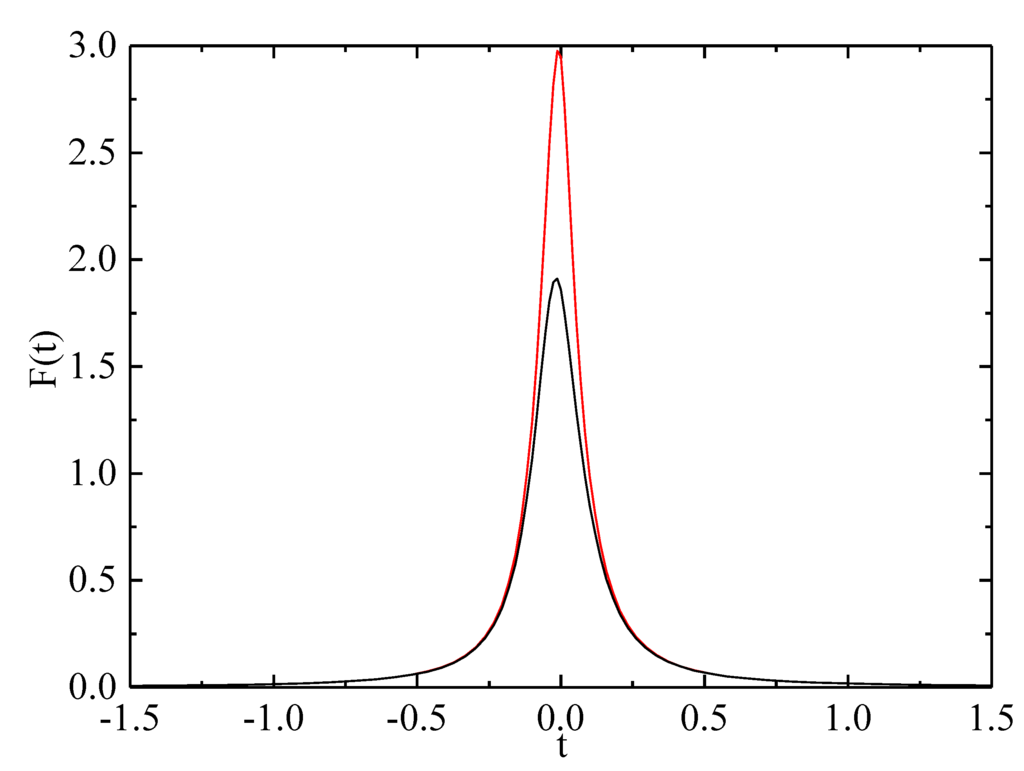

Figure 4. Scaled perturbing forces for the Cassini flyby. The red line corresponds to the predictions of Equation (22) and the black line to those of Equation (25). Notice that there is a remarkable difference at the perigee, t = 0
Figure 4. Scaled perturbing forces for the Cassini flyby. The red line corresponds to the predictions of Equation (22) and the black line to those of Equation (25). Notice that there is a remarkable difference at the perigee, t = 0
Galaxies 03 00113 g004 1024

We could also point out that, according to the perigee altitude, h, flybys can be classified in two groups: (i) low-altitude flybys: Galileo I ( h = 960 km), Galileo II ( h = 303 km) and NEAR ( h = 539 km); and (ii) high-altitude flybys: Cassini ( h = 1175 km), Rosetta ( h = 1956 km) and Messenger ( h = 2397 km). It is remarkable that the absolute value of the flyby anomaly is larger for the members of the first group [16]. However, we have insufficient data to assess the statistical significance of this hypothesis. On the other hand, it seems that, if the flyby anomaly is the result of putative unknown interaction, this should decrease very quickly with the distance to the center of the Earth. The dipole-like interaction in Equation (25) resulting from the extended Whitehead model exhibits a 1 / r 3 dependence, which, apparently, conforms to this hypothesis, but the dependence of the perturbation induced by this perturbation on the orbital orientation cannot be ignored. On the other hand, the predictions listed in Table 2 disagree with the a priori classification, emphasizing the importance of orbital orientation for this particular interaction.

The problem with this model, and others proposed so far, is that the large magnitude of the flyby anomaly seems incompatible with our present knowledge of the Earth’s gravitational field derived from the motion of artificial satellites and the Moon. In the next section, we will show that, if the perturbation force field derived in Equation (25) is also affecting the Moon’s motion, the result would be totally inconsistent with radar and laser ranging measurements.

4.1. Perturbations on the Moon’s Orbit

Although the results in the previous section seem promising, we must also check the effects upon circular orbits. For a tangential perturbing force, as given in Equation (25), the variation of the semi-major axis is given by [19,20]:

d a d t = 2 a 2 G M r ϕ ˙ T
where r ϕ ˙ is the tangential velocity and T is the tangential component of the perturbing force. For the particular case of a circular orbit in the equatorial plane, we have:
d a d t = - 2 5 G M a ω R c R a
where R is the radius of the Earth, ω is its angular velocity, M is the mass of the Earth and a is the orbital radius. In the Earth-Moon system, we have, approximately, G M = 398 , 600 . 4 km3/s2, a = 384 , 400 km, ω = 7 . 292 × 10 - 5 rad/s and R = 6371 km. From these values, we deduce | d a / d t | = 329 . 23 m per year, which is clearly in disagreement with the observations. For a comparison with this large prediction for the variation of the Earth-Moon distance, it is known that tidal effects imply an average receding rate of the Moon from the Earth of 0 . 038 m per year [25]. We conclude that this is an unrealistic prediction of the linear approximation in Equation (8) despite any compatibility with the flyby anomaly observations.

5. Conclusions

The flyby anomaly is a lingering problem in astrodynamics since its first detection in the post-encounter radio data generated for the Galileo I flyby on 8 December 1990. Increments and decrements in the asymptotic velocity of spacecraft flying by the Earth have been found for many maneuvers of this kind in the last twenty five years. In 2008, Anderson et al. [16] proposed their empirical formula fitting the results for six flybys that have taken place in the period 1990–2005. This formula relates the ratio among the anomalous variation of the spacecraft’s velocity and the total asymptotic velocity with the linear velocity of the Earth’s equator divided by the speed of light and the variation of the cosine of the declination of the incoming and outgoing velocity vectors. Despite its simplicity, it fits reasonably well with the data known at the time.

Anderson’s formula is important because it may indicate that this anomaly has not a systematic origin, but it could be modeled by an unknown interaction. On the other hand, a theoretical substantiation of this claim is still lacking. Some recent unconventional proposals for a possible explanation of the anomaly include: a halo of dark matter around the Earth [28], anomalous couplings to the gravitational potential vector of the linearized theory [29] or a circulating gravitomagnetic field [30]. Lämmerzahl et al. [31] considered several other conventional effects: atmospheric friction, ocean and solid tides, spacecraft charge, magnetic moment, Earth albedo, solar wind and spin-rotation coupling, but they were found insufficient to explain the anomaly. Iorio has also studied the effect of zonal harmonics at the Newtonian and post-Newtonian level, but their effects have also been found small to account for a variation of a few mm/s in the outgoing velocity with respect to the incoming velocity of the spacecraft [32]. The same can be said of the gravitomagnetic and gravitoelectric effects in standard general relativity [33].

A systematic or more subtle error in the analysis of the data for the flybys would be the easier explanation. However, if any computational error or conventional explanation is finally discarded, this creates a very fundamental problem in gravitational physics. The observed changes in energy referred to the system of reference of the Earth are really very large in the context of our present knowledge of gravitation in the solar system. This means that it is difficult to find an expression for a putative unknown interaction explaining the flyby anomaly without giving rise to non-observed perturbations in the bound orbits of artificial satellites or the Moon.

In this paper, we have considered a modified version of Whitehead’s theory, first introduced in 1922. In this theory, a transversal perturbing force appears in the proximity of a rotating planet, and we have shown that this force gives rise to an anomalous increase (or decrease, in certain cases) of the velocity of spacecraft flying by. The order of magnitude of this effect coincides with the observations, and the values and sign are similar in some cases (but not all). However, we also show that such a force extrapolated to the orbit of the Moon implies an extraordinarily large rate of variation for the semi-major axis. Consequently, we must conclude that extra forces, as that suggested in Equation (25), are not compatible with all of the observations, including bound orbits. We must notice that such a hypothetical interaction should also be compatible with some, recently discovered, planetary anomalies [17].

Nowadays, laser ranging allows for a very precise determination of the orbit of the Moon and that of the geodynamic satellites, such as LAGEOS and LARES [34,35,36,37,38,39]. With this powerful experimental tool, it has been shown that the Moon recedes from the Earth at a rate of 38 mm per year as a consequence of the tidal interaction with the Earth. Determination of the Lense–Thirring effect has even been possible by combining the data of the LAGEOS and LAGEOS II satellites [40,41]. Further insight will be surely obtained with the STE-QUEST mission [42], specially dedicated to gravitation research, whose launch is projected for the next decade. This mission is particularly suited for probing the anomaly, because the satellite is intended to describe a highly eccentric orbit whose perigee will change from an altitude of 700 km to 2000 km, precisely in the range of the flybys analyzed so far.

The task and challenge for the near future is to find a model capable of fitting all of the data for the flyby anomaly without conflicting with the precise measurements for bound orbits. It seems that such extra force should have larger effects for highly eccentric orbits with low perigees. This is not the case for the predictions of the generalized Whitehead model discussed in this paper, but we have shown that a theoretical foundation of this paradoxical anomaly is possible.

Moreover, a clearly-defined consequence of the extended Whitehead model is a direct proportionality of the possible new interaction, causing the flyby anomaly, with the total angular momentum of the planet. In connection with this prediction, the Juno spacecraft is planned to be captured in a highly eccentric elliptic orbit around Jupiter in July 2016 ( e = 0 . 94 ). Some studies have shown that the standard Lense–Thirring and other effects predicted by general relativity are a possible result to be found [43,44,45,46,47]. Juno’s orbital periapsis will be located at 6% of the planetary radius, and the apoapsis is expected to be reached at 20-times Jupiter’s radius. If we take into account that the rotational angular momentum of Jupiter is five orders of magnitude larger than that of the Earth, we are also at ideal conditions for studying the flyby anomaly. This data could prove essential for further understanding of this anomalous effect, and if the anomaly is detected, it surely will attract more interest to the problem. We hope that further alternatives will be explored in order to achieve the convergence of the theoretical and experimental approaches for the solution of this dilemma in gravitational physics.

Acknowledgments

The author gratefully acknowledges Ll. Bel for suggesting the topic of this paper and the very thorough revision of the manuscript. The NASA Astrophysics Data System is also acknowledged for providing some references. Ephemerides used in this work were obtained from the NASA Horizons web interface.

Conflicts of Interest

The author declares no conflict of interest.

References

  1. Whitehead, A.N. The Principle of Relativity; Cosimo, Inc.: New York, NY, USA, 2007. [Google Scholar]
  2. Coleman, A.J. Whitehead’s principle of Relativity. 2005. arXiv:physics/0505027v2. [Google Scholar]
  3. Russell, R.; Wassermann, C. Kerr solution of Whitehead’s theory of gravity. Bull. Am. Phys. Soc. 1987, 32, 90. [Google Scholar]
  4. Russell, R.; Wassermann, C. A Generalized Whiteheadian Theory of Gravity: The Kerr Solution, unpublished paper, 1986. Available online: http://www.ctr4process.org/publications/ProcessStudies/PSS/2004-6-Russell-Wasserman-A_Generalized_Whiteheadian_Theory _of_Gravity.pdf (accessed on 15 May 2015).
  5. Kerr, R.P.; Schild, A. Some algebraically degenerate solutions of Einstein’s gravitational field equations. Proc. Symp. Appl. Math. 1965, 17, 199–209. [Google Scholar]
  6. Shapiro, I.I. Fourth test of general relativity. Phys. Rev. Lett. 1964, 13, 789–791. [Google Scholar] [CrossRef]
  7. Everitt, C.W.F.; DeBra, D.B.; Parkinson, B.W.; Turneaure, J.P.; Conklin, J.W.; Heifetz, M.I.; Keiser, G.M.; Silbergleit, A.S.; Holmes, T.; Kolodziejczak, J.; et al. Gravity Probe B: Final Results of a Space Experiment to Test General Relativity. Phys. Rev. Lett. 2011, 106, 221101. [Google Scholar] [CrossRef]
  8. Everitt, C.W.F.; Adams, M.; Bencze, W.; Buchman, S.; Clarke, B.; Conklin, J.W.; DeBra, D.B.; Dolphin, M.; Heifetz, M.; Hipkins, D.; et al. Gravity Probe B Data Analysis: Status and Potential for Improved Accuracy of Scientific Results. Space Sci. Rev. 2009, 148, 53–69. [Google Scholar] [CrossRef]
  9. Sivaram, C. The Hulse-Taylor binary pulsar PSR1913+16. Bull. Astr. Soc. India 1995, 23, 77–83. [Google Scholar]
  10. Gibbons, G.; Will, C.M. On the multiple deaths of Whitehead’s Theory of Gravity. Stud. Hist. Phil. Mod. Phys. 2008, 39, 41–61. [Google Scholar] [CrossRef]
  11. Bain, J. Whitehead’s Theory of Gravity. Stud. Hist. Phil. Mod. Phys. 1998, 29, 547–574. [Google Scholar] [CrossRef]
  12. Reinhardt, M.; Rosenblum, A. Whitehead contra Einstein. Phys. Lett. A 1974, 48, 115–116. [Google Scholar] [CrossRef]
  13. Hentschel, K. The conversion of St. John: A Case Study on the Interplay of Theory and Experimen. In Einstein in Context; Beller, M., Cohen, R.S., Renn, J., Eds.; Cambridge University Press: Cambridge, UK, 1993. [Google Scholar]
  14. Hunter, A. The Solar Limb Effect. Mon. Not. R. Astr. Soc. 1934, 94, 594–602. [Google Scholar] [CrossRef]
  15. Adam, M.G.; Ibbetson, P.A.; Petford, A.D. The Solar Limb Effect: Observations of line contours and line shifts. Mon. Not. R. Astr. Soc. 1976, 177, 687–708. [Google Scholar] [CrossRef]
  16. Anderson, J.D.; Campbell, J.K.; Ekelund, J.E.; Ellis, J.; Jordan, J.F. Anomalous Orbital-Energy Changes Observed during Spacecraft Flybys of Earth. Phys. Rev. Lett. 2008, 100, 091102. [Google Scholar] [CrossRef]
  17. Iorio, L. Gravitational anomalies in the solar system? Int. J. Mod. Phys. D 2015, 24, 1530015. [Google Scholar] [CrossRef]
  18. Poincaré, H. Sur la dynamique de l’électron. C. R. Acad. Sci. Paris 1905, 140, 1504–1508. [Google Scholar] [CrossRef]
  19. Danby, J.M.A. Fundamentals of Celestial Mechanics, 2nd ed.; Willmann-Bell, Inc.: Richmond, Virginia, USA, 1988. [Google Scholar]
  20. Pollard, H. Mathematical Introduction to Celestial Mechanics; Prentice-Hall Inc.: Englewood Cliffs, NJ, USA, 1966. [Google Scholar]
  21. Carlip, S. Aberration and the speed of gravity. Phys. Lett. A 2000, 267, 81–87. [Google Scholar] [CrossRef]
  22. Bel, L. A look inside the theory of the linear approximation. 2007. arXiv:gr-qc/0605057v3. [Google Scholar]
  23. Bel, L. A new look inside the theory of the linear approximation: Gravity assists and Flybys. Available online: http://www.lluisbel.com/upload/OnHold/FlyBys.pdf (accessed on 1 June 2015).
  24. Acedo, L. Second-Order Perturbations in Encke’s Method for Spacecraft Flybys. In Mathematical Modeling in Social Sciences and Engineering; Jódar, L., Cortés, J.C., Villanueva, R.J., Eds.; NOVA Publishers: Hauppauge, New York, 2014. [Google Scholar]
  25. Williams, J.G.; Boggs, D.H. Lunar Core and Mantle. What Does LLR See? In Proceedings of the 16th International Workshop on Laser Ranging, Poznan, Poland, 13–17 October 2008.
  26. Chapront, J.; Chapront-Touzé, M.; Francou, G. A new determination of lunar orbital parameters, precession constant and tidal acceleration from LLR measurements. Astron. Astrophys. 2002, 387, 700–709. [Google Scholar] [CrossRef]
  27. Williams, J.G.; Boggs, D.H.; Folkner, W.M. DE430 Lunar Orbit, Physical Librations, and Surface Coordinates. Jet Propulsion Laboratory IOM 335-JW, DB, WF-20080314-001 2013. Available online: http://proba2.sidc.be/aux/data/spice/docs/DE430_Lunar_Ephemeris_and_Orientation.pdf (accessed on 12 June 2015).
  28. Adler, S.L. Can the flyby anomaly be attributed to earth-bound dark matter? Phys. Rev. D 2009, 79, 023505. [Google Scholar] [CrossRef]
  29. Pinheiro, M.J. The flyby anomaly and the effect of a topological torsion current. Phys. Lett. A 2014, 378, 3007–3011. [Google Scholar] [CrossRef]
  30. Acedo, L. The flyby anomaly: a case for strong gravitomagnetism? Adv. Space Res. 2014, 54, 788–796. [Google Scholar] [CrossRef]
  31. Lämmerzahl, C.; Preuss, O.; Dittus, H. Is the physics of the Solar System really understood? In Lasers, Clocks and Drag-Free Control; Springer Berlin Heidelberg: Berlin, Germany, 2008; pp. 75–101. [Google Scholar]
  32. Iorio, L. A flyby anomaly for Juno? Not from standard physics. Adv. Space Res. 2014, 54, 2441–2445. [Google Scholar] [CrossRef]
  33. Iorio, L. The effect of General Relativity on Hyperbolic Orbits and Its Application to the Flyby Anomaly. Sch. Res. Exch. 2009, 2009, 807695. [Google Scholar] [CrossRef]
  34. Ciufolini, I.; Paolozzi, A.; Koenig, R.; Pavlis, E.C.; Ries, J.; Matzner, R.; Gurzadyan, V.; Penrose, R.; Sindoni, G.; Paris, C. Fundamental Physics and General Relativity with the LARES and LAGEOS satellites. Nucl. Phys. B (Proc. Suppl.) 2013, 243–244, 180–193. [Google Scholar] [CrossRef]
  35. Ciufolini, I.; Paolozzi, A.; Pavlis, E.; Ries, J.; Gurzadyan, V.; Koenig, R.; Matzner, R.; Penrose, R.; Sindoni, G. Testing general relativity and gravitational physics using LARES satellite. Eur. Phys. J. Plus 2012, 127, 133. [Google Scholar] [CrossRef]
  36. Renzetti, G. Are higher degree even zonals really harmful for the LARES/LAGEOS frame-dragging experiment? Can. J. Phys. 2012, 90, 883–888. [Google Scholar] [CrossRef]
  37. Renzetti, G. First results from LARES: An analysis. New Astron. 2013, 23, 63–66. [Google Scholar] [CrossRef]
  38. Renzetti, G. Some reflections on the Lageos frame-dragging experiment in view of recent data analyses. New Astronomy 2014, 29, 25–27. [Google Scholar] [CrossRef]
  39. Iorio, L.; Ruggiero, M.L.; Corda, C. Novel considerations about the error budget of the LAGEOS-based tests of frame-dragging with GRACE geopotential models. Acta Astronaut. 2013, 91, 141–148. [Google Scholar] [CrossRef]
  40. Iorio, L.; Lichtenegger, H.I.M.; Ruggiero, M.L.; Corda, C. Phenomenology of the Lense-Thirring effect in the Solar System. Astrophys. Space Sci. 2011, 331, 351–395. [Google Scholar] [CrossRef]
  41. Iorio, L. An Assessment of the Systematic Uncertainty in Present and Future Tests of the Lense-Thirring Effect with Satellite Laser Ranging. Space Sci. Rev. 2009, 148, 363–381. [Google Scholar] [CrossRef]
  42. Parámos, J.; Hechenblaikner, G. Probing the Flyby Anomaly with the future STE-QUEST mission. Planet. Space Sci. 2013, 79–80, 76–81. [Google Scholar]
  43. Iorio, L. Juno, the angular momentum of Jupiter and the Lense-Thirring effect. New Astro. 2010, 15, 554–560. [Google Scholar] [CrossRef]
  44. Tommei, G.; Dimare, L.; Serra, D.; Milani, A. On the Juno radio science experiment: models, algorithms and sensitivity analysis. Mon. Not. R. Astr. Soc. 2015, 446, 3089–3099. [Google Scholar] [CrossRef]
  45. Helled, R.; Anderson, J.D.; Schubert, G.; Stevenson, D.J. Jupiter’s moment of inertia: A possible determination by Juno. Icarus 2011, 216, 440–448. [Google Scholar] [CrossRef]
  46. Finocchiaro, S.; Iess, L.; Folkner, W.M.; Asmar, S. The Determination of Jupiter’s Angular Momentum from the Lense-Thirring Precession of the Juno Spacecraft. Proceedings of American Geophysical Union, Fall Meeting 2011, abstract #P41B-1620, Available online: http://adsabs.harvard.edu/abs/2011AGUFM.P41B1620F (accessed on 20 July 2015).
  47. Iorio, L. A possible new test of general relativity with Juno. Class. Quantum Gravity 2013, 30, 195011. [Google Scholar] [CrossRef]
Galaxies EISSN 2075-4434 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
