The Ongoing Deep Underground Measurement of ²²Ne(α,n)²⁵Mg at the Ion Beam Facility of the INFN-LNGS

Abstract

The ²²$\mathrm{Ne}$$(\alpha ,\mathrm{n})$²⁵$\mathrm{Mg}$ reaction is of major importance in nuclear astrophysics. It is the main neutron source for the weak s-process and as such is responsible for the nucleosynthesis of 60 < A < 90 elements. In addition, it provides a strong neutron burst during the later, hottest phases of the main s-process, which modifies the final nucleosynthesis products, especially at so-called branch points, which can be used to provide insight into the stellar interior at that time. The reaction rate needs to be known below ca. 900 keV, and due to the low cross-section at these energies, a direct measurement has so far proven to be severely hampered by external neutron background at the surface of the Earth. To solve this problem, a measurement campaign (the ERC-funded SHADES project) was recently started at the deep underground Gran Sasso National Laboratory (LNGS) in Italy. We provide an overview of the experiment status and an outlook into the near future.

1. Introduction

²²$\mathrm{Ne}$$(\alpha ,\mathrm{n})$²⁵$\mathrm{Mg}$ is of crucial importance in various astrophysical nucleosynthesis scenarios: as the main neutron source of the weak s-process in massive stars, as a provider of a burst of neutrons in the late stages of the main s-process, and during the production of magnesium isotopes (see [1] and references therein).

The reaction has a negative Q value of −478.3 keV [2], and its cross-section needs to be known as far down in energy as possible to provide the required input for astrophysical calculations. The expected cross-section is in the picobarn range and below, thus proving extremely challenging to measure in the laboratory. Direct attempts basically stopped over twenty years ago, after a measurement that through enormous effort was able to push down the extrinsic background level to about 100 cts/h, but was still unable to measure resonances in the crucial region below a strong resonance at ${\mathrm{E}}_{\alpha }=832$ keV [3].

Instead, efforts have been focused on indirect measurements of resonance energies, spin-parities, and partial widths in order to calculate the contribution of low-energy states to the cross section. Significant improvements have been made, but many of the results are inconclusive or even contradictory, leading to large uncertainties in the astrophysical reaction rates [4,5,6,7,8,9].

To approach the problem through a direct measurement, the ERC-funded project “SHADES”1 constructed a novel neutron detection array consisting of EJ-309 scintillators and ³He counters, a recirculating gas target and, most importantly, is locating the measurement in the deep-underground Gran Sasso National Laboratories, using the newly commissioned accelerator of the INFN Bellotti Ion Beam Facility (IBF) [10,11]. ²²$\mathrm{Ne}$$(\alpha ,\mathrm{n})$²⁵$\mathrm{Mg}$ is also part of the Laboratory for Underground Nuclear Astrophysics (LUNA) [12,13] collaboration scientific program, which plans to conclude the cross-section measurement by 2025. Together with ASFIN [14,15], n-TOF [16,17], ERNA [18,19,20,21], and PANDORA [22], LUNA is one of the main contributors to nuclear astrophysics research in Italy.

The combination of a high beam intensity, greatly suppressed neutron background, and the energy discrimination capabilities of the detector finally opens up the low-energy region to direct measurement. Where the last measurement attempt by Jaeger et al. [3] was limited in its sensitivity by the background count rate of over 100 cts/h, the already shown reduction in neutron background at the LNGS to below 2 cts/h [23,24] will allow for the probing of the most promising low-energy candidate states in the compound nucleus. In this paper, we present the current status of the project.

2. Experimental Setup

2.1. Gas Target

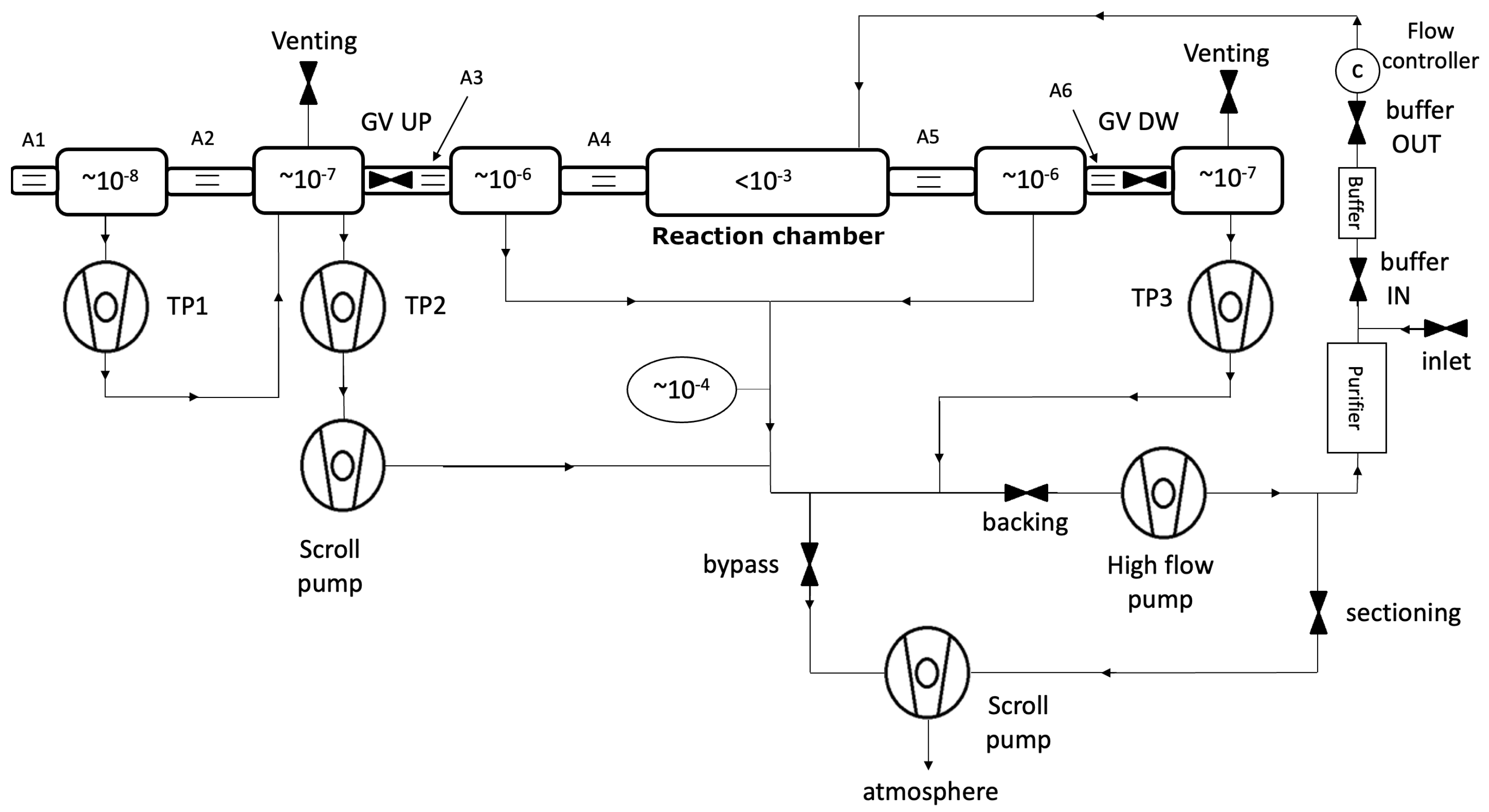

²²$\mathrm{Ne}$$(\alpha ,\mathrm{n})$²⁵$\mathrm{Mg}$ will be measured as far down in energy as possible using a recirculated ²²$\mathrm{Ne}$-enriched extended gas target. Following Figure 1, through an aperture (A1, 7.5 mm diameter), the beam enters the first pumping stage, where a turbo-molecular pump2 (TP1) is installed in differential configuration (i.e., it exhausts into another turbo-molecular pumping stage). A second aperture (A2, 7.5 mm diameter) is installed before a second pumping stage, again served by a turbo-molecular pump (TP2). A scroll pump3 serves as a backing pump and is connected at the entrance of a high-volume Pfeiffer Vacuum A6-flow pumping one, which is located next to the reaction chamber and evacuated by the 604H pump. Two additional apertures (A4 and A5, both 6.0 mm diameter) separate the reaction chamber from the high-flow pumping stages. The last pumping stage is operated with another turbo-molecular pump (TP3) and is directly exhausted into the A604H pump. The beam is eventually stopped by a slab of water-cooled copper coated with tantalum (∼5 μm). In a similar way, tantalum layers were installed in front of the apertures past the reaction chamber (tantalum thickness $>0.25\mathrm{mm}$) and inside the internal surface (>1 mm). A scroll pump operates at the outlet of the high-flow pump to perform the initial air evacuation. A bypass toward its inlet allows for a faster initial vacuum of the line. The same scroll pump is also used to exhaust the system buffer when no gas is present. A purifier just before the gas buffer entrance allows it to remove carbon contaminants (most relevant CO, ${\mathrm{CO}}_2$, ${\mathrm{CH}}_4$). Finally, a gas flow controller between the buffer and the reaction chamber allows for a regulation of the neon to be injected. ISO-KF and ISO-F flanges are used, where the standard viton sealings are replaced with aluminium ones. They allow for a lower leak rate and avoid carbon degassing, which may cause the contamination of recirculating gas. Similarly, semiconductor industry-grade pumps are employed, which grant an enhanced isolation of the oiled components, if present, from the vacuum chambers. The whole vacuum system was operated remotely though a dedicated LabVIEW controller.

2.2. Detector Array

As stated above, the detector is a hybrid array consisting of 18 ³He counters with a steel body and low intrinsic activity [25], and 12 EJ-309 organic scintillators (12 × 12 cm). They are connected to CAEN V1725 250 Msamples/s 14 bit digitisers and read out in synchronised clock mode in order to allow for coincidences between events. The scintillator has the advantage of a high flashpoint, thus allowing its safe introduction into the sensitive underground environment of the LNGS, while maintaining characteristics close to standard materials like NE213. Its intrinsic background has been characterised as part of the SHADES campaign and consists of the common contaminants in the aluminium body and radon emanation in the scintillator liquid [26]. The full setup is surrounded by a 2-inch-thick 5% borated polyethylene shielding that also acts as support structure for the detectors (for a view of the assembly see Figure 2.

3. Preliminary Results and Status

Preliminary gas target tests show that a good vacuum level can be achieved, as shown from

Table 1. Best vacuum and pressure levels of SHADES gas target. The pressure inside the chamber (${\mathrm{p}}_{\mathrm{ch}}$), in the stages next to it (${\mathrm{p}}_{\mathrm{UP}1}$ and ${\mathrm{p}}_{\mathrm{DW}1}$), in the turbo-molecular stages closer the reaction chamber (${\mathrm{p}}_{\mathrm{UP}2}$ and ${\mathrm{p}}_{\mathrm{DW}2}$, TP2 and TP3 in Figure 1), and in the first pumping stage (${\mathrm{P}}_{\mathrm{UP}1}$, TP3) are reported.

${\mathbf{p}}_{\mathbf{ch}}$	${\mathbf{p}}_{\mathbf{UP}1}$	${\mathbf{p}}_{\mathbf{DW}1}$	${\mathbf{p}}_{\mathbf{UP}2}$	${\mathbf{p}}_{\mathbf{DW}2}$	${\mathbf{p}}_{\mathbf{UP}3}$
<$1.0\times {10}^{-4}$	$5.8\times {10}^{-6}$	$6.5\times {10}^{-6}$	$1.1\times {10}^{-6}$	$8.5\times {10}^{-7}$	$8.6\times {10}^{-8}$	mbar
1.0	$6.8\times {10}^{-2}$	$6.8\times {10}^{-2}$	$5.7\times {10}^{-4}$	$4.8\times {10}^{-4}$	$7.3\times {10}^{-6}$
2.1	$1.3\times {10}^{-1}$	$1.3\times {10}^{-1}$	$1.8\times {10}^{-3}$	$1.9\times {10}^{-3}$	$1.8\times {10}^{-5}$
3.1	$1.6\times {10}^{-1}$	$1.6\times {10}^{-1}$	$3.5\times {10}^{-3}$	$2.7\times {10}^{-3}$	$2.7\times {10}^{-5}$

. At the first pumping stage, which acts as the interface with the beam line, a pressure as low as ${10}^{-8}\mathrm{mbar}$ can be achieved, which meets the requirements of the Bellotti IBF. An increase of one order of magnitude at each stage is measured, whereas a vacuum better than ${10}^{-4}\mathrm{mbar}$ is achieved in the reaction chamber, which is at the low end of the measurement range of the employed sensors. This estimate is sufficient, as the ²²$\mathrm{Ne}$ injection pressure inside the reaction chamber is in the mbar range. Downstream of the gas target, from a lower pressure of about ${10}^{-6}\mathrm{mbar}$ a value of about ${10}^{-7}\mathrm{mbar}$ is reached at the latest pumping stage. When the ²²$\mathrm{Ne}$ gas is injected at the estimated work pressure, i.e., up to 4 mbar, the vacuum level rise remains inside the IBF requirement.

The array has been taken into operation underground, and measurements with a neutron source and first alpha beam tests on natural neon were performed, whose data are under analysis. An example 2D Energy vs PSD histogram and coincidence timing between ³He counter and scintillator signals are shown in Figure 3. In this case, the discrimination parameter is based on the long-vs-short method PSD $={\displaystyle \frac{I_L-I_S}{I_L}}$, where $I_L$ is the integral over the entire pulse and proportional to the energy, and $I_S$ is the integral over the rising part. The coincidence characteristics are currently under investigation.

Some beam-induced background was seen and located to the source from one of the gas target collimators, most likely caused by a straggled beam hitting a contaminated surface. The collimator was replaced and exposed surfaces were coated with gold.

4. Outlook

After a maintenance shutdown of the MV accelerator, tests for beam-induced background were performed in late summer 2024, with promising preliminary results and a reduction in the background levels below those of Jaeger et al. A first long beam time for low-energy neutron measurements was foreseen for winter/spring 2024/2025. The 832 keV resonance will be repeatedly measured, to extract resonance energy, strength and possibly its width as well as reproducibility standard during the long low energy runs. Promising candidate states in the compound nucleus that have been identified in the indirect measurement campaigns will be focused on in order to improve the upper limits or, for the first time, measure their resonance strength. The underground campaign will conclude with efficiency measurements and a final characterisation of beam-heating effects and a gas target density profile. More efficiency measurements with reactions that are not possible underground are foreseen to take place in 2025, most likely at the ATOMKI laboratory in Debrecen, Hungary.

In conclusion, after more than 20 years, a new direct measurement campaign for the astrophysically important reaction ²²$\mathrm{Ne}$$(\alpha ,\mathrm{n})$²⁵$\mathrm{Mg}$ has entered its production phase in the Bellotti IBF at the INFN-LNGS. Over the following year, it is expected that the experiment will drastically improve upper limits or measure low-energy resonance strengths that are crucial for astrophysical calculations in a variety of scenarios.
