Evaluation of the BD Phoenix Carbapenemase-Producing Organism Panels for the Detection of Carbapenemase Producers in Escherichia coli, Klebsiella pneumoniae and Pseudomonas aeruginosa
by
, , , , , , , ,
Yoselin Paola Correa-León
1,
José Miguel Pérez-Hernández
1,
Bernardo Alfonso Martinez-Guerra
2
,
Eduardo Rodríguez-Noriega
3,
Juan Pablo Mena-Ramírez
4,
Eduardo López-Gutiérrez
5,
Luis Esaú López-Jácome
6,
Víctor Antonio Monroy-Colin
7,
Christian Daniel Mireles-Davalos
8,
Cecilia Padilla-Ibarra
9,
María Angelina Quevedo-Ramos
10,
José Manuel Feliciano-Guzmán
11,
Talía Pérez-Vicelis
12,
María del Consuelo Velázquez-Acosta
13,
Melissa Hernández-Durán
6 and
Elvira Garza-González
1,* 1
Departamento de Bioquímica, Facultad de Medicina, Universidad Autónoma de Nuevo León, Monterrey 66460, Mexico
2
Instituto Nacional de Ciencias Médicas y Nutrición Salvador Zubirán, Mexico City 14080, Mexico
3
Hospital Civil de Guadalajara, Instituto de Patología Infecciosa y Experimental “Dr. Francisco Ruiz Sánchez”, Centro Universitario Ciencias de la Salud, Universidad de Guadalajara, Guadalajara 44280, Mexico
4
Laboratorio de Microbiología, Hospital General de Zona No. 21 IMSS Tepatitlán de Morelos, Jalisco, Centro Universitario de los Altos (Cualtos), Universidad de Guadalajara, Guadalajara 47630, Mexico
5
Laboratorio de Microbiología, Hospital Regional de Alta Especialidad de Oaxaca, Oaxaca de Juárez 71256, Mexico
6
Laboratorio de Infectología, Instituto Nacional de Rehabilitación Luis Guillermo Ibarra Ibarra, Mexico City 14389, Mexico
7
Laboratorio de Microbiología, Centenario Hospital Miguel Hidalgo, Aguascalientes 20259, Mexico
8
Laboratorio de Microbiología, Instituto Nacional de Enfermedades Respiratorias Ismael Cosío Villegas, Mexico City 14080, Mexico
9
Laboratorio de Microbiología, Hospital General del Estado de Sonora, Hermosillo 83249, Mexico
10
Laboratorio de Microbiología, Hospital General de León, León 37672, Mexico
11
Laboratorio de Microbiología, Hospital de Especialidades Pediátricas, Tuxtla Gutiérrez 29070, Mexico
12
Laboratorio de Microbiología, Hospital Regional de Alta Especialidad Bicentenario de la Independencia, Tultitlan 54916, Mexico
13
Laboratorio de Microbiología, Instituto Nacional de Cancerología, Mexico City 14080, Mexico
*
Author to whom correspondence should be addressed.
Diagnostics 2023, 13(22), 3417; https://doi.org/10.3390/diagnostics13223417
Submission received: 11 October 2023
/
Revised: 31 October 2023
/
Accepted: 2 November 2023
/
Published: 9 November 2023
(This article belongs to the Section Diagnostic Microbiology and Infectious Disease)
Abstract
:The classification of carbapenemases can help guide therapy. The present study evaluated the performance of the CPO detection test, included in the BD Phoenix™ NMIC-501 panel for the detection and classification of carbapenemases on the representative molecularly characterized strains collection from Mexico. Carbapenem non-susceptible isolates collected in Mexico were included. The clinical isolates (n = 484) comprised Klebsiella pneumoniae (n = 154), Escherichia coli (n = 150), and P. aeruginosa (n = 180). BD Phoenix CPO NMIC-504 and NMIC-501 panels were used for the identification of species, antimicrobial susceptibility tests, and detection of CPOs. For the detection of carbapenemase-encoding genes, E. coli and K. pneumoniae were evaluated using PCR assays for blaNDM-1, blaKPC, blaVIM, blaIMP, and blaOXA-48-like. For P. aeruginosa, blaVIM, blaIMP, and blaGES were detected using PCR. Regarding E. coli, the CPO panels had a sensitivity of 70% and specificity of 83.33% for the detection of a class B carbapenemase (blaNDM in the molecular test). Regarding K. pneumoniae, the panels had a sensitivity of 75% and specificity of 100% for the detection of a class A carbapenemase (blaKPC in the molecular test). The Phoenix NMIC-501 panels are reliable for detecting class B carbapenemases in E. coli. The carbapenemase classification in K. pneumoniae for class A carbapenemases has a high specificity and PPV; thus, a positive result is of high value.
1. Introduction
Reports on the spread of carbapenem-resistant Gram-negative pathogens, including carbapenem-resistant Enterobacterales (CRE) and some non-fermenters such as Pseudomonas aeruginosa [1], are increasing in many countries. Bacteria can develop carbapenem resistance to antibiotics via some mechanisms, including the presence of porins and efflux pumps, the modification of the target of the antibiotics, and the action of enzymes, especially β-lactamases, which can inactivate carbapenems. The production of carbapenemases is of significant concern because these enzymes are often encoded on mobile genetic elements, including plasmids, prophages, pathogenicity islands, transposons, and others, and, in some cases, can spread rapidly via lateral gene transfer [1,2,3].
β-lactamases are grouped into classes A, B, C, and D according to the Ambler classification. Class A, C, and D enzymes have serine as an enzyme active center, whereas class B enzymes use the metal zinc [2]. Among class A β-lactamases, Klebsiella pneumoniae carbapenemase (KPC) hydrolyzes penicillins, cephalosporins, and carbapenems and is inhibited by clavulanate or tazobactam [3]. Class B β-lactamases (blaIMP, blaNDM, and blaVIM are the most prevalent) have activity against all beta-lactams except aztreonam and are not inhibited by clavulanate or tazobactam. Group C includes cephalosporinases, and Group D is oxacillinases, including OXA-48, OXA-23, and OXA-24 [3].
The classification of carbapenemases has been helpful in guiding therapy since 2015. There are new β-lactamase inhibitor combinations that include avibactam, relebactam, and vaborbactam that have a spectrum limited to class A and, in some cases, class D carbapenemases. Only monobactams, such as aztreonam, are stable to class B metallo-β-lactamases [4].
The worldwide distribution of carbapenemase-producing organisms (CPOs) has led to the development of diagnostic tools to obtain results in a shorter period of time. In bacteriology laboratories, based on the results of antibiotic susceptibility testing (AST), suspicion of the presence of CPO may arise, and phenotypic or molecular-based methods can be used to study the presence of carbapenemases. The most used phenotypic tests include the Carba NP test [5], the carbapenem inactivation method [6], and lateral flow immunoassay tests [7,8].
Phoenix AST panels® (Becton-Dickinson [BD], Sparks, NV, USA) have been widely used for many years, with some panels available in different regions [9,10]. Recently, the Phoenix CPO Detect Test panels for the identification and classification of class A, B, and D carbapenemases, along with simultaneous AST for Gram-negative bacteria, were developed [1,11], and some studies have investigated its performance [11,12,13,14,15,16,17]. The CPO panels include several carbapenems and other antibiotics previously reported to have activity on some Ambler classes, including temocillin and cloxacillin. Furthermore, these panels include some β-lactamase inhibitors to characterize the carbapenemases according to the Ambler classification [18]. The present study evaluated the performance of the Phoenix CPO detection test included in the BD Phoenix™ NMIC-501 panel for the detection and classification of carbapenemases on a collection of previously characterized strains collected from Mexico.
2. Materials and Methods
2.1. Bacterial Strains
Clinical isolates with non-susceptibility to any of the carbapenems included in panels were studied. The isolates were collected from clinical samples between January 2021 and January 2023 from 12 centers in Mexico. The clinical isolates (n = 484) comprised species of Gram negatives including Klebsiella pneumoniae (n = 154), Escherichia coli (n = 150), and P. aeruginosa (n = 180). Strains were stored at −80 °C until they were used. Bacteria were cultured in MacConkey agar, blood agar, and CHROMagar (BD) at 35 ± 2 °C for 18–24 h.
2.2. Assay Using Phoenix CPO Panels
BD Phoenix CPO NMIC-504 panels were used for the genus and species identification and NMIC-501 panels for AST and carbapenemase detection. The NMIC-501 panels provide the Ambler classification for Enterobacterales and non-fermenting organisms. Assays using the panels were performed according to the manufacturer’s instructions. Briefly, colonies were suspended in a BD Phoenix ID broth, and the suspension was adjusted to a McFarland standard turbidity index of approximately 0.25. Automated inoculum preparation and standardization were performed using the BD Phoenix™ AP instrument combined with the BD Phoenix™ M50 instrument, following the manufacturer’s recommendations.
The resulting broth was then added to the AST panel, which was then loaded into the Phoenix instrument. The results were analyzed using the EpiCenter data management software package (v. 6.61A; BD Diagnostic Systems). The system automatically performed assays, determined the minimum inhibitory concentrations, detected CPOs, and provided Ambler classification results based on the specifications of each panel. Carbapenem Non-susceptibility was determined according to the Clinical and Laboratory Standards Institute [19].
2.3. Molecular Characterization of Carbapenemases in Gram-Negatives
For the detection of carbapenemase-encoding genes, a DNA template was prepared, resuspending two colonies in distilled water (50 μL). After, the suspension was heated at 95 °C for 10 min. Tubes were centrifuged, and the supernatant was diluted 1:10 in distilled water and used for detection of genes. Isolates were evaluated using PCR assays in E. coli and K. pneumoniae for blaNDM-1, blaKPC, blaVIM, blaIMP, and blaOXA-48-like and in P. aeruginosa for blaVIM, blaIMP, and blaGES, as described in previous studies [20,21] (Supplementary Table S1). All PCR products were detected using agarose gel electrophoresis. For positive controls, we used strains ATCC BAA2468 and ATCC BAA1905 and clinical isolates previously characterized as P104, LMM-1873, LMM 1105, LMM 2935.
2.4. Diagnostic Utility
The sensitivity, specificity, positive likelihood ratio (PLR), negative likelihood ratio (NLR), prevalence, positive predictive value (PPV), negative predictive value (NPV), and accuracy were evaluated by comparing the CPO results with the presence of carbapenemase-encoding genes. The methodology is described in Figure 1.
3. Results
3.1. Detected Carbapenemase-Encoding Genes
For all three bacterial species, the carbapenemases reported were class A, B, and D carbapenemase producers. Some reports had no recommendations; thus, there was no indication of the presence of carbapenemase in the report of the Phoenix instrument (Table 1, Table 2 and Table 3).
Regarding E. coli, the most frequent carbapenemases reported in the CPO panel were class B carbapenemases (n = 89/150) (Table 1). Among them, 84 tested positive for blaNDM, and 1 was blaVIM. Furthermore, four strains were found to be positive for blaNDM with no recommendation or positive result for class A or D. Furthermore, 34 strains had no recommendation in the CPO panels and were positive for blaNDM.
Regarding K. pneumoniae, 18/154 strains had a class A carbapenemase report (Table 2), and blaKPC was detected in all of them. Moreover, in 72/154 strains, class B was detected in the CPO panels; among them, blaNDM was detected in 65, while blaVIM was detected in 1. There was no recommendation in 60/154 strains: 11 had no carbapenemase-encoding gene detected, while 49 had at least one such gene detected.
Regarding P. aeruginosa, class A was reported in the CPO panels for 13/180 strains (15 were positive for blaGES, and 6 had no gene detected) (Table 3). Furthermore, class B was detected in the CPO panels for 38/180 strains, while no class B carbapenemase-encoding gene was detected for 6 strains. Furthermore, 18 strains were reported as carbapenemase producers in the CPO panels, with 6 having no positive result in the PCR assays. Finally, 52 strains had no recommendation, with 39 being negative for the genes studied and 13 having at least one gene detected.
3.2. Performance of NMIC-501 CPO Panels
Regarding E. coli, the CPO panels had a sensitivity of 70% and specificity of 83.33% for the detection of a class B carbapenemase (blaNDM in the molecular test). The PPV value was 94.38, and the NPV was 40.98. Regarding K. pneumoniae, the panels had a sensitivity of 75% and specificity of 100% for the detection of a class A carbapenemase (blaKPC in the molecular test). The PPV value was 100.00, and the NPV was 95.59. For E. coli and K. pneumoniae combined, the panels had a sensitivity of 63.14%, and their specificity was 82.35% for detecting class B carbapenemases. Lastly, regarding P. aeruginosa, the panels had a sensitivity of 23.35% and specificity of 74.51% for no carbapenemase recommendation (Table 4).
According to our results, the highest positive likelihood ratio observed was for the detection of carbapenemase class B in E. coli, which was 4.20 (95% CI, 1.87–9.43), and the lowest was for no carbapenemase recommendation in P. aeruginosa (0.92, 95% CI 0.53–1.58).
Regarding the negative likelihood ratio, the lowest was for the detection of a class A carbapenemase in K. pneumoniae (0.25, 95% CI 0.13–0.50), and the highest was for no carbapenemase recommendation in P. aeruginosa (1.03, 95% CI 0.86–1.23)
In this evaluation, the best accuracy was observed for the detection of a class A carbapenemase in K. pneumoniae (96.10, 95% CI 91.71–98.56), and, as expected, the lowest value was for no carbapenemase recommendation in P. aeruginosa (35.32, 95% CI, 8.99–42.06).
3.3. Clinical Isolates with At Least One Carbapenem Intermediate Result
Isolates with non-susceptibility to any of the carbapenems evaluated were included. Thus, intermediate results were also included. Regarding E. coli, four clinical isolates had a value of 1 mg/mL for ertapenem (≤0.25 mg/mL for imipenem and ≤0.5 mg/mL for meropenem; Supplementary Table S1 and Table 5). No carbapenemase result was detected in the Phoenix panels, and no carbapenemase-encoding gene was detected. All K. pneumoniae clinical isolates we included were resistant to at least one carbapenem (Supplementary Table S3).
Regarding P. aeruginosa, three strains were detected, with only one intermediate result (two for imipenem and two for meropenem). No carbapenemase recommendation was detected in two strains, and one strain had a recommendation of class D carbapenemase (imipenem 2 mg/mL and meropenem 4 mg/mL; Supplementary Table S3 and Table 5).
4. Discussion
In this study, we used NMIC-501 CPO panels for the detection and classification of carbapenemases on a representative molecularly characterized collection of carbapenem non-susceptible E. coli, K. pneumoniae, and P. aeruginosa clinical isolates from Mexico. For E. coli, we detected a sensitivity of 70%, specificity of 83.33%, PPV of 94.38, and NPV of 40.98, with a prevalence of 80.00 for the detection of class B carbapenemases (blaNDM). This class of carbapenemases is currently the most frequently reported in Mexico for E. coli in several studies [22,23]. A study reported that high-prevalence countries may exhibit a low NPV, as was found in the present study (40.98%); thus, additional tests are required to exclude the presence of a CPO with a high probability [14].
Commercially available tests should be evaluated in different populations, depending on the prevalence of carbapenemases. For example, the most frequently reported carbapenemase-encoding gene in Mexico in recent years is blaNDM [22,23]. In contrast, some countries, including the USA, Brazil, Colombia, and Argentina, have a high proportion of blaKPC in Enterobacterales [24,25]. Thus, a different diagnostic utility is expected in these countries depending on the prevalence of circulating carbapenemases.
For K. pneumoniae, a sensitivity of 75%, specificity of 100%, PPV of 100.00%, and NPV of 95.59 with a prevalence of 15.58% were detected for class A carbapenemases (blaKPC according to the PCR assay results). The high specificity value of this assay makes it reliable for detecting class A carbapenemases without the need to perform additional tests when a positive class A result is detected using the CPO panel. In contrast, if a negative result is detected, an additional confirmatory method must be performed because the presence of any carbapenemase cannot be discarded. The use of CPO panels may be useful especially if the test is positive.
P. aeruginosa may exhibit intrinsic or acquired resistance against nearly all available antibiotics. Multiple mechanisms may contribute to its antimicrobial resistance, including the production of carbapenemase enzymes, target mutations, the loss of outer membrane proteins, and multidrug efflux systems [26]. According to our CPO panel results, we calculated the performance of no detection of carbapenemase, for which a low sensitivity was detected (23.35%), which was associated with rather a high prevalence (76.61%). Thus, the CPO panels seem to have low utility for P. aeruginosa.
The use of this panel may reduce the time to obtain a result compared with the conventional approach because the result of the presence of carbapenemase (or not) is available as soon as the AST results are generated [14]. Overall, the detection of infection via a microorganism producing KPC-type β-lactamases is relevant because these enzymes are inhibited by the newer β-lactamase inhibitors, such as avibactam, relebactam, and vaborbactam, and not inhibited by clavulanate or tazobactam [27,28,29]. Thus, adequate treatment may be administered once the results are ready.
It is expected that the presence of more than one of the studied mechanisms and another molecular mechanism of antibiotic resistance, such as the presence of extended-spectrum β-lactamases (ESBL) or the presence of AmpCs, may have an impact on The specificity of Phoenix CPO panels [11]. In Mexico, the production of ESBL was reported to be as high as 39.3 in K. pneumoniae and 44.9 in E. coli [22], and some clinical isolates analyzed in this study were ESBL producers (Supplementary Tables S1 and S2). However, the proportion was low, and we did not search for AmpCs with porin loss; thus, the impact of the presence of this gene cannot be measured.
Notably, the results observed in the CPO panels do not remove the need for additional laboratory tests to provide an informative antibiogram. For example, for E. coli, we found that 55 clinical isolates had no recommendation in the CPO report, and no carbapenemase-encoding gene was detected for 16 of them, (all these strains were non-susceptible to carbapenems), while at least one carbapenemase-encoding gene was detected for all other isolates. For K. pneumoniae, 60 isolates had no recommendation in the CPO report. No carbapenemase-encoding gene was detected for 11 of them, while all others detected at least one carbapenemase-encoding gene. Finally, for P. aeruginosa, 52 isolates had no recommendation in the CPO report. No carbapenemase-encoding gene was detected for 39 of them, while in the other 13 strains, blaVIM, blaIMP, and blaGES were detected. The results may differ according to the prevalence of the carbapenemase-encoding gene, particular gene, and bacterial species [7,30,31].
In this study, the best positive likelihood ratio was 4.2 for E. coli for the detection of a class B carbapenemase (negative likelihood ratio, 0.36). With this value, the possibility of observing a positive result in clinical isolates with the presence of the enzyme versus the possibility of that positive result in strains negative for the enzyme is regular. The use of LR is a helpful tool because they are values inherent to the test and are not dependent on the prevalence of the disease. Thus, it may reflect the utility of the test in other populations.
In our study, we included clinical isolates collected from clinical samples between January 2021 and January 2023 from 12 centers in Mexico. The species included E. coli, K. pneumoniae, and P. aeruginosa with at least one result of intermediate to any of the carbapenem evaluated. We detected four clinical isolates for E. coli and three strains for P. aeruginosa (all K. pneumoniae clinical isolates were resistant to at least one of the carbapenems evaluated). The inclusion of clinical isolates with only one intermediate result may have decreased the diagnostic utility of the test; however, we decided to include it because some enzymes, especially those included in OXA (OXA-48, OXA-23, and OXA-24), may have a low carbapenemase activity and can go unnoticed [3].
The results of this study showed a limited utility for P. aeruginosa. In this bacterial species, the results for no carbapenemase recommendation had a sensitivity of 35.32%. It has been reported that in P. aeruginosa, carbapenem resistance may be associated in a significant proportion of strains with increased expression of efflux systems, reduced porin expression, and increased chromosomal cephalosporinase activity. Furthermore, other strains may produce carbapenemases plasmid or integron-mediated resistance [32]. In this study, PCRs were performed to determine if the carbapenemase-encoding gene was present or not; however, the presence of the gene does not ensure the production of a functional enzyme.
A limitation of this study was that our results represent the utility value for a country like Mexico, and the application of these panels depends on the bacterial species and the carbapenemase detected. Thus, this test should be interpreted with a deep knowledge of local epidemiology. Furthermore, the results observed in the CPO panels do not remove the need for additional laboratory tests to obtain an informative antibiogram.
5. Conclusions
In conclusion, Phoenix NMIC-501 panels may provide the results of the Ambler classification at the same time as the AST results. The CPO test is reliable for detecting class B carbapenemases in E. coli, but the relatively low specificity requires additional confirmatory methods. The carbapenemase classification in K. pneumoniae for class A carbapenemases has a high specificity and PPV; thus, a positive result is of high value. The CPO test has a limited utility for carbapenem resistant P. aeruginosa.
Supplementary Materials
The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/diagnostics13223417/s1, Table S1: Sequence of primers used for PCR reactions. Table S2: CPO report, carbapenemase encoding genes and minimal inhibitory concentration (mg/mL) in E. coli clinical isolates. Table S3: CPO report, carbapenemase encoding genes and minimal inhibitory concentration (µg/mL) in K. pneumoniae clinical isolates. Table S4: CPO report, carbapenemase encoding genes and minimal inhibitory concentration (µg/mL) in P. aeruginosa clinical isolates.
Author Contributions
E.G.-G.: Conceptualization, Writing—Original draft preparation. Y.P.C.-L., J.M.P.-H., B.A.M.-G., E.R.-N., J.P.M.-R., E.L.-G., L.E.L.-J., V.A.M.-C., C.D.M.-D., C.P.-I., M.A.Q.-R., J.M.F.-G., T.P.-V., M.d.C.V.-A. and M.H.-D.: Methodology, Reviewing and Editing. All authors have read and agreed to the published version of the manuscript.
Funding
Becton Dickinson provided the reagents and instrumentation (protocol 450137923). The authors received no payments from Becton Dickinson. No person from Becton Dickinson reviewed this manuscript. The researchers received no salary or payment.
Institutional Review Board Statement
This study was conducted in accordance with the Declaration of Helsinki and approved by the Institutional ethics committee of the Hospital Civil de Guadalajara “Fray Antonio Alcalde” (protocol code 129/22).Approved this study (129/22).
Informed Consent Statement
The need for informed consent was waived by the ethics committee.
Data Availability Statement
All information is included in the manuscript.
Acknowledgments
We thank Maria de la Luz Acevedo for her technical support.
Conflicts of Interest
The authors declare no conflict of interest.
References
- Logan, L.K.; Weinstein, R.A. The Epidemiology of Carbapenem-Resistant Enterobacteriaceae: The Impact and Evolution of a Global Menace. J. Infect. Dis. 2017, 215 (Suppl. S1), S28–S36. [Google Scholar] [CrossRef]
- Ambler, R.P. The structure of beta-lactamases. Philos. Trans. R. Soc. B 1980, 289, 321–331. [Google Scholar] [CrossRef]
- Queenan, A.M.; Bush, K. Carbapenemases: The versatile beta-lactamases. Clin. Microbiol. Rev. 2007, 20, 440–458. [Google Scholar] [CrossRef]
- Livermore, D.M.; Nicolau, D.P.; Hopkins, K.L.; Meunier, D. Carbapenem-Resistant Enterobacterales, Carbapenem Resistant Organisms, Carbapenemase-Producing Enterobacterales, and Carbapenemase-Producing Organisms: Terminology Past its “Sell-By Date” in an Era of New Antibiotics and Regional Carbapenemase Epidemiology. Clin. Infect. Dis. 2020, 71, 1776–1782. [Google Scholar] [CrossRef]
- Poirel, L.; Nordmann, P. Rapidec Carba NP Test for Rapid Detection of Carbapenemase Producers. J. Clin. Microbiol. 2015, 53, 3003–3008. [Google Scholar] [CrossRef] [PubMed]
- van der Zwaluw, K.; de Haan, A.; Pluister, G.N.; Bootsma, H.J.; de Neeling, A.J.; Schouls, L.M. The carbapenem inactivation method (CIM), a simple and low-cost alternative for the Carba NP test to assess phenotypic carbapenemase activity in gram-negative rods. PLoS ONE 2015, 10, e0123690. [Google Scholar] [CrossRef] [PubMed]
- Tamma, P.D.; Simner, P.J. Phenotypic Detection of Carbapenemase-Producing Organisms from Clinical Isolates. J. Clin. Microbiol. 2018, 56, e01140-18. [Google Scholar] [CrossRef] [PubMed]
- Tamma, P.D.; Opene, B.N.; Gluck, A.; Chambers, K.K.; Carroll, K.C.; Simner, P.J. Comparison of 11 Phenotypic Assays for Accurate Detection of Carbapenemase-Producing Enterobacteriaceae. J. Clin. Microbiol. 2017, 55, 1046–1055. [Google Scholar] [CrossRef]
- Brisse, S.; Stefani, S.; Verhoef, J.; Van Belkum, A.; Vandamme, P.; Goessens, W. Comparative evaluation of the BD Phoenix and VITEK 2 automated instruments for identification of isolates of the Burkholderia cepacia complex. J. Clin. Microbiol. 2002, 40, 1743–1748. [Google Scholar] [CrossRef]
- Fahr, A.M.; Eigner, U.; Armbrust, M.; Caganic, A.; Dettori, G.; Chezzi, C.; Bertoncini, L.; Benecchi, M.; Menozzi, M.G. Two-center collaborative evaluation of the performance of the BD Phoenix automated microbiology system for identification and antimicrobial susceptibility testing of Enterococcus spp. and Staphylococcus spp. J. Clin. Microbiol. 2003, 41, 1135–1142. [Google Scholar] [CrossRef] [PubMed]
- Thomson, G.; Turner, D.; Brasso, W.; Kircher, S.; Guillet, T.; Thomson, K. High-Stringency Evaluation of the Automated BD Phoenix CPO Detect and Rapidec Carba NP Tests for Detection and Classification of Carbapenemases. J. Clin. Microbiol. 2017, 55, 3437–3443. [Google Scholar] [CrossRef]
- Ong, C.H.; Ratnayake, L.; Ang, M.L.T.; Lin, R.T.P.; Chan, D.S.G. Diagnostic Accuracy of BD Phoenix CPO Detect for Carbapenemase Production in 190 Enterobacteriaceae Isolates. J. Clin. Microbiol. 2018, 56. [Google Scholar] [CrossRef] [PubMed]
- Murata, M.; Kosai, K.; Akamatsu, N.; Matsuyama, Y.; Oda, M.; Wakamatsu, A.; Izumikawa, K.; Mukae, H.; Yanagihara, K. Diagnostic Performance of BD Phoenix CPO Detect Panels for Detection and Classification of Carbapenemase-Producing Gram-Negative Bacteria. Microbiol. Spectr. 2023, 11, e0089723. [Google Scholar] [CrossRef] [PubMed]
- Croxatto, A.; Coste, A.T.; Pillonel, T.; Bertelli, C.; Greub, G.; Prod’hom, G. Evaluation of the BD Phoenix™ CPO Detect Test for the detection of carbapenemase producers. Clin. Microbiol. Infect. 2020, 26, 644.e9–644.e15. [Google Scholar] [CrossRef] [PubMed]
- Simon, M.; Koestler, J.; Reischl, U.; Gessner, A.; Jantsch, J. Detection of carbapenemase-producing Enterobacterales and the BD Phoenix CPO Detect panel. Expert Rev. Mol. Diagn. 2019, 19, 659–665. [Google Scholar] [CrossRef] [PubMed]
- Park, B.Y.; Mourad, D.; Hong, J.S.; Yoon, E.J.; Kim, D.; Lee, H.; Jeong, S.H. Performance Evaluation of the Newly Developed BD Phoenix NMIC-500 Panel Using Clinical Isolates of Gram-Negative Bacilli. Ann. Lab. Med. 2019, 39, 470–477. [Google Scholar] [CrossRef]
- Simon, M.; Gatermann, S.; Pfeifer, Y.; Reischl, U.; Gessner, A.; Jantsch, J. Evaluation of the automated BD Phoenix CPO Detect panel in combination with the β-CARBA assay for detection and classification of carbapenemase-producing Enterobacterales. J. Microbiol. Methods 2019, 156, 29–33. [Google Scholar] [CrossRef]
- Whitley, V.; Kircher, S.; Gill, T.; Hindler, J.A.; O’Rourke, S.; Cooper, C.; Tulpule, A.; Denys, G.A. Multicenter Evaluation of the BD Phoenix CPO Detect Test for Detection and Classification of Carbapenemase-Producing Organisms in Clinical Isolates. J. Clin. Microbiol. 2020, 58. [Google Scholar] [CrossRef]
- CLSI M100-S30; Performance Standards for Antimicrobial Susceptibility Testing; Twenty-Second Informational Supplement. Clinical and Laboratory Standars Institute: Wayne, PA, USA, 2020.
- Fernando, D.M.; Tun, H.M.; Poole, J.; Patidar, R.; Li, R.; Mi, R.; Amarawansha, G.E.A.; Fernando, W.G.D.; Khafipour, E.; Farenhorst, A.; et al. Detection of Antibiotic Resistance Genes in Source and Drinking Water Samples from a First Nations Community in Canada. Appl. Environ. Microbiol. 2016, 82, 4767–4775. [Google Scholar] [CrossRef] [PubMed]
- Monteiro, J.; Widen, R.H.; Pignatari, A.C.; Kubasek, C.; Silbert, S. Rapid detection of carbapenemase genes by multiplex real-time PCR. J. Antimicrob. Chemother. 2012, 67, 906–909. [Google Scholar] [CrossRef]
- Garza-González, E.; Bocanegra-Ibarias, P.; Bobadilla-Del-Valle, M.; Ponce-de-León-Garduño, L.A.; Esteban-Kenel, V.; Silva-Sánchez, J.; Garza-Ramos, U.; Barrios-Camacho, H.; López-Jácome, L.E.; Colin-Castro, C.A.; et al. Drug resistance phenotypes and genotypes in Mexico in representative gram-negative species: Results from the infivar network. PLoS ONE 2021, 16, e0248614. [Google Scholar] [CrossRef]
- Garza-Ramos, U.; Silva-Sánchez, J.; López-Jácome, L.E.; Hernández-Durán, M.; Colín-Castro, C.A.; Sánchez-Pérez, A.; Rodríguez-Santiago, J.; Morfín-Otero, R.; Rodriguez-Noriega, E.; Velázquez-Acosta, M.D.; et al. Carbapenemase-Encoding Genes and Colistin Resistance in Gram-Negative Bacteria During the COVID-19 Pandemic in Mexico: Results from the Invifar Network. Microb. Drug Resist. 2023, 29, 239–248. [Google Scholar] [CrossRef]
- Saavedra, S.Y.; Bernal, J.F.; Montilla-Escudero, E.; Arévalo, S.A.; Prada, D.A.; Valencia, M.F.; Moreno, J.; Hidalgo, A.M.; García-Vega, Á.; Abrudan, M.; et al. Complexity of Genomic Epidemiology of Carbapenem-Resistant Klebsiella pneumoniae Isolates in Colombia Urges the Reinforcement of Whole Genome Sequencing-Based Surveillance Programs. Clin. Infect. Dis. 2021, 73 (Suppl. S4), S290–S299. [Google Scholar] [CrossRef]
- Hansen, G.T. Continuous Evolution: Perspective on the Epidemiology of Carbapenemase Resistance Among Enterobacterales and Other Gram-Negative Bacteria. Infect. Dis. Ther. 2021, 10, 75–92. [Google Scholar] [CrossRef]
- Avakh, A.; Grant, G.D.; Cheesman, M.J.; Kalkundri, T.; Hall, S. The Art of War with. Antibiotics 2023, 12, 1304. [Google Scholar] [CrossRef]
- Carpenter, J.; Neidig, N.; Campbell, A.; Thornsberry, T.; Truex, T.; Fortney, T.; Zhang, Y.; Bush, K. Activity of imipenem/relebactam against carbapenemase-producing Enterobacteriaceae with high colistin resistance. J. Antimicrob. Chemother. 2019, 74, 3260–3263. [Google Scholar] [CrossRef]
- Hackel, M.A.; Lomovskaya, O.; Dudley, M.N.; Karlowsky, J.A.; Sahm, D.F. Activity of Meropenem-Vaborbactam against Clinical Isolates of KPC-Positive Enterobacteriaceae. Antimicrob. Agents Chemother. 2018, 62. [Google Scholar] [CrossRef]
- Kazmierczak, K.M.; Karlowsky, J.A.; de Jonge, B.L.M.; Stone, G.G.; Sahm, D.F. Epidemiology of Carbapenem Resistance Determinants Identified in Meropenem-Nonsusceptible. Antimicrob. Agents Chemother. 2021, 65, e0200020. [Google Scholar] [CrossRef]
- Boutal, H.; Vogel, A.; Bernabeu, S.; Devilliers, K.; Creton, E.; Cotellon, G.; Plaisance, M.; Oueslati, S.; Dortet, L.; Jousset, A.; et al. A multiplex lateral flow immunoassay for the rapid identification of NDM-, KPC-, IMP- and VIM-type and OXA-48-like carbapenemase-producing Enterobacteriaceae. J. Antimicrob. Chemother. 2018, 73, 909–915. [Google Scholar] [CrossRef]
- van Duin, D.; Doi, Y. The global epidemiology of carbapenemase-producing Enterobacteriaceae. Virulence 2017, 8, 460–469. [Google Scholar] [CrossRef]
- Meletis, G.; Exindari, M.; Vavatsi, N.; Sofianou, D.; Diza, E. Mechanisms responsible for the emergence of carbapenem resistance in Pseudomonas aeruginosa. Hippokratia 2012, 16, 303–307. [Google Scholar] [PubMed]

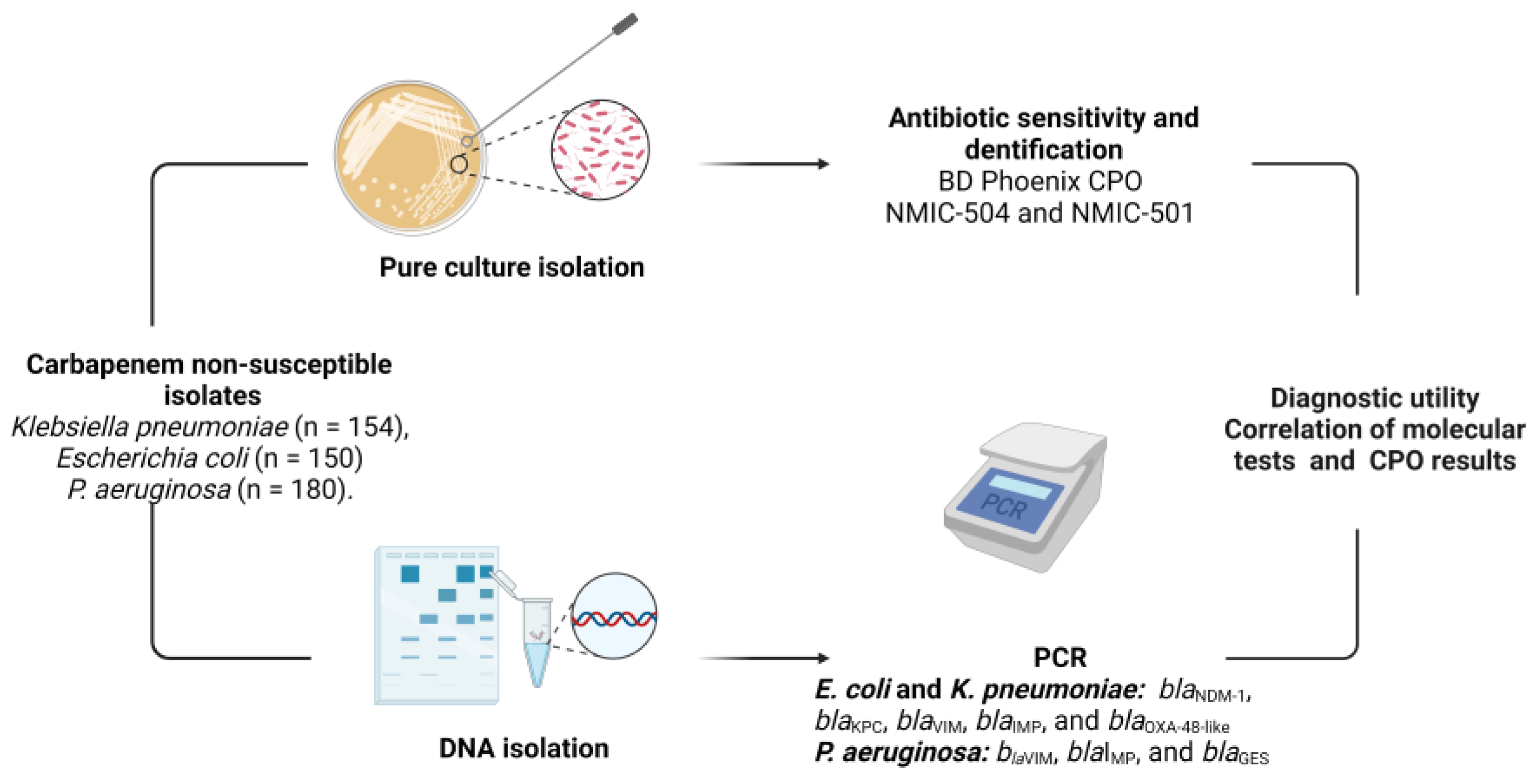

Figure 1.
Methodology for determination of diagnostic utility of CPO panels. Adapted from “The 1-2-3 form of Health Care Associated Infections (HAI) research” from BioRender.com (2023). Retrieved from https://app.biorender.com/biorender-templates (accessed on 10 October 2023).
Figure 1.
Methodology for determination of diagnostic utility of CPO panels. Adapted from “The 1-2-3 form of Health Care Associated Infections (HAI) research” from BioRender.com (2023). Retrieved from https://app.biorender.com/biorender-templates (accessed on 10 October 2023).
Table 1.
Distribution of carbapenemase-encoding genes for E. coli detected according to the CPO carbapenemase report.
Table 1.
Distribution of carbapenemase-encoding genes for E. coli detected according to the CPO carbapenemase report.
| N | CPO Report | blaNDM | blaKPC | blaVIM | blaIMP | blaGES | blaOXA48 |
|---|---|---|---|---|---|---|---|
| 1 | Class A | + | + | − | − | − | |
| 49 | Class B | + | − | − | − | − | |
| 25 | Class B | + | − | − | − | + | |
| 4 | Class B | + | − | + | − | + | |
| 4 | Class B | + | − | + | − | − | |
| 4 | Class B | − | − | − | − | − | |
| 1 | Class B | + | − | − | + | + | |
| 1 | Class B | − | + | − | − | + | |
| 1 | Class B | − | − | + | − | + | |
| 2 | Class D | − | − | − | − | − | |
| 1 | Class D | − | − | − | − | + | |
| 1 | Carbapenemase producer | − | − | − | − | + | |
| 1 | Carbapenemase producer | + | − | − | − | + | |
| 17 | No recommendation | + | − | − | − | + | |
| 16 | No recommendation | + | − | − | − | − | |
| 16 | No recommendation | − | − | − | − | − | |
| 5 | No recommendation | − | − | − | − | + | |
| 1 | No recommendation | + | − | + | − | + |
+: Positive, −: Negative.
Table 2.
Distribution of carbapenemase-encoding genes for K. pneumoniae detected according to the CPO carbapenemase report.
Table 2.
Distribution of carbapenemase-encoding genes for K. pneumoniae detected according to the CPO carbapenemase report.
| N | CPO Report | blaNDM | blaKPC | blaVIM | blaIMP | blaGES | blaOXA48 |
|---|---|---|---|---|---|---|---|
| 11 | Class A | − | + | − | − | − | |
| 3 | Class A | + | + | − | − | + | |
| 3 | Class A | − | + | − | − | + | |
| 1 | Class A | − | + | − | + | + | |
| 33 | Class B | + | − | − | − | − | |
| 29 | Class B | + | − | − | − | + | |
| 5 | Class B | − | − | − | − | − | |
| 2 | Class B | + | − | + | − | + | |
| 1 | Class B | − | + | − | − | − | |
| 1 | Class B | + | − | + | − | − | |
| 1 | Class B | − | − | + | − | − | |
| 1 | Class D | − | − | − | − | + | |
| 1 | Class D | − | − | − | − | − | |
| 1 | Carbapenemase producer | − | − | − | − | − | |
| 1 | Carbapenemase producer | + | − | + | − | − | |
| 20 | No recommendation | + | − | − | − | + | |
| 18 | No recommendation | + | − | − | − | − | |
| 11 | No recommendation | − | − | − | − | − | |
| 3-1 | No recommendation | − | − | + | − | + | |
| 2 | No recommendation | + | − | + | − | + | |
| 2 | No recommendation | − | + | − | − | + | |
| 1 | No recommendation | − | + | − | − | − | |
| 1 | No recommendation | − | + | + | − | + | |
| 1 | No recommendation | − | + | + | − | − | |
| 1 | No recommendation | − | − | − | + | − |
+: Positive, −: Negative.
Table 3.
Distribution of carbapenemase-encoding genes for P. aeruginosa detected according to the CPO carbapenemase report.
Table 3.
Distribution of carbapenemase-encoding genes for P. aeruginosa detected according to the CPO carbapenemase report.
| N | CPO Report | blaNDM | blaKPC | blaVIM | blaIMP | blaGES | blaOXA48 |
|---|---|---|---|---|---|---|---|
| 13 | Class A | − | − | + | |||
| 6 | Class A | − | − | − | |||
| 2 | Class A | − | + | + | |||
| 1 | Class A | + | − | − | |||
| 27 | Class B | + | − | − | |||
| 6 | Class B | − | − | − | |||
| 2 | Class B | − | + | + | |||
| 1 | Class B | + | + | − | |||
| 2 | Class B | − | + | − | |||
| 20 | Class D | − | − | − | |||
| 5 | Class D | − | − | + | |||
| 1 | Class D | + | − | − | |||
| 18 | Carbapenemase producer | − | − | + | |||
| 6 | Carbapenemase producer | − | − | − | |||
| 9 | Carbapenemase producer | − | + | − | |||
| 3 | Carbapenemase producer | − | + | + | |||
| 4 | Carbapenemase producer | + | − | − | |||
| 2 | Carbapenemase producer | + | − | + | |||
| 39 | No recommendation | − | − | − | |||
| 4 | No recommendation | + | − | − | |||
| 6 | No recommendation | − | − | + | |||
| 3 | No recommendation | − | + | − | |||
+: Positive, −: Negative.
Table 4.
Performance of CPO-501 panels in detecting carbapenemase producer organisms.
| E. coli, Class B Value (95% CI) | K. pneumoniae, Class A Value (95% CI) | E. coli and K. pneumoniae, Class B Value (95% CI) | P. aeruginosa, No Recommendation Value (95% CI) | |
|---|---|---|---|---|
| Sensitivity | 70.00 (60.96–78.02) | 75.00 (53.29–90.23) | 63.14 (56.63–69.30) | 23.35 (17.16–30.51) |
| Specificity | 83.33 (65.28–94.36) | 100.00 (97.20–100.00) | 82.35 (71.20–90.53) | 74.51 (60.37–85.67) |
| PLR | 4.20 (1.87–9.43) | NA | 3.58 (2.12–6.03) | 0.92 (0.53–1.58) |
| NLR | 0.36 (0.26–0.49) | 0.25 (0.13–0.50) | 0.45 (0.37–0.55) | 1.03 (0.86–1.23) |
| Prevalence | 80.00 (72.70–86.08) | 15.58 (10.25–22.30) | 77.63 (72.52–82.19) | 76.61 (70.41–82.06) |
| PPV | 94.38 (88.21–97.42) | 100.00 (0.00–0.00) | 92.55 (88.04–95.44) | 75.00 (63.53–83.79) |
| NPV | 40.98 (33.60–48.80) | 95.59 (91.55–97.74) | 39.16 (34.51–44.01) | 22.89 (19.85–26.24) |
| Accuracy | 72.67 (64.80–79.62) | 96.10 (91.71–98.56) | 67.43 (61.85–72.67) | 35.32 (28.99–42.06) |
PLR: positive likelihood ratio, NLR: negative likelihood ratio, PPV: positive predictive value, NPV: negative predictive value, CI: confidence interval, NA: not apply.
Table 5.
E. coli and P. aeruginosa isolates with at least one carbapenem intermediate result.
| ID | CPO Report | blaNDM | blaKPC | blaVIM | blaIMP | blaOXA-48 | blaGES | ETP | IPM | MEM |
|---|---|---|---|---|---|---|---|---|---|---|
| E. coli | ||||||||||
| 21-0100 | NR | - | - | - | - | - | ND | 1 | ≤0.25 | ≤0.5 |
| 22-1191 | NR | - | - | - | - | - | ND | 1 | ≤0.25 | ≤0.5 |
| 22-1782 | NR | - | - | - | - | - | ND | 1 | ≤0.25 | ≤0.5 |
| 22-2012 | NR | - | - | - | - | - | ND | 1 | 1 | ≤0.5 |
| P. aeruginosa | ||||||||||
| 21-700 | NR | ND | ND | - | - | ND | - | ND | 4 | ≤0.5 |
| 21-0280 | NR | ND | ND | - | - | ND | - | ND | 4 | 4 |
| 21-0788 | Class D | ND | ND | - | - | ND | - | ND | 2 | 4 |
ND: Not determined—Negative result. ETP: ertapenem, IPM: imipenem, MEM: meropenem. CPO: carbapenem producer organism.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2023 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Correa-León, Y.P.; Pérez-Hernández, J.M.; Martinez-Guerra, B.A.; Rodríguez-Noriega, E.; Mena-Ramírez, J.P.; López-Gutiérrez, E.; López-Jácome, L.E.; Monroy-Colin, V.A.; Mireles-Davalos, C.D.; Padilla-Ibarra, C.; et al. Evaluation of the BD Phoenix Carbapenemase-Producing Organism Panels for the Detection of Carbapenemase Producers in Escherichia coli, Klebsiella pneumoniae and Pseudomonas aeruginosa. Diagnostics 2023, 13, 3417. https://doi.org/10.3390/diagnostics13223417
AMA Style
Correa-León YP, Pérez-Hernández JM, Martinez-Guerra BA, Rodríguez-Noriega E, Mena-Ramírez JP, López-Gutiérrez E, López-Jácome LE, Monroy-Colin VA, Mireles-Davalos CD, Padilla-Ibarra C, et al. Evaluation of the BD Phoenix Carbapenemase-Producing Organism Panels for the Detection of Carbapenemase Producers in Escherichia coli, Klebsiella pneumoniae and Pseudomonas aeruginosa. Diagnostics. 2023; 13(22):3417. https://doi.org/10.3390/diagnostics13223417
Chicago/Turabian StyleCorrea-León, Yoselin Paola, José Miguel Pérez-Hernández, Bernardo Alfonso Martinez-Guerra, Eduardo Rodríguez-Noriega, Juan Pablo Mena-Ramírez, Eduardo López-Gutiérrez, Luis Esaú López-Jácome, Víctor Antonio Monroy-Colin, Christian Daniel Mireles-Davalos, Cecilia Padilla-Ibarra, and et al. 2023. "Evaluation of the BD Phoenix Carbapenemase-Producing Organism Panels for the Detection of Carbapenemase Producers in Escherichia coli, Klebsiella pneumoniae and Pseudomonas aeruginosa" Diagnostics 13, no. 22: 3417. https://doi.org/10.3390/diagnostics13223417
Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
