Endothelial Dysfunction in Acute Hepatic Porphyrias

by
Andrea Ricci
1,
Gilda Sandri
2,
Matteo Marcacci
1,
Elena Di Pierro
3,
Francesca Granata
3,
Chiara Cuoghi
1,
Stefano Marchini
1,
Antonello Pietrangelo
1 and
Paolo Ventura
1,*
1
Regional Reference Centre for Diagnosing and Management of Porphyrias, Internal Medicine Unit, Department of Medical and Surgical Science for Children and Adults, Azienda Ospedaliero-Universitaria Policlinico of Modena, University of Modena and Reggio Emilia, Largo del Pozzo 71, 41124 Modena, Italy
2
Rheumatology Unit, Azienda Ospedaliero-Universitaria Policlinico of Modena, University of Modena and Reggio Emilia, Largo del Pozzo 71, 41124 Modena, Italy
3
Dipartimento di Medicina Interna, Fondazione IRCSS Ca’ Granda Ospedale Maggiore Policlinico, 20122 Milan, Italy
*
Author to whom correspondence should be addressed.
Diagnostics 2022, 12(6), 1303; https://doi.org/10.3390/diagnostics12061303
Submission received: 31 March 2022 / Revised: 21 May 2022 / Accepted: 22 May 2022 / Published: 24 May 2022
(This article belongs to the Section Pathology and Molecular Diagnostics)
Browse Figures
Versions Notes

Abstract

:
Background Acute hepatic porphyrias (AHPs) are a group of rare diseases caused by dysfunctions in the pathway of heme biosynthesis. Although acute neurovisceral attacks are the most dramatic manifestations, patients are at risk of developing long-term complications, several of which are of a vascular nature. The accumulation of non-porphyrin heme precursors is deemed to cause most clinical symptoms. Aim We measured the serum levels of endothelin-1 (ET-1) and nitric oxide (NO) to assess the presence of endothelial dysfunction (ED) in patients with AHPs. Forty-six patients were classified, according to their clinical phenotype, as symptomatic (AP-SP), asymptomatic with biochemical alterations (AP-BA), and asymptomatic without biochemical alterations (AP-AC). Results Even excluding those under hemin treatment, AP-SP patients had the lowest NO and highest ET-1 levels, whereas no significant differences were found between AP-BA and AP-AC patients. AP-SP patients had significantly more often abnormal levels of ED markers. Patients with the highest heme precursor urinary levels had the greatest alterations in ED markers, although no significant correlation was detected. Conclusions ED is more closely related to the clinical phenotype of AHPs than to their classical biochemical alterations. Some still undefined disease modifiers may possibly determine the clinical picture of AHPs through an effect on endothelial functions.

1. Introduction

In the last few decades, a growing interest has been devoted to the key functions of the endothelium in health and disease [1]. In response to different physical and biochemical stimuli, endothelial cells release various factors which are crucially involved, among others, in the regulation of vasomotor tone and vascular homeostasis, differential organ blood supply, selective permeability to solutes, coagulation processes, inflammation, and immune activation [1,2,3]. Endothelial dysfunction (ED), which is mostly a consequence of chronic exposition to noxious exogenous or endogenous agents, is biochemically characterized by a maladaptive disbalance between the different, complementary endothelium-derived mediators (i.e., vasoconstrictors vs. vasodilators, growth promoters vs. inhibitors, pro-thrombotic vs. anti-thrombotic) [3,4,5]. ED is considered an early, key event in the pathogenesis of many diseases of the vascular system, such as hypertension, atherosclerosis, and diabetic microangiopathy [3,5,6,7,8].
Acute hepatic porphyrias (AHPs) are a group of rare genetic diseases caused by a selective enzyme deficiency in the pathway of heme biosynthesis [9,10]. The patients who are carriers of pathogenic mutations are at risk of presenting recurrent acute, potentially life-threatening neurovisceral crises known as acute porphyric attacks (APAs). Patients with AHPs also suffer from long-term complications of the disease, such as arterial hypertension, chronic kidney disease, chronic neuropathy, and non-cirrhotic hepatocellular carcinoma [11,12,13,14]. In AHPs, the accumulation of toxic non-porphyrin heme precursors ( δ -aminolevulinic acid—ALA and porphobilinogen—PBG) is deemed to cause most clinical manifestations, including those with possible vascular involvement (arterial hypertension, headache, neurological symptoms, kidney impairment) [9,10,15,16,17,18]. Symptomatic patients with AHPs often undergo an off-label maintenance therapy with heme arginate, which aims to reduce the frequency of APAs [19]. Alternatively, monthly infusions of intravenous (IV) hypertonic (10–20%) glucose can be attempted as an off-label maintenance therapy in symptomatic patients with mild-to-moderate manifestations of AHPs. Other than avoiding fasting, glucose is supposed to act through inhibition of PGC-1 α , which should reduce ALAS1 expression [20].
Several pieces of evidence have shown that the availability and metabolism of heme are variably involved in the healthy functioning of the endothelium, as well as in endothelial dysfunction [21,22,23,24,25,26]. Furthermore, it has been postulated that non-porphyrin heme precursors may possibly cause endothelial damage, e.g., through the known oxidant properties of ALA [17,18,27,28].
Among the several non-invasive methods for detecting ED in vivo, the measurement of serum nitric oxide (NO) and endothelin-1 (ET-1) levels is widely used and acknowledged [29]. NO, with its vasodilating effects, is a key mediator of vascular homeostasis [30]; it is produced by nitric oxide synthases (NOSs) and acts through binding to soluble guanylate cyclases (sGCs). Both NOSs and sGC are hemoproteins. ET-1, on the other hand, is a vasoconstrictor that is synthesized predominantly in vascular endothelial cells and secondarily in vascular smooth muscle cells and extravascular tissues (i.e., spleen, pancreas, lung, kidney glomerular and epithelial cells, and central and peripheral nervous systems) [29]. A disbalance between the measured levels of NO (lower than normal) and ET-1 (higher than normal) is associated with an impairment of physiologic endothelial functions [29]. In particular, the current evidence has led to the hypothesis that NO exerts a tonic inhibition on ET-1, so that in conditions of decreased NO availability, the unmitigated activity of endothelin-1 may result in harmful vasoconstriction [29].
Given the potential role of specific endothelial damage in the vascular manifestations of AHPs, this study aimed at assessing the presence of ED in patients with AHPs (acute intermittent porphyria—AIP and variegate porphyria—VP), with respect to their clinical status and treatment.

2. Materials and Methods

2.1. Patients

We studied 46 Caucasian patients (24 female, mean age 46 ± 17 years, range 8–72) with AHP (31 with AIP and 15 with VP) referring to the Expert Centre for Porphyrias of the Internal Medicine Unit at the Policlinico Hospital of Modena (Italy). All studied patients were carriers of documented mutations in hydroxymethylbilane synthase (HBMS) or protoporphyrinogen oxidase (PPOX) genes consistent with the diagnosis of AIP and VP, respectively.
In all patients, we assessed the clinical features of disease. We considered as: symptomatic (AP-SP) the patients with a defined history of hospital admissions and treatment for APAs, or those under periodic prophylactic infusions of heme arginate (Normosang®; Orphan Europe); asymptomatic with biochemical alterations (AP-BA) those with no clinical history of APAs, but showing biochemical alterations suggestive of AHP (high urinary levels of ALA, PBG, and/or total porphyrins); asymptomatic carriers (AP-AC) those carriers of genetic mutations consistent with AIP or VP but with neither clinical history of APAs nor biochemical alterations suggestive of AHP.
All patients were assessed regarding their clinical history (specifically, history of arterial hypertension or vascular diseases). Monthly measurements were taken, for at least six consecutive months, for urinary ALA, PBG, and total porphyrins, serum markers of endothelial dysfunction (NO and ET-1), and parameters of renal and liver function.

2.2. Biochemical Assessment

In all patients, urine and blood samples were collected after overnight fasting. Urinary levels of δ -aminolevulinic acid (ALA) and porphobilinogen (PBG) were measured by ion-exchange chromatography (with BioRad® and Recipe® kit), followed by spectrophotometric analysis. Urinary total and fractioned (uro- or copro-) porphyrins were assessed with High Performance Liquid Chromatography (HPLC) using fluorimetric detection [31,32]. In all patients, each measurement was performed at least one week from heme arginate infusions and/or any clinical conditions related to an ongoing APA. Blood samples were also specifically taken after infusion of heme arginate in two patients and after infusion of 10% glucose solution in the other two. Plasma NO was measured with a non-enzymatic MED.DIA-modified method, through the nitrite assessment and using the Griess’ reaction, considering values between 15 μ mol/L and 40 μ mol/L as reference [33]. Plasma ET-1 was evaluated with a radioimmunoassay (RIA) method considering values between 1 pg/mL and 3.5 pg/mL as reference [34]. Parameters of renal and liver function were assessed with standard methods. For each patient, urine and blood samples were collected monthly for six consecutive months.

2.3. Statistical Analysis

Chi-square test or Fisher’s exact test were used to compare categorical variables, as appropriate. Student’s t test or Mann-Whitney’s U test (for two groups) or ANOVA with LSD post hoc (for more than two groups) were used to compare continuous variables between groups, as appropriate. Pearson’s r test was used to assess the correlation between the levels of various biochemical metabolites. Continuous variables are presented as mean ± standard deviation. For each single continuous variable, we considered the mean value of at least six consecutive determinations. In all analyses, a p value < .05 was considered statistically significant. Descriptive and statistical analysis and the graphical representation of the results were performed using the softwares SPSS® (v.21.0, Chicago, IL, USA) and STATA® (v.13.0, College Station, StataCorp, College Station, TX, USA).

3. Results

The majority of patients with AIP were symptomatic, whereas the opposite was true for patients with VP (Table 1). The median ages of the groups considered were 43 years (AP-AC), 38 years (AP-BA), and 50 years (AP-SP), respectively. Symptomatic patients displayed significantly higher ALA, PBG, and total porphyrin levels in urines (Table 1) compared to patients with biochemical alterations alone (Table 1). Creatinine clearance was significantly reduced in symptomatic patients compared to asymptomatic carriers with no biochemical alterations (Table 1). Overall, symptomatic patients suffered more frequently from arterial hypertension, kidney impairment, and thrombotic events (Table 2). A total of 14 patients (13 with AIP) out of 18 in the AP-SP group were undergoing prophylactic therapy, including: 10 with heme arginate (6 patients with 1–2 monthly infusions, 4 patients with >3 monthly infusions); and 4 with hypertonic glucose solutions (3–4 infusions per month) (Table 3).
Eight out of thirty-eight patients (21%) had arterial hypertension (systolic >140 mmHg and/or diastolic >90 mmHg), all of whom were undergoing anti-hypertensive therapy with β -blockers. They had significantly higher levels of serum ET-1 (6.05 ± 1.91 vs. 4.13 ± 1.89, p = 0.013) and lower levels of serum NO (20.97 ± 4.54 vs. 27.6 ± 10.14, p = 0.008) than patients without hypertension. Nitric oxide levels were significantly lower in symptomatic patients compared to asymptomatic carriers and asymptomatic patients with biochemical alterations (Figure 1a). Conversely, symptomatic patients had the highest ET-1 levels of all three groups (Figure 1b). Symptomatic patients presented more frequently abnormal levels of both ET-1 and NO (Figure 2). For each group, no significant difference was found in ET-1 or NO levels between AIP vs. VP patients (Figure 3).
As expected [29,35,36], NO and ET-1 were negatively correlated in a linear regression (Figure 4). ALA, PBG, and total porphyrin levels in urines did not show a significant correlation with NO or ET-1 levels (Table 4), albeit patients with the highest levels of urinary ALA and PBG (3× upper level of normal, ULN) had significantly higher ET-1 and lower NO levels (Figure 5). Patients on maintenance therapy (with either hypertonic glucose or hemin infusions) had significantly higher ET-1 and lower NO levels (Figure 6), with patients on hemin infusions having the most abnormal values (Figure 7). Notably, ET-1 and NO levels were significantly altered in symptomatic patients, compared to the asymptomatic, even when AP-SP under hemin maintenance therapy were excluded (Figure 7). In the AP-SP group, two couples of patients had lower NO and higher ET-1 after two consecutive days of either 10% glucose of hemin infusions (Figure 8).

4. Discussion

Even though acute neurovisceral attacks are the most dramatic, and potentially life-threatening, clinical manifestations of acute porphyrias, patients affected by this group of diseases do suffer from chronic complications, which may be debilitating and have a considerable impact on their quality of life. In particular, patients with symptomatic AHPs are prone to develop long-term complications of vascular nature, such as arterial hypertension, chronic kidney disease (often termed porphyria-associated kidney disease-PAKD) [11,13,17,38,39], and thrombotic events [40,41]. Therefore, it could be reasonably conjectured a direct involvement of the endothelium, which could be a primary site of organ damage, in the pathogenesis of AHPs.
In this study, we show that the levels of NO and ET-1 are altered in patients with AHPs, reflecting the phenotypical severity of the disease. In fact, the alteration of these markers of endothelial dysfunction was more pronounced in symptomatic patients with the most severe clinical pictures (i.e., those on maintenance therapy with IV glucose or hemin) regardless of the type of porphyria (i.e., AIP vs. VP). Consistent with these findings, symptomatic patients under maintenance treatment were also more frequently affected by long-term vascular manifestations of AHPs.
Since patients under maintenance therapy are usually those with a high burden of disease in terms of acute attacks, these findings may also suggest an association between endothelial damage and more frequent or more severe APAs. It should be remarked that some manifestations of APAs bear a resemblance to posterior reversible encephalopathy syndrome (PRES) [42], a condition deemed to be caused by endothelial dysfunction [42,43]. In general, it has been long acknowledged that neuronal NO (nNOS) synthases play a determinant role in the physiology of central and peripheral nervous systems [44]. Interestingly, the neuronal populations of the myenteric plexus express NOSs [44]: an impairment of NO metabolism in these tissues has been proposed as a cause of gastrointestinal dysautonomias in conditions such as sickle-cell disease [45] or paroxysmal nocturnal hemoglobinuria [46]. Intriguingly, several peripheral neuropathies are caused by vasculitis of the blood vessels supplying the peripheral nervous system (vasa nervorum)-including non-systemic vasculitic neuropathy, a purely neuropathic condition in which the vasa nervorum are the only target of inflammation [47].
It is of interest that no significant difference in NO or ET-1 levels was found between the two groups of asymptomatic patients-notwithstanding their differences in non-porphyrin heme precursor levels. This may be a reason why no correlation between ALA/PBG and NO/ET-1 levels could be demonstrated. Still, patients with the highest levels or ALA and PBG in urines also had the most marked alterations of NO and ET-1. Overall, these findings would corroborate the hypothesis that ED is more closely related to the clinical phenotype of the disease, rather than to its classical biochemical alterations. It may even be conjectured that some disease modifiers in AHPs may act through an effect on endothelial function, among others.
When choosing a maintenance therapy for symptomatic patients, heme arginate is deemed more effective than glucose in preventing new APAs. Given its poorer tolerability compared to IV glucose, therapy with hemin is usually reserved to patients with the most debilitating symptoms: consistent with this, the patients in our study which were on hemin infusions had the most altered levels of NO and ET-1. It may be argued that an effect of heme arginate on inducing endothelial dysfunction cannot be ruled out a priori. Heme arginate infusions can injure blood vessels, so that patients under long-term therapy are usually implanted with indwelling venous lines, a condition which may actually predispose to thrombotic events. Anecdotally, we report that 2 couples of patients had lower NO and higher ET-1 after either hemin or glucose infusion. Although further studies may help to shed light on a possible independent role of heme arginate in causing endothelial damage, it is intriguing that the values of NO and ET-1 are significantly different even between asymptomatic and symptomatic patients who are not under hemin maintenance therapy. Thus, an association between NO/ET-1 levels and the clinical phenotype of AHPs can be observed, independent of the effect of hemin therapy.
Heme is a complex molecule, carefully engineered by evolution to coordinate an iron ion at the centre of a tetrapyrrolic (protoporphyrin IX) ring, and to exploit the redox properties of iron to handle very reactive compounds, such as oxygen, which are fundamental to life in mammals. Other than its role as an oxygen carrier in hemoglobin, heme is an essential cofactor in several processes of the intermediate metabolism. Since patients with AHPs are affected by an inherited enzyme dysfunction in the heme biosynthetic pathway, some putative effects on the secondary routes of heme utilization have been proposed to explain several metabolic alterations observed in AHPs, namely related to tryptophan metabolism [48,49], tricarboxylic acid cycle [49,50], hyperhomocysteinemia and vitamin B6 status [40,51], and others. Concerning vascular physiology, the prosthetic heme of NO synthases (NOSs) is essential for dimerization of the enzyme subunits [52,53]. Additionally, it has been very recently shown that NO triggers intracellular heme redistribution to promote the assembly of its own receptors, the soluble guanylate cyclases (sGCs) which are heterodimeric hemoproteins themselves [54,55]. In the last few decades NO metabolism has been the subject of several investigations aimed at understanding the mechanisms of pathogenesis in AHPs [18,56,57,58,59,60]. Our findings directly confirm a dysfunctional NO decrease in patients with clinical manifestations of AHPs, since their NO levels are significantly lower than in AHP patients without symptoms. Furthermore, they suggest that also endothelin-1 may play a role as a mediator of vascular damage in AHPs. Further studies may help to clarify whether ET-1 increases as a reflection of impaired NO metabolism, or independent mechanisms contribute to its disregulation. Figure 9 shows some metabolic pathways which could be involved in the pathogenesis of endothelial damage in AHPs.
Finally, it would be of interest to understand whether the targeted inhibition of ALA synthase 1 (ALAS1) translation achieved by givosiran—an effective, recently approved siRNA-based treatment for AHPs [61,62]—may have some effect on endothelial physiology, as it has already been demonstrated, with quite unexpected results, for homocysteine [63,64,65,66,67]. In this regard, recent contributions have observed that a few patients under givosiran treatment presented a decline in kidney function which was somewhat worse than expected from PAKD [68,69], leading the authors to hypothesise, among other mechanisms of kidney damage, some givosiran-induced, NO-mediated effect on renal microcirculation [69].

5. Conclusions

Patients with AHPs are at risk of long-term debilitating complications of vascular nature, whereas some of the clinical manifestations of acute attacks may be directly or indirectly caused by endothelial dysfunction. In this study, we demonstrated that endothelial dysfunction is significantly more common and severe in symptomatic patients with AHPs (regardless of whether AIP or VP), than in asymptomatic carriers of mutations associated with AHPs or even in asymptomatic patients with biochemical alterations in heme precursors alone. The alterations in the markers of endothelial dysfunction reflected the clinical severity of the symptomatic patients, since the most altered values were detected in patients on maintenance therapy with IV glucose or heme arginate. Intriguingly, the values of NO and ET-1 were significantly different between asymptomatic and symptomatic patients, even when those on hemin maintenance therapy were excluded from the comparisons. This findings help to shed light on the pathogenesis of the protean manifestations of AHPs, while suggesting the presence of modifier factors which may act through an effect on endothelial functions to determine the clinical picture of this group of diseases.

Author Contributions

Conceptualization, A.R., G.S., M.M., E.D.P. and P.V.; formal analysis, A.R. and P.V.; investigation, M.M. and C.C.; methodology, S.M. and P.V.; writing—original draft preparation, A.R.; writing—review and editing, G.S., M.M., E.D.P., F.G., A.P. and P.V.; supervision, P.V. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

The results of this study were found in the context of an audit to evaluate whether NO and ET-1 should be part of a routine blood chemistry checkup in patients with AHPs. This study was conducted according to the ethical guidelines of the Declaration of Helsinki (1975).

Informed Consent Statement

Written informed consent was obtained from all subjects involved in the study, including consent to publish results.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

AIPAcute intermittent porphyria
AHPAcute Hepatic Porphyrias
ALA δ -aminolevulinic acid
ALAS1ALA synthase 1
APAacute porphyric attack
AP-ACAHP patient—asymptomatic carrier
AP-BAAHP patient—asymptomatic with biochemical alterations
AP-SPAHP patient—symptomatic
EDendothelial dysfunction
ET1serum endothelin-1
HMBShydroxymethylbilane synthase
IVintravenous
IUInternational Units
NOnitric oxide
NOSNO synthase
PAKDporphyria-associated kidney disease
PBGporphobilinogen
PPOXprotoporphyrinogen oxidase
PRESposterior reversible encephalopathy syndrome
sGCsoluble guanylate cyclase
ULNupper level of normal
VPVariegate Porphyria

References

  1. Bassenge, E. Endothelial function in different organs. Prog. Cardiovasc. Dis. 1996, 39, 209–228, The Endothelium and Cardiocirculatory Function, Part I. [Google Scholar] [CrossRef]
  2. Lüscher, T.F.; Barton, M. Biology of the endothelium. Clin. Cardiol. 1997, 20, II-3. [Google Scholar] [CrossRef]
  3. Petty, R.G.; Pearson, J.D. Endothelium—The axis of vascular health and disease. J. R. Coll. Physicians Lond. 1989, 23, 92. [Google Scholar] [PubMed]
  4. Pacher, P.; Beckman, J.S.; Liaudet, L. Nitric Oxide and Peroxynitrite in Health and Disease. Physiol. Rev. 2007, 87, 315–424. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Donato, A.J.; Gano, L.B.; Eskurza, I.; Silver, A.E.; Gates, P.E.; Jablonski, K.; Seals, D.R. Vascular endothelial dysfunction with aging: Endothelin-1 and endothelial nitric oxide synthase. Am. J. Physiol. Heart Circ. Physiol. 2009, 297, H425–H432. [Google Scholar] [CrossRef] [Green Version]
  6. Hadi, H.A.; Al Suwaidi, J. Endothelial dysfunction in diabetes mellitus. Vasc. Health Risk Manag. 2007, 3, 853. [Google Scholar]
  7. Davignon, J.; Ganz, P. Role of Endothelial Dysfunction in Atherosclerosis. Circulation 2004, 109, III-27–III-32. [Google Scholar] [CrossRef] [Green Version]
  8. Caballero, A.E. Endothelial Dysfunction in Obesity and Insulin Resistance: A Road to Diabetes and Heart Disease. Obes. Res. 2003, 11, 1278–1289. [Google Scholar] [CrossRef]
  9. Kauppinen, R. Porphyrias. Lancet 2005, 365, 241–252. [Google Scholar] [CrossRef]
  10. Puy, H.; Gouya, L.; Deybach, J.C. Porphyrias. Lancet 2010, 375, 924–937. [Google Scholar] [CrossRef]
  11. Andersson, C.; Lithner, F. Hypertension and renal disease in patients with acute intermittent porphyria. J. Intern. Med. 1994, 236, 169–175. [Google Scholar] [CrossRef] [PubMed]
  12. Stewart, M.F. Review of hepatocellular cancer, hypertension and renal impairment as late complications of acute porphyria and recommendations for patient follow-up. J. Clin. Pathol. 2012, 65, 976–980. [Google Scholar] [CrossRef] [PubMed]
  13. Pallet, N.; Mami, I.; Schmitt, C.; Karim, Z.; François, A.; Rabant, M.; Nochy, D.; Gouya, L.; Deybach, J.C.; Xu-Dubois, Y.; et al. High prevalence of and potential mechanisms for chronic kidney disease in patients with acute intermittent porphyria. Kidney Int. 2015, 88, 386–395. [Google Scholar] [CrossRef] [PubMed]
  14. Gouya, L.; Ventura, P.; Balwani, M.; Bissell, D.M.; Rees, D.C.; Stölzel, U.; Phillips, J.D.; Kauppinen, R.; Langendonk, J.G.; Desnick, R.J.; et al. EXPLORE: A prospective, multinational, natural history study of patients with acute hepatic porphyria with recurrent attacks. Hepatology 2020, 71, 1546–1558. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Ventura, P.; Cappellini, M.D.; Rocchi, E. The acute porphyrias: A diagnostic and therapeutic challenge in internal and emergency medicine. Intern. Emerg. Med. 2009, 4, 297–308. [Google Scholar] [CrossRef]
  16. Elder, G.H.; Hift, R.J.; Meissner, P.N. The acute porphyrias. Lancet 1997, 349, 1613–1617. [Google Scholar] [CrossRef]
  17. Ricci, A.; Guida, C.C.; Manzini, P.; Cuoghi, C.; Ventura, P. Kidney Involvement in Acute Hepatic Porphyrias: Pathophysiology and Diagnostic Implications. Diagnostics 2021, 11, 2324. [Google Scholar] [CrossRef]
  18. Ricci, A.; Di Pierro, E.; Marcacci, M.; Ventura, P. Mechanisms of Neuronal Damage in Acute Hepatic Porphyrias. Diagnostics 2021, 11, 2205. [Google Scholar] [CrossRef]
  19. Marcacci, M.; Ricci, A.; Cuoghi, C.; Marchini, S.; Pietrangelo, A.; Ventura, P. Challenges in diagnosis and management of acute hepatic porphyrias: From an uncommon pediatric onset to innovative treatments and perspectives. Orphanet J. Rare Dis. 2022, 17, 1–10. [Google Scholar] [CrossRef]
  20. Handschin, C.; Lin, J.; Rhee, J.; Peyer, A.K.; Chin, S.; Wu, P.H.; Meyer, U.A.; Spiegelman, B.M. Nutritional regulation of hepatic heme biosynthesis and porphyria through PGC-1α. Cell 2005, 122, 505–515. [Google Scholar] [CrossRef] [Green Version]
  21. Freidja, M.L.; Vessieres, E.; Clere, N.; Desquiret, V.; Guihot, A.L.; Toutain, B.; Loufrani, L.; Jardel, A.; Procaccio, V.; Faure, S.; et al. Heme oxygenase-1 induction restores high-blood-flow-dependent remodeling and endothelial function in mesenteric arteries of old rats. J. Hypertens. 2011, 29, 102–112. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Belcher, J.D.; Chen, C.; Nguyen, J.; Milbauer, L.; Abdulla, F.; Alayash, A.I.; Smith, A.; Nath, K.A.; Hebbel, R.P.; Vercellotti, G.M. Heme triggers TLR4 signaling leading to endothelial cell activation and vaso-occlusion in murine sickle cell disease. Blood 2014, 123, 377–390. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Jeney, V.; Balla, J.; Yachie, A.; Varga, Z.; Vercellotti, G.M.; Eaton, J.W.; Balla, G. Pro-oxidant and cytotoxic effects of circulating heme. Blood 2002, 100, 879–887. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Balla, J.; Vercellotti, G.M.; Nath, K.; Yachie, A.; Nagy, E.; Eaton, J.W.; Balla, G. Haem, haem oxygenase and ferritin in vascular endothelial cell injury. Nephrol. Dial. Transplant. 2003, 18, v8–v12. [Google Scholar] [CrossRef] [Green Version]
  25. Sawicki, K.T.; Chang, H.; Ardehali, H. Role of Heme in Cardiovascular Physiology and Disease. J. Am. Heart Assoc. 2015, 4, e001138. [Google Scholar] [CrossRef] [Green Version]
  26. Higdon, A.N.; Benavides, G.A.; Chacko, B.K.; Ouyang, X.; Johnson, M.S.; Landar, A.; Zhang, J.; Darley-Usmar, V.M. Hemin causes mitochondrial dysfunction in endothelial cells through promoting lipid peroxidation: The protective role of autophagy. Am. J. Physiol. Heart Circ. Physiol. 2012, 302, H1394–H1409. [Google Scholar] [CrossRef] [Green Version]
  27. Rocchi, E.; Ventura, P.; Ronzoni, A.; Rosa, M.C.; Gozzi, C.; Marri, L.; Casalgrandi, G.; Cappellini, M.D. Pro-oxidant and antioxidant factors in acute intermittent porphyria: Family studies. J. Inherit. Metab. Dis. 2004, 27, 251–266. [Google Scholar] [CrossRef]
  28. Ahamed, M.; Verma, S.; Kumar, A.; Siddiqui, M.K. Delta-aminolevulinic acid dehydratase inhibition and oxidative stress in relation to blood lead among urban adolescents. Hum. Exp. Toxicol. 2006, 25, 547–553. [Google Scholar] [CrossRef]
  29. Bourque, S.L.; Davidge, S.T.; Adams, M.A. The interaction between endothelin-1 and nitric oxide in the vasculature: New perspectives. Am. J. Physiol. Regul. Integr. Comp. Physiol. 2011, 300, R1288–R1295. [Google Scholar] [CrossRef] [Green Version]
  30. Cowley, A.W.; Mori, T.; Mattson, D.; Zou, A.P. Role of renal NO production in the regulation of medullary blood flow. Am. J. Physiol. Regul. Integr. Comp. Physiol. 2003, 284, R1355–R1369. [Google Scholar] [CrossRef] [Green Version]
  31. Andersson, C.; Thunell, S.; Floderus, Y.; Forsell, C.; Lundin, G.; Anvret, M.; Lannfelt, L.; Wetterberg, L.; Lithner, F. Diagnosis of acute intermittent porphyria in northern Sweden: An evaluation of mutation analysis and biochemical methods. J. Intern. Med. 1995, 237, 301–308. [Google Scholar] [CrossRef] [PubMed]
  32. Lai, C.K.C.; Lam, C.W.K.; Chan, Y.W. High-performance thin-layer chromatography of free porphyrins for diagnosis of porphyria. Clin. Chem. 1994, 40 Pt 1, 2026–2029. [Google Scholar] [CrossRef] [PubMed]
  33. Green, L.C.; Wagner, D.A.; Glogowski, J.; Skipper, P.L.; Wishnok, J.S.; Tannenbaum, S.R. Analysis of nitrate, nitrite, and [15N]nitrate in biological fluids. Anal. Biochem. 1982, 126, 131–138. [Google Scholar] [CrossRef]
  34. Nolte, W.; Ehrenreich, H.; Wiltfang, J.; Pahl, K.; Unterberg, K.; Kamrowski-Kruck, H.; Schindler, C.G.; Figulla, H.R.; Buchwald, A.B.; Hartmann, H.; et al. Systemic and splanchnic endothelin-1 plasma levels in liver cirrhosis before and after transjugular intrahepatic portosystemic shunt (TIPS). Liver 2000, 20, 60–65. [Google Scholar] [CrossRef] [PubMed]
  35. Boulanger, C.; Lüscher, T.F. Release of endothelin from the porcine aorta. Inhibition by endothelium-derived nitric oxide. J. Clin. Investig. 1990, 85, 587–590. [Google Scholar] [CrossRef] [PubMed]
  36. Khimji, A.K.; Rockey, D.C. Endothelin—Biology and disease. Cell. Signal. 2010, 22, 1615–1625. [Google Scholar] [CrossRef]
  37. Levey, A.S.; Stevens, L.A.; Schmid, C.H.; Zhang, Y.; Castro, A.F., III; Feldman, H.I.; Kusek, J.W.; Eggers, P.; Van Lente, F.; Greene, T.; et al. A new equation to estimate glomerular filtration rate. Ann. Intern. Med. 2009, 150, 604–612. [Google Scholar] [CrossRef]
  38. Church, S.; Moore, M.; Youngs, G. Hypertension and renal impairment as complications of acute porphyria. Nephrol. Dial. Transplant. 1992, 7, 986–990. [Google Scholar]
  39. Pallet, N.; Karras, A.; Thervet, E.; Gouya, L.; Karim, Z.; Puy, H. Porphyria and kidney diseases. Clin. Kidney J. 2018, 11, 191–197. [Google Scholar] [CrossRef]
  40. Ventura, P.; Corradini, E.; Di Pierro, E.; Marchini, S.; Marcacci, M.; Cuoghi, C.; Buzzetti, E.; Pietrangelo, A. Hyperhomocysteinemia in patients with acute porphyrias: A potentially dangerous metabolic crossroad? Eu. J. Intern. Med. 2020, 79, 101–107. [Google Scholar] [CrossRef]
  41. Towns, C.; Balakrishnan, S.; Florkowski, C.; Davies, A.; Barrington-Ward, E. High penetrance, recurrent attacks and thrombus formation in a family with hereditary coproporphyria. JIMD Rep. 2022, 63, 211–215. [Google Scholar] [CrossRef] [PubMed]
  42. Jaramillo-Calle, D.A.; Solano, J.M.; Rabinstein, A.A.; Bonkovsky, H.L. Porphyria-induced posterior reversible encephalopathy syndrome and central nervous system dysfunction. Mol. Genet. Metab. 2019, 128, 242–253. [Google Scholar] [CrossRef] [PubMed]
  43. Thachil, J. L-Asparaginase, nitric oxide and posterior reversible encephalopathy syndrome. Ann. Hematol. 2013, 92, 141–142. [Google Scholar] [CrossRef] [PubMed]
  44. Bredt, D.S.; Hwang, P.M.; Snyder, S.H. Localization of nitric oxide synthase indicating a neural role for nitric oxide. Nature 1990, 347, 768–770. [Google Scholar] [CrossRef]
  45. Reiter, C.D.; Wang, X.; Tanus-Santos, J.E.; Hogg, N.; Cannon, R.O.; Schechter, A.N.; Gladwin, M.T. Cell-free hemoglobin limits nitric oxide bioavailability in sickle-cell disease. Nat. Med. 2002, 8, 1383–1389. [Google Scholar] [CrossRef]
  46. Hill, A.; Wang, X.; Sapsford, R.J.; Russell, R.P.; Farrell, A.L.; Jessop, H.A.; McGawley, G.M.; Oxborough, D.L.; Pleasants, P.; Richards, S.J.; et al. Nitric oxide consumption and pulmonary hypertension in patients with paroxysmal nocturnal hemoglobinuria. Blood 2005, 106, 1046. [Google Scholar] [CrossRef]
  47. Ginsberg, L. Vasculitis and the peripheral nervous system. Rheumatology 2020, 59, iii55–iii59. [Google Scholar] [CrossRef]
  48. Gomez-Gomez, A.; Marcos, J.; Aguilera, P.; To-Figueras, J.; Pozo, O.J. Comprehensive analysis of the tryptophan metabolome in urine of patients with acute intermittent porphyria. J. Chromatogr. B Analyt. Technol. Biomed. Life Sci. 2017, 1060, 347–354. [Google Scholar] [CrossRef]
  49. Gomez-Gomez, A.; Aguilera, P.; Langohr, K.; Casals, G.; Pavon, C.; Marcos, J.; To-Figueras, J.; Pozo, O.J. Evaluation of Metabolic Changes in Acute Intermittent Porphyria Patients by Targeted Metabolomics. Int. J. Mol. Sci. 2022, 23, 3219. [Google Scholar] [CrossRef] [PubMed]
  50. Homedan, C.; Laafi, J.; Schmitt, C.; Gueguen, N.; Lefebvre, T.; Karim, Z.; Desquiret-Dumas, V.; Wetterwald, C.; Deybach, J.C.; Gouya, L.; et al. Acute intermittent porphyria causes hepatic mitochondrial energetic failure in a mouse model. Int. J. Biochem. Cell. Biol. 2014, 51, 93–101. [Google Scholar] [CrossRef] [Green Version]
  51. To-Figueras, J.; Lopez, R.M.; Deulofeu, R.; Herrero, C. Preliminary report: Hyperhomocysteinemia in patients with acute intermittent porphyria. Metabolism 2010, 59, 1809–1810. [Google Scholar] [CrossRef] [PubMed]
  52. Klatt, P.; Pfeiffer, S.; List, B.M.; Lehner, D.; Glatter, O.; Bächinger, H.P.; Werner, E.R.; Schmidt, K.; Mayer, B. Characterization of Heme-deficient Neuronal Nitric-oxide Synthase Reveals a Role for Heme in Subunit Dimerization and Binding of the Amino Acid Substrate and Tetrahydrobiopterin. J. Biol. Chem. 1996, 271, 7336–7342. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Costa, E.D.; Rezende, B.A.; Cortes, S.F.; Lemos, V.S. Neuronal Nitric Oxide Synthase in Vascular Physiology and Diseases. Front. Physiol. 2016, 7, 206. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Ignarro, L.J. Regulation of cytosolic guanylyl cyclase by porphyrins and metalloporphyrins. Adv. Pharmacol. 1994, 26, 35–65. [Google Scholar]
  55. Dai, Y.; Faul, E.M.; Ghosh, A.; Stuehr, D.J. NO rapidly mobilizes cellular heme to trigger assembly of its own receptor. Proc. Natl. Acad. Sci. USA 2022, 119, e2115774119. [Google Scholar] [CrossRef]
  56. Lavandera, J.; Rodríguez, J.; Ruspini, S.; Meiss, R.; Zuccoli, J.R.; Martínez, M.D.C.; Gerez, E.; Batlle, A.; Buzaleh, A.M. Pleiotropic effects of 5-aminolevulinic acid in mouse brain. Biochem. Cell Biol. 2016, 94, 297–305. [Google Scholar] [CrossRef]
  57. Jover, R.; Hoffmann, F.; Scheffler-Koch, V.; Lindberg, R.L. Limited heme synthesis in porphobilinogen deaminase-deficient mice impairs transcriptional activation of specific cytochrome P450 genes by phenobarbital. Eur. J. Biochem. 2000, 267, 7128–7137. [Google Scholar] [CrossRef]
  58. Buzaleh, A.; Meiss, R.; Lavandera, J.; Vallecorsa, P.; Ruspini, S.; Batlle, A. Óxido Nítrico Sintasa y Hemo Oxigenasa en encéfalo de ratones tratados con anestésicos volátiles y otros agentes porfirinogénicos: Estudio inmunohistoquímico de la expresión proteica. Medicina 2012, 72, 121. [Google Scholar]
  59. Soong, J.; Adams, M.A.; Nakatsu, K. Acute depletion of heme by succinylacetone alters vascular responses but does not induce hypertension. Can. J. Physiol. Pharmacol. 2008, 86, 613–619. [Google Scholar] [CrossRef]
  60. Bourque, S.L.; Benjamin, C.D.; Adams, M.A.; Nakatsu, K. Lack of hemodynamic effects after extended heme synthesis inhibition by succinylacetone in rats. J. Pharmacol. Exp. Ther. 2010, 333, 290–296. [Google Scholar] [CrossRef] [Green Version]
  61. Balwani, M.; Sardh, E.; Ventura, P.; Peiró, P.A.; Rees, D.C.; Stölzel, U.; Bissell, D.M.; Bonkovsky, H.L.; Windyga, J.; Anderson, K.E.; et al. Phase 3 trial of RNAi therapeutic givosiran for acute intermittent porphyria. N. Eng. J. Med. 2020, 382, 2289–2301. [Google Scholar] [CrossRef] [PubMed]
  62. Ricci, A.; Ventura, P. Givosiran for the treatment of acute hepatic porphyria. Expert Rev. Clin. Pharmacol. 2022, 1–11. [Google Scholar] [CrossRef] [PubMed]
  63. To-Figueras, J.; Wijngaard, R.; García-Villoria, J.; Aarsand, A.K.; Aguilera, P.; Deulofeu, R.; Brunet, M.; Gómez-Gómez, À.; Pozo, O.J.; Sandberg, S. Dysregulation of homocysteine homeostasis in acute intermittent porphyria patients receiving heme arginate or givosiran. J. Inherit. Metab. Dis. 2021, 44, 961–971. [Google Scholar] [CrossRef] [PubMed]
  64. Petrides, P.E.; Klein, M.; Schuhmann, E.; Torkler, H.; Molitor, B.; Loehr, C.; Obermeier, Z.; Beykirch, M.K. Severe homocysteinemia in two givosiran-treated porphyria patients: Is free heme deficiency the culprit? Ann. Hematol. 2021, 100, 1685–1693. [Google Scholar] [CrossRef] [PubMed]
  65. Fontanellas, A.; Ávila, M.A.; Arranz, E.; Enríquez de Salamanca, R.; Morales-Conejo, M. Acute intermittent porphyria, givosiran, and homocysteine. J. Inherit. Metab. Dis. 2021, 44, 790–791. [Google Scholar] [CrossRef]
  66. Vassiliou, D.; Sardh, E. Homocysteine elevation in givosiran treatment: Suggested ALAS1 siRNA effect on cystathionine beta-synthase. J. Int. Med. 2021, 290, 928–930. [Google Scholar] [CrossRef]
  67. Ricci, A.; Marcacci, M.; Cuoghi, C.; Pietrangelo, A.; Ventura, P. Hyperhomocysteinemia in patients with acute porphyrias: A possible effect of ALAS1 modulation by siRNAm therapy and its control by vitamin supplementation. Eur. J. Intern. Med. 2021, 92, 121–123. [Google Scholar] [CrossRef]
  68. Gomá-Garcés, E.; Pérez-Gómez, M.V.; Ortíz, A. Givosiran for Acute Intermittent Porphyria. N. Engl. J. Med. 2020, 383, 1989. [Google Scholar] [CrossRef]
  69. Lazareth, H.; Poli, A.; Bignon, Y.; Mirmiran, A.; Rabant, M.; Schmitt, C.; Puy, H.; Karras, A.; Gouya, L.; Pallet, N.; et al. Renal function decline with small interfering RNA silencing ALAS1. Kidney Int. Rep. 2021, 6, 1904. [Google Scholar] [CrossRef]
  70. Wang, H.; Sun, Q.; Zhou, Y.; Zhang, H.; Luo, C.; Xu, J.; Dong, Y.; Wu, Y.; Liu, H.; Wang, W. Nitration-mediated deficiency of cystathionine β-synthase activity accelerates the progression of hyperhomocysteinemia. Free. Radic. Biol. Med. 2017, 113, 519–529. [Google Scholar] [CrossRef]
Diagnostics 12 01303 g001 550

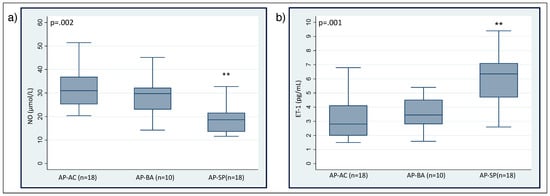

Figure 1. Serum levels of nitric oxide (a) and endothelin-1 (b) according to AHP phenotype.
Figure 1. Serum levels of nitric oxide (a) and endothelin-1 (b) according to AHP phenotype.
Diagnostics 12 01303 g001
Diagnostics 12 01303 g002 550
Figure 2. Number of patients with altered markers of endothelial function according to AHP phenotype. Having an alteration of NO or ET-1 was significantly more frequent in the AP-SP group (symptomatic patients).
Figure 2. Number of patients with altered markers of endothelial function according to AHP phenotype. Having an alteration of NO or ET-1 was significantly more frequent in the AP-SP group (symptomatic patients).
Diagnostics 12 01303 g002
Diagnostics 12 01303 g003 550

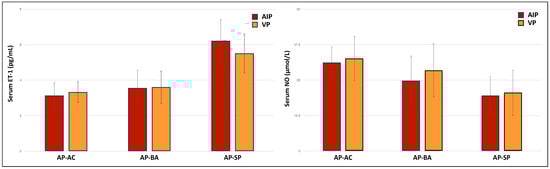

Figure 3. Serum levels of ET-1 and NO according to AHP type.
Figure 3. Serum levels of ET-1 and NO according to AHP type.
Diagnostics 12 01303 g003
Diagnostics 12 01303 g004 550

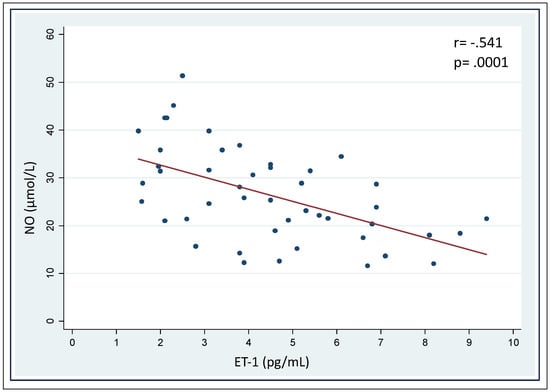

Figure 4. Correlation between serum NO and ET-1 levels. Data points are means of at least six seriate measurements.
Figure 4. Correlation between serum NO and ET-1 levels. Data points are means of at least six seriate measurements.
Diagnostics 12 01303 g004
Diagnostics 12 01303 g005 550

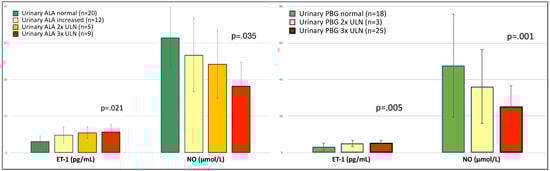

Figure 5. Serum levels of ET-1 and NO according to the increase of non-porphyrin heme precursors in urines. ULN, upper level of normal.
Figure 5. Serum levels of ET-1 and NO according to the increase of non-porphyrin heme precursors in urines. ULN, upper level of normal.
Diagnostics 12 01303 g005
Diagnostics 12 01303 g006 550

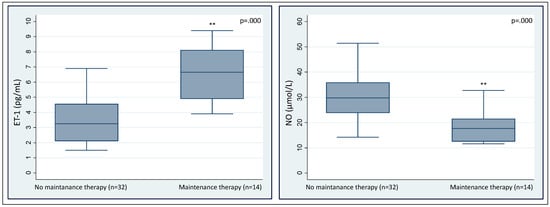

Figure 6. Serum levels of ET-1 and NO in patients with and without maintenance therapy.
Figure 6. Serum levels of ET-1 and NO in patients with and without maintenance therapy.
Diagnostics 12 01303 g006
Diagnostics 12 01303 g007 550

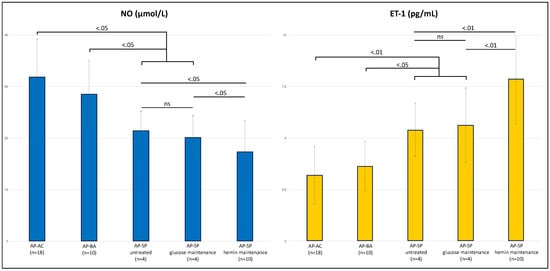

Figure 7. Serum levels of NO and ET-1 according to AHP phenotype and maintenance therapy. Within symptomatic patients, those on maintenance therapy with hemin had significantly lower NO and higher ET-1 levels. Notably, ET-1 and NO levels were significantly altered in symptomatic patients, compared to the asymptomatic, even when AP-SP under hemin maintenance therapy were excluded. For each comparison, p values are reported over the comparison line; ns, not significant.
Figure 7. Serum levels of NO and ET-1 according to AHP phenotype and maintenance therapy. Within symptomatic patients, those on maintenance therapy with hemin had significantly lower NO and higher ET-1 levels. Notably, ET-1 and NO levels were significantly altered in symptomatic patients, compared to the asymptomatic, even when AP-SP under hemin maintenance therapy were excluded. For each comparison, p values are reported over the comparison line; ns, not significant.
Diagnostics 12 01303 g007
Diagnostics 12 01303 g008 550

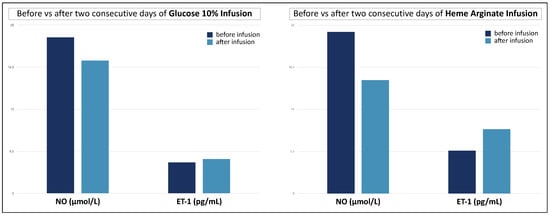

Figure 8. Change in NO and ET-1 levels in two couples of patients after two consecutive days of either 10% glucose or hemin infusions. Data points are each mean of two patients.
Figure 8. Change in NO and ET-1 levels in two couples of patients after two consecutive days of either 10% glucose or hemin infusions. Data points are each mean of two patients.
Diagnostics 12 01303 g008
Diagnostics 12 01303 g009 550

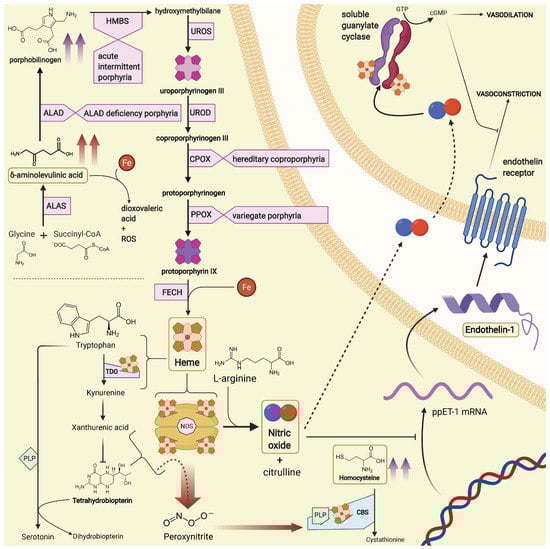

Figure 9. Other than its role as an oxygen carrier in hemoglobin, heme is an essential cofactor in several processes of the intermediate metabolism. As a consequence of an enzyme impairment in the pathway of heme biosynthesis, δ -aminolevulinic acid and porphobilinogen accumulate: δ -aminolevulinic acid, in particular, self-reacts in the presence of iron, to yield ROS and dioxovaleric acid, a highly reactive oxidant. This is deemed one of the main mechanisms which cause tissue damage in acute porphyrias. Nitric oxide synthases, tryptophan 2,3-dioxygenase, cystathionine β -synthase, and soluble guanylate cyclases are all hemeproteins. Nitric oxide inhibits endothelin-1 expression at a translational level; additionally, cyclic guanosine monophoshate has inhibitory effects on the signaling pathway which starts from endothelin receptors. Nitric oxide synthases require tetrahydrobiopterin (BH4) as a cofactor. In conditions of BH4 deficiency, “uncoupled” reactions may yield peroxynitrite, a highly reactive oxidant and nitrating species (to which cystathionine β -synthase, the first enzyme in the trans-sulfuration pathway of homocysteine, may be particularly sensitive [70]). ALAD, δ -aminolevulinic acid dehydratase; ALAS, δ -aminolevulinic acid synthase; CBS, cystathionine β -synthase; cGMP, cyclic guanosine monophoshate; CPOX, coproporphyrinogen oxidase; Fe, iron atom; FECH, ferrochelatase; GTP, guanosine triphosphate; HMBS, hydroxymethylbilane synthase; NOS, nitric oxide synthase; PLP, pyridoxal phosphate; ppET-1, preproendothelin-1; PPOX, protoporphyrinogen oxidase; ROS, reactive oxygen species; TDO, tryptophan 2,3-dioxygenase, UROD, uroporphyrinogen decarboxylase; UROS, uroporphyrinogen synthase; Created with BioRender.com (accessed on 12 May 2022).
Figure 9. Other than its role as an oxygen carrier in hemoglobin, heme is an essential cofactor in several processes of the intermediate metabolism. As a consequence of an enzyme impairment in the pathway of heme biosynthesis, δ -aminolevulinic acid and porphobilinogen accumulate: δ -aminolevulinic acid, in particular, self-reacts in the presence of iron, to yield ROS and dioxovaleric acid, a highly reactive oxidant. This is deemed one of the main mechanisms which cause tissue damage in acute porphyrias. Nitric oxide synthases, tryptophan 2,3-dioxygenase, cystathionine β -synthase, and soluble guanylate cyclases are all hemeproteins. Nitric oxide inhibits endothelin-1 expression at a translational level; additionally, cyclic guanosine monophoshate has inhibitory effects on the signaling pathway which starts from endothelin receptors. Nitric oxide synthases require tetrahydrobiopterin (BH4) as a cofactor. In conditions of BH4 deficiency, “uncoupled” reactions may yield peroxynitrite, a highly reactive oxidant and nitrating species (to which cystathionine β -synthase, the first enzyme in the trans-sulfuration pathway of homocysteine, may be particularly sensitive [70]). ALAD, δ -aminolevulinic acid dehydratase; ALAS, δ -aminolevulinic acid synthase; CBS, cystathionine β -synthase; cGMP, cyclic guanosine monophoshate; CPOX, coproporphyrinogen oxidase; Fe, iron atom; FECH, ferrochelatase; GTP, guanosine triphosphate; HMBS, hydroxymethylbilane synthase; NOS, nitric oxide synthase; PLP, pyridoxal phosphate; ppET-1, preproendothelin-1; PPOX, protoporphyrinogen oxidase; ROS, reactive oxygen species; TDO, tryptophan 2,3-dioxygenase, UROD, uroporphyrinogen decarboxylase; UROS, uroporphyrinogen synthase; Created with BioRender.com (accessed on 12 May 2022).
Diagnostics 12 01303 g009
Table
Table 1. Demographic, clinical and biochemical data of the study population.
Table 1. Demographic, clinical and biochemical data of the study population.
AP-AC group (n = 18)AP-BA group (n = 10)AP-SP group (n = 18)p
Age (years)45 ± 1342 ± 1148 ± 25.455
Sex (M/F)9/95/58/10.934
AHP diagnosis (AIP/VP)8/107/316/2.017
Active smoking status (yes/no)2/161/91/17.090
Urinary ALA∘ ( μ mol/mmol creatinine)2.95 ± 1.668.39 ± 3.2213.9 ± 5.09.000 *; .000**; .001***
Urinary PBG∘ ( μ mol/mmol creatinine)1.14 ± 0.5319.2 ± 13.133.7 ± 12.7.001*; .000**; .002***
Urinary total porphyrins∘ ( μ g/g creatinine)96.2 ± 24.1329 ± 156797 ± 414.085 *; .000 **; .001 ***
Creatinine clearance (mL/min)79.1 ± 9.5171.2 ± 5.6669.8 ± 8.44.052 *; .005 **; .923 ***
SGPT (IU/L)25.6 ± 8.6130.5 ± 5.6932.5 ± 9.71.059
SGOT (IU/L)28.7 ± 7.4329.2 ± 6.7431.5 ± 10.4.559
Serum albumin (g/L)3.82 ± 0.253.85 ± 0.313.75 ± 0.38.687
ET-1 (pg/mL)3.21 ± 1.513.56 ± 1.246.16 ± 1.81.564 *; .000 **; .022 ***
NO ( μ mol/L)31.9 ± 8.4828.6 ± 9.6819.7 ± 6.81.842 *; .000 **; .000 ***
* AP-AC group vs. AP-BA group; ** AP-AC group vs. AP-SP group; *** AP-BA group vs. AP-SP group. ∘ Mean of at least six seriate measurements. Normal ranges: ALA < 5 μmol/mmol creatinine; PBG < 1.5 μmol/mmol creatinine; total urinary porphyrins < 110 μg/g creatinine; creatinine clearance > 60 mL/min (CKD-EPI estimate [37]); SGPT [1–40] IU/L; SGOT [1–37] IU/L; serum albumin [3.5–5] g/dL. IU, International Units.
Table
Table 2. Long-term complications and maintenance treatment according to AHP phenotype.
Table 2. Long-term complications and maintenance treatment according to AHP phenotype.
n Treatment
AP-AC1 (5.5%)
HypertensionAP-BA1 (10%)
AP-SP6 (33.3%)5 hemin/1 glucose
AP-AC0 (0%)
Kidney ImpairmentAP-BA1 (10%)
AP-SP4 (22%)3 hemin/1 glucose
AP-AC0 (0%)
ThrombosisAP-BA0 (0%)
AP-SP3 (16.7%)3 hemin
Table
Table 3. Maintenance treatment according to AHP type and clinical features.
Table 3. Maintenance treatment according to AHP type and clinical features.
TreatedUntreated
Diagnosis (AIP/VP) 13/118/14
Clinical Status
AP-AC018
AP-BA010
AP-SP144
Treatment (hemin/glucose)10/4
Hemin treatment frequency (times per week)
16
>14
Table
Table 4. Correlation for serum NO and ET-1 levels. No significant correlation (Pearson’s r) was found between ED markers and urinary ALA, PBG or porphyrins levels (measured as means of six seriate assessments).
Table 4. Correlation for serum NO and ET-1 levels. No significant correlation (Pearson’s r) was found between ED markers and urinary ALA, PBG or porphyrins levels (measured as means of six seriate assessments).
Correlation with NO LevelsCorrelation with ET-1 Levels
Parameterrprp
ALA−0.237.1170.284.056
PBG−0.277.0610.255.086
Total porphyrins−0.313.0710.239.108
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ricci, A.; Sandri, G.; Marcacci, M.; Di Pierro, E.; Granata, F.; Cuoghi, C.; Marchini, S.; Pietrangelo, A.; Ventura, P. Endothelial Dysfunction in Acute Hepatic Porphyrias. Diagnostics 2022, 12, 1303. https://doi.org/10.3390/diagnostics12061303

AMA Style

Ricci A, Sandri G, Marcacci M, Di Pierro E, Granata F, Cuoghi C, Marchini S, Pietrangelo A, Ventura P. Endothelial Dysfunction in Acute Hepatic Porphyrias. Diagnostics. 2022; 12(6):1303. https://doi.org/10.3390/diagnostics12061303

Chicago/Turabian Style

Ricci, Andrea, Gilda Sandri, Matteo Marcacci, Elena Di Pierro, Francesca Granata, Chiara Cuoghi, Stefano Marchini, Antonello Pietrangelo, and Paolo Ventura. 2022. "Endothelial Dysfunction in Acute Hepatic Porphyrias" Diagnostics 12, no. 6: 1303. https://doi.org/10.3390/diagnostics12061303

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
