Life 2017, 7(4), 47; doi:10.3390/life7040047

Article
Integral Phylogenomic Approach over Ilex L. Species from Southern South America
1
Departamento de Ecología, Genética y Evolución, Facultad de Ciencias Exactas y Naturales, Universidad de Buenos Aires—IEGEBA (UBA—CONICET), C1428EHA Ciudad Autónoma de Buenos Aires, Argentina
2
Consejo Nacional de Investigaciones Científicas y Técnicas (CONICET), Godoy Cruz 2290, C1425FQB Ciudad Autónoma de Buenos Aires, Argentina
*
Correspondence: Tel.: +54-011-5285-8645
Current address: Escuela de Ciencias Agrarias, Naturales y Ambientales, Universidad del Noroeste de la Provincia de Buenos Aires (UNNOBA), Av. Pte. Dr. Arturo Frondizi N° 2650 Pergamino, Buenos Aires, Argentina.
Received: 9 October 2017 / Accepted: 16 November 2017 / Published: 22 November 2017

Abstract

:
The use of molecular markers with inadequate variation levels has resulted in poorly resolved phylogenetic relationships within Ilex. Focusing on southern South American and Asian species, we aimed at contributing informative plastid markers. Also, we intended to gain insights into the nature of morphological and physiological characters used to identify species. We obtained the chloroplast genomes of I. paraguariensis and I. dumosa, and combined these with all the congeneric plastomes currently available to accomplish interspecific comparisons and multilocus analyses. We selected seven introns and nine IGSs as variable non-coding markers that were used in phylogenomic analyses. Eight extra IGSs were proposed as candidate markers. Southern South American species formed one lineage, except for I. paraguariensis, I. dumosa and I. argentina, which occupied intermediate positions among sampled taxa; Euroasiatic species formed two lineages. Some concordant relationships were retrieved from nuclear sequence data. We also conducted integral analyses, involving a supernetwork of molecular data, and a simultaneous analysis of quantitative and qualitative morphological and phytochemical characters, together with molecular data. The total evidence tree was used to study the evolution of non-molecular data, evidencing fifteen non-ambiguous synapomorphic character states and consolidating the relationships among southern South American species. More South American representatives should be incorporated to elucidate their origin.
Keywords:
multilocus phylogenomics; networks and splits graphs; non-coding regions; plastomes; supernetwork; character evolution

1. Introduction

The cosmopolitan plant genus Ilex L. (Aquifoliaceae Bartl.) comprises ca. 600 functionally dioecious species of perennial and deciduous trees and shrubs [1,2]. Most species have ornamental value, while several others have medicinal and nutritious properties [3]. Tropical America and subtropical East Asia are documented centres of diversity for the genus [1,2], which has ample representation in the Neotropics (ca. 220–300 species) but is less abundant towards subtropical South America [1,2,4]. Particularly, less than 15 species have been described across eastern Paraguay, southern Brazil and north eastern Argentina, and only two are known for Uruguay [3,4,5,6,7,8]. Among southern South American (sSA) species, I. paraguariensis A. St.-Hil.—the “yerba mate” tree—is the most important from a socio-economic perspective. The aerial parts of I. paraguariensis are commercialized to prepare a tea-like beverage called “mate”, highly popular in most sSA countries, and lately also in the Middle East. The infusion is appreciated for its distinctive flavour and invigorating and nutraceutical properties, attributed to the high concentration of secondary metabolites [9,10,11]. In the past, I. argentina Lillo, I. brasiliensis (Spreng) Loes., I. brevicuspis Reissek, I. dumosa Reissek, I. integerrima (Vellozo) Reissek, I. microdonta Reissek, I. pseudobuxus Reissek, I. taubertiana Loes., and I. theezans Reissek, were used as adulterants of the “yerba mate” [12]. This led to several phytochemical and morphological studies for species identification [5,6,7,13,14,15,16,17]; nowadays, only I. dumosa preparations are promoted as a caffeine-free alternative to the genuine “mate” [18].
The origin and affiliation of sSA Ilex species are unclear [19,20,21,22,23,24]. Previous molecular studies showed association with North American, Central American and Asian taxa [20,21,22,23,24]. Still, phylogenetic analyses have been based on few universal nuclear and/or heterologous plastidial markers with dubious resolution power [19,20,21,22,23,24,25,26]. Hence, published phylogenies showed taxon instability, poor backbone resolution and incongruences, leading to unstable relationships [20,21,22,24]. Most phytochemical and morphological studies of sSA taxa were mainly descriptive [3,4,5,6,7,13,14,27], and only a few employed phenetic methodologies [28,29]. However, Loizeau et al. [1] attempted a phylogenetic analysis with morphological characters.
Manen et al. [22] estimated that the age of the most recent common ancestor of the extant Ilex species’ plastomes is about 15 million years. Nuclear-based phylogenetic studies in Ilex evidenced frequent interlineage and intersectional hybridizations, lineage sorting, gene flow, and inconsistencies with traditional classification [20,21,22,23,24,25,26]. In contrast, plastid-based phylogenetic trees correlated with the geographical distribution of the species without evidencing gene flow, and in some cases, were more consistent with morphologically-based taxonomy [21,22,23,24,25,26]. In this context, plastidial markers emerge as more appropriate tools for studying phylogenetic relationships in this group, and also as a source of valued variable genetic markers. The chloroplast genome has uniparental transmission mode (maternal, in most angiosperms), haploidy, and substantially less gene flow compared to biparentally inherited nuclear genes [30,31,32,33]. The literature abounds in studies focused on detecting variable plastidial markers and in successfully applying them at various taxonomic levels [34,35,36,37,38,39]; however, the early diverging Aquifoliaceae has been scarcely represented [40,41]. Aiming at a forthcoming elucidation of the relationships within Ilex through truly informative markers and robust phylogenies, we herein characterized the chloroplastidic genomes of sSA endemic species I. paraguariensis and I. dumosa, and of the Asian I. cornuta Lindl. and Paxt. Then, using all the Ilex plastomes currently available, we accomplished interspecific comparisons and multilocus analyses, selecting variable non-coding plastidial markers with which we assessed the phylogenetic relationships among most species from southern South America, together with Euroasiatic representatives. Results were contrasted with those derived from nuclear sequence data analyses. Furthermore, integral analyses were performed including nucleotide sequences, morphological, phytochemical and genotyping data. We implemented two phylogenetic approaches, one that uses traditional dicotomical topologies, and another that does not force tree-like topologies to model relationships (that is, split graphs and supernetworks). The present work allowed the improvement of the existing draft plastome for I. paraguariensis [42], but more importantly we contributed a panel of variable markers and we integrated different discrete and quantitative data for the assessment of phylogenetic relationships, acquiring new insights on the evolution of characters used for species identification.

2. Materials and Methods

2.1. Plant Material

Leaf samples were provided by the Ilex Germplasm Bank at the “Estación Experimental Agropecuaria INTA Cerro Azul” (EEA-INTA-CA; Misiones, Argentina); the Carlos Thays Botanical Garden (JBCTBA; Buenos Aires, Argentina) and the Lucien Hauman Botanical Garden at the “Facultad de Agronomía, Universidad de Buenos Aires” (FAUBA; Buenos Aires, Argentina). For plastome sequencing we used the following accessions of I. paraguariensis: EEA-INTA-CA n° 30 (Santa Catarina, Brazil), 217 (Paraná, Brazil) and 224 (Alto Paraná, Paraguay); and tree n° 1837 from the JBCTBA. The sampled accessions of I. dumosa were: EEA-INTA-CA n° 222 (Misiones, Argentina), 55 (Paraná, Brazil), 227 (Alto Paraná, Paraguay), and CRV7 (Misiones, Argentina, provided by Dr. PA Sansberro, from IBONE-CONICET). All these samples were chosen to represent plastidic variation detected on a preliminary survey using heterologous microsatellites: two haplotypes in I. paraguariensis [43] and four in I. dumosa (J Cascales, UBA-FCEN, Argentina, unpub. res.). Detailed lists of species of Ilex used throughout this work are presented in Tables S1 and S2. Allopatric taxa (European and Asian) were chosen based on plastid sequence availability from public databases.

2.2. Chloroplasts DNA Extraction and Processing

Chloroplasts were isolated from fresh leaves using the Chloroplast Isolation Kit (Sigma-Aldrich, Saint Louis, Missouri, USA) according to manufacturer´s instructions; plastid DNA was extracted using protocols of Diekmann et al. [44] and Shi et al. [45]. Sequence data were obtained for each individual plant using the Whole Genome Shotgun single-end sequencing strategy with the 454 GS FLX+ technology (Roche) at INDEAR (Santa Fe, Argentina). A combination of de novo and reference-guided assembly strategies were performed using Celera Assembler 6.1 [46], Newbler 2.6 and Newbler 2.8 assemblers (Roche). The raw data and the contigs were filtered through BLASTn searches against plastid genomes of Camellia L. spp. (NC_020019, NC_022264, NC_022459-63, KF156836 and KF562708), Coffea arabica L. (NC_008535) and Theobroma cacao L. (NC_014676.2). Mitochondrial and nuclear contaminating sequences were trimmed using Sequencher v4.1.4 (GeneCodes Corp., Ann Arbor, MI 48108, USA). Representative plastomes for each species were generated with consensus sequences across individuals in Sequencher (minimum overlap of 100 bp and minimum match percentage of 90%). Through Sanger sequencing on an ABI 3730xl instrument (Applied Biosystems, Foster City, CA, USA) and using PCR primers designed with Primer3Plus [47] and Primer-BLAST [48] programs as well as primers designed by [49] (Table S3), we verified the junctions between small (SSC) and large (LSC) single-copy regions and inverted repeat regions (IRs), and we filled gaps.

2.3. Genomic DNA Extraction and Processing

Total genomic DNA from sSA Ilex species (detailed in Table S2) were obtained previously [20]. Fresh leaves of I. aquifolium L. and I. latifolia Thunb., were processed with the DNeasy Plant Quick Extraction kit (QIAGEN Inc., Duesseldorf, Germany) following manufacturer’s instructions. PCR primers were designed as above or obtained from [50,51] (Table S3), and reaction conditions were as described in Cascales et al. [43]. PCR purifications were done with AccuPrep® Gel purification kit (BIONEER, Daedeok-Gu, Daejeon 306-220, Korea). Sequencing reactions were carried out as above. Genbank accession numbers of the sequences obtained herein and of those downloaded are indicated in Tables S1 and S2.

2.4. Plastome Characterization

Genome annotation was performed using CpGAVAS [52] with default parameters. For each protein-coding sequence (CDS), the start and stop codons were established by comparison with the MSWAT alignment [53] and with the annotated sequences of I. cornuta (see below). Transfer RNA (tRNA) genes were identified with tRNAscan-SE 1.21 [54] with default settings. All annotations were adjusted using Geneious 7.1.7 (Biomatters, available from http://www.geneious.com). The consensus plastomes were deposited in Genbank (KP016927-KP016928).
A schematic plastome for I. cornuta was generated using the 125 sequences publicly available (totalling 105 Kb) by mapping against the complete consensus plastome of I. paraguariensis, in Geneious (Supplementary File 1). As no reliable living material of I. cornuta is available to us, the gaps were filled with ambiguous bases (N).
Plastome maps were created with OGDraw [55] using standard settings. Global alignments were accomplished with MAFFT multiple aligner 1.3.3 [56] in Geneious, from which identity statistics were derived. Conservation level was assessed via pairwise alignments using mVISTA [57] in LAGAN mode [58] and Panax schinseng Nees (=P. ginseng, AY582139) as the reference, to make differences more evident.

2.5. Non-Coding Marker Selection

A number of Ilex species and plastid regions (Table S1) were used to assess the nucleotide variation level of single-locus alignments through the calculation, for each region, of a normalized divergence ratio (=(number of variable sites/number of constant sites)/number of species considered) and the average of the pairwise uncorrected p-distances (p-distance = number of variable sites/total number of sites). The number of variable and constant sites, and p-distances were estimated from single-locus alignments performed in MEGA 6.0 [59]. Those values were used for among-region comparisons visualized with histograms. Previous to the release of plastomes for six Asian Ilex species [60], we had selected 7 introns and 10 IGSs as potential phylogenetic markers, using data available at the time (3–14 species for introns and 4–14 species for IGSs; Table S1 and Figure S1). The plastomes generated by Yao et al. [60] were employed for re-testing our marker selection with more species. Thus, the 18 introns were re-scrutinized with 8–20 species, using updated average normalized ratio (=0.0016), and average p-distance (=0.0042) values as references. We also re-evaluated our set of IGSs, and included regions not previously tested. For this extended set of 30 IGSs we used updated thresholds (average normalized ratio = 0.0023, and average p-distance = 0.0067).

2.6. Chloroplast Phylogenomic Analyses

We validated the phylogenetic performance of selected markers in the context of other angiosperms. Taxa included were from clades euasterids I (orders Solanales and Gentianales) and euasterids II (orders Aquifoliales, Apiales and Asterales); taxa from Ericales and Malvales were included as outgroups (for accession numbers see Table S1). As selected IGSs proved more variable than introns (average normalized ratios = 0.0049 and 0.0032, respectively), we focused on those regions and we obtained 80 sequences for additional species of Ilex, and downloaded other sequences from Genbank (Table S2). PCR amplifications were carried out using conditions described in Cascales et al. [43] and annealing temperatures of 50 or 55 °C; purification and sequencing steps were performed as outlined before. For those species with several sequences per region we generated consensuses in Bioedit [61]. Concatenation and a first round of alignment were performed in Geneious; re-alignments were done in MEGA using MUSCLE [62] with default settings. Best-fitting substitution models were determined in MEGA. Phylogenomic analyses of multilocus matrices were performed under the Maximum Likelihood (ML) criterion with the same program. The ML searches used the BioNJ topology as the initial tree, and the branch swapping filter was set to strong. Bootstrap support values were estimated in MEGA with 500 pseudoreplicates. Also, a multilocus IGS matrix, generated solely for Ilex, was analysed through ML as explained above, but without considering a root (i.e., unrooted). As well, this matrix was analysed through the Neighbour-Net algorithm (NN; [63]) in SplitsTrees 4 [64] with the following settings: uncorrected p-distance; edge fitting as ordinary least squares; equal angle as the chosen splits transformation; least squares to modify weights; and four maximum dimensions as the filtering option. Fit and least squares fit (LSfit) values were computed by SplitsTrees, between the pairwise distances in the graph and in the matrix. The split graph generated in the NN yields a visual representation of conflicting signals in the data by presenting them as a series of parallel edges [63].

2.7. Nuclear Sequences Analyses

To compare relationships inferred from plastidial data (maternal inheritance) with nuclear information (biparental inheritance), we downloaded from Genbank nuclear rDNA sequences (ITS) from 17 Ilex species and sequences of the nuclear encoded protein gluthamine synthetase (nepGS) from 15 species (Table S2). The nuclear information was subjected to unrooted ML and NN analyses, as described above.

2.8. Supernetwork

This approach uses as input a collection of topologies defined on fully or partially overlapping subsets of taxa, and outputs a graphic that summarizes multiple phylogenies showing on which parts all partial gene trees agreed and where there existed contradicting signals. These are shown as “incompatibility boxes” whose “dimensionality” reflects the number of conflicting signals [64]. The supernetwork approach was implemented solely for Ilex species, using as input unrooted binary topologies, namely, the ML phylograms for IGSs (20 taxa), ITS (17 taxa) and nepGS (15 taxa), and an AFLP Neighbour-joining phylogram for 7 taxa (I. argentina, I. brasiliensis, I. brevicuspis, I. dumosa, I. integerrima, I. paraguariensis and I. theezans). The latter phylogram was derived from that presented by Gottlieb et al. [20], but solely considering the most inclusive node for each taxon clade and its corresponding branch length. The supernetwork was obtained in SplitsTrees (with default settings) by importing the topologies in newick format (Supplementary File 2).

2.9. Total Evidence and Character Analyses

All the information available was integrated in a simultaneous analysis in order to find the most parsimonious phylogenetic hypotheses [65]. Thus, a combined matrix was constructed for the 10 species from Southern South America, and a dummy outgroup; it involved 21 quantitative and qualitative morphological characters (external and histological) mostly related to anatomical features of female and male flowers, and 12 phytochemical characters, all extracted from published information (Table S4) [4,13,14,15,17,29,66,67,68,69,70], plus 9702 molecular characters from IGS (7727 bp), ITS (689 bp), and nepGS (813 bp) sequences, and 473 AFLP bands (coded as presence/absence) (Supplementary File 3). AFLP data were extracted from A.M.G. personal data matrix. Phylogenetic searches were conducted in TNT [71], using equally weighted parsimony and exact searches; gaps were treated as a fifth state. The range variation of each quantitative character was standardized as equivalent to one step of a discrete character (i.e., a change between the two most dissimilar states in each continuous character has the same cost as one step in a discrete character) [72]. Group support was evaluated with 1000 pseudoreplicates for both bootstrap and jackniffe (p = 0.36) resampling in TNT. Results were used to analyse character evolution of morphological and phytochemical features.

3. Results

3.1. Analyses and Characterization of Plastomes

The NGS sequencing yielded 111 K reads for I. paraguariensis and 97 K for I. dumosa, with an average length of 618 bp. The complete consensus plastome assembled for I. paraguariensis (38 X average coverage) and the draft for I. dumosa (8 X), showed the typical quadripartite structure and gene content (Figure S2, Table S5), and similar proportions of structural features (58% of genes and 42% of non-coding sequences; Figure S2). The deduced schematic plastome for I. cornuta followed this structure, although showed 16.8% of missing data (Figure S2).
The three plastomes aligned spanned 158.3 Kbp; as expected, the most conserved regions were—in decreasing order—the ribosomal genes, the tRNA genes, the CDS, the introns and IGS regions (Figure 1). Sequence identity between I. paraguariensis and I. dumosa was 99.01%. The seven Asian species plastomes exhibited 95.50% similarity on average, and when I. cornuta was excluded that value raised to 99.10%. The plastome of I. polyneura was the most similar to I. paraguariensis (98.77%) and I. dumosa (98.76%). The global average similarity was 96.2% among the nine species of Ilex (rising to 99.0% when I. cornuta was excluded).

3.2. Marker Selection

The addition of data from Yao et al. [60] modified our original selections. With a minimum of eight species surveyed per region, the most variable introns were those for genes atpF, clpP, ndhA, petD, rpl16, rps16 and trnK (Figure 2a), the latter replaced intron trnG. Our original IGS survey indicated that atpB-rbcL, atpH-atpI, ndhC-trnV, ndhF-rpl32, psbE-petL, rpl32-trnL, trnH-psbA, trnK-rps16, trnS-trnG and trnT-psbD qualified as variable markers for Ilex (Figure S1). With the inclusion of the plastomic data of Yao et al. [60] most markers were validated, but psbE-petL. Among the newly tested regions, eight qualified as additional variable markers (namely, accD-psaI, infA-rps8, rpoB-trnC, rps16-trnQ, trnT-trnL, petN-psbM, ycf4-cemA and psbK-psbI; Figure 2b).
The inspection of single-locus alignments from validated markers detected several small structural rearrangements. For instance, trnS-trnG exhibited a 44 bp-long palindromic region, and 15 bp-long non-tandem duplications shared by sSA I. integerrima, I. brasiliensis, I. microdonta, I. pseudobuxus, I. brevicuspis and I. theezans, and by Asian I. wilsonii and I. szechwanensis. Within rpl32-trnL, a 101 bp deletion was solely detected for I. paraguariensis; the deleted region retrieved BLAST hits exclusively with Ilex plastomes. As well, a small inversion (44 bp) was shared by I. integerrima, I. brasiliensis, I. brevicuspis and I. theezans.

3.3. Phylogenomic Analyses

The phylogram inferred from the selected intronic regions showed that the clades euasterids I and II were clearly defined (BSV ≥ 98%; Figure S3a). Ilex paraguariensis and I. dumosa (BSV = 80%) appeared as sister group (BSV = 89%) of the Asian clade formed by I. cornuta, I. latifolia and I. delavayi. The other four Asian species branched as sister group (BSV = 81%). The phylogram derived from the 9 IGS also recovered the clades euasterids I and II (BSV = 100 and 87%, respectively; Figure S3b). Southern South American species I. brevicuspis and I. theezans (BSV = 97%) plus I. brasiliensis, I. taubertiana, I. pseudobuxus, I. integerrima and I. microdonta appeared robustly related (BSV= 99%). Whereas, I. argentina and I. dumosa received moderate support (BSV = 70%) as sister to the former; I. paraguariensis was located as sister taxa to all sSA (BSV = 93%). Two other clades were formed, the one related to sSA species (BSV = 92%) involved Euroasiatic taxa I. kaushue, I. pentagona, I. latifolia, I. cornuta, I. aquifolium and I. delavayi (BSV = 99%), and the other comprised I. polyneura, I. pubescens, I. wilsonii and I. szchewanensis (BSV = 98%).
The multilocus IGS alignment solely for Ilex species spanned 7862 bp, having 6.27% of missing data. Average genetic distance between sSA and Euroasiatic species (uncorrected p-distance = 0.0103) was 1.8 to 1.2 times higher than that calculated for each group, respectively. Though consistent with the rooted ML topology (Figure S3b), the unrooted ML clearly showed that I. argentina, I. dumosa, I. paraguariensis, I. delavayi, I. wilsonii and I. szchewanensis had the largest branches and intermediate positions (Figure 3a). The NN network agreed in that, and also highlighted conflicting signals among sSA taxa and among I. aquifolium, I. cornuta, I. kaushue, I. pentagona and I. latifolia (Figure 3b).

3.4. Nuclear Sequence Analyses

The unrooted ML phylogram and the NN derived from ITS matrix showed that I. paraguariensis and I. dumosa (BSV = 98%) occupied an intermediate position, strongly supported by the data (shown by the heaviest edges), and exhibited the largest branches (Figure S4a,c). NepGS gene network failed to discriminate the species according to their geographic origin. The unrooted ML phylogram and the NN yielded three robust groups (BSV ≥ 94%): I. dumosa and I. argentina, I. pseudobuxus and I. microdonta, and I. integerrima, I. brasiliensis, I. brevicuspis and I. theezans. Remaining nodes were unsupported (Figure S4b,d).

3.5. Integrated Data

The supernetwork generated from molecular data showed an almost tree-like structure for Euroasiatic species (Figure 4a), but showed conflicting signals, particularly in the relationship among I. argentina, I. dumosa and I. paraguariensis, and the placement of I. brevicuspis.
Total evidence approach was implemented solely for sSA species, rendering a single most parsimonious tree (Figure 4b) where most nodes received good support (BSV/JK ≥ 83/93%), except the relationship of I. paraguariensis and I. dumosa which was moderately supported (BSV/JK ≥ 69/75%), and that of I. integerrima and I. theezans which received poor support (BSV/JK = 55/61%). When morphological and phytochemical characters were optimized over the tree, 15 non-ambiguous synapomorphies were evidenced. For the members of clade A, the 1.2–1.7 times reduction in fruit size (char. 2), the absence of colleters (external secretory structures involved in the protection of buds and young leaves) on leaf laminae (char. 35), and the presence in female flowers of papillae over the epidermis of staminoidia (arrested stamens shown by female flowers; char. 19), are states that had been inherited from the common ancestor although I. microdonta had secondarily lost papillae, and I. integerrima exhibited lachrymiform colleters (homoplasies). There also had been a 2–6 times decrease in the content of a caffeoyl derivative (3.5 dicaffeoylquinic acid; char. 9) before the divergence of the seven species. The hypothetical ancestor of clade B may have produced dorsally striated pyrenes (char. 27), instead, the smooth pyrenes shown by I. integerrima, I. brevicuspis and I. pseudobuxus may had been acquired in parallel. Descendants of clade C, shared an increment in their leaves length (1.3 times; char. 0) and in the innervation of the gynoecium (either functional or aborted; char. 21), and exhibited rostrated pistilloidia (aborted pistils generated by male flowers; char. 28). The obtuse leaf apex (char. 26) and the decrease in the content of the flavonoid rutine (up to 1.5 times; char. 12) shared by members of clade D represented novel homologies. Similarly, the increase in fruit size (1.2–1.4 times; char. 2) and the absence of papillae from the epidermis of petals (char. 15) and stamens (char. 18) shown by I. theezans and I. integerrima may represent homologous changes for the two species, but convergent features for I. dumosa and I. argentina. Since divergence from the common ancestor (node B), the hypothetical ancestor of I. microdonta and I. pseudobuxus had experienced an increment in the content of the flavonoids rutine (6 times; char. 12) and kampferol (1.1–2.7 times; char. 14), and in the content of caffeic acid (1.8–2.3 times; char. 7). Also, the low concentration of methylxantines (caffeine; char. 32) was a homologous feature for these two species.

4. Discussion

We herein contributed the first complete plastomes for sSA Ilex species, a draft for the ornamental Asian species I. cornuta, and plastidic information from several other congeneric species. These data complement that for species from China [60]. In concordance with the conserved nature of the chloroplasts [35,40,74], the plastid genomes of Ilex species displayed synteny even with the distantly related P. ginseng (Apiales). This agrees with the high overall conservation visualized (Figure 1), the high interspecific sequence identity (average = 96.2%) and the relatively short branches shown by the Aquifoliaceae in the phylogenomic analyses (Figure S3a,b). Moreover, we found that Ilex plastomes exhibited the ancestral gene order seen among unrearranged angiosperms like Nicotiana (Solanaceae) [36,75,76]. We detected that the draft plastome depicted for I. paraguariensis by Debat et al. [42] showed the LSC region with the two large overlapping inversions (comprising a 22.8 Kb region and a 3.3 Kb nested inversion) described for Lactuca (Asteraceae) by Timme et al. [77]. Thus, caution should be taken not to confound those features as relevant to Ilex. Large and small-scale duplications, inversions, and indel events, and pseudogenization are known to have diversified angiosperm plastomes [39,74,76]. Herein, only small structural rearrangements (<200 bp) were detected, such as an autapomorphic deletion within rpl32-trnL for I. paraguariensis, and a synapomorphic deletion within trnK-rps16 for I. polyneura, I. pubescens and I. wilsonii. Also, convergent duplications were found, for instance, within trnS-trnG. We anticipate that as more species are surveyed, more rearrangements will be unveiled, so that their phylogenetic information could be appropriately extracted.
We are aware that the coverage obtained herein is lower than expected by NGS, and in comparison with similar studies [60,78,79]. Even though identical experimental procedures and bioinformatic pipelines were used for both species, a low proportion of chloroplastidic reads were obtained (<7%). This could be accounted for by unnoticed experimental artefacts combined with the abundance of cytosolic metabolites that may interfere with intact chloroplast isolation and/or with downstream procedures. A severe interference from cytosolic metabolites was appreciated during nuclear staining for cytoflow measurements, not only in these species [80] but also in Coffea [81]. Besides, contamination with nuclear and/or mitochondrial DNA cannot be discarded, as was also found in other species [82]. In spite of these negative effects, the data gathered and curated here enabled the generation of coherent plastomic maps.
As mentioned before, the use of universal plastidial markers for Ilex phylogenetics yielded poorly resolved relationships [1,19,21,22,23,24,25,26]. To overcome this caveat, we carefully examined all the plastomic data available for Ilex to identify informative markers, which were validated by their ability to resolve well-known clades. Thus, we defined a subset of seven introns that may deserve further investigation, and we detected that the trnL intron, which is routinely used in plants [83], resulted inadequate for Ilex as it did not add significant information (Figure 2 and Figure S1). Also, we herein selected a panel of nine IGS markers that proved suitable for phylogenetic analyses within Ilex. The region trnH-psbA resulted the best ranked, although when used as single locus it yielded rather unresolved topologies [24]. Our results corroborate those of Shaw et al. [39,50] in that ndhC-trnV, ndhF-rpl32, rpl32-trnL, and trnT-psbD are among the most variable regions. Surprisingly, the widely used trnL-trnF had a poor performance in face of the evidence provided. Other eight IGS are proposed here as alternative markers.
The intronic and IGS phylogenomic analyses recovered concordant hypotheses in which the Aquifoliales (Ilex + Helwingia) appeared as the sister group of the Apiales and Asterales. A similar result was obtained by Yao et al. [41], although the placement of the Aquifoliales was misinterpreted there as “basal”. The marker regions proposed by Yao et al. [60], most of which consisted of large coding and non-coding regions, were analysed here and yielded an average normalized variation ratio (0.0025; Figure S5) that was lower than the obtained from our panel of selected introns (0.0029) and IGS (0.0032). Still, we agreed in considering the intron of ndhA as a powerful marker (Figure 2). Thus, results presented favoured the use of the set of markers reported here, instead of large compound regions, at least for species level phylogenies.
By the simultaneous analyses of multiple non-coding loci we provided robust evidence for the existence of at least three distinct maternal lineages in southern South America. Wild species I. brevicuspis, I. brasiliensis, I. integerrima, I. microdonta, I. pseudobuxus, I. taubertiana and I. theezans, may represent one such maternal lineage. Our results agreed with Manen et al. [22] in that I. argentina, I. dumosa and the semi-domesticated I. paraguariensis set apart from other sSA species. Moreover, we showed supported intermediate phylogenetic placements and long branches for these species (Figure 4a) that also distinguished them from other sympatric species. This divergence was partially evidenced by metabolomic fingerprints which separated the species into four groups: (a) I. paraguariensis; (b) I. dumosa; (c) I. integerrima, I. pseudobuxus, I. theezans and probably I. brasiliensis, and (d) I. argentina, I. brevicuspis, I. microdonta and I. taubertiana [28,84]. Ilex argentina is the sole Andean and polyploid species (2n = 80) so far detected in the region [85], as such, it may be reproductively isolated from the rest, configuring another lineage. Whether I. paraguariensis and I. dumosa represent a single maternal lineage is not definite. We are aware that any phylogenetic inference is conditional on the taxonomic sampling, and that our sampling of Ilex is rather restrictive; the inclusion of species, particularly from north-western South America, could help in elucidating the origin and dispersal of Ilex in the southern part of the continent, and the genetic basis of the divergence among wild and semi-domesticated species. Still, we herein contribute to a deeper knowledge of the relationships of most sSA species.
The Euroasiatic species I. aquifolium, I. cornuta, I. kaushue, I. latifolia and I. pentagona represent a well-defined divergent maternal lineage, as judged by the large branches and/or edges shown by this group (Figure 4a). The relationship of I. aquifolium with Asian taxa [22] was herein corroborated; this species is native to south, west and central Europe and the Mediterranean [33] and has some medicinal properties reported [86]. Ilex cornuta, I. latifolia, I. kaushue and I. pentagona have nutraceutical properties similar to those of “yerba mate”, but based on different secondary metabolites [27,87,88]. Hybrids between I. cornuta and I. latifolia have been recently reported in Central China [26], evidencing that genetic barriers were not fully developed and, ultimately, questioning the species recognition criteria, as hybridization and introgressions processes are not uncommon within Ilex [21,22,25,26]. Noteworthy, no hybridization reports are known for sSA species, so far. In the present study, I. polyneura, I. pubescens, I. wilsonii and I. szchewanensis represent another, more divergent, Asian maternal lineage.
Previous phylogenetic analyses of morphological features obtained an unsupported and unresolved consensus topology from which no conclusions could be derived [1]. By means of the total evidence approach we obtained strongly supported and well resolved relationships for most sSA taxa; we also elucidated the nature of several morphological and phytochemical features employed to characterize these species [3,4,5,6,7,13,14,15]. We detected several synapomorphies (i.e., true homologies) and character states that do represent homoplasies throughout the phylogeny. For instance, the papiraceous consistency of leaves and the presence of druses in histological preparations, may obscure relationships. Then, no clear tendency was detected for the length and width (i.e., shape) of the leaves, as both parallel increases and decreases were apparent. Likewise, the abaxial pubescence of leaves resulted in uncertainty for determining groups. Gonzalez and Tarragó [29] distinguished three types of colleters and their locations, but only those present on margins of young leaves retain phylogenetic information. Still, lachrymiform colleters may have arisen by parallel evolution, as they are found in “yerba mate” and I. integerrima leaves. This knowledge is valuable in order to generate natural classifications. Although speculative, it seems likely that the peculiar metabolic profile of I. paraguariensis may be autapomorphic by means of increased methylxanthines syntheses. The ability to synthesize the glycoside arbutin may have been acquired by sSA species after the divergence of the I. paraguariensis-I. dumosa lineage, verifying the proposal of Choi et al. [28] for its usage as a biomarker. Further work is needed to unveil the nature of other morphological characters in order to discern truly informative characters from misleading ones.

5. Conclusions

Our study showed that plastid markers usually cited in the literature, are not always the best choice for phylogenetics of a particular group. Whenever possible, a careful survey should be performed to detect regions with the adequate variation level. Until the costs of sequencing complete plastomes become massively affordable, sequencing of non-coding markers with proven variation may be preferable. Moreover, the markers proposed in this study constitute a more effective option, in terms of cost-benefit, than the compound markers suggested by other authors, at least for assessing species level phylogenetics.
As introgression and hybridization processes are documented in Ilex species, we herein not only inferred classical tree-like topologies, but also assayed methodological approaches that do not force dicotomical trees to model relationships. These analyses employed several data sources (multilocus plastid and nuclear regions, as well as morphological and physiological characters), some of which were never tested in a phylogenetic framework. In addition, our analyses differ from previous phylogenetic analyses in the improvement of group support values [1,22,24] and highlight the importance of the use of markers with suitable variation levels, and of the combination of different data sources.
Traditionally, species delimitation within Ilex was based on morphological characters whose primary homology statements have not been evaluated on phylogenetic trees. More efforts are needed to increase our knowledge on the evolution of such features, and concomitantly, in clarifying the controversial taxonomic system of the genus. As the number of taxa involved rises, we anticipate that more accurate and robust inferences will emerge from the synergic analysis of our set of molecular markers with other sources of data, either molecular or morpho-physiological. Besides, we expect that the contributed knowledge will facilitate the implementation of a chloroplast transformation technology [76,89,90], particularly in those species with nutraceutical attributes. This, in turn, would accelerate the achievement of modern varieties that may fulfil producers and market requirements.

Supplementary Materials

The following are available online at www.mdpi.com/2075-1729/7/4/47/s1, Figure S1: Nucleotide variation analysis of non-coding regions, Figure S2: Schematic plastomic maps for I. paraguariensis, I. dumosa and I. cornuta, Figure S3: Maximum Likelihood phylogenomic analyses of multilocus data sets performed in the context of other angiosperm taxa, Figure S4: Genetic relationships among Ilex species computed from ITS and nepGS nuclear sequences, Figure S5: Nucleotide variation analysis of the plastid regions proposed in Yao et al. [60], Table S1: Genbank accession numbers for intronic and IGS regions for additional species used to evaluate their nucleotide variation level through single-locus alignments, and the phylogenetic performance of the selected markers, in the context of other angiosperms, Table S2: Accession number and geographic origin of each additional Ilex species and Genbank accession numbers of IGS, ITS and nepGS regions used, Table S3: Primer pairs used for gap closure, junction verification and intergenic spacer (IGS) amplification, Table S4: Morphological and phytochemical characters considered in the total evidence and character analyses, Table S5: Gene content of the chloroplast genomes of I. paraguariensis, I. dumosa and I. cornuta, Supplementary File 1: Draft plastome for Ilex cornuta, Supplementary File 2: Input unrooted trees (networks) in newick format used for supernetwork construction: ML phylograms derived from IGS, ITS and nepGS, and NJ phylogram derived from AFLP, Supplementary File 3: Combined data matrix in TNT format used for total evidence analysis. The data matrices and resulting trees from the ML (Figure 3a) and total evidence (Figure 4b) analyses were uploaded to TreeBASE, at http://purl.org/phylo/treebase/phylows/study/TB2:S21886.

Acknowledgments

The authors are indebted to the personnel from EEA-INTA Cerro Azul, to P.A. Sansberro (IBONE-UNNE), and to the personnel from the “Jardín Botánico Carlos Thays, de Buenos Aires”, who kindly provided specimens from living collections. We dedicate this work to the memory of G.C. Giberti, who generously collaborated and assisted us during all these years. We are also grateful with R.A. Scherer from Pindó S.A. (Misiones, Argentina) for his contribution, and with A. Guberman and D. de Panis (FCEN, UBA) for their helpful and kind technical assistance. We acknowledge previous reviewers that helped improving this manuscript. Grants from the Consejo Nacional de Investigaciones Científicas y Técnicas (PIP 12-200801-00342), the Universidad de Buenos Aires (UBA 20020100100859) and the Agencia Nacional de Investigaciones Científicas y Técnicas (PICT 2010-1665, PICT 2011-2420 and PICT 2015-2525, the latter covering the costs of publishing) are gratefully acknowledged.

Author Contributions

J.C., M.B. and A.M.G. conceived and designed the experiments; J.C. and M.B. performed the experiments; J.C., M.J.G. and A.M.G. analysed the data; L.P. and A.M.G. contributed reagents and analysis tools; J.C., M.J.G., L.P. and A.M.G. wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest. The founding sponsors had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, and in the decision to publish the results.

References

  1. Loizeau, P.A.; Barriera, G.; Manen, J.F.; Broennimann, O. Towards an understanding of the distribution of Ilex L. (Aquifoliaceae) on a World-wide scale. Biol. Skr. 2005, 55, 501–520. [Google Scholar]
  2. Loizeau, P.A.; Savolainen, V.; Andrews, S.; Spichiger, R. Aquifoliaceae. In Flowering Plants. Eudicots; The Families and Genera of Vascular Plants; Kadereit, J.W., Bittrich, V., Eds.; Springer International Publishing: Basel, Switzerland, 2016; Volume XIV, pp. 31–36. ISBN 978-3-319-28532-0. [Google Scholar]
  3. Keller, H.A.; Giberti, G.C. Primer registro para la flora Argentina de Ilex affinis (Aquifoliaceae), sustituto de la ‘yerba mate’. Bol. Soc. Argent. Bot. 2011, 46, 187–194. [Google Scholar]
  4. Giberti, G.C.; Gurni, A.A. Anatomía floral comparada de once especies sudamericanas de Ilex L. (Aquifoliaceae) relacionadas con la yerba mate. Dominguezia 2008, 24, 77–94. [Google Scholar]
  5. Giberti, G.C. La ‘yerba mate’ (Ilex paraguariensis, Aquifoliaceae) en tempranos escritos rioplatenses de bonpland y su real distribución geográfica en sudamerica austral. Bonplandia 2011, 20, 203–212. [Google Scholar]
  6. Giberti, G.C. Diferentes Aspectos del Género Ilex (Aquifoliaceae). Corología, Arquitectura Floral, Posición Sistemática. Ph.D. Thesis, Universidad de Buenos Aires, Buenos Aires, Argentina, 2001. [Google Scholar]
  7. Giberti, G.C. Aquifoliaceae. In Catálogo de las Plantas Vasculares del Cono Sur (Argentina, Sur de Brasil, Chile, Paraguay y Uruguay), Vol. 2. Dicotyledoneae: Acanthaceae–Fabaceae (Abarema–Schizolobium); Monographs in Systematic Botany from the Missouri Botanical Garden; Zuloaga, F., Morrone, O., Belgrano, M., Eds.; Missouri Botanical Garden Press: St. Louis, MO, USA, 2008; pp. 1143–1146. [Google Scholar]
  8. Grela, I.A. Geografía Florística de Las Especies Arbóreas de Uruguay: Propuesta Para la Delimitación de Dendrofloras. Master’s Thesis, Universidad de la República, Montevideo, Uruguay, 2004. [Google Scholar]
  9. Anesini, C.; Turner, S.; Cogoi, L.; Filip, R. Study of the participation of caffeine and polyphenols on the overall antioxidant activity of mate (Ilex paraguariensis). LWT Food Sci. Technol. 2012, 45, 299–304. [Google Scholar] [CrossRef]
  10. Heck, C.I.; de Mejía, E.G. Yerba mate tea (Ilex paraguariensis): A comprehensive review on chemistry, health implications, and technological considerations. J. Food Sci. 2007, 72, R138–R151. [Google Scholar] [CrossRef] [PubMed]
  11. Berté, K.A.S.; Beux, M.R.; Spada, P.K.W.D.S.; Salvador, M.; Hoffmann-Ribani, R. Chemical composition and antioxidant activity of yerba-mate (Ilex paraguariensis A. St.-Hil., Aquifoliaceae) extract as obtained by spray drying. J. Agric. Food Chem. 2011, 59, 5523–5527. [Google Scholar] [CrossRef] [PubMed]
  12. Giberti, G.C. Los parientes silvestres de la yerba mate y el problema de su adulteración. Dominguezia 1989, 7, 1–22. [Google Scholar]
  13. Filip, R.; López, P.; Coussio, J.; Ferraro, G. Mate substitutes or adulterants: Study of xanthine content. Phyther. Res. 1998, 12, 129–131. [Google Scholar] [CrossRef]
  14. Filip, R.; López, P.; Giberti, G.C.; Coussio, J.; Ferraro, G. Phenolic compounds in seven South American Ilex species. Fitoterapia 2001, 72, 774–778. [Google Scholar] [CrossRef]
  15. Rafiee Seyed, M.A. Determinación de Arbutina en las Especies de Ilex. Master’s Thesis, Universidad de Belgrano, Buenos Aires, Argentina, 2012. [Google Scholar]
  16. Ricco, R.A.; Wagner, M.L.; Gurni, A.A. Estudio comparativo de flavonoides en seis especies austrosudamericanas del género Ilex. Acta Farm. Bonaer. 1991, 10, 29–35. [Google Scholar]
  17. Ricco, R.A.; Giberti, G.C.; Wagner, M.L.; Gurni, A.A. Two unusual maté substitutes (Ilex pseudobuxus and I. taubertiana): Morphology, flavonoids and geographical distribution. Rojasiana 2013, 12, 77–90. [Google Scholar]
  18. Maiocchi, M.G.; Del Vitto, L.A.; Petenatti, M.E.; Marchevsky, E.J.; Pellerano, R.G.; Petenatti, E.M. Multielemental composition and nutritional value of and their commercial mixture in different forms of use. Rev. Fac. Ciencias Agrar. 2016, 48, 145–159. [Google Scholar]
  19. Cuénod, P.; Del Pero Martinez, M.A.; Loizeau, P.A.; Spichiger, R.; Andrews, S.; Manen, J.F. Molecular phylogeny and biogeography of the genus Ilex L. (Aquifoliaceae). Ann. Bot. 2000, 85, 111–122. [Google Scholar] [CrossRef]
  20. Gottlieb, A.M.; Giberti, G.C.; Poggio, L. Molecular analyses of the genus Ilex (Aquifoliaceae) in southern South America, evidence from AFLP and its sequence data. Am. J. Bot. 2005, 92, 352–369. [Google Scholar] [CrossRef] [PubMed]
  21. Manen, J.F.; Boulter, M.C.; Naciri-Graven, Y. The complex history of the genus Ilex L. (Aquifoliaceae): Evidence from the comparison of plastid and nuclear DNA sequences and from fossil data. Plant Syst. Evol. 2002, 235, 79–98. [Google Scholar] [CrossRef]
  22. Manen, J.F.; Barriera, G.; Loizeau, P.A.; Naciri, Y. The history of extant Ilex species (Aquifoliaceae): Evidence of hybridization within a Miocene radiation. Mol. Phylogenet. Evol. 2010, 57, 961–977. [Google Scholar] [CrossRef] [PubMed]
  23. Manen, J.F. Are both sympatric species Ilex perado and Ilex canariensis secretly hybridizing? Indication from nuclear markers collected in Tenerife. BMC Evol. Biol. 2004, 4, 46. [Google Scholar] [CrossRef] [PubMed]
  24. Selbach-Schnadelbach, A.; Smith Cavalli, S.; Manen, J.F.; Coelho, G.C.; De Souza-Chies, T.T. New information for Ilex phylogenetics based on the plastid psbA-trnH intergenic spacer (Aquifoliaceae). Bot. J. Linn. Soc. 2009, 159, 182–193. [Google Scholar] [CrossRef]
  25. Setoguchi, H.; Watanabe, I. Intersectional gene flow between insular endemics of Ilex (Aquifoliaceae) on the Bonin Islands and the Ryukyu Islands. Am. J. Bot. 2000, 87, 793–810. [Google Scholar] [CrossRef] [PubMed]
  26. Shi, L.; Li, N.; Wang, S.; Zhou, Y.; Huang, W.; Ma, Y.Y.Y.; Zhou, R. Molecular evidence for the hybrid origin of Ilex dabieshanensis (Aquifoliaceae). PLoS ONE 2016, 11, e0147825. [Google Scholar] [CrossRef] [PubMed]
  27. Hao, D.-C.; Gu, X.; Xiao, P.-G.; Liang, Z.; Xu, L.; Peng, Y. Research progress in the phytochemistry and biology of Ilex pharmaceutical resources. Acta Pharm. Sin. B 2013, 3, 8–19. [Google Scholar] [CrossRef]
  28. Choi, Y.H.; Sertic, S.; Kim, H.K.; Wilson, E.G.; Michopoulos, F.; Lefeber, A.W.M.; Erkelens, C.; Kricun, S.D.P.; Verpoorte, R. Classification of Ilex species based on metabolomic fingerprinting using nuclear magnetic resonance and multivariate data analysis. J. Agric. Food Chem. 2005, 53, 1237–1245. [Google Scholar] [CrossRef] [PubMed]
  29. Gonzalez, A.M.; Tarragó, J.R. Anatomical structure and secretion compounds of colleters in nine Ilex species (Aquifoliaceae) from southern South America. Bot. J. Linn. Soc. 2009, 160, 197–210. [Google Scholar] [CrossRef]
  30. Borsch, T.; Quandt, D. Mutational dynamics and phylogenetic utility of noncoding chloroplast DNA. Plant Syst. Evol. 2009, 282, 169–199. [Google Scholar] [CrossRef]
  31. Provan, J.; Powell, W.; Hollingsworth, P.M. Chloroplast microsatellites: New tools for studies in plant ecology and evolution. Trends Ecol. Evol. 2001, 16, 142–147. [Google Scholar] [CrossRef]
  32. Provan, J.; Biss, P.M.; McMeel, D.; Mathews, S. Universal primers for the amplification of chloroplast microsatellites in grasses (Poaceae). Mol. Ecol. Notes 2004, 4, 262–264. [Google Scholar] [CrossRef]
  33. Rendell, S.; Ennos, R.A. Chloroplast DNA diversity of the dioecious European tree Ilex aquifolium L. (English holly). Mol. Ecol. 2003, 12, 2681–2688. [Google Scholar] [CrossRef] [PubMed]
  34. Dong, W.; Liu, J.; Yu, J.; Wang, L.; Zhou, S. Highly variable chloroplast markers for evaluating plant phylogeny at low taxonomic levels and for DNA barcoding. PLoS ONE 2012, 7, e35071. [Google Scholar] [CrossRef] [PubMed]
  35. Jansen, R.K.; Cai, Z.; Raubeson, L.A.; Daniell, H.; DePamphilis, C.W.; Leebens-Mack, J.; Muller, K.F.; Guisinger-Bellian, M.; Haberle, R.C.; Hansen, A.K.; et al. Analysis of 81 genes from 64 plastid genomes resolves relationships in angiosperms and identifies genome-scale evolutionary patterns. Proc. Natl. Acad. Sci. USA 2007, 104, 19369–19374. [Google Scholar] [CrossRef] [PubMed]
  36. Kim, K.-J.; Lee, H.-L. Complete chloroplast genome sequences from Korean ginseng (Panax schinseng Nees) and comparative analysis of sequence evolution among 17 vascular plants. DNA Res. 2004, 11, 247–261. [Google Scholar] [CrossRef] [PubMed]
  37. Prince, L.M. Plastid primers for angiosperm phylogenetics and phylogeography. Appl. Plant Sci. 2015, 3, 1400085. [Google Scholar] [CrossRef] [PubMed]
  38. Shaw, J.; Lickey, E.B.; Beck, J.T.; Farmer, S.B.; Liu, W.; Miller, J.; Siripun, K.C.; Winder, C.T.; Schilling, E.E.; Small, R.L. The tortoise and the hare II: Relative utility of 21 noncoding chloroplast DNA sequences for phylogenetic analysis. Am. J. Bot. 2005, 92, 142–166. [Google Scholar] [CrossRef] [PubMed]
  39. Shaw, J.; Shafer, H.L.; Rayne Leonard, O.; Kovach, M.J.; Schorr, M.; Morris, A.B. Chloroplast DNA sequence utility for the lowest phylogenetic and phylogeographic inferences in angiosperms: The tortoise and the hare IV. Am. J. Bot. 2014, 101, 1987–2004. [Google Scholar] [CrossRef] [PubMed]
  40. Moore, M.J.; Soltis, P.S.; Bell, C.D.; Burleigh, J.G.; Soltis, D.E. Phylogenetic analysis of 83 plastid genes further resolves the early diversification of eudicots. Proc. Natl. Acad. Sci. USA 2010, 107, 4623–4628. [Google Scholar] [CrossRef] [PubMed]
  41. Yao, X.; Liu, Y.-Y.; Tan, Y.-H.; Song, Y.; Corlett, R.T. The complete chloroplast genome sequence of Helwingia himalaica (Helwingiaceae, Aquifoliales) and a chloroplast phylogenomic analysis of the Campanulidae. PeerJ 2016, 4, e2734. [Google Scholar] [CrossRef] [PubMed]
  42. Debat, H.J.; Grabiele, M.; Aguilera, P.M.; Bubillo, R.E.; Otegui, M.B.; Ducasse, D.A.; Zapata, P.D.; Marti, D.A. Exploring the genes of yerba mate (Ilex paraguariensis A. St.-Hil.) by NGS and de novo transcriptome assembly. PLoS ONE 2014, 9, e109835. [Google Scholar] [CrossRef] [PubMed]
  43. Cascales, J.; Bracco, M.; Poggio, L.; Gottlieb, A.M. Genetic diversity of wild germplasm of ‘yerba mate’ (Ilex paraguariensis St. Hil.) from Uruguay. Genetica 2014, 142, 563–573. [Google Scholar] [CrossRef] [PubMed]
  44. Diekmann, K.; Hodkinson, T.R.; Fricke, E.; Barth, S. An optimized chloroplast DNA extraction protocol for grasses (Poaceae) proves suitable for whole plastid genome sequencing and SNP detection. PLoS ONE 2008, 3, e2813. [Google Scholar] [CrossRef] [PubMed]
  45. Shi, C.; Hu, N.; Huang, H.; Gao, J.; Zhao, Y.J.; Gao, L.Z. An improved chloroplast DNA extraction procedure for whole plastid genome sequencing. PLoS ONE 2012, 7, e31468. [Google Scholar] [CrossRef] [PubMed]
  46. Myers, E.W.; Sutton, G.G.; Delcher, A.L.; Dew, I.M.; Fasulo, D.P.; Flanigan, M.J.; Kravitz, S.A.; Mobarry, C.M.; Reinert, K.H.; Remington, K.A.; et al. A whole-genome assembly of Drosophila. Science 2000, 287, 2196–2204. [Google Scholar] [CrossRef] [PubMed]
  47. Untergasser, A.; Cutcutache, I.; Koressaar, T.; Ye, J.; Faircloth, B.C.; Remm, M.; Rozen, S.G. Primer3-new capabilities and interfaces. Nucl. Acids Res. 2012, 40. [Google Scholar] [CrossRef] [PubMed]
  48. Ye, J.; Coulouris, G.; Zaretskaya, I.; Cutcutache, I.; Rozen, S.; Madden, T.L. Primer-BLAST: A tool to design target-specific primers for polymerase chain reaction. BMC Bioinform. 2012, 13, 134. [Google Scholar] [CrossRef] [PubMed]
  49. Yang, J.-B.; Yang, S.X.; Li, H.T.; Yang, J.; Li, D.Z. Comparative chloroplast genomes of Camellia species. PLoS ONE 2013, 8. [Google Scholar] [CrossRef] [PubMed]
  50. Shaw, J.; Lickey, E.B.; Schilling, E.E.; Small, R.L. Comparison of whole chloroplast genome sequences to choose noncoding regions for phylogenetic studies in angiosperms: The tortoise and the hare III. Am. J. Bot. 2007, 94, 275–288. [Google Scholar] [CrossRef] [PubMed]
  51. Taberlet, P.; Gielly, L.; Pautou, G.; Bouvet, J. Universal primer for amplification of three non-coding regions of chloroplast DNA. Plant Mol. Biol. 1991, 17, 1105–1109. [Google Scholar] [CrossRef] [PubMed]
  52. Liu, C.; Shi, L.; Zhu, Y.; Chen, H.; Zhang, J.; Lin, X.; Guan, X. CpGAVAS, an integrated web server for the annotation, visualization, analysis, and GenBank submission of completely sequenced chloroplast genome sequences. BMC Genom. 2012, 13, 715. [Google Scholar] [CrossRef] [PubMed]
  53. Cai, Z. Comparative Analyses of Land Plant Plastid Genomes. Ph.D. Thesis, University of Texas, Austin, TX, USA, November 2010. [Google Scholar]
  54. Schattner, P.; Brooks, A.N.; Lowe, T.M. The tRNAscan-SE, snoscan and snoGPS web servers for the detection of tRNAs and snoRNAs. Nucleic Acids Res. 2005, 33, W686–W689. [Google Scholar] [CrossRef] [PubMed]
  55. Lohse, M.; Drechsel, O.; Kahlau, S.; Bock, R. OrganellarGenomeDRAW—A suite of tools for generating physical maps of plastid and mitochondrial genomes and visualizing expression data sets. Nucleic Acids Res. 2013, 41. [Google Scholar] [CrossRef] [PubMed]
  56. Katoh, K.; Standley, D.M. MAFFT multiple sequence alignment software version 7: Improvements in performance and usability. Mol. Biol. Evol. 2013, 30, 772–780. [Google Scholar] [CrossRef] [PubMed]
  57. Frazer, K.A.; Pachter, L.; Poliakov, A.; Rubin, E.M.; Dubchak, I. VISTA: Computational tools for comparative genomics. Nucleic Acids Res. 2004, 32, W273–W279. [Google Scholar] [CrossRef] [PubMed]
  58. Brudno, M.; Do, C.B.; Cooper, G.M.; Kim, M.F.; Davydov, E.; Green, E.D.; Sidow, A.; Batzoglou, S. LAGAN and Multi-LAGAN: Efficient tools for large-scale multiple alignment of genomic DNA. Genome Res. 2003, 13, 721–731. [Google Scholar] [CrossRef] [PubMed]
  59. Tamura, K.; Stecher, G.; Peterson, D.; Filipski, A.; Kumar, S. MEGA6: Molecular evolutionary genetics analysis version 6.0. Mol. Biol. Evol. 2013, 30, 2725–2729. [Google Scholar] [CrossRef] [PubMed]
  60. Yao, X.; Tan, Y.-H.; Liu, Y.-Y.; Song, Y.; Yang, J.-B.; Corlett, R.T. Chloroplast genome structure in Ilex (Aquifoliaceae). Sci. Rep. 2016, 6, 28559. [Google Scholar] [CrossRef] [PubMed]
  61. Hall, T.A. BioEdit: A user-friendly biological sequence alignment editor and analysis program for Windows 95/98/NT. Nucleic Acids Symp. Ser. 1999, 41, 95–98. [Google Scholar]
  62. Edgar, R.C. MUSCLE: Multiple sequence alignment with high accuracy and high throughput. Nucleic Acids Res. 2004, 32, 1792–1797. [Google Scholar] [CrossRef] [PubMed]
  63. Bryant, D.; Moulton, V. Neighbor-Net: An agglomerative method for the construction of phylogenetic networks. Mol. Biol. Evol. 2004, 21, 255–265. [Google Scholar] [CrossRef] [PubMed]
  64. Huson, D.H.; Bryant, D. Application of phylogenetic networks in evolutionary studies. Mol. Biol. Evol. 2006, 23, 254–267. [Google Scholar] [CrossRef] [PubMed]
  65. Kluge, A.G. A concern for evidence and a phylogenetic hypothesis of relationships among Epicrates (Boidae, serpentes). Syst. Zool. 1989, 38, 7–25. [Google Scholar] [CrossRef]
  66. Giberti, G.C. Aquifoliaceae. In Flora del Paraguay; Spichiger, R., Ramella, L., Eds.; Editions des Conservatoire et Jardin botaniques de la Ville de Geneva: Missouri Botanical Garden, Switzerland, 1994; p. 24. [Google Scholar]
  67. Giberti, G.C. Aquifoliaceae. In Flora Fanerogámica de Argentina; Programa PROFLORA (CONICET): Córdoba, Argentina, 1994. [Google Scholar]
  68. Giberti, G.C. Ilex theezans, especie confirmada para nuestra flora. Clave de las especies argentinas des genero Ilex (Aquifoliaceae). Bol. Soc. Argent Bot. 1990, 26, 159–162. [Google Scholar]
  69. Giberti, G.C. Hallazgo de Ilex brasiliensis (Aquifoliaceae) en la Argentina. Bol. Soc. Argent Bot. 1998, 33, 137–140. [Google Scholar]
  70. Filip, R.; Giberti, G.; Coussio, J.; Acevedo, C.; Ferraro, G. Estudio fitoquímico y farmacológico de Ilex theezans C. Martius ex Reisseck. Dominguezia 2000, 16, 47–53. [Google Scholar]
  71. Goloboff, P.A.; Farris, J.S.; Nixon, K.C. TNT, a free program for phylogenetic analysis. Cladistics 2008, 24, 774–786. [Google Scholar] [CrossRef]
  72. Escapa, I.H.; Catalano, S.A. Phylogenetic analysis of Araucariaceae: Integrating molecules, morphology, and fossils. Int. J. Plant Sci. 2013, 174, 1153–1170. [Google Scholar] [CrossRef]
  73. Tavaré, S. Some probabilistic and statistical problems in the analysis of DNA sequences. In Lectures on Mathematics in the Life Sciences; Miura, R.M., Ed.; American Mathematical Society: Providence, RI, USA, 1986; pp. 57–86. [Google Scholar]
  74. Raubeson, L.A.; Jansen, R.K. Chloroplast genomes of plants. In Plant Diversity and Evolution: Genotypic and Phenotypic Variation in Higher Plants; Henry, R.J., Ed.; CABI: Oxfordshire, UK, 2005; pp. 45–68. ISBN 0851999042. [Google Scholar]
  75. Li, R.; Ma, P.F.; Wen, J.; Yi, T.S. Complete sequencing of five Araliaceae chloroplast genomes and the phylogenetic implications. PLoS ONE 2013, 8. [Google Scholar] [CrossRef] [PubMed]
  76. Ruhlman, T.A.; Jansen, R.K. The plastid genomes of flowering plants. In Methods in Molecular Biology; Humana Press: Totowa, NJ, USA, 2014; Volume 1132, pp. 3–38. ISBN 978-1-62703-994-9. [Google Scholar]
  77. Timme, R.E.; Kuehl, J.V.; Boore, J.L.; Jansen, R.K. A comparative analysis of the Lactuca and Helianthus (Asteraceae) plastid genomes: Identification of divergent regions and categorization of shared repeats. Am. J. Bot. 2007, 94, 302–312. [Google Scholar] [CrossRef] [PubMed]
  78. Middleton, C.P.; Senerchia, N.; Stein, N.; Akhunov, E.D.; Keller, B.; Wicker, T.; Kilian, B. Sequencing of chloroplast genomes from wheat, barley, rye and their relatives provides a detailed insight into the evolution of the triticeae tribe. PLoS ONE 2014, 9, e85761. [Google Scholar] [CrossRef] [PubMed]
  79. Tangphatsornruang, S.; Sangsrakru, D.; Chanprasert, J.; Uthaipaisanwong, P.; Yoocha, T.; Jomchai, N.; Tragoonrung, S. The chloroplast genome sequence of mungbean (Vigna radiata) determined by high-throughput pyrosequencing: Structural organization and phylogenetic relationships. DNA Res. 2010, 17, 11–22. [Google Scholar] [CrossRef] [PubMed]
  80. Gottlieb, A.M.; Poggio, L. Quantitative and qualitative genomic characterization of cultivated Ilex L. species. Plant Genet. Resour. Charact. Util. 2014, 1–11. [Google Scholar] [CrossRef]
  81. Noirot, M.; Barre, P.; Duperray, C.; Louarn, J.; Hamon, S. Effects of caffeine and chlorogenic acid on propidium iodide accessibility to DNA: Consequences on genome size evaluation in coffee tree. Ann. Bot. 2003, 92, 259–264. [Google Scholar] [CrossRef] [PubMed]
  82. Du, F.K.; Lang, T.; Lu, S.; Wang, Y.; Li, J.; Yin, K. An improved method for chloroplast genome sequencing in non-model forest tree species. Tree Genet. Genomes 2015, 11, 114. [Google Scholar] [CrossRef]
  83. Dangi, R.; Tamhankar, S.; Choudhary, R.K.; Rao, S. Molecular phylogenetics and systematics of Trigonella L. (Fabaceae) based on nuclear ribosomal ITS and chloroplast trnL intron sequences. Genet. Resour. Crop Evol. 2016, 63, 79–96. [Google Scholar] [CrossRef]
  84. Kim, H.K.; Saifullah; Khan, S.; Wilson, E.G.; Kricun, S.D.P.; Meissner, A.; Goraler, S.; Deelder, A.M.; Choi, Y.H.; Verpoorte, R. Metabolic classification of South American Ilex species by NMR-based metabolomics. Phytochemistry 2010, 71, 773–784. [Google Scholar] [CrossRef] [PubMed]
  85. Barral, G.; Poggio, L.; Giberti, G.C. Chromosome numbers and DNA content from Ilex argentina (Aquifoliaceae). Bol. Soc. Argent. Bot. 1995, 30, 243–248. [Google Scholar]
  86. Nahar, L.; Russell, W.R.; Middleton, M.; Shoeb, M.; Sarker, S.D. Antioxidant phenylacetic acid derivatives from the seeds of Ilex aquifolium. Acta. Pharm. 2005, 55, 187–193. [Google Scholar] [PubMed]
  87. Hao, D.-C.; Xiao, P.-G.; Peng, Y.; Dong, J.; Liu, W. Evaluation of the chloroplast barcoding markers by mean and smallest interspecific distances. Pak. J. Bot. 2012, 44, 1271–1274. [Google Scholar]
  88. Li, L.; Xu, L.J.; Ma, G.Z.; Dong, Y.M.; Peng, Y.; Xiao, P.-G. The large-leaved Kudingcha (Ilex latifolia Thunb and Ilex kudingcha C.J. Tseng): A traditional Chinese tea with plentiful secondary metabolites and potential biological activities. J. Nat. Med. 2013, 67, 425–437. [Google Scholar] [CrossRef] [PubMed]
  89. Koop, H.U.; Herz, S.; Golds, T.J.; Nickelsen, J. The genetic transformation of plastids. In Topics in Current Genetics; Bock, R., Ed.; Springer-Verlag: Berlin/Heidelberg, Germany, 2007; Volume 19, pp. 457–510. ISBN 3540753753. [Google Scholar]
  90. Verma, D.; Daniell, H. Chloroplast vector systems for biotechnology applications. Plant Physiol. 2007, 145, 1129–1143. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Sequence identity among plastomes of I. paraguariensis, I. dumosa and I. cornuta, using Panax ginseng as the reference. For each species (indicated by its initials), the peaks and valleys depict sequence identity estimated against the reference sequence, between 50% (lower line) and 100% (upper line). The horizontal axis shows the position (in Kbp) along the linear chloroplast. Only some features are indicated in each block for guidance; full maps are shown in Figure S2. Regions with missing data are indicated by empty spaces. Grey arrows above each panel denote transcription sense for each gene. Plastomic regions are colour coded as follows: light blue, protein coding (exons); green, tRNAs genes; violet, rRNA genes; pink, non-coding regions (introns and intergenic spacers).
Figure 1. Sequence identity among plastomes of I. paraguariensis, I. dumosa and I. cornuta, using Panax ginseng as the reference. For each species (indicated by its initials), the peaks and valleys depict sequence identity estimated against the reference sequence, between 50% (lower line) and 100% (upper line). The horizontal axis shows the position (in Kbp) along the linear chloroplast. Only some features are indicated in each block for guidance; full maps are shown in Figure S2. Regions with missing data are indicated by empty spaces. Grey arrows above each panel denote transcription sense for each gene. Plastomic regions are colour coded as follows: light blue, protein coding (exons); green, tRNAs genes; violet, rRNA genes; pink, non-coding regions (introns and intergenic spacers).
Life 07 00047 g001

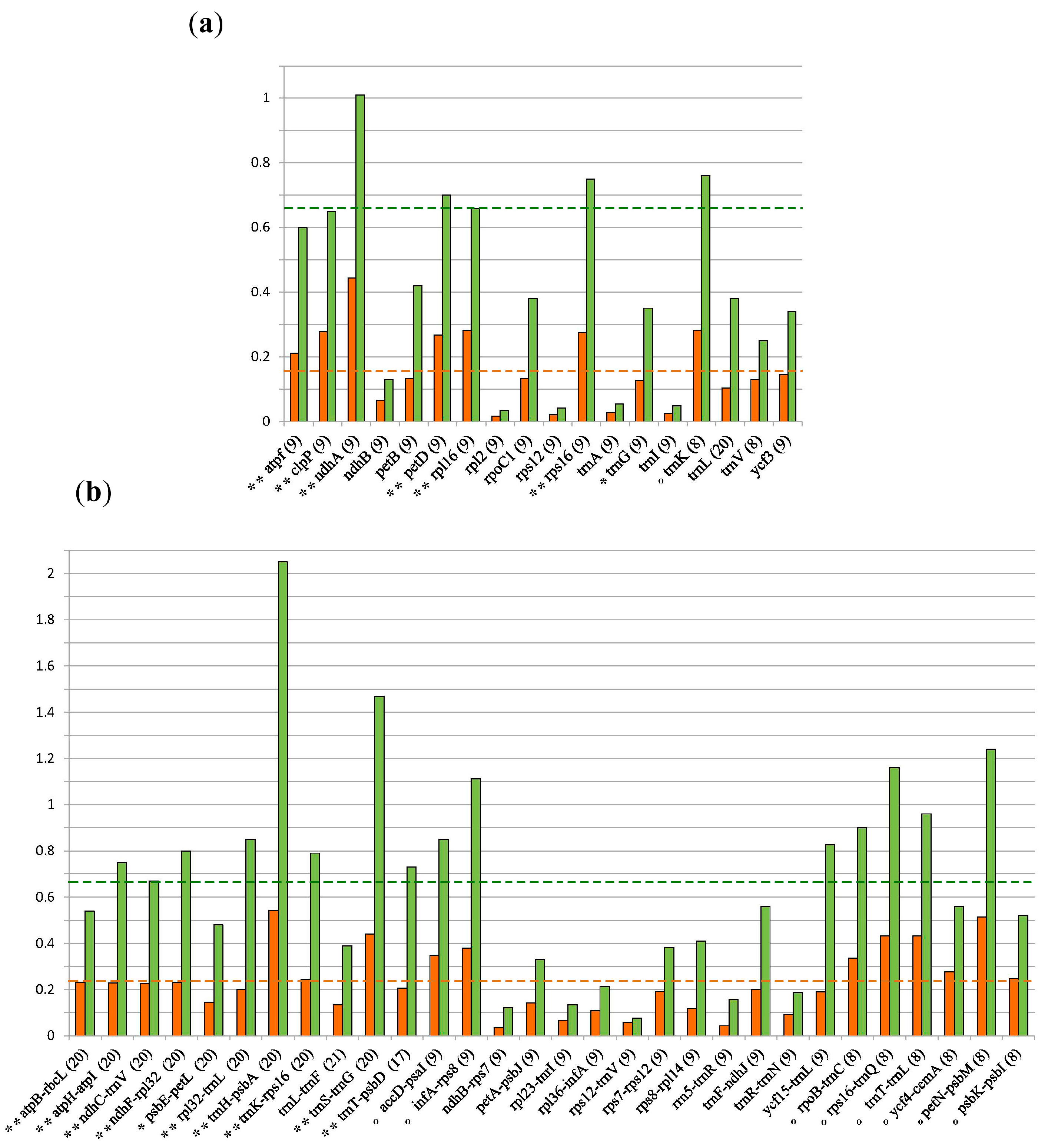

Figure 2. Survey of nucleotide variation of non-coding regions. Histograms showing the normalized ratio expressed as percentage, in orange, and the average uncorrected p-distance, expressed as percentage, in green. The number of Ilex species used is indicated between brackets. * Marks a region selected as in Figure S2; ** mark regions validated with current sampling; ° mark regions selected solely under current sampling. (a) Values estimated from 18 single-loci intron alignments; (b) Values estimated from 30 single-loci IGS alignments.
Figure 2. Survey of nucleotide variation of non-coding regions. Histograms showing the normalized ratio expressed as percentage, in orange, and the average uncorrected p-distance, expressed as percentage, in green. The number of Ilex species used is indicated between brackets. * Marks a region selected as in Figure S2; ** mark regions validated with current sampling; ° mark regions selected solely under current sampling. (a) Values estimated from 18 single-loci intron alignments; (b) Values estimated from 30 single-loci IGS alignments.
Life 07 00047 g002

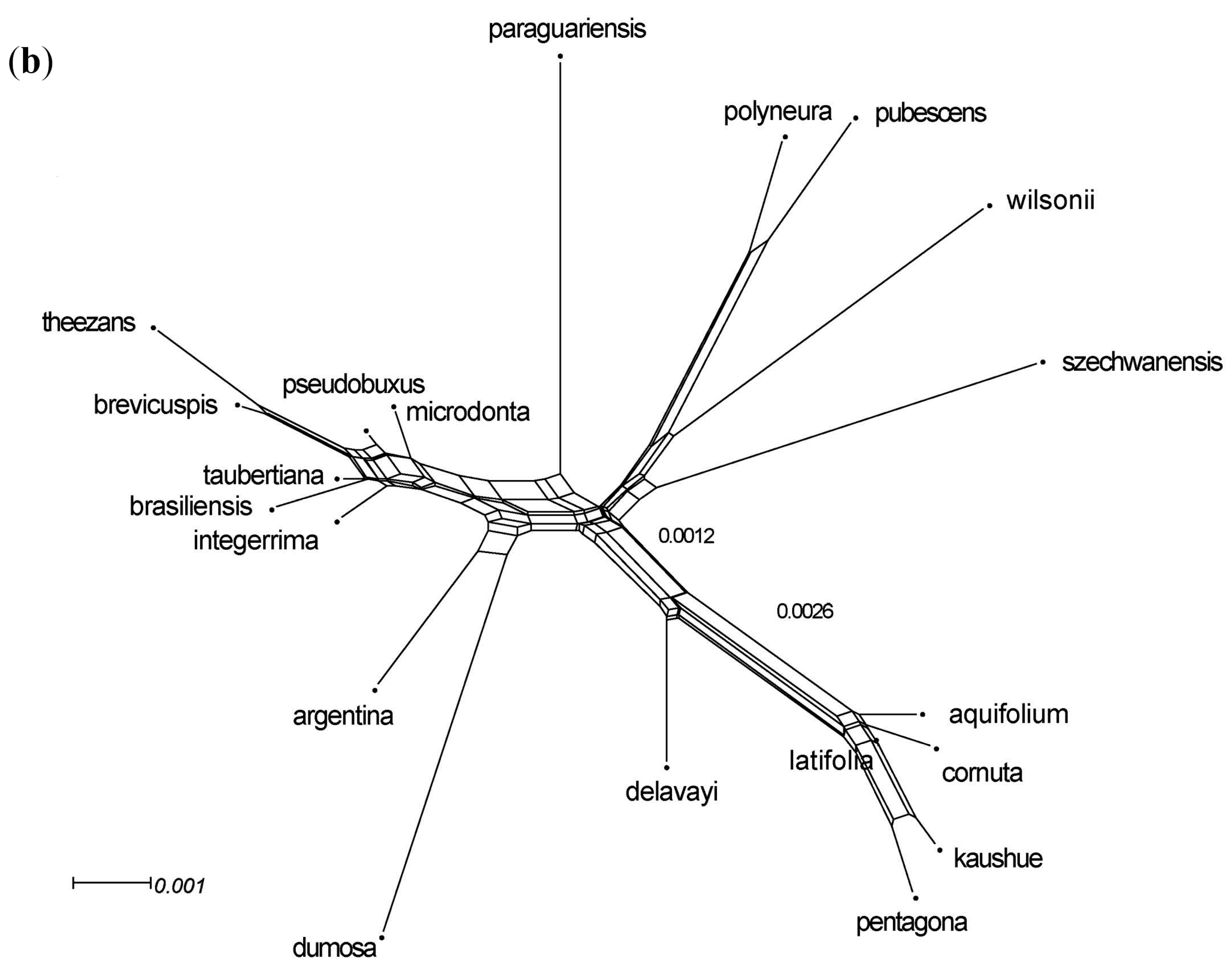

Figure 3. Genetic relationships among 20 Ilex species computed from the multilocus IGS dataset. The species were named using the specific epithet alone, for simplicity. (a) The Maximum Likelihood unrooted phylogram (lnL = −13,104.12) was inferred applying a GTR model [73], and a discrete Gamma distribution was used—with five categories—to model evolutionary rate differences among sites (G = 0.092); all positions with <50% coverage were eliminated, thus 7655 bp were considered. Bootstrap values >50% (500 pseudoreplicates) are shown. Branch lengths are in number of substitutions per site; (b) Neighbour-Net split graph based on uncorrected p-distance. All positions were used to derive the network (7862 bp; fit = 97.36; LSfit = 99.89). The scale bar is in genetic distance units. The numbers indicated the edge weight, which is proportional to the edge length.
Figure 3. Genetic relationships among 20 Ilex species computed from the multilocus IGS dataset. The species were named using the specific epithet alone, for simplicity. (a) The Maximum Likelihood unrooted phylogram (lnL = −13,104.12) was inferred applying a GTR model [73], and a discrete Gamma distribution was used—with five categories—to model evolutionary rate differences among sites (G = 0.092); all positions with <50% coverage were eliminated, thus 7655 bp were considered. Bootstrap values >50% (500 pseudoreplicates) are shown. Branch lengths are in number of substitutions per site; (b) Neighbour-Net split graph based on uncorrected p-distance. All positions were used to derive the network (7862 bp; fit = 97.36; LSfit = 99.89). The scale bar is in genetic distance units. The numbers indicated the edge weight, which is proportional to the edge length.
Life 07 00047 g003aLife 07 00047 g003b

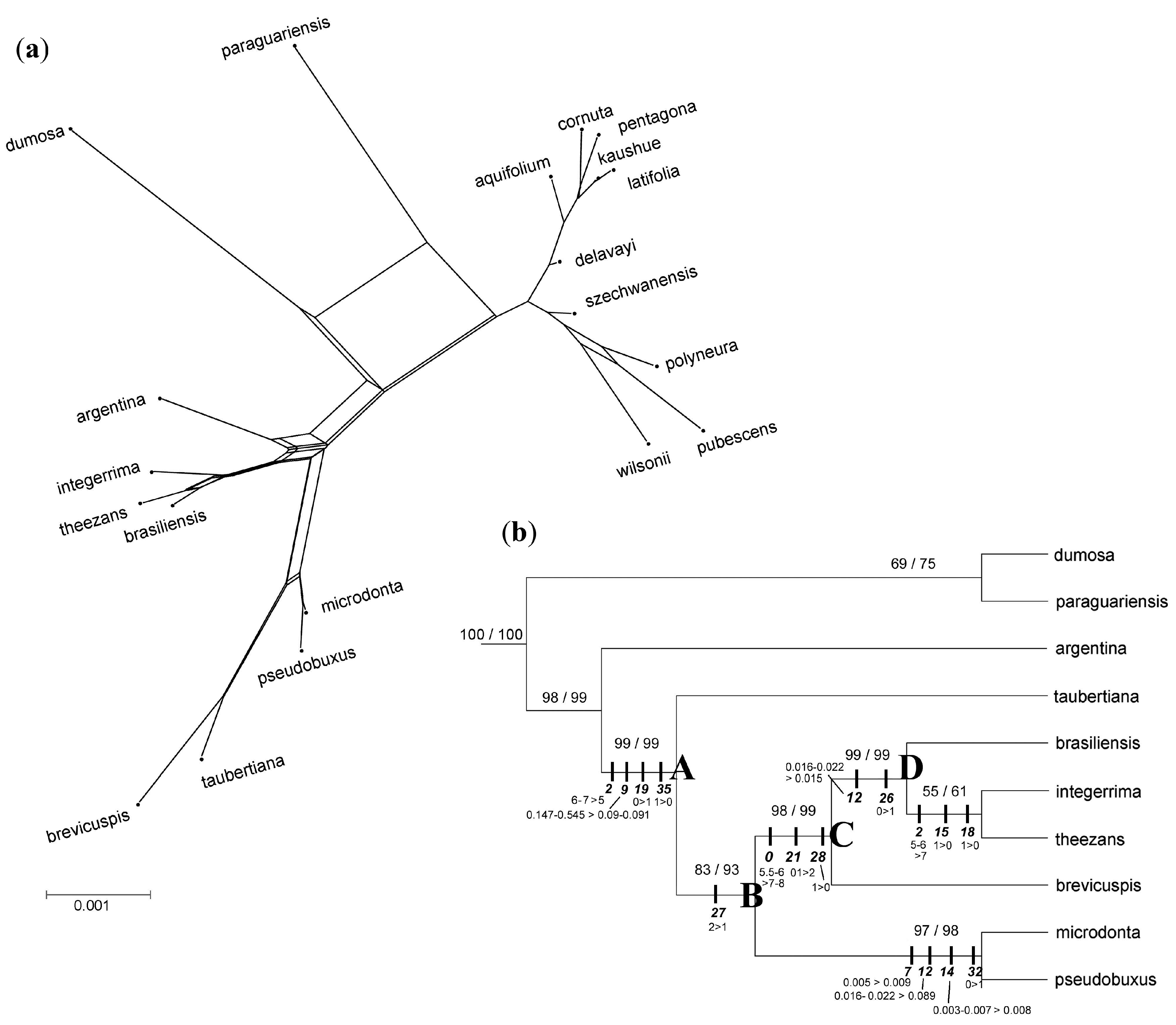

Figure 4. Integral phylogenetic analyses for Ilex species. The species were named using the specific epithet alone, for simplicity. (a) The supernetwork topology. The scale bar represents edges weights; (b) The total evidence most parsimonious topology for sSA species (score = 1689.06; CI = 0.736; RI = 0.471). Numbers above branches are boostrap/jackkniffe support values; non-ambiguous synapomorphic morphological and phytochemical character state changes (not standardized) are indicated at each internal node.
Figure 4. Integral phylogenetic analyses for Ilex species. The species were named using the specific epithet alone, for simplicity. (a) The supernetwork topology. The scale bar represents edges weights; (b) The total evidence most parsimonious topology for sSA species (score = 1689.06; CI = 0.736; RI = 0.471). Numbers above branches are boostrap/jackkniffe support values; non-ambiguous synapomorphic morphological and phytochemical character state changes (not standardized) are indicated at each internal node.
Life 07 00047 g004

© 2017 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Life EISSN 2075-1729 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
