Open-Source 3D Printing in the Prosthetic Field—The Case of Upper Limb Prostheses: A Review
Abstract
:1. Introduction

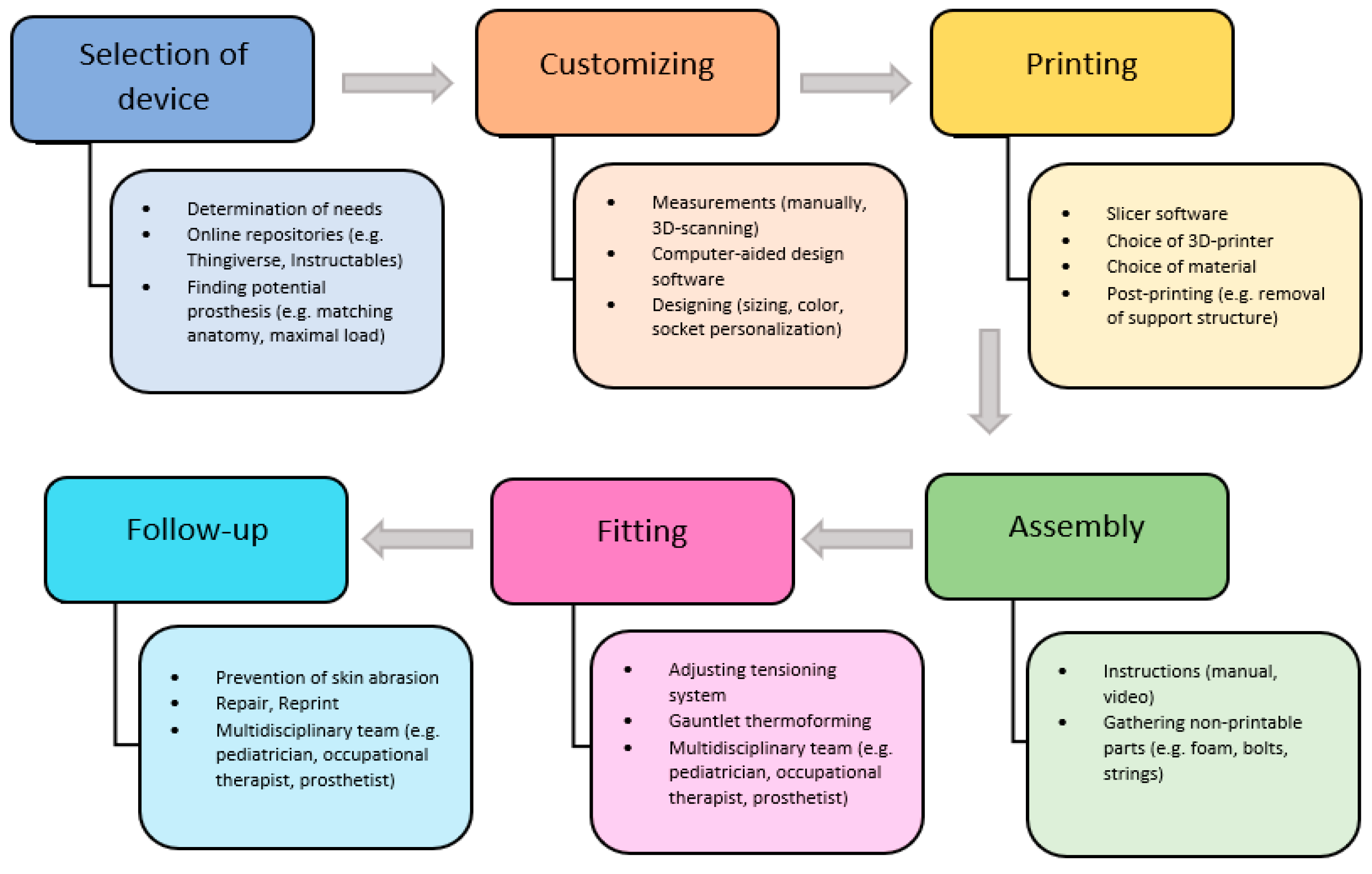

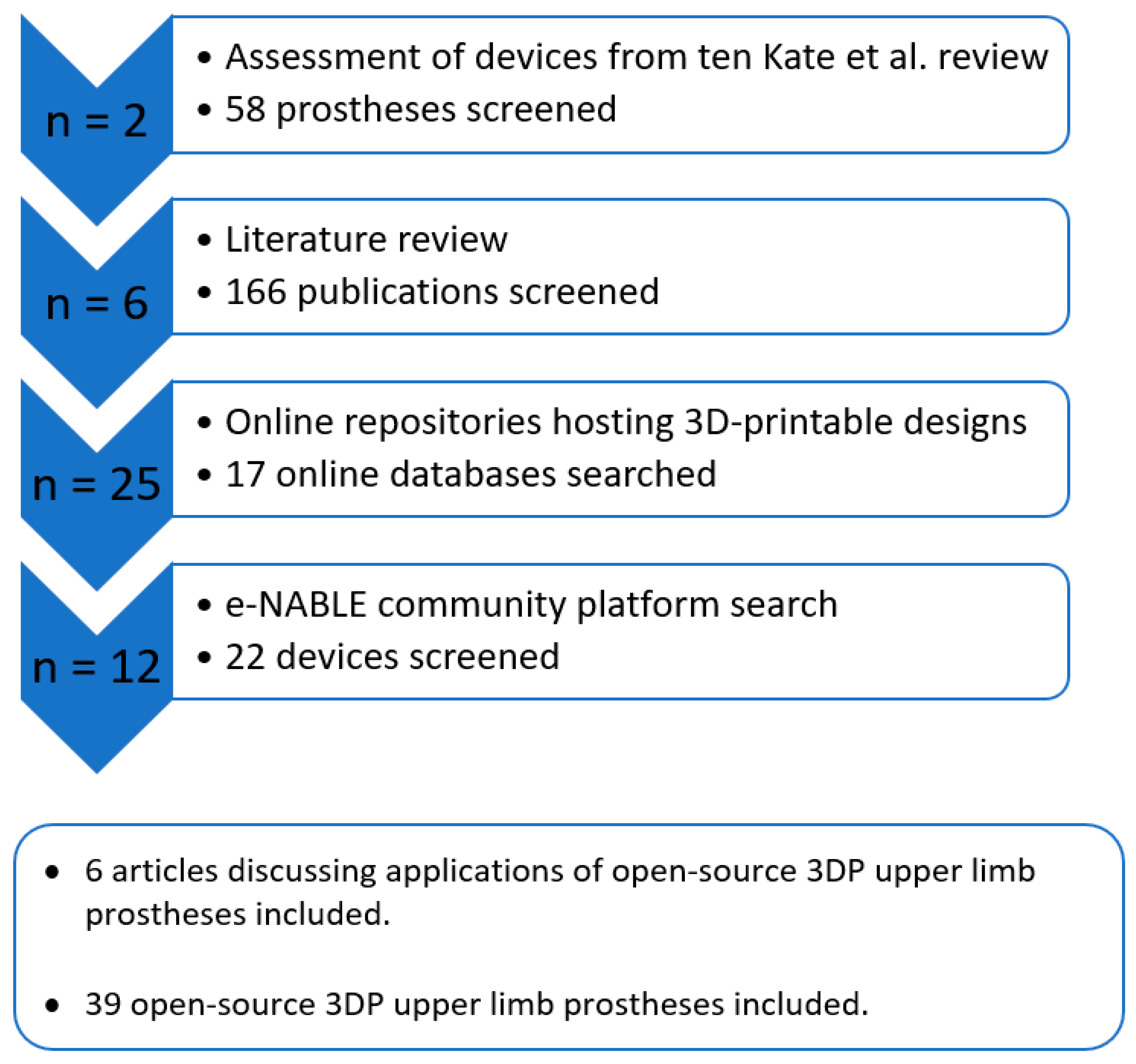

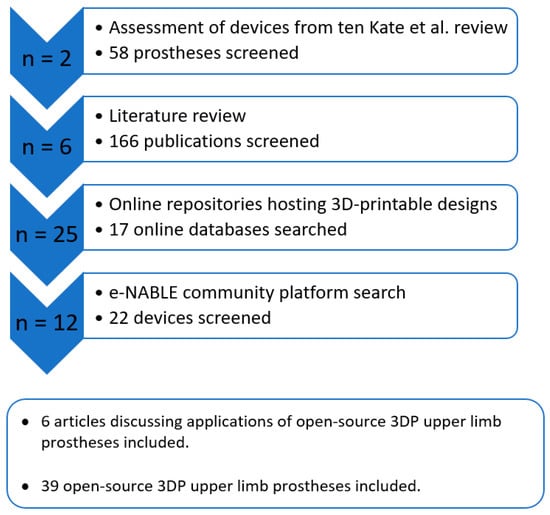

2. Materials and Methods
- The design and its printing files must be accessible through an open-source license or freely.
- The availability of a clear and reliable support for printing and assembling (manual or video of instructions) must be provided. As both English or French are mastered by the authors, we included devices with information delivered in those two languages.
- The design and its related printing files should have been made accessible after 2018. If the design is anterior to this date but a proof of continuing support (i.e., answers to questions) until at least 2018 is verified, then the device would be included.
- A design and its related printing files are not accessible through an open-source license or freely.
- A design is available but there is a lack of clear and reliable instructions (i.e., manual, video, etc.) to print or to assemble a device.
- A design is indicated as accessible, but no related printing file is available or the printing files accessible are corrupted.
- A design is indicated by its creator as unsuitable for a daily use or for a purpose different than research.
- Any designs comprising an uncomplete, abandoned or aborted projects. We define an “uncomplete” project as a project, proposed as an accomplished concept or as a “ready-to-use” device, in which there are missing elements (i.e., partial or absence of instructions, code for electronic components, projects steps, etc.). Abandoned or aborted projects are defined as projects not considered accomplished either by its author or by the absence of sign of pursued development on a specific device.
2.1. Ten Kate et al. Review
2.2. Literature Review
2.3. Online Databases Search
e-NABLE Platform
3. Results
3.1. Review of Ten Kate et al.
3.2. Review of Literature
3.2.1. Population
3.2.2. Design

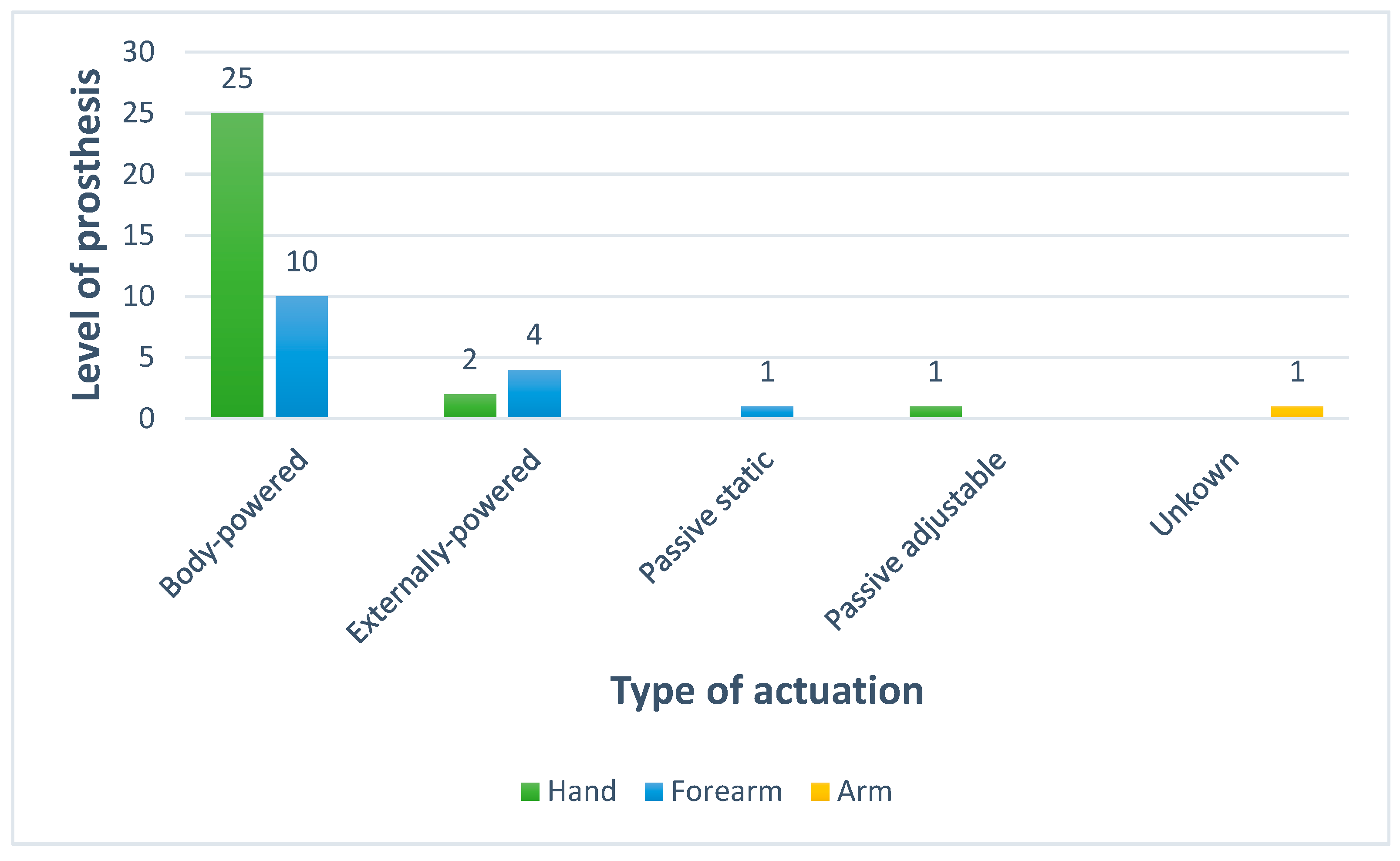

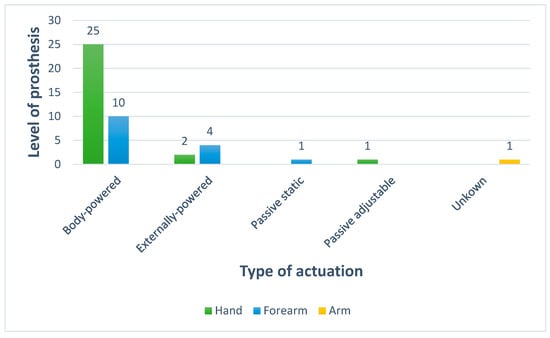

3.2.3. Mechanical Specifications
3.2.4. Kinematic Specifications
3.2.5. 3D Printing Processes and Materials
3.2.6. Production Cost
3.2.7. Functionality Assessment

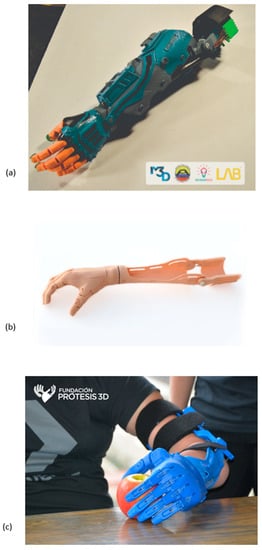

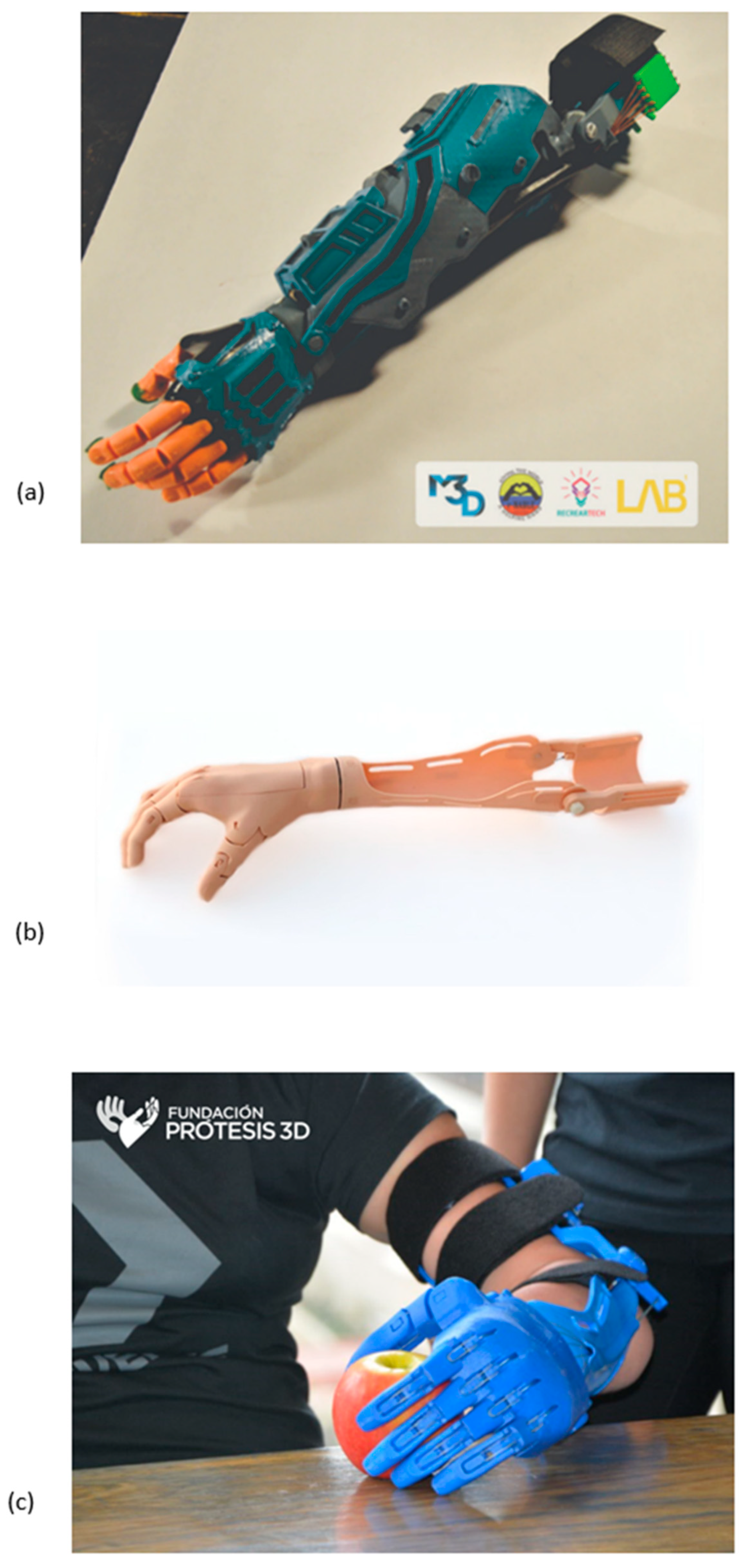

3.3. Review of Online Databases
3.3.1. General Repositories
3.3.2. Design
3.3.3. Mechanical Specifications
3.3.4. Kinematic Specifications
3.3.5. Production Cost

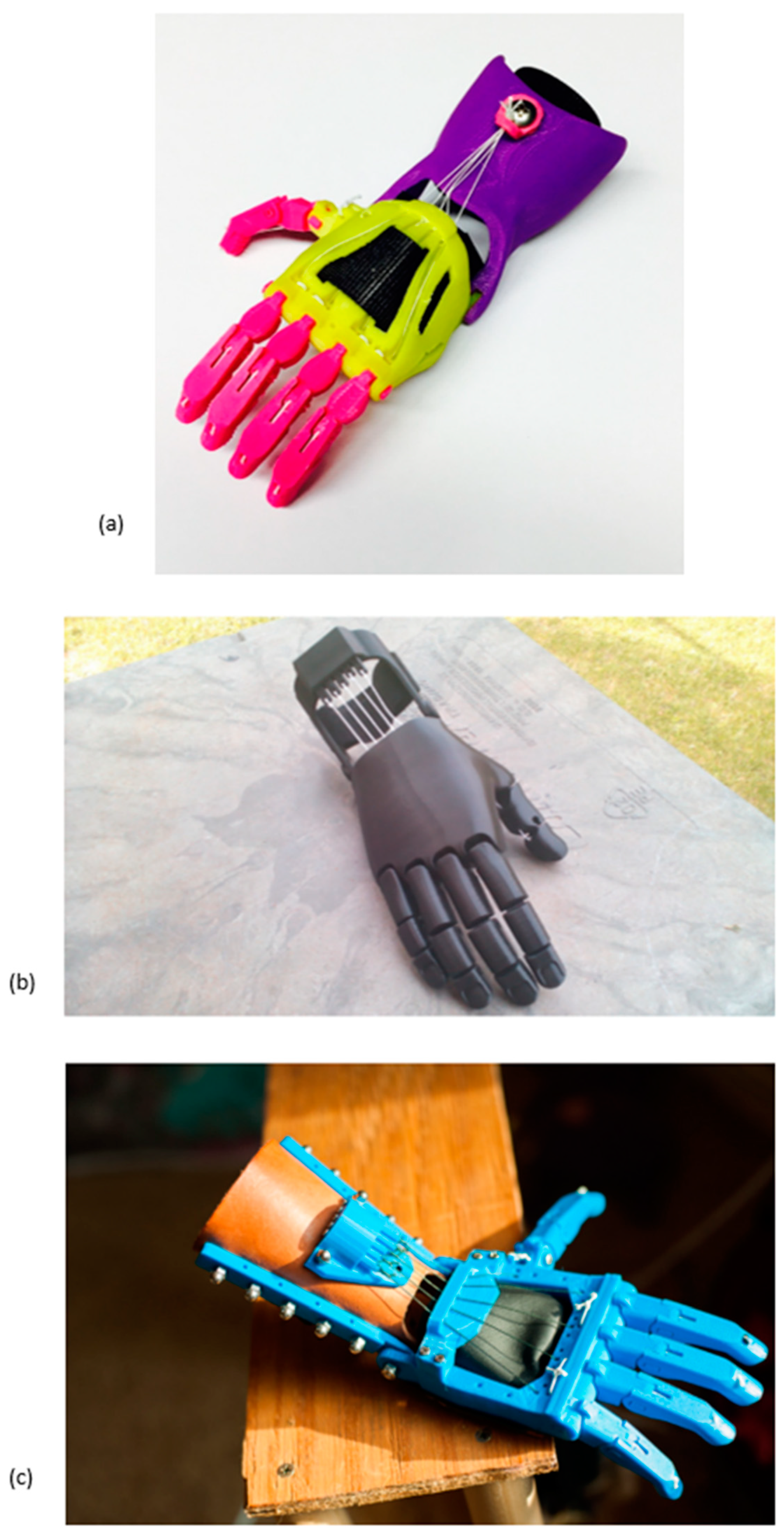

3.4. e-NABLE Platform
3.4.1. Design
3.4.2. Mechanical Specifications
3.4.3. Kinematic Specifications
3.4.4. Production Cost
4. Discussion
4.1. Designs
4.1.1. Creation
4.1.2. Accessibility
4.1.3. Customization
4.1.4. Mechanical and Kinematic Specifications
4.2. Assembly
4.3. Validation
4.4. Systematic Review
4.5. Online Databases
4.6. Technical Support
4.7. Open-Source Era
4.8. Limitations
4.9. Future Perspectives
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
Appendix A. Examples of Applications of the 3D-Printed Prosthesis Report Checklist
Example n°1. 3D-Printed Prosthesis Report Checklist | Zuniga et al. [36] | |
Information | Reported | Data |
Identification | ||
• Creator | Zuniga et al. | |
• Year of Creation | 2017 | |
• Number of versions | 2 | |
• Availability (open-source, URL) | Open-source | |
3D printing | ||
• Design customization required | Yes (colors, fictional characters) | |
• Material (type) | ABS, PLA | |
• 3D printer | Ultimaker 2, Ultimaker B.V., Geldermalsen, The Netherlands; Uprint SE Plus by Stratasys, MN | |
• Orientation | Hexagon pattern (desktop printer), crosshatch (industrial printer) | |
• Infill (percentage, pattern) | 40% | |
• Layer height | 0.15–0.25 mm | |
• Printing recommendations | Rafts and supports for delicate parts | |
• Printing duration | 4–7 h (assembly time included) | |
• Post-printing process | ||
Mechanical specifications | ||
• Level of prosthesis | Hand | |
• Type of prosthesis (passive, active) | Active | |
• Actuation (body-powered, externally powered, etc.) | Body-powered | |
• Type of control (wrist, elbow, shoulder harness, EMG, EEG, etc.) | Wrist | |
• Weight of device (if applicable) | ||
• Maximal Load (tests performed) (if applicable) | ||
• Durability (if applicable) | ||
Kinematic specifications | ||
• Grasping (according to GRASP taxonomy) | Cylindrical and Tip grasps | |
• Range of motion (in degrees) (if applicable) | 20°–30° wrist flexion for hand closure | |
• Degree of freedom (if applicable) | ||
• Force distribution (if applicable) | ||
Assembly | ||
• Material (hardware required, cost) | Nylon cord, elastic cord, Velcro, medical-grade firm padded foam, protective skin sock, BOA dial tensioner | |
• Assembly recommendations | ||
• Assembly duration (if applicable) | 4–7 h (printing time included) | |
Application (if applicable) | ||
• Population (age, impairment, usage, activities) | 11 children (3–15 years old). Congenital defect or amputation. | |
• Intervention (test, procedures, etc.) | Function testing (Box and Block Test) Strength measurements (strength testing with dynamometer) | |
• Presence of control group | Non | |
• Main results | Improvement of manual gross dexterity (function); no significant impact on strength of residual wrist. 3DP prosthesis can be used as a transitional device to improve function. | |
Remarks : Reported and absent data are represented by green and red marks, respectively. | ||
Example n°2. 3D-Printed Prosthesis Report Checklist | Omar et al. [31] | |
Information | Reported | Data |
Identification | ||
• Creator | Omar et al. | |
• Year of Creation | 2019 | |
• Number of versions | ||
• Availability (open-source, URL) | Open-source | |
3D printing | ||
• Design customization required | ||
• Material (type) | PLA | |
• 3D printer | ||
• Orientation | ||
• Infill (percentage, pattern) | ||
• Layer height | ||
• Printing recommendations | ||
• Printing duration | ||
• Post-printing process | ||
• Cost | PLA filament: £37 Hardware parts: £300 3D printer: £310 | |
Mechanical specifications | ||
• Level of prosthesis | Hand | |
• Type of prosthesis (passive, active) | Active | |
• Actuation (body-powered, externally powered, etc.) | Externally powered | |
• Type of control (wrist, elbow, shoulder harness, EMG, EEG, etc.) | Infra-red sensor | |
• Actuators | Servo motors | |
• Weight of device (if applicable) | ||
• Maximal Load (tests performed) (if applicable) | 2 kg | |
• Durability (if applicable) | ||
Kinematic specifications | ||
• Grasping (according to GRASP taxonomy) | Power, Tip, Lateral and Spherical | |
• Range of motion (in degrees) (if applicable) | ||
• Degree of freedom (if applicable) | ||
• Force distribution (if applicable) | ||
Assembly | ||
• Material (hardware required, cost) | PCB board, infra-red sensors, servo motors | |
• Assembly recommendations | ||
• Assembly duration (if applicable) | ||
Application (if applicable) | ||
• Population (age, impairment, usage, activities) | ||
• Intervention (test, procedures, etc.) | Testing (achievement of ADL tasks) | |
• Presence of control group | ||
• Main results | Limited hand functionality (limited grasps options) | |
Remarks: Reported and absent data are represented by green and red marks, respectively. | ||
Example n°3. 3D-Printed Prosthesis Report Checklist | Kinetic Hand | |
Information | Reported | Data |
Identification | ||
• Creator | Mat Bowtell (Free 3D Hands, Ltd.) | |
• Year of Creation | 2020 | |
• Number of versions | 1 | |
• Availability (open-source, URL) | Open-source (https://www.thingiverse.com/thing:4618922, accessed on 3 May 2022) | |
3D printing | ||
• Design customization required | ||
• Material (type) | PLA, PLA+, Ninjaflex | |
• 3D printer | Flashforge Finder Lite, Flashforge Creator Pro | |
• Orientation | ||
• Infill (percentage, pattern) | 40%(PLA)/100% (Ninjaflex) | |
• Layer height | 0.18 mm | |
• Printing recommendations | No support, no raft See complete instruction manual for full printing recommendations | |
• Printing duration | ||
• Post-printing process | See complete instruction manual for full post-printing recommendations. | |
• Cost | ||
Mechanical specifications | ||
• Level of prosthesis | Hand | |
• Type of prosthesis (passive, active) | Active | |
• Actuation (body-powered, externally powered, etc.) | Body-powered | |
• Type of control (wrist, elbow, shoulder harness, EMG, EEG, etc.) | Wrist | |
• Actuators | ||
• Weight of device (if applicable) | ||
• Maximal Load (tests performed) (if applicable) | ||
• Durability (if applicable) | ||
Kinematic specifications | ||
• Grasping (according to GRASP taxonomy) | ||
• Range of motion (in degrees) (if applicable) | 18° wrist flexion for full closure | |
• Degree of freedom (if applicable) | ||
• Force distribution (if applicable) | ||
Assembly | ||
• Material (hardware required, cost) | See complete instruction manual for full hardware lists. | |
• Assembly recommendations | See complete instruction manual for full assembly procedure. | |
• Assembly duration (if applicable) | ||
Application (if applicable) | ||
• Population (age, impairment, usage, activities) | ||
• Intervention (test, procedures, etc.) | ||
• Presence of control group | ||
• Main results | ||
Remarks: Reported and absent data are represented by green and red marks, respectively. |
