# PSO with Dynamic Adaptation of Parameters for Optimization in Neural Networks with Interval Type-2 Fuzzy Numbers Weights

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Theoretical Basement

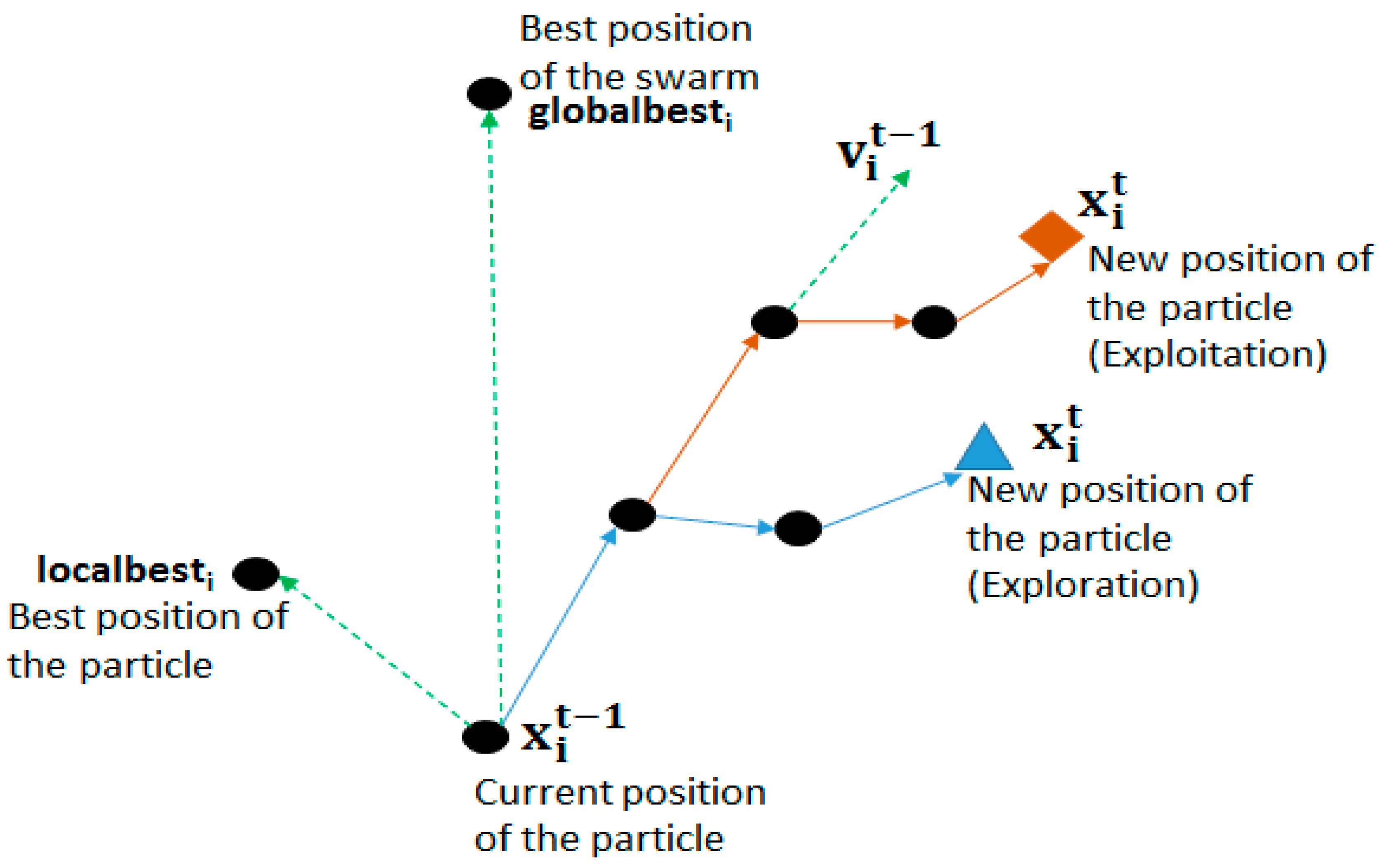

#### 2.1. Particle Swarm Optimization (PSO)

- $${x}_{i}\left(t+1\right)={x}_{i}\left(t\right)+{v}_{i}\left(t+1\right)$$
- ${x}_{i}$ is the particle $i$.
- $t$ is the current iteration.
- ${v}_{i}$ is the velocity of the particle $i$.

- $${v}_{i}\left(t+1\right)={v}_{ij}\left(t\right)+{c}_{1}{r}_{1}\left(t\right)\left[{y}_{ij}\left(t\right)-{x}_{ij}\left(t\right)\right]+{c}_{2}{r}_{2}\left(t\right)\left[{y}^{^}{}_{j}\left(t\right)-{x}_{ij}\left(t\right)\right]$$
- ${v}_{i}$ is the velocity of the particle $i$ in the dimension $j$.
- ${c}_{1}$ is the cognitive factor (importance of the best previous position of the particle).
- ${c}_{2}$ is the social factor (importance of the best global position of the swarm).
- ${r}_{1},{r}_{2}$ are random values in the range of [0, 1].
- ${y}_{ij}$ is the best position of the particle $i$ in the dimension $j$.
- ${x}_{ij}$ is the current position of the particle $i$ in the dimension $j$.
- ${y}^{^}{}_{j}$ is the best global position of the swarm in the dimension $j$.

#### 2.2. Type-2 Fuzzy Systems

- ${A}^{~}$ is a type-2 fuzzy set.
- ${\mu}_{{A}^{~}}\left(x,u\right)$ is a type-2 membership function.
- ${J}_{x}$ is called primary membership function of ${A}^{~}$.

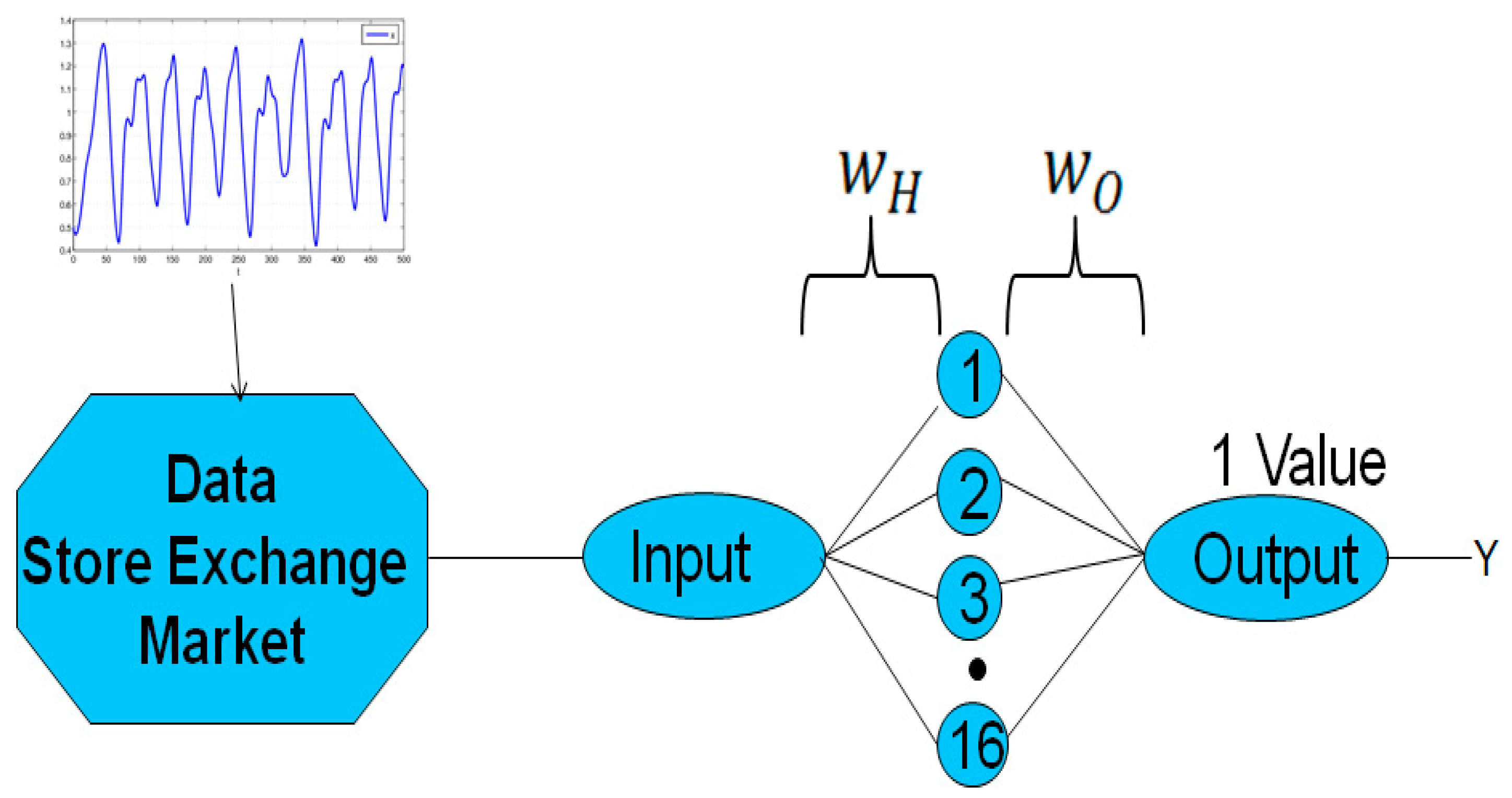

#### 2.3. Fuzzy Neural Network

## 3. Antecedents Development

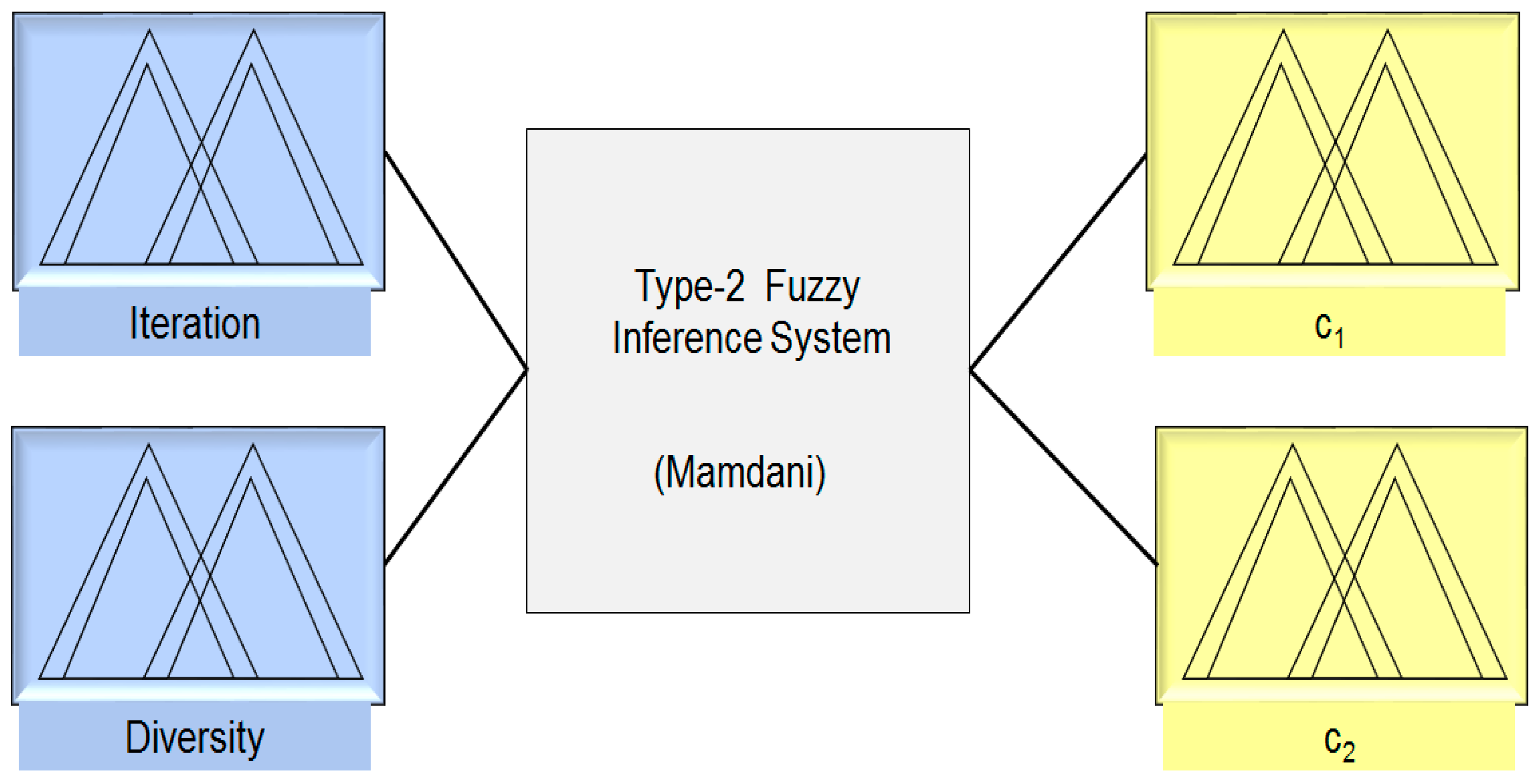

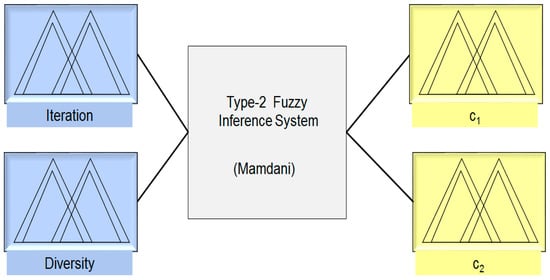

## 4. Proposed Method and Problem Description

- ${x}_{ij}\left(t\right)$: represents the particle in the iteration t.
- $\overline{{x}_{j}}\left(t\right)$: represents the best particle in the iteration t.

- minDiver: Minimum Euclidian distance for the particle.
- maxDiver: Maximum Euclidian distance for the particle.
- DiverNorm: Value obtained with Equation (13).$$DiverNorm=\frac{Diversity-minDiver}{maxDiver-minDiver}$$

- If (Iteration is Low) and (Diversity is Low) then (${c}_{1}$ is VeryHigh) (${c}_{2}$ is VeryLow).
- If (Iteration is Low) and (Diversity is Medium) then (${c}_{1}$ is High) (${c}_{2}$ is Medium).
- If (Iteration is Low) and (Diversity is High) then (${c}_{1}$ is High) (${c}_{2}$ is Low).
- If (Iteration is Medium) and (Diversity is Low) then (${c}_{1}$ is High) (${c}_{2}$ is Low).
- If (Iteration is Medium) and (Diversity is Medium) then (${c}_{1}$ is Medium) (${c}_{2}$ is Medium).
- If (Iteration is Medium) and (Diversity is High) then (${c}_{1}$ is Low) (${c}_{2}$ is High).
- If (Iteration is High) and (Diversity is Low) then (${c}_{1}$ is Medium) (${c}_{2}$ is VeryHigh).
- If (Iteration is High) and (Diversity is Medium) then (${c}_{1}$ is Low) (${c}_{2}$ is High).
- If (Iteration is High) and (Diversity is High) then (${c}_{1}$ is VeryLow) (${c}_{2}$ is VeryHigh).

## 5. Simulation Results

## 6. Discussion of Results

## 7. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Wang, X.; Han, M. Online sequential extreme learning machine with kernels for nonstationary time series prediction. Neurocomputing
**2014**, 145, 90–97. [Google Scholar] [CrossRef] - Xue, J.; Zhou, S.H.; Liu, Q.; Liu, X.; Yin, J. Financial time series prediction using ℓ2,1RF-ELM. Neurocomputing
**2018**, 227, 176–186. [Google Scholar] [CrossRef] - Zhou, T.; Gao, S.; Wang, J.; Chu, C.; Todo, Y.; Tang, Z. Financial time series prediction using a dendritic neuron model. Knowl.-Based Syst.
**2016**, 105, 214–224. [Google Scholar] [CrossRef] - Hrasko, R.; Pacheco, A.G.C.; Krohlinga, R.A. Time Series Prediction using Restricted Boltzmann Machines and Backpropagation. Procedia Comput. Sci.
**2015**, 55, 990–999. [Google Scholar] [CrossRef] - Baykasoglu, A.; Özbakır, L.; Tapkan, P. Artificial bee colony algorithm and its application to generalized assignment problem. In Swarm Intelligence: Focus on Ant and Particle Swarm Optimization; Felix, T.S.C., Manoj, K.T., Eds.; Itech Education and Publishing: Vienna, Austria, 2007; pp. 113–143. [Google Scholar]
- Qin, A.K.; Huang, V.L.; Suganthan, P.N. Differential evolution algorithm with strategy adaptation for global numerical optimization. IEEE Trans. Evol. Comput.
**2009**, 13, 398–417. [Google Scholar] [CrossRef] - Vesterstrom, J.; Thomsen, R. A comparative study of differential evolution, particle swarm optimization, and evolutionary algorithms on numerical benchmark problems. In Proceedings of the CEC2004 IEEE Congress on Evolutionary Computation 2004, Portland, OR, USA, 19–23 June 2004; Volume 2, pp. 1980–1987. [Google Scholar]
- Gaxiola, F.; Melin, P.; Valdez, F.; Castillo, O.; Castro, J.R. Comparison of T-Norms and S-Norms for Interval Type-2 Fuzzy Numbers in Weight Adjustment for Neural Networks. Information
**2017**, 8, 114. [Google Scholar] [CrossRef] - Kim, K.; Han, I. Genetic algorithms approach to feature discretization in artificial neural networks for the prediction of stock price index. Expert Syst. Appl.
**2000**, 19, 125–132. [Google Scholar] [CrossRef] - Dash, R.; Dash, P.K. Prediction of Financial Time Series Data using Hybrid Evolutionary Legendre Neural Network: Evolutionary LENN. Int. J. Appl. Evol. Comput.
**2016**, 7, 16–32. [Google Scholar] [CrossRef] - Kim, K. Financial time series forecasting using support vector machines. Neurocomputing
**2003**, 55, 307–319. [Google Scholar] [CrossRef] - Olivas, F.; Valdez, F.; Castillo, O.; Melin, P. Dynamic parameter adaptation in particle swarm optimization using interval type-2 fuzzy logic. Soft Comput.
**2014**, 20, 1057–1070. [Google Scholar] [CrossRef] - Abdelbar, A.; Abdelshahid, S.; Wunsch, D. Fuzzy PSO: A generalization of particle swarm optimization. In Proceedings of the 2005 IEEE International Joint Conference on Neural Networks, Montreal, QC, Canada, 31 July–4 August 2005; Volume 2, pp. 1086–1091. [Google Scholar]
- Valdez, F.; Melin, P.; Castillo, O. An improved evolutionary method with fuzzy logic for combining particle swarm optimization and genetic algorithms. Appl. Soft Comput.
**2011**, 11, 2625–2632. [Google Scholar] [CrossRef] - Wu, D.; Tan, W.W. Interval type-2 fuzzy PI controllers why they are more robust. In Proceedings of the 2010 IEEE International Conference on Granular Computing, San Jose, CA, USA, 14–16 August 2010; pp. 802–807. [Google Scholar]
- Sepulveda, R.; Castillo, O.; Melin, P.; Rodriguez-Diaz, A.; Montiel, O. Experimental study of intelligent controllers under uncertainty using type-1 and type-2 fuzzy logic. Inf. Sci.
**2007**, 177, 2023–2048. [Google Scholar] [CrossRef] - Gaxiola, F.; Melin, P.; Valdez, F.; Castillo, O. Interval Type-2 Fuzzy Weight Adjustment for Backpropagation Neural Networks with Application in Time Series Prediction. Inf. Sci.
**2014**, 260, 1–14. [Google Scholar] [CrossRef] - Gaxiola, F.; Melin, P.; Valdez, F.; Castillo, O. Generalized Type-2 Fuzzy Weight Adjustment for Backpropagation Neural Networks in Time Series Prediction. Inf. Sci.
**2015**, 325, 159–174. [Google Scholar] [CrossRef] - Dunyak, J.P.; Wunsch, D. Fuzzy regression by fuzzy number neural networks. Fuzzy Sets Syst.
**2000**, 112, 371–380. [Google Scholar] [CrossRef] - Ding, S.; Li, H.; Su, C.; Yu, J.; Jin, F. Evolutionary Artificial Neural Networks: A Review. Artif. Intell. Rev.
**2013**, 39, 251–260. [Google Scholar] [CrossRef] - Weber, S. A general concept of fuzzy connectives, negations and implications based on t-norms and t-conorms. Fuzzy Sets Syst.
**1983**, 11, 115–134. [Google Scholar] [CrossRef] - Hamacher, H. Überlogischeverknupfungenunscharferaussagen und derenzugehorigebewertungsfunktionen. In Progress in Cybernetics and Systems Research, III.; Trappl, R., Klir, G.J., Ricciardi, L., Eds.; Hemisphere: New York, NY, USA, 1975; pp. 276–288. [Google Scholar]
- Melin, P.; Olivas, F.; Castillo, O.; Valdez, F.; Soria, J.; Valdez, M. Optimal design of fuzzy classification systems using PSO with dynamic parameter adaptation through fuzzy logic. Expert Syst. Appl.
**2013**, 40, 3196–3206. [Google Scholar] [CrossRef] - Olivas, F.; Valdez, F.; Melin, P.; Sombra, A.; Castillo, O. Interval type-2 fuzzy logic for dynamic parameter adaptation in a modified gravitational search algorithm. Inf. Sci.
**2019**, 476, 159–175. [Google Scholar] [CrossRef] - Kennedy, J.; Eberhart, R. Swarm Intelligence; Morgan Kaufmann: San Francisco, CA, USA, 2001. [Google Scholar]
- Jang, J.; Sun, C.; Mizutani, E. Neuro-Fuzzy and Soft Computing: A Computational Approach to Learning and Machine Intelligence; Prentice-Hall: Upper Saddle River, NJ, USA, 1997. [Google Scholar]
- Engelbrecht, A. Fundamentals of Computational Swarm Intelligence; University of Pretoria: Pretoria, South Africa, 2005. [Google Scholar]
- Bingül, Z.; Karahan, O. A fuzzy logic controller tuned with PSO for 2 DOF robot trajectory control. Expert Syst. Appl.
**2001**, 38, 1017–1031. [Google Scholar] [CrossRef] - Zadeh, L. The concept of a linguistic variable and its application to approximate reasoning. Inf. Sci.
**1975**, 8, 199–249. [Google Scholar] [CrossRef] - Mendel, J.; John, R. Type-2 fuzzy sets made simple. IEEE Trans. Fuzzy Syst.
**2002**, 10, 117–127. [Google Scholar] [CrossRef] [Green Version] - Liang, Q.; Mendel, J. Interval type-2 fuzzy logic systems: Theoryand design. IEEE Trans. Fuzzy Syst.
**2000**, 8, 535–550. [Google Scholar] [CrossRef] - Chandra Shill, P.; Faijul Amin, M.; Akhand, M.A.H.; Murase, K. Optimization of interval type-2 fuzzy logic controller using quantum genetic algorithms. In Proceedings of the IEEE World Congress Computational Intelligence, Brisbane, Australia, 10–15 June 2012; pp. 1027–1034. [Google Scholar]
- Karnik, N.N.; Mendel, J.M. Centroid of a type-2 fuzzy set. Inf. Sci.
**2001**, 132, 195–220. [Google Scholar] [CrossRef] - Biglarbegian, M.; Melek, W.W.; Mendel, J.M. On the robustness of Type-1 and Interval Type-2 fuzzy logic systems in modeling. Inf. Sci.
**2011**, 181, 1325–1347. [Google Scholar] [CrossRef] - Mendel, J.M. Uncertain Rule-Based Fuzzy Logic Systems: Introduction and New Directions; Prentice Hall PTR: Upper Saddle River, NJ, USA, 2001. [Google Scholar]
- Wu, D.; Mendel, J.M. On the continuity of type-1 and interval type-2 fuzzy logic systems. IEEE Trans. Fuzzy Syst.
**2011**, 19, 179–192. [Google Scholar] - Ishibuchi, H.; Nii, M. Numerical Analysis of the Learning of Fuzzified Neural Networks from Fuzzy If–Then Rules. Fuzzy Sets Syst.
**1998**, 120, 281–307. [Google Scholar] [CrossRef] - Feuring, T. Learning in Fuzzy Neural Networks. In Proceedings of the IEEE International Conference on Neural Networks, Washington, DC, USA, 3–6 June 1996; Volume 2, pp. 1061–1066. [Google Scholar]
- Valdez, F.; Melin, P.; Castillo, O. A survey on nature-inspired optimization algorithms with fuzzy logic for dynamic parameter adaptation. Expert Syst. Appl.
**2014**, 41, 6459–6466. [Google Scholar] [CrossRef] - Li, C.; Wu, T. Adaptive fuzzy approach to function approximation with PSO and RLSE. Expert Syst. Appl.
**2011**, 38, 13266–13273. [Google Scholar] [CrossRef] - Muthukaruppan, S.; Er, M.J. A hybrid particle swarm optimization based fuzzy expert system for the diagnosis of coronary artery disease. Expert Syst. Appl.
**2012**, 39, 11657–11665. [Google Scholar] [CrossRef] - Taher, N.; Ehsan, A.; Masoud, J. A new hybrid evolutionary algorithm based on new fuzzy adaptive PSO and NM algorithms for distribution feeder reconfiguration. Energy Convers. Manag.
**2012**, 54, 7–16. [Google Scholar] - Wang, B.; Liang, G.; Wang, C.; Dong, Y. A new kind of fuzzy particle swarm optimization fuzzy PSO algorithm. In Proceedings of the 1st International Symposium on Systems and Control in Aerospace and Astronautics, ISSCAA, Harbin, China, 19–21 January 2006; pp. 309–311. [Google Scholar]
- Hongbo, L.; Abraham, M. Fuzzy Adaptive Turbulent Particle Swarm Optimization. In Proceedings of the IEEE Fifth International Conference on Hybrid Intelligent Systems (HIS’05), Rio de Janeiro, Brazil, 6–9 November 2005; pp. 445–450. [Google Scholar]
- Shi, Y.; Eberhart, R. Fuzzy Adaptive Particle Swarm Optimization. In Proceedings of the IEEE International Conference on Evolutionary Computation, Seoul, Korea, 27–30 May 2001; IEEE Service Center: Piscataway, NJ, USA, 2001; pp. 101–106. [Google Scholar]
- Yang, D.; Li, Z.; Liu, Y.; Zhang, H.; Wu, W. A Modified Learning Algorithm for Interval Perceptrons with Interval Weights. Neural Process Lett.
**2015**, 42, 381–396. [Google Scholar] [CrossRef] - Kuo, R.J.; Chen, J.A. A Decision Support System for Order Selection in Electronic Commerce based on Fuzzy Neural Network Supported by Real-Coded Genetic Algorithm. Experts Syst. Appl.
**2004**, 26, 141–154. [Google Scholar] [CrossRef] - Karnik, N.N.; Mendel, J. Operations on type-2 fuzzy sets. Fuzzy Sets Syst.
**2001**, 122, 327–348. [Google Scholar] [CrossRef] - Chai, Y.; Xhang, D. A Representation of Fuzzy Numbers. Fuzzy Sets Syst.
**2016**, 295, 1–18. [Google Scholar] [CrossRef] - Chu, T.C.; Tsao, T.C. Ranking Fuzzy Numbers with an Area between the Centroid Point and Original Point. Comput. Math. Appl.
**2002**, 43, 111–117. [Google Scholar] [CrossRef] - Dunyak, J.; Wunsch, D. Fuzzy Number Neural Networks. Fuzzy Sets Syst.
**1999**, 108, 49–58. [Google Scholar] [CrossRef] - Coroianu, L.; Stefanini, L. General Approximation of Fuzzy Numbers by F-Transform. Fuzzy Sets Syst.
**2016**, 288, 46–74. [Google Scholar] [CrossRef] - Li, Z.; Kecman, V.; Ichikawa, A. Fuzzified Neural Network based on fuzzy number operations. Fuzzy Sets Syst.
**2002**, 130, 291–304. [Google Scholar] [CrossRef] - Fard, S.; Zainuddin, Z. Interval Type-2 Fuzzy Neural Networks Version of the Stone–Weierstrass Theorem. Neurocomputing
**2011**, 74, 2336–2343. [Google Scholar] [CrossRef] - Molinari, F. A New Criterion of Choice between Generalized Triangular Fuzzy Numbers. Fuzzy Sets Syst.
**2016**, 296, 51–69. [Google Scholar] [CrossRef] - Asady, B. Trapezoidal Approximation of a Fuzzy Number Preserving the Expected Interval and Including the Core. Am. J. Oper. Res.
**2013**, 3, 299–306. [Google Scholar] [CrossRef] - Figueroa-García, J.C.; Chalco-Cano, Y.; Roman-Flores, H. Distance Measures for Interval Type-2 Fuzzy Numbers. Discret. Appl. Math.
**2015**, 197, 93–102. [Google Scholar] [CrossRef] - Requena, I.; Blanco, A.; Delgado, M.; Verdegay, J. A Decision Personal Index of Fuzzy Numbers based on Neural Networks. Fuzzy Sets Syst.
**1995**, 73, 185–199. [Google Scholar] [CrossRef] - Valdez, F.; Vazquez, J.C.; Gaxiola, F. Fuzzy Dynamic Parameter Adaptation in ACO and PSO for Designing Fuzzy Controllers: The Cases of Water Level and Temperature Control. Adv. Fuzzy Syst.
**2018**, 2018, 1274969. [Google Scholar] [CrossRef] - Fan, G.F.; Peng, L.L.; Hong, W.C. Short term load forecasting based on phase space reconstruction algorithm and bi-square kernel regression model. Appl. Energy
**2018**, 224, 13–33. [Google Scholar] [CrossRef] - Dong, Y.; Zhang, Z.; Hong, W.-C. A hybrid seasonal mechanism with a chaotic cuckoo search algorithm with a support vector regression model for electric load forecasting. Energies
**2018**, 11, 1009. [Google Scholar] [CrossRef] - Tung, S.W.; Quek, C.; Guan, C. eT2FIS: An Evolving Type-2 Neural Fuzzy Inference System. Inf. Sci.
**2013**, 220, 124–148. [Google Scholar] [CrossRef] - Castillo, O.; Melin, P. A review on the design and optimization of interval type-2 fuzzy controllers. Appl. Soft Comput.
**2012**, 12, 1267–1278. [Google Scholar] [CrossRef] - Zarandi, M.H.F.; Torshizi, A.D.; Turksen, I.B.; Rezaee, B. A new indirect approach to the type-2 fuzzy systems modeling and design. Inf. Sci.
**2013**, 232, 346–365. [Google Scholar] [CrossRef] - Nguyen, D.; Widrow, B. Improving the Learning Speed of 2-Layer Neural Networks by choosing Initial Values of the Adaptive Weights. In Proceedings of the International Joint Conference on Neural Networks, San Diego, CA, USA, 17–21 June 1990; Volume 3, pp. 21–26. [Google Scholar]
- Caraveo, C.; Valdez, F.; Castillo, O. Optimization of fuzzy controller design using a new bee colony algorithm with fuzzy dynamic parameter adaptation. Appl. Soft Comput.
**2016**, 43, 131–142. [Google Scholar] [CrossRef] - Castillo, O.; Neyoy, H.; Soria, J.; Melin, P.; Valdez, F. A new approach for dynamic fuzzy logic parameter tuning in Ant Colony Optimization and its application in fuzzy control of a mobile robot. Appl. Soft Comput.
**2015**, 28, 150–159. [Google Scholar] [CrossRef] - Alexandridis, A.; Sarimveis, H.; Bafas, G. A new algorithm for online structure and parameter adaptation of RBF networks. Neural Netw.
**2003**, 16, 1003–1017. [Google Scholar] [CrossRef] - Derrac, J.; García, S.; Molina, D.; Herrera, F. A practical tutorial on the use of nonparametric statistical tests as a methodology for comparing evolutionary and swarm intelligence algorithms. Swarm Evol. Comput.
**2011**, 1, 3–18. [Google Scholar] [CrossRef]

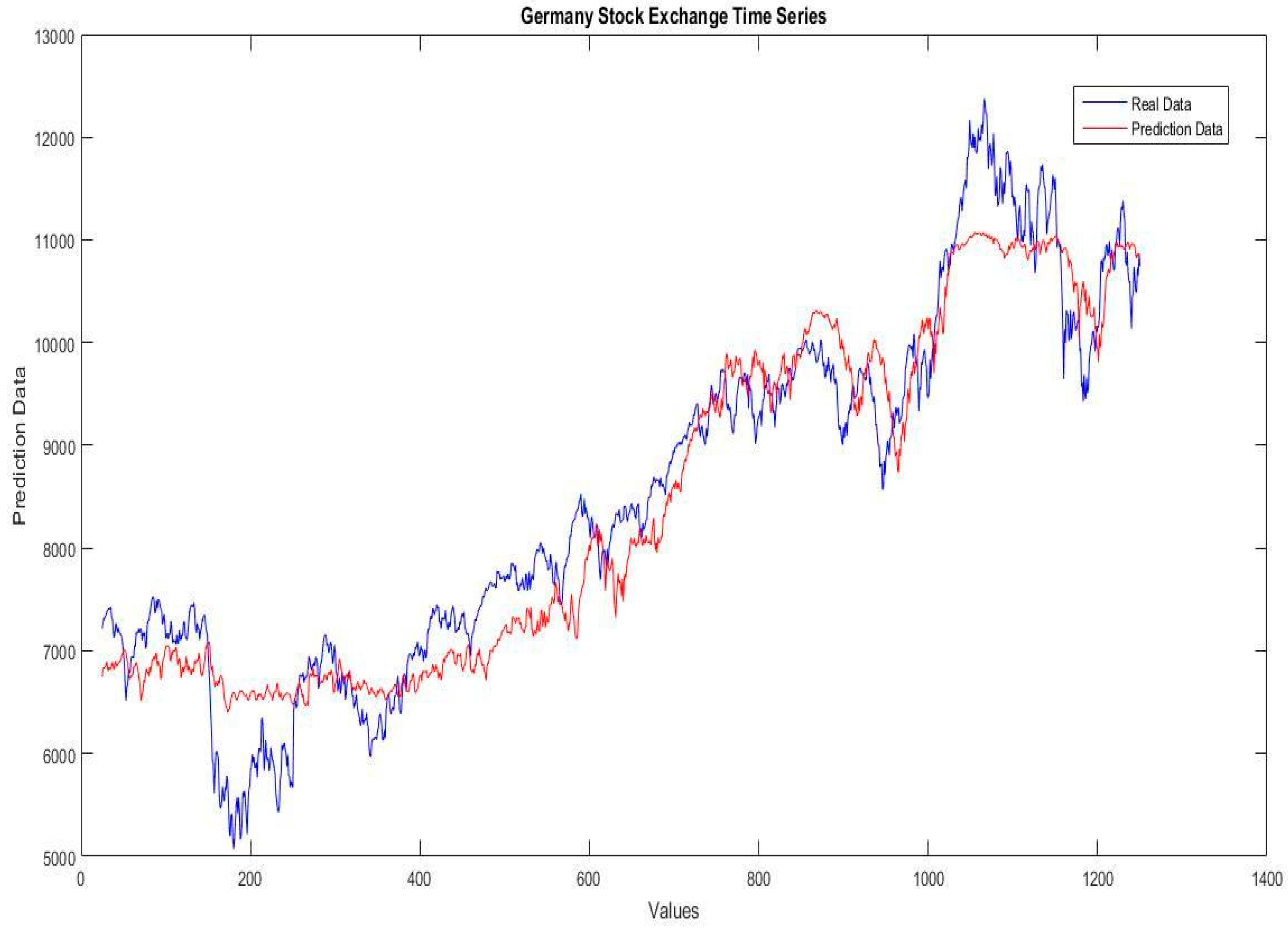

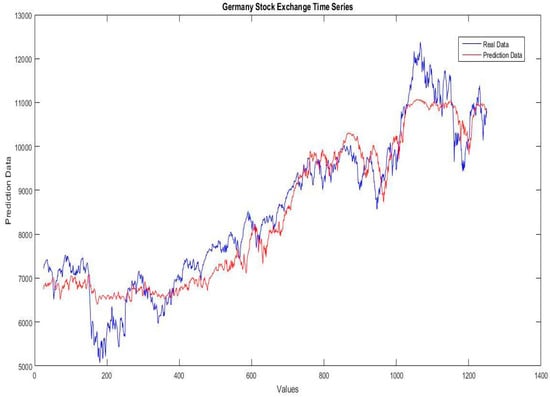

**Figure 10.**Illustration of the real data against the prediction data of the Germany stock exchange time series for the fuzzy neural network using Hamacher optimized with dynamic PSO.

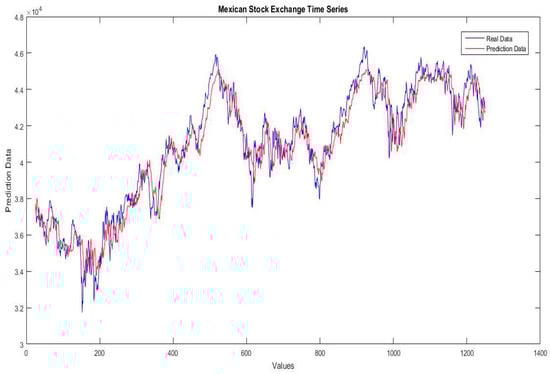

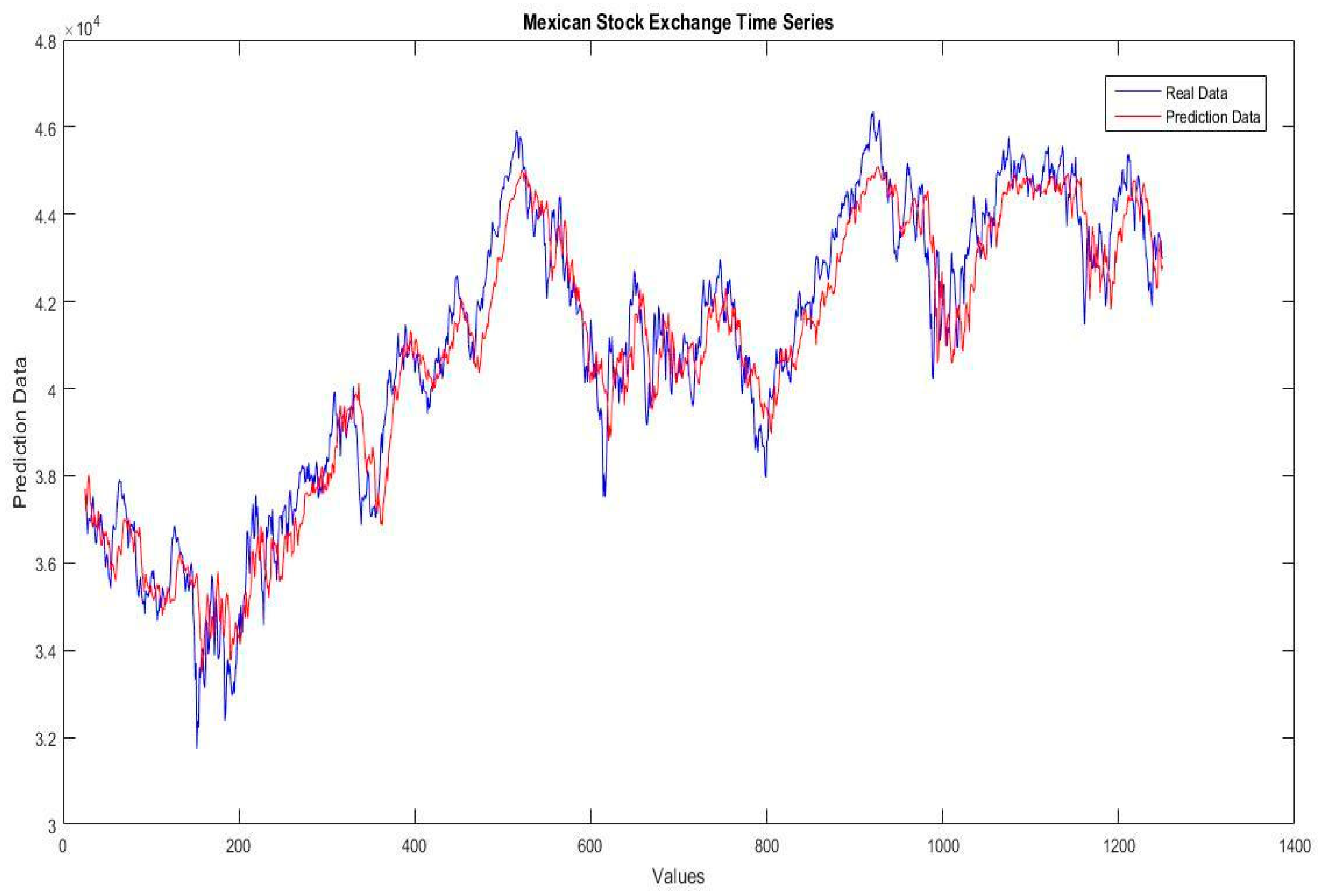

**Figure 11.**Illustration of the real data against the prediction data of the Mexican stock exchange time series for the fuzzy neural network using Frank optimized with dynamic PSO.

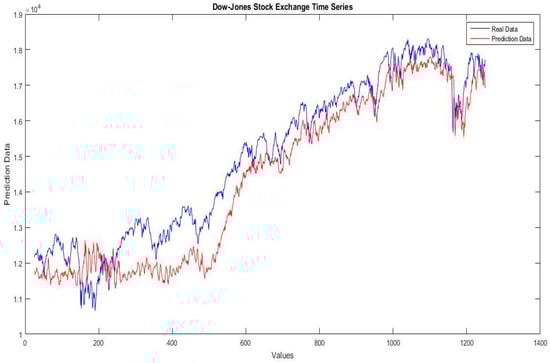

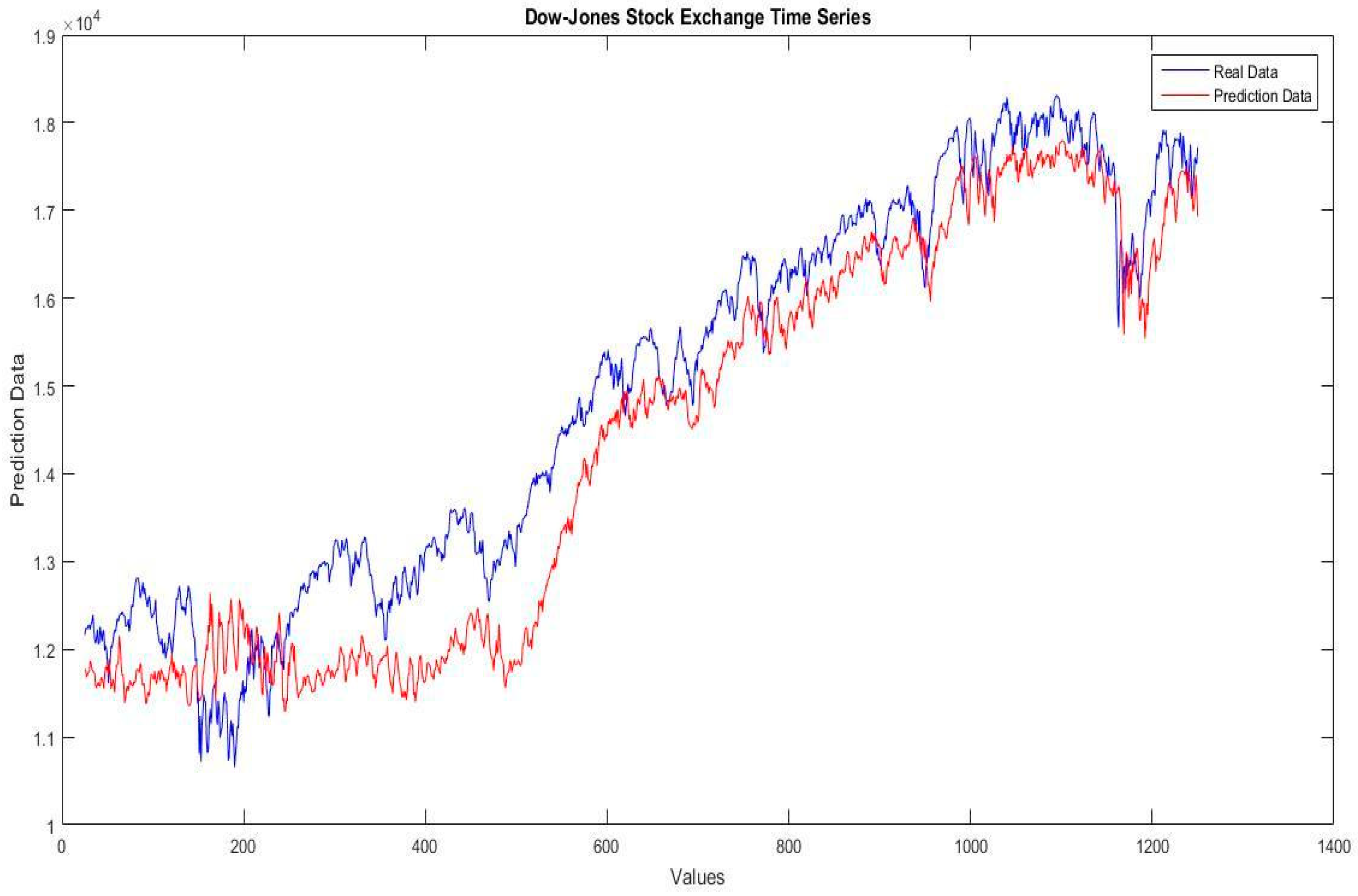

**Figure 12.**Illustration of the real data against the prediction data of the Dow-Jones stock exchange time series for the fuzzy neural network using Hamacher optimized with dynamic PSO.

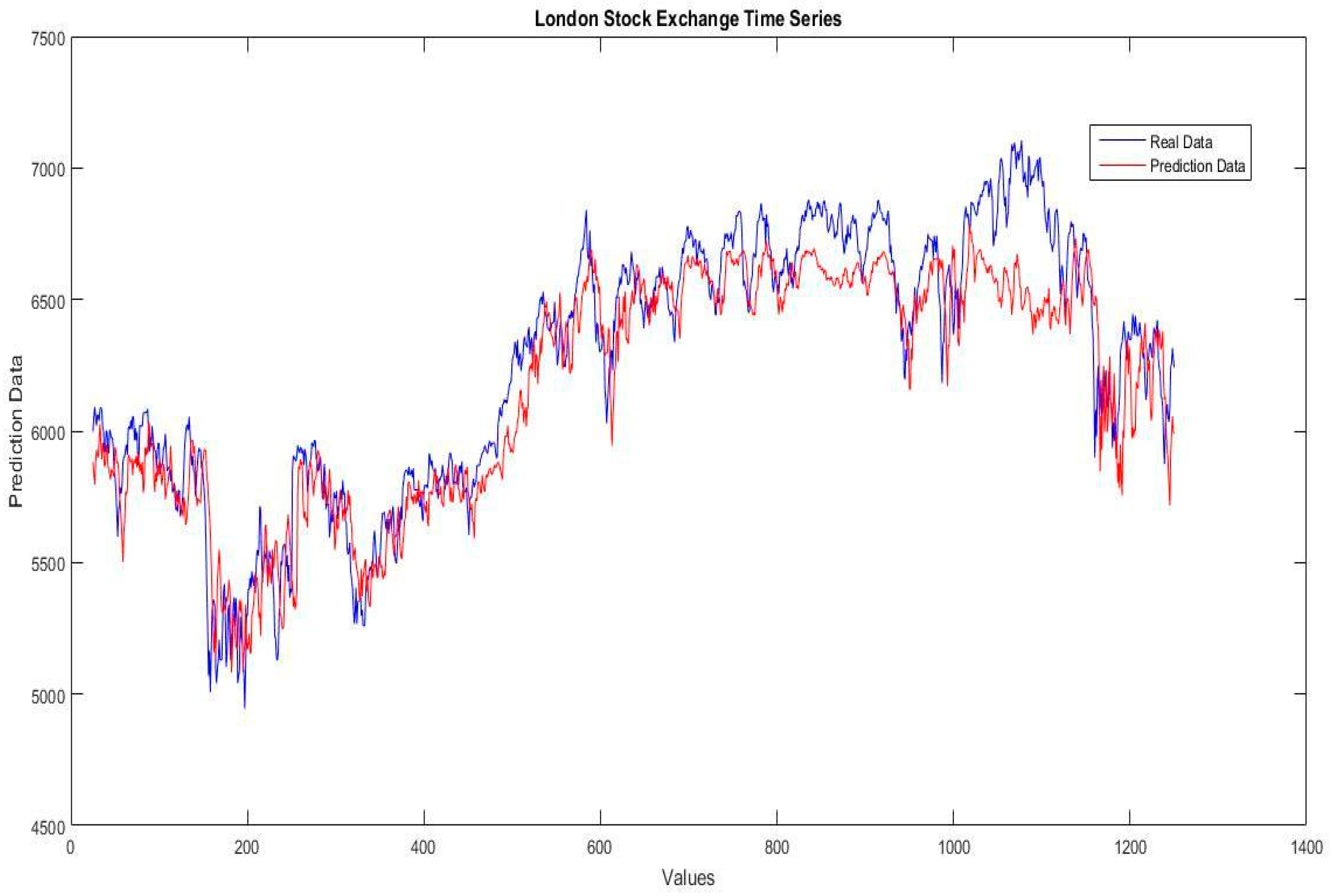

**Figure 13.**Illustration of the real data against the prediction data of the London stock exchange time series for the fuzzy neural network using Hamacher without optimization.

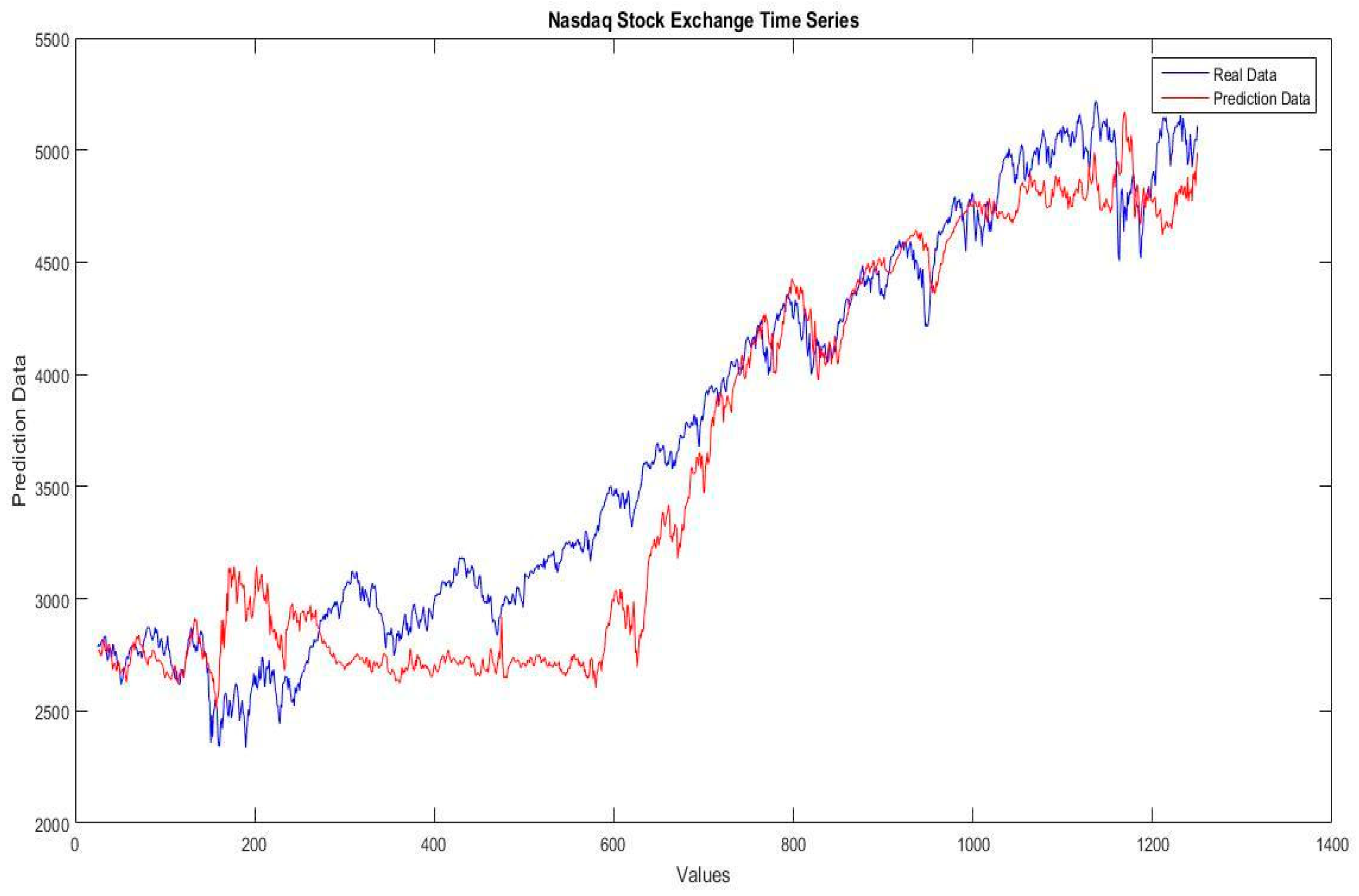

**Figure 14.**Illustration of the real data against the prediction data of theNasdaq stock exchange time series for the fuzzy neural network using Hamacher optimized with dynamic PSO.

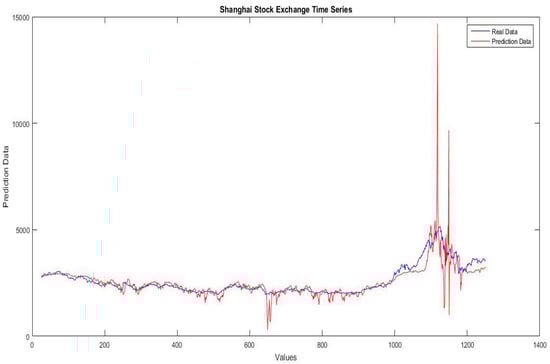

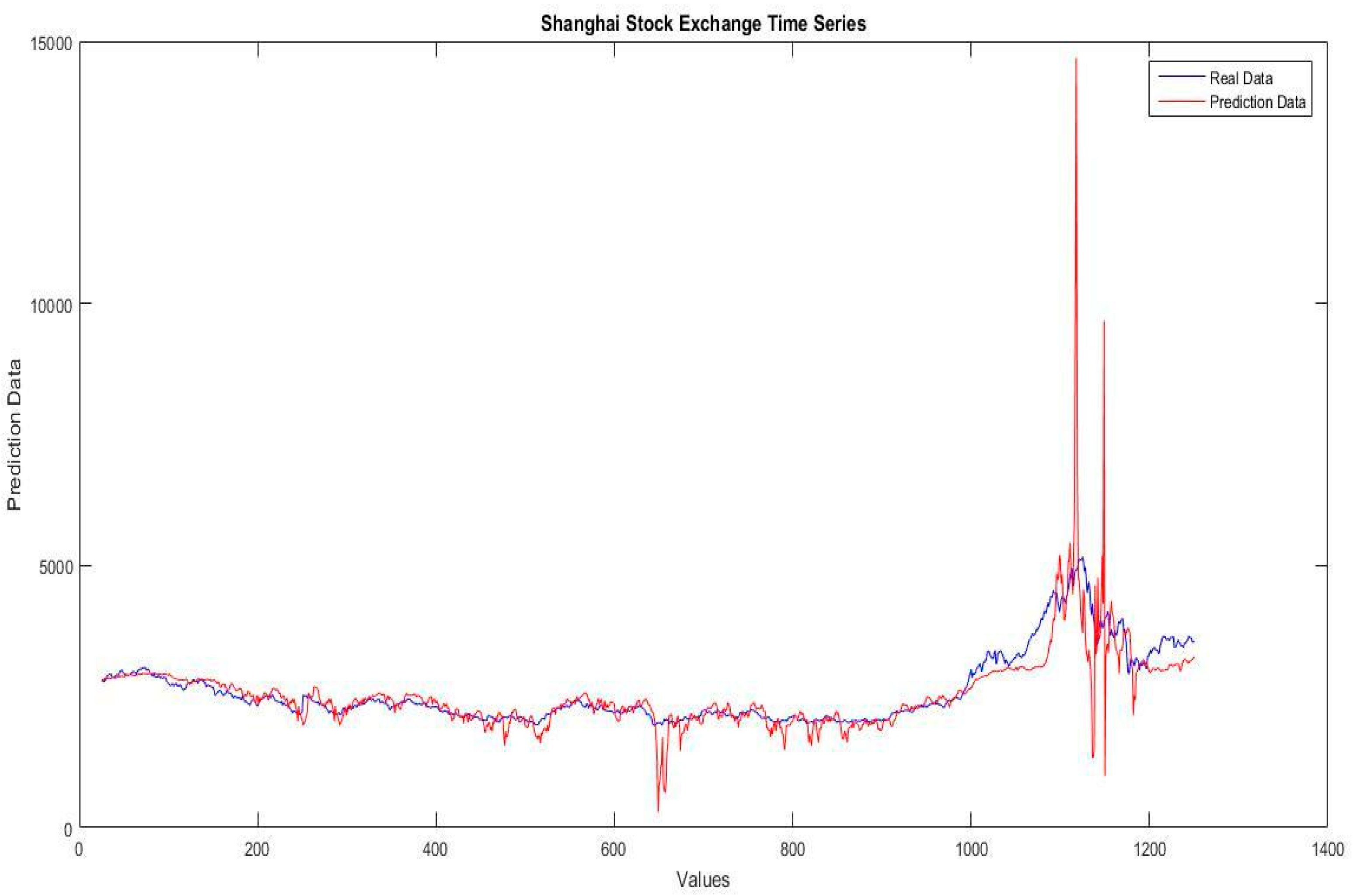

**Figure 15.**Illustration of the real data against the prediction data of the Shanghai stock exchange time series for the fuzzy neural network using Hamacher and optimized with the dynamic PSO.

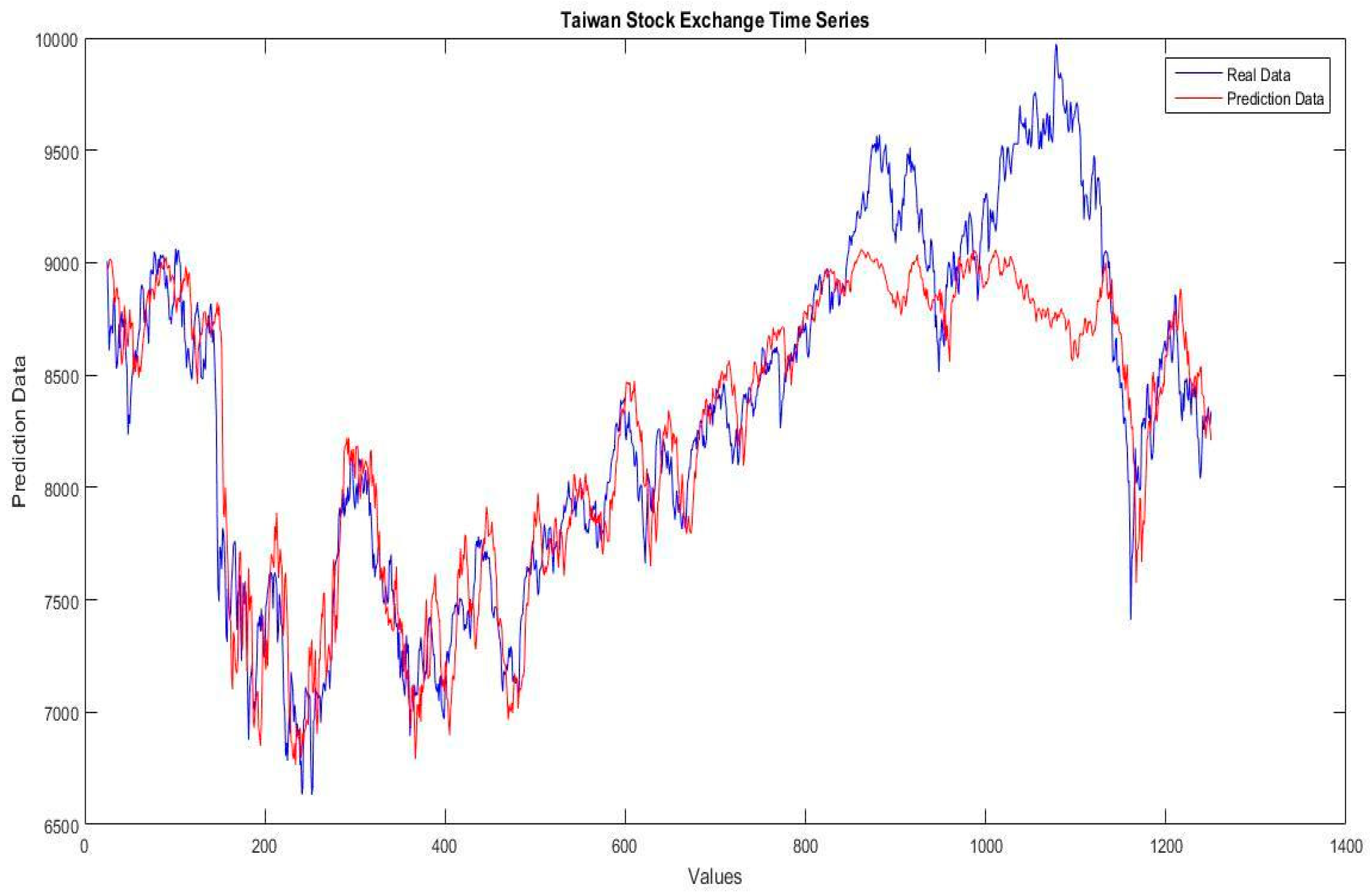

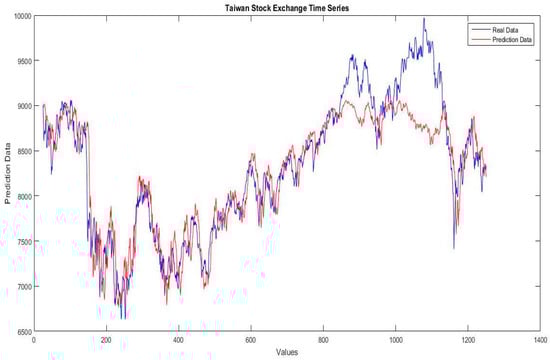

**Figure 16.**Illustration of the real data against the prediction data of Taiwan stock exchange time series for the fuzzy neural network using Hamacher optimized with dynamic PSO.

Parameters | Values |
---|---|

Particles | 50 |

Dimensions | 2 |

Iterations | 50 |

Inertia Weight | 0.1 |

Constriction Coefficient (C) | 1 |

R1, R2 | Random in [0, 1] |

${c}_{1}$, ${c}_{2}$ | Dynamic adjust IT2FIS |

Error | Results | Germany | Mexican | Dow-Jones | London | Nasdaq | Shanghai | Taiwan |
---|---|---|---|---|---|---|---|---|

MAE | Best | 1089.19 | 733.50 | 920.89 | 167.05 | 468.81 | 361.95 | 383.00 |

Average | 1138.48 | 755.34 | 956.03 | 168.76 | 470.43 | 367.90 | 412.52 | |

RMSE | Best | 1264.68 | 917.93 | 1075.70 | 200.13 | 550.95 | 561.29 | 458.28 |

Average | 1332.28 | 935.58 | 1109.73 | 203.29 | 558.95 | 580.00 | 480.11 |

**Table 3.**Results of the IT2FNWNN with the S-norm and T-norm of the sum of the product for the financial time series.

Error | Results | Germany | Mexican | Dow-Jones | London | Nasdaq | Shanghai | Taiwan |
---|---|---|---|---|---|---|---|---|

MAE | Best | 1038.84 | 739.26 | 736.26 | 155.51 | 585.70 | 391.21 | 321.86 |

Average | 1148.27 | 760.49 | 937.09 | 159.20 | 725.07 | 403.97 | 339.18 | |

RMSE | Best | 1338.21 | 915.45 | 840.21 | 192.14 | 786.84 | 458.75 | 499.62 |

Average | 1414.93 | 939.70 | 1098.61 | 196.65 | 884.07 | 474.99 | 615.84 |

**Table 4.**Results of the IT2FNWNN with the S-norm and T-norm of Hamacher for the financial time series.

Error | Results | Germany | Mexican | Dow-Jones | London | Nasdaq | Shanghai | Taiwan |
---|---|---|---|---|---|---|---|---|

MAE | Best | 1055.06 | 730.13 | 686.05 | 151.76 | 463.77 | 314.71 | 349.78 |

Average | 1093.54 | 756.95 | 787.61 | 158.96 | 711.63 | 334.81 | 392.70 | |

RMSE | Best | 1216.24 | 912.65 | 800.68 | 188.46 | 570.36 | 569.32 | 449.41 |

Average | 1334.42 | 945.19 | 925.43 | 198.98 | 854.65 | 626.49 | 472.24 |

Error | Results | Germany | Mexican | Dow-Jones | London | Nasdaq | Shanghai | Taiwan |
---|---|---|---|---|---|---|---|---|

MAE | Best | 1058.87 | 730.96 | 853.69 | 153.35 | 663.02 | 354.07 | 362.56 |

Average | 4439.15 | 756.19 | 944.12 | 159.58 | 741.04 | 336.64 | 399.85 | |

RMSE | Best | 1256.37 | 915.84 | 972.34 | 186.68 | 730.97 | 607.68 | 448.20 |

Average | 1402.82 | 936.95 | 1101.39 | 197.71 | 902.34 | 640.26 | 470.09 |

**Table 6.**Results of the optimization with Dynamic PSO for Hamacher IT2FNWNN for the financial time series.

Financial Time Series | Prediction Error | No. Neurons | Parameter $\mathit{\gamma}$ |
---|---|---|---|

Germany | 417.33 | 39 | 1.6471 |

Mexican | 744.34 | 21 | 0.9997 |

Dow-Jones | 517.58 | 15 | 1.9270 |

London | 155.72 | 22 | 1.0016 |

Nasdaq | 227.53 | 56 | 0.6822 |

Shanghai | 211.40 | 99 | 1.7397 |

Taiwan | 236.15 | 28 | 1.1997 |

**Table 7.**Results of the IT2FNWNN with the S-norm and T-norm of Hamacher optimized with dynamic PSO for the financial time series.

Error | Results | Germany | Mexican | Dow-Jones | London | Nasdaq | Shanghai | Taiwan |
---|---|---|---|---|---|---|---|---|

MAE | Best | 417.33 | 728.61 | 517.58 | 154.87 | 227.53 | 211.40 | 236.15 |

Average | 813.21 | 751.48 | 881.97 | 160.47 | 342.14 | 313.86 | 401.49 | |

RMSE | Best | 507.43 | 909.39 | 769.15 | 192.81 | 283.92 | 443.85 | 331.32 |

Average | 1172.56 | 930.47 | 1290.34 | 197.99 | 530.34 | 543.39 | 472.44 |

**Table 8.**Results of the optimization with dynamic PSO for Frank IT2FNWNN for the financial time series.

Financial Time Series | Prediction Error | No. Neurons | Parameter $\mathit{\gamma}$ |
---|---|---|---|

Germany | 935.77 | 89 | 1.7796 |

Mexican | 726.84 | 22 | 1.4607 |

Dow-Jones | 768.81 | 119 | 3.1526 |

London | 153.60 | 32 | 1.2669 |

Nasdaq | 302.19 | 73 | 1.2910 |

Shanghai | 277.72 | 79 | 1.9962 |

Taiwan | 359.21 | 124 | 1.6347 |

**Table 9.**Results of the IT2FNWNN with the S-norm and T-norm of Frank optimized with dynamic PSO for the financial time series.

Error | Results | Germany | Mexican | Dow-Jones | London | Nasdaq | Shanghai | Taiwan |
---|---|---|---|---|---|---|---|---|

MAE | Best | 935.77 | 726.84 | 768.81 | 153.60 | 288.70 | 277.72 | 359.21 |

Average | 1050.87 | 773.60 | 863.79 | 163.12 | 391.39 | 373.38 | 399.28 | |

RMSE | Best | 1226.07 | 911.63 | 979.26 | 188.63 | 349.02 | 491.98 | 439.93 |

Average | 1302.99 | 963.74 | 1082.81 | 201.38 | 469.52 | 597.62 | 481.62 |

**Table 10.**Comparison of the best results of financial time series prediction with all neural networks.

Financial Time Series | Error | TNN | IT2FNWNNSp | IT2FNWNNH | IT2FNWNNF | IT2FNWNNH-PSO | IT2FNWNNF-PSO |
---|---|---|---|---|---|---|---|

Germany | MAE | 1089.19 | 1038.84 | 1055.06 | 1058.87 | 417.33 | 935.77 |

RMSE | 1264.68 | 1338.21 | 1216.24 | 1256.37 | 507.43 | 1226.07 | |

Mexican | MAE | 733.50 | 739.26 | 730.13 | 730.96 | 728.61 | 726.84 |

RMSE | 917.93 | 915.45 | 912.65 | 915.84 | 909.39 | 911.63 | |

Dow-Jones | MAE | 920.89 | 736.26 | 686.05 | 853.69 | 517.58 | 768.81 |

RMSE | 1075.70 | 840.21 | 800.68 | 972.34 | 769.15 | 979.26 | |

London | MAE | 167.05 | 155.51 | 151.76 | 153.35 | 154.87 | 153.60 |

RMSE | 200.13 | 192.14 | 188.46 | 186.68 | 192.81 | 188.63 | |

Nasdaq | MAE | 468.81 | 585.70 | 463.77 | 663.02 | 227.53 | 288.70 |

RMSE | 550.95 | 786.84 | 570.36 | 730.97 | 283.92 | 349.02 | |

Shanghai | MAE | 361.95 | 391.21 | 314.71 | 354.07 | 211.40 | 277.72 |

RMSE | 561.29 | 458.75 | 569.32 | 607.68 | 443.85 | 491.98 | |

Taiwan | MAE | 383.00 | 321.86 | 349.78 | 362.56 | 236.15 | 359.21 |

RMSE | 458.28 | 499.62 | 449.41 | 448.20 | 331.32 | 439.93 |

**Table 11.**Comparison of the best results of financial time series prediction with all neural networks.

Financial Time Series | Comparison Results | N | AVG | SD | SEM | ED | LLD 95% | T Value | P Value | GL |
---|---|---|---|---|---|---|---|---|---|---|

Germany | H1:TNN | 30 | 1332.3 | 22.8 | 4.2 | 159.7 | 66 | 2.9 | 0.004 | 29 |

H2: IT2FNWNNH-PSO | 30 | 1173 | 301 | 55 | ||||||

Mexican | H1:TNN | 30 | 935.6 | 12.5 | 2.3 | −28.15 | −35.27 | −5.83 | 1 | 44 |

H2: IT2FNWNNF-PSO | 30 | 9637 | 23.3 | 4.3 | ||||||

Dow-Jones | H1:TNN | 30 | 1082.8 | 47.1 | 8.6 | −208 | −491 | −1.24 | 0.888 | 29 |

H2: IT2FNWNNH-PSO | 30 | 1290 | 912 | 167 | ||||||

London | H1:TNN | 30 | 203.29 | 2.48 | 0.45 | 4.304 | 2.927 | 5.24 | 0.0004 | 50 |

H2: IT2FNWNNH | 30 | 198.98 | 3.76 | 0.69 | ||||||

Nasdaq | H1:TNN | 30 | 558.95 | 4.19 | 0.77 | 28.6 | −26 | 0.89 | 0.190 | 29 |

H2: IT2FNWNNH-PSO | 30 | 530 | 176 | 32 | ||||||

Shanghai | H1:TNN | 30 | 580 | 7.48 | 1.4 | 36.61 | 22.93 | 4.54 | 0.0004 | 30 |

H2: IT2FNWNNH-PSO | 30 | 543.4 | 43.5 | 7.9 | ||||||

Taiwan | H1:TNN | 30 | 480.11 | 7.31 | 1.3 | −1.51 | −5.88 | −0.58 | 0.717 | 47 |

H2: IT2FNWNNH-PSO | 30 | 481.6 | 12.2 | 2.2 |

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Gaxiola, F.; Melin, P.; Valdez, F.; Castro, J.R.; Manzo-Martínez, A.
PSO with Dynamic Adaptation of Parameters for Optimization in Neural Networks with Interval Type-2 Fuzzy Numbers Weights. *Axioms* **2019**, *8*, 14.
https://doi.org/10.3390/axioms8010014

**AMA Style**

Gaxiola F, Melin P, Valdez F, Castro JR, Manzo-Martínez A.
PSO with Dynamic Adaptation of Parameters for Optimization in Neural Networks with Interval Type-2 Fuzzy Numbers Weights. *Axioms*. 2019; 8(1):14.
https://doi.org/10.3390/axioms8010014

**Chicago/Turabian Style**

Gaxiola, Fernando, Patricia Melin, Fevrier Valdez, Juan R. Castro, and Alain Manzo-Martínez.
2019. "PSO with Dynamic Adaptation of Parameters for Optimization in Neural Networks with Interval Type-2 Fuzzy Numbers Weights" *Axioms* 8, no. 1: 14.
https://doi.org/10.3390/axioms8010014
