Fractional Dynamical Behavior of an Elastic Magneto Piezo Oscillator Including Non-Ideal Motor Excitation

Abstract

In this work, we analyzed the nonlinear fractional dynamics in the equations of motion of a bar coupled to support under the effect of a potential described by two equally spaced magnetic poles. We also considered Bouc–Wen damping in the equations of motion. For external force vibrations, we considered an equation of a non-ideal motor based on the parameters that related the interaction between the oscillation and the excitation source. With such considerations, we explored the influence of the fractional derivative operator parameter on the average power generated by the device and the dynamic behavior to determine the chaotic and periodic regions. We use Bifurcation Diagrams, Test 0–1, Phase Portrait, and Poincaré Maps. As a conclusion, we established a set of parameters for the fractional differential equations to obtain higher average powers and the periodicity windows that corroborate the establishment of energetic orbits for energy harvesting.

1. Introduction

In recent decades, researchers from the most diverse areas have sought new technologies to produce clean and sustainable energy from the kinetic movements of the environment. An example is the capture of energy produced by the movement of the winds. Another example widely explored by researchers is a structure excited by environmental vibrations with piezoelectric materials (PZT) to produce clean energy. A kinetic energy collection device with piezoelectric materials is of the portal frame type. Portal frame structures are applied in different ways, such as in houses, buildings, bridges, etc. [1,2,3].

Another widely explored example is the oscillator, as such devices can be applied both in the micro and the macro scale. One oscillator that has attracted considerable attention is the Duffing oscillator, as it has a rich dynamic behavior and several modalities in applications in mechanics, chemistry, and engineering systems. It can be described by a mathematical model that is based on the transverse deflection of a bent beam. Works such as Holmes [4] analyzed the chaotic dynamics of a bistable oscillator using a ferromagnetic beam deviated from the central position with attractive magnetic fields symmetrically arranged. This oscillator will often include harmonic external force excitation of the type f(t) = Asin(ωt), where A is the external force amplitude and ω is the frequency applied to the oscillator. The excitation of the applied force can also be stochastic [5].

This structure has been widely explored both experimentally and theoretically in various applications. However, the application that has gained prominence is in energy production. Many authors couple pieces of piezoceramic material to the oscillator, which, when undergoing deformation, generate electrical charge movement and are collected by an electrical circuit. Analyses of the nonlinear dynamic behavior of this oscillator have determined the frequency bands for relatively high output powers because the analysis of the non-linear effects of the magnetic field guarantees an increase in the efficiency of energy capture under variable frequency and amplitude, and has a so-called frequency broadband effect [4,5,6,7,8].

However, it is not only the magnetic fields that guarantee this efficiency in the production of energy. Another highly analyzed factor is the excitation force applied to the oscillator. As we mentioned earlier, such an excitation force can have several types, of which the most applied is a sinusoidal force. Several authors have explore the amplitude of the force and its frequency for the production of energy with the coupled piezoceramic material. In this line, many works explore the obtaining of control techniques to keep the oscillator in periodic orbits that optimize the energy production in a more efficient way, since there is the possibility of a chaotic regime being followed due to the non-linearities of the system.

Another aspect addressed is hysteresis, as it is a common phenomenon in ferromagnetic materials. Hysteresis modeling has been extensively investigated, however, it remains a challenging problem due to its non-linearity and memory effect [9,10,11,12,13,14]. Among the hysteresis models, the Bouc–Wen model shows good results to describe the hysteretic behavior of mechanical vibrations, such as positioning devices such as piezoceramic actuators. The memory effect of these materials can be analyzed using the fractional derivatives. According to [15,16,17], the effect of memory on the system can be represented by fractional derivative operators. In this paper, we applied the Riemann–Liouville operator as its discretization for numerical analysis is more efficient, and one can consider the memory effect in a more simplified way. Another aspect is when the fractional derivative operator is close to 1 there is a loss of memory effect [18,19].

Therefore, our paper explores the application of an external force generated by a non-ideal motor that causes vibrations in a Duffing oscillator. Such an external force is based on the time-varying force from an eccentric mass that rotates due to a non-ideal motor torque [9].

The motivation of this work is to explore with numerical simulations a structure for energy harvesting in a simple way, containing the piezoceramic material and under the action of a non-ideal motor. In [20], the same symmetry-breaking device to energy harvesting was explored, considering the displacement of human walking. These results have experimental data on the power and frequency applied to the system.

Other works, such as [20,21,22,23,24], experimentally explored the behavior of the system considering different types of external force (random, harmonic, and under human motion excitation). This study examines the voltage generated in these structures and thus shows the dynamic behavior of the basins of attraction. Basins of attraction describe the behavior of initial conditions that go asymptotically to attractors. The authors also established a range for the frequency of the applied external force for better energy harvesting in an experimental way.

Authors such as [25] analyze a model of a higher-order nonlocal deformation gradient plate developed for vibrations of nanofilms of piezoelectric materials as mass sensors. The authors explore the behavior of nanoparticles transport to different locations, being subjected to thermoelectromechanical loads and thus proposing a mathematical model to describe the phenomenon and possible solutions to the equations. Other works in the literature [25] explore the behavior of a model, using partial differential equations that describe the bending of nanotubes for energy harvesting.

However, our work explores the dynamics of the bar with a simple circuit model containing the piezoceramic material. The electrical circuit equation is well-explored in Refs. [26,27,28,29,30,31,32,33,34,35,36,37]. The proposal of a device theoretically is approached in several experiments, considering an external force with the vibration caused by a sinusoidal function. We propose analyzing the system considering a non-ideal motor described by an equation that considers only active interaction between the oscillating system and the excitation source. The time-varying frequency applied to the Duffing system in this manuscript depends on two essential parameters linked to the active interaction between the oscillator and the oscillation source. Such an external force applied by the non-ideal motor can lead to a better understanding of energy harvesting. Thus, our manuscript is based on the equations of motion of a cantilever containing piezoceramic material in which we adopted Bouc–Wen damping for our fractional numerical analyses. This work is entirely theoretical and numerical.

2. Magneto Piezo Oscillator Device

Piezo oscillator type collectors, composed of a ferromagnetic beam, are a recent addition to the stable of energy harvesting devices. It consists of a ferromagnetic beam fixed to a support (See Figure 1). Two magnets are located symmetrically at the base near the free end. The distance between the magnets determines the stable points.

We consider that the system has two unstable potentials and that the mechanical system has a double well potential. According to [6,7,18,19], the double well potential occasionally leads to a higher power generation when the beam displacement moves between the potential wells.

Piezo ceramic patches were made at the root of beam and thus we obtain a bimorphic generator, as the piezo ceramic patches are connected to a resistor and a maintenance output is through the load due to the kinematic excitations caused by the external force, as shown in Figure 1, being of primary interest for an energy harvest.

3. Mathematical Modeling

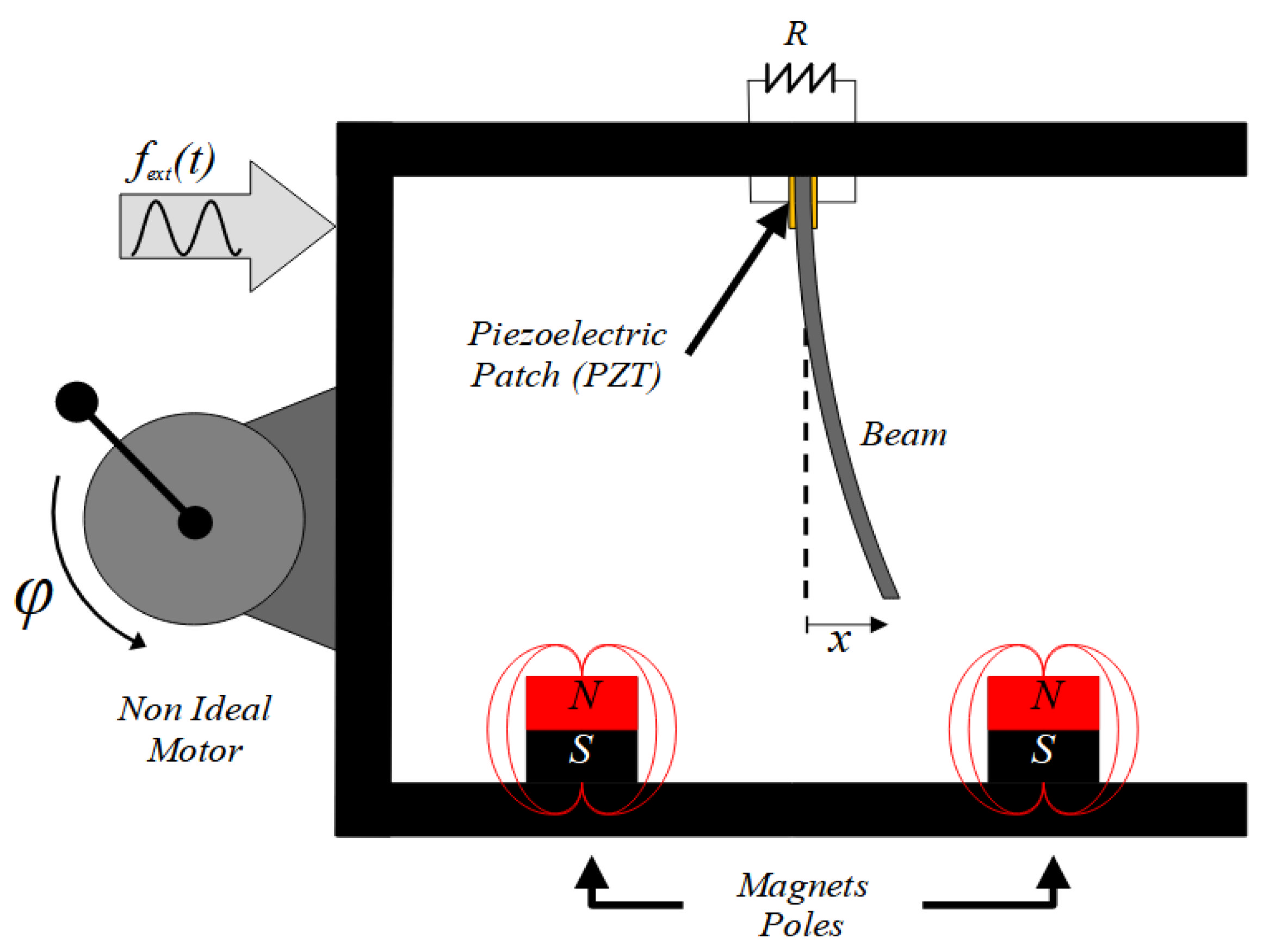

For description of the mathematical model, we consider Figure 1 of the previous section. The double well potential (DWP) is generated by the magnet field potential of two magnets arranged symmetrically. The DWP allows for near-optimal representative dynamic analysis and it is described in (1) [6,7,18,19,20,21,22,23,26,27,28,29,30,31,32,33,34,35,36,37,38].

$$V\left(x\right)=-{\frac{x}{4}}^2+\frac{x^4}{8},$$

(1)

where x is beam displacement. This mathematical model considers the fractional calculation applied to Bouc–Wen (${\mathsf{\Phi }}^{BW}\left(x\right)$) damping for the hysteresis caused by the piezo ceramic material coupled to the Duffing oscillator beam [6,7,8,18,19,20,21,22,23,26,27,28,29,30,31,32,33,34,35,36,37,38,39]. The dimensionless equations is

$$\ddot{x}+2\eta \dot{x}+\frac{\partial V\left(x\right)}{\partial x}-\chi \nu +{\mathsf{\Phi }}^{BW}\left(x\right)=f_{ext}.$$

(2)

The equation describing the voltage in the electrical circuit is defined by:

$$\dot{\nu }+\lambda \nu +\kappa \dot{x}=0,$$

(3)

where $x$ is the beam displacement, $\nu$ is the dimensionless voltage across the load resistor, $\eta$ is damping coeficient of the beam, $\chi$ is the coupling term of the piezoelectric system in electrical equations, $\kappa$ is the coupled constant of electrical circuit, $\lambda \approx 1/RC$ is the reciprocal of the dimensionless time constant of the electrical circuit, $R$ is load resistance and $C$ is capacitance of piezoceramic patches material [6,7,8,18,22].

The mathematical modeling analyzed numerically was systematically explored for energy harvesting in systems of small dimensions. Our manuscript numerically analyzes the dimensionless system containing an external force of a non-ideal motor proposed by [38,39,40,41,42,43,44,45] and containing the dimensionless Bouc–Wen damping.

The non-ideal motor coupled to the device, as shown in Figure 1, assumes that the non-ideal motor has time-varying frequency from an eccentric mass that rotates due to a torque actuator, defined as:

$$\frac{d\phi }{dt}=\omega +a_0\cos \left(b_0\omega t\right),$$

(4)

where$\omega \mathrm{is} \mathrm{frequency} \mathrm{of} \mathrm{external} \mathrm{force}$. The parameters $a_0$ and$b_0$ are defined by the interaction between the oscillations and the non-ideal motor oscillation source. We consider a force external to the system described as follows:

$$f_{ext}=f_0\cos \left(\omega t+a_0\sin \left(b_0\omega t\right)\right),$$

(5)

where $f_0$ is the force amplitude of non-ideal motor. The parameters $a_0$ and $b_0$ are defined by the active interaction between the oscillating system and the excitation source. In addition, they are considered control parameters. If $a_0=0$, then it corresponds to harmonic excitation [1,9,10]. Note that for a₀ = 0 we have no action of the non-ideal motor. Figure 2 depicts the first five of these functions, which aids in understanding the effect of the nonideal excitation.

We considered the Bouc–Wen damping in the structure, i.e., the system has a hysteresis process in the beam containing the PZT patches material. The Bouc–Wen damping (${\mathsf{\Phi }}^{BW}$) is defined as:

$${\mathsf{\Phi }}^{BW}\left(x\right)=k_{1}a x+\left(1-a\right)D{k}_{1}z$$

(6)

$$\dot{z}=D^{-1}\left(A\dot{x}-\beta \left|\dot{x}\right|\left|z{|}^{n-1}-\gamma x\right|\dot{z}{|}^n\right),$$

where $\dot{z}$ is derivative with respect to time, n ≥ 1 and 0 <$a$<1. This model was originally developed in the context of mechanical systems. ${\mathsf{\Phi }}^{BW}$ is a restoring force with the superposition of a linear component k₁ > 0 and a purely hysteretic, D > 0 is the constant flow displacement and k₁ ∈ (0,1) is the post/precedence stiffness ratio. A, β, γ, and n are parameters of shape and the size of the hysteresis loop [1,13,14,15,42,43,44].

Using Equations (1)–(5), we have the equation of motion:

$$\ddot{x}+2\eta \dot{x}-\frac{x}{2}\left(1-x^2\right)-\chi \nu +k_{1}ax+\left(1-a\right)D{k}_{1}z=f_0\cos \left(\omega t+a_0\sin \left(b_0\omega t\right)\right)$$

$$\dot{\nu }+\lambda \nu +\kappa \dot{x}=0$$

(7)

$$\dot{z}=D^{-1}\left(A\dot{x}-\beta \left|\dot{x}\right|\left|z{|}^{n-1}-\gamma x\right|\dot{z}{|}^n\right)$$

Rewriting these equations in state space notation:

$${\dot{x}}_1=x_2$$

$${\dot{x}}_2=-2\eta x_2+\frac{x_1}{2}\left(1-x_1^2\right)+\chi x_3-k_{1}a{x}_1-\left(1-a\right)D{k}_1{x}_4+f_0\cos \left(\omega t+a_0\sin \left(b_0\omega t\right)\right)$$

(8)

$${\dot{x}}_3=-\lambda x_3-\kappa x_2$$

$${\dot{x}}_4=D^{-1}\left(A{x}_2-\beta \left|x_2\right|\left|x_4{|}^{n-1}-\gamma x_1\right|x_4{|}^n\right),$$

where$x_1=x, x_2=\dot{x}$, $x_3=\nu$ and$x_4=z$. When applied, the Riemann–Louville operator (RL) yields:

$${\mathcal{D}}^{q_1}{x}_1=x_2$$

$${\mathcal{D}}^{q_2}{x}_2=-2\eta x_2+\frac{x_1}{2}\left(1-x_1^2\right)+\chi x_3-k_{1}a{x}_1-\left(1-a\right)D{k}_1{x}_4+f_0\cos \left(\omega t+a_0\sin \left(b_0\omega t\right)\right)$$

(9)

$${\mathcal{D}}^{q_3}{x}_3=-\lambda x_3-\kappa x_2$$

$${\mathcal{D}}^{q_4}{x}_4=D^{-1}\left(A{x}_2-\beta \left|x_2\right|\left|x_4{|}^{n-1}-\gamma x_1\right|x_4{|}^n\right),$$

where $0<q_i<1 and i=1, 2, 3 and 4$. For our numerical analysis, we used the algorithm proposed by Petras in [29,30] for the discretization of a fractional derivative (Appendix A). By definition, the Riemman-Liouville (RL) operator is [45,46,47,48,49]:

$${\mathcal{D}}^{q}f\left(t\right)=\frac{1}{\mathsf{\Gamma }\left(1-q\right)}\frac{d}{dt}{\int }_0^t\frac{f\left(\tau \right)}{{(t-\tau )}^q}d\tau ,$$

(10)

where $0<q<1$ is RL operator parameter.

4. Numerical Results

The results obtained in this analyses are numerical, due to the non-linearities involved in the process, and the initial condition adopted for our analyses is$x_0=\left. [0.0, 0.0, 0.0, 0.0\right]$. The numerical analyses were obtained with time of integration of the fractional differential equations $t={10}^5$ [s] and transient time $t_{trans}=4000 \left. [s\right]$ and with an $h=0.01$. The parameter is available in

Table 1. Parameters used for numerical analysis of fractional differential equations described in Equation (6). Adapted from [8].

Parameter	Values	Parameter	Values
$\eta$	0.01	$\lambda$	0.01
$k_1$	0.25	$\kappa$	0.5
$\chi$	0.05	$A$	1.0
$D$	1.0	$\beta$	0.55
$\omega$	1.1	$\gamma$	0.45
$n$	3	$f_0$	0.2
a	0.5

, and the numerical algorithm for the integration and discretization of the fractional operator was proposed by Petrás [45,46].

Here, the analyses for the fractional model consider the parameters of the fractional derivative operator $q_1=1, q_2=1, q_3=1. \mathrm{However},$ we analyzed the $q_4\in \left. [0.85,1.0\right],$ which makes the hysteresis equation Bouc–Wen fractional to represent asymmetry of piezoelectric hysteresis. We also considered a range for the parameters connected to the external force, that is, $a_0\in \left. [0, 1\right]$ and$b_0\in \left. [0,1\right].$ According to [21,50,51],, the average power ($P_{avg}$) was:

$$P_{avg}=\frac{1}{T}{{\displaystyle \int }}_{t_0}^T\lambda v^{2}d\tau$$

(11)

We analyzed the behavior of the average power obtained by Equation (10) in the following parameter spaces $\left(a_0\times q_4\right)$ and $\left(b_0\times q_4\right)$, that is, the parameters that are linked to the external force of the system and the parameter of the fractional derivative operator that is related to BW damping.

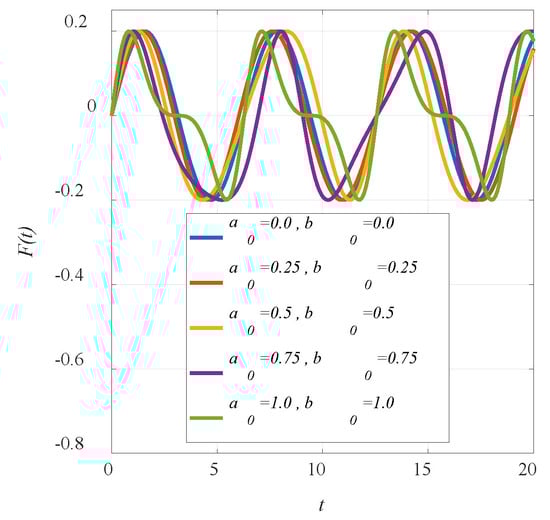

Figure 2, Figure 3 and Figure 4 show computational simulations to obtain the P_avg considering the parameters of Table 1 to observe the behavior of the parameter related to non-ideal motor rotation and the parameter of the fractional derivative. The values a0 close to zero with b₀ = 0.5 and values of q₄ close to 0.85 have a low average power value (Figure 2a). However, for values of b₀ with values between 0 and 1 and q₄ close to 0.85, there is a decrease in average power with a₀ = 0.5.

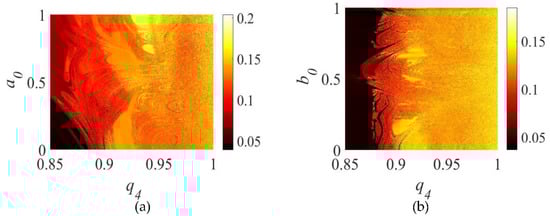

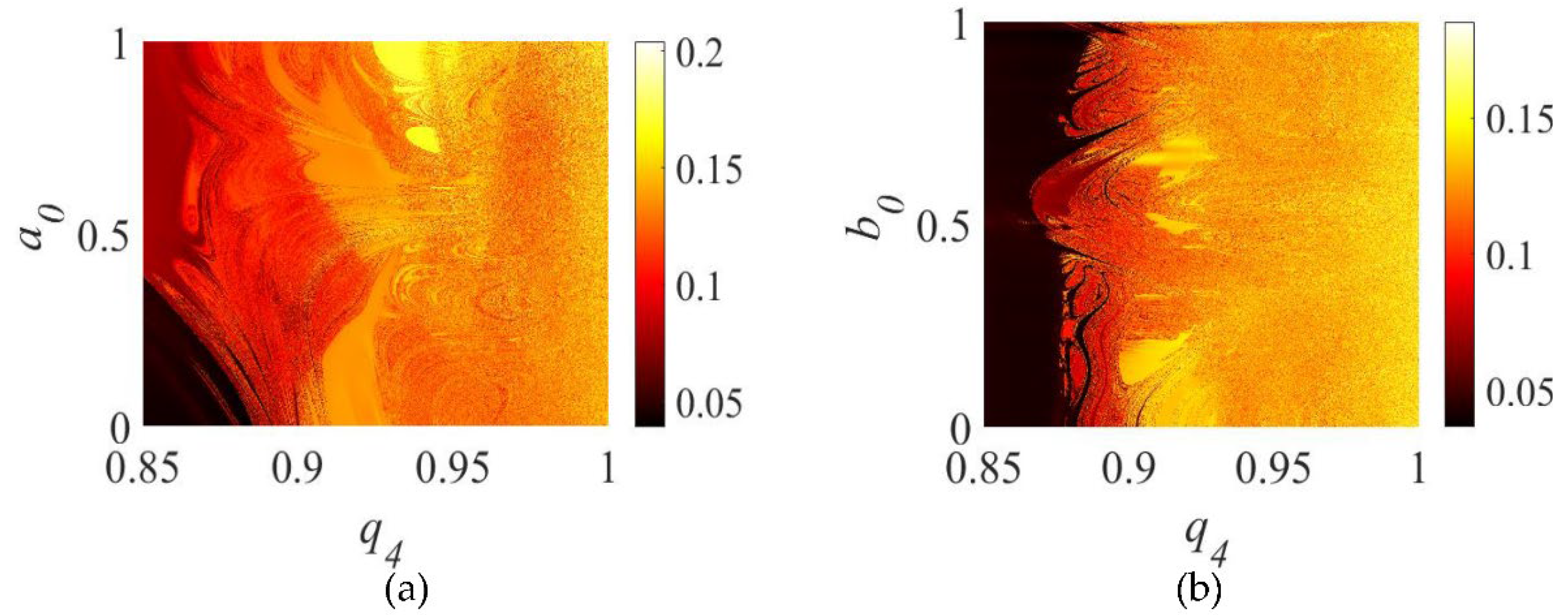

Figure 3a shows the behavior of $P_{avg}$ for the parameter space of $\left(a_0\times q_4\right)$ and Figure 3b shows $P_{avg}$ for the parameter space $\left(b_0\times q_4\right)$. In both figures, dark red represents the minimum power and yellow represents the maximum power. We can determine the regions where the power $P_{avg}$ is at the maximum value or minimum values for the parameters $a_0$ and $b_0$ related to the parameter $q_4$, referring to the Bouc–Wen damping.

As we can see in Figure 3 and Figure 4, there is the appearance of minimum and maximum P_avg regions with the variation of the parameters (a₀, b₀, and q₄), and changes in the behavior in the hysteresis of the piezoceramic materials caused by the system of Equation (8) reaches orbits with larger beam displacement amplitudes. This larger displacement causes vibrations in the piezoceramic material, allowing for a higher average power, considering the parameters adopted (See Table 1). Another aspect associated with the piezoceramic material is defined by [40,41,42,43,44,45,46,47,48,49,50,51,52,53], which establishes that changes observed in the hysteresis curves can characterize hard-type piezoceramic materials, which have a piezoelectric constant with low values, or soft-type piezoceramic materials with high piezoelectric constants.

However, an analysis considering the motor parameters is not ideal, considering some values of q₄. For values of q₄ = 0.8586 and q₄ = 0.9495, we can observe the results in Figure 4a,b obtained by numerical simulations using the algorithm described in Appendix A and Equations (8) and (10), where it can be seen that there is a maximum of P_avg with maximum values close to a₀ = 0.5 and values above b₀ = 0.5 (Figure 3a). For the case of q₄ = 0.9495, we will have a minimum region for the values of a a₀ = 1.0 and b₀ = 1.0, as seen in Figure 3b.

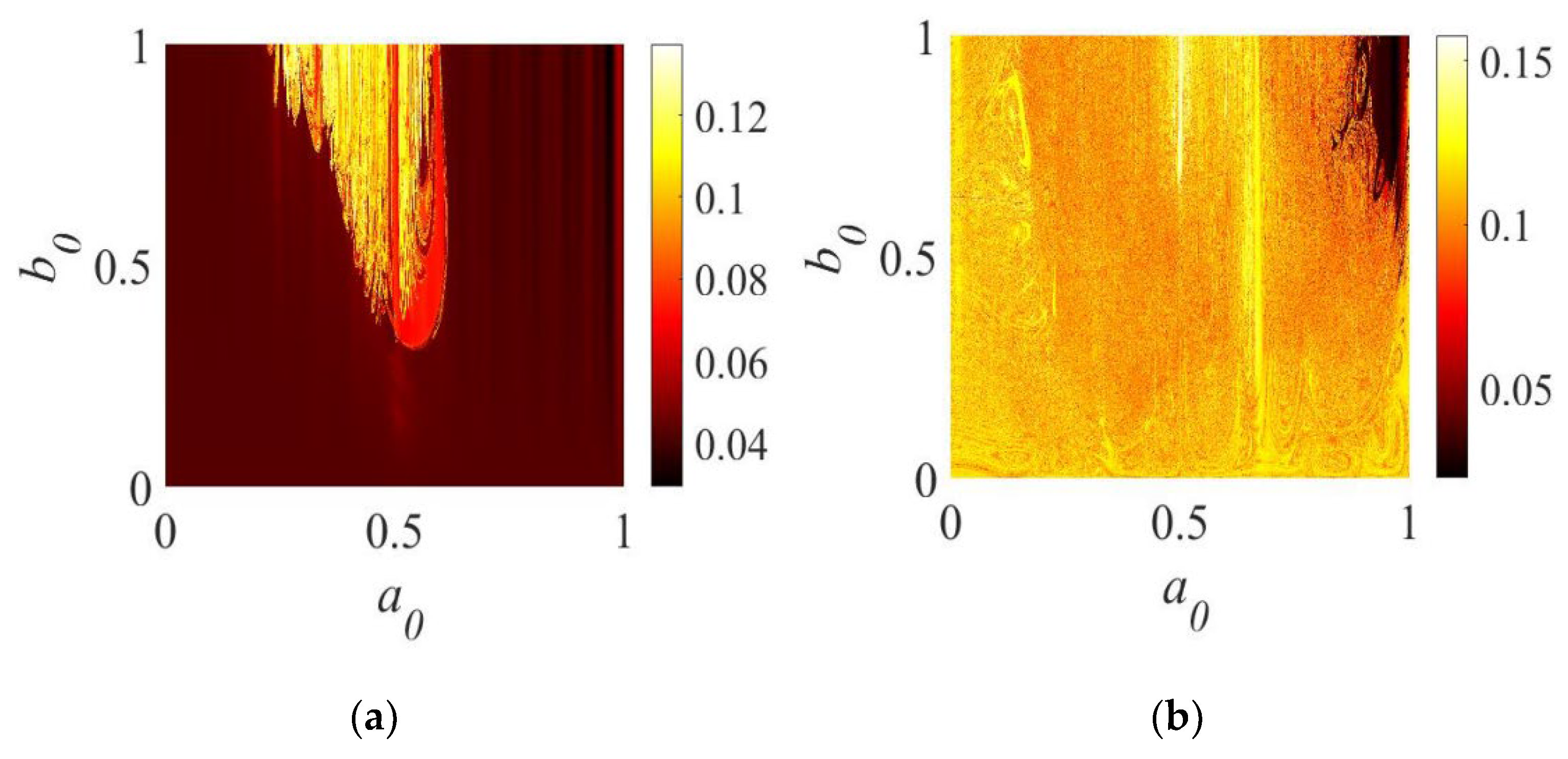

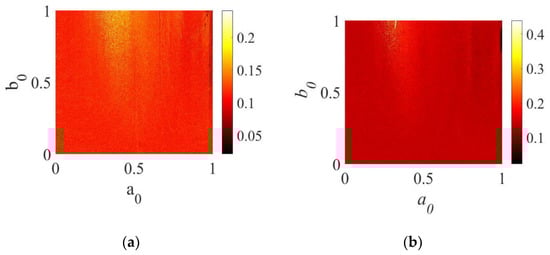

However, as we observed a significant change in the $P_{avg}$ behavior, as shown in the Figure 4a,b, we analyzed the behavior of the $a_0\times b_0$ parameter space for $q_4=0.8586$ and $q_4=0.9495$ and Figure 4a,b show the$q_4=0.9999{ \mathrm{and} q}_4=1.0$.

However, for values of q₄→1.0 there is a larger region for P_avg values, as we can see in Figure 5a,b.

We observed a significant change in the power of the system with the change in the exponent of the fractional derivative, because, for the application of the fractional operator in the system of Equation (7) the non-linearity of hysteresis depends on the rate and asymmetry of the piezoelectric actuators. According to [52,53], it states that the model with the classic Bouc–Wen damping is only efficient for the description of symmetric and rate independent hysteresis, and the model containing the fractional operator is dedicated to characterizing the asymmetric and rate-dependent behavior hysteresis. Therefore, we analyzed the dynamic behavior on the fractional parameter of the operator applied in this damping.

For the fractional dynamical analysis, we used the parameters described in Table 1, with the values of $a_0=0.2$ and $b_0=0.5$. Figure 5a and Figure 6a represent the bifurcation diagram for the system described by the Equation (6), however, with the scanning of the parameters $q_4$ of the fractional RL operator. However, the periodic ranges in the structure are observed, that is, for the values of $q_4$ in approximately in the intervals $\left. [0.85, 0.8911\right],$ [0.9272, 0.9439], [0.945, 0.9459], [0.9538,0.9548], [0.9606,0.9619], and [0.9801, 0.9833] has periodic behavior for displacement (x₁) and velocity (x₂).

Thus, we used the 0–1 test, which consisted of statistically estimating the parameter K_c, considering the time series described by the integration of the system of fractional differential equations. For a better description of the 0–1 test see Refs. [54,55,56]. Thus, if K_c is close to 0, the system has a periodic behavior, however, if K_c is close to 1 the behavior will be chaotic. The parameter K_c confirms these intervals obtained from the bifurcation diagrams. For the other intervals, the behavior was chaotic according to the bifurcation diagrams and the K_c. In Figure 5a we show the bifurcation diagram of displacement $x_1$ and Figure 6b shows ($K_c$) referring to the $x_1$ is displacement of cantiliver. This diagram makes it possible to observe the dynamic behavior of the displacement of the bar containing the piezoceramic patches, thus observing the intervals in which the system has a periodic and chaotic regime when considering the parameter of the fractional derivative operator.

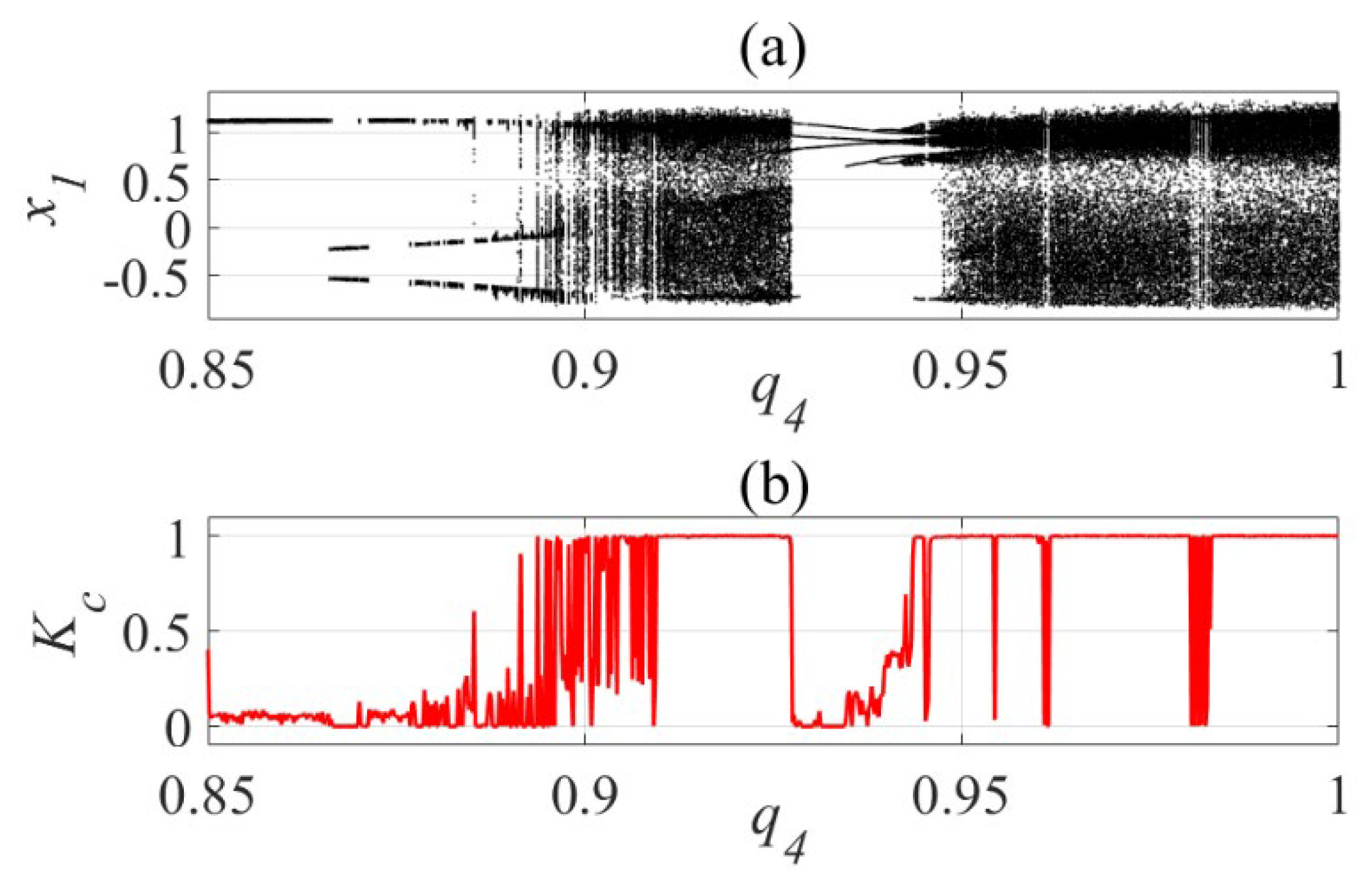

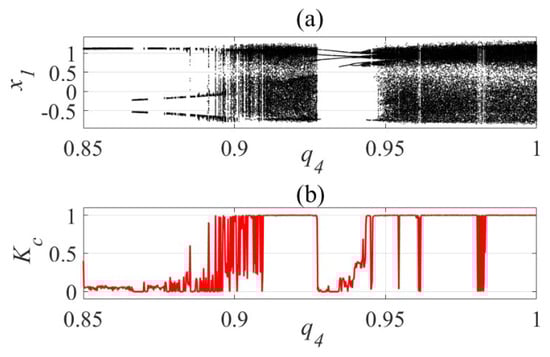

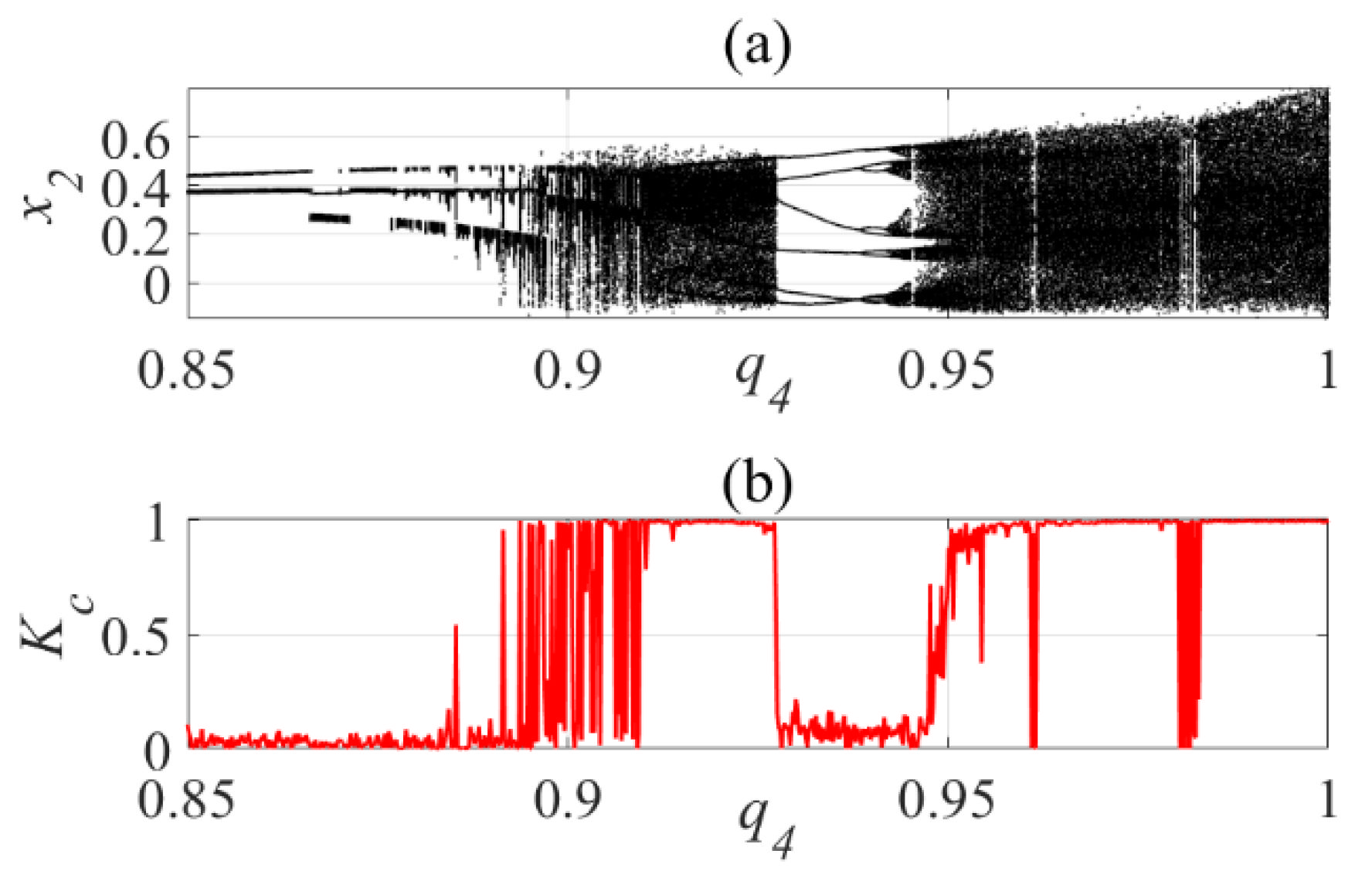

Figure 7a shows the bifurcation diagram of displacement $x_1$ and Figure 6b shows ($K_c$), referring to $x_2$ being the velocity of cantiliver. Analogously, the bifurcation diagram considering the speed of the beam containing the piezoceramic patches, in this way, observes the intervals in which the system has a periodic and chaotic regime when considering the parameter of the fractional derivative operator.

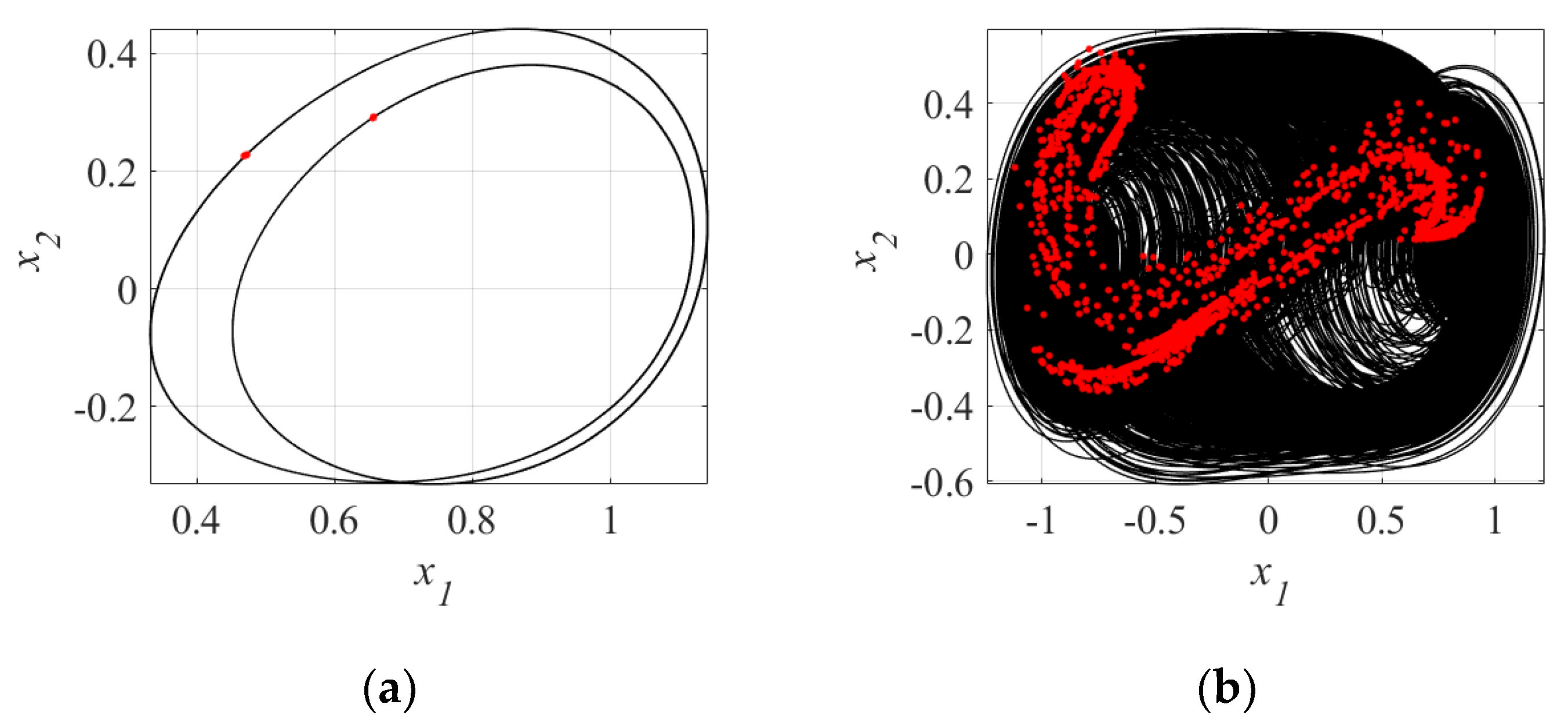

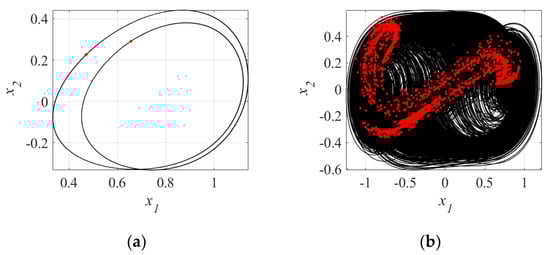

Figure 8a,b represent the phase portraits for values of $q_4=0.8586$ and $q_4=0.9495$, which lie in the periodic and chaotic regions as detected in Figure 6 and Figure 7. The black line describes the phase portrait and the red dots the Poincaré map (which describes an estimate of the chaotic attractor defined by the system of fractional dynamic equations).

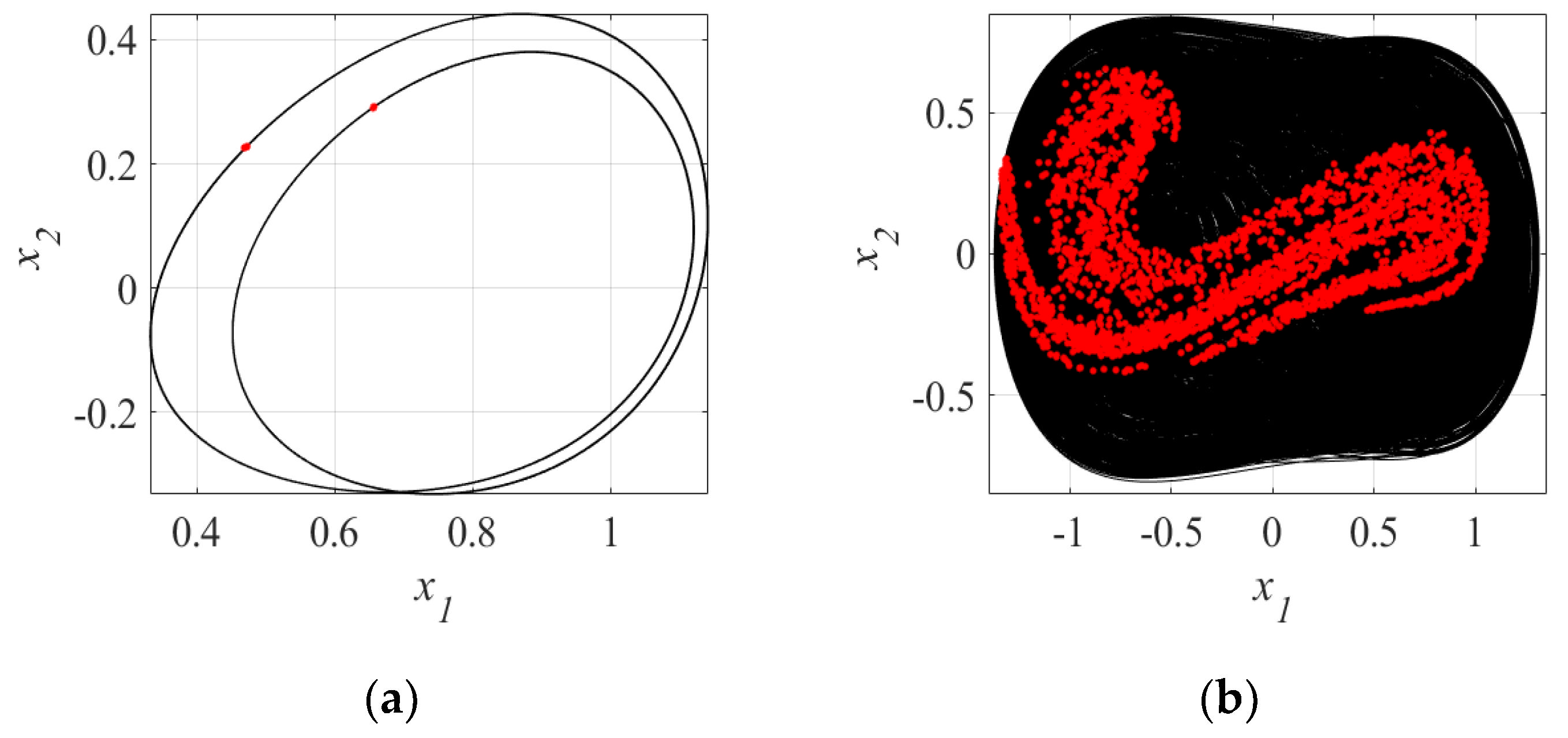

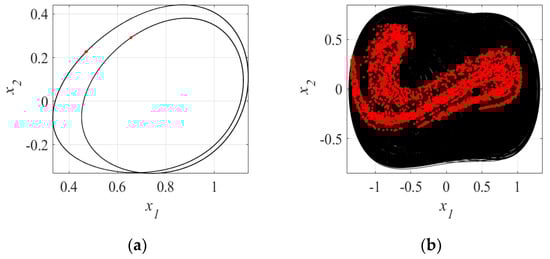

Figure 9a,b show the behavior of the phase portraits (black line) and Poincaré maps (red dots), for the values from $q_4=0.9999$ and $q_4=1.0$, respectively.

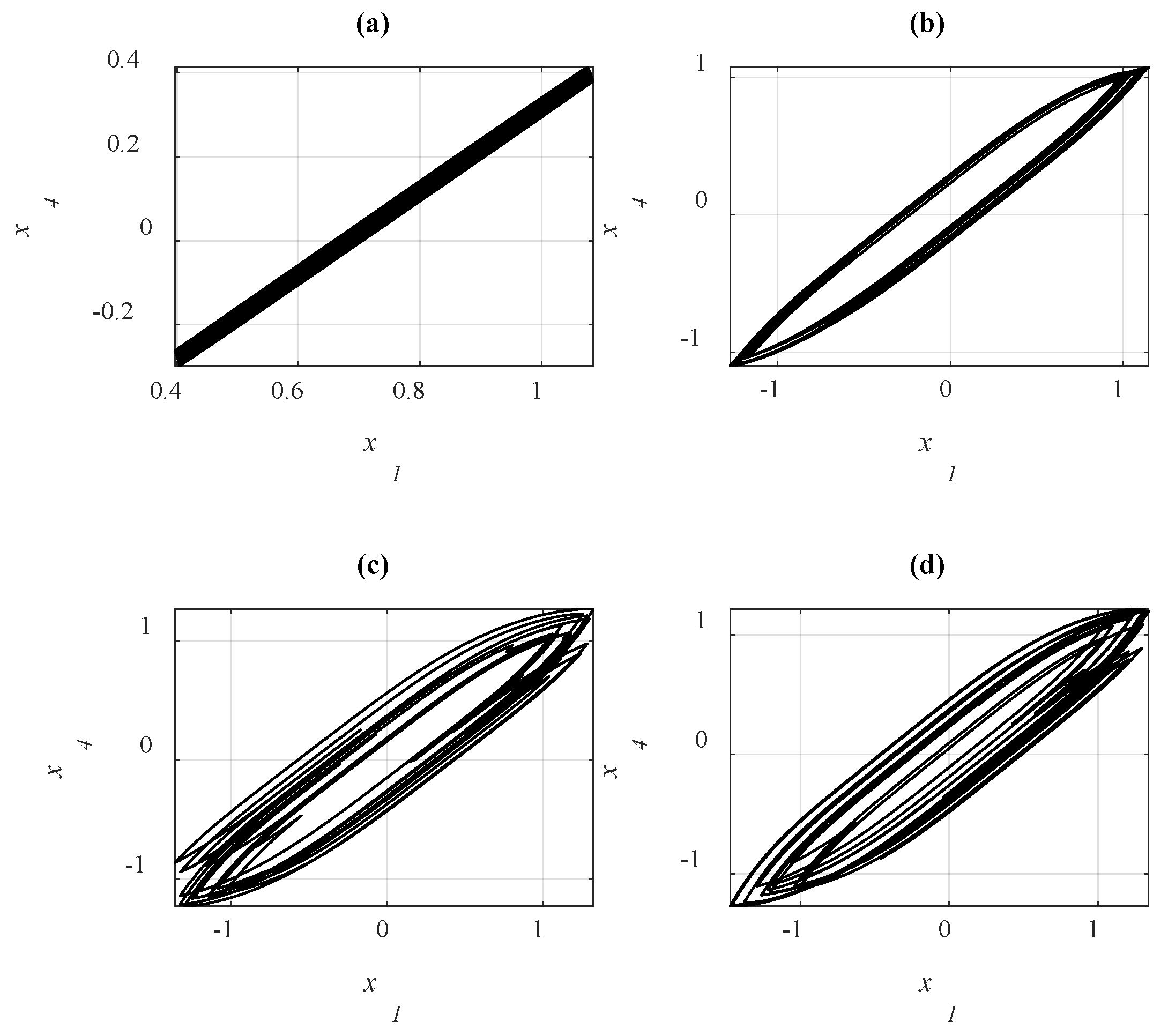

Figure 10a–d represent the behavior of the hysteresis curves of Equation (8) considering (a)$q_4=0.8586$ and (b)$q_4=0.9495$, (c) $q_4=0.9999,$ and (d)$q_4=1.0$.

5. Conclusions

Our work analyzed the behavior of the fractional model with an external force described in Equation (2) and the fractional BW damping. We established the dependance of the power generated by the system based on the parameters of the external force 𝑎₀ and 𝑏₀ according to the order of the RL derivative operator (𝑞₄). We show that in the limit 𝑞₄ → 1.0, the system tends to the high-power region.

Furthermore, we also indicate the regions with low and medium power. Namely, we observe the changes in the power of system with the fractional parameter, and this is because the trajectories of the systems are influenced by the parameter. Therefore, we observed some values of 𝑞₄ = 0.8486, 0.9495, 0.9999, and 1.0 with the parameters of the external force 𝑎₀ and 𝑏₀, and we observed that the power goes through the significant changes in its regions. In the next step, we analyzed the behavior of the fractional system dynamics based on 𝑞₄ for the values of 𝑎₀ = 0.2 and 𝑏₀ = 0.5. Therefore, we noted that values of 𝑞₄ in the intervals $q_4$ and in the intervals $\left. [0.85, 0.8911\right]$, [0.9272, 0.9439], [0.945, 0.9459], [0.9538,0.9548], [0.9606,0.9619], and [0.9801, 0.9833] have periodic behavior for displacement (x₁) and velocity (x₂). Thus, we used K_c to confirm these intervals obtained from the bifurcation diagrams. For other intervals, the behavior of the equations of motion was chaotic. The intervals were confirmed with the 0–1 Test and with the phase maps and the Poincaré maps with values of 𝑞₄ pertaining to those intervals.

We attributed the fractional Bouc–Wen hysterical damping and observed that it dissipates mechanical energy in the oscillator that cannot be harvested. On the other hand, it flatters the resonance of the oscillator (mechanical resonator) by amplifying the frequency bandwidth effect. It can additionally influence the resonance curve, causing its frequency-dependent deformation which can be useful for energy capture. However, to talk more about practical aspects, more systematic studies should be done with frequency sweeps. The Bouc–Wen fractional hysterical damping enriches the dynamics by changing the way it dissipates mechanical energy in the oscillator. On one hand, it flatters the resonance of the oscillator (mechanical resonator) by amplifying the frequency bandwidth effect. On the other hand, it can influence the resonance curve, causing its frequency-dependent deformation, which is useful for energy capture. The fractional Bouc–Wen damping changed the beam vibration and, therefore, the displacements in the piezoceramic material, allowing a higher average power, which establishes that the changes observed in the fractional hysteresis can characterize the piezoelectricity of the material.
