Geochemical Alteration and Mineralogy of Coals under the Influence of Fault Motion: A Case Study of Qi’nan Colliery, China

by
Hewu Liu
1,2 and
Bo Jiang
1,2,*
1
Key Laboratory of Coalbed Methane Resource & Reservoir Formation Process, Ministry of Education, China University of Mining and Technology, Xuzhou 221008, China
2
School of Resources and Earth Science, China University of Mining and Technology, Xuzhou 221116, China
*
Author to whom correspondence should be addressed.
Minerals 2019, 9(7), 389; https://doi.org/10.3390/min9070389
Submission received: 30 April 2019 / Revised: 25 June 2019 / Accepted: 25 June 2019 / Published: 27 June 2019
(This article belongs to the Special Issue Nanomineralogy)
Browse Figures
Versions Notes

Abstract

:
Geochemical characteristics of rocks in fault zones have been extensively studied, while there are limited studies on coal occurring in fault zones of underground coal mine. In this study, five coal samples were carefully collected from a reverse fault zone in Qi’nan colliery. Systematical detection methods were employed to analyze the different chemical and physical characteristics of fault-related coal samples. Through comparative analysis, the following insights are obtained. Three subdivided fault zones were classified according to the deformation characteristics of coal samples. Frictional heat and strong ductile deformation generated by fault motion led to the dissociation of phenol and carboxyl groups in coal molecules, which sharply decreased the concentrations of elements Co and Mo bound to these functional groups in zone I. The modified pore-cleat system in zone I with higher pore volume and lower permeability allowed solutions containing enriched trace elements to migrate through zone I locally. Concentrations of HREE, MREE and related elements associated with the invasive solutions showed significant positive anomalies in zone I. Precipitation and smearing of clay minerals in zone I led to poorer connectivity. Disruption and delamination of laminar clay minerals by strong compression-shear stress significantly increased the adsorption sites for related elements, especially the HREE and MREE. Nano-scale clay minerals resulting from stress-induced scaly exfoliation also enhanced the retention capability of REE in zone I.

1. Introduction

Geochemical and geophysical characteristics of fault rocks are primarily controlled by fault zones or fault systems [1,2,3,4,5]. Fault zones in rocks are generally divided into fault core (comprised of ultracataclasite), damage zone and undeformed zone (comprised of protolith) [6,7]. Geochemical properties of fault rocks are altered in different ways. During faulting deformation, faults acting as major conduits for fluid migration lead to strong fluid–rock interactions [8]. Fluid–rock interactions in fault zones not only heal macro and micro fracture networks, but also lead to elemental variation and weathering of the fault core [9,10]. Most of the elements in fault core are depleted compared with those in the damage zone, which is ascribed to a stronger weathering process in the fault core [11]. Redistribution of elements and minerals in different subdivided zones could also result from the pressure solution of soluble minerals and diffusive mass transfer [12,13,14]. The formation of clay minerals in fault gouge is closely associated with the dehydration process and fluid–rock interactions in fault zones [9].
The permeability of fault rocks is both temporally and spatially heterogeneous. The permeability controls the migration of fluid in different subdivided zones, which is important for the chemical alteration of fault rocks [15,16,17]. A cyclic permeability evolution of fault zones occurs during the process of faulting deformation [8]. During faulting deformation, fractures and cataclasis within the fault core significantly increase the permeability of rocks, which is beneficial to the fluid migration [18,19]. After faulting deformation, the fault core sealed by mineral cementation and diffusive mass transfer has lower permeability [20,21,22,23]. Strong shear stress on fault planes leads to smearing of clay minerals into thin films (even nano-sized clay films), which decreases the permeability of fault-related coal as well [24,25]. As a summary, permeability evolution, fluid migration, and chemical alteration in fault zones are auxiliary to each other in a faulting deformation process.
Similarly, faults in coal seams are related to tectonic stress concentration, which could strongly alter intact coals into deformed ones [26]. In other words, fault structures control the local distribution of tectonically deformed coals (TDCs). TDCs are defined as coals superimposed by tectonic stress [27]. The chemical structure (specifically referring to the organic structure), physical structure and optical characteristics of TDCs are significantly affected by tectonic deformation [27,28,29]. Strong deformation (especially ductile deformation) on coal significantly increases the total volume and specific surface area of pore structures [30,31,32,33,34,35,36]. Moreover, it has been reported that there is early metamorphism of coal molecular structures in TDCs [37,38]. Side chains in TDCs including aliphatic structures and functional groups are disassociated by tectonic stress, which is followed by aromatic structures being collaged and rearranged (especially in ductile deformed coal) [39,40]. Furthermore, relevant studies have shown that coal molecular structures around faults are altered by strong deformation and frictional heat [41,42,43]. On the other hand, insufficient attention has been paid to the alteration of inorganic components in TDCs, particularly in fault-related coals. Thus, a study on deformed coal around fault structures could further advance the understanding of accumulation and dissipation mechanisms of elements under the influence of tectonic structures.
Elements in coal have long been investigated by geologists for preserved geological information, release of toxic elements during utilization process, and the potential economic significance of specific valuable elements [44,45,46,47,48,49]. The distribution of elements and minerals in coal seams is influenced by both syngenetic and epigenetic geological factors, for instance, the syngenetic inputs of terrigenous debris, mesotrophic anoxic conditions, volcanic ashes etc., and the epigenetic factors of igneous intrusion, circulating ground water etc. [47,50,51,52,53,54,55,56]. However, only few researchers have recognized that the characteristics of inorganic components in TDCs are influenced by tectonic stress as well. Actually, inorganic components in coal are closely associated with tectonic deformation [36,57,58,59,60,61]. For instance, fluids migrating through brecciated coals in fault zones probably lead to cleat mineralization and elemental enrichment [58,59,61]. Specifically, the concentrations of Ti, Sc, Ta, U and rare earth elements all increase as the coal deformation increases, while the concentration of Mo decreases with increasing deformation intensity, which can be mainly ascribed to the coal dynamic metamorphism accompanied by frictional thermal effects [62,63,64,65]. Analogously, concentrations of rare earth elements in fault-related boreholes are higher than those in unrelated boreholes in specific coal seams. Thus, it has been proposed that fault structures are beneficial to the accumulation of rare earth elements [66]. Therefore, the investigation of the geochemical alteration characteristics and mechanisms of deformed coals provides another perspective to understand the coal deformation mechanisms [62]. More importantly, coal and gas outbursts are considered to be closely related to strongly deformed coal, which is unpredictable during coal production [38]. Once the elemental variation characteristics and mechanisms in deformed coals are clarified, concentrations of elements could be applied as precise indicators of coal and gas outbursts [62,65,67].
In this study, a series of deformed coal samples located at different distances from a reverse fault are systematically studied from diverse perspectives. Based on the knowledge of geochemical characteristics of fault-related coal samples, differentiation mechanisms of trace elements in the fault zone are preliminarily clarified.

2. Geological Settings and Fault Zone Architecture

2.1. Geological Settings

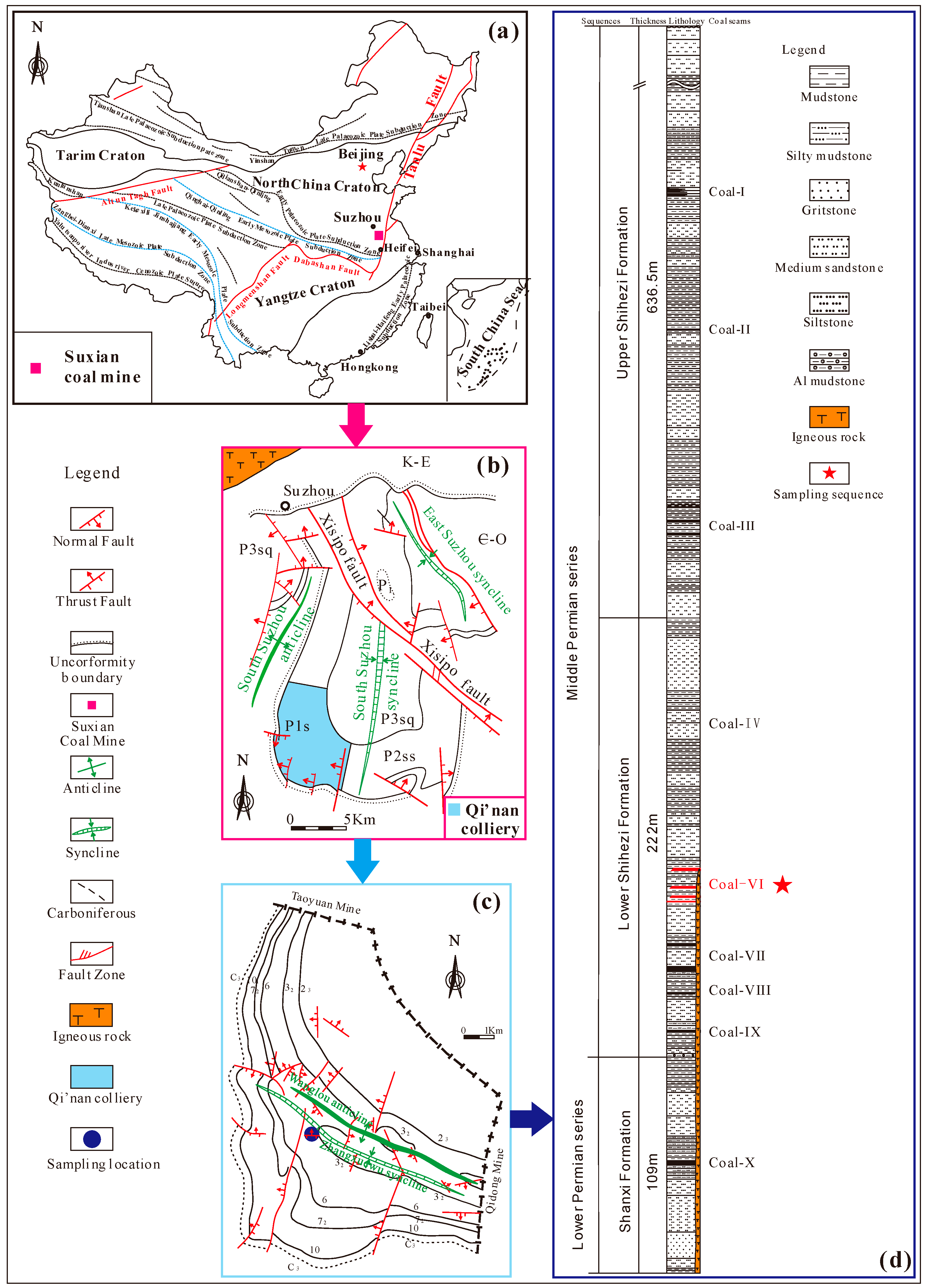

Suxian coal mine, adjacent to Tanlu fault, is on the southeastern margin of the Northern China plate (Figure 1a). Multiple tectonic movements occurring in Suxian coal mine significantly altered the regional and primary structural features of coal deposited in this area. In the late Triassic (Indo-Chinese epoch), the collage and collision between Yangtze craton and North China craton led to the NS extrusion of Suxian coal mine, which induced the emergence of EW-trending folds and faults in the study area. The Yanshanian-Himalayan tectonic movement in early-middle Jurassic directly resulted in the formation of East Suzhou syncline, South Suzhou syncline and Xisipo thrust fault [27], which dominated the geological structure frame of Suxian coal mine (Figure 1b). South Suzhou syncline, with an axial direction of NE-20°, was cut into a half-baked syncline structure by Xisipo thrust fault. Under the influence of the cutting, the dip angle of east flank (about 45°) of South Suzhou syncline is greater than that of the west flank (about 25°). The main structural trace of Suxian coal mine is basically in the NNE direction (Figure 1b).
Qi’nan colliery, the selected sampling area, is at the turn end of South Suzhou syncline. Faults are the predominant structures that control the local distribution of TDCs in Qi’nan colliery. Two secondary folds, nearly along the EW direction, are develop in the central part of Qi’nan colliery. Samples were collected from a reverse fault that was adjacent to the axis of the Zhangxuewu syncline (Figure 1c). The EW-trending reverse fault was formed under the squeezing of tectonic stress in a NS direction originating from the Indo-China movement. This reverse fault was less affected by Yanshanian-Himalayan tectonic movement.
Furthermore, Yanshanian igneous intrusion in Huaibei coalfield belongs to the circum-Pacific tectonic magmatic belt. The Xierpu igneous rocks located in the northwest of Suzhou city were intruded up to the shallow part of through north Suzhou fault (Figure 1b). Faults developed in Zhuxianzhuang colliery are important magma transportation channels. Coal seam VI was influenced by the igneous intrusion as well (Figure 1d).
Shanxi Formation of lower Permian and lower Shihezi Formation of middle Permian are major coal-bearing strata in Qi’nan colliery (Figure 1d). Fault-related coal samples were collected in coal seam VI, lower Shihezi formation. The lower Shihezi formation, as a fluvial-dominated delta plain deposit, is mainly comprised of sandstone, mudstone and coal, which is conformable with the underlying Shanxi Formation and distributed regionally. The direct roof and floor of coal seam VI are mainly mudstone.
The hydrogeological resources of Qi’nan colliery are mainly the fourth aquifer in Cenozoic and the sandstone fissured aquifer of coal-bearing strata in Permian. The decreasing water level of the fourth aquifer after coal mining indicates that the source of water in coal is mainly the fourth aquifer. The sandstone-fissured aquifer could directly enter the coal seam through leaching and could be recharged by the fourth aquifer. The pH value of ground water penetrating into coal seams from an overlying aquifer is in the range of 7.2–7.9, which makes coal seam VI mildly alkaline as well [68].

2.2. Fault Zone Architecture

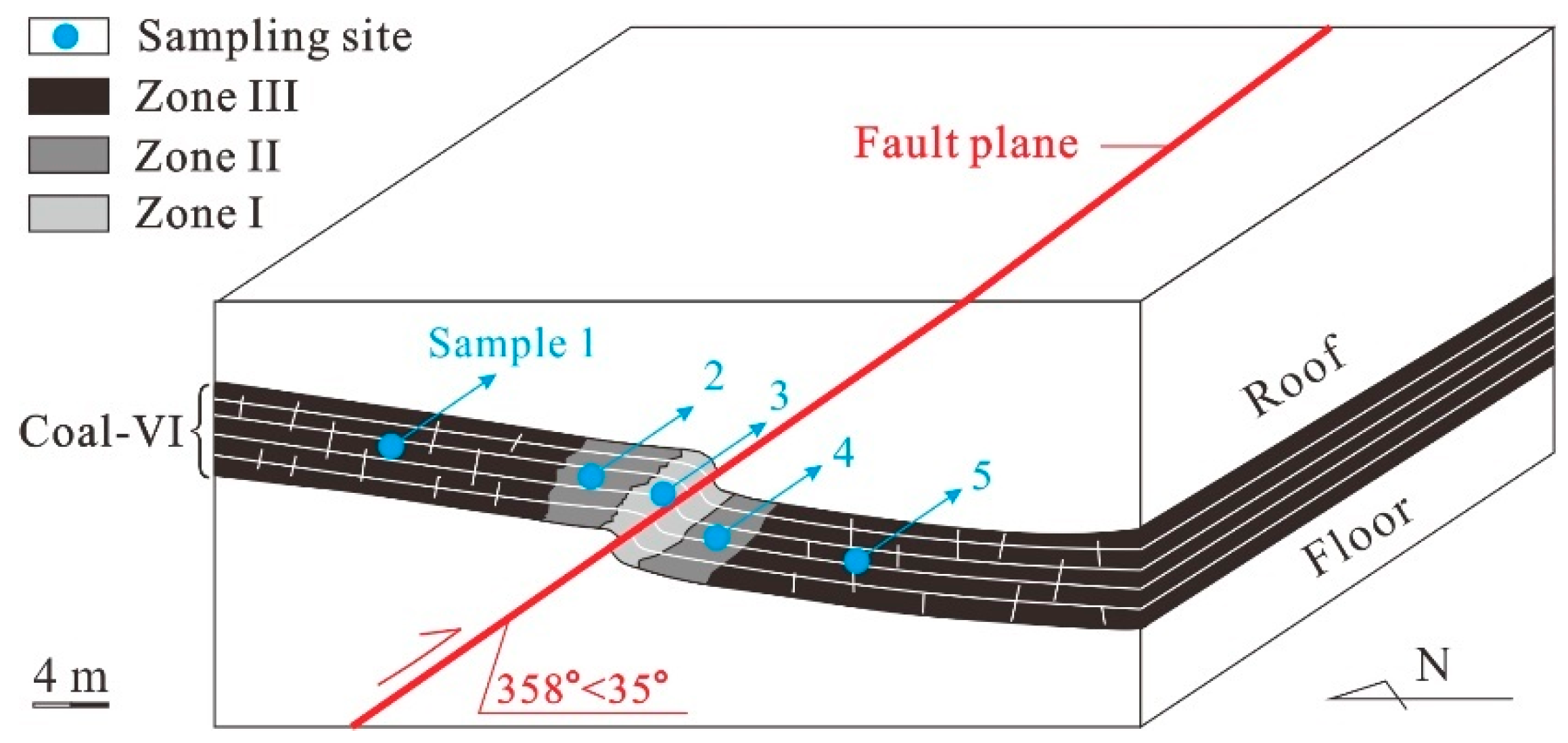

The dip direction and dip angle of the selected reverse fault are 358° and 35°, respectively (Figure 2). The direct roof and floor of coal seam VI are mainly grey mudstone, and the thick false roof and floor are mainly grey green mudstone. Roof and floor rocks dislocated by the fault are broken into cataclastic shapes near the fault plane followed by intact roof and floor rocks away from the fault plane. Field observation showed that there were dragged folds developing in hanging and foot walls near the fault plane (Figure 2). Coal, being more sensitive to tectonic stress, was broken into strongly deformed structures in dragged fold zones (zone I) with widths of ~2 meters in both hanging and foot walls. The influence of the fault on coal deformation became weak in the part with normal occurring roof and floor rocks. At a distance of ~4 meters from zone I in both hanging and foot walls, dense associated fractures cut most coal into mortar shapes (zone II). Coal beyond zone II showed relatively intact shapes (zone III). Besides, field observation showed that subdivided zones in the hanging wall were slightly broader than those in the footwall.
According to the guidelines of GB482-1995 Standard [70], five TDC samples with typical deformation characteristics in three subdivided zones were collected from the same sequence. Among them, samples 1, 2 and 3 were collected from the hanging wall, and samples 4 and 5 were collected from the foot wall. Samples 1 and 5 were collected in zone III; samples 2 and 4 were gathered in zone II; and sample 3 was collected in zone I (Figure 2).
Samples in zone III: Samples 1 and 5 in zone III are defined as cataclastic coal (Figure 3a,e). Maceral bands in these samples are clearly visible. Coal body with more integrated structures are mainly cut by straight and sparse cleats with flat surfaces.
Samples in zone II: Samples 2 and 4 in zone II are defined as mortar coal (Figure 3b,d). These samples are smashed into pieces by compression stress, and they show lower mechanical strength to the samples in zone III. The cleats developed in these two samples are denser compared with those of samples 1 and 5. Shapes of coal particles are angular or sub-angular.
Sample in zone I: Sample 3 is defined as wrinkle coal (Figure 3c). Coal developed in zone I is formed in a strong compression-shear stress environment. Sample 3 could easily be crumpled by hand into powder or grains. Small micro “folds” are well developed in zone I, indicating a strong ductile deformation (Figure 3c,f). Squeezing and slippage of the coal matrix led to the development of frictional mirror surfaces (Figure 3f).

3. Experiments

Bulk fault-related coal samples were firstly consolidated by injecting epoxy. Then, consolidated samples were polished perpendicular to marcel bands by using the sandpapers and Al2O3 colloidal solution. The micro deformation characteristics were observed through polished faces by using Polarizing Microscope Eclipse LV100N Pol (Nikon, Tokyo, Japan) in a reflected light. The polarizing microscope is equipped with illumination lamphouse (LV-LH50PC, Nikon, Tokyo, Japan).
Ultimate analysis of the samples was performed using Vario Macro Cube element analyzer (manufactured by Elementar, Hanau, Germany). Specifically, the detection of total sulfur contents was based on ASTM standard D3177-02 (2002). The proximate analysis of fault-related coal samples was in accordance with the ASTM Standards including ASTM D3174-12 (2012), ASTM D3175-17 (2017), ASTM D3173/D3173M-17a (2017), and ASTM D3175-17 (2017). Both ultimate analysis and proximate analysis were performed in Xuzhou Inspection Center of China National Administration of Coal Geology.
Concentrations of trace elements in various TDCs were analyzed by using inductively coupled plasma mass spectrometry (ICP-MS, Agilent, Santa Clara, CA, USA) following a two-step digestion method. Firstly, dry powder samples (200 mesh) were ashed (500 °C) in a muffle furnace for 4 h. Then, the ash samples were extracted with HNO3, and the residue was dissolved by a mixture of HF:HNO3:HClO4 subsequently in a closed microwave digestion system with high pressure. Concentrations of trace elements in standard reference materials (SARM-19) and blank samples were also determined to calibrate the detection results. Concentrations of major element oxides in the high-temperature (815 °C) ash were determined by means of X-ray fluorescence spectrometry (XRF, Bruker, Karlsruhe, Germany) in the Advanced Analysis and Computation Center of China University of Mining and Technology.
Morphological characteristics of minerals in selected bulk TDC samples were observed by the FEI Quanta TM 250 scanning electron microscope equipped with an energy dispersive X-ray analyzer (SEM-EDX, FEI, Hillsboro, OR, USA) in the Advanced Analysis and Computation Center of China University of Mining and Technology. X-ray diffraction (XRD, Bruker, Karlsruhe, Germany) spectra for fault-related coal samples were acquired using Bruker D8 Advance instrument (Cu target, Kα radiation) equipped with 0.6-mm divergence slit and 8-mm anti-scatter slit systems. Operating conditions of the X-ray tube were U = 40 kV and I = 30 mA.
Characteristics of hydroxyl groups in organic and inorganic compounds of coal were analyzed by using Fourier transform infrared spectroscopy (FT-IR, Bruker, Karlsruhe, Germany). Powdered whole coal samples (0.9 mg, higher than 200 mesh) were initially ground with 80 mg of potassium bromide (KBr) for 20 min in an agate mortar. The powder mixture was pressed into a transparent disc for 10 min using a tablet machine. Pure ground KBr was used to obtain a reference spectrum. The discs were analyzed by VERTEX-70 FT-IR (Bruker, Germany), and the spectra were recorded in the range of 400 to 4000 cm−1 with a resolution of 4 cm−1.
Characteristics of a pore-cleat system of fault-related coals were detected by using Macromerities 9500-type mercury porosimetry (Micromeritics, Drive Norcross, GA, USA) with a pore diameter ranging from 3 nm to 0.23 mm and pressure up to 413 MPa at the Key Laboratory of Coalbed Methane Resources and Reservoir Formation Process, China Ministry of Education. Pores with diverse pore sizes from millimeters to nanometers could be measured by this method [71].

4. Results

4.1. Coal Chemistry

As shown in Table 1, the fixed carbon (FCd) values of the five samples were in the range of 51.81–55.78% and the volatile matter (Vdaf) ranged from 34.27% to 35.88%, indicating high volatile bituminous coals according to the ASTM D388-18 standard. Samples with total sulfur content lower than 1% were classified as low grade based on the GB/T standard 15224.2-2004. The ash yields of samples 2 and 3 were slightly higher than others. Furthermore, the Ro,max of sample 3 was a little higher than the other samples, indicating that sample 3 was of higher maturation degree (Table 1). The early-coalification phenomenon that occurred in sample 3 was mainly attributed to the dynamic metamorphism of intensive tectonic deformation [40,41,42].

4.2. Minerals in the Reverse Fault Zone

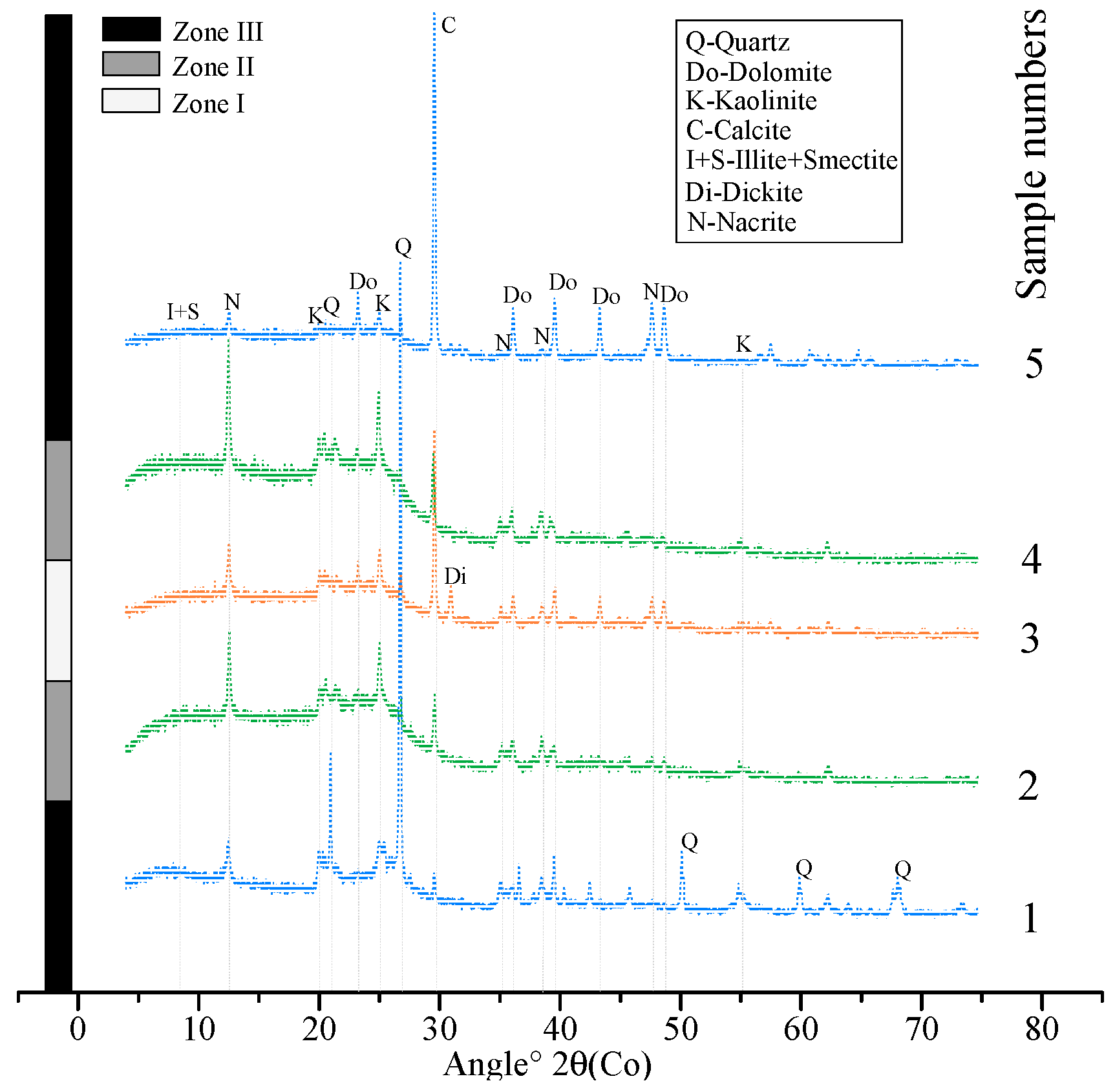

XRD results showed that the minerals of five coal samples were mainly composed of clay minerals, carbonates and quartz (Figure 4). Clay minerals occupying the first place in samples mainly consisted of nacrite, kaolinite and dickite; and carbonates in the second place were mainly composed of calcite and dolomite. Compared with samples 2–4, quartz and carbonate were more developed in samples 1 and 5 respectively, while dickite could only be found in sample 3. Additionally, SEM-EDX results showed that sulfide and sulfate minerals could also be found in fault-related samples, for example, pyrite and sulphate.
In sample 3, clay minerals commonly precipitated in pore or cleat structures (Figure 6a–f). While for other samples, clay minerals usually occur as syngenetic precipitates in the cell of fusinite (Figure 5a,b). With a close distance to the fault structure, clay minerals filled in cells were obviously squeezed with the structural failure of fusinite. Besides, calcite and dolomite in the samples always occurred as cleat fillings (Figure 6g,i). Furthermore, pyrite in sample 3 was observed as cleat infillings, indicating the post-depositional mineralization process [72]. However, pyrite in other samples commonly occurred as syngenetic lumps or cell infillings. Therefore, different occurrence modes of minerals indicated that sample 3 was significantly affected by epigenetic factors compared with other samples.
With the increase of coal deformation intensity, the phenomenon of mineral mix became more frequent. In sample 3, the sulphate usually coexisted with clay minerals or carbonates in cleats and fractures (Figure 6h). Besides, the mix between clay minerals and carbonates could also be observed in cleats and fractures (Figure 6i). Nevertheless, pyrite in sample 3 occurs in the cleat of coal matrix, sometimes even mixed with carbonates (Figure 6j,k). The phenomenon of mineral mix is primarily caused by the mechanical grinding of stronger tectonic stress.
More specifically, clay minerals in samples 1 and 5 were characterized by complete intact flakes. Particle sizes of clay minerals in samples 2 and 4 were slightly reduced under the influence of tectonic stress. Clay minerals appearing in zone I were broken into porphyritic shapes with smaller particle sizes compared with those in zone II (Figure 7). In zones I and II, clay minerals were less stacked compared with those in zone III. The same morphologies of clay minerals in TDCs were also found by Song et al. [62]. The assemblage characteristics of clay minerals was more complicated in sample 3, and dickite started to appear in sample 3 (Figure 4). The formation of dickite may be related to the thermal fluid migration associated with tectonic deformation [73].

4.3. Distribution of Oxides of Major Elements

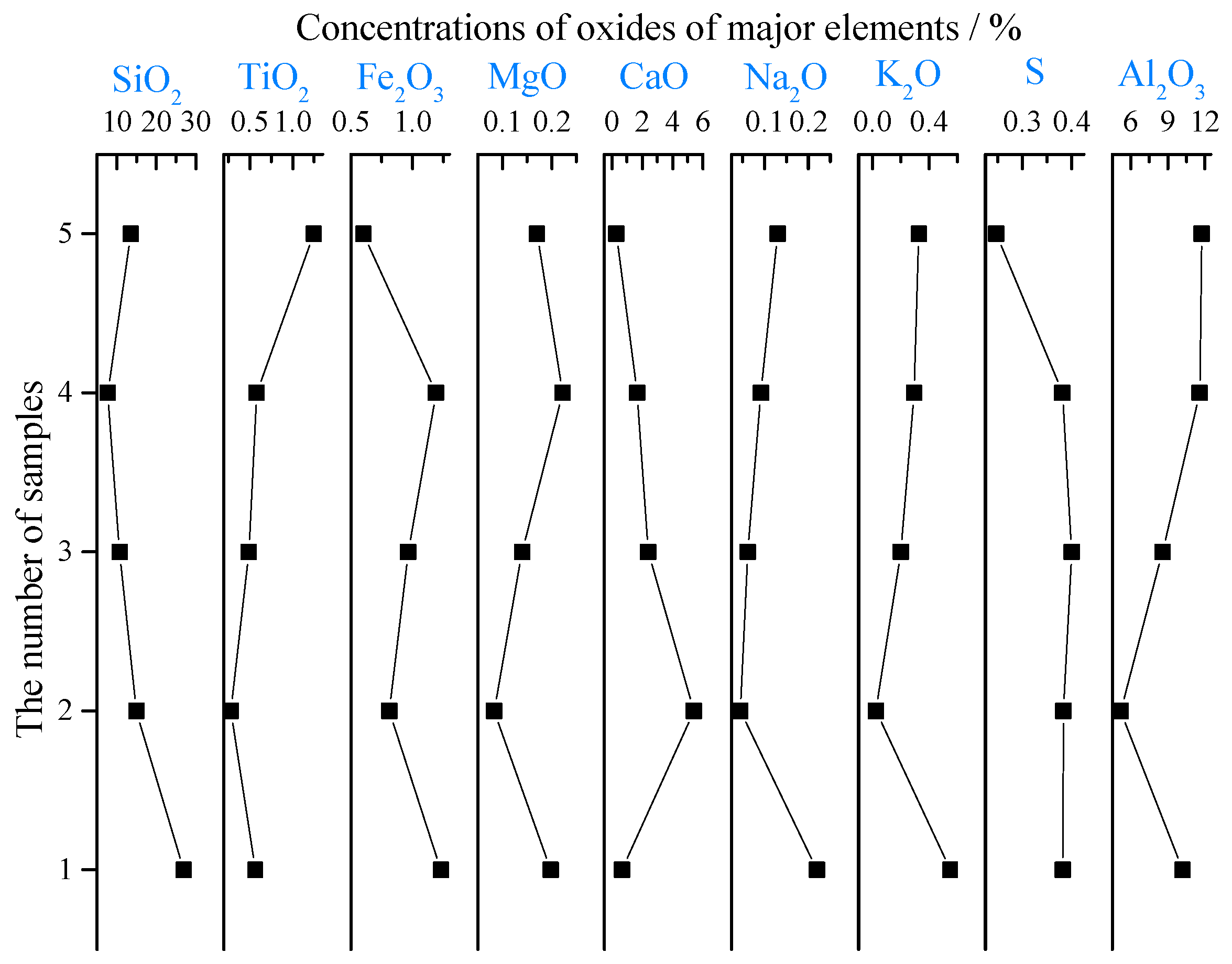

Contents of SiO2, CaO and Al2O3 were much higher than the contents of other oxides of major elements, which is consistent with the XRD result that clay minerals, carbonates and quartz were the main minerals developed in fault-related coals (Table 2, Figure 4). Higher SiO2/Al2O3 ratios of the five samples (compared with theoretical ratio of kaolinite (1.18)) illustrated the existence of free SiO2 [50]. Oxides of major elements in fault-related coal samples did not show obvious variation regularity (Figure 8).

4.4. Distribution of Trace Elements

4.4.1. Distribution of Rare Earth Elements (REE)

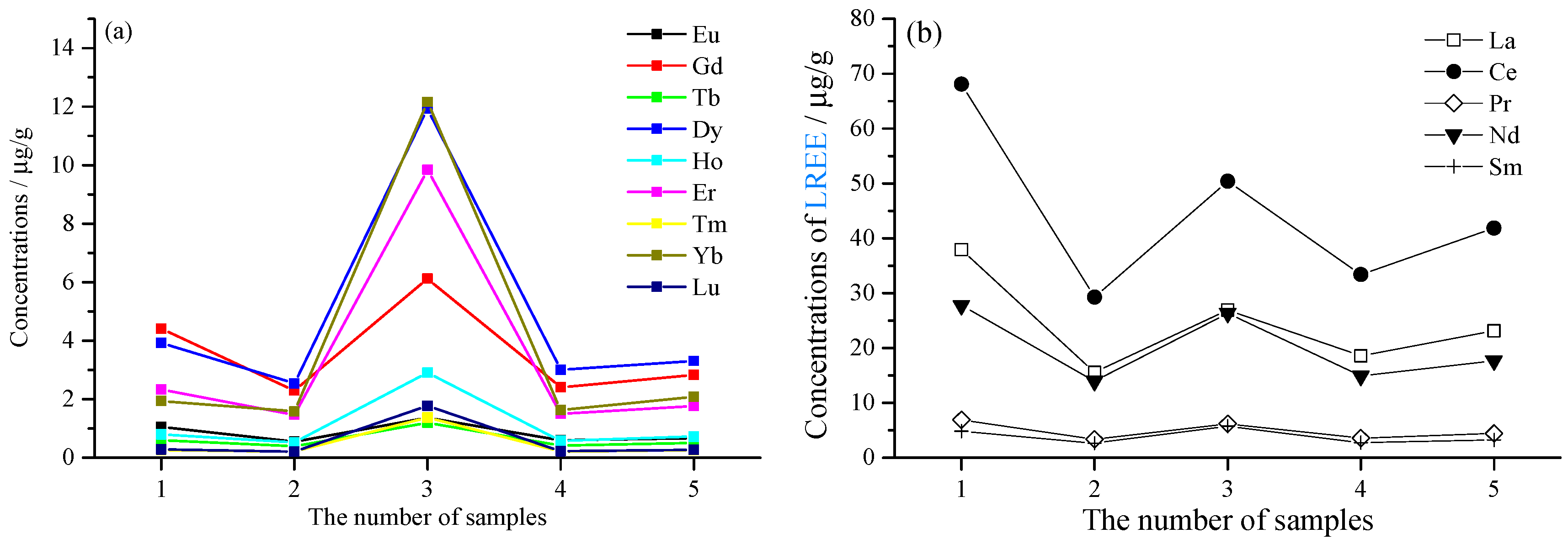

REE in this research included La, Ce, Pr, Nd, Sm, Eu, Gd, Tb, Dy, Y, Ho, Er, Tm, Yb, and Lu. It is worth noting that Y with a very similar ion radius as Ho was included in REE as well [74]. REE in fault-related coals were subdivided into three groups, viz. light (LREE: La, Ce, Pr, Nd, and Sm), medium (MREE: Eu, Gd, Tb, Dy, and Y), and heavy (HREE: Ho, Er, Tm, Yb, and Lu) rare earth elements [75]. Concentrations of REE were normalized to the average value for upper continental crust as reported by Taylor and McLennan [76] (Figure 9).
Interference of Ba on the anomalies of Eu should be clarified to ensure the reliability of data from ICP-MS analysis [74]. Fortunately, the ratios of Ba/Eu for the five samples were all lower than 1000 (Table 3), indicating that the interference of Ba could be ignored [77].

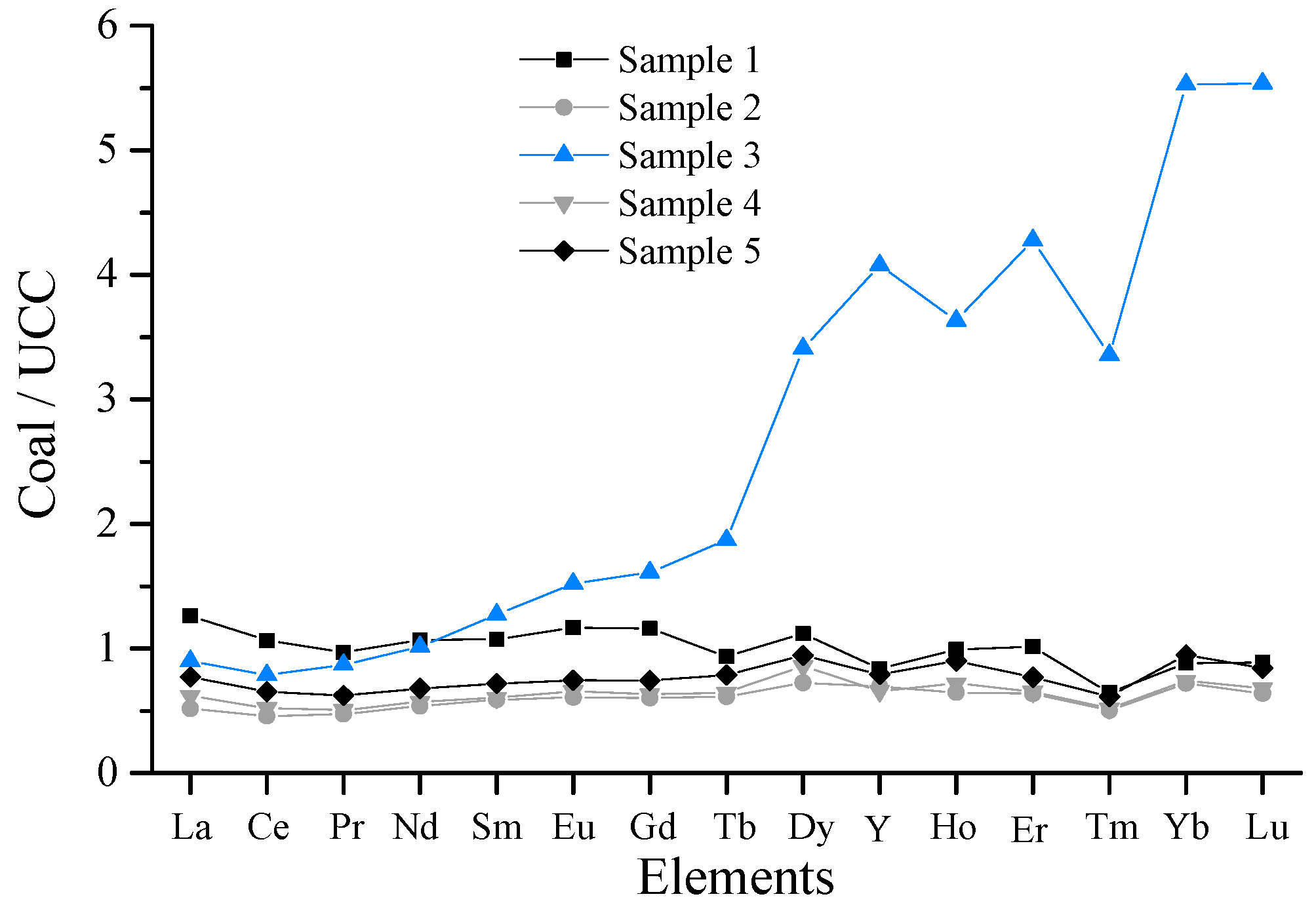

Calculated parameters of REE help to understand their distribution patterns. The LaN/SmN ratio of samples 2–5 was higher than the GdN/YbN ratio (Table 4), indicating that the fraction degree of elements La–Eu was higher than that of elements Gd–Lu in samples 2–5. Similarly, CeN/YbN of coals was much lower than the average value (4.6) [78], which indicated the enrichment of HREE and MREE compared with LREE. The distribution patterns of REE in samples 2–5 were H-type with LaN/LuN lower than 1. In sample 1, distribution pattern of REE belonged to L-type (LaN/LuN > 1). Samples with H-type REE were probably affected by natural waters circulating in the coal basins (especially for sample 3 with LaN/LuN = 0.16) [74,75], which is consistent with the above analysis and the hypothesis proposed by Yang et al [66]. Weak positive Eu anomalies (EuN/EuN* ranging from 1.01 to 1.13) illustrated that coals in the fault zone were less affected by reducing conditions and high temperature (>250 degrees). YN/HoN in Chinese coal commonly shows very weak anomalies [74]. However, Y concentration in sample 3 showed obvious anomalies in comparison with others. Weak Ce anomalies (0.89–0.93) were observed in the five samples, indicating that the source origin of coals in the fault zone was terrigenous materials [74].

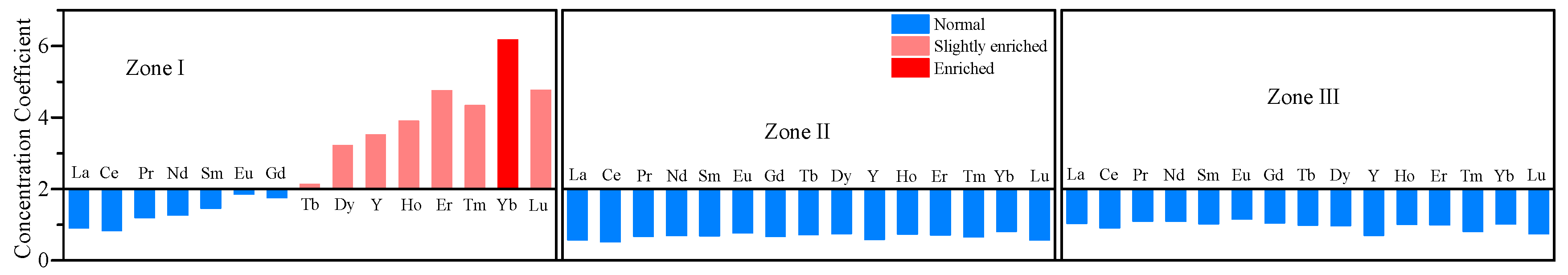

Concentration coefficients (CCs) (which refer to ratios of concentrations of trace elements in fault-related coals to regional value) of trace elements in coal are useful parameters for estimating relative enrichment of those elements. Regional concentrations of trace elements provided by Zheng et al. [79,80] are used as a reference. According to the categorization scheme proposed by Dai et al. [74,81,82], CCs of fault-related coals were classified into four categories: enriched (5 < CC < 10), slightly enriched (2 < CC < 5), normal (0.5 < CC <2), and depleted (CC < 0.5). Average CCs of trace elements in samples 1 and 5 were used to represent CCs in zone III, and average CCs of samples 2 and 4 were applied to characterize CCs in zone II. Figure 10 shows that elements La–Gd were distributed in the three zones with normal value. Partial MREE (Tb, Dy and Y) and HREE were classified as enriched or slightly enriched types in Zone I. CCs of REE in zones II and III were all in the range of 0.5–2 without any exception.
Comparison of diverse TDCs showed that HREE and MREE were highly concentrated in sample 3. Concentrations of HREE and MREE in samples 2 and 4 were lower than those in samples 1 and 5 in zone II (Figure 11a, Table 5). Concentrations of LREE were higher in samples 1, 3 and 5, which is different from the distribution characteristics of HREE and MREE (Figure 11b).

4.4.2. Distribution of Other Trace Elements

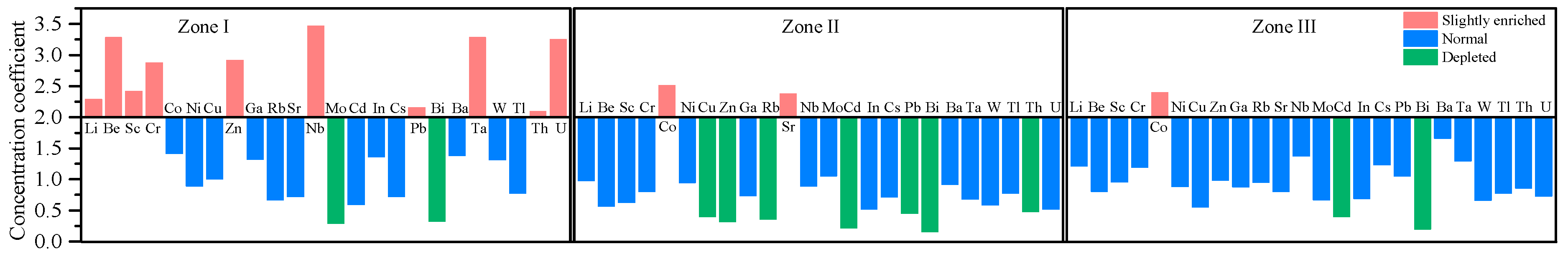

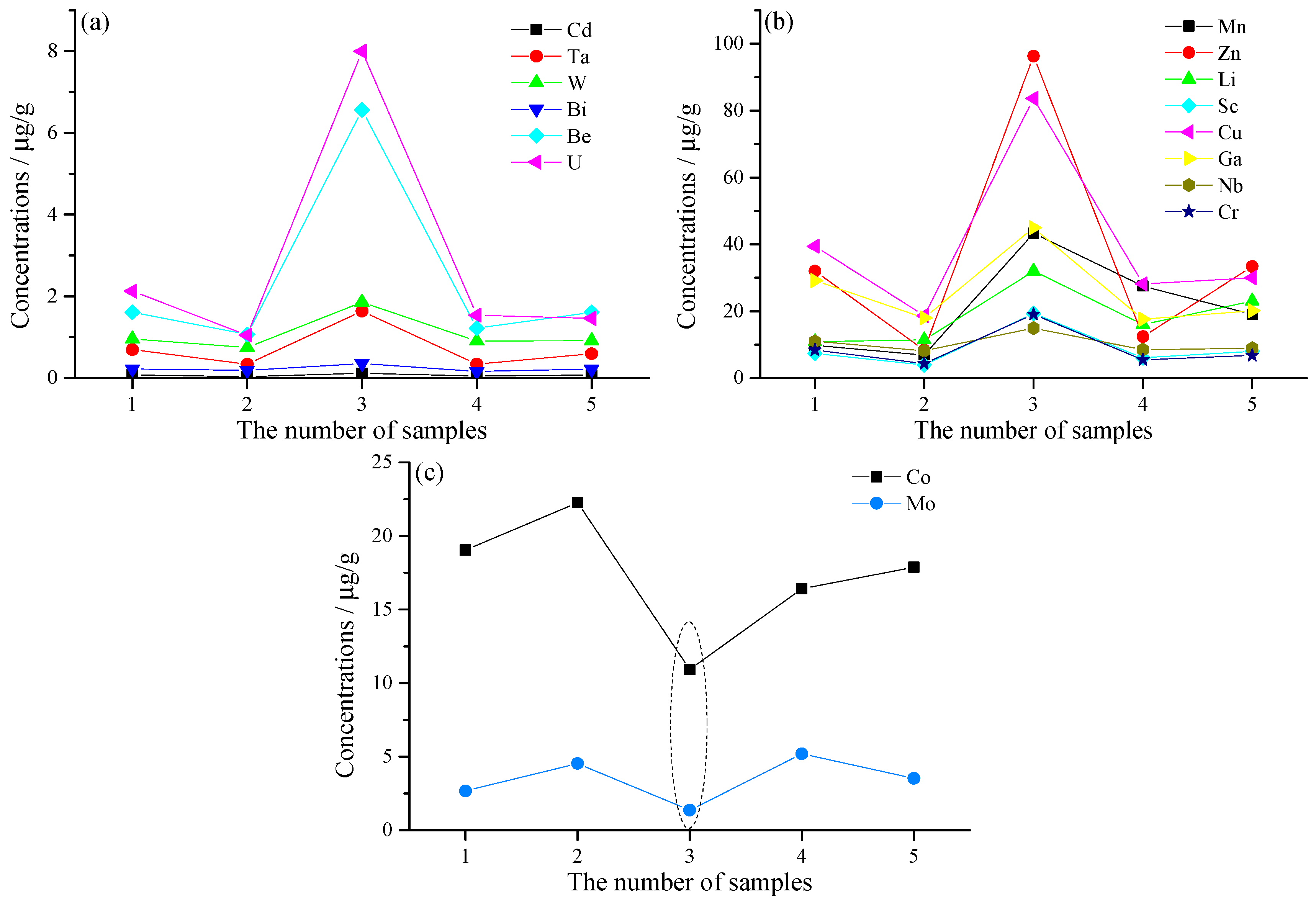

In zone I, CCs of elements Li, Be, Sc, Cr, Zn, Nb, Pb, Ta, Th, and U ranged from 2 to 5 indicating a slight enrichment of those elements (Figure 12). Elements Li, Be, Sc, Cr, Nb, Ta, and U in zones II and III are within the global average values (0.5 < CC < 2). Elements Zn, Pb and Th were depleted (CC < 0.5) in zone II followed by normal CCs in zone III. CCs of elements Ni, Ga, In, Cs, Ba, W, and Tl were all at a normal level in the three zones, while CC of element Bi was lower than 0.5 in the three zones. Elements Cu and Rb with normal values in zones I and III were depleted in zone II. Element Sr with normal CCs in zones II and III was slightly enriched in zone II. Element Co which was slightly enriched in zones II and III showed normal concentration in zone I. Element Mo, depleted in zone I, showed constant normal distribution in zones II and III, while the distribution of element Cd was inverse in the three zones.

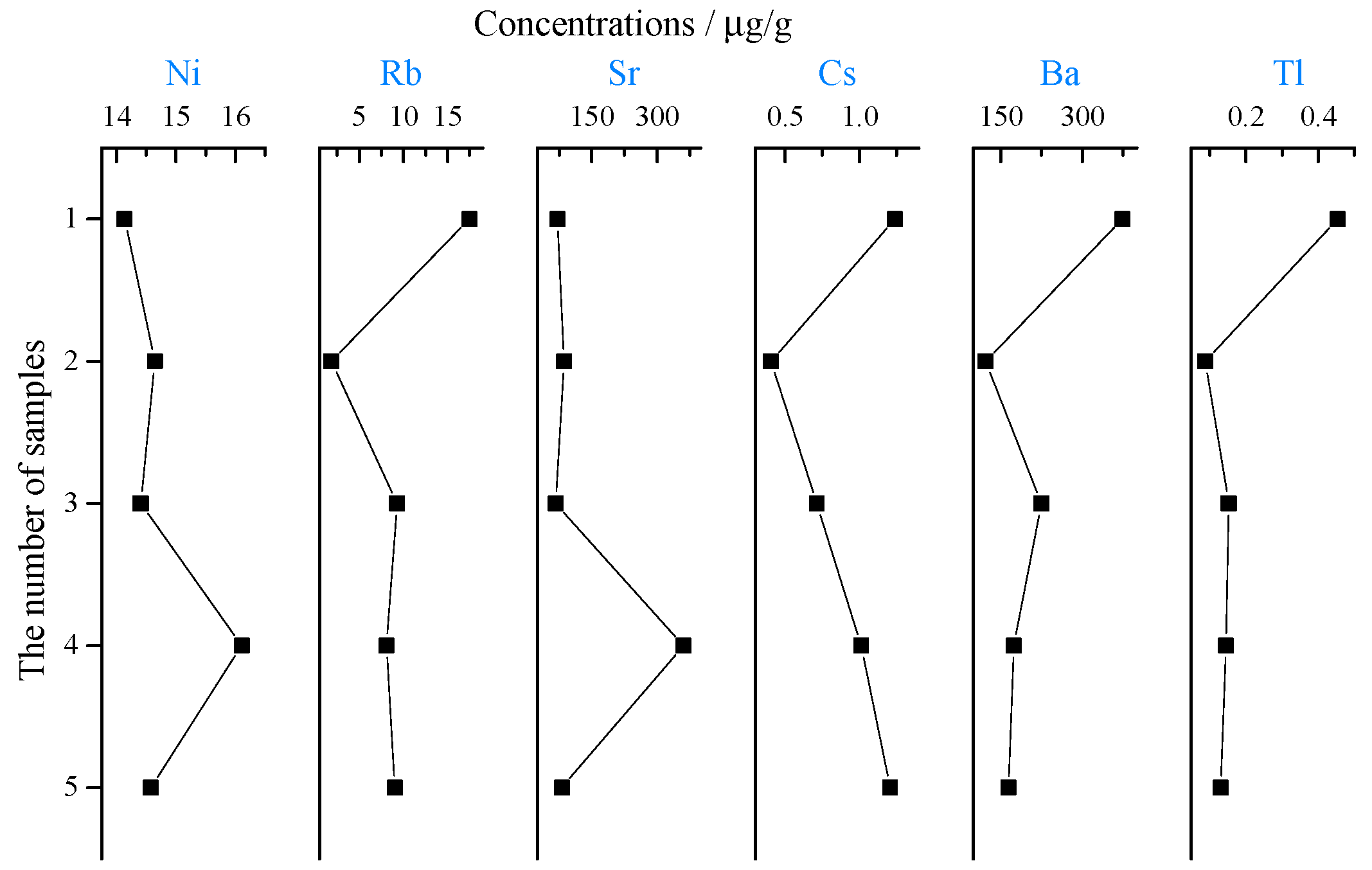

For different types of TDCs, elements Li, Be, Sc, Cr, Cu, Mn, Zn, Ga, Nb, Cd, Bi, Ta, W, and U were significantly enriched in sample 3 (Figure 13a,b). Concentrations of elements Co and Mo were low in zone I, while they were relatively accumulated in zones II and III (Figure 13c). The distribution of elements Ni, Rb, Sr, Cs, Ba, and Tl belonged to disordered type (Figure 14).

5. Discussion

5.1. Elemental Geochemical Associations

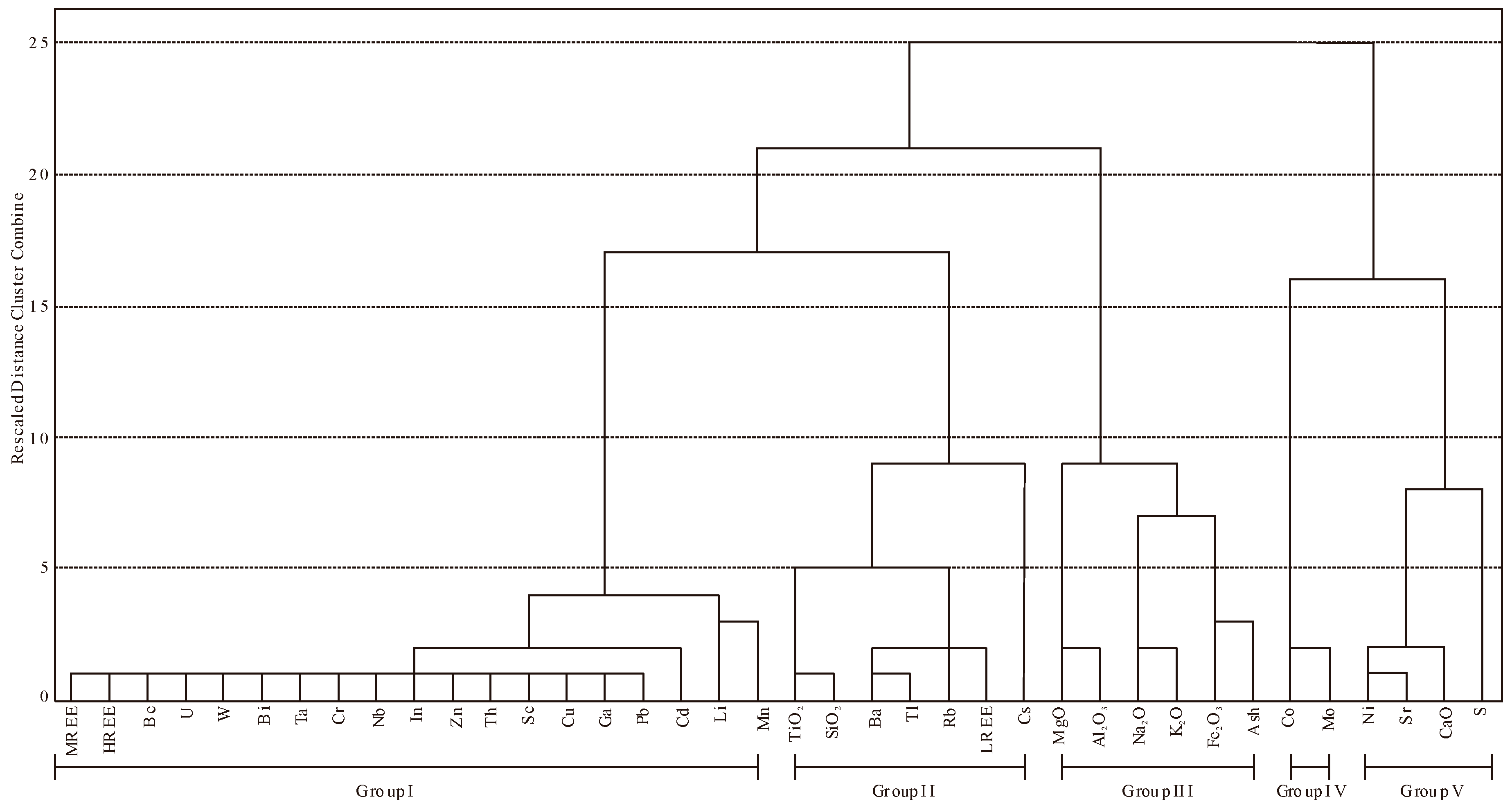

The key to understanding the differentiation mechanisms of trace elements is to determine their affinities. Concentrations of major element oxides, trace elements and ash yields were analyzed together with a hierarchical cluster analysis method (Figure 15). When 15 was adopted as the rescaled distance, all members could be classified into five groups.
Group I included elements MREE, HREE, Be, U, W, Bi, Ta, Cr, Nb, In, Zn, Th, Sc, Cu, Ga, Pb, Cd, Li, and Mn. Among them, REE were found in the clay minerals attached on the cleat surfaces in sample 3 (Figure 16). Element Zn mainly occurred in pyrite according to the EDX spectrum (Figure 6j,k). Similarly, elements Cu and Pb were also closely correlated with sulfide minerals. Furthermore, the other elements that basically belong to lithophile elements also have aluminosilicate affinity to some extent as reported by Zhang et al. [83], Dai et al. [84], Tian et al. [85] and Finkelman et al. [86]. Elements in group I with significant positive anomalies were significantly influenced by thermal fluid or leached water as mentioned above.
Group II included TiO2, SiO2, Ba, Tl, Rb, LREE, and Cs. Among them, the correlation coefficient between TiO2 and Al2O3 was 0.782 and that between TiO2 and SiO2 is 0.988, indicating aluminosilicate affinity. Besides, the SEM-EDX results showed that LREE could be directly observed in clay minerals (Figure 16). In brief, elements in the group all showed aluminosilicate affinity.
Group III included MgO, Al2O3, Na2O, K2O, Fe2O3, and ash yield. Fe2O3 mainly occurred in dolomite and pyrite in those fault-related samples. Al2O3 is the major component of clay minerals. Besides, K2O could be found in clay minerals, while, MgO was observed in both clay minerals and carbonates. Therefore, oxides of major elements in groups III were closely correlated with clay minerals or carbonates.
Group IV only included Co and Mo. Elements Co and Mo were strongly correlated with Cdaf (rCdaf = 0.806 and 0.785 respectively), indicating a possible organic affinity. Ni, Sr, CaO, and S in group V were poorly correlated with ash yield or Al2O3. EDX data showed that element Ni was detected in the mix of sulphate minerals and carbonates, while Ni could not be detected in sole carbonate (Figure 6h, Table 6). Therefore, elements Ni and Sr were probably associated with sulphate minerals.

5.2. Accumulation Mechanisms of HREE, MREE and Related Elements

5.2.1. Evidences of the Injection of Solutions

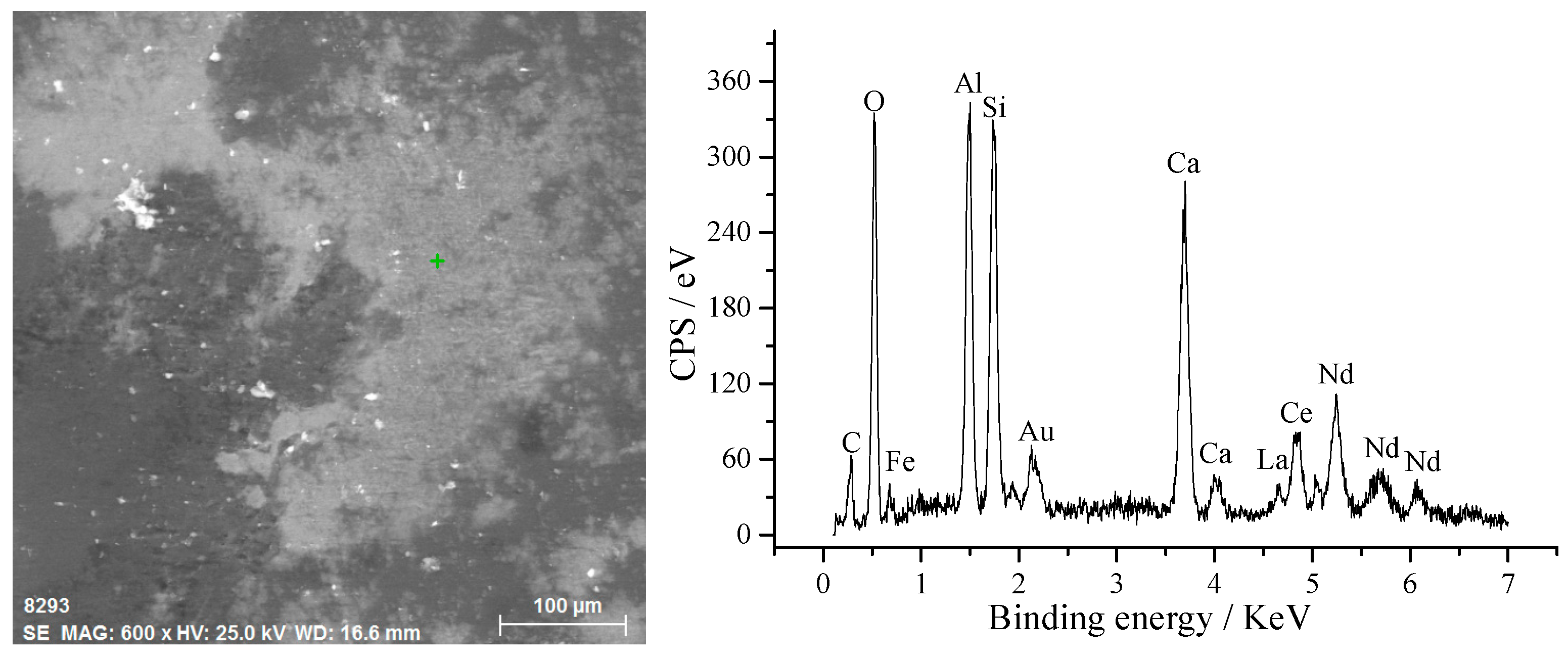

Local distribution of trace elements might be influenced by the invasion of solutions with higher concentrations of related elements [49]. The presence of dickite in sample 3 (Figure 4) might be related to the thermal fluid migration associated with tectonic deformation [73]. Similarly, in zone I, the developed fracture-fillings including carbonates, clay minerals and pyrite containing a higher concentration of MREE, HREE and related elements illustrated that those elements probably originated from an epigenetic process, such as the invasion hydrothermal fluids or leaching of meteoric water [50,87].
Furthermore, REE contains useful information on the epigenetic resources of related elements. For sample 3, H-type of REE (LaN/LuN < 1) with a significant Y positive anomaly was probably affected by invasive solutions [74,75]. Besides, Yb/La (=0.45) of sample 3 was much larger than common word hard coal (Table 7). Furthermore, the presence of higher U/Th and Yb/La in sample 3 was also caused by the elemental redistribution related to invasive solutions with higher concentrations of related elements [87,88]. The hydrothermal fluid or meteoric water leaching through the overlying clay partings caused the more active elements (U and Yb) to be deposited in coals [88].

5.2.2. Migration

Higher CCs and concentrations of HREE and MREE of sample 3 compared to other samples indicate the significant enrichment of HREE and MREE in zone I (Figure 10 and Figure 11a). Similarly, CCs and concentrations of related elements (Be, U, W, Bi, Ta, Cr, Nb, In, Zn, Th, Sc, Cu, Ga, Pb, Cd, Li and Mn) in sample 3 were higher than those in other samples (Figure 12 and Figure 13a,b). Pore and cleat mineralization found in sample 3 (Figure 6a–f) can be considered another evidence of solutions movement [72,89]. Solutions migrating through coal seam carry different types of trace elements and play an important role in the enrichment of these elements [75,90,91]. Therefore, the accumulation of HREE, MREE and related elements in sample 3 was mainly associated with the invasive solutions.
The migration of solutions depends on the development of a pore-cleat system in fault-related coals. Coal samples collected around fault structures are altered by tectonic stress into TDCs with a modified pore-cleat system [32,34,53,59,61,62,92,93]. Clarifying different fluid paths in fault-related coal samples could provide useful information about the migration of solutions. Thus, total porosity data could be useful for determining the relationship between tectonic deformation and elemental enrichments in the studied samples. Pore volume and injection–ejection ratios of these coal samples could be calculated from the porosity results (Figure 17) [71,94]. As expected, the distribution of pore volume in fault-related coal samples was consistent with the distribution of HREE, MREE and related elements (Figure 11a and Figure 13a,b), which confirms that the developed pore-cleat system in sample 3 was more beneficial for the movement of solutions and influx of specific trace elements.

5.2.3. Accumulation

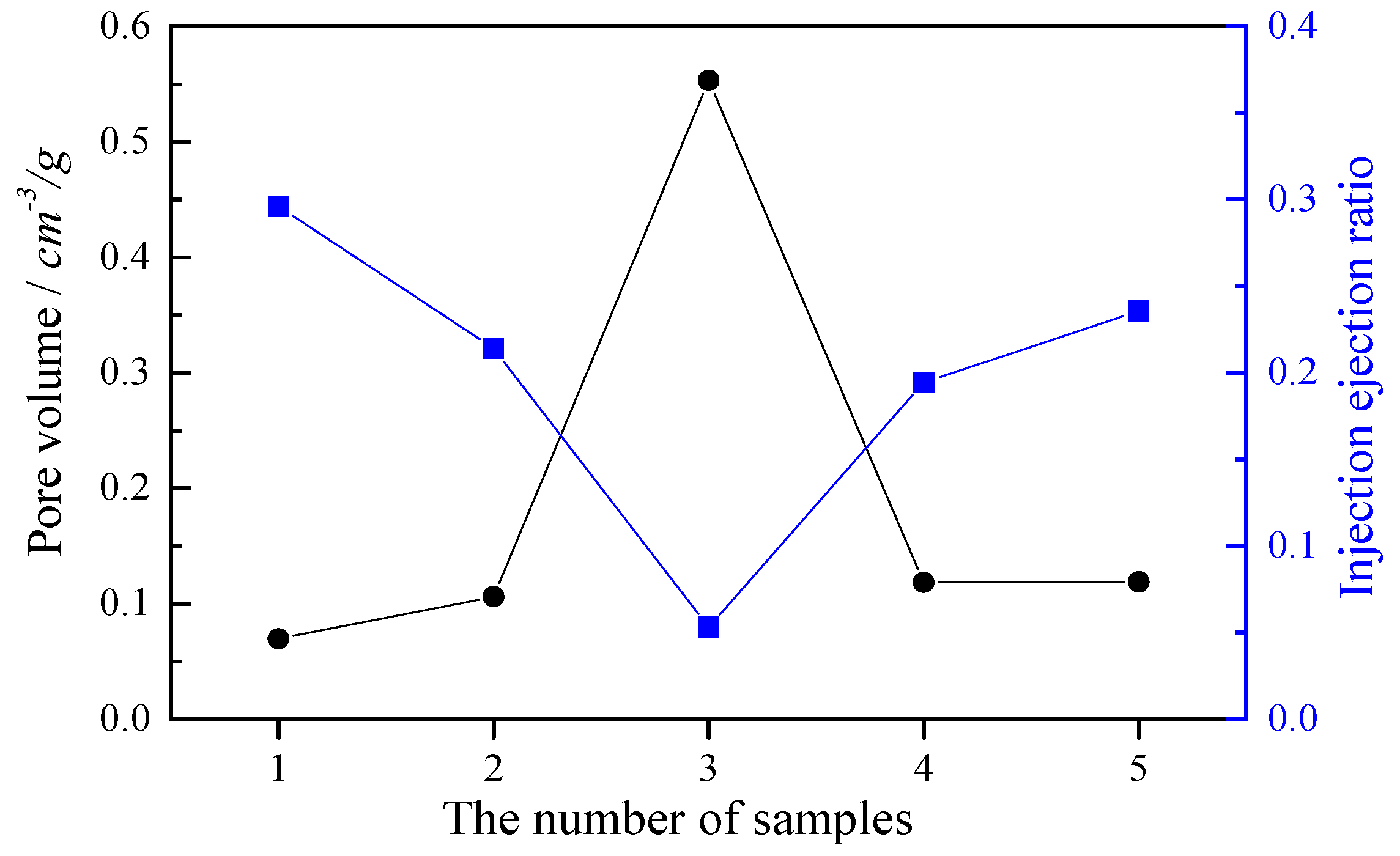

Sample 3 in zone I characterized by a low injection to ejection ratio had lower permeability (Figure 14) [71]. The lower permeability of sample 3 indicates that closed pore structures were likely formed under shear and compression stress or occluded by sealing minerals, viz. clay minerals (Figure 6e,f) in zone I [95,96]. During faulting deformation, many trace elements associated with clays and other minerals could be dissolved in acid solutions and transported through zone I [72,97], and then reprecipitated in a post-depositional pore-cleat system under alkaline condition (Figure 6a–f) [60,68]. Correspondingly, cleat-filling minerals retained and accumulated MREE; HREE and related elements occupied partial pore-cleat structures, and more closed pores and cleats were formed and the permeability of the conduit system in zone I became lower. Therefore, the solutions flowing into fault structures were limited in zone I, similar to the process occurring in fault zones of rocks [8,22,98]. The limitations of solutions in the local area could be used to explain the anomalous behavior that only occurred in zone I.
Pore-cleat mineralization could not fully explain the accumulation of HREE, MREE and related elements, because the concentration of Al2O3 (major constituent of clay minerals that is the host of these trace elements) in sample 3 was not the highest one. Clay minerals with special physical and chemical properties are sensitive to tectonic stress [99]. Similarly, decreasing particle sizes and less stacked laminar structures of clay minerals were also found in zones II and I, suggesting that strong mechanical grinding and dislocating of tectonic stress acted not only on the coal matrix, but also on minerals occurring in the coal (Figure 7a–c). Laminar clay minerals were preferentially disrupted along basal planes including layer-parallel extension and layer-parallel shortening [100], especially on the friction mirror surfaces (Figure 7d). Coating of clay minerals on the friction mirror surfaces further sealed the pore-cleat system of coal, which resulted in the reduction of permeability in zone I (Figure 6b,c) [25,101].
Studies on experimental and natural clay samples showed that stress promoted the breakdown and delamination of the clay mineral layers [24,100], which exposed the oxygen and hydroxyl planes beneficial to the sorption of elements [102]. It is necessary to evaluate whether similar chemical alterations (viz. hydroxyl exposure) of clay minerals occur in fault-related coals as well. FT-IR spectra over the range of 3600–3700 cm−1 provide useful information about hydroxyl groups of clay minerals in coal [103]. Adsorption bands at 3620 cm−1, 3650 cm−1, 3670 cm−1, and 3695 cm−1 were assigned to the stretching vibration of inner hydroxyl, outer hydroxyl and inner-surface hydroxyl groups, respectively [104,105].
Figure 18 shows that concentrations of three types of hydroxyl groups in sample 3 were significantly higher than those of other samples. However, the concentration of Al2O3 in sample 3 was not the highest one, suggesting that the increase in number of hydroxyl groups in sample 3 was not due to the content variation of clay minerals (Figure 8). Nacrite, kaolinite and dickite found in fault-related coals all belong to the kaolinite group with similar lamellar structures [106,107,108], indicating that diverse assemblage characteristics of clay minerals in fault-related coals also did not lead to the increase in number of hydroxyl groups in zone I. To the best of our knowledge, an increase in number of hydroxyl groups of clay minerals is mainly due to the exposure of oxygen and hydroxyl planes by shear stress.
HREE, MREE and related elements that migrated into the coal seam in a dissolved form could be mostly adsorbed by clay minerals, which has been reported by previous studies and confirmed by relevant experimental studies [78,86,109,110,111,112,113,114]. Experimental studies have shown that the sorption of REE and related elements mainly depended on adsorption sites of clay minerals, namely, hydroxyl units on Al–O hexahedron or Si–O tetrahedron sheets [115,116,117]. An increase in the three types of hydroxyl groups supplied more edge and basal adsorption sites for trace elements in sample 3, which resulted in the accumulation of HREE, MREE and related elements in zone I. Besides, sorption experiments showed that HREE and MREE were more readily absorbed by clay minerals than LREE by clay minerals [118]. Therefore, HREE and MREE were more accumulated in sample 3 than LREE.
Furthermore, nano-scale clay minerals are known to develop in fault rocks [25,119]. Previous studies showed that scaly exfoliation of clay minerals usually led to the formation of nano-scale flakes under the influence of shear stress [24,120]. High-resolution transmission electron microscopy results showed that nano-scale clay minerals also developed in sample 3, which might result from compression-shear stress exfoliation (Figure 19). Chemical activity and specific surface of clay minerals were significantly enhanced due to the nano size, making them an important carrier of trace elements [121,122,123].

5.3. Dissipation Mechanism of Elements Co and Mo

Extraction experiments showed that a large proportion of Co was associated with organic components (at least 20%) [86,124]. The concentration of Mo in lighter gravity fractions of sink-float experiments confirmed that Mo was at least partially associated with organic matter [86,125,126,127]. Co and Mo bonded to the organic compounds of coal which usually undergo ion-exchange with protons of oxygen functional groups, viz. carboxyl and phenolic groups [86,128,129]. Specific reactions between oxygen functional groups and ions are given in the following equations (According to Wang et al. [129]).
aCOAL–COO− + Ma+(aq) ⇋ a(COAL–COO)M
aCOAL–O− + Ma+(aq) ⇋ a(COAL–O)M
Coal molecular structures can be altered by tectonic stress, including the degradation of oxygen functional groups [28,29,30,130]. FT-IR is an effective method to characterize hydroxyl groups in coal chemical structures. Phenol (1100–1300 cm−1) and carboxyl (1650–1700 cm−1) can be distinguished in FT-IR spectrum ranging from 1100–1700 cm−1 [40]. The deconvolution process of FT-IR spectrum was performed using software Origin 7.5 (Figure 20a). Figure 20b shows that the molar content of phenol and carboxyl units significantly decreased in sample 3. Frictional heat generated by fault motion could lead to early-metamorphism of coal containing the degradation of oxygen functional groups [41,130,131]. According to recent research, strong ductile deformation in zone I could also change the molecular structures of coal by transformation into strain energy [39,40,132]. Besides, the higher Ro,max of sample 3 also indicated that the maturation degree of sample 3 was advanced by the influence of stress-induced dynamic metamorphism, including the stress degradation of functional groups (Table 1). Therefore, oxygen functional groups (phenol and carboxyl), as a relatively unstable part of the coal molecular structure, were disassociated under the action of frictional heat and ductile deformation. Synchronized variation of phenol, carboxyl, Co and Mo confirmed that these two elements are probably associated with phenol and carboxyl groups. Dissociation of phenol and carboxyl groups led to dissolution of ion-exchanged Co and Mo into migrated solutions, which caused elements Co and Mo to be depleted in sample 3 (Figure 13c).

6. Conclusions

Five typical TDC samples were collected in the same sequence within the reverse fault zone. The geophysical and geochemical characteristics of fault-related coals were analyzed and compared by using appropriate detection and analytical methods. HREE, MREE and related elements (Be, U, W, Bi, Ta, Cr, Nb, In, Zn, Th, Sc, Cu, Ga, Pb, Cd, Li and Mn) commonly associated with invasive solutions showed significant positive anomalies in zone I. Precipitated occlusion and stress-induced smearing of clay minerals decreased the permeability of the pore-cleat system in zone I and then limited the thermal fluid in zone I, which was one of the major reasons for the appearance of significant positive anomalies only in zone I. Strong compression-shear tectonic stress led to disruption and delamination of clay minerals, which enhanced the their adsorption ability for HREE, MREE and related elements in zone I. Even nano-scale clay minerals with higher specific surface area and chemical activity were exfoliated by shear stress. Elements Co and Mo with strong organic affinity were sharply dissipated in zone I, which was ascribed to the disassociation of phenol and carboxyl groups resulting from the fault motion.

Author Contributions

H.L. undertook the experiments, prepared the manuscript and analyzed the data. B.J. conceived the project and designed the experiments. All authors discussed the results and commented on the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (No. 41672147, 41430317), and the Scientific Research Foundation of Key Laboratory of Coalbed Methane Resources and Reservoir Formation Process, Ministry of Education (China University of Mining and Technology) (No. 2017-004).

Acknowledgments

We would like to thank the reviewers and editors for their constructive comments and suggestions.

Conflicts of Interest

The authors declare no conflict of interest.
