Review

The Olympic Cu-Au Province, Gawler Craton: A Review of the Lithospheric Architecture, Geodynamic Setting, Alteration Systems, Cover Successions and Prospectivity

by 1,2
1
Geological Survey of South Australia, Department for Energy and Mining, Adelaide, SA 5001, Australia
2
Department of Earth Sciences, University of Adelaide, Adelaide, SA 5005, Australia
Minerals 2019, 9(6), 371; https://doi.org/10.3390/min9060371
Received: 29 May 2019 / Revised: 17 June 2019 / Accepted: 19 June 2019 / Published: 20 June 2019
(This article belongs to the Special Issue Iron Oxide-Copper-gold (IOCG) Deposits)

Abstract

The Olympic Cu-Au Province is a metallogenic province in South Australia that contains one of the world’s most significant Cu-Au-U resources in the Olympic Dam deposit. The Olympic Cu-Au Province also hosts a range of other iron oxide-copper-gold (IOCG) deposits including Prominent Hill and Carrapateena. This paper reviews the geology of the Olympic Cu-Au Province by investigating the lithospheric architecture, geodynamic setting and alteration systematics. In addition, since the province is almost entirely buried by post-mineral cover, the sedimentary cover sequences are also reviewed. The Olympic Cu-Au Province formed during the early Mesoproterozoic, ca. 1.6 Ga and is co-located with a fundamental lithospheric boundary in the eastern Gawler Craton. This metallogenic event was driven in part by melting of a fertile, metasomatized sub-continental lithospheric mantle during a major regional tectonothermal event. Fluid evolution and multiple fluid mixing resulted in alteration assemblages that range from albite, magnetite and other higher temperature minerals to lower temperature assemblages such as hematite, sericite and chlorite. IOCG mineralisation is associated with both high and low temperature assemblages, however, hematite-rich IOCGs are the most economically significant. Burial by Mesoproterzoic and Neoproterozoic-Cambrian sedimentary successions preserved the Olympic Cu-Au Province from erosion, while also providing a challenge for mineral exploration in the region. Mineral potential modelling identifies regions within the Olympic Cu-Au Province and adjacent Curnamona Province that have high prospects for future IOCG discoveries. Exploration success will rely on improvements in existing potential field and geochemical data, and be bolstered by new 3D magnetotelluric surveys. However, drilling remains the final method for discovery of new mineral resources.
Keywords: IOCG deposits; mineral district; mineral deposit; alteration assemblages; lithosphere; metallogenesis IOCG deposits; mineral district; mineral deposit; alteration assemblages; lithosphere; metallogenesis

1. Introduction

World demand for copper, gold and other metallic commodities continues to grow. The iron oxide-copper-gold (IOCG) class of deposits is highly significant sources of these key metals and is a significant target for mineral exploration. IOCG deposits are recognized as a distinct albeit varied deposit class in large part as a result of the discovery, development and study of the Olympic Dam Cu-Au-U deposit in South Australia [1,2]. Since that time, the similarities between Olympic Dam, other deposits of the eastern Gawler Craton and a range of related deposits world-wide has been recognized [3,4]. The diverse range of deposits included in this broad envelope span a range of geologic time and include those within the Archean Carajas Disctrict [5]; Proterozoic terranes such as the Curnamona Province [6], Tenant Creek [7], Mt Isa [8], Wernecke [9], and the Great Bear [10]; and Mesozoic deposits in the Andes [11,12]. There is a diversity within the IOCG deposits in terms of the mineralogy of the iron oxide phase, with the terms ‘hematite-group’ and ‘magnetite-group’ having been introduced in recognition of the differences in physico-chemical conditions under which iron oxides can precipitate to form these deposits [13,14,15]. The sources of fluids associated with IOCG deposits can vary from magmatic to sedimentary, which has implications for both the sources of metals and ligands such as sulphur (e.g., [8,9,16,17,18]). Furthermore, there is a large spectrum of alteration minerals associated with IOCG deposits that appear to record a systematic response to changing fluid temperatures and fluid-rock interaction (e.g., [19]). Finally, IOCG deposits are economic sources of other elements like uranium, iron, lead, zinc, silver, bismuth and rare earth elements, in addition to the main ore forming elements copper and gold [2,3,4]. Diversity is indeed a hallmark of the IOCG deposit class.
Olympic Dam is a highly significant deposit containing the world’s fifth largest copper and third largest gold resource and is the world’s largest uranium deposit [20]. The deposit lies within a region of the eastern Gawler Craton known as the Olympic Cu-Au Province, a metallogenic province of ~600 km strike length (Figure 1) [21]. There are now numerous studies on the geology of individual deposits within the Olympic Cu-Au Province [22,23,24,25], including a number of papers related to Olympic Dam itself (e.g., [20,26,27,28,29]), and several reviews of the broader geodynamic setting within which these deposits formed (e.g., [30,31,32]). Potential exists for further discovery of significant mineral deposits in this region [33], however, as the Olympic Cu-Au Province is almost entirely covered by Neoproterozoic and Phanerozoic sediment, exploration in this region remains a challenging task.
The purpose of this paper is to provide a review of the geology of the Olympic Cu-Au Province. The approach taken here is to describe this IOCG district with reference to four major themes:
  • the architecture of the lithosphere in the Gawler Craton and the eastern Gawler Craton in particular, in order to understand the broad structural architecture within which the IOCG mineral system developed;
  • the geodynamic evolution of the major tectonic event during which the IOCG deposits formed that provided the energy drivers and structural control on the localization of the mineral system;
  • the mineral and chemical footprints of the Olympic Dam mineral system in the upper crust, which are significant for exploration vectoring; and,
  • the character of the cover successions overlying the prospective Proterozoic basement in the region, since understanding the cover geology is necessary for effective exploration and because they are themselves host to copper mineralisation.
In addition, the mineral potential of this region is reviewed with reference to modelling conducted using mineral systems and geographic information systems (GIS) approaches. A brief description of the lithostratigraphy of the Gawler Craton and relevant adjacent terranes of southern Australia, the Curnamona Province and Adelaide Rift Complex is first provided.
The Olympic Cu-Au Province remains an attractive destination for mineral exploration. Assisted by the increasing data richness, this province can be viewed as a natural laboratory with which to study a world class mineral system (e.g., [34,35,36]). This mineral system is a result of the interplay between an enriched lithospheric mantle, lithospheric-scale heat and mass transfer, intense regional fluid flow and the preservation of mineralisation as a result of a subdued post-mineralisation evolution dominated by burial beneath sedimentary cover.

2. Geological Setting

The Gawler Craton and Curnamona Province form the core of a broader geological entity, known as the South Australian Craton [37]. Prior to opening of the Southern Ocean as a result of Cretaceous rifting, the South Australian Craton was connected to the Terrie Adelie Craton and likely related terranes of Antarctica, forming a broader terrane known as the Mawson Continent (e.g., [38,39]). During the Proterozoic it is likely that the Mawson Continent itself was connected to portions of Laurentia in varying configurations associated with the continental amalgamation of Nuna (e.g., [40]). There are also potential links between the Archean portions of the Gawler Craton and other terranes of Nuna including the Sask Craton based on event timing and style of reworking in the late Archean and early Paleoproterozoic (e.g., [41,42]).

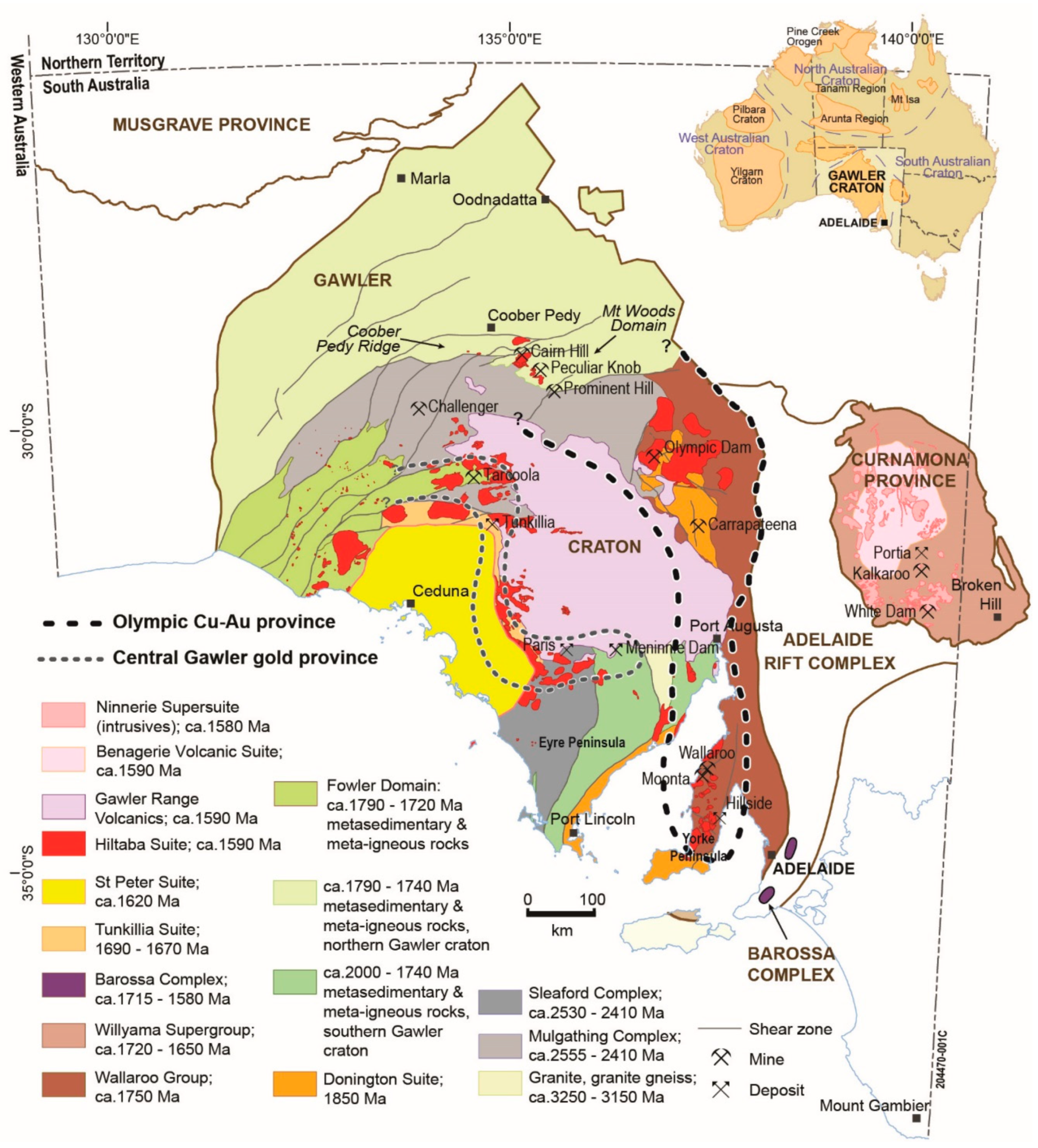

The Gawler Craton (Figure 1 and Figure 2) contains Meso-Neoarchean-earliest Paleoproterozoic basement complexes that comprise ca. 3150 Ma granites and granite gneisses [43], along with ca. 2555–2480 Ma supracrustal sequences that include mafic and felsic volcanics with possible continental arc affinities [44,45] and mafic and ultramafic volcanics including a ca. 2520 Ma komatiite succession [46]. These basement complexes are overlain by Paleoproterozoic volcano-sedimentary successions deposited between ca. 2000 and ca. 1740 Ma (e.g., [47]). Intrusive magmatism and associated localized deformation occurred at ca. 1850 Ma although deposition of the volcano-sedimentary rocks was terminated during a major tectono-metamorphic event at ca. 1735–1690 Ma (Kimban Orogeny [30]). Post-orogenic magmatism [48] and localized basin formation occurred subsequent to this event [49]. The Paleoproterozoic to Mesoproterozoic transition was a time of significant magmatism, with the juvenile, arc-related intrusions of the ca. 1635–1604 Ma St Peter Suite forming the in south-western region of the Gawler Craton [50,51] and the widespread bimodal volcanic and intrusive activity during formation of the ca. 1595–1575 Ma Gawler Range Volcanics and Hiltaba Suite [52,53]. The latter event was associated with regionally partitioned deformation and metamorphism that is generally referred to as the Kararan Orogeny [30,54]. This major orogenic event was widespread across the Gawler Craton and has been shown to include examples of ultra-high temperature metamorphism in the northern Gawler Craton [55] and deformation during magmatic emplacement in the southern Gawler Craton [56].
The ca. 1595–1575 Ma event also saw the formation of the IOCG deposits in the Olympic Cu-Au Province and a series of gold-dominated, structurally controlled mesothermal deposits grouped together as the Central Gawler Gold Province (Figure 1) [57,58]. Reworking along major shear zones together with localized deformation and metamorphism occurred subsequently between ca. 1515 Ma and ca. 1450 Ma [59,60,61,62]. Overlying the eastern region of the Gawler Craton are continental sediments of the Pandurra Formation, a remnant of the Carriwerloo Basin deposited at ca. 1450 Ma (Figure 3) [52,63].
The Curnamona Province is dominated by metasedimentary and meta-igneous units of the Willyama Supergroup, ca. 1720–1640 Ma. The Willyama Supergroup was largely deposited in an intracontinental rift setting and accompanied by mafic and felsic magmatism [65] during which exhalative-type processes resulted in formation of the Broken Hill Zn-Pb-Ag orebody (e.g., [66,67]). These packages were intruded by granites of the Ninnerie Supersuite and in the western regions overlain by bimodal volcanics of the Benagerie Volcanic Suite during the early Mesoproterozoic, ca. 1595–1575 Ma [68]. These early Mesoproterozoic suites have geochemical and temporal affinities with the Hiltaba Suite and Gawler Range Volcanics of the Gawler Craton (e.g., [69]). Formation of these magmatic rocks was broadly synchronous with deformation and metamorphism during the Olarian Orogeny [70]. This event appears to have begun some time prior to intrusion of the oldest granites of the Ninnerie Supersuite, with monazite and early burial metamorphism occurring at ca. 1620 Ma [71] potentially coupled with formation of early hydrothermal replacement Cu-Au mineralisation [72,73]. Nevertheless, the main Cu-Au deposits of the Curnamona Province such as the Kalkaroo deposit appear to have formed at ca. 1590 Ma, and therefore at broadly the same time as those of the hematite-group IOCG systems of the Olympic Cu-Au Province (see also [32,73]).

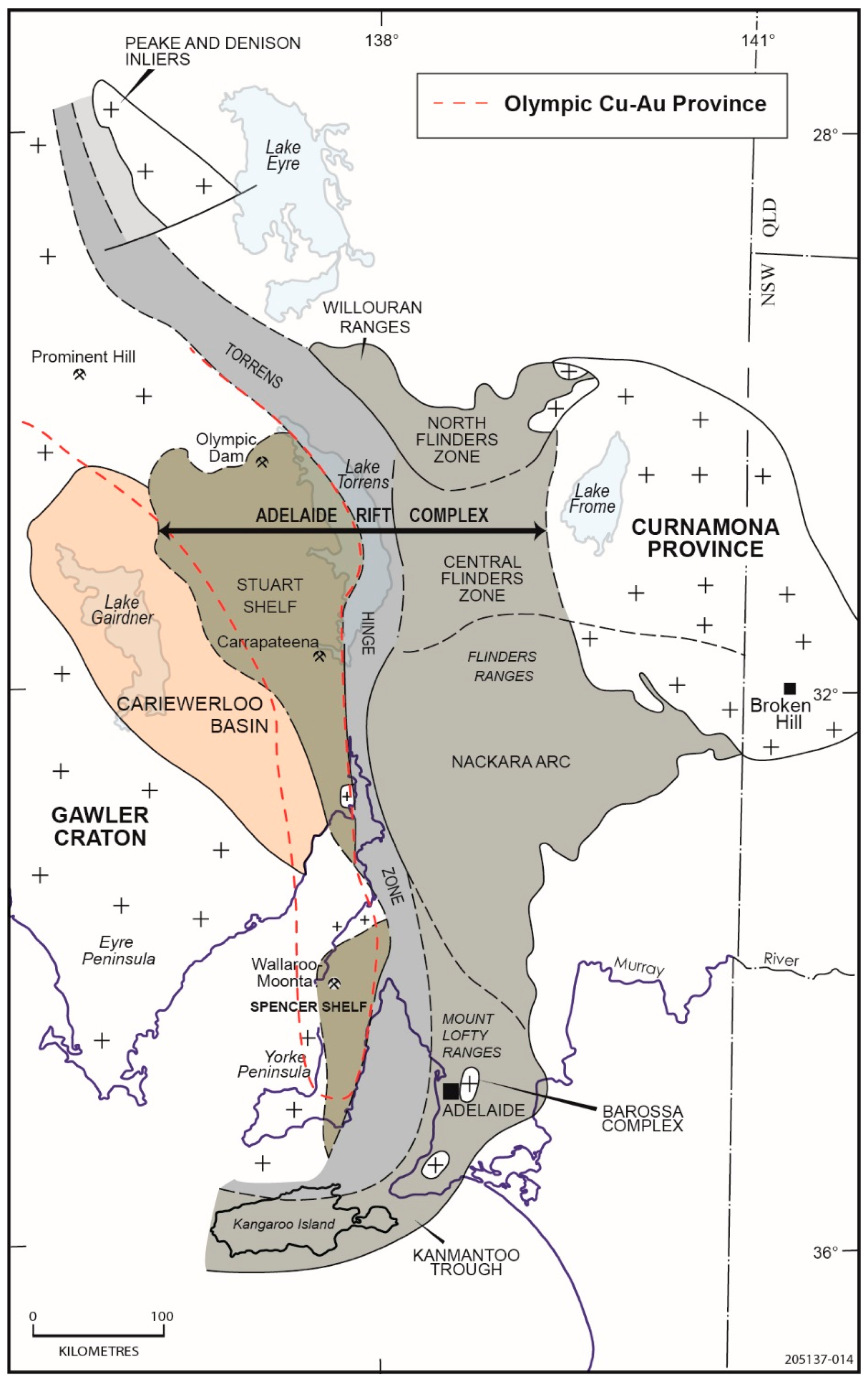

The Adelaide Rift Complex, or Adelaide Geosyncline, comprises a series of rift and sag basins that initiated during the Neoproterozoic at ca. 820 Ma and continued into the early Cambrian [74]. This rifting was related to break-up of Rodinia [75]. A wedge of Neoproterozoic to Cambrian platform cover overlies the eastern Gawler Craton and is termed the Stuart Shelf, with the Torrens Hinge Zone being the structural corridor separating the platform sediments from the main rift complex [76] (Figure 3).
Crystalline basement to the Adelaide Rift Complex, known as the Barossa Complex, is of similar age and composition to portions of both the Gawler Craton and Curnamona Province, supporting interpretations of their former juxtaposition [77]. The Barossa Complex includes both metasedimentary and meta-igneous units. Metasedimentary units were deposited at ca. 1730–1655 Ma and felsic intrusions have been dated at ca. 1720 Ma (Figure 2) [78]. Peak granulite facies metamorphism occurred at ca. 1590 Ma, with conditions of approximately 8–9 kbar and 800–850 °C synchronous with the Kararan Orogeny of the Gawler Craton and Olarian Orogeny of the Curnamona Province [79].
Early Cambrian extension in the southern region of the Adelaide Rift Complex led to formation of a deep basin, the Kanmantoo Trough, likely as a related to back-arc extension inboard of a Cambrian subduction system [81,82]. Deposition was terminated by the Delamerian Orogeny at ca. 510–480 Ma, which resulted in regional-scale fold-thrust systems, variable degrees of high temperature-low pressure metamorphism and extensive granite intrusion particularly in the south [83,84]. While the central axis and eastern regions of the Adelaide Rift Complex was affected by the Delamerian Orogeny, sedimentary units of the Stuart Shelf remained largely undisturbed, likely shielded by rigid Gawler Craton lithosphere during regional compression [82].
The majority of the Gawler Craton and Curnamona Province lie buried beneath a veneer of Phanerozoic sedimentary rocks that include successions of the Mesozoic Eromanga Basin [85], the Eocene-Miocene Eucla Basin in the south-east [86] and Plio-Pleistocene aeolian dunefields.

3. Lithospheric Architecture of the Olympic Cu-Au Province

Continental-scale seismic tomography datasets reveal the lithosphere-asthenosphere boundary beneath the Gawler Craton reaches maximum thicknesses of 180 to 220 km, with the thickest portion occurring beneath the central Gawler Craton [87]. The depth of the Moho is variable across the Gawler Craton. In the central Gawler Craton, the Moho lies at ~18 s two way time (TWT), ~54 km, yet is considerably shallower in the northern Gawler Craton ~12 s TWT or ~36 km. This difference is related to offsets across north-dipping trans-crustal faults [88]. In the eastern Gawler Craton, to the immediate southwest of the Olympic Dam, the Moho lies at ~13 s TWT, ~39 km and becomes slightly deeper to the northeast where it is imaged at ~14 s TWT or ~42 km [89]. Seismic reflection data from a section across the Olympic Dam (Figure 4) yield key observations on the crustal structure of the region. The original processed seismic data shows an offset in the Moho beneath Olympic Dam with slightly thicker crust to the north of the deposit. The Moho offset suggests Olympic Dam lies above a large crustal-scale fault zone.

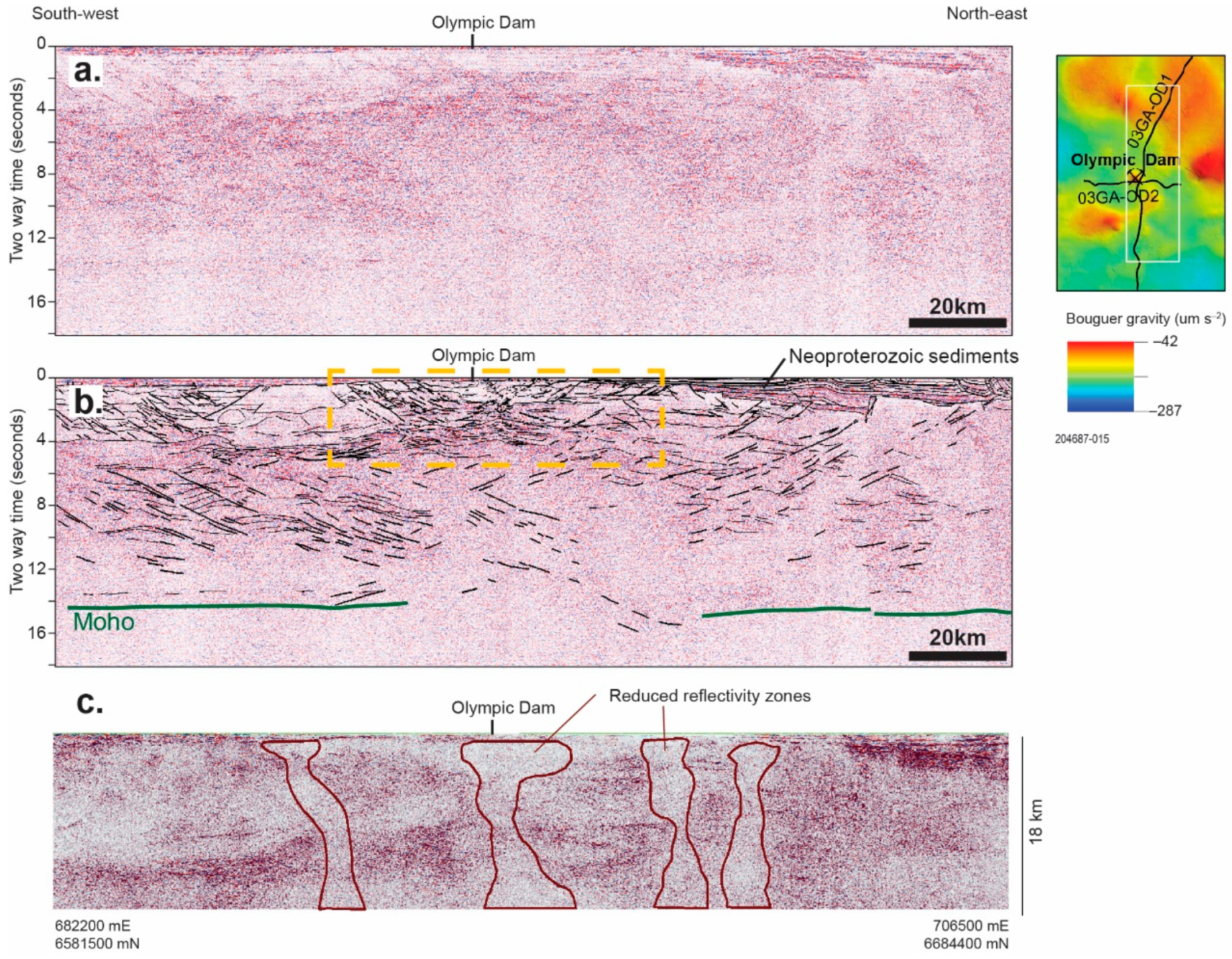

These seismic data also reveal a zone of lower amplitude reflectivity, or ‘bland zone’, in the region immediately beneath Olympic Dam extending from a depth of approximately 20 km to the base of the crust. These observations suggest that the crust directly beneath Olympic Dam has been subject to a tectonic process that has modified the seismic character of the rock packages in the lower crust. The most obvious candidates for this type of reworking are fluid and or magmatic reworking [89,90].
Reprocessing of the original seismic data has been undertaken with a method whose processing technique emphasizes higher frequency variations in the seismic reflection data [90]. This type of processing has the effect of sharpening the output image and was designed enhance upper crustal features. This resulting processed image indicates the presence of sub-vertical breaks in the reflectivity structure in the upper crust (Figure 4c) [90]. These subvertical breaks in seismic character are interpreted to be caused by pervasive textural destruction of the crust at the scale of >15 km thickness and 5–10 km wide. Processes such as migration of fluids such as hydrothermal fluids or partial melt associated with localized deformation could result in this type of texture and may indicate the specific channels through which fluids that caused the IOCG deposits were channelized in the Mesoproterozoic.
At the lithospheric scale, seismic tomography data identify distinct zones of variable S and P wave speed in the Gawler Craton mantle [32]. The variable wave speeds indicate compositional heterogeneity at the broad scale in the Gawler Craton mantle. Beneath the Olympic Cu-Au Province the mantle has unusually high ratios of compressional- to shear-wave velocities (Vp/Vsh > 1.80), which Skirrow, et al. [32] interpreted to reflect the presence of peridotite mantle beneath this region comprising hydrated olivine (e.g., clinohumite), garnet and phlogopite. The presence of hydrated mantle lithosphere is evidence for the focusing of metasomatic alteration of pre-existing, anhydrous mantle lithosphere in the region of the Olympic Cu-Au Province.

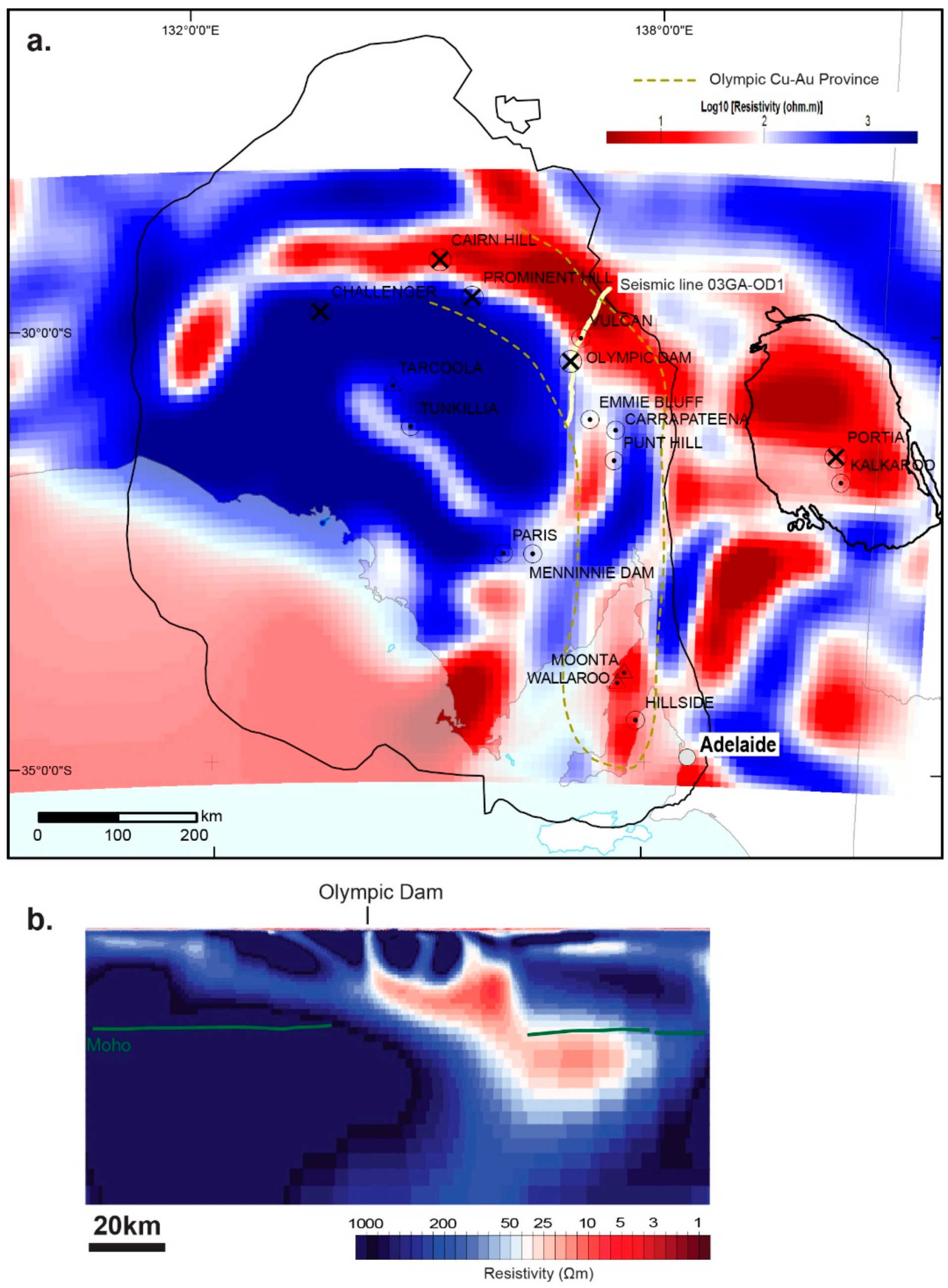

Compositional heterogeneity of the Gawler Craton lithosphere is also evident in regional magnetotelluric data. Large regions of the central and western Gawler Craton have electrically resistive mantle lithosphere, with conductivity values (>1000 Ωm) typical for Archean lithosphere (Figure 5) [91,92,93,94]. In contrast, a north-west-south-east oriented electrically conductive zone occurs at depths of ~150–100 km beneath the central-eastern Gawler Craton, with the region to the north-east of Olympic Dam being more conductive than the region to the south-west [93].
The Gawler Craton IOCG deposits appear to be linked to a major crustal and indeed lithospheric scale boundary. This boundary lies along a north-west trend and its presence is confirmed by changes in mantle and lower crustal conductivity, gradients in seismic wave speed, variations in satellite gravity and isotopic data from magmatic rocks (e.g., [32,95,96,97]). Lithospheric scale boundaries are critical elements of mineral systems as they are typically weaker and reactivate during strain, thereby providing fluid and mass conduits that connect the mantle to the crust (e.g., [98,99]).
Evidence for the focusing of fluids and or magmas related to the IOCG province comes from long period and broadband magnetotelluric surveys along the 03GA-OD1 seismic traverse (Figure 5b) [93,100]. Resistivity models along this traverse reveal subvertical zones of enhanced conductivity extends into the upper crust, with progressively narrower zones of high conductivity appearing to connect with several known IOCG prospects and deposits, including Olympic Dam [90,92,100]. These subvertical structures extending into the upper crust mimic the destruction of seismic texture recorded in the reprocessed seismic images (Figure 4c) [90]. In this respect, this lithospheric boundary appears to have set up the architecture within which the IOCG systems of the Olympic Cu-Au Province formed, with related structures channeling magmas and associated metasomatic fluids into the middle and upper crust during the mineralizing event.

4. Geodynamic Setting of the Olympic Cu-Au Province

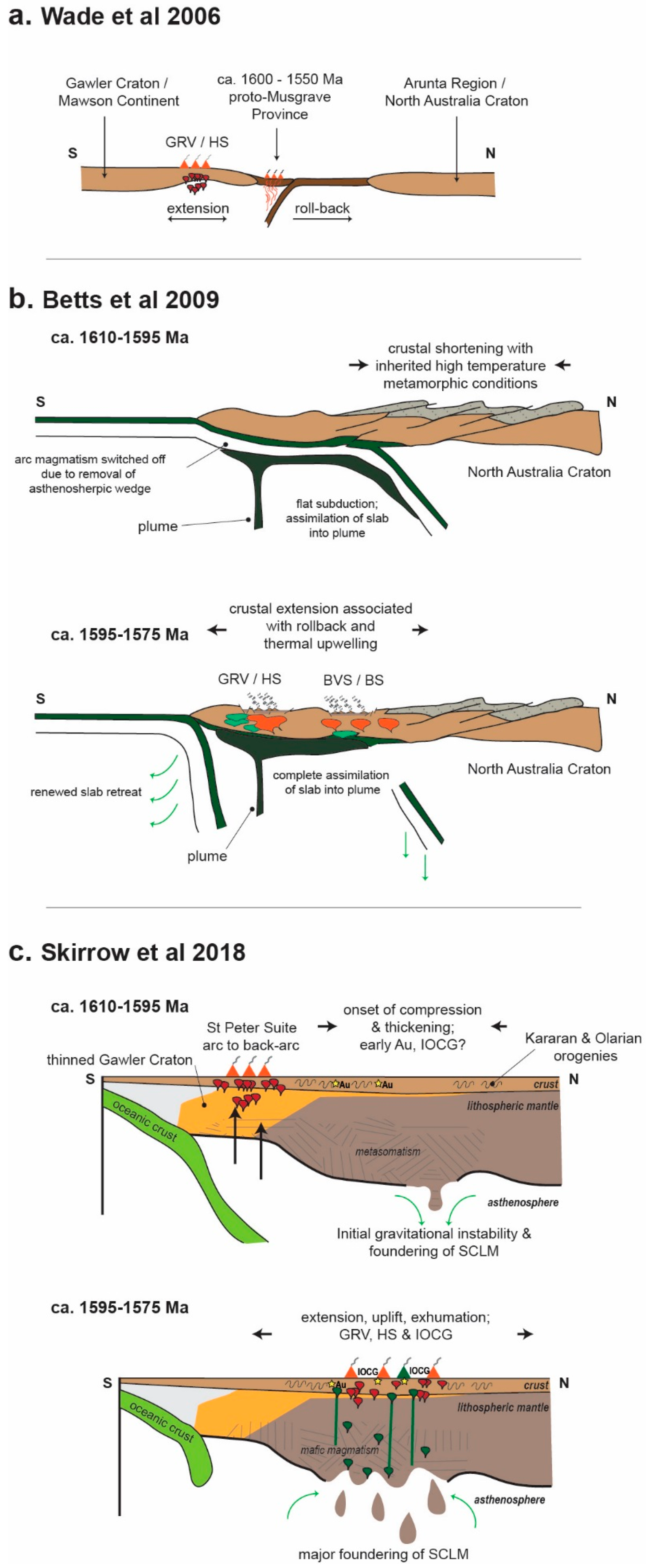

The mineralisation process across the Olympic Cu-Au Province was linked to widespread magmatism, metamorphism and deformation across the Gawler Craton and Curnamona Province during the Kararan and Olarian orogenies over the broad time interval ca. 1610–1575 Ma. The geodynamic drivers for these events are poorly constrained. The association between extensive bimodal A-type magmatism, high-temperature metamorphism, and localized compressional deformation, is suggestive of an intracontinental setting for this time period in the Gawler Craton and Curnamona Province [70]. Indeed, many models for the geodynamics of these events emphasize mantle underplating or mantle plume activity as a key mechanism [52,54,96,102]. In these models, a mantle plume underplate the base of the lithosphere causing intrusion of mafic magmas into the lower crust resulting in extensive crustal melting.
Recognition of both compressional deformation and high temperature metamorphism associated with this magmatic event in the Gawler Craton and Curnamona Province has led to other models that invoke switches in tectonic mode from compression to extension driven by far-field subduction zones (e.g., [30,31,32]). Therefore, in many reconstructions the Gawler Craton and Curnamona Province are placed in a continental back arc setting in which continental crust is considered to be mechanically connected to a nearby subduction system. For example, Wade, et al. [103] interpreted ca. 1640–1550 Ma magmatic rocks in the Musgrave Province to have ‘arc-like’ affinities. In their model, the Gawler Craton was placed distal to this arc, and inferred back arc extension linked to subduction dynamics at this northern margin could have been responsible for asthenospheric upwelling beneath the Gawler Craton leading to the voluminous magmatic events associated with the Hiltaba Suite and Gawler Range Volcanics (Figure 6a).
Betts, et al. [104] also propose a relationship between subduction and magmatism. In their model, they identify the ca. 1620 Ma St Peter Suite as being indicative of a subduction zone having existed to the south-west of the Gawler Craton (Figure 6b). Betts, et al. [104] suggest that the interaction of this subduction zone and a mantle plume caused tearing of the down-going slab and a switch in tectonic mode from compression to extension in the overriding plate. In this model, the result of these geodynamic processes was the extensive mantle and crustal melting in the Gawler Craton and Curnamona Province over the interval 1595–1575 Ma.
A continental back-arc setting for the Hiltaba Suite-Gawler Range Volcanics magmatism was also invoked by Skirrow, et al. [32] (Figure 6c). In this model the juvenile magmatism of the ca. 1620 Ma St Peter Suite is cited as a key piece of evidence for subduction prior to the Hiltaba Suite-Gawler Range Volcanics magmatic event. In addition, the model suggests subduction was linked to a process of foundering, or delamination of the sub-continental lithospheric mantle beneath the Gawler Craton. Skirrow, et al. [32] argue that delamination driven by gravitational instabilities of the metasomatized, eclogitic root beneath the Gawler Craton provides a means to deliver high heat flow to the base of the crust and drive extensive crustal melting (Figure 6c).
At the global scale, the Gawler Craton and Curnamona Province were part of the Mawson Continent, which was part of the Nuna supercontinent during the Mesoproterozoic (e.g., [105,106]). Pehrsson, et al. [40] demonstrated that amalgamation of Nuna over the period ca. 2200 Ma and 1780 Ma is dominated by interior-type, oceanic closure orogenesis and related magmatism and metallogeny. A subsequent switch to more exterior-type, extensional dominated orogenesis during the protracted break-up phase of Nuna is a global phenomenon, likely a significant factor in the transfer of metals and fluids from the fertile subcontinental lithospheric mantle into the upper crust [40]. IOCG and unconformity-related uranium deposits are more common in such tectonic settings. Examples of IOCG-related mineralisation districts include the Olympic Cu-Au Province, Mt Isa Terrane and the Wernecke Supergroup. Examples of unconformity-related uranium deposits are the Athabasca and Kombolgie districts. Therefore, descriptions of IOCG mineral systems being localized into back arc, intracontinental settings such as that given by Groves, et al. [3] are consistent with the geodynamic setting inferred by many authors for the Olympic Cu-Au Province.
Regardless of the specific geodynamic setting that has been proposed for the Olympic Cu-Au Province and the broader Gawler Craton-Curnamona Province at the beginning of the Mesoproterozoic, the key parts of the geodynamic system that have been consistently identified are:
  • Metasomatized subcontinental lithospheric mantle beneath the Gawler Craton in general, and the eastern Gawler Craton in particular [26,32,96];
  • High-temperature igneous intrusion as manifest by the Hiltaba Suite and related bimodal Gawler Range Volcanics and Benagerie Volcanic Suite [53,70,107,108];
  • Synchronous deformation activity that was largely focused along the margins of the Gawler Craton and Curnamona Province in regions such as Yorke Peninsula [56], northern Gawler Craton [55,109] and the southern Curnamona Province such as around the Broken Hill district (e.g., [71,72,110]);
  • The presence of volcano-sedimentary depocentres associated with volcanic activity [111,112];
  • The pre-Mesoproterozoic crustal architecture of the Gawler Craton which was such that the region of the Olympic Cu-Au Province had largely escaped earlier high-temperature metamorphic and deformation events [64].
In combination, these factors appear to have primed the mantle and crust for the IOCG mineralisation event. A metasomatized mantle appears to have been significant as it was both able to melt preferentially and to also potentially carry metals into the crust [26]. Metasomatism and subsequent plume activity has been discussed in the context of Au-rich metallogenic provinces [113], and it is likely that similar enrichment processes were active in the Olympic Cu-Au Province. In addition, the presence of fluorine in the metasomatized mantle source region and in magmatic rocks derived from this mantle source was likely highly important for both viscosity of silicic magmas [53,114] and also for the metal carrying capacity of hydrothermal fluids derived from these magmas [115]. The heat transfer from mantle to the crust as a result of extensive mafic intrusion resulted in both felsic magmatism by fractional crystallization from mafic sources, but also to widespread crustal melting and magma derivation [52]. Magmatic-derived fluids are indicated as sources of at least some components of the IOCG mineralizing system (e.g., [116,117]).
In the eastern Gawler Craton the upper crust was dominated by volcano-sedimentary successions of the Wallaroo Group. This succession includes clastic and chemical sediments such as carbonates, together with mafic and felsic volcanics [118]. This type of lithological association can reasonably be expected to be reactive during emplacement of magmas and related fluid systems and to also have carried their own fluid and metal inventory [64]. Furthermore, the presence of rare scapolite suggests a possible evaporitic component within the Wallaroo Group, which may have been significant in providing a source for some high salinity fluids [119].
Deposition of huge volumes of volcanic rocks in the Gawler Range Volcanics and Benagerie Volcanics was localized by regional fault systems interacting with the pre-existing surface topography. Sedimentary basins also developed in association with these fault systems [112,120] and these upper crustal, fluvial to lacustrine deposits are implicated in the fluid mixing models for high-level hematite-dominant IOCG deposits such as Olympic Dam [111]. The broadly synchronous deformation activity recorded in the Kararan and Olarian orogenies could have been significant in setting up the fault architecture being a driver critical in the location of subsequent IOCG deposits. Indeed, the localization of the Olympic Dam deposit into a pre-existing Hiltaba Suite granite requires a structural control on the localization of the hydrothermal system [31].

5. Mineral and Chemical Footprints of Fluid Flow in the Olympic Cu-Au Province

5.1. Alteration Mineralogy and Mineral Assemblages

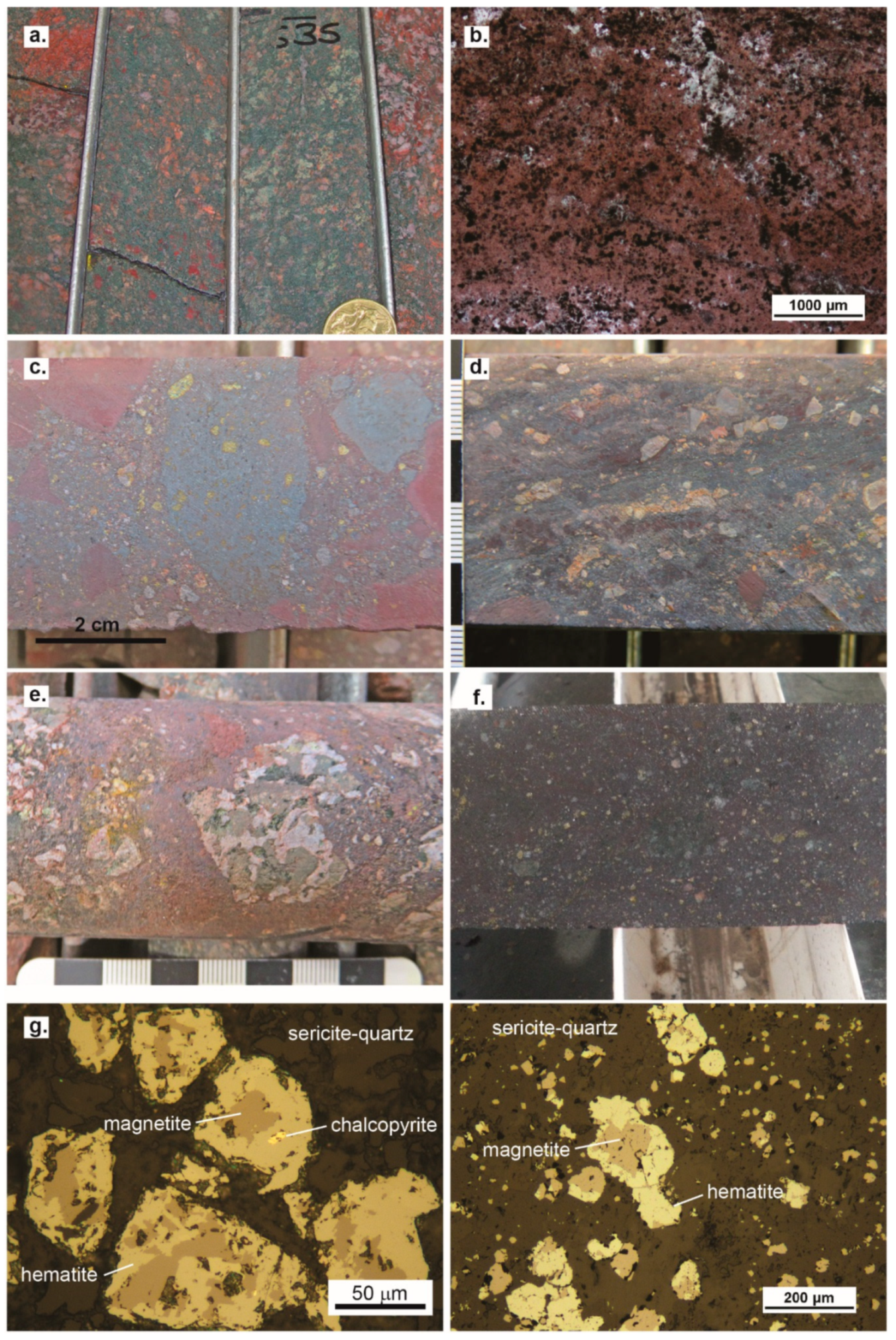

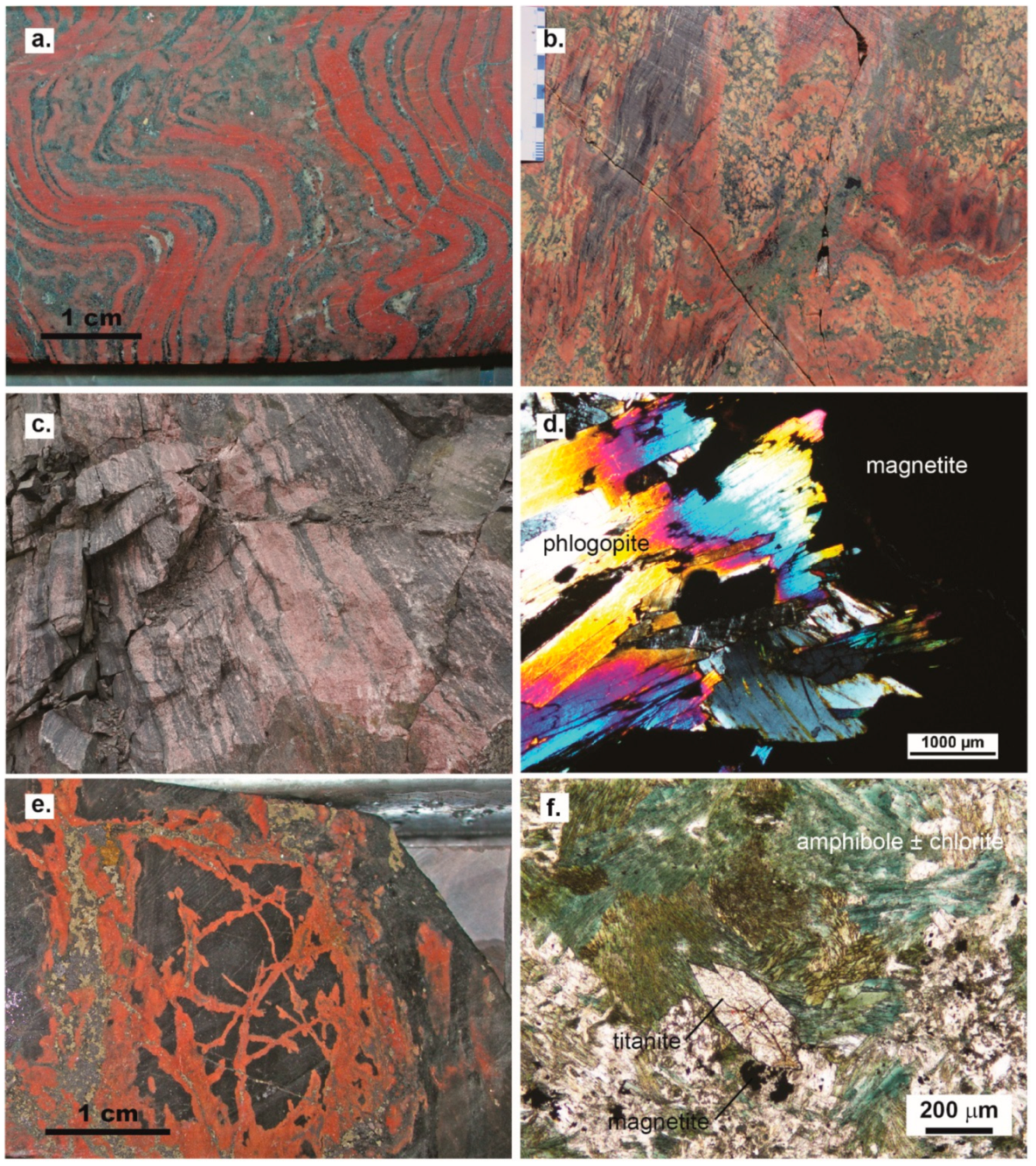

In common with many highly endowed metallogenic provinces across the world, alteration minerals are a near ubiquitous feature of the geology of the Olympic Cu-Au Province. The regional scale of the alteration mineralogy present across the eastern Gawler Craton attests to the large extent of the hydrothermal fluid system established during this event. Alteration minerals commonly encountered include chlorite, white mica, K-feldspar, albite, amphibole, biotite, garnet, pyroxene, carbonate, sulphides, magnetite and hematite. While there is quite a range of alteration minerals, they form relatively coherent groupings or alteration assemblages, related to the evolution of fluids that predominantly reflect fluid temperature and the composition of the protolith. Key papers that discuss the alteration systematics include Gow, et al. [117], Skirrow, et al. [21], Bastrakov, et al. [116] and Conor, et al. [119]. These, together with the work of Montreuil, et al. [121] and Corriveau, et al. [19] on alteration facies in IOCG systems in the Great Bear Zone of western Canada provide a framework within which to understand the mineralogical composition of alteration systems of the Olympic Cu-Au Province. These alteration mineral assemblages can be used as part of an integrated petrological and geophysical approach to mineral exploration targeting (e.g., [27,122,123]).
Skirrow, et al. [124] and Skirrow, et al. [21] recognize four main alteration assemblages across the Olympic Cu-Au Province. The first comprises magnetite-albite plus calc-silicate minerals such as actinolite and or clinopyroxene along with quartz, pyrite, apatite, titanite, chalcopyrite, pyrrhotite, scapolite and allanite (Figure 7a,b). This alteration is abundant in the Moonta-Wallaroo and Mt Woods districts. The second alteration assemblage is predominantly found in metasedimentary rocks of the Moonta-Wallaroo and Mt Woods regions and is dominated by magnetite-biotite (Figure 7c,d) or magnetite-amphibole and often associated with pyrite, chalcopyrite, albite, apatite, monazite and tourmaline. The third alteration assemblage is K-feldspar-dominant, and includes abundant K-feldspar together with magnetite and earlier formed calc-silicate minerals (Figure 7e). This K-feldspar alteration may completely replace earlier formed albite in the Olympic Dam district [116] or occur as locally dominant zones in the Moont-Wallaroo and Mt Woods regions [23,119]. The K-feldspar alteration is also associated with amphibole, titanite, chlorite and biotite (Figure 7f) and may also be associated with sulphides including pyrite, chalcopyrite and pyrrhotite.
In addition to these iron oxide-dominant alteration assemblages, there are also skarn alteration assemblages in some regions of the Olympic Cu-Au Province, in particular the region around the Punt Hill prospect and the Hillside deposit [23,119,125]. In these examples, typical prograde skarn assemblage predominantly composed of garnet and pyroxene are overprinted by a retrograde assemblage of amphibole, calcite, talc, chlorite, K-feldspar, hematite, fluorite, apatite, barite, anhydrite, epidote, tourmaline and titanite (Figure 8a–d) [23,123,125]. Sulphides including chalcocite, bornite, chalcopyrite, sphalerite, galena, pyrite along with native gold are also described from the region [123]. Garnet in these systems is predominantly Ca-Fe-rich andradite and grossular and occurs in both prograde and retrograde skarn alteration assemblages, although the REE signature changes from a heavy REE-dominant prograde skarn to light-REE-enriched retrograde skarn [23]. Significantly, skarn alteration assemblages are in places overprinted by hematite, sericite, chlorite and sulphides. Skarn alteration across the Olympic Cu-Au Province is predominantly related to high temperature fluids interacting with probable calcareous protoliths of the Wallaroo Group.
The fourth alteration assemblage defined by Skirrow, et al. [21] is dominated by hematite-sericite-chlorite (Figure 9a,b) and is associated with carbonate, pyrite, chalcopyrite, bornite, chalcocite along with barite, fluorite, apatite, uranium and rare earth element (REE) minerals [20,117,127,128,129]. This hematite-rich alteration is most commonly manifest as complex breccia systems in which brecciation and hematite-sericite-chlorite alteration are synchronous and multiphase. Hematite-breccias commonly containing more than 50% iron oxide are present at the Olympic Dam, Prominent Hill and Carrapateena deposits and are widespread across the region at numerous prospects such as Vulcan (Figure 9c–f). Importantly, hematite often is a pseudomoph after magnetite (Figure 9e,f), indicating a change in redox state of the main iron oxide component, potentially during the interaction with oxidized fluids [117].
The spectrum of alteration assemblages can be resolved into groupings that represent the changing fluid conditions at which they form (Figure 10). Albite represents the highest temperature endmember, and typically forms very early in the mineral paragenesis. Widespread albite alteration is a common feature of the Olympic Cu-Au Province as well as the Curnamona Province [21,27,74,131], and is also a feature of alteration assemblages in Mt Isa and Great Bear districts [8,19]. This early sodic alteration is an important stage that can influence subsequent alteration as a result of changes in rock volume and porosity and due to the fluxing of other rock components such as magnesium and other metals, including copper and gold [2,8,19,131].

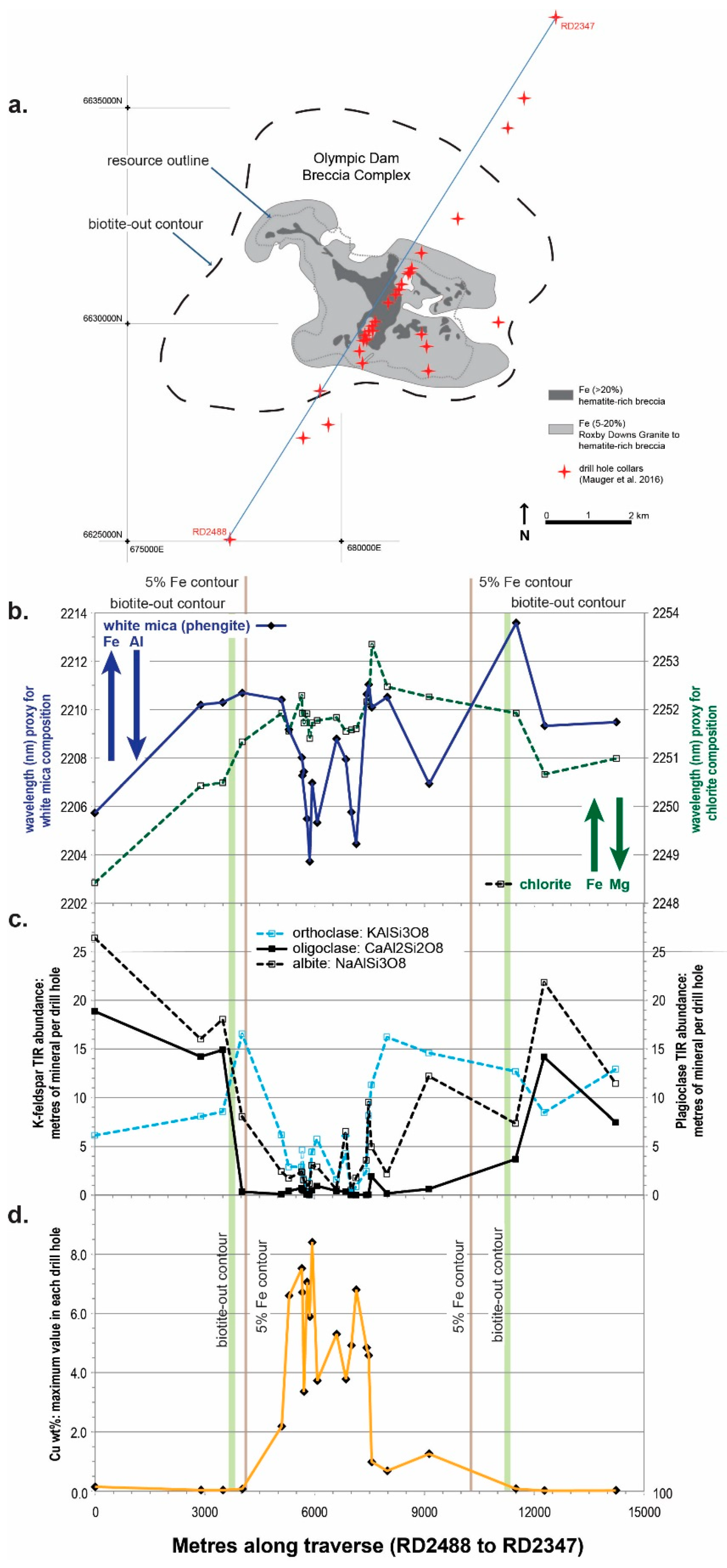

A key observation from a recent deep drill hole beneath the Olympic Dam deposit is that beneath the hematite-breccia systems of Olympic Dam is magnetite and apatite-rich alteration within the host Hiltaba Suite granite [28]. This demonstrates that the earlier magnetite-alteration is spatially associated with the hematite-dominant IOCG systems. In some examples, the magnetite-rich alteration itself contains Cu and Au and has been a source of ore at the Cairn Hill deposit [132].
At the Hillside deposit, geothermometry from Zr-in-titanite suggests temperatures around 600 °C for prograde hydrothermal fluids within skarn alteration, which is indicative of a magmatic fluid source [23]. Likewise, the spatial correlation between distal and proximal skarn assemblages based on garnet-pyroxene ratios in the Punt Hill region, suggest hydrothermal fluids could have emanated from large granitic bodies that intrude below Wallaroo Group metasedimentary rocks [123]. Analysis of fluid inclusions suggest fluids associated with magnetite alteration were hypersaline and CO2-bearing, however they typically have low sulphur and moderate copper concentrations [116]. Therefore it appears that early magnetite-rich and skarn alteration assemblages derived from a higher temperature, likely magmatic source [116].
In large regions of the Olympic Cu-Au Province magnetite-rich alteration is overprinted by hematite-rich alteration assemblages [20,25,130,133]. Oxygen isotope studies from the Olympic Dam deposit implicate mixing of low temperature, meteoric fluids and higher temperature magmatic waters [134,135]. Fluid inclusions also suggest oxidized, lower temperature (200 to 300 °C) SO4-rich brines were responsible for the hematite overprint [116]. This is consistent with a two fluid model for the formation of the hematite-rich IOCG endmember deposits, in which a second phase of sulphur-rich, oxidized fluids reacted with the early magnetite-bearing assemblage to produce hematite plus copper sulphides [116,117]. Indeed, the early formed magnetite likely formed an important reactant with any secondary oxidized fluids and may be a key ingredient in the localization of subsequent copper mineralisation [116].
An important outcome of this summary of the alteration assemblages is the recognition that the full spectrum of alteration types associated with IOCG systems are present in the Olympic Cu-Au Province. In this respect, there are similarities between the alteration styles and fluid evolution of the Olympic Cu-Au Province and districts such as the Great Bear magmatic zone, Canada. In the Great Bear district progressive evolution of magmatic-derived fluids formed early albite-rich and magnetite-rich alteration to hematite-bearing potassic-iron, or epidote-bearing calcic or magnesian alteration [136]. Importantly, as in the Great Bear examples, the Olympic Cu-Au Province demonstrates juxtaposition of different alteration facies, for example the hematite-rich alteration overprinting skarn assemblages in the example of Hillside deposit [119]. Key mechanisms for this type of overprinting include progressive fluid evolution through fluid-rock interaction, but also as a result of rapid tectonic controls on fluid pressure and chemistry such as via uplift [see discussion in 31].
While there is overprinting of high- by low-temperature alteration facies within the individual deposits or prospects across the Olympic Cu-Au Province, there remains a broad spatial clustering of the various alteration assemblages. For example, magnetite-dominant alteration is most common in the north and south of the Olympic Cu-Au Province, as evidenced by the Cairn Hill deposit in the Mount Woods Domain and the Moonta-Wallaroo and Hillside deposits in the south [21,119]. In the Mt Woods Domain, high temperature metamorphism is recorded at broadly the same time as the timing of low temperature hematite-rich mineralization and alteration at deposits such as Olympic Dam. Similar mid-crustal deformation and metamorphism is also recorded in the Moonta-Wallaroo district of Yorke Peninsula [21,130]. In contrast, Olympic Dam and vicinity preserves hematite-rich sericite-chlorite alteration systems, for example the Acropolis, Vulcan and Wirrda Well prospects [129,130]. Prominent Hill preserves similar alteration and mineralisation being a hematite-dominated IOCG system and defines a northerly extent of the upper crustal IOCG systems of the Olympic Cu-Au Province.
While there is this broad spatial clustering, it is critical to recognize that these spatial features are indicative of the paleo-erosion surface across the Olympic Cu-Au Province. In this respect, the preservation of hematite-rich IOCG systems co-located with preserved upper crustal rocks such as the Gawler Range Volcanics indicates that erosion in such regions subsequent to mineralisation has been relatively limited. In contrast, the magnetite-rich IOCG systems likely represent a deeper crustal level that has been brought to the paleo-erosion surface by exhumation. This is most obvious in the Mt Woods Domain, where the Southern Overthrust has juxtaposed the mid-crustal rocks against upper crustal rocks to the south, the latter of which include the host rocks to the Prominent Hill deposit [22,137,138]. The confirmation of magnetite-bearing assemblages at depth beneath Olympic Dam [28,128] demonstrates the significance of post-mineralisation exhumation and erosion for understanding the alteration styles preserved in a given region. The deeper the exhumation, the more likely magnetite-rich alteration will be preserved rather than hematite-rich alteration.
Mineralogical trends related to ore systems are influenced by protolith, whereby fluid interaction with metasedimentary rocks of the Wallaroo Group tend to display a much wider array of alteration mineralogy than granitic or felsic volcanic protoliths. At Olympic Dam, the host granite, the Roxby Downs Granite, is selectively and progressively altered towards the centre of the orebody (Figure 11). This alteration pattern is a useful guide for proximity to hematite-rich orebodies in the Olympic Cu-Au Province. Hyperspectral imaging of drill core shows a general increase of sericite, chlorite and hematite towards the deposit, and that sericite and chlorite become progressively more Fe-rich towards the centre of the orebody [27]. Feldspars of the Roxby Downs Granite are also variably altered, such that igneous feldspar (perthite) is overprinted by albite (distal) and K-feldspar (proximal), igneous plagioclase becomes completely replaced by albite, sericite and Ba-rich K-feldspar [29], while igneous biotite is firstly replaced by chlorite around the orebody and completely destroyed within it [20]. Importantly, the degree of albite alteration increases away from the orebody, while towards the centre of the orebody, red-stained, Fe-rich K-feldspar is present, while sericite completely replaces all plagioclase [27,29].
Alteration of Wallaroo Group metasedimentary rocks is more variable. Early, high temperature alteration dominated by albite, clinopyroxene and magnetite is typically replaced by K-feldspar-amphibole-magnetite and subsequent hematite-sericite-chlorite-carbonate alteration assemblages within mineralized zones. Within zones of mineralization, Fe-rich chlorite and sericite are abundant along with Fe oxide, typically hematite [139]. In skarn assemblages developed within and proximal to calcareous units of the Wallaroo Group, carbonate minerals are present distal to mineralization and plagioclase, K-feldspar and white mica are common. Proximal alteration and zones most strongly linked to Cu mineralization include retrogressed skarn mineralogy dominated by amphibole, chlorite, talc, epidote, K-feldspar as well as garnet and pyroxene [123].

5.2. Chemical Trends

Chemical gradients are also evident across the Olympic Cu-Au Province that may reveal trends of fluid flow directions or proximity to ore deposits [138]. These include major element variations that map changes in feldspar composition (e.g., ratio of Na to K in whole rock geochemical data as a proxy for degree of alteration; [139,140]). Regional geochemical anomalism in elements including Bi, Ag, As, Cu, Fe, Sb, Se, W define distal chemical ‘footprints’ or envelopes across the Olympic Cu-Au Province [139,141]. Elements such as Ce, La and Te are indicative of proximity to ore systems; values >10x typical crustal abundance for these elements to be a significant enough ‘anomaly’ to warrant attention [139].

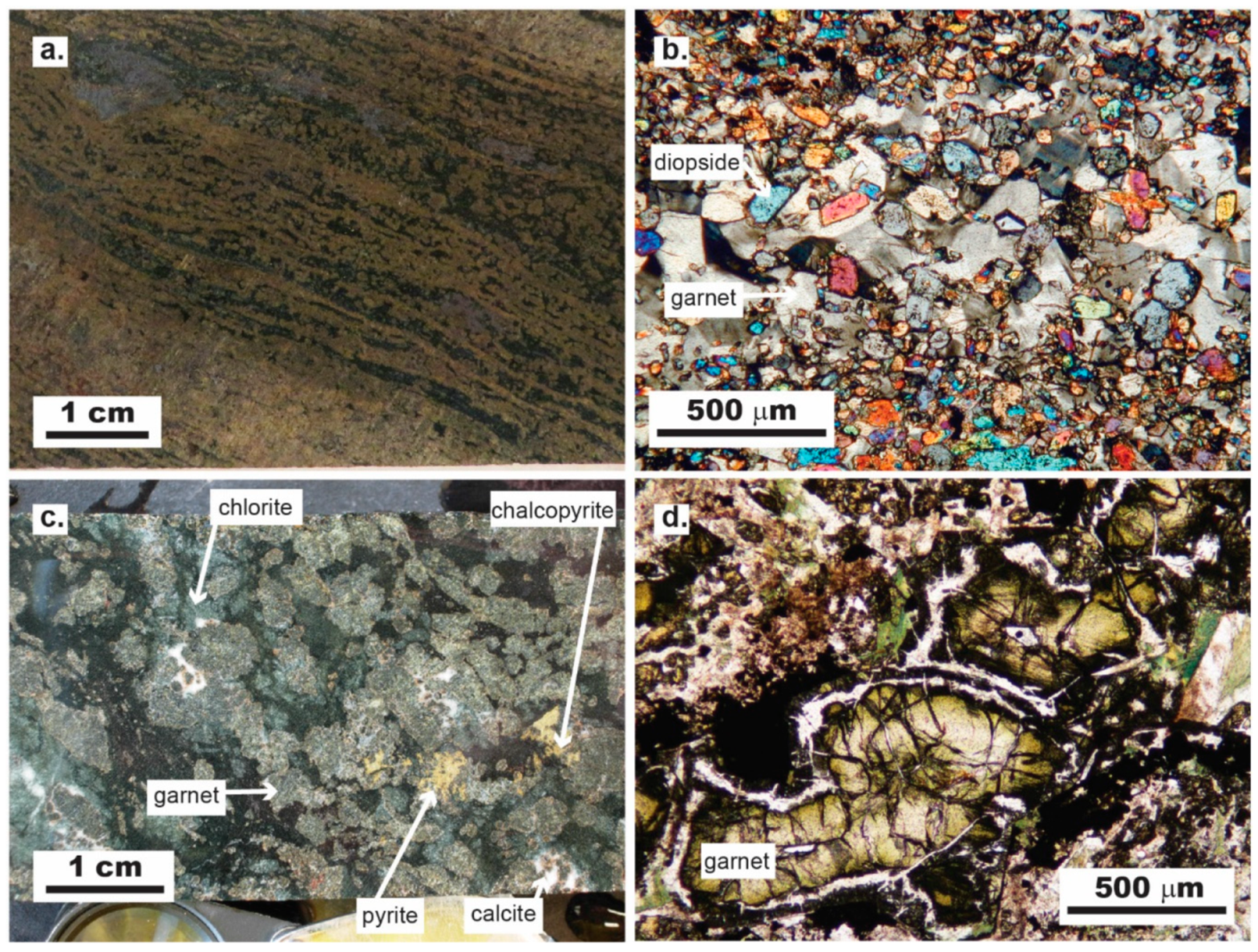

In the regions where skarn alteration and mineralization is present, elements associated with Cu mineralization and related alteration zones include As, Bi, Cd, Mo, Ni, Pb, Sb, Se, U, W, Zn ± Co along with light REE. Pathfinder elements such as As, Bi, Mo, Sb, W have high values across the Punt Hill region; however, high Sb values have been found to be most strongly associated with alteration minerals and to therefore be a useful element for identifying kilometre-scale geochemical zones [123].

6. Cover Geology Across the Olympic Cu-Au Province

The Olympic Cu-Au Province is buried beneath sediments of the Carriwerloo Basin as well as the Stuart Shelf, the latter part of the more extensive succession of the Adelaide Rift Complex (Figure 12). The Pandurra Formation was deposited in the Carriwerloo Basin and is preserved to the west of the Olympic Dam region. The thickness of the Pandurra Formation ranges up to one kilometre in some drill hole intersections, but may be more in some regions. The Pandurra Formation is a succession of relatively flat-lying continental redbed sedimentary rocks comprised of four units, a basal gritty sandstone rich in lithics; a shale and siltstone unit; a fine- to medium- grained sandstone; and a poorly sorted lithic sandstone. The Pandurra Formation onlaps the Gawler Craton along its western extent, while in the region around Olympic Dam the Pandurra Formation is largely fault bound and dissected by a number of vertical or near vertical fault systems. Recent work from the Olympic Dam deposit has shown that some sandstone blocks of Pandurra Formation are preserved within the deposit, indicating the current extent of the Pandurra Formation is a function of both preservation rather than marking the former extent of the Carriwerloo Basin [120]. Dating of shales by Rb-Sr and authigenic apatite by U-Pb suggests the Pandurra Formation was deposited ca. 1440 Ma [63,120]. The occurrence of broadly synchronous high-temperature metamorphism and granite emplacement in the northern Gawler Craton suggests the Carriwerloo Basin was related to a broader (extensional?) tectonic event at this time [60].

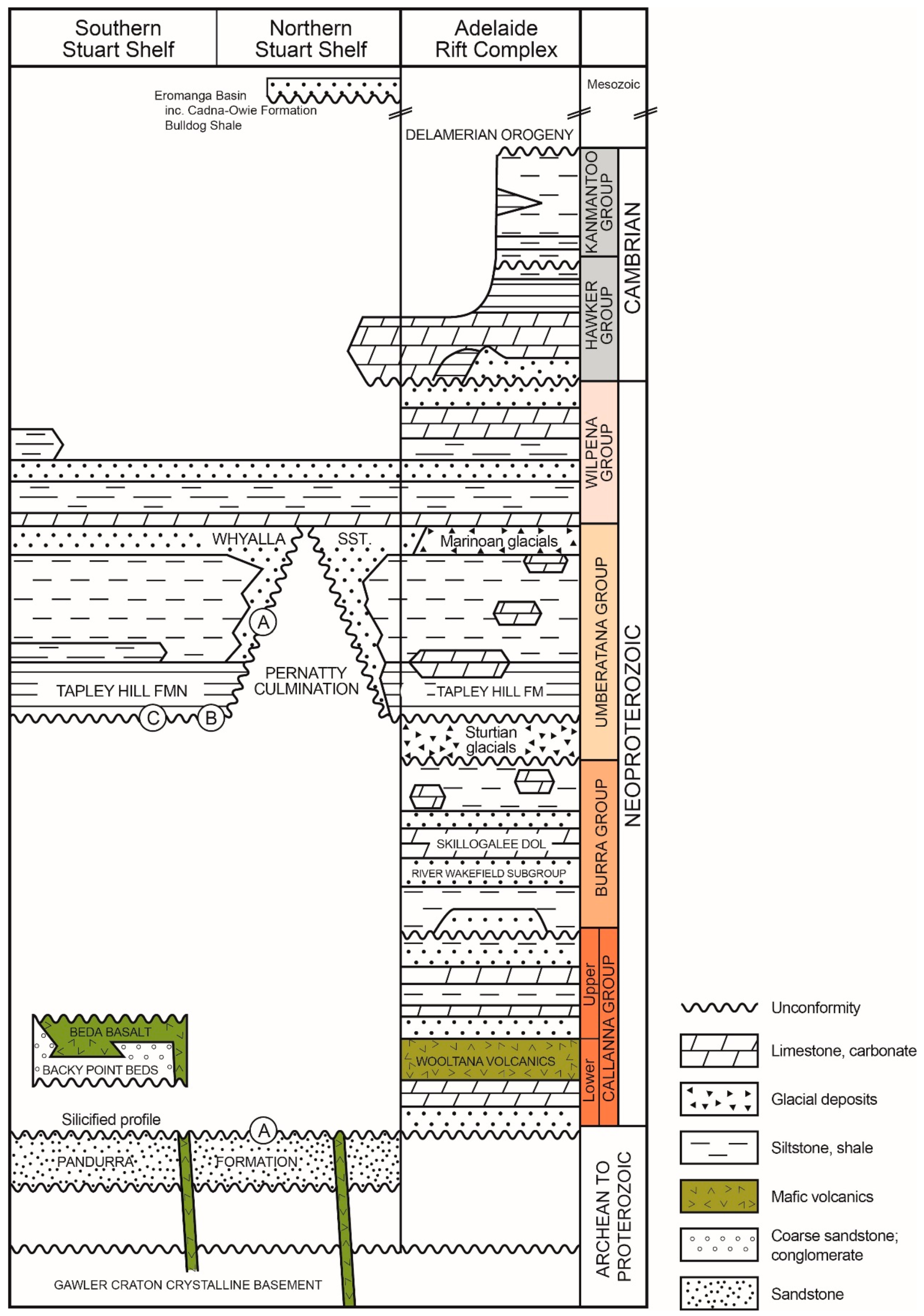

During the Neoproterozoic, extension across the eastern Gawler Craton resulted in extrusion of the Beda Basalt, intrusion of the Gairdner Dolerite and subsequent deposition of the Stuart Shelf platform sequences. The Beda Basalt comprises variably altered, amygdaloidal basalts and occur in a north-south trending sub-basin in the vicinity of Port Augusta (Figure 1). Although the Beda Basalt occupy a relatively small region, mafic magmatism of similar age is more extensive, as evidenced by the ubiquitous dyke swarms that constitute the ca. 820 Ma Gairdner Dolerite. The Gairdner Dolerite is evident on many regional aeromagnetic images and occurs in north-west trending series of dykes that reflect the onset of widespread extension across the Gawler Craton as Rodinia began to break up [142]. A succession of clastic sediments, the Backy Point Beds, were locally deposited associated with the Beda Volcanics.
During the Neoproterozoic sedimentation was widespread across much of southern and central Australia [76]. Deposition was focused into the Adelaide Rift Complex, where at least 14 km of sedimentary material accumulated in successive phases of rift evolution. The western margin of the Adelaide Rift Complex onlapped the Gawler Craton forming the Stuart Shelf. The main stratigraphic units of the Stuart Shelf are primarily the Umberatana Group with units including the Tapley Hill Formation, the Whyalla Sandstone, and lower Wilpena Group (Figure 12). In the northern Stuart Shelf region, around Olympic Dam, a succession of Cambrian limestones of the Hawker Group are preserved. The Tapley Hill Formation records the first marine transgression of the Stuart Shelf during the Neoproterozoic and consists of a transgressive-regressive sequence of mainly carbonaceous and dolomitic siltstones and shales. Finely laminated shales of the Tapley Hill Formation overly the Gawler Craton basement, although in many instances the unconformity surface locally characterized by a coarse-grained, sandy to conglomeratic siliciclastic unit, which in some areas contains base and precious metal mineralisation. Whole rock geochemistry of the basal unconformity sediments has been shown to preserve indicators of nearby basement-hosted copper mineralisation [139].

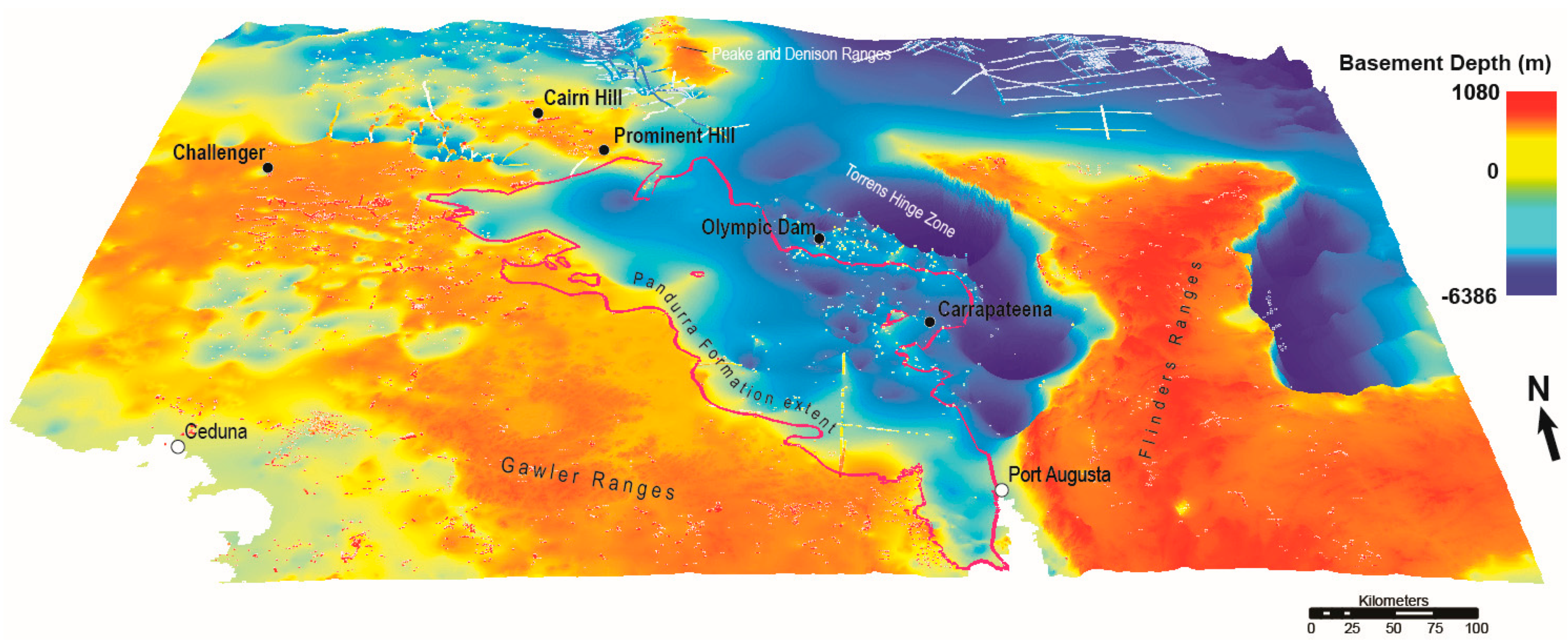

Thickness of the sedimentary cover across the eastern Gawler Craton increases from the regions of outcrop in the central Gawler Craton to very deep cover within the Torrens Hinge Zone (Figure 13). Around Olympic Dam the Neoproterozoic cover is around 300 to 440 m, while Carrapateena lies beneath ~470 m of cover. In the northern region, in the vicinity of Prominent Hill, the cover geology is dominated by Mesozoic continental sediments of the Eromanga Basin, which varies from 50 to 400 m in thickness. Recent work investigating the geochemistry of Mesozoic successions in the vicinity of Prominent Hill shows introduction of pathfinder elements into clay-rich horizons within the cover successions likely via upward migration from basement rocks [143]. The geochemical dispersion of economic and pathfinider elements into cover successions is therefore a potential source of information that can be applied towards understanding and targeting potential mineralization in the underlying crystalline basement.
The unconformity surface between the Gawler Craton basement and Pandurra Formation and Neoproterozoic sediments is in places mineralized, representing a distinct exploration target in its own right. Sandstone-hosted mineralization such as at the Mount Gunson deposit, is characterized by replacement of diageneitic and early syn-genetic pyrite in fractures and vugs at or near the silicified and brecciated paleosurface [144]. Diagenetic pyrite was also replaced by Cu-Fe sulphides (chalcopyrite, bornite and chalcocite) within laminated mudstone-dolomite of the Tapley Hill Formation in deposits such as Myall Creek [77]. In both instances, mineralizing fluids were likely focused along regional structural breaks and culminations and deposited copper, and minor zinc and lead in chemically or structurally favourable sites, following the typical model for sedimentary-hosted copper systems [77].

7. Discussion: Potential for Future Discovery

Mineral deposits form as a result of the interaction of complex geological factors. These factors can be described in terms of a mineral system and used in predictive sense to determine the mineral potential of a region [34,36]. The key elements of a mineral system are:
(i)
sources of ore metals, hydrothermal fluids and ligands
(ii)
sources of energy to drive hydrothermal systems
(iii)
structural pathways for fluid flow, and
(iv)
physico-chemical boundaries or gradients along which ore metals are deposited (e.g., redox, pressure etc.)
Sources of ore metals and hydrothermal fluids in the IOCG mineral system of the eastern Gawler Craton includes the magmatic fluids related to the Hiltaba Suite and Gawler Range Volcanics. Crustal melting due to synchronous metamorphism could also provide a source of fluids and potentially ore metals, depending on the lithologies undergoing partial melting. In addition, sedimentary rocks in the mid- and upper-crust such as the Wallaroo Group may have provided both ore elements, for example Cu, Au and U and also leached ligands such as Cl or Na from potential evaporate-bearing strata [119,146]. Locations in the eastern Gawler Craton where the Wallaroo Group sedimentary rocks were preserved are of higher potential as fluid sources than those regions to the west of the Gawler Craton in which the dominant rock types are of quartzo-feldspathic and of higher metamorphic grade [64].
The energy source for the mineral system was the tectono-metamorphic and related magmatic event that occurred across the Gawler Craton and Curnamona Province in the early Mesoproterozoic. The extensive magmatism associated with this event was the obvious heat source to drive fluid circulation in the mid- to upper-crust of the Olympic Cu-Au Province, and indeed across the entire footprint of this event. Regions of Hiltaba Suite or Gawler Range Volcanics equivalent magmatism are therefore locations where fluid circulation was active and are likely more prospective. An implication is that regions of the Curnamona Province where similar A-type volcanics—the Benagerie Volcanic Suite—was also erupted also has potential energy source for the IOCG mineral system.
Structural pathways in the Olympic Cu-Au Province are relatively poorly defined. At the craton scale, the lithospheric architecture established during early phases of craton development in particular the lithospheric boundary in the eastern Gawler Craton is likely to have been a primary control on the localization of early melting, magmatism and associated fluid flow [93]. Few studies have attempted to reconstruct the upper crustal structures active during the formation of the mineral system, however, those studies that have considered the structural evolution have consistently argued for north-west-south-east directed compression during the early Mesoproterozoic event (e.g., [104,147]). Hayward and Skirrow [31] have shown that the Olympic Cu-Au Province IOCG deposits developed in the hangingwall of crustal-scale faults along east-northeast- to northeast-trending faults near their intersections with major north-northwest to northwest-trending faults. In a regional compression event, the orientation of these fault systems predisposed them to dilation along structural jogs thereby facilitating fluid flow.
Finally, physico-chemical gradients refer to changes in temperature or pressure of a hydrothermal fluid such as during emergence of fluids into dilational fault zones during seismic activity, in addition to changes in pH, oxidation state and ligand activity. Chemical reaction of hydrothermal fluids as a result of interaction with reactive rock packages such as the carbonate units of the Wallaroo Group, or zones with early alteration minerals such as albite or magnetite [116]. Therefore, zones of reactive rock have higher potential for developing the necessary conditions for IOCG systems.

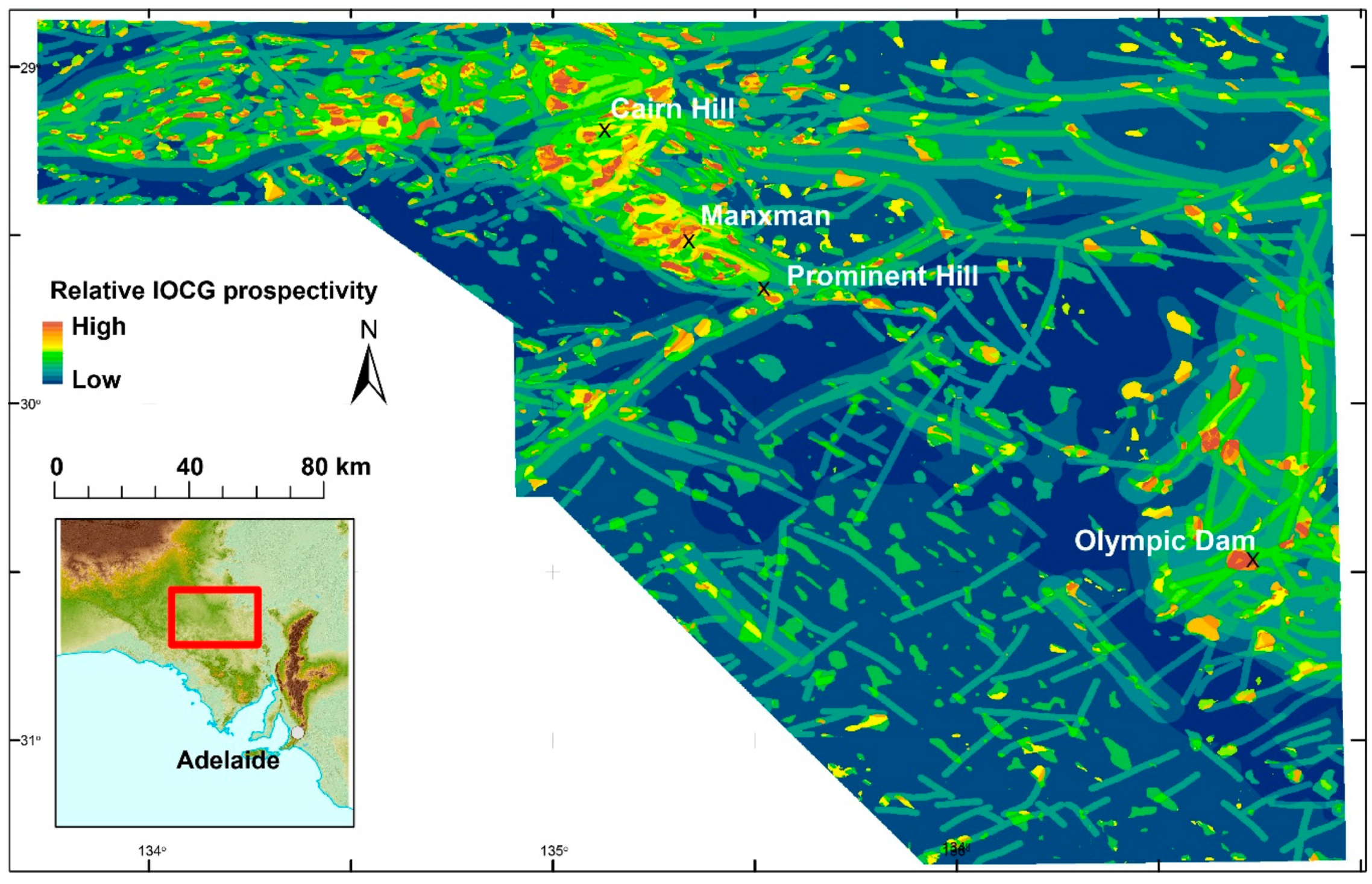

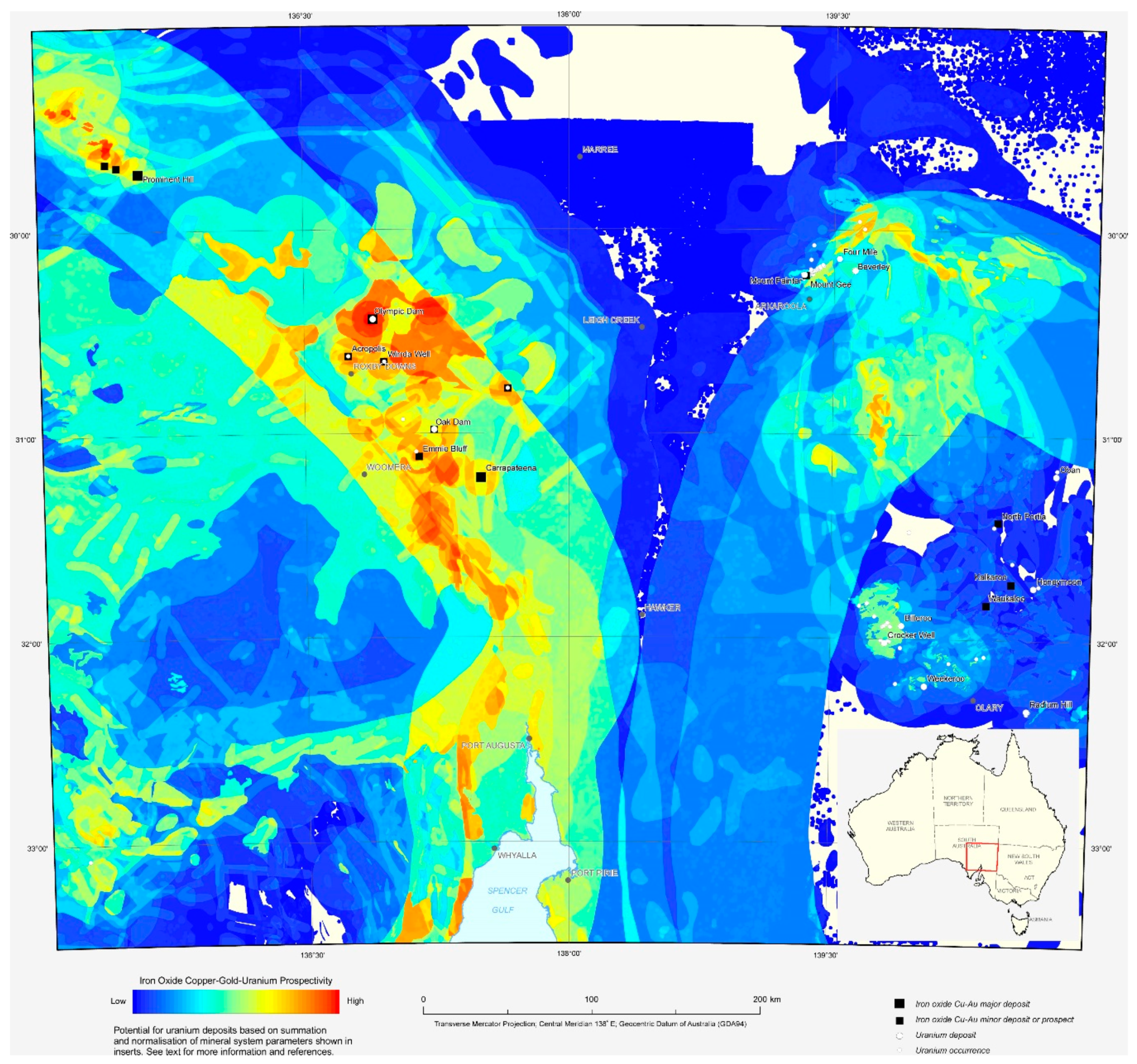

Mineral potential mapping of the four elements of the mineral system as a range of different spatial proxies by Skirrow, et al. [33] has identified areas that are more prospective for IOCG systems in South Australia (Figure 14). A key outcome of this GIS analysis is the visualization of the IOCG mineral system extending into the Curnamona Province. The potential of the Curnamona Province for IOCG systems has been discussed in the context of stratabound and replacement style Cu-Au deposits such as Portia and Kalkaroo (e.g., [6,64,119,148]). These deposits are generally more magnetite-rich and potentially represent a deeper crustal level than the hematite-rich deposits such as Olympic Dam [6], and the GIS analysis supports the concept that hematite-rich and uranium-bearing IOCG systems could be present to the north of these deposits beneath younger cover in the central-western Curnamona Province [33]. This GIS analysis is also supported by recent work on the lithospheric architecture of the Gawler Craton-Curnamona Province, which suggests regional-scale conductivity anomalies at depth beneath the Gawler Craton could have been formerly connected to similar magnitude anomalism beneath the Curnamona Province [32].
A second key outcome of this prospectivity analysis was recognition of both the potential of the regions to the north-east and south of Olympic Dam, as well as the region to the north-west of Prominent Hill, the latter of which is in the Mount Woods region [33]. Wise and Katona [149] extended this mineral potential modelling based on the four elements of a mineral system by adding potential field anomalies from residual gravity and total magnetic intensity data. In their analysis, these anomalies were attributed with descriptive statistics of the potential field grids and then combined in the GIS environment with prospectivity ranking derived from the overlapping mapable criteria representing the four mineral system factors (Figure 15). The purpose of this analysis is take into consideration the likely gravity and magnetic expression of IOCG deposits, being typically dense but weakly or non-magnetic. Across the northern Olympic Cu-Au Province, in the vicinity of Olympic Dam and Prominent Hill, this analysis highlights the abundance of gravity anomalies that remain untested [33,149,150].

8. Conclusions

This paper has reviewed the geological setting and mineralization of the Olympic Cu-Au Province in the Gawler Craton, South Australia. This province hosts the Olympic Dam, Prominent Hill, and Carrapateena deposits which are currently in production along with a range of other hematite-rich and magnetite-rich iron oxide-copper-gold deposits and prospects. In addition, a brief review has been undertaken of GIS-based mineral potential modelling of this IOCG mineral system [33,149], a key outcome of which has been to identify sub-regions within the Olympic Cu-Au Province as well as the Curnamona Province as areas with future potential for IOCG discovery [32].
The lithospheric architecture of the Olympic Cu-Au Province is imaged in seismic and electrical geophysical surveys and also by regional whole rock radiogenic isotope studies. These data suggest the eastern Gawler Craton is a Proterozoic terrane that is now adjacent to the central, Archean portion of the Gawler Craton and therefore that the Olympic Cu-Au Province lies above or adjacent a fundamental lithospheric boundary likely established during the early amalgamation of the craton.
The crustal expression of this IOCG system is evident as lower and mid-crustal conductivity anomalies that extend into the upper crust and indeed directly to some of the major deposits, which are co-located with destruction of seismic texture. These geophysical data suggest fluid and or magmatic migration channelled by major structures and a causative relationship between these plumbing systems and the IOCG deposits at the paleosurface. These IOCG deposits formed as a result of a major tectono-thermal event over the interval ca. 1600–1575 Ma across much of the Gawler Craton and formerly adjacent Curnamona Province. High temperature metamorphism recorded in mid-crustal rocks now exhumed to near surface was coeval with voluminous K- and Fe-rich, high temperature, A-type extrusive and intrusive magmatism. The mafic component of this event is subordinate at current crustal levels, where felsic magmas dominate. Nevertheless, broadly contemporaneous mafic intrusions in many IOCG deposits in the Olympic Cu-Au Province indicates their importance in the IOCG mineral system.
The mantle component of this event was derived from highly modified, i.e., metasomatized, continental lithospheric mantle. Deformation during emplacement of these magmatic systems likely focused the fluids derived from these magmas as well as from metamorphic and basinal waters, with fluid mixing being an important process in forming IOCG-related alteration and mineralization. Progressive alteration from early, higher temperature albite, magnetite and biotite-dominant assemblages to later hematite, sericite and chlorite assemblages maps fluid evolution across the province. The presence of both magnetite-dominant and hematite-dominant mineralisation in the Olympic Cu-Au Province demonstrates that there is a spectrum of alteration types associated with the IOCG systems. This spectrum is a consequence of both fluid types, protolith chemistry and also of the degree of exhumation in any given region.
As the Olympic Cu-Au Province is almost entirely buried beneath Mesoproterozoic and Neoproterozoic-Cambrian sedimentary successions, understanding the depth and lithological character of this cover is essential for successful exploration. While these units are predominantly clastic sedimentary successions, carbonate and mafic volcanics are also present, particularly in the Stuart Shelf region, the platform sequence of the Adelaide Rift Complex to the east. Burial by these successions preserved the paleo-surface from the Mesoproterozoic is the reason the upper crust of the Olympic Cu-Au Province has been preserved to the present.
Future exploration in this region will be reliant on improving the geophysical characterization of the terrane. Improvements in resolution of potential field data will permit greater confidence for geophysical inversion and drill targeting. This is particularly important given the magnetite to hematite transition in the formation of IOCG systems in the Olympic Cu-Au Province. This transition is a mineralogical property that can be modelled by combined gravity and magnetic inversion techniques. The results of such modelling could have implications for regional prospectivity analysis and drill hole targeting. Step changes in our understanding of the architecture of the Olympic Cu-Au Province will be provided by techniques such as magnetotellurics with 3D infill surveys from the regional scale 50 × 50 km grid surveys of the AusLAMP program currently in progress. Furthermore, characterization of regional drillholes with consistent full element suite geochemistry and quantitative hyperspectral mineralogical data (e.g., [139]) will likewise improve the capacity to visualize regional hydrothermal fluid cells and fluid pathways. Finally, even with the best remote sensing, geochemical and other geoscientific data, mineral exploration success in this region boils down to drilling. New technologies that improve drilling (e.g., [151]) will play a key role in bringing forward the next wave of discoveries in the Olympic Cu-Au Province, one of the world’s premier IOCG districts.

Supplementary Materials

The following are available online at https://www.mdpi.com/2075-163X/9/6/371/s1.

Funding

This research was funded by the Geological Survey of South Australia, Department for Energy and Mining.

Acknowledgments

I acknowledge my colleagues at the Geological Survey of South Australia, many of whom provided comments on earlier versions of this paper, and in particular Adrian Fabris and Stephan Thiel. I also acknowledge the work of many minerals industry geoscientists, university researchers and Geoscience Australia in particular Roger Skirrow on the IOCG systems of southern Australia. Regional geophysical data for South Australia including magnetotelluric data can be obtained from South Australia Resource Information Gateway (SARIG), https://map.sarig.sa.gov.au/. Information on rock samples and drill holes mentioned throughout the text can also be obtained via SARIG. Data from Geoscience Australia including SEG-Y data for the Olympic Dam reflection seismic line and GIS-based mineral prospectivity mapping can be obtained from https://www.ga.gov.au/data-pubs. George Gouthas, Jonathan Irvine, Kate Robertson, Claire Wade and Tom Wise provided invaluable assistance with figures. Three anonymous reviewers provided very helpful comments.

Conflicts of Interest

The author declares no conflict of interest.
