Article

Metabasites from the Central East Kunlun Orogenic Belt Inform a New Suture Model for Subduction and Collision in the Early Paleozoic Proto-Tethys Ocean

The Key Laboratory of Orogenic Belts and Crustal Evolution, Ministry of Education, School of Earth and Space Sciences, Peking University, Beijing 100871, China
*
Author to whom correspondence should be addressed.
Minerals 2024, 14(5), 449; https://doi.org/10.3390/min14050449
Submission received: 31 March 2024 / Revised: 18 April 2024 / Accepted: 19 April 2024 / Published: 24 April 2024
(This article belongs to the Special Issue Experimental Petrology: Metamorphic Evolution of Eclogite)

Abstract

:
The discovery of eclogite outcrops in the East Kunlun Orogen Belt (EKOB) has confirmed the existence of an Early Paleozoic HP-UHP metamorphic belt. However, the protoliths and metamorphic histories of widespread metabasites remain poorly constrained. We collected three types of metabasites from the central part of EKOB. We present an integrated study of petrography, whole-rock geochemistry, Sr-Nd isotopes, estimated P–T conditions, and zircon U-Pb isotope ages. The results show that amphibolites and retrograde eclogites have clockwise P–T paths with peak conditions of, respectively, 11–12 kbar and 675–695 °C, and 21.5–22.2 kbar and 715–750 °C. Zircon dating of metabasites from Dagele yields Late Ordovician (~449 Ma) to Early Silurian (~440 Ma) protolith ages and Early Devonian (~414 Ma) amphibolite facies metamorphic ages. Retrograde eclogites from east Nuomuhong have a protolith age of ~902 Ma and metamorphic ages of ~418 Ma, consistent with other eclogites from East Kunlun. Our data suggest that the protoliths of Dagele metabasites represent arc-type magmatism during the subduction of a small back-arc oceanic basin. Instead, the protoliths of retrograde eclogites are Neoproterozoic tholeiitic basalts emplaced into continental crust and subsequently deeply subducted. We develop a new model for Early Paleozoic subduction and collision in the East Kunlun region, emphasizing the role of ‘dominant’ and ‘secondary’ suture boundaries. This model helps explain the ages and metamorphic histories of the metabasites studied here and offers new perspectives on the evolution of the Proto-Tethys Ocean.

1. Introduction

Studying the nature of magmatism and metamorphism at different stages of the Wilson cycle can provide valuable insights into regional tectonics and deep Earth processes. In particular, analysis of different types of metabasites deformed across a range of metamorphic facies (mainly greenschist, amphibolite, eclogite, and granulite) has proven significant in understanding the role of subduction- and collision-related processes in the context of regional tectonics [1].
The East Kunlun Orogenic Belt (EKOB) in northwest China (Figure 1) crosses the Proto-Tethys and Paleo-Tethys domains, corresponding to two Wilson cycles. Paleozoic ophiolites and related metamorphic units in the EKOB preserve a valuable record of the geodynamics of the northern Gondwana margin during the evolution of the Proto-Tethys Ocean [2]. Over the past decade, ophiolitic mélanges [3,4,5,6] and eclogites in the EKOB [7,8,9,10,11,12] have been targets for petrological and geochemical studies focused on understanding metamorphic histories and P–T paths. Results show that these metabasites record diverse Early Paleozoic high- to ultrahigh-pressure (HP-UHP) metamorphic conditions and thus provide an opportunity to understand the transition from subduction to continental collision within the Proto-Tethys domain [8,9,10,13].
Although eclogites within the EKOB have received much attention, amphibolites’ distribution and geological history are poorly understood. Some studies suggest that the amphibolites are eclogite’s retrogressed equivalents, while others favor a P–T history involving peak amphibolite facies metamorphism (e.g., [14,15]). Better resolving the metamorphic conditions and P–T paths of the amphibolites and eclogites, as well as the formation settings of the Early Paleozoic ophiolites, will result in a clearer picture of the tectonic history in East Kunlun, especially the evolution of the trench-arc-back arc system that was active in the Proto-Tethyan Ocean.
In this study, we focus on several newly collected amphibolite and eclogite samples from the Dagele and east Nuomuhong areas (Figure 1). The Dagele Ophiolite has been identified as a supra-subduction zone ophiolite (SSZ ophiolite) mainly composed of serpentinized dunite, gabbro, and eclogite [12]. Using petrological and geochemical analyses, phase equilibrium modeling, and trace element geothermometry, we quantitatively constrain our samples’ P–T path, petrogenesis, and formation ages. Based on this and building on previous studies, we interpret the possible Early Paleozoic tectonic histories of the metabasites within the context of the EKOB.

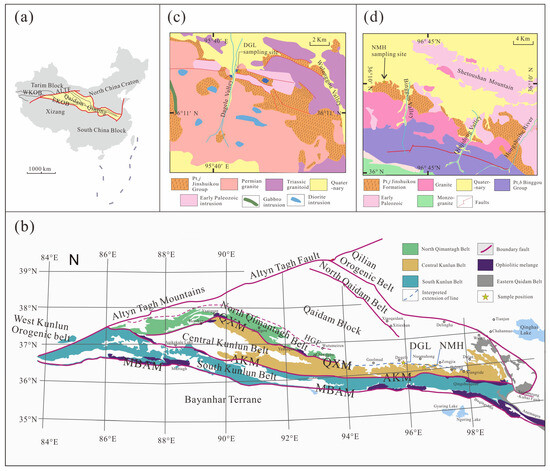

Figure 1. Geological and tectonic setting. (a) Overview map showing the location of Kunlun within the Chinese Central Orogenic Belt (modified from Dong et al. [16]). (b) A simplified tectonic map of Kunlun showing major tectonic divisions, ophiolitic mélanges, and sampling locations (modified from Dong et al. [16]). HGF—Hongliuquan–Golmud Fault; QXM—Qimantag–Xiangride ophiolitic mélange; AKM—Aqikekulehu–Kunzhong ophiolitic mélange; MBAM—Muztag–Buqingshan–Animaqen ophiolitic mélange; DGL—Dagele area shown in part (c); NMH—Nuomuhong area shown in part (d). (c) Geological map and sampling site in Dagele (modified from Feng et al. [17] and Li et al. [18]); (d) Geological map and sampling site in east Nuomuhong (modified from He et al. [19]).
Figure 1. Geological and tectonic setting. (a) Overview map showing the location of Kunlun within the Chinese Central Orogenic Belt (modified from Dong et al. [16]). (b) A simplified tectonic map of Kunlun showing major tectonic divisions, ophiolitic mélanges, and sampling locations (modified from Dong et al. [16]). HGF—Hongliuquan–Golmud Fault; QXM—Qimantag–Xiangride ophiolitic mélange; AKM—Aqikekulehu–Kunzhong ophiolitic mélange; MBAM—Muztag–Buqingshan–Animaqen ophiolitic mélange; DGL—Dagele area shown in part (c); NMH—Nuomuhong area shown in part (d). (c) Geological map and sampling site in Dagele (modified from Feng et al. [17] and Li et al. [18]); (d) Geological map and sampling site in east Nuomuhong (modified from He et al. [19]).
Minerals 14 00449 g001

2. Geological Setting

2.1. Regional Geology and Tectonics

The ~2500 km-long East Kunlun Orogenic Belt (EKOB) lies along the northern margin of the Qinghai–Tibet Plateau and forms the western portion of the Qinling-Qilian-Kunlun orogenic lineage. The EKOB is separated from the West Kunlun Orogenic Belt (WKOB) by the sinistral strike-slip Altyn Tagh Fault (ALTF) and from west Qinling by the SaiShentang–Kuhai faults (Figure 1a,b).
The EKOB experienced long-lived subduction and accretionary processes from the Proterozoic to the Triassic, forming an integral part of the Tibetan collisional orogen. The belt was affected by four primary tectono-magmatic cycles of the Precambrian, Early Paleozoic, Late Paleozoic to Early Mesozoic, and Late Mesozoic–Cenozoic [20]. These cycles were associated with the formation and growth of the continent crust in the EKOB, which therefore preserves evidence of processes that took place in the Proto-Tethys and Paleo-Tethys regions. The tectonic framework in this region consists of several major east-west-striking fault zones, which subdivided the EKOB into several terranes. In the past, the East Kunlun Orogenic Belt distributed between Qaidam Block and BayanHar Block was mainly divided into two terranes, North Kunlun Terrane and South Kunlun Terrane, by the Central East Kunlun Fault. While the new architecture is that the Qimantagh–Xiangride mélange zone (QXM), the Aqikekulehu–Kunzhong mélange zone (AKM) divided the orogenic belt as three parts of the North Qimantagh Belt, the Central Kunlun Belt, and the South Kunlun Belt, respectively (Figure 1b, [16]).

2.2. Local Geology and Sampling

The Dagele and east Nuomuhong are located in the central part of the EKOB (Figure 1b–d). Dagele contains an ophiolitic sequence with serpentinized dunite, gabbro, and meter-scale eclogite lenses partially retrogressed to amphibolite. The country rock is gneiss of the Baishahe Formation in the Paleoproterozoic Jinshuikou Group (Figure 2a–c), has a coarse- to medium-grained granoblastic texture and contains biotite, plagioclase, quartz, and minor muscovite. Abundant granodiorites and granites south of the study area yield the Permian-Triassic ages [17,18,20]. We collected two types of metabasite from the Dagele River valley (36°14′38″ N, 95°42′56″ E; Figure 1c): garnet amphibolite and amphibolite (Figure 2a–c).
For the east Nuomuhong (36°11′2″ N, 96°38′59″ E), it is dominated by granitic gneiss, eclogite, and amphibolite, with minor granitoid intrusions (Figure 1d). Metabasites (eclogite or amphibolite) occur as lenses or blocks enclosed in the gneiss of the Paleoproterozoic Jinshuikou Group (Figure 1d and Figure 2d–f). The gneiss has a granoblastic texture and consists of plagioclase, potassium feldspar, quartz, and biotite, with minor garnet (Figure 2g). The metabasite samples from east Nuomuhong preserve evidence of high-pressure metamorphism and are therefore classified as retrograde eclogites.

3. Analytical Methods

Detailed descriptions of the analytical methods are presented in Supplementary Test S1. Data for electron microprobe analysis (EMPA) compositions of garnet, pyroxene, amphibole, and plagioclase in metabasites are listed in, respectively, Tables S1–S4. Whole-rock major and trace element geochemistry analysis determined by -Fluorescence (XRF) and inductively-coupled plasma mass spectrometer (ICP-MS) are presented in Table S5. Whole-rock Sr-Nd isotopes measured by multicollector (MC) ICP-MS are listed in Table S6. Zircon U–Pb ages (33 μm + 10 μm spot sizes) and trace elements (32 μm spot size) analyzed by laser ablation (LA) MC-ICP-MS are listed in Tables S7–S9.

4. Results

4.1. Petrology of Metabasites

4.1.1. Garnet Amphibolite from Dagele (20DGL97)

Garnet amphibolites are grey-green to dark green and have a porphyroblastic texture (Figure 2c) predominantly consisting of garnet (~20%; Grt), amphibole (~38%; Amp), plagioclase (~26%; Pl), quartz (~10%; Qtz), and accessory rutile (Rt), ilmenite (Ilm), titanite (Ti), and zircon (Zr; Figure 3a–c).
Garnet porphyroblasts occur as subhedral to euhedral grains (0.2–0.5 mm) exhibiting compositional zoning (core, mantle, and rim zones) and containing abundant quartz, amphibole, and rutile inclusions (Figure 3a,b). The garnet is mainly almandine and grossular (Figure 4a). Garnet is commonly resorbed along grain boundaries with partial replacement by Amp + Pl + Qtz. Compositionally, garnet grains are characterized by a systematic decrease of XGrs [Ca/(Ca + Mg + Fe + Mn)] and XSps [Mn/(Ca + Mg + Fe + Mn)] from core to the rim (0.43 to 0.34 and 0.058 to <0.01, respectively), whereas XAlm [Fe/(Ca + Mg + Fe + Mn)] and XPrp [Mg/(Ca + Mg + Fe + Mn)] increase from core to rim (0.51 to 0.61 and <0.01 to 0.03, respectively) (Figure 4b). However, the edge of garnet grains may show a slight reversal in these overall trends (XAlm and XGrs) in Figure 4b.
Plagioclase has a subhedral granular texture and occurs in the matrix as anhedral grains and in coronas together with amphibole (Figure 3a), where it has a dominant andesine composition (XAn = 0.36–0.49; Figure 4f).
Amphibole occurs as inclusions in garnet, as subhedral matrix grains, and in coronas together with plagioclase (Figure 3b). In all cases the amphibole is classified as ferro-hornblende with XMg [=Mg/(Mg + Fe2+)] = 0.23–0.29 and (Na + K)A ≤ 0.50 (per formula unit = p.f.u.) (Figure 4h).
Rutile occurs as anhedral grains in the matrix or as inclusions in garnet. Matrix rutile is partially replaced by ilmenite (Figure 3c) and has a higher zirconium concentration (368–442 ppm) than rutile inclusions in garnet (221–368 ppm).

4.1.2. Amphibolite from Dagele (20DGL99)

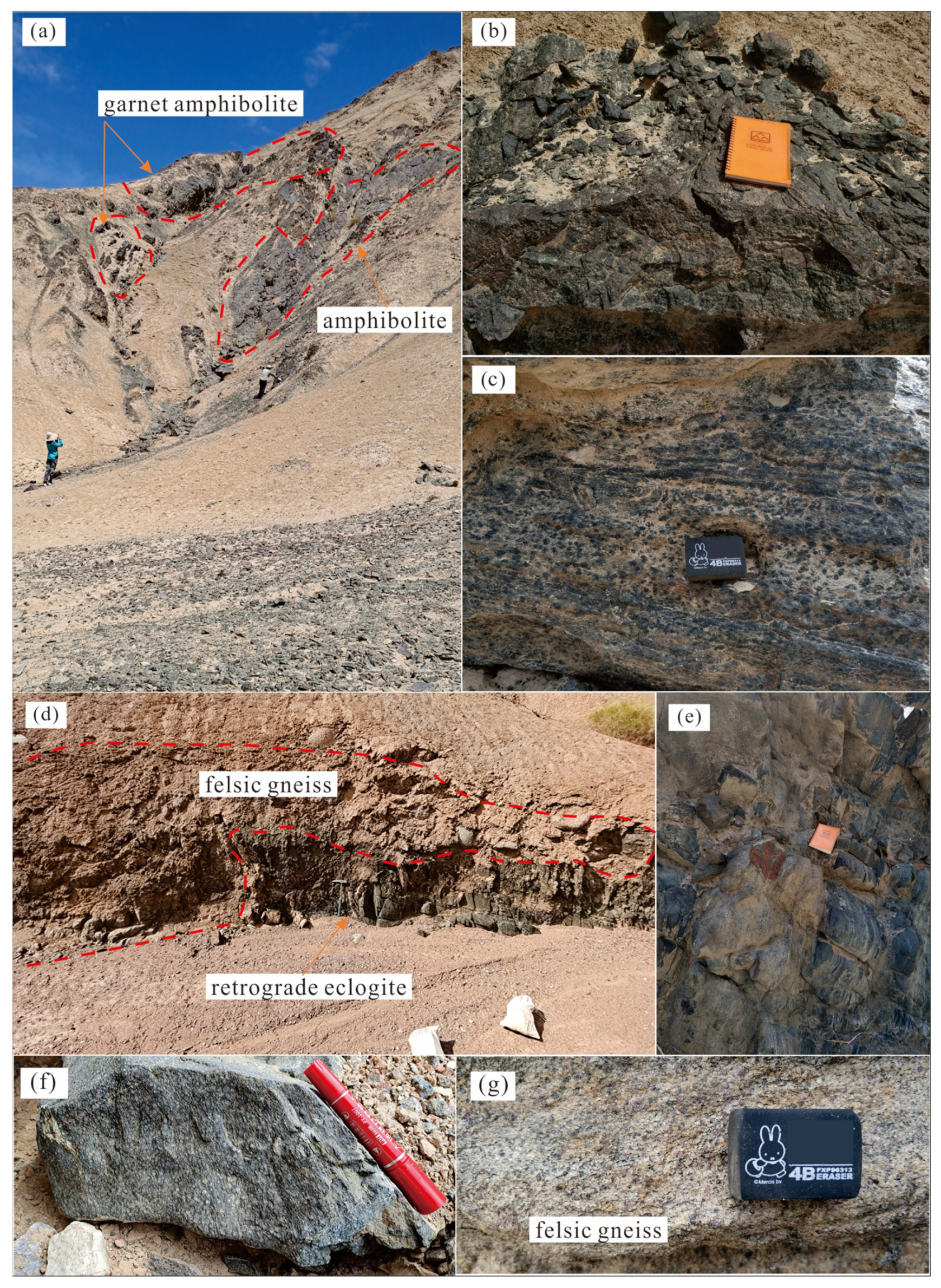

Amphibolites are dark grey to black (Figure 2b) and have a granoblastic texture comprising amphibole, plagioclase, chlorite, and accessory minerals (rutile, ilmenite, zircon; Figure 3e,f). Idiomorphic columnar amphibole grains have a composition of XMg [=Mg/(Mg + Fe2+)] = 0.78–0.82 and (Na + K)A ≤ 0.50 (p.f.u.), classifying them as magnesio-hornblende ([24], Figure 4h). Anhedral plagioclase, chlorite, and quartz are found in the interstices of amphibole grains (Figure 3e). Plagioclase has XAn > 0.9 and can be classified as anorthite (Figure 4f).

4.1.3. Retrograde Eclogite from East Nuomuhong (20NMH81)

Grey-green retrograde eclogites have a porphyroblastic texture consisting of garnet (25%–30%), clinopyroxene (17%–20%, including omphacite), amphibole (15%–20%), plagioclase (30%–35%), minor orthopyroxene (3%–5%), and accessory epidote, rutile, zircon, and ilmenite (Figure 3g–i).
Garnet grains (<0.2 mm) are subhedral to euhedral and contain abundant inclusions of omphacite, amphibole, rutile, and epidote (Figure 3g–i). Garnet shows a slight decrease of XGrs (0.31 to 0.235) and XAlm (0.5 to 0.45) from core to rim, whereas XPrp increases from core (0.17) to rim (0.31; Figure 4c). The edges of grains are replaced by the symplectite assemblage clinopyroxene + plagioclase + amphibole + orthopyroxene + ilmenite (Figure 3g).
Omphacite occurs as well-preserved inclusions in garnet (Omp1) and as relict matrix grains (Omp2; Figure 3g,i) replaced by the symplectite assemblage of clinopyroxene + plagioclase. The matrix grains have a wider range of jadeite components (19.7–29.6 mol%) compared to omphacite inclusions (21.3–23 mol%; Figure 4d).
Clinopyroxene (Cpx) occurs as a product of omphacite retrogression in the matrix and within coronas around garnet (Figure 3g,i). Matrix Cpx has a relatively high jadeite content (12.5–15 mol%) compared to Cpx in coronas (9.7–11.2 mol%) and is classified as augite (Figure 4e; Table S2).
Amphibole occurs as inclusions in garnet (Amp1), in the matrix (Amp2), and within corona symplectites (Amp3) around garnet (Figure 3h,i). Inclusions are pargasite and have lower Si contents (5.76 p.f.u.), XMg (0.55–0.59), and Ti contents (=0.04 p.f.u.), and higher AlIV contents (=2.24 p.f.u.) than amphibole in the matrix and in coronas (Figure 4g; Table S3). Matrix and corona amphibole are dominated by magnesio-hornblende compositions with XMg of 0.66–0.77 (Figure 4h).
Plagioclase occurs as inclusions in matrix omphacite (Pl1), as symplectite in the matrix (Pl2), and within coronas around garnet (Pl3) (Figure 3g). Pl1 and Pl2 have a narrower range of XAn (0.33 and 0.41–0.47, respectively) than Pl3 (XAn 0.36–0.64). In Pl3 plagioclase, XAn decreases systematically towards the outer edge of the coronas (Figure 3g and Figure 4f; Table S4).

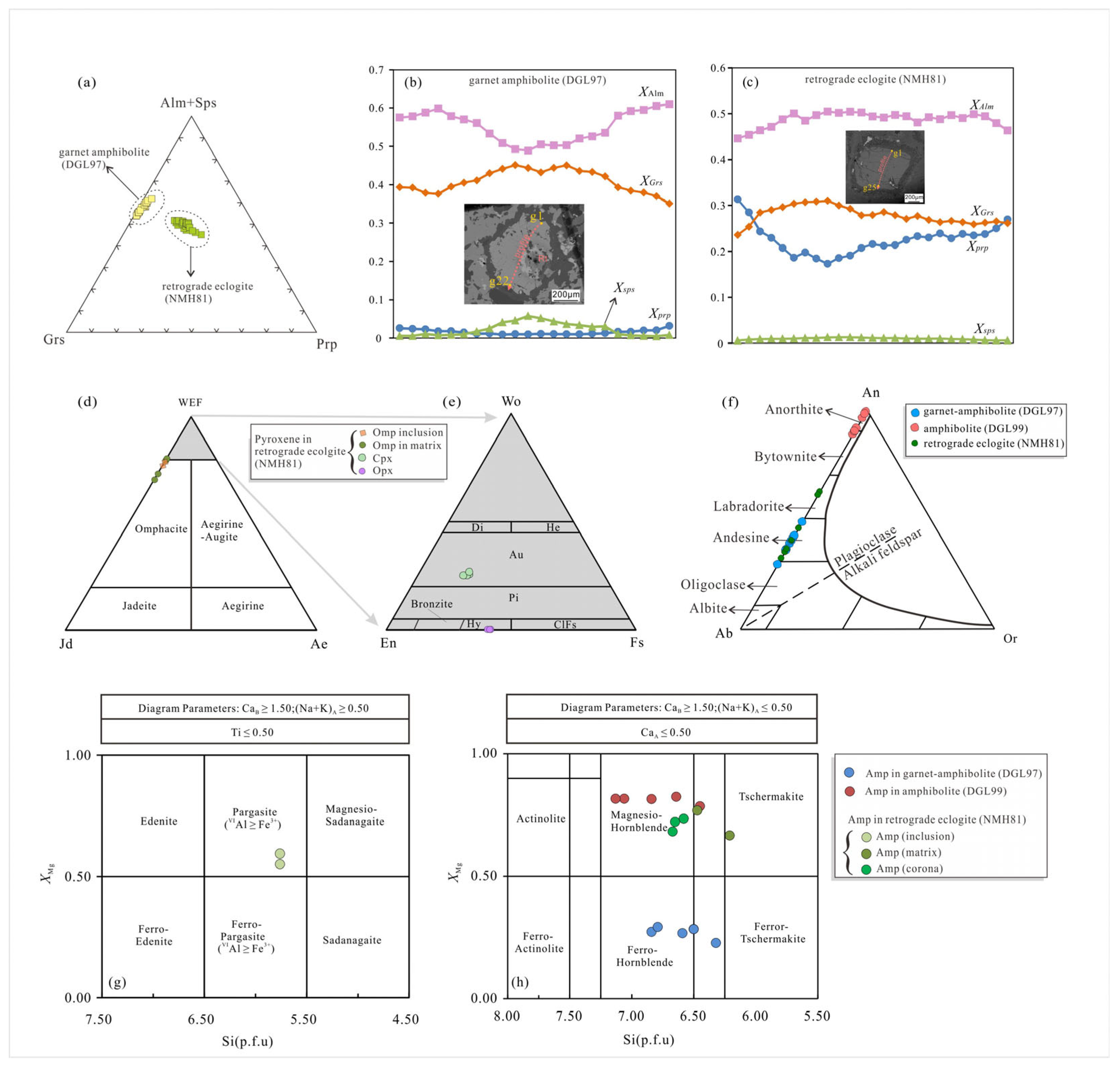

Orthopyroxene with XEn of 0.57–0.59 (hypersthene; Figure 4e and Table S2) primarily occurs in corona symplectites in association with Pl3 and Amp3 (Figure 3g). Rutile and epidote occur as inclusions within garnet and as small grains in the matrix (Figure 3i).
In the retrograde eclogite, four similar stages of metamorphic mineral assemblage can be identified: (1) Grt core + Amp1 + Ep + Omp1 +Rt (as inclusions within garnet) (M I), (2) Grt rim + relict grains of Omp2 + Rt (M II), (3) Cpx + Pl1→2 + Amp2 + Ilm (M III), and (4) Opx + Pl3 + Amp3 + Pl3 + Ilm surrounding the garnet (M IV).

4.2. Whole-Rock Compositions and Protoliths

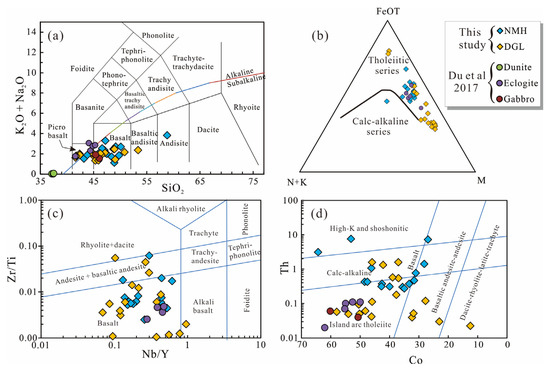

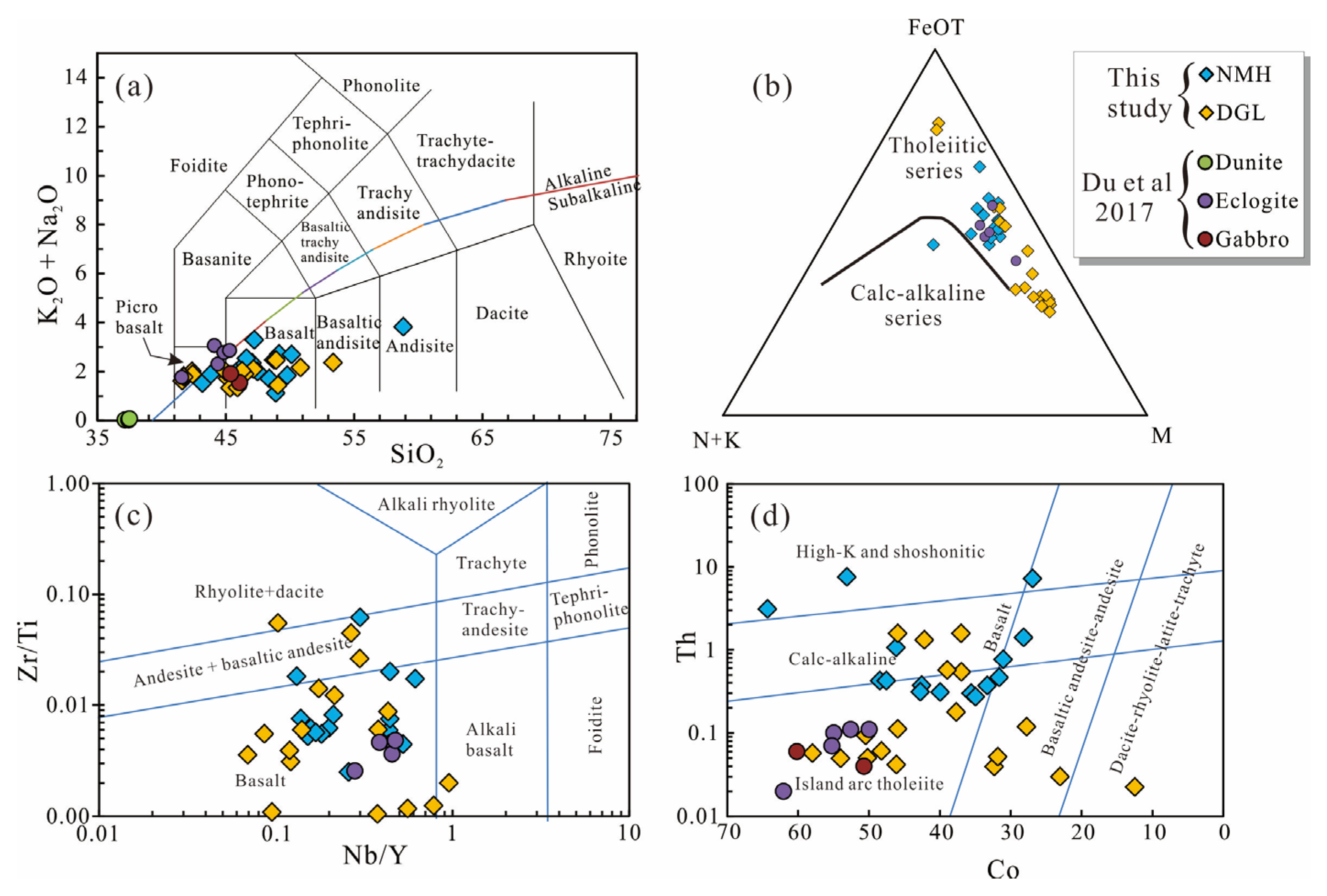

All but one sample from Dagele (n = 18) and east Nuomuhong (n = 15) has a loss of ignition (LOI) values of <2 wt% (Table S5), reflecting the overall low degree of alteration of the metabasites. The east Nuomuhong samples have lower LOI values (0.15–1.53, average: 0.67 wt%) than Dagele (0.07–2.82, average: 1.38 wt%), consistent with the lithologic distinctions described previously. Some samples with relatively high LOI values (e.g., 20NMH82, 20DGL100, and 20DGL105) suggest that secondary hydrated and carbonated phases may be present.

4.2.1. Dagele (DGL) Metabasites

Metabasites from Dagele have SiO2 of 41.62–53.38 wt.% and TiO2 of 0.01–5.27 wt.%. They are low-K and sub-alkaline in composition with slight variations in alkalis (1.33–2.45 wt.%) and notable variations in both Mg# (19.58–79.86) and Al2O3 contents (10.65–22.70 wt.%). The samples plot mainly in the basalt field on diagrams of SiO2 vs. Na2O + K2O and Zr/Ti vs. Nb/Y (Figure 5a,b, [25,26]). Sub-alkaline samples fall into the tholeiitic basalt field on a FeOT-(Na2O + K2O)-MgO plot and the island arc tholeiite field on a Co-Th diagram ([27,28,29]; Figure 5c,d).

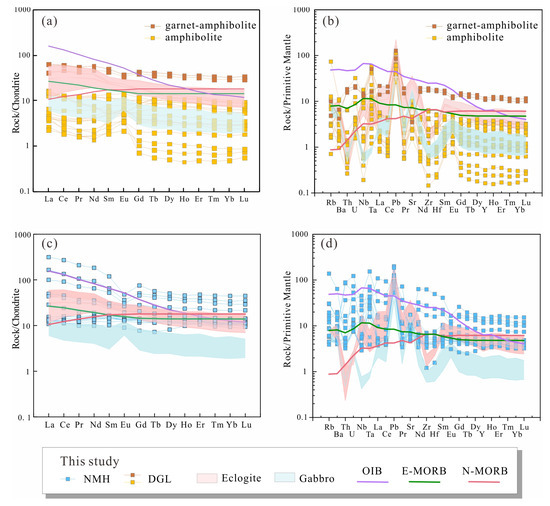

Garnet amphibolites (20DGL97, 98) contain total REE contents of 104–129 ppm, HREE contents of 72–94 ppm, and LREE contents of 32–36 ppm. Chondrite-normalized REE patterns are sub-parallel and show negative Eu anomalies (close to 0.8) and slight enrichment in LREE relative to HREE ((La/Yb)N of 1.40–1.98). This places the garnet amphibolites above the literature values for E-MORB [30] and gabbro from [12] (Figure 6a). In contrast, the amphibolites have relatively low REE (4.26–30.62 ppm), LREE (3.06–19.19 ppm), and HREE (1.02–9.44 ppm) contents. The chondrite-normalized REE diagram for the amphibolite samples exhibits subparallel and slightly fractionated REE patterns [(La/Yb)N = 0.70–6.96] and significant Eu anomalies (Eu/Eu* = 0.82–2.09). These patterns lie below both the reference line for E-MORB [30] and the range reported for Dagele eclogites but overlap with gabbros from [12,22] (Figure 6a).
On a primitive mantle-normalized trace element spider diagram, the garnet amphibolites show enrichments in Th, U, Rb, Ta, and Pb and negative anomalies for Nb, Sr, and Eu. The overall patterns are distributed between the reference lines for E-MORB and OIB (Figure 6b). Additionally, the garnet amphibolite samples show 2–5 times higher contents of HREEs than the amphibolites, indicating that the dominant carrier of the HREEs is garnet (Figure 6b). The amphibolite samples have markedly negative anomalies in the HFSEs (e.g., Nb, Zr, Hf, and Th) and positive anomalies for the LILEs (e.g., Rb, Ba, Sr, and U), Eu, and Ta. Compared with the garnet amphibolite, this distinctly different pattern is likely due to the abundance of plagioclase in the amphibolites (Figure 6b).

4.2.2. East Nuomuhong (NMH) Metabasites

Retrograde eclogites from east Nuomuhong have relatively low SiO2 (43.19–50.15 wt.%, one sample with 58.86 wt.%), moderate variations in TiO2 (0.427–2.608 wt.%), Al2O3 (13.75–19.01 wt.%), and alkalis (1.12–3.82 wt.%), and small variations in Mg# [41.07–60.11; atomic Mg/(Mg + Fe2+) × 100]. The samples lie in the basalt field on TAS (Figure 5a) and are characterized as basalts of the tholeiite series (Figure 5b–d).
Total REE contents range from 27–417 ppm, LREE’s from 22–367 ppm, and HREE’s from 10–51 ppm. On chondrite normalized diagrams, the samples show conspicuous negative Eu anomalies (δEu = 0.49–1.20) and notable enrichments in LREEs (LaN/YbN = 1.09–4.86), similar to the patterns for E-MORB and OIB (Figure 6c). On primitive mantle-normalized diagrams, the samples show enrichments in U, Ta, and Pb and depletions in Sr, Nb, Zr, and Hf, roughly coinciding with the eclogites from [12] that have only minor plagioclase and abundant accessory minerals (Figure 6d).

4.3. Whole-Rock Sr–Nd Isotopes

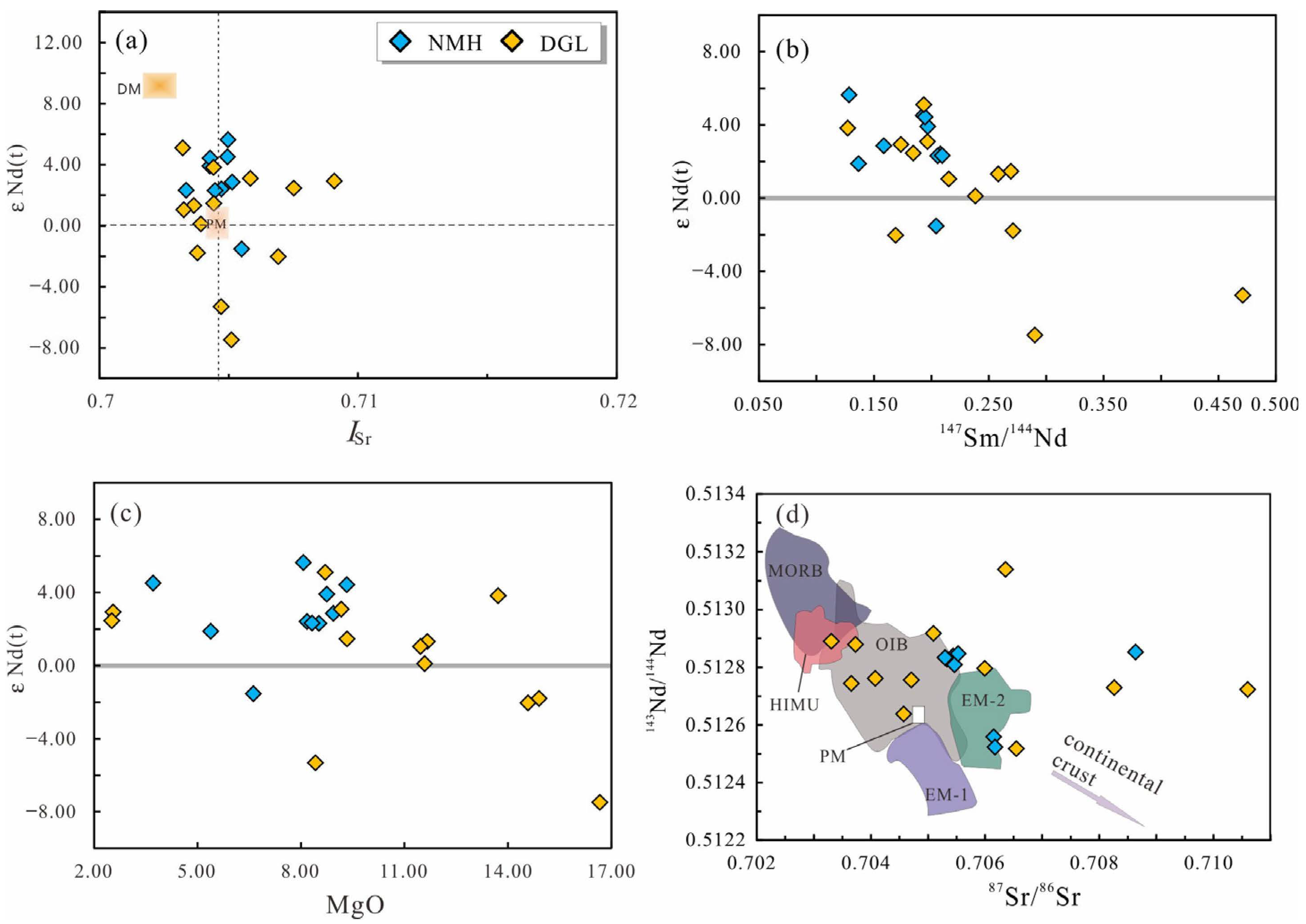

The east Nuomuhong samples (n = 10) have an unusually wide range of initial Sr isotopic ratios (900 Ma) of 0.703352–0.747311 and positive εNd (t = 900 Ma) values of 1.88–5.64 (except for one sample with −1.53; Figure 7a–c; Table S6). Dagele samples (n = 13) have initial Sr isotopic ratios of 0.703216–0.709047 and a broader range in εNd (t = 440 Ma) values of −7.60 to +5.10 (Figure 7a–c; Table S6). Most samples overlap the OIB field on a diagram of 87Sr/86Sr vs. 143Nd/144Nd (Figure 7d; modified by [31]).

4.4. Phase Equilibrium Modeling

Pseudosection modeling for samples 20DGL97 and 20NMH81 was performed in the system NCKFMnMASHTO (Na2O-CaO-K2O-FeO-MnO-MgO-Al2O3-SiO2-H2O-TiO2-Fe2O3) using THERMOCALC 3.45 based on [32] with the internally consistent thermodynamic dataset ds62 [33]. Mixing models were used for melt, clinopyroxene and amphibole [34], garnet, orthopyroxene, mica and biotite [35], ilmenite [36], plagioclase [15], and epidote [33]. Pure phases included quartz, rutile, coesite, and aqueous fluid (H2O). The bulk-rock compositions were taken from XRF analyses and normalized according to the NCKFMnMASHTO system (Table 1). The H2O content for retrograde eclogite from east Nuomuhong (20NMH81) was determined by normalized calculation in efficient bulk-rock compositions so that the final phase assemblages are just stable above the solidus. The H2O content of garnet amphibolite from Dagele (20DGL97) was set to excess due to the abundant hydrous minerals. Oxygen contents were determined according to mass balance constraints by adding the Fe3+ contents in each mineral calculated from the charge balance. All P2O5 was removed, and the total CaO was adjusted proportionally to account for the chemical contribution of apatite.

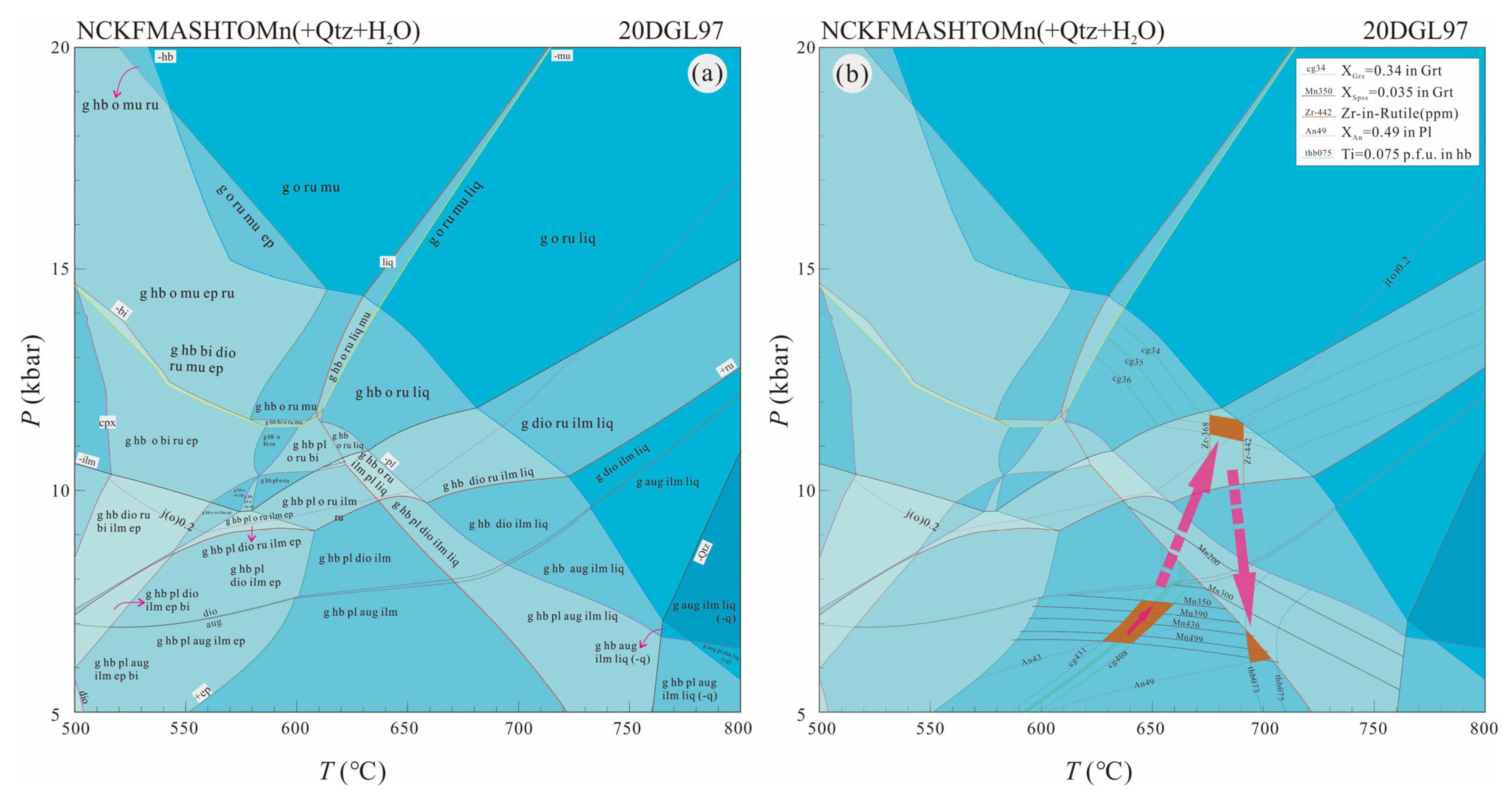

4.4.1. P–T Pseudosection for Garnet Amphibolite from Dagele (20DGL97)

The P–T pseudosection is drawn from 5–20 kbar and 500–800 °C using isopleths of XGrs and XSpss for garnet, Zr content in rutile, Ti content in amphibole, XAn in plagioclase, and XJd in clinopyroxene (Figure 8a,b). The fluid-absent solidus occurs at 10–15 kbar and 610–650 °C. The increasing Xprp and decreasing XGrs and Xspss towards garnet rims may record slight heating during prograde metamorphism. Pre-peak P–T conditions (M1; 6.5–9 kbar and 620–650 °C) are defined by the XGrs (0.43 → 0.40) and Xspss (5.5‰ → 3.5‰) from garnet cores to mantles, where the predicted mineral assemblage is Grt1 + Amp1 + Qtz + Rt1, consistent with petrographic observations (Figure 8b).
The minimum grossular value (XGrs, 0.36 → 0.34) in the outermost rims of garnet is produced at peak conditions with inferred P of 11–12 kbar (Figure 8b). Rutile stabilizes at P > 9–10 kbar, whereas ilmenite is stable at lower pressures. The high Zr contents (368–442 ppm) in matrix rutile, together with the zirconium-in-rutile thermometer [37] based on the peak pressure defined by minimum XGrs, indicate peak conditions of 11–12 kbar and 675–695 °C (M2). This is plotted in the clinopyroxene-bearing upper amphibolite facies rather than the eclogite facies, consistent with the observed peak mineral assemblage (M2) of Grt2 + Amp2 + Rt2 + Qtz. The absence of clinopyroxene and ilmenite in the studied thin sections may be due to their small modal proportions.
The M3 assemblage of amphibole + plagioclase + ilmenite is predicted to form during a retrograde, relatively low-pressure stage below the plagioclase-in and rutile-out curves, where a retrograde vector is modeled by Grt + Rt + Cpx + liq → Amp + Pl + Ilm. In this field, the higher XTi from matrix and corona amphibole yields a temperature constraint of 700–710 °C. The consumption of garnet releases Ca that can be transferred to nucleating plagioclase grains. Thus, the increasing XAn (0.36→0.42→0.49) measured in plagioclase is a powerful tool to define the limits of the decompression process. Collectively, interception of the plagioclase compositional isopleths, the Ti contents in amphibole, and the solidus define retrograde amphibolite facies conditions of 6–7 kbar and 695–710 °C. Overall, the three metamorphic stages of mineral assemblage documented in the Dagele garnet amphibolites indicate a clockwise P–T path (Figure 8b).

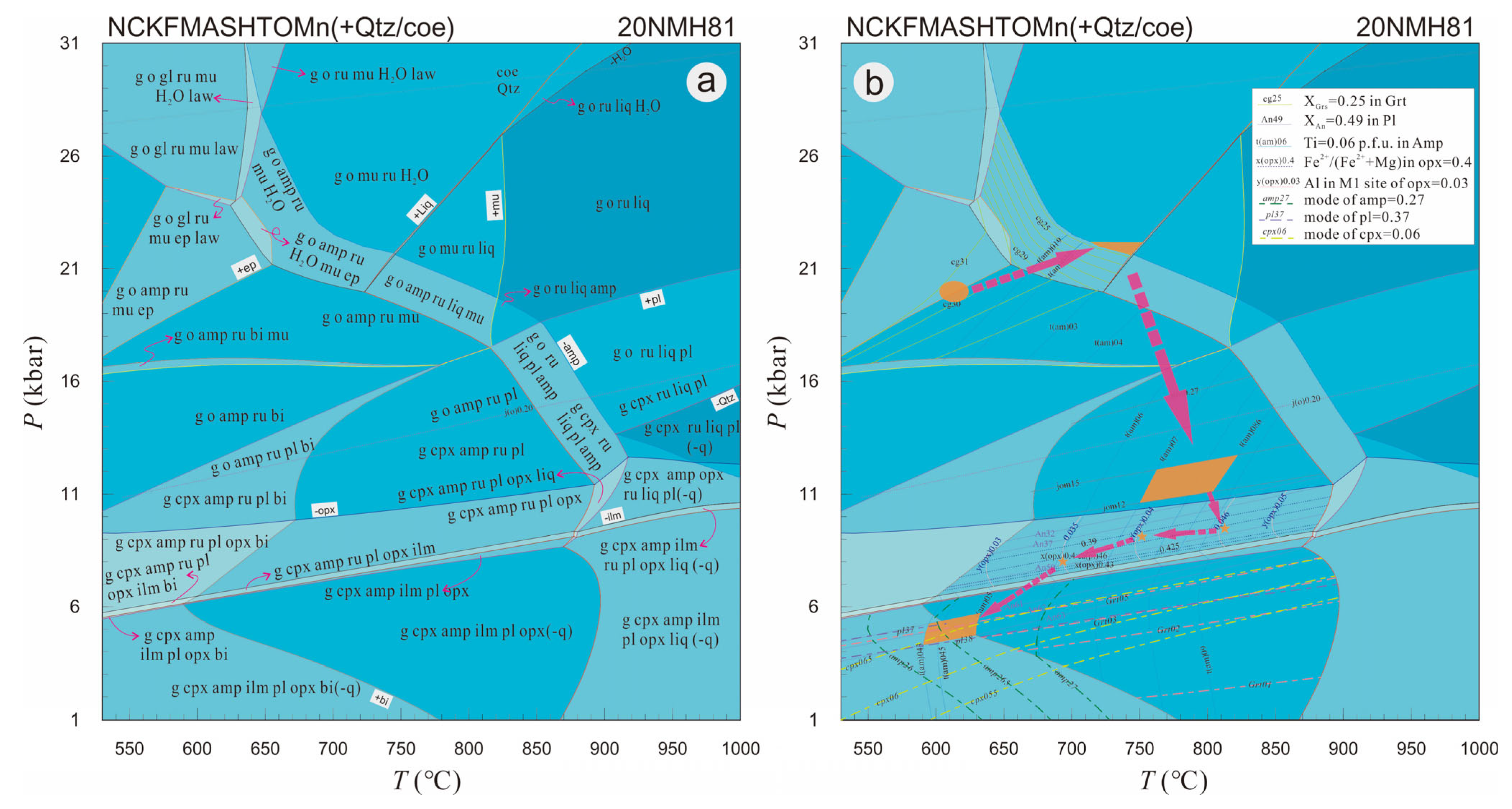

4.4.2. P–T Pseudosection for Retrograde Eclogite from East Nuomuhong (20NMH81)

In the pseudosection for retrograde eclogite, the fluid-absent solidus occurs at ~730–870 °C over the range of modeled pressures (Figure 9a). Orthopyroxene is stable at pressure <~10 kbar, and the conversion lines of muscovite-biotite and rutile-ilmenite appear at 16–17 kbar and <~9 kbar, respectively. The pseudosection is contoured with the isopleths of XGrs in garnet, the Fe proportion and Al contents in orthopyroxene [expressed as x (opx) and y (opx), respectively], Ti contents in amphibole, XAn in plagioclase, XJd in clinopyroxene, and the mode isopleths (garnet, clinopyroxene, amphibole, and plagioclase) for relevant mineral assemblages (Figure 9b).
The M1 assemblage of Grt cores with inclusions of omphacite, rutile, amphibole, and epidote (without plagioclase; Amp-Ep eclogite sub-facies) occurs at 19.5–20.5 kbar and 600–620 °C in Figure 9b. The XGrs content from garnet cores (Grt1) to rims (Grt2) decreases with increasing pressure. Thus, the garnet outer rims with minimum XGrs (0.236; Table S1) record Pmax of ~21.5–22.2 kbar. This is consistent with the M2 eclogite facies mineral assemblage and the XTi contents in amphibole inclusions in garnet rims (Amp1; 0.019–0.022). The absence of muscovite/biotite in the studied thin sections may simply be due to sampling bias, while the whole-rock potassium contents may be too low to identify potassium-rich mica minerals. Considering the lack of melt, peak eclogite facies conditions of ~21.5–22.2 kbar and 715–750 °C (M2) are defined by the interception of the amphibole-out curve, the XGrs = 0.236 isopleth, and the solidus. However, the maximum Jd content of 0.29 measured in ompacite plots far below the modeled jadeite isopleths for M2 in Figure 9b may be attributed to partial Na loss during the retrogression.
The assemblage of symplectites of low-sodic clinopyroxene (below the 0.20 jadeite isopleth) + amphibole2 + matrix plagioclase symplectites, which plots in the amphibole-bearing high-pressure granulite sub-facies (hb-HGR; M3) and is associated with consumption of M2 assemblage (garnet + omphacite). Pressure constraints from low-sodic clinopyroxene (Jd(cpx) = 0.12–0.15), together with a temperature estimate from XTi in amphibole (0.072–0.086 p.f.u.), define conditions of 10–12 kbar and 750–820 °C (peak temperature).
The M4 mineral assemblage features the appearance of orthopyroxene in low-sodic clinopyroxene + amphibole + plagioclase symplectites around the garnet, inferred to occur in the amphibole granulite sub-facies (hb-GR). The isopleths for y(opx) (Al content in the M1 site of orthopyroxene) and x(opx) (Fe/(Fe + Mg)) in the Grt + Cpx + Hb + Ru + Pl + Opx + Qtz field suggest a retrograde vector with decreasing T (~810 °C → ~750 °C → ~690 °C) and slightly decreasing P (9.5 → 8 kbar) from the amphibole-bearing HP granulite sub-facies into the granulite sub-facies (Figure 9b).
To model the P–T conditions of the final retrograde stage (M5), the inferred mineral assemblage (Grt, Cpx, Hb, Ilm, Pl, Opx ± Bi) was used in combination with the compositions of Amp-Pl-Ilm symplectites with the highest XAn values (0.61–0.63) and lowest t(am) values (0.043–0.05). This indicates conditions of <7 kbar and <630 °C. Except for differences in accessory minerals (ilmenite occurs, rutile disappears), the inferred mineral assemblage in M5 is the same as in M4. However, the relevant mode isopleths reflect the growth of amphibole (26%–27%) and plagioclase (37%–38%) during M5 at the expense of clinopyroxene (6%–6.5%) and garnet (<5%) from M4. These constraints place the final retrograde amphibolite facies stage at 4.3–6.8 kbar and 590–630 °C (Figure 9b).

4.5. Zircon Geochronology and REE Patterns

4.5.1. Amphibolite from Dagele (20DGL99)

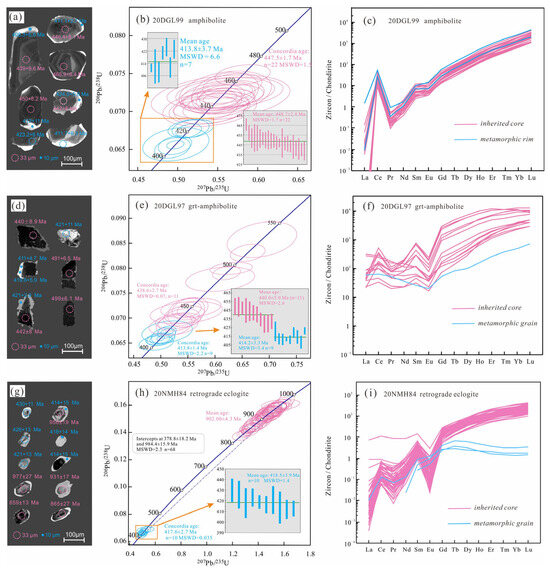

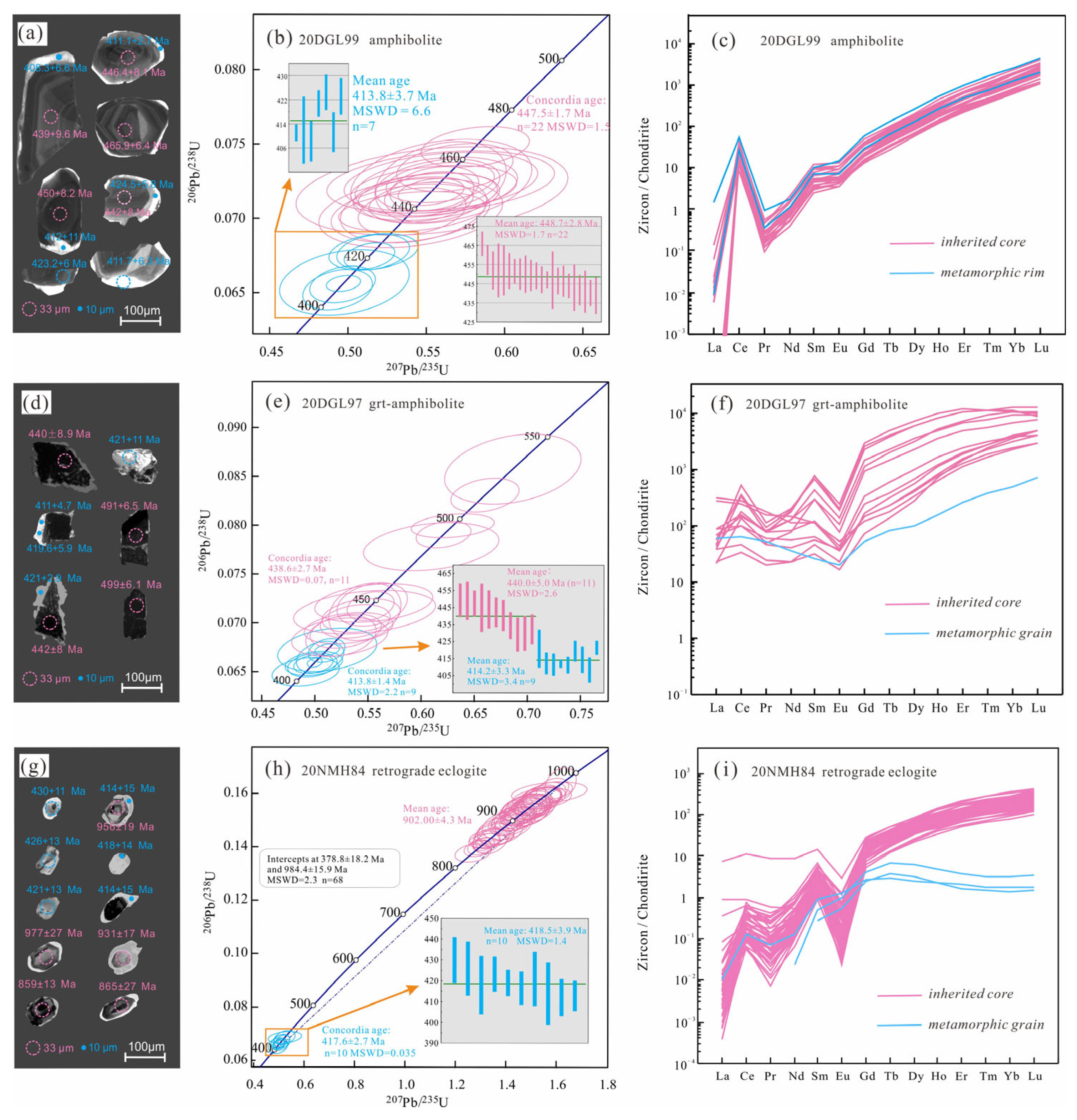

Cathodoluminescence (CL) images of representative zircons, as well as U-Pb ages and chondrite-normalized REE patterns, are shown in Figure 10. Zircons from Dagele amphibolites are subhedral to subrounded in shape, 200–400 μm in size, and have aspect ratios between 2 and 3 (Figure 10a). They contain distinct grey to dark-grey cores with oscillatory zoning and homogeneous gray to bright rims. Twenty-two analyses of zircon cores yielded a concordia age of 447.5 ± 1.7 Ma (MSWD = 1.5), slightly younger than the weighted-mean age of 448.7 ± 1.7 Ma (MSWD = 1.7; Tables S7 and S8). Seven analyses of rims yielded ages ranging from 421–405 Ma and a weighted mean age of 413.8 ± 3.7 Ma (MSWD = 6.6; Figure 10b). The cores and rims have similar REE patterns that are heavily enriched in HREE and show positive Ce anomalies and weakly negative Eu anomalies, consistent with the absence of garnet and only a minor amount of plagioclase (Figure 10c).

4.5.2. Garnet Amphibolite from Dagele (20DGL97)

Angular and euhedral zircons in garnet amphibolites are 100–150 μm long with aspect ratios of 1–2 (Figure 10d). In CL images, grains typically have dark cores and narrow, bright rims. One zircon with a homogenous fir-tree structure (upper right in Figure 10e) yielded an age of 421 ± 11 Ma. From a total of sixteen analyses of dark cores, five yielded relatively old ages of 531–488 Ma, while the other eleven yielded a concordant age of 438.6 ± 2.7 Ma (MSWD = 0.07), consistent with the weighted mean age of 440 ± 5 Ma (MSWD = 2.6; Figure 10e; Tables S7 and S8). Nine analyses conducted on the bright rims using 10 μm ablation spot dating [38], together with one analysis using a 33 μm ablation spot, yielded a nearly concordant age of 413.8 ± 1.4 Ma (MSWD = 2.2) and a weighted mean 206Pb/238U age of 414.2 ± 1.4 Ma (MSWD = 3.4).
Chondrite-normalized REE patterns of the dark cores showed a marked enrichment in HREE with negative Eu and positive Ce and Sm anomalies (Figure 10f; Table S9). The REE pattern of one metamorphic grain shows a flatter HREE pattern and a more subtle Eu anomaly compared to the cores.

4.5.3. Retrograde Eclogite 20NMH84

Zircon grains in retrograde eclogite are mostly subhedral or elongated to prismatic shape and can be classified into two types. (1) Subrounded to subhedral grains are between 30–70 μm long and 30–50 μm wide, with aspect ratios between 1–1.5 (Figure 10g). These grains generally have homogenous dull luminescence, fir-tree structures, and low Th/U ratios (<0.1). (2) Subhedral to elongate prismatic grains are larger (70–100 μm) and have aspect ratios of 1–2.5. These grains show inherited dark grain cores with oscillatory zoning surrounded by narrow rims with lower luminescence.
The 68 analyses define a discordia with an upper intercept age of 984.4 ± 18.2 Ma and a lower intercept age of 378.8 ± 18.2 Ma (MSWD = 2.3). The 58 grain cores with oscillatory or simple zoning yield Precambrian ages ranging from 977–832 Ma, with a mean age of 902 Ma (Figure 10h). These have highly variable Th (1.7–25.4 ppm), U (7.2–146 ppm), and Th/U (0.11–1.31; Table S7). Ten analyses of the rims of grains (three with 33 μm spots and seven with 10 μm spots) yield a concordant or nearly concordant age of 417.6 ± 2.7 Ma (MSWD = 0.035) and an approximately equal-weighted mean age of 418.5 ± 3.9 Ma (MSWD = 1.4; Figure 10g; Table S8). The REE patterns for cores show a marked enrichment in HREEs and a prominent negative Eu anomaly. In comparison, rims show no Eu anomaly, lower HREE contents, and flat to depleted HREE patterns (Figure 10i; Table S9).

5. Discussion

5.1. Ages of Protoliths and Metamorphic Events

5.1.1. Dagele Amphibolite and Garnet Amphibolite

The zoned cores of zircons from amphibolite and garnet amphibolite yield similar weighted mean ages of, respectively, 448.7 Ma and 440 Ma, in good agreement with previous studies of Dagele gabbro ([12]; 445.9 ± 4.8 Ma), metabasites from Lalingzaohuo ([39]; 451 Ma), and basalt-diorite from Qimantagh ([40]; 443–446 Ma). This relatively tight spread of ages (451–440 Ma) suggests that the metabasites studied here belong to the same ophiolite mélange unit (QXM) as the previously studied samples. Additionally, the enrichment in HREE, negative Eu anomaly, and positive Ce and Sm anomalies, are similar to magmatic zircons summarized in [41], suggesting that the ages of the zircon cores represent the Late Ordovician to Early Silurian magmatic crystallization ages.
Analyses of luminescent zircon rims and fir-tree grains yielded younger ages of 413.8 ± 3.7 Ma and 414.2 ± 3.3 Ma, interpreted to represent Early Devonian metamorphic zircon growth. The REE patterns of zircon rims in amphibolite show no significant difference compared with magmatic cores, which may be due to the growth of amphibole during amphibolite facies metamorphism. Due to the fact that the REE pattern is mainly controlled by the characteristic elements partitioning between zircon and coexisting minerals, it is possible to infer coexisting mineral assemblages during various metamorphic phases based on the REE patterns. Thus, the eclogitic assemblages with garnet + albite breaking down to jadeite are coupled to an Eu-anomaly and flat HREE pattern and granulitic assemblage (feldspar + garnet) to a negative Eu-anomaly and flat HREE pattern. In regard to the 20DGL99 amphibolite in our study, the metamorphic assemblage of dominant amphibolite and a little feldspar without garnet is similar to the mineral composition of the protolith, and the amphibole could not lead to particularly obvious REE enrich or depleted characteristics. Therefore, the zircon from the protolith and metamorphic rock exhibit similar REE distribution characteristics of light-REE depletion and slight negative Eu-anomaly, which is also observed in amphibolite from previous studies [42]. This is consistent with the presence of amphibole and quartz inclusions in the rims of some zircons from sample 20DGL99. The REE pattern of one metamorphic grain in garnet amphibolites (Figure 10f) is compatible with zircon growth in a HREE-rich and Eu-bearing assemblage (e.g., garnet + amphibole + plagioclase) during upper-amphibolite facies metamorphism [41].

5.1.2. East Nuomuhong Retrograde Eclogite

Zircon cores yield Early Neoproterozoic 206Pb/238U ages, overlapping with tectono-thermal events (1.0–0.9 Ga) in the EKOB and North Qaidam. The cores show oscillatory zoning and have high Th/U ratios, steep HREE-enriched patterns, and marked negative Eu anomalies. On the basis of these characteristics [41], we suggest that the cores record Early Neoproterozoic magmatic crystallization to form the eclogite protoliths [19,43,44] rather than metamorphic events in the EKOB [45,46]. This is consistent with information retrieved from the Wenquan eclogite [11] and other Early Neoproterozoic magmatic rocks in East Kunlun [19,44]. Evidence of Neoproterozoic magmatism in the North Qaidam region has been widely interpreted in the context of the assembly of the Rodinia supercontinent, initially thought to reflect collision between the Tarim, Qaidam, and Qilian blocks [47,48]. More recently, the involvement of East Kunlun in the assembly of Rodinia has been proposed based on Neoproterozoic (1.0–0.9 Ma) ages for diverse tectono-thermal events recorded in this region [43,44,45]. Our new ages from zircon cores in retrograde eclogites from east Nuomuhong support the idea that East Kunlun was involved in the amalgamation of the Rodinia supercontinent.
Zircon rims and grains with homogenous dull luminescence yield a weighted mean age of 418.5 ± 3.9 Ma. These grains have subtle negative Eu anomalies, flat HREEs, low Th/U ratios, and garnet and omphacite as inclusions (Figure S1). Collectively, we interpret these data to represent the ages of eclogite facies metamorphism and zircon growth (Table S7). Previous studies have documented a relatively narrow age range of 433–425 Ma for eclogite facies metamorphism in the EKOB and 410.5 ± 2 Ma for amphibolite facies metamorphism [8,10,12]. Based on our new results, we postulate that eclogite facies metamorphism may have persisted until c. 418 Ma, expanding the total duration of the eclogite facies metamorphic event to c. 17 Myr.

5.2. Nature of Mantle Protoliths

5.2.1. Assessment of Element Stability and Potential Crustal Contamination

The REEs and HFSEs are powerful tracers to identify basaltic (and metabasaltic) protoliths and tectonic affinities, even in samples that have experienced high-grade metamorphism or alteration by seawater. In the studied metabasites, the REEs (La, Nd, Yb) and HFSEs (Th, Y, Nb) display positive correlations with Zr (Figure S2), an immobile element that is widely used to analyze the effects of metamorphism and crustal contamination in eclogites. This suggests that La, Nd, Yb, Th, Y, Nb, and Zr in the studied metabasites exhibit similar behavior and remain immobile during high-grade metamorphism.
Determining the influence of crustal contamination on magma geochemistry is a fundamental step in determining the protolith characteristics. Three lines of isotopic and trace element evidence suggest that the metabasite protoliths experienced some, but limited, degrees of crustal contamination:
  • Relatively low La/Sm ratios in east Nuomuhong (1.39–4.09, avg. 2.12) and Dagele (1.06–5.31, avg. 2.29) compared with characteristics (La/Sm ratios > 4.5) of crustal contamination from [49];
  • Relatively low LILE oxide contents (e.g., K2O, Na2O and TiO2);
  • The metabasites studied here have a narrower range of ISr compared with metabasites that experienced insignificant crustal contamination [50].

5.2.2. Primary Mantle Source

Negative correlations between MnO vs. MgO and TFe2O3 vs. MgO and a positive correlation between CaO vs. MgO (Figure S3) suggest that the metabasite protoliths underwent fractionation of olivine and clinopyroxene, consistent with the positive correlation between Ni and MgO (Figure S4).

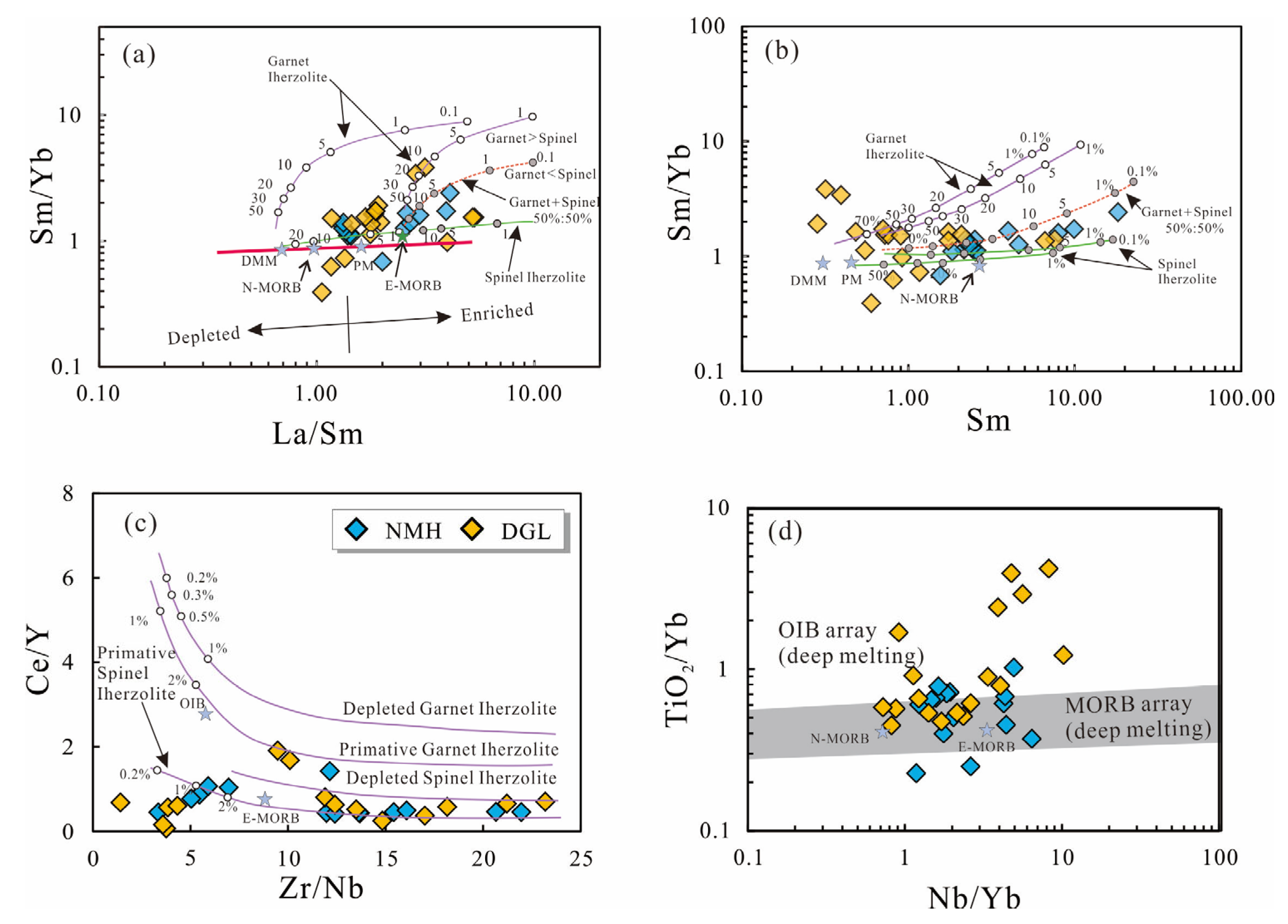

Because of the different distribution coefficients between spinel and garnet, the element ratios of some REEs (e.g., La, Sm, Yb) and HFSEs (e.g., Zr, Nb, Y) are effective in tracing the degree of partial melting of basaltic source rocks in spinel- and garnet-bearing upper mantle. On a plot of La/Sm vs. Sm/Yb (Figure 11a), east Nuomuhong samples cluster into two groups: one representing spinel lherzolite with low degrees (~5%–10%) of partial melting and the second close to the curve for 10%–20% partial melting of lherzolite mantle with garnet < spinel. Dagele metabasites mainly plot close to the first group from east Nuomuhong, along the spinel lherzolite curve with low degrees (~5%–10%) of partial melting, but three samples represent very low degrees (<5%) of partial melting and two plot along a garnet lherzolite curve (Figure 11a).
Further modeling results using Sm vs. Sm/Yb (Figure 11b) show that the protoliths of east Nuomuhong metabasites were in the spinel or spinel + garnet fields [51], whereas the Dagele samples show a more widespread distribution. On a plot of Ce/Y vs. Zr/Nb (Figure 11c), which can be effective at distinguishing variations in source composition and degree of melting [52], metabasites from both areas mainly lie close to or between the primitive and depleted spinel lherzolite curves, indicating that protolith magmas were likely derived from a spinel lherzolite source with low degrees (1%–2%) of partial melting. Collectively, results suggest that the mantle sources of east Nuomuhong and Dagele samples were slightly different, which can be further assessed using the Ti/Yb vs. Nb/Yb plot from [53]. This shows that some Dagele samples plot above the MORB array and reach the OIB array (Figure 11d), indicating a higher temperature and deeper melting source for Dagele samples.

5.2.3. Metasomatism of the Mantle Source and Discrimination of Protoliths

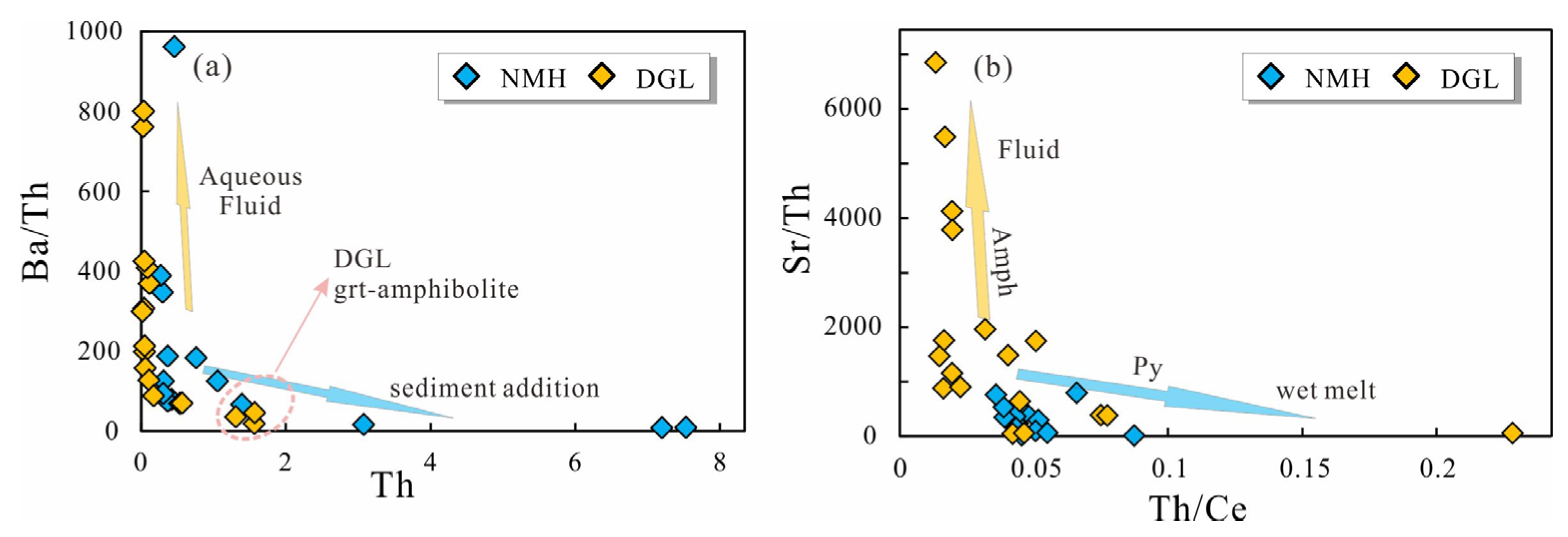

The primary geochemical characteristics of the mantle source may be modified by fluid or melt derived from subducted sediments [54], altered oceanic crust in the MORB section of the slab, or a complex mélange zone comprising sediment, oceanic crust, and serpentinite [55]. On the plot of Th vs. Ba/Th (Figure 12b), Dagele amphibolites also have relatively high Ba/Th ratios compared to garnet amphibolites and east Nuomuhong samples, suggesting that their protoliths were metasomatized by oceanic crust-derived aqueous fluids, while the garnet amphibolites and retrograde eclogites were metasomatized by sediment-derived melts [56]. This is supported by generally elevated Sr/Th ratios in the amphibolites—which likely reflects metasomatism of primary clinopyroxene by aqueous fluid [57] in a plot of Sr/Th vs. Th/Ce (Figure 12b). In contrast, the scatter of east Nuomuhong samples in Figure 12b is more compatible with metasomatism by a wet, sediment-derived siliceous melt [57].

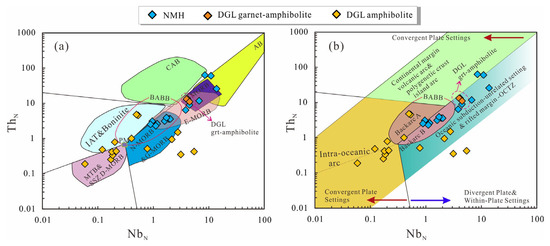

A new discrimination method of N-MORB normalized Nb and Th plotting (Saccani, E., 2015 [58]) has been applied in our study (Figure 13). The NMH metabasites are relatively concentrated and almost fall into the MORB region or overlap with back-arc basin basalt (BABB). The chemical variability of NMH metabasites, ranging from depleted compositions (N-MORB and G-MORB) to progressively more enriched compositions (E-MORB and P-MORB) and highly enriched compositions (AB), reflects the source composition and degree of melting. In contrast, the DGL metabasites are dispersed and mainly plotting in the island arc tholeiite (IAT), boninite and medium-Ti basalt (MTB), and Supra-subduction zone depleted MORB (SSZ-D-MORB) regions (Figure 13a), all these regions are related with arc setting.
In the tectonic setting discrimination (Figure 13b), the NMH metabasites yield subduction-unrelated setting & rifted margin ranges, indicating the protoliths of NMH matabasites were continental setting basalts with Neoproterozoic age records. The DGL metabasites are related to arc settings, and the dispersed setting may be attributed to arc elemental variabilities companied with continuous arc magmatisms during a variety of tectonic environments ranging from embryonic to mature back-arc and from oceanic to continental (ensialic) settings [59]. Notably, the DGL garnet-amphibolites plot in MORB type (Figure 13a) and show similar to these of subduction-unrelated setting (Figure 13b), general which is associated with the basaltic compositions from mature back-arcs [58]. In a review of the protolith age of garnet amphibolite 20DGL97, slightly younger than in amphibolite 20DGL99, it is suggested that the protolith of garnet amphibolite was generated in a more mature back-arc setting than amphibolite. Thus, the protoliths of DGL metabasites and NMH metabasites are back-arc basalts and within plate basalts, respectively.

5.3. Metamorphic Evolution and Tectonic Implications

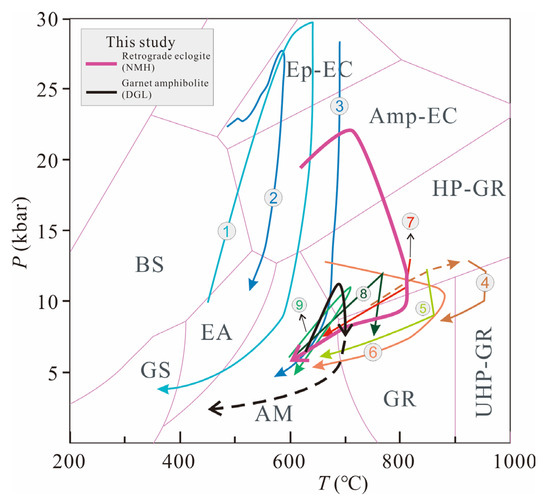

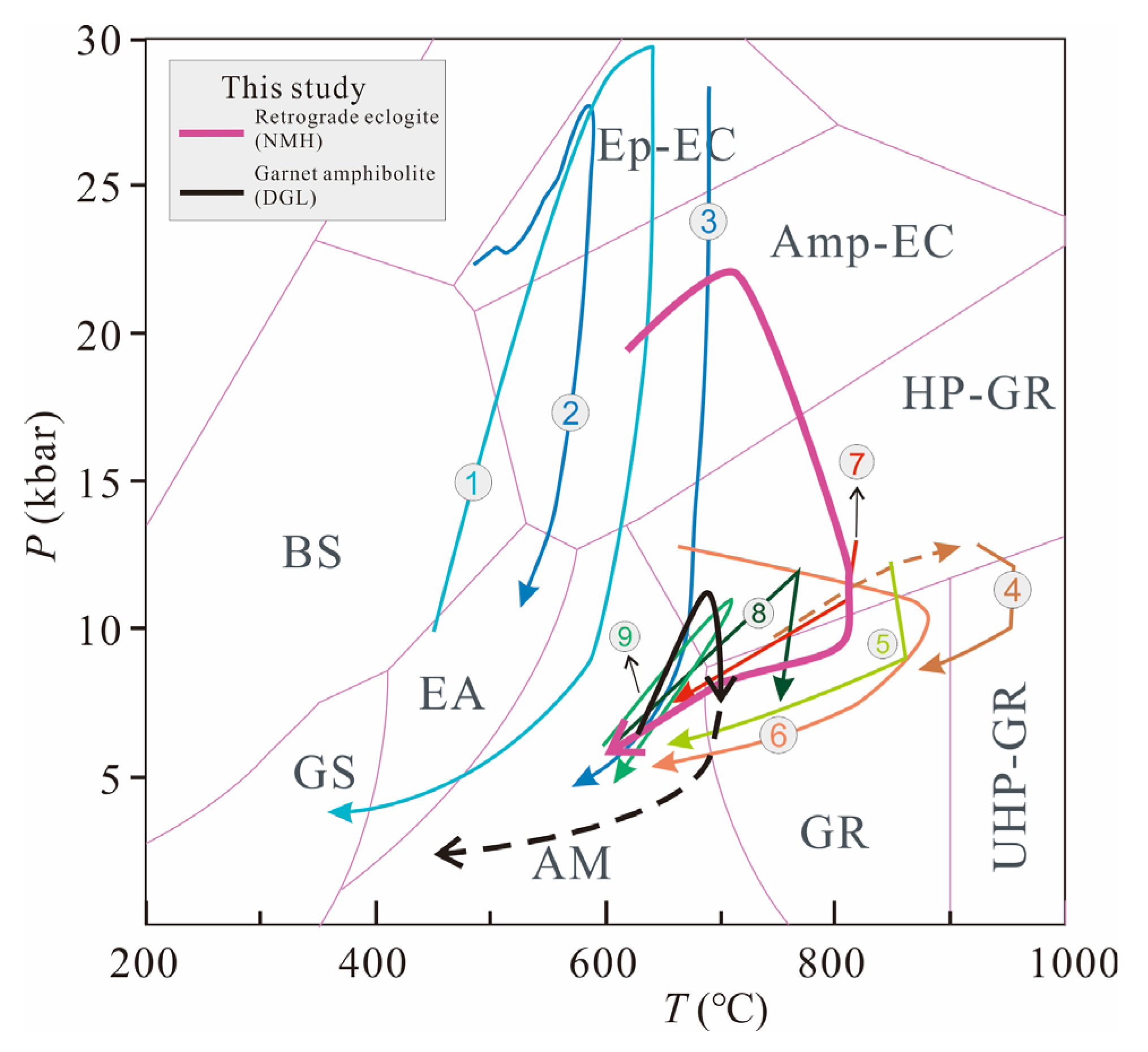

On the basis of petrological observations, chemical analyses, zirconium-in-rutile thermometry, and phase equilibrium modeling, clockwise P–T paths were reconstructed for the metabasites from Dagele and east Nuomuhong (Figure 8 and Figure 9). These are compared in Figure 14 to other metabasites (eclogites, granulites, amphibolites) from the EKOB, which all show broadly clockwise P–T paths.
Considering the geochemical interpretations discussed in Section 5.2, we infer that the basaltic protoliths to the Dagele metabasites formed in an oceanic basin setting where they experienced metasomatism by aqueous fluids derived from altered oceanic crust. The relatively short time gap between the formation (447–440 Ma) and metamorphic (414 Ma) ages recorded in the Dagele metabasites is consistent with results from other oceanic-derived metabasites [63,67] and may indicate that young oceanic crust was subducted shortly after it formed. However, the peak P–T conditions experienced by the garnet amphibolites from Dagele (Figure 14) restrict the depth of subduction to <40 km.
Blocks of retrograde eclogite in east Nuomuhong are found within granitic gneiss, suggesting that the eclogite protolith was emplaced into a continental setting [48,50]. This is consistent with geochemical results showing that metasomatism probably involved sediment-derived melts rather than fluids from the oceanic crust (Figure 12) and subduction-unrelated setting protolith characteristics (Figure 13). Furthermore, the significant time gap between the Neoproterozoic protolith age and Early Paleozoic metamorphism is also a common feature of continental-type metabasites (eclogites and granulites) from North Qaidam and Altyn Tagh [48,68]. Considering the geological and geochemical evidence, we interpret the protoliths of the retrograde eclogites to be continental tholeiitic basalts. The P–T conditions recorded by the retrograde eclogites (Figure 14) indicate that the basalts were subducted to depths of up to 70 km along a thermal gradient of ~11 °C/km (10–15 °C/km) during “hot plate” subduction [69].
Recent studies of the EKOB have emphasized the presence of two distinct ophiolite belts: a northern ophiolite belt that formed in the Early Paleozoic and a southern belt that formed discontinuously in the Early Paleozoic and Late Paleozoic [70]. The data on the two ophiolite belts have been synthesized, and the northern belt has the formation ages of 537–406 Ma [71]. However, other geologists advocated further subdivision of the northern ophiolite belt into the Qimantagh–Xiangride (QXM) and Aqikekulehu–Kunzhong (AKM) ophiolitic mélange zones in [16]. Table 2 summarizes published age data and tectonic information on the QXM and AKM.
It is clear from the data in Table 2 that the QXM (486–421 Ma) is significantly younger than the AKM (537–507 Ma), and thus the two ophiolitic mélange zones likely represent two different tectonic sutures. With this in mind, we combine our results with previous studies to inform a new five-stage tectonic model for the evolution of East Kunlun in the Early Paleozoic, which emphasizes the role of “dominant” and “secondary” suture zones (Figure 15):

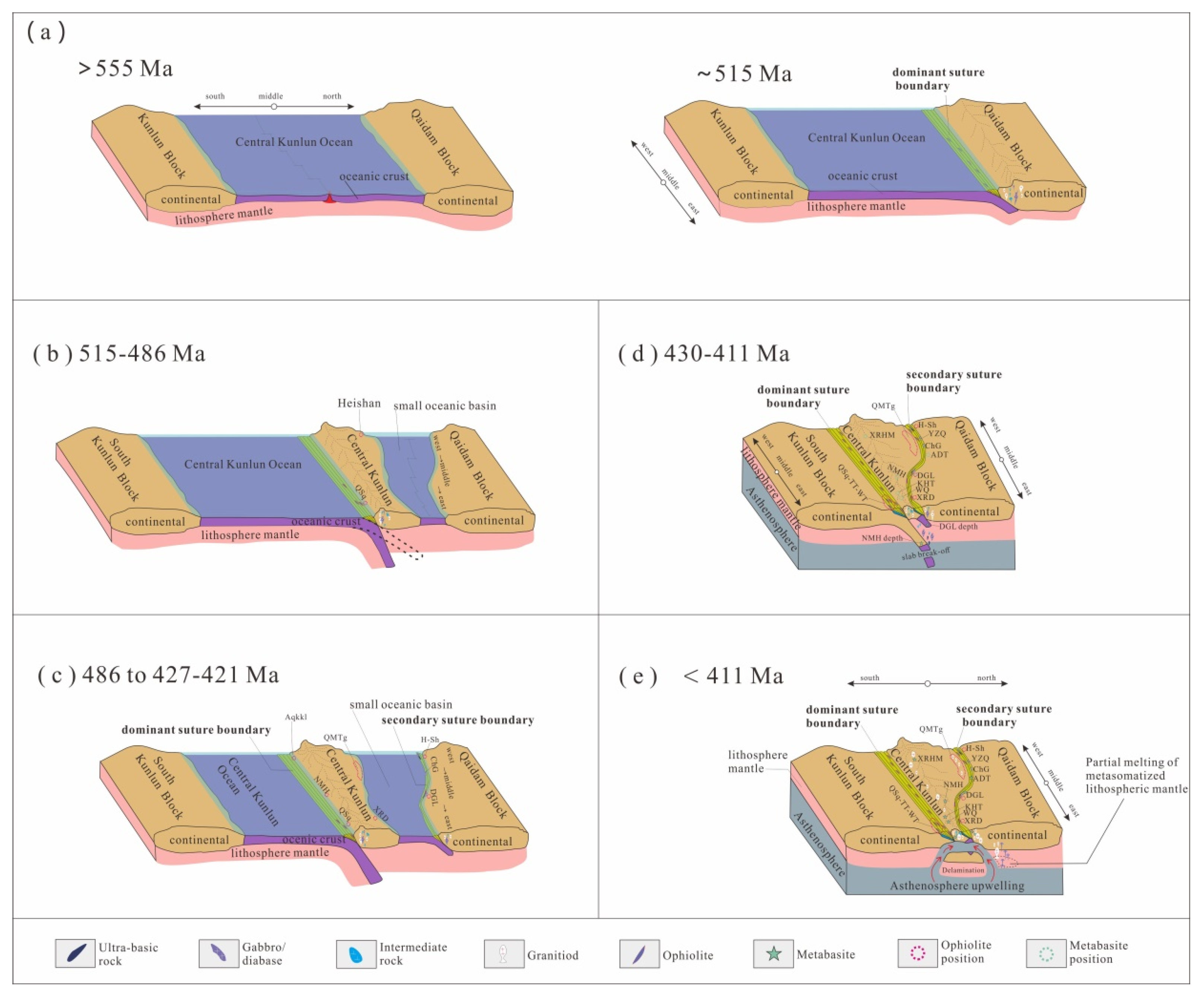

  • Stage I: Oceanic crust formation and initial subduction (>515 Ma)
The Proto-Tethys Ocean opened during the Neoproterozoic due to the breakup of Rodinia [81]. This overlaps with 1.0–0.9 Ga tectono-thermal events in Central Kunlun (Meng et al., 2013) and the crystallization ages of the eclogite protoliths in this study, confirming that the Central Kunlun Ocean represents an important branch of the Proto-Tethys. The ocean basin was well-established by 555 Ma (Figure 15; Ref. [82] supra-subduction zone type (SSZ-type) ophiolites along the AKM suggest that subduction of oceanic crust had initiated along a “dominant” suture boundary (predecessor of the Central Kunlun Fault) by the Early Cambrian (>537 Ma), consistent with metamorphic ages from the Qingshuiquan granulite, and amphibolite and gneiss (522–517 Ma) from southern Xiangride [60,61,62]. An age of 515 Ma obtained for the Kekesha quartz diorite has been interpreted to indicate ongoing subduction or even the cessation of subduction [79], bracketing the phase of seafloor spreading to c. 555–515 Ma.
2.
Stage II: Small ocean basin formation (515–486 Ma)
Slab roll-back during continued subduction along the dominant suture boundary formed a series of small oceanic back-arc basins, including the Qimantagh and Adatan basins and the Dagele basin proposed here (Figure 15b). As the basins widened, the Central Kunlun Belt was formed from the original southern margin of the Qaidam Block. A SHRIMP age of 486 ± 6 Ma from a mafic–ultramafic complex in Heishan was interpreted to record subduction initiation in the Qimantagh Basin [2], suggesting that the small back-arc basins were mature no later than the Early Ordovician.
3.
Stage III: Concurrent subduction along dominant and secondary suture boundaries (486 Ma to 427–421 Ma)
Subduction of the small basins along a secondary suture boundary (Figure 15c) is constrained by the ages of subduction-related basic rocks within the QXM [14,72]. In our study, the Dagele amphibolites and garnet amphibolites are interpreted to record the evolution of a small back-arc oceanic basin named the Dagele Ocean. The amphibolite protolith with a crystallization age of 447.5 Ma is interpreted to represent a gabbro intruded into the overlying gneissic crust during subduction of the Dagele Ocean. Similarly, the garnet-amphibolite protolith (crystallization age of 440 Ma) may represent arc-type magmatism. The metamorphic conditions and P–T path experienced by the garnet amphibolites are consistent with metamorphism at depths of 35–40 km in the thickened lower continental crust. Together with the metamorphic overprint (c. 414 Ma), this indicates that subduction of the Dagele Ocean may have persisted until c. 414 Ma and that upper amphibolite facies peak metamorphism may represent arc–continent collision between the Qaidam Block and the Central Kunlun Belt (Figure 15c). Therefore, we propose that (a) the newly identified metabasites in Dagele are part of the Qimantagh–Xiangride ophiolitic mélange zone (QXM), which formed within a secondary suture boundary, and (b) the model of “dominant” and “secondary” suture boundaries previously proposed for the Qimantagh area is also applicable to the Dagele area.
4.
Stage IV: Subduction and collision along dominant and secondary suture zones (from 430–411 Ma)
Ongoing subduction of the Central Kunlun Ocean resulted in a collision between the South Kunlun Block and the Central Kunlun Belt along the dominant suture boundary (Figure 15d). This process is recorded by continental eclogites in the EKOB, including our samples from east Nuomuhong. By c. 430–411 Ma, the eclogites and metapelites had experienced UHP-HP metamorphism (Bi et al. [7]; Meng et al. [11]; this study) in response to continental subduction following the closure of the Central Kunlun Ocean. Granitic rocks in eastern Hongshuichuan record Middle Silurian partial melting of the thickened lower crust during continent-continent collision [75]. Additionally, other syn-collisional granites and post-collisional websterites along the Central Kunlun Fault formed during continental collisions between 432 and 408 Ma [83,84,85,86]. Thus, the Central Kunlun Ocean records a tectonic transition from subduction to continental collision between the Middle Silurian (c. 430 Ma) and Early Devonian (408 Ma).
5.
Stage V: Post-collision extension and orogenic collapse (<411 Ma)
Delamination of the thickened lithosphere resulted in a change from compression to extension. This is recorded by post-collisional granitoids and mafic intrusions that collectively have an age range between 410 and 377 Ma in the Central Kunlun and North Qimantagh belts [84,85,87,88]. We suggest that Early- to Mid-Devonian heating from asthenospheric upwelling caused the amphibole-granulite sub-facies metamorphic overprint (hb-GR, M4) recorded in the retrograde eclogites studied here. Late Devonian molasse deposits [62,89] represent the terminal stages of post-orogenic collapse in East Kunlun (Figure 15e).

6. Conclusions

We studied three types of metabasite from Dagele (amphibolite and garnet amphibolite) and east Nuomuhong (retrograde eclogite) in the central part of the East Kunlun Orogenic Belt. The protoliths of amphibolite and garnet amphibolite from Dagele formed at, respectively, c. 448.7 Ma (Late Ordovician) and c. 440 Ma (Early Silurian) and are interpreted to represent the products of arc-type magmatism related to the formation of the small Dagele back-arc basin. The garnet amphibolite records a clockwise P–T path, including Early Devonian (~414 Ma) peak amphibolite facies conditions of 11–12 kbar and 675–695 °C. The retrograde eclogite from east Nuomuhong yielded a Neoproterozoic protolith age of c. 902 Ma, interpreted to represent the intrusion of tholeiitic basalts into the lower continental crust. An Early Paleozoic eclogite facies (~21.5–22.2 kbar and 715–750 °C) metamorphic age of ~418 Ma extends the total duration of eclogite facies metamorphism in East Kunlun to 433–418 Ma. In our new tectonic model, retrograde eclogites from east Nuomuhong—together with other UHP-HP eclogites, metapelites, and ophiolites in the Aqikekulehu–Kunzhong ophiolitic mélange zone (AKM)—record deep subduction between the Qaidam Block and the South Kunlun Block along a “dominant” suture boundary. By contrast, the newly identified Dagele metabasites associated with subduction-collision of the Dagele back-arc basin amalgamated with other ophiolitic suites from the Qimantagh–Xiangride ophiolitic mélange zone (QXM) and eventually formed along a “secondary” suture boundary.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/min14050449/s1. Test S1: Analytical methods [90,91,92,93,94,95]; Figure S1: Raman spectra for omphacite and garnet inclusions in zircon; Figure S2: Plots of selected trace elements versus Zr for metabasites from the central part of East Kunlun, China; Figure S3: Plots of oxides versus MgO for metabasites from the central part of East Kunlun, China; Figure S4: Plots of Cr, Co, Ni, Nb versus MgO for metabasites from the central part of East Kunlun, China; Table S1: Representative garnet compositions for metabasites from the central East Kunlun Orogenic Belt; Table S2: Representative pyroxene compositions for metabasites from the central East Kunlun Orogenic Belt; Table S3: Representative amphibolite compositions for metabasites from the central East Kunlun Orogenic Belt; Table S4: Representative plagioclase compositions for metabasites from the central part of East Kunlun Orogenic Belt; Table S5: Whole-rock major and trace element compositions of metabasites (garnet amphibolite, amphibolite, and retrograde eclogite) from the central part of East Kunlun Orogenic Belt (EKOB); Table S6: Sr-Nd isotopes for metabasites from the central part of EKOB; Table S7: Zircon U-Pb ages by LA-ICP-MS (32 μm) for metabasites from the central part of EKOB; Table S8: Zircon U-Pb ages by LA-MC-ICP-MS (10 μm) for metabasites from the central part of EKOB; Table S9: Zircon trace-element compositions for metabasites from the central part of EKOB.

Author Contributions

Conceptualization, G.Z. and F.C.; methodology, G.Z. and S.L.; field survey and geological interpretation, G.Z. and F.C.; sample collection, G.Z., F.C., L.X. and S.L.; investigation and data processing, F.C.; writing—original draft preparation, F.C.; writing—review and editing G.Z., F.C. and S.L.; formal analysis, S.W. and Y.L.; supervision, G.Z., L.X. and S.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (NSFC), grants 42372061, 41972056 and 91755206.

Data Availability Statement

All data can be provided from F.C. upon request due to the internal policy.

Acknowledgments

We are grateful to the editors and two anonymous reviewers for their constructive reviews and comments that substantially improved this work. We would like to thank Ying Cui and Xiaoli Li for their help with the experimental analysis. We are grateful to our driver, Jinbang He, who supported our group with fieldwork in Qinghai for over a decade.

Conflicts of Interest

The authors declare no conflicts of interest.
