Mineral Chemistry of Pyrochlore Supergroup Minerals as Records of Nb Mineralization Processes in NYF-Type Pegmatites: A Case Study of the Emeishan Large Igneous Province, SW China

by
Rong Yin
1,2,*,
Xiaoming Sun
1,2,3,
Shengwei Wang
4 and
Bin Wu
5
1
School of Earth Sciences and Engineering, Sun Yat-sen University, Guangzhou 510275, China
2
Guangdong Provincial Key Laboratory of Geodynamics and Geohazards, Guangzhou 510275, China
3
School of Marine Sciences, Sun Yat-sen University, Guangzhou 510006, China
4
Chengdu Institute of Geology and Mineral Resources, China Geological Survey, Chengdu 610081, China
5
State Key Laboratory of Nuclear Resources and Environment, East China University of Technology, Nanchang 330013, China
*
Author to whom correspondence should be addressed.
Minerals 2024, 14(1), 13; https://doi.org/10.3390/min14010013
Submission received: 20 November 2023 / Revised: 14 December 2023 / Accepted: 17 December 2023 / Published: 21 December 2023
(This article belongs to the Section Mineral Geochemistry and Geochronology)
Browse Figures
Versions Notes

Abstract

:
Alkaline igneous rocks have become a potentially important source of Nb, except for the carbonatites. The metallogenetic mechanism of Nb during the magmatic-hydrothermal evolution of alkaline rocks remains ambiguous. From the perspective of Nb minerals, the mineral chemistry of pyrochlore supergroup minerals provides the mineralogical evidence for indicating the respective contributions of magma and hydrothermal fluids to Nb mineralization. In the Miyi County of the Panzhihua-Xichang (Pan-Xi) area, the central zone of the Permian Emeishan large igneous province (ELIP) in SW China, hundreds of Nb-Y-F mineralized pegmatites (NYF-type) are exposed. This study conducted in situ mineral chemistry analyses on four types of pyrochlores to elucidate the Nb mineralization process. Both Pcl-I and Pcl-II exhibit well-developed oscillatory zoning (OZ), representing magmatic pyrochlore formed through disequilibrium crystallization in an oscillatory environment. Pcl-III, with a homogeneous and less variable composition, is also considered of magmatic origin due to its coherent chemical evolution with Pcl-II. Pcl-IV is considered of hydrothermal origin based on its irregular zoning texture, extremely high Na2O contents, and compositional gap compared with magmatic types. The decrease in TiO2 contents, coupled with the increase in Na2O, F, and Nb2O5 contents from Pcl-I to Pcl-III and from the core to the rim of zoned Pcl-II, indicates that fractional crystallization facilitates the crystallization of albite and the enrichment of volatiles, as well as the precipitation of Nb from the early to late stages. During the magmatic-hydrothermal transition stage, the reductive, Na- and F-enriched fluid transports Nb more effectively, leading to further Nb enrichment in pyrochlore. Consequently, there are two-stage Nb mineralization processes associated with the magmatic-hydrothermal evolution in the Miyi pegmatite, with the primary magmatic ore assemblages being the dominant Nb mineralization, which may be a general model for the mineralization of NYF-type pegmatites.

1. Introduction

Niobium is a critical material widely utilized in modern society characterized by its applications in high-tech industries [1,2]. The majority of economically significant Nb deposits are associated with carbonatites, which contain more than 50% of global Nb resources [2]. Besides the carbonatites, alkaline igneous rocks are emerging as a potentially vital source of Nb; for instance, Nb is currently being mined in the Lovozero layered alkaline igneous complex in the Kola peninsula in Russia, the Motzfeldt layered complex in Greenland, and the Nechalacho layered intrusive suite and the Strange Lake alkaline pegmatite in Canada, etc. [2].
The upwelling mantle plume may generate voluminous alkaline magma, potentially containing large Nb deposits [3,4]. The rise of the late Permian mantle plume in southwest China formed the Emeishan large igneous province (ELIP) comprising extensive continental flood basalt, mafic-ultramafic intrusions, and alkaline rocks [5,6,7,8,9,10,11]. In the Panzhihua-Xichang (Pan-Xi) area, the central zone of the ELIP, hundreds of syenitic and pegmatitic dikes contain most of the Nb resources in the ELIP, formed in 257–259 Ma [12,13]. These pegmatites are Nb-Y-F mineralized and could be classified as NFY-type pegmatites [13,14,15]. The reconstruction of Nb metallogenic mechanisms in NYF-type pegmatites in the ELIP provides an opportunity to understand the potential for mineralization related to the mantle plume.
The main issue of Nb mineralization in alkaline rocks is whether the minerals hosting Nb crystallized directly in magma or when the hydrothermal fluids remobilized during the magmatic-hydrothermal transitional processes. Solubility experiments of Nb-Ta oxide minerals, including columbite-group minerals, pyrochlore, and microlite, suggest that Nb mineralization occurs during the fractionation of alkaline melts [16,17,18,19]. Mineralogical features such as the presence of vein-like columbite in the Bailongshan pegmatite [20] and re-precipitated pyrochlore in the dissolved titanite in the Fangcheng syenite [21] indicate hydrothermal overprinting of magmatic Nb mineralization. Thus, the key factor controlling Nb mineralization remains poorly understood.
Pyrochlore supergroup minerals are common Nb-dominant minerals in NYF-type pegmatites characterized by the general formula A2−mB2X6−wY1−n·pH2O, where m = 0–1.7, w = 0–0.7, n = 0–1, and p = 0–2. The A-site can be occupied by Na, Ca, Sr, Ba, Sc, Y, REE, U, Th, Pb, □ (□ stands for a vacancy), or H2O; the B-site atoms mainly include Nb, Ta, Ti, Sb, W, but also V, Zr, Fe, Al, and Si; the X-site is O, OH−, and F; and the Y-site is OH−, F, O, K, Rb, Cs, H2O, and □ [22,23,24]. The chemistry of pyrochlore supergroup minerals could be utilized as an optimal tracker of Na, Ca, REE, and Nb changes in melt or fluid, as well as volatiles (including F and H2O) for changes in the metallogenic environment, which have been proven to decipher details of the crystallization environment, equilibrium melt properties, and magmatic-hydrothermal transition processes in alkaline rocks [23,25,26,27,28,29,30]. In this study, the detailed textural and chemical evolution of pyrochlore supergroup minerals in the NYF-type pegmatite in the Pan-Xi area are used to elucidate the specific roles of magmatic-hydrothermal evolution in Nb mineralization, providing insights into the source and metallogenic mechanism of Nb in plume-related NFY-type pegmatites.

2. Geological Background

The ELIP is located at the western edge of the Yangtze craton near the boundary with the Songpan-Ganze terrane in southwestern China (Figure 1a). The Yangtze craton comprises Meso-Proterozoic granitic gneisses and metasedimentary rocks intruded by Neoproterozoic (~800 Ma) granites and mafic rocks [31,32]. Overlying the Neoproterozoic granites are a series of marine and terrestrial strata from the late Neoproterozoic (~600 Ma) to the Permian [33]. A late Permian (~260 Ma) mantle plume origin for the ELIP is accepted as suggested by several geological, geochemical, and geophysical studies [5,7,34,35]. Most of the ELIP magmas (~85%) erupted 1.45 ± 0.5 million years ago [36]. The ELIP consists primarily of continental flood basalts (including low-Ti and high-Ti groups) and pyroclastic rocks covering an area of approximately ~7 × 105 km2. The thickness of the Emeishan volcanic succession varies from over five kilometers in the west to several hundred meters in the east [37,38]. The ELIP can be divided into inner, intermediate, and outer zones based on the amounts of surface uplift and erosion [5]. High-Ti basalts are exposed in both the inner and outer zones, while the low-Ti group is predominantly located in the inner zone [7].
The Panzhihua-Xichang (Pan-Xi) area, located in the inner zone of the ELIP, extends over a distance of ~700 km [39]. In the Pan-Xi area, massive igneous complexes developed from north to south along the NS-trending Anninghe fault zone (Figure 1b). These complexes commonly consist of temporally and spatially correlated layered mafic/ultramafic intrusions, felsic intrusions, and a small volume of continental flood basalts [8,11,37,38,40]. Several large mafic/ultramafic intrusions host giant V-Ti-Fe oxide deposits (e.g., Panzhihua, Hongge, Baima, and Taihe) [41,42]. Additionally, some small intrusions contain Ni-Cu-PGE sulfide deposits (e.g., Yangliuping, Limahe, and Jinbaoshan) [11,42,43]. The felsic intrusions include amphibole/quartz/nepheline syenite and granites, named from north to south as Taihe, Cida, Miyi, and Ailanghe, etc. (Figure 1b) [10]. It is suggested that these syenites and granites represent the very late stage of the Emeishan plume activity since they always intrude on the adjacent basalts and mafic/ultramafic intrusions in the field [10]. The majority of the syenites and granites are chemically peralkaline and display A-type granitic characteristics, while a minority exhibit peraluminous features and I-type granite characteristics [6,8,38,44]. The A-type granites were formed in ~260 Ma, based on high-precision zircon SHRIMP U–Pb dating [8]. It is further proposed that these A-type granites are derived from the differentiation of Emeishan high-Ti basalt [6,38,44]. The I-type granite was derived from the partial melting of Mesoproterozoic basement rocks of the Yangtze Block [8,44].
In the Pan-Xi area, hundreds of syenitic and pegmatitic dikes surround the felsic intrusions and intrude the mafic/ultramafic intrusions (Figure 2) [12]. They host the majority of Nb-Ta ore deposits in the region, delineating over 30 ore bodies in the Xichang, Dechang, Huili, Huidong, and Miyi areas (Figure 1b) [15]. For example, the Baicao and Luku Nb deposits (syenitic dyke-hosted) contain an estimated resource of 465 and 30 metric tonnes (t) of Nb2O5 and Ta2O5, respectively (Figure 2) [12].
Apart from syenitic dykes, recently discovered alkaline pegmatites classified as NFY-type in Miyi County exhibit high Nb and REEs ore grades, with maximum values reaching up to 0.4% Nb2O5 and 0.5% total REE oxides (Figure 2) [13]. The Miyi pegmatites comprise dozens of aplite and pegmatite dikes that intrude on the layered mafic-ultramafic intrusion-hosted Zhujiabaobao Fe-Ti-V oxide deposits (Figure 3a). The dendritic pegmatites extend 20–1500 m in length and are 0.3–5 m wide [13]. The Miyi pegmatite, formed around ~258 Ma as determined by LA-ICP-MS U-Pb dating of zircons [13], exhibits positive εHf(t) values of zircons (ranging from 1.5 to 9.1) [13], indicating its plume-related origin and possible derivation from magma resembling A-type granites in the ELIP.
The rock-forming minerals of the Miyi pegmatites are aegirine-augite, albite, plagioclase, K-feldspar, and biotite (Figure 3), along with accessory minerals such as zircon, titanite, apatite, ilmenite, and fluorite [13]. The Miyi pegmatite displays asymmetrical zoning in its internal structure (Figure 3). Three textural zones can be identified outside-to-inside based on the variations in petrological texture and mineral assemblages: border zone (Zone I), intermediate zone (Zone II), and inner zone (Zone III) (Figure 3). A contact zone composed of biotite aggregates with a width of ~1 cm is observed at the boundary between the pegmatite and Fe-Ti-V oxide deposits [13]. The grain sizes of rock-forming minerals progressively increase from Zone I to Zone II, with the crystal length of aegirine-augite notably increasing from ~1 cm to ~30 cm (Figure 3). Biotite and aegirine-augite are absent in Zone III, and blocky albite dominates the mineral assemblage (Figure 3). Pegmatite exhibits Nb mineralization in all textural zones, with the mineralization of REE mainly occurring in Zone II [13].

3. Samples and Analytical Methods

Twenty samples were collected from all textural zones in the Miyi pegmatite. Polished thin sections of these samples were prepared for petrographic observations and the quantitative determination of pyrochlore mineral chemistry.
Preliminary petrographic observations were conducted using a ZEISS AXIO microscope (Carl Zeiss AG; Oberkochen, Baden-Württemberg, Germany) under both transmitted and reflected light conditions. Mineralogical identification and back-scattered electron (BSE) images were obtained using a TESCAN MIRA (TESCAN; Brno, Czechia) field emission scanning electron microscope (FE-SEM) equipped with energy dispersive spectroscopy (EDS) at the School of Marine Sciences, Sun Yat-sen University (SYSU).
The chemical composition of pyrochlore in the Miyi pegmatite was quantified using a JEOL JXA-8530F Plus (JEOL Ltd.; Akishima, Tokyo, Japan) field emission-electron probe microanalyzer (FE-EPMA) equipped with five wavelength-dispersive spectrometers at the State Key Laboratory of Nuclear Resources and Environment, East China University of Technology. The operating conditions included an accelerating voltage of 15 kV, a beam current of 20 nA, and a beam diameter of ~3 μm. Peak counting times were 10 s for major elements, 20 s for minor elements, and 10 s for volatile species (Na, K, and F). The following natural and synthetic standards were used for analytical standards: apatite (Ca), jadeite (Na), topaz (F), rutile (Ti), Ta metal (Ta), Nb metal (Nb), monazite (La, Ce, Pr, Nd), synthetic REE-bearing phosphate mineral (Sm), YAG (Y), uraninite (U, Th, Pb), plagioclase (Al), zircon (Zr, Si), magnetite (Fe), rhodonite (Mn), barite (Ba), and pyroxene (Mg). The ZAF routine was used for data reduction. The detection limits for most minor elements are approximately 200–300 ppm. X-ray elemental mapping was performed on the FE-EPMA to identify the chemical heterogeneities and spatial distribution of elements in single pyrochlore crystals. The mapping used an accelerating voltage of 15 kV and a beam current of 40 nA.

4. Results

4.1. Mineralogical Features of Pyrochlore Supergroup Minerals

The pyrochlore supergroup minerals commonly present in Zones I and II in the Miyi pegmatite are further classified into four distinct types based on their internal textures and chemical compositions.
Type I pyrochlore supergroup minerals (Pcl-I) are present in Zone I. They are euhedral to subhedral, ranging from 20 to 500 µm across, and occur interstitially within aegirine-augite and albite (Figure 4a,b). In the BSE images, Pcl-I consistently exhibits well-developed oscillatory zoning (OZ) characterized by a series of straight, clear bands with alternating light and dark patterns parallel to the boundary of the crystal faces (Figure 4b).
Pyrochlore supergroup minerals are more common in Zone II and exhibit a more complex internal texture compared to Zone I. Three types of pyrochlore supergroup minerals can be distinguished based on their zoning texture in the BSE images. Type II pyrochlore supergroup minerals (Pcl-II), characterized by their euhedral shape and well-developed OZ, are the most common type in Zone II (Figure 4c). Cracks can also occur inside the Pcl-II crystals (Figure 4c and Figure 5b). The grain sizes of Pcl-II are 50–500 µm across (Figure 4c and Figure 5a). Pcl-II is generally present as interstitial phases between rock-forming minerals such as albite and aegirine-augite (Figure 5a). However, a few Pcl-II crystals are also observed as inclusions within zircons (Figure 4d). Additionally, Pcl-II associated with albite is usually surrounded by anhedral pyrite (Figure 5a,b). Pcl-III grains are euhedral to subhedral and appear homogeneous in BSE images (Figure 5c). They are 20–200 µm across and inserted into the rock-forming minerals, with albites sometimes filling the cracks in Pcl-III (Figure 5c). Pcl-IV is inhomogeneous with irregular zoning and sinuous bands in BSE images (Figure 5d). Pcl-IV grains are 20–50 µm across and closely associated with albite (Figure 5d). Tiny albite and pyrite may be included in Pcl-IV (Figure 5d).

4.2. Chemical Composition of Pyrochlore Supergroup Minerals

Based on the cations occupying the B-site, the composition of pyrochlore supergroup minerals in the Miyi pegmatite are concentrated in the Nb-rich member area, which is classified as pyrochlore (Figure 6a). In the A-site, the pyrochlores in the Miyi pegmatite are located close to the middle of the Na-Ca series, with fewer vacancies occupied (Figure 6b), leading to their further classification as hydroxycalciopyrochlore to fluorcalciopyrochlore (Figure 7).
In Zone I, Pcl-I has the highest TiO2 (12.02–14.11 wt%) and UO2 (13.92–17.40 wt%) contents but the lowest Na2O (3.38–3.81 wt%), F (1.42–1.72 wt%), Nb2O5 (38.77–43.16 wt%), and Ce2O3 (2.79–3.08 wt%) contents among the four types of pyrochlores in the Miyi pegmatite (Figure 8; Table 1). Pcl-I also has relatively high contents of CaO (14.39–14.87 wt%) and Ta2O5 (3.31–4.06 wt%) (Figure 8; Table 1). In Zone II, Na2O contents in Pcl-II (3.37–5.80 wt%) and Pcl-III (4.23–5.02 wt%) are comparable, but they abruptly increase in Pcl-IV (4.85–6.58 wt%) (Figure 8; Table 1). The F content increases gradually from Pcl-II (1.37–3.72 wt%) to Pcl-III (2.97–3.59 wt%) but shows less variation between Pcl-III and Pcl-IV (2.99–3.96 wt%) (Figure 8, Table 1). The Nb2O5 content increases gradually from Pcl-II (37.68–53.99 wt%) to Pcl-III (52.09–54.55 wt%) and increases with a compositional gap in Pcl-IV (51.13–62.43 wt%) (Figure 8; Table 1). The TiO2 content varies contrarily from Pcl-II (9.00–15.13 wt%) through Pcl-III (9.01–9.55 wt%) to Pcl-IV (4.58–9.90 wt%) compared to the Nb2O5 content (Figure 8; Table 1). The Ce2O3 content decreases gradually from Pcl-II (3.21–5.47 wt%) through Pcl-III (3.46–4.08 wt%) to Pcl-IV (2.22–4.91 wt%) (Figure 8; Table 1). The UO2 content also decreases from Pcl-II (bdl—18.45 wt%) to Pcl-III (bdl—2.55 wt%) but shows less variability in Pcl-IV (bdl—2.32 wt%) (Figure 8; Table 1). The CaO content increases from Pcl-II (10.40–15.90 wt%) to Pcl-III (16.27–17.15 wt%) but then decreases in Pcl-IV (14.17–16.02 wt%). By contrast, the Ta2O5 content varies contrarily from Pcl-II (1.24–4.64 wt%) through Pcl-III (1.54–3.07 wt%) to Pcl-IV (0.99–3.87 wt%) (Figure 8; Table 1).

4.3. Compositional Zoning of Pyrochlore Supergroup Minerals

The BSE images of the OZ in Pcl-I and Pcl-II always exhibit relatively darker rims compared to the core (Figure 4c and Figure 5b). The X-ray elemental map of Pcl-II reveals that the brightness of the BSE images is consistent with the compositional variations in Ti, U, Ca, and Nb, and roughly fits the variable Na and F contents. The bright bands are enriched in Ti and U, while the dark ones are enriched in Nb, Na, F, and Ca (Figure 9). Meanwhile, the Ce and Ta compositional variation is independent of the OZ brightness and has less core-to-rim variation (Figure 9). The compositional profiles of Pcl-II further reveal that the contents of CaO, F, Nb2O5, Ce2O3, and Na2O increased, while the contents of TiO2 and UO2 decreased from the core to the rim (Figure 10).
X-ray elemental map of Pcl-IV reveals that the bright region exhibits distinctly higher Ti and Ce contents but lower F and Na contents than the dark region (Figure 11). The U content is concentrated in the brightest veins in Pcl-IV (Figure 11). The quantitative data further reveal that the contents of TiO2, UO2, and Ce2O3 decreased from the bright region (TiO2 = 5.29–9.90 wt%, UO2 = 0.43–2.32 wt%, Ce2O3 = 2.65–4.91 wt%) to the dark region (TiO2 = 4.58–5.80 wt%, UO2 = 0.29–1.81 wt%, Ce2O3 = 2.22–3.43 wt%). However, the contents of Na2O, F, and Nb2O5 increased from the bright region (Na2O = 4.85–6.02 wt%, F = 2.99–3.40 wt%, Nb2O5 = 51.13–60.10 wt%) to the dark region (Na2O = 6.06–6.58 wt%, F = 3.58–3.96 wt%, Nb2O5 = 58.74–62.43 wt%) (Table 1).

5. Discussion

5.1. Substitution of Elements in the Pyrochlore in the Miyi Pegmatite

The chemical variations of pyrochlore in the Miyi pegmatite can be used as a proxy for alkalic magmatic evolution-controlled Nb mineralization since it can contain Nb, Na, F, Ca, and Ti. Both the crystal chemical and geochemical mechanisms contribute to variations in the concentrations of these elements in pyrochlore. In the Miyi pegmatite, the cations exhibit large compositional variations both in the A-site (including Na, Ca, U, and REE) and the B-site (including Ti, Na, and Ta). Additionally, anions, including F and OH−, are substituted with the pyrochlore compositions varying along the series of hydroxycalciopyrochlore and fluorcalciopyrochlore (Figure 7). As shown in Figure 8, Pcl-II, with well-developed OZ, exhibits the largest variation in the elements; conversely, the homogeneous pyrochlore crystals (Pcl-III) exhibit minimal chemical variations (Figure 8).
Since the cations occupying the A-site or B-site are polyvalent in pyrochlore, a combination of substitutions could occur [45]. The most common scenario is the substitution occurring in both the A- and B-site [46]. The end-member Ca2TiNbO6(OH,F) can be generated by a coupled substitution involving the cations in both A and B sites, where REE is constant, according to:
Ca2+ + Ti4+ = Na+ + Nb5+
When Ca is constant, the end-member Ca(REE)Ti2O6(OH,F) can be generated by a coupled substitution according to:
REE3+ + 2Ti4+ = Na+ + 2Nb5+
When Na is constant, the end-member Na(REE)TiNbO6(OH,F) can be generated by:
REE3+ + Ti4+ = Ca2+ + Nb5+
When the coupled cation substitution involves only the A-site, with constant Nb and Ti, REE can be incorporated and the end-member REE0.5Na0.5CaNb2O6(OH,F) can be generated by:
Na+ + REE3+ = 2Ca2+
Different from the heterovalent isomorphism in the previous schemes, the substitution of U and Ti is homovalent, with the following equations:
U4+ + 3Ti4+ = Na+ + 3Nb5+
U4+ + 2Ti4+ = Ca2+ + 2Nb5+
Based on the linear negative correlations of the plots of elemental pairs shown in Figure 12, the selective enrichment of elements in the pyrochlore in the Miyi pegmatite is controlled by the chemical substitution and valence state of the elements as shown above.
The decorrelation in the compositional plots of Ca vs. Na + REE in the pyrochlore indicates that cation substitution cannot merely involve the A-site (Figure 12d). Notably, the pyrochlore with OZ, especially the Pyl-II, presents a good linear permutation relationship, illustrating that the zoning texture and the distribution of component bands can be controlled by crystal chemistry (Figure 12). The linear slope of the substitution equation in Pyl-IV is slightly different from the other types of pyrochlore, illustrating the different compositions of melt for their crystallization (Figure 12a,c,e).

5.2. Genesis of Four Types of Pyrochlores in the Miyi Pegmatite

In carbonatites and syenites, pyrochlore crystallizes mainly directly in the magma, leading to metallogenic mechanisms related to Nb mineralization focusing on magmatic evolution e.g., [27]. However, the alteration of pyrochlore also indicates the significant role of hydrothermal fluids on Nb mineralization e.g., [25,26,28,47,48,49,50,51]. For instance, the pyrochlore in the St Honoré carbonatite in Canada exhibited irregular patchy zoning and overgrowth representing species that crystallized from a carbonatitic magma that had undergone fluid exsolution [47]. In syenite from south Greenland, fluid alteration caused the primary pyrochlore with weak OZ to be overprinted by alteration textures resembling a mosaic or tortoiseshell pattern in BSE images or cut by vein-like areas of alteration [26]. Pyrochlore can be decomposed to a stronger degree through structural destruction, resulting in in situ crystallization of secondary ferrocolumbite, uraninite, Nb-bearing rutile, and fergusonite-(Y) [29,30]. This process is also characterized by the local exchange and re-equilibration of fluid-mobile elements, which can reconstruct the metallogenic mechanism of Nb and the properties of fluids in the magmatic-hydrothermal transition stage [28,47]. In the Pan-Xi area, the enrichment of lighter whole-rock B isotopes in the Nb-mineralized syenitic dikes than in the Nb-poor dikes indicates that hydrothermal fluids are a critical factor for Nb mineralization [12]. Meanwhile, the chemical and petrographic characteristics of zircons in the Miyi pegmatite illustrate that both magmatic and hydrothermal processes facilitate Nb and REE mineralization [13].
In pyrochlore, the chemical composition varies systematically from core to rim, often displaying one or more superimposed, sharply defined, parallel crystal faces, and appearing most commonly near the outer part of the crystal, characterizing it as primary zonation that crystallized directly in the magma [25]. Both Pcl-I and Pcl-II in Miyi pegmatite containing OZ are magmatic in origin because they exhibit such characteristics (Figure 4). Pcl-I and Pcl-II were considered to crystallize before the fluids became saturated in the magma, as Pcl-I crystallized in Zone I, in which the magma is less evolved, viscous, and anhydrous [13]. Some euhedral Pcl-II crystallized in the magmatic zircon, indicating that Pcl-II crystallized earlier or simultaneously during zircon crystallization in the magma (Figure 4d). Under these conditions, zoning can develop in self-crystallized pyrochlore in a comparatively stable environment until the fractional crystallization of the magma is completed. This is a result of equilibrium fractional crystallization during normal geochemical evolution [52], as the Pcl-II exhibits largely and successively compositional variations (Figure 13). The origin of OZ in Nb-Ta oxide minerals can be controlled, on one hand, by the dynamic growth conditions of periodic variations in crystallization and diffusion velocity at the melt-crystal interface [53], and on the other hand, by the fluctuating P-T-X conditions in the melt [54]. In the Miyi pegmatite, the OZ structure in pyrochlore was formed through disequilibrium crystallization in an oscillatory environment in which the variation in Nb, Ca, and Na is complemented by the compositions of U and Ti based on the lattice substitution of the elements mentioned above.
In Zone II of the Miyi pegmatite, Pcl-III can also be considered magmatic in origin, as its chemical evolution is coherent and consistent with the Pcl-II trend (Figure 12). Unlike the OZ texture in Pcl-II, the homogeneous and less variable composition of Pcl-III illustrates a more stable P-T-X crystallization condition in the melt. It may have crystallized in the most evolved magma because Pcl-III exhibits comparable Nb, F, and Ca contents with the highest values in Pcl-II (Figure 8 and Figure 13). The high amounts of compositional pyrochlore data show a compositional gap in the Na end member in the Na-Ca series [22]. This is because the theoretical nonexistence of “oxynatropyrochlore” as its end member Na2Nb2O7 cannot reach electrovalence equilibrium [22]. Therefore, the Na content in Pcl-III will not increase as Na in the melt, as Na in the crystal lattices of pyrochlore is not a superior occupying ion.
Pcl-IV is considered to have a hydrothermal origin based on its irregular zoning texture. Different from the straight and regular OZ, Norton and Dutrow [55] proposed that a complex dynamic system is involved in magmatic-hydrothermal processes where the existence of a supercritical fluid can transform the system into a disordered state. This system provides a complex and variable environment for crystallization conducive to the growth of complex and multi-stage zonation. The significant and discontinuous increase in Na2O from Pcl-III to Pcl-IV, which is a trend opposite to that observed from Pcl-II to Pcl-III, suggests that Pcl-IV cannot crystallize in a higher evolved magma (Figure 8a and Figure 13a). The hydrothermal crystallization environment also results in Pcl-IV presenting a different compositional variation trend compared with the magmatic pyrochlores based on the changes in the linear slope of the substitution equation and the compositional gap in Nb2O5 in Pcl-IV (Figure 12a,c,e).

5.3. Nb Mineralization during the Magmatic-Hydrothermal Evolution in the Miyi Pegmatite

The NFY pegmatite occurs mainly in intraplate tectonic environments and is typically associated with rifting, faulting, and/or crustal extension. In such settings, magma with oceanic island basalt (OIB) characteristics can be generated, leading to a very high Nb content [2]. In the Miyi pegmatite, the crystal chemistry of pyrochlore reconstructs the significant role of both the late-stage magmatic evolution and hydrothermal alteration in the two mineralization periods.
The first period of Nb mineralization produces primary magmatic pyrochlore assemblages (Figure 4 and Figure 5a–c), which are formed through the crystallization of fractionated peralkaline magma rich in rare metals. In magmatic pyrochlore, the decrease in TiO2 contents from Pcl-I to Pcl-III is mainly caused by the crystallization of ilmenite and biotite in the magma (Figure 13e) [56]. The synchronous decrease in UO2 content may be controlled by the crystallization of monazite, which is usually the earliest crystallized REE mineral due to its very low solubility [57], and zircon (Figure 13c). The Na content in the melt increases with magmatic evolution, as evidenced by increasing Na content in zircons and pyrochlore from Zone I to Zone II [13]. The solubility of Nb in the alkaline magma can significantly increase by combining with more non-bridging oxygens (NBOs) generated by the excess Na in the melt [16,17,19,58]. Therefore, the synchronous increase in Na and Nb from Pcl-I to Pcl-III and from the core to the rim in Pcl-II illustrates that Na facilitates the enrichment of Nb in the Miyi pegmatite (Figure 10 and Figure 13a). In the alkaline melt, high F content is considered to have a positive role in prolonging the fractional crystallization and the crystallization of albite by reducing the viscosity and liquidus temperature of the magma [59,60,61], as evidenced by the synchronous increase in F, Nb, and Na contents in the magmatic pyrochlore in the Miyi pegmatite (Figure 13).
During the subsequent crystallization of pyrochlore by hydrothermal fluids, Nb is remobilized and further enriched in Zone II of the Miyi pegmatite (Figure 8e). The decreased Ce2O3 content in the hydrothermal pyrochlore indicates that REE has been mineralized as monazite, allanite, britholite, etc., in the hydrothermal fluids (Figure 8c) [13]. The distinctly higher Na and F contents in the hydrothermal pyrochlore than in the magmatic ones indicate that Na and F, which are compatible with the hydrothermal fluids, have a more significant role on Nb mineralization (Figure 13a,b), which also aligns with the crystal chemistry of hydrothermal zircons in the Miyi pegmatite [13]. Indeed, solubility experiments have shown that the addition of Na+ in aqueous solutions enhances the complexation of F– and Nb5+, which may improve the solubility of Nb in the fluid [62,63,64]. The later-formed pyrite around Pcl-II indicates that such Na-F-rich fluid solution is under reductive conditions (Figure 5a,b), with the same properties of fluid also occurring in the Baicao syenitic Nb deposit [30]. Although the hydrothermal fluid has a more effective effect on the further enrichment of Nb, the primary magmatic ore assemblages are still the dominant Nb mineralization.

6. Conclusions

The pyrochlore supergroup minerals present in the Miyi pegmatite in the Pan-Xi area are Nb-dominant, and their compositions are located near the middle of the Na-Ca series with fewer vacancies, further classified as hydroxycalciopyrochlore to fluorcalciopyrochlore. Four types of pyrochlores are present in the Miyi pegmatite and can be identified as magmatic or hydrothermal types. The magmatic pyrochlores are euhedral and exhibit well-developed oscillatory zoning textures, while the hydrothermal pyrochlores, displaying irregular zoning, crystallize under the influence of hydrothermal fluids that transform the magmatic system into a disordered state.
The crystal chemistry of the four types of pyrochlores consists of a two-stage Nb mineralization process in the Miyi pegmatite. The first mineralization stage produces primary magmatic pyrochlores resulting from the fractional crystallization of a fractionated peralkaline magma rich in rare metals. During the magmatic-hydrothermal transition stage, the enrichment of Na and F in the fluid facilitates transportation and has a more effective effect on further enrichment of Nb in pyrochlore.

Author Contributions

Conceptualization, R.Y. and X.S.; field investigation, S.W., X.S. and R.Y.; methodology, B.W.; data curation, B.W. and R.Y.; resources, X.S. and S.W.; writing–original draft preparation, R.Y.; writing–review and editing, R.Y. and X.S.; visualization, R.Y.; supervision, R.Y. and X.S.; funding acquisition, X.S., R.Y. and S.W. All authors have read and agreed to the published version of the manuscript.

Funding

This research was financially supported by the National Key Research and Development Program of China (Grant No. 2018YFA0702605) and the National Natural Science Foundation of China (NSFC Project 42172075, 42272106).

Data Availability Statement

Raw data are available from the corresponding author upon reasonable request.

Acknowledgments

We thank Qian Ren (East China University of Technology) for the chemical analysis. We thank Jian-Lin Liao (Sun Yat-sen University) for assistance with fieldwork and collecting samples. We are grateful to three anonymous reviewers for their careful reviews and constructive comments.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Linnen, R.L.; van Lichtervelde, M.; Černý, P. Granitic pegmatites as sources of strategic metals. Elements 2012, 8, 275–280. [Google Scholar] [CrossRef]
  2. Williams-Jones, A.E.; Vasyukova, O.V. Niobium, Critical metal, and progeny of the mantle. Econ. Geol. 2023, 118, 837–855. [Google Scholar] [CrossRef]
  3. Kogarko, L.N.; Lahaye, Y.; Brey, G.P. Plume-related mantle source of super-large rare metal deposits from the Lovozero and Khibina massifs on the Kola Peninsula, Eastern part of Baltic Shield: Sr, Nd and Hf isotope systematics. Miner. Petrol. 2010, 98, 197–208. [Google Scholar] [CrossRef]
  4. Pirajno, F. Intracontinental anorogenic alkaline magmatism and carbonatites, associated mineral systems and the mantle plume connection. Gondwana Res. 2014, 27, 1181–1216. [Google Scholar] [CrossRef]
  5. He, B.; Xu, Y.G.; Chung, S.L.; Xiao, L.; Wang, Y. Sedimentary evidence for a rapid, kilometer-scale crustal doming prior to the eruption of the Emeishan flood basalts. Earth Planet. Sc. Lett. 2003, 213, 391–405. [Google Scholar] [CrossRef]
  6. Shellnutt, J.G.; Zhou, M.F. Permian peralkaline, peraluminous and metaluminous A-type granites in the Panxi district, SW China: Their relationship to the Emeishan mantle plume. Chem. Geol. 2007, 243, 286–316. [Google Scholar] [CrossRef]
  7. Xu, Y.G.; Chung, S.L.; Jahn, B.M.; Wu, G.Y. Petrologic and geochemical constraints on the petrogenesis of Permian–Triassic Emeishan flood basalts in southwestern China. Lithos 2001, 58, 145–168. [Google Scholar] [CrossRef]
  8. Xu, Y.G.; Luo, Z.Y.; Huang, X.L.; He, B.; Xiao, L.; Xie, L.W.; Shi, Y.R. Zircon U–Pb and Hf isotope constraints on crustal melting associated with the Emeishan mantle plume. Geochim. Cosmochim. Acta 2008, 72, 3084–3104. [Google Scholar] [CrossRef]
  9. Zhong, H.; Zhu, W.G.; Hu, R.Z.; Xie, L.W.; He, D.F.; Liu, F.; Chu, Z.Y. Zircon U–Pb age and Sr–Nd–Hf isotope geochemistry of the Panzhihua A-type syenitic intrusion in the Emeishan large igneous province, southwest China and implications for growth of juvenile crust. Lithos 2009, 110, 109–128. [Google Scholar] [CrossRef]
  10. Zhong, H.; Campbell, I.H.; Zhu, W.G.; Allen, C.M.; Hu, R.Z.; Xie, L.W.; He, D.F. Timing and source constraints on the relationship between mafic and felsic intrusions in the Emeishan large igneous province. Geochim. Cosmochim. Acta 2011, 75, 1374–1395. [Google Scholar] [CrossRef]
  11. Zhou, M.F.; Arndt, N.T.; Malpas, J.; Wang, C.Y.; Kennedy, A.K. Two magma series and associated ore deposit types in the Permian Emeishan large igneous province, SW China. Lithos 2008, 103, 352–368. [Google Scholar] [CrossRef]
  12. Wang, F.L.; Wang, Y.W.; Zhao, T.P. Boron isotopic constraints on the Nb and Ta mineralization of the syenitic dykes in the ~260 Ma Emeishan large igneous province (SW China). Ore Geol. Rev. 2015, 65, 1110–1126. [Google Scholar] [CrossRef]
  13. Yin, R.; Sun, X.M.; Wang, S.W.; Wang, R.C.; Ran, M.L.; Wu, B.; Huang, X.L. Zircons in NYF-type pegmatites in the Emeishan large igneous province, SW China: A record of Nb and REE mineralization processes. Ore Geol. Rev. 2023, 162, 105700. [Google Scholar] [CrossRef]
  14. Černý, P.; Ercit, T.S. The classification of granitic pegmatites revised. Can. Mineral. 2005, 43, 2005–2026. [Google Scholar] [CrossRef]
  15. He, J.L. Ore-forming geological conditions and prospecting potential for Nb-Ta mineral deposits in Panzhihua-Xichang region, Sichuan. Acta Geol. SiChuan 2004, 24, 206–211, (In Chinese with English Abstract). [Google Scholar]
  16. Linnen, R.L.; Keppler, H. Columbite solubility in granitic melts: Consequences for the enrichment and fractionation of Nb and Ta in the Earth’s crust. Contrib. Mineral. Petr. 1997, 128, 213–227. [Google Scholar] [CrossRef]
  17. McNeil, A.G.; Linnen, R.L.; Flemming, R.L. Solubility of wodginite, titanowodginite, microlite, pyrochlore, columbite-(Mn) and tantalite-(Mn) in flux-rich haplogranitic melts between 700° and 850 °C and 200 MPa. Lithos 2020, 352–353, 105239. [Google Scholar] [CrossRef]
  18. Yin, R.; Huang, X.L.; Wang, R.C.; Sun, X.M.; Tang, Y.; Wang, Y.; Xu, Y.G. Rare-metal enrichment and Nb–Ta fractionation during magmatic–hydrothermal processes in rare-metal granites: Evidence from zoned micas from the Yashan pluton, South China. J. Petrol. 2022, 63, egac093. [Google Scholar] [CrossRef]
  19. Tang, Y.; Linnen, R.L.; McNeil, A.G. An experimental study of pyrochlore solubility in peralkaline granitic melts. Econ. Geol. 2023, 118, 209–223. [Google Scholar]
  20. Yin, R.; Huang, X.L.; Xu, Y.G.; Wang, R.C.; Wang, H.; Yuan, C.; Ma, Q.; Sun, X.M.; Chen, L.L. Mineralogical constraints on the magmatic–hydrothermal evolution of rare-elements deposits in the Bailongshan granitic pegmatites, Xinjiang, NW China. Lithos 2020, 352–353, 105208. [Google Scholar] [CrossRef]
  21. Zhu, Y.X.; Wang, L.X.; Ma, C.Q.; Wiedenbeck, M.; She, Z.B. Titanite as a tracer for Nb mineralization during magmatic and hydrothermal processes: The case of Fangcheng alkaline complex, Central China. Chem. Geol. 2022, 608, 121028. [Google Scholar] [CrossRef]
  22. Atencio, D.; Andrade, M.B.; Christy, A.G.; Gieré, R.; Kartashov, P.M. The pyrochlore supergroup of minerals: Nomenclature. Can. Miner. 2010, 48, 673–698. [Google Scholar] [CrossRef]
  23. Lumpkin, G.R.; Ewing, R.C. Geochemical alteration of pyrochlore group minerals. pyrochlore subgroup. Am. Miner. 1995, 80, 732–743. [Google Scholar] [CrossRef]
  24. Lumpkin, G.R.; Ewing, R.C.; Williams, C.T.; Mariano, A.N. An overview of the crystal chemistry, durability, and radiation damage effects of natural pyrochlore. MRS Proc. 2000, 663, 921. [Google Scholar] [CrossRef]
  25. Hogarth, D.D.; Williams, C.T.; Jones, P. Primary zoning in pyrochlore group minerals from carbonatites. Miner. Mag. 2000, 64, 683–697. [Google Scholar] [CrossRef]
  26. McCreath, J.A.; Finch, A.A.; Herd, D.A.; Armour, B.A. Geochemistry of pyrochlore minerals from the Motzfeldt Center, South Greenland: The mineralogy of a syenite-hosted Ta Nb deposit. Am. Miner. 2013, 98, 426–438. [Google Scholar] [CrossRef]
  27. Sun, Z.H.; Qin, K.Z.; Mao, Y.J.; Tang, D.M.; Wang, F.Y.; Evans, N.J. Mineral chemistry of pyrochlore supergroup minerals from the Boziguoer Nb-Ta-Zr-Rb-REE deposit, NW China: Implications for Nb enrichment by alkaline magma differentiation. Minerals 2022, 12, 785. [Google Scholar] [CrossRef]
  28. Walter, B.F.; Parsapoor, A.; Braunger, S.; Marks, M.A.W.; Wenzel, T.; Martin, M.; Markl, G. Pyrochlore as a monitor for magmatic and hydrothermal processes in carbonatites from the Kaiserstuhl volcanic complex (SW Germany). Chem. Geol. 2018, 498, 1–16. [Google Scholar] [CrossRef]
  29. Wu, B.; Hu, Y.Q.; Bonnetti, C.; Xu, C.; Wang, R.C.; Zhang, Z.S.; Li, Z.Y.; Yin, R. Hydrothermal alteration of pyrochlore group minerals from the Miaoya carbonatite complex, central China and its implications for Nb mineralization. Ore Geol. Rev. 2021, 132, 104059. [Google Scholar] [CrossRef]
  30. Xue, Y.; Sun, N.Y.; Li, G.W. Evolution of Nb–Ta oxide minerals and their relationship to the magmatic-hydrothermal processes of the Nb–Ta mineralized syenitic dikes in the Panxi region, SW China. Minerals 2022, 11, 1204. [Google Scholar] [CrossRef]
  31. Zhou, M.F.; Yan, D.P.; Kennedy, A.K.; Li, Y.Q.; Ding, J. SHRIMP U–Pb zircon geochronological and geochemical evidence for Neoproterozoic arc-magmatism along the western margin of the Yangtze Block, South China. Earth Planet. Sci. Lett. 2002, 196, 51–67. [Google Scholar] [CrossRef]
  32. Zhao, J.H.; Zhou, M.F. Neoproterozoic adakitic plutons and arc magmatism along the western margin of the Yangtze Block, South China. J. Geol. 2007, 115, 675–689. [Google Scholar] [CrossRef]
  33. Yan, D.P.; Zhou, M.F.; Song, H.L.; Wang, X.W.; Malpas, J. Origin and tectonic significance of a Mesozoic multi layer over thrust system within the Yangtze Block (South China). Tectonophysics 2003, 361, 239–254. [Google Scholar] [CrossRef]
  34. Song, X.Y.; Zhou, M.F.; Hou, Z.Q.; Cao, Z.M.; Wang, Y.L.; Li, Y. Geochemical constraints on the mantle source of the upper Permian Emeishan continental flood basalts, southwestern China. Int. Geol. Rev. 2001, 43, 213–225. [Google Scholar] [CrossRef]
  35. Xiao, L.; Xu, Y.G.; Mei, H.J.; Zheng, Y.F.; He, B.; Pirajno, F. Distinct mantle sources of low-Ti and high-Ti basalts from the western Emeishan large igneous province, SW China: Implications for plume–lithosphere interaction. Earth Plane. Sc. Lett. 2004, 228, 525–546. [Google Scholar] [CrossRef]
  36. Huang, H.; Huyskens, M.H.; Yin, Q.Z.; Cawood, P.A.; Hou, M.C.; Yang, J.H.; Xiong, F.H.; Du, Y.S.; Yang, C.C. Eruptive tempo of Emeishan large igneous province, southwestern China and northern Vietnam: Relations to biotic crises and paleoclimate changes around the Guadalupian-Lopingian boundary. Geology 2022, 50, 1083–1087. [Google Scholar] [CrossRef]
  37. Shellnutt, J.G. The Emeishan large igneous province: A synthesis. Geosci. Front. 2014, 5, 369–394. [Google Scholar] [CrossRef]
  38. Zhong, H.; Zhu, W.G.; Song, X.Y.; He, D.F. SHRIMP U–Pb zircon geochronology, geochemistry, and Nd–Sr isotopic study of contrasting granites in the Emeishan large igneous province, SW China. Chem. Geol. 2007, 236, 112–133. [Google Scholar] [CrossRef]
  39. Munteanu, M.; Yao, Y.; Wilson, A.H.; Chunnett, G.; Luo, Y.N.; He, H.; Cioacǎ, M.; Wen, M.L. Panxi region (South-West China): Tectonics, magmatism and metallogenesis. A review. Tectonophysics 2013, 608, 51–71. [Google Scholar] [CrossRef]
  40. Lu, P.F.; Liu, P.P. Constraints of combined Sr-Nd-Pb-Hf-O isotopic systematics on the petrogenesis of peralkaline, metaluminous and peraluminous granitoids in the Permian Emeishan large igneous province, SW China. Chem. Geol. 2023, 624, 121423. [Google Scholar] [CrossRef]
  41. Hou, T.; Zhang, Z.C.; Encarnacion, J.; Santosh, M. Petrogenesis and metallogenesis of the Taihe gabbroic intrusion associated with Fe–Ti-oxide ores in the Panxi district, Emeishan Large Igneous Province, southwest China. Ore Geol. Rev. 2012, 49, 109–127. [Google Scholar] [CrossRef]
  42. Zhong, H.; Yao, Y.; Prevec, S.A.; Wilson, A.H.; Viljoen, M.J.; Viljoen, R.P.; Liu, B.G.; Luo, Y.N. Trace-element and Sr–Nd isotopic geochemistry of the PGE-bearing Xinjie layered intrusion in SW China. Chem. Geol. 2004, 203, 237–252. [Google Scholar] [CrossRef]
  43. Zhong, H.; Yao, Y.; Hu, S.F.; Zhou, X.H.; Liu, B.G.; Sun, M.; Zhou, M.F.; Viljoen, M.J. Trace-element and Sr-Nd isotopic geochemistry of the PGE-bearing Hongge layered intrusion, Southwestern China. Int. Geol. Rev. 2003, 45, 371–382. [Google Scholar] [CrossRef]
  44. Shellnutt, J.G.; Wang, C.Y.; Zhou, M.F.; Yang, Y.H. Zircon Lu–Hf isotopic compositions of metaluminous and peralkaline A-type granitic plutons of the Emeishan large igneous province (SW China): Constraints on the mantle source. J. Asian Earth Sci. 2009, 35, 45–55. [Google Scholar] [CrossRef]
  45. Zurevinski, S.E.; Mitchell, R.H. Extreme compositional variation of pyrochlore group minerals at the Oka carbonatite complex, Quebec: Evidence of magma mixing. Can. Miner. 2004, 42, 1159–1168. [Google Scholar] [CrossRef]
  46. Nasraoui, M.; Bilal, E. Pyrochlores from the Lueshe carbonatite complex (Democratic Republic of Congo): A geochemical record of different alteration stages. J. Asian Earth Sci. 2000, 18, 237–251. [Google Scholar] [CrossRef]
  47. Vasyukova, O.V.; Williams-Jones, A.E. A new model for the origin of pyrochlore: Evidence from the St Honor´e Carbonatite, Canada. Chem. Geol. 2023, 632, 121549. [Google Scholar] [CrossRef]
  48. Ivanyuk, G.Y.; Konopleva, N.G.; Yakovenchuk, V.N.; Pakhomovsky, Y.A.; Panikorovskii, T.L.; Kalashnikov, A.O.; Bocharov, V.N.; Mikhailova, J.A.; Bazai, A.A.; Goryainov, P.M. Three-D mineralogical mapping of the Kovdor phoscorite-carbonatite complex, NW Russia: III. Pyrochlore supergroup minerals. Minerals 2018, 8, 277. [Google Scholar] [CrossRef]
  49. Viladkar, S.G.; Sorokhtina, N.V. Evolution of pyrochlore in carbonatites of the Amba Dongar complex, India. Miner. Mag. 2021, 85, 554–567. [Google Scholar] [CrossRef]
  50. Zaitsev, A.N.; Spratt, J.; Shtukenberg, A.G.; Zolotarev, A.A.; Britvin, S.N.; Petrov, S.V.; Kuptsova, A.V.; Antonov, A.V. Oscillatory- and sector- zoned pyrochlore from carbonatites of the Kerimasi volcano, Gregory rift, Tanzania. Miner. Mag. 2021, 85, 532–553. [Google Scholar] [CrossRef]
  51. Zaitsev, A.N.; Williams, C.T.; Wall, F.; Zolotarev, A.A. Evolution of chemical composition of pyrochlore group minerals from phoscorites and carbonatites of the Khibina alkaline massif. Geol. Ore Deposit. 2012, 54, 503–515. [Google Scholar] [CrossRef]
  52. Zhang, A.C.; Wang, R.C.; Hu, H.; Zhang, H.; Zhu, J.C.; Chen, X.M. Chemical evolution of Nb-Ta oxides and zircon from the Koktokay No. 3 granitic pegmatite, Altai, northwestern China. Mineral. Mag. 2004, 68, 739–756. [Google Scholar] [CrossRef]
  53. Lahti, S.I. Zoning in columbite-tantalite crystals from the granitic pegmatites of the Erajarvi area, southern Finland. Geochim. Cosmochim. Acta 1987, 51, 509517. [Google Scholar] [CrossRef]
  54. Černý, P.; Novak, M.; Chapman, R. Effects of sillimanite-grade metamorphism and shearing on Nb-Ta oxide minerals in granitic pegmatites: Marsikov, NorthernMoravia, Czechoslovakia. Can. Miner. 1992, 30, 699718. [Google Scholar]
  55. Norton, D.L.; Dutrow, B.L. Complex behavior of magma-hydrothermal rocesses: Role of supercritical fluid. Geochim. Cosmochim. Acta 2001, 65, 4009–4017. [Google Scholar] [CrossRef]
  56. Stepanov, S.; Mavrogenes, J.A.; Meffre, S.; Davidson, P. The key role of mica during igneous concentration of tantalum. Contrib. Mineral. Petr. 2014, 169, 1009. [Google Scholar] [CrossRef]
  57. Wark, D.A.; Miller, C.F. Accessory mineral behavior during differentiation of a granitic suite: Monazite, xenotime, and zircon in the Sweetwater Wash pluton, southeastern California, U.S.A. Chem. Geol. 1993, 110, 49–67. [Google Scholar] [CrossRef]
  58. Linnen, R.L.; Cuney, M. Granite-related rare-element deposits and experimental constraints on Ta-Nb-W-Sn-Zr-Hf mineralization. In Rare-Element Geochemistry and Mineral Deposits; Linnen, R.L., Samson, I.M., Eds.; Geological Association of Canada Short Course Notes; Geological Association of Canada: St. John’s, NL, Canada, 2005; Volume 17, pp. 70–102. [Google Scholar]
  59. Bartels, A.; Vetere, F.; Holtz, F.; Behrens, H.; Linnen, R.L. Viscosity of flux-rich pegmatitic melts. Contrib. Mineral. Petrol. 2011, 162, 51–60. [Google Scholar] [CrossRef]
  60. London, D. Internal differentiation of rare-element pegmatites: Effects of boron, phosphorus, and fluorine. Geochim. Cosmochim. Acta 1987, 51, 403–420. [Google Scholar] [CrossRef]
  61. London, D.; George, B.M., VI; Babb, H.A.; Loomis, J.L. Behavior and effects of phosphorus in the system Na2O-K2O-Al2O3-SiO2-P2O5-H2O at 200 MPa(H2O). Contrib. Mineral. Petr. 1993, 113, 450–465. [Google Scholar] [CrossRef]
  62. Anderson, A.J.; Mayanovic, R.A.; Lee, T. The Local Structure of Ta(v) Aqua ions in high temperature fluoride- and chloride-bearing solutions: Implications for Ta transport in granite-related postmagmatic fluids. Can. Mineral. 2019, 57, 843–851. [Google Scholar] [CrossRef]
  63. Timofeev, A.; Migdisov, A.A.; Williams-Jones, A.E. An experimental study of the solubility and speciation of tantalum in fluoride-bearing aqueous solutions at elevated temperature. Geochim. Cosmochim. Acta 2017, 197, 294–304. [Google Scholar] [CrossRef]
  64. Zaraisky, G.P.; Korzhinskaya, V.; Kotova, N. Experimental studies of Ta2O5 and columbite–tantalite solubility in fluoride solutions from 300 to 550 °C and 50 to 100 MPa. Miner. and Petrol. 2010, 99, 287–300. [Google Scholar] [CrossRef]
Minerals 14 00013 g001

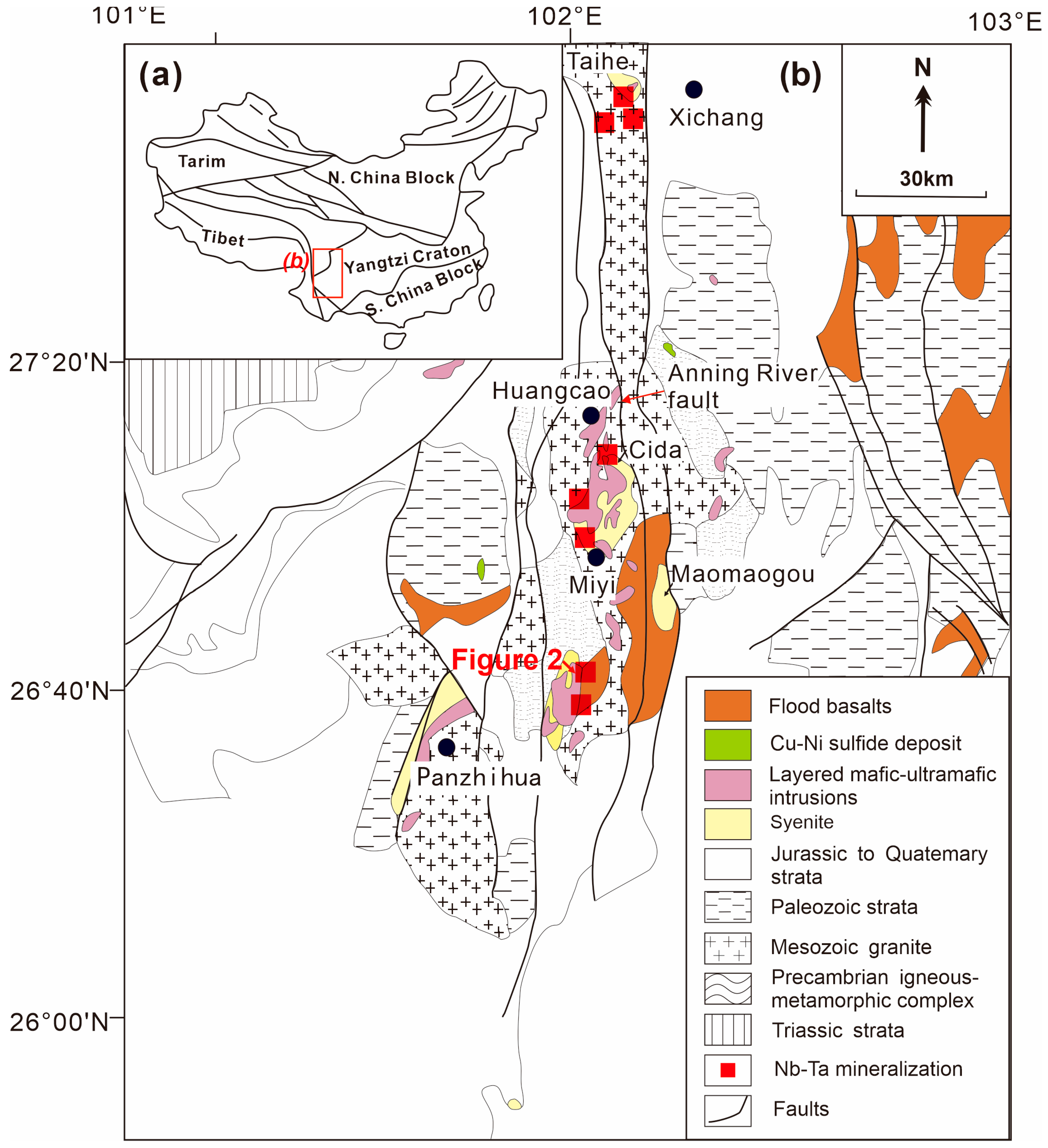

Figure 1. Simplified geological map of (a) China and (b) the Pan-Xi area (modified by [5,12]).
Figure 1. Simplified geological map of (a) China and (b) the Pan-Xi area (modified by [5,12]).
Minerals 14 00013 g001
Minerals 14 00013 g002

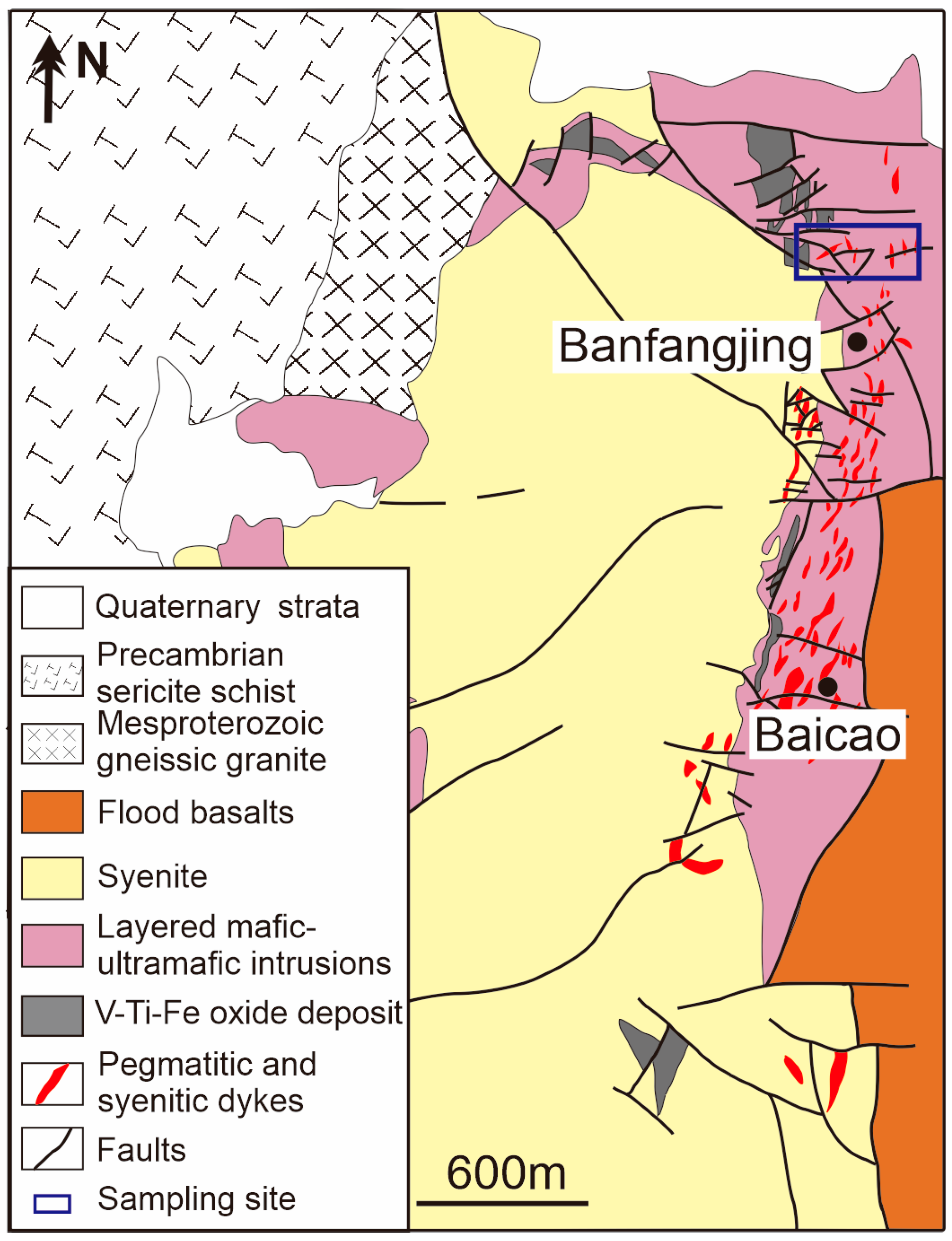

Figure 2. Simplified geologic map showing the relationship between pegmatitic and syenitic dykes with the layered mafic-ultramafic and felsic intrusions in ELIP (modified by [12]), and the prospected locations of the Miyi pegmatite.
Figure 2. Simplified geologic map showing the relationship between pegmatitic and syenitic dykes with the layered mafic-ultramafic and felsic intrusions in ELIP (modified by [12]), and the prospected locations of the Miyi pegmatite.
Minerals 14 00013 g002
Minerals 14 00013 g003

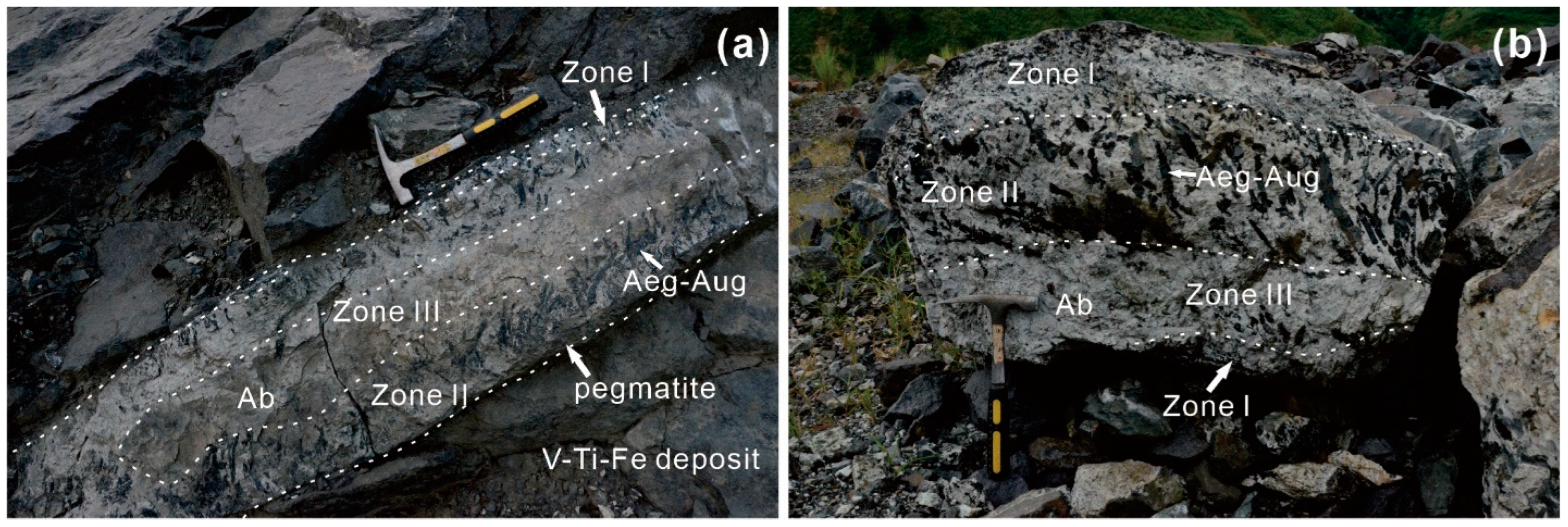

Figure 3. Field photograph of (a) the white to light grey Miyi pegmatite intruding in the deep grey V-Ti-Fe oxide deposit, (b) the textural zones of the Miyi pegmatite, including the border (Zone I), intermediate (Zone II), and core (Zone III). Abbreviations: Ab, albite; Aeg-Aug, aegirine-augite.
Figure 3. Field photograph of (a) the white to light grey Miyi pegmatite intruding in the deep grey V-Ti-Fe oxide deposit, (b) the textural zones of the Miyi pegmatite, including the border (Zone I), intermediate (Zone II), and core (Zone III). Abbreviations: Ab, albite; Aeg-Aug, aegirine-augite.
Minerals 14 00013 g003
Minerals 14 00013 g004
Figure 4. BSE images of pyrochlore in the Miyi pegmatite. (a,b) Pcl-I in Zone I contains OZ; (c) Pcl-II in Zone II is characterized by euhedral crystal and well-developed OZ; (d) Pcl-II is included in the magmatic zircon. Abbreviations: Ab, albite; Aeg-Aug, aegirine-augite; Pcl, pyrochlore; Zrn, zircon.
Figure 4. BSE images of pyrochlore in the Miyi pegmatite. (a,b) Pcl-I in Zone I contains OZ; (c) Pcl-II in Zone II is characterized by euhedral crystal and well-developed OZ; (d) Pcl-II is included in the magmatic zircon. Abbreviations: Ab, albite; Aeg-Aug, aegirine-augite; Pcl, pyrochlore; Zrn, zircon.
Minerals 14 00013 g004
Minerals 14 00013 g005
Figure 5. BSE images of pyrochlore in the Miyi pegmatite. (a,b) Pcl-II, associated with albite, is surrounded by anhedral pyrite; (c) Pcl-III in Zone II is homogeneous in BSE images; (d) Pcl-IV in Zone II shows irregular zoning and sinuous bands. Abbreviations: Ab, albite; Aeg-Aug, aegirine-augite; Pcl, pyrochlore; Py, pyrite.
Figure 5. BSE images of pyrochlore in the Miyi pegmatite. (a,b) Pcl-II, associated with albite, is surrounded by anhedral pyrite; (c) Pcl-III in Zone II is homogeneous in BSE images; (d) Pcl-IV in Zone II shows irregular zoning and sinuous bands. Abbreviations: Ab, albite; Aeg-Aug, aegirine-augite; Pcl, pyrochlore; Py, pyrite.
Minerals 14 00013 g005
Minerals 14 00013 g006

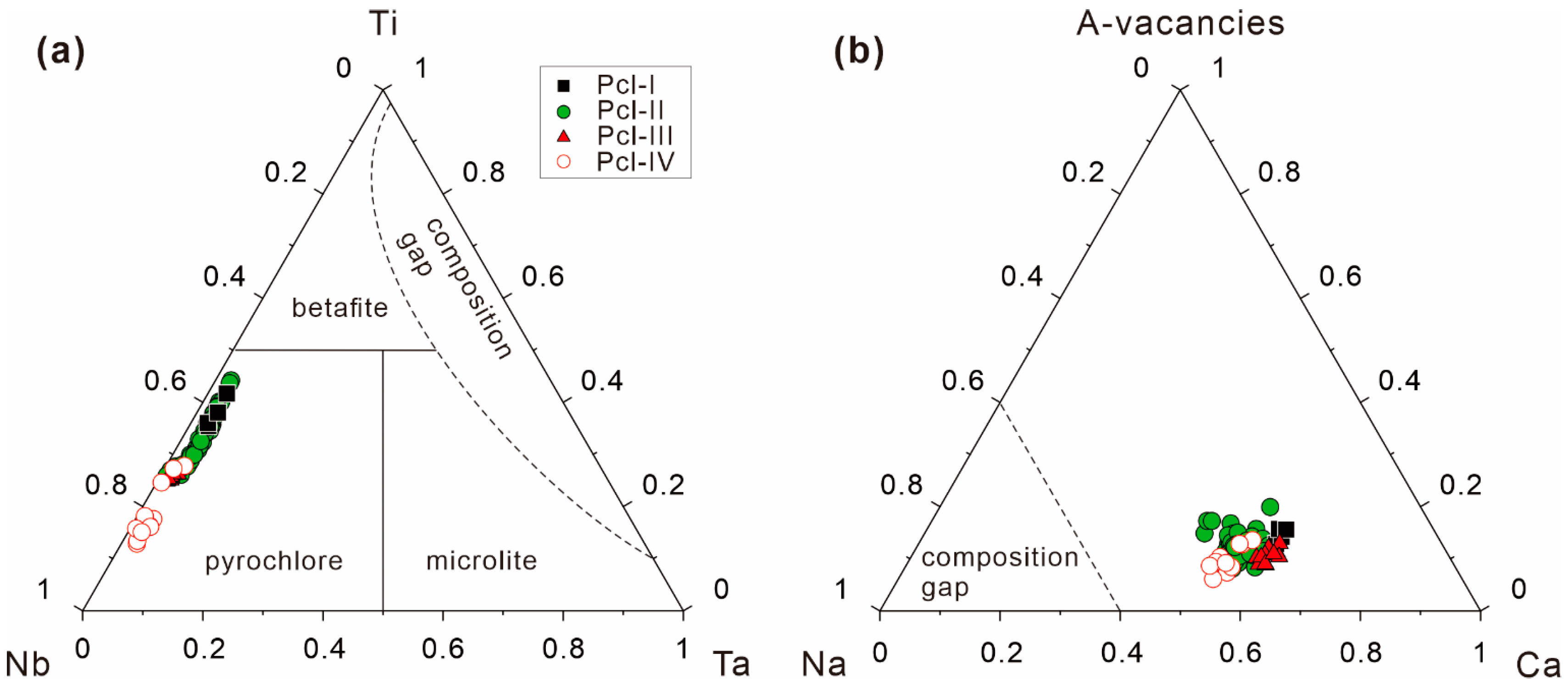

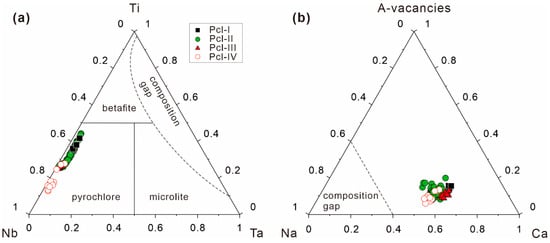

Figure 6. (a) Ternary classification scheme based on cations in the B-site, including Nb, Ti, and Ta (modified by [22]), and (b) ternary diagram of vacancies and cations in the A-site, including Ca and Na for pyrochlore supergroup minerals in the Miyi pegmatite. The compositional gap zones represented by a dotted line at the A-site were proposed by [22] using 1030 analysis data.
Figure 6. (a) Ternary classification scheme based on cations in the B-site, including Nb, Ti, and Ta (modified by [22]), and (b) ternary diagram of vacancies and cations in the A-site, including Ca and Na for pyrochlore supergroup minerals in the Miyi pegmatite. The compositional gap zones represented by a dotted line at the A-site were proposed by [22] using 1030 analysis data.
Minerals 14 00013 g006
Minerals 14 00013 g007

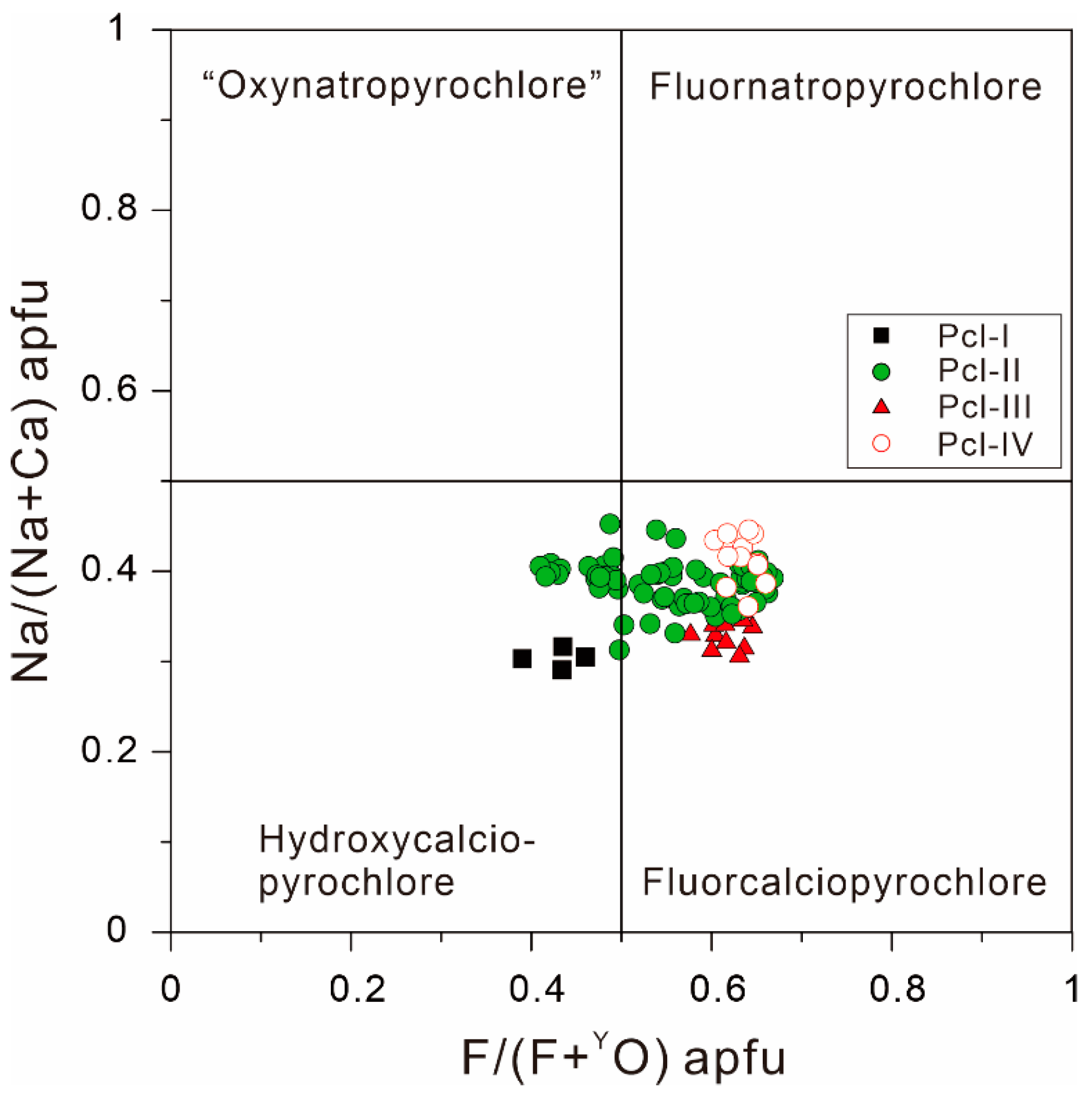

Figure 7. Compositional diagram of atomic proportions in both the A- and Y-sites of pyrochlores in the Miyi pegmatite.
Figure 7. Compositional diagram of atomic proportions in both the A- and Y-sites of pyrochlores in the Miyi pegmatite.
Minerals 14 00013 g007
Minerals 14 00013 g008

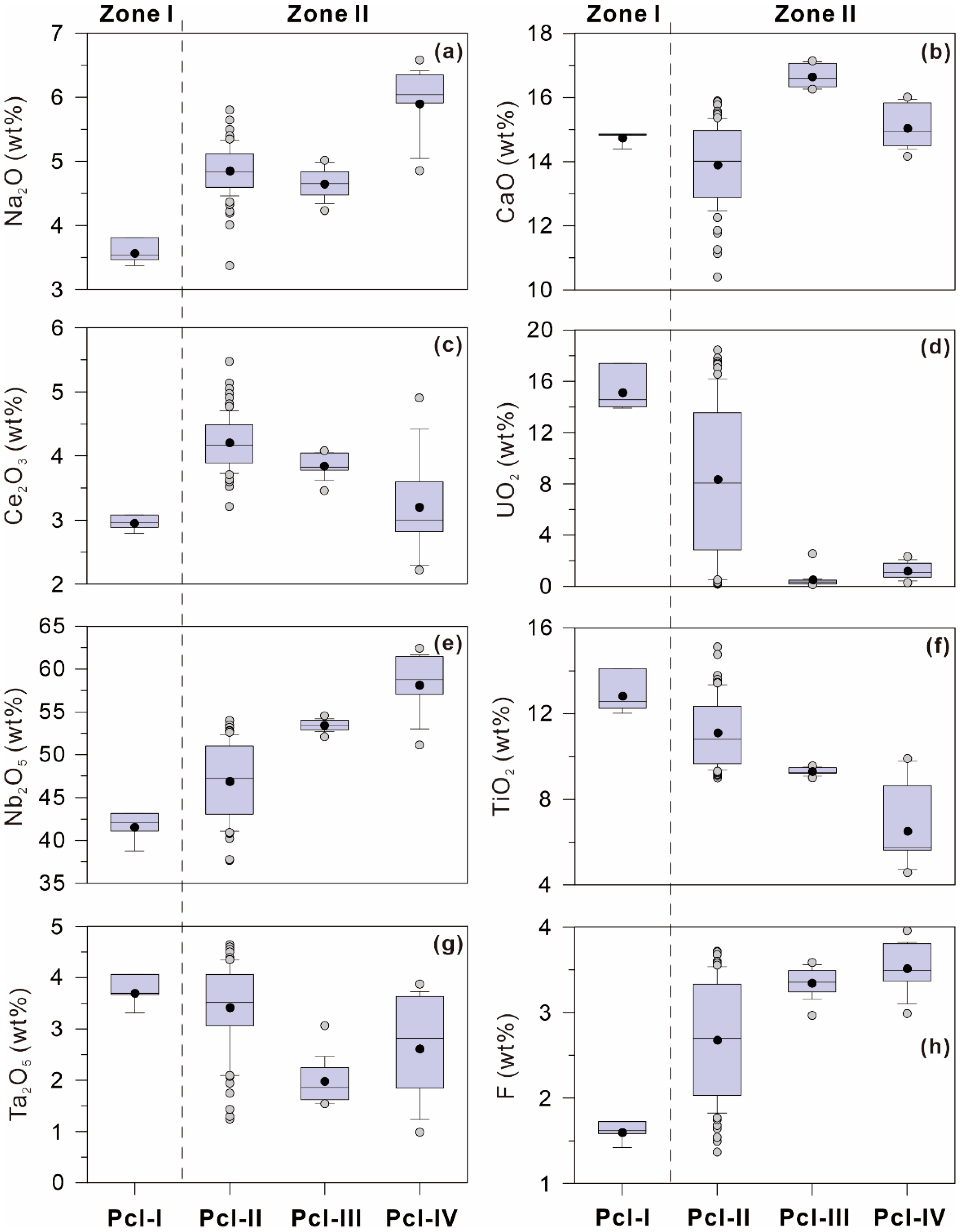

Figure 8. Percentile box-and-whisker plots showing the representative major or minor element ((a) Na2O, (b) CaO, (c) Ce2O3, and (d) UO2 in A-site; (e) Nb2O5, (f) TiO2, and (g) Ta2O5 in B-site; and (h) F in Y-site) contents in four types of pyrochlores in the Miyi pegmatite. The boxes mark the 25th and 75th percentiles, and the lines within the boxes indicate the median values. The whiskers extend from the 10th to 90th percentiles. The gray circles beyond the whiskers and the dark circles are individual extreme values and the mean values, respectively.
Figure 8. Percentile box-and-whisker plots showing the representative major or minor element ((a) Na2O, (b) CaO, (c) Ce2O3, and (d) UO2 in A-site; (e) Nb2O5, (f) TiO2, and (g) Ta2O5 in B-site; and (h) F in Y-site) contents in four types of pyrochlores in the Miyi pegmatite. The boxes mark the 25th and 75th percentiles, and the lines within the boxes indicate the median values. The whiskers extend from the 10th to 90th percentiles. The gray circles beyond the whiskers and the dark circles are individual extreme values and the mean values, respectively.
Minerals 14 00013 g008
Minerals 14 00013 g009

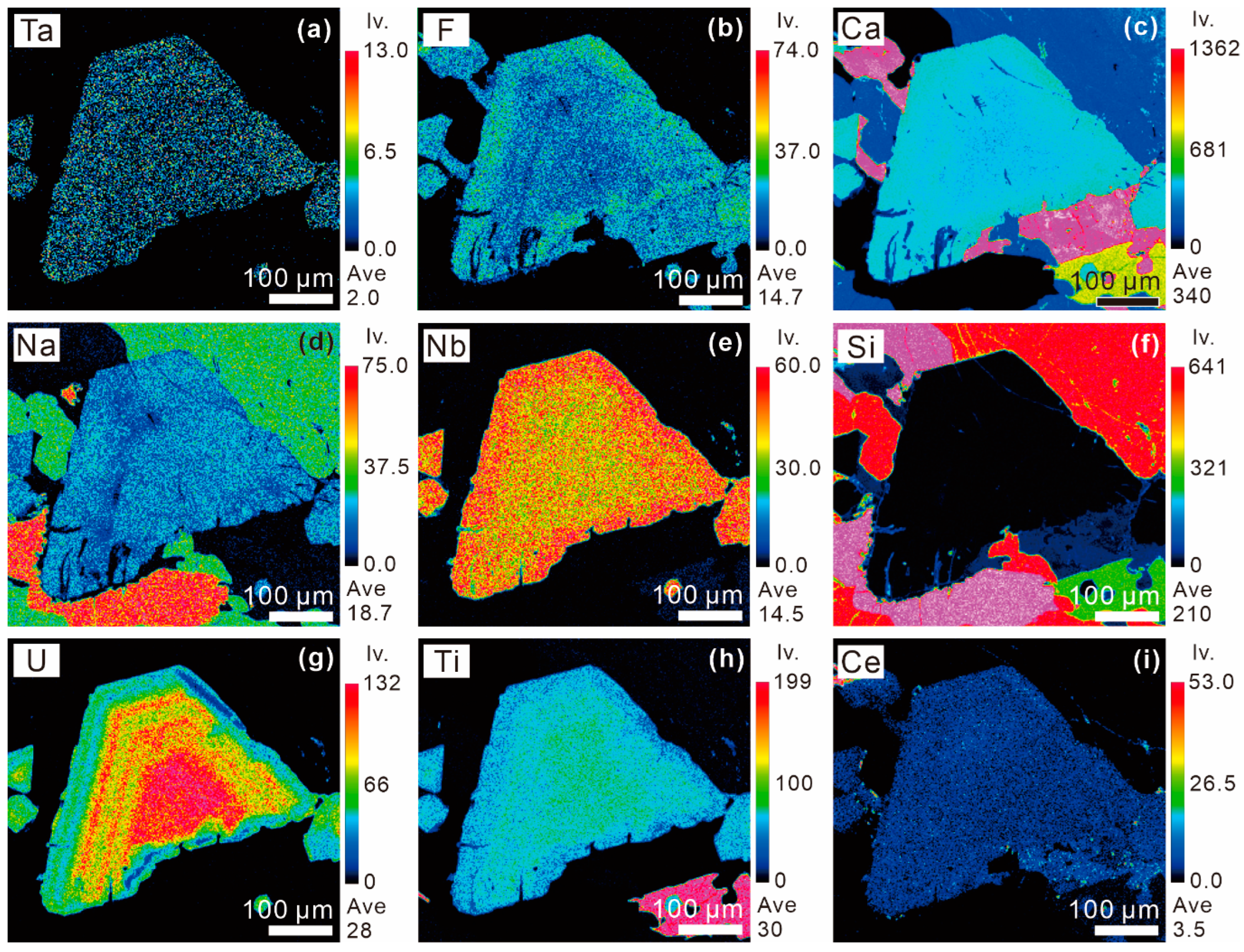

Figure 9. X-ray compositional maps of (a–i) Ta, F, Ca, Na, Nb, Si, U, Ti, and Ce, respectively, in the Pcl-II shown in Figure 4c in Zone II of the Miyi pegmatite.
Figure 9. X-ray compositional maps of (a–i) Ta, F, Ca, Na, Nb, Si, U, Ti, and Ce, respectively, in the Pcl-II shown in Figure 4c in Zone II of the Miyi pegmatite.
Minerals 14 00013 g009
Minerals 14 00013 g010

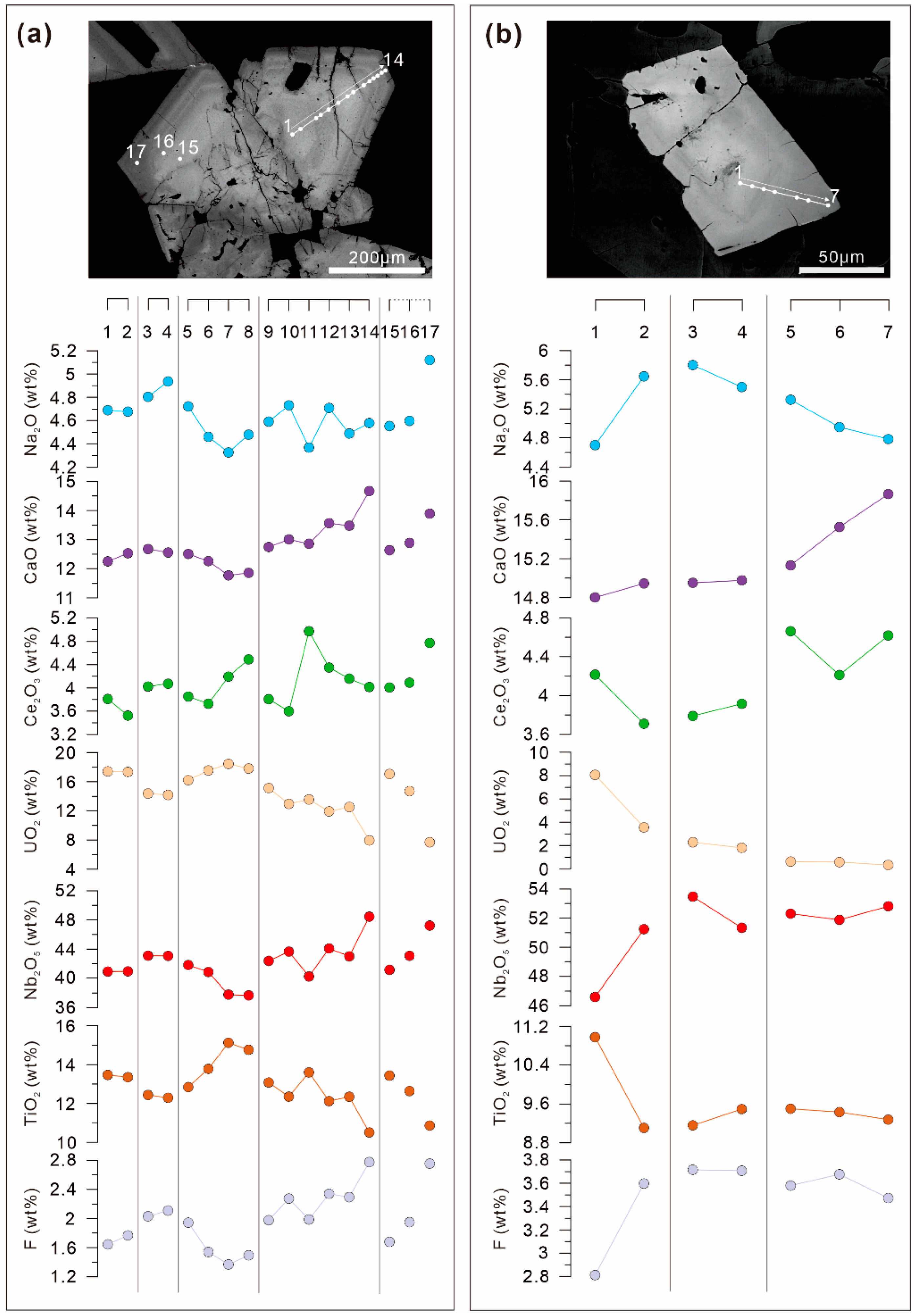

Figure 10. Chemical profiles display the oscillatory compositional variations in Pcl-II in Zone II of the Miyi pegmatite. (a) Pcl-II associated with albite and aegirine-augite, and (b) Pcl-II included in zircon as shown in Figure 4d. The numbers and white dots indicate analysis points.
Figure 10. Chemical profiles display the oscillatory compositional variations in Pcl-II in Zone II of the Miyi pegmatite. (a) Pcl-II associated with albite and aegirine-augite, and (b) Pcl-II included in zircon as shown in Figure 4d. The numbers and white dots indicate analysis points.
Minerals 14 00013 g010
Minerals 14 00013 g011

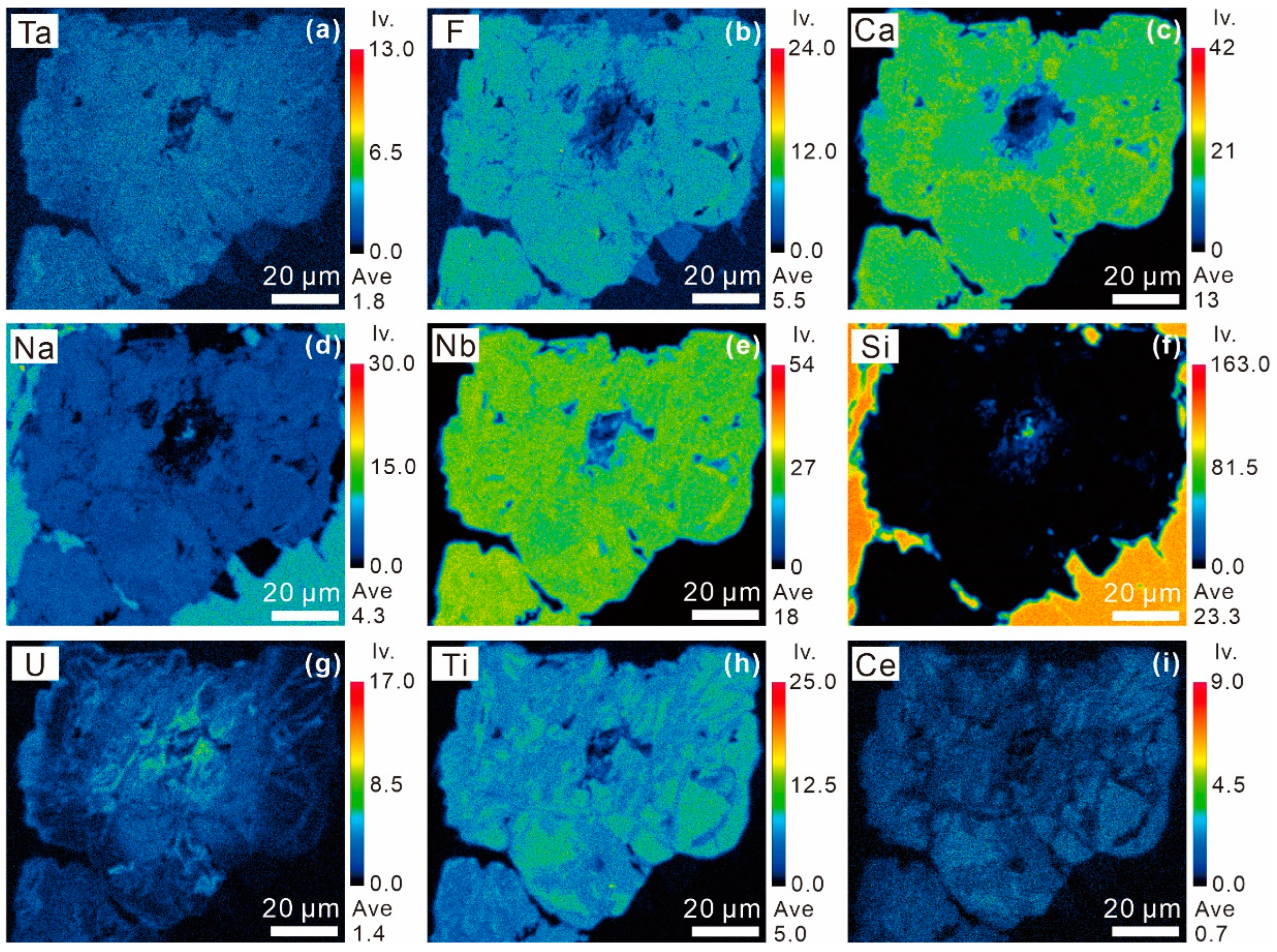

Figure 11. X-ray compositional maps of (a–i) Ta, F, Ca, Na, Nb, Si, U, Ti, and Ce, respectively, in the Pcl-IV shown in Figure 5d in Zone II of the Miyi pegmatite.
Figure 11. X-ray compositional maps of (a–i) Ta, F, Ca, Na, Nb, Si, U, Ti, and Ce, respectively, in the Pcl-IV shown in Figure 5d in Zone II of the Miyi pegmatite.
Minerals 14 00013 g011
Minerals 14 00013 g012

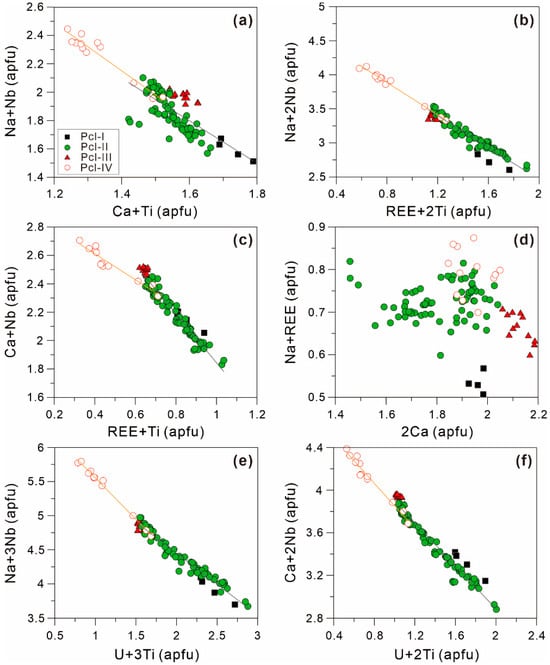

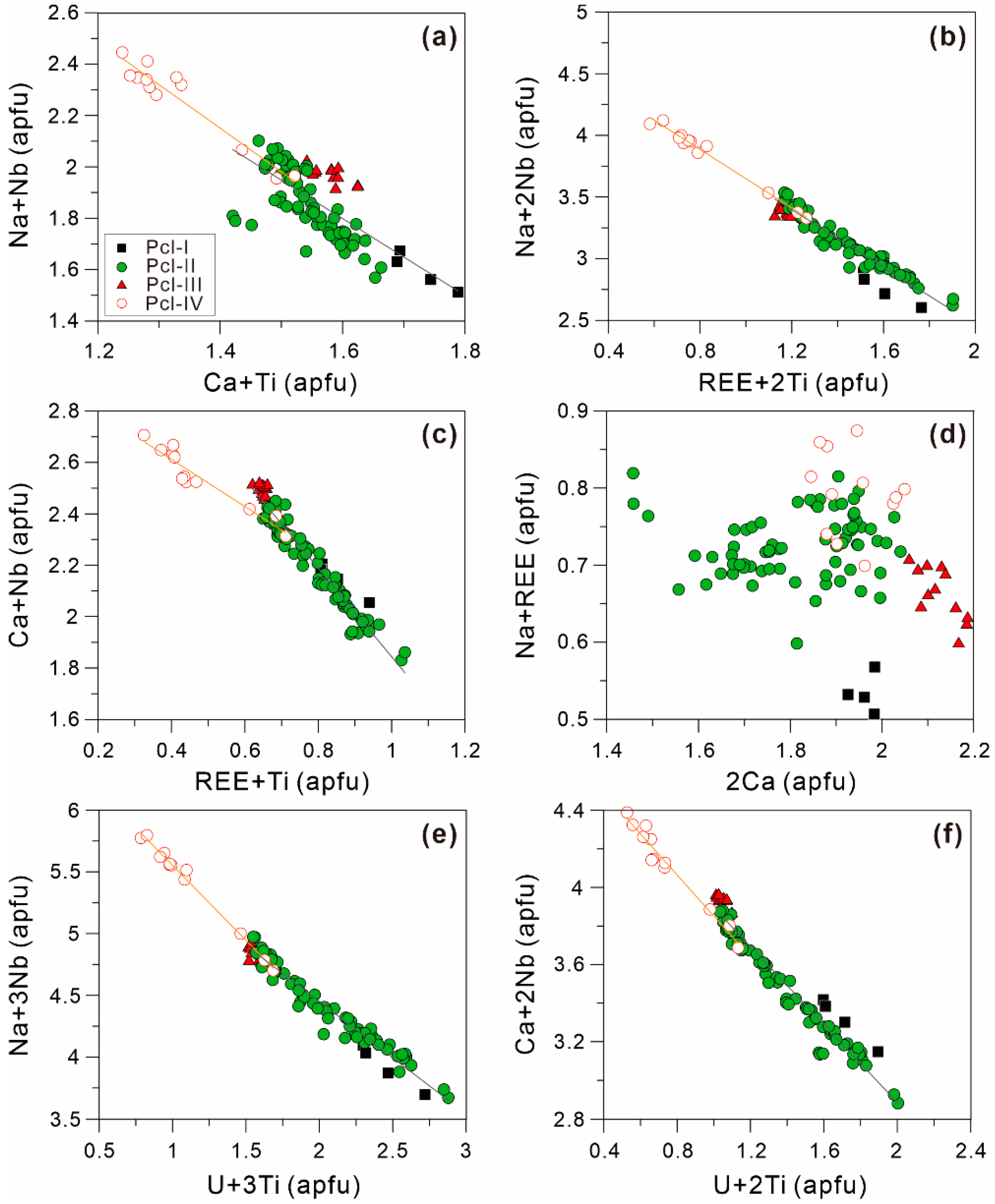

Figure 12. Plots of (a) Ca + Ti vs. Na + Nb, (b) REE + 2Ti vs. Na + 2Nb, (c) REE + Ti vs. Ca + Nb, (d) 2Ca vs. Na + REE, (e) U + 3Ti vs. Na + 3Nb, and (f) U + 2Ti vs. Ca + 2Nb of four types of pyrochlore in the Miyi pegmatite.
Figure 12. Plots of (a) Ca + Ti vs. Na + Nb, (b) REE + 2Ti vs. Na + 2Nb, (c) REE + Ti vs. Ca + Nb, (d) 2Ca vs. Na + REE, (e) U + 3Ti vs. Na + 3Nb, and (f) U + 2Ti vs. Ca + 2Nb of four types of pyrochlore in the Miyi pegmatite.
Minerals 14 00013 g012
Minerals 14 00013 g013

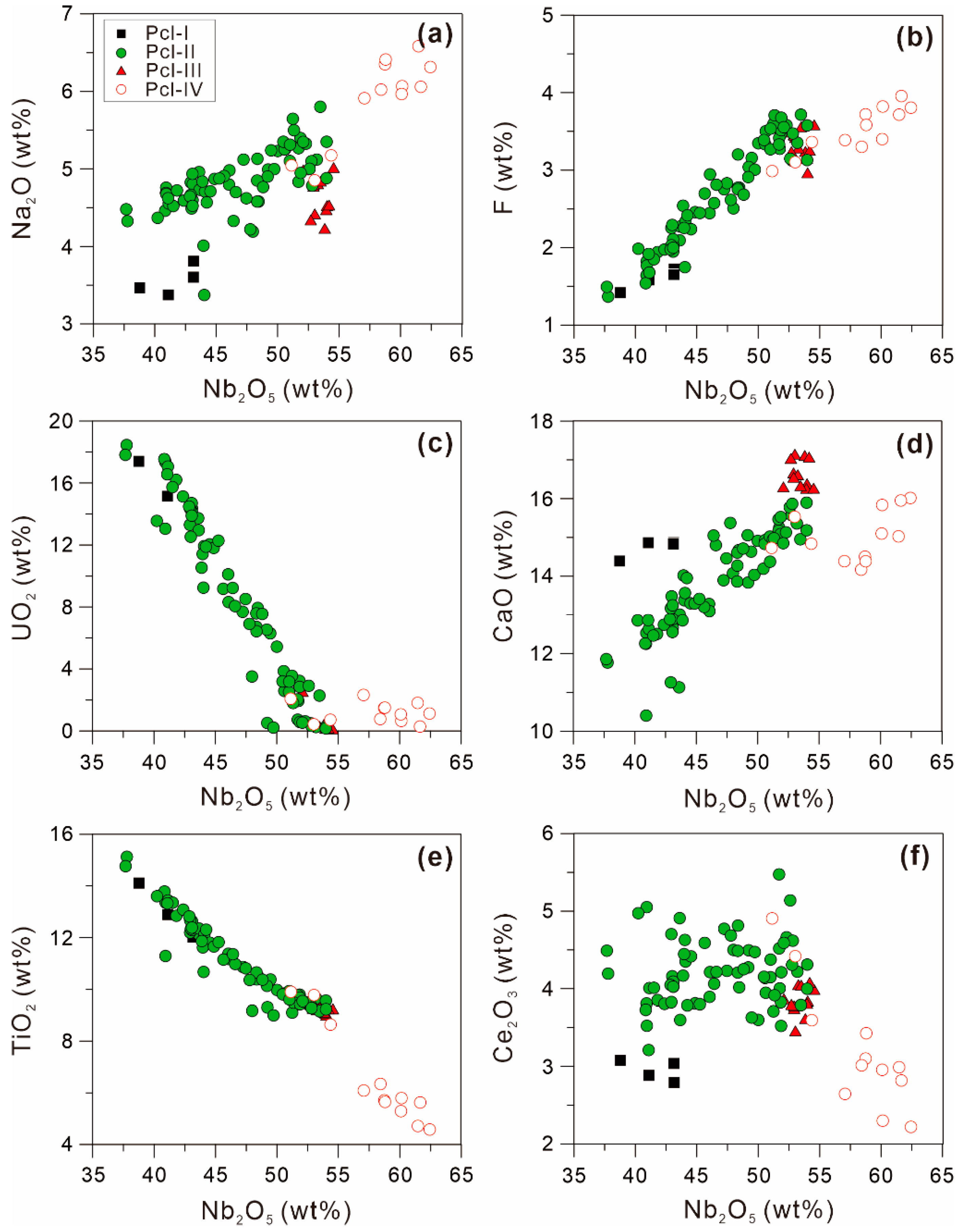

Figure 13. Plots of (a) Nb2O5 vs. Na2O, (b) Nb2O5 vs. F, (c) Nb2O5 vs. UO2, (d) Nb2O5 vs. CaO, (e) Nb2O5 vs. TiO2, and (f) Nb2O5 vs. Ce2O3 of four types of pyrochlores in the Miyi pegmatite.
Figure 13. Plots of (a) Nb2O5 vs. Na2O, (b) Nb2O5 vs. F, (c) Nb2O5 vs. UO2, (d) Nb2O5 vs. CaO, (e) Nb2O5 vs. TiO2, and (f) Nb2O5 vs. Ce2O3 of four types of pyrochlores in the Miyi pegmatite.
Minerals 14 00013 g013
Table 1. EPMA compositions of pyrochlores in different texture zones in the Miyi pegmatite.
Table 1. EPMA compositions of pyrochlores in different texture zones in the Miyi pegmatite.
Zone I Zone II
Pcl-I Pcl-II Pcl-III Pcl-IV
EPMA (wt%) mean (n = 4)maxmin mean (n = 71)maxmin mean (n = 12)maxmin mean (n = 12)maxmin
Na2O 3.56 (0.19)3.813.38 4.85 (0.40)5.803.37 4.65 (0.26)5.024.23 5.90 (0.57)6.584.85
CaO 14.74 (0.23)14.8714.39 13.89 (1.26)15.9010.40 16.65 (0.35)17.1516.27 15.04 (0.65)16.0214.17
PbO 0.73 (0.06)0.820.69 0.51 (0.18)0.840.21 0.31 (0.06)0.37bdl 0.31 (0.05)0.37bdl
BaO bdlbdlbdl bdlbdlbdl bdl)bdlbdl bdlbdlbdl
UO2 15.12 (1.62)17.4013.92 8.34 (5.78)18.45bdl 0.51 (0.66)2.55bdl 1.19 (0.66)2.32bdl
ThO2 1.05 (0.15)1.180.83 1.87 (1.05)4.600.59 4.12 (0.65)5.182.56 2.51 (1.40)5.040.64
Y2O3 0.19 (0.06)0.27bdl 0.27 (0.08)0.540.16 0.20 (0.05)0.27bdl 0.22 (0.22)0.67bdl
La2O3 0.36 (0.13)0.480.24 0.81 (0.20)1.150.39 0.85 (0.13)1.090.64 0.71 (0.23)1.150.45
Ce2O3 2.95 (0.13)3.082.79 4.20 (0.42)5.473.21 3.84 (0.19)4.083.46 3.20 (0.80)4.912.22
Pr2O3 0.27 (0.24)0.51bdl 0.56 (0.20)1.16bdl 0.39 (0.21)0.82bdl 0.39 (0.14)0.720.23
Nd2O3 0.85 (0.07)0.900.75 1.20 (0.31)1.870.57 0.73 (0.10)0.860.51 0.56 (0.19)0.840.25
Sm2O3 0.21 (0.07)0.31bdl bdl0.33bdl bdlbdlbdl bdlbdlbdl
TiO2 12.82 (0.94)14.1112.02 11.10 (1.56)15.139.00 9.29 (0.18)9.559.01 6.51 (1.86)9.904.58
ZrO2 bdlbdlbdl 0.21 (0.11)0.68bdl bdl0.19bdl bdlbdlbdl
Nb2O5 41.54 (2.08)43.1638.77 46.88 (4.38)53.9937.68 53.42 (0.72)54.5552.09 58.11 (3.58)62.4351.13
Ta2O5 3.69 (0.31)4.063.31 3.41 (0.86)4.641.24 1.98 (0.45)3.071.54 2.61 (1.03)3.870.99
MnO 0.06 (0.04)0.09bdl 0.11 (0.07)0.30bdl bdl0.14bdl 0.09 (0.05)0.17bdl
FeO 0.34 (0.11)0.510.28 0.14 (0.09)0.55bdl 0.12 (0.10)0.31bdl 0.19 (0.10)0.390.09
F 1.60 (0.13)1.721.42 2.68 (0.66)3.721.37 3.34 (0.18)3.592.97 3.51 (0.30)3.962.99
Total 99.56 (0.36)99.9699.25 100.08 (1.81)102.5093.47 99.32 (0.50)100.1598.39 99.69 (0.74)100.7998.31
based on ΣB = 2
Na 0.43 (0.02)0.460.41 0.57 (0.04)0.670.41 0.54 (0.03)0.580.48 0.69 (0.07)0.770.55
Ca 0.98 (0.01)0.990.96 0.91 (0.07)1.020.73 1.06 (0.02)1.091.03 0.97 (0.04)1.030.92
Pb 0.010.010.01 0.01 0.01bdl 0.01 0.01bdl 0.010.01bdl
Ba bdlbdlbdl bdlbdl bdl bdl bdlbdl bdlbdlbdl
U 0.21 (0.02)0.240.19 0.11 (0.08)0.25bdl 0.01 (0.01)0.03bdl 0.02 (0.01)0.03bdl
Th 0.02 0.020.01 0.03 (0.01)0.060.01 0.06 (0.01)0.070.04 0.03 (0.02)0.070.01
Y 0.01 0.01bdl 0.01 0.020.01 0.01 0.01bdl 0.01 (0.01)0.02bdl
La 0.01 0.010.01 0.02 0.030.01 0.02 0.020.01 0.02 (0.01)0.030.01
Ce 0.07 0.070.06 0.09 (0.01)0.120.07 0.080.090.08 0.07 (0.02)0.110.05
Pr 0.01 (0.01)0.01bdl 0.01 (0.01)0.03bdl 0.01 (0.01)0.02bdl 0.010.020.01
Nd 0.02 0.020.02 0.03 (0.01)0.040.01 0.02 0.020.01 0.010.020.01
Sm bdl0.01bdl bdl0.01bdl bdlbdlbdl bdlbdlbdl
ΣA 1.76 (0.02)1.791.74 1.79 (0.03)1.861.67 1.80 (0.02)1.831.76 1.83 (0.04)1.891.76
Ti 0.75 (0.06)0.830.70 0.64 (0.10)0.880.51 0.52 (0.01)0.530.51 0.37 (0.10)0.550.26
Zr bdlbdlbdl 0.01 0.02bdl bdl0.01bdl bdlbdlbdl
Nb 1.166 (0.06)1.211.09 1.29 (0.10)1.451.05 1.44 (0.02)1.461.41 1.58 (0.10)1.681.37
Ta 0.06 (0.01)0.070.06 0.06 (0.01)0.080.02 0.03 (0.01)0.050.03 0.04 (0.02)0.060.02
Mn bdl0.01bdl 0.01 0.02bdl bdl0.01bdl 0.01 0.01bdl
Fe 0.02 (0.01)0.030.02 0.01 (0.01)0.03bdl 0.01 (0.01)0.02bdl 0.01 (0.01)0.020.01
ΣB 2.002.002.00 2.002.002.00 2.002.002.00 2.002.002.00
F 0.31 (0.03)0.340.28 0.51 (0.12)0.710.27 0.63 (0.03)0.670.56 0.67 (0.06)0.740.56
O 6.42 (0.03)6.446.38 6.39 (0.04)6.466.32 6.39 (0.02)6.416.35 6.38 (0.04)6.446.32
Notes: Numbers in parentheses are standard deviations. bdl = below detection limit.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Yin, R.; Sun, X.; Wang, S.; Wu, B. Mineral Chemistry of Pyrochlore Supergroup Minerals as Records of Nb Mineralization Processes in NYF-Type Pegmatites: A Case Study of the Emeishan Large Igneous Province, SW China. Minerals 2024, 14, 13. https://doi.org/10.3390/min14010013

AMA Style

Yin R, Sun X, Wang S, Wu B. Mineral Chemistry of Pyrochlore Supergroup Minerals as Records of Nb Mineralization Processes in NYF-Type Pegmatites: A Case Study of the Emeishan Large Igneous Province, SW China. Minerals. 2024; 14(1):13. https://doi.org/10.3390/min14010013

Chicago/Turabian Style

Yin, Rong, Xiaoming Sun, Shengwei Wang, and Bin Wu. 2024. "Mineral Chemistry of Pyrochlore Supergroup Minerals as Records of Nb Mineralization Processes in NYF-Type Pegmatites: A Case Study of the Emeishan Large Igneous Province, SW China" Minerals 14, no. 1: 13. https://doi.org/10.3390/min14010013

APA Style

Yin, R., Sun, X., Wang, S., & Wu, B. (2024). Mineral Chemistry of Pyrochlore Supergroup Minerals as Records of Nb Mineralization Processes in NYF-Type Pegmatites: A Case Study of the Emeishan Large Igneous Province, SW China. Minerals, 14(1), 13. https://doi.org/10.3390/min14010013

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
