Origin of Himalayan Eocene Adakitic Rocks and Leucogranites: Constraints from Geochemistry, U-Pb Geochronology and Sr-Nd-Pb-Hf Isotopes

by
Hang Liu
1,2,
Wenchang Li
2,3,*,
Huawen Cao
1,3,*,
Xiangfei Zhang
1,2,
Yang Li
1,
Ke Gao
2,
Lei Dong
2,
Kai Zhang
2,4 and
Xin Liu
2,4
1
College of Earth Sciences, Chengdu University of Technology, Chengdu 610059, China
2
Chengdu Center (Geosciences Innovation Center of Southwest China), China Geological Survey, Chengdu 610218, China
3
College of Land and Resources Engineering, Kunming University of Science and Technology, Kunming 650093, China
4
College of Earth Resources, China University of Geosciences, Wuhan 430074, China
*
Authors to whom correspondence should be addressed.
Minerals 2023, 13(9), 1204; https://doi.org/10.3390/min13091204
Submission received: 12 August 2023 / Revised: 6 September 2023 / Accepted: 7 September 2023 / Published: 13 September 2023
Browse Figures
Versions Notes

Abstract

:
Within the Himalayan collisional belt, granites occur along two subparallel belts, namely, the Tethyan Himalayan Sequence (THS) and the Greater Himalayan Crystalline Complex (GHC). In this study, Eocene adakitic rocks and leucogranite are found only in the northern Himalayas, so further research is required to constrain their origin. Here, we present zircon U–Pb and monazite U–Th–Pb ages, Sr–Nd–Pb and Hf isotopes, and whole-rock major and trace elements for Liemai muscovite granite in the eastern Himalayan region. The U–(Th)–Pb results show that Liemai muscovite granite was emplaced at 43 Ma, and that its geochemical characteristics are similar to those of adakitic rocks of the same age (Dala, Quedang, Ridang, etc.). Combined with previous studies, both Eocene adakitic rocks and leucogranite are high-potassium calc-alkaline peraluminous granites. The former is relatively rich in large-ion lithophile elements (LILEs), such as Ba and Sr, and relatively deficient in high-field-strength elements (HFSEs), such as Nb, Ta, Zr, and Y, with weak or no Eu anomalies, and the average light rare earth element (LREE)/heavy rare earth element (HREE) ratio is 17.8. The latter is enriched in LILEs (such as Rb) and U, Ta, and Pb, and depleted in HFSEs (such as Nb and Zr), La, and Nd, with obvious negative Sr, Ba, and Eu anomalies and a mean LREE/HREE ratio of 10.7. The 87Sr/86Sr of the former is in the range of 0.707517–0.725100, εNd (t) ranged from −1.2 to −14.7, the average is −11.6, εHf (t) ranged from −0.5 to −65, the average is −12.2. The average values of (206Pb/204Pb) i, (207Pb/204Pb) i and (208Pb/204Pb) i are 18.788, 15.712 and 39.221, respectively; The 87Sr/86Sr of the latter is in the range of 0.711049~0.720429, εNd (t) ranged from −9.8 to −13.8, the average is −12.3, εHf (t) ranged from −4.2 to −10, the average is −6.7. The isotopic characteristics indicate that adakitic rocks and leucogranites are derived from the ancient lower crust, and both may be derived from metamorphic rocks of the GHC. In this paper, the origin of the two is associated with the transformation of the Himalayan tectonic system during the Eocene, and it is inferred that the deep crust may have altered the tectonic environment (temperature and pressure), resulting in an obvious episodic growth trend of leucogranite and significant development of adakitic rocks from 51 to 40 Ma. From 40 to 35 Ma, the development of Eocene magmatic rocks was hindered, and adakitic rocks disappeared. It is proposed that the genetic difference is related to the transition from high to low angles of the subducting plate in the crustal thickening process.

1. Introduction

In the Tethyan Himalayas regime, a belt of leucogranites up to 2000 km long is distributed approximately along the east–west direction, nearly parallel to the Greater and northern Himalayas. They are important rock probes for studying the tectonic–magmatic evolution history of the Himalayan orogenic [1,2,3,4,5,6,7,8,9]. Therefore, the detailed study of leucogranite is very important for determining the evolution of the Himalaya–Tibetan Plateau orogenic belt [7,10,11,12,13,14].
In addition to Eocene leucogranite, Eocene adakitic rock associated with thickening crust has been found in the northern Himalayan region by previous scholars. These discoveries have aroused widespread attention among experts and scholars at home and abroad, and the discussion has focused on the genesis, metamorphism, and tectonic evolution mechanism [11,12,15,16,17,18,19,20,21,22]. However, there are different understandings regarding the origin of adakitic rocks. Gao et al. (2021b) [20] used the fractional crystallization model to invert the differentiation and evolution process between Eocene two-mica granite (heap crystal) and Eocene leucogranite, indicating that adakitic rock with a high Sr/Y ratio may be formed via fractional crystallization. However, Zeng et al. (2011, 2014) [10,11] found that the middle Eocene high-Sr/Y adakitic granites in the northern Himalayan gneiss dome originated from the thickened lower crust. Xie et al. (2010) [15] and Dai et al. (2020) [22] proposed that Dala two-mica granite has an affinity for adakitic rocks and is the product of the partial melting of deep rocks dominated by garnet and amphibole under high pressure. Hou et al. (2012) [23] and Cao et al. (2020) [24] reported that the oceanic crust plates of the Neo-Tethys Ocean broke off at 45 Ma, after which a brief extension occurred in the northern Himalayas from 45 to 40 Ma, resulting in large amounts of adakitic rocks. Tian et al. (2017) [25] and Dai et al. (2023) [21] stated that Liemai two-mica granite and muscovite granite are the products of the partial melting of metamorphic rocks in a thickened crustal environment. In the latest study of Cao et al. (2022) [6], the genesis of Cenozoic leucogranite was investigated in detail. Their team proposed that the Himalayan leucogranite originated from the inconsistent (unbalanced) partial melting of the Greater Himalayas complex and experienced highly differentiated evolution of mineral separation and crystallization. However, no systematic comparative study has been conducted to determine the differences and genetic connections between Eocene adakitic rock and leucogranite in the northern Himalayas. In this study, it was found that Eocene adakitic rocks and leucogranites are exposed only in the northern Himalayas (Supplementary Table S1) and are mainly concentrated in the dome structure of the eastern part of the northern Himalayas. These two types of granites exhibit obvious differences in their spatial and temporal distribution and geochemical characteristics. On this basis, previous studies on adakitic rocks and leucogranites in this area were reviewed [10,19,23,26,27,28,29,30,31,32].
To comprehensively determine the genesis and tectonic evolution characteristics of these two types of Eocene granite, we focused on the Eocene northern Himalayas and investigated Liemai muscovite granite. Zircon and monazite U–(Th)–Pb dating, whole-rock major and trace element analysis, and Sr, Nd, Pb, and Hf isotope analyses were conducted. At the same time, the genesis (partial melting and fractional crystallization) and diagenetic constraints (temperature, pressure, depth, etc.) of the considered leucogranite were related to the transformation of the Himalayan Eocene tectonic system, with the aim of exploring and constraining the genetic mechanism of granite in the collisional orogenic belt.

2. Geological Background

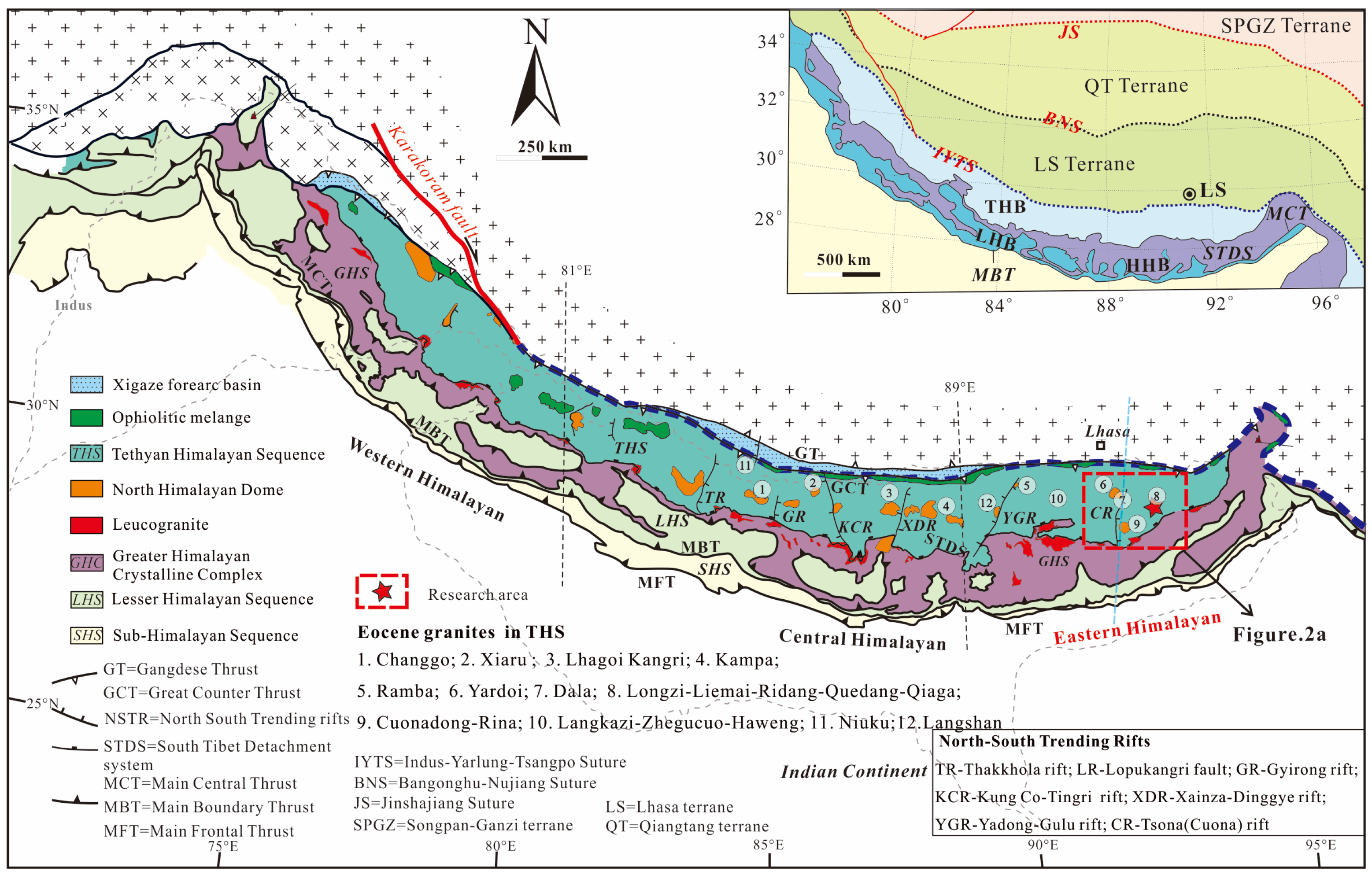

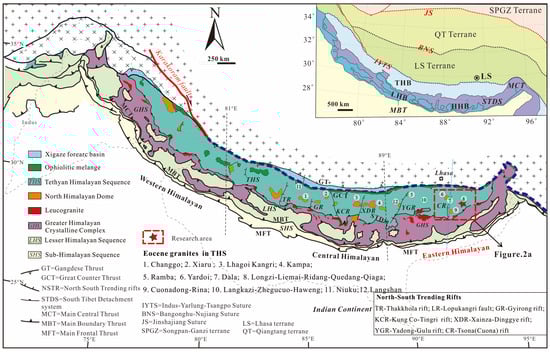

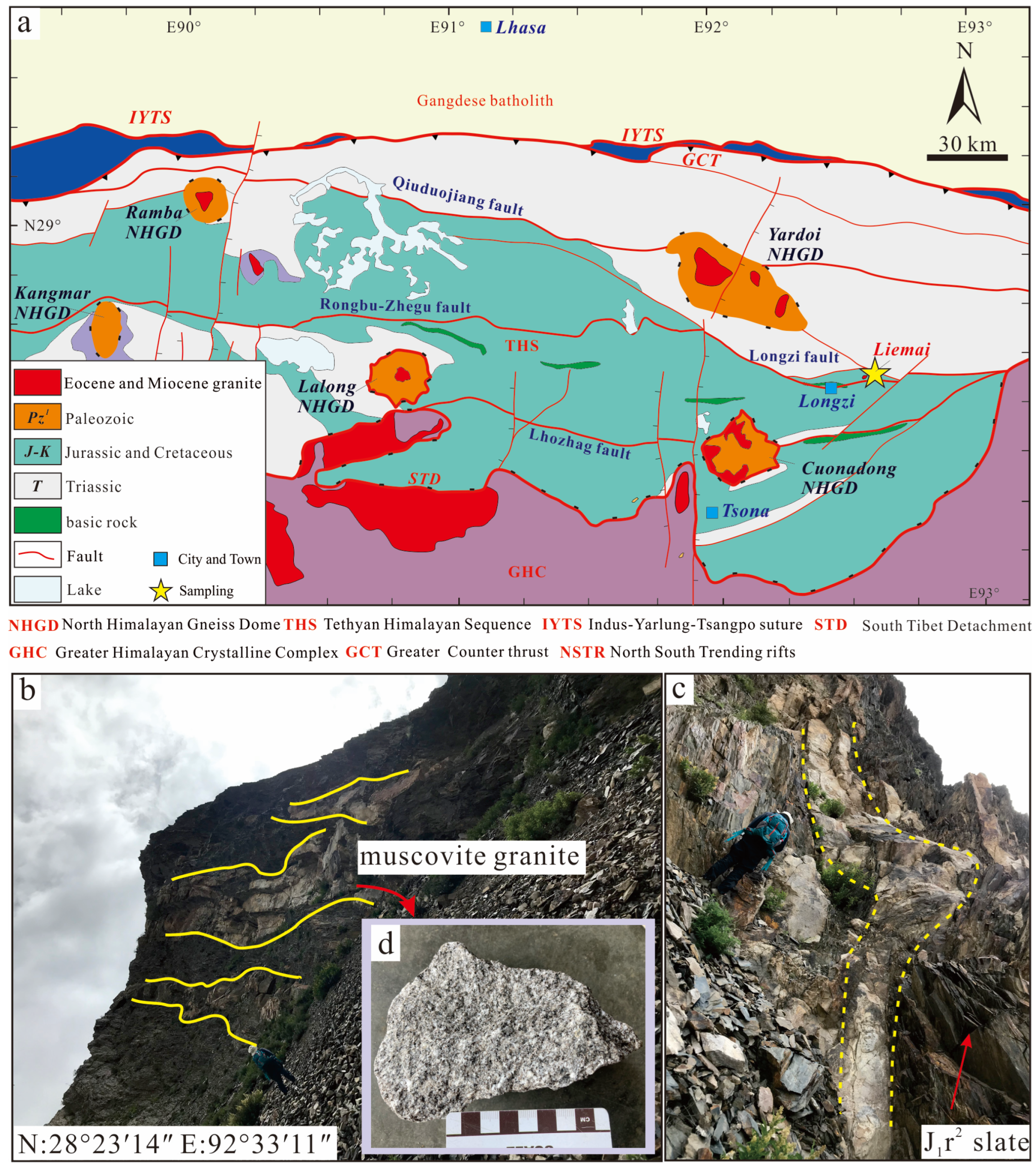

The Qinghai–Tibetan Plateau, which has experienced a long, multistage and complex history of oceanic spreading, subduction and continental collision, consists of the Songpan-Ganzi, North Qiangtang, South Qiangtang, Lhasa and Himalayan (Indian) blocks, from north to south [33,34]. The Himalayan orogenic belt was formed by the continental collision between the Indian and Eurasian blocks [33,34,35]. The orogen is separated from the Lhasa block in the north by the Yarlung Tsangpo suture zone, and from the Indian block in the south by the Main Frontal Thrust. Four major tectonic units have been defined from north to south—the Tethyan Himalayan Sequence (THS, also referred to as northern Himalaya), the Greater Himalayan Crystalline Complex (GHC), the Lesser Himalayan Sequence (LHS), and the Sub-Himalayan Sequence (SHS)—which are separated by the South Tibet Detachment System (STDS), the Main Central Thrust (MCT) and the Main Boundary Thrust (MBT), respectively [2,35] (Figure 1). In the northern Himalayan tectonic belt, a series of gneiss domes developed, known as northern Himalayan gneiss domes (NHGDs). The core of the NHGDs comprises gneiss and leucogranite overlying a layer of non-metamorphic sedimentary rocks transitioning to high-grade metamorphic clastic rocks [36]. The THS contains passive continental margin sedimentary rocks of the Indian block deposited during the Paleozoic–Mesozoic and mainly encompasses clastic and carbonate rocks metamorphosed under low-grade greenschist- and low-grade amphibolite-facies conditions [37]. The GHC represents the core of the Himalayan orogenic belt, which comprises Proterozoic–early Paleozoic sedimentary sequences and magmatic rocks. The GHC experienced granulite to eclogite-facies metamorphism, forming crystalline complexes that largely include schist, paragneiss, orthogneiss, amphibolite, marble, and granulite [38]. The Cenozoic magmatic rocks of the Himalayas primarily comprise leucogranite formed after continental–continental collision between the Indian and Lhasa blocks [6,39].

3. Sampling and Petrography

In this paper, five fresh muscovite granite samples were collected near the Longzi fault zone (longitude and latitude: 92°35′27.88″ E and 28°27′14.02″ N, respectively) in Yangxiong Village, Eastern Liemai Township, Longzi County, Shannan City, Tibet (Figure 2a). The mineral assemblages in Liemai muscovite granite do not exhibit a directional structural arrangement (Figure 2d), and some chloritization alteration and structural deformation are apparent, indicating that only brittle deformation occurs in Liemai muscovite granite. The contact boundary between the Liemai rock mass and wall rock is obvious. The wall rock of Liemai muscovite granite is medium–thick-layered light metamorphic sandstone and siltstone with dark gray silty slate in the second member of the Ridang Formation (Figure 2b). At the edge of the rock mass, muscovite granite mainly occurs as veins and interspersed in the wall rock. The width of the rock vein ranges from 1 to 2 m (Figure 2c), and the length of the rock vein ranges from approximately 100 to 500 m. A small amount of muscovite granite exists in the form of rock plants and branches, and the exposed area is smaller than 1 km2.
The fresh rock surface exhibits an obvious porphyritic-like structure, which mainly includes quartz (2 vol. %), plagioclase (4 vol. %), and muscovite (5 vol. %). Plagioclase is of the self-shaped plate-columnar type (Figure 3b,c), muscovite is of the semi-self-shaped flake type, and quartz is of the other-shaped granular type. The matrix is a fine-grained granite structure, mainly comprising quartz (40%), muscovite (25 vol. %), K-feldspar (10 vol. %), plagioclase (10 vol. %), and biotite (4 vol. %) (Figure 3). Plagioclase and K-feldspar are of the semi-automorphic plate-columnar type, and some plagioclases contain obvious zoning structures (Figure 3b–d). Muscovite is scaly, quartz is anhedral granular, and the accessory minerals include apatite, zircon, and titanite.

4. Analytical Methods

4.1. Zircon and Monazite U–Pb Geochronology Analysis

Laser ablation–inductively coupled plasma–mass spectrometry (LA-ICP-MS) U–Pb dating of zircon and monazite was performed at Wuhan Sample Solution Analytical Technology Co., Ltd., Wuhan, China. Please refer to Zong et al. (2010) [40] for detailed instrument parameters and analytical procedures. The spot size and frequency of the laser were set to 32 µm and 8 Hz, respectively, in this study. Zircon 91500 and glass NIST 610 were used as external standards for U-Pb dating and trace element calibration, respectively. Each analysis incorporated a background acquisition of approximately 20–30 s followed by 50 s of data acquisition from the sample. The GeolasPro laser denudation system includes a COMPexPro 102 ArF 193-nm excimer laser and a MicroLas optical system with an ICP–MS instrument (Agilent 7700e). ICPMSDataCal software was adopted for offline data processing [41,42]. Isoplot/Ex_ver3 [43] was used to obtain U–Pb age harmonic maps and calculate the age-weighted average of the zircon and monazite samples.

4.2. In Situ Sr–Nd–Hf Isotope Analysis

In situ Sr isotope ratio analysis of feldspars, in situ Nd isotope ratio analysis of monazite, and in situ Hf isotope ratio analysis of zircon were conducted using a Neptune Plus multicollector (MC)-ICP-MS instrument (Thermo Fisher Scientific, Göttingen, Germany) in combination with a Geolas HD excimer ArF laser ablation system (Coherent, Göttingen, Germany) hosted at the Wuhan Sample Solution Analytical Technology Co., Ltd., Wuhan, China. For single-laser-spot ablation, the spot diameter ranged from 60 to 160 μm, depending on Sr signal intensity. The pulse frequency was from 8 to 15 Hz, but the laser fluence was kept constant at ~10 J/cm2. The spot diameter ranged from 32 to 90 μm, depending on Nd signal intensity. The pulse frequency was from 4 to 10 Hz, but the laser fluence was kept constant at ~8 J/cm2. Hf isotopes were acquired on zircon in single-spot ablation mode at a spot size of 44 μm. Detailed instrument operating conditions and analytical methods can be found in Hu et al. (2015) [44]. Sr isotopic instrument mass fractionation correction was performed using the index rule, and the correction factor was estimated as 88Sr/86Sr = 8.375209 [45,46]. 143Nd/144Nd isotope instrument mass fractionation calibration was performed using the exponential rule. Please refer to the detailed description of the analytical method calibration process in Xu et al. (2015) [47].

4.3. Whole-Rock Pb Isotope Analysis

Whole-rock Pb isotope analysis was performed at Wuhan Sample Solution Analytical Technology Co., Ltd., Wuhan, China. Pb isotope analysis was performed using a Thermo Fisher Scientific MC-ICP-MS instrument (Neptune Plus). A jet + X cone combination and dry pump were used during MC-ICP-MS analysis to improve the instrument sensitivity. The Pb international standard solution NBS SRM 981 (100 μg/L) was used as a quality control and external correction standard sample, and the 208Pb signal was generally higher than 6 V. Pb isotope instrument mass fractionation was corrected by the pseudo-internal standard index rule [48].

4.4. Whole-Rock Major and Trace Element Analysis

Whole-rock major and trace element analyses were performed at the Wuhan Sample Solution Analytical Technology Co., Ltd., Wuhan, China. The major and trace elements were analyzed using a Primus II X-ray fluorescence spectrometry (XRF) instrument and Agilent 7700e ICP–MS instrument, respectively. To determine the main elements, the sample was ground into 200 mesh particles and dried. The total amounts of 6.0 g flux (Li2B4O7: LiBO2: LiF = 9:2:1), 0.6 g sample, and 0.3 g oxidant (NH4NO3) were weighed. To analyze the trace elements, the sample was ground into 200 mesh particles and dried, and 1 mL of high-purity HNO3 and 1 mL of high-purity HF were slowly added in sequence to a 50 g Teflon sample dissolving cartridge. Subsequently, the sample was first heated and then cooled, and a second drying process was conducted. The detailed process is described by Gao (2003) [49].

5. Analytical Results

5.1. Zircon U–Pb Ages and Hf Isotopes

In this paper, the LA-ICP-MS zircon U–Pb test was performed targeting the edge of the Cenozoic zircon and the core of the inherited zircon. The test data are listed in Supplementary Table S2. There were 10 test points of zircon data at the edge. Of these, the U–Pb ages at points 01, 02, 24, and 37 were inconsistent due to the influence of residual zircon, which is not involved in the calculation of mixed ages. The U and Th contents in the remaining six new zircons were high, and the 206Pb/238U age of the zircons varied between 41.1 and 42.9 Ma (Figure 4a,e, Supplementary Table S2). The weighted average age was 42.1 ± 0.76 Ma (mean squared weighted deviations (MSWD) = 1.2), which represents the crystallization age of Liemai muscovite granite. This result is supported by the monazite U–Pb geochronology (Figure 5). In the selection of inherited zircon ages, we used the 206Pb/238U age to calculate zircon ages less than 1000 Ma and employed the 207Pb/206Pb age to calculate zircon ages greater than 1000 Ma. The inherited zircon core ages ranged from 258 to 2957 Ma (Supplementary Table S2). The 206Pb/238U age at zircon measuring points No. 04, 07, 09, 12, 29, and 31 varied between 926 and 983 Ma, and the weighted average age was 956 ± 14 Ma (MSWD = 2) (Figure 4b,c), indicating that the source rocks of the granite contained late Neoproterozoic–early Mesoproterozoic ancient zircons. The 206Pb/238U ages at the No. 15, 16, and 20 zircon measuring points were relatively concentrated at 568 Ma in the concordant line, and the age-weighted average was 559 ± 58 Ma (MSWD = 1.8) (Figure 4d), indicating that the source rock of the granite contained late Cambrian-Neoproterozoic ancient zircons. The oldest age of the inherited zircons was observed at measuring point No. 24, and the 206Pb/207Pb age was 2954 Ma, indicating the Mesoarchean. The remaining core inherited zircon ages varied greatly, reflecting the diversity of the inherited zircon sources.

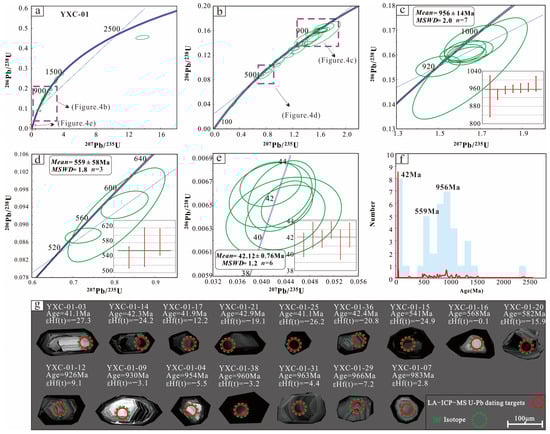

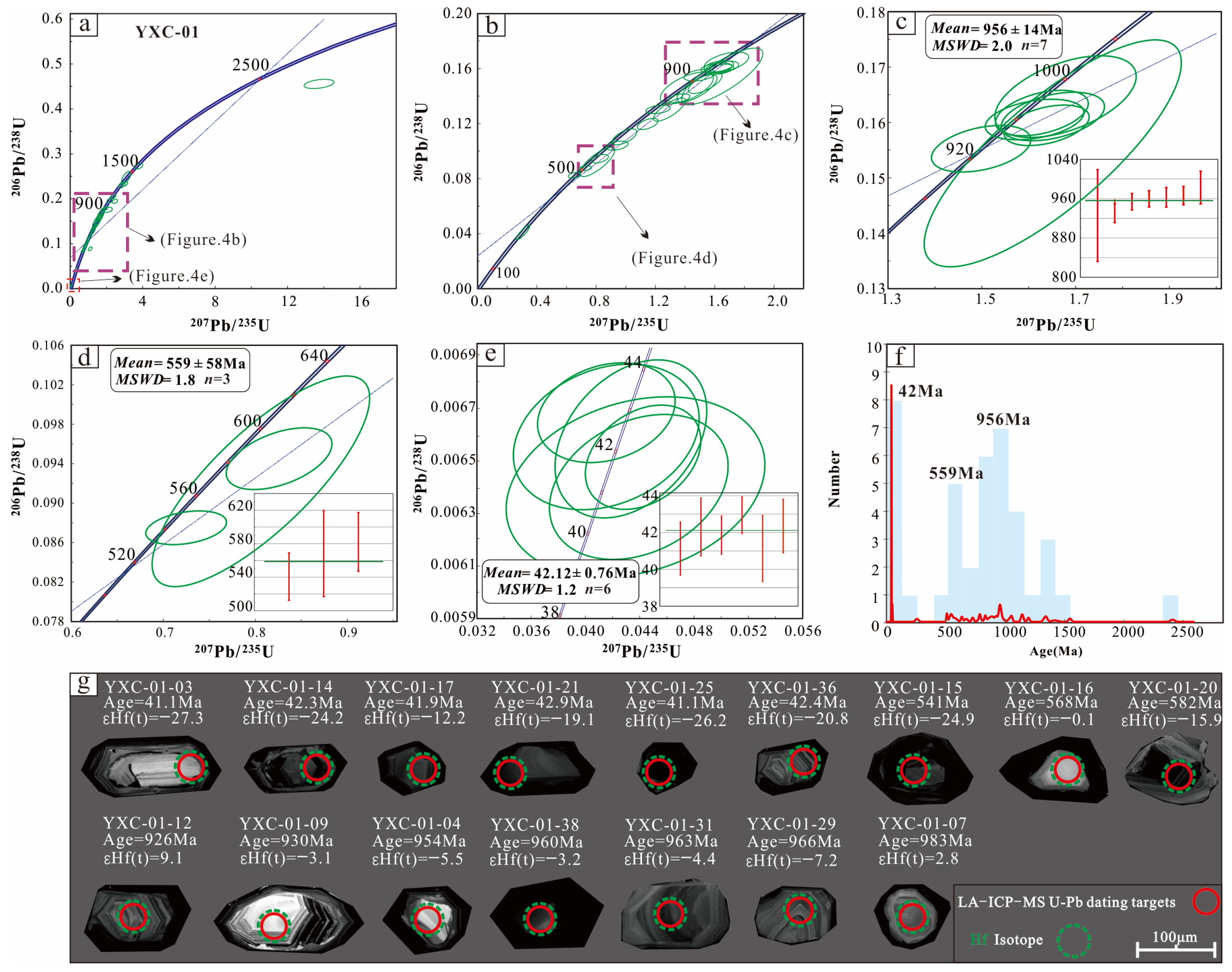

In this paper, the zircons in the YXC-01 sample of Liemai muscovite granite (data are provided in Supplementary Table S3) were subjected to LA–MC-ICP-MS Lu–Hf in situ isotope analysis. The 176Hf/177Hf ratio of six magmatic zircons was in the range 0.281976~0.282403. εHf(t) ranged from −12.2 to −27.3, with an average value of −21.6. The two-stage depleted mantle model age (TDM2) varied between 1884 and 2831 Ma.

5.2. Monazite U–Pb Ages and Nd Isotopes

The monazite U–Th–Pb isotope and trace and rare earth element content analysis results for Liemai muscovite granite (D1530) are listed in Supplementary Tables S4 and S5, respectively. A backscattered image and the U–(Th)–Pb age of monazite are shown in Figure 5. Monazite in Liemai muscovite granite contains a high content of light rare earth elements (LREEs) and a low total amount of heavy rare earth elements (HREEs) (Supplementary Table S5). The 207Pb235U ages of monazite in Liemai muscovite granite are relatively dispersed, ranging from 55.4 to 224 Ma. Except for one monazite site not occurring on the concordia curve, the remaining 206Pb/238U and 208Pb/232Th ages are relatively concentrated. The 206Pb/238U ages range from 39.5 to 46.8 Ma, and the 208Pb/232Th ages range from 40.4 to 45.4 Ma. These ages are relatively concordant (Figure 5a). The weighted mean age is 41.7 ± 0.11 Ma (MSWD = 0.52, n = 39) (Figure 5b).

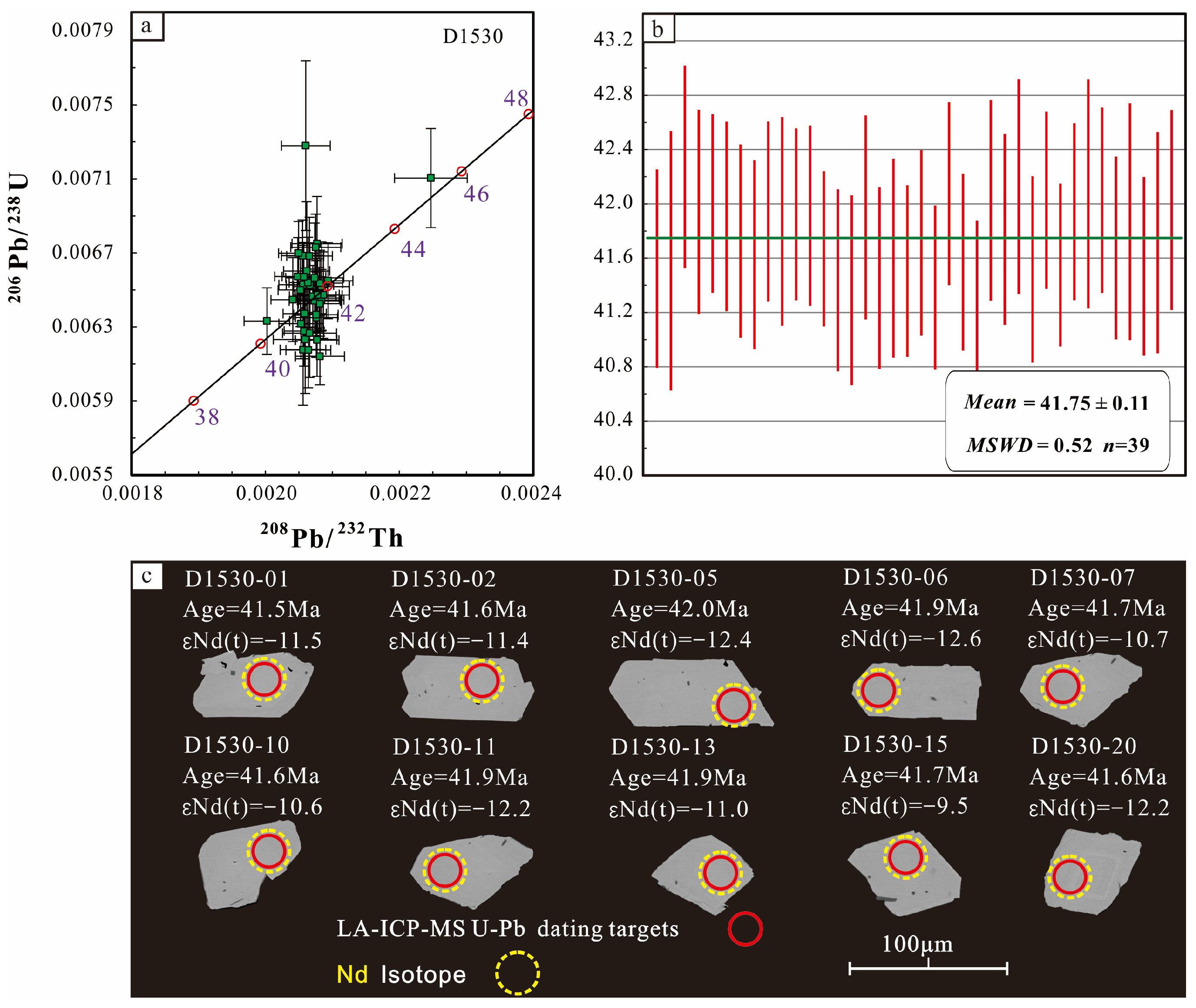

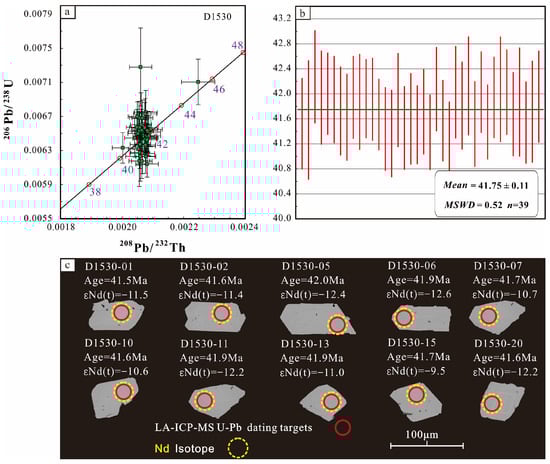

In this paper, samples of Liemai muscovite granite (D1530) were analyzed using in situ Nd isotope analysis. The detailed test data are listed in Supplementary Table S7. The ratio of εNd(t) at the time of magma crystallization was calculated according to the data results. The in situ Nd isotope for monazite showed that the Nd isotope composition is low and stable. The initial value of 143Nd/144Nd ranges from 0.511883~0.512038, and the εNd(t) value ranges from approximately −12.56 to −9.53.

5.3. In Situ Plagioclase Sr Isotopes

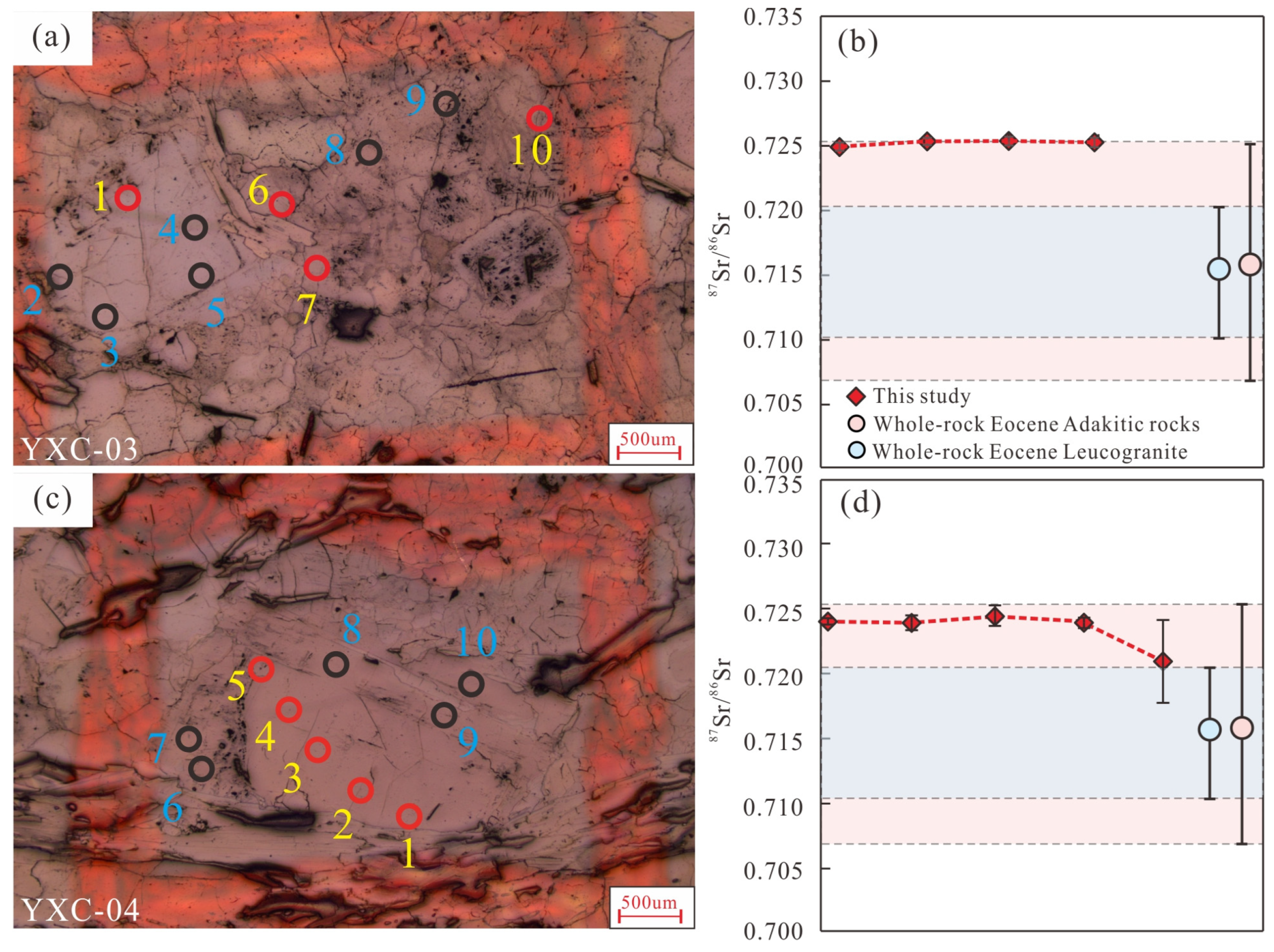

The Sr isotope data obtained for plagioclase are listed in Supplementary Table S8, and the beam positions are shown in Figure 6a,c. Because some plagioclase was pierced during the test, the black point data error was large, and the corresponding data did not participate in the calculation. The Sr isotope content in the plagioclase of the two Liemai muscovite granite samples is stable, indicating that the samples are not affected by assimilation and contamination. The plagioclase (87Sr/86Sr) value of YXC-03 ranges from 0.724095 to 0.724717, with an average of 0.724498. The (87Sr/86Sr) value of YXC-04 ranges from 0.720552 to 0.724491, with an average of 0.723456. The 87Sr/86Sr ratios occur within the range of whole-rock Eocene adakitic rocks (Figure 6b,d), and the whole-rock Sr isotope results are provided in Supplementary Table S13.

5.4. Whole-Rock Pb Isotopes

The whole-rock Pb isotope composition of Liemai muscovite granite is summarized in Supplementary Table S9. The values of (206Pb/204Pb)i, (207Pb/204Pb)i, and (208Pb/204Pb)i are 18.751–18.832, 15.708–15.735 and 39.197–39.379, respectively. All initial values are calculated using an age of 43 Ma. The whole-rock Pb isotope data are listed in Supplementary Table S13.

5.5. Whole-Rock Major and Trace Element Geochemistry

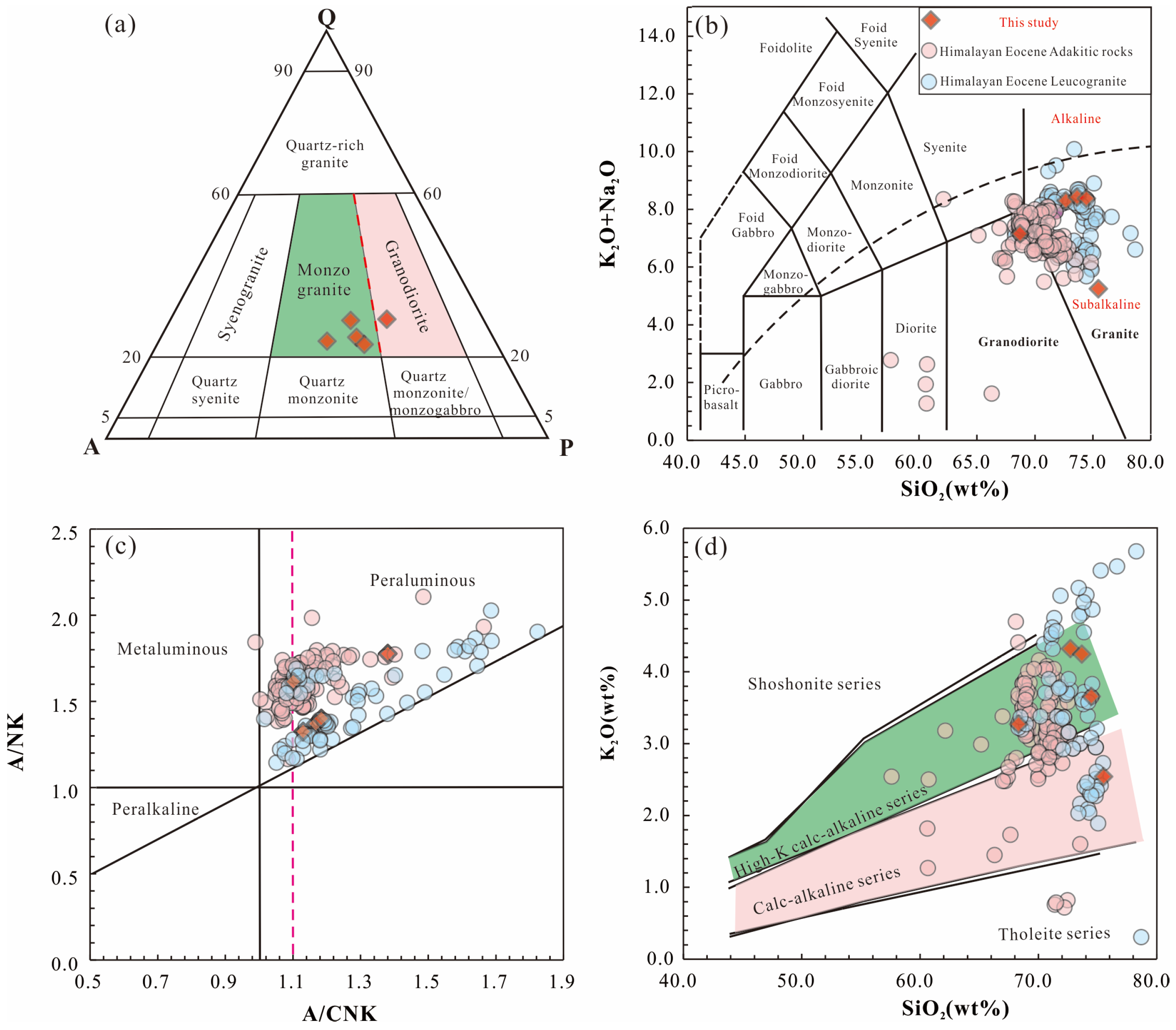

The whole-rock major and trace element results of five fresh Liemai muscovite granite samples are provided in Supplementary Table S6, and the major and trace element results for the Himalayan Eocene magmatic rocks (adakitic rocks and leucogranites) are listed in Supplementary Tables S10 and S11.

5.5.1. Adakitic Rock

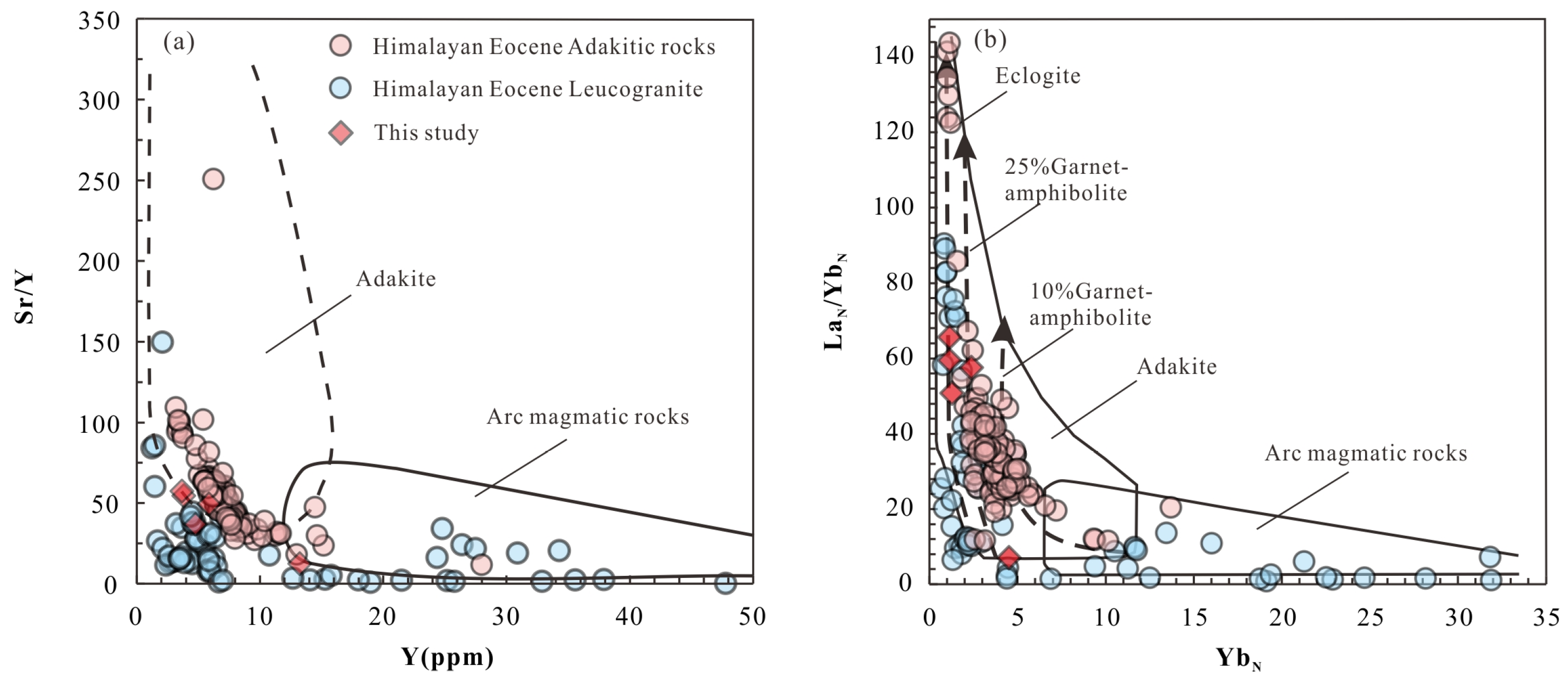

Based on previous studies, geochemical analysis of 121 Himalayan Eocene adakitic rocks was conducted in this paper. The Himalayan Eocene adakitic rocks contained SiO2 (62.1–74.8 wt.%), with an average content of 70.1 wt.%, which is much higher than the total crustal content (60.6 wt.%). Moreover, K2O (0.72–10.5 wt.%) was observed, with an average content of 3.24 wt.%, as well as Na2O (1.82–5.81 wt.%), with an average content of 3.87 wt.%. The K2O and Na2O contents are higher than those in the total crust (1.81 and 3.07 wt.%, respectively), and Na2O/K2O > 1. The average content of CaO is 2.34 wt.%. The average Al2O3 content is 18.95 wt.%, the average A/NK value is 1.62, and the average A/CNK value is 1.13. The P2O5 content is 0.03–0.31 wt.%. The MgO content is low, between 0.04 and 2.08 wt.%, with an average value of 1.0 wt.%, which is much lower than the total crustal content (4.66 wt.%). The results show that the Himalayan Eocene adakitic rocks are high-K calc-alkaline peraluminous granites (Figure 7c,d). In this paper, considering five fresh Liemai muscovite granite samples, the SiO2 content is 68.3–75.5 wt.%, the Al2O3 content is 15.1–16.1 wt.%, and the total alkali Na2O + K2O content is 5.26–8.43 wt.%. Moreover, the MgO content is 0.14–0.98 wt.%, the A/NK value is 1.32–2.02, and the A/CNK value is 1.1–1.15. In the petrological Q–A–P classification diagram (Figure 7a), the five samples are plotted in the monzonitic granite area, except for one sample that is plotted in the granodiorite area. The Na2O + K2O/SiO2 petrological classification diagram (Figure 7b) shows that the adakitic rocks are plotted in the granite or granodiorite area.

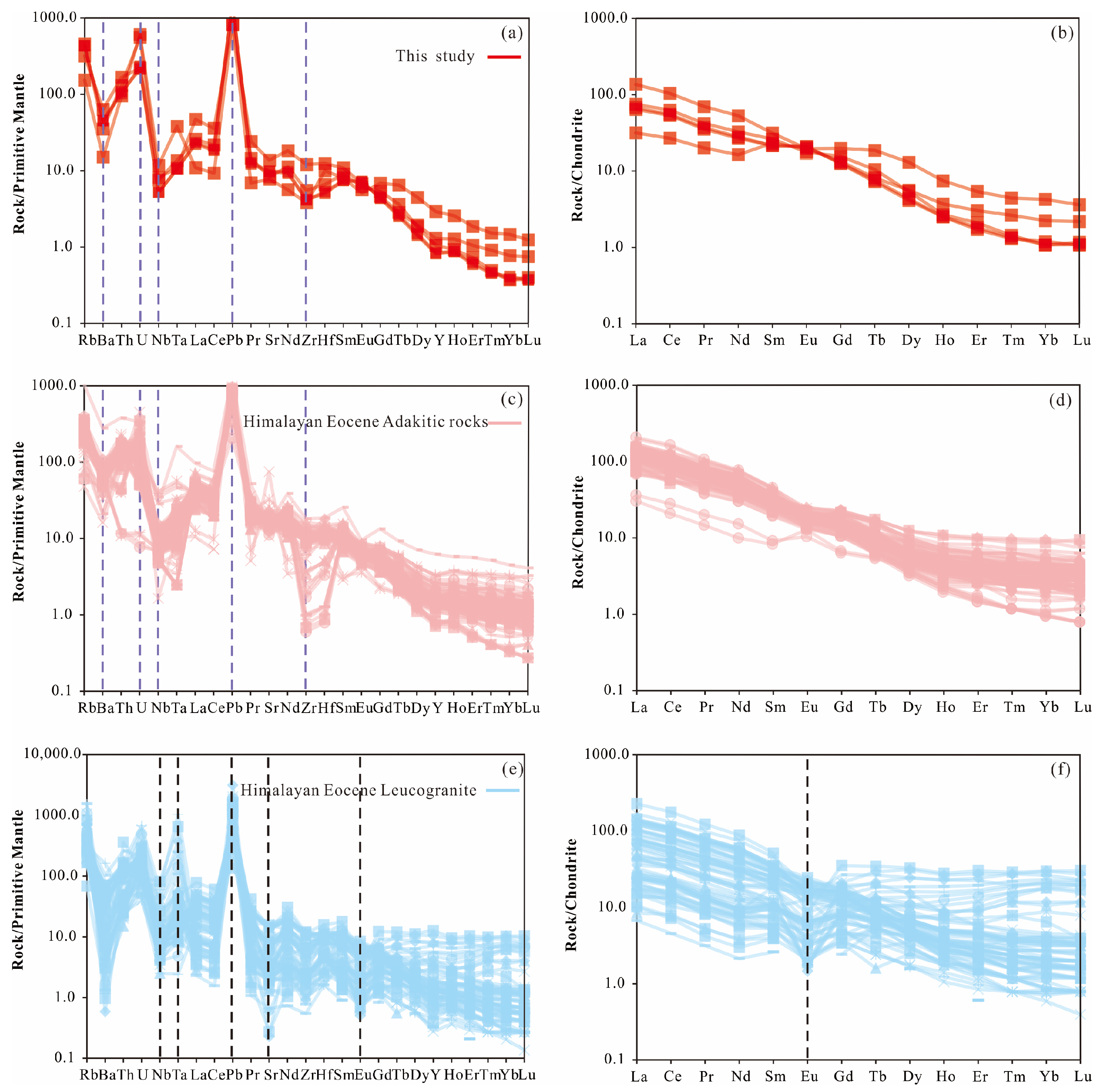

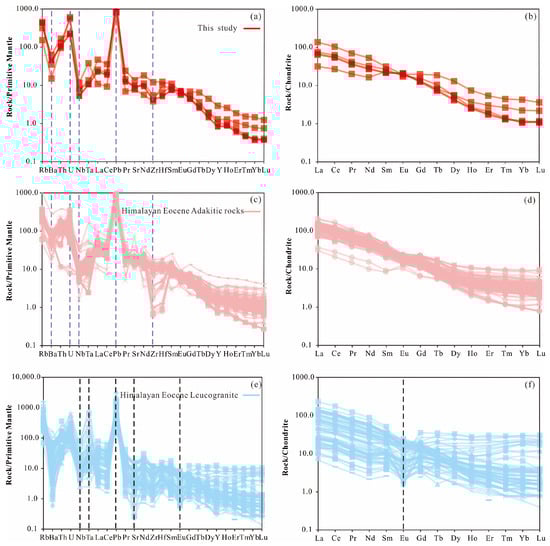

The primitive mantle-normalized trace element distribution diagram shows that the Liemai muscovite granite yields a distribution curve similar to that of adakitic rocks (Figure 8a,c). The characteristics of adakitic rocks include relative enrichment of large-ion lithophile elements (LILEs) such as Rb; moreover, high-field-strength elements (HFSEs) such as U and Pb are relatively enriched, Nb, Ta and Zr are relatively depleted, and the Sr elemental content is high, with an average value of 354.2 × 10−6. Eocene adakitic rocks are enriched in LREEs (119.3 × 10−6) and depleted in HREEs (6.9 × 10−6), with weak or no Eu anomalies. The LREE/HREE ratio varies between 10 and 20, with an average of 17.8, indicating a clear right-leaning model (Figure 8d). The average LREE [(La/Yb)N] value is 40.2, indicating that the internal fractionation of LREEs is relatively high. The content of Ho-Lu elements in the rare earth element distribution model decreases or stabilizes in turn [53].

5.5.2. Leucogranite

The geochemical analysis of 68 Himalayan Eocene leucogranite samples is described in this paper. The values of the major elements of Eocene leucogranite do not differ from the mean values of total crustal major elements. Leucogranite exhibits the following characteristics: (1) high silicon (SiO2) content (68.3–73.8 wt.%), with an average of 73.1 wt.%, which is much higher than the total crustal content (60.6 wt.%); (2) high alkalinity, including K2O (0.3–6.7 wt.%), with an average of 3.59 wt.%, and Na2O (1.5–6.3 wt.%), with an average of 4.01 wt.%, both of which are higher than the total crustal K2O and Na2O contents (1.81 and 3.07 wt.%, respectively), with Na2O/K2O > 1; (3) relatively low CaO content, with an average of 1.02 wt.%; (4) high Al2O3 content, with an average value of 14.97 wt.%, the average A/NK value is 1.49, and the average A/CNK value is 1.27; and (5) low MgO content, between 0.02 and 1.47 wt.%, with an average of 0.35 wt.%, which is much lower than the total crustal content (4.66 wt.%). In summary, the Eocene leucogranite is a high-K calc-alkaline peraluminous granite (Figure 7c,d). In the trace element distribution diagram (Figure 8e), the leucogranite is characterized by enriched LILEs (such as Rb) and U, Ta, and Pb elements, depleted HFSEs (such as Nb and Zr) and La and Nd elements, with obvious negative Sr, Ba and Eu anomalies. The content of REEs in the light granite exhibits a narrow range (ΣREE = 9.4 × 10−6–182.2 × 10−6), with an average value of 68.9 × 10−6, which is lower than the average value of the total crust (106.2 × 10−6). The LREE/HREE ratio mainly varies between 2.6 and 22.4, with an average value of 10.7. In addition to the obvious negative Eu anomaly in leucogranite, the normalized rare earth model distribution curve of the other chondrites is relatively flat (Figure 8f).

6. Discussion: Relationship between Adakitic Rocks and Leucogranite

6.1. Chronological Characteristics

In this paper, the in situ U–Pb ages of U-bearing accessory minerals such as zircon, monazite, and titanite in Himalayan Eocene magmatic rocks are statistically analyzed (Supplementary Table S12), and the age distribution of the analyzed Himalayan Eocene magmatic rocks is shown in Figure 9. We note that Eocene magmatic rocks are found only in the northern Himalayas and are dominated by leucogranite and adakitic rocks. Figure 9a shows that the Himalayan Eocene magmatic rocks mainly developed in two time stages, early Eocene (51–40 Ma) and late Eocene (39–34 Ma), and the age distribution exhibits three peaks: 47–43 Ma, 42–40 Ma and 37–35 Ma. To explore the significance of the study for the chronology of Eocene granite, we determined the age of the exposed rock mass in the northern Himalayas.
Early Eocene (51–40 Ma) magmatic rocks are preserved only in the northern Himalayan belt, with a peak at 44 Ma [24]. The Eocene leucogranites are mainly exposed in the Lhagoi Kangri dome [26], the Ramba dome [54] and the Yalaxiangbo dome [11]. The magmatic rocks of Rongbo in Langkazi County and Dala, Quedang, and Liemai in Longzi County are dominated by adakitic two-mica granites with mafic enclaves [10,21,22,23,24,25,31,54,55,56]. Hawen in Langkazi County, Langshan in Gyangze County and Zhegucuo in Cuomei County contain intermediate-mafic granodiorite, gabbro and high-Mg diorite, respectively [57,58,59]. Late Eocene (39–31 Ma) magmatic rocks are less exposed and are most developed in the gneiss domes of the northern Himalaya, with a peak at 35 Ma, including the Yalaxiangbo dome [30], Changguo dome [60], Xiaru dome [61], Lhagoi Kangri dome [26] and Cuonadong dome [62]. The lithology is dominated by leucogranite.

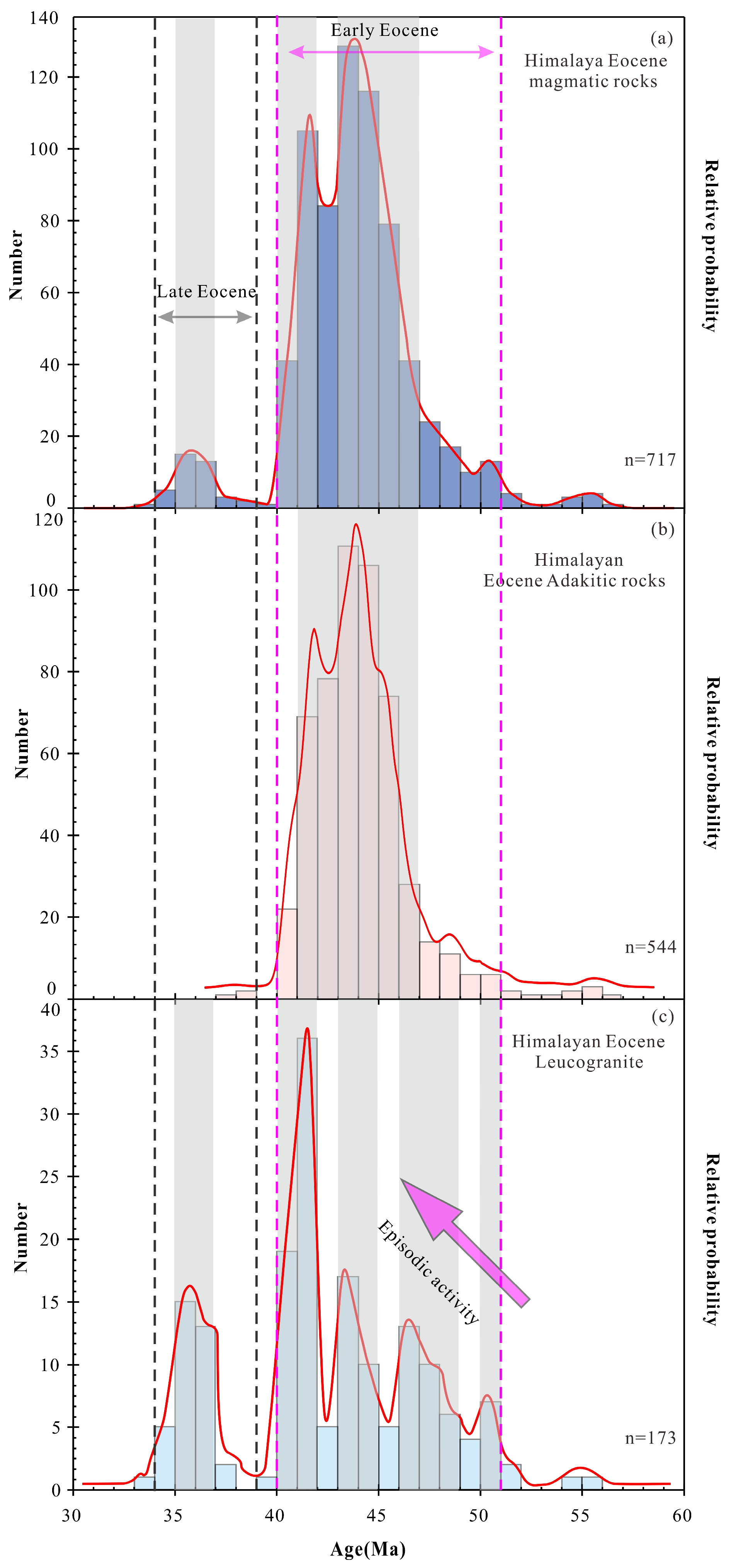

The data show that the ages of 544 Eocene adakitic rock samples mainly range from 47 to 41 Ma and from 43 to 42 Ma (Figure 9b). The ages of 173 leucogranite samples show an continuous distribution with five peaks (Figure 9c), at 51–50 Ma, 49–46 Ma, 45–43 Ma, 42–40 Ma and 37–35 Ma. In summary, we found that leucogranites were actively generated throughout the Eocene, and a clear episodic growth trend occurred from 51 to 40 Ma. Adakitic rocks only significantly developed during the early Eocene (47–40 Ma), and the development of adakitic rocks was inhibited from 40 to 35 Ma, which may represent a tectonic transition period. The leucogranites formed from 40 to 37 Ma also indicated a low age peak, suggesting that they may have been affected by the same tectonic events as adakitic rocks.

6.2. Petrogenesis

As mentioned above, adakitic rocks and leucogranites exhibit different characteristics of their major and trace elements (Figure 7 and Figure 8, respectively). Similarly, through the study of chronology, we found that the peak values of these two rocks differed significantly, at 51–40 Ma and 40–35 Ma, respectively, indicating that the two must have experienced differences in rock genesis. Based on the characteristics of the major and trace elements and the Y-Sr/Y and YbN-LaN/YbN ratios (Figure 10), Liemai muscovite granite is similar to adakitic rock.

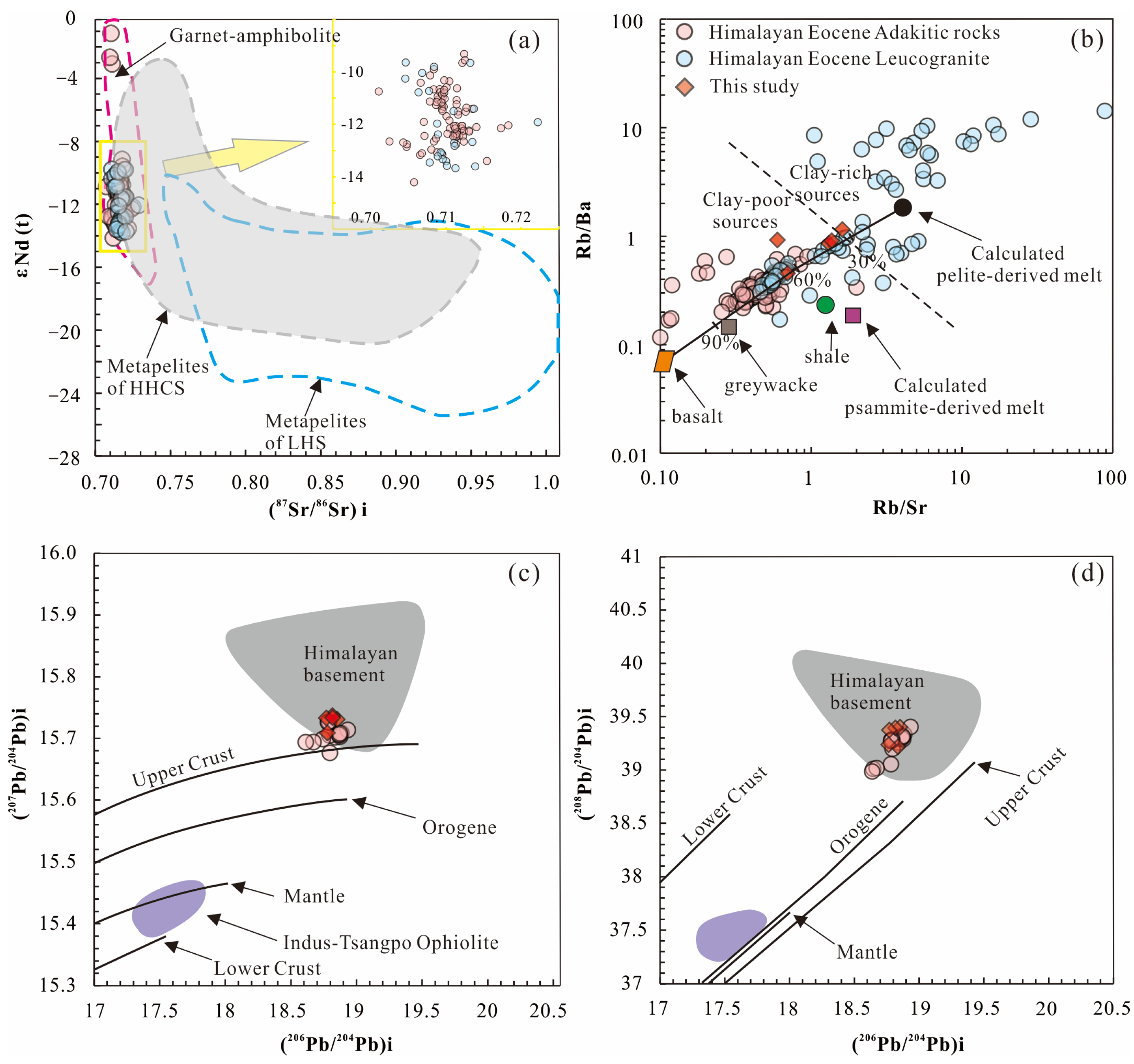

The Sr-Nd isotopes show that the Eocene adakitic rocks and leucogranites exhibit similar source characteristics, and their source is likely the Greater Himalayan complex dominated by garnet amphibolite (Figure 11a). This view is supported by Zeng et al. (2011) [10], who proposed that the Eocene granite source rock in the Yalaxiangbo dome is dominated by amphibolite. The main minerals (such as feldspar and mica) in granite can control the geochemical behavior of elements such as Sr and Ba. A large amount of plagioclase remains in the melting process of sandstone, while a small amount of plagioclase remains in the melting process of pelite [64,65,66]. Therefore, the Rb/Sr and Rb/Ba ratios of a sandstone-derived melt are significantly higher than those of a pelite-derived melt [67]. As shown in the Rb/Sr-Rb/Ba diagram (Figure 11b), the Eocene adakite source rocks are mainly argillaceous rocks with less clay, little plagioclase and some basic components. The leucogranite is mainly a clay-rich, multiplagioclase pelite, which contains sandstone components. Sylvester (1998) [67] proposed that the lower CaO/Na2O ratio of strongly peraluminous granites generally indicates that the granite source area involves pelite melting, while a higher CaO/Na2O ratio indicates a psammite melting source area. The ratio of the major elements of Eocene adakitic rocks and leucogranites conforms to this feature (the CaO/Na2O ratio of the two is 0.91 > 0.26; Supplementary Tables S10 and S11).
Due to the lack of Pb isotope records for Eocene leucogranite, only whole-rock Pb isotopes of adakitic rocks were analyzed in this paper, and it was determined that the Pb isotope composition of Eocene adakitic rocks is similar to that of the Himalayan basement (Figure 11c,d). In the εHf(t) and U–Pb age maps, all the sample sites were plotted below the chondrite evolution line, indicating that Eocene adakitic rocks and leucogranites were derived from the ancient crust (Figure 12).

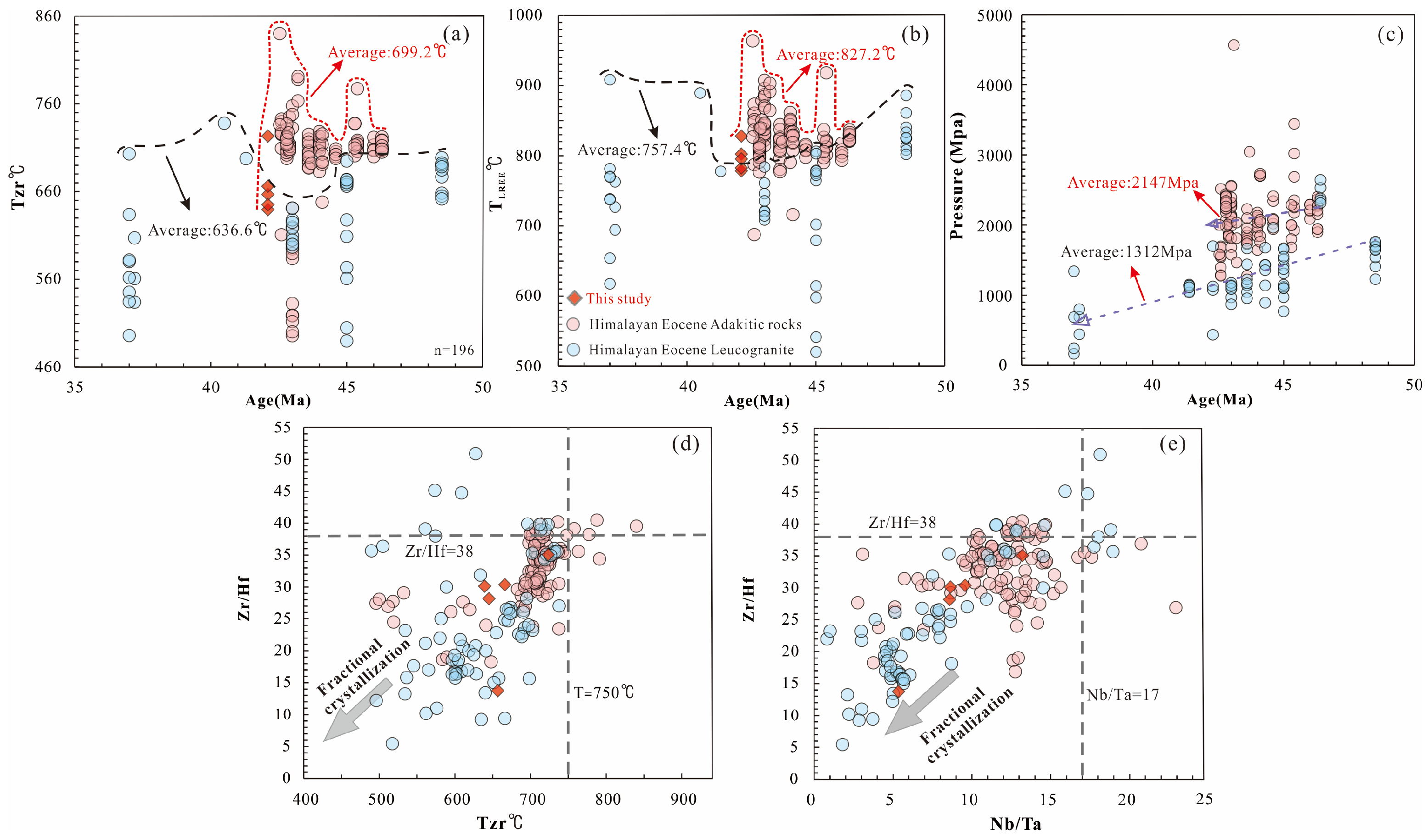

In this paper, the saturation temperature of Eocene adakitic rock and leucogranite was measured based on whole-rock Zr and whole-rock rare earth elements. The results show that the average whole-rock Zr-based temperature (TZr) of adakitic rock is 699.2 °C, and the average whole-rock rare earth element-based temperature (TLREE) is 827.2 °C. The average whole-rock Zr-based temperature (TZr) of leucogranite is 636.6 °C, and the average whole-rock rare earth element-based temperature (TLREE) is 757.4 °C [53] (Figure 13a,b). Both crystallization temperatures indicate that the saturation temperate of adakitic rock is approximately 60 °C higher than that of leucogranite. We have previously estimated the crystallization pressure of Eocene adakitic rocks and leucogranites [68,69]. The results revealed that the crystallization pressure of adakitic rocks is much higher than that of leucogranites. The average crystallization pressures of adakitic rocks and leucogranites are 2147 and 1312 MPa, respectively, showing a decreasing trend with age (Figure 13c).
The data in this paper show that the diagenetic pressure of the Eocene magma developed in the northern Himalayas exhibited a decompression trend from 45 to 37 Ma, and the magmatic activity was weak from 40 to 35 Ma, indicating that there was a short-term tectonic stress adjustment. This view is supported by those of Štípská et al. (2020) [71] and Kawabata et al. (2021) [72] regarding retrograde metamorphism and decompressional partial melting, respectively. The Zr/Hf–TZr temperature diagram and Zr/Hf–Nb/Ta diagram (Figure 13d,e, respectively) show that the degree of fractional crystallization of the Himalayan Eocene leucogranite is much higher than that of the adakitic rock. The Zr/Hf–TZr temperature diagram and Zr/Hf–Nb/Ta diagram (Figure 13d,e, respectively) show that the degree of fractional crystallization of the Himalayan Eocene leucogranite is much higher than that of the adakitic rock.
Seven genetic models of adakitic rocks (YalaXiangbo dome, Ranba dome, Dala, Quedang, Liemai, etc.) exposed in the eastern Himalayas were examined one by one, including the following: ① The Sr, Nd and Hf isotope characteristics and geochemical differences all reflect the characteristics of granite crust sources. Before 65 Ma, the Himalayas were located at passive continental margins, and there was no subducted oceanic crust beneath. Therefore, the cause of partial melting of the subducted oceanic crust plate is excluded [22,73,74]; ② the crust source characteristics of granite and many ancient inherited zircons exclude the genesis of partial melting of the lower crust of underplating basaltic rocks [75]; ③ the MgO, Mg#, Cr and Ni contents in the granite are lower than those in the metasomatism products of the delaminated lower crust and mantle peridotite, which excludes the origin of partial melting of the delaminated lower crust [63,76,77]; ④ the main collision stage of the India–Eurasia continent encompasses crustal shortening, pressurization and warming, which excludes the cause of water-induced partial melting of high-grade metamorphic rocks under abnormal heat due to rapid exhumation [78]; ⑤ there exists no correlation between εNd(t) and 147Sm/144Nd and SiO2 in granites, while very little mantle-derived magma is exposed in the eastern Himalayas, and the Langshan gabbro (45 ± 1.1 Ma) is 500 km away. Therefore, the possibility of magma mixing between felsic and basaltic magmas is excluded [58,79]; ⑥ Adakitic rocks indicate no trend of low-pressure fractional crystallization, which excludes the crustal assimilation and fractional crystallization process of basaltic magma. Finally, previous authors have determined that the adakitic rocks in the eastern part of the Himalayas are the product of partial melting of the basic materials of the thickened lower crust [80]. The eastern part of the Eocene Himalayas occurs at the Indian–Eurasian continental collision stage. The tectonic background is the continuous thickening of the crust, and the crust thickness is >50 km. The Liemai muscovite granite considered in this paper exhibits geochemical characteristics similar to those of adakitic rocks in the adjacent area. Therefore, the Liemai granite is the product of partial melting of the thickened lower crust, which is supported by Dai et al. (2023) [21] and Tian et al. (2020) [31].
The above determination of the granite source area, magmatic crystallization temperature, crystallization pressure and tectonic background lay the foundation for the subsequent discussion in this paper. Therefore, it is proposed that the difference in the characteristics of the major and trace elements between Eocene adakitic rocks and leucogranites indicate that they may have undergone different magmatic processes [10,11,21,22,23]. The correlation between the main elements is shown in the Harker diagram (Figure 14a–l), Al2O3, MgO and CaO exhibit obvious linear decreasing trends because the separation and crystallization of plagioclase leads to decreases in certain main elements (Figure 14a,d,e) and there exists no obvious linear relationship between Na2O, K2O and N2O/K2O, which may be affected by the end-member characteristics of granite crystallization differentiation [61] (Figure 14b,c,f). Usually, high-pressure fractional crystallization of basaltic melts (involving garnet) yields a unique geochemical trend. For example, the Sr/Y, Dy/Yb, Ba and (La/Yb)N ratios and Al2O3 content significantly increase with increasing SiO2 content [80]. Obviously, in Figure 13a and Figure 14i–l, there is no obvious change trend in Eocene adakitic rocks, and leucogranite exhibits an obvious linear trend of low-pressure fractional crystallization, indicating that the leucogranite is significantly affected by fractional crystallization of plagioclase. This result is consistent with the genesis of low-magnesian granite determined by Zeng et al. (2014) [11] and Dai et al. (2023) [21]. The magmatic crystallization differentiation attributed to fractional crystallization of plagioclase may be reflected in the melt of peraluminous leucogranite.
As an incompatible element, Th is not easily affected by rock weathering and alteration and can remain stable in separation crystallization and assimilation contamination processes [83]. Therefore, we use the incompatible element Th as an effective index to determine the genesis of rocks. The experimental data show that garnet remains stable under pressures higher than ~1.0 GPa (a thickness of approximately 33 km), and amphibole remains stable at ≤2.2–2.5 GPa [84]. The stability of plagioclase is closely related to the H2O content, and it remains stable under pressures < 1.0 GPa in the presence of aqueous fluid. However, in the case of dehydration melting, the stability pressure reaches as high as 1.5–1.8 GPa (a thickness of approximately 50–60 km) [85,86,87]. In deep crust environments (>~1.0 GPa), Y and Yb preferentially dissolve into garnet or amphibole in the process of fractional crystallization and crystallization differentiation of granite, while Sr and La enter the melt to form magmatic melt with high Sr/Y and La/Yb ratios. In shallow crustal environments (<~1.0 GPa), Sr preferentially enters plagioclase, Y and Yb enter the melt, and the Sr/Y and La/Yb ratios are low [13,88].

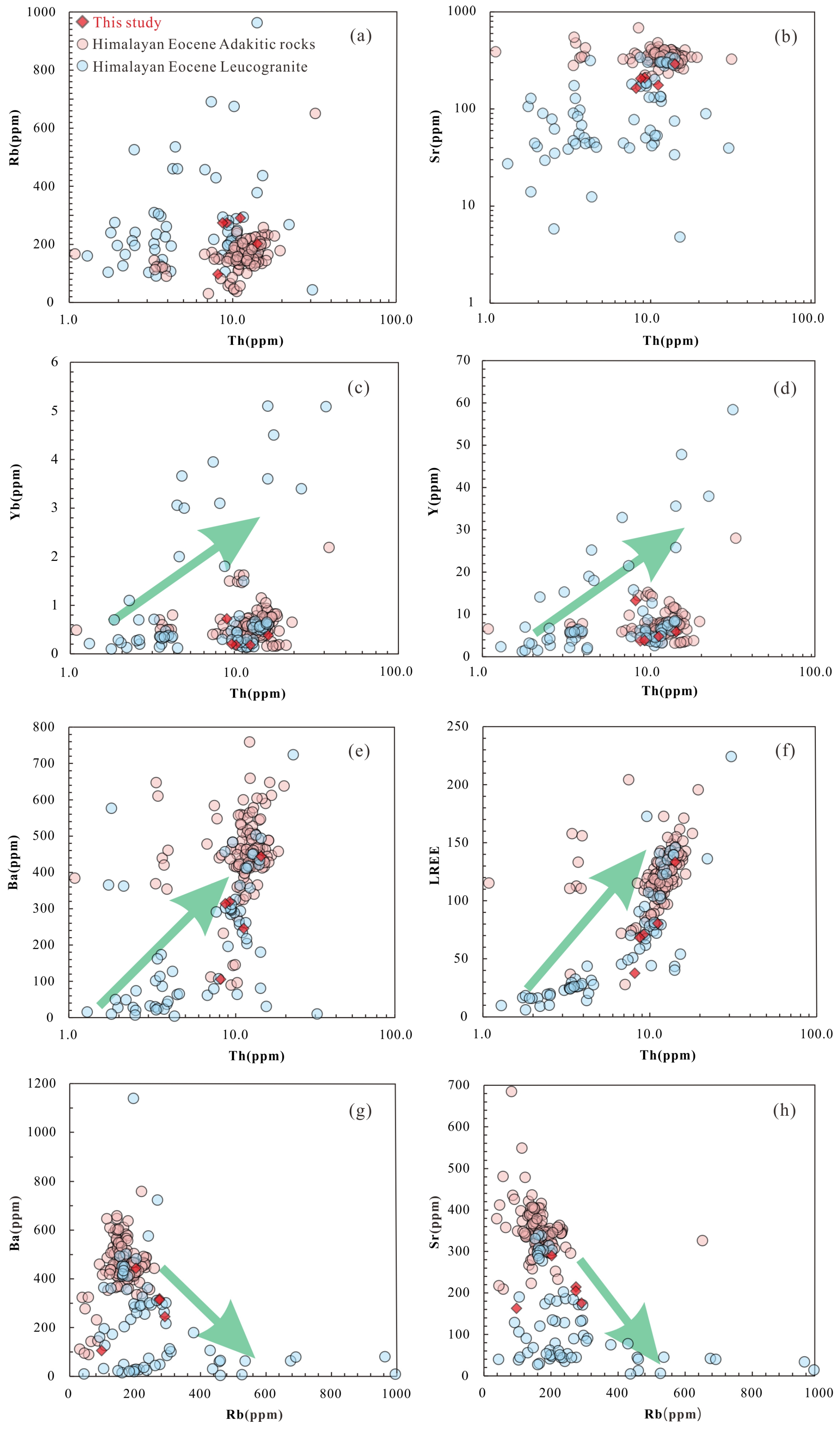

In the trace element Harker diagram, there is no linear correlation between Rb and Sr (Figure 15a,b), the trace element characteristics of leucogranite indicate an obvious linear relationship among Y, Yb, Ba, LREE (Figure 15c–f). During the evolution of Eocene adakitic rocks, Yb and Y are basically in a stable state, indicating that adakitic rocks with high Sr/Y ratios may occur in deep crust environments (>~1.0 GPa, average of 2.15 GPa), and amphibole and garnet remain in a stable state. In contrast, light-colored granite with a low Sr/Y ratio occurs in medium- to high-pressure environments (>~1.0 GPa, with an average of 1.31 GPa) in the deep crust, and a certain degree of amphibole dehydration partial melting likely occurs to maintain plagioclase stability, which is also consistent with the classification characteristics of granite under different pressures explained by Zhang et al. (2006) [89].
A previous paper revealed that adakitic rocks are strongly depleted in HREEs and that Ho to Lu exhibit slightly inclined or flat characteristics, reflecting the presence of garnet and amphibole in the residual phase during partial melting. The absence of Eu anomalies shows that the adakitic rocks have not experienced obvious separation and crystallization of plagioclase. Notably, plagioclase exists as a reaction phase during partial melting [90]. The fractional crystallization of plagioclase leads to decreases in the Ba and Sr contents in felsic magma (Figure 15g,h). The LREE and Th elements in Eocene leucogranite exhibit obvious depletion characteristics, indicating that a certain degree of monazite separation and crystallization has occurred [91,92].
In summary, we conclude that the genesis mechanisms of Liemai granite and Eocene adakitic rock are consistent, being a result of partial melting of metapelite dominated by amphibolite in the deep crust in a high-temperature and high-pressure environment in the crustal thickening process. Leucogranite is the result of the ascending emplacement migration process against the same geological background in a lower-temperature and lower-pressure environment and continuous fractional crystallization dominated by plagioclase. At the same time, this explains the episodic age distribution of leucogranite.

6.3. Tectonic Implications

Through the review of magmatic records of the early tectonic evolution of the Himalayan region and the division of tectonic stages by previous researchers, it has been proposed that it would be difficult for early prograde metamorphism to produce large-scale crustal anatexis [2,5,10,11,23]. Therefore, the development of Himalayan magmatism requires additional mechanisms, such as heating and decompression. In this study, we focused on the Himalayan Eocene (55–35 Ma).
During the early Eocene (50–45 Ma), the leading edge of the Indian continental crust subducted northward under the Lhasa plate. In contrast, the THS in the upper crust was thrust southward along the southern Tibetan thrust system, resulting in low-grade metamorphism and formation of the Himalayan fault–fold belt [93], and the whole Himalayan crust was shortened and thickened [94]. Previous scholars have found that although the metamorphic times of the eastern and western parts of the Himalayas are almost the same, at 47~45 Ma [84,95] and 47~46 Ma [96], respectively, the metamorphic facies in the two parts differ. The metamorphic facies in the eastern part of the Himalayas is a high-pressure amphibolite-granulite facies, while the facies in the western part is a high-ultrahigh pressure eclogite facies. This may be related to the angle of the subducting Indian continental crust plate [93]. Gentle subduction occurred in the eastern Himalayas at a low angle up to a depth of 20–30 km [2,93], while deep subduction occurred in the Indian continental crust at a high angle up to a mantle depth of 90–100 km in the western Himalayas. During the middle Eocene (approximately 45 Ma), the Neo-Tethys oceanic plate broke off from the Indian continental crust, and asthenospheric mantle upwelling occurred. Qi et al. (2008) [97] first studied Himalayan Eocene granites and proposed that the Dala pluton was formed at the India–Lhasa continental–continental collision stage and originated from material remelting of the middle and lower crusts of the Indian block. Zeng et al. (2011) [10] explained the genesis of Eocene (44–42 Ma) granites in the Yardoi dome and its adjacent area for the first time using the plate fracture model. Ji et al. (2016) [58] identified 45 Ma oceanic island basalt (OIB)-type gabbro, which constrained the fracture time of the Neo-Tethys plate in the central and eastern orogenic belt regions. Immediately, a large amount of magmatic activity occurred in the northern Himalayas from 45 to 40 Ma, forming Eocene medium-basic dikes [58,98,99], adakitic rocks [10,21,22,23] and leucogranites [11,24,100]. Aikman et al. (2008) [101] reported that the formation of the Dala pluton occurred later than the crustal thickening process of the northern Himalayan fold belt. Zeng et al. (2011) [10] and Xie et al. (2010) [15] proposed that the Dala pluton shares the geochemical characteristics of adakitic rocks, which originated from dehydration partial melting of amphibolite under the thickened crust. Later studies confirmed this view and determined that the formation time of partial melting granite related to the thickened crust was 43 Ma [22,25].

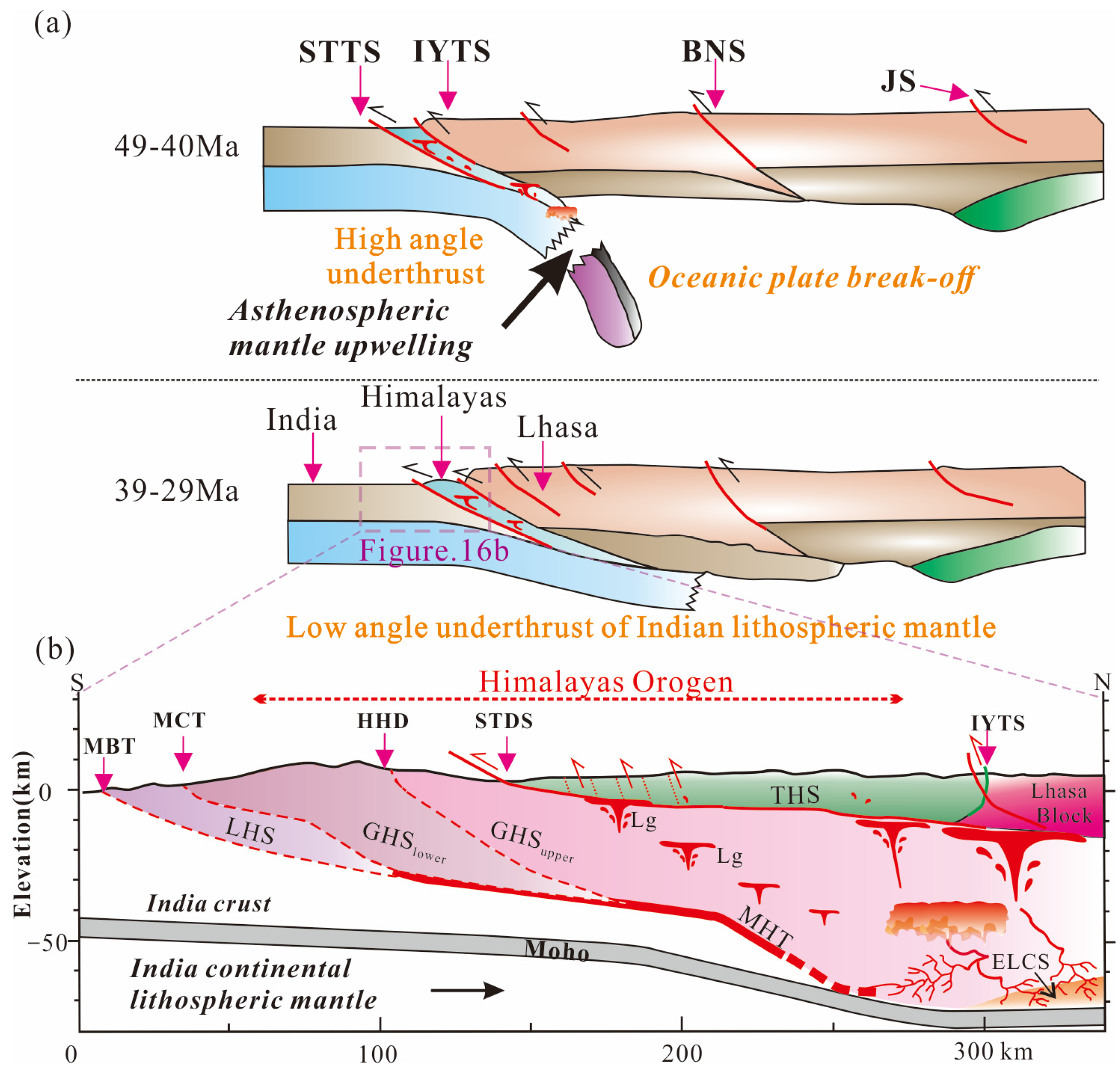

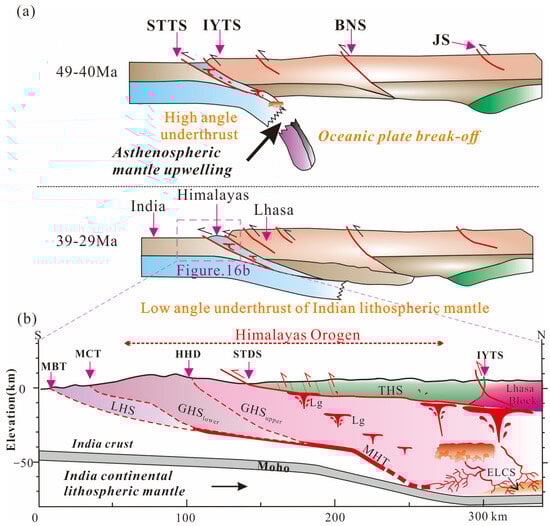

Combined with previous studies, we propose that between 55 and 45 Ma, the front of the Indian passive continental margin collided with the Lhasa block, resulting in medium- to high-pressure metamorphism and partial melting of the middle–lower crust. The upper crust (the northern Himalayas) was compressed to form a fold–fault zone, and a small amount of leucogranite and adakitic rock emerged from 49–45 Ma (Figure 16a). At approximately 45 Ma, the Neo-Tethys oceanic plate subducted to a certain depth broke off from the Indian continental plate, and asthenospheric upwelling occurred. From 45 to 40 Ma, due to the detachment of the Neo-Tethys oceanic crust plate, the northern Himalayas experienced short-term extensional extension. The early partial melting magma in the high-temperature and high-pressure environment of the middle–lower crust invaded the northern Himalayas from 45 to 40 Ma to form many Eocene adakitic rocks (Figure 16a). It is speculated that the angle of the subducting plate changed from high to low angles from 39 to 29 Ma. During this period, the Himalayas were dominated by continuous crustal thickening [33]. Due to the transformation of the tectonic environment, only a small amount of leucogranite was exposed from 37 to 35 Ma (Figure 16b).

7. Conclusions

  • Liemai muscovite granites were emplaced at ca. 42 Ma and are characterized by peraluminous features, high Sr/Y and La/Yb ratios, and low Y and Yb concentrations, suggesting an adakitic affinity, similar to that of the granites formed during the same period in adjacent areas (Yalaxiangbo, Dala, Quedang, etc.).
  • The Eocene adakitic rock is the result of the partial melting of metapelite dominated by amphibolite in the deep crust under high temperature and high pressure in the crustal thickening process. The leucogranite is the result of the continuous fractional crystallization of plagioclase against the same geological background in a relatively shallow low-temperature and low-pressure environment.
  • Eocene adakitic rocks only developed significantly during the early Eocene (47–40 Ma) and were obviously stunted from 40 to 35 Ma, which may represent a tectonic transition period. Leucogranites were actively formed throughout the Eocene, and there was a clear episodic growth trend from 51 to 40 Ma. The peak age trough between 40 and 37 Ma may have been influenced by the same tectonic event as that impacting the adakitic rocks.
  • It is proposed that the transition from a high- to low-angle subduction plate may affect deep crustal diagenesis conditions such as temperature and pressure, resulting in differences in the spatial and temporal distributions of Eocene adakitic rocks and leucogranites.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/min13091204/s1, Table S1: Age summary of Eocene magmatic rocks in the Himalayas; Table S2: Zircon U–Pb data of the magmatic zircons from the Liemai muscovite granites; Table S3: Zircon Hf isotope data from magmatic zircons in the Liemai muscovite granites samples from the eastern of Tethyan Himalaya; Table S4: U-Th-Pb dating results for monazite from the Liemai muscovite granites; Table S5: REE and trace elements for monazite from the Liemai muscovite granites; Table S6: Major element, Trace elements and REE abundance of the Liemai musco-vite granites, eastern of the Tethyan Himalaya; Table S7: In situ Nd isotopes date results for monazite from the Liemai muscovite granites; Table S8: In situ plagioclase Sr isotopes for the Leimai muscovite granites in the eastern Tethyan Himalaya; Table S9: Summary of the whole-rock Pb isotopes for the Leimai muscovite granites in the eastern Tethyan Himalaya; Table S10: Major element, Trace elements and REE abundance of the Himalayan Eocene Adakitic rocks; Table S11: Major element, Trace elements and REE abundance of the Himalayan Eocene Leucogranite; Table S12: Zircon, Monazite, Titanite U-Pb ages and Hf isotopic data of Eocene Magmatic rocks in the Himalayas; Table S13: Sr-Nd-Pb isotope statistics of the Eocene Adakitic rocks and Leucogranite in the Himalayas.

Author Contributions

Conceptualization, H.L. and H.C.; methodology, X.Z.; validation, Y.L.; formal analysis, H.C.; investigation, H.L.; resources, H.C.; data curation, H.L.; writing—original draft preparation, H.L.; writing—review and editing, W.L. and H.C.; supervision, K.Z., X.L., L.D. and K.G.; funding acquisition, W.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was financially supported in part by the National Key Research and Development Program of China (Grant Nos: 2021YFC2901803); the National Natural Science Foundation of China (Grant Nos: 92055314); and the International Geoscience Programme (IGCP-741). The funder is the project leader named Li Wenchang.

Data Availability Statement

Not applicable.

Acknowledgments

Thanks to Dai Zuowen of the University of Science and Technology Beijing for valuable suggestions on this article. Thanks to Yang Lei from Chengdu University of Technology for sincere advice on data processing. Finally, we are grateful to the editor and the three reviewers.

Conflicts of Interest

The authors declare no conflict of interest.
