On Limits to Flotation Cell Size

Abstract

Mechanical cells have seen an exponential increase in size over the past 60 years. However, a possible size limitation due to carrying capacity constraints has been raised. Taking a Cu porphyry case, a cell sizing exercise is used to show that possible size limitation due to carrying capacity can be tested using available techniques. A range of conditions is explored that suggest a continued increase above the current maximum cell size, ca. 600 m³, does not seem warranted.

1. Introduction

Over the past 80 years, there has been exponential growth in size (volume) of mechanical cells now represented by tank cells [1]. From less than 1 m³ around 1940, maximum volumes have increased to about 600 m³ today and, by extrapolation, volumes above 1000 m³ would be expected by 2030. The advantage of increased cell size is a reduced number of cells for a given duty, which reduces capital and operating costs. The need to treat high tonnages of low-grade Cu porphyry deposits is one of the main drivers for this trend [2]. Recently, possible limitations on cell size have been argued [3,4]. The reasoning is that while volume increases as diameter cubed (D³), a cell’s cross-sectional area increases only as D², and this could lead to a (froth) carrying capacity (C_a, t/h·m²) constraint.

Models to estimate carrying capacity (also known as the froth carry rate [5] and from a kinetic viewpoint represents zero order [3]) have been proposed [3,4,6,7]. From plant experiences, the range in C_a for sulphide systems has been estimated [5,8] (for example, for roughers, it is 0.8–1.5 t/h·m²).

In this paper, we show that whether cell size may be constrained by C_a can be assessed using published cell sizing procedures for mechanical cells which include allowing for carrying capacity [5,8]. Sizing starts by estimating cell volume. The calculation uses target slurry feed rate with an estimate of flotation time to achieve target recovery, for example, based on lab testing with a scaling factor. This gives the required total cell volume (N·V_cell), that is, the number of cells (N) times the cell volume (V_cell). Based on practice, N for a bank is typically in the range 5–9 [2], in line with the fundamental argument for the bank to approach the plug flow transport rate that maximizes recovery for a given installed volume [1]. With N chosen, the selection of V_cell follows, and then the target concentrate rate can be checked against the maximum rate as dictated by the carrying capacity.

2. Sizing Exercise

The conditions selected are based on the Cu rougher flotation data in Thompson et al. [9].

Cell size: The following conditions are assumed: dry feed rate 200,000 t/d (8333.3 t/h), solids density 3 t/m³, 35% solids (w/w), retention time 15 min, and one open circuit bank (i.e., no recycle).

The sizing equation is as follows:

N·V_cell = F × T × E × P

(1)

where F is the dry solids feed rate (t/h), T is the plant retention time (h), E is the pulp expansion factor to allow for gas holdup (GH, assumed 15%), and P is the pulp volume per tonne of solids (m³/t). Introducing the values:

$$\begin{gathered} \mathrm{E}=\frac{100 }{100-GH }=\frac{100}{85} \\ \mathrm{P}=\frac{1}{\mathrm{solids}\mathrm{density}}+\frac{100}{\mathrm{pulp}\%\mathrm{solids}}-1=2.19 \end{gathered}$$

and (to nearest whole number):

N·V_cell = 5369

Possible options (combinations of N and V_cell) are given in

Table 1. Possible bank arrangement for conditions.

Option	N	Vcell (m3)	D (m)	Acell (m2)
1	9	597	9	65
2	7	767	10	77
3	5	1074	11	97
4	3	1790	13	136

, which includes cell diameter (D) and area calculated for cell aspect ratio (diameter/height) = 1, in all cases rounded to nearest whole number.

For the first option (N = 9), the cell size is close to the largest cell currently available, and the others represent possible future cell sizes. The first three options reflect the bank length criterion.

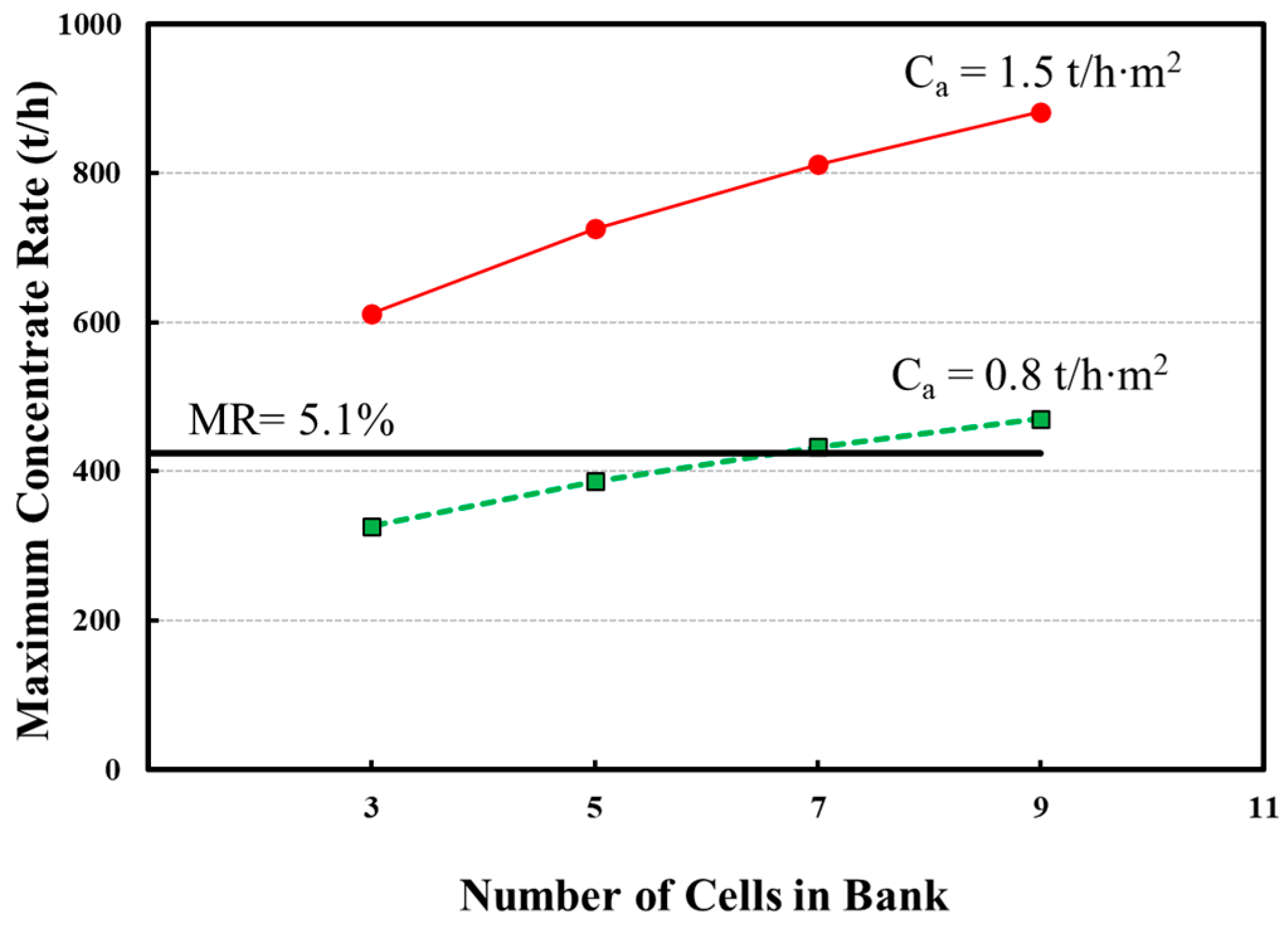

Carrying capacity: To check for a carrying capacity constraint, we need to compare the target concentrate rate with the maximum bank concentrate rate determined by C_a, which is given by C_a·A_cell·N (t/h). The maximum as a function of the number of cells from Table 1 for C_a = 0.8–1.5 t/h·m² is shown in Figure 1.

To calculate the target concentrate rate, the following conditions, approximating the rougher stage in porphyry Cu operations, are assumed: feed grade 0.3%, recovery 85%, and concentrate grade 5%, which gives 425 t/h or a mass recovery (MR) of 5.1%, which is indicated on Figure 1. The conclusion is that at the upper C_a value, all bank options meet the target concentrate rate, while at the lowest C_a, only the first two options offer reliable capacity.

3. Other Capacity Constraint Measures

Carrying capacity based on area is considered the key metric [5], but other constraints that can be considered are lip loading and bubble loading.

Lip loading: Based on cell perimeter (t/h·m) from plant experience, this limit in sulphide operations is ca. 1.5 t/h·m [5]. Calculating to meet the target concentrate rate, we find a range from 1.6 t/h·m for option 1 to 3.4 t/h·m for option 4, that is, going from just acceptable to potentially problematic, but a range of launder designs is available to resolve this, and issues related to the larger froth travel distance as cell size increases [8].

Bubble loading: This can be calculated two ways: (a) per unit volume of air and (b) per unit surface area of bubbles. To calculate (a), we need the total air rate to the bank, J_g·A_cell·N (m³/h), where J_g is the gas’s superficial velocity (m/h), and for (b), we need total bubble surface area per unit time, S_b·A_cell·N, where S_b is the bubble surface area flux (1/h). Taking conservative values from [1], we select J_g = 1 cm/s (36 m/h) and S_b = 40 1/s (144,000 1/h). The results for both loadings, converted to the units common in the literature, are given in

Table 2. Bubble loadings from literature compared with estimate for present example.

Reference	Bubble Loading		Comments
	Mass Per Unit Surface Area (mg/mm2)	Mass Per Unit Volume (g/L)
Bradshaw and O’Connor [10]	0.019(±0.06)–0.107(±0.35)	−	Measured in	Microflotation cell
Chegeni et al. [11]	0.0188–0.0434	−
Eskanlou et al. [12]	0.0002–0.032	−		Lab column
Eskanlou et al. [13]	0.0129–0.0791	−
Ostadrahimi et al. [14]	0.0027–0.0043	8.40–26.34		Industrial setting
Yianatos and Contreras [15]		24–70
Yianatos et al. [16]	−	26.8–51.0	Calculated in	Industrial setting
Finch and Dobby [6]	–	32–78
Present work	0.0050–0.0072	20–29	Estimated in

(the range is for option 1 to option 4).

The literature ranges are wide, partly reflecting mineral density; for example, in Eskanlou et al. [13], the range in (b) goes from the low value with quartz to the high value with galena. The values are not necessarily the maximum, but regardless, the values for the present work fall within the published ranges, even for the largest cell option (option 4). Finch and Dobby [6] considered using (b) (given symbol C_g) but compared to C_a, C_g was a stronger function of J_g. The comparative lack of effect on C_a was attributed to bubble size (D_b) being a function of J_g such that an increase in J_g also increased D_b, thus offsetting the anticipated increase in bubble surface area flux, Sb, whereas no such offsetting occurs in the case of C_g. Ostadrahimi et al. [14] also remarked on C_g being a function of J_g.

4. Discussion

Without altering geometry substantially, increasing cell size results in a lesser increase in surface area relative to the increase in volume, which impacts carrying capacity and lip loading, and if the gas superficial rate and bubble surface area flux are specified, it also impacts bubble loading. This exercise is intended to show that at least a preliminary examination of all these possible constraints on cell size can be assessed using available techniques.

The most important constraint is considered to be carrying capacity [5,8]. It is best determined experimentally [6], but failing that, the C_a range found by experience has an advantage over model estimates which require a variety of assumptions. One feature shared by the models is that C_a increases as particle size increases and, since porphyry Cu plants employ coarse primary grinds to reduce energy costs, this favours the upper end of the C_a range (1.5 t/h·m²); that is, all bank options would suffice for the conditions considered. Moreover, unless there is a compelling reason for having a single bank with fewer than nine cells, then option 1 with the currently available maximum tank size (ca. 600 m³) meets the requirements; that is, there may be no need for continued growth in cell size. If two banks were used, and there are operational advantages to having a parallel line, then the calculations show that the 600 m³ cell would suffice with as few as five cells, even at the low-end C_a.

Possible conditions that could be considered are obviously numerous. For example, concentrate rate could be increased by lower concentrate grade or higher feed tonnage, but the increase could be handled by a second, parallel bank. Recycle could be included, but while this complicates the calculation, testing for C_a remains the same.

Calculations have been based on the bank, which may imply each cell has to have equal (balanced) mass pull. There is a case for such balanced bank operation to optimize performance [17], but operations often pull the first cell hard, raising concern that this cell reaches carrying capacity, even requiring a tailored launder design [8]. This should not be an issue, however, provided the bank concentrate rate is achievable; that is, the downstream cells ‘pick up the slack’.

If instead of Cu it is a Zn deposit, then a possible situation is feed grades 10% and rougher recovery 80% at concentrate grade 40%, which gives a mass pull of 20%, which would exceed any option in Figure 1. However, in the Zn case, feed rates are much lower than 200,000 t/d, closer to 10,000 t/d. For the given conditions (10% feed grade, etc.), targeting a concentrate rate of 300 t/h, which is comfortably met by all options, even at the low end of the C_a range, means a feed rate up to 36,000 t/d could be processed.

In any sulphide plant, mass recoveries are high (>50%) in the cleaning stage(s) and carrying capacity can be a factor. For example, Finch and Dobby [6] encountered a C_a constraint testing a column which was resolved by placing units in series, that is, effectively a bank of columns. Feed rates to cleaners, however, are low compared to the rougher (in this Cu porphyry example, 425 t/h compared to 8333.3 t/h), and there does not seem to be much incentive to explore larger cells coming from cleaning duties.

5. Conclusions

It is shown that a potential carrying capacity (C_a) constraint on mechanical cell size can be examined using standard cell selection methodology. Based on a Cu porphyry case and related observations, there does not appear to be strong incentive for a further increase in cell size beyond the current maximum of ca. 600 m³.
