Gradual Replacement of Ca2+ with Mg2+ Ions in Brushite for the Production of Ca1−xMgxHPO4·nH2O Materials

by
Mazen Alshaaer
1,
Khalil Issa
2,
Abdulaziz Alanazi
1,
Saida Abu Mallouh
3,
Ahmed S. Afify
4,
Moustapha E. Moustapha
5 and
Kostas Komnitsas
6,*
1
Department of Physics, College of Science and Humanities in Al-Kharj, Prince Sattam Bin Abdulaziz University, Al-Kharj 11942, Saudi Arabia
2
Orthopedics Unit, Faculty of Medicine and Health Sciences, An-Najah National University, Nablus 00970, Palestine
3
Hamdi Mango Center for Scientific Research, The University of Jordan, Amman 11942, Jordan
4
Department of Basic Sciences, The Higher Institute of Engineering and Automotive Technology and Energy, New Heliopolis, Cairo 11829, Egypt
5
Department of Chemistry, College of Science and Humanities in Al-Kharj, Prince Sattam bin Abdulaziz University, Al-Kharj 11942, Saudi Arabia
6
School of Mineral Resources Engineering, Technical University of Crete, 73100 Chania, Greece
*
Author to whom correspondence should be addressed.
Minerals 2021, 11(3), 284; https://doi.org/10.3390/min11030284
Submission received: 8 February 2021 / Revised: 7 March 2021 / Accepted: 7 March 2021 / Published: 10 March 2021
(This article belongs to the Section Clays and Engineered Mineral Materials)
Browse Figures
Versions Notes

Abstract

:
The present study investigates the gradual replacement of Ca2+ with Mg2+ ions in brushite (CaHPO4·2H2O). To date, this approach has not been systematically explored and may prove beneficial for the production of Ca1−xMgxHPO4·nH2O materials with tailored properties which are suitable for environmental and medical applications. For their production, solutions of sodium dihydrogen orthophosphate dehydrate, NaH2PO4·2H2O, calcium nitrate tetrahydrate, Ca(NO3)2·4H2O, magnesium nitrate hexahydrate, Mg(NO3)2·6H2O and ammonium hydroxide solution, NH4OH, were used. At low Mg/Ca molar ratios (up to 0.25) in the starting solution, partial replacement of Ca with Mg takes place (Mg doping) but no struvite is produced as discrete phase. When the Mg/Ca molar ratio increases gradually to 1.5, in addition to Mg-doped brushite, struvite, NH4MgPO4·6H2O, precipitates. The microstructure of the materials produced for different degrees of Ca replacement with Mg has been analyzed in depth with the use of powdered XRD (X-ray diffraction), XPS (X-ray photoelectron spectroscopy), thermogravimetric (TG) analysis and SEM (scanning electron microscopy). The results of this study prove that the Mg/Ca ratio in the starting solution can be monitored in such a way that materials with tailored composition are obtained.

1. Introduction

Calcium phosphates (CaPs) are useful in a variety of medical, environmental, and engineering applications. Since their mineralogical structure and biochemical properties are similar to the mineral phases present in bone tissues, they can substitute bone in medical applications [1,2]. Due to their low toxicity, high bioactivity and excellent biocompatibility, CaP-based biomaterials, biocements and bioceramics exhibit high potential for applications in the fields of medicine, advanced materials and technology [3,4]. They may be used in various forms as self-supported scaffolds, granules with varying porosity, composite materials, injectable bone cements and coatings on dental or hip implants [5,6]. In addition to the medical and pharmaceutical applications, CaPs have been used for a very long period for the production of various types of commercial fertilizers [7] and can be also utilized with the synergistic action of other additives for the production of construction materials or chemically bonded ceramics [8,9,10].
Brushite (dicalcium phosphate dihydrate (DCPD, CaHPO4·2H2O) is one of the most known CaPs [11] which is stable in a weakly acidic environment (pH 4.0–6.5) and low temperature (less than 80 °C) [12,13]. It can be produced under specific temperature and pH range and is usually metastable at physiological conditions, pH ~ 7.4, thus it can be resorbed within relatively short periods and form bone material [14,15,16,17].
Brushite cements exhibit faster setting times and higher biocompatibility, bioresorbability and osteoconductivity under physiological conditions compared to apatite cements [18]. Incorporation of bioactive ions can result in the production of biomaterials with superior mechanical properties. It is known that several dopant ions can preferably substitute Ca2+ ions on certain atomic positions depending on their ionic radii for the relevant coordination with oxygen. Mg2+ has a smaller ionic radius compared to Ca2+ (0.720 and 1.00 Å, respectively), thus its incorporation in β-tricalcium phosphate, Ca3(PO4)2 (β-TCP) results in a decrease of the lattice parameters a and c [19,20,21,22]. Furthermore, the Mg-stabilized β-TCPs exhibit higher thermal stability up to 1400 °C, thus the sintering temperature range is broadened and its transformation into the undesirable α-TCP is avoided [23,24,25].
In addition, the incorporation of Mg ions in biomedical materials enhances cell growth and proliferation, while it contributes to sustainable bone formation [26,27]. More specifically, Mg2+ ions promote the osteogenic differentiation of bone marrow mesenchymal stem cells (MSCs) [28] and the osteogenic bioactivity of recombinant human bone morphogenetic protein-2 (rhBMP-2) [29]. On the other hand, modification of implantable scaffolds with Mg and Zn results in enhanced biocompatibility and improves bone regeneration [30]. In earlier studies it has been shown that the co-substitution of Sr2+ and Mg2+ in the β-TCP structure reduces significantly the lattice a- and c-axis parameters, while the size effect of Mg2+ is more noticeable compared to Sr2+ [31].
The field of biomaterials in which CaPs play a major role has achieved a major breakthrough in recent years and is going to advance further in the near future. Both inorganic and polymeric biomaterials are used for the fabrication of biomimetic scaffolds for bone, periodontal tissue regeneration and skeletal muscle engineering [32]. Furthermore, additional research is required so that the produced bioceramics based on TCP, hydroxyapatite (HA), and their composites acquire important properties such as antibacterial, anti-inflammatory and cellular differentiation. More specifically, the development of biomaterials with antibacterial properties is very urgent due to the exponential growth of antibiotic resistant microorganisms and their enormous impact on global public health [33]. New ceramic-polymer composites may be produced by embedding ceramic particles into the polymer matrix and regulating their properties by monitoring the particle size of CaPs and their distribution in the polymer matrix [34]. So, novel and bio-inspired materials need to be designed in the near future which will mimic tissues at micro and nanoscale [35].
The present research study aims to investigate in sufficient depth the crystal morphology, the chemical composition and the mineralogy of the materials produced when different Mg/Ca molar ratios are used in the starting solution. These aspects will prove beneficial during the future synthesis of (bio)materials with tailored properties and specific functions.

2. Experimental Methodology

2.1. Materials

Sodium dihydrogen orthophosphate dehydrate, NaH2PO4·2H2O, was purchased from Techno Pharmchem, India, while calcium nitrate tetrahydrate, Ca(NO3)2·4H2O, magnesium nitrate hexahydrate, Mg(NO3)2·6H2O and ammonium hydroxide solution, NH4OH, from LOBA Chemie, India. Distilled water (0.055 µS/cm) was prepared using a water purification system (PURELAB Option-Q, ELGA, High Wycombe, UK). Each component was weighed using a digital analytical balance (EX324N, OHAUS, Parsippany, NJ, USA), while stirring was performed with the use of a magnetic stirrer (ISOTEMP, Fisher Scientific, Shanghai, China). Parsippany

2.2. Synthesis of Ca1−xMgxHPO4·nH2O

The synthesis of Ca1−xMgxHPO4·nH2O compounds was carried out at room temperature based on the Equation (1), using the following solutions, namely Na2HPO4·2H2O, Ca(NO3)2·4H2O and Mg(NO3)2·6H2O 0.5 mol/L. The molar proportions used in each case for the synthesis of Ca1−xMgxHPO4·nH2O compounds with different composition are shown in Table 1.
xMg ( NO 3 ) 2 · 6 H 2 O + ( 1 − x ) Ca ( NO 3 ) 2 +   Na 2 HPO 4   +   NH 4 OH   →   ( Ca 1 − x Mg x ) HPO 4   · 2 H 2 O + 2 NaNO 3
First, pure brushite, MB0, was produced by dropwise addition of 100 mL Ca(NO3)2·4H2O solution (flow rate ~2 mL/min), using a glass funnel with a glass stopcock, to the Na2HPO4·2H2O solution under continuous stirring (stirring speed 450 rpm) until a Ca/P molar ratio of 1.0 was obtained. The new solution was stirred at room temperature for 1 h to enable full homogeneity. The total stirring period prior to filtering was almost two hours. The pH of the final solution was adjusted to slightly acidic values, between 6 and 6.5, using ammonium hydroxide solution (~15 mol/L) in order to enable the production of a white precipitate, which was then vacuum filtered using a Buchner funnel and a qualitative filter paper (45 µm, ∅ 12 cm, Double Rings, China). The filter cake was washed three times with de-ionized water and three more times with ethanol to prevent agglomeration [36]. Then, it was placed on a watch glass and dried overnight at 40 °C in an oven (ED53/E2, Binder, Tuttlingen, Germany).
MB2, MB4, MB5 and MB6 compounds were prepared by mixing first the Ca(NO3)2·4H2O and Mg(NO3)2·6H2O solutions using the molar ratios shown in Table 1. Then, 100 mL of the obtained solution was added dropwise to 100 mL of Na2HPO4·2H2O solution as previously described. Finally, BM10 was obtained after mixing NaH2PO4·2H2O and Mg(NO3)2·6H2O, at Mg/P molar ratio 1:1, with the use of the same procedure. Figure 1 presents the experimental procedure.

2.3. Characterization Techniques

The mineralogical analysis of the products was carried out qualitatively using an XRD diffractometer-6000 (Shimadzu, Kyoto, Japan) with a cobalt tube and a scanning range 10° to 60° 2-theta at a scan rate of 2°/min. Rietveld refinement [37] of the produced powders was carried out using the software MATCH! (v. 3.11, Crystal Impact, Bonn, Germany). A scanning electron microscope (Inspect F50, FEI Company, Eindhoven, The Netherlands) was used to identify the products morphology. The microscope was equipped with field emission gun electron (FEG) with 1.2 nm resolution and energy dispersive X-ray spectrometer (EDS) with resolution at MnK of 133 eV, to determine the elemental composition of the specimens’ surface. The surface chemistry and the elemental analysis of the obtained products were determined by means of X-ray photoelectron spectroscopy using an XPS system (Thermo K Alpha spectrometer, ThermoFisher Scientific, Waltham, MA, USA). The mass loss of each product (~100 mg) during heating between 40 °C and 600 °C, using a heating rate of 5 °C·min−1 under a helium atmosphere, was determined using a thermogravimetric (TG) analyzer (Netzsch, Selb, Germany, TG 209 F1 Libra).

3. Results and Discussion

3.1. Mineralogical and Microstructural Analysis

The XRD patterns of all produced materials, as well as the patterns of standard brushite and struvite, are shown in Figure 2. The mineralogy of BM0 confirms that this precipitate produced after mixing NaH2PO4·2H2O and Ca(NO3)2·4H2O solutions with a Ca:P molar ratio 1:1 (Table 1) is pure brushite, while its crystals grow after nucleation in proportion to the three major planes, namely (020), (121) and (141). All peaks of the BM0 pattern denote the brushite’s monoclinic structure [13,38], while the peak at 11.7° 2-Theta indicates that the crystal growth takes place primarily along the (020) crystallographic plane [27].
The pattern of BM2 corresponding to the material produced for low Mg/Ca molar ratio (0.25) is similar to the pattern of BM0 and indicates the presence of brushite in which partial replacement of Ca with Mg (Mg doping) takes place. Even though the main brushite peaks are present, their intensity, especially for those associated with the planes (020), (121), and (141), has been affected.
When the Mg/Ca molar ratio in the starting solution increased gradually from 0.25 to 1.0 and eventually to 1.5 (patterns BM4 to BM6) the degree of Ca replacement with Mg increased while in parallel struvite started to precipitate. Thus, the respective XRD patterns show that at higher Mg/Ca molar ratios the intensity of struvite peaks increases. Finally, the pattern of BM10 of the precipitate formed when a Mg/P ratio of 1.0 was used confirms the presence of pure struvite, NH4MgPO4·6H2O, with orthorhombic crystal structure as compared with the standard struvite pattern (JCPDS file No.15–0762) [39,40]. The XRD results of the present study match almost perfectly the XRD patterns of Mg doped brushite, for doping percentages varying between 5% and 50%, as shown in a very recent study [26].
Struvite is formed through the following equations:
Mg 2 + +   NH 3   +   HPO 4 2 − + 6 H 2 O →   MgNH 4 PO 4 · 6 H 2 O ( ↓ )
Mg 2 + +   NH 4 +   +   PO 4 3 − + 6 H 2 O →   MgNH 4 PO 4 · 6 H 2 O ( ↓ )
It is known that the consumption of NH3 and thus the formation (precipitation) of struvite lowers the solution pH and thus equilibrium is shifted towards increased concentrations of NH 4 +   ions. Also, the presence of other ions as well as changes in temperature, which is not the case in the present study, can affect the ion speciation characteristics [41,42].
Rietveld refined unit cell parameters for brushite- and struvite-rich materials are presented in Table 2 and Table 3. It is seen that for the materials BM0–BM5 (Table 2), produced with the use of Mg/Ca molar ratio in the starting solution up to 1.0 and in which brushite was the dominant phase formed, unit cell parameters are almost constant and exhibited a slight increasing trend. On the other hand, for the materials BM6 and BM10, in which struvite was the dominant phase, unit cell parameters exhibited were also constant and exhibited a slight decreasing trend. The relatively minor cell shrinkage noticed may be explained by the fact that Mg2+ ions have a smaller ionic radius compared to Ca2+ ions. The quality of the Rietveld refinement was acceptable for all materials studied (RBrag < 8%, χ2 < 2). These data are similar to the data obtained in earlier recent studies focusing on the production of brushite or struvite [26,43,44].
In Figure 3, SEM images of the various Ca1−xMgxHPO4·nH2O compounds, obtained for different Mg/Ca molar ratios present in solution, are shown. Figure 3a–c shows the morphology of pure brushite (MB0), as well as of biphasic compounds (MB5) and pure struvite (BM10). More specifically, Figure 3a (BM0 with Ca/P molar ratio 1.0) indicates the precipitation of plate-like brushite crystals. It is known that the morphology of brushite is characterized by a plate-like or needle like structure, depending on the solution pH used [11,12]. The plate-like crystals are thin (~400 nm), while their width and elongation are approximately 10 µm and 20 µm, respectively, values similar to those reported in other studies [45,46,47]. When the Mg/Ca molar ratio increases and thus a higher degree of Ca replacement with Mg as well as struvite precipitation (BM5) takes place, brushite crystals with smaller length, ranging between ~2 µm and ~10 µm in the direction (020) are formed (Figure 3b), as is also indicated in earlier studies [11]. Finally, Figure 3c shows that MB10 is composed of orthorhombic struvite crystals with a length of ~20 µm [40,48]. It is underlined that the SEM analysis confirms the XRD results as shown in Figure 2.
As shown in Figure 4a, in the brushite crystals (BM0) the weight percentages of O, Ca and P were 67.42, 17.83 and 14.74 wt% which are close to the theoretical ones, namely 55.80, 23.25 and 18.20 wt% respectively. These weight percentages denote a Ca/P molar ratio of 1.0, equal to the theoretical ratio in brushite and the one present in the starting solution (Table 1). Figure 4b shows that in the brushite plate-like crystals in BM5, which were formed using a Mg/P molar ratio of 0.5 in the starting solution, the weight percentages of O, Ca and P were 62.44, 18.04 and 16.21 wt% respectively, while those of Mg and Na were 2.39 and 0.91 wt% respectively. These percentages prove that the plate-like brushite crystals have a smaller Mg/P molar ratio, 0.20, indicating that only a percentage of the Mg present in the solution replaced Ca in brushite, while the rest was precipitated as struvite as also shown in the respective XRD pattern in Figure 2 and reported in earlier studies [49,50,51]. As a result of Mg doping, the Ca/P molar ratio in BM5 decreased from 1.0 in BM0 to 0.86. It is also mentioned that the presence of Na in BM5 is probably due to the precipitation of Na2(CO3)2 or due to partial incorporation of Na. The role of Na incorporation into the lattice of the produced materials is very important since it increases their thermal stability and enables their use as bioceramics in medical applications [24,52]. However, the elucidation of Na incorporation and its effect on the properties of the (bio)materials needs to be further investigated. Finally, as shown in Figure 4c, the weight percentages of P and Mg in BM10 were 18.51 and 11.34 wt% respectively, indicating a Mg/P molar ratio in the produced material of 0.83 which is close to the theoretical value of 1.0 present in pure struvite. The results of EDS analysis for brushite- and struvite-rich phases, in term of the main molar ratios, are quite similar to those indicated in earlier recent studies [53,54,55,56,57].

3.2. Elemental and Chemical Composition of Ca1−xMgx·HPO4·nH2O Compounds

XPS analysis was carried out to evaluate the effect of the Mg/Ca ratio present in the starting solution on the surface chemistry and chemical state of the elements P, Ca, and Mg in the synthesized Ca1−xMgxHPO4·nH2O compounds (Figure 5); as mentioned earlier this ratio affects the degree of replacement of Ca with Mg in brushite as well as the precipitation of pure struvite (when higher ratios are used). Peaks of Mg1s and Mg auger are clearly shown in the XPS spectra of the products obtained when higher Mg/Ca molar ratios are used. Thus, as shown in the BM4 to BM10 spectra, when this ratio increases gradually the intensity of the Mg1s peaks also increases, while the intensity of Ca2s and Ca2p peaks decreases almost proportionally. On the other hand, almost no change is noticed in the intensity of the P2s peaks. These observations confirm that the intensity of P, Ca, and Mg peaks depends on the degree of Ca replacement with Mg as well as on the amount of the precipitated struvite (for higher Mg/Ca ratios).

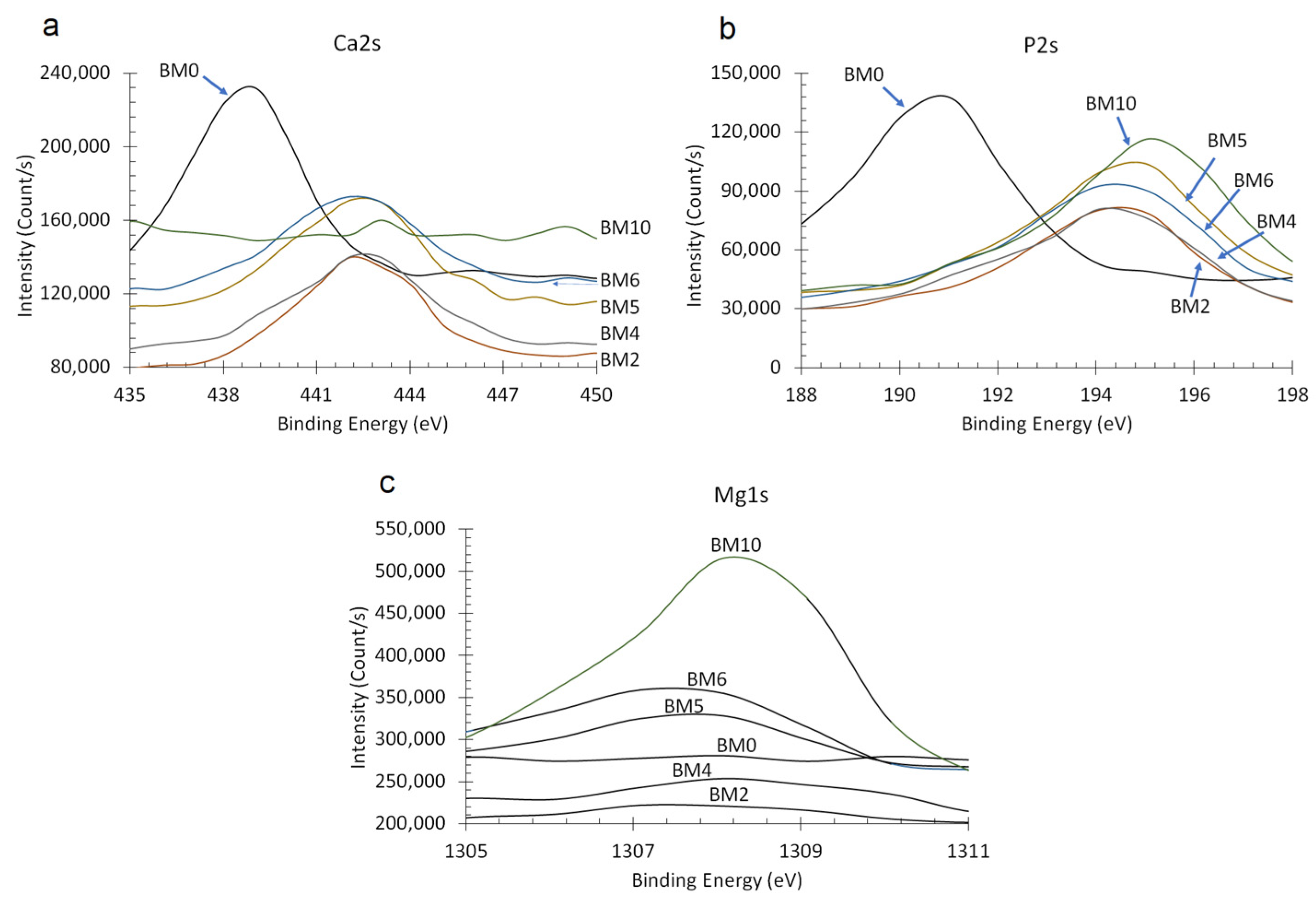

The effect of Mg/Ca ratio on the binding energies of Ca2s, P2s and Mgs1 peaks is shown in Figure 6a–c, respectively. Thus, when the Mg/Ca ratio in the starting solution is kept low (0.25) the partial replacement of Ca with Mg (BM2 compound) resulted in a slight increase of the binding energies of P2s and Ca2s peaks, from 190 eV to 194 eV and from 438 eV to 442 eV, respectively. When the Mg/Ca ratio further increased to 0.67 (BM4 compound) and eventually to 1.5 (BM6 compound) a noticeable increase in the intensity of Mg1s is shown. As mentioned earlier, the gradual increase of this ratio results in an increase of the rate of replacement of Ca with Mg as well as in the precipitation of pure struvite. As the XRD pattern confirms (Figure 2), BM4 is the first compound formed that contains struvite-like crystals. BM10 which is pure struvite is characterized by Mg1s and Mg auger peaks of the highest intensity.
The XPS results confirm that at low Mg/Ca ratios in the starting solution Ca is partially replaced by Mg and alters the crystal structure of the Ca1−xMgxHPO4·nH2O compounds by increasing the binding energies of Ca2s and P2s peaks [58]. It is obvious that as the Mg concentration in the starting solution increases and the respective one of Ca decreases, supersaturation decreases with respect to brushite and increases with respect to struvite, thus mixed phases precipitate favoring eventually the formation of pure struvite when no Ca is present in the system (BM10 compound).

3.3. Thermo-Gravimetric Analysis (TGA)

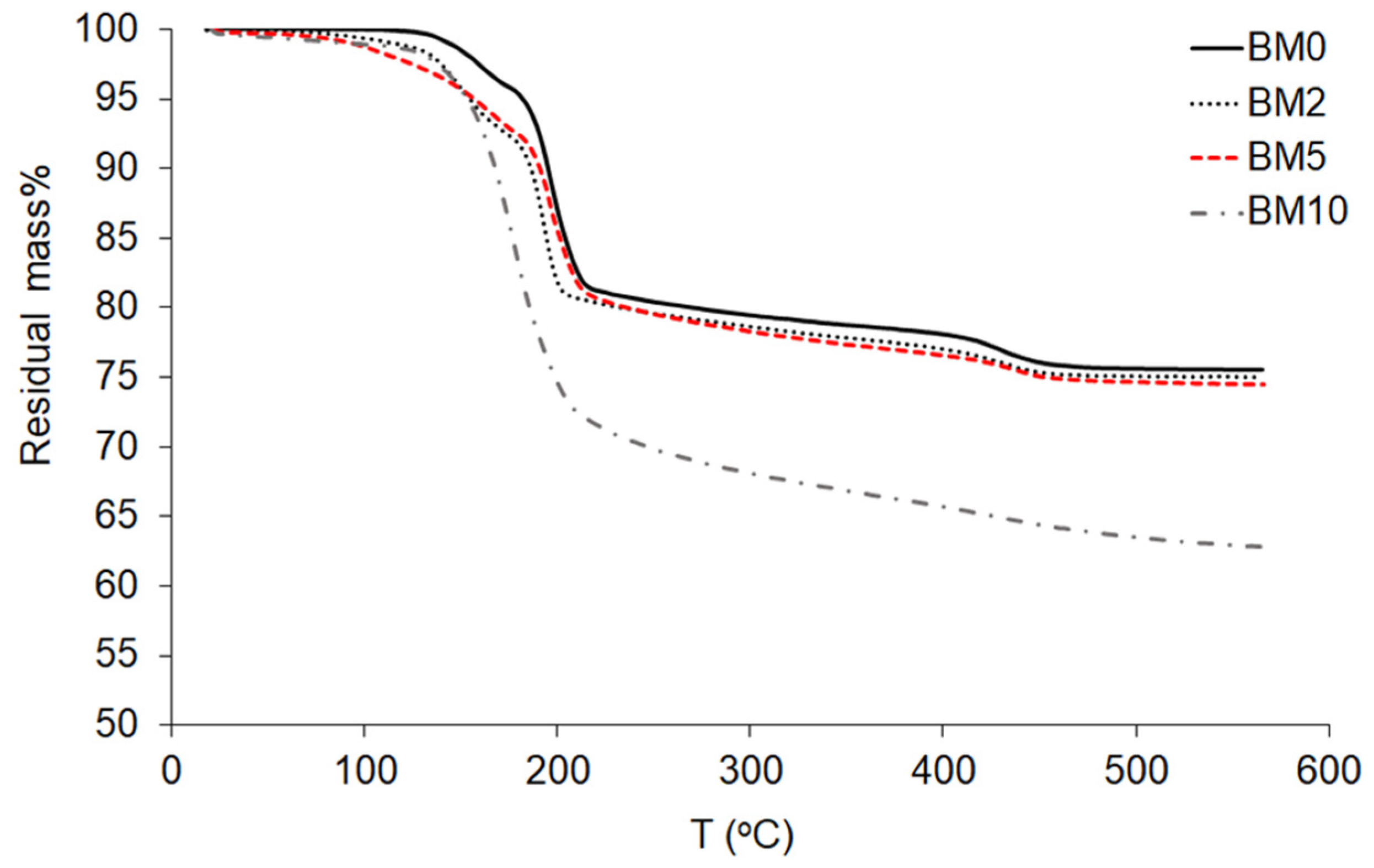

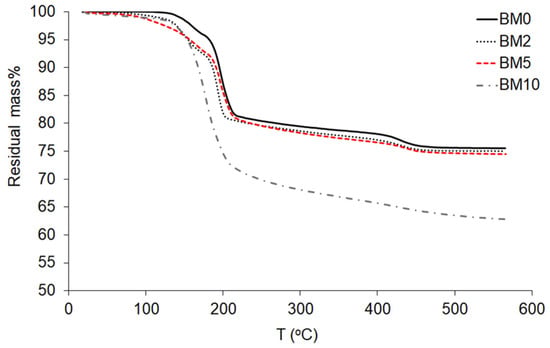

Figure 7 shows the results of the TGA analysis for the compounds BM0 to BM10. Brushite is classified as a water-bearing phosphate [47] and its crystal structure contains compact sheets consisting of parallel chains in which Ca ions are coordinated by six phosphate ions and two oxygen atoms belonging to the water molecules [59]. Brushite contains two water molecules in its lattice and adsorbed water molecules on its surface, as indicated by the presence of two sharp peaks of mass loss during heating between 80–220 °C [60,61]. Part of the chemically-bound water is released during the transformation of brushite to monetite, CaHPO4, at ~220 °C [62], and later to calcium pyrophosphate, Ca2P2O7, at ~400 °C [8]. Pyrophospates are decomposed at higher temperatures of 750–800 °C [63]. Heating of pure brushite (BM0) to 600 °C results in a mass loss of approximately 25 wt%, while the theoretical mass loss for the dehydration of brushite is 20.93 wt% [64]. It is thus seen that, when low to average Mg/Ca ratios are present in the starting solution and partial replacement of Ca with Mg takes place, while the formation of struvite is limited (BM2–BM5 compounds), the mass loss during heating is very similar to the value determined for brushite.
Dehydration of brushite over the temperature range 110–215 °C takes place according to Equation (4) and normally results in a weight loss of about 19 wt%, while the formation of calcium pyrophosphate is accomplished by Equation (5).
CaHPO 4 · 2 H 2 O   →   CaHPO 4 +   2 H 2 O
2 CaHPO 4   →   Ca 2 P 2 O 7 +   H 2 O
The mass loss determined for pure struvite (BM10) is higher and reaches 38 wt%, which is lower than the theoretical value of ~52% for the complete de-volatilization of struvite and the formation of Mg-pyrophosphate (Mg2P2O7) [65,66,67]. The mass loss of struvite is due to the loss of moisture, the release of crystallization water and ammonia and the percentage recorded in this study is similar to the percentage indicated in an earlier study for the decomposition of dittmarite, Mg(NH4)(PO4)·H2O [41]. The decomposition of struvite takes place according to the following Equation (6):
2 MgNH 4 PO 4 · 6 H 2 O   ( s ) →   Mg 2 P 2 O 7 ( ↓ ) + 2 NH 3 ( ↑ ) +   13 H 2 O   ( ↑ )

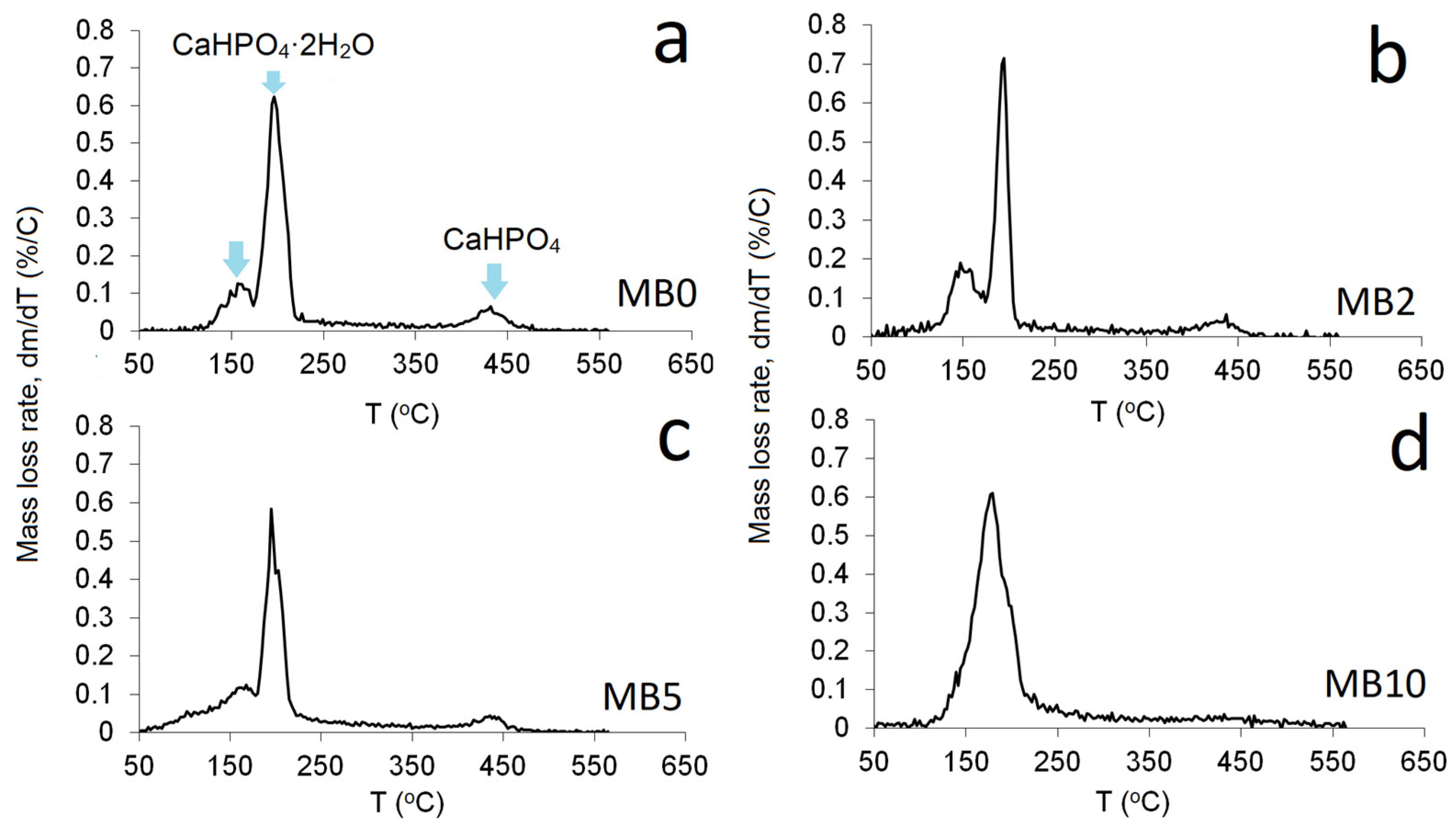

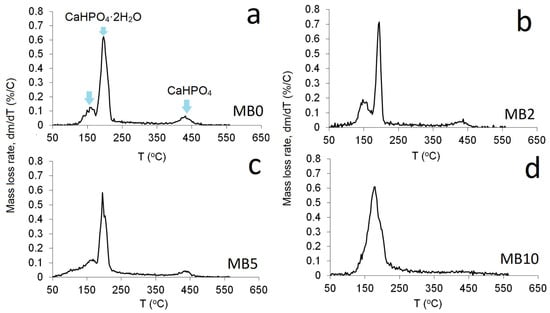

Figure 8 shows the rate of mass loss as a function of heating temperature for Ca1−xMgxHPO4·nH2O compounds. More specifically, Figure 8a–c shows the dehydration peaks corresponding to the two water molecules of pure brushite (BM0), as well as of the compounds produced with the use of Mg/Ca ratios 0.25 and 1.0 (BM2 and BM5 respectively), which are characterized by partial replacement of Ca with Mg as well as the limited production of struvite. It is seen that when the Mg/Ca ratio in the starting solution increases to 1.0 (BM5, Figure 8c), one primary zone of mass loss at approximately 180 °C is shown. On the other hand, Figure 8d shows the loss of structural water of struvite (BM10) for which the overall mass loss at 500 °C was approximately 38%.

3.4. Phase Evolution during the Precipitation of Ca1−xMgxHPO4·nH2O Compounds

The results of this study demonstrated that when the Mg/Ca ratio in the starting solution is up to 0.25, Mg replaces Ca in the brushite lattice (MB2) and the original shape of plate-like brushite crystals (BM0) is preserved [68,69]. Besides, no struvite is formed as deduced by the use of analytical techniques. The main difference noticed is the decrease of the brushite crystal size, because magnesium, despite the fact that it does not seem to noticeably affect process kinetics, inhibits crystal growth, as mentioned in earlier studies [70,71].
When the Mg/Ca ratio increases to 0.67 and eventually to 1.0 (BM4–MB5) apart from Mg-doped brushite, struvite, NH4MgPO4·6H2O, with orthorhombic crystals starts to precipitate [41,51,72]. At higher Mg/Ca ratios (1.5) due to the decrease of saturation with respect to brushite and the increase of saturation with respect to struvite, brushite crystals gradually disappear and struvite crystals with size of approximately 20 µm appear (BM6). When no Ca is present in the starting solution, pure struvite precipitates (BM10). These data are summarized in the following Table 4.

4. Conclusions

In this study, the evolution of the degree of replacement of Ca with Mg in brushite, for the production of Ca1−xMgxHPO4·nH2O materials was investigated and elucidated with the use of XRD, TG, SEM-EDS and XPS analysis.
It has been shown that when the Mg/Ca molar ratio is low (up to 0.40) in the starting solution, partial replacement of Ca with Mg takes place which does not practically affect the structure of the precipitated brushite. When the Mg/Ca molar ratio gradually increases to 1.5 and the solution superstation with respect to Mg increases, in addition to Mg-doped brushite, orthorhombic struvite, NH4MgPO4·6H2O, precipitates.
The results of this study provide useful insights for the future synthesis of biomaterials with specific composition and tailored properties, by controlling the Mg/Ca ratio in the starting solution. However, additional studies need to be carried out in order to elucidate several aspects related to the performance of the produced biomaterials. Factors including biological and mechanical performance as well as physicochemical and antibacterial properties need to be carefully investigated. Also, the effect of doping with additional ions needs to be in depth investigated since specific ions may exhibit either beneficial or detrimental effects on the final properties of the produced biomaterials.

Author Contributions

Conceptualization, M.A.; methodology, M.A. and S.A.M.; validation, K.K., M.A. and A.A.; formal analysis, K.K.; powder synthesis and characterization, A.A., A.S.A. and S.A.M.; investigation, M.A. and K.K.; resources, A.S.A., K.I. and M.E.M.; data curation, S.A.M. and A.A.; writing—original draft preparation, M.A.; writing—review and editing, K.K.; supervision, K.K., M.A. and K.I. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author. Most of this data is obtained after the use of analytical techniques (XRD, TG, SEM-EDS, XRS).

Acknowledgments

The authors would like to acknowledge the efforts and contribution of four anonymous reviewers in clarifying several aspects and improving the quality of the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Alshaaer, M.; Kailani, M.H.; Ababneh, N.; Abu Mallouh, S.A.; Sweileh, B.; Awidi, A. Fabrication of porous bioceramics for bone tissue applications using luffa cylindrical fibres (LCF) as template. Process. Appl. Ceram. 2017, 11, 13–20. [Google Scholar] [CrossRef]
  2. Radwan, N.H.; Nasr, M.; Ishak, R.A.; Abdeltawa, N.F.; Awad, G.A. Chitosan-calcium phosphate composite scaffolds for control of postoperative osteomyelitis: Fabrication, characterization, and in vitro–in vivo evaluation. Carbohyd. Polym. 2020, 244, 116482. [Google Scholar] [CrossRef] [PubMed]
  3. Alshaaer, M.; Kailani, M.H.; Jafar, H.; Ababneh, N.; Awidi, A. Physicochemical and Microstructural Characterization of Injectable Load-Bearing Calcium Phosphate Scaffold. Adv. Mater. Sci. Eng. 2013, 149261. [Google Scholar] [CrossRef] [Green Version]
  4. Hurle, K.; Oliveira, J.; Reis, R.; Pina, S.; Goetz-Neunhoeffer, F. Ion-doped Brushite Cements for Bone Regeneration. Acta Biomater. 2021. [Google Scholar] [CrossRef]
  5. Khalifehzadeh, R.; Arami, H. Biodegradable calcium phosphate nanoparticles for cancer therapy. Adv. Colloid Interface Sci. 2020, 279, 102157. [Google Scholar] [CrossRef]
  6. Shyong, Y.; Chang, K.; Lin, F. Calcium phosphate particles stimulate exosome secretion from phagocytes for the enhancement of drug delivery. Colloid Surf. B 2018, 1711, 391–397. [Google Scholar] [CrossRef]
  7. Liu, Y.; Ma, R.; Li, D.; Qi, C.; Han, L.; Chen, M.; Fu, F.; Yuan, J.; Li, G. Effects of calcium magnesium phosphate fertilizer, biochar and spent mushroom substrate on compost maturity and gaseous emissions during pig manure composting. J. Environ. Manag. 2020, 267, 110649. [Google Scholar] [CrossRef]
  8. Alshaaer, M.; Cuypers, H.; Mosselmans, G.; Rahier, H.; Wastiels, J. Evaluation of a low temperature hardening Inorganic Phosphate Cement for high-temperature applications. Cement Concrete Res. 2011, 41, 38–45. [Google Scholar] [CrossRef]
  9. Moukannaa, S.; Nazari, A.; Bagheri, A.; Loutou, M.; Sanjayan, J.G.; Hakkou, R. Alkaline fused phosphate mine tailings for geopolymer mortar synthesis: Thermal stability, mechanical and microstructural properties. J. Non Cryst. Solids 2019, 511, 76–85. [Google Scholar] [CrossRef]
  10. Kinnunen, P.; Ismailov, A.; Solismaa, S.; Sreenivasan, H.; Räisänen, M.-L.; Levänen, E.; Illikainen, M. Recycling mine tailings in chemically bonded ceramics—A review. J. Clean. Prod. 2018, 174, 634–649. [Google Scholar] [CrossRef] [Green Version]
  11. Alkhraisat, M.H.; Rueda, C.; Cabarcos, E.L. Strontium Ions Substitution in Brushite Crystals: The Role of Strontium Chloride. J. Funct. Biomater. 2011, 2, 31–38. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Xue, Z.; Wang, Z.; Sun, A.; Huang, J.; Wu, W.; Chen, M.; Hao, X.; Huang, Z.; Lin, X.; Weng, S. Rapid construction of polyetheretherketone (PEEK) biological implants incorporated with brushite (CaHPO4·2H2O) and antibiotics for anti-infection and enhanced osseointegration. Mater. Sci. Eng. C Mater. 2020, 111. [Google Scholar] [CrossRef]
  13. Kim, Y.; Lee, S.Y.; Roh, Y.; Lee, J.; Kim, J.; Lee, Y.; Bang, J.; Lee, Y.J. Optimizing Calcium Phosphates by the Control of pH and Temperature via Wet Precipitation. J. Nanosci. Nanotechnol. 2015, 15, 10008–10016. [Google Scholar] [CrossRef] [PubMed]
  14. Luo, J.; Engqvist, H.; Persson, C. A ready-to-use acidic, brushite-forming calcium phosphate cement. Acta Biomater. 2018, 81, 304–314. [Google Scholar] [CrossRef]
  15. Mert, I.; Mandel, S.; Tas, A.C. Do cell culture solutions transform brushite (CaHP04.2H20) to octacalium phosphate (Ca8(HP04)2(P04)4 5H20). In Advances in Bioceramics and Porous Ceramics IV; Narayan, R., Colombo, P., Eds.; John Wiley & Sons Inc.: Hoboken, NJ, USA, 2011; pp. 79–94. [Google Scholar] [CrossRef]
  16. Patil, S.B.; Jena, A.; Bhargava, P. Influence of Ethanol Amount during Washing on Deagglomeration of Co-Precipitated Calcined Nanocrystalline 3YSZ Powders. Int. J. Appl. Ceram. Technol. 2013, 10, E247–E257. [Google Scholar] [CrossRef]
  17. Piva, R.H.; Piva, D.H.; Pierri, J.; Montedo, O.R.K.; Morelli, M.R. Azeotropic distillation, ethanol washing, and freeze drying on coprecipitated gels for production of high surface area 3Y–TZP and 8YSZ powders: A comparative study. Ceram. Int. 2015, 41, 14148–14156. [Google Scholar] [CrossRef]
  18. Mirtchi, A.A.; Lemaitre, J.; Terao, N. Calcium phosphate cements: Study of the β-tricalcium phosphate—monocalcium phosphate system. Biomaterials 1989, 10, 475–480. [Google Scholar] [CrossRef]
  19. Pina, S.; Olhero, S.; Gheduzzi, S.; Miles, A.; Ferreira, J. Influence of setting liquid composition and liquid-to-powder ratio on properties of a Mg-substituted calcium phosphate cement. Acta Biomater. 2009, 5, 1233–1240. [Google Scholar] [CrossRef] [PubMed]
  20. Lagier, R.; Baud, C.A. Magnesium Whitlockite, a Calcium Phosphate Crystal of Special Interest in Pathology. Pathol. Res. Pract. 2003, 199, 329–335. [Google Scholar] [CrossRef] [PubMed]
  21. Kannan, S.; Goetz-Neunhoeffer, F.; Neubauer, J.; Ferreira, J.M.F. Ionic Substitutions in Biphasic Hydroxyapatite and β-Tricalcium Phosphate Mixtures: Structural Analysis by Rietveld Refinement. J. Am. Ceram. Soc. 2008, 91, 1–12. [Google Scholar] [CrossRef]
  22. Kannan, S.; Goetz-Neunhoeffer, F.; Neubauer, J.; Rebelo, A.H.S.; Valério, P.; Ferreira, J.M.F. Rietveld structure and in vitro analysis on the influence of magnesium in biphasic (hydroxyapatite and β-tricalcium phosphate) mixtures. J. Biomed. Mater. Res. Part B Appl. Biomater. 2009, 90, 404–411. [Google Scholar] [CrossRef]
  23. Kannan, S.; Lemos, A.F.; Rocha, J.H.G.; Ferreira, J.M.F. Characterization and Mechanical Performance of the Mg-Stabilized β-Ca3(PO4)2 Prepared from Mg-Substituted Ca-Deficient Apatite. J. Am. Ceram. Soc. 2006, 89, 2757–2761. [Google Scholar] [CrossRef]
  24. Kannan, S.; Ferreira, J.M.F. Synthesis and Thermal Stability of Hydroxyapatite−β-Tricalcium Phosphate Composites with Cosubstituted Sodium, Magnesium, and Fluorine. Chem. Mater. 2006, 18, 198–203. [Google Scholar] [CrossRef]
  25. Torres, P.M.C.; Abrantes, J.C.C.; Kaushal, A.; Pina, S.; Döbelin, N.; Bohner, M.; Ferreira, J.M.F. Influence of Mg-doping, calcium pyrophosphate impurities and cooling rate on the allotropic α ↔ β—tricalcium phosphate phasetransformations. J. Eur. Ceram. Soc. 2016, 36, 817–827. [Google Scholar] [CrossRef]
  26. Sayahi, M.; Santos, J.; El-Feki, H.; Charvillat, C.; Bosc, F.; Karacan, I.; Milthorpe, B.; Drouet, C. Brushite (Ca,M)HPO4·2H2O doping with bioactive ions (M = Mg2+, Sr2+, Zn2+, Cu2+, and Ag+): A new path to functional biomaterials? Mater. Today Chem. 2020, 16, 100230. [Google Scholar] [CrossRef]
  27. Wu, F.; Wei, J.; Guo, H.; Chen, F.; Hong, H.; Liu, C. Self-setting bioactive calcium-magnesium phosphate cement with high strength and degradability for bone regeneration. Acta Biomater. 2008, 4, 1873–1884. [Google Scholar] [CrossRef]
  28. Qi, T.; Weng, J.; Yu, F.; Zhang, W.; Li, G.; Qin, H.; Tan, Z.; Zeng, H. Insights into the Role of Magnesium Ions in Affecting Osteogenic Differentiation of Mesenchymal Stem Cells. Biol. Trace Elem. Res. 2021, 199, 559–567. [Google Scholar] [CrossRef]
  29. Ding, S.; Zhang, J.; Tian, Y.; Huang, B.; Yuan, Y.; Liu, C. Magnesium modification up-regulates the bioactivity of bone morphogenetic protein-2 upon calcium phosphate cement via enhanced BMP receptor recognition and Smad signaling pathway. Colloids Surf. B Biointerfaces 2016, 145, 140–151. [Google Scholar] [CrossRef]
  30. Kazimierczak, P.; Kolmas, J.; Przekora, A. Biological Response to Macroporous Chitosan-Agarose Bone Scaffolds Comprising Mg- and Zn-Doped Nano-Hydroxyapatite. Int. J. Mol. Sci. 2019, 20, 3835. [Google Scholar] [CrossRef] [Green Version]
  31. Kannan, S.; Goetz-Neunhoeffer, F.; Neubauer, J.; Pina, S.; Torres, P.M.C.; Ferreira, J.M.F. Synthesis and structural characterization of strontium—and magnesium-co-substituted b-tricalcium phosphate. Acta Biomater. 2010, 6, 571–576. [Google Scholar] [CrossRef]
  32. Smoak, M.M.; Mikos, A.G. Advances in biomaterials for skeletal muscle engineering and obstacles still to overcome. Mater. Today Bio 2020, 7, 100069. [Google Scholar] [CrossRef] [PubMed]
  33. Afewerki, S.; Bassous, N.; Harb, S.; Palo-Nieto, C.; Ruiz-Esparza, G.U.; Marciano, F.R.; Webster, T.J.; Furtado, A.S.A.; Lobo, A.O. Advances in dual functional antimicrobial and osteoinductive biomaterials for orthopaedic applications. Nanomedicine 2020, 24, 102143. [Google Scholar] [CrossRef]
  34. Liu, T.; Xu, J.; Pan, X.; Ding, Z.; Xie, H.; Wang, X.; Xie, H. Advances of adipose-derived mesenchymal stem cells-based biomaterial scaffolds for oral and maxillofacial tissue engineering. Bioact. Mater. 2021, 6, 2467–2478. [Google Scholar] [CrossRef]
  35. Liang, Y.; Luan, X.; Liu, X. Recent advances in periodontal regeneration: A biomaterial perspective. Bioact. Mater. 2020, 5, 297–308. [Google Scholar] [CrossRef] [PubMed]
  36. Lu, B.-Q.; Willhammar, T.; Sun, B.; Hedin, N.; Gale, J.D.; Gebauer, D. Introducing the crystalline phase of dicalcium phosphate monohydrate. Nat. Commun. 2020, 11, 1546. [Google Scholar] [CrossRef] [PubMed]
  37. Cheary, R.W.; Coelho, A.A. A Fundamental Parameters Approach of X-Ray Line-Profile Fitting. J. Appl. Cryst. 1992, 25, 109–121. [Google Scholar] [CrossRef]
  38. Nosrati, H.; Le, D.Q.S.; Emameh, R.Z.; Perez, M.C.; Bünger, C.E. Nucleation and growth of brushite crystals on the graphene sheets applicable in bone cement. Bol. Soc. Esp. Cerám. Vidr. 2020. [Google Scholar] [CrossRef]
  39. Li, H.; Yao, Q.-Z.; Wang, Y.-Y.; Li, Y.-L.; Zhou, G.-T. Biomimetic synthesis of struvite with biogenic morphology and implication for pathological biomineralization. Sci. Rep. 2015, 5, 7718. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Yang, H.; Martinelli, L.; Tasso, F.; Sprocati, A.R.; Pinzari, F.; Liu, Z.; Downs, R.T.; Sun, H.J. A new biogenic, struvite-related phosphate, the ammonium-analog of hazenite, (NH4)NaMg2(PO4)2·14H2O. Am. Mineral. 2014, 99, 1761–1766. [Google Scholar] [CrossRef] [Green Version]
  41. Tansel, T.; Lunn, G.; Monje, O. Struvite formation and decomposition characteristics for ammonia and phosphorus recovery: A review of magnesium-ammonia-phosphate interactions. Chemosphere 2018, 194, 504–514. [Google Scholar] [CrossRef]
  42. Schuiling, R.D.; Andrade, A. Recovery of struvite from calf manure. Environ. Technol. 1999, 20, 765–768. [Google Scholar] [CrossRef]
  43. Meira, R.C.S.; Paz, S.P.A.; Corrêa, J.A.M. XRD-Rietveld analysis as a tool for monitoring struvite analog precipitation from wastewater: P, Mg, N and K recovery for fertilizer production. J. Mater. Res. Technol. 2020, 9, 15202–15213. [Google Scholar] [CrossRef]
  44. Yan, H.; Shih, K. Effects of calcium and ferric ions on struvite precipitation: A new assessment based on quantitative X-ray diffraction analysis. Water Res. 2016, 95, 310–318. [Google Scholar] [CrossRef] [PubMed]
  45. Alshaaer, M. Microstructural characteristics and long-term stability of wollastonite-based chemically bonded phosphate ceramics. Int. J. Appl. Ceram. Technol. 2021, 18, 319–331. [Google Scholar] [CrossRef]
  46. Kumar, M.; Xie, J.; Chittur, K.; Riley, C. Transformation of modified brushite to hydroxyapatite in aqueous solution: Effects of potassium substitution. Biomaterials 1999, 20, 1389–1399. [Google Scholar] [CrossRef]
  47. Tamimi, F.; Le Nihouannen, D.; Eimar, H.; Sheikh, Z.; Komarova, S.; Barralet, J. The effect of autoclaving on the physical and biological properties of dicalcium phosphate dihydrate bioceramics: Brushite vs. monetite. Acta Biomater. 2012, 8, 3161–3169. [Google Scholar] [CrossRef] [PubMed]
  48. Thant Zin, M.M.; Kim, D.-J. Simultaneous recovery of phosphorus and nitrogen from sewage sludge ash and food wastewater as struvite by Mg-biochar. J. Hazard. Mater. 2021, 403, 123704. [Google Scholar] [CrossRef] [PubMed]
  49. Yuantao, L.; Bing, C.; Zhaohui, Q.; Dong, P.; Aminul Haque, M. Experimental research on properties and microstructures of magnesium-iron phosphate cement. Constr. Build. Mater. 2020, 257. [Google Scholar] [CrossRef]
  50. Qoku, E.; Scheibel, M.; Bier, T.; Gerz, A. Phase development of different magnesium phosphate cements at room temperature and elevated temperatures. Constr. Build. Mater. 2021, 272, 121654. [Google Scholar] [CrossRef]
  51. Lee, S.-H.; Yoo, B.-H.; Lim, S.J.; Kim, T.-H.; Kim, S.-K.; Kim, J.Y. Development and validation of an equilibrium model for struvite formation with calcium co-precipitation. J. Cryst. Growth 2013, 372, 129–137. [Google Scholar] [CrossRef]
  52. Kannan, S.; Ventura, J.M.G.; Lemos, A.F.; Barba, A.; Ferreira, J.M.F. Effect of sodium addition on the preparation of hydroxyapatites and biphasic ceramics. Ceram. Int. 2008, 34, 7–13. [Google Scholar] [CrossRef]
  53. El-dek, S.I.; Mansour, S.F.; Ahmed, M.A.; Ahmed, M.K. Microstructural features of flower like Fe brushite. Prog. Nat. Sci. 2017, 27, 520–526. [Google Scholar] [CrossRef]
  54. El Hazzat, M.; El Hamidi, A.; Halim, M.; Arsalane, S. Complex evolution of phase during the thermal investigation of Brushite-type calcium phosphate CaHPO4·2H2O. Materialia 2021. [Google Scholar] [CrossRef]
  55. Perwitasari, D.S.; Muryanto, S.; Jamari, J.; Bayuseno, A.P. Kinetics and morphology analysis of struvite precipitated from aqueous solution under the influence of heavy metals: Cu2+, Pb2+, Zn2+. J. Environ. Chem. Eng. 2018, 6, 37–43. [Google Scholar] [CrossRef] [Green Version]
  56. Karbakhshravari, M.; Abeysiriwardana-Arachchige, I.S.A.; Henkanatte-Gedera, S.M.; Cheng, F.; Papelis, C.; Brewer, C.E.; Nirmalakhandan, N. Recovery of struvite from hydrothermally processed algal biomass cultivated in urban wastewaters. Resour. Conserv. Recy. 2020, 163, 105089. [Google Scholar] [CrossRef]
  57. Bayuseno, A.P.; Perwitasari, D.A.; Muryanto, S.; Tauviqirrahman, M.; Jamari, J. Kinetics and morphological characteristics of struvite (MgNH4PO4·6H2O) under the influence of maleic acid. Heliyon 2020, 6, 03533. [Google Scholar] [CrossRef] [PubMed]
  58. Huang, H.; Lia, J.; Li, B.; Zhang, D.; Zhao, N.; Tang, S. Comparison of different K-struvite crystallization processes for simultaneous potassium and phosphate recovery from source-separated urine. Sci. Total Environ. 2019, 651, 787–795. [Google Scholar] [CrossRef]
  59. Alshaaer, M.; Cuypers, H.; Rahier, H.; Wastiels, J. Production of monetite-based Inorganic Phosphate Cement (M-IPC) using hydrothermal post curing (HTPC). Cem. Concr. Res. 2011, 41, 30–37. [Google Scholar] [CrossRef]
  60. Gashti, M.P.; Stir, M.; Jurg, H. Growth of strontium hydrogen phosphate/gelatin composites: A biomimetic approach. New J. Chem. 2016, 40, 5495–5500. [Google Scholar] [CrossRef] [Green Version]
  61. Tortet, L.; Gavarri, J.R.; Nihoul, G. Study of Protonic Mobility in CaHPO4 2H2O (Brushite) and CaHPO4 (Monetite) by Infrared Spectroscopy and Neutron Scattering. J. Solid State Chem. 1997, 132, 6–16. [Google Scholar] [CrossRef]
  62. Dosen, A.; Giese, R.F. Thermal decomposition of brushite, CaHPO4·2H2O to monetite CaHPO4 and the formation of an amorphous phase. Am. Mineral. 2011, 96, 368–373. [Google Scholar] [CrossRef]
  63. Kannan, S.; Lemos, I.A.F.; Rocha, J.H.G.; Ferreira, J.M.F. Synthesis and characterization of magnesium substituted biphasic mixtures of controlled hydroxyapatite/b-tricalcium phosphate ratios. J. Solid State Chem. 2005, 178, 3190–3196. [Google Scholar] [CrossRef]
  64. Frost, R.L.; Palmer, S.J. Thermal stability of the ‘cave’ mineral brushite CaHPO4·2H2O—Mechanism of formation and decomposition. Thermochim. Acta 2011, 521, 14–17. [Google Scholar] [CrossRef] [Green Version]
  65. Hövelmann, J.; Stawski, T.M.; Besselink, R.; Freeman, H.M.; Dietmann, K.M.; Mayanna, S.; Pauw, B.R.; Benning, L.G. A template-free and low temperature method for the synthesis of mesoporous magnesium phosphate with uniform pore structure and high surface area. Nanoscale 2019, 11, 6939–6951. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  66. Prywer, J.; Sieroń, L.; Czylkowska, A. Struvite Grown in Gel, Its Crystal Structure at 90 K and Thermoanalytical Study. Crystals 2019, 9, 89. [Google Scholar] [CrossRef] [Green Version]
  67. Wang, C.; Hao, X. Small-Scale Formation of Struvite by Electrochemical Deposition and Its Characterization. In Proceedings of the 3rd International Conference on Bioinformatics and Biomedical Engineering, Beijing, China, 11–13 June 2009; pp. 1–4. [Google Scholar] [CrossRef]
  68. Alshaaer, M.; Abdel-Fattah, E.; Saadeddin, I.; Al Battah, F.; Issa, K.I.; Saffarini, G. The effect of natural fibres template on the chemical and structural properties of Biphasic Calcium Phosphate scaffold. Mater. Res. Express 2020, 7, 065405. [Google Scholar] [CrossRef]
  69. Alshaaer, M.; Afify, A.S.; Moustapha, M.E.; Hamad, N.; Hammouda, G.A.; Rocha, F. Effect of full-scale substitution of strontium for calcium on the microstructure of brushite: (CaxSr1-x)HPO4·nH2O System. Clay Miner. 2021. [Google Scholar] [CrossRef]
  70. Ding, H.; Pan, H.; Xu, X.; Tang, R. Toward a Detailed Understanding of Magnesium Ions on Hydroxyapatite Crystallization Inhibition. Cryst. Growth Des. 2014, 14, 763–769. [Google Scholar] [CrossRef]
  71. Nielsen, M.R.; Sand, K.K.; Rodriguez-Blanco, J.D.; Bovet, N.; Generosi, J.; Dalby, K.N.; Stipp, S.L.S. Inhibition of Calcite Growth: Combined Effects of Mg2+ and SO42–. Cryst. Growth Des. 2016, 16, 6199–6207. [Google Scholar] [CrossRef]
  72. Muhammed, M.; Mujeeb, R.; Surya, R.D.; Rekha, P. Investigation on growth and morphology of in vitro generated struvite crystals. Biocatal. Agric. Biotechnol. 2019, 17, 566–570. [Google Scholar] [CrossRef]
Minerals 11 00284 g001 550

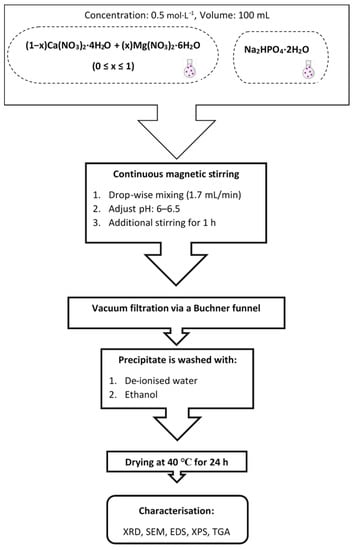

Figure 1. Experimental procedure.
Figure 1. Experimental procedure.
Minerals 11 00284 g001
Minerals 11 00284 g002 550

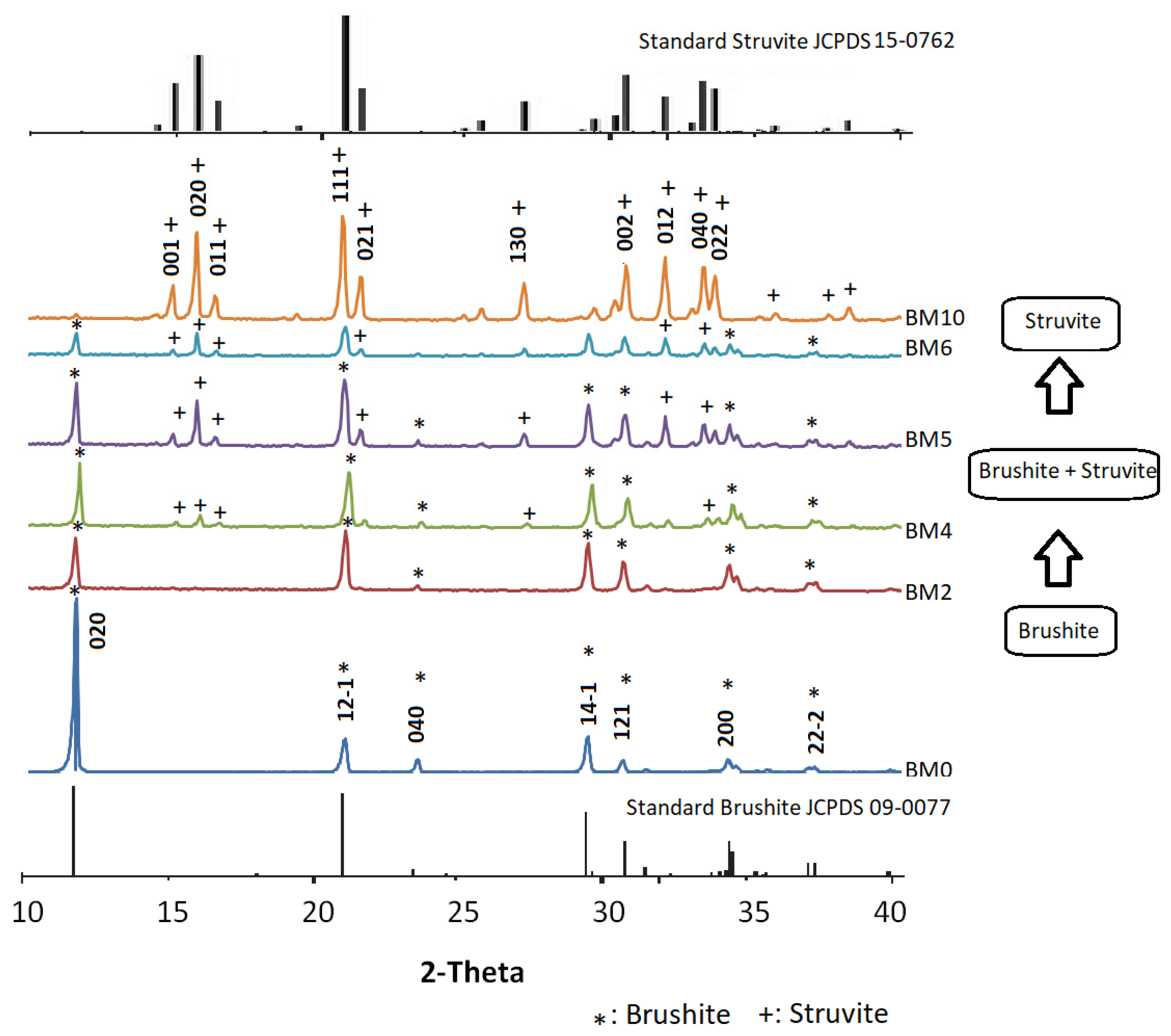

Figure 2. XRD patterns of the Ca1−xMgx·HPO4·nH2O compounds (synthesis details are shown in Table 1).
Figure 2. XRD patterns of the Ca1−xMgx·HPO4·nH2O compounds (synthesis details are shown in Table 1).
Minerals 11 00284 g002
Minerals 11 00284 g003 550
Figure 3. SEM images of Ca1−xMgxHPO4·nH2O compounds, (a) BM0, (b) BM5, and (c) BM10.
Figure 3. SEM images of Ca1−xMgxHPO4·nH2O compounds, (a) BM0, (b) BM5, and (c) BM10.
Minerals 11 00284 g003
Minerals 11 00284 g004 550

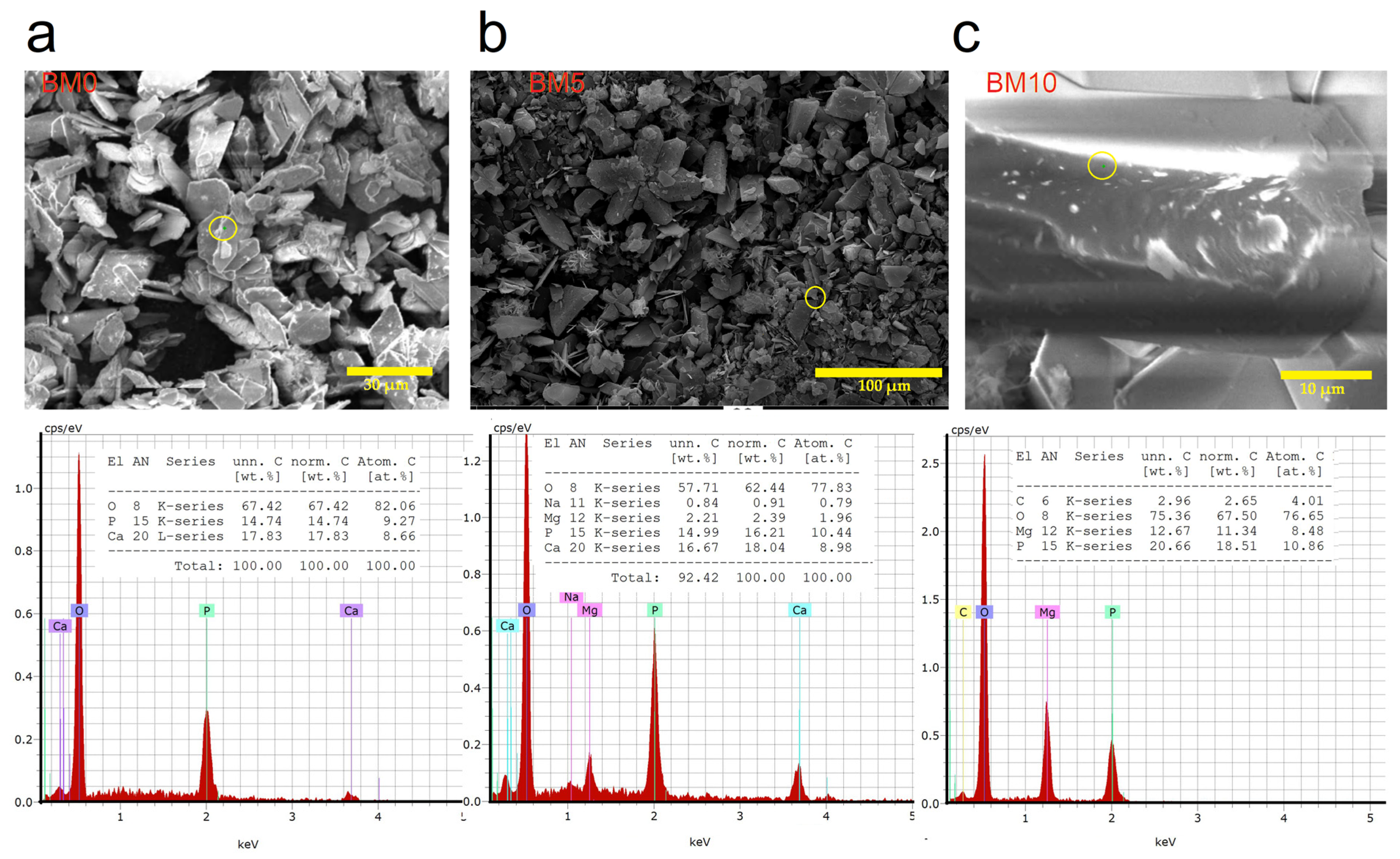

Figure 4. EDS analysis of (a) BM0, (b) BM5 and (c) BM10 compounds.
Figure 4. EDS analysis of (a) BM0, (b) BM5 and (c) BM10 compounds.
Minerals 11 00284 g004
Minerals 11 00284 g005 550

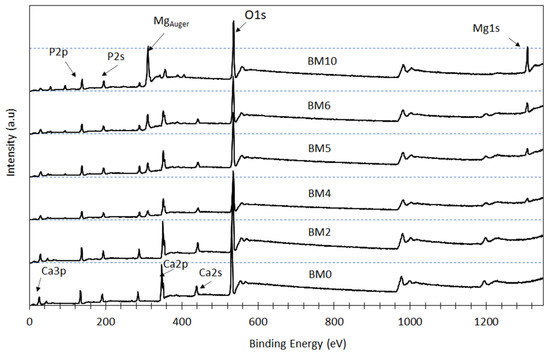

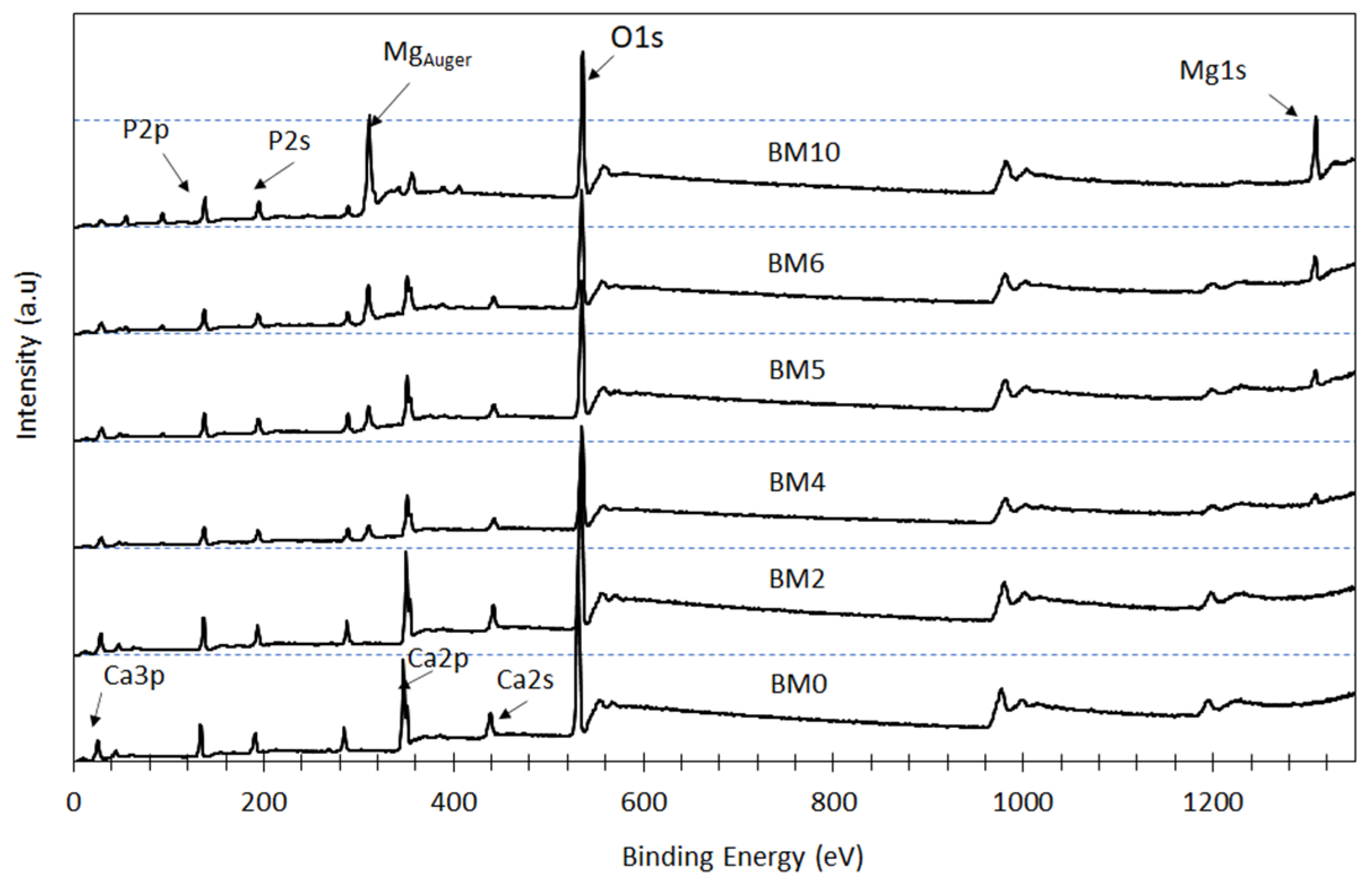

Figure 5. XPS spectra of Ca1−xMgx·HPO4·nH2O compounds.
Figure 5. XPS spectra of Ca1−xMgx·HPO4·nH2O compounds.
Minerals 11 00284 g005
Minerals 11 00284 g006 550
Figure 6. XPS analysis of the chemical state of (a) P2s, (b) Ca2s, and (c) Mg1s in Ca1−xMgx·HPO4·nH2O compounds.
Figure 6. XPS analysis of the chemical state of (a) P2s, (b) Ca2s, and (c) Mg1s in Ca1−xMgx·HPO4·nH2O compounds.
Minerals 11 00284 g006
Minerals 11 00284 g007 550
Figure 7. TG curves of Ca1−xMgxHPO4·nH2O compounds (BM0–BM10).
Figure 7. TG curves of Ca1−xMgxHPO4·nH2O compounds (BM0–BM10).
Minerals 11 00284 g007
Minerals 11 00284 g008 550
Figure 8. Differential Thermogravimetric Analysis (TGA) of Ca1−xMgxHPO4·nH2O compounds (a) BM0, (b) BM2, (c) BM5, (d) BM10.
Figure 8. Differential Thermogravimetric Analysis (TGA) of Ca1−xMgxHPO4·nH2O compounds (a) BM0, (b) BM2, (c) BM5, (d) BM10.
Minerals 11 00284 g008
Table
Table 1. Molar proportions of NaH2PO4·2H2O, Ca(NO3)2·4H2O and Mg(NO3)2·6H2O as well as Mg/Ca molar ratios used for the synthesis of Ca1−xMgx·HPO4·nH2O compounds.
Table 1. Molar proportions of NaH2PO4·2H2O, Ca(NO3)2·4H2O and Mg(NO3)2·6H2O as well as Mg/Ca molar ratios used for the synthesis of Ca1−xMgx·HPO4·nH2O compounds.
Product
ID		NaH2PO4·2H2OCa(NO3)2·4H2OMg(NO3)2·6H2OMg/Ca Molar Ratio
BM01100
BM210.80.20.25
BM410.60.40.67
BM510.50.51.0
BM610.40.61.5
BM10101-
Table
Table 2. Refined unit cell parameters for brushite from XRD data using the Rietveld approach *.
Table 2. Refined unit cell parameters for brushite from XRD data using the Rietveld approach *.
Product
ID		Brushite
wt%		a (Å)b (Å)c (Å)(β°)V (Å3)
BM0100.05.814515.16936.2399116.392492.83
BM2100.05.816515.19046.2465116.382492.78
BM4100.05.819115.19086.2518116.403492.51
BM597.15.816015.17646.2482116.429492.01
BM620.95.815315.16776.2470116.442
BM100.0----
a, b, c, β°: unit cell parameters (monoclinic crystal system), V: unit cell volume, * Standard deviation varied between 0.001 and 0.005 for all samples.
Table
Table 3. Refined unit cell parameters for struvite from XRD data using the Rietveld approach *.
Table 3. Refined unit cell parameters for struvite from XRD data using the Rietveld approach *.
Product
ID		Struvite
wt%		a (Å)b (Å) c (Å)V (Å3)
BM00.0----
BM20.0----
BM40.0----
BM52.96.95606.137811.2041-
BM679.16.95896.136411.2034478.12
BM10100.06.95016.135911.2014477.54
a, b, c: unit cell parameters (orthorhombic crystal system), V: unit cell volume, * Standard deviation varied between 0.001 and 0.005 for all samples.
Table
Table 4. Phase evolution, crystal size and structure as function of Mg/Ca molar ratio in solution.
Table 4. Phase evolution, crystal size and structure as function of Mg/Ca molar ratio in solution.
Mg/Ca RatioCrystal
Structure		Crystal
Size (µm)		Compounds
Formed
≤0.25Plate-like~10Brushite
0.25 < x ≤ 1.5Plate-like orthorhombic~2Brushite + Struvite
>1.5Orthorhombic~20Struvite
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Alshaaer, M.; Issa, K.; Alanazi, A.; Mallouh, S.A.; Afify, A.S.; Moustapha, M.E.; Komnitsas, K. Gradual Replacement of Ca2+ with Mg2+ Ions in Brushite for the Production of Ca1−xMgxHPO4·nH2O Materials. Minerals 2021, 11, 284. https://doi.org/10.3390/min11030284

AMA Style

Alshaaer M, Issa K, Alanazi A, Mallouh SA, Afify AS, Moustapha ME, Komnitsas K. Gradual Replacement of Ca2+ with Mg2+ Ions in Brushite for the Production of Ca1−xMgxHPO4·nH2O Materials. Minerals. 2021; 11(3):284. https://doi.org/10.3390/min11030284

Chicago/Turabian Style

Alshaaer, Mazen, Khalil Issa, Abdulaziz Alanazi, Saida Abu Mallouh, Ahmed S. Afify, Moustapha E. Moustapha, and Kostas Komnitsas. 2021. "Gradual Replacement of Ca2+ with Mg2+ Ions in Brushite for the Production of Ca1−xMgxHPO4·nH2O Materials" Minerals 11, no. 3: 284. https://doi.org/10.3390/min11030284

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
