Documenting Urban Morphology: From 2D Representations to Metaverse

Abstract

The documentation of urban morphology is linked to the complex operation of representing the city, which over the centuries has been undertaken using different methodologies, instruments, and purposes. The “IT revolution” has expanded the possibility of overlapping and relating multiple pieces of information in connection to the urban organism on the same support and, on the other hand, has opened up new scenarios linked to the use of urban digital twins to support the analysis and urban planning. The 21st century has marked a momentous turning point compared to the recent past: the advent of artificial intelligence has in fact allowed the introduction, alongside Urban Information Systems, of ‘Predictive’ Systems, capable of formulating new scenarios on the basis of the elements available and pictured on 3D models. At the same time, the technical and technological acquisitions of the last century have contributed to evident experimentation on the metaverse, which, although it still exists in a de-emphasised form, is currently a whole universe under construction and expansion. Its rules are written with every passing day, in which the individual can recreate a reality similar to, or absolutely antithetical to, the one they experience on a daily basis, populating virtual cities that elude the established urban dynamics of physical structures.

“The act of representation is thinking and building simulacra, the simulacra of what exists, has existed but no longer exists as it did at the beginning of its life, or at some other stage, and that could be restored to its primary image. It is also a simulacrum of what will, or will not, exist. The act of designing therefore also evokes what is invisible and impossible. Representing is then a substitutive act. It creates a vicarious entity located in a space where something that [...] cannot really be present at a certain point in space and time. However, a design does not exhaust its role in the creation of these supplementary images, these surrogates. [...] At the very moment of the creation of a deferred replica of an object, a second reality is in fact defined, a parallel universe in which the simulacrum is as real as the object to which it refers to” [1].

The act of depicting a city is a complex operation that involves the analytical documentation of multiple and heterogeneous factors, their subsequent reading through cultural filters and, finally, their critical representation through the adaptation of the reality to codified and shared graphic symbols. Over the centuries, as the terms of this operation have changed with different purposes, so have the tools used for analysis and their figuration, or the different modus operandi of those who have engaged in it.

The main goal of this paper is to underline that the information on a settlement is still ‘closely linked’ today, as it was in the past, to its (first analogue, then digital) representations of the reality investigated. Furthermore, we aim to highlight the possibilities inherent in the use of responsive and predictive 3D models in the management of a city through the most advanced facility management software.

1. Introduction

The Role of Knowledge in the Representation of the City

“It is interesting to note that the observations of cities experiencing incessant changes and developments, although of a particular nature, constitute the original nucleus of ever more extensive observations on urban phenomena. For the first time, it teaches us to see the city from within, in the multiple manifestations of its activity, therefore creating the first context of an urban discipline that is gradually more aware of its tasks and functions” [2].

The understanding of the city necessarily goes through the decoding of its complexity [3]. The survey, in its maximum semantic extension1, constitutes the main critical investigation instrument capable of describing the material components in the first instance and, progressively also the immaterial ones that characterise it, in order to support any decision in a conscious manner.

The difficulty in depicting an urban organism in an unambiguous and exhaustive manner is therefore inherent to its very definition as an organised system of various parts2 that are interconnected and dependent on the dynamics to which that society is exposed.

In this regard, it is possible to discern significant differences between the pre-industrial, the modern, and the contemporary city.

Until the First Industrial Revolution, the changes produced at different times and in different ways in the community to respond to new socio-political-economic needs only marginally concerned the built environment, succeeding in adapting to and grafting itself into a consolidated and historicised urban structure [6]3. However, since the second half of the 19th century, economics and politics, and more recently finance, have instead produced new phenomena (often caused by induced necessities) that have contributed to a sudden expansion of the city’s boundaries (the so-called urban revolution). This imposed new models that have not yet been matched by a new culture of living [4]. In turn, the contemporary city—veteran of the profound transformations that took place in the previous two centuries—is confronted with the consequences of the so-called “IT revolution” and the processes of globalisation that have accentuated its critical aspects. The gradual transfer of the exclusively physical interactions into a virtual environment increasingly pushes the individual to distance themself (or lose interest) from the urban context understood in the traditional sense of the term.

Nowadays, the growing texture of heterogeneous contents enclosed in the urban space, which is becoming dense with relations, makes it increasingly necessary to involve a multidisciplinary team of professionals capable, each within their own sphere of competence, of conducting targeted analyses on specific aspects, which only once they are recomposed in a single cognitive framework will make it possible to provide the most complete and exhaustive description of the reality analysed4.

Without delving into specialised studies such as those on the perception of public space conducted in the 1960s [7,8] and 1970s [9], it is nonetheless worth emphasising how the definition of an urban environment cannot lie outside the contribution made by its demographic, ecological, and climatic components. The definition of the Space syntax5 analysis methodology developed in the 1980s constitutes an emblematic experience carried out with the main purpose of investigating the ‘social role’ of the space; it has contributed in the following decades to the formalisation of studies on the synergies between networks, places, and people [10] (Figure 1).

At the same time, the expansion of the amount of data to be managed frequently requires the use of specialised instruments and technical supports that are capable of gathering, processing, and storing information about the urban organism. The application of a sensing and responding approach6, aimed at giving the city a ‘smart’ dimension7, has contributed, for example, to the widespread endowment of public spaces with technological devices capable of monitoring and profiling urban users8, as well as the diffusion of the Living Lab9.

2. Materials and Methods

2.1. The Representation of the City—2D and 3D Figurations

“Thus, the renewed art of town planning has to develop into an art yet higher, that of city design—a veritable orchestration of all the arts, and corresponding needing, even for its preliminary surveys, all the social sciences. Here, then, is the problem before us on our return to survey our modern towns, our ancient cities anew, to decipher their origins and trace their growth, to preserve their surviving memorials and to continue all that is vital in their local life, and on this historic foundation, and on a corresponding survey and constructive criticism of our actual present, go forward to plan out a better future with such individual and collective foresight as we may” [14].

It is well-known how bidimensional drawings—essentially plans, elevations, sections and floor plans, that since the second half of the 19th century have been scientifically depicted thanks to Monge’s operations of projection and section10—make it possible to describe the morphometric characteristics of the city or its parts, and only certain phenomena/attributes that on this basis have the possibility of being graphically represented (e.g., intended use, state of conservation, building types, etc.). Even today, upon closer inspection, the majority of the urban analyses and planning operations are represented almost exclusively on zenith views, so much so that the image of the city is sometimes confused with its plan form [15].

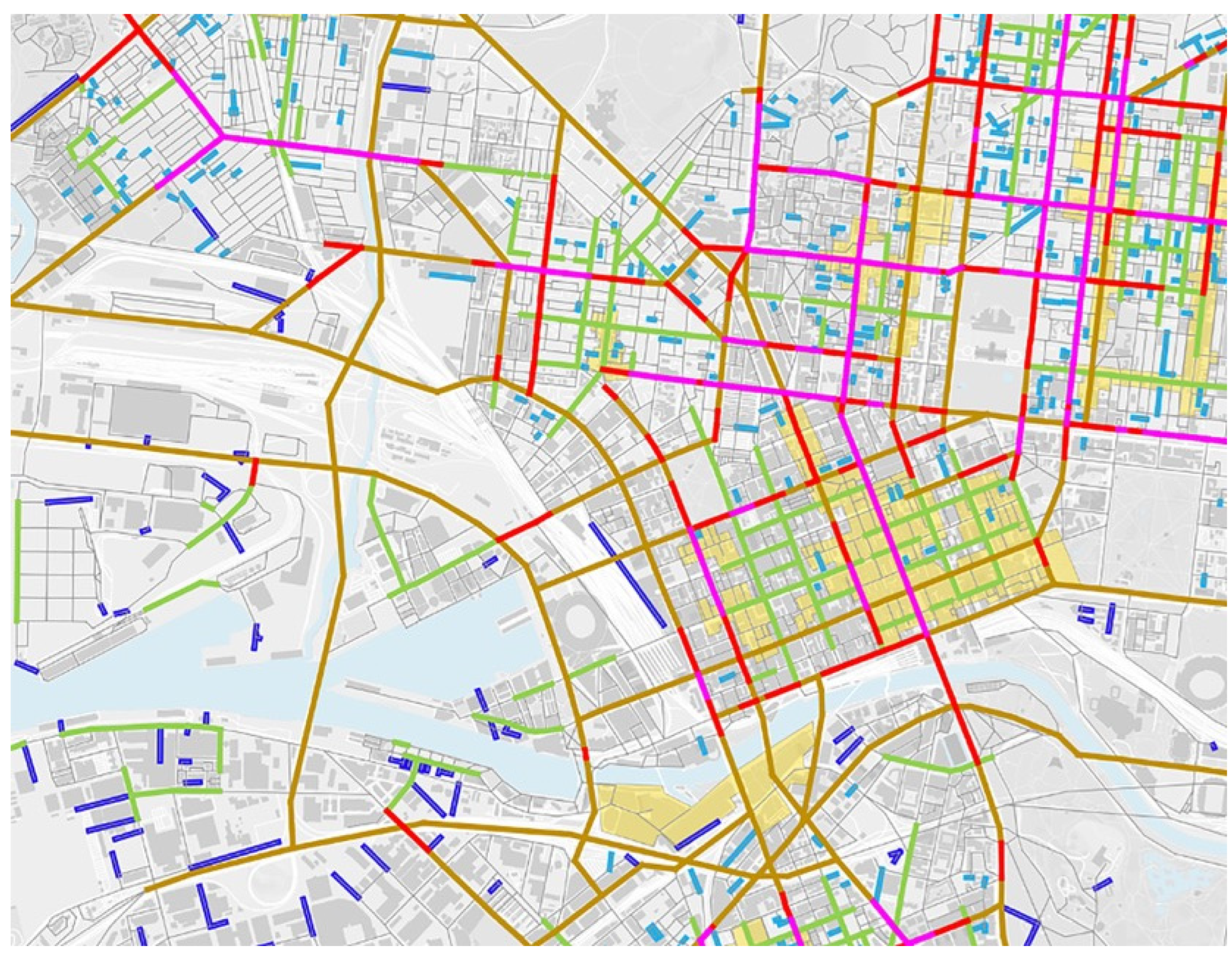

For decades, 2D representations have in fact played the dual role of a document that offered itself to numerous readings and interpretations (such as those relating to the transformations that have taken place over time)11, but also of a database ahead of its time (i.e., a support on which to represent graphically (store) other data derived from the analyses conducted in different fields such as demography or sociology. This role will be taken over by 3D digital models, exponentially expanding their potentialities, as explained in this paper.

It is important to emphasise how the ways of representing a city have evolved concurrently with the progressive realisation that the essence of a heterogeneous organism such as a settlement is not given by the simple sum of the structures found in it, but by the synergies they manage to establish among themselves; that is, by the continuous interaction in time and space between the different components, both material and immaterial.

The drawing of a city, in fact, cannot end with the description of the geometry, dimensions, positions, and main characteristics of its physical elements and all the other information grasped from the morphometrical data, but should also highlight their relations, the connections, and reciprocal existing relationships. At the same time, it needs to document that the functions, destinations, vocations of use, and modes of fruition have an impact on the spatial configurations and are determined by the humans who inhabit them, travel through, and use them and by environmental conditioning.

With the advent of information technology, particularly graphic information, a new and different way of depicting the city using 3D models, or rather digital copies, and of visualising and interacting with them through devices (from simple screens to CAVEs) has been flanked and progressively imposed, and which in fact today constitutes the ‘advanced’ support that is replacing the traditional sheet of paper. The 3D virtual models, which for at least two decades have already constituted the means through which architects, town planners12, and planners analyse the reality that surrounds us (morphometric documentation operations of an artefact are carried out starting from its digital twin and increasingly rarely on the real object), have more recently assumed, thanks to facility management programmes, a central role in the management of information (in some cases real big data) relating to individual buildings as well as to cities or the territory [17,18].

As it is easy to infer, while relating multiple and heterogeneous data into a single mosaic of knowledge is a possible course of action, albeit costly in terms of time and resources, representing and visualising them simultaneously on the same medium can become a technically complex operation that requires the identification and sharing of modalities established ad hoc. The depiction of a piece of a city by means of analogue instruments has always needed a simplification of forms linked to the scale of restitution, which, in order not to turn into a loss of significant data, has had to be accompanied by a symbolic integration of the non-drawn information.

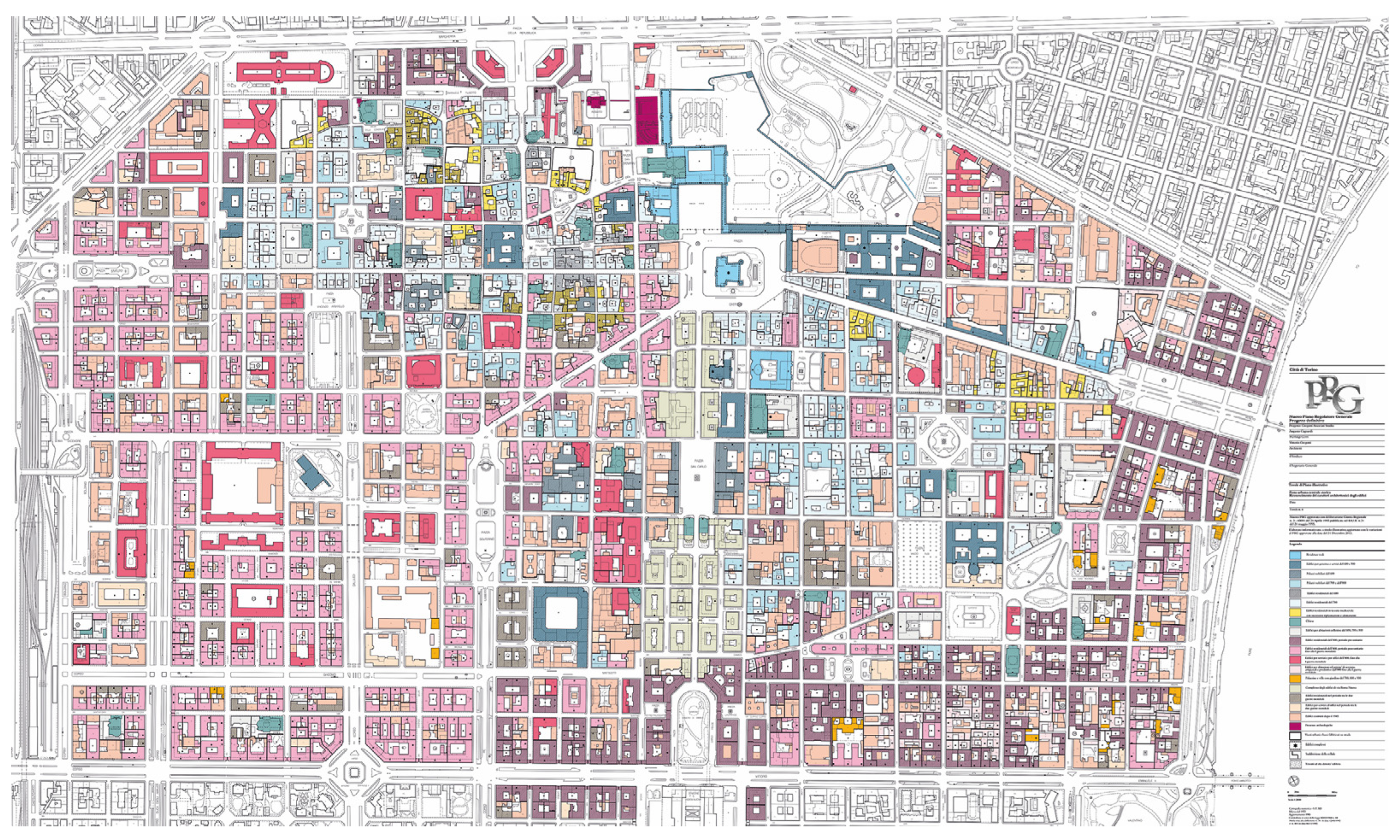

The apparent incongruity in depicting urban ‘space’, by definition three-dimensional, through a series of two-dimensional drawings was overcome in the 1970s using representation codes (cf. Turin experience, which gave rise to the standard UNI 7310:1974 “Urban cartography. Conventional representation of historical aggregates prevalently distinguished by multiplane building” [19] or the Naples one in axonometry13, Figure 2 and Figure 3). This expedient made it possible for the knowledge levels of the city to be materialised into superimposed layers on the same planimetric base and the design indications were synthesised and graphically represented with plan markings [22,23]. This mode of representation has accompanied the drawing of the city for decades and has persisted to the present day, maintaining intact its communicative value of analytical synthesis.

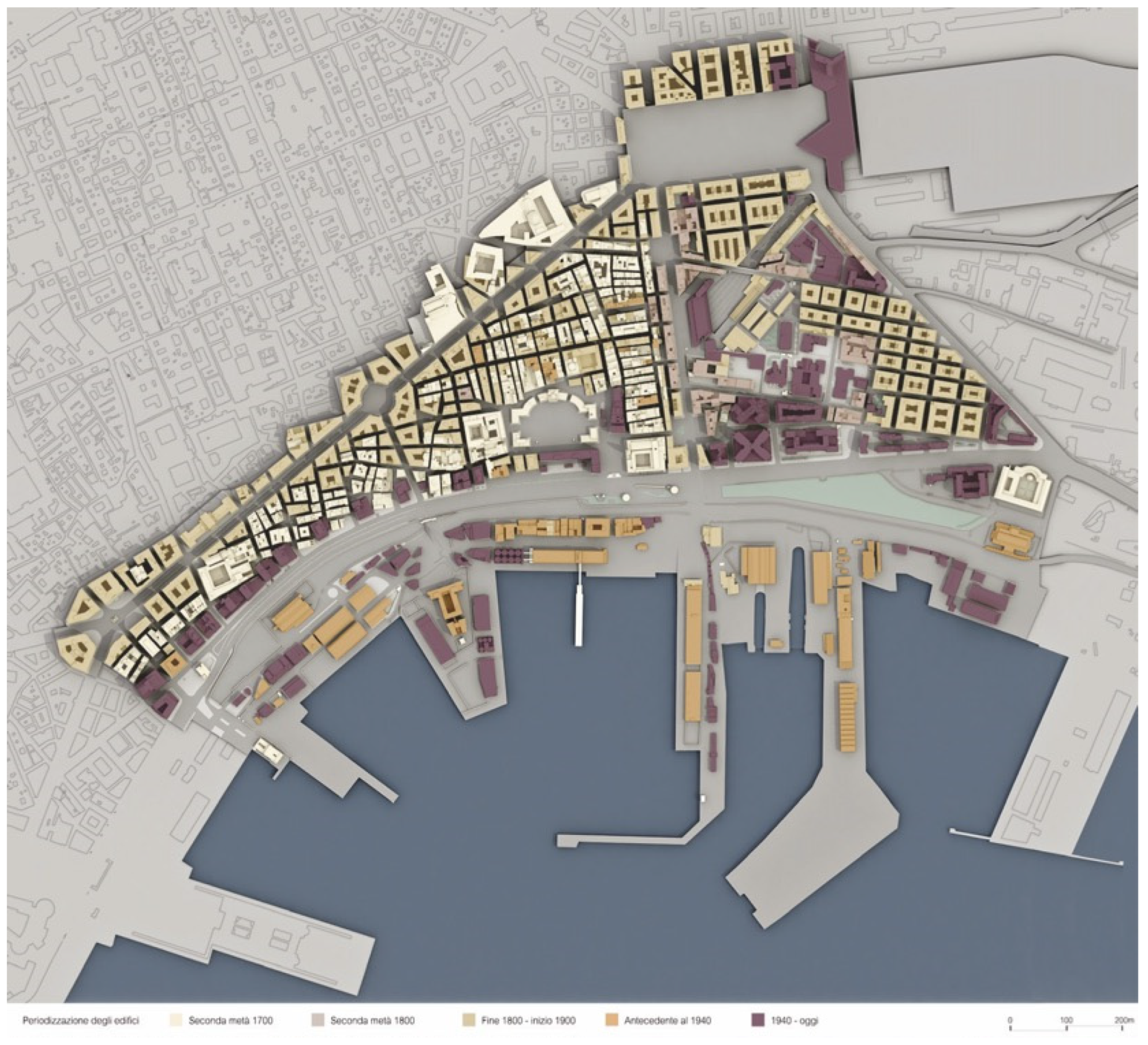

The undeniable ability of axonometric and perspective views to convey information related to the spatial perception of the city has been recovered using 3D models [23]. The transition from analogue to digital, both in the acquisition and restitution phases, makes it possible to create, in a short time and with millimetric precision, a three-dimensional model of the existing artefact (digital twin)14 on a 1:1 scale on which, a posteriori, it is possible to link databases containing information on different areas. These make it possible to conduct a potentially unlimited series of analyses and, subsequently, to pour over as many thematic readings of the built environment, set up design simulations, and monitor the consequences of the latter.

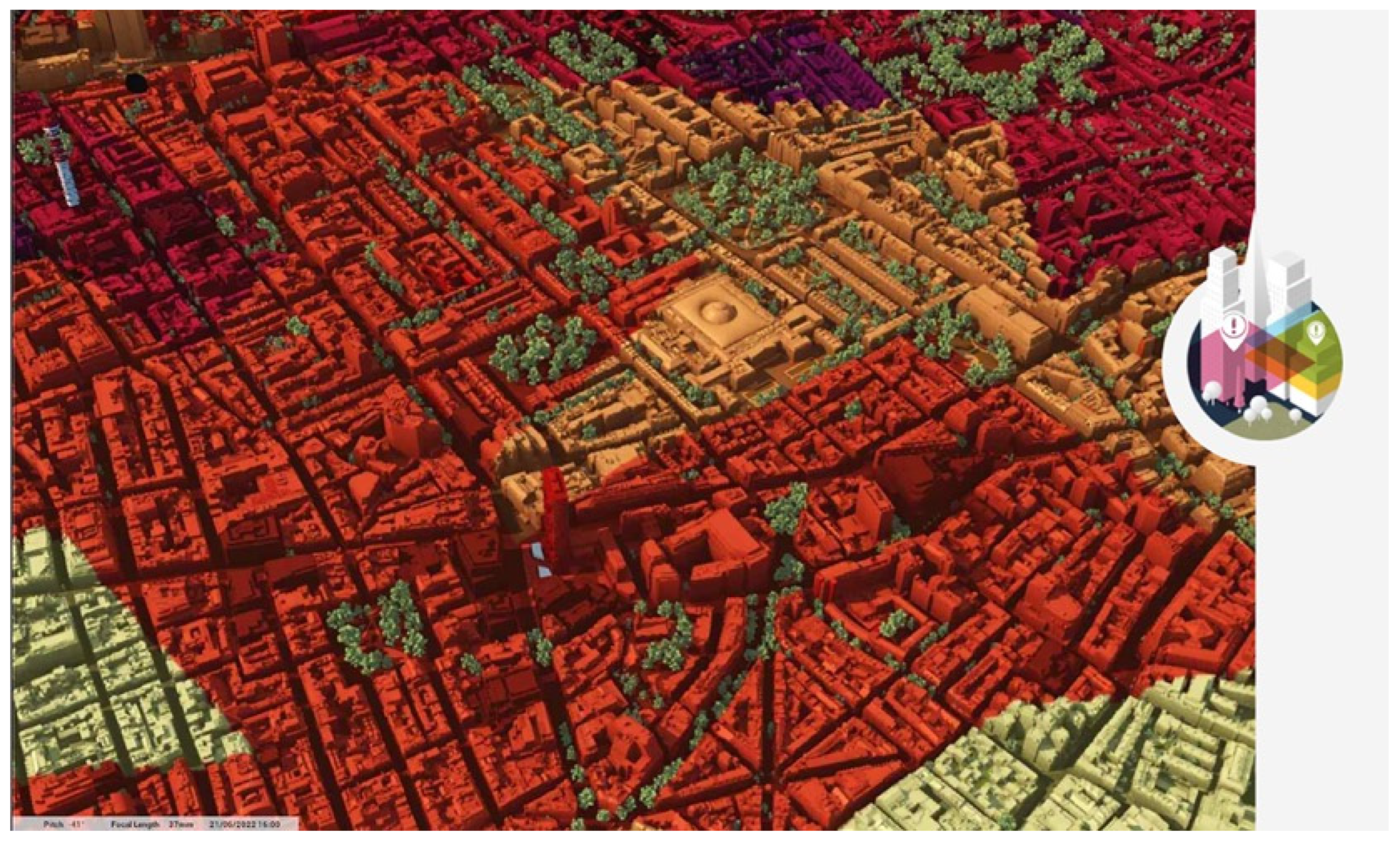

Information communication technology makes it possible, thanks to CIM platforms (city information modelling)15 to operate with transcalarity, making all of the data connected to a phenomenon (or an object) from the general to the particular, and vice versa, binding them to 3D reality based (urban digital twin, UDT)16 models, created at times with a different level of detail (LoD).

In other words, “Knowledge of the city, the territory and the environment in the ICT era is a field in which major changes have been taking place for several years now. The digital world of communication is favouring the development of a new cognitive approach based on the realisation of digital models whose content, increasingly dense and articulated, derives from the integration of consolidated knowledge with information acquired with sensing technologies” [26,27,28].

To avoid any misunderstanding, it should be noted that, as a mere representation of reality, the digital twin constitutes an ‘uncritical’17 virtual reproduction, a formally and metrically ‘exact’18 copy of what exists, of which nothing has been revealed yet. In this sense, it represents a neutral field on which the multidisciplinary team can investigate the reality remotely.

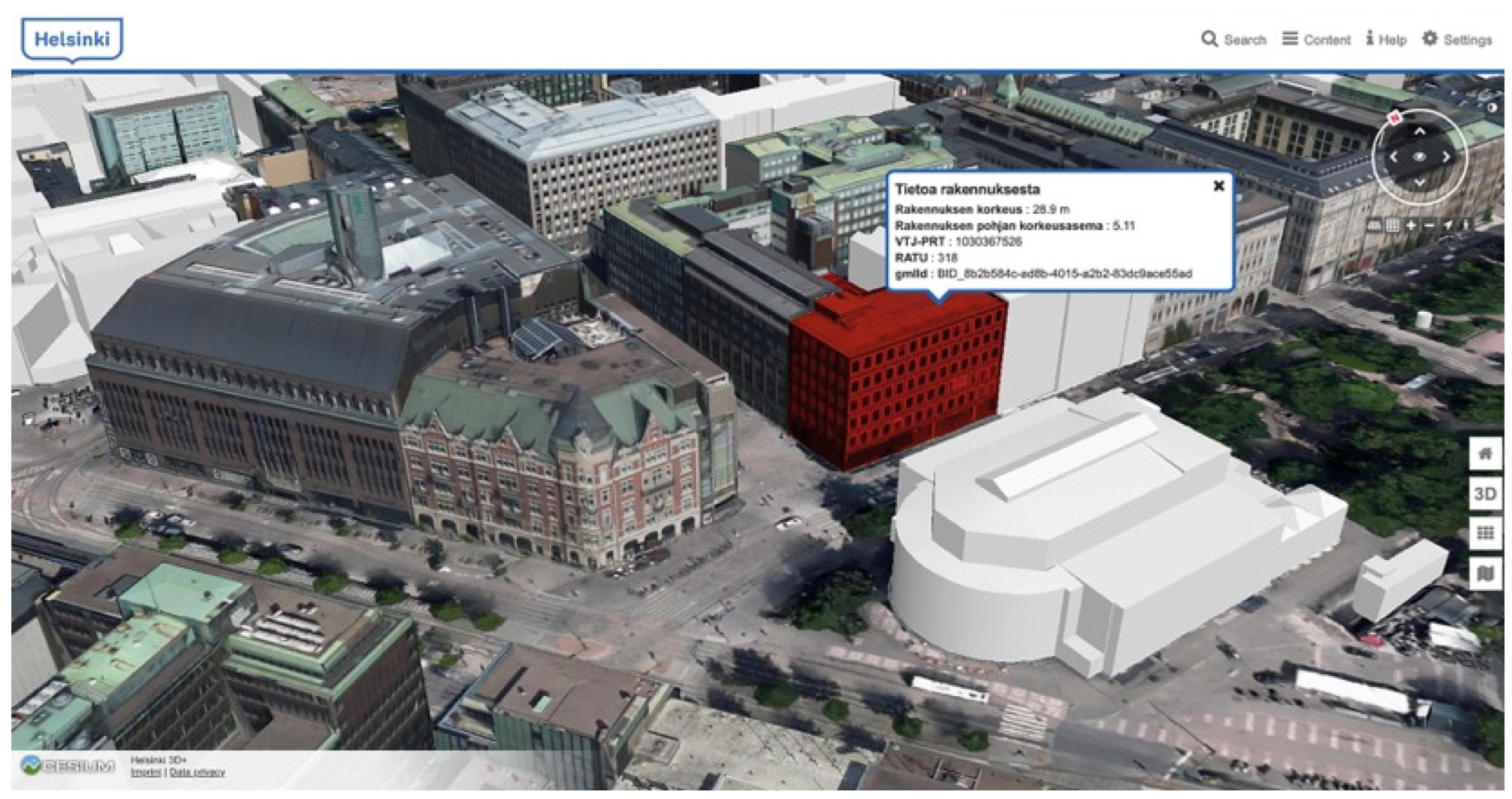

The possibility of representing heterogeneous and previously hardly comparable data on the same digital model UDT has made CIM (city information modelling) a valuable tool for urban analysis. The interaction between the information underlying the functioning of CIMs, in fact, is what until a few years ago was closest to the relationship between the physical and human components within the urban environment [29,30,31].

In such complex databases, alongside the categories and sub-categories dedicated to maps and the dimensional-spatial definition of the built environment, are found more and more information relating to the economy, demographics, population density, health, and culture, etc. The city is in fact, by definition, a demographic space, built by humans for humans, modelled for their needs and for those of the context in which it belongs and, as such, it is constantly changing. The community modifies the urban space, not only its superficial appearance, but in the long-term, its identity features. For this reason, comprehensive documentation must integrate the specialist analyses conducted on the built environment and illustrated above with a careful reading of the parameters relating to human action, at least of those that are objectively quantifiable.

Still being an experimental form, CIMs now make it possible, thanks to innovative technologies, (Internet of Things, high performance computing, data science, advanced optimization, etc.) to implement information and, consequently, to modify UDTs (in this case responsive models). These models, therefore, constitute tools capable of “not only helping people better understand the city but also assist in decision-making at all stages of the city life cycle. Therefore, the CIM visualizations integrating VR and augmented reality (AR) have drawn the main research concerns” [25]. The responsive models contribute, as a matter of fact, to the formation of a cognitive framework that, although never exhaustive but constantly implementable, can be visualised on the same support that can be navigated, questioned, and thematised [32] (Figure 4).

The application of a sensing and responding approach to a digital model thus conceived makes it a true hypermodel that can be integrated within the ecosystem, acting as a hinge between the virtual and real space.

Such a complex and delicate operation presupposes a paramount implication: the progressive and inevitable transfer of control of the inputs as well as the evaluation of the outputs from a human component to an automated component, whose actions must constantly be verified and validated.

2.2. Towards New Scenarios

With the arrival of artificial intelligence (AI), it is, in fact, possible to have a clear distinction between information systems based on static models and those based on dynamic, responsive, and predictive models. The former are limited to data visualisation, while the latter, through the use of city simulation platforms, the direct user interaction, and the use of sensors, allow for new scenarios to be formulated on the basis of the available elements and visualised on 3D models.

By analysing information about the status quo and past events, and thanks to the support of artificial intelligence and machine learning, predictive analysis aids in the understanding of what is likely to happen in the future. These devices, which are already widely used in the medical field, business processes, and e-commerce to name a few, are more recently also affecting the city. Some examples are predictive models applied to logistics and transport, real estate management, water services, energy supply, cleaning, and waste collection [33].

The extent to which these systems are likely to influence the formal as well as the functional design of the contemporary city, and even more so the future city, will depend on our ability to creatively use the tools that tend to be deterministic, since they are based on deductive, stochastic, and probabilistic logic [34] (Figure 5).

However, while the realisation of twin digital cities allows for the better management of real ones, we are increasingly witnessing the progressive distancing of citizens from tangible places of aggregation in favour of their virtual abstractions, developed following the massive use of social media platforms.

It is irrefutable, indeed, that virtual reality (VR) in all of its possible declinations (AR, MR, IR, etc.) is increasingly pervading our existence, so much so as to pose itself, in some cases, as an effective alternative to reality [26] (Figure 6).

The consideration to be made concerns, therefore, the apparent paradox that the digital transition is highlighting: the possibility of obtaining complex databases and interactive models that are increasingly closer to the reality of ‘urban’ organisms that, at least in their social component, tend to gradually move away from the physical space.

Leaving aside the pathological conditions typical of the most common forms of social anxiety, from FOMO (fear of missing out)19 to Hikikomori20, just to name a few, while the assessment of their dramatic impact on the community was beyond the scope of this paper, it is inevitable to emphasise how the modes of interpersonal sharing have changed and, at the same time, are transforming the intrinsic meaning of ‘being together’, giving it a dystopian and alienating meaning. If, on the one hand, the typical socio-cultural fragmentation in the contemporary city, far from being integration, contributes to the stripping of public spaces of their inherent value as places of cohesion, on the other hand, the ‘virtual transition’ of interpersonal relationships amplifies the existing gap between physical spaces and spaces to foster interaction.

The nodal element par excellence in the complex structure of the urban settlement, the square, historically represents the place where most of the functions linked to collective life, but in recent decades, has been stripped of its aggregative role. From vital point to marginal sphere, in a collective logic that privileges new kinds of squares, the social media ones, in which to recreate or virtually strengthen social relations complicated by heterogeneous and articulated individual dynamics. Interpersonal interactions are increasingly moving in the direction of a largely unexplored metaverse to be constructed.

Although the concept of the ‘metaverse’21 was introduced back when no one would have imagined, more than thirty years ago22, it is only following the technical and technological achievements of the computer revolution that the debate on its actual ‘reproducibility’ has been given a tangible meaning, shifting the focus of the issue from the field of science fiction to that of science. If we accept as the definition of the term: “a vast digital space focused on social connection, in a hypothetical synthetic environment linked to the physical world” [37], it becomes clear how the virtual universe described is conceived in close connection to the commonly experienced material reality, of which the metaverse constitutes an extension and/or a reproduction (Figure 7).

This hypothesis can take on two distinct interpretations: the first evidently focuses on the concept of the digital replicability of tangible space, while the second brings into play AI, which is capable of creating specially made virtual environments starting from the information inferred from the profiling of users or those who will use them in the future.

In the first case, the focus is on the digital twins and their possible implications and uses, for purposes that have so far only been partially experimented23. From this point of view, the reality-based digital model becomes the plausible scenario within which the actions take place and the social relations established are entrusted to avatars24 (Figure 8).

The second meaning focuses on the semantic evolution of the term ‘metaverse’ over the years, which has seen a gradual departure from a strict relationship with real and recognisable [39] geographical settings towards spaces designed and customisable by the user [40] (Figure 9).

The metaverse, in fact, although it still exists in a de-emphasised form25, is currently a universe under construction and expansion, whose rules are written every passing day, in which the individual can recreate a reality similar to or absolutely antithetical to the one they experience on a daily basis, populating virtual cities that elude the established urban dynamics of physical structures.

For cultural professionals involved in the planning and design of human settlements, understanding these organisms will in the near future become a necessary, though not sufficient, condition to ensure that the urban environment continues to meet the (real, though often artificially induced) needs of those who inhabit it.

3. Results

The ongoing transition from static to dynamic digital twins applied to an urban organism is only possible thanks to the technological and IT progress that has affected specific sectors (from sensor technology to domotics). This has called into play multiple and varied skills that are contributing to the transformation of the city in an increasingly ‘smart’ direction. However, if technological and computerised systems are ever more proving themselves capable of satisfying and solving contingent issues, a conclusive consideration on the purposes and ways in which these solutions will be adopted cannot be overlooked.

Firstly, the widespread application of automatisms, both in the data acquisition and reading phase, brings to light an initial criticality linked to the control and selection of the information. In particular, the application of a sensing and responding approach, in the absence of a precise interpretation and reading of the results, runs the risk of automatically pouring partial or false information into the city information model, which is difficult to verify a posteriori. The only objectivity of the application of pre-established parameters, in fact, cannot be sufficient to guarantee the correct detection of the data and their comprehension.

Secondly, resorting to the mechanical simulation of a thought process that, by definition, constitutes a human prerogative can be, especially in the field of urban design, a contradiction. The creative thinking behind the project cannot be replicated and simulated through the application of mathematical algorithms as it cannot be summarised through the synergy of acquired notions and problem-solving strategies. At this point, the still unresolved doubt concerns the actual opportunity to make this profound ethical and social change required in the name of technology.
