# Daily Based Morgan–Morgan–Finney (DMMF) Model: A Spatially Distributed Conceptual Soil Erosion Model to Simulate Complex Soil Surface Configurations

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

- A modified temporal scale of the model from an annual basis to daily basis. This is better suited to regions with intensive seasonal rainfall
- Inclusion of impervious surface covers (e.g., plastic mulching and artificial structures such as concrete ditches and pavements)
- Revision of the effective rainfall equation, the interflow equation, and equations relevant to flow velocity.

## 2. Model Description

#### 2.1. The DMMF Model

#### 2.2. Hydrological Phase

#### 2.2.1. Surface Runoff Process

#### 2.2.2. Interflow Process

#### 2.3. Sediment Phase

#### 2.3.1. Sediment Delivery to Surface Runoff

#### 2.3.2. Gravitational Deposition of Suspended Sediments

^{−5}$\mathrm{m}$ for clay, 0.6 × 10

^{−4}$\mathrm{m}$ for silt, and 0.2 × 10

^{−3}$\mathrm{m}$ for sand, then the settling velocities are 0.2 × 10

^{−5}$\mathrm{m}\text{}{\mathrm{s}}^{-1}$ for clay (${v}_{s.c}$), 0.2 × 10

^{−2}$\mathrm{m}\text{}{\mathrm{s}}^{-1}$ for silt (${v}_{s.z}$), and 0.2 × 10

^{−1}$\mathrm{m}\text{}{\mathrm{s}}^{-1}$ for sand (${v}_{s.s}$) [27]. The particle fall number (${N}_{f}$) of each particle size class is a function of the actual runoff velocity (v), the settling velocities of each particle size class (${v}_{s}$), the depth of runoff (d) in meters, and the length of the element (l):

#### 2.3.3. Estimation of Sediment Loss from an Element

#### 2.4. Estimation of Total Runoff and Soil Erosion for Rainfall Period

## 3. Testing the DMMF Model

#### 3.1. Sensitivity Analysis of the Model

#### 3.2. Testing the DMMF Model in the Field

## 4. Summary and Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Pimentel, D.; Kounang, N. Ecology of soil erosion in ecosystems. Ecosystems
**1998**, 1, 416–426. [Google Scholar] [CrossRef] - Sidle, R.C.; Ziegler, A.D.; Negishi, J.N.; Nik, A.R.; Siew, R.; Turkelboom, F. Erosion processes in steep terrain—Truths, myths, and uncertainties related to forest management in Southeast Asia. For. Ecol. Manage.
**2006**, 224, 199–225. [Google Scholar] [CrossRef] - Morgan, R.P.C. Soil Erosion and Conservation, 3rd ed.; Blackwell Publishing: Malden, MA, USA, 2005. [Google Scholar]
- Onori, F.; De Bonis, P.; Grauso, S. Soil erosion prediction at the basin scale using the revised universal soil loss equation (RUSLE) in a catchment of Sicily (southern Italy). Environ. Geol.
**2006**, 50, 1129–1140. [Google Scholar] [CrossRef] - Napoli, M.; Cecchi, S.; Orlandini, S.; Mugnai, G.; Zanchi, C.A. Simulation of field-measured soil loss in Mediterranean hilly areas (Chianti, Italy) with RUSLE. Catena
**2016**, 145, 246–256. [Google Scholar] [CrossRef] - Zema, D.A.; Denisi, P.; Taguas Ruiz, E.V.; Gómez, J.A.; Bombino, G.; Fortugno, D. Evaluation of Surface Runoff Prediction by AnnAGNPS Model in a Large Mediterranean Watershed Covered by Olive Groves. Land Degrad. Dev.
**2016**, 27, 811–822. [Google Scholar] [CrossRef] - Huon, S.; Evrard, O.; Gourdin, E.; Lefévre, I.; Bariac, T.; Reyss, J.L.; des Tureaux, T.H.; Sengtaheuanghoung, O.; Ayrault, S.; Ribolzi, O. Suspended sediment source and propagation during monsoon events across nested sub-catchments with contrasted land uses in Laos. J. Hydrol. Reg. Stud.
**2017**, 9, 69–84. [Google Scholar] [CrossRef] - Boardman, J. Soil erosion science: Reflections on the limitations of current approaches. Catena
**2006**, 68, 73–86. [Google Scholar] [CrossRef] - Hu, L.J.; Flanagan, D.C. Towards new-generation soil erosion modeling: Building a unified omnivorous model. J. Soil Water Conserv.
**2013**, 68, 100A–103A. [Google Scholar] [CrossRef] - Wischmeier, W.H.; Smith, D.D. Predicting rainfall erosion losses—A guide to conservation planning. In Agriculture Handbook; Number 537, United States Department of Agriculture (USDA): Washington, DC, USA, 1978; pp. 1–58. [Google Scholar]
- Renard, K.G.; Foster, G.R.; Weesies, G.A.; Porter, J.P. RUSLE: Revised universal soil loss equation. J. Soil Water Conserv.
**1991**, 46, 30–33. [Google Scholar] - Williams, J.R. Sediment-yield prediction with Universal Equation using runoff energy factor. In Present and prospective technology for predicting sediment yield and sources: Proceedings of the Sediment-Yield Workshop; United States Department of Agriculture (USDA): New Orleans, LA, USA, 1975; Volume ARS-S-40, pp. 244–252. [Google Scholar]
- Morgan, R.P.C.; Morgan, D.D.V.; Finney, H.J. A predictive model for the assessment of soil erosion risk. J. Agric. Eng. Res.
**1984**, 30, 245–253. [Google Scholar] [CrossRef] - Morgan, R.P.C. A simple approach to soil loss prediction: A revised Morgan–Morgan–Finney model. Catena
**2001**, 44, 305–322. [Google Scholar] [CrossRef] - Lal, R. Soil degradation by erosion. Land Degrad. Dev.
**2001**, 12, 519–539. [Google Scholar] [CrossRef] - Merritt, W.; Letcher, R.; Jakeman, A. A review of erosion and sediment transport models. Environ. Modell. Softw.
**2003**, 18, 761–799. [Google Scholar] [CrossRef] - Lilhare, R.; Garg, V.; Nikam, B. Application of GIS-Coupled Modified MMF Model to Estimate Sediment Yield on a Watershed Scale. J. Hydrol. Eng.
**2014**, 20, C5014002. [Google Scholar] [CrossRef] - Avwunudiogba, A.; Hudson, P.F. A Review of Soil Erosion Models with Special Reference to the needs of Humid Tropical Mountainous Environments. Eur. J. Sustain. Dev.
**2014**, 3, 299–310. [Google Scholar] [CrossRef] - Morgan, R.P.C.; Quinton, J.N.; Smith, R.E.; Govers, G.; Poesen, J.W.A.; Auerswald, K.; Chisci, G.; Torri, D.; Styczen, M.E. The European Soil Erosion Model (EUROSEM): A dynamic approach for predicting sediment transport from fields and small catchments. Earth Surf. Processes Landforms
**1998**, 23, 527–544. [Google Scholar] [CrossRef] - De Roo, A.P.J.; Wesseling, C.G.; Ritsema, C.J. LISEM: A single-event physically based hydrological and soil erosion model for drainage basins. I: Theory, Input and Output. Hydrol. Processes
**1996**, 10, 1107–1117. [Google Scholar] [CrossRef] - von Werner, M. GIS-orientierte Methoden der digitalen Reliefanalyse zur Modellierung von Bodenerosion in kleinen Einzugsgebieten. Ph.D. Thesis, Department of Earth Sciences, Free University of Berlin, Berlin, Germany, 1995. [Google Scholar]
- Nearing, M.A.; Foster, G.R.; Lane, L.J.; Finkner, S.C. A process-based soil erosion model for USDA-Water Erosion Prediction Project technology. Trans. ASAE
**1989**, 32, 1587–1593. [Google Scholar] [CrossRef] - Beasley, D.B.; Huggins, L.F.; Monke, E.J. ANSWERS: A Model for Watershed Planning. Trans. ASAE
**1980**, 23, 938–944. [Google Scholar] [CrossRef] - Beven, K.J.; Kirkby, M.J. A physically based, variable contributing area model of basin hydrology. Hydrol. Sci. Bull.
**1979**, 24, 43–69. [Google Scholar] [CrossRef] - Bergström, S.; Forsman, A. Development of a conceptual deterministic rainfall-runoff model. Nord. Hydrol.
**1973**, 4, 147–170. [Google Scholar] - Devia, G.K.; Ganasri, B.; Dwarakish, G. A Review on Hydrological Models. Aquat. Procedia
**2015**, 4, 1001–1007. [Google Scholar] [CrossRef] - Morgan, R.P.C.; Duzant, J.H. Modified MMF (Morgan–Morgan–Finney) model for evaluating effects of crops and vegetation cover on soil erosion. Earth Surf. Processes Landforms
**2008**, 32, 90–106. [Google Scholar] [CrossRef] - De Jong, S.M.; Paracchini, M.L.; Bertolo, F.; Folving, S.; Megier, J.; De Roo, A.P.J. Regional assessment of soil erosion using the distributed model SEMMED and remotely sensed data. Catena
**1999**, 37, 291–308. [Google Scholar] [CrossRef] - Vigiak, O.; Okoba, B.O.; Sterk, G.; Groenenberg, S. Modelling catchment-scale erosion patterns in the East African Highlands. Earth Surf. Processes Landforms
**2005**, 30, 183–196. [Google Scholar] [CrossRef] - López-Vicente, M.; Navas, A.; Machín, J. Modelling soil detachment rates in rainfed agrosystems in the south-central Pyrenees. Agric. Water Manage.
**2008**, 95, 1079–1089. [Google Scholar] [CrossRef] - Vieira, D.C.S.; Prats, S.A.; Nunes, J.P.; Shakesby, R.A.; Coelho, C.O.A.; Keizer, J.J. Modelling runoff and erosion, and their mitigation, in burned Portuguese forest using the revised Morgan–Morgan–Finney model. For. Ecol. Manage.
**2014**, 314, 150–165. [Google Scholar] [CrossRef] - Baartman, J.E.; Jetten, V.G.; Ritsema, C.J.; de Vente, J. Exploring effects of rainfall intensity and duration on soil erosion at the catchment scale using openLISEM: Prado catchment, SE Spain. Hydrol. Processes
**2012**, 26, 1034–1049. [Google Scholar] [CrossRef] - Stocker, T.F.; Qin, D.; Plattner, G.K.; Alexander, L.V.; Allen, S.K.; Bindoff, N.L.; Bréon, F.M.; Church, J.A.; Cubasch, U.; Emori, S.; et al. Climate Change 2013: The Physical Science Basis. Contribution of Working Group I to the Fifth Assessment Report of the Intergovernmental Panel on Climate Change; Cambridge University Press: Cambridge, UK; New York, NY, USA, 2013; chapter Technical Summary; pp. 33–115. [Google Scholar]
- Espí, E.; Salmerón, A.; Fontecha, A.; García, Y.; Real, A.I. Plastic Films for Agricultural Applications. J. Plast. Film Sheeting
**2006**, 22, 85–102. [Google Scholar] [CrossRef] - Shuster, W.D.; Bonta, J.; Thurston, H.; Warnemuende, E.; Smith, D.R. Impacts of impervious surface on watershed hydrology: A review. Urban Water J.
**2005**, 2, 263–275. [Google Scholar] [CrossRef] - Pappas, E.A.; Smith, D.R.; Huang, C.; Shuster, W.D.; Bonta, J.V. Impervious surface impacts to runoff and sediment discharge under laboratory rainfall simulation. Catena
**2008**, 72, 146–152. [Google Scholar] [CrossRef] - Arnhold, S.; Ruidisch, M.; Bartsch, S.; Shope, C.; Huwe, B. Simulation of runoff patterns and soil erosion on mountainous farmland with and without plastic-covered ridge-furrow cultivation in South Korea. Trans. ASABE
**2013**, 56, 667–679. [Google Scholar] [CrossRef] - Ruidisch, M.; Kettering, J.; Arnhold, S.; Huwe, B. Modeling water flow in a plastic mulched ridge cultivation system on hillslopes affected by South Korean summer monsoon. Agric. Water Manage.
**2013**, 116, 204–217. [Google Scholar] [CrossRef] - Choi, K.; Huwe, B.; Reineking, B. Commentary on ‘Modified MMF (Morgan–Morgan–Finney) model for evaluating effects of crops and vegetation cover on soil erosion’ by Morgan and Duzant (2008). Available online: https://arxiv.org/abs/1612.08899 (accessed on 13 April 2017).
- Kirkby, M.J. Hydrological Slope Models: The Influence of Climate. In Geomorphology and Climate; Derbyshire, E., Ed.; Wiley: London, UK, 1976; pp. 247–267. [Google Scholar]
- Petryk, S.; Bosmajian, G. Analysis of flow through vegetation. ASCE J. Hydraul. Div.
**1975**, 101, 871–884. [Google Scholar] - Veihmeyer, F.J.; Hendrickson, A.H. The moisture equivalent as a measure of the field capacity of soils. Soil Sci.
**1931**, 32, 181–194. [Google Scholar] [CrossRef] - Meyer, L.D.; Wischmeier, W.H. Mathematical simulation of the process of soil erosion by water. Trans. ASAE
**1969**, 12, 754–758. [Google Scholar] - Brandt, C.J. Simulation of the size distribution and erosivity of raindrops and throughfall drops. Earth Surf. Processes Landforms
**1990**, 15, 687–698. [Google Scholar] [CrossRef] - Shin, S.S.; Park, S.D.; Choi, B.K. Universal Power Law for Relationship between Rainfall Kinetic Energy and Rainfall Intensity. Adv. Meteorol.
**2016**, 2016, 2494681. [Google Scholar] [CrossRef] - Poesen, J. An improved splash transport model. Z. Geomorphol.
**1985**, 29, 193–211. [Google Scholar] - Tollner, E.W.; Barfield, B.J.; Haan, C.T.; Kao, T.Y. Suspended Sediment Filtration Capacity of Simulated Vegetation. Trans. ASAE
**1976**, 19, 678–682. [Google Scholar] [CrossRef] - Sobol’, I. Sensitivity Analysis for Nonlinear Mathematical Models. Math. Model. Comput. Exp.
**1993**, 1, 407–414. [Google Scholar] - Saltelli, A. Making best use of model evaluations to compute sensitivity indices. Comput. Phys. Commun.
**2002**, 145, 280–297. [Google Scholar] [CrossRef] - Saltelli, A.; Annoni, P.; Azzini, I.; Campolongo, F.; Ratto, M.; Tarantola, S. Variance based sensitivity analysis of model output. Design and estimator for the total sensitivity index. Comput. Phys. Commun.
**2010**, 181, 259–270. [Google Scholar] [CrossRef] - Qi, W.; Zhang, C.; Chu, J.; Zhou, H. Sobol’ ’s sensitivity analysis for TOPMODEL hydrological model: A case study for the Biliu River Basin, China. J. Hydrol. Environ. Res.
**2013**, 1, 1–10. [Google Scholar] - Saltelli, A.; Annoni, P. How to avoid a perfunctory sensitivity analysis. Environ. Modell. Softw.
**2010**, 25, 1508–1517. [Google Scholar] [CrossRef] - Nossent, J.; Elsen, P.; Bauwens, W. Sobol’ sensitivity analysis of a complex environmental model. Environ. Modell. Softw.
**2011**, 26, 1515–1525. [Google Scholar] [CrossRef] - Pujol, G.; Iooss, B.; Janon, A.; Boumhaout, K.; Da Veiga, S.; Fruth, J.; Gilquin, L.; Guillaume, J.; Le Gratiet, L.; Lemaitre, P.; et al. Sensitivity: Global Sensitivity Analysis of Model Outputs, R package version 1.12.1; Available online: https://CRAN.R-project.org/package=sensitivity (accessed on 15 May 2016).
- R Development Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2015. [Google Scholar]
- World Meteorological Organization’s World Weather & Climate Extremes Archive. Available online: wmo.asu.edu/content/world-meteorological-organization-global-weather-climate-extremes-archive (accessed on 16 November 2016).
- Senay, G.; Verdin, J.; Lietzow, R.; Melesse, A. Global Daily Reference Evapotranspiration Modeling and Evaluation. J. Am. Water Resour. Assoc.
**2008**, 44, 969–979. [Google Scholar] [CrossRef] - Jia, L.; Xi, G.; Liu, S.; Huang, C.; Yan, Y.; Liu, G. Regional estimation of daily to annual regional evapotranspiration with MODIS data in the Yellow River Delta wetland. Hydrol. Earth Syst. Sci.
**2009**, 13, 1775–1787. [Google Scholar] [CrossRef] - Pandey, A.; Mathur, A.; Mishra, S.K.; Mal, B.C. Soil erosion modeling of a Himalayan watershed using RS and GIS. Environ. Earth Sci.
**2009**, 59, 399–410. [Google Scholar] [CrossRef] - Canadell, J.; Jackson, R.B.; Ehleringer, J.B.; Mooney, H.A.; Sala, O.E.; Schulze, E.D. Maximum rooting depth of vegetation types at the global scale. Oecologia
**1996**, 108, 583–595. [Google Scholar] [CrossRef] [PubMed] - Saxton, K.E.; Rawls, W.J.; Romberger, J.S.; Papendick, R.I. Estimating generalized soil-water characteristics from texture. Soil Sci. Soc. Am. J.
**1986**, 50, 1031–1036. [Google Scholar] [CrossRef] - Irmay, S. Hydrodynamics in soils. In Physical Principles of Water Percolation and Seepage; Bear, J., Zaslavsky, D., Irmay, S., Eds.; UNESCO: Paris, France, 1968; Volume 29, p. 60. [Google Scholar]
- MODIS Collection 5 Land Products Global Subsetting and Visualization Tool; ORNL DAAC: Oak Ridge, TN, USA, 2009; Available online: http://dx.doi.org/10.3334/ORNLDAAC/1241 (accessed on 22 September 2015).
- Mu, Q.; Zhao, M.; Running, S.W. Improvements to a MODIS global terrestrial evapotranspiration algorithm. Remote Sens. Environ.
**2011**, 115, 1781–1800. [Google Scholar] [CrossRef] - Brooks, E.S.; Boll, J.; McDaniel, P.A. A hillslope-scale experiment to measure lateral saturated hydraulic conductivity. Water Resour. Res.
**2004**, 40, W04208. [Google Scholar] [CrossRef] - Boll, J.; Brooks, E.S.; Campbell, C.R.; Stockle, C.O.; Young, S.K.; Hammel, J.E.; McDaniel, P.A. Progress toward development of a GIS based water quality management tool for small rural watersheds: Modification and application of a distributed model. In Proceedings of the ASAE Annual International Meeting, Orlando, FL, USA, 12–16 July 1998. [Google Scholar]
- Storn, R.; Price, K. Differential Evolution—A Simple and Efficient Heuristic for global Optimization over Continuous Spaces. J. Global Optim.
**1997**, 11, 341–359. [Google Scholar] [CrossRef] - Ardia, D.; Mullen, K.M.; Peterson, B.G.; Ulrich, J. DEoptim: Differential Evolution in R, R package version 2.2-3; Available online: http://CRAN.R-project.org/package=DEoptim (accessed on 11 November 2016).
- Mullen, K.; Ardia, D.; Gil, D.; Windover, D.; Cline, J. DEoptim: An R Package for Global Optimization by Differential Evolution. J. Stat. Softw.
**2011**, 40, 1–26. [Google Scholar] [CrossRef] - Joseph, J.; Guillaume, J. Using a parallelized MCMC algorithm in R to identify appropriate likelihood functions for SWAT. Environ. Modell. Softw.
**2013**, 46, 292–298. [Google Scholar] [CrossRef] - Zheng, F.; Zecchin, A.C.; Simpson, A.R. Investigating the run-time searching behavior of the differential evolution algorithm applied to water distribution system optimization. Environ. Modell. Softw.
**2015**, 69, 292–307. [Google Scholar] [CrossRef] - Quansah, C. Laboratory Experimentation for the Statistical Derivation of Equations for Soil Erosion Modelling and Soil Conservation Design. Ph.D. Thesis, Cranfield Institute of Technology, England, UK, April 1982. [Google Scholar]
- Moriasi, D.N.; Arnold, J.G.; Van Liew, M.W.; Bingner, R.L.; Harmel, R.D.; Veith, T.L. Model evaluation guidelines for systematic quantification of accuracy in watershed simulations. Trans. ASABE
**2007**, 50, 885–900. [Google Scholar] [CrossRef] - Panagos, P.; Liedekerke, M.V.; Jones, A.; Montanarella, L. European Soil Data Centre: Response to European policy support and public data requirements. Land Use Policy
**2012**, 29, 329–338. [Google Scholar] [CrossRef] - Panagos, P.; Borrelli, P.; Poesen, J.; Ballabio, C.; Lugato, E.; Meusburger, K.; Montanarella, L.; Alewell, C. The new assessment of soil loss by water erosion in Europe. Environ. Sci. Policy
**2015**, 54, 438–447. [Google Scholar] [CrossRef]

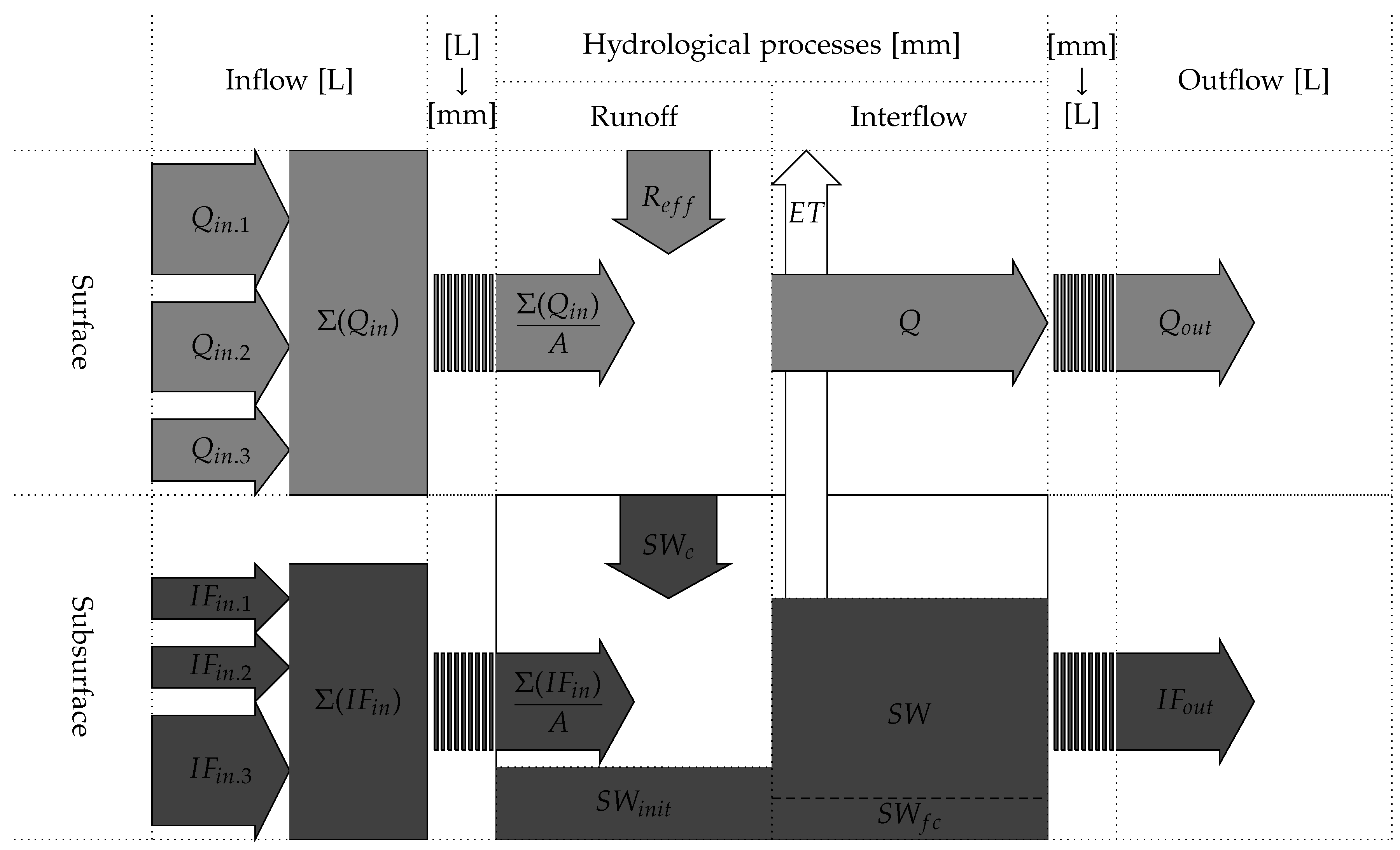

**Figure 1.**Schematic hydrological processes within an element. The hydrological phase estimates the amount of surface runoff (Q; mm) and subsurface interflow ($I{F}_{out}$; $\mathrm{L}$) generated from an element. Assuming that the surface area of an element is A (${\mathrm{m}}^{2}$), surface water inputs of an element is the effective rainfall (${R}_{eff}$; mm) and surface water contribution from upslope elements ($\mathrm{\Sigma}\left({Q}_{in}\right)/A$; mm). Surface runoff occurs when surface water inputs exceed surface water infiltration capacity, ($S{W}_{c}$; mm) which depends on available soil pore space left for surface water infiltration and the proportion of the impervious surface area ($IMP$). The subsurface interflow occurs when the soil water budget ($SW$; mm) exceeds the soil water at field capacity ($S{W}_{fc}$; mm). In this condition, a part of the excess soil water outflows from an element as an interflow, and the surface runoff and subsurface interflow generated in an element are discharged to downslope elements.

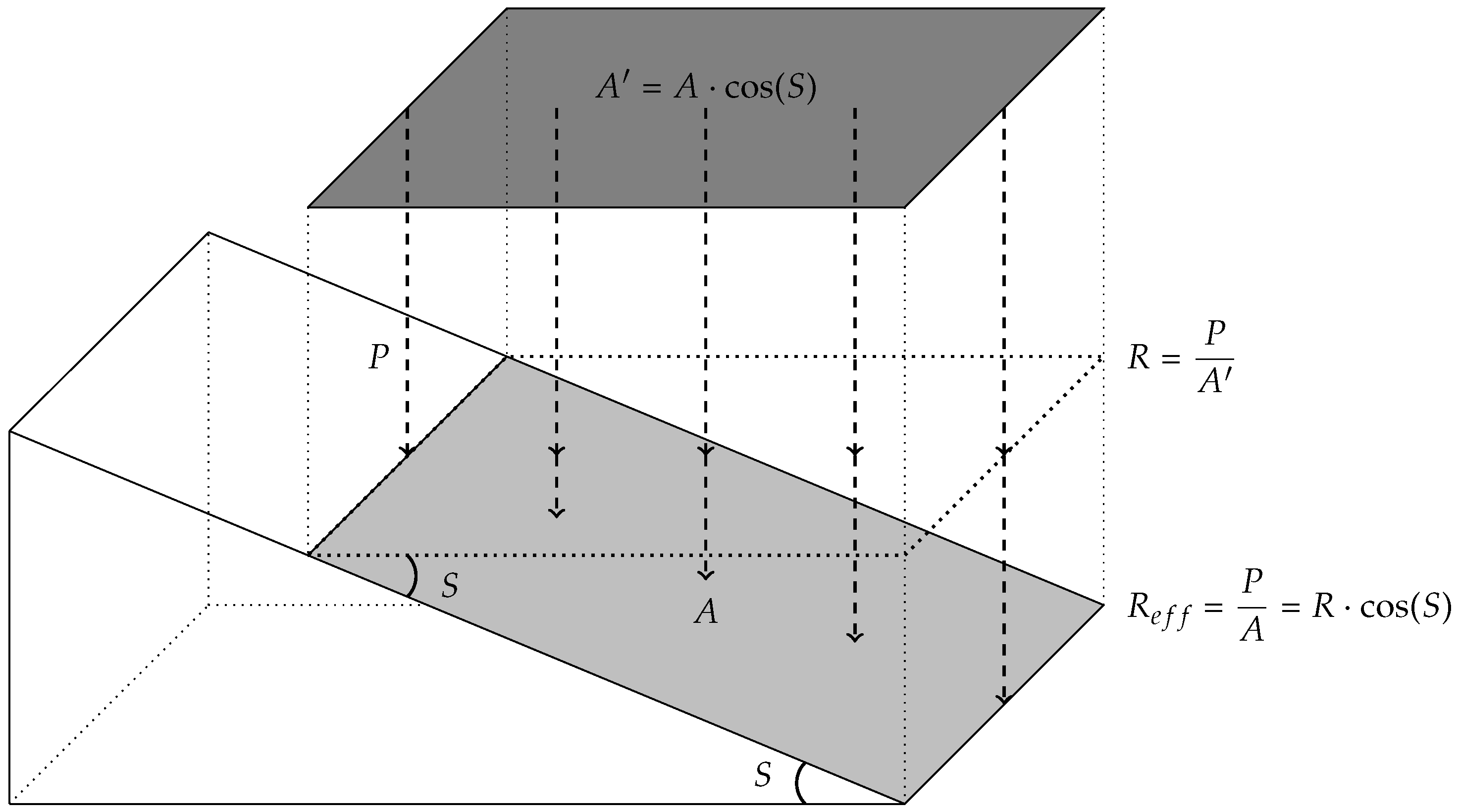

**Figure 2.**Conceptual representation of the effective rainfall (${R}_{eff}$) on a slope element without permanent interception of rainfall (modified from Figure 1 of Choi et al. [39]). Given rainfall with a total volume of P, the amount of rainfall per unit area for both A (${\mathrm{m}}^{2}$) and ${A}^{\prime}$ (${\mathrm{m}}^{2}$) is $P/A$ and $P/{A}^{\prime}$ which is equal to R. From the trigonometric rule, A, the projected area of ${A}^{\prime}$ on the slope, is described as ${A}^{\prime}/\mathrm{cos}\left(S\right)$. Therefore, the rainfall per unit surface area of the element (i.e., the effective rainfall) should be $R\xb7\mathrm{cos}\left(S\right)$.

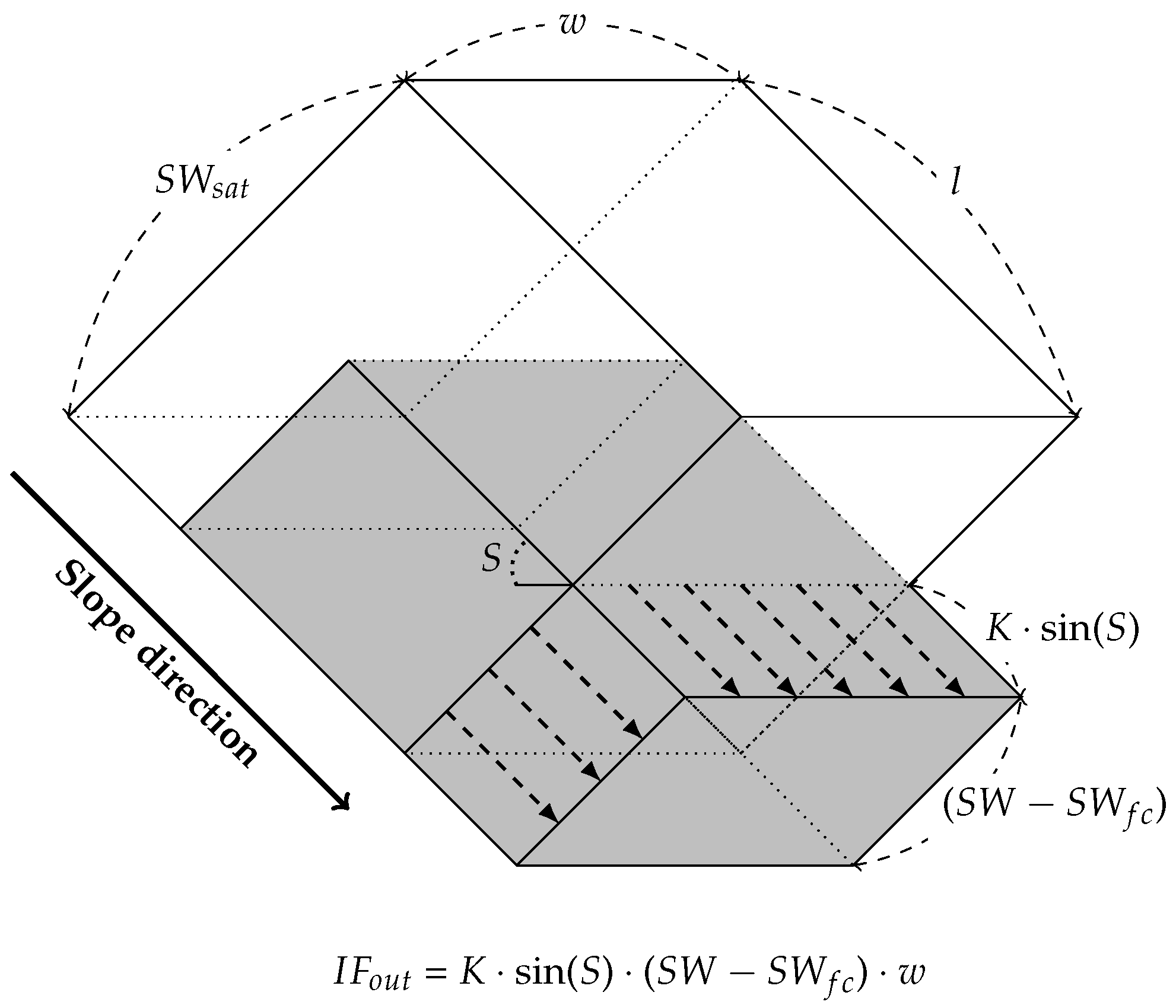

**Figure 3.**Conceptual representation of interflow in an element (modified from Figure 3 of Choi et al. [39]). Let’s assume that there is an element with the width of w, the length of l and slope of S. Then, given transferable soil water for interflow ($SW-S{W}_{fc}$) and saturated soil lateral hydraulic conductivity (K), the volume of interflow from the element ($I{F}_{out}$) can be represented as $K\xb7\mathrm{sin}\left(S\right)\xb7(SW-S{W}_{fc})\xb7w$, and cannot exceed the volume of the transferable soil water of the element ($(SW-S{W}_{fc})\xb7A$).
