Article

Urban Sediment Transport through an Established Vegetated Swale: Long Term Treatment Efficiencies and Deposition

1
Institute of Infrastructure and Environment, Heriot-Watt University, Edinburgh EH144AS, UK
2
Scottish Universities Environmental Research Centre, Rankine Avenue, East Kilbride G750QF, UK
*
Author to whom correspondence should be addressed.
Water 2015, 7(3), 1046-1067; https://doi.org/10.3390/w7031046
Received: 31 October 2014 / Revised: 2 March 2015 / Accepted: 4 March 2015 / Published: 12 March 2015
(This article belongs to the Special Issue Sustainable Drainage Systems)

Abstract

:
Vegetated swales are an accepted and commonly implemented sustainable urban drainage system in the built urban environment. Laboratory and field research has defined the effectiveness of a vegetated swale in sediment detention during a single rainfall-runoff event. Event mean concentrations of suspended and bed load sediment have been calculated using current best analytical practice, providing single runoff event specific sediment conveyance volumes through the swale. However, mass and volume of sediment build up within a swale over time is not yet well defined. This paper presents an effective field sediment tracing methodology and analysis that determines the quantity of sediment deposited within a swale during initial and successive runoff events. The use of the first order decay rate constant, k, as an effective pollutant treatment parameter is considered in detail. Through monitoring tagged sediment deposition within the swale, the quantity of sediment that is re-suspended, conveyed, re-deposited or transported out of the swale as a result of multiple runoff events is illustrated. Sediment is found to continue moving through the vegetated swale after initial deposition, with ongoing discharge resulting from resuspension and conveyance during subsequent runoff events. The majority of sediment initially deposited within a swale is not detained long term or throughout its design life of the swale.

Graphical Abstract

1. Introduction

Sustainable urban drainage systems (SuDS) are designed to control and treat surface water flow and pollution from the increasing impervious development of urban environs [1]. SuDS form part of a blue-green drainage network, the conveyance of stormwater through the urban environment via a network of ponding (blue) and ephemeral (green) vegetated stormwater treatment elements. Urban pollution is comprised of hydrocarbons, elevated nutrient levels, heavy metals, gross pollutants and sediment. Up to 85% of nutrients and heavy metal pollutants are conveyed from urban surfaces adsorbed to fine sediment, ranging from 1 µm to 2 cm [2]. The conveyance and detention of fine sediment is therefore a key indicator of SuDS efficiency, illustrating the transport and detention process of urban pollutants through the blue-green drainage network.
The efficiency of SuDS, including vegetated swales, has been investigated by leading SuDS researchers within the laboratory and in the field under single runoff event conditions. Both simulated and naturally occurring runoff events have been monitored during research completed by Sabourin and Wilson (2008) [3], and single runoff event specific pollutant removal efficiencies have been defined through analysis of this work. Deletic (2001) [4] reported that swale total suspended solid reduction in initial event flows range between 78% and 86%. However, methodological limitations associated with long term source-pathway-sink monitoring of sediment movement through SuDS assets has resulted in limited extended case study research and analysis.
Current best practice employs an arbitrary swale design life of 25–30 years. Understanding of maintenance requirements for a swale beyond litter removal and grass cutting is limited. The long-term effects of multiple rainfall-runoff events through a swale on temporary or long term sediment deposition and removal is not clearly understood. This has led to uncertainty in defining maintenance needs, long-term design efficiencies and best practice.
To address this knowledge gap, field research was undertaken to identify the quantity of sediment from a single release that remains within a vegetated swale over an extended time period. To calculate this, it is necessary to define whether sediment deposited with a swale remains stationary or if it becomes re-suspended and transported due to subsequent runoff events. To create this sediment transport dataset, an effective sediment tracing method was identified and used to illustrate the long-term process of sediment transport in an established urban swale. The trace methodology was required to define the movement of a single sediment release within the total mass transport within the swale.
To ensure the movement of a single sediment release could be monitored over time within the swale, it was necessary to identify a trace that had long-term field resilience, was not lost from the system through sunlight exposure, plant uptake and was not transported through the vegetated environment other than by adsorption to sediment. The trace required multiple unique identifiers, supporting monitoring of multiple individual sediment releases over time.
The selected trace methodology was used on an established vegetated swale in Edinburgh, Scotland. Event and extended field sample analysis identifies the temporary and extended detention efficiency of this established urban swale. The research findings presented in this paper provide recommendations on the resulting efficiency and may be used in defining the assets maintenance needs over the life of the swale.

2. Sediment Tracing Methods

Sediment tracing has traditionally been used in agricultural research settings, investigating field and bank erosion source and processes. River banks and sand bar deposition monitoring use a range of natural sediment tracing techniques, including fingerprinting. There is an extensive range of sediment tracing methods available, from invasive chemical or physical tagging to passive photographic monitoring. The benefits and constraints of the more frequently employed techniques are listed in Table 1.
The blue-green drainage network, into which tagged sediment is released, has environmental value and importance. It is necessary that the trace used in long term monitoring not only be effective in mimicking natural sediment movement but also result in no detrimental impact on the receiving environment.
In conjunction with environmental impact considerations, the key requirement of the sediment trace method for this research was to clearly define the movement of a single sediment release within the total mass transport of a swale over an extended period of time. It was important that the trace not only stay adsorbed to the sediment for months without concentration degradation by environmental influence, but that it be available in several unique forms. These would provide unique trace signatures enabling individual sediment releases to be monitored over time within a single swale, and therefore repetition of the field experiment. Monitoring of a single sediment release over extended time periods through a SuDS is novel, and comparative datasets are not yet published. Therefore, to create this sediment transport dataset a sediment trace methodology specific for this purpose had to be created.
Of the sediment trace methods outlined in Table 1, several do not easily provide multiple unique trace signatures (total suspended solid/PSD analysis; synthetic and magnetic particles). Pollen and magnetic fluorescent material tracers are limited in availability, pollen by the natural availability and fluorescent particles by the artificial fluorescent colours available. Painted natural particles have limited field resilience, and radionuclide [3,4] tracers have been recorded to move both adsorbed and without adsorption to sediment across natural surfaces [5]. Furthermore, the use of radionuclides requires environmental agency permission in many locations, limiting the ease of method availability. Fingerprinting is an effective watershed erosion and sediment [6,7] transport tracing method. It uses the multiple naturally occurring periodic element concentrations and particle size distribution to determine a sediment source. Where the range of sediment sources have distinctly different signatures, for example forestry erosion versus agricultural wash-off or urban sediment, the fingerprinting method is effective. However, sediment entering an urban swale derives from road, car park and roof surfaces within the developed area. While the particle size and heavy metal concentrations differ between these sources, the source specific signatures are not easily discernable. Therefore, it is more difficult to employ the fingerprint method within the urban environment.
Table 1. Overview of sediment tagging methods.
Table 1. Overview of sediment tagging methods.
Trace MethodNumber of IdentifiersActivity Period in Natural EnvironmentRecorded UsePotential for Utilization in Urban EnvironmentSource
Radionuclidesnumerous30–40 yearsStudy of erosion and deposition in the landscape, chronometer for sediment deposition in ponds, lakes and floodplains, agricultural sediment erosion, catchment erosion and deposition in lakes.Effective.
Long activity time results in potential difficulty in replicability.
High resource requirement.
[5,8,9,10,11]
FingerprintingnumerousNatural particle life cycleWatershed/ catchment scale sediment budget analysis.
Sediment source analysis.
Effective but requires chemical signatures to be significantly different between sediment sources.
Requires technical support and laboratory equipment (AAS) and sampling for numerous chemical concentrations.
[11,12,13,14,15]
Painted/coated natural particlesnumerousLimited time frame due to low trace adhesion/adsorption to sediment particle.
Solar degradation may shorten field activity period.
River bank erosion, sediment transport though fluvial networks, larger sediment, pebble and gravel tracing.Highly visible.
Difficulty in separating coated material from remaining sample sediment.
[16,17,18]
Magnetic particles1Extended dependent on synthetic material (coating) chosen or natural magnetismSoil erosion within a watershed.
Sediment loss and detachment from source.
Artificial material limiting natural assimilation or breakdown.
Natural magnetism has limited unique signatures.
[19,20,21]
Magnetic fluorescent material4Extended dependent on the particle material. Fluorescent activity is extended due to the particle coating and designRiver sediment transport.
Piped network sediment transport.
Supports monitoring without loss of material from the field environment.
Easily separated from total sample sediment.
Highly visible.
[16,22,23]
REO17 (15 readily analysed)Extended (months–years)Particle translocation.
Surface erosion, due to rainfall-runoff, overland flow, sediment transport from multiple sources.
Agricultural erosion.
Solute/suspended sediment redistribution in snow, ice, urban, agricultural and rural environments.
Not visible.
Limited environmental impact.
Significant identifiers.
Shown to be effective in alternative conditions.
Untested in the urban environment but meets urban monitoring requirements.
[24,25,26]
PollenLimited to natural vegetation pollen availabilityAnnual time frame (not event specific) to decadesVegetation and land use histories (chronometer).
Pollen peak correlation with annual sediment erosion and deposition.
Ability to trace sediment to source, when source is from natural (vegetated) surfaces.
Limited due to activity period limitations.
Complexities relating to urban surface type, urban source and grassed/vegetated areas that comprise the SuDS.
[27,28]
Synthetic/ artificial particulateslimitedExtended (similar to natural particles)Mass transport flux, TSS concentration and bed load change.Difficult to consider source to sink movement unless limited to a single source within the network under consideration, due to limited identifiers. Replicability difficulty may not effectively mimic natural sediment characteristics.[16,18]
Total Suspended Solid balancing and PSD analysislimitedExtended (similar to natural particles)Mass transport flux, suspended solid concentration change, PSD change related to influence of rainfall and source contribution (high level).Limited to flux and balance analysis.
Difficult to identify source from PSD and mass change alone.
[29,30,31]
Rare earth oxides (REO) provide an alternative to the above sediment trace methods, providing 17 clearly identified trace signatures. REO adsorb easily to natural sediment and have shown limited field detachment in laboratory testing [6,7]. REO tracing has been used in agricultural scour and erosion research and is therefore untested in the urban SuDS environment. However, given the trace properties, it was selected for this research. The trace methodology, previously used predominantly within the laboratory, was modified to achieve single sediment release field monitoring within a swale during multiple runoff events.

3. Rare Earth Oxides

Rare earth oxides are elements naturally found within soil and bed material. They form the lanthanide group of elements within the periodic table and are classified as rare due to their very low concentration within the shallow layers of the earth’s crust. The rare earth element group is comprised of lanthanides, scandium, and yttrium. As rare earths occur naturally in soil at very low concentrations, parts per billion, the analysis of natural rare earth concentrations requires strong acid digestion and assessment by inductively coupled plasma mass spectrometer (ICPMS) [32].
Rare earths have been used in agricultural scour and erosion research to monitor sediment movement [24,30]. Zhang et al. (2001) [6] first published rare earth tracer methodology in 2001, illustrating rare earth elements strong binding capacity to soil and low mobility after attachment due to leaching. Rare earth elements have been successfully used as unique, single signature sediment tracers to monitor soil movement through agricultural media in a laboratory setting [25,33]. The rare earth group have 15 easily analysed, unique, single element signatures that adsorb strongly to a wide variety of particle sizes (<0.01 to >4.75 mm). Adsorption of rare earth oxide (REO) occurs though preferential bonding [34]. In the natural drainage and soil environment, there is no significant leaching or movement of REO from tagged sediment to surrounding material [6]. REO are not taken up by vegetation, therefore, being appropriate for use within the blue-green drainage network, and do not naturally degrade in sunlight or de-stabalise over time [27,35]. Due to the extended field activity period (months to years), the high number of unique identifying signatures and the limited impact on the receiving natural environment, REO tracers have potential as highly effective urban sediment tracers.
Rare earth tracing, while noted to achieve effective integration with tag material, low or no solubility in water, limited plant uptake, no eco-environmental damage and to exist in very low natural concentrations [7], there are several limitations to REO tracer use. Tracer enrichment may occur due to an increase in tracer mobility with increasing soil or runoff acidity [7]. REO also preferentially bind to fine particulate material, silt and clay particles [36]. Therefore, where a large particle size distribution (including coarse sediment, sand or gravel) is used in a trace experiment, there may be an over or underestimation of REO concentration due to REO tracer transference [36]. Research in REO tracer enrichment due particle size re-distribution during erosion experiments suggests a potential error of 4% when considering a particle size range from 8 mm to below 0.9 mm [25,26,33,36].

4. Field Site and Experiment Methodology

An established, maintained, active urban swale was selected for the field trials. The swale is located within Heriot-Watt University grounds, Scotland. It is located parallel to a local road and collects runoff directly from this road network. The swale has a mild grade (less than 2%), is over 100 m in length, grassed and conveys stormwater runoff from a 500 m2, 40% impervious, urban developed area to a piped stormwater network. Runoff from the contributing area is conveyed to the road and enters the swale via curb inlets along the road. The road has a single camber, therefore, insuring all stormwater flows to this swale.
The field experiment was designed to allow one sediment release of REO tagged material at the commencement of the monitoring period. This sediment, equating to 1/4 of the annual average sediment loading, was released onto the impervious surface (road) upstream from the swale inlet. 10 kg of dry, tagged sediment was evenly spread across a 10-m long, 1-m wide strip of road upstream from the swale inlet. The tagged material was then washed off the road surface by a 30 min long, three-month return period runoff event. The runoff event was artificially created using a pressurized local water source (fire hydrant) and a level spreader was employed upstream from the sediment release location to allow runoff to sheet flow across the road towards the swale inlet.
Sediment was tagged following the detailed process described in Zhang et al. (2001, 2003) [6,25]. Tagged sediment was designed to be representative of the known sediment occurrence on urban roads. Road sweeping collection and particle size analysis was completed at the field site, and this, in conjunction with literature review of urban road sediment particle size distribution and loading, defined a representative sediment sample characterization (d50 = 60 µm and 50 ton/km2/year) [37,38]. There is limited guidance on the effective concentration of REO trace to sediment ratio, and REO tracing has been limited to agricultural sediment tracing conditions to date. Literature suggests that in an agricultural scour tests in laboratory environments a concentration of 5–100 g/kg may be appropriate for effective signature analysis [26,27,35]. Deasy and Quinton (2010) [26] undertook field tests using up to 500 g/kg of REO trace to ensure a clear trace signature was created in the field environment. The nature of a trace is to provide detailed sediment transport information without significant influence to the receiving environment or sediment dynamics. Therefore, it is important to identify the minimal concentration of sediment trace necessary to effectively monitor sediment transport activity in the field without compromising the results due to weak signature strength.
To identify the effective trace concentration necessary for swale sediment transport tracing, the experiment was replicated using two unique rare earths (La and Nd) at different trace concentrations (10 g/kg and 100 g/kg respectively). The assumption that sediment in both experiments sediment should move in a similar way, providing a similar trend pattern in REO concentration) allowed trace concentration influence on signature clarity and effective (minimum) trace concentration to be defined. It should be noted that background REO concentrations (of both artificial runoff and swale soil) were low, below ppm analysis levels.
Using a local water source the first runoff event was artificially created. Tagged sediment was placed upstream from the swale inlet prior to runoff event 1. Runoff event 1 then created flow over the sediment laden road surface and entered the swale. The event ceased after 30 min, and a one-hour drying period was provided.
A second artificial runoff event, of the same duration and intensity as runoff event 1, was then artificially created. No further sediment was placed on the upstream impervious area but surface flow was allowed to follow the same path as runoff event 1. After a one hour drying period, a third artificial runoff event was created, of the same duration and intensity at the previous two runoff events.
Figure 1 provides a schematic layout of the monitoring and sampling undertaken during and after each flow event. All sediment-laden runoff entered the swale 40 m upstream from the grated downstream outlet. During runoff events 1, 2, and 3 grab samples were collected from surface flow at three locations within the main flow path of the swale. It is acknowledged in selecting this sample method that surface sampling, in the form of grab samples, may not provide detailed accurate representation of suspended sediment concentrations where sediment particle size distribution is large. Swale surface samples were collected from 1 m downstream from the swale inlet (upstream location); 20 m downstream from the inlet (central section of the swale); and one meter upstream from the outlet (downstream location). Surface samples were collected at all three locations at 5 min intervals throughout the runoff events.
Figure 1. Schematic swale diagram.
Figure 1. Schematic swale diagram.
Water 07 01046 g001
Between runoff event 1, 2, and 3 runoff was allowed to discharge from the swale. At the cessation of swale flow, sediment deposition samples were collected from gravel bed traps placed in the swale bed at two locations (corresponding with the upstream and downstream surface sample locations). The sediment traps were square collection trays inset into the swale bed, filled with gravel and sized to collect up to 2 mm sediment particles transported by rolling, saltation or deposited on cessation of runoff flow.
Flow depth and velocity were monitored at the upstream and downstream extent of the 40-m swale reach. Stingray ultrasonic sensors were anchored on the swale bed and continuously logged flow depth and velocity from the commencement of runoff event 1 until cessation of swale flow from runoff event 3. This recorded the inflow and outflow for each runoff event supporting flow relative comparison of sediment transport results.
Once the artificial runoff events were completed, core samples to 0.02 m depth were taken at five-m intervals down the central flow path of the swale. Core samples were taken immediately post experiment completion, one week, six months, and 12 months after the release of trace tagged sediment on the upstream road surface.
The REO concentration in all samples, runoff event surface samples, bed deposition and core samples, were analysed using an ICPMS. To detach REO trace material from sediment, samples must undergo strong acid digestion [6,25]. Surface and bed deposition samples were thoroughly shaken and 50 mL of suspended sample material was processed using strong acid digestion methodology. Core samples were dried at 105 °C for 24 h. Individual dried samples were mixed thoroughly and two grams of sample material was prepared for ICPMS analysis through strong acid digestion. Filtered digestion liquid was tested by ICPMS to define sample REO concentrations. It should be noted that runoff event water and background soil samples were also tested to provide background REO concentration levels.

5. REO Trace Results

REO concentrations within runoff event flow, bed deposition and core samples taken over the six-month period were collated with swale flow depth, velocity and rainfall records. The REO trace provides a clear signature at both 10 g/kg and 100 g/kg trace concentrations throughout the 40 m monitored reach of the established swale. Figure 2 presents trace concentrations during runoff events 1, 2, and 3 and demonstrates that the presented REO trace methodology is effective in illustrating sediment transport through an urban vegetated swale under ephemeral conditions.
Figure 2. Tagged sediment concentrations at the upstream swale monitoring location.
Figure 2. Tagged sediment concentrations at the upstream swale monitoring location.
Water 07 01046 g002
REO tagged sediment of two selected tracer:sediment ratios were released. Figure 2 illustrates that both the 10 and 100 g/kg REO to sediment ratios appear to function as effective tracers within a blue-green network. The two REO tagged sediment material show concentrations that follow a similar trend when analysed at part per million concentrations by an ICPMS. The concentration of sediment entering the swale during event one follows the same curve and results in tagged suspended sediment (TSS) concentrations of similar value.
There is a magnitude shift in the TSS concentration values seen in runoff event 1. The amount of 100 g/kg tagged sediment is 8 to 10 times greater than the 10 g/kg tagged material. However, runoff events 2 and 3 show a comparable quantity of tagged sediment in the samples, as would be expected. The cause of the elevated 100 g/kg tagged sediment results during runoff event 1 is due to the absorption maxima for the tagged soil composition being reached. The increased flush of REO trace during this first runoff event is a result of excess trace being transported through the swale in suspension. Within this field research, a range of particles sizes were used, with tag media comprised of both sand and clay. Laboratory analysis undertaken by Kreider (2012) [39] suggests clay/silt material adsorption maxima to be 12,400 ppm while a range from 1900 to 43,000 mg/kg presented is in Spencer et al. (2007) [35]. While it is acknowledged that these adsorption maxima are not specific to the tag material used in this field research, the 100 g/kg REO concentration is noted to be significantly above these adsorption levels. Thus, while past REO trace research has used up to 100 g/kg trace to sediment tag rates, the flush of 100 g/kg REO trace in solution during the first runoff event highlights the sensitivity of tagged material composition to REO trace use.
Considering the REO signatures created by both 10 g/kg and 100 g/kg trace concentration, the lower concentration trace was selected for future sediment trace field research, minimizing the amount of material released into the environment and receiving waterway. It should be noted that concentration errors due to enrichment from the swale soil source are assumed to be insignificant, due to the low background REO concentrations.
Runoff event specific sediment detention for a swale is expected to be approximately 90% [3,4,40]. Analysis of the REO concentrations for the initial (runoff event 1) 30 min event agreed with general sediment treatment expectations. The sediment detention within the swale as a result of runoff event 1 was between 90% and 98% for all experiment repetitions.
The three monitored runoff events provided tagged sediment transport concentrations respective to the runoff event (1, 2, or 3). As would be expected, the initial event (runoff event 1) showed elevated upstream concentrations and the highest concentration relative to subsequent events (Figure 3, upstream). Within each single runoff event, the REO concentration decreased progressively down the swale (moving from the upstream to downstream sampling location); however, variance is illustrated between the extent of this decrease between each event.

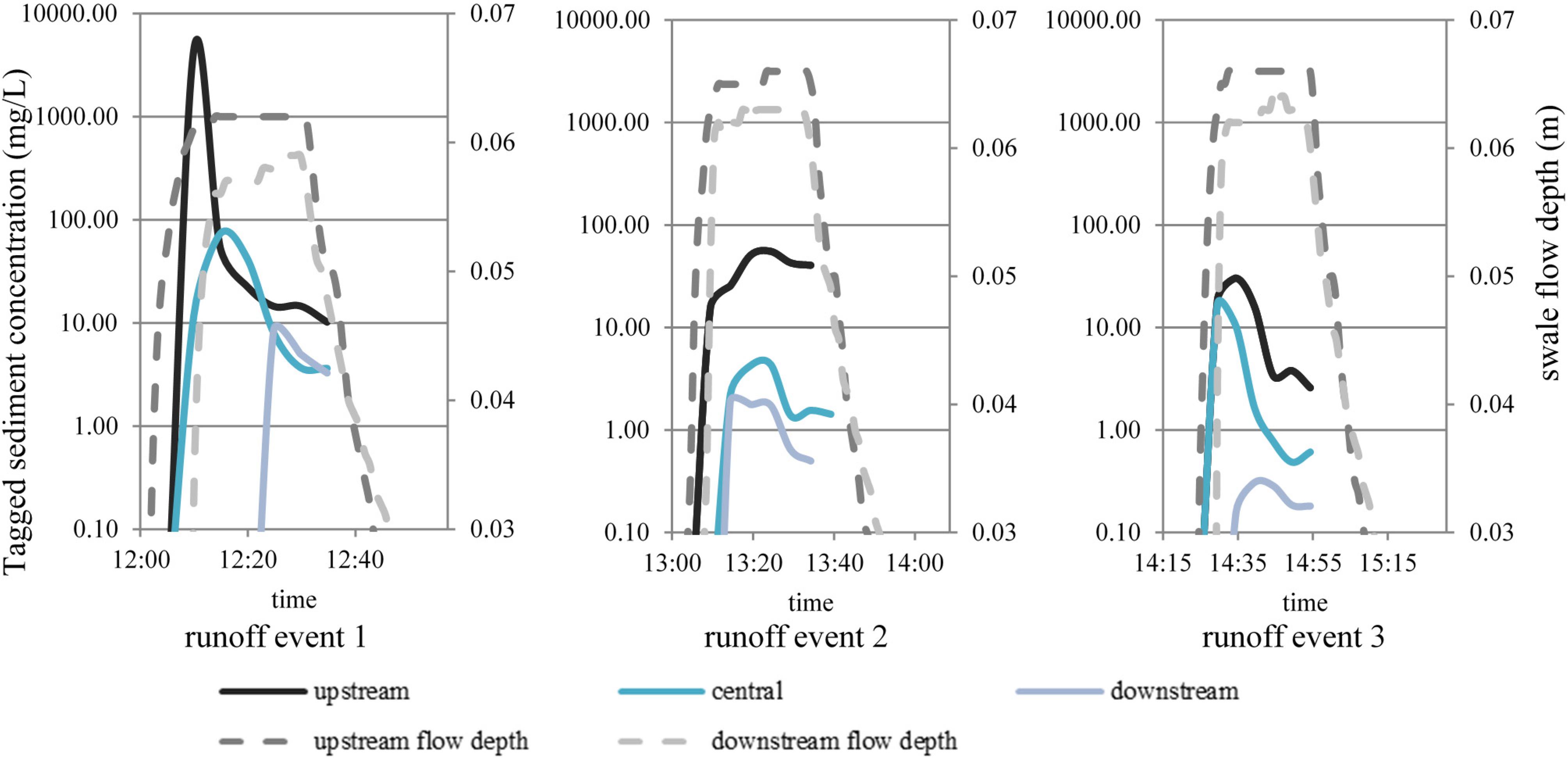

Figure 3. REO tagged sediment concentrations for artificial runoff events at the three surface runoff monitoring locations within the swale (upstream, central, and downstream locations)—Experiment 1 results.
Figure 3. REO tagged sediment concentrations for artificial runoff events at the three surface runoff monitoring locations within the swale (upstream, central, and downstream locations)—Experiment 1 results.
Water 07 01046 g003
Runoff event monitoring illustrated a rise in REO concentration occurring with the commencement of each flow event (Figure 3). During runoff event 1, this peak was approximately five times the average event concentration. Cristina and Sansalone (2003) [41] and Ellis (1996) [37] considered the high fine sediment concentration in urban stormwater movement and the occurrence of elevated sediment concentrations initiated by stormwater flow (first flush principles). The peaks illustrated within these results show a sediment concentration increase as a result of runoff flow entering the swale, but the trace concentration peak occurs concurrent or after the runoff flow peak and therefore is not considered to be a first flush occurrence. The peak in sediment concentration within the sediment pollutograph is considered to occur as a result of runoff flow movement, the initiation of transport as a direct result of the introduction of flow to a dry flow path, where rainfall is greater than the loss to infiltration.
Of interest is the change in concentration at each specific monitoring location over the three flow events. It is anticipated that the upstream concentration decreases over time, as illustrated in Figure 3. Small flow initiated concentration increases occur in events 2 and 3 at the upstream sampling location. No further sediment was applied to the upstream impervious area of the runoff flow path, thus the increase in upstream tagged sediment concentrations during runoff events 2 and 3 do not occur through continued introduction of tagged sediment from the road. Hussein et al. (2007) [42] undertook detailed experimental research to identify the dynamics of sediment transport from an impervious (low manning’s n, 0.016) surface into a vegetated flow path (manning’s n of 0.025–0.035). Their research findings illustrate a sediment deposition zone at the impervious/vegetated surface interface. This sediment deposition zone, occurring at the vegetation boundary where runoff enters the swale (within this field experiment) is found to act as a temporary sediment storage area. During runoff event 1, tagged sediment from the upstream impervious area became temporarily detained at this vegetated boundary. As successive runoff events occurred, runoff events 2 and 3, the sediment deposited at this vegetation boundary became entrained and entered the swale, therefore creating the upstream-tagged sediment concentration elevations within these runoff events (2 and 3).
The REO trace concentrations were found to generally decrease during the ongoing flow event. Concentrations decreased by 83%–99% of the inflow sediment concentration. The smaller REO concentration peaks associated with the commencement of runoff events 2 and 3 suggest resuspension or continued influx of REO tagged sediment within the monitored swale length. While no further sediment was introduced into the system during these following events, the upstream vegetation boundary was noted to have a potential influence over sediment inflow into the swale [42,43,44]. The receiving swale vegetation edge appears to act as a temporary detention zone, supporting ongoing sediment release into the swale with additional events. The REO concentration peaks at the commencement of event 2 and 3 are notably smaller than in event 1, however the persistent occurrence of these flow initiated peaks supports the inclusion of vegetation boundary influence in swale sediment balance analysis.
The continued decrease of tagged sediment concentration during runoff events 2 and 3 illustrate a continued transport of sediment through the swale. Sediment entering the swale during runoff event 1 is shown to travel downstream (Figure 3), while runoff events 2 and 3 illustrate a flow driven sediment pulse that is also shown to move to the downstream monitoring location. There is a general decreasing tagged sediment concentration trend for upstream and downstream monitoring locations over the three runoff events. While the overall average REO concentration over the three events decreases for the central monitoring location, there is a notable increase in peak concentration. This inconsistency in concentration flux may illustrate the influence of internal swale sediment resuspension resulting from subsequent flows.
The sediment trapping efficiency of the swale was calculated simply through comparison of the REO concentration entering and leaving the swale during each flow event. The tagged sediment concentrations shown in Table 2 illustrate the decreasing tagged sediment trapping efficiency of the swale in runoff events 1, 2, and 3 for the single sediment release. The first and second repeat of the trace and artificial runoff event results are provided in Table 2 to illustrate consistency in the tagged sediment trapping efficiency trend of the swale. REO tagged sediment continued to leave the swale during the second and third flow event, decreasing the quantity of sediment permanently detained within the swale. This supports the theory of continued sediment resuspension due to subsequent flows through a blue-green drainage system, and that the assumption that sediment detained within the initial event will remain within the swale in perpetuity is inaccurate.
Table 2. Summary of sediment trapping efficiency (tagged sediment concentration leaving the swale-the total tagged concentration entering the swale) during artificial flow events (for two replicate artificial runoff experiment sets).
Table 2. Summary of sediment trapping efficiency (tagged sediment concentration leaving the swale-the total tagged concentration entering the swale) during artificial flow events (for two replicate artificial runoff experiment sets).
ExperimentRunoff EventSediment Trapping Efficiency (Retention of Tagged Material)
1198%
297%
384%
2195%
275%
367%
Swale bed deposition was collected between each flow, using sunken sediment taps within the swale central flow path. Two sediment traps were set within the monitored swale reach. The REO concentration for each runoff event deposition is illustrated in Figure 4a. Similar to the function of a vegetated filter strip, the upstream receiving vegetated flow path detains a more significant amount of sediment than further downstream [31]. Deposition at the downstream extent is between 90% and 95% lower than upstream. Furthermore, the deposition decreases over subsequent events, supporting the theory of ongoing movement and deposition of REO tagged sediment material through the swale.

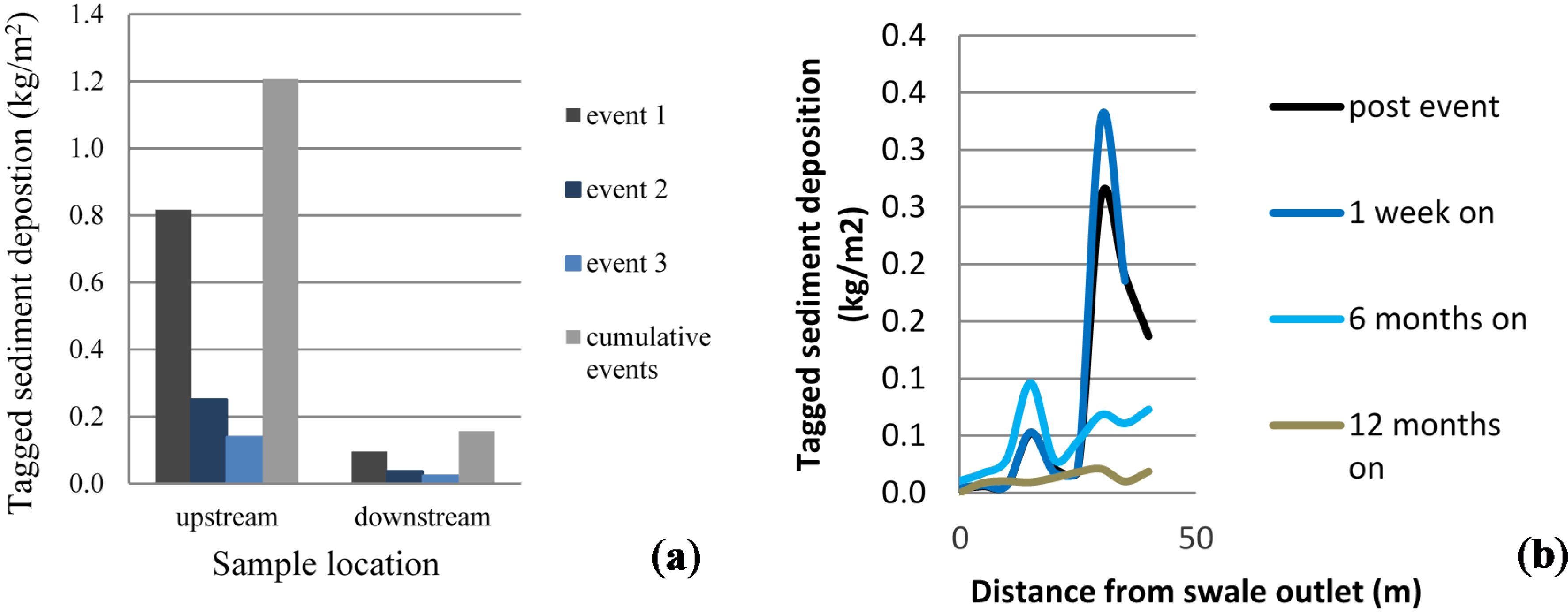

Figure 4. Deposition of tagged sediment within sediment traps placed in the base of the swale: within the swale between runoff events (a); and over the following 12-month period (b).
Figure 4. Deposition of tagged sediment within sediment traps placed in the base of the swale: within the swale between runoff events (a); and over the following 12-month period (b).
Water 07 01046 g004
Core samples taken at five-m intervals across the centerline of the swale over a twelve month period indicated that re-suspension and deposition continued to occur. Over the monitoring period the quantity of REO tagged sediment within the swale flow path depletes within the upstream extent (70%–75%). The REO tagged sediment peak moves down the swale over time, from the upper 30–40 m swale point (30–40 m upstream of the outlet) to 10–20 m location over six months. Figure 4b illustrates a slow continuous sediment resuspension and deposition process that moves sediment from the initial release consistently downstream over time. After six months, the concentration at the downstream extent of the swale was noted to be greater than immediately after the initial flow events. Of the REO tagged sediment initially deposited within the swale (0.8 kg/m2), up to 0.1 kg/m2 remained deposited after six months. Considering the area under each time stamped deposition curve in Figure 4b, the net tagged sediment loss (REO tagged sediment mass balance loss) between post event samples and six months on is 38%. This indicates the quantity of tagged sediment that has been re-suspended and conveyed out of the swale during subsequent events during the six-month period, a continued decrease in detention efficiency due to ongoing flow events through the swale.

6. Analysis and Discussion

6.1. Cumulative Runoff Event Sediment Detention within the Swale

The rate of deposition and sediment detention over cumulative runoff events, and therefore time, is key to clarifying swale long-term efficiency in stormwater treatment for water quality improvement. Figure 3 and Figure 4 highlight the flow driven sediment transport process and the potential for re-suspension and distribution of sediment across a swale over time.
The rate of sediment loss from the swale is directly related to runoff event occurrence, illustrated in Figure 4b. Extending this simplistic relationship across the across the field monitoring period provides a trend in detained sediment concentration within the swale. This trend shows that the quantity of sediment, from the initial tagged sediment release, detained within the swale continues to decrease as the number of runoff events flowing through the swale increases.
Field data has been collected for a period of 12 months. Using the field results, the trend in sediment deposition relative to the cumulative runoff event occurrence for one sediment release was calculated and plotted (trend line illustrated in Figure 5). However, swale design life expectancy extends 25–30 years. To provide an insight into the sediment deposition occurring within a swale from one sediment release over an extended period, multiple runoff events in excess of that which occurred during the field monitoring period need to be considered. Using the long-term site rainfall records, the expected number of runoff events over a period of 1 to 25 years equal to or greater than the three-month rainfall depth were determined. Extrapolating from the field tagged sediment deposition results, extended cumulative runoff influence on tagged sediment deposition was considered (illustrated in Figure 5 as the light blue points).
Figure 5 illustrates the estimated extended sediment deposition from the field results based sediment deposition trend (for one tagged sediment release) out past 100 rainfall-runoff events. The exponential rate of detention efficiency decrease determined from the field test values (the field test trendline) was used with historic rainfall data to estimate the potential sediment deposition within a swale, from a specific initial inflow, after multiple rainfall-runoff events. This simplistic extrapolation allowed the estimation of sediment deposition remaining within the swale after 25 years of rainfall-runoff events.

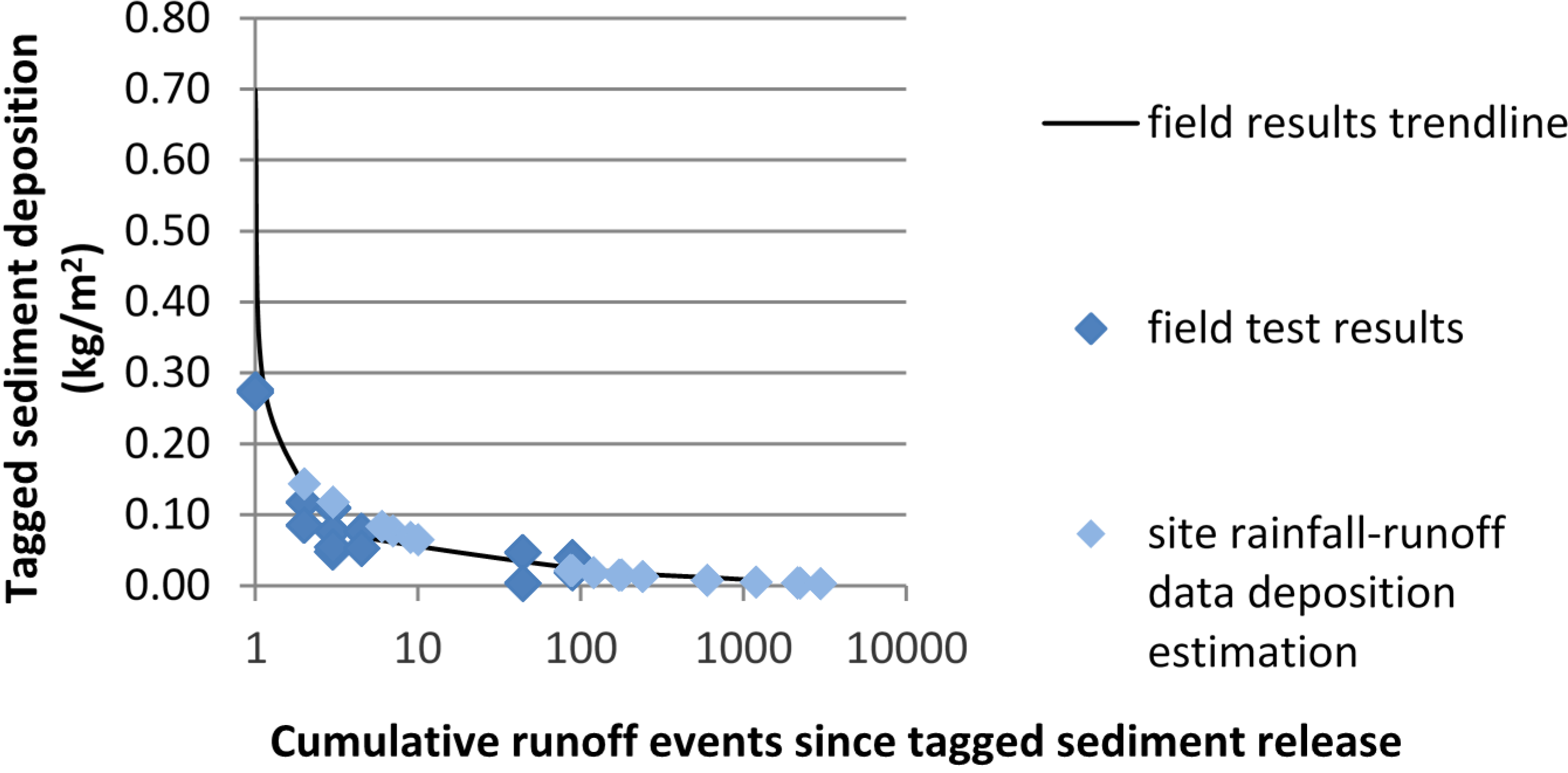

Figure 5. Field monitored and empirically estimated trace sediment deposition within the swale over multiple runoff events.
Figure 5. Field monitored and empirically estimated trace sediment deposition within the swale over multiple runoff events.
Water 07 01046 g005
The trend suggests that there is a continued but small resuspension and release of tagged sediment over cumulative runoff events, resulting in a small long-term sediment deposition quantity (from one single sediment release) over an extended period.
It is acknowledged that this is a simplistic approach to sediment deposition estimation within this swale, however it is also one of few field based deposition extrapolations and thus provided some new evidence of ongoing sediment release from a swale as the result of cumulative runoff events. As illustrated in the field tests, greater sediment deposition occurs during initial runoff events. As the time after initial sediment entrance into the swale increases, and the number of runoff events occurring during this period also increases, the quantity of sediment remaining within the swale from the initial runoff event decreases exponentially. The relationship between tagged sediment deposition within the swale is relative to the number of events occurring over the reviewed time period. The influence of intensity and duration of the runoff event is less significant that the occurrence of the event itself, suggesting that the influence of flow entering the dry swale is a driver in sediment resuspension within this swale.
From Figure 5, the estimated tagged sediment deposition with this swale after two years (an example maintenance period for a swale) located in Edinburgh would be 0.02 kg/m2 (8% on the initial release). This is the quantity of sediment from a single sediment release estimated to remain within the swale after 180 runoff events (greater than the threshold). Over a 25-year life cycle of a swale [45], the sediment load remaining within the swale from a single initial sediment release or entrance is estimated as 0.01 kg/m2. To consider the sediment potentially remaining deposited within the swale 25 years after it becomes operational, a cumulative approach is needed. If it is assumed that a sediment volume equivalent to that tagged and released in the field experiment represents a three-month runoff sediment influx, and that this occurs effectively 100 times over a 25 year swale design life at relatively regular intervals, then a gross estimation of detained sediment mass (considering the ongoing runoff event sediment transportation out of the swale) for this swale would be approximately 8 kg of sediment. This residual mass is relative to the period of swale operation and number of runoff events occurring during this period, therefore incorporating the residual sediment mass from events 24 years to three months previous to the 25th swale year. The 8 kg sediment deposition is approximately 3% of the total sediment mass entering into the swale every three months over the swales lifetime. A significant proportion of urban pollutant is, therefore, conveyed downstream through a swale over time. While is it noted that significant assumptions and simplistic extrapolation has been undertaken to estimate this design life sediment deposition quantity, it does highlight that further research is required to accurately consider multiple event and extended period swale functionality. If the assumptions and extrapolation are accepted, then a single, initial runoff event stormwater mitigation analysis to calculate a swale sediment detention efficiency may not accurately represent the long term sediment detention efficiency of a swale.

6.2. First Order Decay Analysis of Swale Sediment Mitigation

The current accepted method to analyse pollutant removal efficiencies, especially for SuDS and blue-green drainage assets, is through first-order kinetic decay pollutant removal estimation. This method employs a CSTR or plug flow assumption regarding pollutant transport and treatment [45,46]. The first order decay model is well established in pollutant modeling and has been utilized within SuDS and stormwater management models such as MUSIC [46], and is described in Wong et al. (2006) [47] Equation (1)) as:
q d C d x = k ( C C * )
where q dC/dx = the rate pollutant concentration moves towards an equilibrium or background concentration with proportional distance along the treatment measure; C* = the background concentration (mg/L); q = hydraulic loading rate (m/yr), the ratio of inflow and surface area of the system; x = the fraction of distance from the inlet to outlet; C = the concentration of the water quality parameter (mg/L); k = areal decay rate constant (m/yr) [47].
k is defined as a constant rate of change [4,47,48], the time taken for a pollutant concentration to change from its initial inflow concentration to the final attenuated, deposited and detained concentration [49]. This equation acts to describe the overall movement of pollution from an event based pollutant influx to an equilibrium or background pollution level. It is used to describe total suspended solid, nitrogen, phosphorus and biological oxygen demand pollutant treatment efficiencies of SuDS [47].
An alternative published description of the first order decay rate currently used in SuDS pollutant removal efficiency analysis is:
C o u t = C * + ( C i n C * )   e k / q
Equation (2) is quoted from Wong et al. (2002) [46]. Within the published paper the equation parameters are described as the following:
  • Cout = output concentration (mg/L);
  • Cin = input concentration (mg/L);
  • C* = background concentration (mg/L);
  • q = hydraulic loading rate (m/yr);
  • k = decay rate constant (m/y).
Equation (2) provides a continuous stirred tank reactor (CSTR) first order decay model [46]. This differs from Equation (1) in that it considers “lumped” pollutant removal rather than comparative distance (x) through the SuDS pollutant concentration change. Where Equation (2) considers the pollutant concentration only at the inlet and outlet, the total overall SuDS asset pollutant removal achievement, Equation (1) allows inter-event assessment and consideration of the internal SuDS asset function (as a function of the linear pathway between inlet to outlet, as a function of x).
The first order decay model is generally employed for steady state specific event analysis. Best practice guidance for k-C* modelling provides expected k constant values. These range from 4000 to 15,000 m/yr [48]. Rearranging Equation (2), the change in pollutant concentration can be calculated using the representative decay rate constant (k) relative to the SuDS asset hydraulic loading rate (e−k/q).
Multi-event sediment deposition and surface sediment samples collated from the field experiment were used to identify the k constant relevant to this swales performance. k was calculated using both Equations (1) and (2), to incorporate pollutant treatment using both CSTR and proportional distance through the SuDS system methods. Using the known Cin, Cout and C* values for each event and the hydraulic loading rate, the field experiments concentration rate of change was calculated and compared to expected decay rate constant k.
The field experiments illustrate that over multiple rainfall-runoff events, k does not perform as a constant. The field trial concentration rates of change (the rate of sediment detention within the swale) for the first flow event is greater than k = 15,000 m/yr. k values decrease as events accumulate (a decrease over event 1 to 3), with k values falling to 6000 m/yr. Field trial sediment conveyance rates relative to specific events do not conform to the k constant rule, k values ranging from 6000 to 23,000 m/yr. The greater the k value, the less sediment is conveyed through the swale during an event, suggesting greater swale sediment detention efficiency. Figure 6 suggests the k-C* model may effective for single initial event analysis, but requires further consideration and expansion to effectively describe subsequent flow event impact on pollutant decay rates over time.
Figure 6. Pollutant concentration change relative to hydraulic loading across the swale.
Figure 6. Pollutant concentration change relative to hydraulic loading across the swale.
Water 07 01046 g006
k values estimated through the k-C* model using field trial results show a higher concentration rate of change as subsequent flow events occur. As illustrated in Figure 5 and Figure 6, sediment detention efficiency decreases with an increase in the number of flow events. The largest k value occurs as a result of the initial flow event, with subsequent events resulting in a decreased detention rates.
Deletic (2005) [50] undertook detailed grass filter strip event specific sediment transport analysis. Her research defined several key influences over the event specific sediment conveyance and deposition process, including an explanation for runoff event specific trapping efficiency due to stormwater flow over vegetation. Trapping efficiency (Trs) is a function of the amount of sediment entering the swale (Cs,in) and the sediment load at a sampling point x distance downstream from the inlet (Cs(x)).
Tr s ( x ) = C s , in C s ( x ) C s , in
where,
  • Tr s = inflow sediment load of fraction s;
  • C in , s = inlet sediment load of fraction s (mg/L);
  • C out , s = outlet sediment load (at monitored point of fraction s (mg/L);
  • X = distance from the inlet of the SuDS (m) [51].
The trapping efficiency, Trs(x), was calculated using field experiment data. Monitored flow and REO concentrations during each of the replicated field trial events allowed calculation of Trs(x) as well as k. Figure 7a illustrates that the trapping efficiency is not constant across all events, but does illustrate the expected direct relationship between rate of concentration change and trapping efficiency within the asset. k is the consistent influence in the removal rate or rate of decay, and, therefore, should illustrate some relationship to the assets trapping efficiency.

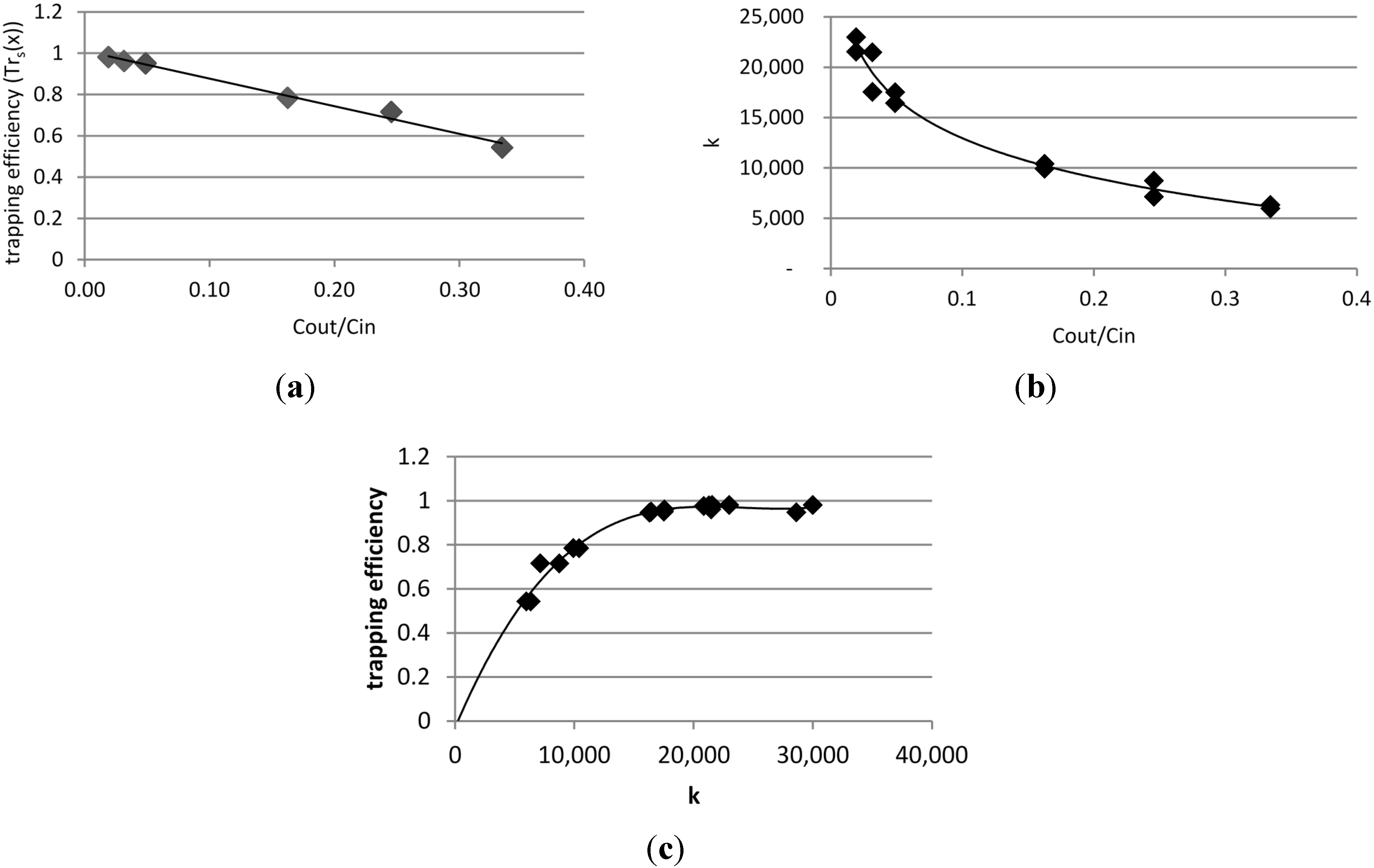

Figure 7. Correlation between sediment detention rate and (a) trapping efficiency; (b) first order decay rate constant k; and a comparison of (c) trapping efficiency and first order decay rate constant k.
Figure 7. Correlation between sediment detention rate and (a) trapping efficiency; (b) first order decay rate constant k; and a comparison of (c) trapping efficiency and first order decay rate constant k.
Water 07 01046 g007
Figure 7c compares the field trial trapping efficiencies calculated using Equation (3) and the k values calculated through Equations (1) and (2). A positive relationship is illustrated between Trs and k. k is shown to function as a coefficient rather than a constant when considered over multiple events. Figure 7c demonstrates the rapid Trs change with lower k values, and a trend towards a Trs of 1 (perfect trapping efficiency) as k values increase beyond 15,000 m/yr.
The field trial dataset created through this research provides the basis from which a matrix of k coefficients can be defined for this swale. It also provides a methodology to assess further blue-green network assets and ephemeral vegetated SuDS systems to define the long term, multiple event pollutant (sediment) decay rate and trapping efficiencies. Figure 6 and Figure 7b emphasize the constraints of k constant proportionality assumptions in long term, multiple event analysis and the potential extension of k from constant to coefficient. k functionality as a coefficient is considered to be driven by the change in trapping efficiency resultant from multiple event influence on a single sediment release. Wong et al. (2002) [46] notes that k-C* was designed for single event analysis within a conceptual modeling scenario. However, if extended and multi-event swale activity is to be considered for life cycle analysis, design improvement and provision of maintenance recommendations, modification of k from a constant to a coefficient following a positive Trs relationship curve towards Trs = 1 has been illustrated as an effective method of analysis.

7. Conclusions

REO have been effectively used to trace urban sediment pollution through an ephemeral blue-green SuDS asset (swale). Rare earth tracing methodology, previously employed in agricultural and river bank erosion monitoring, has been implemented in an urban environment. An effective trace concentration has been identified through field trails, demonstrating the use of 10 g/kg REO trace to sediment ratio to be effective in the field. REO tracing has been monitored in these field tests over 12 months, providing an extended, multiple runoff event sediment transport dataset through an established swale that defines the intra event and extended time period sediment movement. REO methodology defined within this paper is effective for ephemeral vegetated stormwater sediment tracing, providing clear unique sediment tracing signatures over an extended field period, without significant degradation or loss to the receiving environment.
Intra-event REO monitoring highlights the occurrence of a flow initiated concentration peak in the initial and subsequent flow events through a swale. Extended field monitoring has proven that pollutant (tagged sediment) residency within the swale exceeds six months, although there is a continued depletion of the quantity of sediment detained within the swale as a result of continued runoff events through the swale over time. Using a single tagged sediment release methodology, the resuspension, deposition and loss through conveyance of sediment in the swale is shown to change. Bed deposition and trapping efficiency are found to decrease progressively over multiple runoff events. Extrapolating from the field results, a tentative estimation of 25-year swale detention efficiency is calculated to be 3% of the initial inflow deposition.
This analysis considers use of the first order decay model to calculate long-term deposition. Field results show that while initial event sediment trapping or detention can be reflected through the k-C* model, inclusion of subsequent events results illustrates the constraint in implementing k as a constant. Using the trapping efficiency equation defined by Deletic (2005) [49], the direct relationship between multiple event sediment concentration change and trapping efficiency has been proven. When multiple events are considered, k functions as a coefficient rather than a constant, supporting a positive change in trapping efficiency. The sediment trapping efficiency is influenced by event occurrence over time. This can be reflected through a decrease in k values over an extended, multiple runoff event analysis period of a single sediment release. While this field research illustrates a range of k values representative of this specific blue-green drainage assets within the local Scottish environment, the advancement of the first order decay model and definition of a novel and effective long term sediment SuDS analysis methodology have been demonstrated.

Acknowledgments

This study is supported by the Engineering and Physical Sciences Research Council (EPSRCEP/J501335/1 and EP/K50337X/1) and the Heriot-Watt University School of the Built Environment. It has been completed as part of the EPSRC Blue-Green Cities Consortium project. Significant support has been provided by the Scottish Universities Environmental Research Centre.

Author Contributions

Deonie Allen, as the primary author and investigator of this research, undertook the field and laboratory analysis activities of this project; Valerie Olive completed all ICP OES analysis of prepared samples, without which this these findings would not be possible; Scott Arthur and Heather Haynes contributed valuable analysis, manuscript and internal review of his research.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Abbot, J.; Davies, P.; Morgan, C.; Levin, D.; Robinson, P. Water Sensitive Urban Design in the UK in Scoping Study; CIRIA C724; Construction Industry Research and Information Association: London, UK, 2013. [Google Scholar]
  2. Jones, A.; Stovin, V.; Guymer, I.; Gaskell, P.; Maltby, L. Modelling Temporal Variations in the Sediment Concentrations in Highway Runoff. In Proceedings of the 11th International Conference on Urban Drainage, Edinburgh, UK, 31 August–5 September 2008.
  3. Sabourin, J.-F.; Wilson, H.C. 20 Year Performance Evaluation of Grass Swale Perforated Pipe Drainage Systems, a Report Prepared for the City of Ottowa; J.F. Sabourin and Associates Inc.: Stittsville, ON, Canada, 2008. [Google Scholar]
  4. Delatic, A. Modelling of water and sediment transport over grassed areas. J. Hydrol. 2001, 248, 168–182. [Google Scholar] [CrossRef]
  5. Parsons, A.J.; Foster, I.D.L. What can we learn about soil erosion from the use of 137Cs? Earth Sci. Rev. 2011, 108, 101–113. [Google Scholar] [CrossRef]
  6. Zhang, X.C.; Friedrich, J.M.; Nearing, M.A.; Norton, L.D. Potential use of rare earth oxides as tracers for soil erosion and aggregation studies. Soil Sci. Am. J. 2001, 65, 1508–1515. [Google Scholar] [CrossRef]
  7. Zhu, M.; TAN, S.; Liu, W.; Zhang, Q. A Review of REE tracer method used in soil erosion studies. Agric. Sci. China 2010, 9, 1167–1174. [Google Scholar] [CrossRef]
  8. Zapata, F. Use of environmental radionuclides as tracers in soil erosion and sedimentation investigations: Recent advances and future developments. Soil Tillage Res. 2003, 69, 3–13. [Google Scholar] [CrossRef]
  9. Mabit, L.; Meusburger, K.; Fulajtar, E.; Alewell, C. The usefulness of 137CS as a tracer for soil erosion assessment: A critical reply to Parsons and Foster (2011). Earth Sci. Rev. 2013, 127, 300–307. [Google Scholar] [CrossRef]
  10. Ju, L.; Wen, A.; Long, Y.; Yan, D.; Guo, J. Using 137Cs tracing methods to estimate soils redistribution rates and to construct a sediment budget for a small agricultural catchment in the Three Gorges Reservoir Region, China. J. Mt. Sci. 2013, 10, 428–436. [Google Scholar] [CrossRef]
  11. Matisoff, G.; Bonniwell, E.C.; Whiting, P.J. Radionuclides as indicators of sediment transport in agricultural watersheds that drain to Lake Erie. J. Environ. Qual. 2002, 31, 62–72. [Google Scholar] [CrossRef] [PubMed]
  12. Poleto, C.; Merten, G.H.; Minella, J.P. The identification of sediment sources in a small urban watershed in southern Brazil: An application of sediment fingerprinting. Environ. Technol. 2009, 11, 1145–1153. [Google Scholar] [CrossRef]
  13. Carter, J.; Owens, P.N.; Walling, D.E.; Leeks, G.J.L. Fingerprinting suspended sediment sources in a large urban river system. Sci. Total Environ. 2003, 314–316, 513–534. [Google Scholar]
  14. Davis, C.M.; Fox, J.F. Sediment fingerprinting: Review of the method and future improvement for allocating nonpoint source pollution. J. Environ. Eng. 2009, 135, 490–504. [Google Scholar] [CrossRef]
  15. Collins, A.L.; Zhang, Y.; Walling, D.E.; Grenfell, S.E.; Smith, P. Tracing sediment loss from eroding farm tracks using a geochemical fingerprinting procedure combining local and genetic algorithm optimisation. Sci. Total Environ. 2010, 408, 5461–5471. [Google Scholar] [CrossRef] [PubMed]
  16. Black, K.S.; Athey, S.; Wilson, P.; Evans, D. The use of particle tracking in sediment transport studies: A review. Coast. Shelf Sediment Transp. 2007, 274, 73–71. [Google Scholar]
  17. Ingle, J.C. The Movement of Beach Sand: An Analysis Using Fluorescent Grains, (Developments in Sedimentology); Elsevier: Amsterdam, The Netherlands, 1966; Volume 5. [Google Scholar]
  18. Hassan, M.A.; Ergenzinger, P. Use of Tracers in Fluvial Geomorphology. In Tools in Fluvial Geomorphology; Kondolf, G.M., Piégay, H., Eds.; John Wiley & Sons, Ltd.: Chichester, UK, 2005. [Google Scholar]
  19. Ventura, E.; Nearing, M.A.; Norton, L.D. Developing a magnetic tracer to study soil erosion. Catena 2001, 43, 277–291. [Google Scholar] [CrossRef]
  20. Caitcheon, G. The significant of various sediment magnetic mineral fractions for tracing sediment sources in Killimicat Creek. Catena 1998, 32, 131–142. [Google Scholar] [CrossRef]
  21. Walden, J.; Slattery, M.C.; Burt, T.P. Use of mineral magnetic measurements to fingerprint suspended sediment sources: Approaches and techniques for data analysis. J. Hydrol. 1997, 202, 353–372. [Google Scholar] [CrossRef]
  22. Guymer, I.; Stovin, V.; Gaskell, P.; Maltby, L.; Pearson, J. Predicting the Deposition of Highway-Derived Sediments in a Receiving River Reach. In Proceedings of the 17th Congress of the Asia and Pacific Division (APD-IAHR), Auckland, New Zealand, 21–24 February 2010.
  23. Sloan, J.; Gries, T. Contaminant Loading to the Lower Dunwamish Waterway from Suspended Sediment in the Green River; Washington Department of Ecology: Lacey, WA, USA, 2009. [Google Scholar]
  24. Napier, F.; Jefferies, C.; Fogg, P. Traffic Related Pollutants in Soft Engineering SUDS: An Experimental and Field Approach. In Proceedings of the SUDSnet National Conference, Coventry University TechnoCentre, Coventry, UK, 14 November 2007.
  25. Zhang, X.C.; Nearing, M.A.; Polyakov, V.O.; Friedrich, J.M. Using rare-earth oxide tracers for studying soil erosion dynamics. Soil Soc. Am. J. 2003, 67, 279–288. [Google Scholar] [CrossRef]
  26. Deasy, C.; Quinton, J.N. Use of rare earth oxides as hillslope sediment tracers. Soil Earth 2010, 2, 195–212. [Google Scholar]
  27. Zhang, X.; Walling, D.E.; Long, X.H.Y. Use of landslide-dammed lake deposits and pollen tracing techniques to investigate the erosional response of a small drainage basin in the Loess Plateau, China, to land use change during the late 16th century. Catena 2009, 79, 205–213. [Google Scholar] [CrossRef]
  28. Clark, R.L. Pollen as a chronometer and sediment tracer, Burrinjuck Reservoir, Australia. Hydrobiologia 1986, 143, 63–69. [Google Scholar] [CrossRef]
  29. Timperley, M.; Williamson, B.; Mills, G.; Horne, B.; Hasan, M.Q. Sources and Loads of Metals in Urban Stormwater; Auckland Regional Council: Auckland, New Zealand, 2005. [Google Scholar]
  30. Li, Y.; Lau, S.; Kayhanain, M.; Stenstrom, M.K. Dynamic characteristics of particle size distribution in highway runoff: Implications for settling tank design. J. Environ. Eng. 2006, 132, 852–861. [Google Scholar] [CrossRef]
  31. Kayhanian, M.; McKenzie, E.R.; Leatherbarrow, J.E.; Yound, T.M. Characteristics of road sediment fractionated particles captured from paved surfaces, surface runoff and detention basins. Sci. Total Environ. 2012, 439, 172–186. [Google Scholar] [CrossRef] [PubMed]
  32. Polinares Fact Sheet: Rare Earths Oxides (REO). In Polinares EU Polity on Natural Resources; Working Paper n.37; Polinares Fact Sheet: Rare Earths Oxides (REO): Dundee, UK, 2012.
  33. Polyakov, V.O.; Nearing, M.A. Rare earth element oxides for tracing sediment movement. Catena 2004, 55, 255–276. [Google Scholar] [CrossRef]
  34. Aja, S.U. The sorption of rare earth element, Nd, onto kaolinite at 25 °C. Clays Clay Miner. 1998, 46, 103–109. [Google Scholar] [CrossRef]
  35. Spencer, K.L.; Droppo, I.G.; Grapentine, C.H.L.; Exall, K. A novel tracer technique for the assessment of fine sediment dynamics in urban water management systems. Water Res. 2011, 45, 2595–2606. [Google Scholar] [CrossRef] [PubMed]
  36. Kimoto, A.; Nearing, M.; Zhang, X.; Powell, D. Applicability of rare earth element oxides as a sediment tracer for course-textured soils. Catena 2006, 65, 214–221. [Google Scholar] [CrossRef]
  37. Ellis, J.B. Sediment Yield and BMP control Strategies in Urban Catchments. In Proceedings of the Erosion and Sediment Yield: Global and Regional Perspectives Symposium, Exeter, UK, 15–19 July 1996.
  38. Selbig, W.; Bannerman, T. Characteriszing the Size Distribution of Particles in Urban Stormwater by Use of Fixed Point Sample Collection Methods; USGS: Reston, VA, USA, 2011. [Google Scholar]
  39. Kreider, T. Rare Earth Elements as a Tracer to Understand Sediment Fate and Transport in Small Streams. Master’s Thesis, Virginia Polytechnic Institute and State University, Blacksburg, VA, USA, 23 April 2012. [Google Scholar]
  40. Healthy Waterways Partnership. In Water by Design Water Sensitive Urban Design Technical Design Guidelines for South East Queensland; Healthy Waterways Partnership: Brisbane, Australia, 2006.
  41. Cristina, C.M.; Sansalone, J.L. “First Flush,” Power Law and Particle Separation Diagrams for Urban Storm-Water Suspended Particles. J. Environ. Eng. 2003, 129, 298–307. [Google Scholar] [CrossRef]
  42. Hussein, J.; Yu, B.; Ghadiri, H.; Rose, C. Prediction of surface flow hydrology and sediment retention upslope of a vetiver buffer strip. J. Hydrol. 2007, 338, 261–272. [Google Scholar] [CrossRef]
  43. Rose, C.W.; Yu, B.; Hogarth, W.L.; Okom, A.E.A.; Ghadiri, H. Sediment deposition from flow at low gradients into a buffer strip-a critical test of re-entrainment theory. J. Hydrol. 2003, 280, 33–51. [Google Scholar] [CrossRef]
  44. Dabney, S.M.; Alonso, C.V.; Foster, G.R.; Meyer, L.D.; Harmon, W.C. Depositional patterns of sediment trapped by grass hedges. Transa. ASAE 1995, 38, 1719–1729. [Google Scholar] [CrossRef]
  45. Woods-Ballard, B.; Kellagher, R.; Martin, P.; Jefferies, C.; Bray, R.; Shaffer, P. The SUDS Manual; CIRIA C697; CIRIA: London, UK, 2007. [Google Scholar]
  46. Wong, T.; Fletcher, T.; Ducan, H.; Jenkins, G. A Model for Urban Stormwater Improvement Conceptualisation, Global Solutions for Urban Drainage; GeoSyntec Consultants: Portland, OR, USA, 2002; pp. 8–13. [Google Scholar]
  47. Wong, T.H.F.; Fletcher, T.D.; Duncan, H.P.; Jenkins, G.A. Modelling urban stormwater treatment—A unified approach. Ecol. Eng. 2006, 27, 58–70. [Google Scholar] [CrossRef]
  48. Persson, J.; Somes, N.L.G.; Wong, T.H.F. Hydraulics Efficiency of Constructed Wetlands and Ponds. Water Sci. Technol. 1999, 40, 291–289. [Google Scholar] [CrossRef]
  49. Newell, C.J.; Rifai, H.S.; Wilson, J.T.; Connor, J.A.; Aziz, J.A.; Suarez, M.P. Calculation and Use of First-Order Rate Constants for Monitored Natural Attenuation Studies, Ground Water Issue; EPA/540/S-02/500; U.S Environmental Protection Agency: Cincinnati, OH, USA, 2002. [Google Scholar]
  50. Deletic, A. Sediment transport in urban runoff over grassed areas. J. Hydrol. 2005, 301, 108–122. [Google Scholar] [CrossRef]
  51. Li, Y.; Deletic, A.; Fletcher, T. Modelling wet weather sediment removal by stormwater constructed wetlands: Insights from a laboratory study. J. Hydrol. 2007, 338, 285–296. [Google Scholar] [CrossRef]

Share and Cite

MDPI and ACS Style

Allen, D.; Olive, V.; Arthur, S.; Haynes, H. Urban Sediment Transport through an Established Vegetated Swale: Long Term Treatment Efficiencies and Deposition. Water 2015, 7, 1046-1067. https://doi.org/10.3390/w7031046

AMA Style

Allen D, Olive V, Arthur S, Haynes H. Urban Sediment Transport through an Established Vegetated Swale: Long Term Treatment Efficiencies and Deposition. Water. 2015; 7(3):1046-1067. https://doi.org/10.3390/w7031046

Chicago/Turabian Style

Allen, Deonie, Valerie Olive, Scott Arthur, and Heather Haynes. 2015. "Urban Sediment Transport through an Established Vegetated Swale: Long Term Treatment Efficiencies and Deposition" Water 7, no. 3: 1046-1067. https://doi.org/10.3390/w7031046

Article Metrics

Back to TopTop
