Anaerobic Treatment of Concentrated Black Water in a UASB Reactor at a Short HRT

by
Marthe S. De Graaff
1,2,*,
Hardy Temmink
1,2,
Grietje Zeeman
2 and
Cees J. N. Buisman
1,2
1
Wetsus, Centre of Excellence for Sustainable Water Technology, Agora 1, P.O. Box 1113, 8900 CC Leeuwarden, The Netherlands
2
Sub-Department of Environmental Technology, Wageningen University, P.O. Box 8129, 6700 EV Wageningen, The Netherlands
*
Author to whom correspondence should be addressed.
Water 2010, 2(1), 101-119; https://doi.org/10.3390/w2010101
Submission received: 2 February 2010 / Revised: 24 February 2010 / Accepted: 25 February 2010 / Published: 26 February 2010

Abstract

:
This research describes the feasibility of applying a UASB reactor for the treatment of concentrated black (toilet) water at 25 °C. On average 78% of the influent load of COD at an HRT of 8.7 days was removed. Produced methane can be converted to 56 MJ/p/y as electricity and 84 MJ/p/y as heat by combined heat and power (CHP). Minimum reactor volume at full scale was calculated to be 63L per person (for black water containing 16 gCOD/L produced at 5 L/p/d) and this is more than two times smaller than other type of reactors for anaerobic treatment of concentrated black water.

Graphical Abstract

1. Introduction

Separation of domestic waste(water) at the source results in black water from the toilet (faeces and urine) and less polluted grey water from showers, laundry and kitchen. These source separated waste(water) streams differ in quantity and quality and should be treated separately according to their concentrations and composition. The main benefits of such an approach include the possibility of recovering energy and nutrients and the efficient removal of micro-pollutants. Grey water has a high potential of reuse because it is the major fraction (70%) of domestic wastewater and relatively low in pollution [1]. Black water contains half the load of organic material in domestic wastewater, the major fraction of the nutrients nitrogen and phosphorus [2,3] and can be collected with a small amount of water (one liter per flush) using, for example, vacuum toilets. Black water also contains most of the pathogens, hormones and pharmaceutical residues. The volume of black water depends on the type of toilet and amount of water needed to flush.
Anaerobic treatment is regarded as the core technology for energy and nutrient recovery from source separated black water [3,4,5] because it converts organic matter to methane, which can be used to produce electricity and heat, while at the same time anaerobic treatment yields low amounts of excess sludge. The nutrients are largely conserved in the liquid phase and can be subsequently recovered with physical-chemical processes such as precipitation and ion-exchange or removed biologically [6,7]. Depending on the distance to agricultural fields, direct reuse of nutrient rich anaerobic effluent is possible if it is treated to remove pathogens and micro-pollutants [8,9].
With an average load of 62 gCOD/p/d and a methanisation level of 60% [10], 12.5 L CH4/p/d can be produced from black water (0.35 L CH4 /gCOD, (Standard temperature and pressure (STP))). When solid kitchen refuse is included ((60 gCOD/p/d), [10]) the biogas production can be doubled, resulting in 25 L CH4/p/d, which represents 335 MJ/p/y (35.6 MJ/Nm3 CH4). Combined heat and power (CHP) generation systems can be used to produce heat and electricity at an efficiency of 85% (of which 40% electricity and 60% heat) [11]. This would result in a production of 32 kWh/p/y electricity (2.1% of the electricity consumption in a household (87 PJ electricity consumption in The Netherlands in 2006 [12] i.e., 1487 kWh/p/y)) and 47 kWh/p/y of heat when using the methane produced from black water and solid kitchen refuse.
The use of three types of reactors for anaerobic treatment of black water collected with vacuum toilets at different temperatures is reported in literature, namely a CSTR (continuously stirred tank reactor), an Accumulation system and a UASB-septic tank (Upflow anaerobic sludge blanket).
Wendland et al. [13] investigated anaerobic treatment of black water from vacuum toilets in a CSTR operated at mesophilic conditions (37 °C). A removal efficiency of total COD of 61% was achieved at an HRT (Hydraulic retention time) of 20 days. Applying a CSTR for anaerobic treatment of black water (7 L/p/d) requires a volume of 140 L per person [13].
Kujawa-Roeleveld et al. [10] investigated anaerobic treatment of black water and kitchen refuse in an accumulation system operated at 20 °C. An accumulation system is a continuously fed reactor and combines digestion and storage in one reactor volume. Stabilization of the black water for 80% was achieved within 150 days. Due to the long storage time a relatively large volume is needed of 1.0 m3 per person for the treatment of black water. An accumulation system therefore is only suitable for even more concentrated streams (e.g., only faeces (brown water) and kitchen waste) and less suitable for black water [10].
The second system that Kujawa-Roeleveld et al. [10,23] investigated was a UASB-septic tank operated at 15 and 25 °C. UASB reactors enable long sludge retention times (SRT) at relatively short hydraulic retention times (HRT), because biomass retention is accomplished by an internal gas/sludge/liquid separation system [4]. A UASB-septic tank is a continuous reactor with respect to the liquid, but accumulates the solids, combining the features of a UASB reactor and a septic tank. The UASB-septic tank removed 61% of the total COD at 15 °C and 78% of the total COD at 25 °C. For sludge stabilization and total reduction of volatile fatty acids (VFA) at 25 °C a minimum volume of 200 L per person is needed, corresponding to an HRT of about 30 days [10].
The reactors mentioned above require relatively large volumes per person (Table 1). Unlike the UASB-septic tank, a UASB reactor without additional space for the accumulation of solids (no septic tank) would require regular sludge removal, but it will reduce the volume of the reactor [4]. This is important for application at larger scale where space might be limited.
Table 1. Reactors for anaerobic treatment of concentrated black water.
Table 1. Reactors for anaerobic treatment of concentrated black water.
CSTR [13]Accumulation system [10]UASB-septic tank [10,23]
Temperature (°C)37201525
Total COD removal (%)61806178
HRT (d)201503030
SRT (d)20150>365>365
Volume required (L/p)1401.0*103n.d.200
Methanisation* (%)60583960
n.d. = not determined*calculation based on obtained methane production and influent load
UASB reactors so far have not been investigated for their capability to treat concentrated wastewater streams such as black water and was only shortly discussed by Zeeman et al. [14]. The volume of a UASB reactor will depend on the minimum SRT required to achieve methanisation and stabilization of the sludge [4]. For the anaerobic treatment of black water hydrolysis of particulate organic substrates is the rate-limiting step [15]. With first order kinetics and a hydrolysis constant of 0.1 d-1 (average value at 20–30 °C [16]) it can be calculated that a high percentage of hydrolysis (between 80 and 90%) can be achieved at a SRT between 40 and 90 days. Other research showed as well that the minimum SRT was estimated to be 75 days at 25 °C to achieve methanisation and stabilization of the sludge [4,17]. Other factors that are important for the anaerobic treatment of black water are the temperature and inhibition by free ammonia [18]. Luostarinen et al. [19] investigated the effect of temperature on anaerobic treatment of black water in UASB-septic tanks. The temperature had no significant effect on suspended solids removal, but the removal of dissolved COD improved because sludge adapted to lower temperatures (15 °C) [19]. The black water can be produced at a temperature of about 20 °C [20]. A higher temperature could result in a shorter HRT, but this would require extra energy requirements for heating the black water. Therefore a temperature of 25 °C was selected for the treatment of black water in a UASB reactor. In concentrated black water high concentrations of ammonium (0.8–1.4 gNH4-N/L) are present which can inhibit methanisation and therefore higher retention times could be needed to achieve a maximum production of methane [21].
This paper describes the feasibility of applying a compact UASB reactor for the treatment of concentrated black water from vacuum toilets at these conditions. Furthermore the design of the UASB reactor will be discussed, as well as the minimum volume needed at full scale.

2. Materials and Methods

2.1. Black water collection

Black water, collected in vacuum toilets, was obtained from the DESAR (Decentralized Sanitation and Reuse) demonstration site in Sneek (Friesland, NL) [22]. Every two weeks jerry cans were filled with black water from the buffer tank at the demonstration site (hydraulic retention time of 4 h, not cooled), transported to the lab and stored at 4 °C. Black water was pumped from a stirred, cooled (6 °C) influent tank into the UASB reactor with a Masterflex L/S peristaltic pump. A course filter (4–5 mm holes) in the influent tank prevented clogging of the inlet tube.

2.2. UASB reactor

A 50 L flocculent sludge UASB (Upflow Anaerobic Sludge Blanket) reactor (Figure 1) was operated for 951 days at 25 °C to produce biogas from black water. The reactor was made of a transparent Perspex/Plexiglas tube (height: 1.30 m and inner diameter 0.20 m) with a double wall for temperature control. Temperature was controlled with a thermo stated water bath (Haake DC10/K10). The top was made of non-transparent plastic (polypropylene) and served as a gas/solid/liquid separator (height 0.19 m and width 0.22 m). Five taps at different heights (0, 0.26, 0.52, 0.78 and 1.02 m) enabled sludge sampling. Liquid effluent and gas were collected at the top. Gas production was monitored with a gasflow meter (Ritter TG05/5). A magnetic stirrer (VarioMag Mobil) at the bottom of the UASB reactor provided an even distribution of the influent through the sludge bed. The magnetic stirrer only mixed the bottom section of the sludge bed. The reactor was inoculated with 20 L anaerobic sludge (1.1 gVSS/L) from a UASB-septic tank treating concentrated black water at a temperature of 25 °C and a loading rate of 0.42 kgCOD/m3/d [23].

2.3. Design of the UASB reactor

The HRT to be applied in the UASB reactor was calculated using the following equation proposed by Zeeman and Lettinga [4]:
H R T = C · S S X · R · ( 1 H ) · S R T
where C is the COD concentration in the influent (CODtotal, in gCOD/L), SS is the fraction of suspended solids in the influent (CODSS/CODtotal), X is the sludge concentration in the reactor (in gCOD/L), R is the fraction of CODSS removed and H is the level of hydrolysis of the removed solids.
Values of C, SS, X, R and H were taken from the research of Kujawa-Roeleveld [16] and this resulted in a design HRT of 6.9 days (Table 2).
Initially the reactor was operated at a longer HRT of 14 days to prevent accumulation of volatile fatty acids (VFA). The first 200 days were used as start-up period and the HRT was subsequently reduced in steps (every 5-6 weeks) when no VFA accumulation was observed. The average HRT achieved was 8.7 days, but fluctuated between 5.8 and 13 days due to silting of the influent tube. The influent tube was cleaned monthly to remove the silted solids.
Sludge was removed regularly from tap 4 at a height of 1.02 m to maintain a maximum sludge bed height of 75% of the reactor volume.

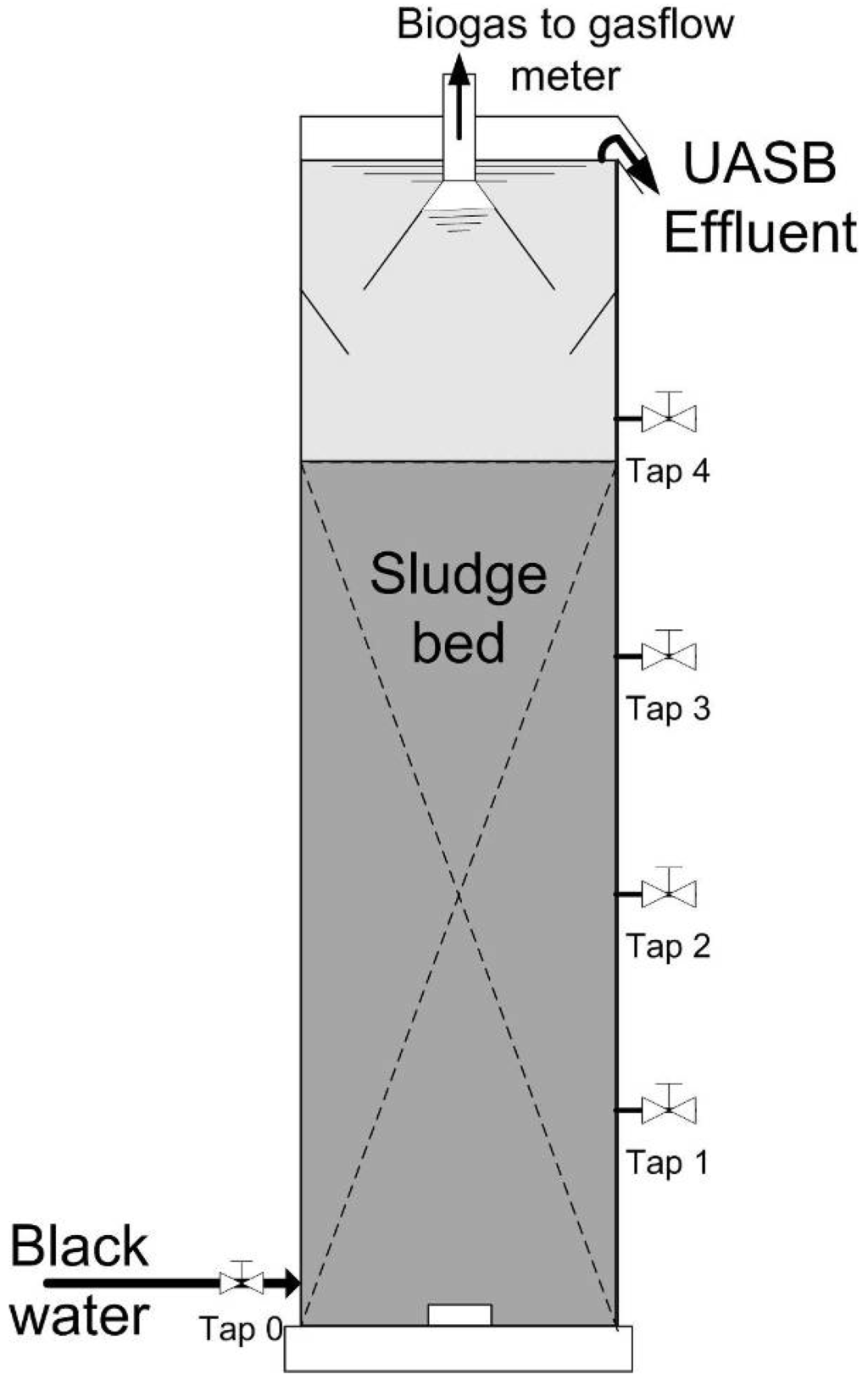

Figure 1. UASB (Upflow Anaerobic Sludge Blanket) reactor treating concentrated black water.
Figure 1. UASB (Upflow Anaerobic Sludge Blanket) reactor treating concentrated black water.
Water 02 00101 g001
Table 2. Initial design values for the UASB reactor.
Table 2. Initial design values for the UASB reactor.
UnitRemarksInitial design of UASB reactor
SRTdMinimum value at 25 °C75
CgCOD/LCODtotal in the influent12
SS-CODss/CODt influent0.78
XgCOD/LSludge concentration in the reactor28
R-Fraction of CODss removed0.9
H-Level of hydrolysis0.7
HRTd6.9

2.4. Analyses and measurements

Every week influent and effluent composition was analyzed (125 samples in total) immediately after sample collection. Influent was collected from a tap just before the inlet of the UASB reactor (tap 0, Figure 1) and effluent was collected during 3 hours in the morning (about 0.5–1 L for both samples). CODtotal was determined from unfiltered samples, filtered COD (CODf) was determined from paper filtered samples (black ribbon paper filter (Schleicher & Schuell)) and soluble COD (CODsoluble) was determined from membrane filtered samples (0.45 μm membrane filter (Cronus filter PTFE)) using DrLange kits (LCK514). Total Nitrogen (TN) en Total Phosphorus (TP) were determined from unfiltered samples using DrLange kits (LCK238 and LCK350). DrLange kits LCK302 and LCK303 were used to determine the total ammonia nitrogen concentration (NH4-N) in paper filtered samples. Ion chromatography (Metrohm 761 Compact IC) was used to measure anions concentrations (Cl-, NO3- NO2-, SO42- and PO43-) and volatile fatty acids (VFA: acetic acid, propionic acid and butyric acid) in membrane filtered samples. ICP-AES (Inductively Coupled Plasma-Atomic Emission Spectroscopy) was used to measure concentrations of the element phosphorus in the membrane filtered sample. Inorganic carbon (IC) was determined with a Shimadzu TOC analyzer by difference from the measured total carbon (TC) and non-purgeable organic carbon (NPOC) in the paper filtered sample. Total Suspended Solids (TSS) and Volatile Suspended Solids (VSS) were determined according to standard methods using black ribbon ashless paper filter (Schleicher & Schuell) [24]. Biological oxygen demand (BOD) of the UASB effluent was determined using OxiTop heads calibrated for BOD determination. Depletion of oxygen was monitored for five days (BOD5) (17 samples in total). Biogas composition (sample of 5 mL, 43 samples in total) was analyzed with gas chromatography (Shimadzu GC-2010 Gas Chromatograph containing GS-Q (CO2) and HP molsieve (O2, N2, H2S and CH4) columns). Wasted sludge (51 samples in total) was analyzed for TSS and VSS and total COD using the methods indicated above. Maximum biodegradability of the black water (2 samples in total) and stability of the UASB sludge (13 samples in total) was tested in closed bottles with Oxitop pressure measuring heads by incubation at 37 °C [16]. The development of the sludge bed was analyzed by taking sludge samples from every tap (0.2 L) and these samples were analyzed for TSS and VSS and total COD (10 times 5 samples in total). The flow rate in the UASB was measured by weighing the collected effluent over a certain period of time and this was used to calculate the HRT.

2.5. Calculations

The concentration of suspended solids COD (CODSS) was calculated as the difference between CODtotal and CODf. The concentration of colloidal COD (CODcolloidal) was calculated as the difference between CODf and CODsoluble. The SRT in the UASB (SRTUASB) was calculated using the following equation:
S R T UASB = s o l i d s reactor s o l i d s washed,out + s o l i d s wasted
where solidsreactor is the amount of solids in the reactor (gVSS), solidswashed,out is the amount of solids that washed out with the effluent (gVSS/d) and solidswasted is the amount of solids that was wasted manually (gVSS/d).
The total amount of sludge in the reactor was calculated using the analyzed concentration and a volume of 1/6 of 50L as each tap is evenly distributed over the reactor (including effluent ‘tap’):
s o l i d s reactor = i ( x i · 1 6 · 50 )
where xi is the sludge concentration in gVSS/L of each tap i and i is 0, 1, …, 5.
The COD mass balance was calculated by adding up all measured incoming COD (influent and inoculum sludge) and measured outgoing COD (produced methane, sludge in reactor, wasted sludge and effluent) over the total period of operation including the start-up period.
C O D I N = C O D O U T C O D total,influent + C O D inoculumsludge = C O D methane + C O D sludge,reactor + C O D sludge,wasted + C O D total,effluent
The amount of produced methane-COD was calculated from the average measured biogas composition, the average gas flow rate (L/d) and a conversion factor of 2.6 gCOD / L CH4 at 25 °C at standard pressure.
The reported level of methanisation in the UASB reactor was calculated as the percentage of cumulative methane-COD production from the cumulative load of influent COD over the total period of operation.
The level of hydrolysis of solids was determined with the following formula [17] :
h y d r o l y s i s = C O D CH 4 + C O D soluble,effl C O D soluble,in C O D total,in C O D soluble,in
where CODCH4 is the methane produced, CODsoluble,effl is the soluble COD in the effluent, CODsoluble,in is the soluble COD in the influent and CODtotal,in is the total COD load in the influent (all in gCOD).
The rate of hydrolysis was estimated using first order kinetics: d F degr d t = k h · F degr [15,25].
Assuming the sludge bed as a CSTR, the following equation can be derived:
F degr F degr,0 = 1 1 + k h · S R T
where Fdegr is the amount of biodegradable solids in the sludge bed, Fdegr,0 is the amount of biodegradable solids in the influent and kh is the hydrolysis constant. 1 F degr F degr,0 is representative for the hydrolysis of suspended solids and therefore representative for the stabilization of the sludge.
The bicarbonate concentration was calculated from the total inorganic carbon (IC) as a function of pH and temperature [18].

3. Results

3.1. Performance of the UASB reactor

The composition of the black water influent to the UASB reactor is shown in Table 3. The black water was more diluted in the second period of operation because more flushing water was used in the vacuum toilets due to installation of noise reducers (Table 3) (resulting in a black water production of 7.8 L/p/d instead of 5 L/p/d, [26]).
The maximum biodegradability of the black water was 55% after 70 days of incubation at 37 °C. In Figure 2 the influent and effluent COD concentrations and the total COD removal are shown. The UASB reactor removed an average of 74% of the influent load of COD.
Table 3. Composition of the black water influent.
Table 3. Composition of the black water influent.
Day 1 – 518Day 519 – 951
UnitInfluents.d.Influents.d.
pH-8.80.228.60.53
CODtotal[gCOD/L]9.82.67.72.5
CODSS[gCOD/L]5.12.74.92.0
CODcolloidal[gCOD/L]1.30.420.50.22
CODsoluble[gCOD/L]3.40.472.30.81
VFA[gCOD/L]1.50.481.20.89
HCO3-[gC/L]1.20.370.670.20
TN[gN/L]1.90.191.20.18
NH4-N[gN/L]1.40.150.850.15
TP[gP/L]0.220.0670.150.064
TP soluble[gP/L]0.0900.00870.0570.018
PO4-P[gP/L]0.0790.00850.0540.027
s.d. = standard deviation
The removal efficiency varied between 42 and 94% as shown in Figure 2, and became stable at a value of about 80% from day 500 onward. On average 10 L/d of biogas was produced, consisting of 78% (s.d. 5.8%) CH4, 22% (s.d. 5.7%) of CO2 and traces of H2S (<0.5%).
In Figure 3 the HRT in the UASB is plotted, together with the VFA concentration in the effluent. A few times VFA concentrations in the effluent increased, showing that anaerobic degradation was incomplete. The increase in VFA was always accompanied by a drop in COD removal, but never resulted in complete inhibition of biogas production. Furthermore a thick scum layer in the gas/solid/liquid separator was observed when the VFA concentration increased in the effluent (Figure 3). This scum layer was transferred back to the bottom of the reactor and was no longer observed afterwards.

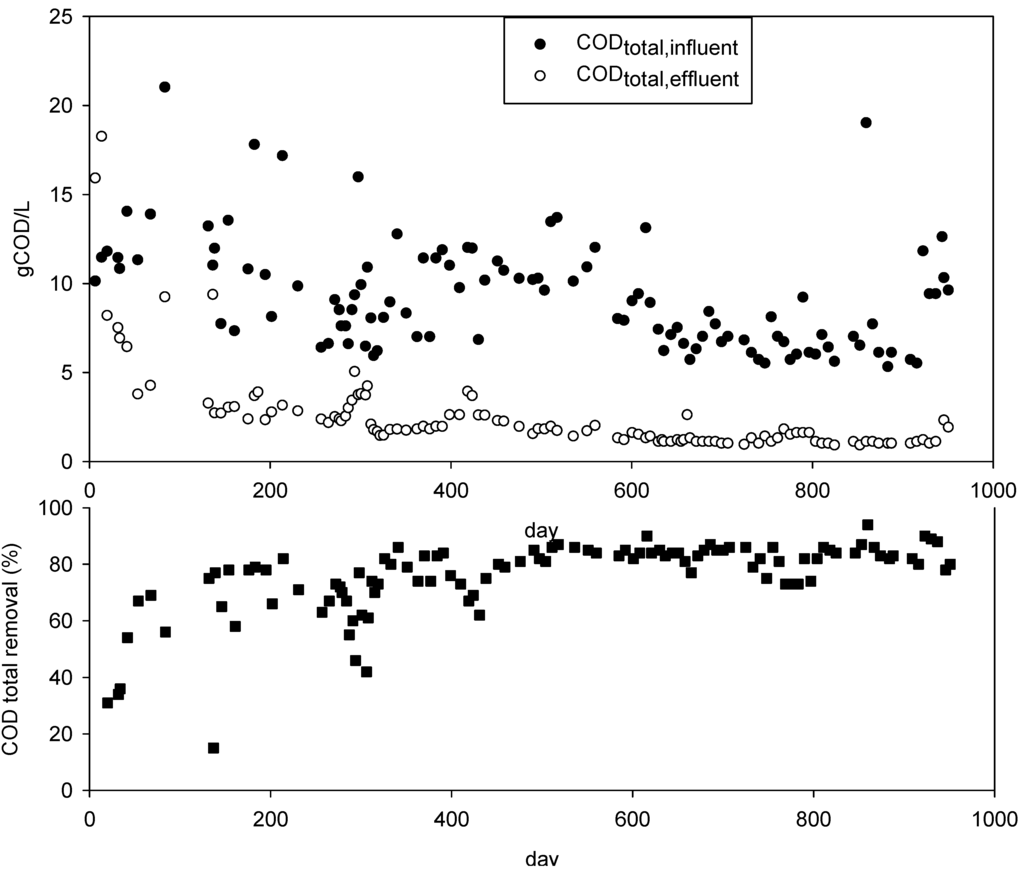

Figure 2. Influent and effluent COD concentrations and the COD total removal of the UASB reactor.
Figure 2. Influent and effluent COD concentrations and the COD total removal of the UASB reactor.
Water 02 00101 g002

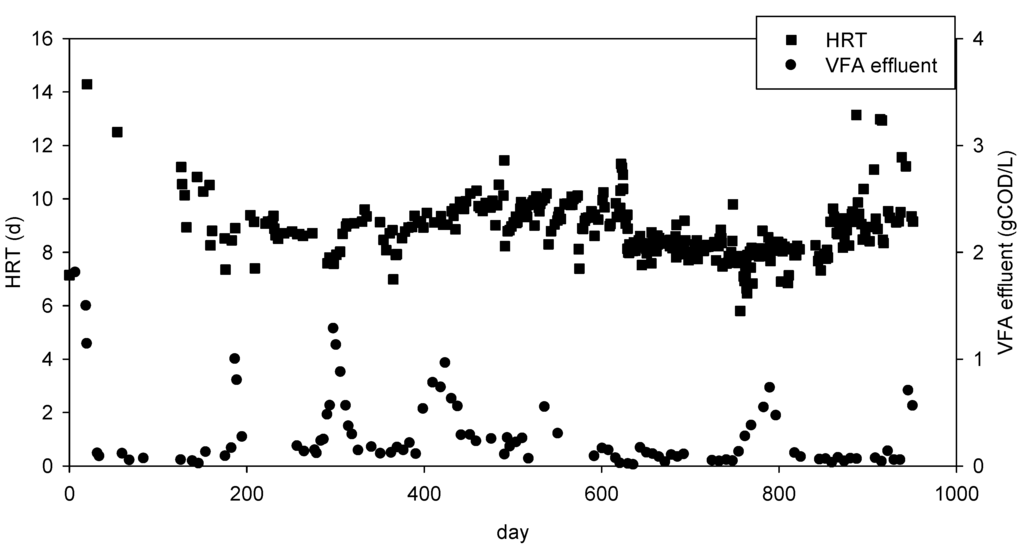

Figure 3. HRT and VFA in UASB effluent.
Figure 3. HRT and VFA in UASB effluent.
Water 02 00101 g003

3.2. Sludge bed development

Figure 4 shows that the sludge bed developed to a compact sludge bed with concentrations of up to 45 g VSS/kg sludge. In the first few weeks, part of the inoculum sludge was washed out with the effluent, which explained the high effluent COD concentrations of 16-18 gCOD/L (Figure 2). Gradually the sludge adapted to a higher upflow velocity and the sludge bed increased in volume and concentration. After day 800 sludge had to be wasted less frequently because the sludge concentration increased. The ratio of VSS/TSS of the wasted sludge decreased after day 800 from 0.80 to 0.68 (Figure 4).
The SRT was estimated at 254 days and on average the reactor contained 19 gVSS/Lreactor(s.d. 4.0) and 34 gCOD/Lreactor (s.d. 8.0). The wasted sludge from the UASB reactor showed a stability of 91% in 106 days at 37 °C, which means that only 9% of the COD in the UASB sludge could still be converted to methane. The percentage of influent suspended solids that were hydrolyzed and converted to methane was 53%.
The structure and the colour of the sludge changed from black, fine flocculant sludge in the inoculum to a brown, compact muddy sludge. This change in colour was probably due to leaching of iron, because the inoculum sludge originated from a UASB-septic tank where iron was added to precipitate phosphate (data not shown).

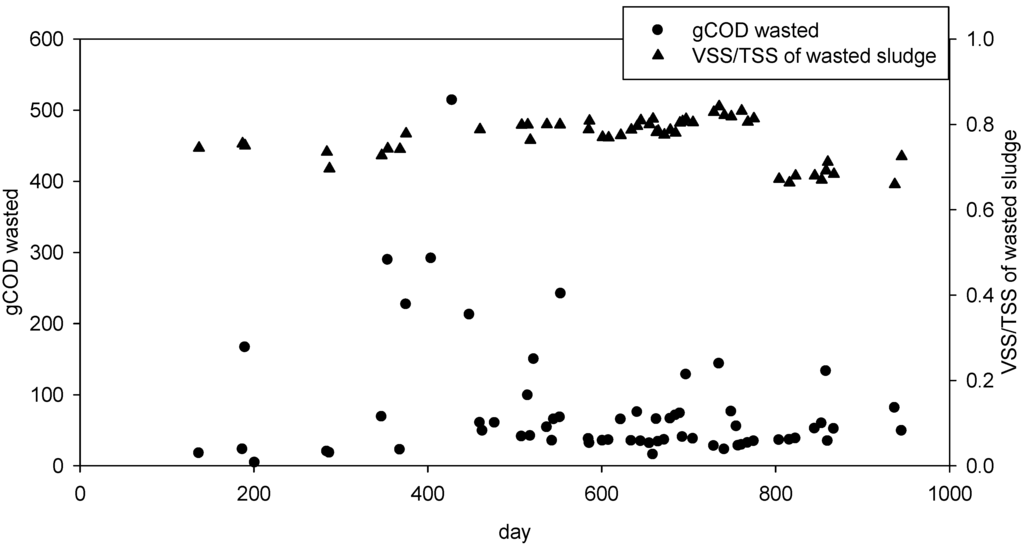

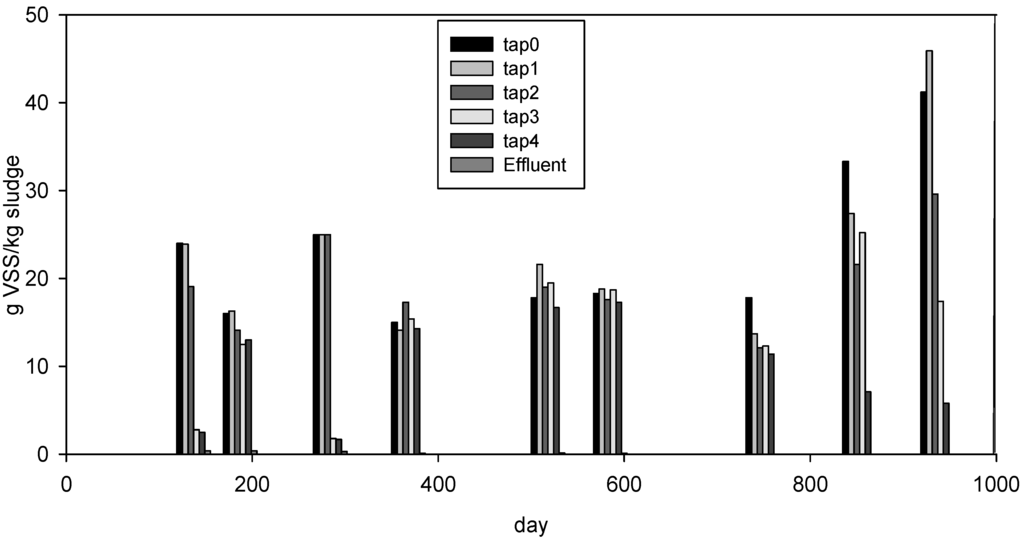

Figure 4. Sludge bed development (upper graph), the amount of sludge wasted (lower graph) and VSS/TSS ratio of the wasted sludge (lower graph).
Figure 4. Sludge bed development (upper graph), the amount of sludge wasted (lower graph) and VSS/TSS ratio of the wasted sludge (lower graph).
Water 02 00101 g004aWater 02 00101 g004b

3.3. COD mass balance

The COD mass balance over the total period of operation (951 days) showed only a small difference between total incoming COD and total outgoing COD (4%) (Figure 5), which probably can be explained by errors introduced by sampling and analyses. Maximum 1% of total incoming COD left the reactor with effluent as dissolved methane (using a maximum solubility of 22 mg CH4/L, [27]).
Figure 5. COD mass balance over the total period of operation (951 days). The total amount of COD fed to the reactor during this period was 49 kgCOD, of which 0.1% was inoculum sludge.
Figure 5. COD mass balance over the total period of operation (951 days). The total amount of COD fed to the reactor during this period was 49 kgCOD, of which 0.1% was inoculum sludge.
Water 02 00101 g005

3.4. Effluent composition

Table 4 shows the effluent composition of the UASB reactor. The pH dropped from 8.8 / 8.6 (Table 3) in the influent to 7.6 / 7.4 in the effluent of the UASB during the anaerobic treatment.
A fraction of the COD in the effluent was still biodegradable, because the effluent contained a BOD5 concentration of 0.87 g/L in the first period and 0.48 g/L in the second period.
Nitrogen was conserved for more than 91% in the liquid effluent, mainly as ammonium, and the effluent contained 1.8 gTN/L (of which 1.5 gNH4-N/L) in the first period and 1.2 gTN/L (of which 1.0 gNH4-N/L) in the second period. Phosphorus was conserved for 61% in the effluent, mainly as phosphate, and the effluent contained 0.13 gTP/L (of which 0.092 gPO4-P/L) in the first period and 0.094 gTP/L (of which 0.069 gPO4-P/L) in the second period.
Table 4. UASB effluent composition.
Table 4. UASB effluent composition.
Day 1 – 518Day 519 – 951
UnitUASB effluents.d.UASB effluents.d.
pH-7.60.137.40.17
CODtotal[gCOD/L]2.40.841.20.34
CODSS[gCOD/L]0.430.430.100.08
CODcolloidal[gCOD/L]0.530.270.210.07
CODsoluble[gCOD/L]1.50.390.900.21
VFA[gCOD/L]0.360.300.140.18
BOD5[g/L]0.870.240.480.06
HCO3-[gC/L]1.40.140.870.10
TN[gN/L]1.80.221.20.12
NH4-N[gN/L]1.50.191.00.18
TP[gP/L]0.130.0150.0940.018
TP soluble[gP/L]0.1030.0100.0700.011
PO4-P[gP/L]0.0920.0110.0690.013
s.d. = standard deviation

4. Discussion

4.1. Removal efficiency of the UASB reactor

This research shows that anaerobic treatment of concentrated black water can successfully be achieved in a UASB reactor. Generally the reactor exhibited a stable operation and removed more than 78% of the incoming COD. On three occasions VFA accumulated in the effluent and this was probably due to a sudden increase in load due to higher influent concentrations. In those periods scum formation was observed, which was probably caused by the reduced conversion efficiency of the anaerobic treatment process that led to a temporary accumulation of VFA [17]. In the concentrated black water the free ammonia concentration was as high as 485 mgNH3-N/L (25 °C, pH 8.8, 1.4 gNH4-N/L) and reduced in the effluent to 35 mgNH3-N/L (25 °C, pH 7.5, 1.5 gNH4-N/L). It is likely that inside the UASB reactor a pH gradient exists and shock loads may have caused a temporary inhibition of the methanogenesis by free ammonia [21], resulting in a reduced efficiency. The decrease in pH in the UASB reactor was probably caused by the production of CO2 which dissolves in the liquid phase. The concentrated black water, however, contains enough alkalinity and pH control is therefore not necessary [18].
Almost all suspended solids were retained in the reactor (93%, Table 5) and high sludge bed concentrations were obtained. After day 800 the sludge contained more inorganic material than before because the ratio of VSS/TSS of the wasted sludge decreased from 0.80 to 0.68 and the sludge bed concentrations increased from about 20 gVSS/kg sludge to 30–45 gVSS/kg sludge (Figure 4). This was probably because the concentrated black water contained more calcium than before (80 mg/L instead of 40 mg/L) and this caused more inorganic precipitation with carbonate and/or phosphate than before [25].
Table 5. Operational characteristics of anaerobic treatment of concentrated black water at 25 °C; (standard deviation).
Table 5. Operational characteristics of anaerobic treatment of concentrated black water at 25 °C; (standard deviation).
UnitUASB reactor This researchUASB-septic tank [10,23]Pilot plant UASB-septic tank [20]
Influent-Black water, vacuum toilets, DESAR pilot plant Sneek, Filtered with a coarse filterBlack water, vacuum toilets, Wageningen UniversityBlack water, vacuum toilets, DESAR pilot plant Sneek
Reactor volumeL502007400
Up flow velocityCm/h0.760.230.42
Loading rate kgCOD/m3/d1.00.420.36
HRTDays8.7 (0.96)2930
SRTDays254>365>365
CODtotal removal%78 (9%)7887
CODSS removal%93 (11%)9495
Methane productionL CH4/p/d10142.013
m3 CH4/m3 BW1.82.02.1
BW = black water
In Table 5 the operational characteristics of the UASB reactor are compared with the operation in a UASB-septic tank. In comparison with a lab scale UASB-septic tank a similar removal efficiency (78%, Table 5) and effluent quality (not shown) were obtained, but the applied loading rate in the UASB reactor was much higher (1.0 kgCOD/m3/d) than in the UASB-septic tank (0.42 kgCOD/m3/d). Recently the anaerobic treatment of concentrated black water was also investigated at pilot scale in a UASB-septic tank by Meulman et al. [20], but the applied loading rate was much lower (0.36 kgCOD/m3/d). The removal efficiency in this UASB-septic tank was higher (87%, Table 5), because the concentrated black water did not pass a coarse filter as within this study and therefore contained a higher amount of suspended solids [20].

4.2. Design of the UASB reactor

Design values from Lettinga and Hulshoff Pol [28] show that treatment in a UASB is not recommended for wastewaters with high amount of suspended solids and high concentrations of organic material. These design values do not take into account that hydrolysis is the rate-limiting process and therefore a long SRT is needed for stabilization of the solids and sludge inside the UASB. Based on the fact that the hydrolysis is the rate limiting step, Zeeman and Lettinga [4] derived the formula for calculation of the HRT (equation 1).
An unexpected long SRT of 254 days was achieved in the present research and a large amount of sludge could be retained in the reactor (average of 19 gVSS/Lreactor, 34 gCOD/L). Because of this long SRT, the hydrolysis of influent suspended solids (53%) is close to the maximum biodegradability of the suspended solids in the black water (55%). Assuming that the same amount of sludge can be retained in the reactor, the design of the UASB reactor can be optimized. A shorter SRT will result in a lower percentage of hydrolysis and therefore less stabilized sludge, which is illustrated hypothetically in Figure 6. A shorter SRT also means a shorter HRT and therefore the reactor volume can be further reduced at the expense of less stabilized sludge and less biogas production. This can be illustrated using equations 1 and 6. For example a reduction of the volume by reducing the SRT to 75 days will result in 8.2% reduction of the hydrolysis As was described in the introduction, the minimum SRT was estimated to be 75 days at 25 °C to achieve methanisation and sufficient stabilization of the sludge [4,17].
A large reduction in volume can be achieved at the expense of a small reduction in hydrolysis of the suspended solids. Using equation 1 the minimum reactor volume for application at full scale can be estimated. Values for X, SS, R and H were adjusted using the results of this research and the conditions at full scale (Table 6). The concentrated black water composition reported by Meulman et al. [20] was used, because in this research it appeared to be impossible to feed all the suspended solids of the black water to a lab scale reactor. Furthermore Meulman et al. [20] showed that the production of concentrated black water is only 5 L/p/d instead of the expected 7 L/p/d. Using adjusted values for the parameters of equation 1 the minimum reactor volume for application at full scale would be 63 L/p (based on 5 L/p/d) corresponding to an organic loading rate of 1.3 kgCOD/m3/d (Table 6). This is a significantly lower reactor volume and higher load than when a CSTR or UASB-septic tank is applied for the anaerobic treatment of concentrated black water (Table 1). Application in practice is needed to confirm these estimations. Currently this is tested at the DESAR demonstration site in Sneek (the Netherlands). The non-hydrolyzed suspended solids left in the wasted sludge could be used for aerobic composting, including garden waste, to remove pathogens and to produce a soil conditioner [29] provided that it is safe with respect to heavy metals and micro-pollutants [30].

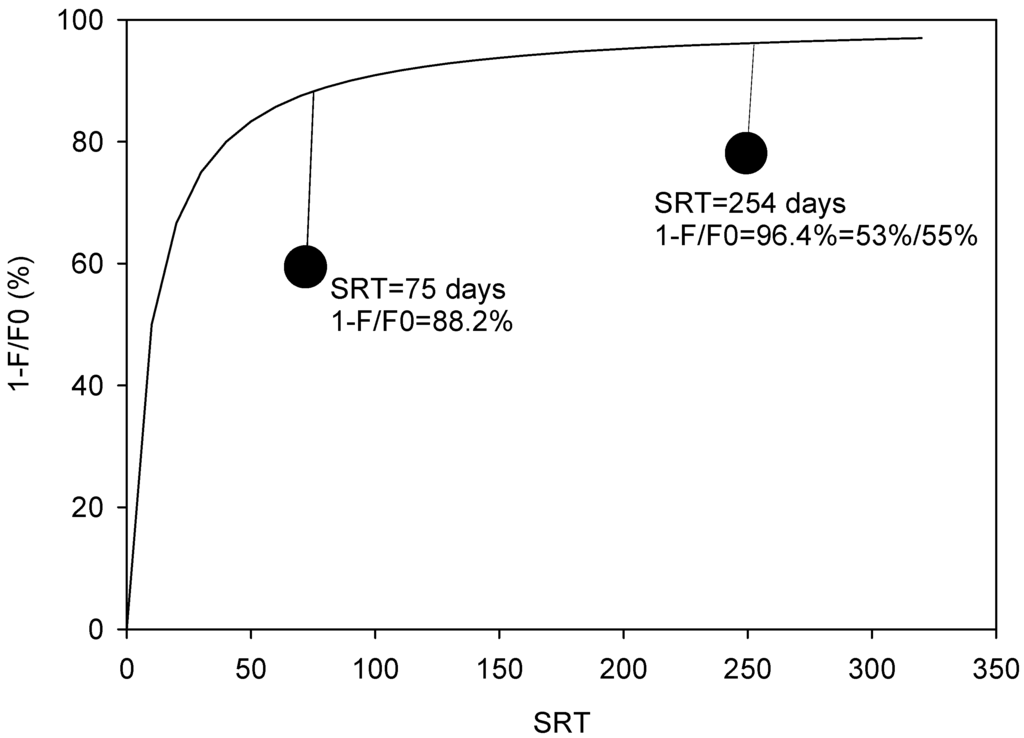

Figure 6. Stabilisation of the sludge represented by 1-F/F0 as a function of the SRT (equation 6, hypothetical, kh is 0.1 d-1).
Figure 6. Stabilisation of the sludge represented by 1-F/F0 as a function of the SRT (equation 6, hypothetical, kh is 0.1 d-1).
Water 02 00101 g006
Table 6. Adjusted design values for the UASB reactor.
Table 6. Adjusted design values for the UASB reactor.
UASB reactor full scale
SRT(d)75
CCOD concentration in the influent (gCOD/L)16.1a
SSCODss/CODt influent (-)0.75a
Xsludge concentration in the reactor (gCOD/L)34.2
Rfraction of CODss removed (-)0.93
Hfraction of removed solids which is hydrolyzed (-)0.49
HRT (d)12.6
V (L/p)63
Loading rate(kgCOD/m3/d)1.3
a using data from Meulman et al. [20]

4.3. Fate of nutrients and further treatment

When direct reuse in agriculture of the anaerobic effluent is not feasible because of long distances between cities and agriculture, treatment of the anaerobic effluent is required before the wastewater can be discharged to surface waters. The effluent of the UASB reactor still contains 1.2–2.4 gCOD/L, of which part could be removed by aerobic treatment. Furthermore this stream still contains pathogens and hormones and pharmaceutical residues.
Nitrogen was for more than 91% conserved in the effluent, mainly in the form of ammonium. Because nitrogen is not a limiting compound the choice to recover or remove nitrogen from wastewater will depend on the energy requirements. For the nitrogen concentration in black water (about 1.5 kgN/m3) biological removal is preferred [31]. Techniques such as a one or two reactor nitritation-anammox process are available to remove ammonium from wastewater streams with a low COD/N ratio [32] and results show that a one or two reactor nitritation-anammox process is suitable to treat the effluent from the UASB reactor [33,34].
For phosphorus a conservation of 60% was observed. The removal of 40% is mainly due to the removal of suspended solids. Probably part of the released phosphate during degradation of the solids directly precipitated in the UASB reactor [35]. Detailed analysis of the sludge fraction is needed to close the phosphorus balance. Similar phosphorus conservation in the effluent was found by Kujawa-Roeleveld et al. [23] in the UASB-septic tank. The degree of phosphorus conservation is most likely related to the pH and degree of dilution of the black water. In a UASB reactor on more diluted black water a much higher phosphorus conservation in the liquid effluent stream of 95% was observed (toilets used 5L of water per flush) [36]. Phosphorus is a limiting resource and the available phosphorus resources become increasingly scarce [6,37]. Depending on the degree of phosphorus conservation during the anaerobic treatment, phosphorus can be recovered from the sludge or from the effluent in the form of struvite (MgNH4PO4.6H2O) [38]. Preliminary results show that struvite precipitation in the UASB effluent occurred at relatively low pH of 8 by addition of magnesium.
Further research will focus on the subsequent removal and recovery of the nutrients nitrogen and phosphorus and on the removal of the remaining micro-pollutants such as hormones and pharmaceutical residues.

5. Conclusions

Anaerobic treatment of concentrated black water in a UASB reactor was successfully achieved at a HRT of 8.7 days and a load of 1.0 kgCOD/m3/d. Due to high sludge concentrations (19 gVSS/Lreactor) a long SRT of 254 days was achieved and 53% of the suspended solids were hydrolyzed to methane. The effluent of the UASB reactor needs further treatment to remove remaining COD (2.4 gCOD/L, BOD5 is 0.87 g/L) and to remove and/or recover nutrients nitrogen and phosphorus.
On the expense of a lower hydrolysis of 49% and some less stabilized sludge, the design of the UASB reactor was optimized and the minimum reactor volume at full scale was calculated to be 63 L/p for black water containing 16 gCOD/L produced at 5 L/p/d.

Acknowledgements

Titia de Mes and Katarzyna Kujawa-Roeleveld from Wageningen University are thanked for providing anaerobic sludge from the UASB-septic tank. Brendo Meulman from Landustrie, Sneek, is thanked for providing assistance in collecting black water. The help of Julie Tolu, Sebastian Polak, Yuanchuan Zhang and Shixuan Deng is highly appreciated. This work was performed in the TTIW-cooperation framework of Wetsus, Centre of Excellence for Sustainable Water Technology (www.wetsus.nl). Wetsus is funded by the Dutch Ministry of Economic Affairs, the European Union Regional Development Fund, the Province of Fryslân, the City of Leeuwarden and the EZ/Kompas program of the ‘Samenwerkingsverband Noord-Nederland”. The authors like to thank the participants of the theme “Separation at Source” for their interest and financial contribution.

References

  1. Hernandez Leal, L.; Zeeman, G.; Temmink, H.; Buisman, C. Characterisation and biological treatment of greywater. Water Sci. Technol. 2007, 56, 193–200. [Google Scholar]
  2. Otterpohl, R.; Albold, A.; Oldenburg, M. Source control in urban sanitation and waste management: ten systems with reuse of resources. Water Sci. Technol. 1999, 39, 153–160. [Google Scholar] [CrossRef]
  3. Kujawa-Roeleveld, K.; Zeeman, G. Anaerobic treatment in decentralised and source-separation-based sanitation concepts. Rev. Environ. Sci. Bio/Technol. 2006, 5, 115–139. [Google Scholar] [CrossRef]
  4. Zeeman, G.; Lettinga, G. The role of anaerobic digestion of domestic sewage in closing the water and nutrient cycle at community level. Water Sci. Technol. 1999, 39, 187–194. [Google Scholar] [CrossRef]
  5. Verstraete, W.; Morgan-Sagastume, F.; Aiyuk, S.; Waweru, M.; Rabaey, K.; Lissens, G. Anaerobic digestion as a core technology in sustainable management of organic matter. Water Sci. Technol. 2005, 52, 59–66. [Google Scholar] [PubMed]
  6. Driver, J.; Lijmbach, D.; Steen, I. Why recover phosphorus for recycling, and how? Environ. Technol. 1999, 20, 651–662. [Google Scholar] [CrossRef]
  7. Maurer, M.; Pronk, W.; Larsen, T.A. Treatment processes for source-separated urine. Water Res. 2006, 40, 3151–3166. [Google Scholar] [CrossRef] [PubMed]
  8. Halalsheh, M.; Abu Ghunmi, L.; Al-Alami, N.; Fayyad, M. Fate of pathogens in tomato plants and soil irrigated with secondary treated wastewater. In Proceedings of the Sanitation Challenge, Wageningen, The Netherlands, May 2008; 2008. [Google Scholar]
  9. Huibers, F.P.; van Lier, J.B. Use of wastewater in agriculture: the water chain approach. Irrig. Drain. 2005, 42, S3–S9. [Google Scholar] [CrossRef]
  10. Kujawa-Roeleveld, K.; Elmitwalli, T.; Zeeman, G. Enhanced primary treatment of concentrated black water and kitchen residues within DESAR concept using two types of anaerobic digesters. Water Sci. Technol. 2006, 53, 159–168. [Google Scholar] [CrossRef] [PubMed]
  11. van den Berg, W.J. KNN Advies, Efficiency of combined heat and power. Personal communication, 2008. [Google Scholar]
  12. CBS-Statline. Energy balance, energy consumption of households. 2006. http://statline.cbs.nl/StatWeb/publication/?VW=T&DM=SLNL&PA=70846ned&D1=0-1,3-4,30-33&D2=30&D3=5&D4=a&HD=080606-2108&HDR=T&STB=G3: (accessed on 6 June 2008).
  13. Wendland, C.; Deegener, S.; Behrendt, J.; Toshev, P.; Otterpohl, R. Anaerobic digestion of blackwater from vacuum toilets and kitchen refuse in a continuous stirred tank reactor (CSTR). Water Sci. Technol. 2007, 55, 187–194. [Google Scholar] [CrossRef] [PubMed]
  14. Zeeman, G.; Kujawa, K.; De Mes, T.; Hernandez, L.; de Graaff, M.S.; Mels, A.; Meulman, B.; Temmink, H.; Buisman, C.; van Lier, J.; Lettinga, G. Anaerobic treatment as a core technology for energy, nutrients and water recovery from source separated domestic waste(water). Water Sci. Technol. 2008, 57, 1207–1212. [Google Scholar] [CrossRef] [PubMed]
  15. Zeeman, G.; Sanders, W. Potential of anaerobic digestion of complex waste(water). Water Sci. Technol. 2001, 44, 115–122. [Google Scholar] [PubMed]
  16. Kujawa-Roeleveld, K. Anaerobic treatment of concentrated wastewater in DESAR concepts; 2005-14; Stowa: Utrecht, The Netherlands, 2005. [Google Scholar]
  17. Halalsheh, M.; Koppes, J.; den Elzen, J.; Zeeman, G.; Fayyad, M.; Lettinga, G. Effect of SRT and temperature on biological conversions and the related scum-forming potential. Water Res. 2005, 39, 2475–2482. [Google Scholar] [CrossRef] [PubMed]
  18. Tchobanoglous, G.; Burton, F.L.; Stensel, H.D. Wastewater Engineering - Treatment and Reuse, 4th ed.; McGraw-Hill: New York, NY, USA, 2003. [Google Scholar]
  19. Luostarinen, S.; Sanders, W.; Kujawa-Roeleveld, K.; Zeeman, G. Effect of temperature on anaerobic treatment of black water in UASB-septic tank systems. Bioresour. Technol. 2007, 98, 980–986. [Google Scholar] [CrossRef] [PubMed]
  20. Meulman, B.; Zeeman, G.; Buisman, C.J.N. Treatment of concentrated black water on pilot scale: options and challenges. In Proceedings of the Sanitation Challenge, Wageningen, The Netherlands, 19-21 May 2008; 2008. [Google Scholar]
  21. Koster, I.W.; Koomen, E. Ammonia inhibition of maximum growth rate of hydrogenotrophic methanogens at various pH-levels and temperatures. Appl. Microbiol. Biotechnol. 1988, 28, 500–505. [Google Scholar] [CrossRef]
  22. Zeeman, G.; Kujawa, K.; Meulman, B.; Kwant, F. Full scale demonstration of vacuum collection, transport & treatment of black water. In Poster presentation at the Advanced Sanitation Conference, Aachen, Germany, March 2007.
  23. Kujawa-Roeleveld, K.; Fernandes, T.; Wiryawan, Y.; Tawfik, A.; Visser, M.; Zeeman, G. Performance of UASB septic tank for treatment of concentrated black water within DESAR concept. Water Sci. Technol. 2005, 52, 307–313. [Google Scholar] [PubMed]
  24. APHA. Standard methods for the examination of water and wastewater; American Public Health Association: Washington, DC, USA, 1998. [Google Scholar]
  25. Batstone, D.J. Mathematical modelling of anaerobic reactors treating domestic wastewater: Rational criteria for model use. Rev. Environ. Sci. Bio/Technol. 2006, 5, 57–71. [Google Scholar] [CrossRef]
  26. Gorter, K. Black water production at the Decentralized Sanitation and Reuse demonstration project in Sneek, the Netherlands. personal communication, 17 November 2009. [Google Scholar]
  27. Lide, D.R. CRC Handbook of Chemistry and Physics, 85th ed.; CRC Press: Boca Raton, FL, USA, 2004. [Google Scholar]
  28. Lettinga, G.; Hulshoff Pol, L.W. UASB-process design for various types of wastewaters. Water Sci. Technol. 1991, 24, 87–107. [Google Scholar]
  29. Vinnerås, B.; Björklund, A.; Jönsson, H. Thermal composting of faecal matter as treatment and possible disinfection method - laboratory-scale and pilot-scale studies. Bioresour. Technol. 2003, 88, 47–54. [Google Scholar] [CrossRef] [PubMed]
  30. Winker, M.; Vinnerås, B.; Muskolus, A.; Arnold, U.; Clemens, J. Fertiliser products from new sanitation systems: Their potential values and risks. Bioresour. Technol. 2009, 100. [Google Scholar] [CrossRef] [PubMed]
  31. Mulder, A. The quest for sustainable nitrogen removal technologies. Water Sci. Technol. 2003, 48, 67–75. [Google Scholar] [PubMed]
  32. van der Star, W.R.L.; Abma, W.R.; Blommers, D.; Mulder, J.W.; Tokutomi, T.; Strous, M.; Picioreanu, C.; van Loosdrecht, M.C.M. Startup of reactors for anoxic ammonium oxidation: Experiences from the first full-scale anammox reactor in Rotterdam. Water Res. 2007, 41, 4149–4163. [Google Scholar] [CrossRef] [PubMed]
  33. de Graaff, M.S.; Zeeman, G.; Temmink, H.; Van Loosdrecht, M.C.M.; Buisman, C.J.N. Combined anaerobic treatment and autotrophic nitrogen removal from black water. In IWA 2nd Specialized Conference Nutrient Management in Wastewater Treatment Processes, Krakow, Poland, September 2009.
  34. Vlaeminck, S.E.; Terada, A.; Smets, B.F.; van der Linden, D.; Boon, N.; Verstraete, W.; Carballa, M. Nitrogen removal from digested black water by one-stage partial nitritation and anammox. Environ. Sci. Technol. 2009, 43, 5035–5041. [Google Scholar] [CrossRef] [PubMed]
  35. Ohlinger, K.N.; Young, T.M.; Schroeder, E.D. Predicting struvite formation in digestion. Water Res. 1998, 32, 3607–3614. [Google Scholar] [CrossRef]
  36. van Voorthuizen, E.; Zwijnenburg, A.; van der Meer, W.; Temmink, H. Biological black water treatment combined with membrane separation. Water Res. 2008, 42, 4334–4340. [Google Scholar] [CrossRef] [PubMed]
  37. Cordell, D.; Drangert, J.-O.; White, S. The story of phosphorus: Global food security and food for thought. Global Environ. Change 2009, 19, 292–305. [Google Scholar] [CrossRef]
  38. Ueno, Y.; Fujii, M. Three years experience of operating and selling recovered struvite from full-scale plant. Environ. Technol. 2001, 22, 1373–1381. [Google Scholar] [CrossRef] [PubMed]

Share and Cite

MDPI and ACS Style

De Graaff, M.S.; Temmink, H.; Zeeman, G.; Buisman, C.J.N. Anaerobic Treatment of Concentrated Black Water in a UASB Reactor at a Short HRT. Water 2010, 2, 101-119. https://doi.org/10.3390/w2010101

AMA Style

De Graaff MS, Temmink H, Zeeman G, Buisman CJN. Anaerobic Treatment of Concentrated Black Water in a UASB Reactor at a Short HRT. Water. 2010; 2(1):101-119. https://doi.org/10.3390/w2010101

Chicago/Turabian Style

De Graaff, Marthe S., Hardy Temmink, Grietje Zeeman, and Cees J. N. Buisman. 2010. "Anaerobic Treatment of Concentrated Black Water in a UASB Reactor at a Short HRT" Water 2, no. 1: 101-119. https://doi.org/10.3390/w2010101

Article Metrics

Back to TopTop
