Hydrogeological Characterization and Water Quality Evaluation of Amman-Wadi as Sir Aquifer, Northeastern Jordan

by
Ibraheem Hamdan
1,2,*,
Falk Lindenmaier
3,*,
Paul Koeniger
3,
Mu’ayyad Al Hseinat
4,
Mathias Toll
3,
Armin Margane
3,
Omed Al-Kurdi
5,
Mohammad Alqadi
6,
Mohammad Al-Hyari
5,
Florian Brückner
3,
Rebecca Bahls
3 and
Ahmad AlShdaifat
1
1
Faculty of Earth and Environmental Sciences, Applied Earth and Environmental Sciences Department, Al al-Bayt University, Mafraq 25113, Jordan
2
Environment, Water, and Energy Research Center, Al al-Bayt University, P.O. Box 130040, Mafraq 25113, Jordan
3
Federal Institute for Geosciences and Natural Resources (BGR), Stilleweg 2, 30655 Hannover, Germany
4
School of Science, Department of Geology, The University of Jordan, Amman 11942, Jordan
5
Federal Institute for Geosciences and Natural Resources (BGR), Shmessani, Amman 11181, Jordan
6
Applied Geology and Modeling of Environmental Systems, Friedrich-Alexander-University, 91054 Erlangen, Germany
*
Authors to whom correspondence should be addressed.
Water 2025, 17(23), 3353; https://doi.org/10.3390/w17233353
Submission received: 10 October 2025 / Revised: 19 November 2025 / Accepted: 20 November 2025 / Published: 23 November 2025
(This article belongs to the Section Hydrogeology)

Abstract

Groundwater resources in Jordan are under severe stress due to rapidly increasing water demand and over-abstraction that far exceeds natural replenishment. In addition, water quality is threatened by pollution from the misuse of fertilizers and pesticides, leakage from septic tanks, and illegal waste disposal. This study focuses on the Aqeb, Corridor, and Special Economic Zone wellfields, where hydrological and hydrochemical investigations were carried out. A total of 36 groundwater samples were collected and analyzed for hydrochemical composition, stable isotopes of oxygen (δ18O) and hydrogen (δ2H), and trace elements. In addition, two exploration 2D seismic profiles crossing the study area were interpreted, providing critical insights into the activity of the subsurface Fuluk Fault zone and its relationship with the wellfields. The hydrochemical results reveal elevated total dissolved solids and nitrate concentrations, accompanied by more depleted δ18O and δ2H values in wells located in the central part of the study area. Three distinct hydrochemical groups were identified within the same aquifer, indicating heterogeneity in groundwater chemistry that reflects variations in recharge conditions, flow paths, and geochemical processes. The first group (high Na/Cl with low salinity) likely represents recently recharged waters with limited rock–water interaction. The second group (intermediate Na/Cl and moderate salinity) may be influenced by evaporation, irrigation return flow, or cation exchange. The third group (low Na/Cl with high salinity) suggests the dissolution of sulfate minerals or mixing with deeper mineralized groundwater, possibly facilitated by structural features such as the Fuluk Fault. Seismic interpretation indicates several active near-surface fault systems that are likely to serve as preferential pathways for salinity and nitrate enrichment, linked to intensive agricultural activities and wastewater leakage from nearby septic tanks. The findings emphasize the combined influence of geochemical processes, excessive groundwater abstraction, and structural features in controlling water quality in the region.

1. Introduction

Jordan faces a severe and persistent water scarcity crisis driven by its arid to semi-arid climate and rapid population growth, including recurrent influx of refugees, placing enormous pressure on its already overexploited water systems [1,2,3,4,5,6]. Similar to other countries in the region, the imbalance between water supply and demand represents one of the most critical sustainability challenges [7]. Groundwater serves as the main freshwater source in Jordan, yet over-abstraction has exceeded natural recharge nearly threefold in recent decades [8,9,10]. The resulting decline in groundwater levels across most wellfields has caused wells to dry up, requiring costly deepening, and increasing energy demands for pumping. In many areas, such as northern Jordan, groundwater levels have dropped by 25–75 m between 1995 and 2017, with annual decline rates of 2–5 m [11]. These hydrogeological stresses threaten long-term water security and highlight the urgent need for improved understanding of aquifer behavior under intensive use. Within this context, water hydrochemical and isotopic analyses offer powerful tools to trace groundwater flow, evaluate recharge processes, and identify contamination pathways [12,13,14,15,16]. However, despite numerous local monitoring initiatives, comprehensive regional-scale studies integrating hydrochemistry, isotope geochemistry, and structural controls on groundwater quality remain limited for northern Jordan. Moreover, the mechanisms linking fault activity, salinization, and nutrient enrichment in heavily abstracted aquifers are poorly constrained. Addressing these gaps is essential for developing sustainable groundwater management strategies that could be applicable to other arid and semi-arid regions facing similar challenges.
The present study investigates the hydrochemical and isotopic characteristics of the Amman–Wadi As Sir limestone aquifer (A7/B2), which serves as a critical water source for northern Jordan. The research focuses on the Aqeb, Corridor, and Mafraq Special Economic Zone wellfields that represent major abstraction zones collectively producing about 25 MCM/a (Figure 1). More than forty years ago, when groundwater exploitation in Northeast Jordan started with drilling domestic water wells, groundwater was still plentiful, and wellfields were built rather to economic conditions than on hydrogeological ones. Aqeb Wellfield is stretched in a west–east direction as it follows the old road to Baghdad, and some infrastructure was available. Groundwater flow used to be in a north–south direction but has been reversed recently due to the heavy overexploitation [4,17].
This study integrates hydrochemical, isotopic, and structural approaches to provide new insights into groundwater evolution and fault-controlled vulnerability within an overexploited aquifer system. The findings contribute to broader hydrogeological understanding of water sustainability in dryland environments and align with global efforts to support the United Nations Sustainable Development Goals (SDGs), particularly SDG (6) on clean water and sanitation.

2. Geological–Hydrogeological Framework of the Study Area

The study area is characterized by hot, dry summers and cold winters, with precipitation occurring mainly in short, intense events. Annual rainfall averages 150 to 100 mm/a, with a west to east decreasing trend [24]. Elevations vary from ~700 m above sea level (asl) in the west to ~840 m asl in the eastern parts of the wellfield, while the northeastern extension toward the former volcano Jabel Druze in Syria reaches nearly 1800 m asl.
As shown in Figure 2, the exposed geological units in the study area range in age from the Late Cenomanian to the Miocene [25]. The Fuluk Fault system, a major regional fault system, crosses the study area from northwest to southeast. To the west of the fault, the Umm Rijam and Wadi Shallalah formations (B4/B5) together with the Muwaqqar Chalk Marl aquitard (B3) have been eroded, while borehole data confirm their presence to the east of the fault. Groundwater occurs predominantly within the Amman–Wadi As Sir limestone aquifer (A7/B2). In the western part, the basalt aquifer is locally in direct hydraulic connection with the underlying formations (Amman–Wadi As Sir limestone A7/B2).
The geological and hydrogeological sequence within the study area is characterized by the following formations:
  • Amman-Wadi As Sir limestone aquifer (A7/B2): This aquifer consists of the uppermost formation in Ajlun group (Amman formation—A7) and the lower part of Balqa group (Wadi As Sir—B2), separated locally by the Wadi Umm Ghudran marly limestone (B1 aquitard). This aquifer unit consists of limestone, dolomitic limestone and dolomite with intercalated beds of sandy limestone, chalk, marl and Phosphatic chert in the upper part of the B2 formation [26,27,28]. The thickness of the A7/B2 within the sub-crop area ranges between 150 m and 450 m [29]. In general, the saturated thickness of the A7/B2 aquifer ranges from 110 m in the western part of the area to 450 m in the eastern parts [26]. It is a fissured aquifer with low-density fissures but with some karstic enlargement of those and is known to be good water bearing if enough fissures are encountered during drilling.
  • Muwaqqar Chalk Marl aquitard (B3): This formation overlies the A7/B2 aquifer and consists mainly of yellowish marly limestone and grey-to-black bituminous marly limestone (oil shale). The formation water contains high concentrations of heavy metals (e.g., Mo, Ni, and As) and can pose a risk to groundwater in the A7/B2 aquifer if mobilized. This formation separates the A7/B2 aquifer from the overlying B4/B5 aquifer [25,26,27,28].
  • Umm Rijam and Wadi Shallalah aquifer (B4/B5): The B4/B5 aquifer consists of limestone, chalky limestone, chalk, and chalky marl with beds and nodules of brown to black chert from the Tertiary period [28,29,30]. The often-high salinity of the water in this aquifer, combined with its considerable distance from major population centers, limits its utilization in Jordan.
  • Basalt aquifer: West of the Fuluk Fault, the basalt aquifer is in direct hydraulic contact with the A7/B2 aquifer and together they form a combined aquifer. East of the Fuluk Fault, the A7/B2 aquifer is separated from the basalt aquifer by the Muwaqqar Chalk Marl formation (B3—aquitard) and the Umm Rijam (B4/B5—aquifer). The thickness of the basalt aquifer in the study area is between 200 and 400 m [29].

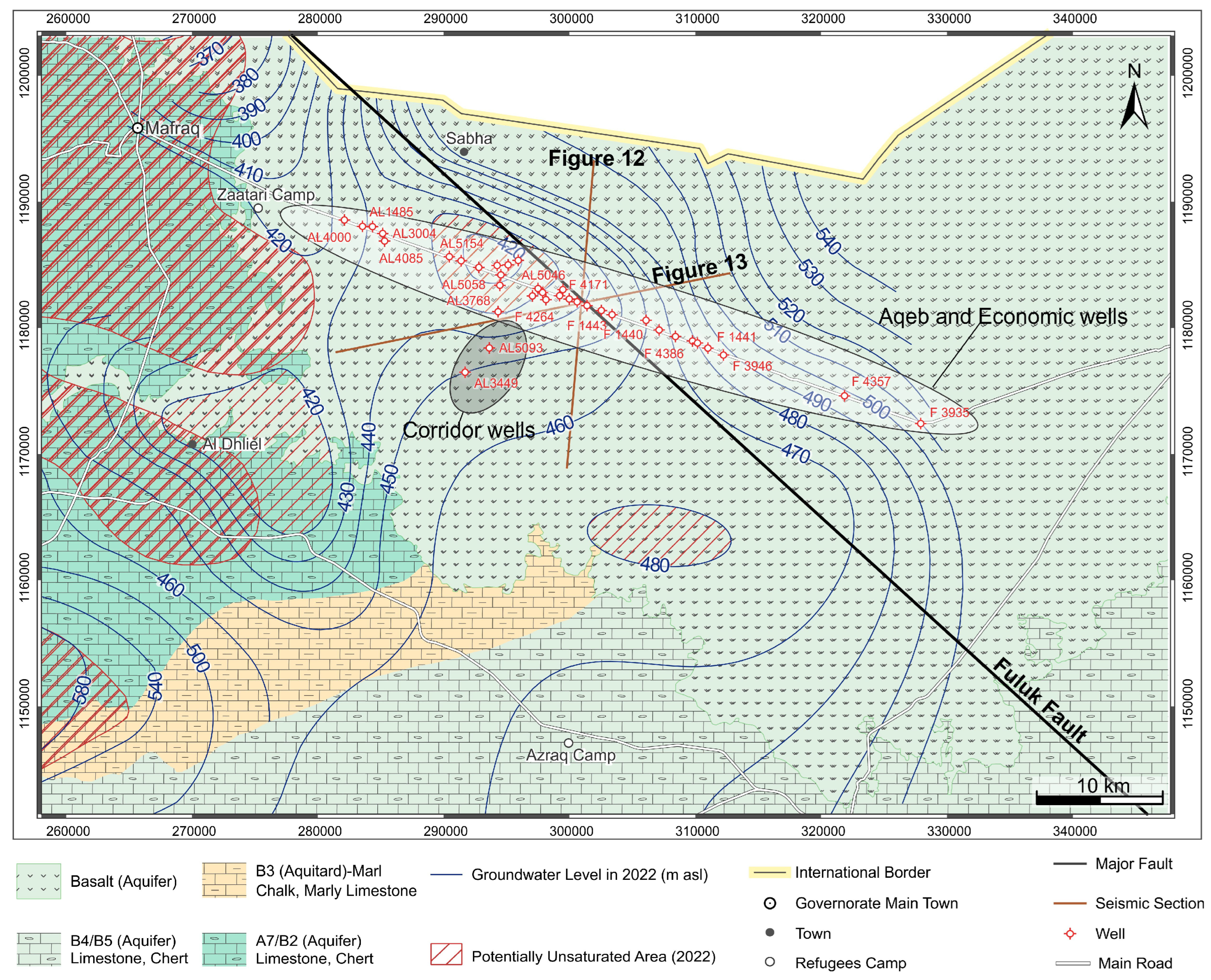

Figure 2. Hydrogeological map of the study area (modified after [11]), showing the positions of the seismic sections and the distribution of the studied wells (groundwater contour lines based on [31]).
Figure 2. Hydrogeological map of the study area (modified after [11]), showing the positions of the seismic sections and the distribution of the studied wells (groundwater contour lines based on [31]).
Water 17 03353 g002
Structurally, the study area is influenced by two main fault systems: the NW–SE-trending Fuluk Fault zone and a series of N–S-striking faults (Figure 2). While depicting only the surface expressions of these buried structures, this study provides, for the first time, a description of their subsurface configuration. The elevated Jabal Druze volcano north of the study area in Syria acts as a major recharge area, generating radial groundwater flow that provides inflow to the region [4,17]. The rainfall is caught in the Basalt cover and its main flow direction used to be south towards the Azraq oasis (southeast corner in Figure 2) before groundwater exploration started.
In the 1980s and 1990s, the first Aqeb wells for domestic water supply were constructed and impact on the basalt and A7/B2 groundwater system grew as further construction of water wells by the elongation of the water pipeline alongside the Baghdad Road continued. Subsequently, private landowners followed and used the fairly shallow water levels of the Basalt Aquifer for agriculture. Nowadays, more than 2800 deep agricultural wells surround the Aqeb wellfield in the extent of Figure 2. The basalt aquifer was still mainly saturated with water and that was extracted further southeast from the target area (wells at Azraq oasis) together with water from the B4/B5 aquifer. West of the Fuluk Fault, water extraction first started in the basalt strata and subsequently moved deeper into A7/B2. Especially, extensive water extraction west of the target area switched the groundwater flow from a north-to-south to a north-to-west direction [4,11,17,28,31].
Groundwater systems were seen as a bottomless bucket of water available for anyone who could afford to drill a well. Groundwater level observation efforts are constantly available, however, focused on single-point observation and only seldom on spatial observations [4,11,17,28,31]. It is clear that observation wells are expensive if depths of more than 500 m are needed. So, static water levels during well inspection were necessary to support the few water level stations in the north to construct contour maps [11,17,31]. Five official monitoring stations and about 20 static water levels are the base of piezometric water level estimation in the target area and observe the activity of >2800 water wells in Figure 2. The contours indicate the current groundwater level situation, which is highly superimposed by water extraction.

3. Methods and Analysis

3.1. Water Sampling and Analysis

Groundwater samples were collected from public production wells to evaluate water quality, identify geochemical processes, and assess the influence of fault systems on groundwater contamination. The samples were collected between January and February 2019 from three wellfields: Aqeb (27 samples), Corridor (4 samples), and Mafraq Economic Zone (5 samples). All investigated wells tap the Amman–Wadi As Sir limestone aquifer (A7/B2). The wells were strategically drilled along the main road to facilitate connection with the primary water pipeline that supplies the main pumping station in Mafraq Governorate. The basic characteristics of the sampled wells are summarized in Table 1.
At each site, a full set of bottles was collected to cover different analytical purposes: (i) 100 mL unfiltered samples for stable isotope analysis of oxygen and hydrogen, (ii) 100 mL filtered and acidified samples (1 mL of HNO3) for cation analysis, and (iii) 500 mL unfiltered samples for the determination of anions and heavy metals. Field parameters including water temperature (°C), pH, and electrical conductivity (EC) (µS/cm) were measured on-site using a WTW Multi 3430 set G device. All samples were stored in cool conditions until laboratory analysis. The distribution of sampling sites is shown in Figure 2.
Laboratory analyses were performed at BGR, Hannover, employing a combination of Ion Chromatography (IC) and Inductively Coupled Plasma–Mass Spectrometry (ICP-MS). Major and minor ions were quantified using a DIONEX ICS-3000 IC (Dionex Corporation, Sunnyvale, CA, USA (Cl, Br, F, NO3, NO2, and SO4), a SPECTRO ARCOS ICP-OES (SPECTRO Analytical Instruments GmbH, Kleve, Germany) (Na, K, Ca, Mg, P, Fe, Mn, Al, and Si), and a UNICAM UV 300 photometer (Thermo Spectronic, Birmingham, UK) (NH4). Standard calibration procedures were applied daily, following DIN 32645, to ensure the accuracy of quantification. Bicarbonate (HCO3) and carbonate (CO32−) concentrations were determined using a SCHOTT Titroline Alpha Plus automatic titration system, following a modified DIN 38409-H7-2, with titration curves used for species identification and quantitation. Phosphate contributions to alkalinity were derived from ICP-OES results. Uranium and trace elements were analyzed with an AGILENT 7500 ICP-MS. Analytical precision was assessed through daily quality control standards, while accuracy was verified using proficiency tests and reference solutions in accordance with DIN ISO 11352:2013-03. Detection limits and analytical precision depend on necessary dilution factors and are indicated by significant digits for the parameters in Table 2 and Table 3 and Appendix A and Appendix B. Charge balance error calculations were performed on all water samples and were usually better than ±3%.
The hydrochemical results were subsequently processed and visualized in AquaChem software (version 2014.2, © Waterloo Hydrogeologic, Canada), including the preparation of Piper diagrams to characterize groundwater composition and trends and saturation indices.
Stable isotope analyses of δ2H and δ18O were performed simultaneously using a Picarro L2120-i cavity ring-down (CRD) laser spectrometer following samples vaporization. Each sample was measured a minimum of four times, and the reported values represent the arithmetic mean value. The results are expressed in delta notation in per mill (‰) relative to the Vienna Standards Mean Ocean Water (VSMOW). Quality control of the raw data included automated screening for organic contamination using ChemCorrect software (Version 1.2.0 default settings), as well as corrections for memory effects and instrumental drift. Normalizing was carried out against the VSMOW/SLAP scale. The external reproducibility, expressed as standard deviation of a routine quality-check standard across all runs, was better than ±0.20‰ for δ18O and ±0.8‰ for δ2H. Corrections for memory effects and instrumental drift were conducted by replicate injections and by including ten laboratory standards randomly into each measuring sequence.

3.2. 2D Seismic Sections

Structural features, including the NW–SE-trending Fuluk Fault zone and N–S-striking faults, are examined for their potential role in controlling salinity and nutrient levels through preferential flow and contaminant migration pathways (Figure 1).
Between 1981 and 1996, the Ministry of Energy and Mineral Resources (MEMR) of Jordan, together with international petroleum companies, conducted several surveys. This study utilizes seismic profiles acquired in 1986 by MEMR and Geophysical Service Inc. Two profiles, oriented N-S and E-W, intersect the Fuluk Fault (Figure 2). The data were recently reprocessed and interpreted using IHS Markit KINGDOM (2018), with further details provided in Al Hseinat and AlZidaneen [21].

4. Results

4.1. Water Type

The hydrochemical analysis reveals that the cation order in the sampled groundwater is C a 2 + > M g 2 + > ( N a + +   K + ), while the dominant anion sequence is C l > H C O 3 > S O 4 2 (Figure 3). Summary statistics of the analyzed ions are provided in Table 2, and the complete dataset of major ion concentrations for all samples is presented in Appendix A. The hydrochemical facies of groundwater, classified according to Langguth [33], are illustrated in the Piper diagram (Figure 3). Although nitrate levels in the sampled wells remain below the permissible limits defined by the Jordanian drinking water standard (286/2015) (50 mg/L), elevated concentrations were detected in some locations, ranging from 4.1 to 48.9 mg/L. The spatial distribution of nitrate concentrations across the wells is depicted in Figure 4.
Saturation indices (SIs) for calcium carbonate were also calculated. Values below zero indicate undersaturation, suggesting relatively young water with short residence times, enriched in CO2 and showing limited interaction with the aquifer matrix. In contrast, SI values above zero reflect oversaturation, implying longer residence times, extensive water–rock interaction, and the potential for carbonate scaling. The spatial variability of the calculated SI values is shown in Figure 5.

4.2. Water Salinity

Total dissolved solids (TDSs) in the groundwater range between 180 and 1485 mg/L. According to the Jordanian drinking water standard 286/2015, most samples fall within freshwater category; however, several wells exceed the 1000 mg/L threshold. The spatial distribution of salinity (Figure 6) shows marked heterogeneity, with relatively low concentrations (<400 mg/L) in both the eastern and western zones, and the highest values concentrated in the central part of the study area. In some wells, elevated values of TDS coincide with increased nitrate concentrations. Linear regression analysis revealed a statistically significant (F < 0.05) positive relationship between TDS and NO3 with R2 = 0.91 (adjusted R2 = 0.9) suggesting a strong covariance is present. Furthermore, the p-value of (<0.05) for TDS suggests that it is a significant predictor of nitrate in the groundwater samples. These associations likely reflect the influence of wastewater infiltration from septic tanks or the application of fertilizers in nearby agricultural lands in which both TDS and nitrate show a similar behavior.

4.3. Heavy-Metal Concentrations

Heavy metals were analyzed in all collected groundwater samples to evaluate their potential impact on water quality. Table 3 summarizes with the permissible limits set by the Jordanian drinking water standard No. 286/2015. The results indicate that all measured elements remain well below the allowable thresholds, suggesting that the heavy-metal concentration does not pose a concern in the study area. The complete dataset for heavy metals and rare-earth elements is provided in Appendix B.

4.4. Multivariate Statistical Analysis

The groundwater chemical composition was investigated through Principal Component Analysis (PCA) using the open-source PAleontological Statistics Software (PAST, v. 4.17 [34]). PCA is utilized to identify the main parameters governing the covariance in groundwater chemical composition. Since the variables are measured in different units, all variables were normalized. PCA was conducted twice: The first run identified that, based on the Kaiser criterion (eigenvalue > 1), the first two principal components (PC 1 and PC 2) are considered primary and explain 64% of the total variance in the data. PC 1 (42.4%) is characterized by strong positive correlations for major ions and TDS, including Na, Ca, Mg, Cl, SO4, NO3, K, and SiO2 as well as elements like Sr, Cs, and Y. PC 2 (21.6%) is defined by a specific suite of trace elements, including As, U, B, W, Mo, V, HCO3, and Li. The second PCA analysis was conducted using the variables identified in the first PCA analysis. The Kaiser–Meyer–Olkin (KMO) was 0.74, and the Bartlett’s Sphericity Test (p-value) was <0.05. The PCA biplot (Figure 7) shows that the hydrochemical variables support a structured distinction between different primary processes controlling the hydrogeochemistry of the samples.
Based on the PCA results (Table 4), the first two components reflect the primary processes controlling the groundwater hydrogeochemistry variance, together explaining (87.7%) of the variance. PC 1 (59.8%) has strong positive correlations with TDS, Cl, SO4, Ca, Mg, Na, and K, suggesting a process of general groundwater mineralization driven by the dissolution of evaporites, carbonates, and silicates from the A7/B2 aquifer. Furthermore, the positive loading of Nitrate (NO3) is an indicator of anthropogenic contamination, possibly from agricultural return flow (fertilizers) or sewage, which is a common issue in heavily utilized aquifers like the A7/B2 in Jordan.
PC 2 (27.9%) is defined by a specific suite of trace elements, suggesting a specific, geologically controlled, source or process. Strong positive correlations are observed for a group of trace elements that include Lithium (Li), Boron (B), Uranium (U), Molybdenum (Mo), Arsenic (As), and HCO3. This association suggests a signature of deep-circulating fluids that have leached these elements from deeper rocks, often mobilized by elevated pH conditions (indicated by HCO3) [35] or fault-controlled flow. The positive loadings for As and Mo are related to the geological context where the Muwaqqar Chalk Marl aquitard (B3), which overlies the A7/B2 aquifer, is rich in heavy metals like As and Mo, suggesting its influence on the groundwater in the area. In addition, the negative loading of SiO2 on PC 2, and its positive loading on PC 1, suggests that the primary source of silica is related to general silicate weathering (PC 1) and inversely related to the deep/tectonic-influenced water (PC 2).
The PCA results coupled with the spatial distribution of the samples signify the effect of the Fuluk Fault in the study area. PC-1-dominant samples are characterized by high mineralization and anthropogenic contamination (NO3), consistent with a more confined aquifer system with slower flow and higher residence time, while the PC-2-dominant samples are characterized by a tectonic/deep fluid signature (Li and B) and the mobilization of trace elements (As, Mo) from the Muwaqqar Chalk Marl (B3) aquitard. This suggests that the Fuluk Fault acts as a major structural control, facilitating the upward migration of deep-circulating, tectonically influenced fluids and/or the localized release of Muwaqqar Chalk Marl (B3)-derived elements into the hydraulically connected combined aquifer west of the fault (Figure 8).

4.5. Stable Isotopes

Stable isotopes of oxygen (δ18O) and hydrogen (δ2H) are widely applied as tracers of groundwater recharge conditions, flow dynamics, and evaporative processes [36,37]. The isotopic composition of the groundwater in the study area shows δ18O values ranging from −6.19‰ to −6.93‰, with an average of −6.49 ± 0.20‰, and δ2H values between −31.0‰ to −33.8‰, averaging −32.3‰ ± 0.8‰. Most of the data points graphically cluster around the EM-MWL line and above the GMWL, suggesting that the groundwater originates from local meteoric water that has not undergone significant isotopic fractionation commonly caused through processes such as prolonged evaporation. This suggests rapid infiltration and recharge process consistent with the short and intense precipitation events in the study area. The tight clustering suggests a common recharge source and a relatively uniform process of infiltration. More depleted δ18O values were generally associated with less saline samples, suggesting recharge influence and variable flow paths within the aquifer system. The blue circled cluster (lighter isotopes) likely represents the younger, less-evolved groundwater recharged at higher elevations or during colder periods. This is also observed by their lower scores on PC 1 (mineralization). Red circled cluster (heavier isotopes) represent the older, more-evolved groundwater that has undergone deep circulation, water–rock interaction, and is likely associated with the fault-controlled upwelling. These samples generally have positive scores on PC 2 (geogenic control) and some of them show positive PC 1 (mineralization) scores.
The distribution of samples in a δ18O vs. δ2H diagram is presented in Figure 9, while the relationship between δ18O and TDS is shown in Figure 10. Linear regression analysis showed that a statistically significant (F < 0.05) positive relationship between TDS, δ18O, and δ2H values with R2 = 0.44, 0.32 (adjusted R2 = 0.42, 0.3), respectively, is present suggesting covariance. All groundwater samples exhibit high deuterium excess (DE = δ2H − 8 * δ18O), indicating secondary processes affecting the isotopic composition. The complete isotope dataset is provided in Appendix A.

4.6. Hydrogeochemical Processes

The diverse processes that control the groundwater characteristics can be further investigated through bivariate plots of major ions.

4.6.1. Silicate Weathering

As identified by the PCA results, silicate weathering is inversely related to the deep circulation-influenced water. Figure 11a shows the correlation between Na+ and Cl, indicating that most of the “eastern” samples cluster around the equiline with only three deviated samples. The cluster around the 1:1 line probably suggests that halites are dissolved in groundwater of equal amounts of Na and Cl. The “West” samples on the other hand show a wide spread of point with clusters around the 1:1 line and deviating below and above the line. This suggests variable behavior for these samples in terms of the deposition of halites in groundwater. Samples that fall below the 1:1 line with Na/Cl ratio (>1) imply that silicate weathering is probably the source of sodium in the groundwater [38]. This can be further investigated using the biplot of HCO3 vs. (Ca+2 + Mg+2) (Figure 11b) in which the samples would typically plot close to the (0.5) line to indicate carbonate or silicate weathering as primary sources for Ca+2 and Mg+2 in the groundwater or in the plot region of (<0.5) to indicate ion exchange or enrichment of HCO3 as primary processes [39]. For the current study, the figure shows that most of the “East” samples are located in the region below the (0.5) line, suggesting dominance of the latter processes, while the “West” samples show varied distribution below and above the (0.5) line, suggesting more complex processes controlling the source of these elements in the groundwater.

4.6.2. Ion Exchange Processes

Previous studies (e.g., [40,41]) report that the plot (HCO3 +SO42−) vs. (Ca+2 + Mg+2) can be useful in distinguishing ion exchange processes in groundwater. Figure 11c shows that the “East” samples generally cluster in the lower part around the equiline, while the “West” samples, similar to previous observations, show a wider spread along the equiline. Two “East” samples and six “West” samples plot below the line. This behavior suggests that limestones (calcite and dolomite) and evaporites (gypsum and anhydrite) could be the primary sources for these processes [42]. Furthermore, to identify the particular limestone dissolution, Marghade et al. [43] report that plotting Ca+2 vs. Mg+2 (Figure 11d) could provide an indicator of the dominant process. The results show that all the samples plot within the calcite dissolution region, suggesting that this is the main dissolution process in the study area.
These results agree with the geological/hydrogeological characteristics of the study area, the presence of limestone beds, and the nature of the aquifer strata on either side of the fault as well as the presence of the Muwaqqar Chalk Marl (B3 aquitard) in the eastern side.

4.7. Seismic Interpretation

The stratigraphic framework adopted in this study is based on a seismo-stratigraphic interpretation previously developed for the adjacent Dead Sea region to the west of the study area (Figure 1; [21]). Additional calibration was derived from the North Highland-01 (NH-01) exploration well (Figure 1; [44]), which provided direct lithological and stratigraphic control.
To reconstruct the tectono-stratigraphic evolution, two seismic profiles were examined, allowing the identification of both depositional sequences and structural deformation, including faulting, from the Late Cretaceous to the present (Figure 12 and Figure 13).
Within these profiles, seven principal seismic units were recognized and dated: Lower Ajlun (Cenomanian–Early Turonian), Wadi As Sir (WAS, Mid–Late Turonian), Lower Rajil (WUG, Late Coniacian), Upper Rajil (WUG, Santonian), Hamza (ASL, Early Campanian), Hazim (ASL, Mid–Late Campanian), Amman–Al Hisa (AHP, Late Campanian), Muwaqqar (MCM, Maastrichtian–Paleocene), Umm Rijam (UR, Early Eocene), Wadi Shallalah (WSC, Late Eocene), and Basalt (Ba, Miocene). An angular unconformity is identified between the MCM and UR units, marked on the seismic profiles by a dashed red reflector at approximately 0.21 s TWT, truncating the uppermost MCM deposits (Muwaqqar Formation).
In the central part of the study area, the S–N and SW–NE oriented seismic profiles shown in Figure 12 and Figure 13 intersect the NW–SE trending Fuluk Fault. These sections reveal multiple normal faults cutting through the entire succession, from Ordovician strata up to Cenozoic deposits, delineating a half-graben system. Several of these faults appear to exhibit recent tectonic activity, extending to and displacing the present-day surface topography (Figure 12 and Figure 13).

5. Discussion

The investigated wellfields are distributed across an extensive arid region. A distinctive feature of Jordan’s hydrogeological setting is that most aquifers are not directly linked to surface catchments but extend beneath a wide portion of the country. Consequently, the wells within the study area tap into a shared system. This system was traditionally referred to as the “basalt aquifer system”; however, the basalt units are largely unproductive and instead act as recharge zone for the underlying limestone aquifer (A7/B2 aquifer), which constitutes the main water-bearing formation currently exploited.
Groundwater levels in the region are notably deep, with average pumping lifts exceeding 300 m. Dynamic water levels in the examined wells vary between 210 and 390 m bgl. Although the A7/B2 aquifer remains the primary source, its saturated thickness has declined markedly, particularly over the past three decades, and many areas of the aquifer have already been depleted.
Hydrochemical conditions across the wellfields are highly variable regardless similar recharge mechanisms. Electrical conductivity and nitrate concentrations, for example, show substantial differences, especially in wells located in the central part of the study area. The relationship between total dissolved solids (TDSs) and major ions (Figure 14) indicates strong correlations with calcium (R2 = 0.96) and magnesium (R2 = 0.92) among cations, and with chloride (R2 = 0.99) and sulfate (R2 = 0.96) among anions. The strong association between TDS and the divalent cations (Ca2+ and Mg2+) points to significant rock–water interaction processes within the aquifer. Conversely, the high correlation with sulfate in wells of elevated salinity is attributed to the reduction of bicarbonate concentrations, which makes chloride and sulfate the dominant anions in such conditions. These processes were also identified through the PCA analyses where PC 1 denoted rock–water interactions and mineralization, while PC 2 marked the geogenic processes responsible for the enrichment of certain elements.
The sodium-to-chloride ratio (Na/Cl ratio) in the sampled wells ranges between 0.25 and 2.65. When plotted against TDS, three distinct groups can be identified: the Na/Cl ratio in relation with TDS (Figure 15) shows three groups: (i) water with a high Na/Cl ratio (generally >1) and low salinity, (ii) water with a medium Na/Cl ratio (≈0.5) and moderate water salinity, and (iii) water with a low Na/Cl ratio (<0.5) and elevated salinity.
The occurrence of a low Na/Cl ratio at higher salinities suggests that halite dissolution is not the principal source of salinity. This interpretation is supported by the relatively weak correlation between sodium and chloride concentrations (Figure 16; R2 = 0.66).
The presence of three hydrochemical groups within the same aquifer indicates heterogeneity in groundwater chemistry, likely reflecting different recharge conditions, flow paths, and geochemical processes (e.g., [45,46,47]). The first group (high Na/Cl with low salinity) may represent recently recharged waters with limited rock–water-interaction. The second group (intermediate Na/Cl and moderate salinity) could be influenced by evaporation, irrigation return flow, or cation exchange [48]. The third group (low Na/Cl with high salinity) points toward the dissolution of sulfate minerals such as gypsum or anhydrite and/or mixing with deeper mineralized groundwater, possibly facilitated by structural features like the Fuluk Fault [49]. These results are also supported by the PCA analysis that showed more than one hydrogeochemical process is controlling variance in the groundwater composition.

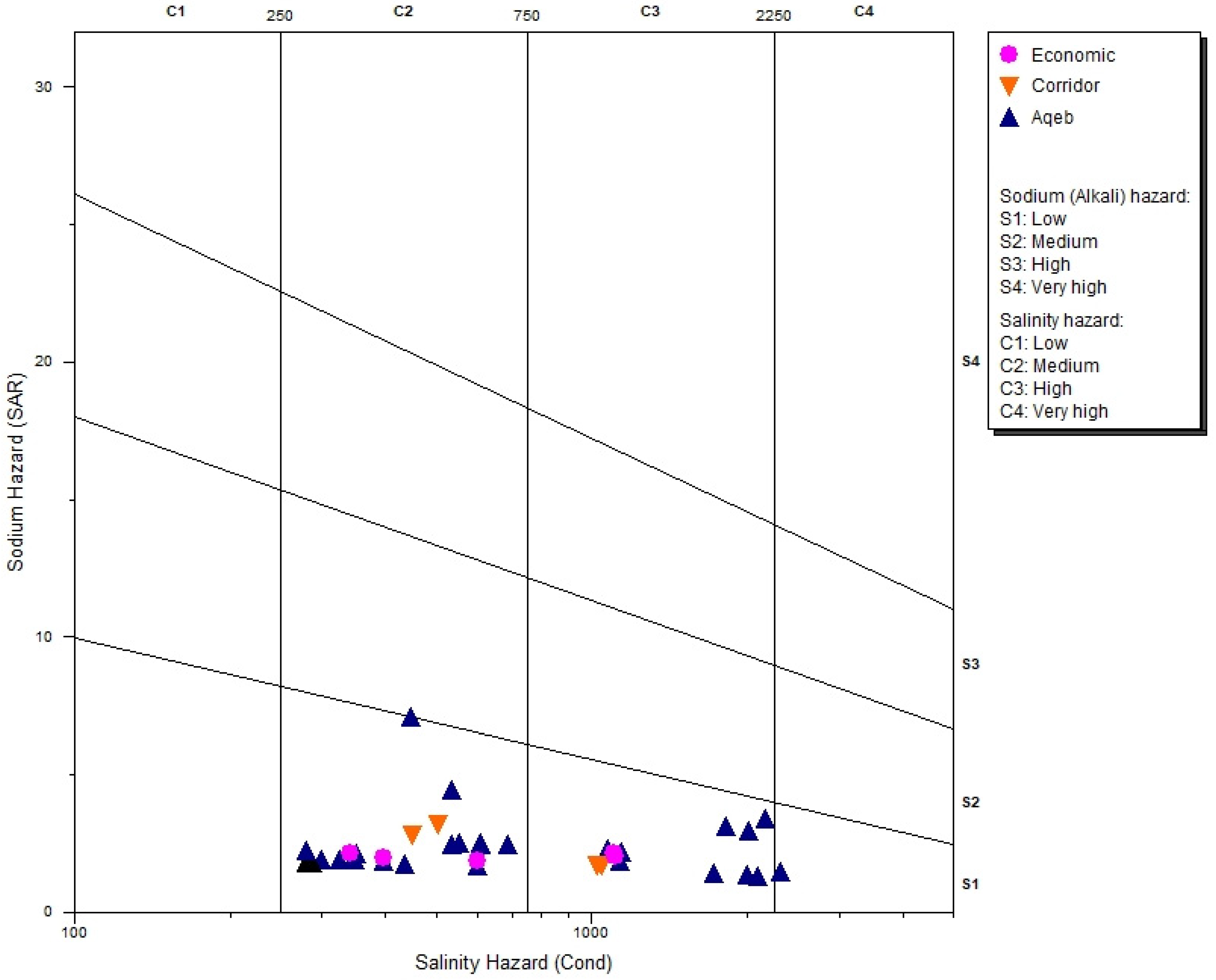

Since many agricultural wells in the area are used for irrigation, a Wilcox [50] diagram was plotted (Figure 17) to assess the suitability of groundwater for agricultural purposes. The water samples analyzed were categorized as S1, indicating a low sodium (alkali) hazard. In terms of salinity, however, they fall into the C2 and C3 classes, reflecting medium-to-high salinity hazards.
Beyond salinity and sodium concerns, groundwater quality is further challenged by contamination issues. High nitrate concentrations in several wells are likely associated to local anthropogenic inputs. The absences of centralized sewage system in surrounding villages contributes to wastewater seepage, primarily from defective septic tanks and unauthorized discharges into wadis. Historical records (2013 to 2014) show total coliform counts above critical levels (>2400) in three wells, indicating microbial contamination consistent with sewage leakage, agricultural practices, and livestock activities.
Apart from human-induced sources, the hydrogeological setting is likely to contribute to groundwater contamination. The presence of the Fuluk Fault and another fault systems may enhance both vertical and lateral transport of pollutants by modifying groundwater flow patterns (Figure 12 and Figure 13). While the degree of its present activity remains uncertain, the fault’s structural characteristics can still increase aquifer susceptibility to pollution by creating preferential pathways for the infiltration of wastewater and other surface-derived contaminants. This is also emphasized by the results of PC 2 that shows geogenic control over the groundwater composition in the area and probably reflects the role of the Fuluk Fault zone in the mobilization of solute between the different geological units.
Fault zones often comprise highly fractured and permeable damaged zones, which can act as preferential pathways for rapid contaminant transport, bypassing natural attenuation mechanisms. Research has shown that such zones may channel fluid and pollutant movement more efficiently than the surrounding host rock (e.g., [51,52,53,54]), while studies in fractured carbonates confirm that contaminants migrate more quickly along fractures compared to porous media (e.g., [55,56]). The Cretaceous to recent tectonic evolution of the fault systems related to Sirhan Graben System is attributed to the SAFB, Irbid Rift, and DSTF [19,20,21,22,57].

6. Conclusions

This study presented an integrated hydrogeological, hydrochemical, isotopic, and geophysical assessment of the Aqeb, Corridor, and Special Economic Zone wellfields in northeastern Jordan, which exploit the Amman–Wadi As Sir limestone (A7/B2) aquifer. The results highlight that the isotopic signatures indicate a constant precipitation source. Furthermore, the groundwater composition in the area is governed by the interplay of natural processes and human activities.
Elevated concentrations, and association, of TDS and nitrate, particularly in wells located in the central part of the study area, are possibly attributed to intensive agricultural practices and wastewater leakage from septic tanks. Although generally within the Jordanian drinking water standards, localized exceedances indicate growing stress on groundwater quality. Stable isotope data confirmed the presence of multiple recharge pathways and emphasized the influence of structural features in shaping groundwater flow and chemistry.
Interpretation of seismic profiles revealed active fault zones, most notably the Fuluk Fault, which likely act as preferential pathways for contaminant migration and mixing with deeper mineralized groundwater. The identification of three hydrochemical groups within the aquifer further reflects heterogeneity in recharge conditions, flow paths, and geochemical processes.
Overall, the findings demonstrate that groundwater over-abstraction, structural heterogeneities, and inadequate management of anthropogenic activities have increased the vulnerability of this strategic aquifer system. While heavy-metal concentrations remain within permissible limits, the spatial variability in salinity and nitrate underscores the urgent need for improved groundwater monitoring, stricter control of agricultural inputs, and enhanced protection measures to ensure the long-term sustainability of the resource.
From a management perspective, the results provide a foundation for developing targeted groundwater protection and monitoring strategies. Regular monitoring along fault zones is recommended as these structures may act as conduits for the vertical movement of saline or contaminated water. Implementing buffer zones around high-risk recharge areas and reducing fertilizer use through controlled agricultural practices could help limit diffuse pollution. Additionally, prioritizing the protection of recharge and low-salinity zones would support sustainable resource utilization. The integration of these measures into local and national groundwater management policies would strengthen resilience against contamination and overexploitation.

Author Contributions

Conceptualization, I.H., F.L. and M.A.H.; methodology, I.H., F.L. and M.A.H.; software, I.H., P.K., M.A.H., A.A. and M.A.-H.; validation, I.H., F.L. and M.A.H.; formal analysis, I.H., F.L., P.K. and M.A.H.; investigation, I.H., F.L. and M.A.H.; resources, I.H., F.L. and M.A.H.; data curation, I.H., F.L., M.A.H. and A.A.; writing—original draft preparation, I.H., F.L., P.K., M.A.H., M.T., A.M., O.A.-K., M.A.-H., M.A., F.B. and R.B.; writing—review and editing, I.H., F.L., P.K., M.A.H., M.T., A.M., O.A.-K., M.A.-H., M.A., F.B., R.B. and A.A.; visualization, I.H., F.L., P.K., M.A.H., A.A. and M.A.-H. All authors have read and agreed to the published version of the manuscript.

Funding

Water samples were collected and analyzed under the I-GWRM project (BMZ 2014.2482.9; BGR 05-2383), implemented by Federal Institute for Geosciences and Natural Resources (BGR) and the Jordanian Ministry of Water and Irrigation (MWI) and funded by the German Federal Ministry of Economic cooperation and Development (BMZ).

Data Availability Statement

All data used for this manuscript are provided in the text and in Appendix A and Appendix B.

Acknowledgments

We gratefully acknowledge the German Federal Ministry for Economic Cooperation and Development (BMZ) for funding this project. We also thank the Ministry of Energy and Mineral Resources (MEMR) for providing the data used in this study. Additionally, we appreciate ESRI for granting access to “ArcMap 10.8.2” software under an Academic User License Agreement.

Conflicts of Interest

The authors declare no conflicts of interest.

Appendix A. Analyzed Water Samples Results

Well NameField ParametersK (mg/L)Na (mg/L)Cl (mg/L)Mg (mg/L)Ca (mg/L)SO4 (mg/L)HCO3 (mg/L)NO3 (mg/L)δ18O (‰)δ2H (‰)
pHEC
(µS/cm)
Temp.
Aqeb km 91.5B8.0561015.63.066.091.916.526.036.412711.5−6.26−31.00
Aqeb km 937.9769034.53.868.211717.129.830.611513.0−6.32−31.40
Aqeb km 93.5B7.9861035.24.165.689.215.126.434.91349.38−6.32−31.70
Aqeb km 94.57.7855634.84.462.771.713.824.040.01385.81−6.27−31.00
Aqeb km 95B7.9853735.34.260.757.513.323.244.11494.29−6.36−32.20
Aqeb km 101C8.1820103214.215948079.285.916663.532.2−6.33−31.60
Aqeb km 102A8.18216032.614.218553375.299.316862.530.3−6.19−32.20
Aqeb Km 102.5A7.88182028.712.315544260.688.113768.323.9−6.30−31.30
Al Bustaneh (103D)8.18107627.39.488.022442.841.784.378.921.8−6.31−32.40
Aqeb km 104B8.15114030.79.687.524345.747.890.577.023.3−6.47−31.80
Aqeb km 1078.131135309.477.323848.850.197.876.722.6−6.43−31.90
Aqeb km 109B 7.93232028.713.310056713213020674.248.9−6.25−31.40
Aqeb km 109.58.3460131.56.349.398.824.025.741.810113.3−6.39−31.50
Aqeb km 1108.2209017.311.983.450411911717581.835.6−6.28−31.40
Aqeb km 111C7.84200031.511.588.948211212520782.238.1−6.30−31.10
Aqeb km 112D7.9417262810.480.937690.010117982.435.5−6.26−31.20
Aqeb km 113A8.2443429.15.741.163.414.718.027.488.79.49−6.48−32.60
Aqeb km 114A8.4639517.55.140.053.011.515.524.090.68.48−6.53−32.70
Aqeb km 1168.0534823.24.436.739.69.1112.619.591.58.11−6.69−33.30
Aqeb km 117 8.36326294.335.835.68.4512.418.591.67.69−6.65−33.00
Aqeb km 1188.3430129.24.034.628.57.8011.517.594.58.04−6.64−33.00
Aqeb km 1198.5528628.23.833.424.97.2311.016.695.17.66−6.73−33.00
Aqeb km 1228.3828426.53.833.424.57.1510.816.095.27.43−6.75−33.00
Aqeb km 1238.3435229.94.340.343.68.2713.620.191.57.30−6.89−33.20
Aqeb km 124B8.4128131.13.736.024.95.699.7415.493.67.10−6.93−33.50
Aqeb km 133A8.2853833.55.080.272.37.3812.552.399.610.8−6.38−33.10
Aqeb km 1408.5244735.23.280.546.81.956.5148.01009.57−6.67−33.20
Economic 17.9750429.35.467.659.19.5417.927.71459.13−6.72−33.70
Economic 38.1245020.95.158.747.59.4717.124.31474.14−6.90−33.80
Economic 48.04104823.39.069.321847.444.887.676.118.6−6.58−33.00
Economic 58.34102430.29.168.721246.444.987.077.619.2−6.54−32.30
Economic 67.87110629.19.385.723739.356.691.675.723.1−6.52−31.40
Corridor 17.99111426.89.582.223945.549.489.072.523.0−6.46−32.40
Corridor 178.2460014.86.552.110121.124.749.682.813.9−6.53−32.20
Corridor 3A8.33397285.041.947.312.214.333.991.19.69−6.52−32.20
Corridor 78.2834231.24.240.233.78.6512.724.998.39.05−6.61−31.50

Appendix B. Analyzed Results for Main Heavy Metals and Rare-Earth Elements

Well NameAg (µg/L)As (µg/L)B (µg/L)Ba (µg/L)Cd (µg/L)Co (µg/L)Cr (µg/L)Li (µg/L)Mn (µg/L)Mo (µg/L)Ni (µg/L)Pb (µg/L)Rb (µg/L)Sb (µg/L)Sr (µg/L)Ti (µg/L)U (µg/L)V (µg/L)Zn (µg/L)Zr (µg/L)
Aqeb km 91.5B0.1191.06621220.0070.01611.62.50.965.670.30.033.160.2074350.161.4825.11120.006
Aqeb km 930.0140.96531410.0460.00710.62.60.538.960.5<0.034.130.0855020.071.0936.96.7<0.005
Aqeb km 93.5B0.3570.96631350.0590.0076.663.10.546.260.3<0.034.000.0724730.181.0120.18.5<0.005
Aqeb km 94.5<0.0030.756698.50.1170.0093.972.80.517.604.2<0.034.432.764100.061.2711115.6<0.005
Aqeb km 95B<0.0031.077083.40.0600.0104.142.80.5210.00.4<0.033.990.127362<0.041.2432.016.9<0.005
Aqeb km 101C0.0070.1242107<0.0020.02620.41.90.511.19<0.2<0.0312.80.00710910.060.2936.7514.2<0.005
Aqeb km 102A0.0050.1642161<0.0020.02120.02.30.440.93<0.2<0.0311.70.01013330.140.2837.4613.4<0.005
Aqeb Km 102.5A0.0070.23441720.0100.01919.52.30.721.21<0.2<0.0310.30.01211680.140.2999.7062.4<0.005
Al Bustaneh (103D)<0.0030.193820.00.0040.01819.11.50.621.570.20.128.700.0095010.170.3489.70143<0.005
Aqeb km 104B0.0030.163723.70.0020.03618.71.50.991.77<0.2<0.038.910.0085320.080.34910.414.6<0.005
Aqeb km 1070.0050.153220.1<0.0020.01716.71.50.981.51<0.20.039.430.0065340.140.3328.883.70.008
Aqeb km 109B 0.0230.17327.470.0030.03420.02.00.241.47<0.20.0311.10.00812120.090.3588.405.1<0.005
Aqeb km 109.5<0.0030.26293.30<0.0020.01712.80.91.111.83<0.20.035.260.0072140.140.33013.42.8<0.005
Aqeb km 1100.0530.14291.52<0.0020.03315.61.71.711.610.30.409.830.01410400.180.3478.8060.2<0.005
Aqeb km 111C0.0650.20311.360.0030.02617.81.50.811.66<0.20.049.200.00610810.080.3349.897.6<0.005
Aqeb km 112D0.0340.21281.06<0.0020.02717.71.40.541.76<0.20.158.010.0077820.170.30210.18.8<0.005
Aqeb km 113A0.0030.25240.430.0020.01513.70.80.302.02<0.20.034.450.0111290.240.24513.41.6<0.005
Aqeb km 114A0.0050.36252.950.0020.01013.10.70.562.12<0.2<0.034.300.0121190.050.23614.437.9<0.005
Aqeb km 116<0.0030.31250.340.0050.01513.60.61.302.16<0.20.043.79<0.00596.80.160.21816.035.60.005
Aqeb km 117 <0.0030.32230.15<0.0020.01213.80.60.432.19<0.2<0.033.860.00588.60.140.21516.41.10.018
Aqeb km 1180.0040.27240.21<0.0020.00813.60.60.112.30<0.20.043.62<0.00580.10.200.23117.04.5<0.005
Aqeb km 119<0.0030.29220.22<0.0020.00713.60.60.122.28<0.20.193.500.00776.60.190.23717.45.60.020
Aqeb km 122<0.0030.39240.450.0020.00613.20.50.252.20<0.2<0.033.290.01274.20.080.22217.714.4<0.005
Aqeb km 123<0.0030.36231.84<0.0020.01314.00.60.622.41<0.20.033.890.02495.80.130.22517.623.80.011
Aqeb km 124B<0.0030.43210.32<0.0020.00713.30.50.292.15<0.20.253.400.01068.60.080.19420.16.1<0.005
Aqeb km 133A<0.0030.36410.38<0.0020.00518.60.60.353.41<0.20.043.83<0.0051360.080.23925.16.6<0.005
Aqeb km 140<0.0030.67370.31<0.0020.00813.20.30.264.48<0.2<0.031.96<0.00553.8<0.040.16041.90.9<0.005
Economic 1<0.0031.03631510.0060.00728.64.50.565.460.2<0.034.630.0722330.191.1947.257.90.006
Economic 3<0.0031.18621430.0100.01614.24.01.315.970.50.064.320.0762390.161.1643.877.00.015
Economic 4<0.0030.162911.60.0020.01216.91.50.361.93<0.2<0.037.90<0.0054180.220.2889.0359.5<0.005
Economic 5<0.0030.18318.18<0.0020.01716.71.50.721.84<0.20.048.140.0104170.110.2849.617.80.005
Economic 6<0.0030.233661.10.0040.01618.61.80.631.40<0.2<0.038.250.0145880.140.31310.212.4<0.005
Corridor 1<0.0030.123421.9<0.0020.01718.41.50.911.71<0.20.048.510.0055060.130.2978.9128.5<0.005
Corridor 170.0040.18297.120.0020.04415.11.016.92.15<0.20.575.750.0192270.670.25011.31080.009
Corridor 3A<0.0030.33282.48<0.0020.02019.10.80.902.27<0.20.174.410.0131250.320.25015.82.90.017
Corridor 7<0.0030.473018.90.0030.00615.51.00.282.23<0.20.033.570.0161120.160.32617.71.90.007

References

  1. Rödiger, T.; Geyer, S.; Mallast, U.; Merz, R.; Krause, P.; Fischer, C.; Siebert, C. Multi-response calibration of a conceptual hydrological model in the semiarid catchment of Wadi al Arab, Jordan. J. Hydrol. 2014, 509, 193–206. [Google Scholar] [CrossRef]
  2. Xanke, J.; Salman, A.; Al-Karablieh, E.; Liesch, T.; Salameh, E.; Goldscheider, N. Hydrogeological site investigation and economic evaluation to assess the potential of managed aquifer recharge in the Lower Jordan Valley. Hydrogeol. J. 2020, 28, 745–762. [Google Scholar] [CrossRef]
  3. Hamdan, I.; Ptak, T.; Wiegand, B.; Sauter, M. Development of a quantitative transport-time-based groundwater vulnerability model for non-point-source pollution in karst aquifers: A conceptual approach and example from the Tanour and Rasoun spring catchment, north-western Jordan. Hydrogeol. J. 2020, 28, 1091–1106. [Google Scholar] [CrossRef]
  4. Brückner, F.; Bahls, R.; Alqadi, M.; Lindenmaier, F.; Hamdan, I.; Alhiyari, M.; Atieh, A. Causes and consequences of long-term groundwater over abstraction in Jordan. Hydrogeol. J. 2021, 29, 2789–2802. [Google Scholar] [CrossRef]
  5. Salameh, E.; Al-Alami, H. Hydrogeological, hydrochemical and environmental consequences of the extraction of nonrenewable groundwater in Jordan. Hydrogeol. J. 2023, 32, 81–95. [Google Scholar] [CrossRef]
  6. Talozi, S.; Alharahsheh, T.; Hamdan, I. Selecting suitable sites for groundwater recharge in Jordan using the spreading techniques via the integration of multi-criteria decision analysis and geographic information system tools. Groundw. Sustain. Dev. 2023, 22, 100948. [Google Scholar] [CrossRef]
  7. Margane, A.; Dwairi, M. Rapid Assessment of the Consequences of Declining Resources Availability and Exploitability for the Existing Water Supply Infrastructure—Technical Cooperation Project ‘Management of Water Resources—Third National Water Master Plan’; The Deutsche Gesellschaft für Internationale Zusammenarbeit (GIZ) GmbH in Cooperation of the Ministry of Water and Irrigation (MWI): Amman, Jordan, 2020; 365p. [Google Scholar]
  8. Margane, A.; Dwairi, M.; Mikovec, R. Third National Water Master Plan, Water Resources—Technical Cooperation Project ‘Management of Water Resources’; The Deutsche Gesellschaft für Internationale Zusammenarbeit (GIZ) GmbH in Cooperation of the Ministry of Water and Irrigation (MWI): Amman, Jordan, 2022; Volume B, 156p. [Google Scholar]
  9. MWI (Ministry of Water and Irrigation). Jordan Water Sector Facts and Figures; Ministry of Water and Irrigation: Amman, Jordan, 2017.
  10. Alqadi, M.; Margane, A.; Al Raggad, M.; Subah, A.; Disse, M.; Hamdan, I.; Chiogna, G. Implementation of Simple Strategies to Improve Wellfield Management in Arid Regions: The Case Study of Wadi Al Arab Wellfield, Jordan. Sustainability 2019, 11, 5903. [Google Scholar] [CrossRef]
  11. MWI-BGR (Ministry of Water and Irrigation; Bundesanstalt für Geowissenschaften und Rohstoffe). Groundwater Resource Assessment of Jordan 2017; Ministry of Water and Irrigation, Bundesanstalt für Geowissenschaften und Rohstoffe: Amman, Jordan, 2019; ISBN 978-9923-9769-0-6.
  12. Nazeri, T.M.; Khashei, S.A.; Ramezani, Y. Redesigning and monitoring groundwater quality and quantity networks by using the entropy theory. Environ. Monit. Assess. J. 2019, 191, 250. [Google Scholar] [CrossRef]
  13. Sadashivaiah, C.; Ramakrishnaiah, C.R.; Ranganna, G. Hydrochemical Analysis and Evaluation of Groundwater Quality in Tumkur Taluk, Karnataka State, India. Int. J. Environ. Res. Public Health 2008, 5, 158–164. [Google Scholar] [CrossRef] [PubMed]
  14. Chenini, I.; Farhat, B.; Ben Mammou, A. Identification of Major Sources Controlling Groundwater Chemistry from a Multilayered Aquifer System. Chem. Speciat. Bioavailab. 2010, 22, 183–189. [Google Scholar] [CrossRef]
  15. El Alfy, M.; Lashin, A.; Abdalla, F.; Al-Bassam, A. Assessing the hydrogeochemical processes affecting groundwater pollution in arid areas using an integration of geochemical equilibrium and multivariate statistical techniques. Environ. Pollut. J. 2017, 229, 760–770. [Google Scholar] [CrossRef] [PubMed]
  16. Kumar, P.J. Interpretation of Groundwater Chemistry Using Pioer and Chadha’s diagrams: A Comparative Study from Perambalur Taluk. Elixir Geosci. J. 2013, 54, 12208–12211. [Google Scholar]
  17. Gropius, M.; Dahabiyeh, M.; Al Hyari, M.; Brückner, F.; Lindenmaier, F.; Vassolo, S. Estimation of unrecorded groundwater abstractions in Jordan through regional groundwater modelling. Hydrogeol. J. 2022, 30, 1769–1787. [Google Scholar] [CrossRef]
  18. Stern, R.J.; Johnson, P. Continental lithosphere of the Arabian Plate: A geologic, petrologic, and geophysical synthesis. Earth-Sci. Rev. 2010, 101, 29–67. [Google Scholar] [CrossRef]
  19. Al Hseinat, M.; Al-Rawabdeh, A.M.; AlZidaneen, M.; Al-Taj, M.; Ghanem, H.; Diabat, A.; Jarrar, G.; Atallah, M. New Insights for Understanding the Structural Deformation Style of the Strike-Slip Regime along the Wadi Shueib and Amman-Hallabat Structures in Jordan Based on Remote Sensing Data Analysis, Jordan. Geosciences 2020, 10, 253. [Google Scholar] [CrossRef]
  20. Al Hseinat, M.; Al Zidaneen, M.; Jaradat, R.; Al-Rawabdeh, A.M.; Hübscher, C. Tectono-stratigraphic framework and evolution of the northwestern Arabian plate, Central Jordan. Tectonophysics 2023, 863, 229993. [Google Scholar] [CrossRef]
  21. Al Hseinat, M.; Al Zidaneen, M. Restraining Bend Deformation at the Northern Termination of the Wadi Araba Fault: Insights from Reflection Seismic Data and Focal Mechanism Solutions. Tectonophysics 2024, 887, 230456. [Google Scholar] [CrossRef]
  22. Al Hseinat, M.; Al Zidaneen, M. Tectonic Scenarios and Structural Deformation Patterns at the Northern End of the Wadi Araba Strike-slip System, Jordan Plateau. Geogr. Earth Sci. Environ. Res. Highlights 2024, 2, 116–150. [Google Scholar] [CrossRef]
  23. ASF ALOS PALSAR—Digital Elevation Model (12.5 m Spatial Resolution). 2025. Available online: https://asf.alaska.edu/datasets/derived-data-sets/alos-palsar-rtc/alos-palsar-radiometric-terrain-correction (accessed on 15 March 2025).
  24. MWI-BGR (Ministry of Water and Irrigation; Bundesanstalt für Geowissenschaften und Rohstoffe). Water Yearbook-Hydrological Year 2016–2017; Ministry of Water and Irrigation, Bundesanstalt für Geowissenschaften und Rohstoffe: Amman, Jordan, 2018.
  25. Al Hiyari, A. Geological Map of Qasr Al Hallabat; National Mapping Project, Sheet No. (3254-II); Jordan Ministry of Energy and Mineral Resources—Natural Resources Authority (Geology Directorate): Amman, Jordan, 2004.
  26. Bahls, R.; Holzner, K.; Al Hyari, M.; Al Kurdi, O.; Al-Kordi, R.; Hani, M.; Sawryeh, K. Groundwater Resources Assessment of the A7/B2 Aquifer in Jordan. In Groundwater Resources Management Project; BGR-MWI Technical Cooperation Project. BGR Report Number: 05-2389-01-0910; Ministry of Water and Irrigation and Federal Institute for Geosciences and Natural Resources: Amman, Jordan, 2018. [Google Scholar]
  27. Hamdan, I. Characterization of Groundwater Flow and Vulnerability Assessment of Karstic Aquifers—Development of a Travel Time-Based Approach and Application to the Tanour and Rasoun Spring Catchment (Ajlun, NW-Jordan). Ph.D. Thesis, University of Göttingen, Göttingen, Germany, 2016. Available online: https://ediss.uni-goettingen.de/handle/11858/00-1735-0000-0028-8810-8 (accessed on 14 March 2025).
  28. Margane, A.; Hobler, M.; Almomani, M.; Subah, A. Contributions to the Hydrogeology of Northern and Central Jordan. In Geologisches Jahrbuch Reihe C, Band C 68; Schweizerbart Science Publisher: Stuttgart, Germany, 2002; ISBN 978-3-510-95890-0. Available online: https://www.schweizerbart.de/publications/detail/isbn/9783510958900/Geologisches_Jahrbuch_Reihe_C_Heft_C68 (accessed on 1 November 2025).
  29. Brückner, F. Update of Structure Contour Maps of Ajloun and Belqa Groups. BGR-MWI Technical Cooperation Project. Improved Groundwater Resources Management in Response to the Syrian Refugee Crisis Project; Ministry of Water and Irrigation, Bundesanstalt für Geowissenschaften und Rohstoffe: Amman, Jordan, 2018. [Google Scholar]
  30. Almomani, T.; Al Shraydeh, S.; Shakhatreh, H.; Alroud, R.; Brezat, A.; Obayat, A.; Atyeh, A.; Almasri, M.; Alta’ani, A. Water Yearbook—Hydrogeological Year 2016–2017; Ministry of Water and Irrigation: Amman, Jordan, 2018.
  31. MWI; BGR. Groundwater Resources Assessment of the A7/B2 Aquifer in Northern Jordan for 2022. Project “Groundwater Resources Management in Jordan”; Ministry of Water and Irrigation (MWI) and Federal German Institute for Geosciences and Natural Resources (BGR): Amman, Jordan, 2024. Available online: https://www.whymap.org/EN/Themen/Wasser/Projekte/laufend/TZ/Jordanien/gwressbew_fb_en.html?nn=1546392 (accessed on 1 November 2025).
  32. JS 286/2015; Jordanian Drinking Water Standard (Water-Drinking Water). Jordan Standards and Metrology Organization: Amman, Jordan, 2015.
  33. Langguth, H.R. Die Grundwasserverhältnisse im Bereich des Velberter Sattels (Rheinisches Schiefergebirge). Ph.D. Thesis, Minister für Rnährung, Landwirtschaft und Forsten des Landes Nordrhein-Westfalen), Düsseldorf, Germany, 1966. [Google Scholar]
  34. Hammer, Ø.; Harper, D.A. Past: Paleontological statistics software package for educaton and data anlysis. Palaeontol. Electron. 2001, 4, 1–9. [Google Scholar]
  35. Stollenwerk, K.G. Molybdate transport in a chemically complex aquifer: Field measurements compared with solute-transport model predictions. Water Resour. Res. 1998, 34, 2727–2740. [Google Scholar] [CrossRef]
  36. Clark, I.; Fritz, P. Environmental Isotopes in Hydrogeology; CRC Press: Boca Raton, FL, USA, 1997. [Google Scholar]
  37. Gat, J.R. Oxygen and hydrogen isotopes in the hydrologic cycle. Annu. Rev. Earth Planet. Sci. 1996, 24, 225–262. [Google Scholar] [CrossRef]
  38. Chen, S.; Tang, Z.; Wang, J.; Wu, J.; Yang, C.; Kang, W.; Huang, X. Multivariate analysis and geochemical signatures of shallow groundwater in the main urban area of Chongqing, Southwestern China. Water 2020, 12, 2833. [Google Scholar] [CrossRef]
  39. Sami, K. Recharge mechanisms and geochemical processes in a semi-arid sedimentary basin, Eastern Cape, South Africa. J. Hydrol. 1992, 139, 27–48. [Google Scholar] [CrossRef]
  40. Mishra, A.; Rai, A.; Mishra, P.K.; Rai, S.C. Evaluation of hydro-chemistry in a phreatic aquifer in the Vindhyan Region, India, using entropy weighted approach and geochemical modelling. Acta Geochim. 2023, 42, 648–672. [Google Scholar] [CrossRef]
  41. Dashora, M.; Kumar, A.; Kumar, S.; Kumar, P.; Kumar, A.; Singh, C.K. Geochemical assessment of groundwater in a desertic region of India using chemometric analysis and entropy water quality index (EWQI). Nat. Hazards 2021, 112, 747–782. [Google Scholar] [CrossRef]
  42. Fisher, R.S.; Mullican, W.F. Hydrochemical evolution of sodiumsulphate sodium-chloride groundwater beneath the Northern Chihuahuan desert Trans-Pecos Texas, USA. Hydrogeol. J. 1997, 5, 4–16. [Google Scholar] [CrossRef]
  43. Marghade, D.; Malpe, D.B.; Rao, N.S. Applications of geochemical and multivariate statistical approaches for the evaluation of groundwater quality and human health risks in a semi-arid region of eastern Maharashtra, India. Environ. Geochem. Health 2019, 43, 683–703. [Google Scholar] [CrossRef]
  44. Natural Resources Authority (NRA). North Highland-01 exploration well. 1986; unpublished report. [Google Scholar]
  45. Hem, J.D. Study and Interpretation of the Chemical Characteristics of Natural Water; Department of the Interior, US Geological Survey: Reston, VA, USA, 1985; Volume 2254.
  46. Drever, J.I.; Stillings, L.L. The role of organic acids in mineral weathering. Colloids Surf. A Physicochem. Eng. Asp. 1997, 120, 167–181. [Google Scholar] [CrossRef]
  47. Appelo, C.A.J.; Postma, D. Geochemistry, Groundwater and Pollution, 2nd ed.; CRC Press: Boca Raton, FL, USA, 2005. [Google Scholar]
  48. Stuyfzand, P.J. Patterns in groundwater chemistry resulting from groundwater flow. Hydrogeol. J. 1999, 7, 15–27. [Google Scholar] [CrossRef]
  49. Custodio, E.; Llamas, M.R. Hydrogeology of Spain; Geological Society of Spain: Madrid, Spain, 1983. [Google Scholar]
  50. Wilcox, L. Classification and Use of Irrigation Water; US Department of Agriculture: Washington, DC, USA, 1955; No. 969; 19p.
  51. Caine, J.S.; Evans, J.P.; Forster, C.B. Fault zone architecture and permeability structure. Geology 1996, 24, 1025–1028. [Google Scholar] [CrossRef]
  52. Faulkner, D.R.; Jackson, C.A.L.; Lunn, R.J.; Schlische, R.W.; Shipton, Z.K.; Wibberley, C.A.J.; Withjack, M.O. A review of recent developments concerning the structure, mechanics, and fluid flow properties of fault zones. J. Struct. Geol. 2010, 32, 1557–1575. [Google Scholar] [CrossRef]
  53. Bense, V.F.; Gleeson, T.; Loveless, S.E.; Bour, O.; Scibek, J. Fault zone hydrogeology. Earth Sci. Rev. 2013, 127, 171–192. [Google Scholar] [CrossRef]
  54. Antonellini, M.; Mollema, P. A review of fault zone aquifers. J. Hydrol. 2014, 519, 793–809. [Google Scholar] [CrossRef]
  55. Hitchmough, A.; Riley, M.S.; Herbert, A.W.; Tellam, J.H.; Rivett, M.O. Estimating the hydraulic properties of the fracture network in a sandstone aquifer. J. Contam. Hydrol. 2007, 94, 38–57. [Google Scholar] [CrossRef]
  56. Medici, G.; West, L.J.; Mountney, N.P. Fault-controlled channelization of groundwater flow in sandstone aquifers. Hydrogeol. J. 2016, 24, 1241–1262. [Google Scholar]
  57. Al Hseinat, M.; Al Zidaneen, M.; Sewidan, G. Analyzing Recent Tectonic Activity Along the Karak Wadi Al Fayha Fault System using Seismic, Earthquake, and Remote Sensing Data. Geosciences 2025, 15, 177. [Google Scholar] [CrossRef]

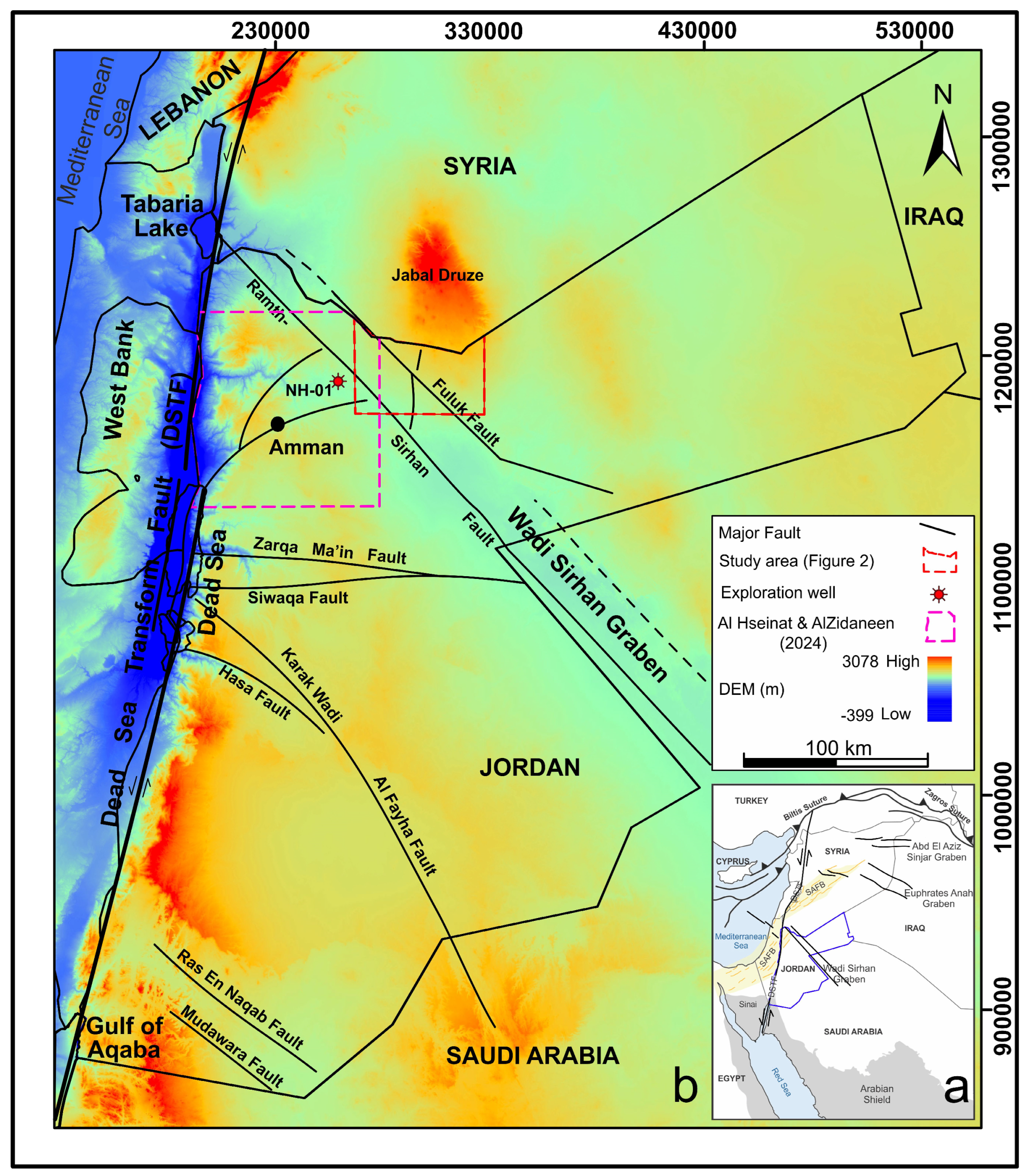

Figure 1. (a) Regional tectonic map of the Middle East presenting the location of Jordan and the major tectonic structures therein (modified from [18]). (b) Map of the study area in northeast part of Jordan illustrating the surface expression of fault systems in the region (modified after [19,20,21,22]; the background digital elevation model (DEM) is taken from ALOS PALSAR DEM 12.5 m resolution [23]).
Figure 1. (a) Regional tectonic map of the Middle East presenting the location of Jordan and the major tectonic structures therein (modified from [18]). (b) Map of the study area in northeast part of Jordan illustrating the surface expression of fault systems in the region (modified after [19,20,21,22]; the background digital elevation model (DEM) is taken from ALOS PALSAR DEM 12.5 m resolution [23]).
Water 17 03353 g001

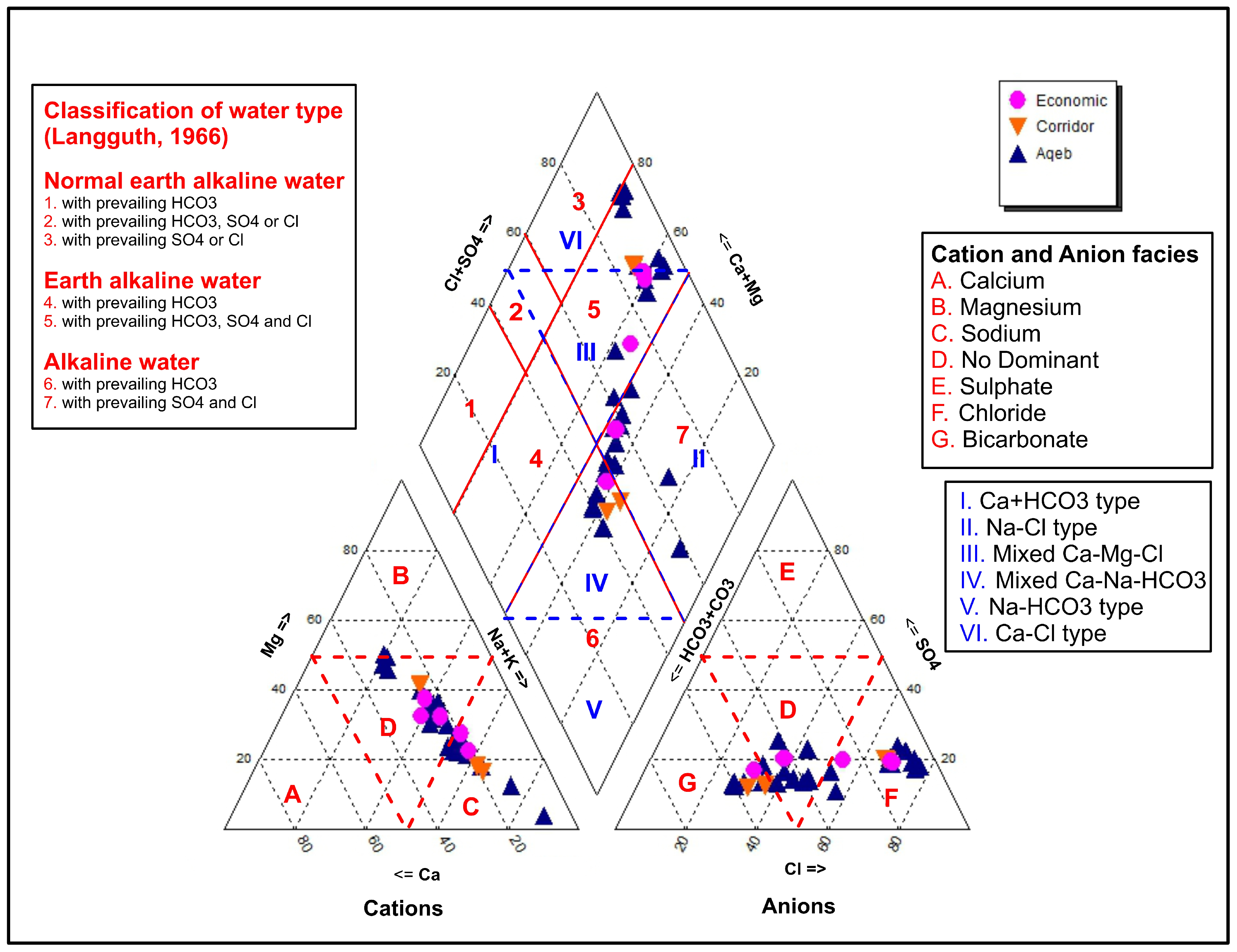

Figure 3. Piper diagram of Economic, Corridor, and Aqeb wells with water types according to classification after Langguth [33].
Figure 3. Piper diagram of Economic, Corridor, and Aqeb wells with water types according to classification after Langguth [33].
Water 17 03353 g003

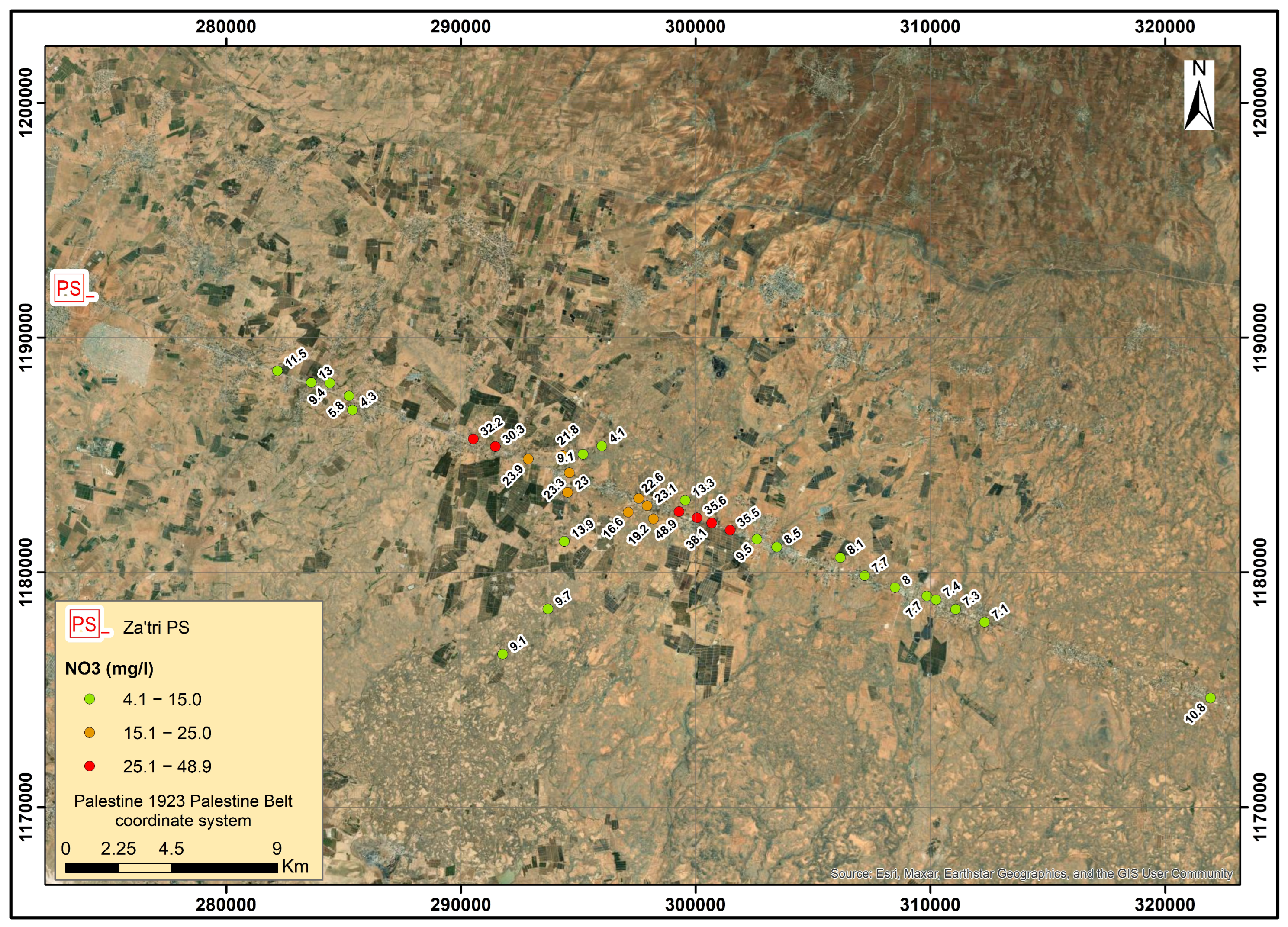

Figure 4. Spatial distribution of nitrate concentrations within the study area.
Figure 4. Spatial distribution of nitrate concentrations within the study area.
Water 17 03353 g004

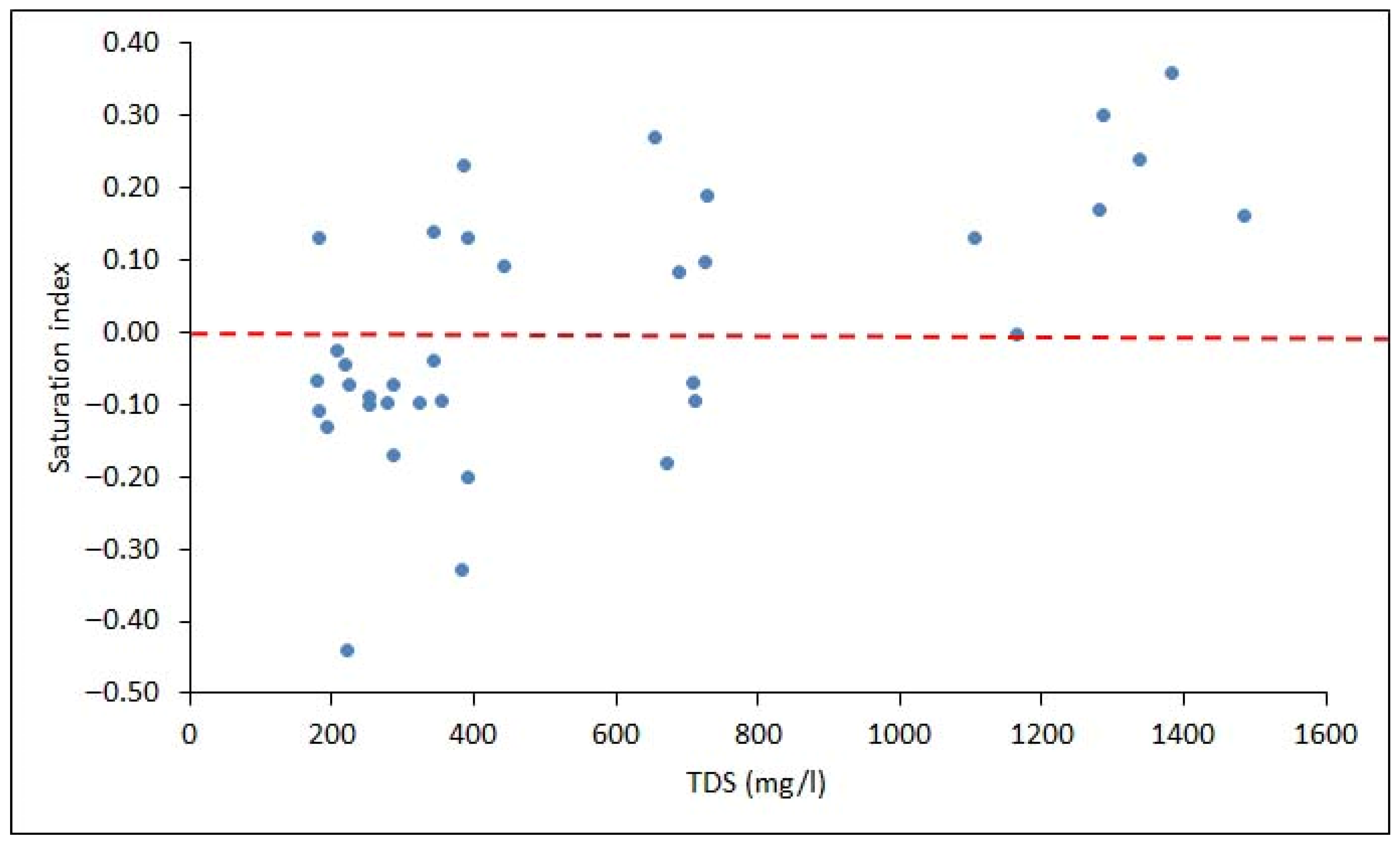

Figure 5. Water saturation indices (in respect to calcium carbonate) in relation to TDS concentration. Red dashed line represents the zero SI value.
Figure 5. Water saturation indices (in respect to calcium carbonate) in relation to TDS concentration. Red dashed line represents the zero SI value.
Water 17 03353 g005

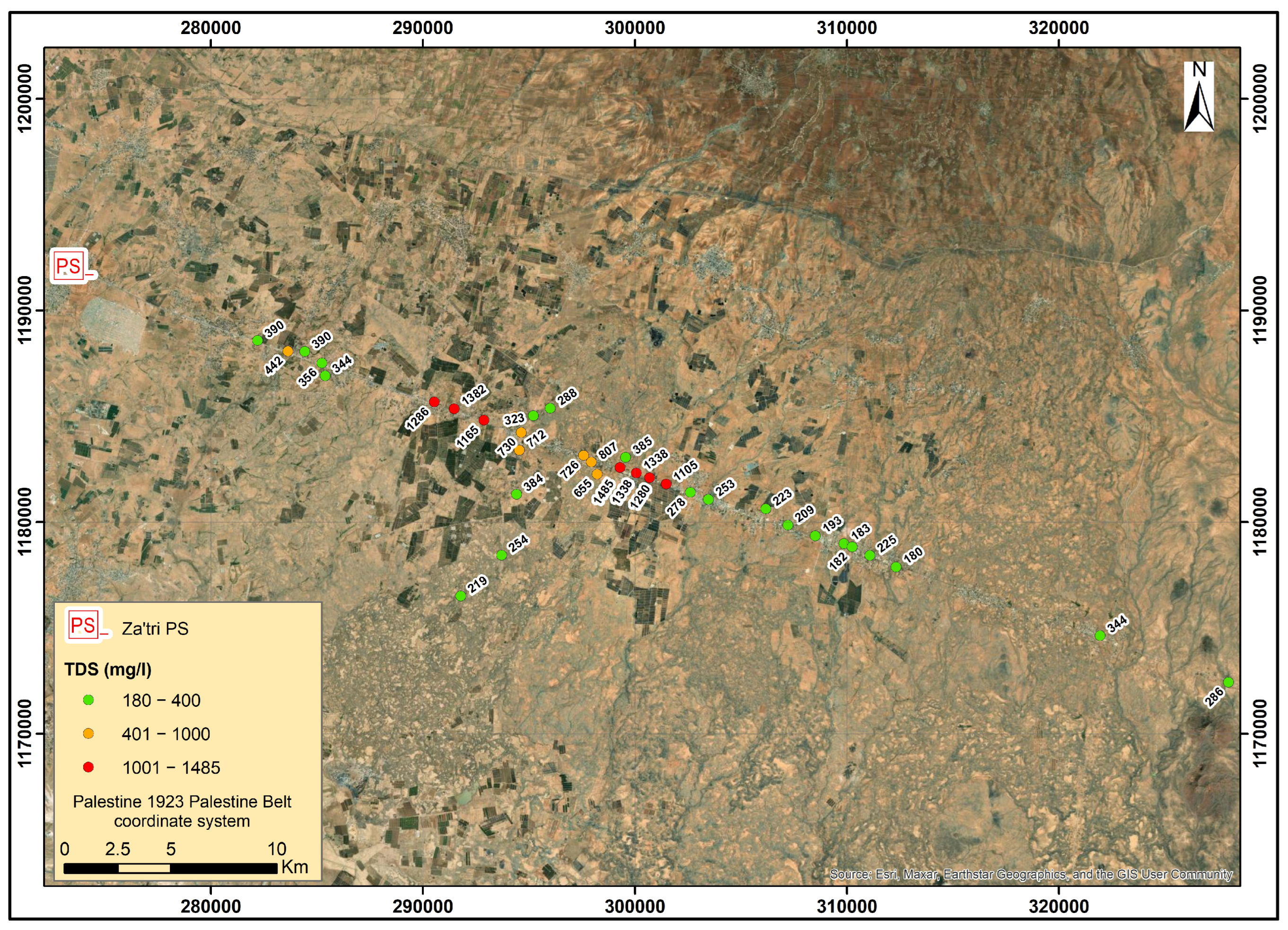

Figure 6. Spatial distribution of groundwater salinity in the study area.
Figure 6. Spatial distribution of groundwater salinity in the study area.
Water 17 03353 g006

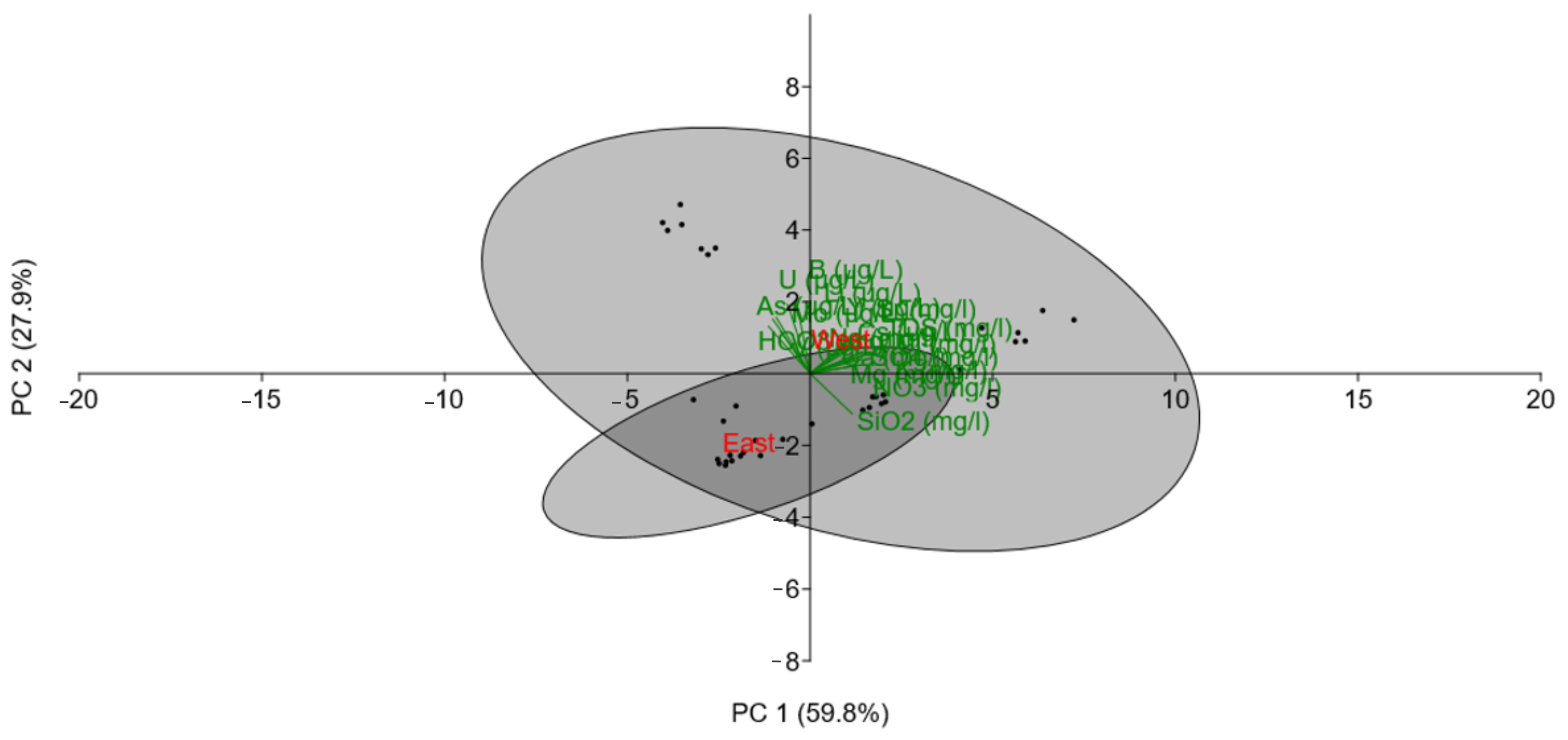

Figure 7. PCA biplot showing the first two eigenvectors. East and West indicate location relative to the fault. Shaded areas indicate 95% ellipses.
Figure 7. PCA biplot showing the first two eigenvectors. East and West indicate location relative to the fault. Shaded areas indicate 95% ellipses.
Water 17 03353 g007

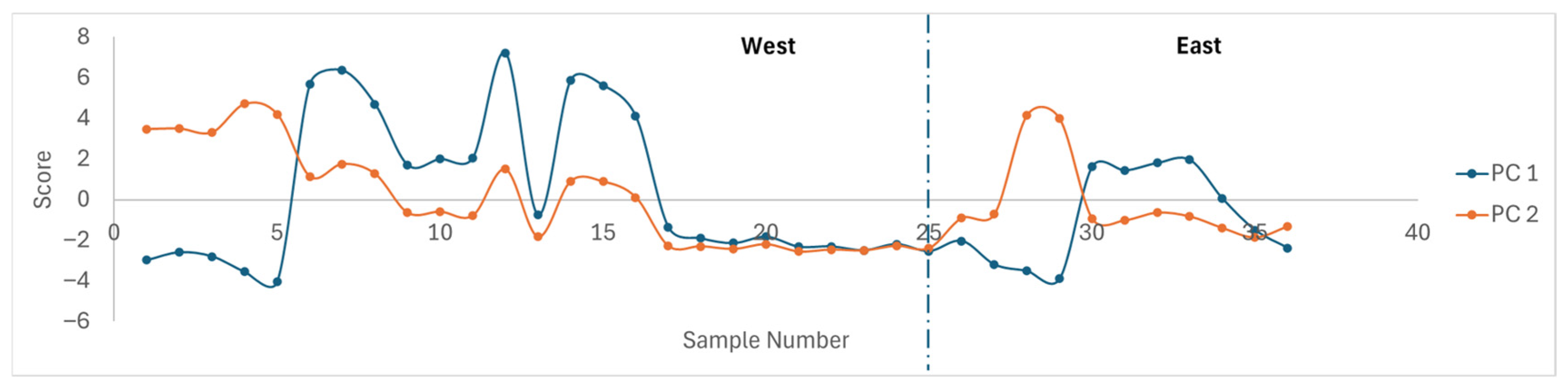

Figure 8. Illustration of the samples PC 1 and PC 2 scores showing the alternation between the two main hydrogeochemical processes. East and West denote location relative to the fault.
Figure 8. Illustration of the samples PC 1 and PC 2 scores showing the alternation between the two main hydrogeochemical processes. East and West denote location relative to the fault.
Water 17 03353 g008

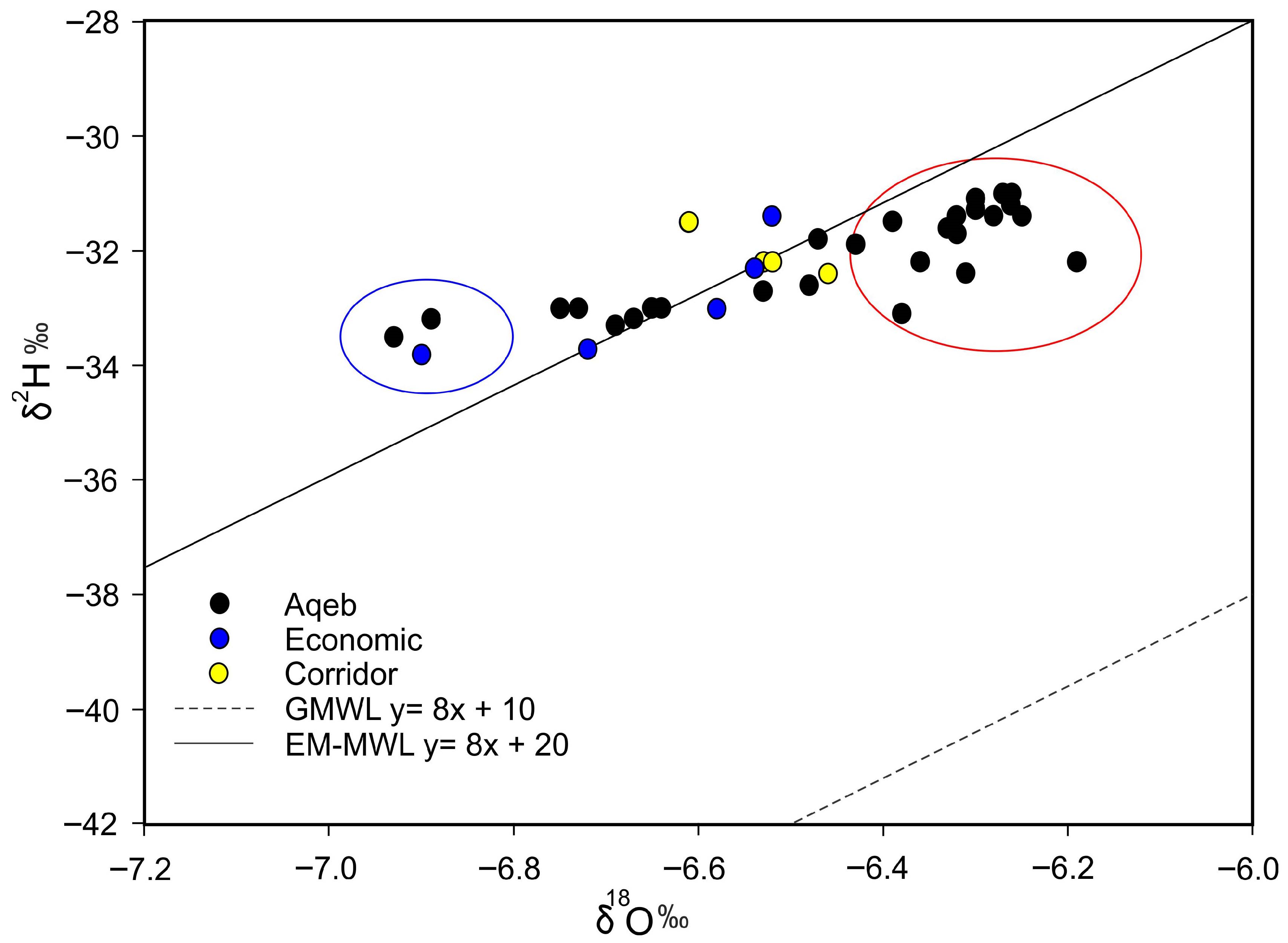

Figure 9. Groundwater samples in a δ18O vs. δ2H (GMWL: Global Meteoric Water Line; EM-MWL: Eastern Mediterranean Meteoric Water Line).
Figure 9. Groundwater samples in a δ18O vs. δ2H (GMWL: Global Meteoric Water Line; EM-MWL: Eastern Mediterranean Meteoric Water Line).
Water 17 03353 g009

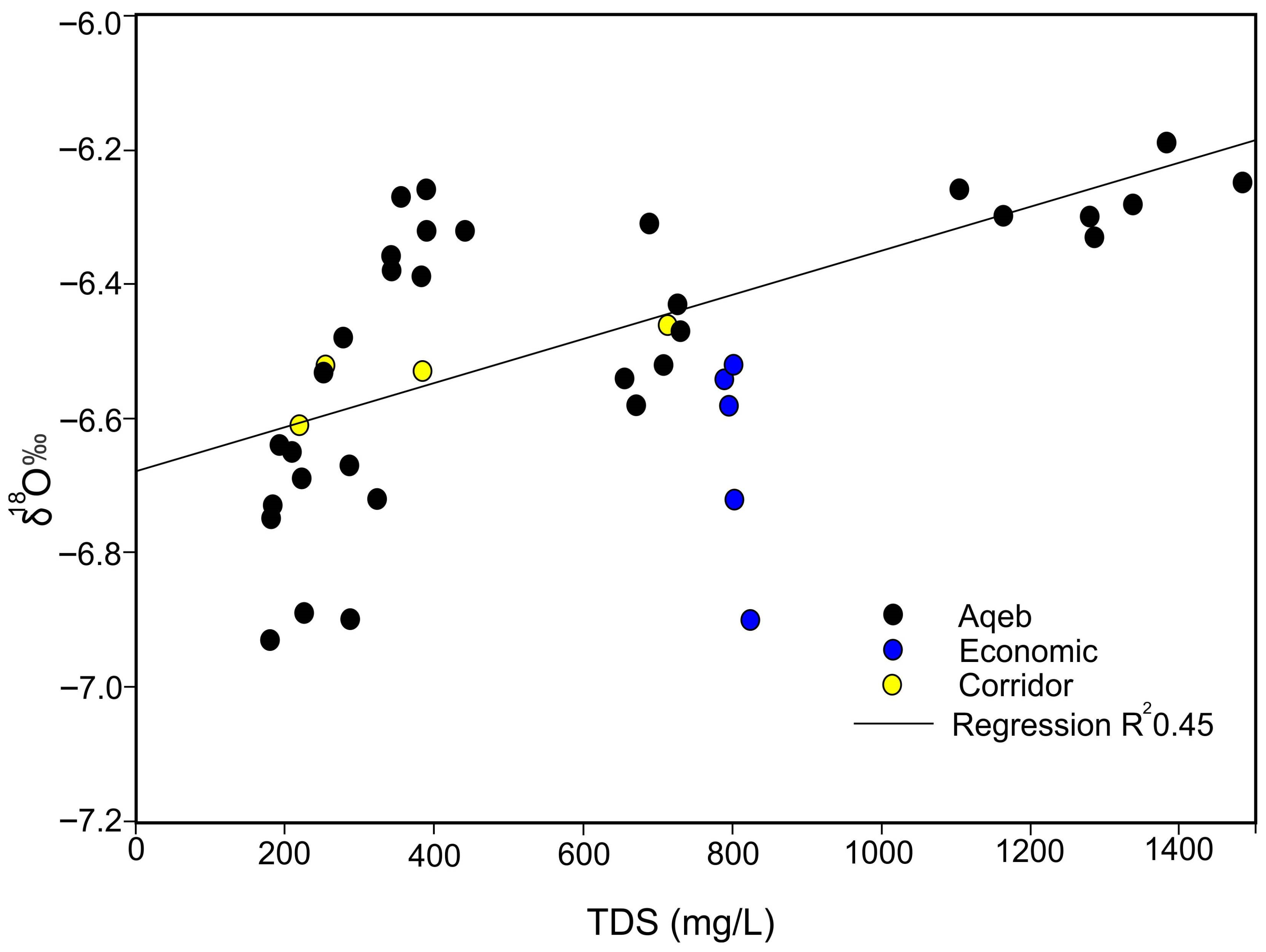

Figure 10. The relation between δ18O and TDS in the analyzed water samples.
Figure 10. The relation between δ18O and TDS in the analyzed water samples.
Water 17 03353 g010

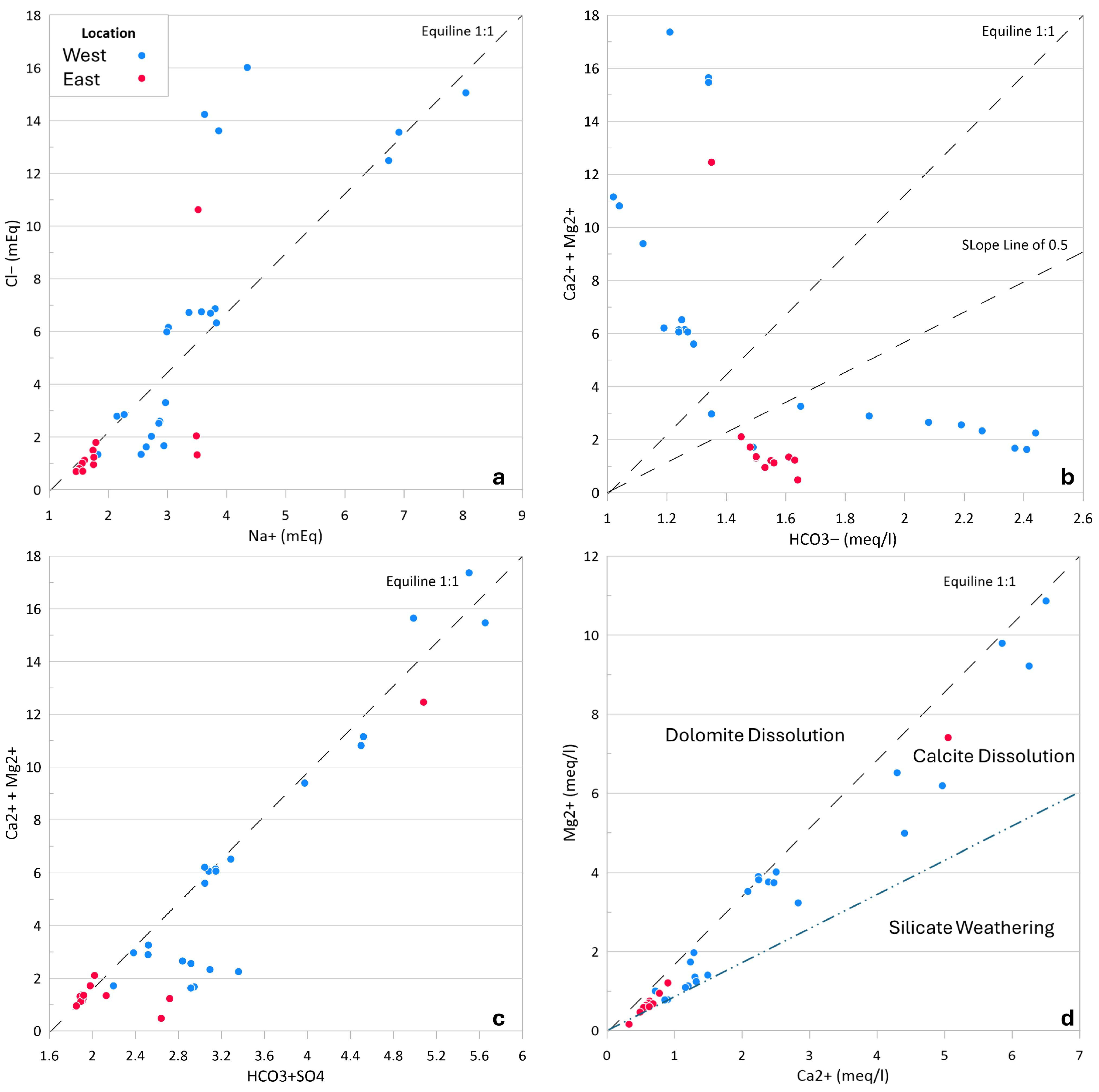

Figure 11. Molar ratio bivariate plots of major ion concentrations for the groundwater samples. (a) Cl vs. Na+ biplot; (b) HCO3 vs. (Ca+2 + Mg+2) biplot; (c) (HCO3 + SO4−2) vs. (Ca+2 + Mg+2) biplot; (d) Ca+2 vs. Mg+2 biplot.
Figure 11. Molar ratio bivariate plots of major ion concentrations for the groundwater samples. (a) Cl vs. Na+ biplot; (b) HCO3 vs. (Ca+2 + Mg+2) biplot; (c) (HCO3 + SO4−2) vs. (Ca+2 + Mg+2) biplot; (d) Ca+2 vs. Mg+2 biplot.
Water 17 03353 g011

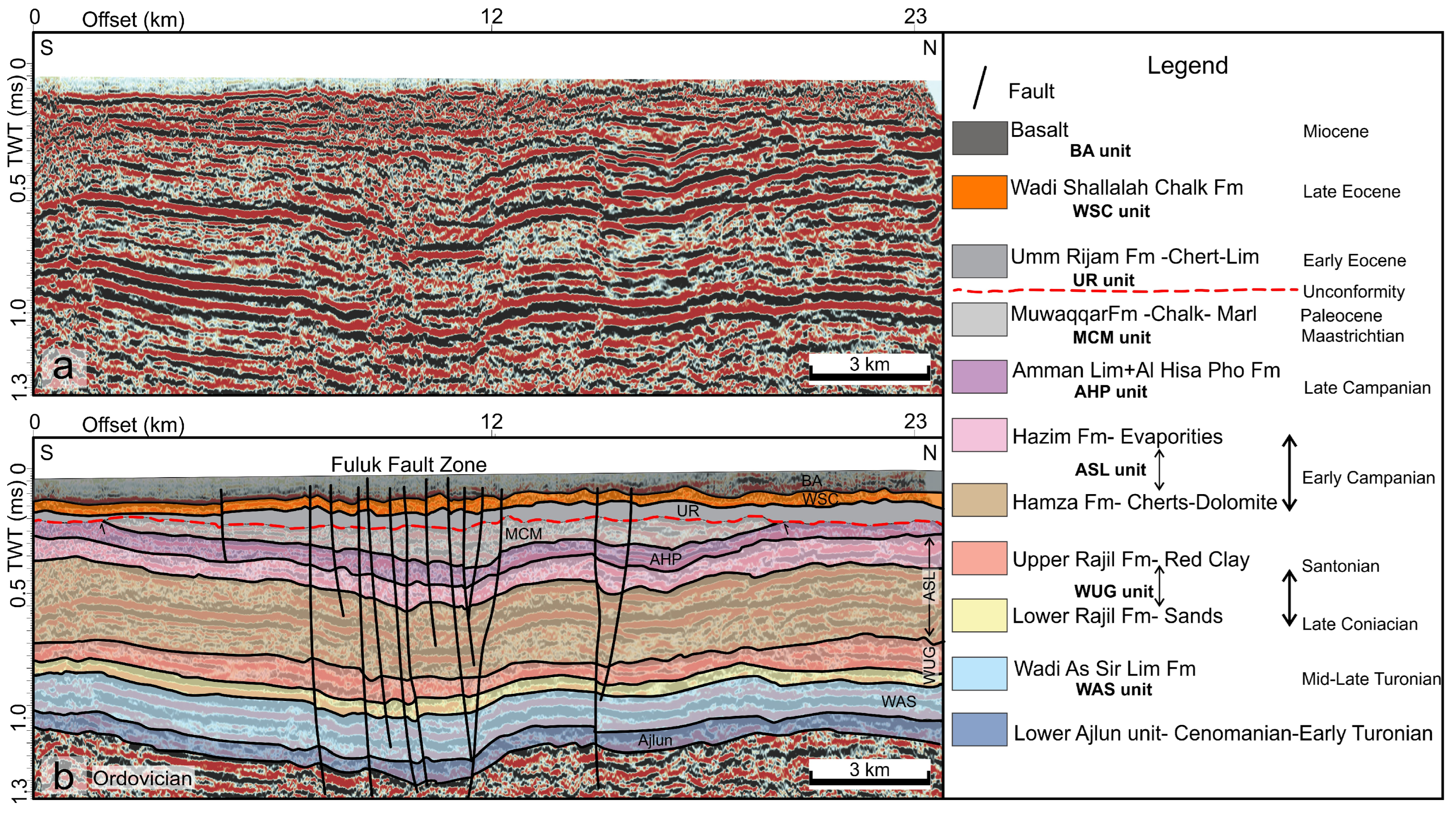

Figure 12. (a) Uninterpreted S–N time-migrated seismic section. (b) Interpreted section in the central part of the study area (for location, see Figure 2). The section traverses the Fuluk Fault zone, illustrating rock layers from the Ordovician to the recent deposits. The fault zone exhibits several normal faulting. These faults cut through the entire rock layers from the Ordovician to the uppermost Cenozoic deposits and partially into the Earth’s surface topography.
Figure 12. (a) Uninterpreted S–N time-migrated seismic section. (b) Interpreted section in the central part of the study area (for location, see Figure 2). The section traverses the Fuluk Fault zone, illustrating rock layers from the Ordovician to the recent deposits. The fault zone exhibits several normal faulting. These faults cut through the entire rock layers from the Ordovician to the uppermost Cenozoic deposits and partially into the Earth’s surface topography.
Water 17 03353 g012

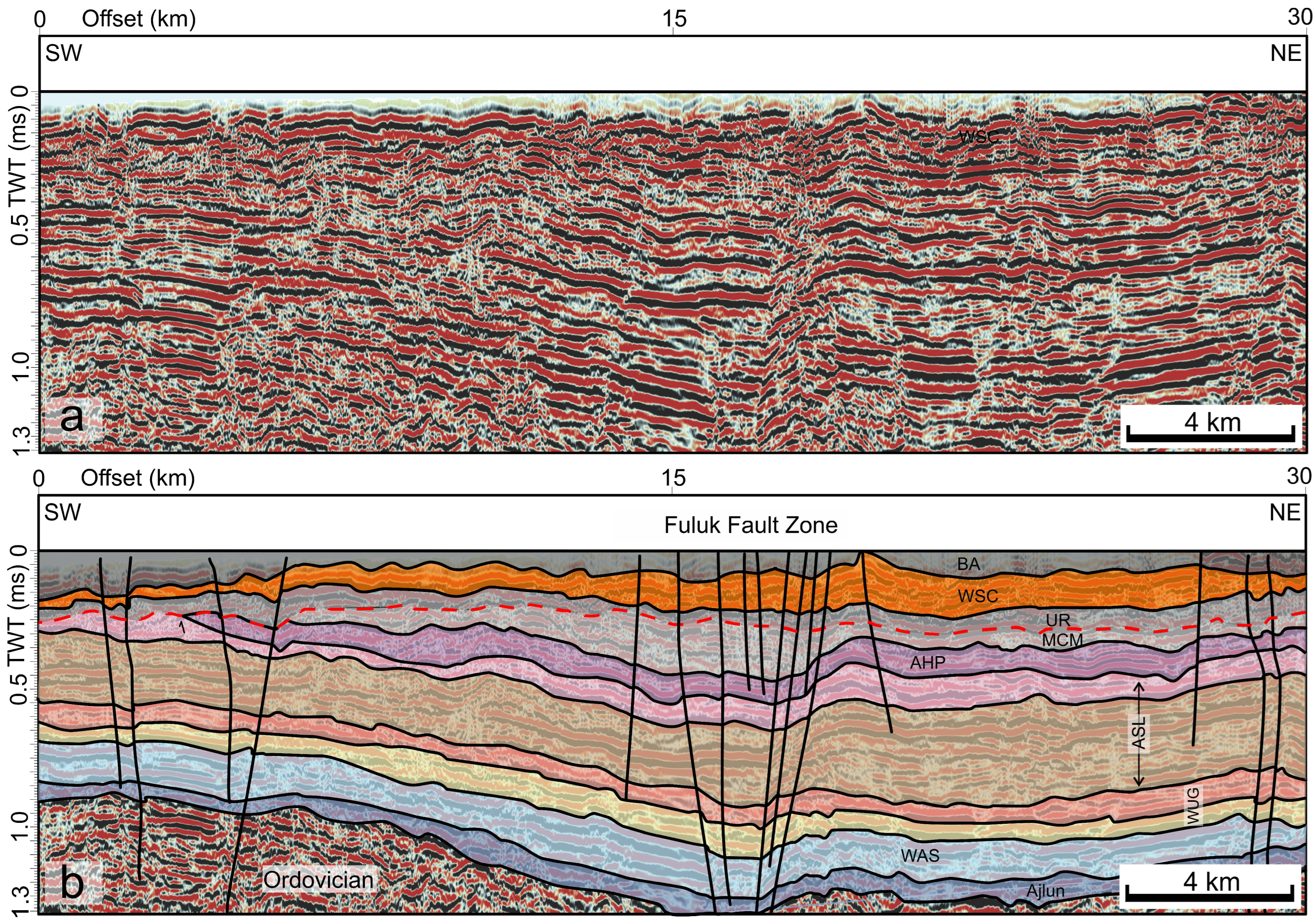

Figure 13. (a) Uninterpreted SW–NE time-migrated seismic section. (b) Interpreted section in the central part of the study area (for location, see Figure 2). The section cuts the Fuluk Fault Zone, illustrating rock layers from the Ordovician to the recent deposits. The fault zone exhibits several normal faulting. These faults cut through the entire rock layers from the Ordovician to the uppermost Cenozoic deposits and partially into the Earth’s surface topography. For color scale and abbreviations, see Figure 12.
Figure 13. (a) Uninterpreted SW–NE time-migrated seismic section. (b) Interpreted section in the central part of the study area (for location, see Figure 2). The section cuts the Fuluk Fault Zone, illustrating rock layers from the Ordovician to the recent deposits. The fault zone exhibits several normal faulting. These faults cut through the entire rock layers from the Ordovician to the uppermost Cenozoic deposits and partially into the Earth’s surface topography. For color scale and abbreviations, see Figure 12.
Water 17 03353 g013

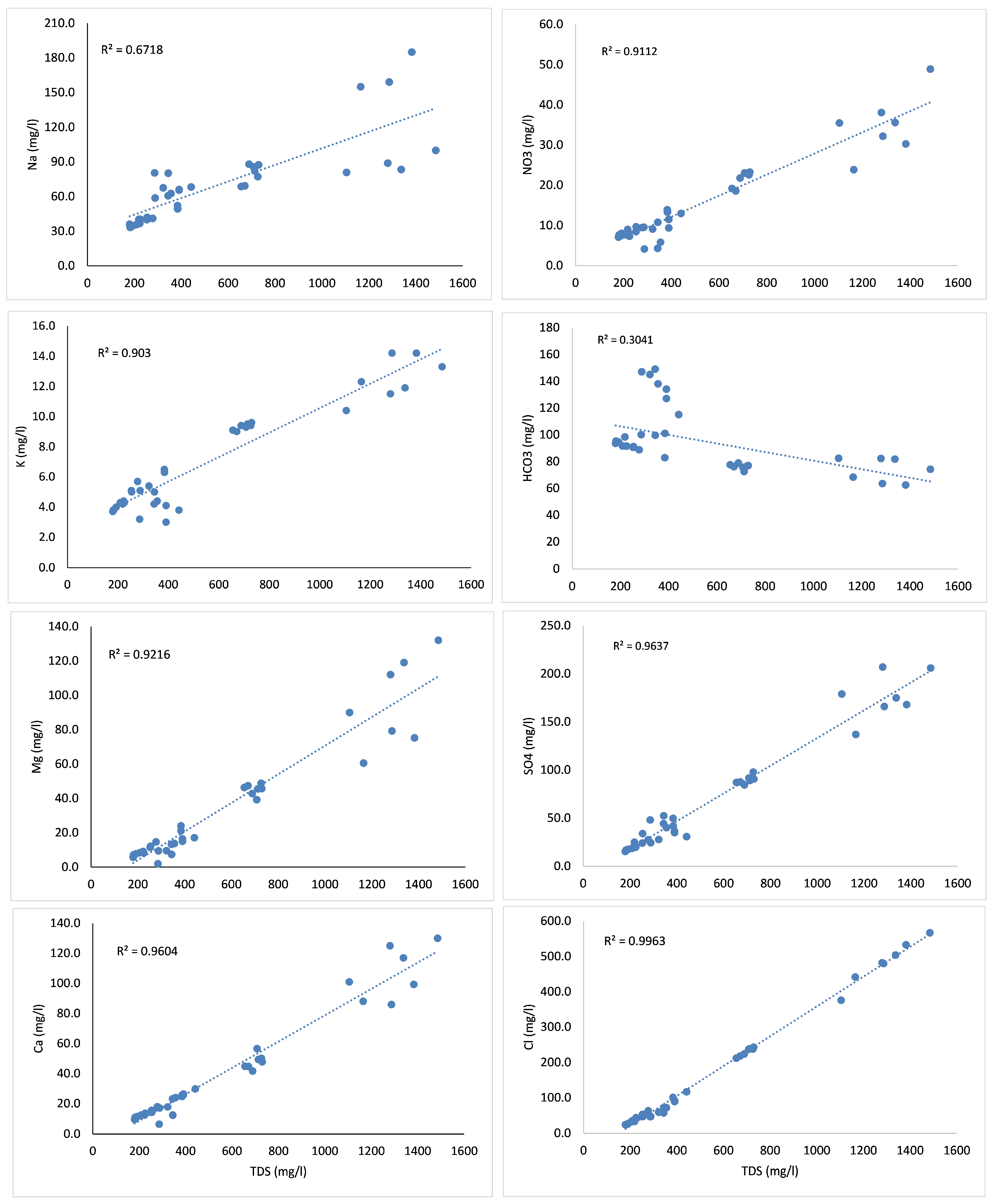

Figure 14. Major ions concentration versus TDS (mg/L).
Figure 14. Major ions concentration versus TDS (mg/L).
Water 17 03353 g014

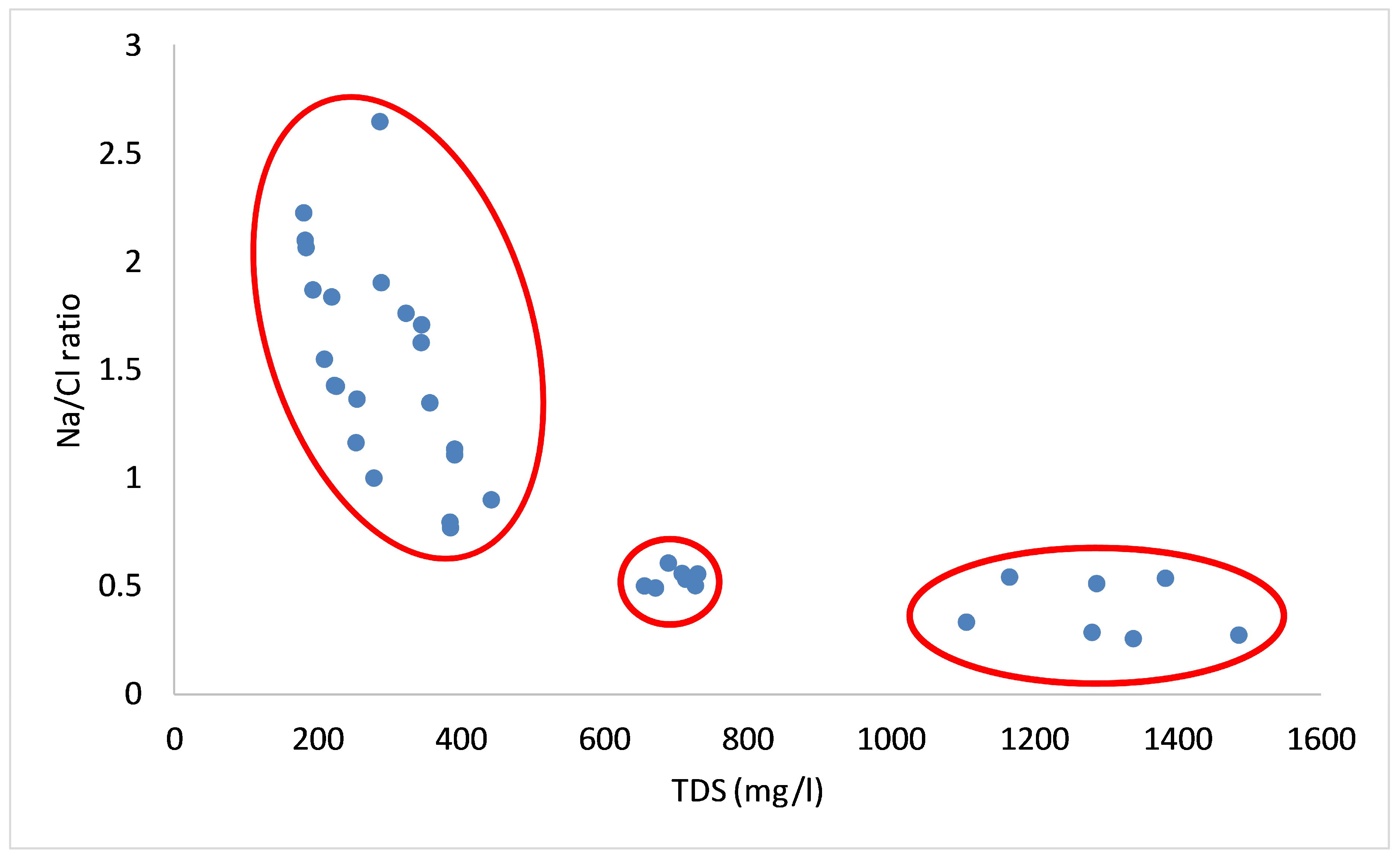

Figure 15. Sodium–chloride ratio (Na/Cl) in relation to the TDS in the analyzed water samples.
Figure 15. Sodium–chloride ratio (Na/Cl) in relation to the TDS in the analyzed water samples.
Water 17 03353 g015

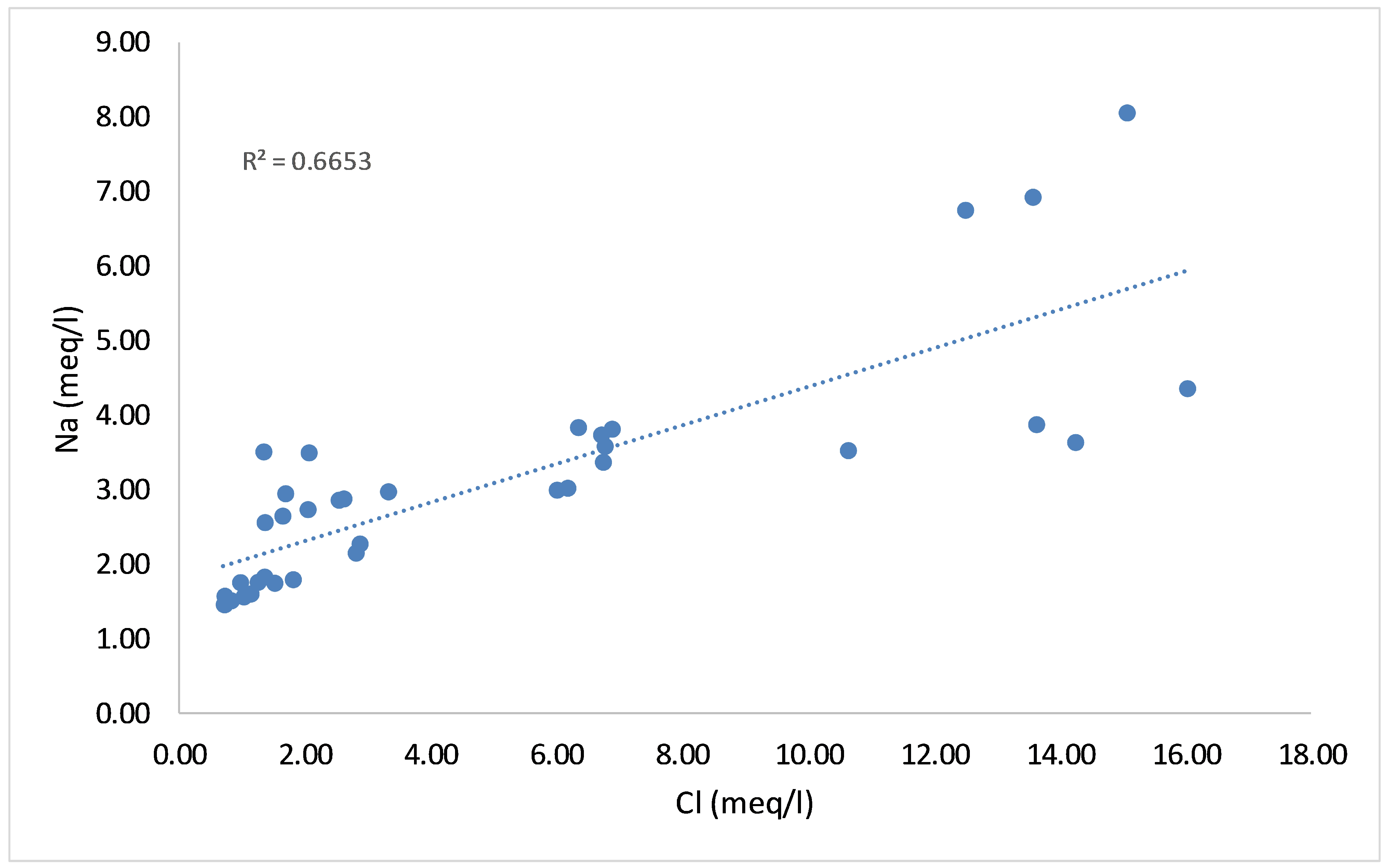

Figure 16. Relation between Na and Cl in the analyzed water samples.
Figure 16. Relation between Na and Cl in the analyzed water samples.
Water 17 03353 g016
Figure 17. Wilcox diagram for water samples.
Figure 17. Wilcox diagram for water samples.
Water 17 03353 g017
Table 1. Identification and general hydrogeological characteristics of the investigated wells. EC: electrical conductivity, DWL: dynamic water level, and bgl: below ground level.
Table 1. Identification and general hydrogeological characteristics of the investigated wells. EC: electrical conductivity, DWL: dynamic water level, and bgl: below ground level.
Well Name *Well IDWell Depth (m)pHEC
(µS/cm)
Temperature (°C)Production (m3/h)DWL
(m bgl)
Aqeb km 91.5BAL40003338.0561015.666.2272.00
Aqeb km 93AL14853057.9769034.590-
Aqeb km 93.5BAL50434507.9861035.273-
Aqeb km 94.5AL30044507.7855634.8-327.84
Aqeb km 95BAL40854387.9853735.3--
Aqeb km 101CAL51194308.18201032-315.08
Aqeb km 102AAL51544258.18216032.6-329.40
Aqeb km 102.5AAL50585007.88182028.768.5352.68
Al Bustaneh (103D)AL51614208.18107627.330.6352.40
Aqeb km 104BAL51564508.15114030.775336.00
Aqeb km 107AL26893958.13113530-324.92
Aqeb km 109B F 41714517.93232028.7--
Aqeb km 109.5F 43965008.3460131.578.2340.00
Aqeb km 110F 13333908.2209017.330.4300.00
Aqeb km 111CF 43344157.84200031.5--
Aqeb km 112DF 43374527.94172628128.3317.29
Aqeb km 113AF 43127818.2443429.186-
Aqeb km 114AF 14436348.4639517.580.2342.00
Aqeb km 116F 14406158.0534823.2125.9331.90
Aqeb km 117 F 13614518.36326298-
Aqeb km 118F 43864518.3430129.26.3-
Aqeb km 119F 43934388.5528628.2--
Aqeb km 122F 14426258.3828426.5125.4344.70
Aqeb km 123F 14417058.3435229.9130.5351.50
Aqeb km 124BF 39464418.4128131.164.5-
Aqeb km 133AF 4357N/A8.2853833.5134.5-
Aqeb km 140F 39354218.5244735.2-291.40
Economic 1AL39084247.9750429.394363.00
Economic 3AL39104708.1245020.965389.00
Economic 4AL39145008.04104823.358314.00
Economic 5F 42645008.34102430.268.8306.35
Economic 6AL50465027.87110629.1--
Corridor 1AL34753957.99111426.8--
Corridor 17AL37683868.2460014.856308.00
Corridor 3AAL5093N/A8.3339728-232.84
Corridor 7AL34493218.2834231.2-214.60
Notes: * Water wells are located parallel to the overland road to Bagdad. Hence, they were originally named after the kilometer post alongside. Letters behind the kilometer mark count the number of wells replaced at the same spot. Well ID is according to the Water Information System of the Ministry of Water and Irrigation.
Table 2. Major ion concentrations (mg/L) and summary statistics for groundwater samples from the investigated wells.
Table 2. Major ion concentrations (mg/L) and summary statistics for groundwater samples from the investigated wells.
IonNumber of Samples: 36
Minimum (mg/L)Maximum (mg/L)Average ± Std (mg/L)
C a 2 + 6.513040.5 ± 36.2
M g 2 + 2.0132.034.3 ± 35.2
N a + 33.4185.070.4 ± 35.4
K + 3.014.27.0 ± 3.5
C l 24.5567.0174.1 ± 171.5
S O 4 2 15.420770.3 ± 59.6
N O 3 4.148.916.4 ± 11.2
H C O 3 62.514994.7 ± 23.6
Table 3. Minimum and maximum concentrations of selected heavy metals and trace elements (µg/L) in groundwater samples from the investigated wells, compared with the Jordanian drinking water standard (JS 286/2015 [32]); “-” indicates that no guideline value is specified.
Table 3. Minimum and maximum concentrations of selected heavy metals and trace elements (µg/L) in groundwater samples from the investigated wells, compared with the Jordanian drinking water standard (JS 286/2015 [32]); “-” indicates that no guideline value is specified.
ElementMin (µg/L)Max (µg/L)Max Limit in the Jordanian Standard (µg/L)
Ag<0.0030.357100
As0.1201.1810
B21.070.02400
Ba0.150172.01000
Cd<0.0020.1173
Co0.0050.044-
Cr3.9728.650
Li0.304.5-
Mn0.1116.9400
Mo0.9310.090
Ni<0.24.270
Pb<0.030.5710
Sb<0.0052.7620
Rb1.9612.8-
Sr53.81333.0-
Ti<0.040.67-
U0.161.48-
V6.75111.0-
Zn0.9143.04000
Zr0.0050.02-
Table 4. PCA summary and explained variance.
Table 4. PCA summary and explained variance.
PC 1PC 2 PC 1PC 2
K0.280.04As−0.200.29
Na0.210.17B−0.070.40
Cl0.280.10Cs0.230.15
Mg0.270.08Li0.0020.39
Ca0.270.11Mo−0.180.30
SO40.280.09U−0.120.37
HCO3−0.220.25V−0.160.23
NO30.280.04Y0.210.19
SiO20.22−0.22Eigenvalue11.45.3
Sr0.260.18Cumulative Eigenvalue11.416.7
TDS0.280.11Variance (%)59.827.9
Cumulative Variance (%)59.887.7
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Hamdan, I.; Lindenmaier, F.; Koeniger, P.; Al Hseinat, M.; Toll, M.; Margane, A.; Al-Kurdi, O.; Alqadi, M.; Al-Hyari, M.; Brückner, F.; et al. Hydrogeological Characterization and Water Quality Evaluation of Amman-Wadi as Sir Aquifer, Northeastern Jordan. Water 2025, 17, 3353. https://doi.org/10.3390/w17233353

AMA Style

Hamdan I, Lindenmaier F, Koeniger P, Al Hseinat M, Toll M, Margane A, Al-Kurdi O, Alqadi M, Al-Hyari M, Brückner F, et al. Hydrogeological Characterization and Water Quality Evaluation of Amman-Wadi as Sir Aquifer, Northeastern Jordan. Water. 2025; 17(23):3353. https://doi.org/10.3390/w17233353

Chicago/Turabian Style

Hamdan, Ibraheem, Falk Lindenmaier, Paul Koeniger, Mu’ayyad Al Hseinat, Mathias Toll, Armin Margane, Omed Al-Kurdi, Mohammad Alqadi, Mohammad Al-Hyari, Florian Brückner, and et al. 2025. "Hydrogeological Characterization and Water Quality Evaluation of Amman-Wadi as Sir Aquifer, Northeastern Jordan" Water 17, no. 23: 3353. https://doi.org/10.3390/w17233353

APA Style

Hamdan, I., Lindenmaier, F., Koeniger, P., Al Hseinat, M., Toll, M., Margane, A., Al-Kurdi, O., Alqadi, M., Al-Hyari, M., Brückner, F., Bahls, R., & AlShdaifat, A. (2025). Hydrogeological Characterization and Water Quality Evaluation of Amman-Wadi as Sir Aquifer, Northeastern Jordan. Water, 17(23), 3353. https://doi.org/10.3390/w17233353

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
