Hypothesis-Driven Conceptual Model for Groundwater–Surface Water Interaction at Aguieira Dam Reservoir (Central Portugal) Based on Principal Component Analysis and Hierarchical Clustering

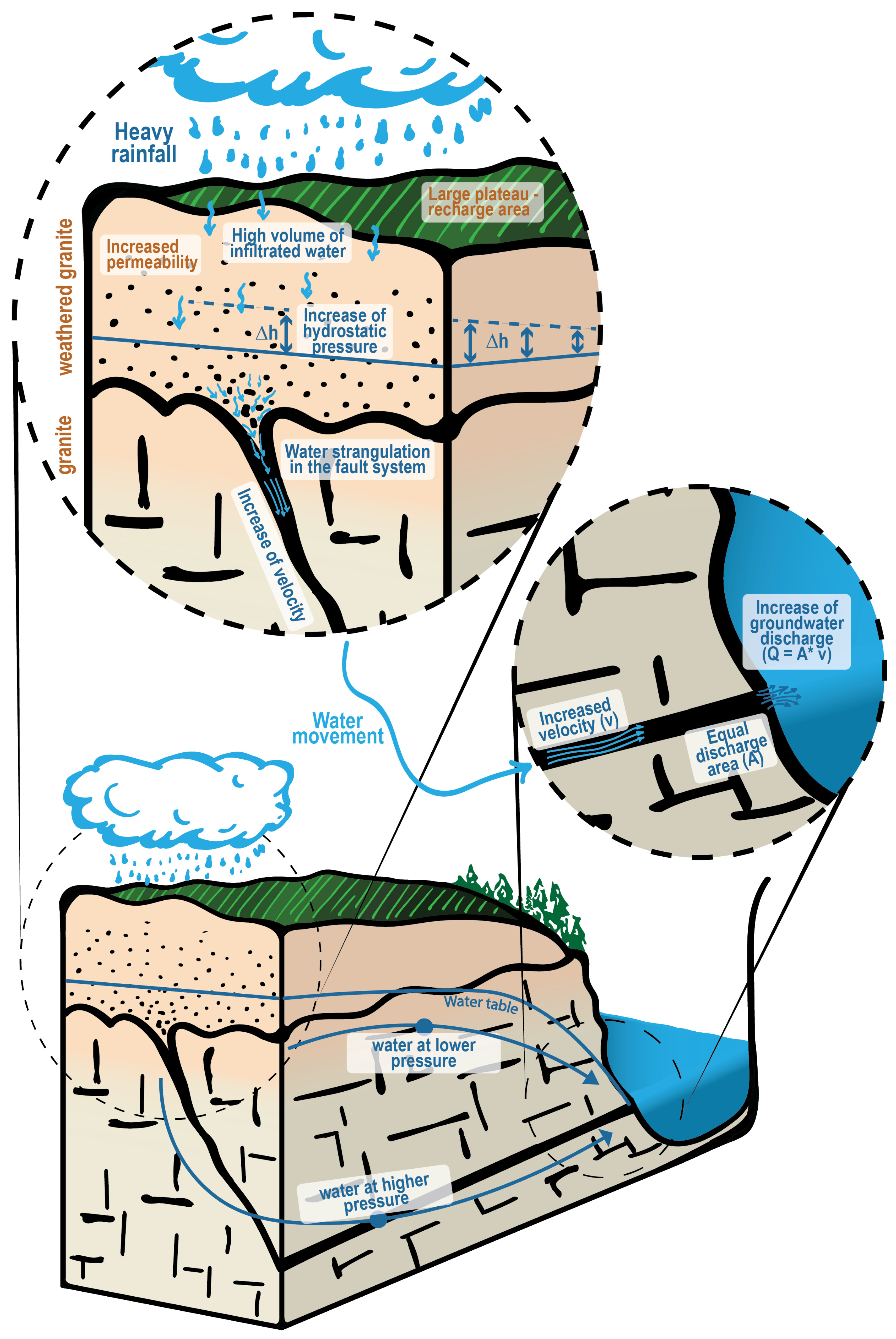

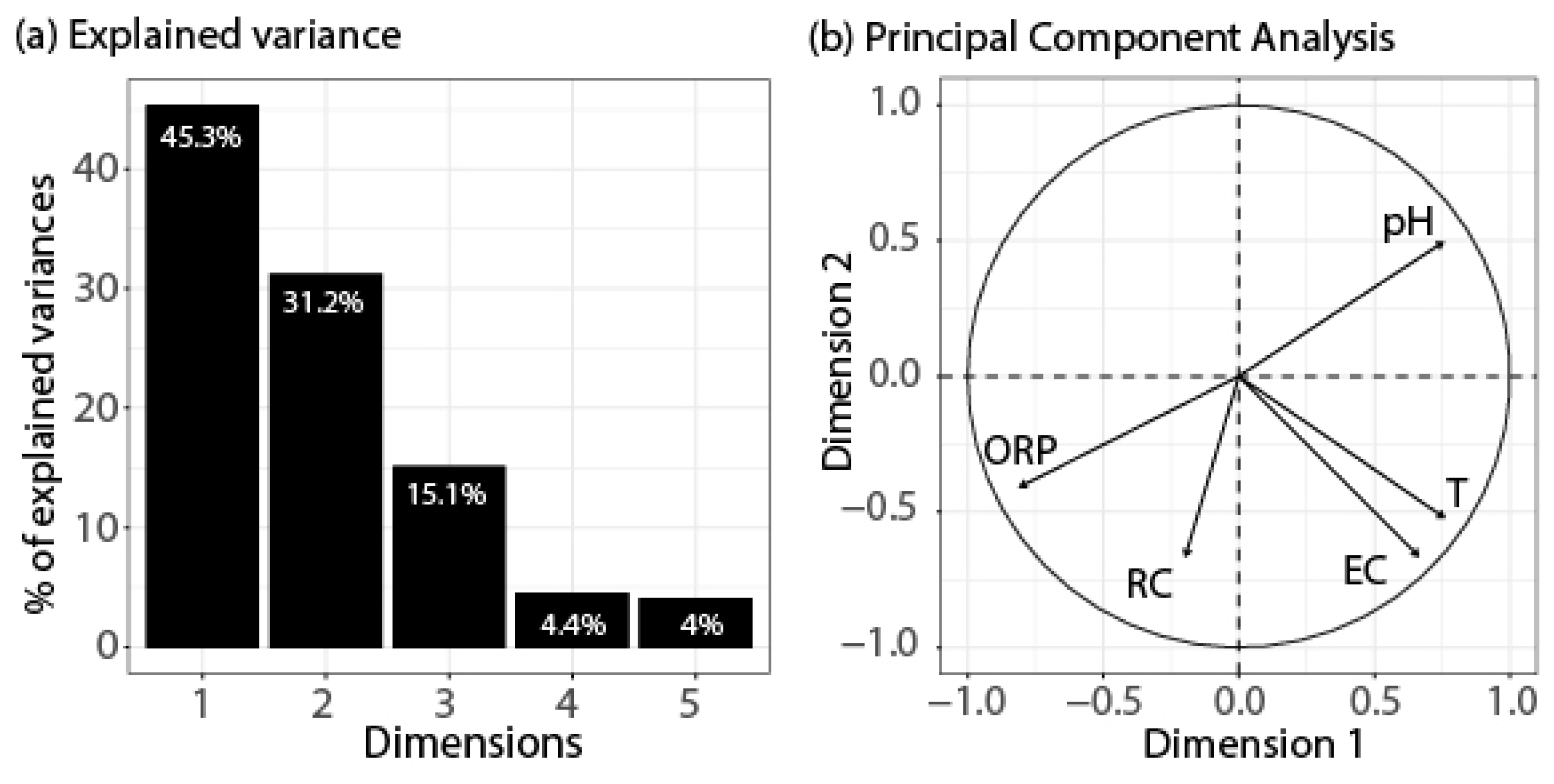

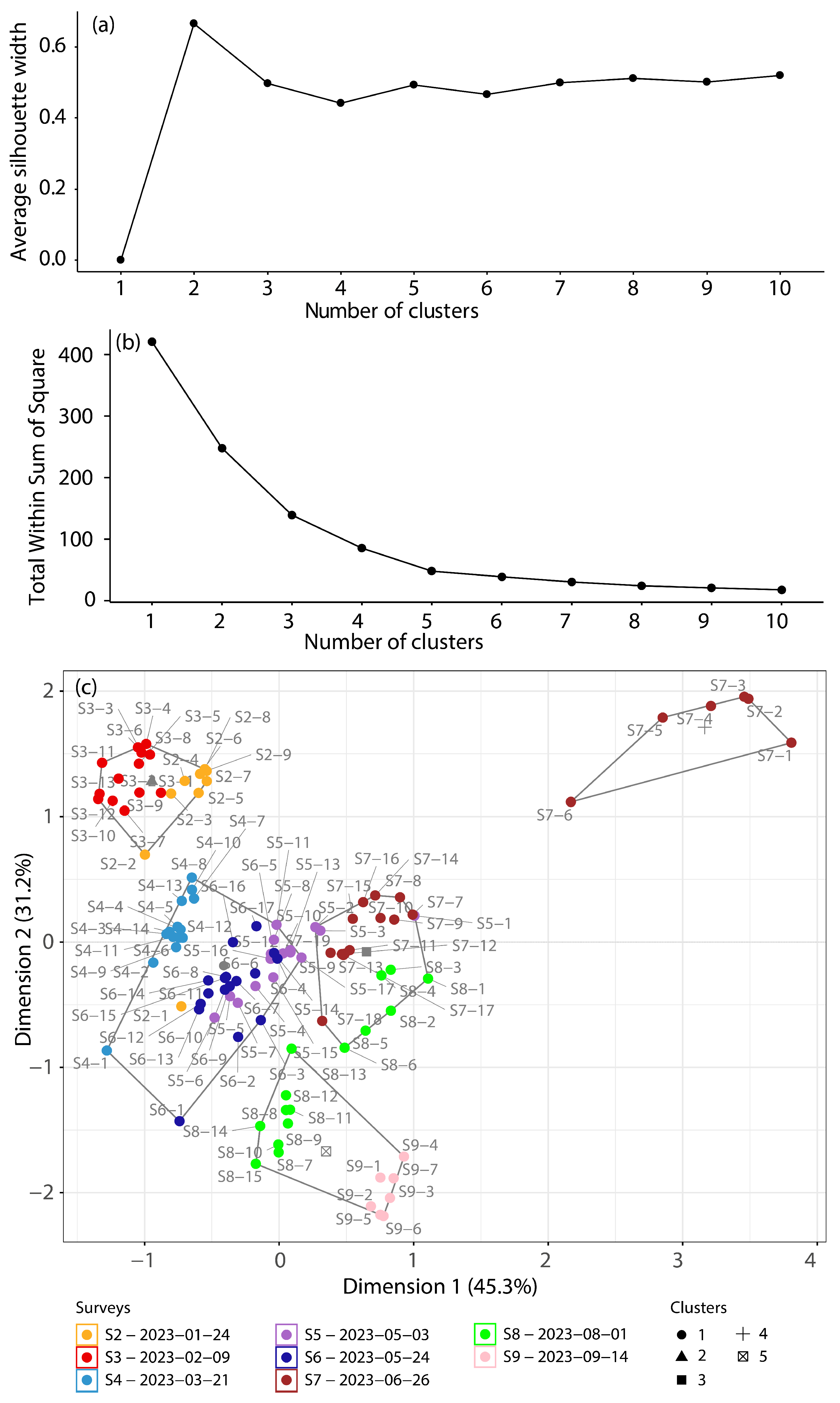

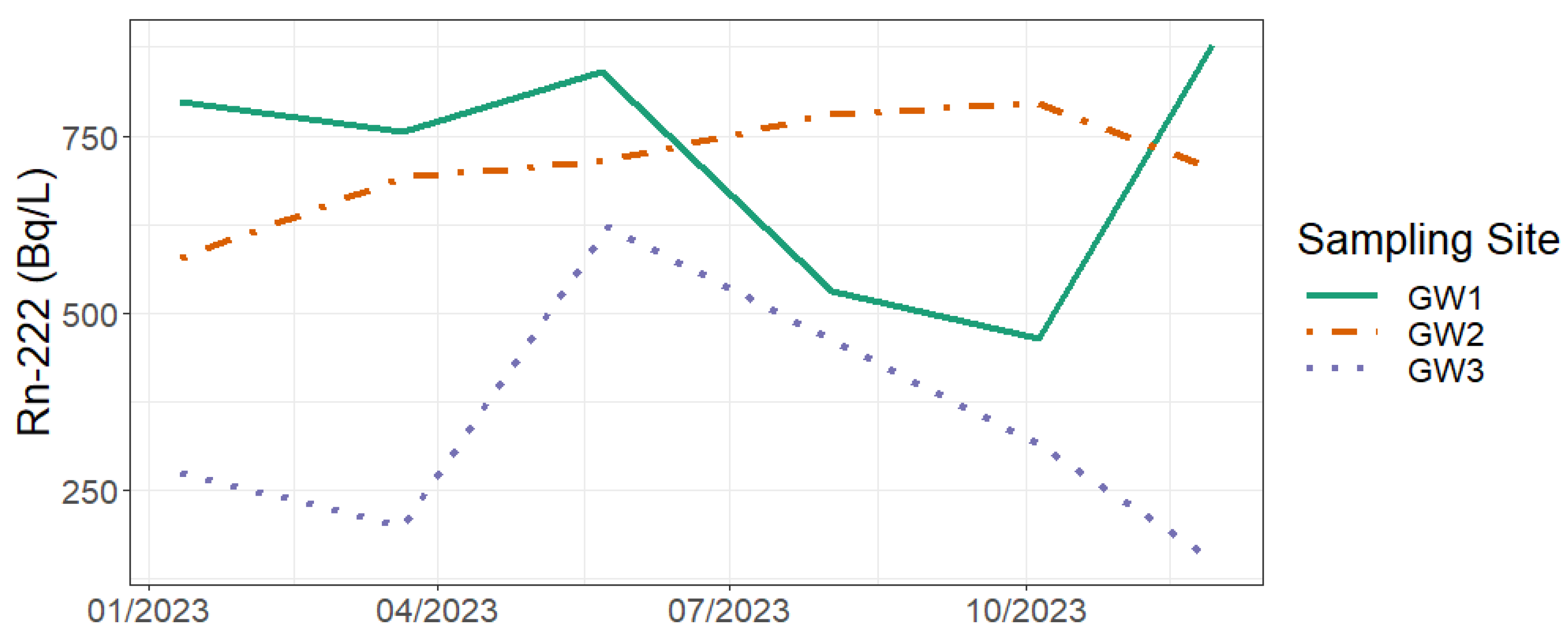

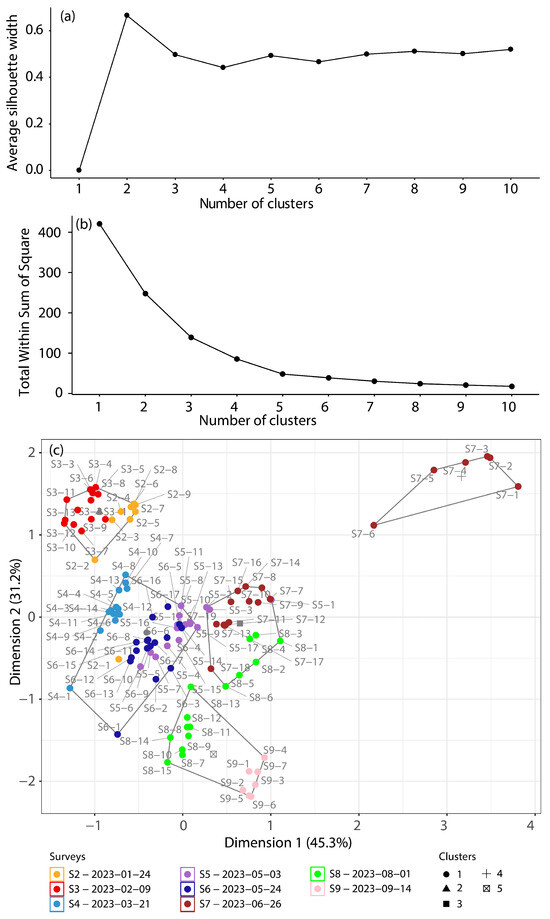

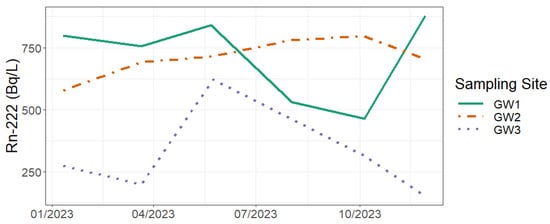

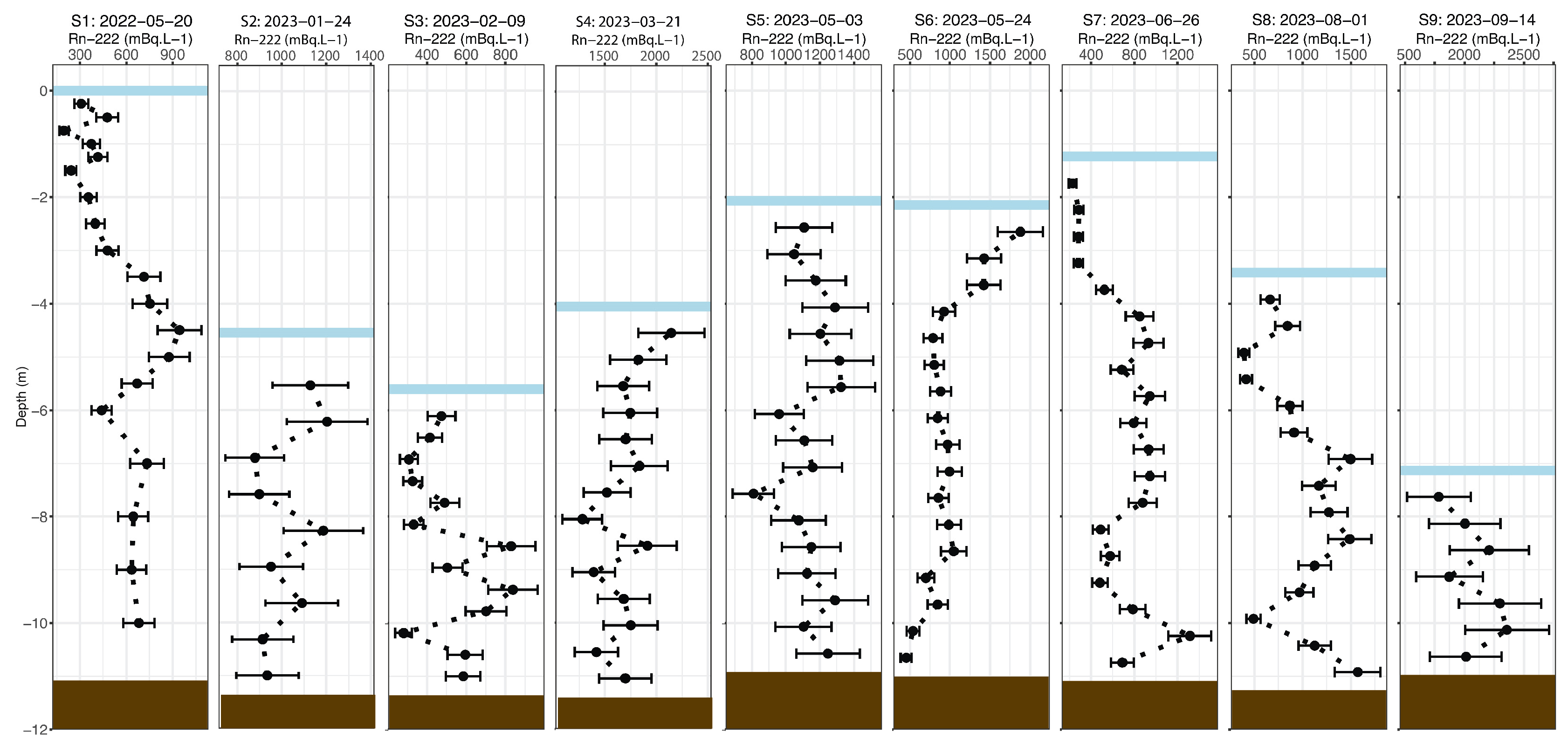

The interaction between groundwater and surface water can be significant in lakes or irrigation channels, as well as in large dam reservoirs or along portions of them. To evaluate this interaction at a sampling location directly controlled by a large dam equipped with reversible pump-turbines, data from Rn-222 and physicochemical parameters at specific depths and times were obtained and studied using Principal Component Analysis and Hierarchical Clustering. Dimension 1 explains 45.3% of the total variability in the original data, which can be interpreted as the result of external factors related to seasonal variability (e.g., temperature, turbulent flow, and precipitation), while Dimension 2 explains up to 31.2% and can be interpreted as the variability related to groundwater inputs. Five hierarchical clusters based on these dimensions were considered and were related to the temporal variability observed in the water column throughout the year, as well as the depth relationships observed between successive surveys. A hypothesis-driven conceptual piston-like effect model is proposed for groundwater–surface water interactions, considering the identified relationships between variables, including higher Rn-222 concentrations in surface water after heavy rain. According to this simplified conceptual model, water infiltrates in a weathered granitic recharging area; during heavy rain, it is forced through the fracture systems of a lesser-weathered granite. Thus, an overall increase in pressure over the hydrological system forces the older radon-enriched water to discharge into the Mondego River. This work highlights the importance of exploratory techniques such as PCA and Hierarchical Clustering, in addition to underlying knowledge of the geological setting, for the proposal of simplified conceptual models that help in the management of important reservoirs. This work also demonstrates the utility of Rn-222 as a simple tracer of groundwater discharge into surface water.
