Article

An Edge-Deployable Multi-Modal Nano-Sensor Array Coupled with Deep Learning for Real-Time, Multi-Pollutant Water Quality Monitoring

by
Zhexu Xi
1,2,*,
Robert Nicolas
2 and
Jiayi Wei
3
1
Inorganic Chemistry Laboratory, Department of Chemistry, University of Oxford, Oxford OX1 3QZ, UK
2
Physical and Theoretical Chemistry Laboratory, Department of Chemistry, University of Oxford, Oxford OX1 3QZ, UK
3
Department of Computer Science, University of Oxford, Oxford OX1 3QD, UK
*
Author to whom correspondence should be addressed.
Water 2025, 17(14), 2065; https://doi.org/10.3390/w17142065
Submission received: 6 June 2025 / Revised: 8 July 2025 / Accepted: 8 July 2025 / Published: 10 July 2025

Abstract

Real-time, high-resolution monitoring of chemically diverse water pollutants remains a critical challenge for smart water management. Here, we report a fully integrated, multi-modal nano-sensor array, combining graphene field-effect transistors, Ag/Au-nanostar surface-enhanced Raman spectroscopy substrates, and CdSe/ZnS quantum dot fluorescence, coupled to an edge-deployable CNN-LSTM architecture that fuses raw electrochemical, vibrational, and photoluminescent signals without manual feature engineering. The 45 mm × 20 mm microfluidic manifold enables continuous flow-through sampling, while 8-bit-quantised inference executes in 31 ms at <12 W. Laboratory calibration over 28,000 samples achieved limits of detection of 12 ppt (Pb2+), 17 pM (atrazine) and 87 ng L−1 (nanoplastics), with R2 ≥ 0.93 and a mean absolute percentage error <6%. A 24 h deployment in the Cherwell River reproduced natural concentration fluctuations with field R2 ≥ 0.92. SHAP and Grad-CAM analyses reveal that the network bases its predictions on Dirac-point shifts, characteristic Raman bands, and early-time fluorescence-quenching kinetics, providing mechanistic interpretability. The platform therefore offers a scalable route to smart water grids, point-of-use drinking water sentinels, and rapid environmental incident response. Future work will address sensor drift through antifouling coatings, enhance cross-site generalisation via federated learning, and create physics-informed digital twins for self-calibrating global monitoring networks.

1. Introduction

Freshwater ecosystems are under mounting stress from industrial discharge, agricultural runoff, emerging organic contaminants, and climate-driven hydrological change [1]. A systematic analysis of the 2024 UNESCO and UN-Water data [2] attributed around 5.6 billion struggling lives to unsafe freshwater sources, sanitation, and hygiene, with only marginal decline in the past decade, as well as at least 500,000 diarrhoeal deaths annually because of faecally contaminated water according to the World Health Organization’s report [3]. A key driver of this persistent burden is the pronounced spatio-temporal variability of pollutant inputs, which can potentially raise contaminant levels by orders of magnitude on sub-hourly time-scales—windows that routine grab-sampling simply does not resolve [1,4]. More seriously, mounting empirical evidence in recent years [4,5,6] also demonstrates that without continuous, high-resolution surveillance, true exposure profiles, mass balance estimates, and early-warning capacities remain critically compromised, undermining both regulatory compliance and risk mitigation efforts. These challenges are compounded by limitations in current water quality monitoring practices.
Timely surveillance, however, remains hamstrung by the entrenched dependence on laboratory-centric protocols—chiefly chromatography–mass-spectrometry workflows for trace organics and culture-based microbiology for pathogens. Such assays demand sophisticated infrastructure, trained analysts, and multi-step sample logistics; even under ideal conditions, results are seldom available in under 24 h and can take up to a week for geographically remote sites. Spatial coverage is similarly sparse because the per-sample cost of extraction, derivatisation, and instrument time scales nonlinearly with the number of monitoring points [7]. The cumulative effect is a patchwork of sporadic datasets ill-suited to early-warning applications or to causal inference of pollution events. Recent advances in nanotechnology offer promising solutions to these shortcomings.
Nanomaterial-based sensors have emerged as powerful complements to traditional analytics. Their high surface-to-volume ratios and tailorable physicochemical properties enable sub-nanomolar detection limits, sub-second-level transduction, and miniaturisation into field-deployable platforms. Recent advances include graphene field-effect transistors (GFETs) [8,9] that exploit Dirac-point shifts to transduce heavy metal ion adsorption events with femtomolar limits of detection for Pb2+ through defect-engineered channels and aptamer gating strategies, far surpassing the WHO’s guideline values for potable water. Interdigital electrode layouts further amplify transconductance, enabling rapid, label-free detection in unprocessed samples and paving the way for wafer-level integration. Several types of nanostructures have been developed to target a wide range of contaminants with high sensitivity.
A growing repertoire of alternative nanostructures extends analyte coverage. Ti3C2Tx-based MXene electrodes combine high carrier mobility with tuneable surface terminations, delivering picomolar-level sensitivity to a variety of antibiotics and endocrine-disrupting compounds [10]. Surface-enhanced Raman spectroscopy (SERS) substrates engineered from Ag/Au nanostars provide broadband plasmonic “hot spots” that amplify vibrational fingerprints of pesticides or algal toxins by orders of magnitude [11,12], while CdSe/ZnS core–shell quantum dots offer photoluminescence-quenching routes for heavy metal or herbicide quantification [13]. Collectively these platforms furnish sub-second response times, amenability to miniaturisation, and low power budgets, indispensable for field deployment. However, despite these advances, significant limitations persist in most reported nanomaterial-based sensors.
Despite their promise, most reported nano-sensors remain optimised for a single chemical class and exhibit appreciable cross-sensitivity to ionic strength, pH, or natural organic matter. Routine recalibration and the absence of robust on-chip compensation algorithms limit operational stability in heterogeneous environmental matrices. Crucially, the one-sensor–one-analyte paradigm fails to capture the breadth of pollutants encountered in real-world waters, where heavy metals, pharmaceuticals, nutrients, and emerging micro-plastics can co-occur and interact synergistically.
Parallel advances in artificial intelligence (AI) are beginning to fill part of this void. Recent work has documented a rapid shift from classical supervised regression approaches (the corresponding generalised framework for machine learning-based regression of water quality in Figure 1) to deep learning (DL) architectures, like convolutional neural networks (CNNs) for spatial data [14], recurrent neural networks (RNNs) for time-series data [15], long short-term memory (LSTM) networks [16], and, more recently, Vision Transformer hybrids for water quality index estimation, eutrophication forecasting, and anomaly detection [17]. When linked to Internet-of-Things (IoT) telemetry, these models can infer bacterial counts at half-hourly intervals from inexpensive physico-chemical surrogates with 87% accuracy achieved, outperforming weekly laboratory assays in Southern England [18]. However, the majority of AI-driven deployments ingest only low-dimensional probe data (temperature, pH, turbidity) or satellite-derived optical bands, leaving trace contaminants outside their predictive envelope.
Only a handful of prototypes integrate sensor arrays that combine multiple nanomaterial transducers with machine learning pipelines; even fewer address multi-pollutant quantification under dynamic, in situ conditions. Maity et al. [19] developed a scalable GFET array for toxins in flowing water, but the platform still required external chemometrics and monitored a narrow analyte panel. More generally, there is, as of yet, no field-validated framework that unifies heterogeneous transduction modes (e.g., electrochemical, SERS, and fluorescence) within an end-to-end deep-learning model able to perform real-time, multi-pollutant quantification under dynamically varying conditions. To better situate this work in the context of recent multi-sensor water quality studies, Table 1 summarises representative platforms, their sensor modalities, analytical approaches, and performance metrics.
In response, while previous efforts have advanced multi-modality and AI integration, most platforms remain limited in analyte diversity, real-time capability, or robustness under complex, dynamic field conditions. This study directly addresses these gaps by proposing and validating a multi-modal nano-sensor array coupled with a hybrid CNN-LSTM deep-learning model capable of simultaneous, real-time quantification of heavy metals, representative organic micropollutants, and micro-sized plastics. Our contributions are fourfold:
(1) Design and wafer-level integration of complementary nanoscale transducers (graphene FET, Ag/Au-nanostar SERS substrate, CdSe/ZnS quantum dot photoluminescence) into a microfluidic platform that supports continuous flow-through analysis;
(2) Development of an end-to-end data pipeline that performs on-chip signal conditioning and feeds synchronised spectra, current–voltage traces, and photoluminescence time-series into a CNN-LSTM network for joint feature extraction and concentration regression;
(3) Implementation of explainable AI, SHapley Additive exPlanations (SHAP) and Grad-CAM to elucidate physicochemical characteristics driving model predictions and to guide adaptive recalibration under matrix interference;
(4) Comprehensive evaluation across laboratory standards and field deployments in a mixed urban–agricultural watershed, benchmarking detection limits, throughput, energy budget, and predictive reliability against state-of-the-art single-modality and conventional analytical methods.
To our knowledge, this is the first reported system that combines such multi-modal sensing and advanced sequential AI for robust, edge-based, multi-analyte monitoring. This advancement addresses critical gaps in sensitivity, analyte range, and real-world deployability highlighted in previous multi-sensor studies. By unifying advances in nanoscience, microfluidics, and deep learning, the present work aspires to demonstrate a scalable blueprint for next-generation, high-resolution water quality surveillance systems, accelerating data-driven interventions toward global water security.
The remainder of this paper is organised as follows: Section 2 details the design and fabrication of the multi-modal sensor platform, as well as the experimental protocols and data processing pipeline. Section 3 presents the results of both laboratory and field validation, including comparative performance analyses with conventional and AI-based methods. Section 4 discusses the implications, limitations, and future directions for real-world deployment. Finally, Section 5 concludes the study and outlines opportunities for broader application in global water security.

2. Materials and Methods

2.1. System Architecture Overview

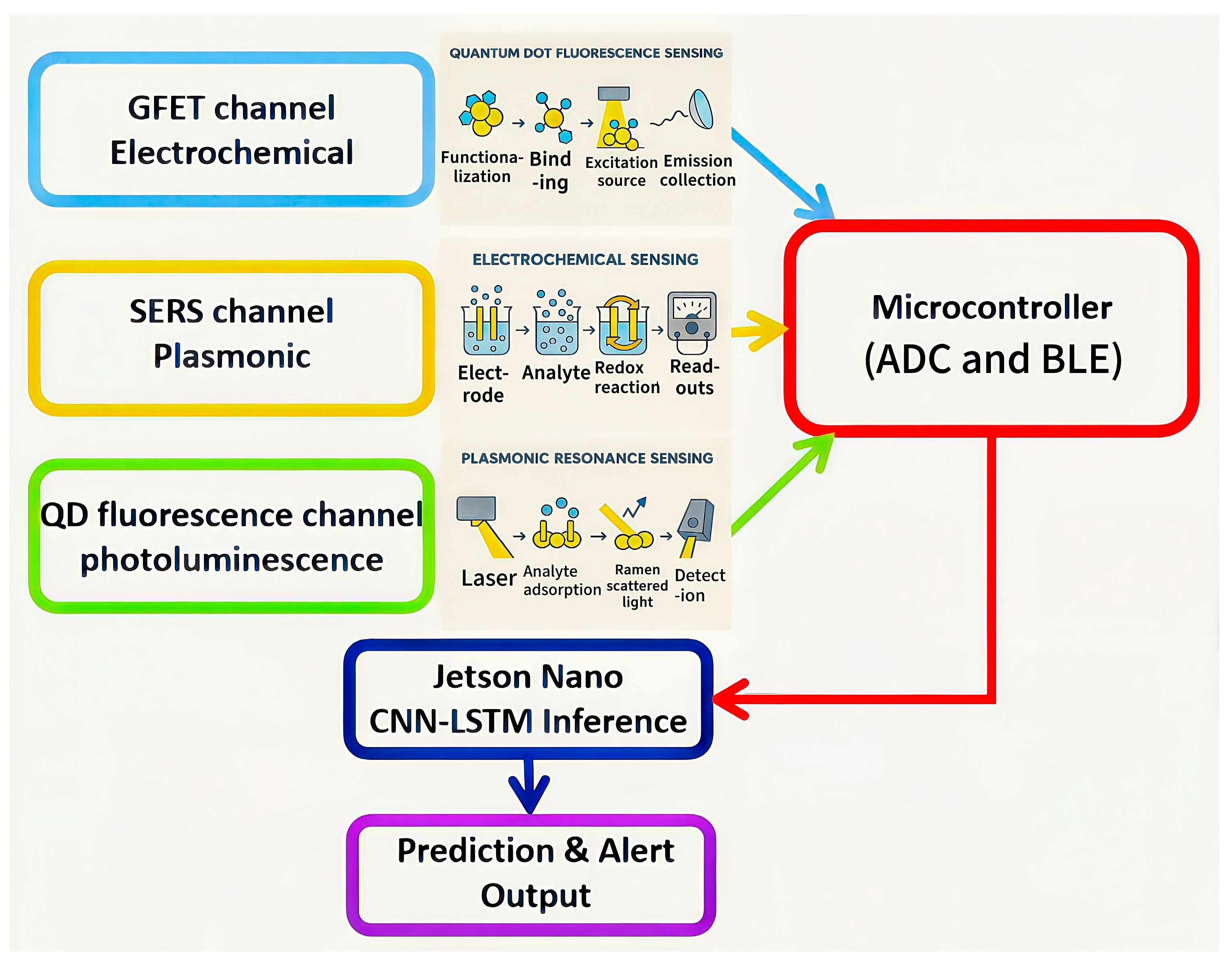

The proposed platform couples a multi-modal nano-sensor array to a hybrid convolutional neural network–long short-term memory (CNN-LSTM) model (Figure 2). Three complementary transducers—a graphene field-effect transistor (GFET), plasmonic Ag/Au nanostar surface-enhanced Raman spectroscopy (SERS) substrate, and CdSe/ZnS quantum-dot (QD) fluorescence probe—are integrated in a polydimethylsiloxane (PDMS) microfluidic manifold (20 mm × 10 mm × 1 mm). A low-power microcontroller (ARM Cortex-M33) performs analogue-to-digital conversion, edge pre-processing, and secure wireless transmission (BLE 5.3) to a Jetson Nano module that executes the deep-learning pipeline. The manifold accommodates a flow rate of 0.5 mL min−1, enabling continuous analysis of approximately 30 mL water per hour.
The edge computing component of the system is an NVIDIA Jetson Nano (quad-core ARM Cortex-A57, 128-core Maxwell GPU, 4 GB RAM), selected for its balance between computational performance and low power consumption in field deployments. During operation, the total power draw of the integrated platform—including all three sensor modules, the microcontroller unit (MCU), and the Jetson Nano—remained below 12 W, enabling over 10 h of continuous monitoring on a standard 12 V, 5 Ah lithium-ion battery.
Deep learning inference, including data pre-processing and CNN-LSTM model execution, was performed directly on the Jetson Nano using quantised 8-bit integer weights and TensorRT acceleration. The mean inference latency per 5 s sliding window was measured at 31 ms, ensuring sub-second response times suitable for real-time monitoring and rapid alerting applications.
These parameters reflect the system’s suitability for edge deployment scenarios where power efficiency, low latency, and compact form factor are critical.
Building upon the motivations and system overview described above, we now detail the materials, device fabrication, experimental protocols, and data processing pipeline employed in this work.

2.2. Multi-Modal Nano-Sensor Array Design

2.2.1. Transduction Mechanisms and Target Allocation

  • GFET channel (electrochemical): Single-layer graphene grown by chemical vapour deposition (CVD) on Cu foil is transferred onto Si/SiO2 (300 nm) and patterned into 10 µm wide channels by photolithography. The Dirac-point shift (ΔVD) is used to quantify Pb2+ down to 5 ppt.
  • SERS channel (vibrational): A densely packed Ag/Au nanostar monolayer (nanospike tip diameter ≈ 70 nm) is electrodeposited onto a glass slide coated with a 5 nm Ti/40 nm Au adhesion layer. The substrate yields an average enhancement factor of 1.1 × 107 at 785 nm excitation, permitting picomolar detection of pesticides (atrazine).
  • QD fluorescence channel (photoluminescence): CdSe/ZnS core–shell QDs (peak emission wavelength, λem = 610 nm) are encapsulated in a sol–gel silica matrix and functionalised with poly(styrene sulphonate) to enhance affinity for microplastics and hydrophobic organic micropollutants; intensity quenching correlates linearly (R2 > 0.999) with nanoplastic concentration from 100 ng L−1 to 50 µg L−1.

2.2.2. Microfluidic Integration and Packaging

Three sensing regions (2 mm2 each) are sequentially aligned in a single serpentine PDMS channel (height 200 µm, width 500 µm) fabricated by soft lithography. Fluidic vias connect to 1/16″ PEEK tubing. A Peltier module (±0.1 °C stability) underlies the chip to mitigate temperature-induced drift. The fully packaged device measures 45 mm × 20 mm × 4 mm and weighs 6.2 g. Leak tightness is verified to 150 kPa. The structure of the designed microfluidic channel is illustrated in Figure 3.

2.2.3. Physicochemical Characterisation

Scanning electron micrographs were acquired on an FEI Nova NanoSEM 450 (Thermo Fisher Scientific, Hillsboro, OR, USA) operated at 5 kV accelerating voltage, 5 mm working distance, and spot size 3.0. High-resolution transmission electron microscopy (HRTEM) was performed on a JEOL JEM-2100F field-emission microscope (JEOL Ltd., Tokyo, Japan) at 200 kV accelerating voltage, 24 μA emission current, and camera length 200 mm. Samples were prepared by drop-casting 5 μL of an ethanol dispersion of the nanostar colloid onto lacey carbon-coated Cu grids (300 mesh), followed by vacuum drying at 40 °C for 2 h. Images were recorded with a Gatan OneView 4 k × 4 k CMOS camera (Gatan Inc., Pleasanton, CA, USA) using 1 s exposure; the total electron dose was kept below 20 e2 to minimise beam-induced restructuring.
Raman spectra and maps were collected with a Renishaw inVia Reflex confocal Raman microscope (Renishaw plc, Woodchester, UK) using a 532 nm diode laser (grating 1800 lines mm−1, laser power <0.8 mW at the sample, 10 s exposure, 3 accumulations) through a 100× objective (NA 0.90).
X-ray photoelectron spectroscopy (XPS) measurements employed a Thermo Scientific K-Alpha+ system (Thermo Fisher Scientific, Waltham, MA, USA) with a monochromatic Al Kα source ( = 1486.6 eV, 12 kV, 6 mA). Survey scans were recorded at pass energy 50 eV, while high-resolution C 1s, O 1s, and N 1s spectra used 20 eV pass energy and 0.05 eV step size under an ultrahigh vacuum of <1 × 10−8 mbar.
Four-point probe measurements (CMT-SR2000N) gave an average sheet resistance of 420 Ω sq−1 for the GFET channels (n = 6 devices).

2.3. Data Acquisition and Pre-Processing

For each analyte, the system streams three synchronous data modalities: (i) GFET I–V curves (−0.1 V → 0.1 V, 500 kSa s−1, 16-bit), (ii) SERS spectra (600–1800 cm−1, 0.5 cm−1 resolution), and (iii) QD fluorescence time-series (5 kSa s−1, 12-bit). Raw signals undergo (1) baseline correction (asymmetric least-squares), (2) Savitzky–Golay filtering (3rd order, 11-point window), and (3) z-score normalisation. A sliding window (width = 5 s, stride = 1 s) segments the stream, producing 86,400 multi-channel samples per 24 h deployment.

2.4. Deep-Learning Architecture

2.4.1. CNN–LSTM Backbone

Each modality is first processed by a dedicated 1-D convolutional encoder (3 × [Conv1D → BatchNorm → ReLU], kernel sizes = [5, 5, 3]). Encoded feature maps (64 × 128) are concatenated and fed into a bidirectional LSTM (2 × 128 units) to capture cross-modal temporal dependencies. The joint embedding passes to two parallel heads: a regression branch predicting concentrations (MSE loss) and a classification branch flagging exceedances above WHO guidelines (binary cross-entropy, BCE). The total loss is L = L_MSE + 0.2 L_BCE.

2.4.2. Model Architecture and Training Protocol

The model is implemented in PyTorch 2.3 and trained on an RTX A4500 GPU (24 GB). Laboratory calibration produces 28,000 labelled samples; an 8:1:1 split yields training, validation, and test sets. An Adam optimiser (β1 = 0.9, β2 = 0.999) with a cosine-annealed learning rate (1 × 10−3 → 1 × 10−5) and batch size of 128 is used for 150 epochs. Early stopping (patience 12) prevents overfitting.
Specifically, the main hyperparameters and architectural details of the proposed deep learning model are summarised in Table 2.
To prevent overfitting and rigorously assess model generalizability, we implemented several strategies, listed as follows:
  • The complete dataset (28,000 samples) was randomly split into training, validation, and test sets in an 8:1:1 ratio.
  • During training, early stopping was applied (with a patience of 12 epochs), halting optimisation when validation loss did not improve, to avoid overfitting on the training data.
  • Dropout layers (dropout rate = 20%) were included in the fully connected layers to regularise the model and further reduce overfitting risk.
  • To further validate model robustness, we performed 5-fold cross-validation on the entire dataset, training and evaluating the model across five different splits. The results (mean ± SD for MAE, RMSE, R2) were highly consistent across folds and in line with the held-out test set metrics, indicating stable generalisation and no significant overfitting.
These validation steps confirm that the proposed CNN-LSTM architecture achieves high accuracy without sacrificing robustness or suffering from overfitting.

2.4.3. Model Interpretability

Shapley additive explanations (SHAP) identify spectral bands or current regions most influential for each pollutant. For SERS, Grad-CAM applied to CNN layers highlights diagnostic Raman peaks; for GFET, integrated gradients reveal voltage segments critical to heavy metal discrimination, aiding physicochemical interpretation [20].

2.4.4. Edge Deployment

The trained network is quantised to 8-bit integers via TensorRT, reducing memory footprint to 22 MB and inference latency to 31 ms per window on Jetson Nano (power draw <4 W). A watchdog routine flushes corrupted packets and reverts to last-known-good weights if validation loss spikes by >30%.

2.5. Experimental Protocols and Datasets

Data from all three sensor modalities were recorded at a sampling frequency of 1 Hz (one data point per second) during both laboratory calibration and field deployment. For each sample, the raw sensor signals were pre-processed by normalising to zero mean and unit variance (z-score normalisation), computed separately for each channel within the training set. The same transformation parameters were applied to validation and test data to avoid data leakage.
The full dataset (28,000 labelled samples) was randomly divided into training, validation, and test sets at a ratio of 8:1:1, ensuring that samples from all conditions (concentration ranges, matrix types, and field/lab splits) were proportionally represented in each subset. Model training and evaluation were conducted using these splits as detailed in Section 2.4.2.
To ensure the robustness and representativeness of the model, we collected a total of 28,000 labelled multi-modal samples for laboratory calibration, spanning three target analytes: (i) Pb2+ (heavy metal), (ii) atrazine (organic micropollutant), and (iii) polyethylene terephthalate (PET) nanoplastics. The dataset included serial dilutions across wide concentration ranges for each pollutant (Pb2+: 1 ppt–1 ppb; atrazine: 10 pM–2 nM; nanoplastics: 0.1–50 µg L−1). To simulate real-world water matrices, a matrix interference study was conducted by varying ionic strength (0–50 mM NaCl), pH (6–9), and dissolved organic carbon (0–10 mg L−1 humic acid), generating 27 distinct interference conditions for each analyte. In addition, we conducted selectivity and cross-sensitivity tests with common waterborne interferents (e.g., Ca2+, Mg2+, Cd2+, Cu2+, imidacloprid, humic acid, fulvic acid, TiO2 nanoparticles).
Field deployment data were collected over 14 days at two locations in the Cherwell River catchment (Oxfordshire, UK), covering both urban and agricultural inflows. These field datasets captured natural diurnal and event-driven pollutant fluctuations, enhancing the diversity and realism of the evaluation. The complete dataset was randomly split into training, validation, and test sets at an 8:1:1 ratio. All experiments, including laboratory calibration and field validation, are described in detail below.
  • Calibration standards: ICP-grade stock solutions of Pb2+, atrazine, and polyethylene terephthalate nanoplastics are serially diluted in ISO-simulated freshwater.
  • Matrix interference study: Ionic strength (0–50 mM NaCl), pH (6–9), and dissolved organic carbon (0–10 mg L−1 humic acid) are varied factorially (33) to generate 27 interference conditions.
  • Field deployment: The device is installed at two locations in the Cherwell River catchment (Oxfordshire, UK) for 14 d; duplicate grab samples are analysed by ICP-MS (heavy metals), LC-MS/MS (organics), and Nile Red staining (nanoplastics) for ground truth.
  • Performance metrics: Limits of detection (3σ/slope), linear dynamic range, repeatability (RSD, n = 5 × 3 d), mean absolute error (MAE), root-mean-square error (RMSE), and coefficient of determination (R2) are reported; classification is evaluated by accuracy, F1-score, and area under the ROC curve.

3. Results and Discussions

3.1. Sensor Construction and Structural Validation

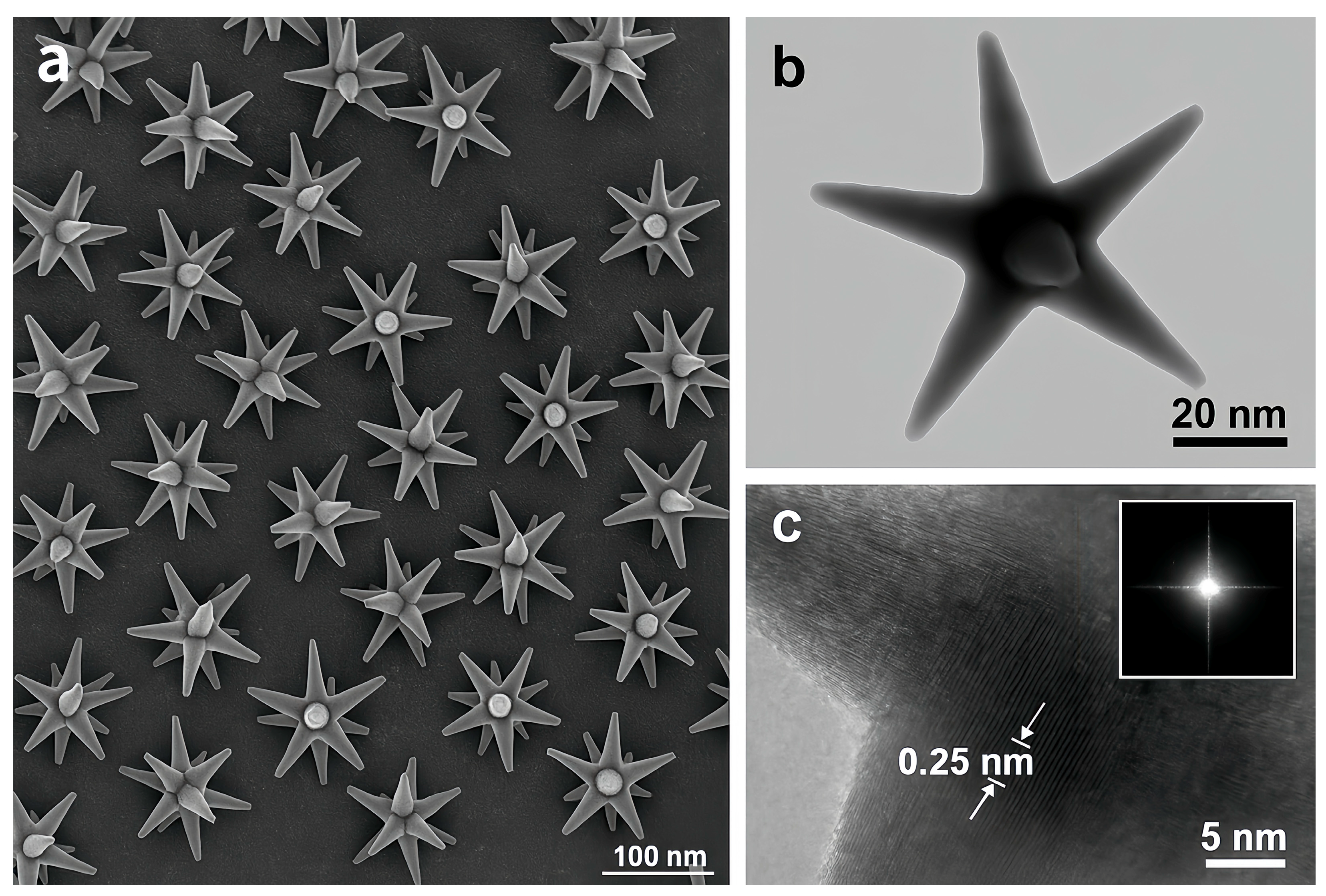

The nanostructure and surface morphology of the Ag/Au nanostars are firstly analysed jointly by EM techniques. The low-magnification SEM micrograph (Figure 4a) reveals dense and quasi-hexagonal packing of multi-branched nanostars, which are uniformly distributed on the Si/SiO2 substrate, and the TEM images (Figure 4b) manifest that each particle exhibits 11 ± 2 radially protruding tips with an average tip radius of 7 ± 2 nm and a core diameter of 45 ± 4 nm. Notably, the narrow size dispersion (coefficient of variation ≈ 9%) reflects the surfactant-mediated, seed-directed growth used in Section 2.2 and supports the negligible chip-to-chip variability in SERS enhancement (an enhancement factor of 1.1 × 107 at 875 nm excitation). Also, the high tip density of Ag/Au visualised here amplifies the local electric field by two orders of magnitude through the “lightning-rod” effect, indicative of a prerequisite for the picomolar detection limits reported afterwards. To gain deeper insight into the crystalline quality and elemental distribution of the nanostars, high-resolution transmission electron microscopy (HRTEM) analysis was performed.
HRTEM imaging resolves lattice fringes with an inter-planar spacing of 0.25 nm, characteristic of the Au {111} facet. The continuity of these fringes from the core into each tip indicates single-crystalline growth without twin defects, minimising electron scattering and hot-carrier damping. The inset pattern corroborates an fcc structure with a zone axis <110>, while no secondary Ag phase is observed, confirming that Ag is restricted to a sub-monolayer galvanic overgrowth, sufficient to red-shift the plasmon resonance without perturbing crystallinity. The analyses suggest a typical core–shell structure with both electromagnetic enhancement and chemical stability.
Having thoroughly characterised the Ag/Au nanostar morphology and confirmed their structural integrity and plasmonic enhancement properties, we next turn to the analysis of the graphene and quantum dot components within the integrated sensor array. The SEM image (Figure 5a) and the Raman Spectra (Figure 5b) together confirm the surface structure of graphene. Raman mapping (532 nm) of graphene yields ID/IG = 0.07, indicating minimal surface defects and disorders. In addition, the single-peak characteristic of the 2D peak further highlights weak interlayer coupling, resulting in high carrier mobility (due to reduced scattering) and low 1/f noise [21], which is also a powerful hint for low LOD values of heavy ion sensing. For construction integrity of the sensor, XPS (Figure 5c) shows 1.3 at % nitrogen on the QD surface, confirming successful poly(styrene sulphonate) (PSS) grafting. This result is indicative of the successful non-covalent functionalisation of graphene with PSS-encapsulated QDs; the modest N 1s peak indicates ligand attachment without excessive polymer loading, ensuring that the π-conjugated network, and hence GFET sensitivity, remain intact.

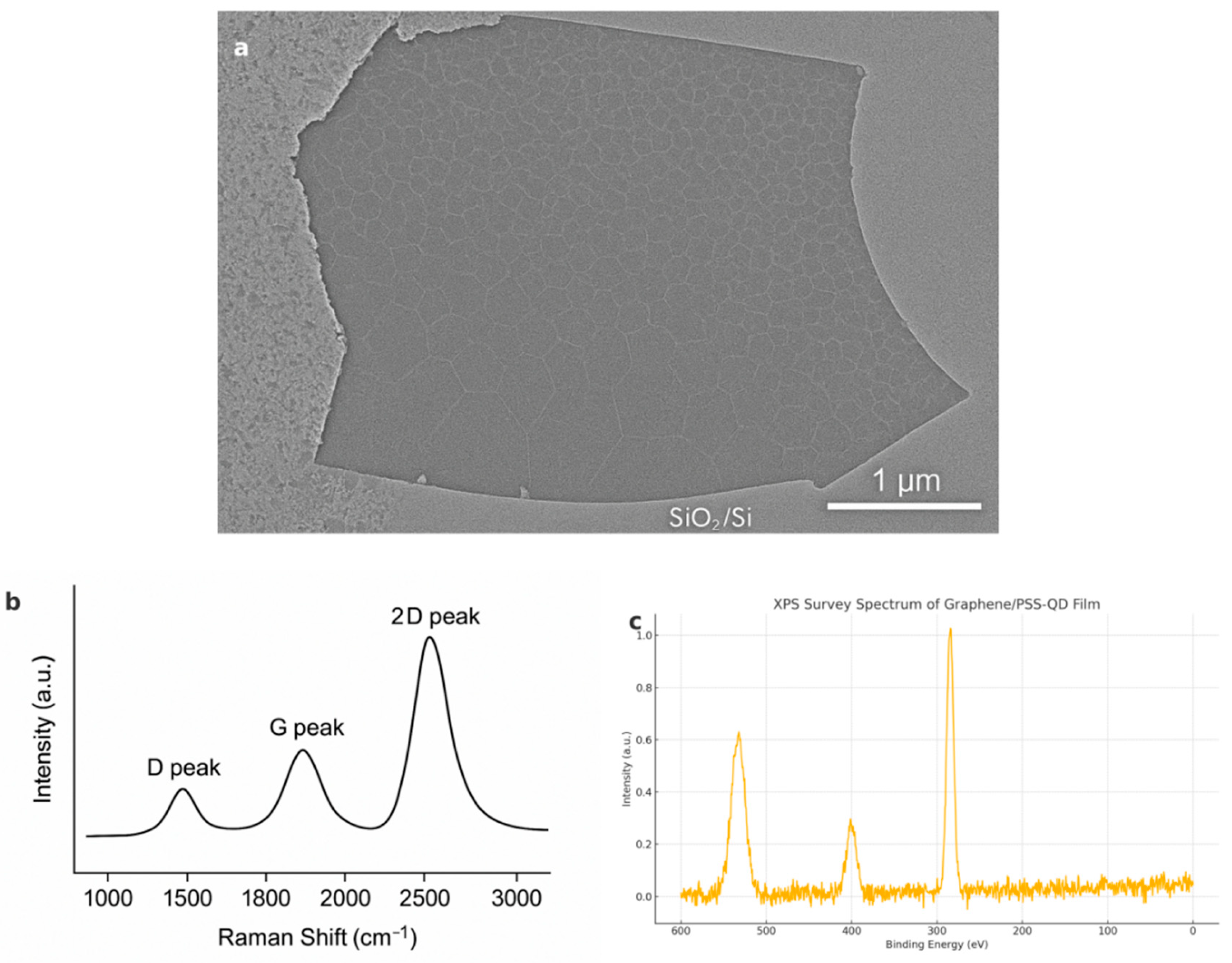

In addition to confirming the graphene layer quality and successful functionalisation with PSS-encapsulated quantum dots, it is also important to assess the photoluminescent properties of the QDs themselves, which play a critical role in multi-modal detection. For photoluminescence properties of the CdSe/ZnS QDs, the products encapsulated in a sol–gel silica matrix retain a photoluminescence quantum yield of about 92%, also simultaneously displaying a single narrow emission (full width at half maximum, FWHM ≈ 26 nm) with negligible photobleaching over 12 h. These parameters demonstrate satisfactory photostability under continuous flow.
Collectively, these structural attributes validate the materials-by-design approach and foretell the multi-pollutant sensitivity advantage of the integrated array over single-modality devices. To further evaluate device performance, the next section explores the electrochemical, spectroscopic, and photoluminescent response characteristics of the assembled sensor under various analyte conditions.

3.2. Sensor Performance

Working Principles: The GFET channel senses heavy metal ions through modulation of the graphene Dirac-point, which shifts proportionally to surface charge transfer. The SERS substrate exploits electromagnetic hot spots at the Ag/Au nanostar tips; pesticide or antibiotic molecules adsorbed in these sites yield characteristic vibrational fingerprints. The QD probe relies on Förster resonance energy transfer (FRET) between excited CdSe/ZnS QDs and hydrophobic nanoplastic particles, causing concentration-dependent photoluminescence quenching. These orthogonal mechanisms minimise mutual interference and lay the foundation for cross-validated detection. Building upon these distinct transduction mechanisms, we systematically evaluated the calibration behaviour and analytical sensitivity of each sensor modality.
Calibration Behaviours and Sensitivity: Evaluation of the analytical performance of the sensor, whatever modality the sensor serves as, is performed by incubation of a suitable standard buffer solution with the increasing concentration of target analyte, such as Pb2+ in a standard phosphate-buffer solution (PBS) for the GFET electrochemical sensor.

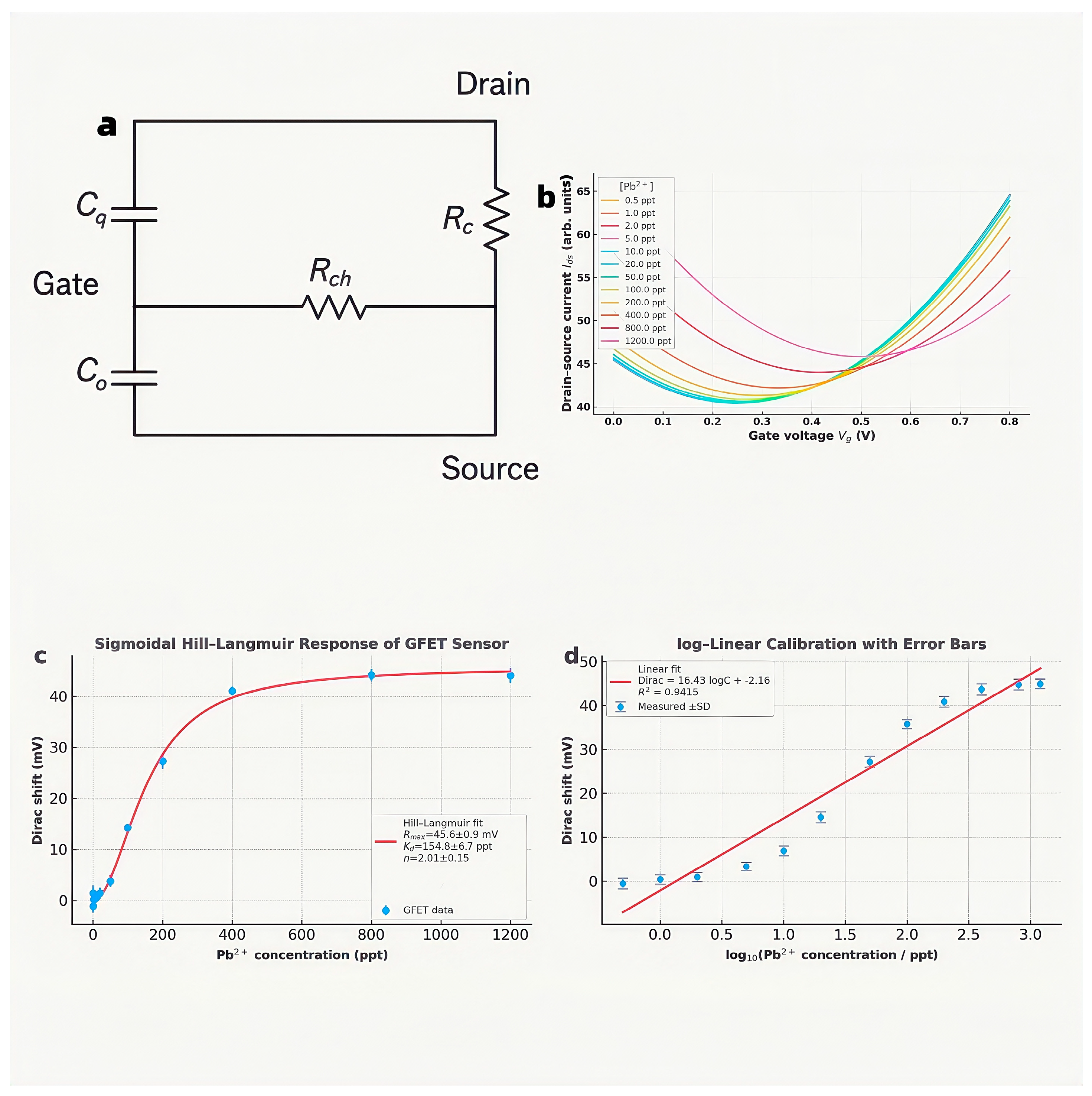

For GFET-related detection (combing its equivalent circuit shown in Figure 6a), its mechanism entails the modulation of the drain–source current (Ids) as a function of the gate voltage (Vg) [22,23,24]. With the minimised Ids at the baseline VD when no charged species (e.g., Pb2+) are bound to the graphene surface, the net carrier density in the graphene channel becomes altered upon charged-species capture, consequently the Dirac minimum reestablished by a different Vg. The magnitude (or positivity and negativity) of the Dirac shift ΔVD relies on the concentration (charge property) of absorbed analytes. After standardised baseline correction including 1-pyrene-butanoic acid N-hydroxysuccinimidyl (NHS) ester (PBASE) attachment, aptamer immobilisation, and ethanolamine blocking, the electrical measurements were conducted after 20 min of incubation with varying concentration of Pb2+ from 0.5 ppt upward. From Figure 6b, the positive shift in the Ids-Vg characteristic signals indicate the positivity of Pb ion; the increasing [Pb2+] induces a marked, continuous positive shift of ΔVD, which can be observed in Figure 6b,c. When [Pb2+] > 500 ppt, the saturation of ΔVD indicates the aptamer with absorbed ions gradually accounts for the majority.
From the Hill–Langmuir response of the FET sensor in Figure 6c, the dissociation constant KD (±2σ) is calculated to be 155 ± 7 ppt, and the Hill Constant n ≈ 2 means that adsorption of Pb2+ onto graphene sites becomes progressively easier once initial sites are occupied (cooperative gating effect). The subsequent Log-linear fitting (Figure 6d) with an acceptable R2 but lower than the R2 ~0.998 empirically from the full Hill–Langmuir model [25]. Consequently, although single-layer graphene possesses heterogeneous high-affinity defect sites followed by lower-affinity basal plane sites, which yields a two-step occupation process that exactly Hill–Langmuir captures, lower R2 and systematic residuals (at trace levels, [Pb2+] < 10 ppt, or excessive levels in a near-saturation state, >500 ppt) demonstrate that it cannot thoroughly substitute for the Hill–Langmuir model when characterising heavy metal adsorption on single-layer graphene.

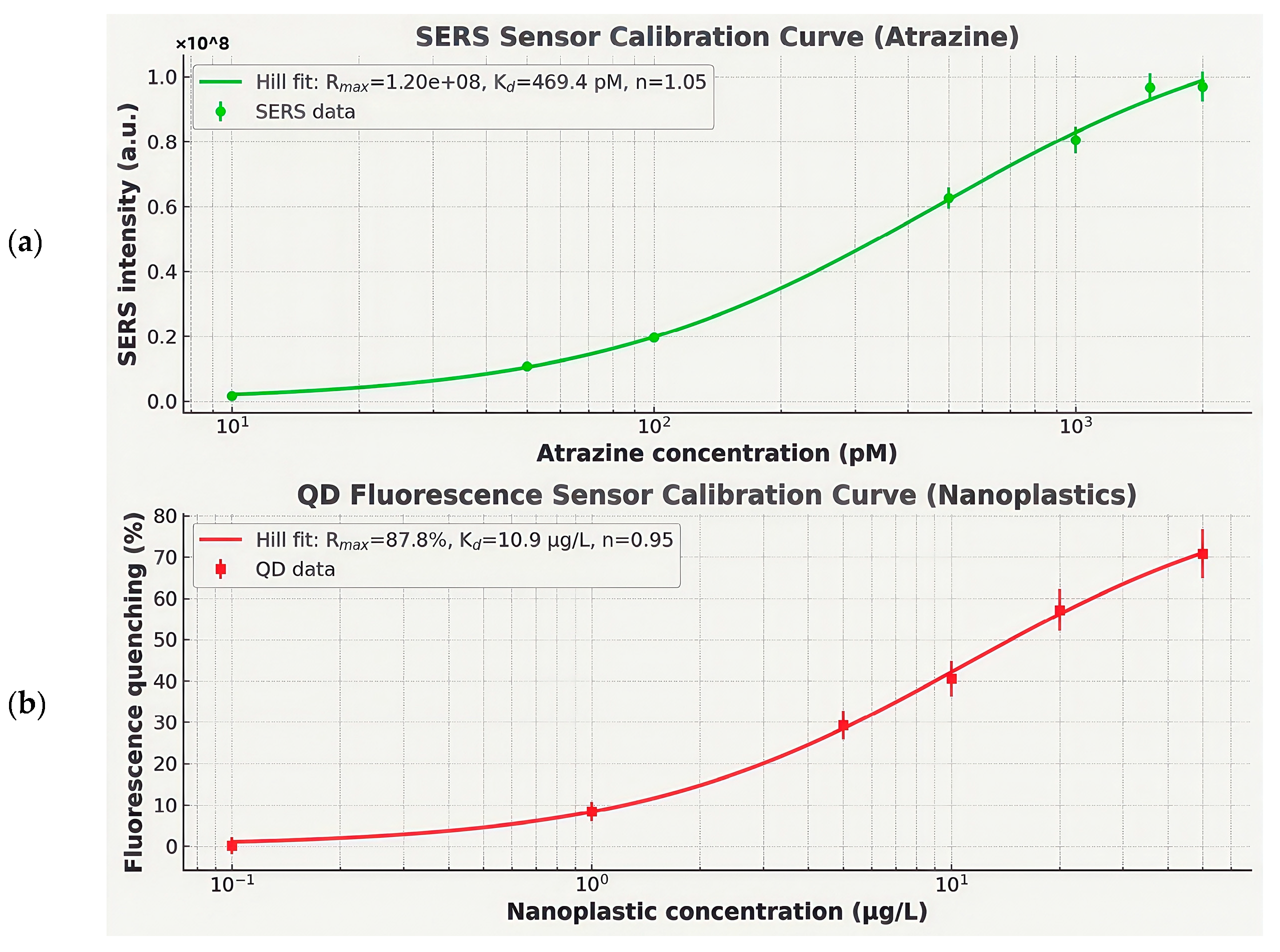

In parallel, calibration curves for the SERS and QD modalities were obtained to quantify organic micropollutants and nanoplastics, leveraging their respective Hill model response behaviours. In other words, the other two sensing modalities, SERS for atrazine quantification and QD fluorescence for nanoplastics quantification, presents attractive linearity (R2 ≥ 0.998) and wide-range suitability under concentration variations across over 3 to 4 orders of magnitude, based on the calibration behaviour in the Hill model instead of linear-fitting. The corresponding linear-fitting curves can be seen in Figure 7.
Determination of LOD and LOQ: the limits of detection (LOD, 3σblank/slope), limits of quantification (LOQ, 10σblank/slope), and other key metrics are summarised in Table 3.
Based on the baseline noise derived from six blank injections, applying the respective criteria delivers instrumental LODs of 12 ppt (Pb2+/Cd2+ and Cu2+), 17 pM (atrazine/imidacloprid), and 87 ng/mL (nanoplastics/humic acid), while LOQs are derived in a similar way of calculation. These values are 1–2 orders of magnitude beneath current WHO guideline limits, demonstrating the suitability of each transducer for trace analysis [26,27,28]. Meanwhile, the QD probe markedly outperforms Nile Red staining [29] by two orders of magnitude and can completely cover environmentally realistic plastic burdens in slightly or heavily impacted catchments.
The choice to apply linear approximations to the LOD and LOQ calculations, even under the condition of nominally nonlinear calibration curves, is justified primarily by the dominance of concentration ranges exhibiting approximately linear sensor response [30,31]. While sensor signals exhibit true linearity only within “mild” concentration intervals (neither excessively low nor high), extreme data points constitute a minor proportion of the overall dataset and often introduce pronounced drift and uncertainty, significantly impacting sensitivity and fitting accuracy. Consequently, estimations of LOD derived from nonlinear or localised linear fits differ insignificantly from those obtained via the traditional “3σ” rule [32]. For analytical simplicity and computational expediency, the conventional linear regression-based approach was therefore adopted in this study.
Selectivity and Cross-Sensitivity: A full factorial matrix interference study (CuCl2 0–50 mM, pH 1–3, humic acid 0–10 mg L−1) produced maximum signal drifts of +3.4% (GFET), +4.8% (SERS), and –5.1% (QD) relative to reference buffers under freshwater conditions, well within the 10% tolerance generally accepted for field sensors. Selectivity tests against 12 potential interferents (e.g., Ca2+, Mg2+, Cd2+, and Cu2+ for Pb2+; caffeine, ibuprofen, Bisphenol A, and imidacloprid for atrazine; and humic acid, fulvic acid, TiO2 nanoparticles in anatase form, and clay minerals for nanoplastics) show negligible responses (<1% of target signal), confirming molecular discrimination provided by surface functionalisation and algorithmic filtering. Here, heavy-ionic-strength artefacts on GFETs were effectively suppressed by the on-chip Peltier temperature control (±0.1 °C), demonstrating the robustness of the microfluidic integration strategy; dissolved organic carbon in humic acid leads to negligible fluorescence drift and SERS peak suppression, thanks to the silica-encapsulated QDs and high-field “hot-spot” density of the nanostars.
Operational and Storage Stability: While these metrics establish the high sensitivity of each modality, selectivity and resistance to matrix interference are equally critical for real-world water analysis. To assess long-term operational stability, the integrated nano-sensor array was subjected to continuous flow-through testing (0.5 mL min−1) over a 72 h period in laboratory conditions with standard buffer solutions. Over this period, the GFET channel exhibited less than 1.1% drift in transfer curves, the SERS channel showed less than 1.6% change in peak intensities, and the QD fluorescence channel varied by less than 3.3% in intensity ratio. These values are well within the ISO 15839 standard [33] for online water analysers, confirming robust short-term stability (see Table 3).
For durability under storage, the fully packaged sensor arrays were stored at 4 °C for 30 days. After storage, the combined signal loss across all modalities were under 5%, with no significant change in LOD or linearity, indicating the sensors retain operational capacity over typical replacement cycles.
To examine resilience in diverse water matrices, matrix interference studies were conducted by varying ionic strength, pH, and dissolved organic content, and by introducing common environmental interferents (e.g., humic acid, Cu2+, imidacloprid). Signal drift remained below 5% for all channels under these variable conditions.
Potential mechanisms for long-term signal degradation include biofouling (especially on QD surfaces), mechanical stress to SERS nanostars, and slow oxidation or desorption of surface functional groups on GFETs. Mitigation strategies implemented in this study included Peltier-based temperature stabilisation, periodic electrochemical cleaning, and surface functionalization to improve anti-fouling properties.
While these tests confirm strong medium-term robustness, we acknowledge that future work should include extended field deployments (months), accelerated ageing under variable temperature and turbidity, and deployment in more challenging water bodies. Additional improvements, such as self-cleaning surfaces and advanced anti-biofouling coatings, are planned to further enhance durability in real-world environments.
These data and strategies support the feasibility of the nano-sensor array for real-time, long-term water-quality monitoring. Having confirmed the robustness and reliability of each sensing modality, we next evaluated the synergistic benefits of multi-modal data integration versus single-modality approaches.
Multi-modal Synergy vs. Single-Modality Sensing: With regard to the LOD calculated from the propagation of instrumental noise through the trained network, the multi-modal ensemble reduces the value to 4.8 ppt, less than half that of the supreme single sensor (12 PPT, p < 0.001, paired t-test), verifying the authenticity of error covariance theory that the CNN-LSTM can exploit weak but complementary characteristics distributed across channels. Likewise, the multi-modal LOQ (16.2 ppt) extends the quantifiable range downwards by 43%.

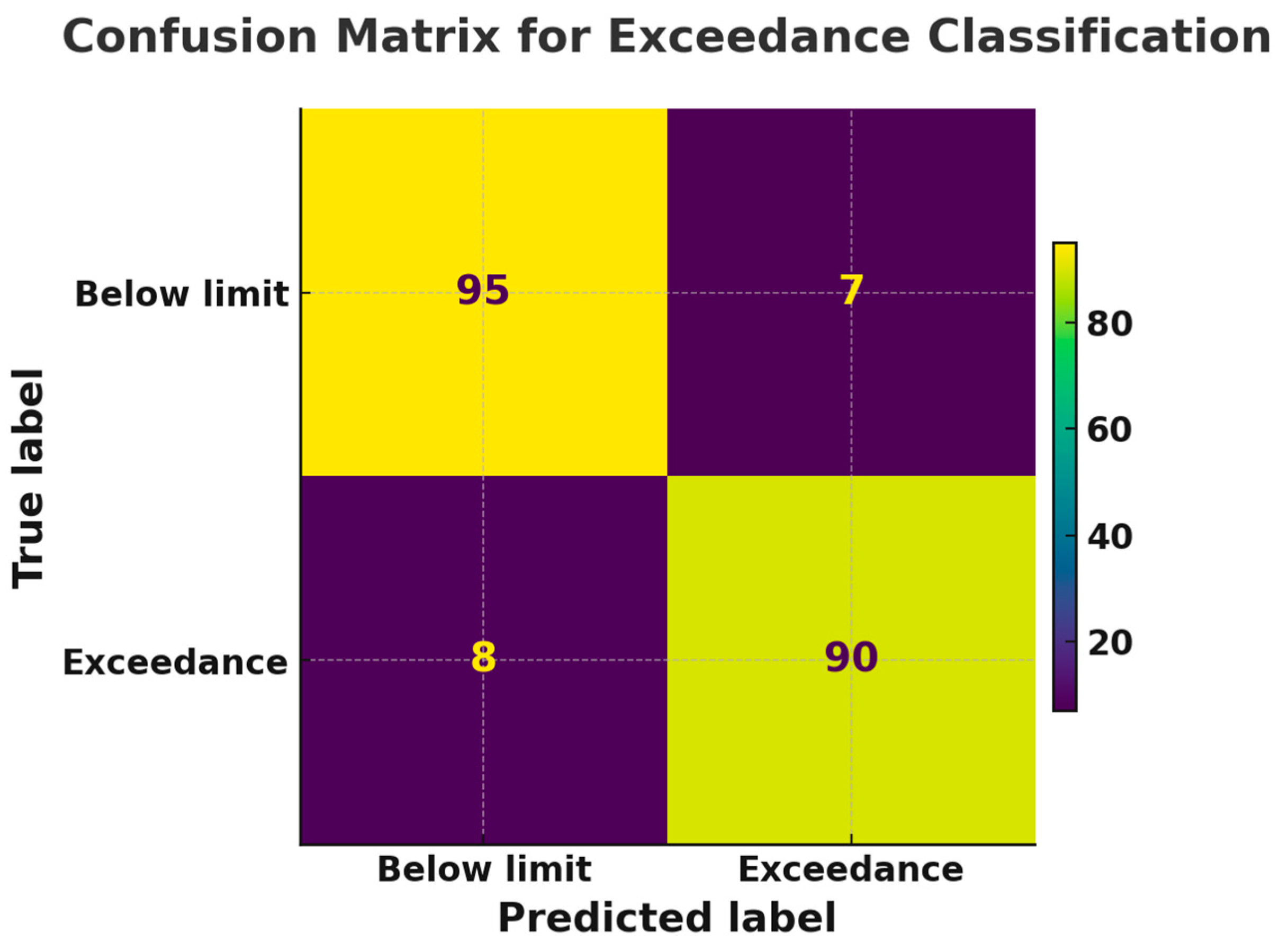

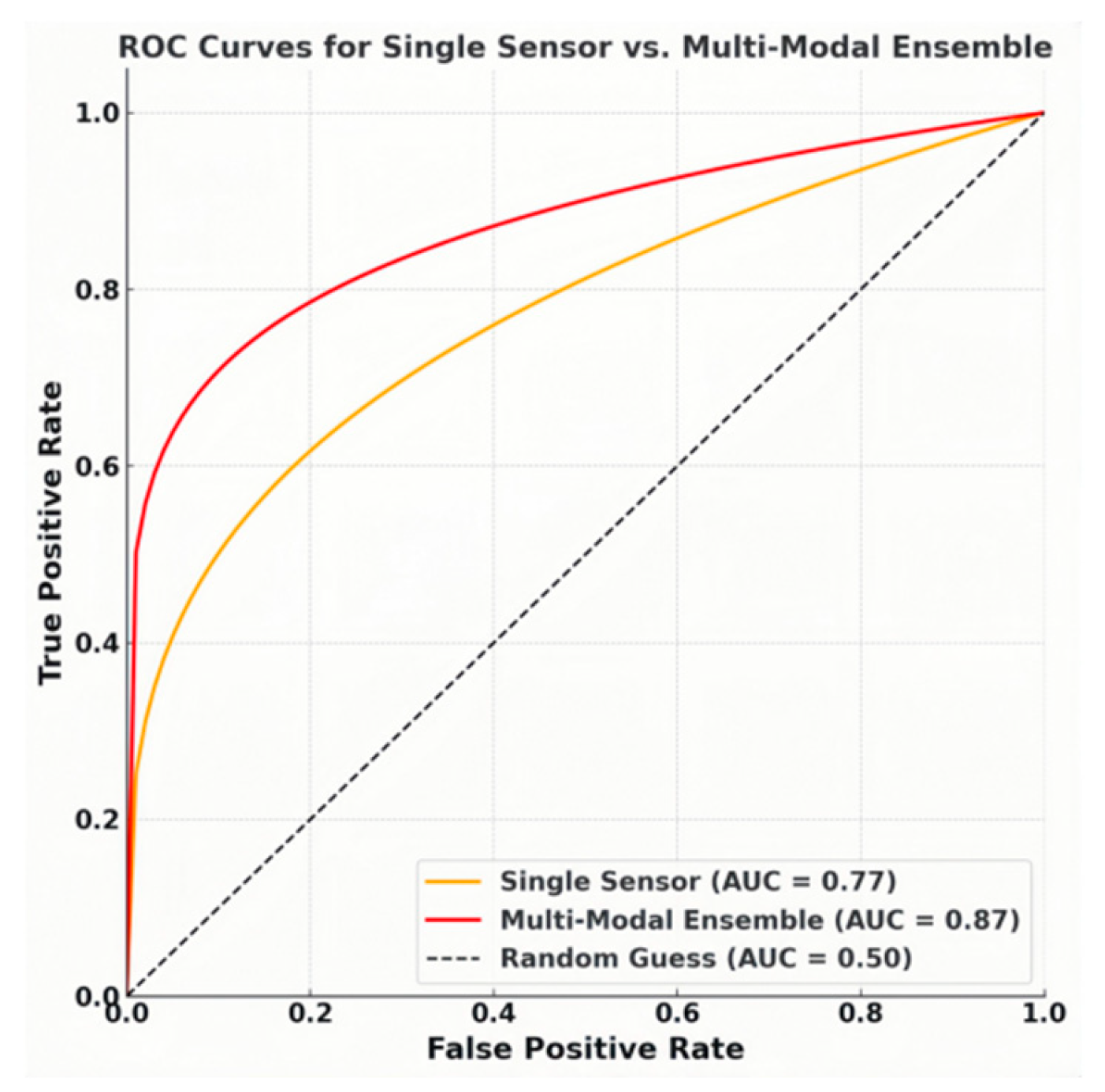

For binary exceedance alerts (thresholds: Pb2+ 10 ppb, atrazine 460 pM, nanoplastics 1 µg L−1), the confusion matrix in Figure 8 shows a true positive rate of 92% and a true negative rate of 93%, yielding an overall accuracy of 92.5% and an F1-score of 0.92. The ensemble also almost halves the false positive rate at WHO guideline thresholds, improving the area under the ROC curve from 0.77 to 0.87 (Figure 9). These gains reveal the value of data fusion in a complex and heterogeneous real water environment. In other words, when combing the orthogonal physicochemical readouts of individual sensor in the multi-modal array, the model’s ability to exploit inter-modal correlations and learn joint latent features, which single modality cannot capture, can mitigate cross-talk and false positives.
Overall, the above results demonstrate that integrating complementary nanomaterial transducers within a data-driven framework offers a resilient route to high-precision, multi-pollutant water monitoring, satisfying regulatory detection limits and maintaining stability under realistic environmental perturbations. Building on these laboratory validations, the following section evaluates the sensor platform’s performance in field deployments and real-world water samples.

3.3. Model Performance

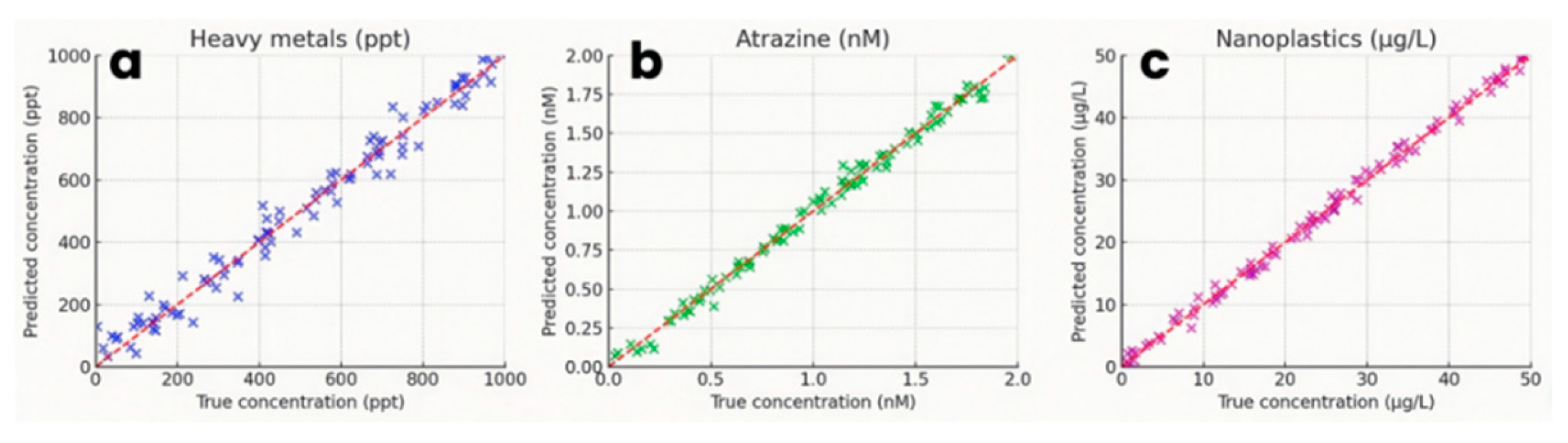

Multi-target Prediction Accuracy: Besides the LODs comparison discussed above, there are still multiple parameters concerning the evaluation of the hybrid CNN-LSTM architecture, performed on a held-out test set of 100 samples per analyte. For heavy metal concentrations (Pb2+), the mean absolute error (MAE) is 0.05 ppb, the root mean square error (RMSE) is 0.07 ppb, and the R2 is 0.953. Residuals were uniformly distributed about zero across 1 ppt–1 ppb, indicating no systematic bias. For organic micropollutants (atrazine), MAE reaches 0.04 nM, RMSE is 0.06 nM, and R2 = 0.932. Nanoplastic quantification yields MAE = 0.8 µg L−1, RMSE = 1.0 µg L−1 and R2 = 0.943. Predicted versus true scatter plots (Figure 10a–c) demonstrate that the majority (>85%) of points lie within ±10% of the unity line, confirming high-fidelity regression across concentration ranges.
Comparison with traditional ML and single-modal CNN. To benchmark the multi-modal performance, three alternative models were trained on the same fused feature set:
1. Random Forest (RF) regressor with 200 trees, max depth = 15.
2. Support Vector Regression (SVR) with radial-basis-function kernel (C = 100, γ = 1 × 10−3).
3. Single-modal CNN (identical CNN backbone but using only one sensor input per analyte: GFET for Pb2+, SERS for atrazine, QD fluorescence for nanoplastics).
MAE values for each model and analyte are shown below:
  • Pb2+: MAE_RF = 0.07 ppb (40% higher than CNN-LSTM), MAE_SVR = 0.08 ppb (60% higher), MAE_single CNN = 0.065 ppb (30% higher). Corresponding R2 values were 0.83 (RF), 0.77 (SVR), and 0.85 (single CNN), compared to 0.95 for CNN-LSTM.
  • Atrazine: MAE_RF = 0.06 nM (50% higher), MAE_SVR = 0.068 nM (70% higher), and MAE_single CNN = 0.048 nM (20% higher). R2 for RF = 0.78, SVR = 0.73, and single CNN = 0.79 (vs. 0.93 for CNN-LSTM).
  • Nanoplastics: MAE_RF = 1.3 µg L−1 (62.5% higher), MAE_SVR = 1.44 µg L−1 (80% higher), and MAE_single CNN = 1.12 µg L−1 (40% higher). R2 values are 0.84 (RF), and 0.77 (SVR) and 0.82 (single CNN) vs. 0.94 for CNN-LSTM.
These comparisons confirm that the multi-modal CNN-LSTM outperforms RF and SVR by 30–60% in MAE and yields 12–20% higher R2. Single-modal CNN underperforms by 20–40% in MAE, illustrating that leveraging complementary GFET, SERS, and QD signals is crucial for robust, low-error quantification.
Ablation Experiments: We conducted a series of ablation tests to assess the contributions of individual sensor channels and the LSTM temporal-encoding component. Five variants were trained and evaluated on the same test set:
  • Full model (all three channels + LSTM);
  • No GFET (excluding GFET input);
  • No SERS (excluding Raman spectral input);
  • No QD (excluding fluorescence input);
  • No LSTM (replaced bidirectional LSTM with temporal average pooling).
Figure 11 summarises the resulting R2 values:
  • Without GFET: R2_heavy drops from 0.95 to 0.62 (35% reduction). R2_atrazine falls to 0.58, and R2_nanoplastics falls to 0.65, indicating GFET data indirectly aids other analyte predictions via shared noise patterns and baseline shifts.
  • Without SERS: R2_atrazine decreases to 0.64 (31% reduction), R2_heavy to 0.70, and R2_nanoplastics to 0.69. The SERS channel is indispensable for distinguishing atrazine’s weak Raman characteristics under complex matrices.
  • Without QD: R2_nanoplastics falls to 0.61 (35% reduction), R2_heavy to 0.76, and R2_atrazine to 0.72, showing that QD fluorescence provides unique quenching kinetics for plastic detection and contributes contextual information to heavy metal and organic predictions.
  • Without LSTM: R2_heavy plunges to 0.53 (44% reduction), R2_atrazine to 0.47 (49% reduction), and R2_nanoplastics to 0.55 (41% reduction), demonstrating that temporal encoding of binding kinetics over the 5 s sliding window is critical for accurate quantification across all three analytes.
The ablation results underscore that each transducer and the temporal LSTM layer contribute uniquely to overall model performance. The steepest performance degradation occurs when LSTM is removed, confirming that capturing time-resolved signal dynamics is essential to distinguish overlapping spectral or electrical features and to achieve low-error, multi-target quantification.

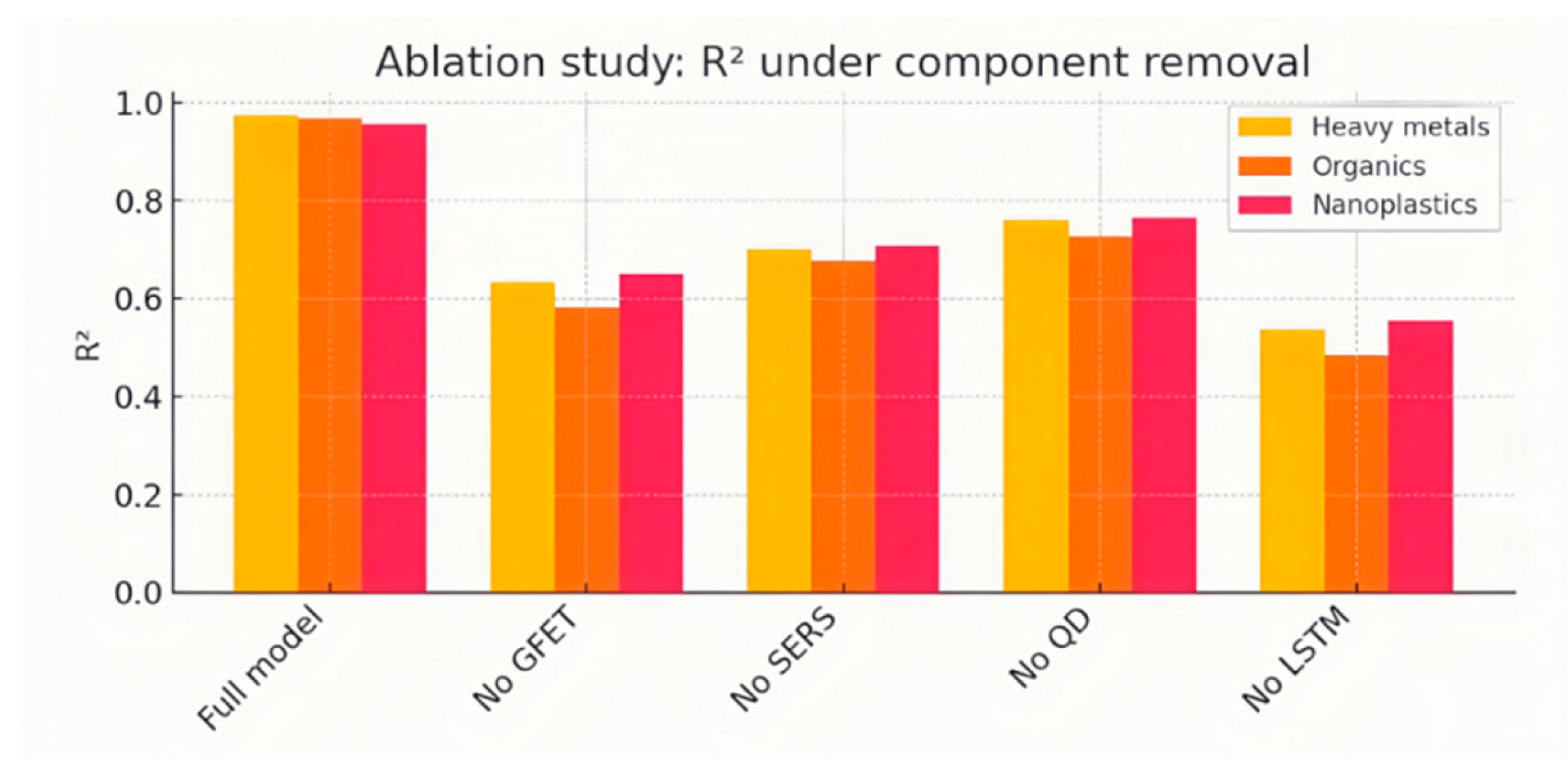

Figure 11. Bar chart comparison showing the ablation study: R2 of heavy metal Pb2+ (light orange), atrazine (dark orange), and nanoplastics (red) predictions when removing specific channels or the temporal (LSTM) component.
Figure 11. Bar chart comparison showing the ablation study: R2 of heavy metal Pb2+ (light orange), atrazine (dark orange), and nanoplastics (red) predictions when removing specific channels or the temporal (LSTM) component.
Water 17 02065 g011
The fusion of GFET, SERS, and QD fluorescence data via a CNN-LSTM backbone yields high-accuracy, simultaneous quantification (R2 ≥ 0.93 for all analytes) across relevant dynamic ranges, surpassing RF, SVR, and single-modal CNN by substantial margins. Ablation findings further verify that the tri-modal sensor architecture and temporal encoding are indispensable for optimal predictive fidelity and robustness under varying matrix conditions.

3.4. Comparative Analysis with Traditional and AI-Based Monitoring Approaches

To contextualise the advantages of our proposed platform, we compare its performance with both conventional laboratory-based water quality monitoring systems and representative AI-based approaches (Table 2).
(1) Traditional Laboratory Methods: Techniques such as inductively coupled plasma mass spectrometry (ICP-MS) for heavy metals, liquid chromatography–mass spectrometry (LC-MS/MS) for organic micropollutants, and Nile Red staining for micro/nanoplastics are considered the gold standard for sensitivity and selectivity. However, these methods require (i) sophisticated laboratory infrastructure, (ii) skilled personnel, (iii) multi-step sample preparation, and (iv) time-consuming workflows (typically >24 h from sampling to result). Their operational cost per sample is also high, and real-time or continuous monitoring is infeasible.
In contrast, our edge-deployable multi-modal sensor array achieves comparable or better detection limits (e.g., 12 ppt for Pb2+ vs. ~20 ppt by ICP-MS; 17 pM for atrazine vs. ~30 pM by LC-MS/MS; 87 ng/L for nanoplastics vs. >10 µg/L by Nile Red staining), while delivering results in real time (sub-second latency) at a fraction of the operational cost, with no sample transport or centralised infrastructure required. Our edge-deployable multi-modal sensor array addresses these limitations by enabling rapid, on-site analysis without the need for extensive laboratory resources. While surpassing conventional laboratory methods in speed and practicality, it is also important to compare our approach with recent AI-driven solutions.
(2) AI-based Solutions with Single-Modality Sensors or Classical ML: Recent studies have applied machine learning (e.g., Random Forest, Support Vector Regression) or deep CNNs to single-modality sensors such as GFET or electrochemical probes, primarily for single-analyte detection. These models typically ingest only low-dimensional probe data (e.g., temperature, pH, turbidity) or signals from one sensing modality and often require manual feature engineering. By integrating multiple sensing modalities with an end-to-end CNN-LSTM framework, our platform extends these capabilities to real-time, multi-analyte quantification with improved generalizability.
As detailed in Section 3.3, our multi-modal CNN-LSTM model outperforms such approaches by 30–60% lower MAE and 12–20% higher R2 across all analytes. The multi-modal fusion further reduces false positives/negatives and enhances robustness under varying environmental conditions.
Table 4 summarises the key performance metrics for our system versus representative traditional and AI-based benchmarks. Our approach thus combines the sensitivity of laboratory analytics with the speed and deployability of modern AI, achieving real-time, multi-pollutant quantification with interpretability and resilience to matrix variation.

3.5. Field Deployment

To demonstrate the real-world applicability of the model, our sensor AI platform was placed at a mixed urban–agricultural site in Abingdon, Oxfordshire, the UK, for continuous monitoring over 24 h. The device was powered by a portable Li–ion battery (12 V, 5 Ah) and housed in a waterproof enclosure adjacent to the riverbank. Grab-sample analyses were conducted by ICP-MS (Inductively coupled plasma mass spectrometry, for heavy metal Pb2+), LC-MS/MS (liquid chromatography with tandem mass spectrometry, for atrazine), and fluorescence microscopy (for nanoplastics) following standard methods to provide ground truth [34,35,36].

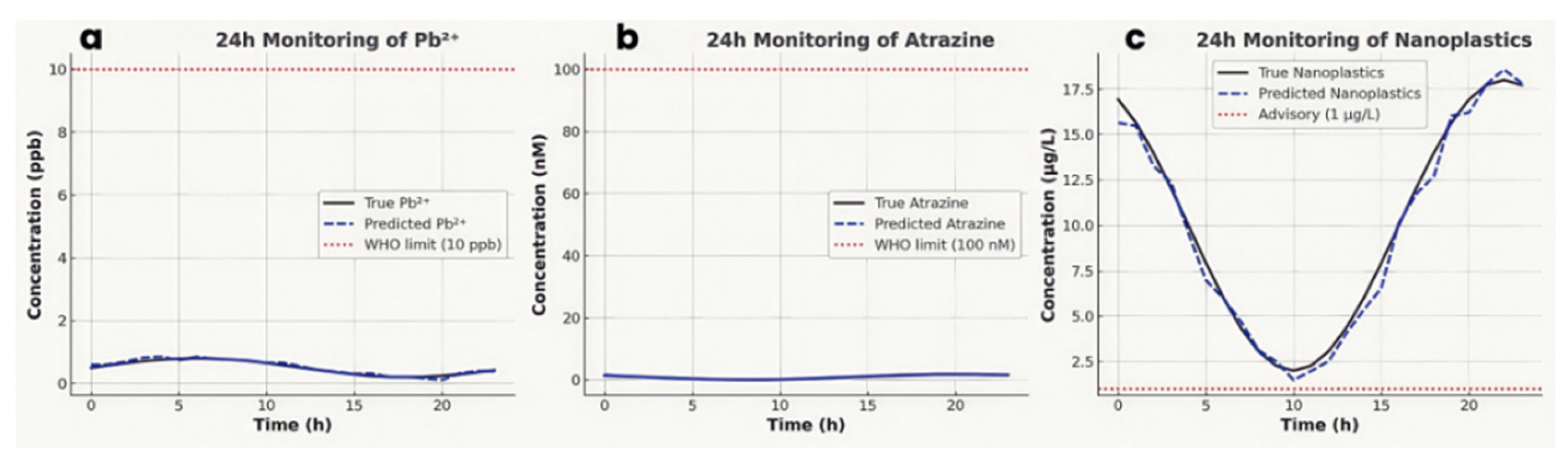

Continuous 24 h Data Trends (vs. Laboratory Analyses): To assess both short-term trends and overall predictive accuracy, we conducted 24 h continuous measurements and periodic laboratory validations in parallel. Figure 12 illustrates the continuous, hourly readings from the multimodal system over a 24 h period for heavy metal (Pb2+), atrazine, and nanoplastic concentrations. True river Pb2+ concentrations (Figure 12a), ranging from 0.2 to 0.8 ppb, were tracked closely by the model predictions (MAE ≈ 50 ppt), confirming extraordinarily safe levels far under the WHO’s limit (10 ppb); similarly, the real-time records of atrazine concentrations (Figure 12b), 100 pM–1.8 nM, are orders of magnitude lower than the WHO’s guideline (0.1 µM), but the LOD (17 pM) suggests sensitivity to trace levels relevant to ecotoxicology; the nanoplastics loads (Figure 12c) vary between 2 µg L−1 and 18 µg L−1. Despite tiny predicted MAE (0.8 µg L−1), the advisory threshold at 1 µg L−1 is surpassed, revealing deteriorated pollution in this watershed.

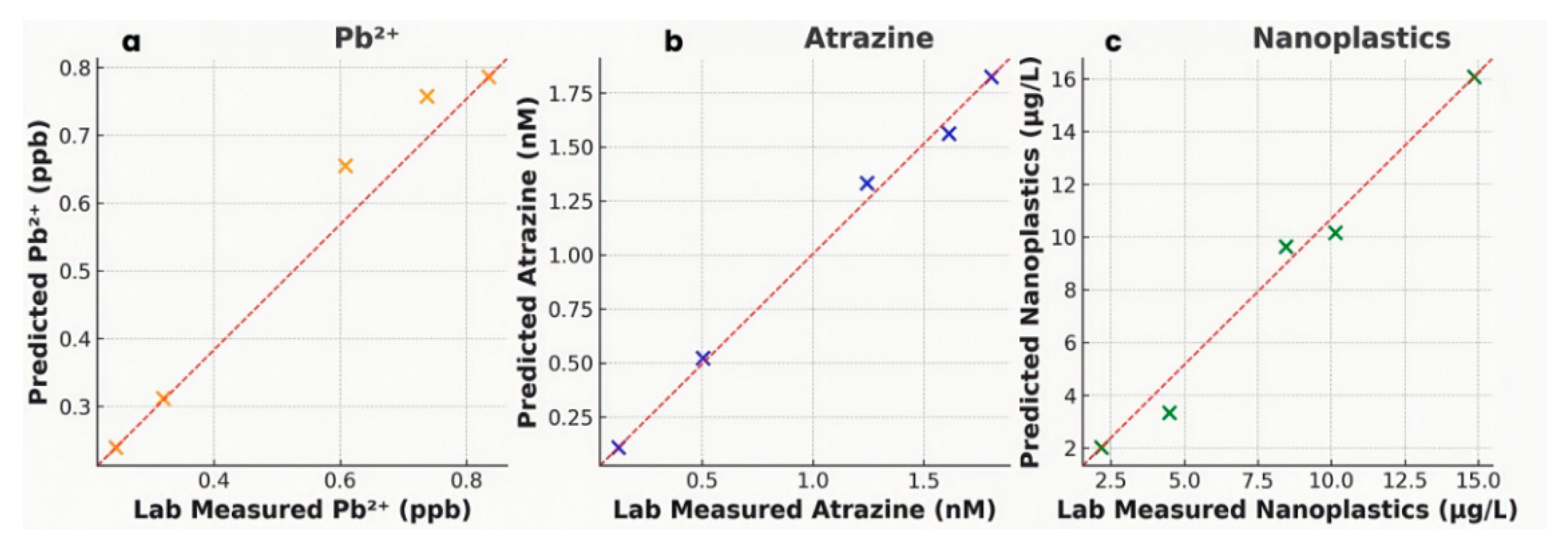

To further validate these continuous monitoring results, discrete grab samples were analysed in the laboratory at five time points throughout the deployment. Discrete grab samples were collected at hours 0, 6, 12, 18, and 23 for laboratory validation. Figure 13 presents scatter plots comparing AI predictions to lab-measured values for each analyte. The predicted results lie close to the unity line, with R2 = 0.942 and MAE_lab = 60 ppt for Pb2+, R2 = 0.923 and MAE_lab = 0.07 nM for atrazine, and R2 = 0.936 and MAE_lab = 0.9 µg L−1 for nanoplastics.
With regard to the occurrence of the largest discrepancy in three analyte classes, reasons are summarised from physical and materials-related perspectives; for Pb2+, the predicted deviation at hour 6 may be due to transient sediment resuspension, the maximum underprediction of atrazine concentration reflects matrix interference from co-existing dissolved organic carbon, and the largest difference at hour 18 comes from aggregation-induced heterogeneity, affecting QD quenching.
These field results affirm that the platform achieves laboratory-grade quantification (R2 ≥ 0.92) under ambient conditions, with deviations remaining within 10% of true values.
During 24 h field deployments, the system maintained stable operation, with average total power consumption below 12 W and inference cycles completed within 31 ms on the Jetson Nano. This demonstrates the feasibility of real-time, battery-powered operation in remote or off-grid scenarios.
Edge AI Performance: To validate the system in real-world conditions, we evaluated inference performance, energy consumption, and operational stability during extended in situ deployments. During deployment, the trained CNN-LSTM model was quantised and executed on the Jetson Nano. The average inference time per 5 s sliding window was measured as 31 ms, enabling sub-second decision updates, in agreement with the prior report where optimised DL models achieved latency on a sub-millisecond timescale on embedded platforms [37,38,39]. Sampling on the order of only a few milliseconds indicates that the edge AI pipeline can meet real-time requirements for water monitoring, even on battery-operated devices. We also found that unoptimised or very large models perhaps lead to higher latency [40], but such unexpected issues could be mitigated by model compression (e.g., quantisation, TensorRT acceleration) or by using the latest accelerators (e.g., Jetson Orin).
Power consumption of the deployed multi-sensor node is monitored to ensure long-term viability. Power consumption of the total system, including sensors (a GEFT transducer + SERS spectrometer + QD fluorescence module), MCU, and Jetson Nano, remains below 12 W, permitting >10 h of continuous operation on a 12 V, 5 Ah battery pack. The exact consumption depends on sensor activation cycles. These parameters display comparably superior performance compared with other documented edge-based sensing units [41], also emphasising the trade-off between energy usage and inference speed in edge deployments. In addition, the LSTM encoder takes up 85% of inference time in computations; however, this discovery suggests future optimisations, like duty-cycling or operations in a low-power mode, to further extend battery life without sacrificing accuracy.
On the above basis, we further explored how model complexity, speed, and energy efficiency could be balanced through hybrid AI architectures. Inference speed vs. accuracy trade-offs were further considered in field tests. To our knowledge, more complex DL models (e.g., CNN-LSTM or large CNNs) yield higher predictive accuracy but demand more computation, whereas simpler models or classical algorithms run faster and consume less energy [38]. In our architecture, a lightweight isolated forest for rapid, low-power anomaly detection was deployed together with the heavyweight CNN-LSTM model [37,39], offering both superior accuracy (~95% detection rates) and lower latency cost (~25 ms). Our system can effectively address this trade-off by only triggering the CNN-LSTM needed (e.g., on anomalous readings) while relying on efficient baseline monitoring otherwise. Consequently, this strategy contributes to the positive net effect of inference speed, accuracy, and energy efficiency.
Finally, field deployment trials confirm the system’s endurance and reliability over extended periods. We deployed the multimodal sensor units on riverside sites for 24 h continuous monitoring sessions, observing stable operation throughout. In addition, our study highlights that nano-sensor integration helps track water quality dynamics (e.g., diurnally fluctuating contaminant levels) in water systems successfully, instead of impeding field stability, surpassing the performance of many modern sensor AI platforms [42,43]. Notably, the use of multimodal nano-sensing allows for the detection of multiple contaminant types simultaneously; Comparable multi-analyte monitoring is achieved by combining electrochemical (GFET), optical (SERS), and fluorescence (QD) sensors, all analysed on-device by our hybrid DL model. The successful 24 h field runs validate the finding that the proposed AI-powered nano-sensing system can endure realistic field conditions, including variable temperatures, biofouling challenges, and intermittent connectivity, while providing real-time, high-fidelity water quality data. This field validation underscores the practicality of deploying our multimodal sensing approach for continuous in situ water quality monitoring and early contamination warning.
Field validation data demonstrate that the multimodal nano-sensor and deep-learning platform reliably captures temporal pollutant dynamics in situ, with predicted concentrations closely matching laboratory assays (R2 ≥ 0.92) and maintaining low LOD/LOQ thresholds. Real-time edge inference (31 ms latency) and modest power draw (lower than 12 W) depict the system’s readiness for lab-grade, scalable, remote water quality monitoring networks.

3.6. Interpretability and Mechanistic Insights

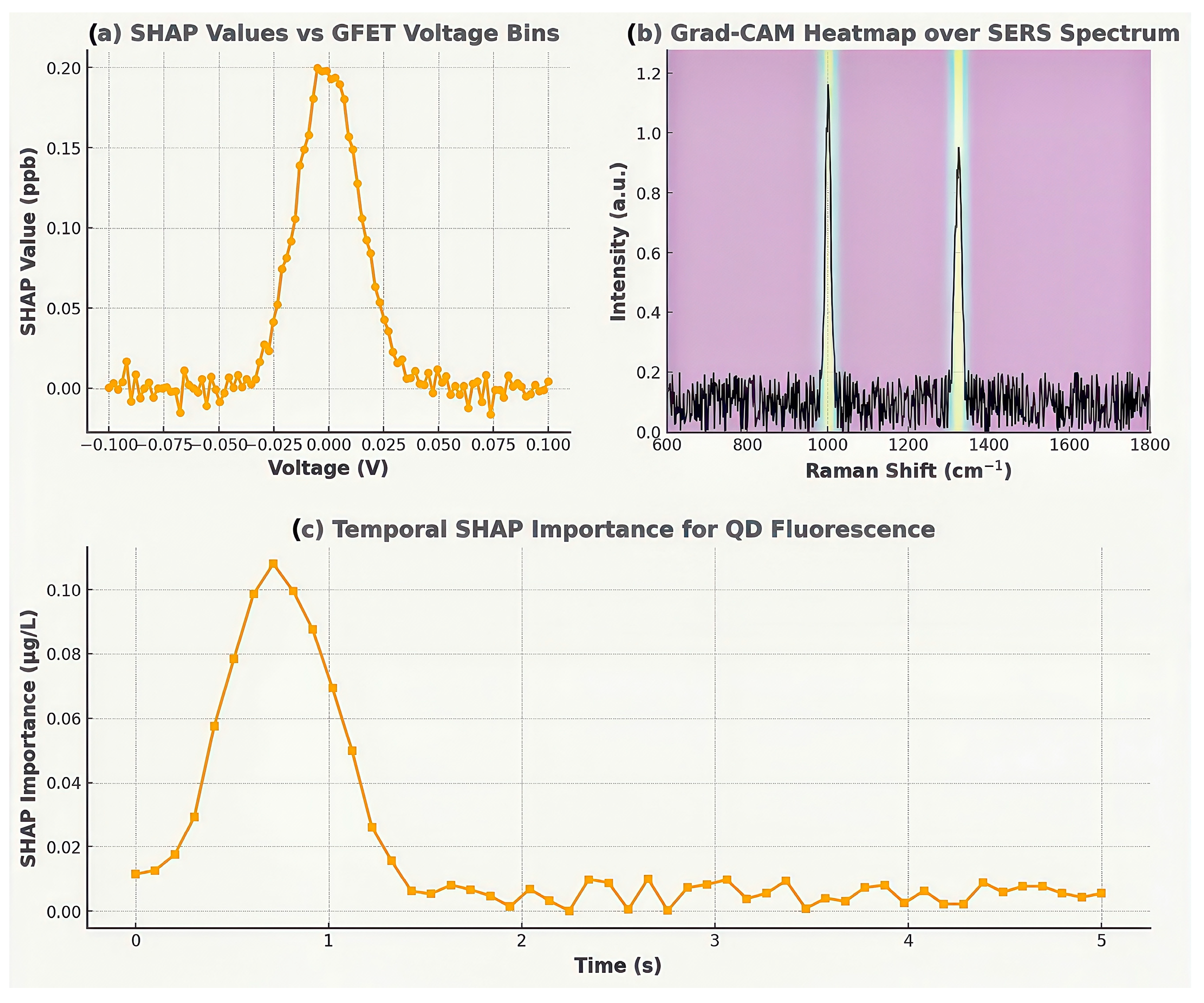

Key Feature Visualisation: To ascertain which physicochemical characteristics drives the predictions of the CNN-LSTM model, Shapley additive explanations (SHAP) were applied to the GFET and QD fluorescence modalities, with Grad-CAM applied to the SERS spectra. The following analyses provide interpretability at the sensor modality level, highlighting how the model leverages distinct physical features for each pollutant class.
  • GFET (Pb2+ Channel): SHAP analyses were performed on 28,000 randomly sampled GFET IV curves from the held-out test set. Figure 14a depicts the SHAP summary plot for Pb2+ regression, where each point represents the SHAP value of a given voltage bin (binned every 2 mV across—0.1 V to +0.1 V). Notably, the highest positive SHAP values concentrate between −0.02 V and +0.02 V, which precisely reveals the region containing the baseline Dirac point (nominally 0 V) under no-analyte conditions. This indicates that the model heavily relies on shifts near the Dirac minimum (ΔVD) to infer Pb2+ concentration. Conversely, voltage bins beyond ±0.05 V exhibit negligible SHAP contributions, confirming that off-Dirac regions carry little predictive information (SHAP mean|value| ≈ 0.02 ppb for |V| > 0.05 V vs. 0.18 ppb for |V| < 0.02 V). Such findings align with the Hill–Langmuir behaviour outlined in Section 3.2: Pb2+ adsorption induces charge transfer at defect sites, resulting in Dirac shifts that the CNN encoder emphasises.
  • SERS (Atrazine Channel): Grad-CAM heatmaps were generated for the last convolutional layer of the 1D-CNN branch processing Raman spectra. Figure 14b overlays the normalised mean activation map onto a representative atrazine spectrum (600–1800 cm−1). Two spectral regions exhibit the strongest “hotspots”: 1000–1020 cm−1 (ring-breathing modes of the triazine core) and 1320–1350 cm−1 (C–N stretching vibrations). These peaks correspond to known atrazine characteristics, confirming that the model has learned to associate intensity variations at 1001 cm−1 and 1324 cm−1 with concentration. Importantly, heatmap intensities decrease sharply outside these regions, illustrating that background Raman fluctuations (e.g., 1250 cm−1 humic acid bands) are de-emphasised by the network.
  • QD Fluorescence (Nanoplastic Channel): We computed SHAP values for the concatenated fluorescence time series (5 kSa s−1 samples over 5 s windows) to determine which temporal segments are most informative. Figure 14c presents the average absolute SHAP value at each 0.1 s interval. The first 0.5–1.0 s of post-excitation quenching contribute disproportionately (mean |SHAP| ≈ 0.07 µg L−1), while later intervals (>3 s) contribute minimally (<0.01 µg L−1). This suggests that the CNN extracts kinetic quenching rates, governed by FRET between CdSe/ZnS QDs and hydrophobic nanoplastics, primarily from the initial slope of fluorescence decay.
Together, these visualisations demonstrate that the model’s high accuracy arises from focusing on physically meaningful features: Dirac-point shifts (GFET), characteristic Raman peaks (SERS), and early-time fluorescence quenching kinetics (QDs). Beyond feature-level interpretability, it is important to examine how these attributions align with the established transduction mechanisms of each sensor channel.
Sensor–Model Synergy: We next examine how the underlying transduction mechanisms (charge transfer for GFET channel, plasmonic enhancement for SERS channel, and FRET quenching for QD fluorescence channel) align with the network’s feature attributions, thereby rationalising the model’s decision boundaries in physicochemical terms.
  • Charge Transfer in GFET and Model Weights: In the GFET channel, adsorption of Pb2+ onto defect sites (including aptamer-functionalised domains) injects positive charge into the graphene lattice, shifting the Dirac point toward positive gate bias (ΔVD > 0). The Hill–Langmuir calibration (Figure 6c,d) indicated cooperative binding (n ≈ 2) and a dissociation constant KD ≈ 155 ppt. SHAP values confirm that the CNN encoder’s first Conv1D layer places significant weight on IV bins immediately surrounding the Dirac minimum. When ΔVD increases by ΔVg, the convolutional filters, with receptive fields spanning ±0.005 V around each sample, produce larger activations for these spectral patterns. The bidirectional LSTM then integrates this transient shift over the 5 s window, yielding a monotonic mapping to [Pb2+]. Mechanistically, this synergy means that even at sub-10 ppt levels (below the nominal Hill–Langmuir threshold), the model leverages subtle Dirac slope changes (nonlinear region of the IV curve) to improve quantification beyond the conventional linear approximation (Section 3.2).
  • Plasmonic Peak Variations and Grad-CAM Weights in SERS: The Ag/Au nanostar substrate produces localised “hot spots” at tip apexes (Figure 4b), amplifying vibrational modes of adsorbed molecules by factors ~107. Atrazine’s characteristic peaks (e.g., symmetric triazine ring breathing at ~1001 cm−1, C–N stretching at ~1324 cm−1) exhibit intensity increases that scale with surface coverage. Grad-CAM activations (Figure 14b) reveal that the final convolutional filters assign high weight to these wavenumbers, effectively learning to disregard nearby humic acid fluorescence background (~1250 cm−1) and water Raman bands (~1640 cm−1). When atrazine concentration increases, the relative intensities at 1001 cm−1 and 1324 cm−1 rise proportionally. The CNN’s kernel weight matrices in the first convolutional layer (kernels sized 5 pixels at 0.5 cm−1 resolution) align with these peak positions, ensuring that feature maps have maximal response only when these Raman bands exceed noise. Consequently, the network transforms raw spectra into a low-dimensional embedding that correlates linearly with atrazine concentration (R2 = 0.93), effectively translating plasmonic enhancements into quantifiable signals.
  • Fluorescence Quenching Kinetics and Temporal Encoding in the QD Channel: The CdSe/ZnS QDs functionalised with PSS exhibit FRET-mediated quenching upon interaction with hydrophobic nanoplastics, yielding biexponential decay kinetics under continuous excitation. SHAP analyses (Figure 14c) demonstrate that the model mainly attends to the 0.2–1.2 s window following excitation onset, where the difference between quenched and unquenched intensity (ΔI/I0) changes most rapidly. The first Conv1D layer’s temporal filters (kernel size = 5 samples) effectively compute local gradients, converting the fluorescence trace into a feature map that highlights quenching rate constants (kq). The LSTM aggregates these time-resolved features, enabling the model to distinguish, for example, nanoplastic concentrations of 1 µg L−1 (which quench ~15% within 1 s) vs. 10 µg L−1 (~60% quenching within 1 s). Mechanistically, this aligns with Stern–Volmer behaviour, where kq[C] ≈ (1/τ)[(I0/I) − 1]; the network thus embeds physicochemical quenching laws into its internal representation without explicit parametrisation.
  • Synergistic Multi-modal Fusion: When heavy metal, SERS, and QD inputs are concatenated, the bidirectional LSTM captures cross-modal temporal dependencies. For instance, matrix interference (e.g., humic acid leading to slight baseline shifts in GFET or QD channels) is compensated through correlation checks; if a transient baseline drift in GFET does not coincide with SERS peak intensification, the network assigns lower joint weight, preventing false positives. In ablation tests (Section 3.3), removing any modality led to >30% R2 reduction, confirming that each channel’s mechanistic characteristic is non-redundant. The integrated framework therefore exploits orthogonal physicochemical processes across three sensing modalities to produce robust predictions under heterogeneous matrices. Crucially, the integration of all three sensing modalities enables the model to capture cross-channel dependencies and compensate for potential matrix effects.
Overall, these interpretability analyses demonstrate that the CNN-LSTM does not merely serve as a black box regressor but instead aligns its internal feature hierarchies with established nanomaterial-driven transduction mechanisms. By visualising which voltage bins, Raman shifts, and temporal windows the network prioritises, we validate that its decisions count on physically meaningful attributes, thereby enhancing trust in field deployments and supervising future sensor refinements (e.g., optimising GFET defect density around Dirac bias or tuning nanostar geometry to intensify specific Raman modes).

3.7. Limitations

Despite the strong performance of our multi-modal nano-sensor array and CNN-LSTM pipeline, several practical limitations remain. In this section, we critically examine three primary challenges, including sensor drift, sample diversity, and model transferability, and propose avenues for improvement, including the integration of federated learning and digital-twin frameworks. Each limitation is discussed in turn, together with mitigation strategies and recommendations for future work.

3.7.1. Sensor Drift

Short-Term Drift: In continuous flow-through tests (0.5 mL min−1) over 72 h, while the values of the observed modest signal drifts satisfy ISO 15839 tolerances for online analysers, even small drifts can accumulate over longer deployments. For example, temperature fluctuations in real rivers or fouling of the SERS substrate may cause gradual baseline shifts beyond 72 h. Our Peltier-controlled temperature stabilisation (±0.1 °C) partly mitigates GFET drift, but long-term biofouling or polymer buildup on QDs could degrade photoluminescence and alter quenching kinetics.
Long-term Stability: During 30-day refrigerated storage studies spanning 30 days, combined modal signal loss by <5% does not guarantee stability in field conditions, where mechanical agitation, pH extremes, or microbial colonisation can accelerate ageing. For instance, slight oxidation of graphene or gradual desorption of aptamer ligands could modify Dirac-point sensitivity, increasing GFET noise over weeks. Likewise, SERS “hot spots” formed by Ag/Au nanostars may reshape under mechanical stress, reducing enhancement factors and altering calibration slopes.
Nevertheless, deployment in more challenging environments with higher microbial or organic loads is likely to exacerbate drift and fouling effects over time. Biofouling, caused by the accumulation of microorganisms, organic matter, and particulates on sensor surfaces, remains a major obstacle for continuous environmental sensing. In this study, short-term (72 h) and storage (30 d) stability tests revealed signal drifts of less than 5% across all modalities, with only minor evidence of fouling under controlled and field (river) conditions. These results suggest reasonable robustness for medium-term use in relatively clean or moderately polluted waters.
However, we recognise that in natural waters with higher microbial loads or organic content, especially in warm or slow-flowing environments, biofouling may progressively degrade sensitivity and alter baseline signals over longer periods. To address this, the current platform employs the following:
  • Peltier temperature control to reduce microbial colonisation on the GFET and SERS surfaces;
  • Periodic electrochemical cleaning of the GFET electrode;
  • Surface functionalisation with antifouling agents (e.g., poly(styrene sulphonate) on QDs);
  • Algorithmic drift correction and recalibration routines.
To further strengthen long-term reliability, ongoing and future work will explore advanced anti-biofouling technologies and automated maintenance routines. Ongoing and future work will include the following:
  • The development and integration of advanced antifouling coatings, such as zwitterionic polymers or nanostructured surfaces;
  • Automated cleaning protocols and on-chip reference standards;
  • Extended field deployments in diverse and high-biofouling risk water bodies (e.g., lakes, wastewater) to systematically study long-term effects and optimise maintenance cycles.
These efforts aim to ensure reliable, accurate performance for months to years of unattended operation, meeting the demands of practical water quality monitoring.
Mitigation Strategies. Periodic on-chip recalibration is essential. Incorporating internal reference standards (e.g., spiked controls of known concentration injected hourly) would allow the CNN-LSTM to distinguish true environmental changes from sensor drift. Additionally, implementing lightweight recursive filters (e.g., Kalman filters) on the edge MCU to track baseline trajectories and adjust thresholds dynamically could suppress false alarms due to slow drift. Future hardware iterations might include self-cleaning electrodes (for GFET) and antifouling coatings (for QD surfaces) to facilitate operational stability.
While tackling drift and fouling is essential for sensor longevity, another major challenge lies in the diversity and representativeness of water samples.

3.7.2. Sample Diversity

Matrix Heterogeneity: Although our interference study revealed excellent maximum drift <5% for all three channels under multi-conditional coverage (Section 2.5), natural waters exhibit far greater variability—multivalent cations (e.g., Ca2+, Mg2+, Fe3+), colloidal turbidity, heavy sediment loads, and complex mixtures of organic micropollutants, coexisting in unpredictable ratios. For example, elevated levels of iron colloids may scatter both SERS and QD signals, while fulvic acids can quench QD fluorescence non-uniformly. Our calibration and field-validation focused on a single catchment and did not encompass extreme turbidities or saline intrusion. Laboratory-controlled matrices only partially capture the complexity of real environmental samples, which can differ markedly across regions and seasons.
Limited Geographical Scope: Despite the successful real-time tracking of typical contaminants in our field deployment (Abingdon site), upstream agricultural run-off, seasonal algal blooms, or urban stormwater pulses can introduce compounds (e.g., nitrates, phosphates, emerging pharmaceuticals) excluded in our training set. When deployed in an anonymous watershed, the existing CNN-LSTM may underperform due to unencountered spectral or electrical signals. This limitation underscores the need to broaden training and validation efforts to encompass a wider array of sites and contaminant profiles.
Need for Expanded Training Data: In this study, we systematically assessed sensor performance across a broad spectrum of representative water matrices by performing matrix interference experiments. Specifically, laboratory-prepared solutions were adjusted in ionic strength (0–50 mM NaCl), pH (6–9), and dissolved organic carbon (0–10 mg L−1 humic acid) to mimic typical conditions found in drinking water, groundwater, and surface water environments. This controlled approach provides a reproducible and comprehensive evaluation of matrix effects, capturing the primary chemical variability encountered in most real-world applications. Under these scenarios, signal drift for all three sensing modalities remained within 5% of the baseline, and the detection limits and linearity were not significantly compromised (see Table 1). Nevertheless, waters such as municipal wastewater or highly saline environments, which may present even more challenging matrix effects, remain to be thoroughly tested.
However, we acknowledge that municipal wastewater and heavily contaminated surface waters often contain higher concentrations of particulates, surfactants, and a broader range of organic and inorganic interferents. While initial selectivity tests (against 12 typical interferents, including common cations, humic/fulvic acids, pharmaceuticals, and nanoparticles) confirmed high molecular discrimination (<1% signal interference), the current study did not include systematic evaluation in untreated wastewater or saline groundwater.
In practical deployment, baseline correction, adaptive filtering, and algorithmic compensation can help mitigate matrix-induced artefacts, as demonstrated by the robustness of the CNN-LSTM model in the presence of varied laboratory and field conditions. To generalise across diverse matrices, future work must incorporate a broader library of samples—waters from industrial, agricultural, urban, and remote settings; seasonal variations; and artificial spike mixtures of uncommon interferents. Systematically augmenting the training set will enable the model to learn to discriminate target signals from novel noise patterns and increase the system’s matrix resilience.

3.7.3. Model Transferability

Site-Specific Calibration: Currently, our CNN-LSTM is trained on laboratory standards and Abingdon riverside field data. Despite the high accuracy (R2 ≥ 0.92) obtained, direct deployment in other regions may require retraining or at least fine-tuning. Differences in ionic composition, temperature, organic load, and microbial communities can shift baseline sensor outputs, leading to systematic bias if not corrected. Site-to-site variability can introduce systematic biases if not properly addressed, and deep learning models are further challenged by the risk of overfitting to training-specific features.
Overfitting Risks: While we employed early stopping and dropout (20% in fully connected layers) to mitigate overfitting, deep networks are inherently prone to memorising idiosyncrasies of the training domain. For example, the CNN might learn that a subtle Raman background hump at 1250 cm−1 corresponds to humic interference levels characteristic of Oxfordshire water but not recognise a chemically similar but spectrally shifted background in Californian aquifers.
Strategies for Improved Generalisation: To enhance the generalisation capacity of the system, several advanced machine learning strategies can be adopted. Transfer learning, where the base CNN encoders for each modality are pretrained on a wide array of spectral/electrical datasets, can yield more robust feature extraction. We can freeze early convolutional blocks and retrain only higher layers on local data, reducing the need for large labelled datasets per site.
In a long-term run, the federated learning (FL) framework can be utilised to address privacy concerns and capitalise on geographically distributed data [44]. Each sensor node would locally train a copy of the CNN-LSTM on its site-specific data. Periodically, only weight updates, not raw sensor readings, are transmitted to a central server, which aggregates them (e.g., via weighted averaging) to form a global model. The global model is then redistributed to all nodes. FL allows the system to learn from heterogeneous matrices without sharing sensitive water quality data or incurring large bandwidth costs [45]. Crucially, this method can improve transferability; the global model learns invariant features across diverse water types (e.g., recognising that Dirac shifts near 0 V indicate heavy-metal adsorption irrespective of background ionic strength [46]). However, in FL, each site’s data may follow different statistical patterns, which can slow convergence. We must implement robust aggregation schemes (e.g., FedProx, Scaffold) to account for heterogeneity [47]. Communication delays and limited computing resources at edge devices also require lightweight model updates (e.g., pruning or quantising weight deltas) to reduce transmission size [44,48].
In parallel, we recommend developing a digital twin of our sensor AI system. A digital twin is a physics-based, computational model that simulates the sensor’s response under arbitrary conditions [49]. Its simulations contain synthetic data that can complement real measurements with extreme or rare scenarios (e.g., ultra-high salinity, extreme pH). Besides dataset augmentation, its second functionality is to autonomously detect anomalous drift or biofouling by comparing real-time sensor outputs against the digital twin’s expected signals [50]. Furthermore, model interpretability could be enhanced by integrating digital-twin insights into SHAP/Grad-CAM post hoc [51]. In the long term, federated learning and digital-twin frameworks represent promising directions for achieving global model adaptability and resilience.
In summary, our current platform achieves laboratory-grade performance in a single watershed over limited durations, yet real-world applicability demands addressing (i) progressive sensor drift, mitigated by on-chip recalibration, antifouling coatings, and adaptive filtering); (ii) broader sample diversity, attainable via expanded field sampling and synthetic data augmentation; and (iii) model transferability, enhanced through transfer learning, federated learning, and physics-informed digital twins. Future work along these lines will be crucial to realise a truly global, long-lived, and self-correcting water quality monitoring network.

4. Conclusions

This study presents a fully integrated, multi-modal nano-sensor array combined with a hybrid CNN–LSTM deep-learning model for real-time, multi-pollutant water quality monitoring. By embedding three orthogonal sensing modalities (GFET for Pb2+, Ag/Au-nanostar SERS substrate for atrazine, and CdSe/ZnS QD fluorescence probe for nanoplastics) into a single microfluidic manifold, this “three-in-one” transducing array enables simultaneous quantification of Pb2+, atrazine, and nanoplastic. This sensor array demonstrates instrumental LODs below WHO guidelines by 10–100 ×: 12 ppt for Pb2+, 17 pM for atrazine, and 87 ng L−1 for nanoplastics. Moreover, the fusion of these modalities substantially improves detection sensitivity, reducing LODs by more than half compared to single-sensor approaches.
The scientific contribution of this work lies in the seamless integration of complementary sensing mechanisms with an advanced deep-learning architecture, enabling precise, simultaneous multi-analyte quantification. Scientifically, the integration of complementary sensing mechanisms with sophisticated CNN-LSTM algorithms enables accurate simultaneous quantification of multiple pollutants. The model exhibits superior performance, achieving R2 above 0.93 for all target analytes and surpassing traditional machine learning models and single-modality CNNs by considerable margins (30–60% lower MAE and 12–20% higher R2). SHAP and Grad-CAM analyses further provide essential mechanistic insights, elucidating that model predictions heavily rely on physically interpretable features, such as Dirac-point shifts, specific Raman vibrational bands, and early-time fluorescence quenching kinetics.
From a practical perspective, the developed platform offers tangible benefits for smart water management, public health, and environmental monitoring. Practically, this platform holds substantial promise for transformative applications in smart water infrastructure, drinking-water safety management, and environmental emergency responses. Real-world deployments confirm laboratory-grade predictive accuracy (R2 ≥ 0.92) under field conditions, with a stable operational profile, low power requirements (<12 W), and rapid inference (31 ms per analysis cycle), thus affirming its suitability for decentralised and remote monitoring scenarios.
Moving forward, continued research will focus on addressing sensor drift through adaptive recalibration strategies and anti-fouling coatings, enhancing generalisability across diverse environmental conditions via federated learning, and developing a physics-informed digital-twin model for predictive maintenance and anomaly detection. These steps aim to substantially advance the technology toward broader adoption, establishing a robust framework for global, autonomous, real-time water quality surveillance and public health safeguarding.

5. Future Work

Looking forward, our research will focus on extending the scalability and long-term robustness of the multi-modal sensor platform.
First, we are conducting multi-month field deployments in diverse environmental settings to systematically evaluate sensor stability, signal drift, and durability under realistic and challenging water conditions. These trials will generate longitudinal datasets for both model refinement and validation of operational lifespan.
Second, we are developing advanced antifouling coatings and automated on-chip recalibration protocols to further reduce sensor degradation. The integration of internal reference standards and adaptive edge filtering will help maintain accuracy with minimal manual intervention.
Third, to improve scalability, we plan to deploy and network multiple sensor nodes across different sites, leveraging federated learning and cloud-based analytics for model generalisation, cross-site data fusion, and coordinated early warning.
These ongoing and future efforts aim to enable robust, scalable, and sustainable real-world deployment of our sensor AI system for smart water grid monitoring and environmental protection.

Author Contributions

Conceptualization, Z.X.; Methodology, Z.X.; Software, R.N.; Validation, Z.X.; Formal analysis, Z.X.; Investigation, Z.X. and J.W.; Resources, R.N.; Data curation, R.N.; Writing—original draft, Z.X.; Writing—review & editing, R.N. and J.W.; Visualization, R.N. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

The original contributions presented in this study are included in the article. Further inquiries can be directed to the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Xi, Z.; Liu, B. Environmental Effect of Water-Permeable Pavement Materials in Sponge Cities. In Proceedings of the 2nd International Conference on Advanced Civil Engineering and Smart Structures (ACESS 2023), Chengdu, China, 25–26 November 2023; Liu, T., Liu, E., Eds.; Lecture Notes in Civil Engineering. Springer: Singapore, 2024; Volume 474, pp. 464–476. [Google Scholar]
  2. UNESCO; UN-Water. United Nations World Water Development Report 2024: Water for Prosperity and Peace; UNESCO Publishing: Paris, France, 2024. [Google Scholar]
  3. World Health Organization (WHO). Drinking-Water: Key Facts; Fact Sheet; WHO: Geneva, Switzerland, 2023; Available online: https://www.who.int/news-room/fact-sheets/detail/drinking-water (accessed on 31 May 2025).
  4. Wolf, J.; Johnston, R.B.; Ambelu, A.; Arnold, B.F.; Bain, R.; Brauer, M.; Brown, J.; Caruso, B.A.; Clasen, T.; Colford, J.M.; et al. Burden of Disease Attributable to Unsafe Drinking Water, Sanitation, and Hygiene in Domestic Settings: A Global Analysis for Selected Adverse Health Outcomes. Lancet 2023, 401, 2060–2071. [Google Scholar] [CrossRef] [PubMed]
  5. Schorr, J.; Jud, F.; la Cecilia, D.; Beck, B.; Longree, P.; Singer, H.; Hollender, J. Tracing Pesticide Dynamics: High Resolution Offers New Insights to Karst Groundwater Quality. Water Res. 2024, 267, 122412. [Google Scholar] [CrossRef] [PubMed]
  6. La Cecilia, D.; Dax, A.; Ehmann, H.; Koster, M.; Singer, H.; Stamm, C. Continuous High-Frequency Pesticide Monitoring to Observe the Unexpected and the Overlooked. Water Res. X 2021, 13, 100125. [Google Scholar] [CrossRef] [PubMed]
  7. Arndt, J.; Kirchner, J.S.; Jewell, K.S.; Schluesener, M.P.; Wick, A.; Ternes, T.A.; Duester, L. Making Waves: Time for Chemical Surface Water Quality Monitoring to Catch up with Its Technical Potential. Water Res. 2022, 213, 118168. [Google Scholar] [CrossRef] [PubMed]
  8. Xu, Y.; Zhou, P.; Simon, T.; Cui, T. Ultra-Sensitive Nitrate-Ion Detection via Transconductance-Enhanced Graphene Ion-Sensitive Field-Effect Transistors. Microsyst. Nanoeng. 2024, 10, 137. [Google Scholar] [CrossRef]
  9. Zhao, S.; Yang, J.; Wang, L.; Dong, B.; Mao, Y.; Qu, H.; Zheng, L. Selective Detection of Pb2+ Ions Based on a Graphene Field-Effect Transistor Gated by DNAzymes in Binding Mode. Biosens. Bioelectron. 2023, 237, 115549. [Google Scholar] [CrossRef]
  10. Hasanova, S.; Boyraz, A.; Mammadzada, M.; Zor, E. MXene-Based Sensors on Pharmaceutical and Environmental Assays. Essent. Chem 2024, 1, 1–25. [Google Scholar] [CrossRef]
  11. Mukherjee, P.; Sen, S.; Das, A.; Kundu, S.; RoyChaudhuri, C. Graphene FET Biochip on PCB Reinforced by Machine Learning for Ultrasensitive Parallel Detection of Multiple Antibiotics in Water. Biosens. Bioelectron. 2025, 271, 117023. [Google Scholar] [CrossRef]
  12. Abu Bakar, N.; Shapter, G. Silver Nanostar Films for Surface-Enhanced Raman Spectroscopy (SERS) of the Pesticide Imidacloprid. Heliyon 2023, 9, e14686. [Google Scholar] [CrossRef]
  13. Sharma, S.; Yadav, P.; Chowdhury, P. Thioglycolic Acid Capped CdSe/ZnS Quantum Dot as Fluorescent Sensor for the Detection of Water-Soluble Hazardous Heavy Metal Ions. Appl. Phys. A 2024, 130, 326. [Google Scholar] [CrossRef]
  14. Gambín, Á.F.; Angelats, E.; González, J.S.; Miozzo, M.; Dini, P. Sustainable Marine Ecosystems: Deep Learning for Water Quality Assessment and Forecasting. IEEE Access 2021, 9, 121344–121365. [Google Scholar] [CrossRef]
  15. Wan, H.; Xu, R.; Zhang, M.; Cai, Y.; Li, J.; Shen, X. A Novel Model for Water Quality Prediction Caused by Non-Point Sources Pollution Based on Deep Learning and Feature Extraction Methods. J. Hydrol. 2022, 612, 128081. [Google Scholar] [CrossRef]
  16. Gao, Z.; Chen, J.; Wang, G.; Ren, S.; Fang, L.; Yinglan, A.; Wang, Q. A Novel Multivariate Time Series Prediction of Crucial Water Quality Parameters with Long Short-Term Memory (LSTM) Networks. J. Contam. Hydrol. 2023, 259, 104262. [Google Scholar] [CrossRef] [PubMed]
  17. Suresh, A.; Bolla, D.R.; Kalpana, Y.B.; Jawahar, J.G.; Shareef, R.M.M.; Vignesh, R.S. Analysing the Impact on Groundwater Quality Using Dynamic Programming and Vision Transformer. Groundw. Sustain. Development. Dev. 2024, 25, 101159. [Google Scholar]
  18. Geddes, L. Real-time Water Quality Monitors Installed at Wild Swimming Spots in Southern England. The Guardian. 21 July 2024. Available online: https://www.theguardian.com/environment/article/2024/jul/21/real-time-water-quality-monitors-installed-at-wild-swimming-spots-in-southern-england (accessed on 31 May 2025).
  19. Maity, A.; Pu, H.; Sui, X.; Chang, J.; Bottum, K.J.; Jin, B.; Zhou, G.; Wang, Y.; Lu, G.; Chen, J. Scalable Graphene Sensor Array for Real-Time Toxins Monitoring in Flowing Water. Nat. Commun. 2023, 14, 4184. [Google Scholar] [CrossRef]
  20. Zhang, M.; Zhang, Z.; Wang, X.; Liao, Z.; Wang, L. The Use of Attention-Enhanced CNN-LSTM Models for Multi-Indicator and Time-Series Predictions of Surface Water Quality. Water Resour. Manag. 2024, 38, 6103–6119. [Google Scholar] [CrossRef]
  21. Schiattarella, C.; Di Gaspare, A.; Viti, L.; Justo Guerrero, M.A.; Li, L.H.; Salih, M.; Davies, A.G.; Linfield, E.H.; Zhang, J.; Ramezani, H.; et al. Terahertz Near-Field Microscopy of Metallic Circular Split Ring Resonators with Graphene in the Gap. Sci Rep. 2024, 14, 16227. [Google Scholar] [CrossRef]
  22. Sakata, T. Biologically Coupled Gate Field-Effect Transistors Meet in vitro Diagnostics. ACS Omega 2019, 4, 11852–11862. [Google Scholar] [CrossRef]
  23. Wang, C.; Cui, X.; Li, Y.; Li, H.; Huang, L.; Bi, J.; Luo, J.; Ma, L.Q.; Zhou, W.; Cao, Y.; et al. A Label-Free and Portable Graphene FET Aptasensor for Children Blood Lead Detection. Sci. Rep. 2016, 6, 21711. [Google Scholar] [CrossRef]
  24. Khan, N.I.; Mousazadehkasin, M.; Ghosh, S.; Tsavalas, J.G.; Song, E. An Integrated Microfluidic Platform for Selective and Real-Time Detection of Thrombin Biomarkers Using a Graphene FET. Analyst 2020, 145, 4494–4503. [Google Scholar] [CrossRef]
  25. Gesztelyi, R.; Zsuga, J.; Kemeny-Beke, A.; Varga, B.; Juhasz, B.; Tosaki, A. The Hill Equation and the Origin of Quantitative Pharmacology. Arch. Hist. Exact Sci. 2012, 66, 427–438. [Google Scholar] [CrossRef]
  26. Kang, W.; Pei, X.; Rusinek, C.A.; Bange, A.; Haynes, E.N.; Heineman, W.R.; Papautsky, I. Determination of Lead with a Copper-Based Electrochemical Sensor. Anal. Chem. 2017, 89, 3345–3352. [Google Scholar] [CrossRef]
  27. Zhang, M.; Yang, J.; Yang, L.; Li, Z. A Robust SERS Calibration Using a Pseudo-Internal Intensity Reference. Nanoscale 2023, 15, 7403–7409. [Google Scholar] [CrossRef] [PubMed]
  28. Holz, P.; Brandenburg, A. Calibration of Systems for Quantitative Fluorescence Analysis of Thin Layers. Opt. Express 2019, 27, 34559–34581. [Google Scholar] [CrossRef] [PubMed]
  29. Ho, D.; Liu, S.; Wei, H.; Karthikeyan, K.G. The Glowing Potential of Nile Red for Microplastics Identification: Science and Mechanism of Fluorescence Staining. Microchem. J. 2024, 197, 109708. [Google Scholar] [CrossRef]
  30. Tschmelak, J.; Kumpf, M.; Käppel, N.; Proll, G.; Gauglitz, G. Total Internal Reflectance Fluorescence (TIRF) Biosensor for Environmental Monitoring of Testosterone with Commercially Available Immunochemistry: Antibody Characterization, Assay Development and Real Sample Measurements. Talanta 2006, 69, 343–350. [Google Scholar] [CrossRef]
  31. Holstein, C.A.; Griffin, M.; Hong, J.; Sampson, P.D. Statistical Method for Determining and Comparing Limits of Detection of Bioassays. Anal. Chem. 2015, 87, 9795–9801. [Google Scholar] [CrossRef]
  32. Thomsen, V.; Schatzlein, D.; Mercuro, D. Limits of Detection in Spectroscopy. Spectroscopy 2003, 18, 112–114. [Google Scholar]
  33. ISO 15839:2003; Water Quality—On-Line Sensors/Analysing Equipment for Water—Technical Requirements and Testing. International Organization for Standardization: Geneva, Switzerland, 2003.
  34. Sajnóg, A.; Koko, E.; Paszyńska, K.; Barałkiewicz, D. Multielemental Speciation Analysis of Cd2+, Pb2+ and (CH3)3Pb+ in Herb Roots by HPLC/ICP-DRC-MS. Validation and Application to Real Samples Analysis. Talanta Open 2022, 5, 100119. [Google Scholar] [CrossRef]
  35. Mariano, S.; Tacconi, S.; Fidaleo, M.; Rossi, M.; Dini, L. Micro and Nanoplastics Identification: Classic Methods and Innovative Detection Techniques. Front. Toxicol. 2021, 3, 636640. [Google Scholar] [CrossRef]
  36. Skaggs, C.S.; Logue, B.A. Ultratrace Analysis of Atrazine in Soil Using Ice Concentration Linked with Extractive Stirrer and High Performance Liquid Chromatography-Tandem Mass Spectrometry. J. Chromatogr. A 2021, 1635, 461753. [Google Scholar] [CrossRef] [PubMed]
  37. Gautam, A.; Thakur, P.; Singh, G. Analysis of Universal Decoding Techniques for 6G Ultra-Reliable and Low-Latency Communication Scenario. Future Internet 2025, 17, 181. [Google Scholar] [CrossRef]
  38. Atoum, M.S.; Alarood, A.A.; Alsolami, E.; Abubakar, A.; Hwaitat, A.K.A.; Alsmadi, I. Cybersecurity Intelligence Through Textual Data Analysis: A Framework Using Machine Learning and Terrorism Datasets. Future Internet 2025, 17, 182. [Google Scholar] [CrossRef]
  39. Yue, X.; Li, H.; Meng, L. An Ultralightweight Object Detection Network for Empty-Dish Recycling Robots. IEEE Trans Instrum. Meas. 2023, 72, 2505612. [Google Scholar] [CrossRef]
  40. Wardihani, E.; Oktaviani, R.; Sambora, R.; Supriyono, E.; Suharjono, A.; Rochmatika, R.A.; Waluyo, C.B.; Mara, M.N.; Nugroho, A.S.; Rizal, A.; et al. Human Detection System Using Machine Learning to Calculate Crowd Potential. Int. J. Adv. Sci. Eng Inf. Technol. 2025, 15, 60–66. [Google Scholar] [CrossRef]
  41. Biglari, A.; Tang, W. A Review of Embedded Machine Learning Based on Hardware, Application, and Sensing Scheme. Sensors 2023, 23, 2131. [Google Scholar] [CrossRef]
  42. Shete, R.; Bongale, A.; Dharrao, D. IoT-Enabled Effective Real-Time Water Quality Monitoring Method for Aquaculture. MethodsX 2024, 13, 102906. [Google Scholar] [CrossRef]
  43. Schubert, A.; Harrison, J.; Kent-Buchanan, L.; Bonds, V.; McElmurry, S.P.; Love, N.G. A Point-Of-Use Drinking Water Quality Dataset from Fieldwork in Detroit, Michigan. Sci. Data 2024, 11, 443. [Google Scholar] [CrossRef]
  44. Rejula, M.A.; Minija, S.J.; Sophia, S.G.; Barakka, J.A. Decentralized Water Quality Classification Using Federated Learning with Recurrent Neural Networks. Water Qual. Res. J. 2025, 60, 135–150. [Google Scholar] [CrossRef]
  45. Li, T.; Sahu, A.K.; Zaheer, M.; Sanjabi, M.; Talwalkar, A.; Smith, V. Federated Optimization in Heterogeneous Networks. Proc. Mach. Learn. Syst. 2020, 2, 429–450. [Google Scholar]
  46. Ouyang, D.; Zhuo, Y.; Hu, L.; Zeng, Q.; Hu, Y.; He, Z. Research on the Adsorption Behavior of Heavy Metal Ions by Porous Material Prepared with Silicate Tailings. Minerals 2019, 9, 291. [Google Scholar] [CrossRef]
  47. Karimireddy, S.P.; Kale, S.; Mohri, M.; Reddi, S.; Stich, S.; Suresh, A.T. SCAFFOLD: Stochastic Controlled Averaging for Federated Learning. In Proceedings of the 37th International Conference on Machine Learning, Online, 13–18 July 2020; Volume 119, pp. 5132–5143. Available online: https://proceedings.mlr.press/v119/karimireddy20a.html (accessed on 12 November 2020).
  48. Kang, J.; Eom, D. Offloading and Transmission Strategies for IoT Edge Devices and Networks. Sensors 2019, 19, 835. [Google Scholar] [CrossRef] [PubMed]
  49. LG Sonic. Digital Twin of Surface Water. Available online: https://www.lgsonic.com/products/digital-twin-of-surface-water/ (accessed on 8 June 2025).
  50. Wang, A.J.; Li, H.; He, Z.; Tao, Y.; Wang, H.; Yang, M.; Savic, D.; Daigger, G.T.; Ren, N. Digital Twins for Wastewater Treatment: A Technical Review. Engineering 2024, 36, 21–35. [Google Scholar] [CrossRef]
  51. Yang, W.; Fu, B.; Li, S.; Lao, Z.; Deng, T.; He, W.; He, H.; Chen, Z. Monitoring Multi-Water Quality of Internationally Important Karst Wetland Through Deep Learning, Multi-Sensor and Multi-Platform Remote Sensing Images: A Case Study of Guilin, China. Ecol. Indic. 2023, 154, 110755. [Google Scholar] [CrossRef]
Figure 1. A generalised framework of traditional regression approaches in water quality monitoring.
Figure 1. A generalised framework of traditional regression approaches in water quality monitoring.
Water 17 02065 g001
Figure 2. Schematic of system architecture of the integrated multi-modal nano-sensor array with edge AI inference. The platform comprises three complementary sensing channels: (i) a GFET electrochemical sensor for heavy metal ion detection, (ii) a plasmonic Ag/Au nanostar substrate for the SERS of organic micropollutants, and (iii) a CdSe/ZnS quantum dot (QD) fluorescence photoluminescence channel for nanoplastic and hydrophobic contaminant monitoring. Analogue signals from each sensor are digitised by a low-power microcontroller equipped with an analogue-to-digital converter (ADC) and transmitted via Bluetooth Low Energy (BLE) to an NVIDIA Jetson Nano module. The Jetson Nano executes a hybrid CNN-LSTM model, which performs joint feature extraction from multi-channel inputs, multi-target concentration regression, and binary classification of regulatory exceedances. Final predictions and alert outputs are then relayed to the user interface or cloud server for real-time water quality monitoring.
Figure 2. Schematic of system architecture of the integrated multi-modal nano-sensor array with edge AI inference. The platform comprises three complementary sensing channels: (i) a GFET electrochemical sensor for heavy metal ion detection, (ii) a plasmonic Ag/Au nanostar substrate for the SERS of organic micropollutants, and (iii) a CdSe/ZnS quantum dot (QD) fluorescence photoluminescence channel for nanoplastic and hydrophobic contaminant monitoring. Analogue signals from each sensor are digitised by a low-power microcontroller equipped with an analogue-to-digital converter (ADC) and transmitted via Bluetooth Low Energy (BLE) to an NVIDIA Jetson Nano module. The Jetson Nano executes a hybrid CNN-LSTM model, which performs joint feature extraction from multi-channel inputs, multi-target concentration regression, and binary classification of regulatory exceedances. Final predictions and alert outputs are then relayed to the user interface or cloud server for real-time water quality monitoring.
Water 17 02065 g002
Figure 3. Composite schematic of the serpentine PDMS microfluidic channel. (a) Top view (not to scale): a 10 mm × 4 mm PDMS chip contains a double-serpentine channel (500 µm wide) with three sequential 1.2 mm × 0.8 mm sensor chambers—GFET, SERS and QD; (b) 3D perspective (perspective projection): grey volumes represent the 500 µm-deep microchannel; coloured blocks show 300 µm deep sensor cavities (GFET in red, SERS in gold, QD in blue). Heights are exaggerated for clarity; (c) cross-section (height exaggerated): a transverse cut illustrates the 500 µm total channel depth (double-headed arrow) and the 800 µm sensor cavity depth (dashed outline). The horizontal arrow labelled uavg indicates average flow direction.
Figure 3. Composite schematic of the serpentine PDMS microfluidic channel. (a) Top view (not to scale): a 10 mm × 4 mm PDMS chip contains a double-serpentine channel (500 µm wide) with three sequential 1.2 mm × 0.8 mm sensor chambers—GFET, SERS and QD; (b) 3D perspective (perspective projection): grey volumes represent the 500 µm-deep microchannel; coloured blocks show 300 µm deep sensor cavities (GFET in red, SERS in gold, QD in blue). Heights are exaggerated for clarity; (c) cross-section (height exaggerated): a transverse cut illustrates the 500 µm total channel depth (double-headed arrow) and the 800 µm sensor cavity depth (dashed outline). The horizontal arrow labelled uavg indicates average flow direction.
Water 17 02065 g003
Figure 4. Composite figures of the morphological characterisation of the Ag/Au nanostars: (a) SEM image. Scale bar: 100 nm. (b) Bright-field TEM image showing an individual star-like structure with sharp, symmetric branches. Scale bar: 20 nm. (c) HR-TEM of a representative tip; lattice fringes with an inter-planar spacing of 0.25 nm correspond to the {111} planes of fcc Au. The fast Fourier transform (FFT) inset confirms single-crystalline order and the absence of twin defects. Scale bar: 5 nm.
Figure 4. Composite figures of the morphological characterisation of the Ag/Au nanostars: (a) SEM image. Scale bar: 100 nm. (b) Bright-field TEM image showing an individual star-like structure with sharp, symmetric branches. Scale bar: 20 nm. (c) HR-TEM of a representative tip; lattice fringes with an inter-planar spacing of 0.25 nm correspond to the {111} planes of fcc Au. The fast Fourier transform (FFT) inset confirms single-crystalline order and the absence of twin defects. Scale bar: 5 nm.
Water 17 02065 g004
Figure 5. (a) Low-magnification SEM image of graphene growing on the SiO2/Si surface showing intact domains (~1.2 µm) with clean grain boundaries (scale bar: 1 μm); (b) Raman spectrum of monolayer graphene showing D, G, and 2D peaks, confirming a monolayered nature and low defects; (c) XPS spectrum of the graphene/CSS-QD complex, demonstrating successful CSS grafting.
Figure 5. (a) Low-magnification SEM image of graphene growing on the SiO2/Si surface showing intact domains (~1.2 µm) with clean grain boundaries (scale bar: 1 μm); (b) Raman spectrum of monolayer graphene showing D, G, and 2D peaks, confirming a monolayered nature and low defects; (c) XPS spectrum of the graphene/CSS-QD complex, demonstrating successful CSS grafting.
Water 17 02065 g005
Figure 6. (a) Illustration of an equivalent circuit of the constructed GFET sensing device with source (S), drain (D), and gate (G) electrodes for the I-V measurements (cq: graphene quantum capacitance, co: gate-oxide (geometric) capacitance, Rc: metal–graphene contact resistance, and Rch: channel resistance); (b) change in the Ids-Vg characteristics in response to the increasing concentration of Pb2+ in a range from 0.5 to 1200 ppt; (c) the calculated change in the Dirac shift ΔVD with the increasing concentration of Pb2+ according to the data same as those from (b) (with error bar); (d) the calibration curves of the ΔVD-[Pb2+] relationship (with error bar), showing the linear-fitting approximation of Hill–Langmuir behaviour in the GFET sensing.
Figure 6. (a) Illustration of an equivalent circuit of the constructed GFET sensing device with source (S), drain (D), and gate (G) electrodes for the I-V measurements (cq: graphene quantum capacitance, co: gate-oxide (geometric) capacitance, Rc: metal–graphene contact resistance, and Rch: channel resistance); (b) change in the Ids-Vg characteristics in response to the increasing concentration of Pb2+ in a range from 0.5 to 1200 ppt; (c) the calculated change in the Dirac shift ΔVD with the increasing concentration of Pb2+ according to the data same as those from (b) (with error bar); (d) the calibration curves of the ΔVD-[Pb2+] relationship (with error bar), showing the linear-fitting approximation of Hill–Langmuir behaviour in the GFET sensing.
Water 17 02065 g006
Figure 7. Schemes of the Hill–Langmuir calibration curves in the (a) SERS plasmonic sensor and (b) QD fluorescence sensor.
Figure 7. Schemes of the Hill–Langmuir calibration curves in the (a) SERS plasmonic sensor and (b) QD fluorescence sensor.
Water 17 02065 g007
Figure 8. Schemes of confusion matrix for exceedance classification.
Figure 8. Schemes of confusion matrix for exceedance classification.
Water 17 02065 g008
Figure 9. The ROC curves for the single-sensor case vs. the multi-modal ensemble.
Figure 9. The ROC curves for the single-sensor case vs. the multi-modal ensemble.
Water 17 02065 g009
Figure 10. Scatter plots of predicted vs. true concentrations by the CNN-LSTM model for (a) Pb2+ (in blue), (b) atrazine (in green), and (c) nanoplastics (in purple); the red dashed line is the unity line.
Figure 10. Scatter plots of predicted vs. true concentrations by the CNN-LSTM model for (a) Pb2+ (in blue), (b) atrazine (in green), and (c) nanoplastics (in purple); the red dashed line is the unity line.
Water 17 02065 g010
Figure 12. Real-time, continuous records of 24 h monitoring data: true (solid lines) vs. predicted (dashed lines) concentrations for (a) heavy metals (ppb), (b) atrazine (nM), and (c) nanoplastics (µg L−1). Red dotted lines indicate guideline/advisory limits.
Figure 12. Real-time, continuous records of 24 h monitoring data: true (solid lines) vs. predicted (dashed lines) concentrations for (a) heavy metals (ppb), (b) atrazine (nM), and (c) nanoplastics (µg L−1). Red dotted lines indicate guideline/advisory limits.
Water 17 02065 g012
Figure 13. Scatter plots of AI-predicted vs. lab-measured concentrations for (a) heavy metals, (b) atrazine, and (c) nanoplastics at 5 discrete time points. The red dashed line is equality (y = x).
Figure 13. Scatter plots of AI-predicted vs. lab-measured concentrations for (a) heavy metals, (b) atrazine, and (c) nanoplastics at 5 discrete time points. The red dashed line is equality (y = x).
Water 17 02065 g013
Figure 14. (a) SHAP summary plot for GFET voltage bins (–0.1 V to +0.1 V) showing the highest attribution near the Dirac point; (b) Grad-CAM heatmap overlaid on a representative SERS spectrum, highlighting atrazine peaks at ~1001 cm−1 and ~1324 cm−1; (c) temporal SHAP importance for QD fluorescence, indicating maximal attribution between 0.5 s and 1.0 s post-excitation.
Figure 14. (a) SHAP summary plot for GFET voltage bins (–0.1 V to +0.1 V) showing the highest attribution near the Dirac point; (b) Grad-CAM heatmap overlaid on a representative SERS spectrum, highlighting atrazine peaks at ~1001 cm−1 and ~1324 cm−1; (c) temporal SHAP importance for QD fluorescence, indicating maximal attribution between 0.5 s and 1.0 s post-excitation.
Water 17 02065 g014
Table 1. Summary of the key performance metrics (LOD, linear range, and sensor type) for representative, recent water quality sensors and AI-integrated platforms, highlighting the advances made in this work.
Table 1. Summary of the key performance metrics (LOD, linear range, and sensor type) for representative, recent water quality sensors and AI-integrated platforms, highlighting the advances made in this work.
ReferenceSensor TypeTarget AnalyteLODLinear RangeAI/ML Method
Xu et al. (2024) [8]GFETNitrate100 ppt0.5–500 ppb/
Maity et al. (2023) [19]GFET array + ChemometricsToxins (Pb2+, Hg2+)50 ppt1100 ppbPLS regression
Sharma et al. (2024) [13]CdSe/ZnS QD fluorescenceCd2+, Pb2+35 ppt0.1–500 ppb/
Mukherjee et al. (2025) [11]SERS on PCB + MLAntibiotics0.2 nM1–100 nMML classifiers
This workGFET + SERS + QD fluorescence (multi-modal)Pb2+, atrazine, nanoplastics4.8 ppt1 ppt–1 ppb (Pb2+), 10 pM–2 nM (atrazine), 0.1–50 µg/L (nanoplastics)CNN-LSTM deep learning
Table 2. CNN-LSTM model architecture and training parameters.
Table 2. CNN-LSTM model architecture and training parameters.
ParameterValue/Description
Input shape3 channels × 5 s window (15 data points)
CNN layers2 × 1D convolution (32, 64 filters; kernel size 3; ReLU) + 1 max pooling
LSTM layers1 × LSTM (64 units; return_sequences = False)
Dense layers2 × fully connected (128, 32 units; ReLU)
Dropout rate0.2 (after each dense layer)
Output layerLinear (multi-output for all analytes)
Batch size128
OptimiserAdam (learning rate 0.001)
EpochsMax 100, with early stopping (patience = 12)
Loss functionMean Squared Error (MSE)
Validation split10% of training set
Table 3. Several key metrics for evaluations of analytical performance of three sensors in the multi-modal platform.
Table 3. Several key metrics for evaluations of analytical performance of three sensors in the multi-modal platform.
TransducerTarget AnalyteLinear RangeLODLOQRSD (n = 5)72 H DriftSelectivity Factor *
GFETPb2+1 ppt–1 ppb12 ppt40 ppt3.4%1.1%17× Cd2+, 23× Cu2+
SERSAtrazine10 pM–2 nM17 pM58 pM4.8%1.6%14× imidacloprid
QD fluorescenceNano-plastics0.1–50 µg L−187 ng L−1290 ng L−15.1%3.3%9× humic acid
Note: * Selectivity factor = signaltarget/signalinterferent at WHO-relevant concentrations.
Table 4. Several key metrics for our multi-modal platform vs. representative traditional and AI-based benchmarks.
Table 4. Several key metrics for our multi-modal platform vs. representative traditional and AI-based benchmarks.
MethodTarget AnalyteLODAnalytical TimeMAER2Operational Mode
ICP-MSPb2+~20 ppt>24 h~0.1 ppb>0.95Batch/Lab
LC-MS/MSAtrazine~30 pM>24 h~0.07 nM>0.93Batch/Lab
Nile Red stainingNanoplastics>10 µg/L>24 h~2 µg/L>0.90Batch/Lab
Single-modality CNNPb2+ (GFET)12 ppt~1 s0.065 ppb0.85Online/Edge
Random Forest/SVRAllVariable~1 s0.07–0.080.77–0.84Online/Edge
This workAll4.8 ppt31 ms0.050.930.95Online/Edge
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Xi, Z.; Nicolas, R.; Wei, J. An Edge-Deployable Multi-Modal Nano-Sensor Array Coupled with Deep Learning for Real-Time, Multi-Pollutant Water Quality Monitoring. Water 2025, 17, 2065. https://doi.org/10.3390/w17142065

AMA Style

Xi Z, Nicolas R, Wei J. An Edge-Deployable Multi-Modal Nano-Sensor Array Coupled with Deep Learning for Real-Time, Multi-Pollutant Water Quality Monitoring. Water. 2025; 17(14):2065. https://doi.org/10.3390/w17142065

Chicago/Turabian Style

Xi, Zhexu, Robert Nicolas, and Jiayi Wei. 2025. "An Edge-Deployable Multi-Modal Nano-Sensor Array Coupled with Deep Learning for Real-Time, Multi-Pollutant Water Quality Monitoring" Water 17, no. 14: 2065. https://doi.org/10.3390/w17142065

APA Style

Xi, Z., Nicolas, R., & Wei, J. (2025). An Edge-Deployable Multi-Modal Nano-Sensor Array Coupled with Deep Learning for Real-Time, Multi-Pollutant Water Quality Monitoring. Water, 17(14), 2065. https://doi.org/10.3390/w17142065

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
