Accumulation Assessment of Mo4+, Pb++, and Cu++ in the Acidic Water of Copper Mines with Lemna minor and Lemna gibba

by
Nevin Konakci
Geology Department, Fırat University, Elazığ 23119, Turkey
Water 2024, 16(7), 975; https://doi.org/10.3390/w16070975
Submission received: 6 March 2024 / Revised: 20 March 2024 / Accepted: 21 March 2024 / Published: 28 March 2024
(This article belongs to the Special Issue New Technologies for the Remediation of Contaminated Industrial and Domestic Wastewaters)
Browse Figures
Review Reports Versions Notes

Abstract

:
Pollutants accumulate in aquatic habitats due to mining activities. The duckweed family includes water plants such as Lemna gibba and Lemna minor, which are tiny, delicate, free-floating aquatic plants. L. minor and L. gibba were used in this study to examine the accumulation capacities of Mo4+, Pb++, and Cu++ in acidic fluids from copper mining. Two reactors were assigned to L. gibba and L. minor, respectively. These plants and the reactor water were gathered daily for 8 days. Acid mine water pH, temperature, and electric conductivity were also tested daily. L. gibba and L. minor were cleaned, dehydrated, and burned in a drying oven for a whole day at 300 °C. ICP-MS (inductively coupled plasma mass spectroscopy) was used to determine the Mo4+, Pb++, and Cu++ content of the plant and water samples. The Mo, Pb, and Cu concentrations in the copper mining acidic fluids were 30 ± 4, 260 ± 12, and 15,535 ± 322 μg L−1, respectively. Regarding Mo, Pb, and Cu extraction from copper mining acidic fluids, L. gibba and L. minor performed more efficiently than control samples, gathering 29 and 177 times more Mo, 30 and 109 times more Pb, and 495 and 1150 times more Cu, respectively. Considering these findings, L. gibba and L. minor are good plants for rehabilitating polluted waters and can efficiently remove Mo, Pb, and Cu from acid mine fluids.

1. Introduction

Acid mine drainage (AMD) is produced in numerous closed, abandoned, and operating mines worldwide. Regarding heavy metals (i.e., copper (Cu), lead (Pb), zinc (Zn), and cadmium (Cd)), and metalloids (i.e., arsenic (As)), AMD is a major environmental problem in the mining industry [1,2,3,4,5,6,7,8,9]. It is typically characterized by low pH and high salinity. Low pH dissolves heavy metals in the host rock due to sulfide mineral oxidation. Additionally, micro-organisms play a significant role in AMD development in situ [10,11,12,13,14]. In unsaturated zones, low pH results from the chemical reactions between oxygenated rainfall and pyrite [15,16].
Heavy metals have larger atomic weights and a density five times higher than water [17]. They were divided into two categories by Gergen and Harmanescu [18]. Rai et al. [19] claim that metals including Mo, Pb, Cu, Cd, Hg, Ni, As, Au, Ag, and Cr widely contaminate soil, water, and air, adversely affecting plants and animals. Although animals and plants need metals (Fe, Cu, Zn, Co, and Mn), high amounts can be harmful. Therefore, heavy metal contamination is one of the primary issues affecting aquatic plants and animals [20]. Certain metals, including As, Tl, Hg, Pb, Cr, and Cd, are especially concerning for public health due to their highly hazardous levels [7]. Mo is an essential element for plants, animals, and humans [21,22]. Large amounts of waste and waste generated due to mining activities still constitute a permanent source of pollution for surface and groundwater in the region. This situation causes water quality to reach alarming levels, negatively affecting aquatic ecosystems [23]. Appropriate Cu content is essential for plant health and nutrient supply to humans and animals. Certain plant species collect high quantities of Cu in their tissues and are highly tolerant of elevated Cu concentrations. All plants naturally contain lead (Pb), although its exact function in metabolism is unknown. Researchers have concluded that a concentration of 2–6 μg/kg is adequate if plants require Pb. Consequently, Pb has garnered attention as a significant metallic compound with the potential to contaminate the environment and harm plants [24]. Exposure to high doses of Mo, Cu, and Pb can be detrimental to animal, human, and plant health [25,26]. However, Mo distributions in freshwater systems related to the environment, human health, and water supply have received relatively little study. According to Smedley and Kinniburgh [26], most natural waters have Mo contents of no more than 10 μg/L−1. The maximum permitted concentrations in drinking water are 0.01 mg/l for lead and 0.015 mg/L for copper, as per the U.S. EPA [27] and World Health Organization [28].
Using living green plants, phytoremediation is one of the most economical and environmentally beneficial techniques for the in situ removal of heavy metals and the restoration of water and soil [29,30,31,32,33,34,35]. Aquatic macrophytes gather pollutants and metals during the rhizofiltration stage [36]. Lemna sp. grows quickly, is easy to harvest, and many scientists favor it for phytoremediation research [37,38,39]. Among aquatic macrophytes, it is the most efficient plant for eliminating metals and pesticides due to its rapid growth and ability to float on water [40,41,42]. It also grows well in various climates and has a long storage capacity, quick reproduction rate, low cost, and little volume of biological and chemical sludge [39,42,43,44]. According to Khataee et al. [43], the ideal temperature and pH ranges for Lemna sp. rapid growth are 5–25 °C and 4–9, respectively. Animals feed on L. minor, which is rich in protein (30% mass), minerals, and vitamins [45,46], but poor in fiber [47]. Eutrophication has caused Lemna to spread excessively, making it a scourge in many areas. An excessive amount forms a thick mat on aquatic bodies that impedes movement, harbors dangerous wildlife, and blocks sunlight from reaching the photosynthetic species below. Consequently, the surrounding water is not oxygenated properly. In addition to being widely accessible, this plant material has potential as a long-term biosorbent for handling toxic-contaminated wastewater [48,49]. In this study, the daily accumulation of Mo, Pb, and Cu in L. gibba and L. minor was examined in the acidic mineral waters of the Maden copper deposit. At the same time, we calculated how many liters of water these plants cleaned of metals in a week. Additionally, we also evaluated harvested biomass with higher metal concentrations.

2. Material and Methods

The Maden Cu mine’s natural setting served as the study setting. The climatic parameters for this experiment were: average daily global radiation of 480 ± 32 Wm−2, hours of sunny days of 13.8 ± 0.6, temperature of 23.6 ± 7.2 °C, and a relative humidity of 28.6 ± 3.2%.

2.1. The Study Area

The investigation was conducted in the Maden Cu mining area in Elazig, Turkey, which is situated at 38.388434° N and 39.671450° E (Figure 1). Mining has a lengthy history in this region, dating to prehistoric times around 2000 BC. Massive sulfide ore (reserves of 6.5% Cu tenor and 6.1 million tons on average) was mined between 1968 and 1939 from Anayatak and its adjacent deposits. Modern Cu production began in 1939 by Etibank. One of Turkey’s largest copper-producing regions, the Maden copper deposit spans various geographical regions, including Anayatak, Weis, Mızırtepe, Kısabekir, and Hacan. Black smoker, which is derived from hydrothermal vents on the seafloor, is thought to be associated with these deposits [50]. There are also significant reserves of Ni, Cu, Au, Co, and Ag in these deposits. Throughout the year, frequent water effluent from mining operations is seen at the mine site, which is released into the Maden Stream.

2.2. Plant and Water Samples

According to the East Aegean Islands and Flora of Turkey [52], L. minor and L. gibba belong to the duckweed family and are members of the Lemna genus [53]. They are divided into five genera: Lemna, Spirodela, Landoltia, Wolffiella, and Wolffia. These asexually reproducing floating aquatic plants develop offspring directly from their parents without a seed stage [54]. Water and plants were collected daily for eight days in a row, with L. minor and L. gibba kept in separate reactors.
The acidic mine water’s pH, electric conductivity, and temperature were tested daily using sterile plastic bottles to gather samples. The chemical composition of acidic water may vary due to extensive mineralized wall rock in the Cu mining area. These variables may affect the T °C, pH of the water, and EC (electrical conductivity). The temperature, pH, and electrical conductivity were recorded using an Orion conductivity electrode. Cation and anion analyses (such as carbonate, nitrate, sulfate, and fluoride) were conducted using an ICP-MS.

2.3. Analytical Method

L. gibba and L. minor were cultivated independently in two natural pools prior to moving to separate reactors. The plants were brought from the Botanical Garden at Istanbul University. As detailed by Tatar and Obek [34], each reactor contained 500 g of plants, with dimensions of 70 × 35 × 30 cm (Figure 2), with L. gibba in one reactor and L. minor in the other. Throughout the experiment, the plants were fed with fresh water by the reactors, which had a continuous flow of acidic mineral water at 1.28 L s−1 (Figure 2). About 50 g of plant material was removed daily from each reactor for eight days. The L. gibba and L. minor changed color from green to yellow toward the end of the experiment. Possibly due to widespread heavy metal concentrations in the water, toxic effects appeared on the plants (Figure 3). After collection, the plants were cleaned with tap water, rinsed with distilled water, and dried for 24 h at 60 °C in a laboratory oven. The dried plants were then reduced to ash for 24 h at 300 °C to produce ash samples. These samples were then digested for one hour in HNO3 and another hour at 95 °C in a mixture of HNO3:H2O:HCl (1:1:1) with one gram of the ash sample. Lastly, ICP-MS methods were used to examine all the samples for Mo, Pb, and Cu. Figure 4, Figure 5 and Figure 6 provide the dry-weight values. Standard solutions for each element were created from stock solutions (E. Merck, Darmstadt, Germany). Since the mass of Ir equals the mass of every element under study, an internal standard of 10 mg L−1 of Ir (E. Merck, Darmstadt, Germany) was used. The water samples were prepared with Merck’s concentrated HNO3.

3. Results and Discussion

3.1. Mo, Pb, and Cu in Acidic Mining Water

The principal anion and cation results of acidic mine water’s physicochemical characteristics are displayed in Table 1. The temperature varied from 18.6 to 24.8 °C (mean: 22.6 ± 1.2 °C). The pH of the water altered from 5.84 to 5.62 (mean: 5.76 ± 0.14), and the EC values were between 2.64 and 2.38 mS cm−1 (mean: 2.55 ± 0.08 mS cm−1, referenced from Sasmaz Kislioglu [51]). Throughout the eight-day experiment, daily field samples of water were collected. Table 1 displays the average concentrations of Mo, Pb, and Cu in the acidic mine water, which were 30 ± 4, 260 ± 12, and 15,535 ± 322 μg L−1, respectively (p < 0.05). The chemistry of acidic mine water is influenced by several factors, including its distance from the recharge area, the length of time dedicated to the flow system, the volume of acidic mine water flowing through it, and long-term rock–water interaction. According to the measured data, the chemistry and physicochemical properties of water originating from the ore location are generally comparable. Significant pollution near the Maden Stream is caused by heavy metal pollution on land and in the water.
The mean values of Mo, Cu, and Pb in the acidic mine fluids exceeded the U.S. EPA’s [27] and Agency for Toxic Substances and Disease Registry (ATSDR)’s [44] limit levels, as shown in Table 1. The research area’s acidic mine water included varying quantities of Mo (28.4 to 31.6 μg L−1). Most natural waters have Mo concentrations of around 10 μg/L or less [26]. The research area’s average Mo value was higher than the WHO-established threshold levels (10 mg L−1) for drinking water [23] (Table 1). According to the U.S. EPA [25], the average Pb levels in these natural waters have been recorded as 10–15 µg/L [28]. Water leaks from the mine contaminate the environment’s soil and water, and cleaning these contaminated soils and waterways is difficult [55,56]. According to Ning et al. [57], the average WHO readings [28] for heavy metal levels were not as high as those found in the water surrounding Pb resources. A median Mo content of 0.5 mg/L was reported by Reimann and de Caritat [58] for stream waters worldwide. The estimates for world rivers are between 0.11 and 8.63 (mean 1.21 mg/L) [50] and around 0.42 mg/L [59,60]. Rivers in India contain up to 20 mg/L [61] and 8.6 mg/L [62].
Based on the main cations and anions (Ca–Mg–HCO3; Ca–Mg–Fe–SO4; Na–F–NO3), the waters in the research region were divided into three groups. The water types in the aquifer were identified using Piper’s [63] triangular drawing approach. Over 90% of the cations in the aquifer were found in the examined fluids, with Ca, Mg, Fe, Na, S, K, and Mn being the most common. In the research area waters, bicarbonate and sulfate were the main anion species, constituting 85–90% of all the anions. Ca–Mg–Fe–Na–SO4 HCO3 water is one possible classification for Maden Cu mine acidic water.

3.2. Lemna gibba (LG) and Lemna minor (LM)

Cleaning and restoring contaminated areas can be done affordably, effectively, sustainably, and economically with phytoremediation. Before building a decontamination system, knowledge regarding heavy metal effects on plant physiology should be acquired to optimize the system [64]. The uptake process of Mo, Pb, and Cu can be impacted by variables such as the metal’s bioavailability, the contaminant’s chemical characteristics, organic matter contents, plant species, phosphorus, pH, and contaminant-specific environmental factors [65]. Numerous aquatic plants have been successfully employed to monitor contaminated settings and are recognized as heavy metal pollution indicators [66]. Heavy metals such as Mo, Ag, Pb, Au, Cu, As, Co, Hg, Zn, Tl, and Cd are considered hazardous and poisonous for their ability to accumulate in biological systems.
Prior to commencing the investigation, we found that the L. minor (LM-0) and L. gibba (LG-0) had Mo levels of 2.16 and 0.29 mg kg−1, respectively, (p < 0.05) (Figure 4). These values were considered the control group values of these plants. On the first day, 2.89 and 0.97 mg kg−1 (p < 0.05) of Mo were collected from the L. minor and L. gibba. During the first five to six days of the experiment, both plants’ absorption of Mo from the acidic mining water marginally increased. On the fifth and sixth days, the L. gibba and L. minor removed 84 and 77 times more Mo than the control from the acidic mine water. L. gibba showed outstanding Mo accumulation ability between days 5 and 7. L. minor accumulated rapidly after the fifth day until the end of the experiment. On the eighth day, it accumulated 169 ppm Mo, which corresponds to approximately 77 times more Mo accumulation than the control sample. To determine how much water the Lemna minor plant cleaned on the eighth day, the control concentration (2.16 mg kg−1) was subtracted from the eighth-day Lemna minor concentration (169 mg kg−1). Then, the resulting value was divided by the Mo value (30 μg L−1) in one liter of water (=169.000–2.160/30) to determine how much water (5561 L) the plant cleaned of Mo. The L. gibba had removed molybdenum from 274 L of acidic mineral water by the end of the sixth day of the study.
The L. minor and L. gibba showed limited, comparable increases in Pb accumulation throughout the first five days of the experiment. Both plants showed extremely high accumulation ability, which increased linearly from the fifth to the eighth day. The L. gibba accumulated 30 (78.2 mg kg−1) and 109 times more Pb (189 mg kg−1) from the acidic water on days 5 and 8, respectively, compared to the control samples of each plant (Figure 5).
Despite the low lead content (260 µg L−1) of the acidic mine water used in this study, the L. gibba and L. minor extracted Pb from 291 L and 720 L of water, respectively.
The L. gibba regularly showed significant increases in copper accumulation throughout the experiment, accumulating 9866 ppm (p < 0.05) on the last day of the experiment. This increase corresponds to a 495-fold copper accumulation compared to the control group. The L. minor showed substantial accumulation ability during the first four days of the experiment. By the end of the fourth day, it had accumulated 12,668 ppm of copper. This value indicates 1150 times more accumulation than the control samples. Between the fifth and eighth days, the L. minor accumulation levels decreased because the plant was sufficiently saturated with copper (Figure 6).
Despite the research region’s high amount of copper in acidic mine water (15,535 µg L−1), the L. minor and L. gibba had accumulated copper in 634 L and 815 L of water, respectively, by the end of the study.
Plants such as L. minor and L. gibba were used by Sasmaz et al. [33] to determine metal accumulation rates and optimal harvesting times in gallery water from the Keban Pb–Zn mine. The pH of gallery water is 7.36 and has a neutral composition. Both plants achieved higher accumulations in acidic waters than in the neutral mineral waters of the Keban Pb–Zn mine. They determined optimal harvesting times by monitoring daily changes in the metallic concentrations of both plants. Based on the acquired data, the L. gibba and L. minor accumulated Pb and Cu at 2888 and 3708 times and 108 and 147 times greater than those found in gallery water, respectively.
In the same experiment, Sasmaz Kislioglu [51] examined the Ag, Au, and As accumulations of L. minor and L. gibba in acidic mineral water. Compared to the control samples of these plants, the L. minor and L. gibba showed effective and high accumulation abilities for As, Au, and Ag in the acidic water of Cu mining areas. For instance, 30 and 907 times for As, 336 and 394 times for Au, and 240 and 174 times for Ag, respectively.
For eight days, Sasmaz and Obek [67] gathered evidence of L. gibba’s ability to extract As, U, and B from secondarily treated urban wastewater. During the first two days of the study, L. gibba showed the highest uptake ratios for B, U, and As with removal rates of 40%, 122%, and 133%, respectively. These results imply that L. gibba may serve as a natural strategy for reducing the amount of these pollutants in wastewater. L. minor has a higher capacity for collecting lower amounts of Cr and Ni, according to Goswami and Majumder [29]. Furthermore, Au and Ag uptake from secondarily treated municipal wastewater by L. gibba was examined by Sasmaz and Obek [38]. In the first six days of their investigation, both Au and Ag accumulated rapidly. However, the Ag and Au accumulations fluctuated after day 6, perhaps because the plant had reached saturation. The greatest accumulations of Au and Ag on the fifth and sixth days of the study were 2303% and 247%, respectively. Uysal [68] investigated Lemna’s capacity to sorb Cr at various pH and concentration levels and found that it could still absorb Cr from water despite undergoing harmful consequences. During the 12-day experiment, Abdallah [69] noted that L. gibba performed well, accumulating over 84% of the Cr in the solution. L. minor is a viable choice for repairing habitats damaged with Pb and Cr because it can absorb these metals quickly and efficiently, according to Ucuncu et al. [70]. According to Goswami et al. [30], L. minor adequately corrected low-concentration As-contaminated waters. L. gibba and L. minor’s effectiveness in extracting Y, La, and Ce from contaminated gallery water was ascertained by Sasmaz et al. [71]. L. gibba accumulated more metals than L. minor when compared to the control samples. Salvinia natans and L. minor are two aquatic macrophytes whose biological reactions and phytoremediation potential were examined by Leblebici et al. [72]. They discovered that L. minor was superior to S. natans as a Cd accumulator, while S. natans was a more effective Ni and Pb accumulator. According to Amare et al. [73], L. minor should be a moderate phytoaccumulator of Cd, Cu, Ni, and Cr and a high phytoaccumulator of Mn, Co, Zn, and Fe. According to Tatar et al. [74], L. minor has a high removal capacity for Ag, Hg, Mn, Pb, Zn, Fe, Ba, Sb, Co, and P, while L. gibba has a good uptake capacity for Mo, Cu, Ca, Na, Mg, Se, and S.

4. Conclusions

In this study, the daily accumulation of Mo, Pb, and Cu by L. gibba and L. minor in the Maden copper deposit’s acidic mineral waters was examined. By comparing the studied plants to the control LM-0 and LG-0 samples, we observed that the L. minor and L. gibba gathered 77 and 84 times more Mo from acidic mine water, respectively. After days 4 and 5, both plants showed increased Mo-accumulating abilities, which persisted until the end of the experiment. At the conclusion of the eight-day experiment, Mo in 5561 L and 274 L of the acidic mining water had been removed by the L. minor and L. gibba, respectively. After eight days of the experiment, Pb had been removed linearly by L. gibba and L. minor in the acidic mineral water. Compared to the control samples, L. gibba showed 30 times the Pb accumulation at the end of the experiment, and L. minor displayed 109 times the Pb accumulation. At the end of the experiment, Pb had also been extracted from 291 L of acidic mine water and 720 L of water by the L. gibba and L. minor, respectively. Compared to the control sample, L. gibba had removed 495 times (9866 mg kg−1) the Pb on day 8 from the acidic mine water, and L. minor had accumulated 1150 times (12,668 mg kg−1) the Pb on day 4. At the end of the study, L. gibba had extracted Cu from 634 L of acidic mine water. At the end of the 4-day experiment, L. minor had accumulated Cu from 815 L of acidic mine water. Acidic mine water contaminated with Mo, Pb, and Cu can be effectively purified using L. minor and L. gibba, which are proven to be efficient, economical, and environmentally safe. To prevent environmental damage due to high concentrations of Mo, Pb, and Cu, L. minor and L. gibba’s biomass in these waters must be immediately washed with strong acids after harvest. The metals must then be collected and used to augment the national economy. We recommend implementing this technique for all mining operations utilizing acidic mine water and constructing suitable pools to enhance metal recovery procedures and supply nature with pure water.

Funding

This work was funded by the Fırat University (MF.24.23).

Data Availability Statement

Data for this study can be found within the article.

Conflicts of Interest

The author declares no conflicts of interest.

References

  1. Yamaguchi, K.; Tomiyama, S.; Igarashi, T.; Yamagata, S.; Ebato, M.; Sakoda, M. Effects of Backfilling Excavated Underground Space on Reducing Acid Mine Drainage in an Abandoned Mine. Minerals 2020, 10, 777. [Google Scholar] [CrossRef]
  2. Gault, A.G.; Cooke, D.R.; Townsend, A.T.; Charnock, J.M.; Polya, D.A. Mechanisms of arsenic attenuation in acid mine drainage from Mount Bischoff, western Tasmania. Sci. Total Environ. 2005, 345, 219–228. [Google Scholar] [CrossRef] [PubMed]
  3. Cesar Minga, J.; Elorza, F.J.; Rodriguez, R.; Iglesias, A.; Esenarro, D. Assessment of Water Resources Pollution Associated with Mining Activities in the Parac Subbasin of the Rimac River. Water 2023, 15, 965. [Google Scholar] [CrossRef]
  4. Kilic, A.D.; Cakmak, B. Elemental analysis of ignimbirite by Raman spectroscopy methods and instrumental neutron activation analysis. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2021, 251, 119406. [Google Scholar]
  5. Lim, H.S.; Lee, J.S.; Chon, H.T.; Sager, M. Heavy metal contamination and health risk assessment in the vicinity of the abandoned Songcheon Au–Ag mine in Korea. J. Geochem. Explor. 2008, 96, 223–230. [Google Scholar] [CrossRef]
  6. Tong, L.; Fan, R.; Yang, S.; Li, C. Development and status of the treatment technology for acid mine drainage. Min. Metall. Expl. 2021, 38, 315–327. [Google Scholar] [CrossRef]
  7. Hierro, A.; Olías, M.; Cánovas, C.R.; Martín, J.E.; Bolivar, J.P. Trace metal partitioning over a tidal cycle in an estuary affected by acid mine drainage (Tinto estuary, SW Spain). Sci. Total Environ. 2014, 497–498, 18–28. [Google Scholar] [CrossRef] [PubMed]
  8. Skierszkan, E.K.; Mayer, K.U.; Weis, D.; Beckie, R.D. Molybdenum and zinc stable isotope variation in mining waste rock drainage and waste rock at the Antamina mine, Peru. Sci. Total Environ. 2016, 550, 103–113. [Google Scholar] [CrossRef] [PubMed]
  9. Zhao, Q.; Guo, F.; Zhang, Y.; Ma, S.; Jia, X.; Meng, W. How sulfate-rich mine drainage affected aquatic ecosystem degradation in northeastern China, and potential ecological risk. Sci. Total Environ. 2017, 609, 1093–1102. [Google Scholar] [CrossRef]
  10. Tabelin, C.B.; Igarashi, T.; Villacorte-Tabelin, M.; Park, I.; Opisod, E.M.; Ito, M.; Hiroyoshi, N. Arsenic, selenium, boron, lead, cadmium, copper, and zinc in naturally contaminated rocks: A review of their sources, modes of enrichment, mechanisms of release, and mitigation strategies. Sci. Total Environ. 2018, 645, 1522–1553. [Google Scholar] [CrossRef]
  11. Igarashi, T.; Herrera, P.S.; Uchiyama, H.; Miyamae, H.; Iyatomi, N.; Hashimoto, K.; Tabelin, C.B. The two-step neutralization ferrite-formation process for sustainable acid mine drainage treatment: Removal of copper, zinc and arsenic, and the influence of coexisting ions on ferritization. Sci. Total Environ. 2020, 715, 136877. [Google Scholar] [CrossRef] [PubMed]
  12. Migaszewski, Z.M.; Gałuszka, A.; Dołęgowska, S. Arsenic in the Wiśniówka acid mine drainage area (south-central Poland)—Mineralogy, hydrogeochemistry, remediation. Chem. Geol. 2018, 493, 491–503. [Google Scholar] [CrossRef]
  13. Tabelin, C.B.; Veerawattananun, S.; Ito, M.; Hiroyoshi, N.; Igarashi, T. Pyrite oxidation in the presence of hematite and alumina: I. Batch leaching experiments and kinetic modeling calculations. Sci. Total Environ. 2017, 580, 687–698. [Google Scholar] [CrossRef] [PubMed]
  14. Tabelin, C.B.; Veerawattananun, S.; Ito, M.; Hiroyoshi, N.; Igarashi, T. Pyrite oxidation in the presence of hematite and alumina: II. Effects on the cathodic and anodic half-cell reactions. Sci. Total Environ. 2017, 581–582, 126–135. [Google Scholar] [CrossRef] [PubMed]
  15. Stumm, W.; Morgan, J.J. Aquatic Chemistry, 3rd ed.; Wiley: New York, NY, USA, 1995; pp. 690–691. [Google Scholar]
  16. Pan, Y.; Chen, M.; Wang, X.; Chen, Y.; Dong, K. Ecological Risk Assessment and Source Analysis of Heavy Metals in the Soils of a Lead-Zinc Mining Watershed Area. Water 2023, 15, 113. [Google Scholar] [CrossRef]
  17. Tchounwou, P.B.; Yedjou, C.G.; Patlolla, A.K.; Sutton, D.J. Heavy metals toxicity and the environment. In Molecular, Clinical and Environmental Toxicity; Springer: Basel, Switzerland, 2012; Volume 101, pp. 133–164. [Google Scholar]
  18. Gergen, I.; Harmanescu, M. Application of principal component analysis in the pollution assessment with heavy metals of vegetable food chain in the old mining areas. Chem. Cent. J. 2012, 6, 56. [Google Scholar] [CrossRef]
  19. Rai, S.; Gupta, S.; Mittal, P.C. Dietary Intakes and Health Risk of Toxic and Essential Heavy Metals through the Food Chain in Agricultural, Industrial, and Coal Mining Areas of Northern India. Hum. Ecol. Risk Assess. 2015, 21, 913–933. [Google Scholar] [CrossRef]
  20. Sasmaz, A.; Kılıç, A.D.; Akgül, B.; Sasmaz, B. A spectral approach on mineralogy and geochemistry of garnet skarns in Arc-Type granitoids. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2023, 286, 122037. [Google Scholar] [CrossRef]
  21. Mendel, R.R. Biology of the molybdenum cofactor. J. Exp. Bot. 2007, 58, 2289–2296. [Google Scholar] [CrossRef]
  22. Schwarz, G.; Mendel, R.R.; Ribbe, M.W. Molybdenum cofactors, enzymes and pathways. Nature 2009, 460, 839–847. [Google Scholar] [CrossRef]
  23. Halmagyi, A.; Keul, M.; Dobrotă, C.; Fodorpataki, L.; Pintea, A.; Mocan, A.; Pop, V.; Coste, A. Impact of Arieş River Contaminants on Algae and Plants. Toxics 2023, 11, 817. [Google Scholar] [CrossRef]
  24. Kabata-Pendias, A. Trace Elements in Soils and Plants; CRC Press: Washington, DC, USA, 2011; p. 412. [Google Scholar]
  25. WHO. Guidelines for Drinking-Water Quality; WHO: Geneva, Switzerland, 2011.
  26. Smedley, P.L.; Kinniburgh, D.G. Molybdenum in natural waters: A review of occurrence, distributions and controls. Appl. Geochem. 2017, 84, 387–432. [Google Scholar] [CrossRef]
  27. US EPA (United States Environmental Protection Agency). Ambient Water Quality Criteria for Silver; US EPA: Washington, DC, USA, 2000.
  28. WHO. World Health Organization Guidelines for Drinking-Water Quality; World Health Organization: Geneva, Switzerland, 2006; p. 553.
  29. Goswami, C.; Majumder, A. Potential of Lemna minor in Ni and Cr removal from aqueous solution. Pollution 2015, 1, 373–385. [Google Scholar]
  30. Goswami, C.; Majumder, A.; Misra, A.K.; Bandyopadhyay, K. Arsenic uptake by Lemna minor in hydroponic system. Int. J. Phytoremediation 2014, 16, 1221–1227. [Google Scholar] [CrossRef]
  31. Abdel-Gawad, F.K.; Khalil, W.K.B.; Bassem, S.M.; Kumar, V.; Parisi, C.; Inglese, S.; Temraz, T.A.; Nassar, H.F.; Guerriero, G. The Duckweed, Lemna minor Modulates Heavy Metal-Induced Oxidative Stress in the Nile Tilapia, Oreochromis niloticus. Water 2020, 12, 2983. [Google Scholar] [CrossRef]
  32. Haffner, O.; Kučera, E.; Drahoš, P.; Cigánek, J.; Kozáková, A.; Urminská, B. Lemna minor Bioassay Evaluation Using Computer Image Analysis. Water 2020, 12, 2207. [Google Scholar] [CrossRef]
  33. Sasmaz, M.; Topal, E.I.A.; Obek, E.; Sasmaz, A. The potential of Lemna gibba L. and Lemna minor L. to remove Cu, Pb, Zn, and As in gallery water in a mining area in Keban, Turkey. J. Environ. Manage. 2015, 163, 246–253. [Google Scholar] [CrossRef] [PubMed]
  34. Tatar, S.Y.; Obek, E. Potential of Lemna gibba L. and Lemna minor L. for accumulation of Boron from secondary effluents. Ecol. Eng. 2014, 70, 332–336. [Google Scholar] [CrossRef]
  35. Konakci, N.; Sasmaz Kislioglu, M.; Sasmaz, A. Ni, Cr and Co Phytoremediations by Alyssum murale grown in the serpentine soils around Guleman Cr Deposits, Elazig Turkey. Bull Environ Cont Tox 2023, 110, 97. [Google Scholar] [CrossRef]
  36. Chaudhuri, D.; Majumder, A.; Misra, A.M.; Bandyopadhyay, K. Cadmium removal by Lemna minör and Spirodela polyrhiza. Int. J. Phytoremediation 2014, 16, 1119–1132. [Google Scholar] [CrossRef]
  37. Obek, E. Bioaccumulation of heavy metals from the secondary treated municipal waste water by Lemna gibba. Fresenius Environ. Bull. 2009, 18, 2159–2164. [Google Scholar]
  38. Sasmaz, A.; Obek, E. The accumulation of silver and gold in Lemna gibba exposed to secondary effluents. Geochemistry 2012, 72, 149–152. [Google Scholar] [CrossRef]
  39. Gerardo, R.; de Lima, I.P. Monitoring Duckweeds (Lemna minor) in Small Rivers Using Sentinel-2 Satellite Imagery: Application of Vegetation and Water Indices to the Lis River (Portugal). Water 2022, 14, 2284. [Google Scholar] [CrossRef]
  40. Li, S.X.; Feng-Ying, F.; Yang, H.; Jian-Cong, N. Thorough removal of inorganic and organic mercury from aqueous solutions by adsorption on Lemna minor powder. J. Hazard. Mater. 2011, 186, 423–429. [Google Scholar] [CrossRef]
  41. Dirilgen, N. Mercury and lead: Assessing the toxic effects on growth and metal accumulation by Lemna minor. Ecotoxicol. Environ. Saf. 2011, 74, 48–54. [Google Scholar] [CrossRef]
  42. Lobotková, M.; Hybská, H.; Samešová, D.; Turčániová, E.; Barnová, J.; Rétfalvi, T.; Krakovský, A.; Bad’o, F. Study of the Applicability of the Root Wastewater Treatment Plants with the Possibility of the Water Recirculation in Terms of the Surfactant Content. Water 2022, 14, 2817. [Google Scholar] [CrossRef]
  43. Khataee, A.; Movafeghi, A.; Torbati, S.; Salehi Lisar, S.; Zarei, M. Phytoremediation potential of duckweed (Lemna minor) in degradation of CI Acid Blue 92: Artificial neural network modeling. Ecotoxicol. Environ. Saf. 2012, 80, 291–298. [Google Scholar] [CrossRef]
  44. ATSDR, Agency for Toxic Substances and Disease Registry. Toxicological Profile for Silver; ATSDR: Atlanta, Georgia, 1990.
  45. Ran, N.; Agami, M.; Oron, G. A pilot study of constructed wetlands using duckweed (Lemna gibba L.) for treatment of domestic primary effluent in Israel. Water Res. 2004, 38, 2241–2248. [Google Scholar] [CrossRef]
  46. León, M.D.C.C.D.; Flores-Alamo, N.; Solache-Ríos, M.J.; De La Rosa-Gómez, I.; Díaz-Campos, G. Lead and Copper Adsorption Behaviour by Lemna gibba: Kinetic and Equilibrium Studies. CLEAN Soil Air Water 2017, 45, 1600357. [Google Scholar]
  47. Tang, Y.; Chen, L.; Wei, X.; Yao, Q.; Li, T. Removal of lead ions from aqueous solution by the dried aquatic plant, Lemna perpusilla Torr. J. Hazard. Mater. 2013, 244, 603–612. [Google Scholar] [CrossRef]
  48. Reyes-Ledezma, J.L.; Uribe-Ramírez, D.; Cristiani-Urbina, E.; Morales-Barrera, L. Biosorptive removal of acid orange 74 dye by HCl-pretreated Lemna sp. PLoS ONE 2020, 15, 0228595. [Google Scholar] [CrossRef] [PubMed]
  49. Coughlan, N.E.; Walsh, É.; Ahern, R.; Burnell, G.; Kuehnhold, H.; Jansen, M.A. Flow Rate and Water Depth Alters Biomass Production and Phytoremediation Capacity of Lemna minor. Plants 2021, 11, 2170. [Google Scholar] [CrossRef] [PubMed]
  50. Erler, A. The Hydrothermal Alteration around Madenköy-Siirt Massive Sulphide Deposit. Ph.D. Thesis, METU, Dumlupınar, Turkey, 1982. [Google Scholar]
  51. Sasmaz Kislioglu, M. Removal of Ag, Au, and As from acid mine water using Lemna gibba and Lemna minör: A performance analysis. Water 2023, 15, 1293. [Google Scholar] [CrossRef]
  52. Davis, P.H. Flora of Turkey and The East Aegean Island; Edinburgh University Press: Edinburgh, UK, 1984. [Google Scholar]
  53. Cabrera, L.I.; Salazar, G.A.; Chase, M.W.; Mayo, S.J.; Bogner, J.; Davila, P. Phylogenetic relationships of aroids and duckweeds (Araceae) inferred from coding and noncoding plastid DNA. Am. J. Bot. 2008, 95, 1153–1165. [Google Scholar] [CrossRef] [PubMed]
  54. EFSA Panel on Nutrition; Novel Foods and Food Allergens; Turck, D.; Bohn, T.; Castenmiller, J.; De Henauw, S.; Hirsch-Ernst, K.I.; Maciuk, A.; Mangelsdorf, I.; McArdle, H.J.; et al. Safety of Lemna minor and Lemna gibba whole plant material as a novel food pursuant to Regulation (EU) 2015/2283. EFSA J. 2022, 20, e07598. [Google Scholar]
  55. Dong, D.; Li, H.; Zhang, J.; Sun, L. Removal of heavy metals from mine water by cyanobacterial calcification. Min. Sci. Technol. 2010, 20, 566–570. [Google Scholar] [CrossRef]
  56. Caussy, D.; Gochfeld, M.; Gurzau, E. Lessons from case studies of metals: Investigating exposure bioavailability and risk. Ecotoxicol. Environ. Saf. 2003, 56, 45–51. [Google Scholar] [CrossRef]
  57. Ning, N.; Liyuan, Y.; Jirui, D.; Xugui, P. Heavy Metal Pollution in Surface Water of Linglong Gold Mining Area, China. Procedia Environ. Sci. 2011, 10, 914–917. [Google Scholar] [CrossRef]
  58. Reimann, C.; de Caritat, P. Chemical Elements in the Environment. Factsheets for the Geochemist and Environmental Scientist; Springer: Berlin/Heidelberg, Germany, 1998. [Google Scholar]
  59. Linnik, P.N.; Ignatenko, I.I. Molybdenum in natural surface waters: Content and forms of occurrence (a review). Hydrobiol. J. 2015, 51, 80–103. [Google Scholar] [CrossRef]
  60. Gaillardet, J.; Viers, J.; Dupre, B. Trace elements in river waters. In Treatise on Geochemistry, 2nd ed.; Holland, H.D., Turekian, K.K., Eds.; Elsevier: Oxford, UK, 2014; pp. 195–235. [Google Scholar]
  61. Zhao, Z.; Pei, J.; Zhang, X.; Zhou, X. Adsorptive stripping voltammetry determination of molybdenum (VI) in water and soil. Talanta 1990, 37, 1007–1010. [Google Scholar] [CrossRef]
  62. Rahaman, W.; Singh, S.K.; Raghav, S. Dissolved Mo and U in rivers and estuaries of India: Implication to geochemistry of redox sensitive elements and their marine budgets. Chem. Geol. 2010, 278, 160–172. [Google Scholar] [CrossRef]
  63. Piper, A.M. A graphic procedure in the geochemical interpretation of water analyses. Trans. Am. Geophys. Union 1944, 25, 914–923. [Google Scholar]
  64. Pilon-Smits, E.A. Phytoremediation. Ann. Rev. Plant Biol. 2005, 56, 15–39. [Google Scholar] [CrossRef] [PubMed]
  65. Tangahu, B.V.; Abdullah, S.R.S.; Basri, H.; Idris, M.; Anuar, N.; Mukhlisin, M. A review on heavy metals (As, Pb, and Hg) uptake by plants through phytoremediation. Int. J. Chem. Eng. 2011, 2011, 939161. [Google Scholar] [CrossRef]
  66. Cenci, R.M. The use of aquatic moss (Fontinalis antipyretica) as monitor of contamination in standing and running waters: Limits and advantages. J. Limnol. 2000, 60, 53–61. [Google Scholar] [CrossRef]
  67. Sasmaz, A.; Obek, E. The accumulation of arsenic, uranium, and boron in Lemna gibba L. exposed to secondary effluents. Ecol. Eng. 2009, 35, 1564–1567. [Google Scholar] [CrossRef]
  68. Uysal, Y. Removal of chromium ions from wastewater by duckweed, Lemna minor L. by using a pilot system with continuous flow. J. Hazard. Mater. 2013, 263, 486–492. [Google Scholar] [CrossRef]
  69. Abdallah, M.A. Phytoremediation of heavy metals from aqueous solutions by two aquatic macrophytes, Ceratophyllum demersum and Lemna gibba. Environ. Technol. 2012, 33, 1609–1614. [Google Scholar] [CrossRef] [PubMed]
  70. Ucuncu, E.; Tunca, E.; Fikirdeşici, S.; Özkan, A.D.; Altindag, A. Phytoremediation of Cu, Cr and Pb mixtures by Lemna minor. Bull Environ. Contam. Toxicol. 2013, 91, 600–604. [Google Scholar] [CrossRef] [PubMed]
  71. Sasmaz, M.; Obek, E.; Sasmaz, A. The accumulation of La, Ce and Y by Lemna minor and Lemna gibba in the Keban gallery water, Elazig Turkey. Water Environ. J. 2018, 32, 75–83. [Google Scholar] [CrossRef]
  72. Leblebici, Z.; Kar, M.; Yalcin, V. Comparative study of Cd, Pb, and Ni removal potential by Salvinia natans. All. and Lemna minor: Interactions with growth parameters. Rom. Biotechnol. Lett. 2018, 23, 13235–13248. [Google Scholar]
  73. Amare, E.; Kebede, F.; Berihu, T.; Mulat, W. Field-based investigation on phytoremediation potentials of Lemna minor and Azolla filiculoides in tropical, semiarid regions: Case of Ethiopia. Int. J. Phytoremediation 2018, 20, 965–972. [Google Scholar] [CrossRef] [PubMed]
  74. Tatar, S.; Obek, E.; Arslan Topal, E.I.; Topal, M. Uptake of some elements with aquatic plants exposed to the effluent of wastewater treatment plant. Pollution 2019, 5, 377–386. [Google Scholar]
Water 16 00975 g001

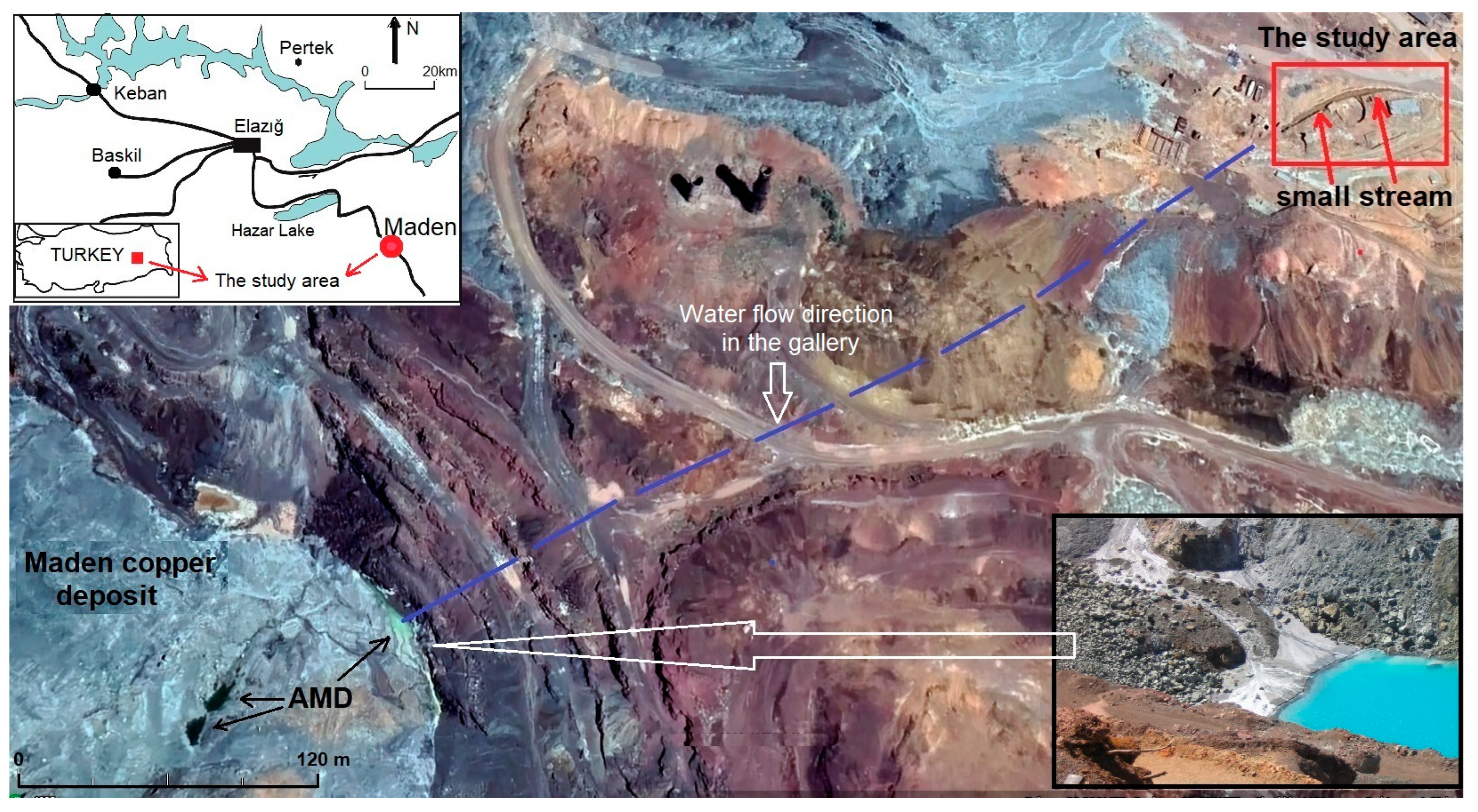

Figure 1. The experimental setup of this study (adapted from Sasmaz Kislioglu, [51]).
Figure 1. The experimental setup of this study (adapted from Sasmaz Kislioglu, [51]).
Water 16 00975 g001
Water 16 00975 g002

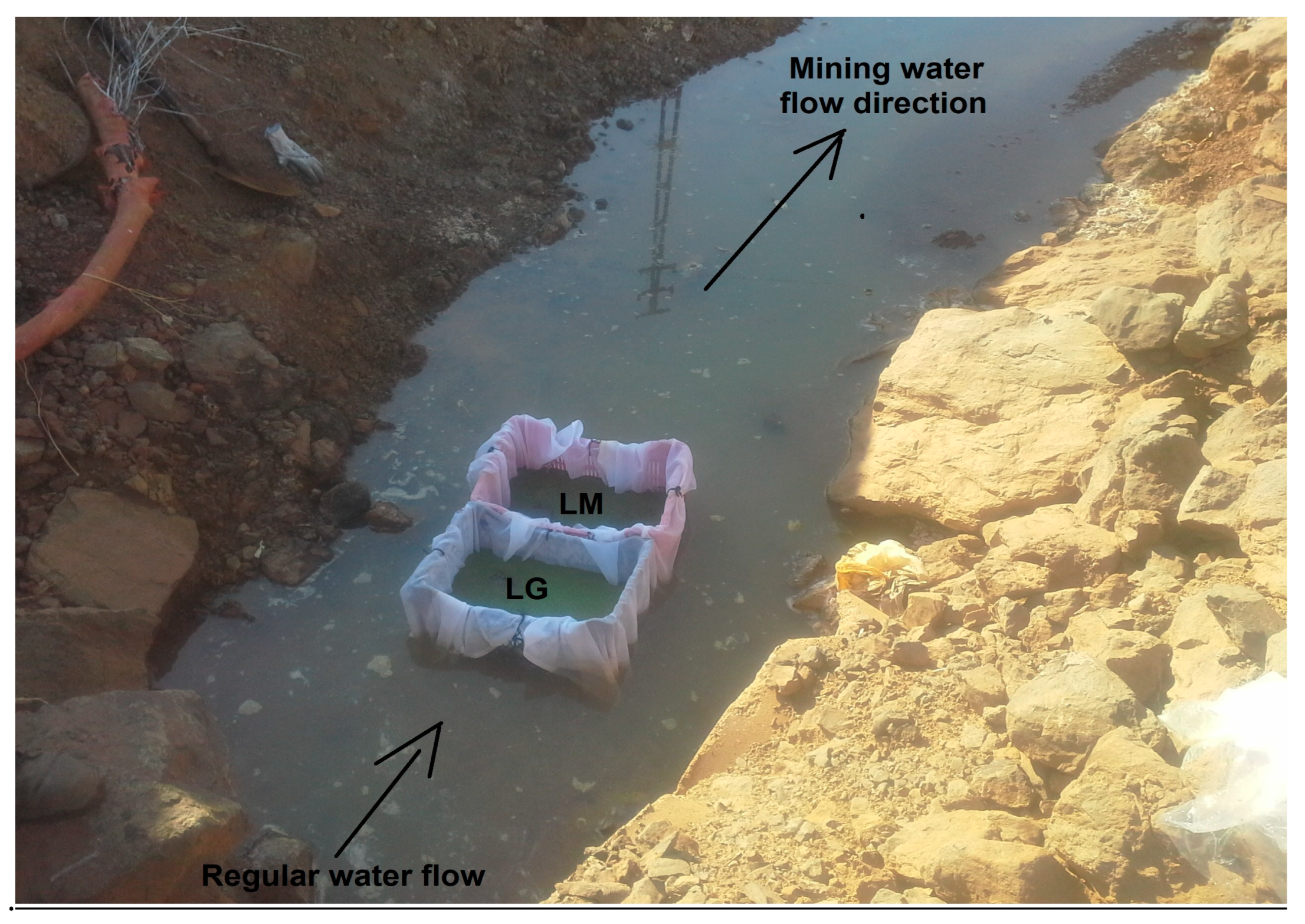

Figure 2. Reactors assigned to L. gibba and L. minor in acidic mine water (adapted from Sasmaz Kislioglu, [51]).
Figure 2. Reactors assigned to L. gibba and L. minor in acidic mine water (adapted from Sasmaz Kislioglu, [51]).
Water 16 00975 g002
Water 16 00975 g003
Figure 3. L. gibba changed color from green to yellow toward the end of the study.
Figure 3. L. gibba changed color from green to yellow toward the end of the study.
Water 16 00975 g003
Water 16 00975 g004

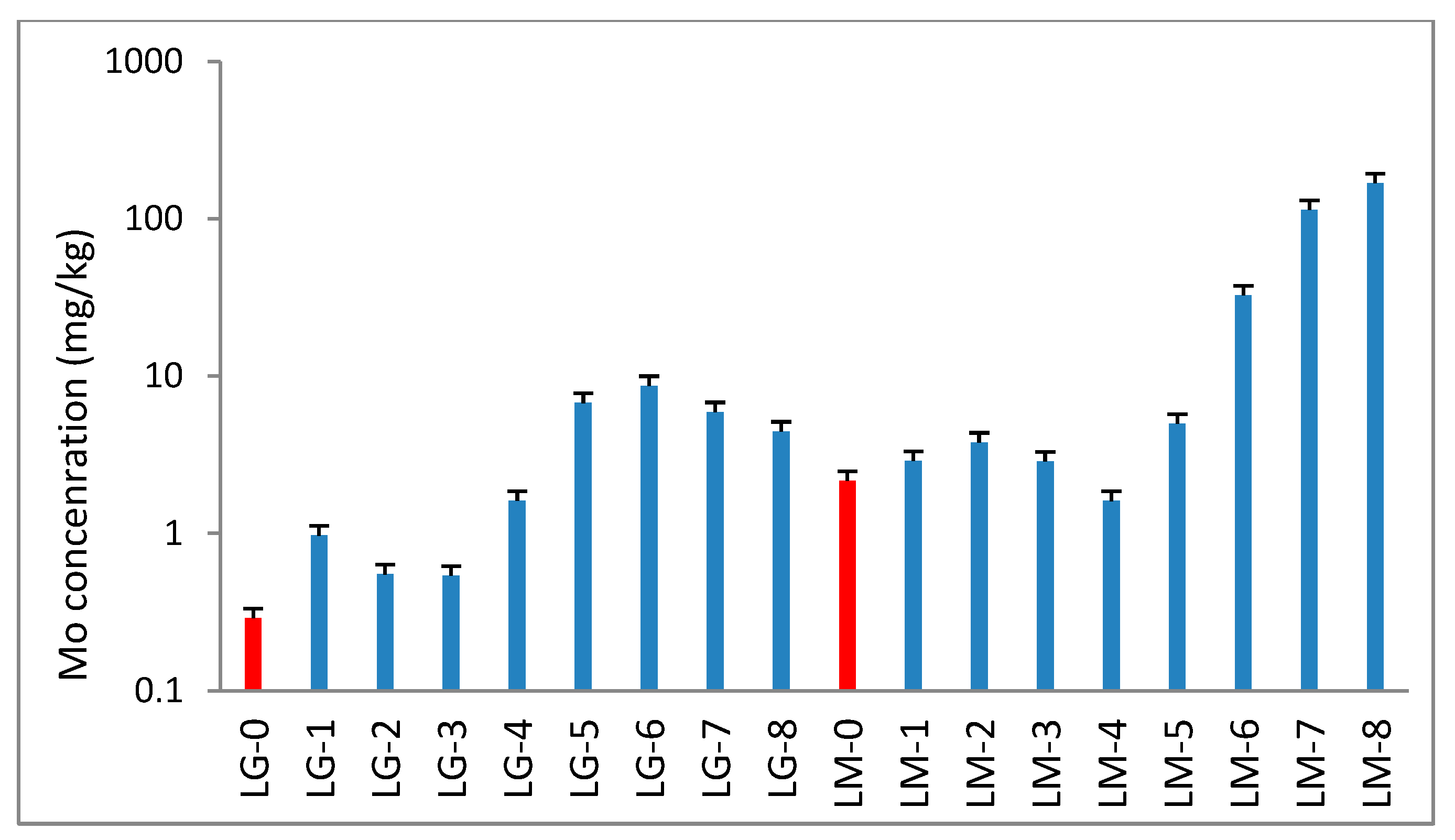

Figure 4. Mo accumulation ratios for L. gibba (LG) and L. minor (LM).
Figure 4. Mo accumulation ratios for L. gibba (LG) and L. minor (LM).
Water 16 00975 g004
Water 16 00975 g005

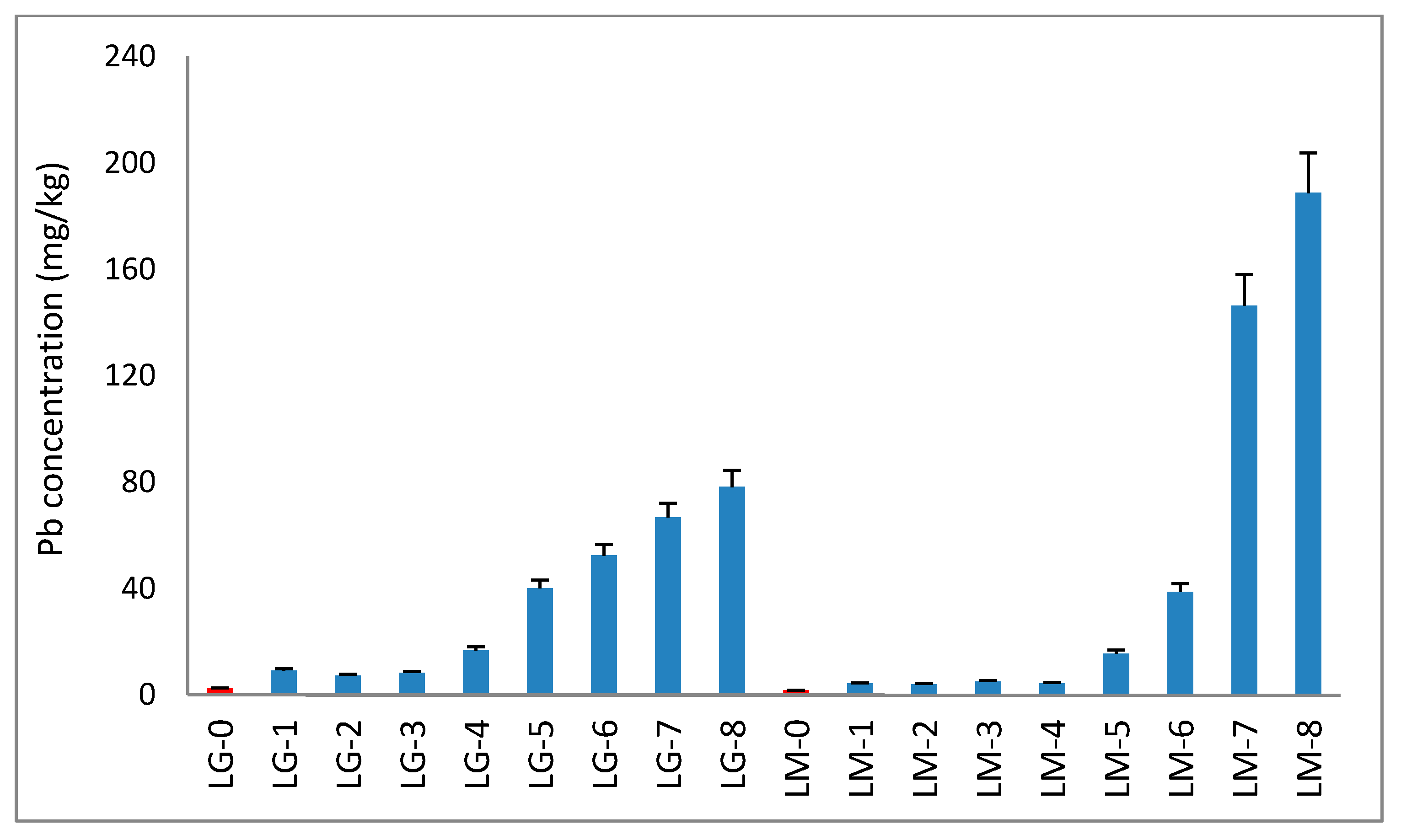

Figure 5. Pb accumulation ratios for L. gibba (LG) and L. minor (LM).
Figure 5. Pb accumulation ratios for L. gibba (LG) and L. minor (LM).
Water 16 00975 g005
Water 16 00975 g006

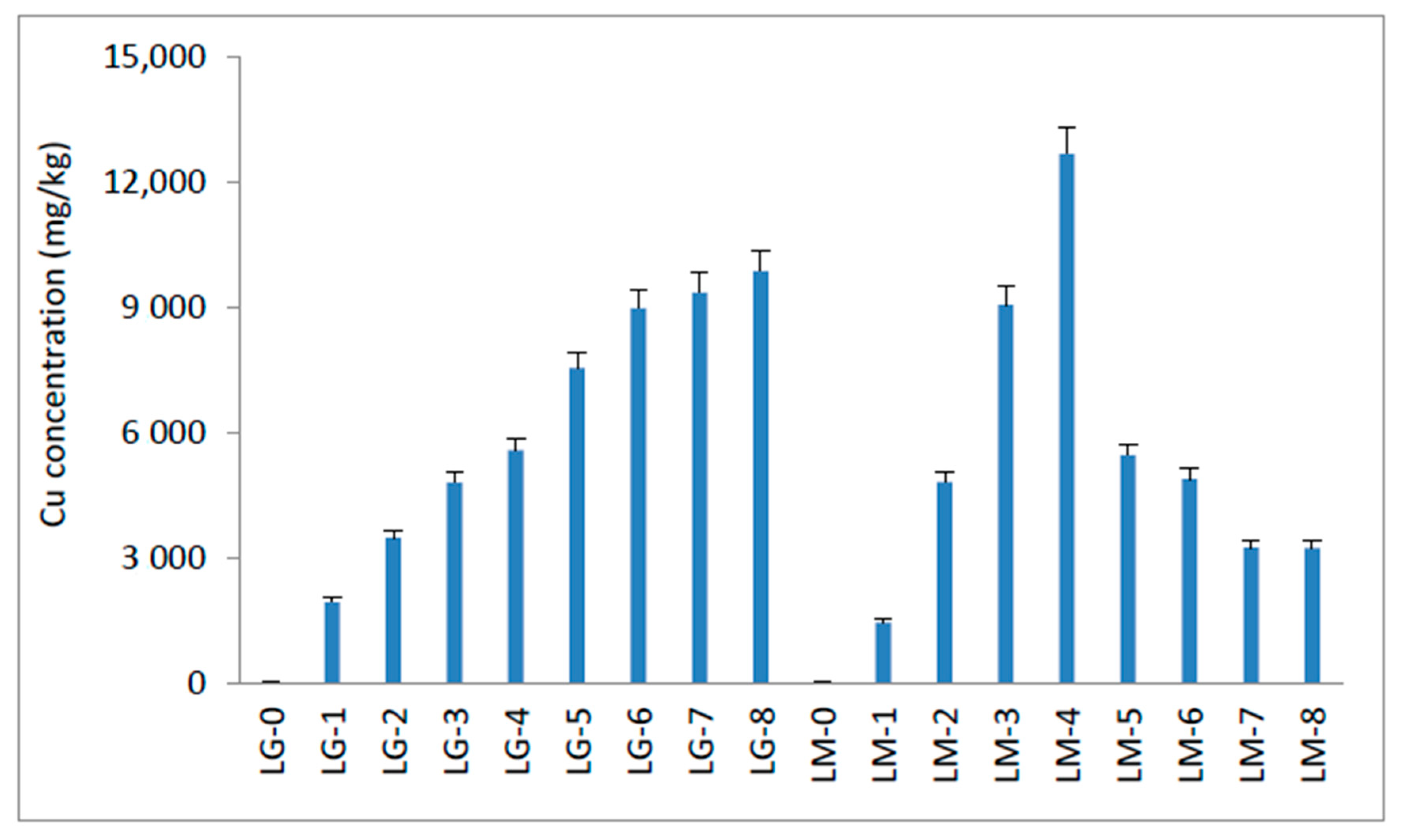

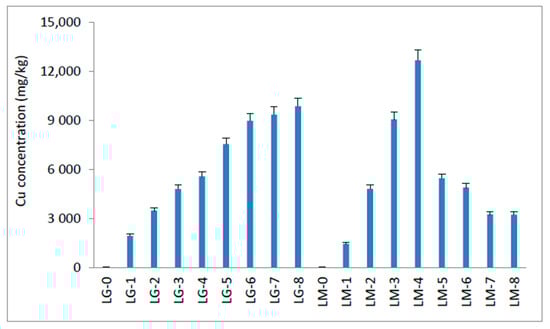

Figure 6. Cu accumulations by L. gibba (LG) and L. minor (LM).
Figure 6. Cu accumulations by L. gibba (LG) and L. minor (LM).
Water 16 00975 g006
Table 1. Physicochemical characteristics, including cations, anions, and trace elements in acidic mine water [51].
Table 1. Physicochemical characteristics, including cations, anions, and trace elements in acidic mine water [51].
ParameterTpHECHCO3NO3−SO4FCaMgKNaFe
(°C) (mS cm−1)(mg L−1)(mg L−1)(mg L−1)(mg L−1)(mg L−1)(mg L−1)(mg L−1)(mg L−1)(mg L−1)
Detection
Limit		-------0.050.050.050.0510
Mining
Water		22.65.762.552821.861280.414824265.8115118
±1.6± 0.1± 0.2±16± 0.06±8±0.1±24±18±0.3±6±7
ParameterMnSPBZnCrNiCoAsMoPbCu
(mg L−1)(mg L−1)(μg L−1)(μg L−1)(μg L−1)(μg L−1)(μg L−1)(μg L−1)(μg L−1)(μg L−1)(μg L−1)(μg L−1)
Detection
Limit		0.0511050.50.50.20.020.50.10.10.02
Mining
Water		6.4670236850285220296517661933026015,535
±0.3±28±12±45±84±16± 58±72±12±4±12±322
