Geochemical Characteristics of Trace Elements of Hot Springs in the Xianshuihe–Xiaojiang Fault Zone

Abstract

Trace elements in hot-spring waters are indicators for tracing hydrochemical processes, such as the deep circulation of geothermal water, the degree of water–rock interaction, redox reactions, the contamination of shallow water by thermal water, etc. In this study, 74 hot springs in the Xianshuihe–Xiaojiang Fault Zone (XSHF-XJF) were chosen for an investigation of the geochemical characteristics of trace elements using classic geochemical tools and multivariate statistical analysis. The results indicated (1) the hot-spring waters were mainly derived from atmospheric precipitation as indicated by δD and δ¹⁸O values that generally increased with decreasing elevations; (2) the high concentrations of B, As, Fe, and Mn in the waters, as well as the values of the Water Quality Index (WQI), indicated that the water quality was spatially heterogeneous and the hot-spring waters are not entirely suitable for drinking; and (3) B/Cl ratios showed that hot springs have different reservoir sources in the XSHF and XJF, respectively. The leaching of surrounding rock during water circulation contributed predominantly to the trace elements of the study’s waters. Diversity of lithology was the main factor affecting their concentrations. In addition, deep circulation controlled by the fault could influence trace-element enrichment. Our results offer a guide for the exploration and use of geothermal resources.

1. Introduction

Hot springs are the surface manifestation of deep hydrothermal fluids, which frequently present in regions of active volcanism and intense tectonic activity [1,2]. In the past decade, geothermal energy has been increasingly emphasized because of its advantages like renewable and large reserves, and it is widely exploited for power generation, tourism, physiotherapy, heating, etc. [3,4,5].

Due to the continuous northeastward thrusting of the Indian Plate and eastward subduction of the Myanmar Plate, the tectonic activity of the fault system at the eastern boundary of the Sichuan–Yunnan rhombic block is very active, and destructive earthquakes occur frequently [6,7]. Moreover, the fault system belongs to the Himalayan–Tibetan geothermal belt, with abundant geothermal springs [8,9].

In comparison with groundwater or surface water, trace elements, including typical elements (As, B, Li, etc.) and heavy elements (Fe, Mn, Cd, etc.), usually show enrichment in hot-spring waters, which play a crucial role in determining the genesis of hot springs and explaining the circulation process of thermal waters [10,11]. For example, the high concentrations of F, As, B, Li, and heavy metals, as are found in geothermal water with strong magmatic activity in Turkey [11], Chile [12], Tibet [13], Tengchong [14], and Taiwan [10], are usually constrained by multiple factors such as the type of host rock in the water–rock reaction, the input of magmatic fluids(e.g., B, Li, etc.), and secondary processes (e.g., precipitation of solid phases). Moreover, the mixing of geothermal waters, which contain high concentrations of trace elements, with surface waters can result in problems linking to drinking-water quality and environmental contamination [15,16,17].

The XSHF-XJF, as an important active fault zone at the eastern edge of the Sichuan–Yunnan rhombic block, is surrounded by a large amount of geothermal resources [18]. In this region, a series of investigations of the hydrochemical features of hot springs [19,20,21], gas isotope characteristics [22], the genesis of geothermal water [23], and the relationship between fluids and seismic activity [24,25] were conducted using the approaches of hydrogeochemistry and isotopes and the methods of geophysical exploration. Furthermore, high concentrations of B, Li, and F in the Kangding area were reported [26]. However, the geochemical characteristics of trace elements in hot springs throughout the fault zone and their environmental effects are lacking so far. Therefore, this paper aims at analyzing the source and enrichment mechanism of trace elements in hot springs and evaluating the water quality of thermal waters in terms of trace elements. Our results could contribute to understanding the geochemical characteristics of trace elements in hot springs throughout the fault zone, providing insights for studies of trace elements in geothermal systems occurring in strike-slip fault zones across the world, and providing a new reference for the exploitation of hot-spring waters in the XSHF-XJF.

2. Geological Setting

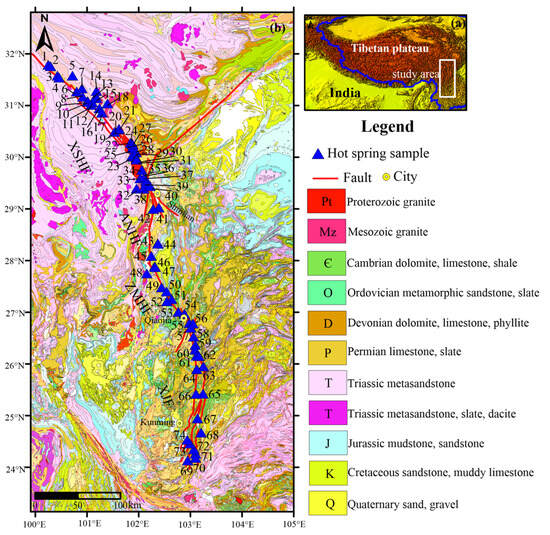

The study area is on the eastern margin of the Tibetan Plateau (Figure 1a). It is an important left-lateral strike-slip fault and seismic zone on the Chinese mainland, including the Xianshuihe Fault (XSHF), Anninghe Fault (ANHF), Zemuhe Fault (ZMHF) and Xiaojiang Fault (XJF) (Figure 1b). The widely developed faults create channels for the intrusion of rock bodies and a favorable geological environment for the storage and transportation of geothermal resources. The XSHF is a NW–SE-trending left-lateral strike-slip fault, which is located between Ganzi and Shimian in the Sichuan province. The regional geological setting includes Triassic sedimentary strata composed of sandstone, siltstone, and mudstone, Precambrian rocks composed of metamorphic rocks, and Mesozoic intrusive rocks dominated by granite and diorite [27]. The ANHF is NS trending and extends for about 200 km along the Anninghe valley, intersecting with the XSHF. The ZMHF is NNW trending, dipping northeast. The bedrocks in the AZF (ANHF-ZMHF) are mainly composed of metamorphic rocks formed by Cambrian granite and rhyolite; the Cenozoic strata (Late Tertiary to Early Quaternary) are mainly composed of interbedded mudstones and sandstones, with thin layers of coal [28]. The XJF is an SN-trending, left-slip active fault. The rocks of fault walls are mostly carbonate rocks and sedimentary rocks [29].

In the study area, most hot springs occur along the XSHF-XJF, and the geothermal resources are most developed in the XSHF. The hot springs geographically look like the scatted beads in the Tertiary strata and Yanshanian–Himalayan granites, and they are mostly medium–high-temperature (30–90 °C) hot springs. The hot springs in the ANHF-XJF are unevenly distributed, mainly developed in carbonate and sedimentary rock strata, with temperatures generally below 60 °C, belonging to the medium–low-temperature hot springs. Furthermore, due to the predominantly plateau-type monsoon climate, precipitation is annually concentrated from May to September. The surface water system is well developed due to atmospheric precipitation and ice meltwater. The groundwater in solidified host rocks can be classified into bedrock fissure water in granite, clastic fissure water with sandstone as the dominant water-bearing lithology, and carbonate fissure water [30].

3. Sampling and Methods

3.1. Sampling and Analysis Methods

In total, 74 water samples were obtained from hot springs in the XSHF-XJF during 2018–2019. After filtrating with a 0.45 µm membrane, the samples were collected in polyethylene terephthalate (PET) bottles (50 mL) for the laboratory analysis. Portable equipment was used to measure the pH and temperature of water in the field. The major elements were tested using a Dionex ICS-900 (Dionex, Sunnyvale, CA, USA) ion chromatograph fitted with an AS40 automatic sampler in the Key Laboratory of Earthquake Prediction, China Earthquake Administration, with a detection limit of 0.01 mg/L [31]. The concentrations of HCO₃⁻ and CO₃²⁻ were titrated with a ZDJ-100 potentiometric titrator (Kehuan, Nanjing, China) using the 0.05 mol/L HCl titration 0.1% methyl orange and 1% phenolphthalein procedures (reproducibility within ±2%). The following equation was used to compute the ion balance error in water samples (Equation (1)):

$$\%difference=\frac{\sum cations-\sum anions}{\left(\sum cations+\sum anions\right)\times 0.5}\ast 100$$

(1)

The trace-element analysis was conducted with an element type inductively coupled plasma mass spectrometer (ICP-MS) at the Test Center of the Institute of Nuclear Industry Geology [32]. The concentration of As was determined with an LC-6500 atomic fluorescence photometer (Haiguang, Beijing, China), with a detection limit of 0.60 μg/L. The SiO₂ concentration of the samples was analyzed using an inductively coupled plasma emission spectrometer Optima-5300 DV (PerkinElmer, Hopkinton, MA, USA). The δ¹⁸O and δD were analyzed with a Finnigan MAT253 (Thermo Electron-Finnigan, San Jose, CA, USA) mass spectrometer using the TC/EA (Temperature Conversion/Elemental Analyzer) method. They are expressed as permille, standardized using V-SMOW, with analytical uncertainty of ±0.2‰ and ±1‰, respectively [33].

3.2. Water Quality Index

The Water Quality Index (WQI), which is a mathematical tool used to assess the combined impact of specific environments, was applied to assess the cumulative impacts of trace elements in hot springs in this study. It can be calculated as follows (Equations (2) and (3)) [34]:

$$\mathrm{PI}=C_i/Q_i$$

(2)

$$\mathrm{WQI}=\frac{1}{n}\sum _{i=1}^n\mathrm{PI}=\frac{1}{n}\sum _{i=1}^n{C}_i/Q_i$$

(3)

where C_i is the concentration of trace elements analyzed in the water sample, Q_i is the limit value of the water quality standard of the elements, and PI stands for the exceedance index of a trace element i, relative to the standard limit value. Considering the geological background of the study area, the trace-element concentrations were assessed using the China Standards for Drinking Water Quality [35]. The values of the reference standard were listed in Table S3. The WQI is divided into four categories: WQI ≤ 1 (within the standard limit); 1 < WQI ≤ 2 (slightly exceeding the standard limit); 2 < WQI ≤ 3 (moderately exceeding the standard limit); and WQI > 3 (heavily exceeding the standard limit) [36].

3.3. Statistical Analysis

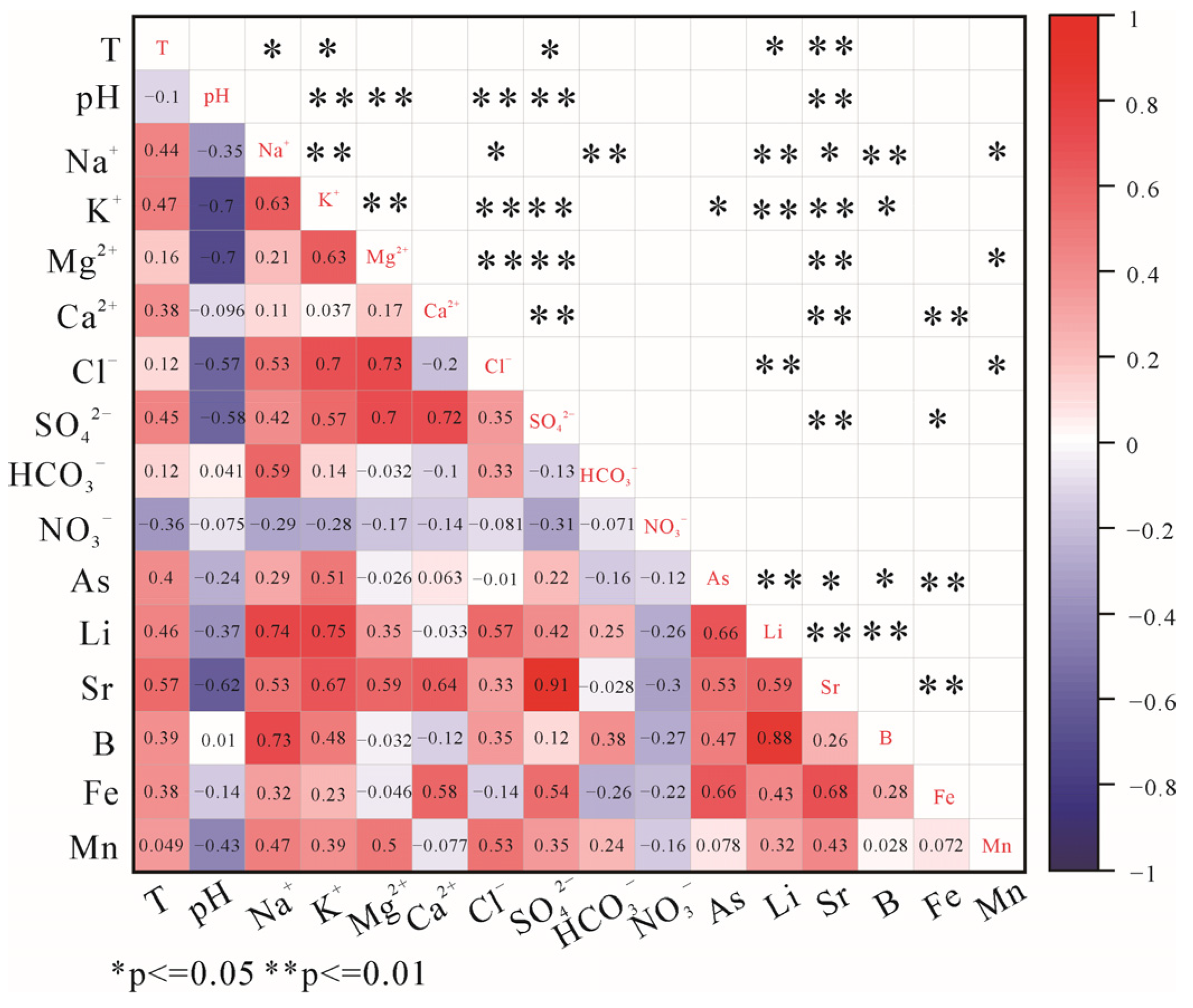

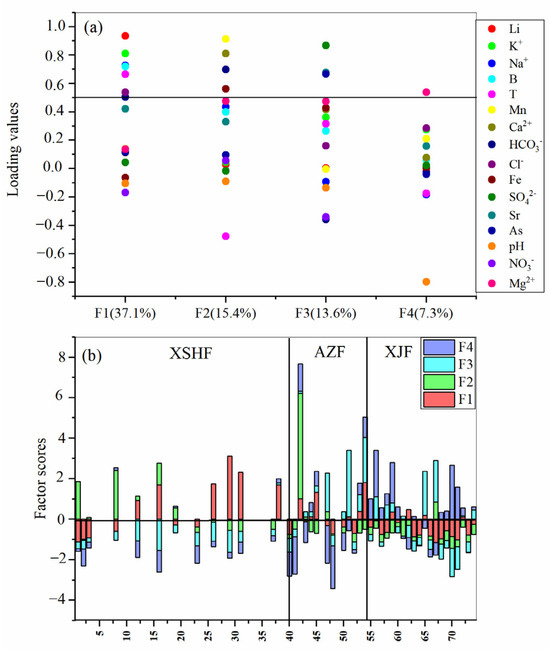

Using the different water parameters, a descriptive statistical analysis, correlation analysis, and factor analysis (FA) were performed using SPSS 22.0 software. For FA, the data were verified for suitability using Bartlett tests and KMO (Kaiser-Meyer-Olkin), which can take values between 0 and 1. A value close to 1 indicates a good fit for FA. The value of the KMO test in this study is 0.540, and the significance level of the Bartlett test is less than 0.01, suggesting that the data have a certain correlation and are suitable for FA.

4. Results

4.1. Hydrochemical Compositions

The results of the physico-chemical parameters of the water samples are given in Table S1. The outlet temperatures of the water samples range from 11.3 °C to 77.0 °C, with the majority being hot springs, except for Nos. 1, 4, 5, 8, 9, 10, and 11 of the water samples (T < 25 °C). The pH values range from 6.49 to 9.50. TDS values of the water samples range from 113.45 to 2247.98 mg/L, 134.69 to 6331.29 mg/L, and 115.27 to 1486.79 mg/L in the XSHF, AZF, and XJF, respectively. HCO₃⁻ is the most prominent anion in the XSHF and AZF, and the main cation is Na⁺. The thermal waters in the XSHF are HCO₃-Na, while those in AZF are HCO₃-Ca (Mg) and HCO₃(SO₄)-Na (Ca) [20,21]. In the XJF, the main anions are SO₄²⁻ and HCO₃⁻, and Ca²⁺ and Mg²⁺ are the dominant cations in the thermal waters, resulting in water types of SO₄-Ca (Mg) and HCO₃-Ca (Mg) [19].

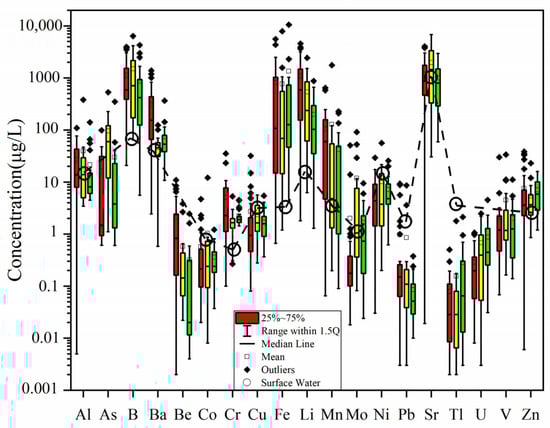

The statistical results of trace elements of the water samples are shown in Table S2 and Figure 2 with data of rivers on the surface near the study area [34,37] for comparison. The concentrations of Co, Cu, Ni, Pb, and Tl in the water samples are generally low. In contrast, the concentrations of B, Fe, Li, and Mn in the study area range from 5.6 to 6366 μg/L; 0.66 to 10,520 μg/L; 1.29 to 4547 μg/L; and 0.07 to 1754 μg/L, respectively, which are generally higher than those in surface water (Figure 2). Arsenic concentrations range from <0.60 to 530 μg/L. Compared with the typical magma-impacted geothermal system (e.g., Yangbajing, Rehai, etc.) [38,39], the concentrations of B, Li, and As in the water samples are relatively low, indicating that the input of magmatic fluids into the hot-spring waters is limited.

The δD and δ¹⁸O values of the water samples are listed in Table S1. δD and δ¹⁸O values in the XSHF range from −115‰ to −82‰ and −19.20‰ to −11.40‰; δD and δ¹⁸O values in the AZF from −118‰ to −84‰ and −15.60‰ to −11.50‰; and δ D and δ¹⁸O values in the XJF from −117% to −81‰ and −15.40 to −11.10‰, respectively.

4.2. Water Quality Assessment

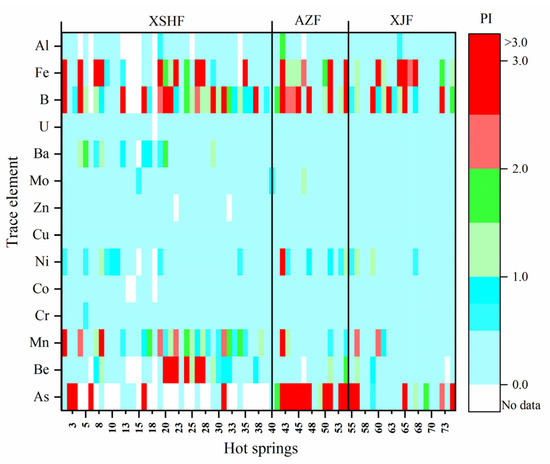

The results of the water quality evaluation were shown in Table S3 and Figure 3. Apparently, high concentrations of As, Mn, B, and Fe are found in the hot-spring waters in the XSHF-XJF, greatly exceeding the standard values and hinting they are relatively enriched in the waters. Additionally, high concentrations of Be, Ba, and Ni are also found in some water samples (e.g., Nos. 21, 22, 42, etc.). The WQI values of water samples in the XSHF-XJF range from 0.0 to 5.4 (Table S3). Based on the WQI, the trace elements in the water samples of Nos. 1, 4, 8, 19, 20, 45, and 54 slightly exceed the standard limit (1 < WQI ≤ 2). While the trace elements in the water sample 67 and 46 moderately exceed the standard limit (2 < WQI ≤ 3), and in the water samples of Nos. 42, 51, and 65 they heavily exceed the standard limit (WQI > 3). In general, the water quality is spatially heterogeneous in the study area, and hot-spring waters are not entirely suitable for drinking.

5. Discussion

5.1. Origin and Isotopic Characteristics of Hot-Spring Waters

The isotopic compositions of hydrogen and oxygen in the hot-spring waters are recognized as efficient proxies for tracing the origin and geochemical evolution of water [40]. The data of δD and δ¹⁸O for hot springs and surface waters in the study area are plotted in Figure 4, along with the Global Meteoric Water Line (GMWL, δD = 8δ¹⁸O + 10) [41] and Local Meteoric Water Line in the Tibetan Plateau (LMWL, δD = 8.41δ¹⁸O + 16.72) [42]. Both hot-spring water samples and surface water samples are scattered around the GMWL and LMWL, indicating that the source of their recharge is atmospheric precipitation. However, the values of δ¹⁸O and δD are generally lower in thermal waters compared to surface waters at the same or nearby locations, indicating that the surface water and surrounding atmospheric precipitation are not the direct source of recharge to hot springs, which are recharged by the infiltration of distant atmospheric precipitation transported through faults and secondary faults.

Additionally, an interesting phenomenon is that the δD and δ¹⁸O values of water samples in the XSHF are more negative compared to those in the AZF and XJF. The East Asian monsoon is a key source of water vapor, and as it passes through the high terrain, the heavy isotopes of water (¹⁸O and D) are prioritized for removal based on a Rayleigh fractionation mode [43]. There is a gradual decrease in the topographic elevation from northwest to southeast in the study area, resulting in a more depleted isotope composition in the thermal waters than in the XSHF. This explanation is supported by the fact that the recharge elevation in the XSHF (mean: 3.3 km) is higher than that in the AZF (mean: 2.5 km) and XJF (mean: 2.4 km) [20,21]. Furthermore, most of the hot-spring samples shift slightly to the right of LMWL, namely positive δ¹⁸O drift, which can be attributed to oxygen isotope exchange between thermal waters and surrounding carbonate or silicate rocks, which are enriched with δ¹⁸O [44]. This process can be influenced by higher thermal storage temperatures, a longer circulation time, or higher rock-to-water ratios [45]. However, it is not clear what factors control δ¹⁸O drift. A few of the water samples show a δ¹⁸O left shift that may be caused by ¹⁸O exchange during the dissolution of CO₂ from a deep source [22].

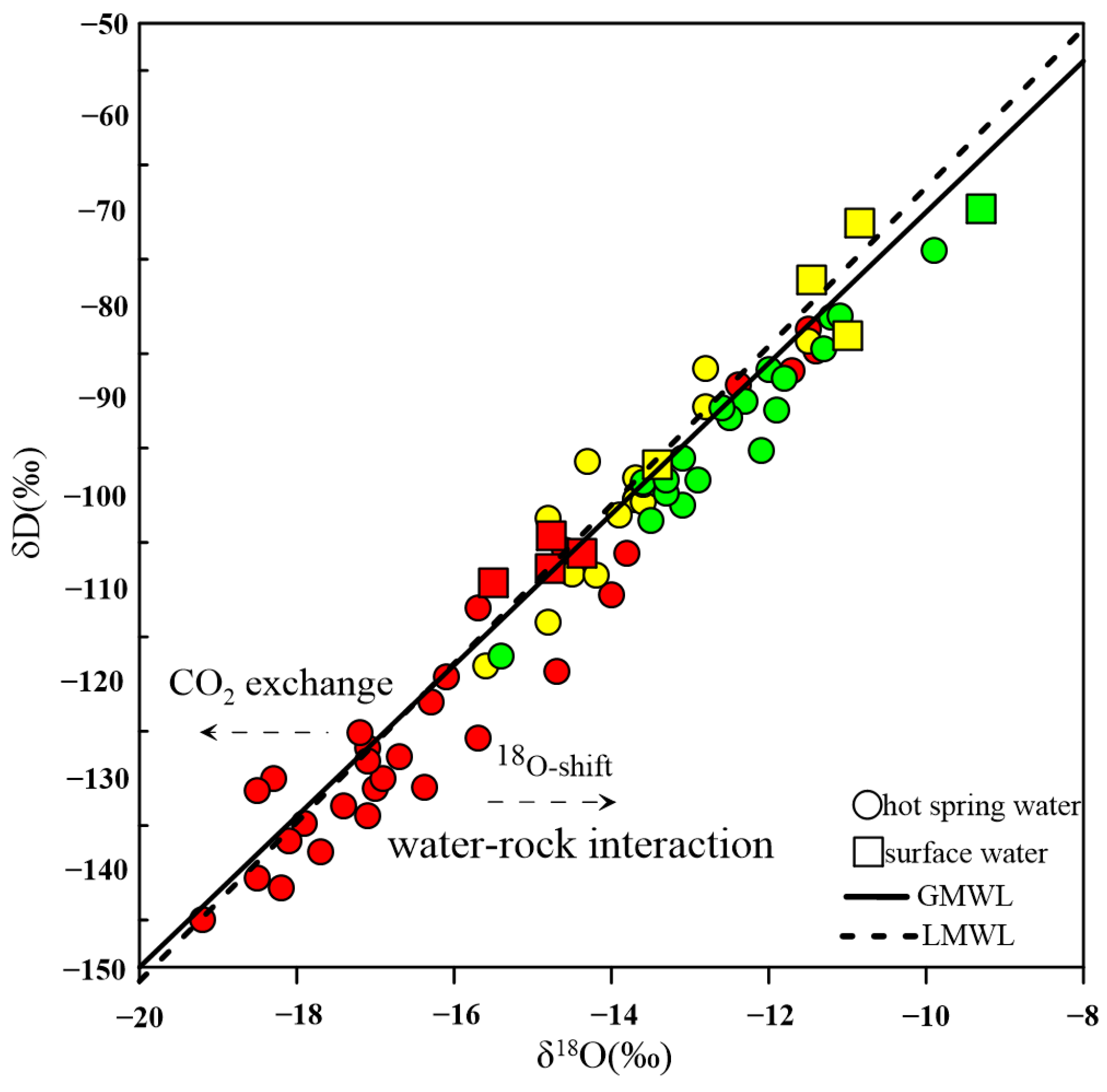

Figure 4. Plot of δD and δ¹⁸O of the hot springs and surface waters in the XSHF-XJF. The red color stands for the samples from the XSHF, yellow color for the samples from the AZF, and green color for the samples from the XJF. Dotted line stands for the LMWL and solid line for the GMWL. The data of surface waters from [46].

Figure 4. Plot of δD and δ¹⁸O of the hot springs and surface waters in the XSHF-XJF. The red color stands for the samples from the XSHF, yellow color for the samples from the AZF, and green color for the samples from the XJF. Dotted line stands for the LMWL and solid line for the GMWL. The data of surface waters from [46].

5.2. Hydrogeochemical Characteristics of Hot Springs

5.2.1. Water–Rock Reaction and Major Ion Variations

The ion compositions of groundwater depend mainly on the dissolution of mineral components during water–rock interactions [47]. The molar ratio of Na⁺+K⁺/ Cl⁻ generated using the halite dissolution is generally equal to 1. However, most of the water samples fall below y = x (Figure 5a), indicating that excess Na⁺ and K⁺ mainly originate from the weathering and dissolution of silicate minerals (Equations (4) and (5)). Some of the samples (Nos. 42, 49, 52, and 54) from AZF fall on the line of halite dissolution, indicating that they may have been contributed to by the dissolution of halite.

4NaAlSi₃O₈ (Albite) + 4CO₂ + 6H₂O ⟶ 4Na⁺ + 4HCO₃⁻ + 8SiO₂ + Al₂Si₂O₅(OH)₄

(4)

4KAlSi₃O₈ (K-feldspar) + 4CO₂ + 6H₂O ⟶ 4K⁺ + 4HCO₃⁻ + 8SiO₂ + Al₂Si₂O₅(OH)₄

(5)

In general, in addition to halite dissolution, seawater and deep fluids can also be sources of Cl⁻ [48,49]. Most of the Cl⁻ concentrations of the water samples are higher (>3 mg/L), especially in the high temperature hot springs (Table S1), so the Cl⁻ contribution of seawater is neglected because the mean value of Cl⁻ contribution is 0.92 mg/L in continental meteoric water and TDS is generally less than 20 mg/L [50]. And, the concentrations of Cl⁻ in groundwater from meteoric water dissolving igneous rocks range from 2 to 4 mg/L [48]. Thus, the high concentrations of Cl⁻ in water samples can be attributed to the deep fluids mixing and the dissolution of rocks (e.g., granite) in the water–rock reaction.

Ca²⁺, Mg²⁺, and HCO₃⁻ are commonly obtained through the dissolution of carbonate minerals (Equations (6) and (7)), resulting in Ca²⁺/HCO₃⁻ and (Ca²⁺+Mg²⁺)/HCO₃⁻ molar ratios of 1:2 [51].

CaCO₃ (calcite) + CO₂+H₂O ⟶ Ca²⁺ + 2HCO₃⁻

(6)

CaMg (CO₃)₂ (dolomite) + CO₂+H₂O ⟶ Ca²⁺ + Mg²⁺ + 4HCO₃⁻

(7)

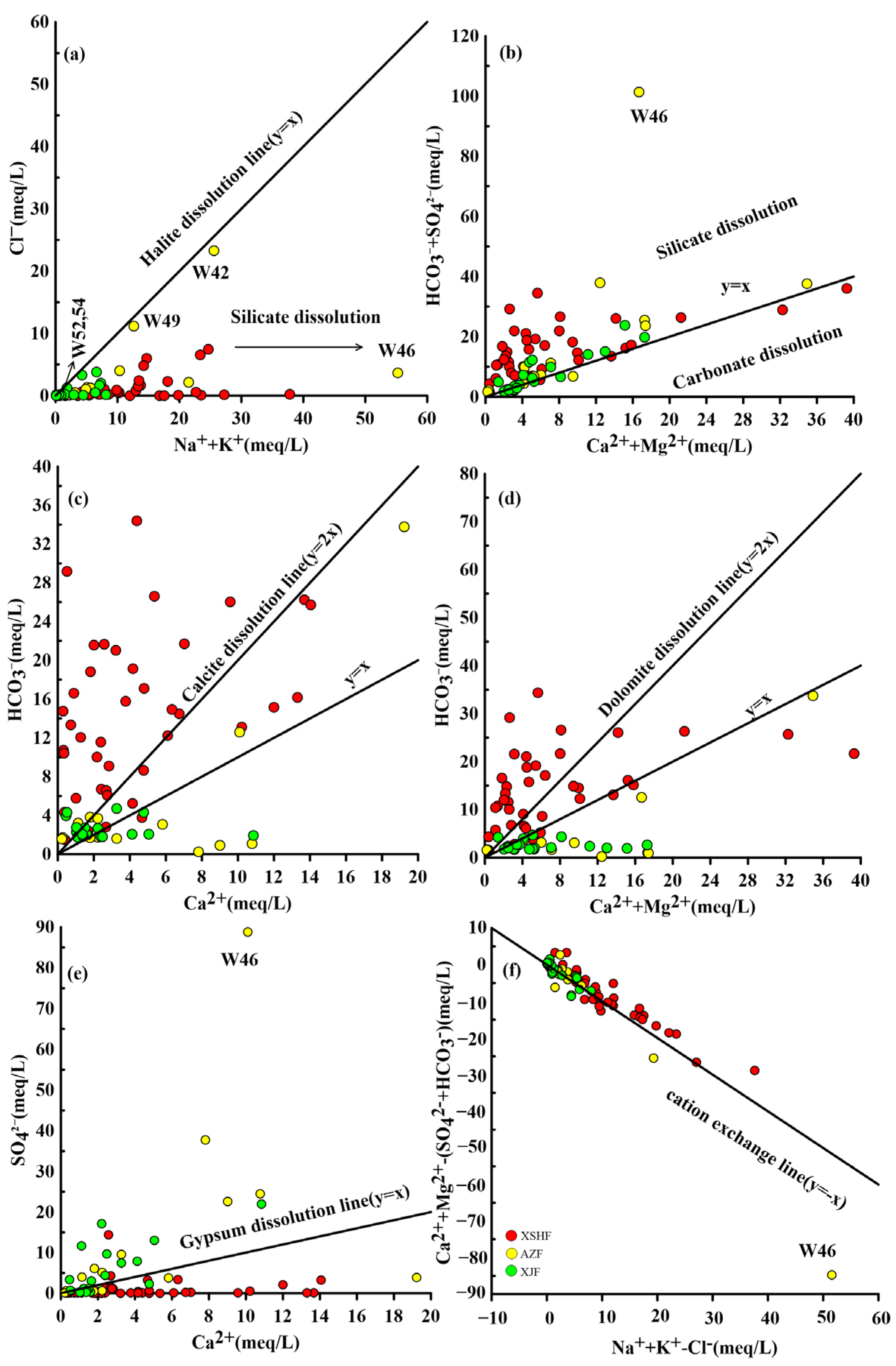

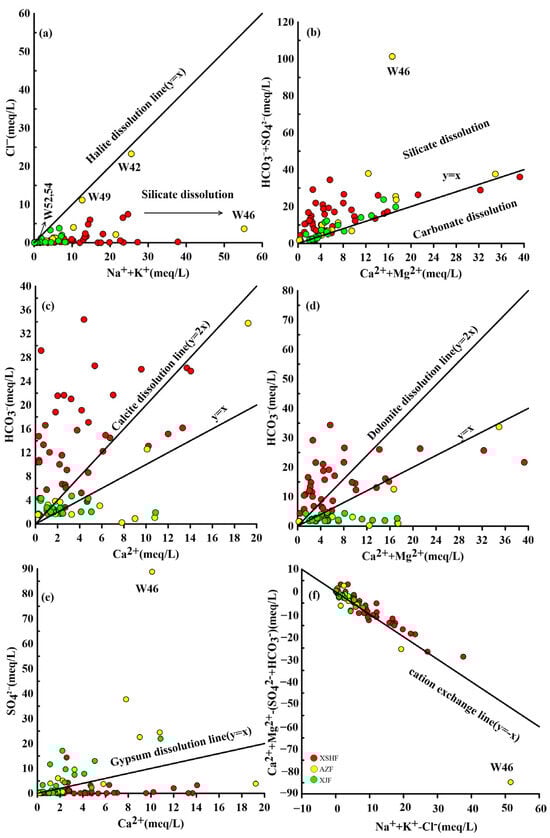

In this study, most of the water samples in the XSHF are almost close to the y-axis side (Figure 5c,d). Previous studies [22] have found that many gases spilled from the hot springs in the XSHF-AZF, which are mainly mantle-derived CO₂. Thus, excess HCO₃⁻ may be due to the dissolution of sodium silicate minerals promoted by CO₂ (Equations (4) and (5)). Some of the water samples in the AZF and XJF are located below the y = x, suggesting that excess Ca²⁺ and Mg²⁺ are likely to derive from the dissolution of Ca-Mg materials (Equation (8)), rather than carbonate dissolution alone. The Figure 5b displays that the majority of water samples are scattered above y = x, indicating that dissolution of silicate minerals is the main hydrogeochemical process controlling the ion concentration of the hot-spring waters.

CaAlSi₂O₈ (Anorthite) + 8H⁺ ⟶ 2Al³⁺ + Ca²⁺ + 2H₄SiO₄

(8)

Furthermore, the dissolution of gypsum in groundwater could also contribute to Ca²⁺ (Equation (9)). Figure 5e illustrates that gypsum may be the source of Ca²⁺ in the hot-spring waters. However, some of samples in the AZF and XJF are scattered above the gypsum dissolution line, indicating that the excess SO₄²⁻ may originate from the hydrolysis of sulfides in the strata.

CaSO₄ + 2H₂O ⟶ Ca²⁺ + SO₄²⁻ + 2H₂O

(9)

In the Na⁺ + K⁺ − Cl⁻ vs. (Ca²⁺ + Mg²⁺) − (SO₄²⁻ + HCO₃⁻) diagram (Figure 5f), most of the samples are scattered along the 1:1 line, hinting that the cation-exchange process between deep fluids and secondary silicate minerals (e.g., kaolinite, illite, montmorillonite, etc.) may affect the chemical composition of the water. But, water sample 46 is not significantly affected by cation exchange (Figure 5f). It is the Na-SO₄ type that is exposed in granite. The high concentrations of Na⁺ (Figure 5a) come from the hydrolysis of silicates at high temperatures, and high concentrations of SO₄²⁻ (Figure 5b,e) come from the oxidation of sulfides (e.g., pyrite) in granite.

5.2.2. Mineral Saturation Index

The mineral saturation index (SI) could be used to qualitatively recognize the minerals that tend to precipitate or dissolve during water–rock interactions [52]. A positive or negative values for the SI can indicate whether the water is saturated or unsaturated with a particular mineral. The PHREEQC software 2.12.5 was utilized to determine the mineral saturation indices of potential minerals in the circulation path of thermal waters, considering the temperature and pH. The results were presented in Table S4.

Almost all the water samples are undersaturated with respect to albite, anorthite, Ca-montmorillo, K-feldspar, halite, carbonate minerals (rhodochrosite, siderite, witherite), and sulfate minerals (anhydrite, barite, celestite, gypsum), indicating that the dissolution of those minerals could not be the main processes for the hydrochemical formation for the hot-spring waters. In contrast, the thermal waters exhibit an oversaturation of aragonite, calcite, and dolomite, indicating the contribution of deep fluids enriched in CO₂ that degassed with the decrease of hydrostatic pressure during upwelling. Oxides and hydroxides, such as manganite and pyrolusite, show either oversaturation or undersaturation in the water samples, which may reflect variations of the surrounding rock and Fe and Mn origins.

5.3. Geochemistry of Trace Element

As aforementioned, B, As, Fe, and Mn are relatively enriched in hot-spring waters in the XSHF-XJF, and Li and Sr are also typical trace components in geothermal systems. In the following section, the source characterizations of trace elements (B, Li, As, Sr, Fe, Mn) in the hot-spring waters are discussed using multivariate statistical methods. According to the results of the factor analysis (Figure 6a), the first four eigenvalues together accounted for 73.4% of the total variability of the hydrochemical processes. F1 explains 37.1% of the total variation with strong positive loading on Li, K⁺, Na⁺, B, T, Cl⁻, and HCO₃⁻. It shows a general trend in hydrochemical characterization, probably reflecting the mixture of the surface water (Figure 2) and deep fluids (e.g., magmatic and tectonic fluids), as well as the dissolution of silicate. F2, explaining 15.4% of the variance, is related to Mn, Ca²⁺, HCO₃⁻, Cl⁻, and Fe. It characterizes the effect of Fe, Mn, and carbonite dissolution. F3, explaining 13.6% of the variance, is related to SO₄²⁻, As, and Sr and characterizes the influence of sulfate. F4, explaining only 7.3% of the variance, is positively correlated with Mg²⁺, NO₃⁻ and negatively correlated with pH and mainly characterizes the anthropogenic effect. Interestingly, most of the samples from the XSHF have high scores for F1 and F2, while most of the samples in the AZF and XJF (except for sample No.42) have high scores for F3 and F4, as indicated by the factor scores result (Figure 6b). Therefore, it is inferred that trace elements in the hot springs in the XSHF-XJF have different sources and controlling factors.

5.3.1. Sources and Controlling Factors of Trace Elements in the XSHF

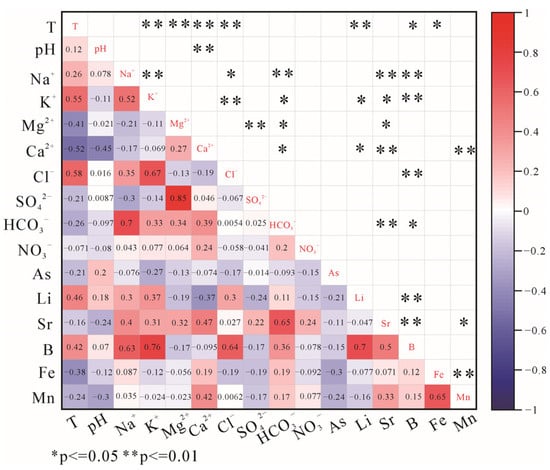

In the XSHF, the concentrations of trace elements (B, Li, Fe, and Mn) in the hot-spring waters are generally higher (Figure 2). Granites of different periods are the main thermal reservoirs in this area, and F1 also shows that silicate mineral dissolution influences the chemical compositions of hot springs. The concentrations of B in water samples range from 20.7 to 3943 μg/L, with a mean value of 1045.33 μg/L. Boron in thermal waters is usually controlled by leaching from the host rocks and the input of deep fluids owing to its soluble and incompatible nature [53]. It correlates positively with Na⁺ (r = 0.63), K⁺ (r = 0.76), and Cl⁻ (r = 0.64) (Figure 7), indicating that their sources are similar. Previous studies indicate that felsic igneous rocks (e.g., granites and rhyolites) in the Tibetan Plateau usually have greater B contents than sedimentary and metamorphic rocks [54]. High concentrations of B (>1 mg/L) are found in the Kangding segment developed by Cenozoic granite and in water samples of Nos. 1, 4, 12, 16, 19, and 20 exposed to Cretaceous and Tertiary granites in the northern part of the fault. Therefore, the dissolution of granites should be an important source of B for the hot springs. Also, B and Cl are conservative components of thermal waters, and their ratios are often used to determine a common reservoir [55]. In Figure 8, the values of the B/Cl ratio in the water samples in the southern parts of the XSHF (Kangding-moxi segment) are lower than those in the north. Based on the geological and magnetotelluric evidence, there are conductors (resistivity < 10 Ωm) at a depth of 10 km below the Kangding geothermal field, which are interpreted as an underlying zone of partial melt that provides continuous heat and fluids for the geothermal field [23], and there are higher shear stresses in this area, which are more favorable to the extension of faults into deep water rather than the tensile stress, increasing the permeability of the fault [56]. The study on hydrogeochemistry also shows that the presence of magma beneath Kangding, with parent geothermal fluids (Cl concentrations of 1056 mg/L) mixing with shallow groundwater, results in higher Cl concentrations in the hot-spring waters [57]. So, B/Cl ratios could reflect that hot springs have two different reservoir sources. Additionally, B in the hot-spring waters correlates positively with HCO₃⁻ (r = 0.36) (Figure 7), which may reveal the influence of deep water–CO₂–rock reactions on concentrations of B. Since most water samples have pH values below 8 (Table S1), it is likely that B is present as H₃BO₃ [58]. The experiments on the leaching of borate minerals demonstrate that when CO₂ concentration rises, the solubility of B in waters increases, producing H₃BO₃ [59]. So, the strong release of deep CO₂ gas may promote the enrichment of B in the hot springs.

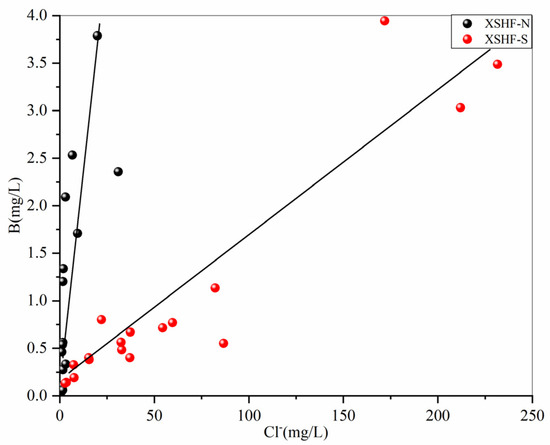

The concentrations of Li range from 1.79 to 4547 μg/L, with the mean value of 1009.65 μg/L. Lithium belongs to alkali metals that tend to be more enriched in acidic rocks [60]. It correlates positively with K⁺ (r = 0.37) and B (r = 0.70) (Figure 7), indicating that they have similar sources. The Li concentrations of granite in the XSHF range from 10.70 to 48.00 ppm [54], which can provide abundant Li for the hot-spring waters. So, the hydrolysis of silicate minerals (e.g., lepidolite) may be the main source of Li.

The concentrations of Fe and Mn in the hot springs show large variability, ranging from 0.662 to 5569 μg/L, and 0.065 to 6424 μg/L, respectively. The No.4 water sample contains the highest Fe concentration (5569 μg/L), and No.8 has the highest Mn concentration (642 μg/L). A high concentration of Fe in water samples may related to groundwater flowing through iron deposits in the Triassic strata in the area [61,62]. The water samples, being supersaturated for goethite and hematite, also support the high content of Fe in hot springs. Manganese correlates positively with Fe (r = 0.65) (Figure 7), indicating that they may be concomitant. The concentrations of Sr range from 0.019 to 4016 μg/L. Strontium correlates positively with Ca²⁺ (r = 0.47), Mg²⁺ (r = 0.32), HCO₃⁻ (r = 0.65), and Na⁺ (r = 0.40) (Figure 7), suggesting that the dissolution of Sr-bearing minerals in granite and carbonate rocks may provide a large amount of Sr for the hot-spring waters.

5.3.2. Sources and Controlling Factors of Trace Elements in the AZF and XJF

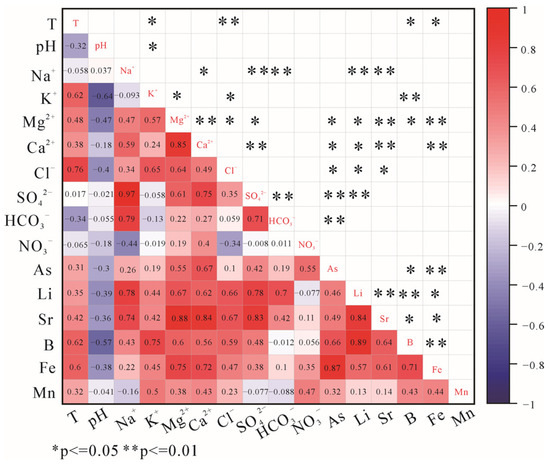

The concentrations of As and Sr in hot springs in the ANHF-XJF are higher compared to the XSHF (Figure 2). Strontium is positively correlated with Ca²⁺, Mg²⁺, Na⁺, and SO₄²⁻ in the AZF and XJF (Figure 9 and Figure 10). Strontium can form sulfate and carbonate minerals, and can also be integrated into carbonates, sulphates, and aluminum silicates to replace calcium, so it is more abundant in rocks with high calcium content [63]. The ZMHF is dominated by Cambrian and Ordovician dolomite and limestone, whereas the XJF is surrounded by carbonate rocks, limestone, and sandstone. Therefore, the concentrations of Sr in hot springs in the ANHF-XJF are much higher than those in the XSHF, which is caused by the former flowing through a large distribution of carbonate rocks.

Arsenic concentrations in water samples in the AZF and XJF range from 1.11 to 530 μg/L, and 0.6 to 349 μg/L, respectively. Arsenic is significantly and positively correlated with Mg²⁺ (r = 0.55), Ca²⁺ (r = 0.67) in the AZF (Figure 9), and with K⁺ (r = 0.50), Sr (r = 0.53) in the XJF (Figure 10), suggesting that it also may originate from water–rock interactions. High concentrations of As are related to the dissolution of pyrite and arsenopyrite in shale, siltstone, and interbedded Tertiary lignite. However, it is not significant with SO₄²⁻ in the AZF and not correlated with SO₄²⁻ in the XJF (Figure 9 and Figure 10), which indicates that sulfide minerals are not the major mediators of As migration in the hot-spring waters. The hydrated iron oxide in the aquifer has a high As adsorption capability owing to its large specific surface area [11]. Goethite and hematite have a tendency to precipitate (SI > 0), implying that large amounts of As can be adsorbed. Arsenic is significantly and positively correlated with Fe (Figure 9 and Figure 10), further illustrating that it may be sorbed to the surfaces of iron-bearing minerals. Therefore, As is most likely released by the reductive breakdown of iron oxides under high-temperature and alkaline environments.

The concentrations of Fe in hot springs range from 8.25 to 7867 μg/L, and 4.23 to 10,520 μg/L, respectively. It is positively correlated with Mg²⁺ (r = 0.75) and Ca²⁺ (r = 0.72) in the AZF (Figure 9) and correlated with Ca²⁺ (r = 0.58) and SO₄²⁻ (r = 0.54) in the XJF (Figure 10), which is inferred to be derived from the dissolution of pyrite from the lignite (Equation (10))

2FeS₂ + 7O₂ + 2H₂O ⟶ 2Fe²⁺ + 4SO₄²⁻ + 4H⁺

(10)

Furthermore, because carbonates are present in the strata, the free sulfuric acid produced by the oxidation of pyrite will react with carbonates (Equation (11)), which may also be a reason for the high concentration of Fe, SO₄²⁻, Ca²⁺, and Mg²⁺ in hot springs in the XJF.

H₂SO₄ + (Ca, Mg) CO₃ ⟶ (Ca, Mg)²⁺ + SO₄²⁻ + CO₂ + H₂O

(11)

The concentration ranges of B and Li in the AZF are 11.1–6366 μg/L, and 6.49–2425 μg/L, respectively. The ionic components of hot springs were influenced by a combination of silicates, carbonates, and evaporites in the AZF. Boron correlates positively with K⁺ (r = 0.75), Mg²⁺ (r = 0.6), Cl⁻ (r = 0.59), and Li correlates positively with Na⁺ (r = 0.74), Ca²⁺ (r = 0.62), HCO₃⁻ (r = 0.7), SO₄²⁻ (r = 0.78), Cl⁻ (r = 0.66) (Figure 9). So, B and Li may be derived from water–rock interactions between thermal water and granite, dolomite, and other sedimentary rocks. In the XJF, B and Li concentrations range from 5.6 to 4262 μg/L, and 1.29 to 872 μg/L, respectively, and the dissolution of carbonate minerals has the greatest impact on the hot springs. However, B and Li are weakly correlated with Ca²⁺, Mg²⁺, and HCO₃⁻, but are significantly positively correlated with Na⁺, K⁺, and Cl⁻ in the water samples (Figure 10), suggesting that they are likely derived from the leaching of reservoir rocks in the deep. Additionally, water samples from No. 55 to No. 60 in the northern segment of the XJF have low B/Cl ratios (mean: 0.016) with high concentrations of Cl, while B/Cl ratios (mean: 0.1) are higher in the southern one. According to geophysical research, anomalies of low velocity and high Poisson’s ratio are present at the northern segment (26.5° N) of the XJF and are interpreted as fluid intrusions (partial melt of deep material) [64]. The XJF served as a channel of groundwater in the crust, which could be influenced by hot materials in this region. Geological and geodetic studies show that the slip rate of the southern fault in the XJF is low and may not be sufficient to create and maintain permeable fluid pathways [65] and that the high-resistivity cap on top of the fault zone conductors may prevent further flow of deep fluids into the shallow crust [66]. Moreover, the circulation depth in the northern region of the XJF is not higher than that in the southern [19]. Thus, water samples in the northern region with high concentrations of Cl (>100 mg/L) may be strongly influenced by deep fluids. B/Cl ratios could also reflect that hot springs are affected by different reservoirs. Additionally, F4 implies that human activities may also have an influence on the components of hot springs in the AZF-XJF.

5.3.3. Influence of Fault-Controlled Circulation Depth on Trace Elements

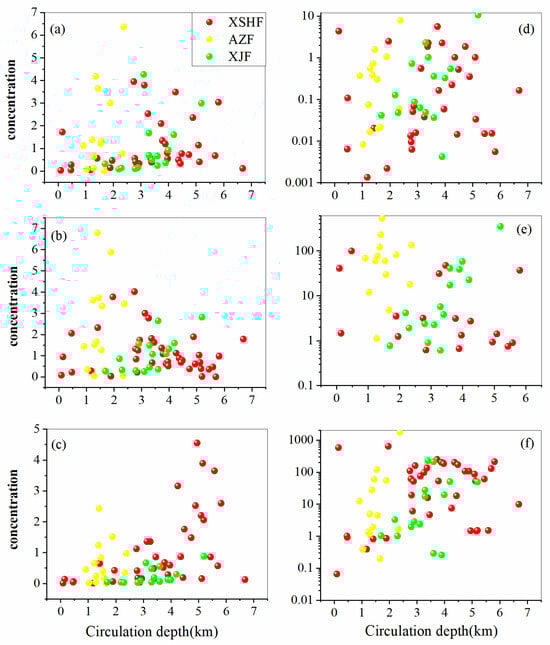

The concentrations of trace elements in geothermal waters are usually influenced by the circulation depth controlled by faults, resulting in a vertical distribution [67]. Figure 11 illustrates the relationship between circulation depth and trace-element concentration. The concentrations of B and Li increase with the increasing circulation depth of hot-spring waters. Strontium concentrations show a positive trend with circulation depth in the XJF, while it has a negative trend with circulation depth in the XSHF (Figure 11b). The geothermal reservoirs in the XSHF present dual structure characteristics [26]. Deep geothermal water, enriched with elements such as Na, K, and Li, is primarily associated with granite reservoirs. Whereas, shallow geothermal water is associated with limestone reservoirs, with high concentrations of Ca and Mg [68]. Therefore, with a shallower circulation depth, the chemical composition is significantly influenced by carbonate rocks, and Sr concentrations are higher owing to the stronger affinity between Sr and Ca. As for the concentration of Fe, Mn, and As, they are not significantly controlled by the circulation depth, except in the XJF, which may be affected by other factors (e.g., dissolution and precipitation of minerals, adsorption and desorption, etc.) [69]. The circulation depth of hot springs in the AZF is generally low, and the concentrations of trace elements are highly variable because of the complex geological conditions in this area. As mentioned above, the circulation depth of hot springs can affect the trace-element concentration, especially B and Li. Deep circulation of thermal waters would promote the upwelling of deep geothermal fluids and enhance water–rock interactions, which in turn affects their concentrations.

5.4. Conceptual Model of Hot Springs in the XSF-XJF

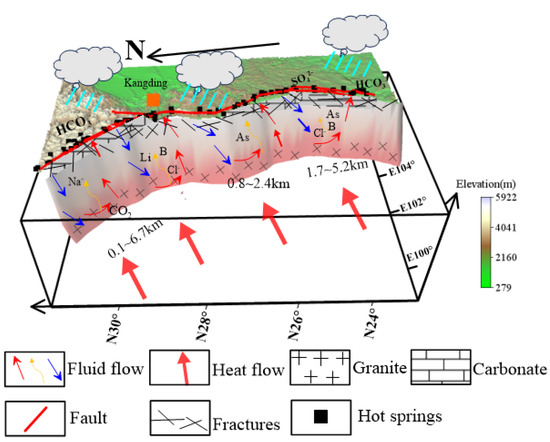

Deep and large fault zones and secondary fractures play an essential role in the convective transfer of geothermal water, which can control the circulation path of geothermal water [70]. The emergence and circulation of hot springs are controlled by the XSHF-XJF and the secondary fractures (Figure 12), and its recharge is of meteoric water based on the values of δD and δ¹⁸O. Previous geological and geophysical studies show that the deep heat source for geothermal water is related to the frictional heat generation from active faults, decay of radioactive elements, and high conductivity and low-velocity zones associated with partial melting of the upper crust [71]. Due to the constrain imposed by the lithology of thermal reservoirs and the degree of water–rock interaction, the composition of hot-spring waters appears to be controlled by a specific geologic environment. In the XSHF, the hot springs are mainly influenced by deep granite and shallow carbonate rocks, with high circulation depths (0.1~6.7 km) and a mean value of 3.4 km. The Kangding–Moxi segment has a higher circulation depth (1.9~5.8 km). High concentrations of B and Li mainly originate from leaching of granite and are controlled by circulation depth. The contribution of the input of deep fluids to them is also not negligible, especially in the Kangding area. Interaction with surrounding rocks, containing Fe and Mn minerals at high temperatures, during the upwelling of hot-spring water results in high concentrations of Fe and Mn. In the XJF, the surrounding rocks of the hot springs are mostly interbedded with carbonates, limestone, and mudstone, and the circulation depth (1.7~5.2 km) is lower compared to XSHF. Sedimentary rocks and Tertiary lignite provide an important source of Fe and As in hot springs, and B may originate from deep thermal reservoirs. Trace-element concentrations are significantly controlled by the circulation depth. The hot-spring waters in the AZF have a much lower circulation depth (0.8~2.4 km), and the chemical compositions of hot-spring waters vary significantly owing to complex stratigraphic lithology.

6. Conclusions

In this study, the geochemical characteristics of trace elements in hot-spring waters were investigated in the XSHF-XJF, and the conclusions were as follows:

(1)

The hot-spring water was recharged by atmospheric precipitation, and the isotope compositions were more depleted in the XSHF owing to the elevation effect.

(2)

High concentrations of B, Fe, Mn, and As were found in the XSHF-XJF, and the values of WQI indicated that the water quality was spatially heterogeneous and the hot-spring waters were not entirely suitable for drinking.

(3)

The leaching of the surrounding rock during water–rock interaction was the main source of trace elements, and the diversity of stratigraphic lithology was the main factor affecting their concentrations. High concentrations of B and Li were mainly derived from the dissolution of granite. Arsenic concentrations were affected by the reductive breakdown of iron oxides in the ANHF-XJF. In addition, B/Cl ratios showed that hot springs have different reservoir sources in the XSHF and XJF, respectively, and circulation depth could influence the concentrations of trace elements.

The results of this study indicated the importance of trace elements in the circulation of thermal waters, especially in geothermal systems controlled by faults. Although this area has abundant geothermal resources, it is important to be aware of the high concentration of trace elements (e.g., As) in the exploitation process. Consequently, future work could carry out studies on species variation and the fate of toxic elements in geothermal systems, as well as on the possible pollution of nearby rivers.
