Research on the Early Warning Model for Pipelines Due to Landslide Geohazards under Multiple Influencing Factors
Abstract
:1. Introduction
2. Site Survey
3. Numerical Simulation
3.1. Simulation of Working Conditions
3.2. Simulation Parameters
3.3. Simulation Results

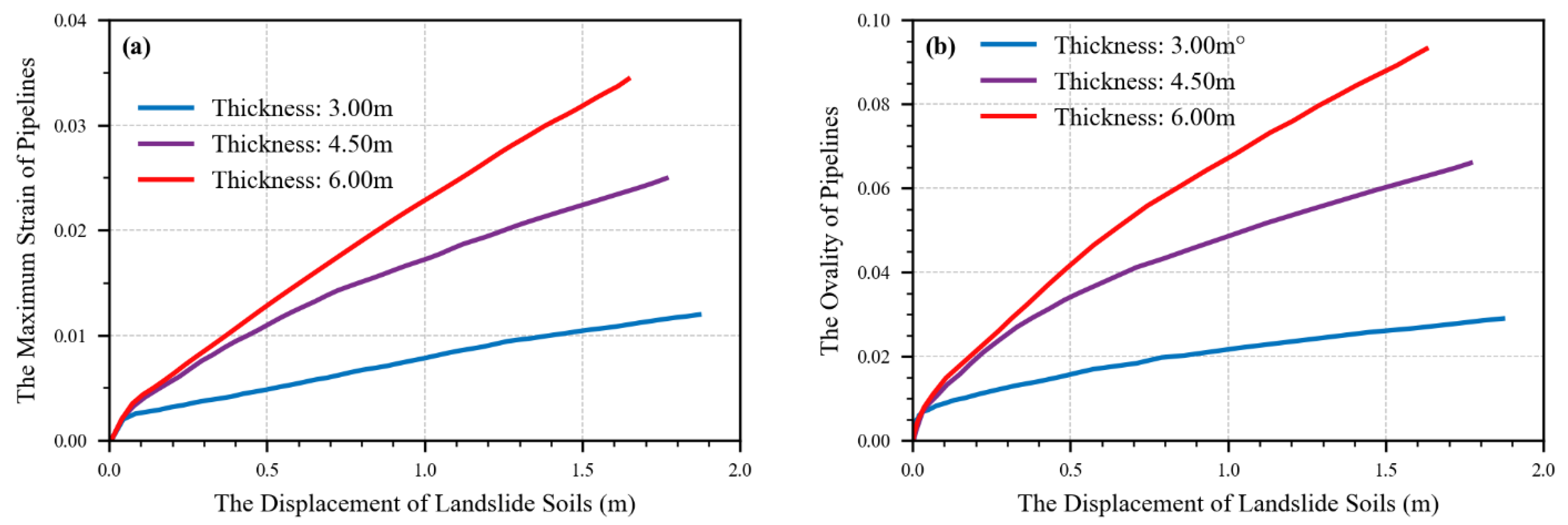

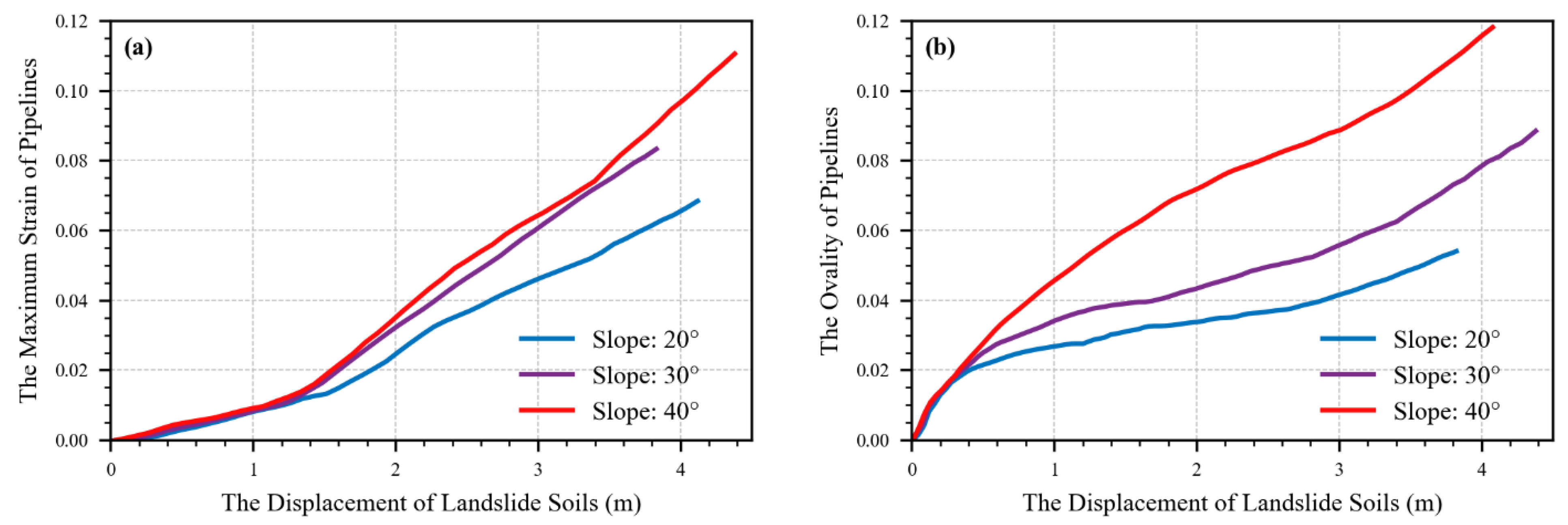

3.3.1. The Pipeline Crossing Landslide Laterally
3.3.2. The Pipeline Crossing Landslide Longitudinally
3.4. Discussion of Simulation Results
- Whether the pipe crosses the landslide laterally or longitudinally, the effects of landslide slope, landslide thickness, and landslide length on pipeline deformation are consistent with the same trend, which means that the degree of pipeline deformation is increasing with those variables. It is because both the mass of the unstable soil above the pipe and the unbalance force become larger as these quantities become larger. Thus, the deformation of the pipeline becomes larger.
- When the pipeline crosses the landslide laterally, it is noticed that the pipeline deformation decreases with the increasing width of the landslide body. The smaller the landslide width is, the more concentrated the strain is, and, therefore, the larger the pipeline deformation is.

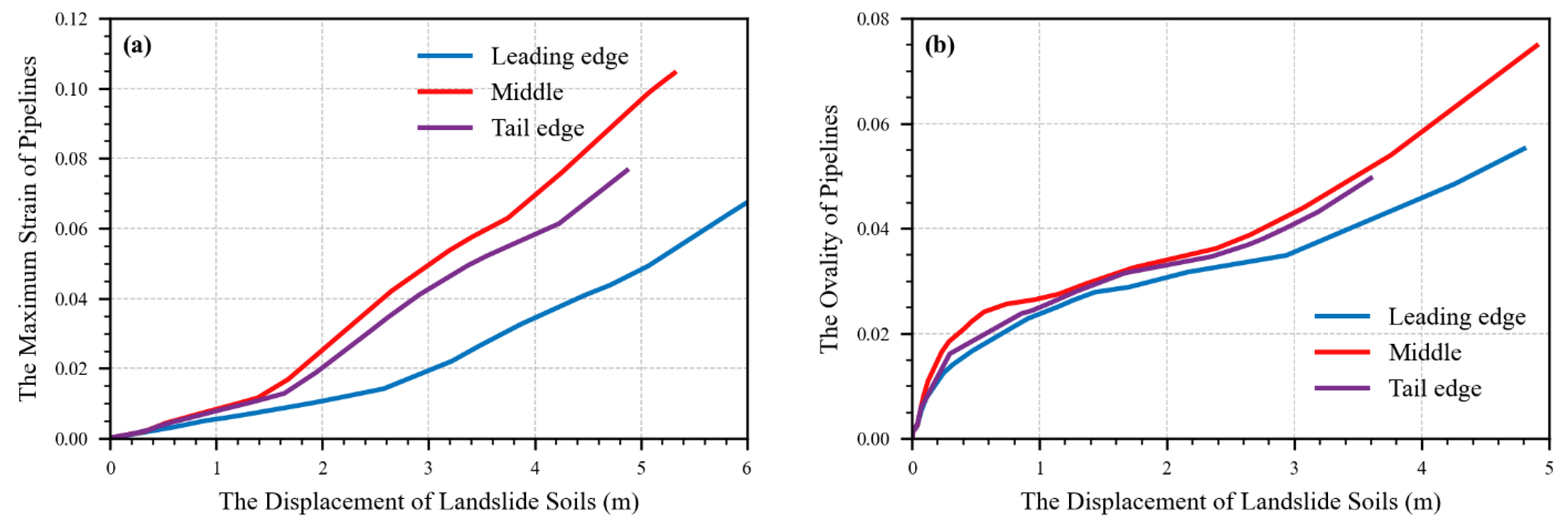

- When the pipeline crosses the landslide laterally, the pipelines are relatively safe at the leading edge of the landslide body, followed by the trailing edge of the landslide body, and are most dangerous in the middle of the landslide body. The unbalanced force is the slightest because the soil at the front edge of the landslide body is supported by the stable soil below. Thus, the deformation of pipelines is minor when the pipeline is located at the front edge of the landslide body. Furthermore, the unstable soil mass carried in the middle of the landslide body is more significant than that at the back edge of the landslide body. Therefore, the pipeline in the middle of the landslide body shows the most significant deformation.
4. Quantitative Impact of Influencing Factors and Early Warning Models
4.1. Quantitative Impact of Influencing Factors

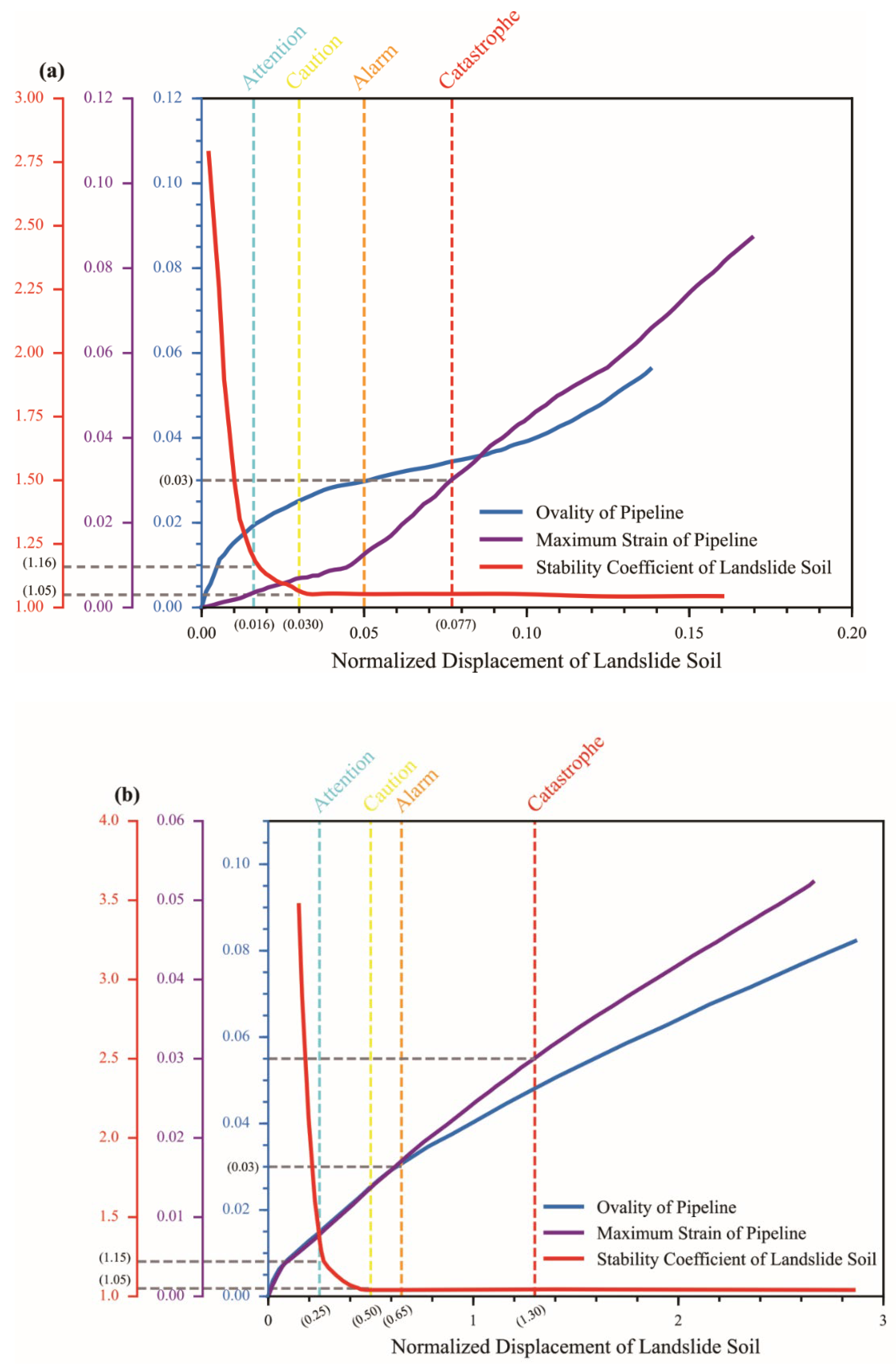

4.2. Discussion of the Early Warning Models
5. Conclusions
- Through a field investigation, we found that the scale of landslides, including the length, width, slope, and thickness, and the relative position of the pipeline landslide are the main factors determining the deformation of pipelines induced by landslides. The degree of the pipeline’s deformation was determined by the relative position between the pipeline’s location and the landslide and the landslide scale.
- Based on numerical simulation, no matter whether the pipeline crosses the landslide laterally or longitudinally, with the increase of the landslides’ angles, thicknesses, and lengths, the deformation characteristic of pipelines appears almost identical. The deformation of pipelines keeps continues to increase. The smaller the landslide width is, the more concentrated the strain is, and therefore, the larger the pipeline deformation is.
- When the pipelines cross the landslides laterally, the deformation of pipelines reduces with the broadening of the width of landslides, it is safer for the pipelines buried in the leading edge of landslides than the tail edge, and it is most dangerous when the pipelines are located in the middle of landslides.
- Considering the variation of the scale, a piecewise forewarning model including multiple parameters was established based on the influence function for crossing pipelines in landslides.
