A continuous stirred tank reactor (CSTR) was utilized in this study to enrich and cultivate anaerobic ammonia oxidation process (ANAMMOX) granular sludge by gradually decreasing its pH, and to investigate the effects of different concentrations of ferrous ions (Fe2+) on the activity of ANAMMOX granular sludge cultivated under biased acidic conditions. The final nitrogen removal of ANAMMOX deteriorated at pH 6.30–6.50 after 220 days of continuous operation, but the nitrogen removal of ANAMMOX was favorable at pH 6.50–7.00. This indicates that a slightly acidic environment (pH = 6.50–7.00) promotes the activity of ANAMMOX, but the pH should not be too low (pH = 6.30–6.50). In the reactor, Candidatus Kuenenia was consistently the dominant ANAMMOX genus and its abundance declined from 11.70% on day 1 to 10.44% on day 220. As Fe2+ concentrations were increased (10, 20, 30 mg/L) in ANAMMOX granular sludge cultured in an acidic environment, the nitrogen removal effects gradually increased. In addition, with the increase in Fe2+ concentrations, the total nitrogen removal load (NRL) in the reactor was increased from 1.16 kg/(m3/d) to 1.42 kg/(m3/d). Increases in Fe2+ concentration did not result in inhibition of ANAMMOX, which may be attributed to the morphology of sludge and the shape of the reactor. As a result of the present study, new insights were gained into the physiological characteristics of ANAMMOX in an acidic environment over the long term, and how Fe2+ affects its ability to remove nitrogen from the environment.

1. Introduction

Water eutrophication is caused by the excessive concentration of nitrogen and phosphorus in water [1], and has gradually become a global environmental issue [2]. Water ecosystems have been attracting widespread attention in terms of nitrogen removal pathways [3]. The emerging ANAMMOX (Equation (1)) can significantly reduce energy consumption and organic carbon demand compared to traditional nitrification–denitrification technology [4,5,6,7]. The stability of partial nitrification (PN) is crucial to maintaining a continuous supply of nitrite (NO2-N). However, in lower ammonia (NH4+-N) concentrations water, the provision of stable NO2-N through PN and partial denitrification (PD) is difficult to achieve [8,9]. In addition, the instability of PN and PD will lead to nitrification/denitrification in the whole process, and also consume a part of NO2-N which will lead to the lack of reaction substrates in ANAMMOX [10].
NH4+ + 1.32NO2 + 0.066HCO3 + 0.13H+ → 1.02N2 + 0.26NO3 +
0.066CH2O0.5N0.15 + 2.03H2O
2Fe2+ + NO3 + 3H2O → 2FeOOH + NO2 + 4H+
Fe2+ could stimulate the enzyme activity and accelerate the specific growth rate of ANAMMOX, which is favorable for the rapid enrichment of ANAMMOX [11]. In the ANAMMOX system, Fe2+ can trigger other pathways for nitrogen removal, thereby enhancing nitrogen removal [12]. Furthermore, Fe2+ [13] in an acidic environment has a strong reducing ability for nitrate (NO3-N) (Equation (2)), and NO2-N is produced during this reaction. According to Zhang et al. [13], NO2-N concentrations were detected when NO3-N was reduced by Fe2+. Therefore, the reduction of NO3-N to NO2-N using Fe2+ will provide a reaction substrate for the ANAMMOX reaction, which not only saves carbon source and reduces the residual sludge discharge, but also allows the NO3-N produced by ANAMMOX to then continue to participate in the nitrogen removal process. Reduction of NO3-N with Fe2+ produces a number of gaseous intermediates, such as NO [12], N2O [14], and N2 [15]. In addition, iron is involved in almost all nitrogen transformations in the processes in which ANAMMOX bacteria are involved. For example, iron is an important component of heme. Each hydroxylamine oxidase contains twenty-six heme [16]; each hydrazine oxidase contains eight heme [17]; each hydroxylamine dehydrogenase contains seven heme [18]; and each cytochrome contains one heme [19]. It can be seen that Fe2+ is not only able to reduce NO3-N, but also is able to promote the metabolism and activity of the ANAMMOX, which improves the performance of the reactor in removing nitrogen.
When cultured ANAMMOX, it was almost in a static state in the reactor, and most of the studies indicated that ANAMMOX bacteria are suitable for survival in alkaline biased environments. One such study is Anja et al. [20], which indicated that the appropriate pH range of ANAMMOX is 7.00–7.50 and Li et al. [21] indicated that the appropriate pH range of ANAMMOX is 7.50–8.00. In addition, Fe2+ concentrations have been investigated as a potential promoter of ANAMMOX nitrogen removal [22,23]. But most of the ANAMMOX they used was cultured in a biased alkaline environment for enrichment. However, it has not been studied how ANAMMOX initiates in a dynamic and under long-term acidic conditions, or how Fe2+ affects the activity of the strain cultivated under such conditions.
Therefore, this study was conducted in order to investigate the nitrogen removal performance of ANAMMOX under acidic conditions and to determine the effect of Fe2+ on the performance of this ANAMMOX in nitrogen removal. Specifically, it was divided into (1) exploring the long-term operational effects of ANAMMOX by gradually lowering the pH in the system in the dynamic environment of the CSTR; (2) changes in biodiversity and dominant genera within the reactor were explored by 16sRNA high-throughput sequencing; (3) ANAMMOX granular sludge with successfully initiated nitrogen removal was investigated at different Fe2+ concentrations.

2. Materials and Methods

2.1. Wastewater Feed and Sludge Source

Synthetic wastewater was prepared with tap water. The system used NH4Cl and NaNO2 as a nitrogen source, and NaH2PO4 as a phosphorus source. Suitable amounts of trace element solution were added to the reactor [24]. Table 1 presents the parameters that influence reactor operation. A rising filter column cultured by the group was used to inoculate sludge taken from ANAMMOX granular sludge. Total nitrogen removal rate (NRR) in the rising filter column averaged 71.15%. The sludge was brownish red in color due to the multiple dead zones in the reactor. In order to investigate the nitrogen removal performance of ANAMMOX under acidic environment, organic carbon source was not added in this study.

2.2. Reactor Configuration and Operation

In this study, ANAMMOX was continuously stirred in a continuous stirred tank reactor (CSTR) in order to enrich it and observe the effect of Fe2+ on the performance of nitrogen removal (Figure 1). The reactor had an effective volume of 7 L and the temperature inside the reactor was maintained at 30 ± 1 °C by heating it in a water bath. The CSTR was operated continuously for 223 days, and the speed was gradually increased from 20 to 40 rpm using the motor (Table 1). The water feed to the reactor was continuous. The CSTR was activated by adjusting the influent water quality and hydraulic residence time (HRT) and mixing speed to make the granular sludge mix well with the sewage.

2.3. Microbial Diversity

We used the Alpha diversity index to assess the diversity of the sludge, and high-throughput sequencing was used to identify the microbial populations in the sludge. On day 1 and day 220, samples of sludge were taken from the reactor. DNA was extracted from the CSTR soil samples using an E.Z.N.A Soil DNA Kit (OMEGA, New York, NY, USA) in accordance with the manufacturer’s instructions. Using the primer sets 341F (5′-ATGCGTAGCCGACCTGAGA-3′) and 805R (5′-CGTCAGACTTTCGTCCATTGC-3′), the V3-V4 region of the universal 16S rDNA gene was amplified. A two-step multiplex PCR protocol was used to prepare the 16S rDNA amplicon library. The first round of PCR reactions was conducted with a mixture of 15 L (2.00 L) of Hieff® PCR Master Mix (Yousen Biotech Co., Ltd., Shanghai, China), 1 L Bar-PCR primer F and 1 L Index-PCR primer R, combined with 10–20 ng of template DNA and PCR-grade water, reaching a total volume of 30 μL. For the second round of PCR, 15 mL of two-factor Hieff® PCR Master Mix (Yousen Biotech Co., Ltd., Shanghai, China), one mL of primer Bar-PCR F, one mL of Index-PCR-Primer R, 20–30 ng of PCR products, and PCR-grade water were used, resulting in a final volume of 30 μL. There were five cycles of PCR amplification: an initial step of denaturing at 94 °C for 3 min, an annealing stage at 55 °C for 20 s, an extension stage at 72 °C for 5 min, and a final extension stage at 72 °C for 10 min. A 1% (w/v) agarose gel in TBE buffer (Tris, boric acid, EDTA) was used to electrophorese the PCR products, which were stained with ethidium bromide and examined under ultraviolet illumination.

2.4. Influence of Different Fe2+ Concentrations on the Nitrogen Removal Effect

The experiment was conducted using ANAMMOX granular sludge successfully initiated in CSTR. This section examined the effects of different Fe2+ concentrations on the activity of ANAMMOX as well as the effectiveness of nitrogen removal. The temperature was controlled at 30 ± 1 °C and pH 7.50 ± 0.10 during the experiments. Table 2 provides a detailed description of the experimental conditions.

2.5. Analytical Methods

A sample of water was collected from influent and effluent water of the CSTR. Standard methods have been used to monitor the concentrations of NH4+-N, NO2-N, and NO3N [25]. An HI 931700 pH meter and an HI 2400 DO meter were used to measure pH and dissolved oxygen (DO), respectively. On day 220, a fluorescence microscope (BX 41, OLYMPUS) was used to observe the sludge morphology in reactors.

2.6. Calculation

The total nitrogen (TN), total nitrogen influent loading (NIL), ammonia removal efficiency (ARE), NRL, and NRR were calculated by Equations (3)–(8) [8,26,27,28] as follows:
T N =   C N H 4 + - N + C N O 2 - N + C N O 3 - N
N I L = T N i n H R T
N R L = T N i n T N e f f H R T
A R E = N H 4 + I n f N H 4 + E f f N H 4 + I n f
N R R = T N i n T N e f f H R T
where C N H 4 + N , C N O 2 N , and C N O 3 N are the concentrations of NH4+-N, NO2-N, and NO3-N, respectively; NIL and NRL are total nitrogen influent loading and total nitrogen removal loading in kg/(m3/d), respectively; ARE and NRR are the ammonia removal efficiency and TN removal rate in %; TNin and TNeff represent total nitrogen concentrations in influent and effluent, respectively; and HRT represents hydraulic retention time in hours. NH4+Inf, NH4+Eff, NO2Inf, NO2Eff are the concentration of NH4+-N and NO2-N in the influent and effluent in mg/L, respectively.

3. Results and Discussion

3.1. The Enrichment of ANAMMOX in CSTR by Gradual Reduction of pH

During the initial period of enrichment (1–31 d), the stirring speed was controlled to 20 r/min and pH was controlled at 7.50–7.70 in the influent water (Figure 2c). The ARE and NRR in the reactor on day 1 were only 46.5% and 45.75% (Figure 2a and Figure 3a), respectively, which was not good compared to the inoculated sludge. NH4+-N concentration was 27 mg/L in the effluent from the inoculated sludge reactor, and ARE and NRR were 85% and 79%, respectively. Since much of the granular sludge was stirred up and turned into flocculent sludge in the CSTR, the efficiency of nitrogen removal was reduced. A similar phenomenon occurred in Tang et al. [29] at the beginning of the ANAMMOX startup, where the ANAMMOX granular sludge changed to flocs after agitation. Due to the flocculent nature of the ANAMMOX sludge at this time, and with the process of reforming granular sludge in progress, artificial sludge refluxing was started on day 4 to avoid significant sludge loss.
In addition to the negative effects of agitation, higher DO in the reactor may also affect ANAMMOX activity, resulting in poor nitrogen removal performance. There are three main reasons for the elevated DO concentration. On the one hand, the tap water distribution made the influent have close to saturated DO concentration and no measures were taken to remove DO from the influent at the beginning of the startup period; on the other hand, poor reactor sealing with agitation caused atmospheric oxygen to enter the system. Last but not least, the artificial sludge refluxing was also a significant reason for DO concentration in the reactor. By reducing the concentration of DO in the reactor, it may be possible to reduce the abundance of ammonia-oxidizing bacteria (AOB) and nitrite-oxidizing bacteria (NOB). To minimize the DO content of the feed water, nitrogen blowdown was used in the formulation of the feed water in order to provide ANAMMOX with a suitable growth environment. DO had decreased to 0.21 mg/L in the reactor on day 21, and then the value of DO in the system was still decreasing.
At the beginning of the reaction (1–4 d), the average NRR in the reactor was only 38.23%, and the average NRR increased rapidly to 75.92% after increasing reflux (4–31 d) (Figure 3a). The NRL in the reactor also increased from 0.90 kg/(m3/d) to 1.24 kg/(m3/d) at this time (Figure 3b). In addition, the ratios of the difference in influent and effluent for each nitrogen, δNO2-N/δNH4+-N, δNO3-N/δNH4+-N, and δNO3-N/δTN were 1.138, 0.195, and 0.101 (Figure 3c), respectively, which deviated from their theoretical ratios of 1.32, 0.26, and 0.127 (Equation (1)). It can be seen that, at the beginning of the reaction, the ANAMMOX sludge in the reactor was unable to adjust to the CSTR’s operating mode, and ANAMMOX activity was low due to the effects of agitation and DO.
On days 32 to 73, the pH of the influent water was reduced to 7.10–7.50 and the stirring speed was increased to 30 r/min. The concentrations of NH4+-N, NO2-N, and NO3-N in effluent gradually stabilized at 38.31 mg/L, 17.91 mg/L, and 59.20 mg/L, respectively. The concentration of DO stabilized at about 0.16 mg/L. The NRL showed a gradual increasing trend (Figure 3b), with a maximum of 2.26 kg/(m3/d) and an average NRR of 74.83% in the reactor. At this time, δNO2-N/δNH4+-N, δNO3-N/δNH4+-N, and δNO3-N/δTN were 1.460, 0.310, and 0.146, respectively, and the ratios were all higher than the theoretical values (Figure 3c). It is speculated that AOB and NOB can grow in the reactor because there was always a low DO concentration in the reactor. The results were obtained by oxidizing NH4+-N, NO2-N to NO3-N, which resulted in values that were higher than predicted. Despite this, the NRR and NRL continued to increase in the reactor. When starting the ANAMMOX process, Nutchanat and Suwanchai [30] also found that the system enters a stagnation phase after going through the cell lysis phase. At this time, the ANAMMOX activity was slowly increasing, and then it stepped into a period of increased activity. Thus, the ANAMMOX activity in this study was gradually stabilizing and increasing slowly at this time.
On days 74 to 108, the pH was controlled at 7.10–7.50 and the stirring rate was increased to 40 r/min. There was a reduction in effluent concentrations of NH4+-N, NO2-N, and NO3-N in the reactor, with average values of 36.88 mg/L, 11.03 mg/L, and 53.60 mg/L (Figure 2c), respectively, and the DO concentration was stabilized at about 0.15 mg/L. The NRR in the reactor continued to increase up to 79.41% and the NRL stabilized with an average value of 1.78 kg/(m3/d) (Figure 3a). At this time, δNO2-N/δNH4+-N, δNO3-N/δNH4+-N, and δNO3-N/δTN were 1.353, 0.273, and 0.128, respectively. In this stage, the concentration of the reactor effluent was gradually stabilized (Figure 3c), the effect of nitrogen removal gradually increased, and all the ratios were close to the theoretical ratios. It shows that the operation of the reactor tends to stabilize, and the ANAMMOX had good activity and played a dominant role.
On days 109 to 152, the stirring rate was kept constant at 40 r/min, and in order to continue reducing pH, the HRT in the reactor was increased to 5.7 h. This resulted in a pH reduction of 6.50–7.00 in the influential. The effluent concentrations of NH4+-N, NO2-N, and NO3-N were reduced to 34.63 mg/L, 7.13 mg/L, and 48.56 mg/L, and the DO concentration was stabilized at about 0.11 mg/L. The NRR in the reactor continued to increase during this phase, with a maximum of 83.90%, and the NRL stabilized at about 1.42 kg/(m3/d) (Figure 3b). At this time, δNO2-N/δNH4+-N, δNO3-N/δNH4+-N, and δNO3-N/δTN were 1.283, 0.253, and 0.124 (Figure 3c), respectively, and all ratios were close to the theoretical ones. The results indicate that the ANAMMOX nitrogen removal process is performing well at this stage. Blum et al. [31] found that the ANAMMOX activity remained at a high level and a gradual emergence of denitrifying bacteria in the system with decreasing pH when culturing ANAMMOX. From the influent and effluent about the pH of the reactor, the influent pH was slightly lower, but the effluent pH was relatively higher (Figure 2c). This may be related to the occurrence of denitrification reactions and thus alkali production within the system (Equation (8)), which provides suitable space for ANAMMOX to survive. It can be seen that the ANAMMOX activity in the reactor was favorable and still dominant at the influent pH of 6.50–7.00.
NO3 + 5/6CH3OH → 1/2N2 + 5/6CO2 + 7/6H2O + OH
On days 153 to 223, in order to further reduce the pH to 6.30–6.50, the HRT in the reactor was increased to 7.0 h. Figure 2a shows that the effluent NH4+-N concentration gradually decreased to 25.53 mg/L on average, whereas NO2-N and NO3-N concentrations in the system effluent increased to 15.08 mg/L and 51.79 mg/L on average. The NRR fluctuated at this stage, with an average NRR of around 77.85% (Figure 3a). And the NRL gradually increased up to 1.67 kg/(m3/d). The δNO2-N/δNH4+-N, δNO3-N/δNH4+-N, and δNO3-N/δTN were 1.375, 0.271, and 0.129 (Figure 3c), respectively, and the ratios are all higher than the theoretical ratio. According to the experimental results, ANAMMOX activity in the system decreased with further reduction in pH. A possible explanation for this may be the stirring action of the system after influent caused rapid contact between the ANAMMOX and the lower pH influent water in the system, which had a strong effect on the ANAMMOX. And other strains may have emerged as well, but the ANAMMOX system has not completely collapsed. Therefore, further lowering the pH of the influent water may have caused changes in colony composition within the reactor, though the nitrogen removal capacity was still high.
ANAMMOX granular sludge morphology was observed at day 220, as shown in Figure 4. ANAMMOX granular sludge has a large particle size and a bright red color. Due to the favorable gas production of the sludge, there was sludge uplift after a short resting period. This suggests that ANAMMOX was not immediately inactivated despite experiencing an acidic environment for a certain period of time, and that ANAMMOX may still have some dominance at this time.

3.2. Microbial Diversity Analysis

In order to further clarify the relationship between the microbial community and the nitrogen removal performance within the CSTR, high-throughput sequencing was used to study the structural changes of the microbial population within the reactor. Inoculated sludge from the first day and ANAMMOX granular sludge from the CSTR on day 220 were selected for comparative analysis. As shown in Table 3, Alpha diversity indices were calculated. According to this sequencing result, the Coverage value indicates whether each sample is covered, and the Coverage values of 1.00 and 0.97 indicate that the sample is representative of the microbial diversity in the reactor. Shannon index and Simpson index indicate a high degree of biodiversity in the microbial community, as the Shannon index is higher and Simpson index is lower. With the gradual decrease in pH, the Shannon index decreased from 0.11 to 0.03, and the Simpson index increased from 3.58 to 4.26. This suggests that the decrease in pH led to the creation of new communities of organisms in the system. Moreover, the Simpson index provides information regarding the proportion of dominant genera as well. The Simpson index on day 220 was smaller than that on the first day, which shows that although the study obtained a favorable nitrogen removal effect by adopting the initiation strategy of gradually lowering pH, it made the proportion occupied by the dominant strain decrease.

3.3. Microbial Community Evolution at Phylum and Genus Level

As shown in Figure 5a, there were 15 strains detected at the common phylum level for both samples, which indicates that although the two samples were in different states within the reactor, the dominant strains remained essentially the same. Proteobacteria, Planctomycetes and Chloroflexi were the dominant species at the phylum level in two samples. Proteobacteria has been considered to the common functional phyla in WWTPs [32]. The Proteobacteria contains AOB and NOB [33]; some NOB are present in the Nitrospirae [34], and ANAMMOX bacteria are mainly found in the Planctomycetes [35,36]. Planctomycetes dominated on day 220 with a percentage of 34.08%, which was 18.25% higher than inoculated sludge. This indicates that changing the sludge from the stationary to fluidized state led to the successful enrichment of Planctomycetes. It is hypothesized that the reason for this may be due to the fact that mixing allows the particulate sludge to come into fuller contact with the substrate in the water, thus increasing the sludge activity and metabolism and allowing for the enrichment of the Planctomycetes. The Proteobacteria where AOB and NOB were located decreased by 24.72% in the reactor after successful startup.
In order to further understand the microbial composition within the reactor before and after startup, the genera associated with nitrogen removal at the genus level in the reactor were analyzed. As shown in Figure 5b, the dominant genus of granular sludge in the CSTR was Candidatus Kuenenia. The largest percentage of ANAMMOX on both Day 1 and Day 220 was Candidatus Kuenenia with 11.70% and 10.44%, respectively (Figure 5b,c). On day 220 Phycisphaera (9.88%) emerged in the reactor, and this genus was a major component of nitrogen removal bioreactor [37]. This is an important reason why the pH of the effluent was able to rise. However, no study has been carried out to show the relationship between Phycisphaera and influent pH. In this study, it seems that a decrease in the pH of the influent water may stimulate the reproduction of Phycisphaera. Comparison of the percentage of Nitrosomonas (a typical AOB genus) in the two samples shows that the abundance of Nitrosomonas increased from 0.41% on day 1 to 0.99% on day 220. The NOB genera, such as Nitrospira, were not detected on day 220. Nitrogen blowdown failed to remove all of the DO, and low DO was still present in the system. This is an important reason for the deviation of δNO2-N/δNH4+-N, δNO3-N/δNH4+-N, and δNO3-N/δTN from the theoretical values in the final system.
In general, the nitrogen removal effect was still well, although the proportion of ANAMMOX decreased slightly in the reactor. It is hypothesized that the two reasons are (1) the fluidized ANAMMOX granular sludge in the CSTR had full contact with the effluent throughout the reactor and thus promoted nitrogen removal; (2) the reduction of pH in the influent allowed Phycisphaera to be enriched and could reduce NO3N into a reaction substrate for ANAMMOX bacteria.

3.4. Influence of Different Fe2+ Concentrations on the Nitrogen Removal Effect

The changes in the indicators in the reactor during operation are shown in Figure 6 and Figure 7. A concentration of Fe2+ of 10 mg/L was used on days 224 to 243. The concentration of NH4+-N and NO2-N effluents were 3.18 mg/L and 5.79 mg/L, respectively (Figure 6b). ARE increased from 94.69% to 98.15% and NRR increased from 84.28% to 97.30%. At this time, the NRR was 83.84% and the aver NRL was 1.16 kg/(m3/d) (Figure 7b), and all the ratios were close to the theoretical ratios (Figure 7c). It can be seen that the addition of Fe2+ led to an increase in the activity of ANAMMOX bacteria in the reactor and a decrease in the concentrations of NH4+-N and NO2-N in the effluent, while keeping the influent load basically unchanged. This can be explained in two ways. On the one hand, the increase in Fe2+ concentration in the system will stimulate ANAMMOX bacteria to take up iron ions in the environment, which is used to synthesize hydroxylamine oxidase [16], hydrazine oxidase [17], hydroxylamine dehydrogenase [18] and heme [19] in ANAMMOX bacteria. On the other hand, increased Fe2+ concentrations can not only form ferritin in ANAMMOX bacteria [19], but also thicken the surface and increase the density of ANAMMOX bacteria to make the bacteria more dense [38], thus enhancing the efficiency of nitrogen removal.
On days 244 to 263, the influent Fe2+ concentration was increased to 20 mg/L, and the influent NH4+-N and NO2-N concentrations remained the same as in the previous stage (Figure 6a,b). The treatment effect was good in this stage, with the concentrations in effluent of NH4+-N and NO2-N as low as 2.67 mg/L and 4.32 mg/L. At this time, the NRR was 84.55% (Figure 7a), the aver NRL increased up to 1.19 kg/(m3/d), and the ratios were close to the theoretical ratios during the reaction (Figure 7b). Zhang et al. [38] concluded when the concentrations of Fe2+ reached 1–5 mg/L, it will favor the promotion of biological activity and nitrogen removal efficiency, while an increase to 10–30 mg/L produced an inhibitory effect during the experiment using an ANAMMOX biofilm reactor. While further increasing the influent Fe2+ concentration in this experiment did not inhibit ANAMMOX bacteria, but rather led to a continuous enhancement of the activity of ANAMMOX bacteria in the reactor. There are two possible reasons for this difference: (1) Increased concentrations of Fe2+ can cause the system to generate many iron oxides wrapped around the biofilm affecting the contact of the ANAMMOX sludge with the NH4+-N and NO2-N [39], thus reducing the performance of nitrogen removal [40]. In this experiment, granular sludge with small relative specific surface area was used. It was therefore minorly affected by the increase in Fe2+ concentration. (2) A CSTR reactor was used in this experiment, and the stirring action made it difficult for iron oxides to adhere to the sludge surface [41]. Thus, the increased Fe2+ concentration did not have an adverse effect.
On days 264 to 283, the influent concentration of Fe2+ increased to 30 mg/L, and to provide adequate substrate, the influent NH4+-N and NO2-N concentrations increased to 208.88 mg/L and 258.32 mg/L. The effluent concentrations of NH4+-N, NO2-N, and NO3-N were higher than before (Figure 6a,b). The average NRR in the reactor during this phase was 83.43% and the average NRL increased to 1.42 kg/(m3/d) (Figure 7b). It is important to note that, although the influence load was increased, the increase in the concentration of Fe2+ in the influential allowed for continued enhancement of ANAMMOX bacterial activity in the reactor. This improved the reactor’s ability to remove nitrogen. A further increase in Fe2+ concentration did not inhibit the ANAMMOX granular sludge. At this time, the δNO2-N/δNH4+-N and δNO3-N/δNH4+-N ratios were low (Figure 7c). Li et al. [21] proved that the joint reduction of NH4+-N and NO3-N during their experiments may be due to the Fe3+ reduction coupled with anaerobic ammonia oxidation (Feammox) of the production. This may occur in the reduction of NO3-N to NO2-N by Fe2+ and thus further participate in the ANAMMOX reaction, and there may the oxidization of NH4+-N to NO3-N or N2 by Fe3+ [42]. A low ratio of each nitrogen in the reactor at this time may be due to the possibility that a portion of the NH4+-N in the system was oxidized by Fe3+ and did not participate in the ANAMMOX process resulting in a low δNO2-N/δNH4+-N ratio. Remaining NH4+-N reacted with NO2-N in the influencer and NO2-N produced by reduction of NO3-N by Fe2+ in the ANAMMOX reaction, leading to low ratios of both NO2-N/NH4+-N and NO3-N/NH4+-N. Therefore, although excessive Fe2+ concentration will increase the NRR, it will lead to a deviation in the nitrogen consumption ratio of the ANAMMOX reaction.

4. Conclusions

(1) The temperature was controlled at 30 ± 1 °C and pH was gradually decreased during the incubation of ANAMMOX. The average NRR in the CSTR was 82.39% and the average NRL was 1.78 kg/(m3/d) after stable operation. When the pH was adjusted to the range of 6.50–7.00, the nitrogen removal effect gradually increased, and the δNO2-N/δNH4+-N, δNO3-N/δNH4+-N, and δNO3-N/δTN ratios were close to the theoretical ratios. When further lowering the influent pH to the range of 6.30–6.50, the ratios were all higher than the theoretical ratio, which caused the composition of the community in the reactor to change, but ANAMMOX bacteria were always dominant.
(2) After the reactor reached stabilization, Candidatus Kuenenia occupied the dominant genus in ANAMMOX, while Phycisphaera, a genus under the phylum Planctomycetes, appeared due to the decrease in pH in the system.
(3) Increasing the influent Fe2+ concentration to 10 mg/L and 20 mg/L led to favorable removal rates of NH4+-N, NO2-N and TN, as well as closer to theoretical rates of δNO2-N/δNH4+-N, δNO3-N/δNH4+-N, and δNO3-N/δTN. As Fe2+ concentrations increased in the influential water to 30 mg/L, the δNO2-N/δNH4+-N and δNO3-N/δNH4+-N decreased to 1.105 and 0.197, respectively, due to the reaction of Fe2+ with NO3-N and Fe3+ with NH4+-N.

Author Contributions

Conceptualization, K.F.; methodology, K.F. and Y.B.; data curation, K.F., Y.B., S.J. and S.F.; writing—original draft preparation, Y.B., S.J. and S.F.; writing—review, J.K., X.L., W.Y. and Z.L. All authors have read and agreed to the published version of the manuscript.


This study was supported by the National Natural Science Foundation of China (Grant No. 52370024) and the Fundamental Research Funds for Beijing Universities of Civil Engineering and Architecture (Grant No. X20136).

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Zhao, Y.; Fang, Y.; Jin, Y.; Huang, J.; Ma, X.; He, K.; He, Z.; Wang, F.; Zhao, H. Microbial community and removal of nitrogen via the addition of a carrier in a pilot-scale duckweed-based wastewater treatment system. Bioresour. Technol. 2015, 179, 549–558. [Google Scholar] [CrossRef] [PubMed]
  2. Liu, X.; Duan, L.; Mo, J.; Du, E.; Shen, J.; Lu, X.; Zhang, Y.; Zhou, X.; He, C.; Zhang, F. Nitrogen deposition and its ecological impact in China: An overview. Environ. Pollut. 2011, 159, 2251–2264. [Google Scholar] [CrossRef]
  3. Cheng, L.; Liang, H.; Yang, W.; Yang, T.; Chen, T.; Gao, D. The biochar/Fe-modified biocarrier driven simultaneous NDFO and Feammox to remove nitrogen from eutrophic water. Water Res. 2023, 243, 120280. [Google Scholar] [CrossRef] [PubMed]
  4. Ruiz, G.; Jeison, D.; Chamy, R. Nitrification with high nitrite accumulation for the treatment of wastewater with high ammonia concentration. Water Res. 2003, 37, 1371–1377. [Google Scholar] [CrossRef] [PubMed]
  5. Jianlong, W.; Ning, Y. Partial nitrification under limited dissolved oxygen conditions. Process Biochem. 2004, 39, 1223–1229. [Google Scholar] [CrossRef]
  6. van Dongen, U.; Jetten, M.S.M.; van Loosdrecht, M.C.M. The SHARON®-Anammox® process for treatment of ammonium rich wastewater. Water Sci. Technol. 2001, 44, 153–160. [Google Scholar] [CrossRef]
  7. Ma, B.; Wang, S.; Cao, S.; Miao, Y.; Jia, F.; Du, R.; Peng, Y. Biological nitrogen removal from sewage via anammox: Recent advances. Bioresour. Technol. 2016, 200, 981–990. [Google Scholar] [CrossRef]
  8. Fu, K.; Bian, Y.; Yang, F.; Xu, J.; Qiu, F. Achieving partial nitrification: A strategy for washing NOB out under high DO condition. J. Environ. Manag. 2023, 347, 119186. [Google Scholar] [CrossRef]
  9. Nishimura, F.; Hidaka, T.; Nakagawa, A.; Yorozu, H.; Tsuno, H. Removal of high concentration ammonia from wastewater by a combination of partial nitrification and anammox treatment. Environ. Technol. 2012, 33, 1485–1489. [Google Scholar] [CrossRef]
  10. Strous, M.; Heijnen, J.J.; Kuenen, J.G.; Jetten, M.S.M. The sequencing batch reactor as a powerful tool for the study of slowly growing anaerobic ammonium-oxidizing microorganisms. Appl. Microbiol. Biotechnol. 1998, 50, 589–596. [Google Scholar] [CrossRef]
  11. Wang, H.; Peng, L.; Mao, N.; Geng, J.; Ren, H.; Xu, K. Effects of Fe3+ on microbial communities shifts, functional genes expression and nitrogen transformation during the start-up of Anammox process. Bioresour. Technol. 2021, 320, 124326. [Google Scholar] [CrossRef]
  12. Shu, D.; He, Y.; Yue, H.; Yang, S. Effects of Fe(ii) on microbial communities, nitrogen transformation pathways and iron cycling in the anammox process: Kinetics, quantitative molecular mechanism and metagenomic analysis. RSC Adv. 2016, 6, 68005–68016. [Google Scholar] [CrossRef]
  13. Zhang, D.; Ren, L.; Yao, Z.; Wan, X.; Lu, P.; Zhang, X. Removal of Nitrogen Oxide Based on Anammox through Fe(II)EDTA Absorption. Energy Fuels 2017, 31, 7247–7255. [Google Scholar] [CrossRef]
  14. Zhang, W.; Jin, Y. Effects of Fe(II) on N2O emissions from anammox reactors. Desalination Water Treat. 2017, 63, 221–226. [Google Scholar] [CrossRef]
  15. Zhang, H.; Wang, H.; Yang, K.; Sun, Y.; Tian, J.; Lv, B. Nitrate removal by a novel autotrophic denitrifier (Microbacterium sp.) using Fe(II) as electron donor. Ann. Microbiol. 2015, 65, 1069–1078. [Google Scholar] [CrossRef]
  16. van Niftrik, L.; Geerts, W.J.C.; van Donselaar, E.G.; Humbel, B.M.; Yakushevska, A.; Verkleij, A.J.; Jetten, M.S.M.; Strous, M. Combined structural and chemical analysis of the anammoxosome: A membrane-bounded intracytoplasmic compartment in anammox bacteria. J. Struct. Biol. 2008, 161, 401–410. [Google Scholar] [CrossRef] [PubMed]
  17. Schalk, J.; de Vries, S.; Kuenen, J.G.; Jetten, M.S.M. Involvement of a Novel Hydroxylamine Oxidoreductase in Anaerobic Ammonium Oxidation. Biochemistry 2000, 39, 5405–5412. [Google Scholar] [CrossRef]
  18. Schmid, M.; Walsh, K.; Webb, R.; Rijpstra, W.I.; van de Pas-Schoonen, K.; Verbruggen, M.J.; Hill, T.; Moffett, B.; Fuerst, J.; Schouten, S.; et al. Candidatus “Scalindua brodae”, sp. nov., Candidatus “Scalindua wagneri”, sp. nov., Two New Species of Anaerobic Ammonium Oxidizing Bacteria. Syst. Appl. Microbiol. 2003, 26, 529–538. [Google Scholar] [CrossRef]
  19. Cirpus, I.E.Y.; de Been, M.; Op den Camp, H.J.M.; Strous, M.; Le Paslier, D.; Kuenen, G.J.; Jetten, M.S.M. A new soluble 10kDa monoheme cytochrome c-552 from the anammox bacterium Candidatus “Kuenenia stuttgartiensis”. FEMS Microbiol. Lett. 2005, 252, 273–278. [Google Scholar] [CrossRef]
  20. Spang, A.; Poehlein, A.; Offre, P.; Zumbrägel, S.; Haider, S.; Rychlik, N.; Nowka, B.; Schmeisser, C.; Lebedeva, E.V.; Rattei, T.; et al. The genome of the ammonia-oxidizing Candidatus Nitrososphaera gargensis: Insights into metabolic versatility and environmental adaptations. Environ. Microbiol. 2012, 14, 3122–3145. [Google Scholar] [CrossRef]
  21. Li, X.; Huang, Y.; Liu, H.-w.; Wu, C.; Bi, W.; Yuan, Y.; Liu, X. Simultaneous Fe(III) reduction and ammonia oxidation process in Anammox sludge. J. Environ. Sci. 2018, 64, 42–50. [Google Scholar] [CrossRef]
  22. Dai, B.; Yang, Y.; Wang, Z.; Wang, J.; Yang, L.; Cai, X.; Wang, Z.; Xia, S. Enhancement and mechanisms of iron-assisted anammox process. Sci. Total Environ. 2023, 858, 159931. [Google Scholar] [CrossRef]
  23. Jiang, Y.; Chen, Y.; Wang, Y.; Chen, X.; Zhou, X.; Qing, K.; Cao, W.; Zhang, Y. Novel insight into the inhibitory effects and mechanisms of Fe(II)-mediated multi-metabolism in anaerobic ammonium oxidation (anammox). Water Res. 2023, 242, 120291. [Google Scholar] [CrossRef]
  24. Ma, F.; Chen, J.-b.; Wu, X.-x.; Zhou, Q.; Sun, S.-q. Rapid discrimination of Panax notogeinseng of different grades by FT-IR and 2DCOS-IR. J. Mol. Struct. 2016, 1124, 131–137. [Google Scholar] [CrossRef]
  25. Gilcreas, F.W. Standard methods for the examination of water and waste water. Am. J. Public Health Nations Health 1966, 56, 387–388. [Google Scholar] [CrossRef] [PubMed]
  26. Feng, Y.; Wang, S.; Peng, Y. Stable nitrogen removal in the novel continuous flow anammox system under deteriorated partial nitrification: Significance and superiority of the anaerobic-oxic-anoxic–oxic operation mode. Bioresour. Technol. 2022, 361, 127693. [Google Scholar] [CrossRef] [PubMed]
  27. Li, D.; Chen, H.; Gao, X.; Zhang, J. Achieving PN through the selective recovery of AOB activity in inactivated nitrifying bacteria: Combined aerobic starvation and FA. J. Environ. Manag. 2022, 321, 116004. [Google Scholar] [CrossRef]
  28. Fu, K.; Bian, Y.; Yang, F.; Liao, M.; Xu, J.; Qiu, F. Influencing factors on the activity of an enriched Nitrospira culture with granular morphology. Environ. Technol. 2023. online ahead of print. [Google Scholar] [CrossRef]
  29. Tang, C.-j.; Zheng, P.; Mahmood, Q.; Chen, J.-w. Start-up and inhibition analysis of the Anammox process seeded with anaerobic granular sludge. J. Ind. Microbiol. Biotechnol. 2009, 36, 1093–1100. [Google Scholar] [CrossRef]
  30. Chamchoi, N.; Nitisoravut, S. Anammox enrichment from different conventional sludges. Chemosphere 2007, 66, 2225–2232. [Google Scholar] [CrossRef]
  31. Blum, J.-M.; Su, Q.; Ma, Y.; Valverde-Pérez, B.; Domingo-Félez, C.; Jensen, M.M.; Smets, B.F. The pH dependency of N-converting enzymatic processes, pathways and microbes: Effect on net N2O production. Environ. Microbiol. 2018, 20, 1623–1640. [Google Scholar] [CrossRef] [PubMed]
  32. Du, R.; Cao, S.; Zhang, H.; Li, X.; Peng, Y. Flexible Nitrite Supply Alternative for Mainstream Anammox: Advances in Enhancing Process Stability. Environ. Sci. Technol. 2020, 54, 6353–6364. [Google Scholar] [CrossRef] [PubMed]
  33. Fang, F.; Wang, S.-N.; Li, K.-Y.; Dong, J.-Y.; Xu, R.-Z.; Zhang, L.-L.; Xie, W.-M.; Cao, J.-S. Formation of microbial products by activated sludge in the presence of a metabolic uncoupler o-chlorophenol in long-term operated sequencing batch reactors. J. Hazard. Mater. 2020, 384, 121311. [Google Scholar] [CrossRef] [PubMed]
  34. Du, S.; Yu, D.; Zhao, J.; Wang, X.; Bi, C.; Zhen, J.; Yuan, M. Achieving deep-level nutrient removal via combined denitrifying phosphorus removal and simultaneous partial nitrification-endogenous denitrification process in a single-sludge sequencing batch reactor. Bioresour. Technol. 2019, 289, 121690. [Google Scholar] [CrossRef] [PubMed]
  35. van Teeseling, M.C.F.; Mesman, R.J.; Kuru, E.; Espaillat, A.; Cava, F.; Brun, Y.V.; VanNieuwenhze, M.S.; Kartal, B.; van Niftrik, L. Anammox Planctomycetes have a peptidoglycan cell wall. Nat. Commun. 2015, 6, 6878. [Google Scholar] [CrossRef]
  36. Lodha, T.; Narvekar, S.; Karodi, P. Classification of uncultivated anammox bacteria and Candidatus Uabimicrobium into new classes and provisional nomenclature as Candidatus Brocadiia classis nov. and Candidatus Uabimicrobiia classis nov. of the phylum Planctomycetes and novel family Candidatus Scalinduaceae fam. nov to accommodate the genus Candidatus Scalindua. Syst. Appl. Microbiol. 2021, 44, 126272. [Google Scholar] [CrossRef]
  37. González-Martínez, A.; Rodriguez-Sanchez, A.; Rodelas, B.; Abbas, B.; Martinez-Toledo, M.; van Loosdrecht, M.; Osorio, F.; Gonzalez-Lopez, J. 454-Pyrosequencing Analysis of Bacterial Communities from Autotrophic Nitrogen Removal Bioreactors Utilizing Universal Primers: Effect of Annealing Temperature. BioMed Res. Int. 2015, 2015, 892013. [Google Scholar] [CrossRef]
  38. Zhang, X.; Zhou, Y.; Zhao, S.; Zhang, R.; Peng, Z.; Zhai, H.; Zhang, H. Effect of Fe (II) in low-nitrogen sewage on the reactor performance and microbial community of an ANAMMOX biofilter. Chemosphere 2018, 200, 412–418. [Google Scholar] [CrossRef]
  39. Khan, A.U.; Rehman, M.U.; Zahoor, M.; Shah, A.B.; Zekker, I. Biodegradation of Brown 706 Dye by Bacterial Strain Pseudomonas aeruginosa. Water 2021, 13, 2959. [Google Scholar] [CrossRef]
  40. Ikram, M.; Naeem, M.; Zahoor, M.; Hanafiah, M.M.; Oyekanmi, A.A.; Ullah, R.; Farraj, D.A.A.; Elshikh, M.S.; Zekker, I.; Gulfam, N. Biological Degradation of the Azo Dye Basic Orange 2 by Escherichia coli: A Sustainable and Ecofriendly Approach for the Treatment of Textile Wastewater. Water 2022, 14, 63. [Google Scholar] [CrossRef]
  41. Khan, A.U.; Zahoor, M.; Rehman, M.U.; Shah, A.B.; Zekker, I.; Khan, F.A.; Ullah, R.; Albadrani, G.M.; Bayram, R.; Mohamed, H.R.H. Biological Mineralization of Methyl Orange by Pseudomonas aeruginosa. Water 2022, 14, 1551. [Google Scholar] [CrossRef]
  42. Fukunaga, Y.; Kurahashi, M.; Sakiyama, Y.; Ohuchi, M.; Yokota, A.; Harayama, S. Phycisphaera mikurensis gen. nov., sp. nov., isolated from a marine alga, and proposal of Phycisphaeraceae fam. nov., Phycisphaerales ord. nov. and Phycisphaerae classis nov. in the phylum Planctomycetes. J. Gen. Appl. Microbiol. 2009, 55, 267–275. [Google Scholar] [CrossRef] [PubMed]

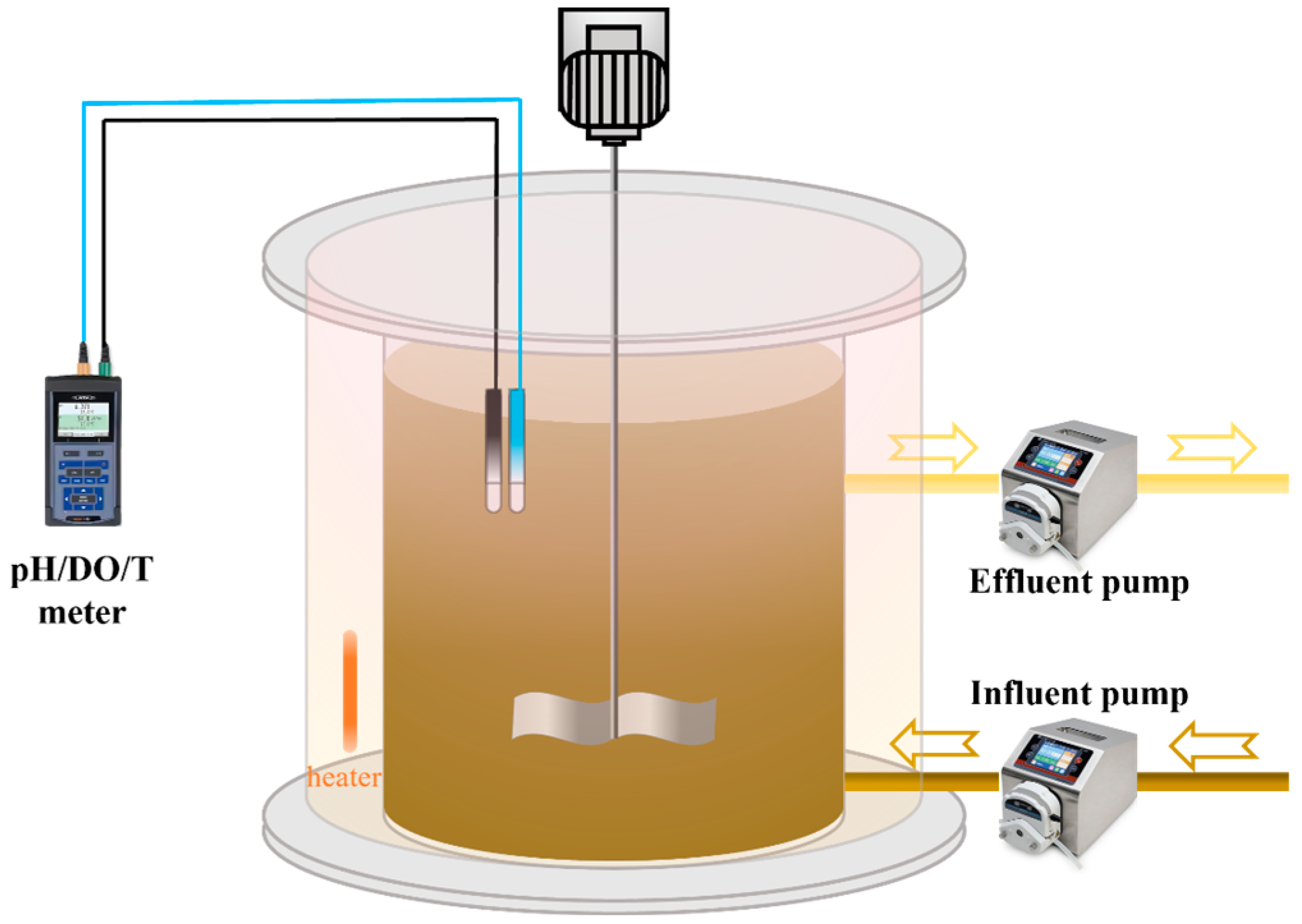

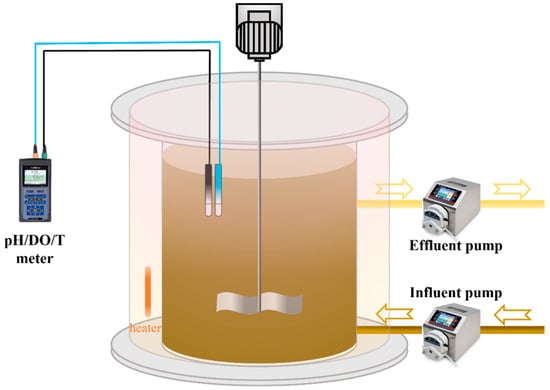

Figure 1. Reaction device diagram of CSTR.
Figure 1. Reaction device diagram of CSTR.
Water 15 03762 g001

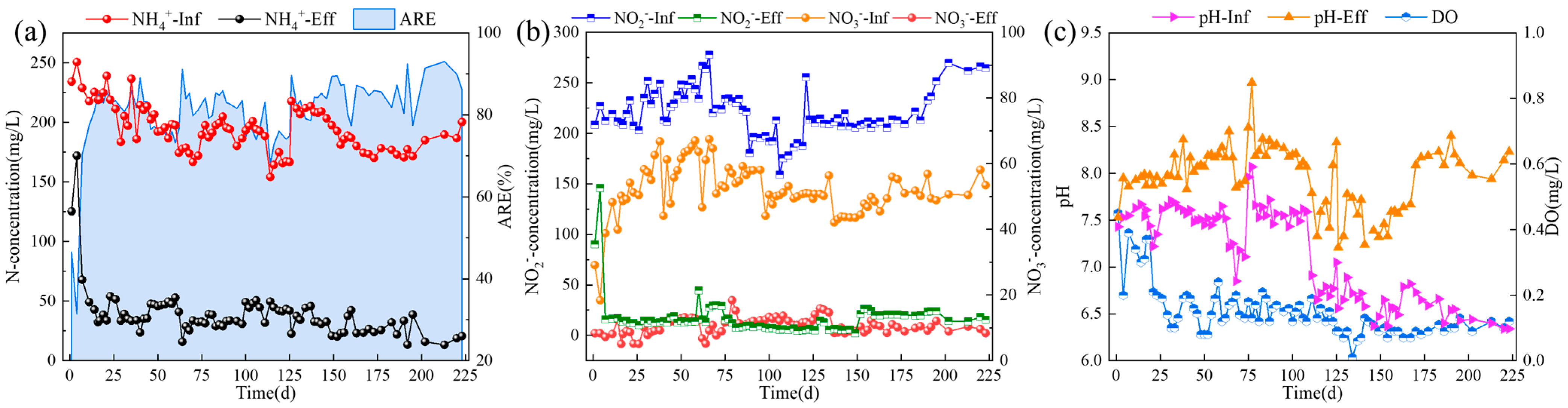

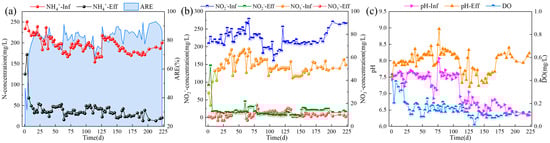

Figure 2. (a) Changes in NH4+-N concentrations in influent and effluent; (b) changes in NO2-N and NO3-N concentrations in influent and effluent; (c) changes of pH and DO in influent and effluent in the reactor.
Figure 2. (a) Changes in NH4+-N concentrations in influent and effluent; (b) changes in NO2-N and NO3-N concentrations in influent and effluent; (c) changes of pH and DO in influent and effluent in the reactor.
Water 15 03762 g002

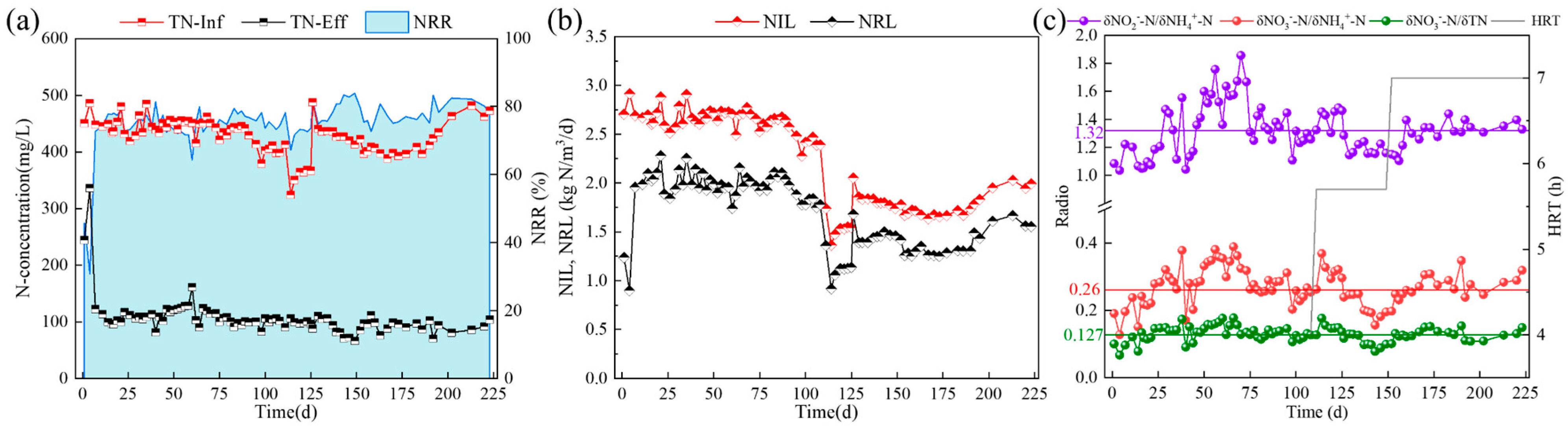

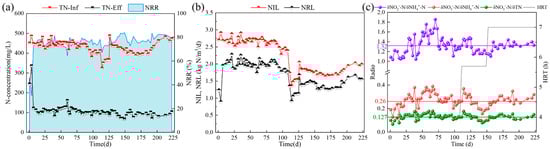

Figure 3. (a) Changes of TN concentrations in influent and effluent; (b) changes of NIL and NRL; (c) changes of the ratio of the difference between the influent and effluent of each nitrogen.
Figure 3. (a) Changes of TN concentrations in influent and effluent; (b) changes of NIL and NRL; (c) changes of the ratio of the difference between the influent and effluent of each nitrogen.
Water 15 03762 g003

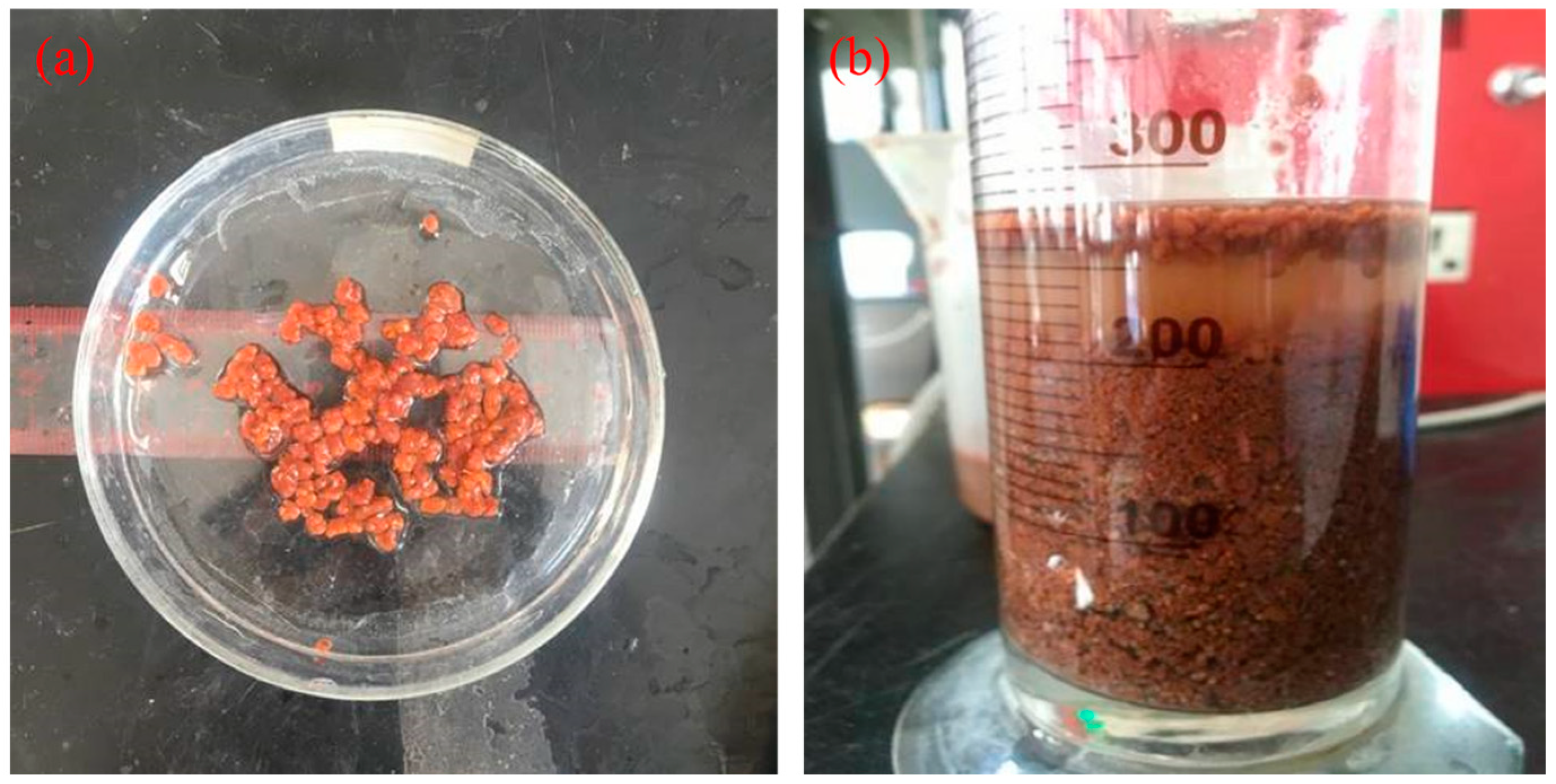

Figure 4. The morphology of ANAMMOX granular sludge outside the reactor (a) and in a measuring cylinder (b) on day 220.
Figure 4. The morphology of ANAMMOX granular sludge outside the reactor (a) and in a measuring cylinder (b) on day 220.
Water 15 03762 g004

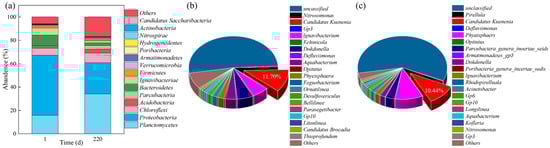

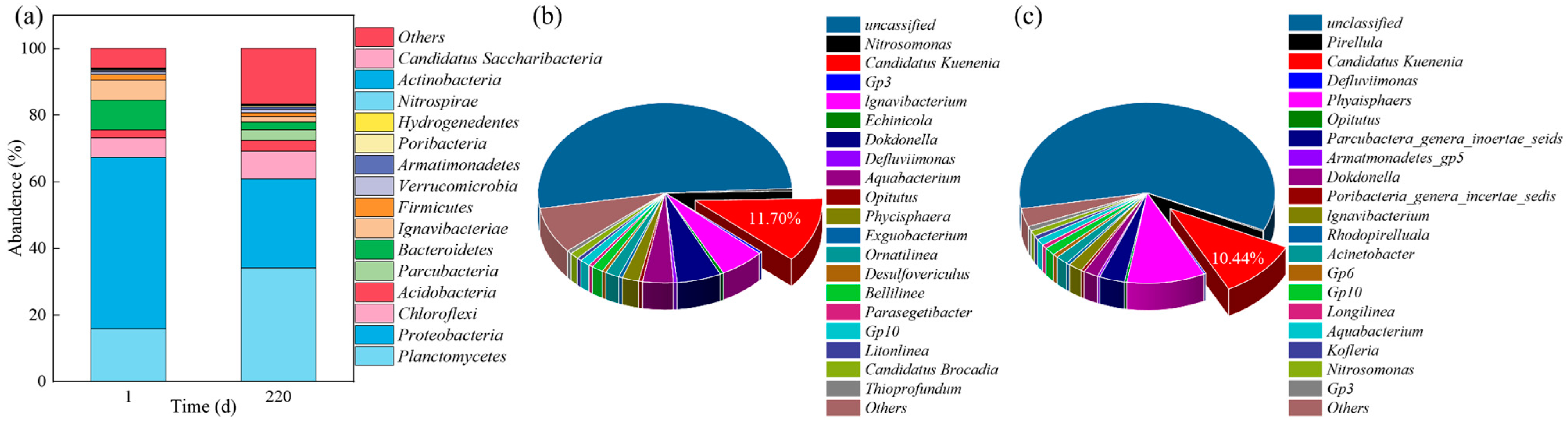

Figure 5. (a) A comparison of the relative abundances of microbial communities at the phylum level on day 1 and day 220. (b) The relative abundance of microbial communities at the genus level on day 1. (c) The relative abundance of microbial communities at the genus level on day 220.
Figure 5. (a) A comparison of the relative abundances of microbial communities at the phylum level on day 1 and day 220. (b) The relative abundance of microbial communities at the genus level on day 1. (c) The relative abundance of microbial communities at the genus level on day 220.
Water 15 03762 g005

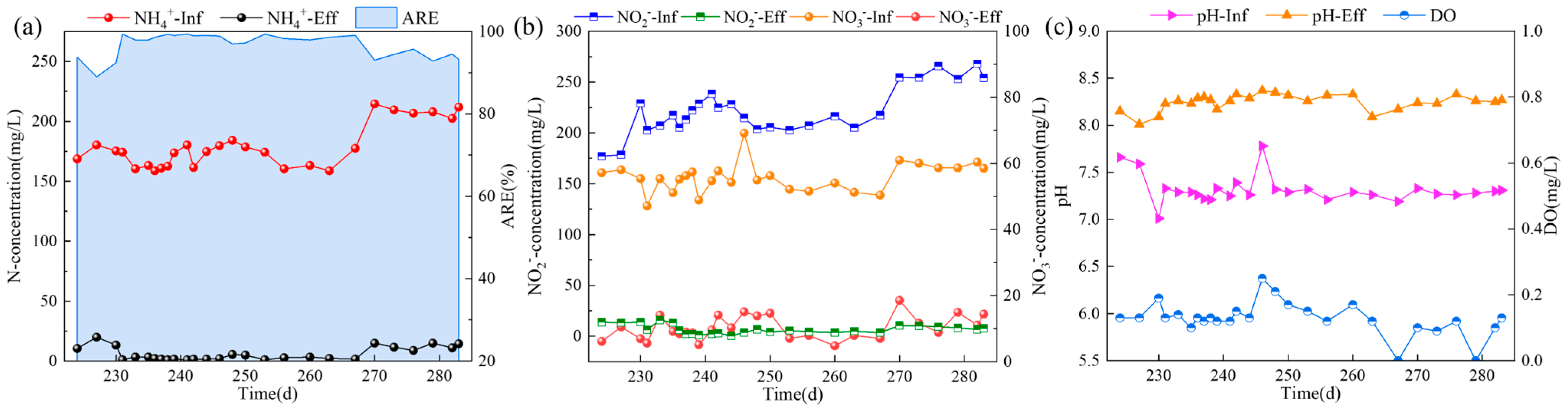

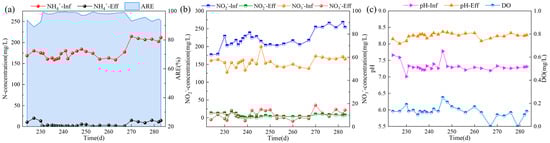

Figure 6. (a) Changes in NH4+-N concentrations in influent and effluent. (b) Changes in NO2-N and NO3-N concentrations in influent and effluent. (c) Changes of pH and DO in influent and effluent in the reactor.
Figure 6. (a) Changes in NH4+-N concentrations in influent and effluent. (b) Changes in NO2-N and NO3-N concentrations in influent and effluent. (c) Changes of pH and DO in influent and effluent in the reactor.
Water 15 03762 g006

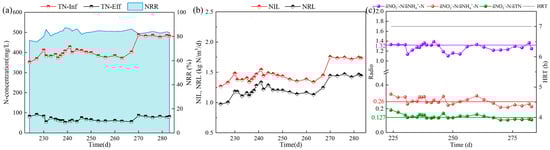

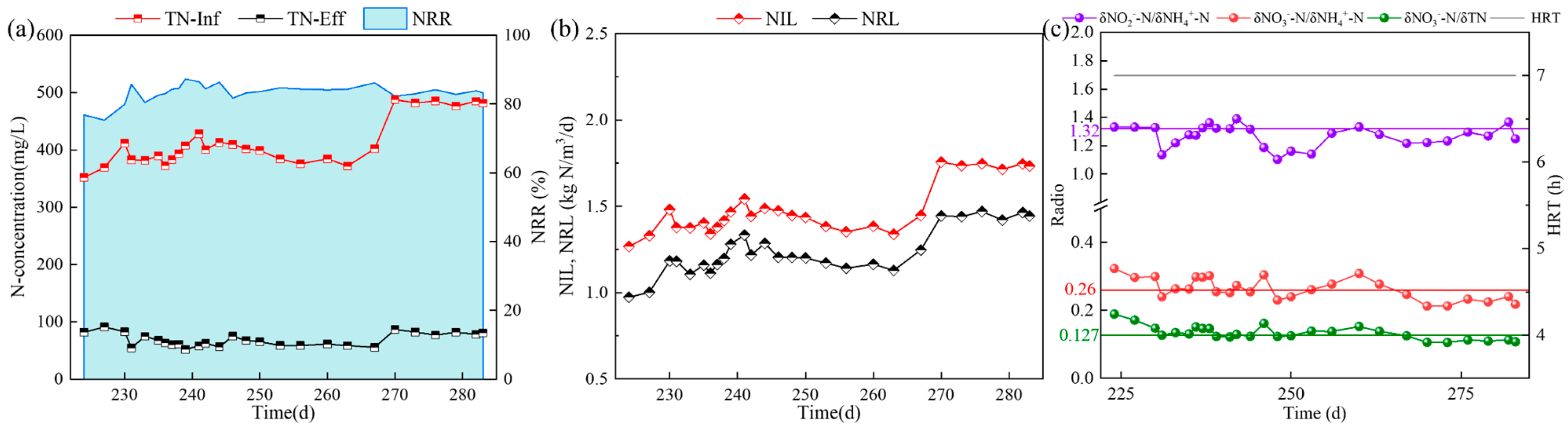

Figure 7. (a) Changes of TN concentrations in influent and effluent. (b) Changes of NIL and NRL. (c) Changes of the ratio of the difference between the influent and effluent of each nitrogen.
