Utilization of Multivariate Optimization for Preconcentration and Determination of Lead in Different Water and Food Samples Using Functionalized Activated Carbon

Department of Chemistry, COMSATS University Islamabad, Abbottabad Campus, Abbottabad 22060, Pakistan
Department of Chemistry, School of Science, King Faisal University, Hofuf 31982, Eastern Province AlAhsa, Saudi Arabia
Author to whom correspondence should be addressed.
Water 2023, 15(21), 3750;
Submission received: 5 June 2023 / Revised: 27 September 2023 / Accepted: 19 October 2023 / Published: 27 October 2023


In this study, apricot-pit-based activated carbon was functionalized and used as a sorbent for the preconcentration of lead (Pb2+) in different water and food samples. The activated sorbent was modified with ethylenediaminetetraacetic acid (EDTA) to enhance its selectivity for the efficient removal of Pb2+ ions. The modified activated sorbent was characterized using FTIR, an SEM, BET, and TGA. The column adsorption method was used to study the adsorption capacity of synthesized and modified activated carbon and analyzed using atomic absorption spectrophotometry. A multivariate procedure, i.e., Plackett–Burman design (PBD) and central composite design (CCD), was studied for optimizing the adsorption process, which allows the optimization of multiple variables at the same time. An interference study was conducted to ascertain the selectivity of the developed method. The developed method was validated by assessing certified reference materials and additional standards for Pb2+ detection in real samples. To assess the precision of the proposed procedure, repeatability (RSDr) and reproducibility (RSDR) were calculated, which were determined to be <3.0 (n = 7) and <7.5 (n = 15), respectively. The obtained results revealed that the modified AC is a suitable and efficient sorbent for the preconcentration of Pb2+ in real water and food samples.

1. Introduction

Contamination due to heavy metals has become a serious problem, which is increasing globally and threatening the environment [1]. The rapid increase in manufacturing industries, urbanization, agricultural activities, petroleum drilling, etc., results in higher toxicity, which leads to several environmental problems [2]. Heavy metals are non-biodegradable and adversely affect both plants and animals, as well as human life. However, they are useful for various physiological and biochemical functions in living bodies [3]. Among the various heavy metals, lead (Pb) is considered a notable environmental pollutant [4]. Lead is a major component of various oxides, sulfides, and carbonates and thus may pollute water sources [5]. The precise estimation of heavy metals in water bodies and food items is a modern necessity. To assess the accurate concentration of these heavy metals, several methods have been used, including adsorption, ion exchange, filtration, evaporation, coagulation, precipitation, ultrafiltration, and flocculation [6]. Among these methods, adsorption is frequently considered, owing to its effectiveness, low cost, easy application, and ability to eliminate various contaminants effortlessly. The rest of the above methods are not preferred as they are time-consuming and less ecologically friendly. Therefore, the adsorption process is considered a productive and possible method for decontamination of these toxic metals [7]. Carbonaceous materials are used as adsorbents, including carbon nanotubes, graphene oxide, activated carbon, and biochar. These carbonaceous compounds have been utilized for the removal of heavy metals from wastewater due to their high adsorption capacity. The most used adsorbent is activated carbon, which is used for the treatment of wastewater [8,9,10]. Activated carbon is actually an allotropic form of carbon having a microcrystalline structure with a highly porous surface, providing a larger surface area that contributes to efficient adsorption [11,12]. Activated carbon derived from apricot pits is one of the widely used sorbents due to its properties such as high porosity, large surface area, high purity, and good adsorption performance for metal ions [12,13]. Activated carbon may be surface-modified using various methods such as nitrogenation or sulfuration, oxidation, ammonification, and ozonation in order to remove inorganic (heavy metals) and organic pollutants [14,15]. A number of ligands have also been used to improve the surface functionalities of activated carbon to enhance its adsorption capacity [16], and different ligands add different characteristics to the surface of activated carbon [17]. These modified surfaces improve the selectivity of active sites and can be easily used for the removal of toxic heavy metals and other impurities [18]. The adsorption capacity is increased with the process of chelation between introduced ligands on the surface. The surface polarity of activated carbon is enhanced by introducing nitrogen and/or sulfur complexes on the surface of carbon-based material, thus showing specific interaction with polar impurities [19]. Surface modification with ligands does not have the problem of leaching into the solution. These activated carbons can be used several times after treatment of the surface for further adsorption [20]. EDTA is frequently used as a complexing or chelating agent which contains four carboxyl groups and two amine groups. It reacts with heavy metals, forms stable complexes owing to its strong metal complexing properties, and remains stable after regeneration. Therefore, EDTA-modified adsorbents are widely used for the elimination of heavy metals such as Pb2+ [21,22]. Chemometric tools such as the design of experiments are highly beneficial and reduce the number of measurements, thus lowering the cost of experimentation and time required for the experiment [23]. One of the widely used methods for multivariate optimization is the response surface method (RSM), which is a statistical and mathematical procedure that is used to develop, improve, and optimize the processes [24]. This method is used for studying variables, their effect on each other, and finding the optimum condition for sorption. The central composite design (CCD), Box–Behnken design (BBD), and Doehlert design (DD) are also used for multivariate optimization [25].
In this study, apricot-pit-based activated carbon was synthesized and functionalized prior to its use as a sorbent for the preconcentration of Pb2+. Multivariate optimization was used to optimize the experimental variables such as pH, temperature, sorbent amount, sample volume, sample flow rate, and eluent volume. A column-based solid phase extraction procedure was used to preconcentrate Pb2+ in water and food samples followed by its spectrometric determination.

2. Experiment

2.1. Apparatus

A HI-2210 pH meter, Hanna instruments, UK, was used to measure pH. An D307032366 analytical balance was used for weighing chemicals. A Elmasonic (model E-30-H) sonicator was used for sonication purposes, while a magnetic stirrer (model F203A0160, VELP Scientifica, Usmate Velate, Italy) was utilized for stirring. A PH030A drying oven was used for drying purposes. Carbonization was performed using a muffle furnace (GLMB + PD/IND, Carbolite Barnford, Sheffield, UK). A Perkin Elmer Analyst 700 flame atomic absorption spectrophotometer was used for the spectrophotometric determination of Pb2+. FTIR (Perkin Elmer UATR) was used to identify the surface functionality of activated carbon. An SEM (model JSM5910, JEOL, Tokyo, Japan) was used to analyze the surface morphology of the activated carbon. For BET analysis, an automated gas adsorption analyzer, AUTOSORB-1 (Quantachrome Instruments, Boynton Beach, FL, USA), was used. TGA was carried out using TGA-50, manufactured by SHIMADZU Japan, to measure the thermal stability of the material.

2.2. Reagents and Solutions

The reagents used in the protocol for Pb2+ removal via the adsorption process were of analytical grade. Ethylenediaminetetraacetic acid (EDTA), potassium hydroxide (KOH), sodium hydroxide (NaOH), hydrochloric acid (HCl), lead nitrate solution (Pb(NO3)2), and methanol were purchased from Daejung chemicals, Seoul, Republic of Korea, and were used without further purification. A standard solution of 1000 mg L−1 of Pb2+ was obtained from Merck KGaA, Darmstadt, Germany. EDTA-modified activated carbon was prepared in a ratio of 1:1. Syringe filters (Millipore Corporation, Bedford, MA, USA) with 0.45 μm pore size were used for column adsorption studies.

2.3. Synthesis of Activated Carbon

2.3.1. Preparation of Apricot-Pit-Based Activated Carbon

Apricot-pit-based activated carbon was prepared using apricot pits as the raw material. The raw material was washed with deionized water and then dried in an oven for several hours to remove the moisture. The dried mass was ground and sieved into fractions with an average particle size of 1.0 mm. The finely crushed and sieved material was impregnated with KOH in a ratio of 1:3 and left to dry at 100 °C for approximately 12 h. The dried mixture was carbonized in a muffle furnace with a programmed temperature in an inert atmosphere with a constant N2 flow rate of 300 mL min−1. The temperature was increased stepwise, starting at 200 °C and going up to 900 °C, with a ramp/hold time of 5 min for each step. To ensure the complete carbonization, the material was left in the furnace for 2 h. Finally, the product was neutralized to a pH of approximately 7 using 0.1 M HCl. The activated carbon sample was washed several times with distilled water, dried in an oven, and then stored in a desiccator.

2.3.2. Surface Modification of Activated Carbon

To enhance the surface functionalities, the as-prepared activated carbon was loaded with EDTA in a ratio of 1:1 (w/w). A total of 1.0 g of activated carbon was added to 1.0 g of EDTA (in 25 mL aqueous solution) and sonicated for a few minutes. The ligand, along with the activated carbon, was stirred and heated at 80 °C for 24 h. The sample was then cooled and kept at room temperature. The resultant sample was washed with distilled water multiple times until the pH approached 7 and dried in an oven at 80 °C for 12 h.

2.4. Sample Collection

Tap water and wastewater samples were collected from COMSATS University Islamabad, Abbottabad Campus. These samples were filtered to remove all impurities, such as suspended particles, using a 0.45 μm pore size membrane filter and then stored in a pre-treated water sampling bottle. Wheat flour and milk powder samples were purchased from the local market. One gram of each sample was weighed and digested with 10 mL of a 3:1 (v/v) mixture of concentrated HNO3 and H2O2. This mixture was heated on a hot plate for 2 h until a semi-dried mass was observed. Subsequently, 8 mL of 1 M HNO3 was added, and the mass was dissolved to obtain a clear solution. The resultant samples were stored in a refrigerator until analysis.

2.5. Microextraction Procedure

Column solid-phase extraction was performed by passing 20 mL of a 10 ppm Pb2+ solution through 40 mg of the adsorbent. The sample’s pH was adjusted to 6, and the flow rate was set to 10 mL min−1. The sample temperature was maintained at 46 °C by heating in a water bath. Using the same flow rate, 5 mL of 0.1 M HCl solution was passed through the sorbent to desorb the analyte. Immediately after elution, the sorbent was washed with deionized water in triplicate to remove any remaining analyte from the sample. Finally, the eluted solutions were analyzed using a flame atomic absorption spectrophotometer to determine the Pb2+ concentration.

2.6. Adsorption Studies

To determine the sorbent’s adsorption capacity, 100 mL of a Pb solution with an initial concentration of 150 µg mL−1 (Ci) was mixed with 100 mg of surface-modified sorbent in a 100 mL Erlenmeyer flask. The flask was shaken at 200 rpm using a mechanical shaker at room temperature for 24 h. After shaking, the aqueous phase was separated, and the equilibrium concentration of Pb2+ (Ce) was determined using FAAS. The adsorption capacity of the sorbent (q) was calculated using the following equation.
q = V(CiCe)/W
where V represents the volume of the solution in milliliters (mL), and W is the sorbent amount. A comparison of the adsorption capacity of the modified sorbent with other reported materials is presented in Table 1.
Langmuir and Freundlich adsorption isotherms were used to describe the equilibrium adsorption characteristics. Equation (2) represents the Langmuir isotherm, which was subsequently transformed into its linear form, as shown in Equation (3), to determine the adsorption parameters.
q e = q m a x K L C e 1 + K L C e
1 q e = 1 K L q m a x × 1 C e + 1 q m a x
In this context, qmax represents the maximum adsorption capacity (mg/g), while KL (L/mg) is the Langmuir isotherm constant, providing insights into the binding affinity between Pb2+ and CA@EDTA. The separation factor (RL) was calculated using Equation (4), where RL, a dimensionless Langmuir constant, indicates the favorability of adsorption, ranging from favorable (0 < RL > 1) to unfavorable (RL > 1), linear (RL = 1), or irreversible (RL = 0).
R L = 1 1 + C i × K L
Equation (5) represents the Freundlich isotherm, while its linear representation is shown in Equation (6).
q e = K f   C e 1 2
log q e = log K f + 1 n log C e
In this case, Kf serves as the Freundlich constant, quantifying adsorption capacity, while 1/n elucidates the adsorption process, indicating whether it is favorable (0.1 < 1/n < 0.5) or unfavorable (1/n > 2).

2.7. Kinetic Study

The adsorption rates of Pb2+ on CA@EDTA was examined using pseudo-1st-order and pseudo-2nd-order kinetic models. Equation (7) illustrates the pseudo-1st-order model, with qt representing the adsorption capacity (mg/g) at time “t”, and K1 (min−1) represents the equilibrium rate constant.
ln (qeqt) = ln qeK1t
The pseudo-2nd-order model is presented in Equation (8), where K2 (g mg−1 min−1) represents the equilibrium rate constant. To determine the most appropriate isotherm and kinetic model for the adsorption process, the linear regression coefficients (R2) are used for prediction.
t q e = 1 K 2 q 2 e + 1 q e
The proposed procedure has been compared with adsorption techniques reported in the literature in terms of adsorption capacity (see Table 1). Isotherm and kinetic parameters for the adsorption are provided in Table 2. Figure 1 illustrates Langmuir’s and Freundlich’s isotherm plots, along with pseudo-second and pseudo-first-order plots, demonstrating the adsorption of Pb2+.

2.8. Multivariate Experimental Design for Pb2+ Analysis

Several parameters were selected for study and optimization through a multivariate optimization strategy. To achieve this, two software packages, Minitab 17.1 and STATISTICA 8, were utilized to develop multivariate experimental designs (response surface method—RSM) for modeling, optimizing, and analyzing the results.
The response surface method (RSM) is a statistical and mathematical procedure employed for developing, improving, and optimizing processes. It is a multivariate approach that involves the simultaneous analysis of multiple variables used to optimize processes and obtain the best possible results. This method is utilized to investigate both dependent and independent variables and their mutual effects to determine the optimal conditions for sorption.
In essence, the RSM relies on polynomial equations to describe the patterns within the sets of experimental data obtained. The most used types of RSM are the Plackett–Burman design (PBD) and the central composite design (CCD).

2.8.1. Plackett–Burman Design

Chemometric tools were employed to optimize analytical procedures for the determination of Pb2+. The Plackett–Burman design (PBD) was used to identify the significant parameters, as well as the higher (+) and lower (−) levels that could influence the effectiveness of the developed technique, as depicted in Table 3. This experimental design offers the significant advantage of reducing the number of experiments required for optimization compared to univariate procedures. For the developed method, a two-level PBD was implemented, consisting of 24 experiments with 6 factors, and the empirical data were evaluated using Minitab 17.1 and STATISTICA 8 software.
The fitted quadratic response model is expressed in Equation (9):
y = β o + i = 1 k β i x i + i = 1 k j = 1 k β i x i x j + i = 1 k β i i x i 2 + ε
Here “y” is the predicted response and regression coefficients for intercept, linear, quadratic, and interaction terms, which are shown as βo, βi, βij, and βii, respectively. Random error is expressed as “ε”, while xi and xj are coded values of independent factors.
The significant parameters were identified using the standardized Pareto chart, as illustrated in Figure 2, which was generated with the assistance of Minitab 17.1. This chart reveals the factors that have the potential to impact the efficiency of the developed technique.
In the chart, the horizontal bars represent the absolute magnitude of the factors, while the vertical bars extending beyond the red lines signify the significant factors that have an influence on the recovery of the analyte and the optimization of the process (with a significance level of p ≤ 0.05). The Pareto chart provides insights into how these parameters interact with each other.

2.8.2. Central Composite Design

The significant parameters were optimized through the execution of 24 new experiments, each conducted at two levels: low (−) and high (+). These experiments were designed to determine the optimum conditions for maximizing the recovery of the analyte. The parameters under investigation included pH, temperature, sorbent amount, and sample volume. The results of these optimization experiments, along with the corresponding recoveries, are presented in Table 4.

3. Results and Discussion

3.1. Characterization Study of Adsorbent

Apricot-pit-based activated carbon was synthesized, modified, and characterized for the preconcentration of Pb2+ in both wastewater and food samples. A multivariate optimization strategy was employed to assess all the experimental variables that could potentially impact the effectiveness of the developed method.

3.1.1. FTIR Analysis

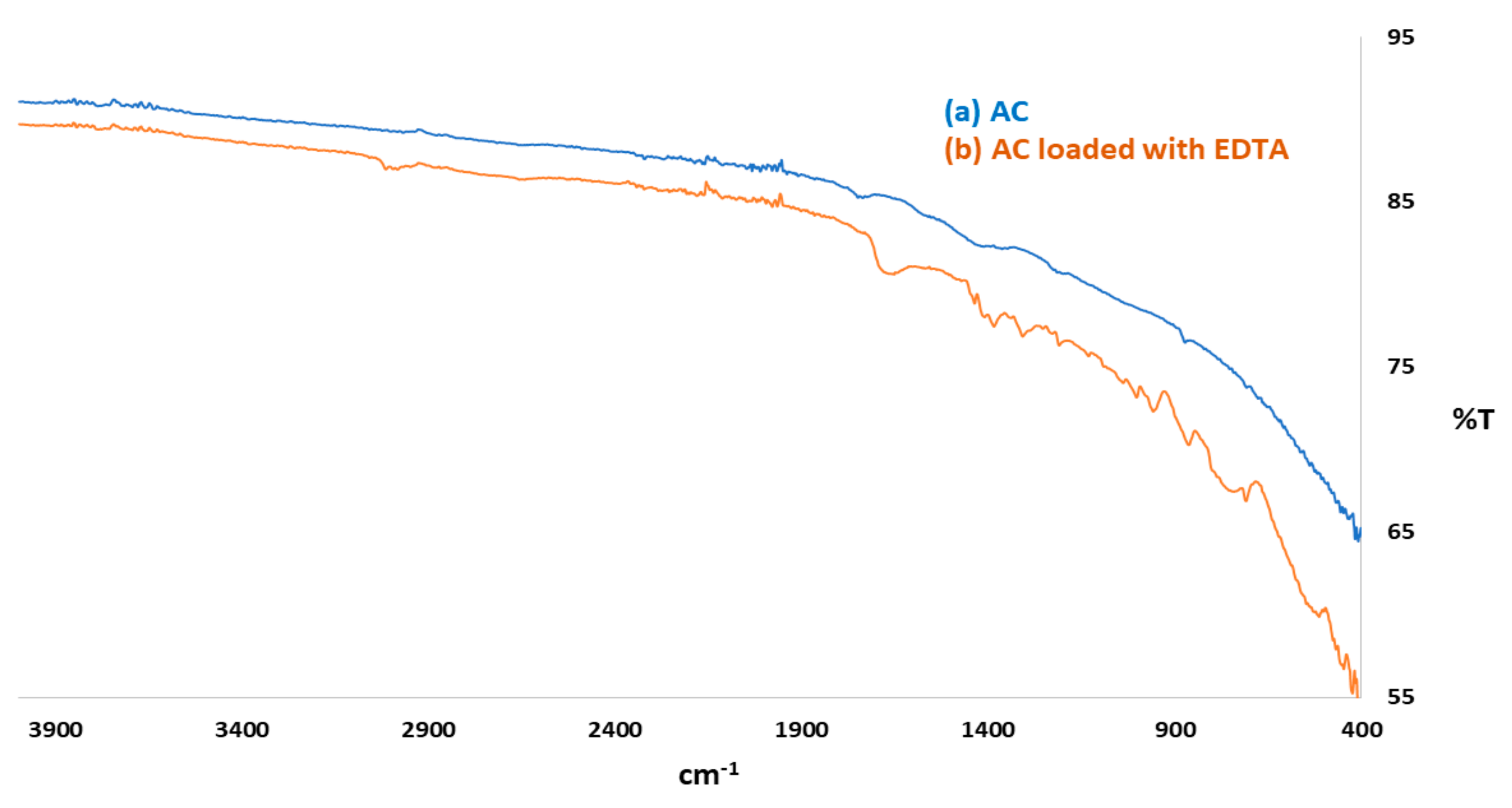

Fourier transform infrared spectroscopy (FTIR) analysis was conducted to evaluate the surface functionality of the activated carbon and the modified activated carbon. The FTIR spectra, as depicted in Figure 3, revealed the stretching and bending vibration bands of various functional groups. For activated carbon (AC), peaks were observed at 3383 cm−1 and 1749 cm−1, which were attributed to the stretching vibrations of –OH and C=O groups. In the FTIR spectrum for EDTA-functionalized AC, peaks at 1671 cm−1 and 1207 cm−1 corresponded to the stretching of C=O and –NH, respectively. The slight shift in the position of the C=O peak and the appearance of a prominent peak for –NH indicate the successful functionalization of AC with EDTA.

3.1.2. SEM Analysis

The surface morphology of both non-modified and modified activated carbon was analyzed using a scanning electron microscope (SEM) from JEOL, Japan, operated at 30 kV with a maximum resolving power of 2.3 nm. The SEM images displayed in Figure 4 reveal that particles are uniformly distributed, indicating the high porosity of both the activated carbon and the EDTA-modified activated carbon.
Notably, it was observed that the porosity of the EDTA-modified activated carbon remained the same as that of the unmodified activated carbon. This observation suggests that the functionalization of the activated carbon does not have an adverse impact on its porosity. Instead, it enhances the adsorption capacity due to the incorporation of additional functional groups.

3.1.3. N2 Adsorption Isotherm in Activated Carbon

To evaluate the surface area, 200 mg of AC@EDTA was subjected to degassing at 150 °C for 3 h before determining adsorption–desorption isotherms of nitrogen (N2) at a temperature of −196 °C. An automated gas adsorption analyzer, AUTOSORB-1 from Quanta Chrome Instruments, USA, was employed for this purpose. The specific surface area was calculated using the BET (Brunauer, Emmett, and Teller) method, while the Dubinin–Radushkevich (DR) equation was used to determine the micropore volume. The pore volume was directly estimated by measuring the volume of N2 at the highest relative pressure (P/Po = 0.99) [26,27]. The N2 adsorption isotherms of AC@EDTA exhibited type I isotherms, indicating that the sorbent possesses a microporous nature (as shown in Figure 5). In the low-relative-pressure region, there was a rapid increase in the volume of N2 adsorbed, signifying that N2 is primarily adsorbed within the microporous regions [28]. Type I isotherms are characterized by convex-shaped curves, and their platform appears to be horizontal, where the adsorption and desorption isotherms intersect directly at P/Po = 1 [29,30]. Overall, AC@EDTA exhibited a substantial volume of micropores.
BET analysis was conducted to determine the specific surface area of AC@EDTA, which was found to be 587.5 m2 g−1. Additionally, a total pore volume of 0.289 cm3 g−1 with an average pore size diameter of 29.3 Å was observed.
Thermogravimetric analysis was conducted using a thermogravimetric analyzer, specifically the TGA-50 model manufactured by SHIMADZU, Japan. This analysis aimed to evaluate the thermal stability of activated carbon loaded with EDTA within the temperature range of 40 °C to 600 °C.
In Figure 6, the percentage weight loss of EDTA-modified activated carbon is depicted. The weight loss occurring in the temperature range of 100 °C to 300 °C can be attributed to the decomposition of carboxylic acid groups and the loss of -OH groups. Beyond 400 °C, the active sites of EDTA, such as amine and carboxylic acid, were completely decomposed, leading to a gradual decrease in the percentage weight of the composite. This analysis provides insights into the thermal behavior and stability of modified activated carbon under increasing temperatures.

3.2. Optimization of Experimental Parameters

The optimization of various experimental parameters was undertaken to enhance the recovery of the analyte. In analytical procedures, one of the most crucial steps is optimizing all possible experimental variables. Consequently, a multivariate methodology was employed to systematically optimize the experimental parameters for the preconcentration of Pb2+.
These parameters encompassed pH, temperature, sorbent amount, sample volume, sample flow rate, and eluent volume, each of which played a significant role in the preconcentration process. The optimization of these parameters is essential for achieving the best possible results and ensuring the accuracy and efficiency of the analytical method.

3.2.1. Design of Experiments

The design of experiments, including techniques like the Plackett–Burman design (PBD) and central composite design (CCD), was employed to identify significant parameters and explore their interactions. A two-level PBD was carried out, involving 24 experiments and six factors that could potentially influence the effectiveness of the developed technique, as shown in Table 3.
Based on the standardized Pareto chart (Figure 2), four significant parameters were identified, which had a substantial impact on the percentage recovery of Pb2+. These parameters were pH, temperature, sorbent amount, and sample volume. They were subsequently optimized using the central composite design (CCD) by conducting a new set of 24 experiments. The results of these experiments are presented in Table 4, which displays the percentage recoveries of the analyte at low (−), high (+), and optimum levels of the significant experimental parameters.
It is worth noting that in experiments 1 and 24, the maximum recovery was achieved when all the parameters were set to their optimal levels. Deviating from these optimal values in experiments 16–23, where all parameters were at their optimum level except one, either higher or lower, resulted in a significant decrease in the recovery of the analyte. This emphasizes the importance of carefully optimizing and controlling these parameters to achieve the best analytical results.
Table 1. Comparison of adsorption capacity of EDTA-modified activated carbon (CA@EDTA) to reported sorbents.
Table 1. Comparison of adsorption capacity of EDTA-modified activated carbon (CA@EDTA) to reported sorbents.
AdsorbentAdsorption Capacity (mg g−1)Reference
Hazelnut shells13.0[32]
Raw rice husks16.5[33]
Coconut shells17.1[35]
Peach pits17.5[35]
Olive stones 18.3[35]
Apricot kernel shells22.8[37]
Almond shells22.7[35]
Ceiba pentandra hulls25.5[38]
Tamarind wood43.0[39]
Bamboo AC 45.4[40]
Alternanthera philoxeroides53.7[41]
Commercial AC64.2[42]
Date bead76.9[41]
Eucalyptus camalbulensis Dehn113.9[43]
Date pits AC115.8[42]
Cassava peels5.8[44]
Banana peels57.1[45]
CA@EDTA36.17Present study
Table 2. Isotherm and kinetic parameters for the adsorption of Pb2+ by CA@EDTA.
Table 2. Isotherm and kinetic parameters for the adsorption of Pb2+ by CA@EDTA.
(a) Isotherm Parameters
Type of IsothermParameter
Langmuirqmax (mg/g)109.05
KL (L/mg)0.03
(b) Kinetics Parameters
Order of reactionParameter
qe,exp (mg/g)36.17
Pseudo-first-orderqe,cal (mg/g)1.36
K1 (min−1)−9.2 × 10−4
Pseudo-second-orderqe,cal (mg/g)35.17
K2 (g mg−1 min−1)0.08
Table 3. (a). Factors and levels used in factorial design for Pb2+ analysis. (b) Multivariate design matrix and the results of % R (n = 6).
Table 3. (a). Factors and levels used in factorial design for Pb2+ analysis. (b) Multivariate design matrix and the results of % R (n = 6).
(a) Factors and levels used in factorial design for Pb2+ analysis.
FactorIDUnitLower -Higher +Optimum a
Sorbent amountCmg406040
Sample volumeDmL102017
Sample flow rateEmL min−151010 b
Eluent volumeFmL5105 b
(b) Multivariate design matrix and the result of % R (n = 6).
1-++-+-15.1 ± 1.9
2+--++-15.8 ± 2.4
3--++-+17.0 ± 3.1
4-+--++16.7 ± 2.0
5-++--+17.4 ± 3.4
6-+-+--31.9 ± 1.2
7----+-13.7 ± 0.9
8--+-+-9.1 ± 2.1
9+++++-57.7 ± 0.9
10+-++++70.0 ± 1.7
11++-+-+44.4 ± 3.2
12-+-+++25.1 ± 4.0
13------12.4 ± 3.1
14-+++++22.7 ± 2.1
15+-+-++95.1 ± 2.5
16+--++-99.8 ± 1.2
17--++--19.1 ± 2.4
18---+-+20.8 ± 4.0
19+++---83.4 ± 3.1
20+-+--+90.3 ± 3.3
21+----+92.0 ± 1.8
22++----67.1 ± 3.1
23++--++79.7 ± 2.3
24++++--87.3 ± 2.0
Notes: - Lower level of factors; + Higher level of factors; a Optimum values for significant factors; b Insignificant factors with convenient values.
Table 4. Central composite design for the set of factors A, B, C, and D.
Table 4. Central composite design for the set of factors A, B, C, and D.
1aAobBocCodDo99.4 ± 0.7
2----14.1 ± 0.7
3+---20.5 ± 2.1
4-+--60.3 ± 1.7
5++--12.0 ± 3.1
6--+-20.1 ± 1.9
7+-+-55.3 ± 2.7
8-++-56.7 ± 0.9
9+++-45.4 ± 1.1
10---+15.1 ± 0.7
11+--+44.4 ± 1.0
12-+-+33.5 ± 2.2
13++-+46.0 ± 0.9
14--++60.8 ± 4.1
15+-++86.2 ± 2.1
16-aAbBcCdD28.2 ± 2.2
17+aAbBcCdD37.6 ± 0.9
18aA-bBcCdD16.7 ± 4.1
19aA+bBcCdD4.8 ± 3.0
20aAbB-cCdD69.6 ± 1.5
21aAbB+cCdD39.4 ± 2.2
22aAbBcC-dD65.0 ± 1.4
23aAbBcC+dD7.9 ± 0.8
24aAobBocCodDo99.2 ± 1.1
Notes: -aA: lowest level (1), +aA: highest level (14), aAo: optimum level (6); -bB: lowest level (5 °C), +bB: highest level (90 °C), bBo: optimum level (46 °C); -cC: lowest level (5 mg), +cC: highest level (50 mg), cCo: optimum level (40 mg); -dD: lowest level (5 mL min−1), +dD: highest level (50 mL min−1), dDo: optimum level (17 mL min−1).

3.2.2. Response Surface Methodology

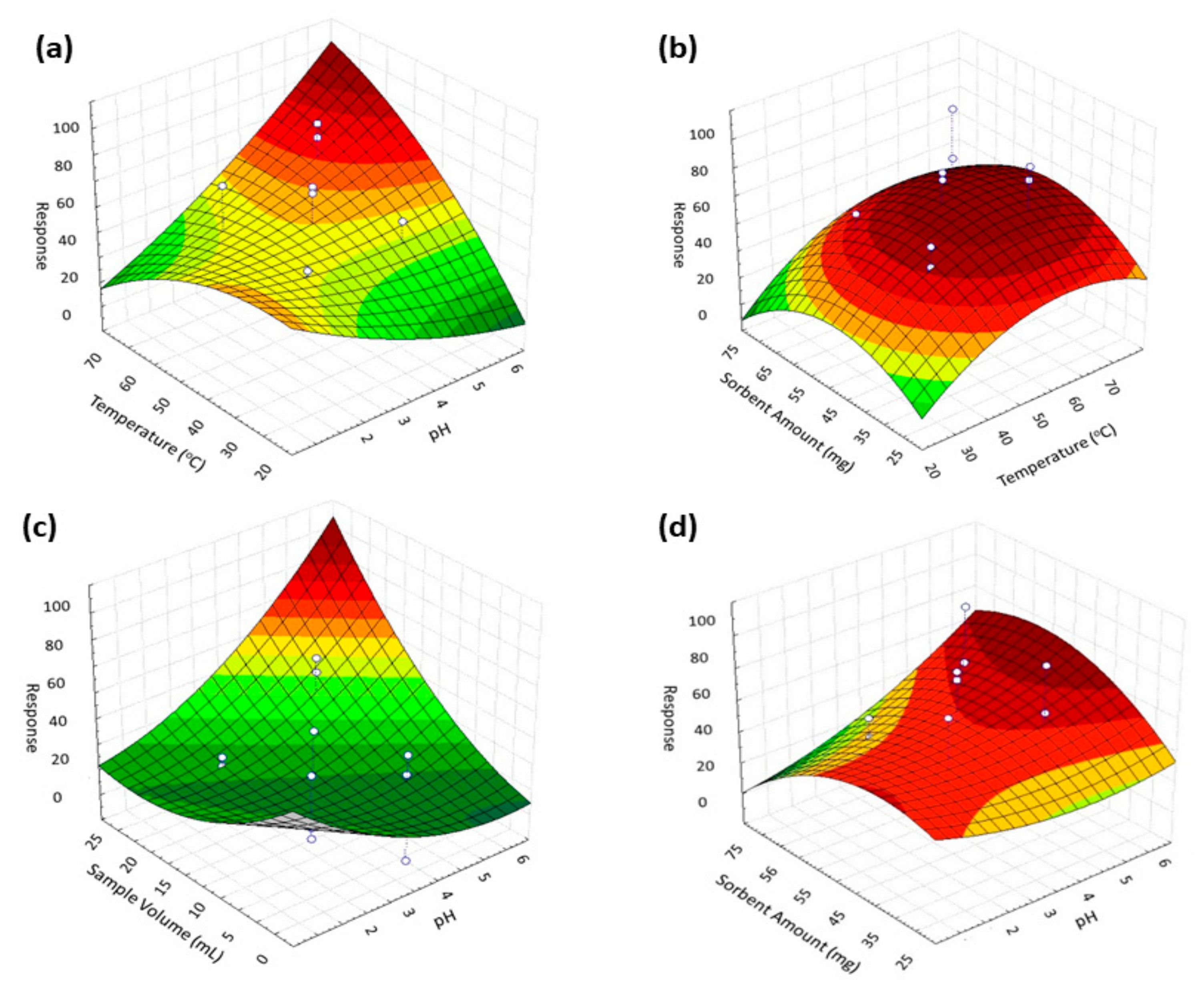

Three-dimensional response surface plots were generated using the data obtained from the central composite design (CCD). These plots were created for each pair of significant parameters, such as A/B, C/B, D/A, and C/A, with the aim of determining the conditions that would yield the maximum recovery for Pb2+.
Figure 7 displays the graphs derived from the 3D surface plots for each parameter pair. Subsequently, quadratic equations were formulated for each set, resulting in Equations (10a–d). These optimum conditions, as determined from the response surface analysis, were then applied to real samples for validation, ensuring that the developed method performs effectively and accurately in practical applications.
A/B = 0.05 − 0.02x + 0.001y + 0.0004x2 + 0.0003xy − 1.6 × 10−5y2
C/B = −0.15 + 0.01x + 0.005y − 0.0002x2 + 4.8 × 10−6xy − 5.4 × 10−5y2
D/A = 0.14 − 0.02x − 0.009y + 0.0009x2 + 0.0009xy + 2.0 × 10−4y2
C/A = −0.01 − 0.01x + 0.003y + 0.0004x2 + 0.0002xy − 3.7 × 10−5y2
The impact of pH on Pb2+ recovery was investigated across a range of 4 to 8 to determine the optimum pH value at which maximum recovery could be achieved. pH plays a significant role in affecting the adsorption efficiency of the sorbent, as indicated in Table 4, where all the parameters were set at their optimum levels except for pH, resulting in a decrease in sorbent efficiency. At lower pH values, protonation of the active sites on the sorbent’s surface occurs, reducing the binding of cationic Pb2+ to the sorbent. This is because low pH leads to a lower electrostatic attraction between the sorbent and Pb2+ ions, thus decreasing the adsorption capacity. This observation is supported by the results of experiment 16, where the pH was at its lowest level.
Conversely, at higher pH values, the adsorption capacity for Pb2+ decreases due to the deprotonation of sorbent active sites and the formation of Pb(OH)2 precipitates in the solution, resulting in lower recoveries. Experiment 17 demonstrates the response to higher pH values, where the lowest recoveries were observed. In conclusion, the highest sorption efficiency for Pb2+ was achieved at a pH of 6, highlighting the importance of optimizing and controlling the pH parameter to maximize recovery during the preconcentration process.
Temperature is a crucial factor that significantly influences the adsorption efficiency of the sorbent. The effect of temperature on Pb2+ recovery was explored within the range of 30 to 60 °C. Generally, the adsorption capacity of the sorbent tends to increase with an increase in temperature. This occurs because higher temperatures can disrupt the intermolecular bonds within the active sites of the sorbent, resulting in a higher adsorption capacity.
As observed in the experiments, increasing the temperature from a lower value to the optimum level (46 °C) led to an increase in the recovery, which is evident when comparing experiments 1 and 24 to experiment 18 (Table 4). This increase in recovery is attributed to a decrease in the intermolecular distance and reduced viscosity of the sample solution at higher temperatures.
However, it is important to note that temperatures above 46 °C can render the adsorption process less feasible. This is because at very high temperatures, the analyte may leach back into the aqueous layer, causing a gradual decrease in the percentage recovery. Therefore, optimizing and maintaining the temperature at around 46 °C is crucial for achieving the best recovery of Pb2+ during the preconcentration process.
Sample volume is indeed a critical factor in determining the extraction efficiency of an analyte. In this study, sample volume was examined within the range of 10 to 20 mL. The results indicated that the maximum recoveries were achieved at the optimal sample volume of 17 mL, which can be observed in Table 4 (experiments 1 and 24). When the sample volume was deviated from this optimal level (e.g., experiments 20 and 21), there was a significant decrease in the recoveries. This demonstrates the importance of precisely controlling the sample volume to obtain the best results.
Similarly, the sorbent amount is another crucial factor affecting the recovery of Pb2+. This study examined the effect of sorbent amount within the range of 40 to 60 mg. The findings revealed that an increase in the amount of sorbent led to enhanced adsorption capacity. This is because a higher sorbent amount provides a larger surface area and more available active sites for the metal ion. As a result, the optimum value for sorbent amount was determined to be 40 mg, at which the maximum adsorption occurred. Careful control of the sorbent amount is essential to optimizing the recovery of Pb2+ in the preconcentration process.

3.3. Interference Study

The effectiveness of the proposed method was assessed in the presence of several coexisting ions to determine its selectivity for the determination of Pb2+. An interference study was conducted, and the coexisting ions were present at relatively high concentration levels. The concentrations of all these coexisting ions are shown in Table 5. Despite the presence of these interfering ions, the results demonstrated that 95% of Pb2+ was recovered. This indicates that the presence of these interfering ions had no significant impact on the percentage recovery of Pb2+. As a result, it can be confidently concluded that the proposed method is suitable and efficient for the determination of Pb2+ even in the presence of these coexisting ions. The method exhibits good selectivity for Pb2+ determination.

3.4. Analytical Figures of Merit

Analytical figures of merit were assessed to ensure the precision and accuracy of the proposed method. The limit of detection (LOD) and quantification (LOQ) were calculated as 3 times the standard deviation (SD) divided by the slope of the calibration graph (m), resulting in values of 0.25 and 0.84 µg L−1, respectively. The standard deviation was determined by running 10 blank samples, and “m” represents the slope of the calibration curve. A linear response of absorbance was observed within the concentration range of 0.84–1000 µg L−1, with an R2 value of 0.996, indicating a strong linear relationship.
Precision was assessed in terms of repeatability (RSDr) and reproducibility (RSDR), expressed as the percentage relative standard deviation (%RSD). Recoveries of spiked samples were evaluated on the same day and over five alternate days to determine RSDr (intra-assay precision) and RSDR (between-day precision), respectively. Table 6 presents these figures for the proposed extraction procedure.

3.5. Validation of the Proposed Method

Before the newly developed analytical procedures can be applied for routine analysis, it is highly recommended to undergo a validation process. The primary objective of this validation is to assess the trueness or accuracy of the method concerning systematic errors. The goal is to ensure that the developed techniques are free from systematic errors. To evaluate the feasibility of the developed method, the standard addition method was employed for validation under the optimum conditions. This validation process aimed to determine the presence of Pb2+ in real samples.
In this process, real samples were collected and prepared for analysis. Known quantities of the analyte were deliberately added to the samples to determine Pb2+ using the proposed extraction procedure, followed by atomic absorption spectrophotometry. The efficiency and accuracy of the proposed procedure were further confirmed through the analysis of a certified reference drinking water sample, ERM-CA011 (as shown in Table 7). This comprehensive validation process is crucial to ensuring the reliability and accuracy of the developed method when applied to real-world samples.

4. Conclusions

In recent research, activated carbon derived from apricot pits was synthesized and modified to enable the preconcentration of Pb2+ from both water and food samples. Notably, the BET surface area of the modified carbon, CA@EDTA, was found to be significantly high at 587.5 m2 g−1. This surface area falls within the range of values typically seen in commercially available activated carbons, which often exceed 500 m2 g−1. This characteristic indicates the material’s potential for efficient adsorption.
Furthermore, the functionalized sorbent demonstrated resilience and sustainability by retaining its adsorption capabilities even after undergoing more than 150 cycles of adsorption and desorption. As a result, apricot-pit-based activated carbon modified with EDTA emerges as a strong candidate for use in the microextraction of trace-level inorganic pollutants. Its robustness, high surface area, and sustained adsorption capacity make it a promising choice for applications involving the extraction and concentration of such pollutants.

Author Contributions

Conceptualization, F.S. and R.A.K.; methodology, T.A. and F.S.; software, T.A. and F.S.; validation, F.S., R.A.K. and A.Y.A.; formal analysis, T.A.; investigation, T.A.; resources, F.S. and R.A.K.; data curation, A.Y.A.; writing—original draft preparation, T.A. and F.S.; writing—review and editing, F.S. and A.Y.A.; visualization, T.A. and F.S.; supervision, F.S., R.A.K. and A.Y.A.; project administration, F.S.; funding acquisition, F.S. All authors have read and agreed to the published version of the manuscript.


This work was supported by the Deanship of Scientific Research, Vice Presidency for Graduate Studies and Scientific Research, King Faisal University, Saudi Arabia (Grant No. 4569).

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Nagajyoti, P.C.; Lee, K.D.; Sreekanth, T. Heavy metals, occurrence and toxicity for plants: A review. Environ. Chem. Lett. 2010, 8, 199–216. [Google Scholar] [CrossRef]
  2. Sall, M.L.; Diaw, A.K.D.; Gningue-Sall, D.; Aaron, S.E.; Aaron, J.-J. Toxic heavy metals: Impact on the environment and human health, and treatment with conducting organic polymers, a review. Environ. Sci. Pollut. Res. 2020, 27, 29927–29942. [Google Scholar] [CrossRef] [PubMed]
  3. Ighalo, J.O.; Adeniyi, A.G.; Adeniran, J.A.; Ogunniyi, S. A systematic literature analysis of the nature and regional distribution of water pollution sources in Nigeria. J. Clean. Prod. 2021, 283, 124566. [Google Scholar] [CrossRef]
  4. Lu, F.; Astruc, D. Nanocatalysts and other nanomaterials for water remediation from organic pollutants. Coord. Chem. Rev. 2020, 408, 213180. [Google Scholar] [CrossRef]
  5. Ain, Q.-U.; Farooq, M.U.; Jalees, M.I. Application of magnetic graphene oxide for water purification: Heavy metals removal and disinfection. J. Water Process Eng. 2020, 33, 101044. [Google Scholar] [CrossRef]
  6. Amari, T.; Ghnaya, T.; Abdelly, C. Nickel, cadmium and lead phytotoxicity and potential of halophytic plants in heavy metal extraction. S. Afr. J. Bot. 2017, 111, 99–110. [Google Scholar] [CrossRef]
  7. Kam, C.S.; Leung, T.L.; Liu, F.; Djurišić, A.B.; Xie, M.H.; Chan, W.-K.; Zhou, Y.; Shih, K. Lead removal from water—Dependence on the form of carbon and surface functionalization. RSC Adv. 2018, 8, 18355–18362. [Google Scholar] [CrossRef] [PubMed]
  8. Xu, C.; Liu, J.; Bi, Y.; Ma, C.; Bai, J.; Hu, Z.; Zhou, M. Biomass derived worm-like nitrogen-doped-carbon framework for trace determination of toxic heavy metal lead (II). Anal. Chim. Acta 2020, 1116, 16–26. [Google Scholar] [CrossRef]
  9. Lin, M.; Chen, Z. A facile one-step synthesized epsilon-MnO2 nanoflowers for effective removal of lead ions from wastewater. Chemosphere 2020, 250, 126329. [Google Scholar] [CrossRef]
  10. Rasheed, T.; Bilal, M.; Nabeel, F.; Iqbal, H.M.; Li, C.; Zhou, Y. Fluorescent sensor based models for the detection of environmentally-related toxic heavy metals. Sci. Total Environ. 2018, 615, 476–485. [Google Scholar] [CrossRef]
  11. Akpomie, K.G.; Conradie, J. Advances in application of cotton-based adsorbents for heavy metals trapping, surface modifications and future perspectives. Ecotoxicol. Environ. Saf. 2020, 201, 110825. [Google Scholar] [CrossRef]
  12. Yang, X.; Wan, Y.; Zheng, Y.; He, F.; Yu, Z.; Huang, J.; Wang, H.; Ok, Y.S.; Jiang, Y.; Gao, B. Surface functional groups of carbon-based adsorbents and their roles in the removal of heavy metals from aqueous solutions: A critical review. Chem. Eng. J. 2019, 366, 608–621. [Google Scholar] [CrossRef]
  13. Duan, C.; Ma, T.; Wang, J.; Zhou, Y. Removal of heavy metals from aqueous solution using carbon-based adsorbents: A review. J. Water Process Eng. 2020, 37, 101339. [Google Scholar] [CrossRef]
  14. Rehman, A.; Park, M.; Park, S.-J. Current progress on the surface chemical modification of carbonaceous materials. Coatings 2019, 9, 103. [Google Scholar] [CrossRef]
  15. Taer, E.; Yusra, D.A.; Amri, A.; Awitdrus; Taslim, R.; Apriwandi; Agustino; Putri, A. The synthesis of activated carbon made from banana stem fibers as the supercapacitor electrodes. Mater. Today Proc. 2021, 44, 3346–3349. [Google Scholar] [CrossRef]
  16. Li, Z.; Chang, X.; Zou, X.; Zhu, X.; Nie, R.; Hu, Z.; Li, R. Chemically-modified activated carbon with ethylenediamine for selective solid-phase extraction and preconcentration of metal ions. Anal. Chim. Acta 2009, 632, 272–277. [Google Scholar] [CrossRef]
  17. Zhu, J.; Yang, J.; Deng, B. Enhanced mercury ion adsorption by amine-modified activated carbon. J. Hazard. Mater. 2009, 166, 866–872. [Google Scholar] [CrossRef] [PubMed]
  18. Li, Y.; Zhang, J.; Liu, H. In-situ modification of activated carbon with ethylenediaminetetraacetic acid disodium salt during phosphoric acid activation for enhancement of nickel removal. Powder Technol. 2018, 325, 113–120. [Google Scholar] [CrossRef]
  19. Rivera-Utrilla, J.; Sánchez-Polo, M.; Gómez-Serrano, V.; Álvarez, P.; Alvim-Ferraz, M.; Dias, J. Activated carbon modifications to enhance its water treatment applications. An overview. J. Hazard. Mater. 2011, 187, 1–23. [Google Scholar] [CrossRef] [PubMed]
  20. Naushad, M.; Alqadami, A.A.; AlOthman, Z.A.; Alsohaimi, I.H.; Algamdi, M.S.; Aldawsari, A.M. Adsorption kinetics, isotherm and reusability studies for the removal of cationic dye from aqueous medium using arginine modified activated carbon. J. Mol. Liq. 2019, 293, 111442. [Google Scholar] [CrossRef]
  21. Lv, S.; Li, C.; Mi, J.; Meng, H. A functional activated carbon for efficient adsorption of phenol derived from pyrolysis of rice husk, KOH-activation and EDTA-4Na-modification. Appl. Surf. Sci. 2020, 510, 145425. [Google Scholar] [CrossRef]
  22. Dupont, D.; Brullot, W.; Bloemen, M.; Verbiest, T.; Binnemans, K. Selective uptake of rare earths from aqueous solutions by EDTA-functionalized magnetic and nonmagnetic nanoparticles. ACS Appl. Mater. Interfaces 2014, 6, 4980–4988. [Google Scholar] [CrossRef] [PubMed]
  23. Magoling, B.J.A.; Macalalad, A.A. Optimization and response surface modelling of activated carbon production from Mahogany fruit husk for removal of chromium (VI) from aqueous solution. BioResources 2017, 12, 3001–3016. [Google Scholar] [CrossRef]
  24. Gil, M.; Martínez, M.; García, S.; Rubiera, F.; Pis, J.; Pevida, C. Response surface methodology as an efficient tool for optimizing carbon adsorbents for CO2 capture. Fuel Process. Technol. 2013, 106, 55–61. [Google Scholar] [CrossRef]
  25. Jafari, M.; Rahimi, M.R.; Ghaedi, M.; Dashtian, K. ZnO nanoparticles loaded different mesh size of porous activated carbon prepared from Pinus eldarica and its effects on simultaneous removal of dyes: Multivariate optimization. Chem. Eng. Res. Des. 2017, 125, 408–421. [Google Scholar] [CrossRef]
  26. Arami-Niya, A.; Daud, W.M.A.W.; Mjalli, F.S.; Abnisa, F.; Shafeeyan, M.S. Production of microporous palm shell based activated carbon for methane adsorption: Modeling and optimization using response surface methodology. Chem. Eng. Res. Des. 2012, 90, 776–784. [Google Scholar] [CrossRef]
  27. Hidayu, A.; Mohamad, N.; Matali, S.; Sharifah, A. Characterization of activated carbon prepared from oil palm empty fruit bunch using BET and FT-IR techniques. Procedia Eng. 2013, 68, 379–384. [Google Scholar] [CrossRef]
  28. Reddy, K.S.K.; Al Shoaibi, A.; Srinivasakannan, C. Activated carbon from date palm seed: Process optimization using response surface methodology. Waste Biomass-Valorization 2012, 3, 149–156. [Google Scholar] [CrossRef]
  29. Duan, X.; Peng, J.; Srinivasakannan, C.; Zhang, L.; Xia, H.; Yang, K.; Zhang, Z. Process optimization for the preparation of activated carbon from Jatropha hull using response surface methodology. Energy Sources Part A Recover. Util. Environ. Eff. 2011, 33, 2005–2017. [Google Scholar] [CrossRef]
  30. Tang, Y.-B.; Liu, Q.; Chen, F.-Y. Preparation and characterization of activated carbon from waste ramulus mori. Chem. Eng. J. 2012, 203, 19–24. [Google Scholar] [CrossRef]
  31. Yu, B.; Zhang, Y.; Shukla, A.; Shukla, S.S.; Dorris, K.L. The removal of heavy metals from aqueous solutions by sawdust adsorption—Removal of lead and comparison of its adsorption with copper. J. Hazard. Mater. 2001, 84, 83–94. [Google Scholar] [CrossRef] [PubMed]
  32. Imamoglu, M.; Tekir, O. Removal of copper (II) and lead (II) ions from aqueous solutions by adsorption on activated carbon from a new precursor hazelnut husks. Desalination 2008, 228, 108–113. [Google Scholar] [CrossRef]
  33. Zakir, M. Adsorption of lead (II) and copper (II) ions on rice husk activated carbon under sonication 1. Int. Symp. Chem. Bioprocess Eng. 2013. [Google Scholar]
  34. Shekinah, P.; Kadirvelu, K.; Kanmani, P.; Senthilkumar, P.; Subburam, V. Adsorption of lead (II) from aqueous solution by activated carbon prepared from Eichhornia. J. Chem. Technol. Biotechnol.: Int. Res. Process Environ. Clean Technol. 2002, 77, 458–464. [Google Scholar]
  35. Caccin, M.; Giorgi, M.; Giacobbo, F.; Da Ros, M.; Besozzi, L.; Mariani, M. Removal of lead (II) from aqueous solutions by adsorption onto activated carbons prepared from coconut shell. Desalination Water Treat. 2016, 57, 4557–4575. [Google Scholar] [CrossRef]
  36. Yavuz, Ö.; Guzel, R.; Aydin, F.; Tegin, I.; Ziyadanogullari, R. Removal of Cadmium and Lead from Aqueous Solution by Calcite. Pol. J. Environ. Stud. 2007, 16, 467–471. [Google Scholar]
  37. Shaikhiev, I.; Shaykhieva, K.; Sverguzova, S.; Fomina, E.; Vinogradenko, Y.; Fediuk, R.; Amran, M.; Svintsov, A.P.; de Azevedo, A.R.G.; Gunasekaran, M. Removing Pollutants from Sewage Waters with Ground Apricot Kernel Shell Material. Materials 2022, 15, 3428. [Google Scholar] [CrossRef]
  38. Rao, M.M.; Rao, G.C.; Seshaiah, K.; Choudary, N.; Wang, M. Activated carbon from Ceiba pentandra hulls, an agricultural waste, as an adsorbent in the removal of lead and zinc from aqueous solutions. Waste Manag. 2008, 28, 849–858. [Google Scholar] [CrossRef]
  39. Acharya, J.; Sahu, J.; Mohanty, C.; Meikap, B. Removal of lead(II) from wastewater by activated carbon developed from Tamarind wood by zinc chloride activation. Chem. Eng. J. 2009, 149, 249–262. [Google Scholar] [CrossRef]
  40. Lv, D.; Liu, Y.; Zhou, J.; Yang, K.; Lou, Z.; Baig, S.A.; Xu, X. Application of EDTA-functionalized bamboo activated carbon (BAC) for Pb(II) and Cu(II) removal from aqueous solutions. Appl. Surf. Sci. 2018, 428, 648–658. [Google Scholar] [CrossRef]
  41. Mariana, M.; HPS, A.K.; Mistar, E.; Yahya, E.B.; Alfatah, T.; Danish, M.; Amayreh, M. Recent advances in activated carbon modification techniques for enhanced heavy metal adsorption. J. Water Process Eng. 2021, 43, 102221. [Google Scholar] [CrossRef]
  42. Krishnamoorthy, R.; Govindan, B.; Banat, F.; Sagadevan, V.; Purushothaman, M.; Show, P.L. Date pits activated carbon for divalent lead ions removal. J. Biosci. Bioeng. 2019, 128, 88–97. [Google Scholar] [CrossRef]
  43. Patnukao, P.; Kongsuwan, A.; Pavasant, P. Batch studies of adsorption of copper and lead on activated carbon from Eucalyptus camaldulensis Dehn. bark. J. Environ. Sci. 2008, 20, 1028–1034. [Google Scholar] [CrossRef]
  44. Owamah, H.I. Biosorptive removal of Pb(II) and Cu(II) from wastewater using activated carbon from cassava peels. J. Mater. Cycles Waste Manag. 2014, 16, 347–358. [Google Scholar] [CrossRef]
  45. Ramutshatsha-Makhwedzha, D.; Mbaya, R.; Mavhungu, M.L. Application of Activated Carbon Banana Peel Coated with Al2O3-Chitosan for the Adsorptive Removal of Lead and Cadmium from Wastewater. Materials 2022, 15, 860. [Google Scholar] [CrossRef]
Figure 1. (a) Langmuir’s isotherm plots for the adsorption of Pb2+ onto CA@EDTA; (b) Freundlich’s isotherm plots for the adsorption of Pb2+ onto CA@EDTA; (c) Pseudo-second-order kinetic plots for the adsorption of Pb2+ onto CA@EDTA; and (d) Pseudo-first-order plots for the adsorption of Pb2+ onto CA@EDTA.
Figure 1. (a) Langmuir’s isotherm plots for the adsorption of Pb2+ onto CA@EDTA; (b) Freundlich’s isotherm plots for the adsorption of Pb2+ onto CA@EDTA; (c) Pseudo-second-order kinetic plots for the adsorption of Pb2+ onto CA@EDTA; and (d) Pseudo-first-order plots for the adsorption of Pb2+ onto CA@EDTA.
Water 15 03750 g001
Figure 2. Pareto chart of factorial experimental design for the analysis of parameters.
Figure 2. Pareto chart of factorial experimental design for the analysis of parameters.
Water 15 03750 g002
Figure 3. Spectra of (a) AC, (b) AC loaded with EDTA.
Figure 3. Spectra of (a) AC, (b) AC loaded with EDTA.
Water 15 03750 g003
Figure 4. SEM image of activated carbon (AC) and EDTA-modified activated carbon (AC@EDTA) at different resolutions.
Figure 4. SEM image of activated carbon (AC) and EDTA-modified activated carbon (AC@EDTA) at different resolutions.
Water 15 03750 g004
Figure 5. N2 adsorption–desorption isotherms of [email protected]. Thermogravimetric Analysis.
Figure 5. N2 adsorption–desorption isotherms of [email protected]. Thermogravimetric Analysis.
Water 15 03750 g005
Figure 6. TGA of activated carbon loaded with EDTA.
Figure 6. TGA of activated carbon loaded with EDTA.
Water 15 03750 g006
Figure 7. 3D surface plot of response against (a) A/B, (b) C/B, (c) D/A, and (d) C/A.
Figure 7. 3D surface plot of response against (a) A/B, (b) C/B, (c) D/A, and (d) C/A.
Water 15 03750 g007
Table 5. Effect of interfering ions on Pb2+ analytical response (n = 6).
Table 5. Effect of interfering ions on Pb2+ analytical response (n = 6).
Coexisting IonsConcentration (mg L−1)
Na+, K+, Cl>10,000
Mg2+, Ca2+, Fe3+,6000
Al3+, Fe2+, Co2+, Ni2+, Cd2+, Zn2+,5000
Cr3+, PO43−, SO42−2000
F, CO32−500
Table 6. Analytical figures of merit for Pb2+ detection.
Table 6. Analytical figures of merit for Pb2+ detection.
Analytical Parameters
Linear range (µg L−1)0.84–1000
Correlation coefficient0.996
Enhancement factor130
Extraction recovery (%)95
Calibration equationy = 0.002x
LOD (µg L−1)0.25
LOQ (µg L−1)0.84
RSDr (n = 6)<3.0
RSDR (n = 10)<7.5
Table 7. Validation and uncertainty results of proposed technique (n = 7).
Table 7. Validation and uncertainty results of proposed technique (n = 7).
SampleAdded Amount (mg)Found Amount (mg)% R
Tap water0BDL-
0.200.1999.0 ± 0.78
0.400.3997.8 ± 0.93
0.800.7998.5 ± 1.01
1.601.5496.4 ± 1.12
0.200.2096.5 ± 2.4
0.400.4199.2 ± 0.6
0.800.7998.1 ± 1.0
1.601.4891.6 ± 2.7
Milk powder0BDL-
0.200.20101.0 ± 1.4
0.400.3997.2 ± 1.8
0.800.7899.9 ± 1.4
1.601.4791.6 ± 2.1
Wheat flour0BDL-
0.200.1998.5 ± 0.9
0.400.3997.8 ± 1.5
0.800.7998.5 ± 1.1
1.601.5496.4 ± 3.1
Certified reference drinking water (ERM-CA011a) (µg L−1)
Certified concentrationFound concentration% Recovery
24.5 *24.3 ± 0.799.2 ± 2.9
Notes: BDL: Below detection limit; * Standard deviation is not available; % Recovery = [ O b s e r v e d   v a l u e C e r t i f i e d   v a l u e ] × 100.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Ahmad, T.; Shah, F.; Khan, R.A.; Ahmed, A.Y. Utilization of Multivariate Optimization for Preconcentration and Determination of Lead in Different Water and Food Samples Using Functionalized Activated Carbon. Water 2023, 15, 3750.

AMA Style

Ahmad T, Shah F, Khan RA, Ahmed AY. Utilization of Multivariate Optimization for Preconcentration and Determination of Lead in Different Water and Food Samples Using Functionalized Activated Carbon. Water. 2023; 15(21):3750.

Chicago/Turabian Style

Ahmad, Tabinda, Faheem Shah, Rafaqat Ali Khan, and Amel Y. Ahmed. 2023. "Utilization of Multivariate Optimization for Preconcentration and Determination of Lead in Different Water and Food Samples Using Functionalized Activated Carbon" Water 15, no. 21: 3750.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
