# Accurate Numerical Modeling for 1D Open-Channel Flow with Varying Topography

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Mathematical Formulation

**U**represents the conserved variables in the form of a vector; $A\left(x,\eta \right)$ is a function of the space and water surface elevation, which are predetermined and arbitrary, representing the cross-sectional area of the channel; Q is the flow discharge;

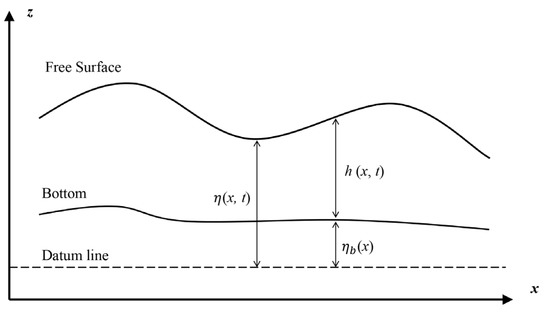

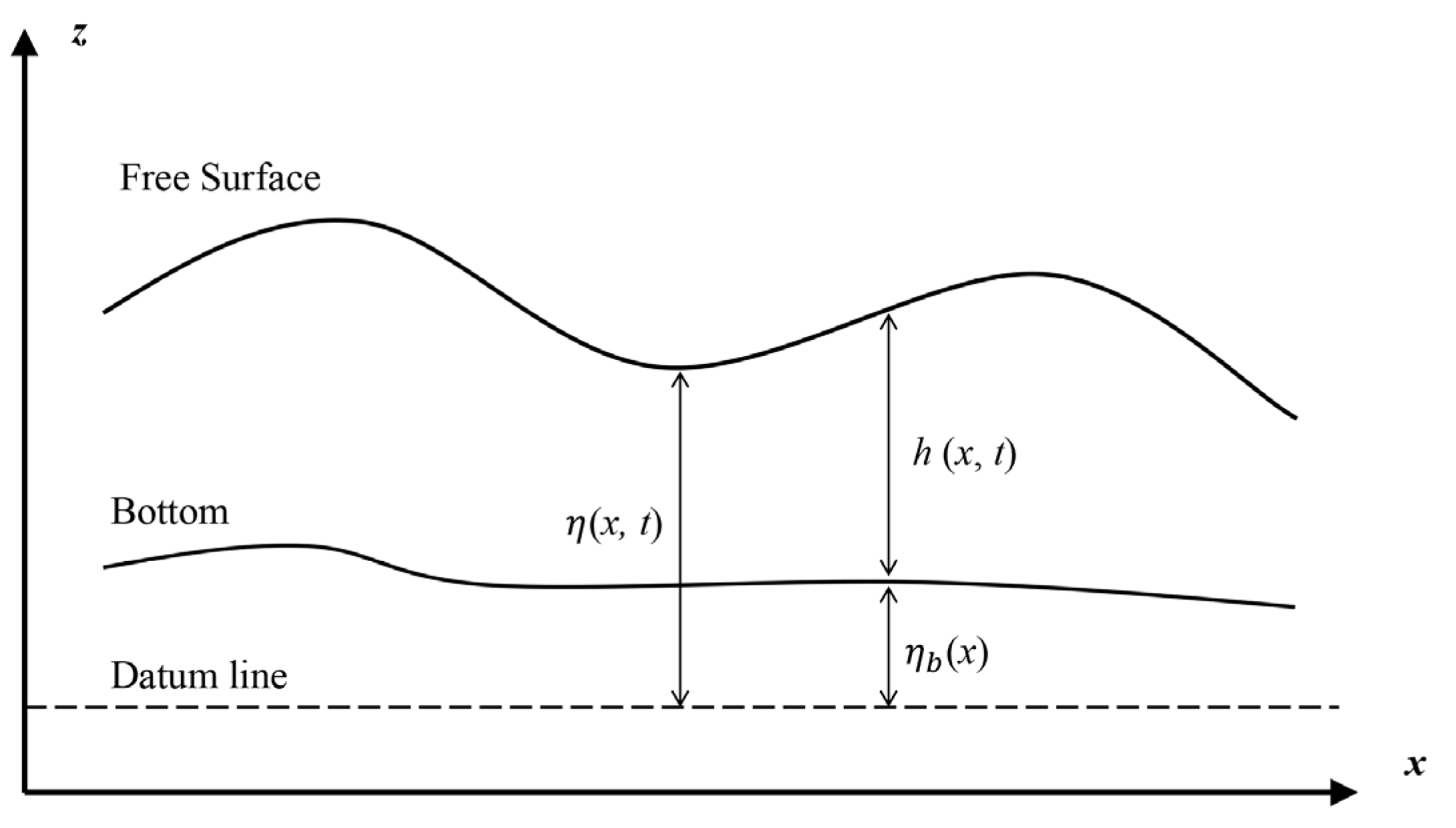

**F**denotes the flux in the x direction; g is the gravitational acceleration; ${I}_{1}$ and ${I}_{2}$ are integral terms that are related to the hydrostatic pressure forces caused by the varying channel breadth; $\eta $ is the water surface elevation; ${\eta}_{b}$ denotes the bottom elevation; $B\left(x,\tau \right)$ is the channel width;

**S**represents the source terms; ${S}_{0}$ represents the inclination or gradient of the channel bed; and S

_{f}denotes the inclination or gradient of the energy line within the channel.

## 3. Riemann Solver

## 4. Numerical Methodology

**I**. Obtain the Riemann solutions ${\mathbf{W}}_{i-\frac{1}{2}}(x/t)$ and ${\mathbf{W}}_{i+\frac{1}{2}}(x/t)$ of the Riemann problems RP (${\mathbf{W}}_{i-1}^{n},{\mathbf{W}}_{i}^{n}$) and RP (${\mathbf{W}}_{i}^{n},{\mathbf{W}}_{i+1}^{n}$) at a general point (x, t).

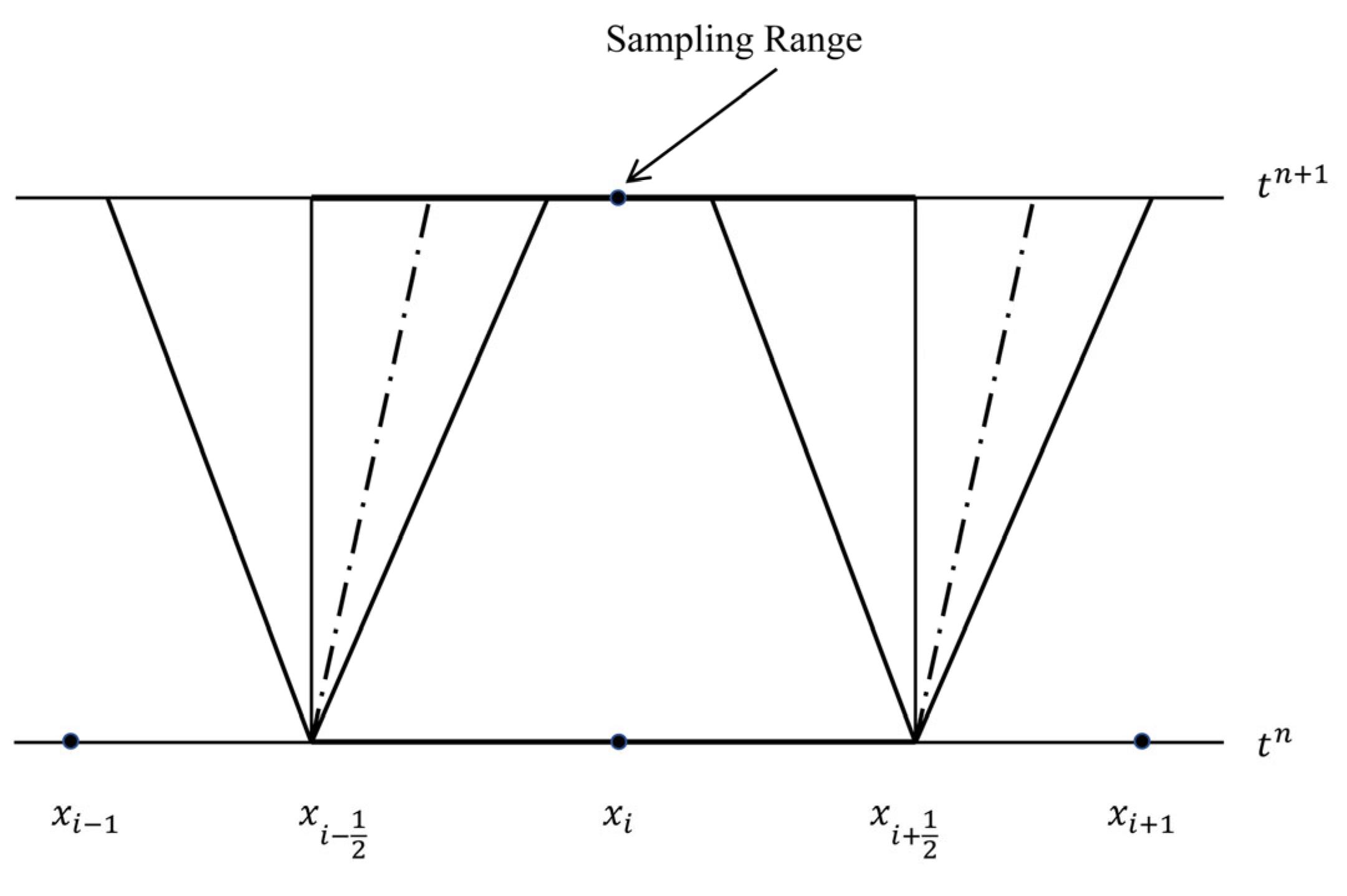

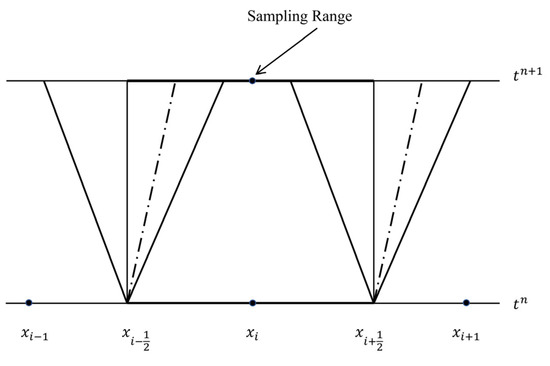

**II**. Perform a random sampling of solutions in the cell i to obtain a state at time level ${t}_{n+1}$. The selected state is determined based on a random or quasi-random number ${R}^{n}$, which falls within the range of [0, 1].

**I**. Solve the local Riemann problems $\left({\mathbf{W}}_{i-1}^{n},{\mathbf{W}}_{i}^{n}\right)$ and $\left({\mathbf{W}}_{i}^{n},{\mathbf{W}}_{i+1}^{n}\right)$, which are defined by the constant states ${\mathbf{W}}_{i-1}^{n}$, ${\mathbf{W}}_{i}^{n}$ and ${\mathbf{W}}_{i+1}^{n}$. These Riemann problems are solved to determine the intermediate states for each cell interface.

## 5. Discretization of Source Terms and Stability Constraints

- Pure advection:$${\mathbf{W}}_{i}^{n+1}={\mathbf{W}}_{i}^{n}-\frac{\mathsf{\Delta}t}{\mathsf{\Delta}x}\left({\mathbf{G}}_{i+1/2}^{n+1/2}-{\mathbf{G}}_{i-1/2}^{n+1/2}\right)$$
- Update with the source term by $\mathsf{\Delta}t/2$:$${\overline{\mathbf{W}}}_{i}^{n+1}={\mathbf{W}}_{i}^{n+1}+\frac{\mathsf{\Delta}t}{2}\left(\right)close\; separators="|">\mathbf{J}\left({\mathbf{W}}_{i}^{n+1}\right)$$
- Re-update with the source term by $\mathsf{\Delta}t$:$${\stackrel{\u033f}{\mathbf{W}}}_{i}^{n+1}={\mathbf{W}}_{i}^{n+1}+\mathsf{\Delta}t\left(\right)close\; separators="|">\mathbf{J}\left({\overline{\mathbf{W}}}_{i}^{n+1}\right)$$$${\left(\frac{\mathit{\partial}B\left(x\right)}{\mathit{\partial}x}\right)}_{i}=\frac{{B}_{i+1/2}-{B}_{i-1/2}}{{x}_{i+1/2}-{x}_{i-1/2}}=\frac{\mathsf{\Delta}{B}_{i}}{\mathsf{\Delta}{x}_{i}}\phantom{\rule{0ex}{0ex}}{\left(\frac{\mathit{\partial}{\eta}_{b}\left(x\right)}{\mathit{\partial}x}\right)}_{i}=\frac{{{\eta}_{b}}_{i+1/2}-{{\eta}_{b}}_{i-1/2}}{{x}_{i+1/2}-{x}_{i-1/2}}=\frac{\mathsf{\Delta}{{\eta}_{b}}_{i}}{\mathsf{\Delta}{x}_{i}}$$$${\left({S}_{f}\right)}_{i}=\frac{{{n}_{m}}^{2}{u}_{i}\left|{u}_{i}\right|}{{R}_{i}^{4\u22153}}$$

## 6. Numerical Validations and Discussion

^{2}, and the Courant number value was 0.8. The model was tested against a range of scenarios to evaluate its ability to accurately simulate open-channel flows and to ensure its suitability for future applications.

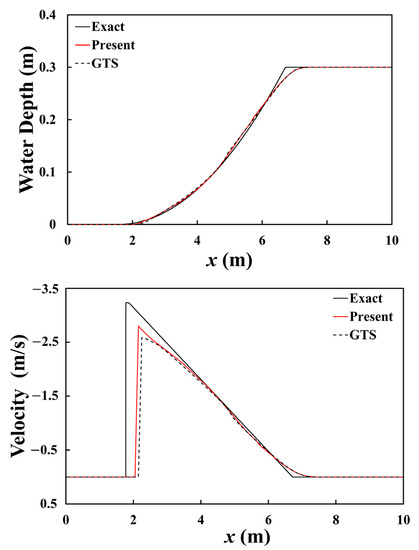

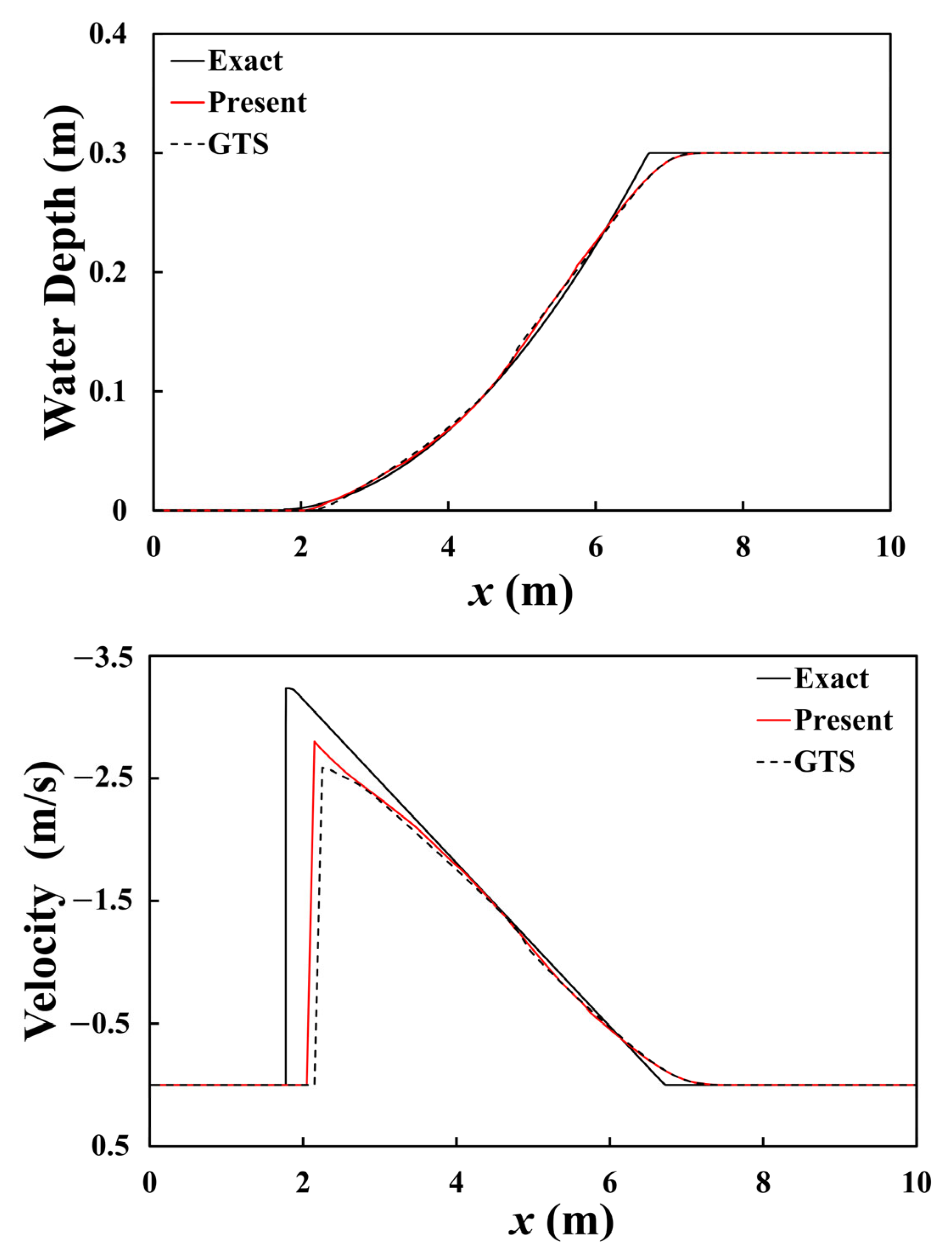

#### 6.1. Dam Break Tests

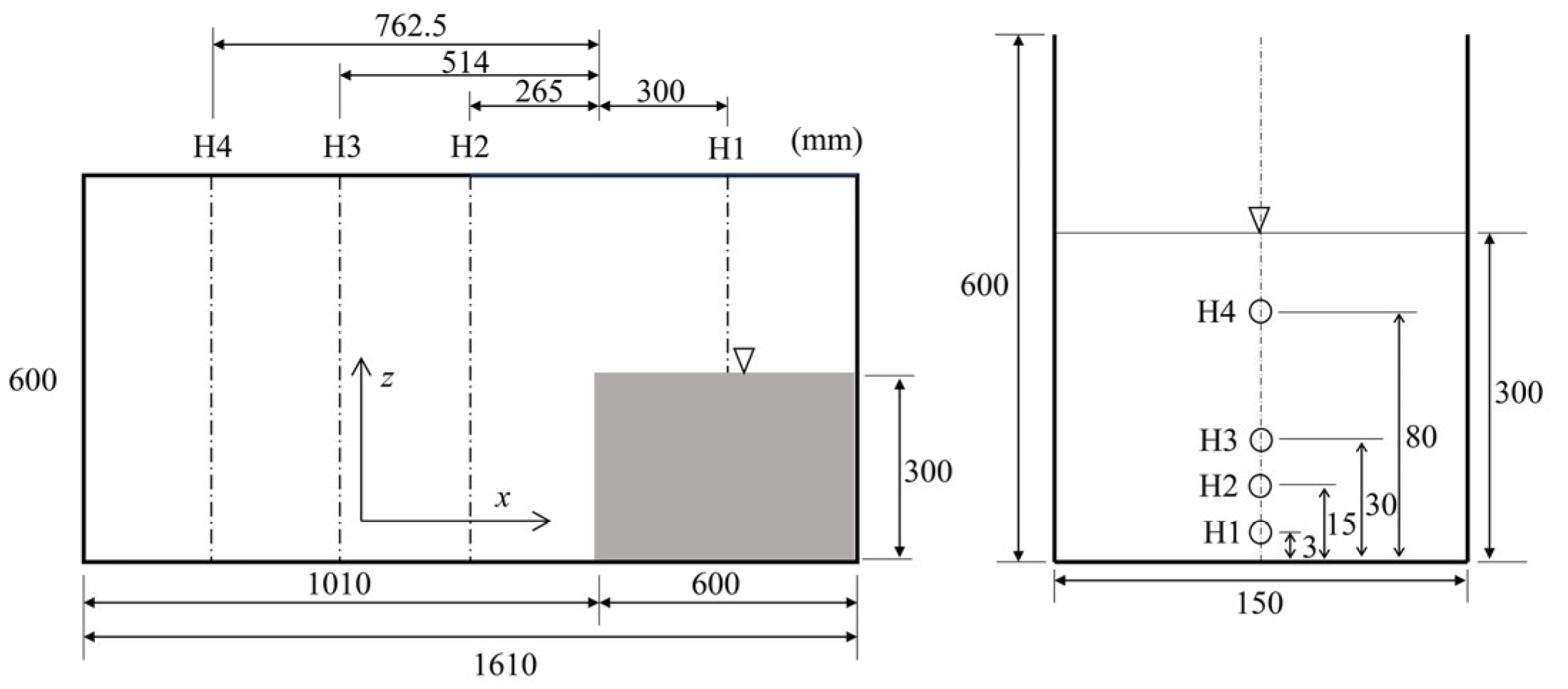

#### 6.2. Lobovsky et al.’s Dam Break ExperimentA

^{1/2}.

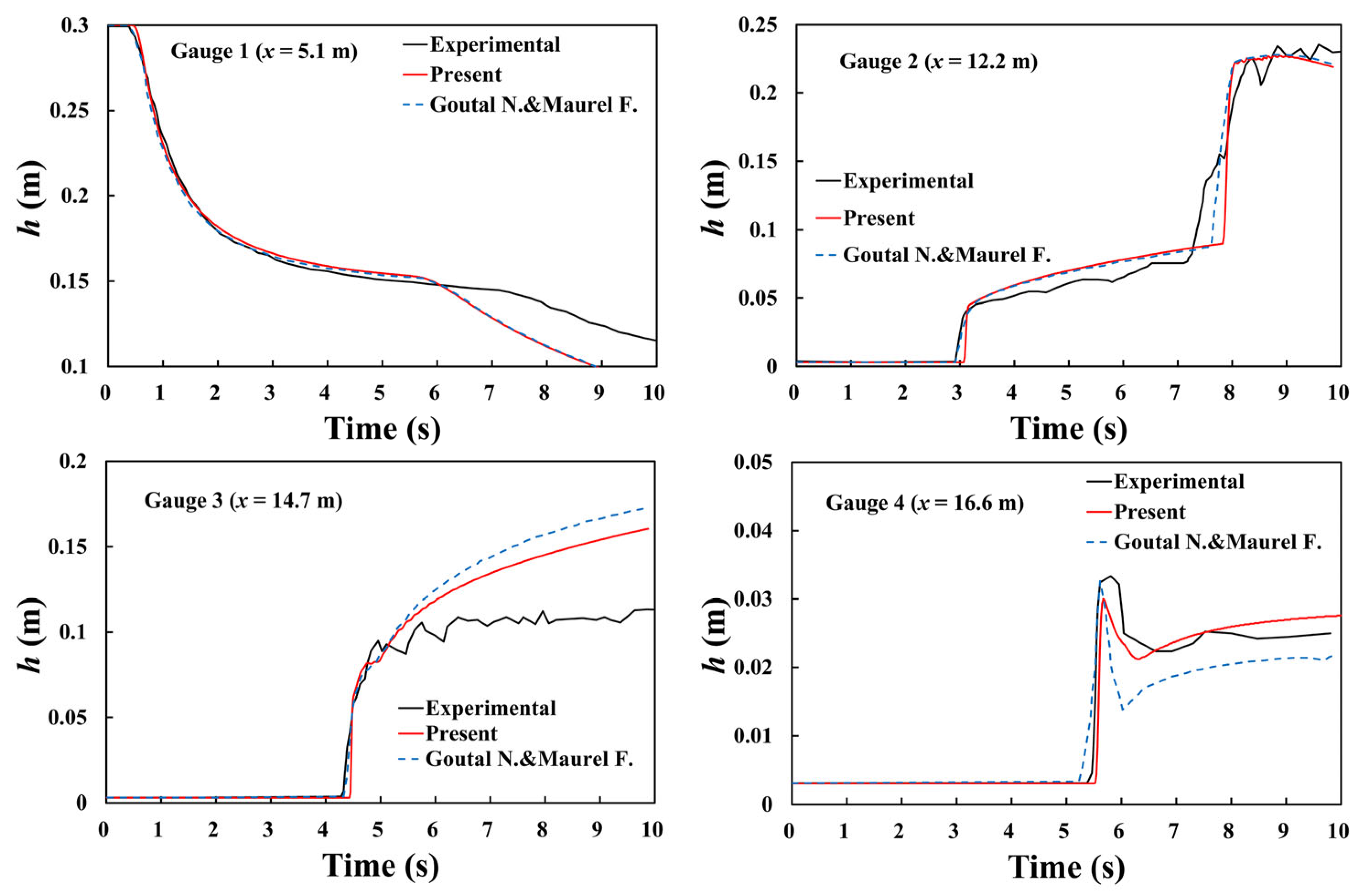

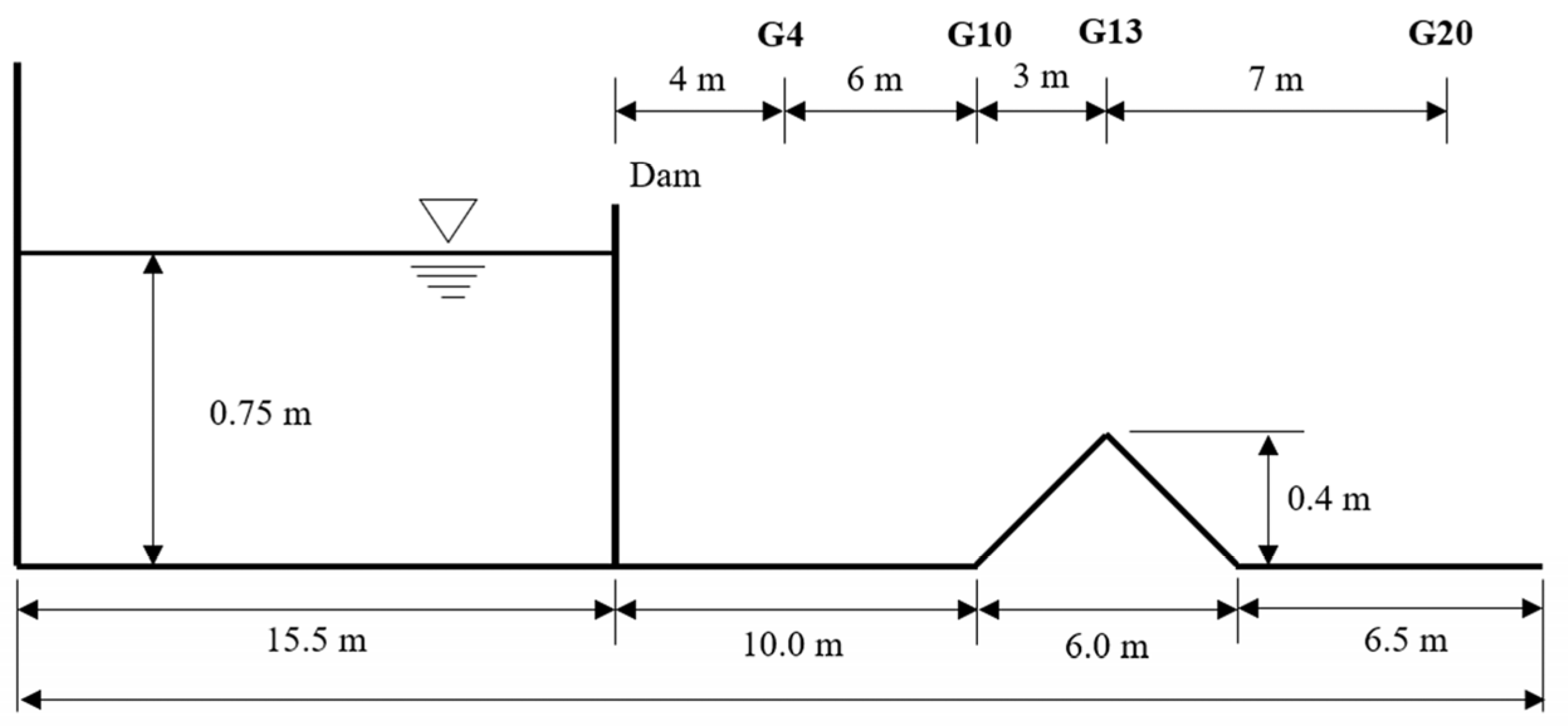

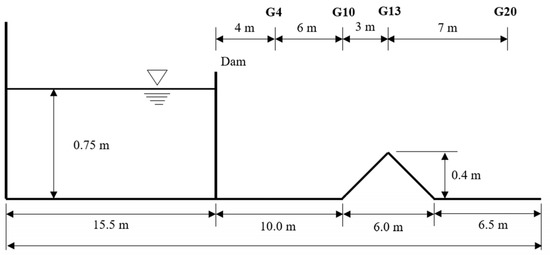

#### 6.3. Laboratory Experiment of a Dam Break Flow over a Triangular Obstacle

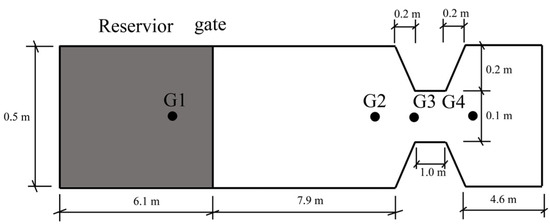

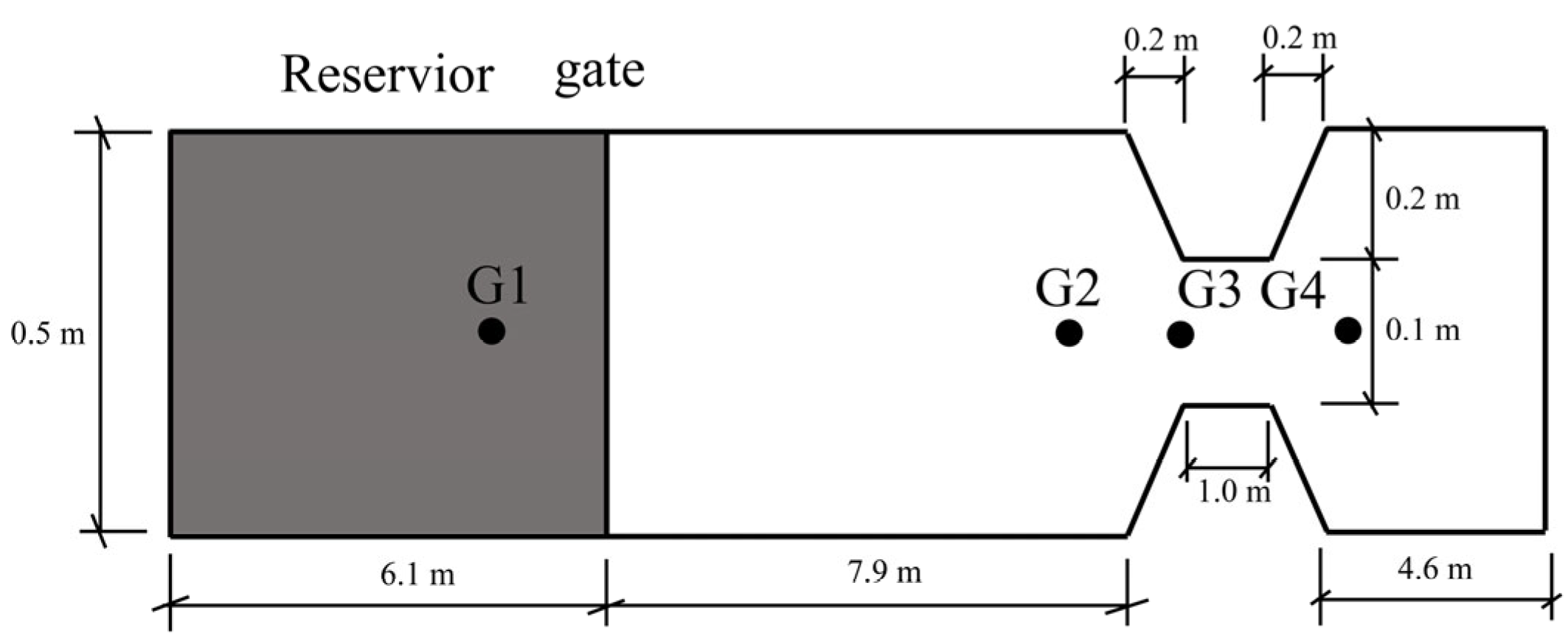

#### 6.4. Dam Break Flow onto a Channel with a Local Constriction

- Gauge 1: 1.00 m upstream from the dam;
- Gauge 2: 6.10 m downstream from the dam;
- Gauge 3: 8.60 m downstream from the dam;
- Gauge 4: 10.50 m downstream from the dam.

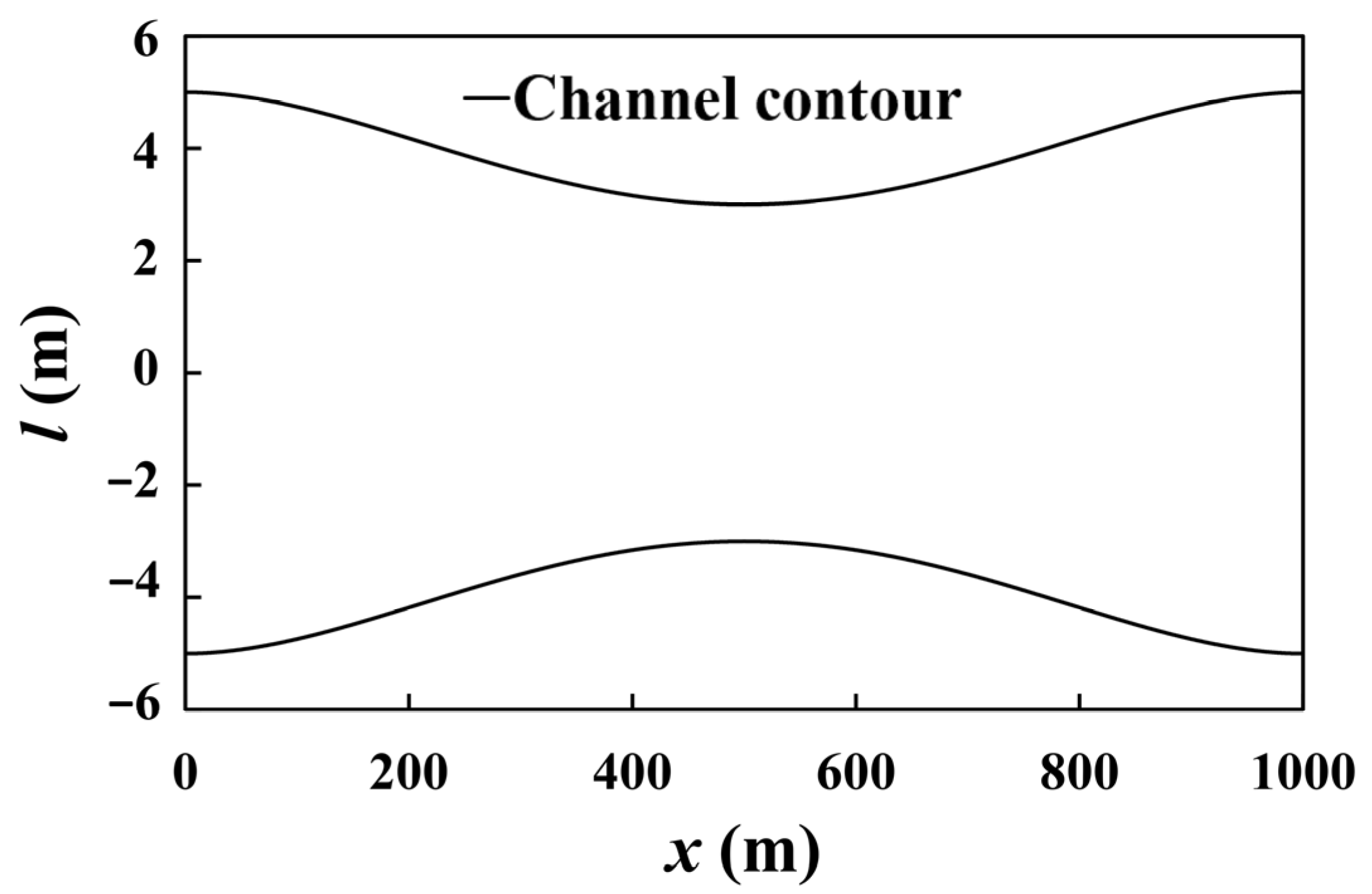

#### 6.5. Channel Contraction Test Problem

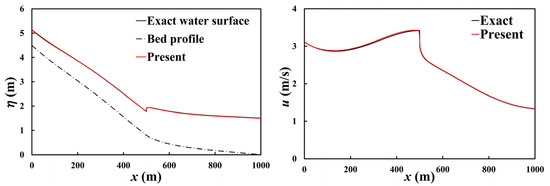

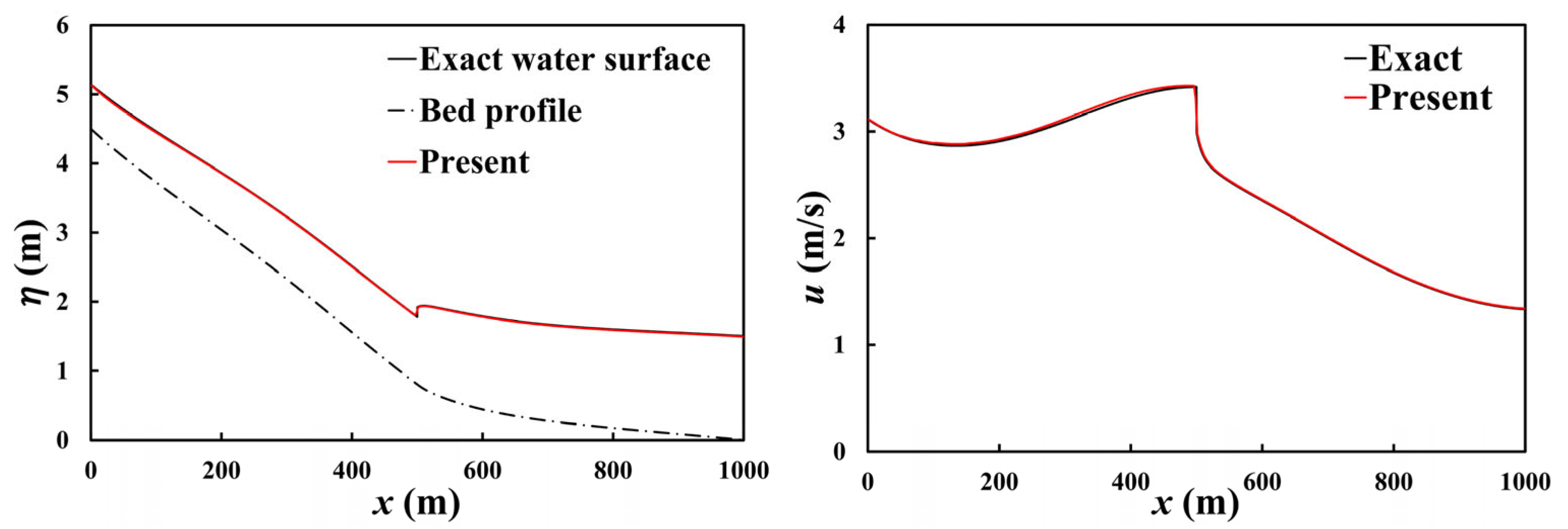

^{3}/s and a downstream water depth of 1.5 m. The discretization of the channel is accomplished using a uniform grid spacing of $\mathsf{\Delta}x$ = 2.5 m. The simulation was initialized using these specific boundary and initial conditions, and the simulation ran until a steady state was reached. The exact bed elevation, water surface level, and velocity profiles obtained from the numerical simulation are plotted in Figure 12, and they show a good agreement with the expected analytical profiles. The evaluation of numerical and analytical profiles is an essential step in validating the precision of the numerical approach used in the simulation. The predicted free surface level matches the analytical profiles, indicating that the current model has achieved a satisfactory level of accuracy for simulating steady flows.

## 7. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Fennema, R.J.; Hanif Chaudhry, M. Simulation of one-dimensional dam-break flows. J. Hydraul. Res.
**1987**, 25, 41–51. [Google Scholar] [CrossRef] - MacCormack, R.W. The effect of viscosity in hypervelocity impact cratering. Front. Comput. Fluid Dyn.
**2002**, 2022, 27–43. [Google Scholar] [CrossRef] - Glaister, P. Approximate Riemann solutions of the shallow water equations. J. Hydraul. Res.
**1988**, 26, 293–306. [Google Scholar] [CrossRef] - Garcia-Navarro, P.; Alcrudo, F.; Saviron, J.M. 1-D open-channel flow simulation using TVD-McCormack scheme. J. Hydraul. Eng.
**1992**, 118, 1359–1372. [Google Scholar] [CrossRef] - Savic, L.J.; Holly Jr, F.M. Dam break flood waves computed by modified Godunov method. J. Hydraul. Res.
**1993**, 31, 187–204. [Google Scholar] [CrossRef] - Hu, Y.; Zhou, L.; Pan, T.; Fang, H.; Li, Y.; Liu, D. Godunov-type solutions for free surface transient flow in pipeline incorporating unsteady friction. AQUA-Water Infrastruct. Ecosyst. Soc.
**2022**, 71, 546–562. [Google Scholar] [CrossRef] - Roe, P.L. Approximate Riemann solvers, parameter vectors, and difference schemes. J. Comput. Phys.
**1981**, 43, 357–372. [Google Scholar] [CrossRef] - Steger, J.L.; Warming, R. Flux vector splitting of the inviscid gasdynamic equations with application to finite-difference methods. J. Comput. Phys.
**1981**, 40, 263–293. [Google Scholar] [CrossRef] - Glimm, J. Solution in the Large for Nonlinear Hyperbolic Systems of Equations. Comm. Pure. Appl. Math.
**1965**, 18, 697–715. [Google Scholar] [CrossRef] - Zhang, Q.; Sheng, W. A random choice method based on the generalized Riemann problem for the Euler equations in gas dynamics. J. Comput. Phys.
**2021**, 441, 110431. [Google Scholar] [CrossRef] - Su, Y.-C.; Hong, J.M.; Chou, S.-W. An extension of Glimm’s method to the gas dynamical model of transonic flows. Nonlinearity
**2013**, 26, 1581. [Google Scholar] [CrossRef] - Wang, Z.; Qi, Z. Periodic solutions to p-system constructed through Glimm scheme. J. Math. Anal. Appl.
**2016**, 435, 1088–1098. [Google Scholar] [CrossRef] - Hurisse, O. On the use of Glimm-like schemes for transport equations on multidimensional domain. Int. J. Numer. Methods Fluids.
**2021**, 93, 1235–1268. [Google Scholar] [CrossRef] - Gallout, T.; Hurisse, O. Convergence of a multidimensional Glimm-like scheme for the transport of fronts. IMA J. Numer. Anal.
**2021**, 42, 2924–2958. [Google Scholar] [CrossRef] - Yun, P.; Zhang, Y. An Inverse Problem for Determining the Shape of the Wedge in Steady Supersonic Potential Flow. J. Math. Fluid Mech.
**2023**, 25, 25. [Google Scholar] [CrossRef] - Xue, Z.; Zhou, L.; Liu, D.; Che, T.C. A Random Choice Scheme for Transient Mixed Flows. J. Hydraul. Eng.
**2023**, 149, 04023026. [Google Scholar] [CrossRef] - Colella, P. Glimm’s method for gas dynamics. SIAM J. Sci. Comput.
**1982**, 3, 76–110. [Google Scholar] [CrossRef] [Green Version] - Goutal, N.; Maurel, F. A finite volume solver for 1D shallow-water equations applied to an actual river. Int. J. Numer. Meth. Fluids
**2002**, 38, 1–19. [Google Scholar] [CrossRef] - Roe, P.L.; Pike, J. Efficient Construction and Utilisation of Approximate Riemann Solutions. In Computing Methods in Applied Science and Engineering; Elsevier: Amsterdam, The Netherlands, 1984. [Google Scholar] [CrossRef]
- Chorin, A.J. Random Choice solution of Hyperbolic Systems. J. Comput. Phys.
**1976**, 22, 517. [Google Scholar] [CrossRef] [Green Version] - Toro Eleuterio, F. Reimann Solvers and Numerical Methods for Fluid Dynamics, 3rd ed.; Springer: Berlin/Heidelberg, Germany, 2009. [Google Scholar] [CrossRef]
- Fiedler, F.R.; Ramirez, J.A. A numerical method for simulating discontinuous shallow flow over an infiltrating surface. Int. J. Numer. Methods Fluids
**2000**, 32, 219–239. [Google Scholar] [CrossRef] - León, A.S.; Ghidaoui, M.S.; Schmidt, A.R.; Garcia, M.H. Efficient second-order accurate shock-capturing scheme for modeling one-and two-phase water hammer flows. J. Hydraul. Eng.
**2008**, 134, 970–983. [Google Scholar] [CrossRef] [Green Version] - Lobovsky, L.; Botia-Vera, E.; Castellana, F.; Mas-Soler, J.; Souto-Iglesias, A. Experimental investigation of dynamic pressure loads during dam break. J. Fluids Struct.
**2014**, 48, 407–434. [Google Scholar] [CrossRef] [Green Version] - Morris, M. CADAM: Concerted Action on Dambreak Modeling—Final Report. Rep. SR 571. HR Wallingford. 2000. Available online: http://eprints.hrwallingford.com/id/eprint/447 (accessed on 27 June 2023).
- MacDonald, I.; Baines, M.J.; Nichols, N.K.; Samuels, P.G. Analytic benchmark solution of open-channel flows. J. Hydraul. Eng.
**1997**, 123, 1041–1045. [Google Scholar] [CrossRef]

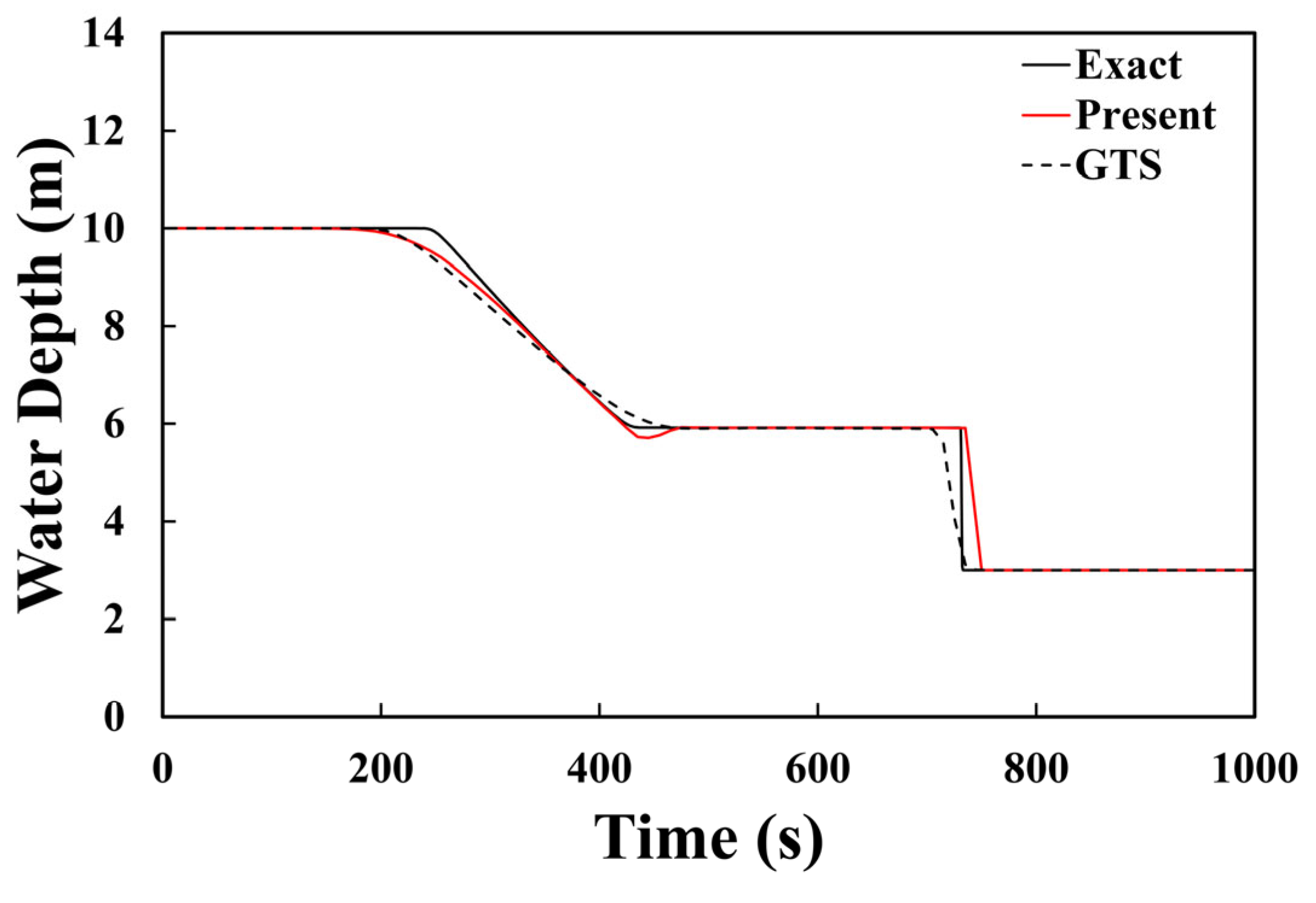

**Figure 3.**Water depth profile simulations compared with the exact solution at time = 36 s ($\mathsf{\Delta}x=10\mathrm{m}$).

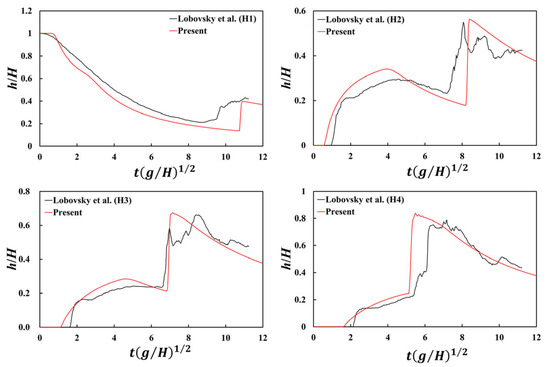

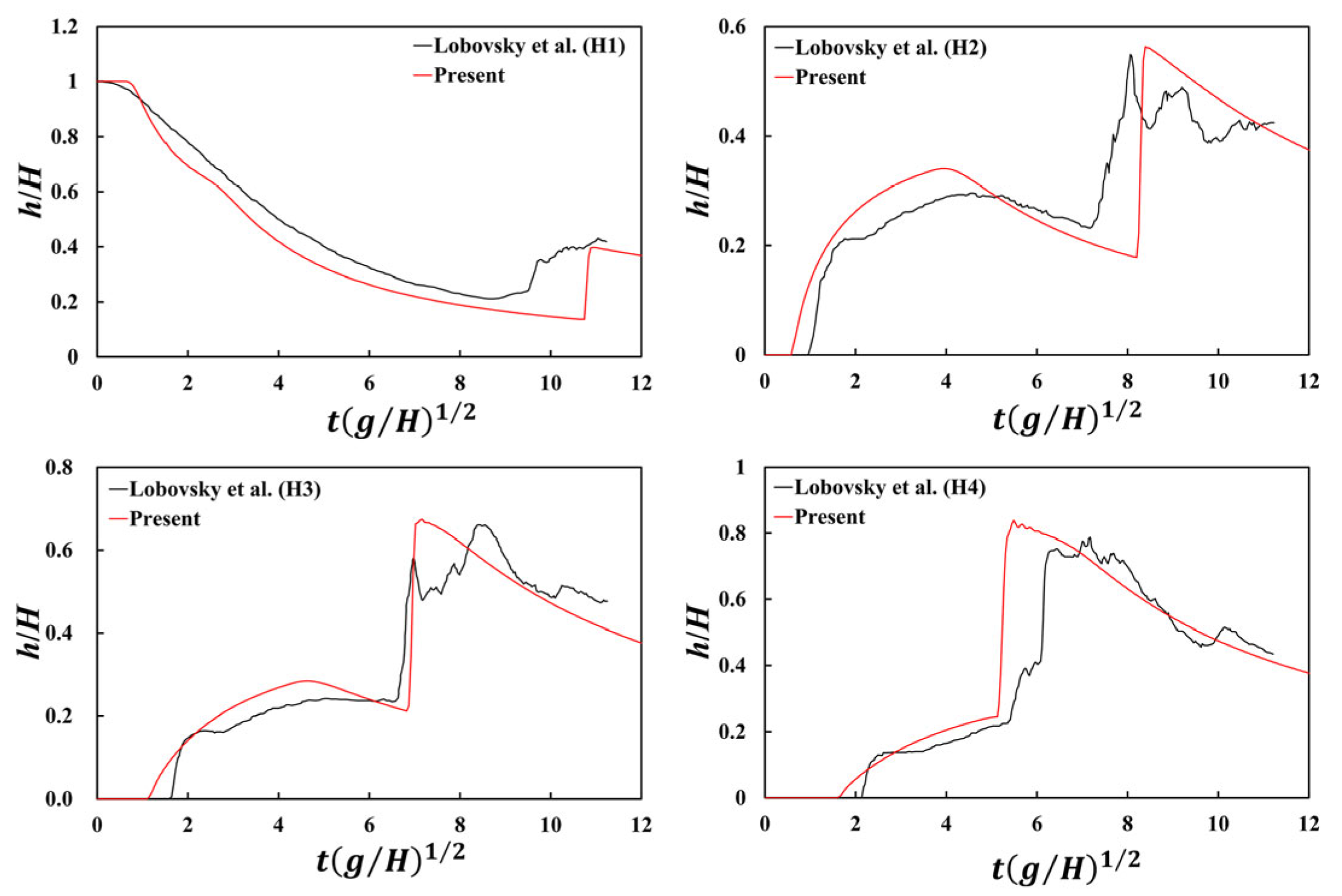

**Figure 6.**The simulated water levels at the designated points in relation to time are compared with the experimental data ($\mathsf{\Delta}x=0.061\mathrm{m}$).

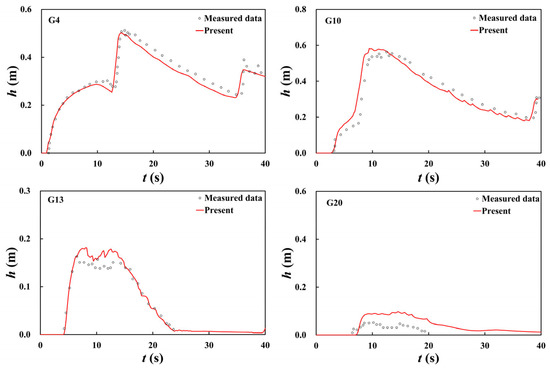

**Figure 8.**Dam break flow over an elevated section: chronological records of water depth at various measuring points: G4, G10, G13, and G20 ($\mathsf{\Delta}x=0.76=\mathrm{m}{n}_{m}=0.0125$).
