A Systemic Review of the Cybersecurity Challenges in Australian Water Infrastructure Management

School of Social Sciences, Western Sydney University, Sydney, NSW 2751, Australia
Department of Earth and Environmental Sciences, Macquarie University, Sydney, NSW 2109, Australia
Kent Institute Australia, Sydney, NSW 2000, Australia
Author to whom correspondence should be addressed.
Water 2023, 15(1), 168;
Submission received: 23 November 2022 / Revised: 28 December 2022 / Accepted: 29 December 2022 / Published: 31 December 2022
(This article belongs to the Special Issue Sustainable Water Futures: Climate, Community and Circular Economy)


Cybersecurity risks have become obstinate problems for critical water infrastructure management in Australia and worldwide. Water management in Australia involves a vast complex of smart technical control systems interconnected with several networks, making the infrastructure susceptible to cyber-attacks. Therefore, ensuring the use of security mechanisms in the control system modules and communication networks for sensors and actuators is vital. The statistics show that Australia is facing frequent cyber-attacks, most of which are either undetected or overlooked or require immediate response. To address these cyber risks, Australia has changed from a country with negligible recognition of attacks on critical infrastructure to a country with improved capability to manage cyber warfare. However, little attention is paid to reducing the risk of attacks to the critical water infrastructure. This study aims to evaluate Australia’s current cybersecurity attack landscape and the implemented controls for water infrastructure using a systematic literature review (SLR). This study also compares Australia in the context of global developments and proposes future research directions. The synthesis of the evidence from 271 studies in this review indicates the importance of managing security vulnerabilities and threats in SCADA water control systems, including the need to upgrade the contemporary water security architecture to mitigate emerging risks. Moreover, human resource development with a specific focus on security awareness and training for SCADA employees is found to be lacking, which will be essential for alleviating cyber threats to the water infrastructure in Australia.

1. Introduction

A smart water infrastructure system is an integral part of any metropolitan city. It comprises an integrated network of sensors and actuators connected to programmable logic controllers (PLCs). It is managed by a supervisory distributed control system (DCS) and data acquisition (SCADA) system [1,2]. The benefits of a smart water infrastructure system include the ability for accurate water consumption measurements, safe and reliable water supply, wastewater treatment, flood prevention and monitoring, and water wastage control [3,4,5,6,7,8,9]. Regardless of the many advantages of incorporating modern technologies into water infrastructure systems, there are many security risks and challenges in preventing supply disruptions, water theft, water poisoning, and water wastage. Connecting the water infrastructure’s physical components with the cyberspace exposes these systems to the broad domain of cyber-grounded threats [10,11].
Water is a fundamental resource that has no possible substitute. Its usage as a diplomatic tool or military target has a long history [12]. From a national security perspective, water infrastructure plays a vital role in a nation’s sustainable development, making it highly susceptible to cyber-attacks. Formerly, cyber criminals are either individual actors or small hacker groups. However, various state-run organisations can carry out targeted attacks using sophisticated malware and zero-day exploits.
Previously, the security of water systems was mainly maintained through their remoteness and by restricting access to the control components. However, with the advent of the Internet of Things (IoT), like other critical infrastructure services, water infrastructure systems have progressively adopted intelligent systems technologies. Therefore, they are now susceptible to cyber–physical attacks (CPA) that can target the SCADA module (system processes monitoring), the PLCs that run the substantial elements of the system, or the remote communication network, among the other components of the cyber–physical system (CPS). Cyber-attacks could be launched remotely by employing command and control techniques to interrupt the system’s performance and provide access to illegitimate parties to critical and confidential information. Moreover, in more severe cases, such attacks can even cause physical impairment to the system’s structure. Furthermore, such attacks can hamper the water quality by changing the treatment systems or suppressing contamination warnings by affecting water quality sensors.
The last decade has witnessed a noticeable number of severe cybersecurity cases connected to water infrastructure systems. The US Department of Homeland Security (DHS) considers the water and wastewater infrastructure system (WWIS) as one of the primary victims of cyber-attacks among the 16 lifeline infrastructure sectors [13]. They declared that safeguarding the WWIS against cybersecurity threats is now a national priority [14]. According to ICS-CERT, in 2015, about 25 cybersecurity incidents were reported by various water utilities, making WWIS the third most targeted sector [15]. However, with the advancement of modern security technology, one may assume that the cybersecurity risks to the WWIS are low and most of the water infrastructure systems are reliable and secure. However, many cybersecurity incidents in these systems either go undetected or unreported. In some cases, they are not disclosed to safeguard the customer’s trust, the victim’s reputation, and revenue [16,17,18,19].
Australia is also facing a dramatic increase in the number of cyber-attacks. The statistics show that between 2011 and 2012, Australia experienced about 438 cyber incidents requiring an immediate and profound response by the Cyber Security Operation Centres and the Australian Federal Government [20]. In Australia, modern water infrastructure systems are operated by industrial control systems (ICSs) consisting of DCS, PLC, and SCADA systems. However, the SCADA systems in Australia are different and very complex due to the remoteness of many of the utility plants and field stations and the vastness of the country [21]. Hence, the SCADA systems in Australia are more susceptible to cyber threats. A well-cited example is the SCADA security incident at Maroochy Water Services in Queensland, Australia, in 2000. This was the first global example (declared publicly) of a successful hacking case against a critical SCADA infrastructure system [22], resulting in an urgent need to ensure a secure water distribution system that controls the water quality and the central water infrastructure system [23,24].
The present study aims to evaluate the current cybersecurity attack landscape and the implemented controls for the water infrastructure in Australia. Furthermore, a global assessment of cybersecurity developments is undertaken to compare against Australia’s recent cybersecurity water infrastructure developments.

2. Methodology

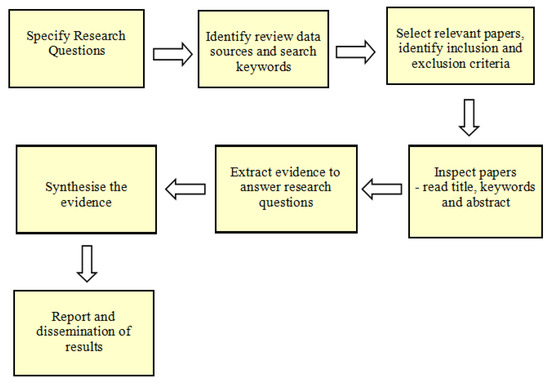

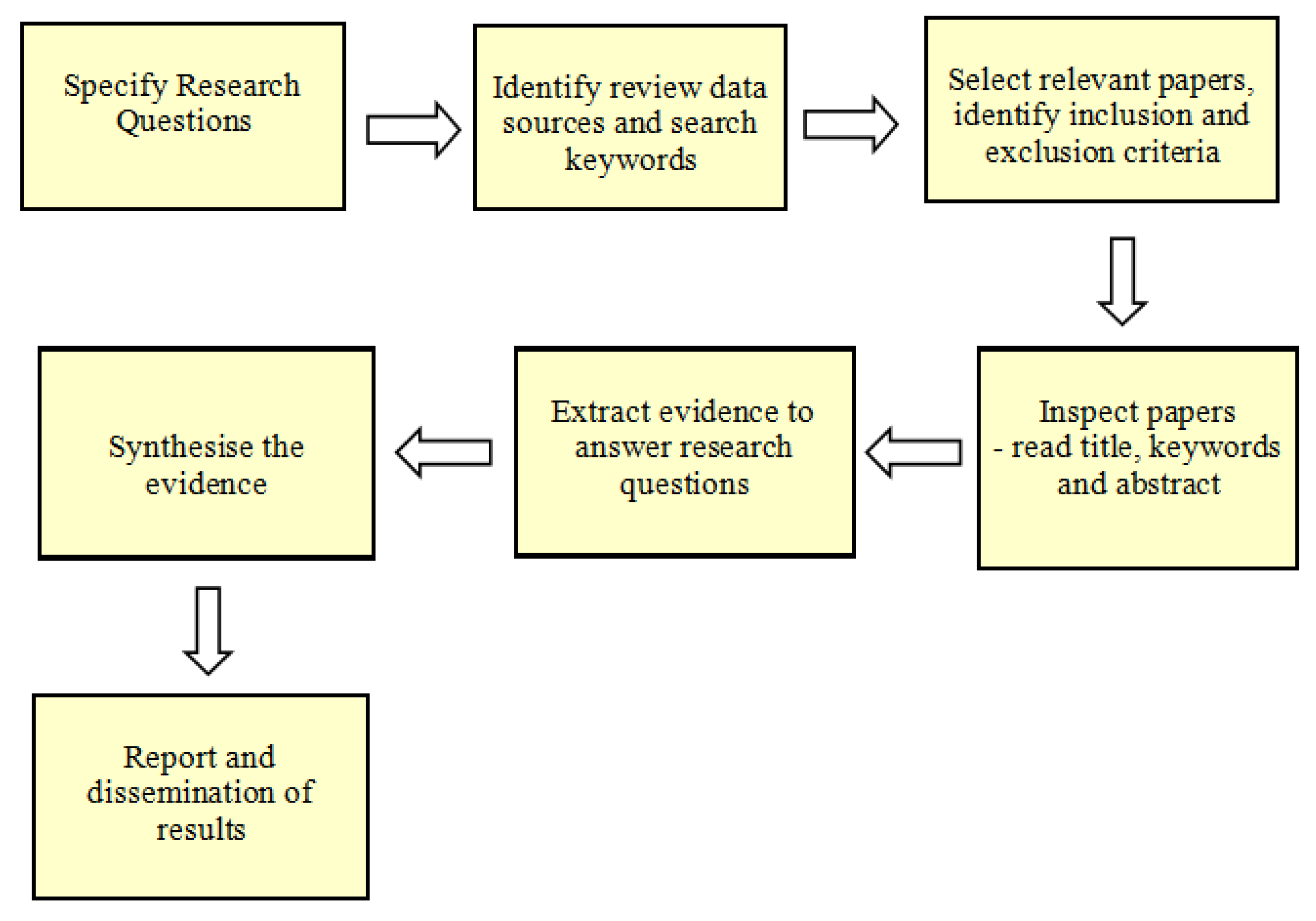

A systemic review approach was used to assess the research on cybersecurity risks and challenges for cyber–physical systems in the water sector of Australia and to find out areas that need attention. To achieve this objective, several research articles were studied and evaluated using a set of research questions. When conducting the review, the Preferred Reporting Items for Systematic Reviews (PRISMA) guidelines were followed, as shown in Figure 1 [25,26].
The following research questions are formed to conduct the SLR:
  • RQ1: What are the current cybersecurity threats and control systems in the water sector of Australia?
  • RQ2: How do the cybersecurity management systems of the water sector in Australia compare to other countries?
  • RQ3: What are the existing research developments around cybersecurity management for water infrastructure?
  • RQ3.1: How did the number of publications change over the years?
  • RQ3.2: What is the geographic distribution of these studies (across countries)?
  • RQ3.3: What is the distribution of the relevant research authority (academic, governmental, and industry) in this study area?
  • RQ3.4: What are the most globally cited research studies in this area?
  • RQ3.5: What are the target venues for publishing these studies?
  • RQ3.6: What are the limitations of the existing studies and the directions for future research?
  • RQ3.7: What objective functions and evaluation metrics have the existing studies applied to deal with cybersecurity issues in water infrastructure?
Moreover, a bibliometric analysis was conducted to find out the existing research developments around cybersecurity management for water infrastructure. In the first phase, keywords related to cybersecurity challenges in critical infrastructure systems were selected to search the relevant databases. The keywords that were used to search the articles from the scientific database (Scopus) were as follows: cyber security; cybersecurity; information security; cyber-physical security; cyber-physical attack; security attack; cyber threats; cyber vulnerabilities; cyber challenges; smart water system. Altogether, 481 research articles were found from the search, and 271 were manually sorted out based on their relevance to the research questions. The eligible documents were then analysed to extract the expected observations for this article.

3. Results

This section synthesises the selected literature for this SLR and answers the defined research questions for this study.

3.1. Cybersecurity Challenges for Water Infrastructure in Australia

The cybersecurity of critical infrastructure is one of Australia’s top priority sectors. Studies show that Australian organisations spend about AU$1.37–AU$1.74 billion per year on the security of critical infrastructure. In addition, recurring security incidents cause substantial financial losses, estimated at AU$ 595–AU$ 649 million in 2006 [27].
In Australia, network architectural ICS systems have been developed since the 1960s for interconnections of vast distances across the country. Their application has shifted the conventional hardware and software platforms to a new standard level [28].
Due to the vast size of Australia, highly distributed SCADA systems are used to control the geographically scattered water infrastructure systems, which are often dispersed over thousands of square kilometres, where centralised data collection and control (such as flow rates and pressures) are vital to system performance. In addition, field devices perform local operations such as closing and opening breakers and valves, collecting data from sensors, and monitoring alarm systems. Moreover, in water infrastructure, DCSs work as integrated control architecture systems comprising a regulatory level of control, and in turn supervising multiple incorporated sub-systems that control each aspect of a local operation [29]. Other vital elements of ICS systems include:
  • Remote terminal unit (RTU): The RTU is a wireless telemetry unit specially constructed to maintain distant SCADA stations. RTUs are field instruments often set with radio interconnections to assist isolated places where wire-based connections are absent.
  • Programmable logic controller (PLC): The PLC is a small processor constructed to accomplish logical operations through the use of electric hardware (switches, transmitters, and timers). PLCs are involved in managing complex procedures in DCS and SCADA systems.
Previously, the industrial control systems (SCADA, DCS, PLC) used in many of Australia’s critical infrastructure systems were considered reliable, as they protected distant infrastructure systems from being physically harmed. For example, introducing remote control systems into water dams is believed to protect against the illegal release of dam water, since manually operable valves and switches are not accessible. However, linking SCADA systems to commercial computer systems makes them more vulnerable to cyber-attacks that implant faulty data through remote access via dial-up modems [30,31].
The number of emerging terrorist organisations and advanced information communication technologies (ICTs) have intensified the SCADA security threats ever since. The development of Internet-based communication systems such as web-enabled screens and ethernet communications have made SCADA systems more vulnerable and increased the chance of cyber-attacks [32,33].
According to Mays [34], the advancement of transmission systems and the combination of multiple systems and communications protocols designed for SCADA systems makes them easily accessible for attackers, since security issues were not considered during their early development and implementation. Even the electronic chips used in some cybersecurity systems do not have the computing ability to encode the transmission for security purposes [35]. Furthermore, many legacy cybersecurity systems are incompatible with improved security systems such as intrusion detection devices and advanced encryption systems. This is a common reason for frequent cyber-attacks in critical infrastructure systems such as water infrastructure. Another important reason is the availability of security system manuals and documents [33]. According to Pollet, we are living in a time “when the technical knowledge and motivation are beginning to meet”. Hacker groups now have the knowledge, instrumental setup, and skills to cause harm via a computer. It is also possible that at some point, hackers could be tempted by terrorists to engage in cybercrime, including cyber terrorism, for money. These vulnerabilities evidently increase the attack possibilities by different hacking groups or terrorist groups, as they are well aware of the weaknesses of these systems.
Many attack detection strategies have been proposed to defend against security challenges in water infrastructure. For example, the ensemble methodology, artificial neural network (ANN) model, long short-term memory recurrent neural network (LSTM-RNN) model, and autoencoder neural networks (AE) are some of the popular methods proposed in the literature, as identified by [3].

3.2. Common Cybersecurity Vulnerabilities and Threats in Water Infrastructure Systems

The US Department of Energy conducted a research program in 2006 known as Test Bed (NSTB) to detect significant vulnerabilities in critical infrastructure systems. The primary purpose of the research was to investigate and assess the security performances of different sizes and types of SCADA systems with complex networks. The study identified ten categories of vulnerabilities, which are discussed in Table 1 below.
The threats discovered by Fink et al. [34] revealed the risks that critical infrastructure control systems such as SCADA are presently facing since these systems were incorporated into the cyberspace. Recently, other studies also revealed similar vulnerabilities in security systems for large water utilities, which included the following:
  • Always being logged-in to the operator station, even in the absence of an operator at the workstation, limiting the authentication activity;
  • It is easy to get access to the security equipment;
  • There is insecure access to the security network from distant or isolated locations through dial-up modem lines or digital subscriber lines (DSLs);
  • Direct or indirect exposure to the Internet system makes the security networks more vulnerable;
  • The absence of a firewall or weak or unverified firewall configurations;
  • Unsupervised system event logs;
  • The absence of intrusion detection systems;
  • The absence of routinely maintained operating and security system software;
  • Insecure network and router configurations [31].

3.3. Australian Cybersecurity Management Initiatives and Standards for Water Infrastructure

In Australia, the water infrastructure owners and operators follow a very minimal number of security standards to address cybersecurity vulnerabilities compared to overseas cybersecurity standards. However, the critical infrastructure asset owners and operators in Australia have been assisted by different initiatives developed by the government.
The Australian government has developed the Trusted Information Sharing Network for Critical Infrastructure Protection (TISN) to allow critical infrastructure owners and operators to share information on emerging issues relating to system attacks and vulnerabilities, operational continuity, consequence management, the safeguarding of key infrastructural sites from attack or damage, and threats (chemical, biological, and radiological) to water and food supplies [36]. This network has several critical infrastructure advisory councils comprising IT security experts and the SCADA community to emphasise the need for systems security to lessen vulnerabilities and threats. Figure 2 shows that the TISN network’s key focus is on the protection of Australia’s critical infrastructure systems. Despite some vulnerabilities and weaknesses, TISN has proved its effectiveness in critical infrastructure protection for Australia [37].
The central Commonwealth Government of Australia has also established an umbrella of training, financial aid, support, and data to collaborate among local and state governments and different levels of stakeholders (private sector, voluntary organisations, and individual households). The Victorian Government of Australia led the way by integrating the water sector as an essential service into a parliamentary act known as the Terrorism (Community Protection) Act 2003 in 2006 [38]. According to this act, it is now an obligatory requirement for water organisations to:
  • Prepare a risk management plan regarding the terrorist act;
  • Conduct an audit on this plan on an annual basis;
  • Check the plan annually and prepare a crisis simulation exercise.
All Australian states are now following the Victorian approach with the aim strengthening the protection of water and wastewater CI and services.

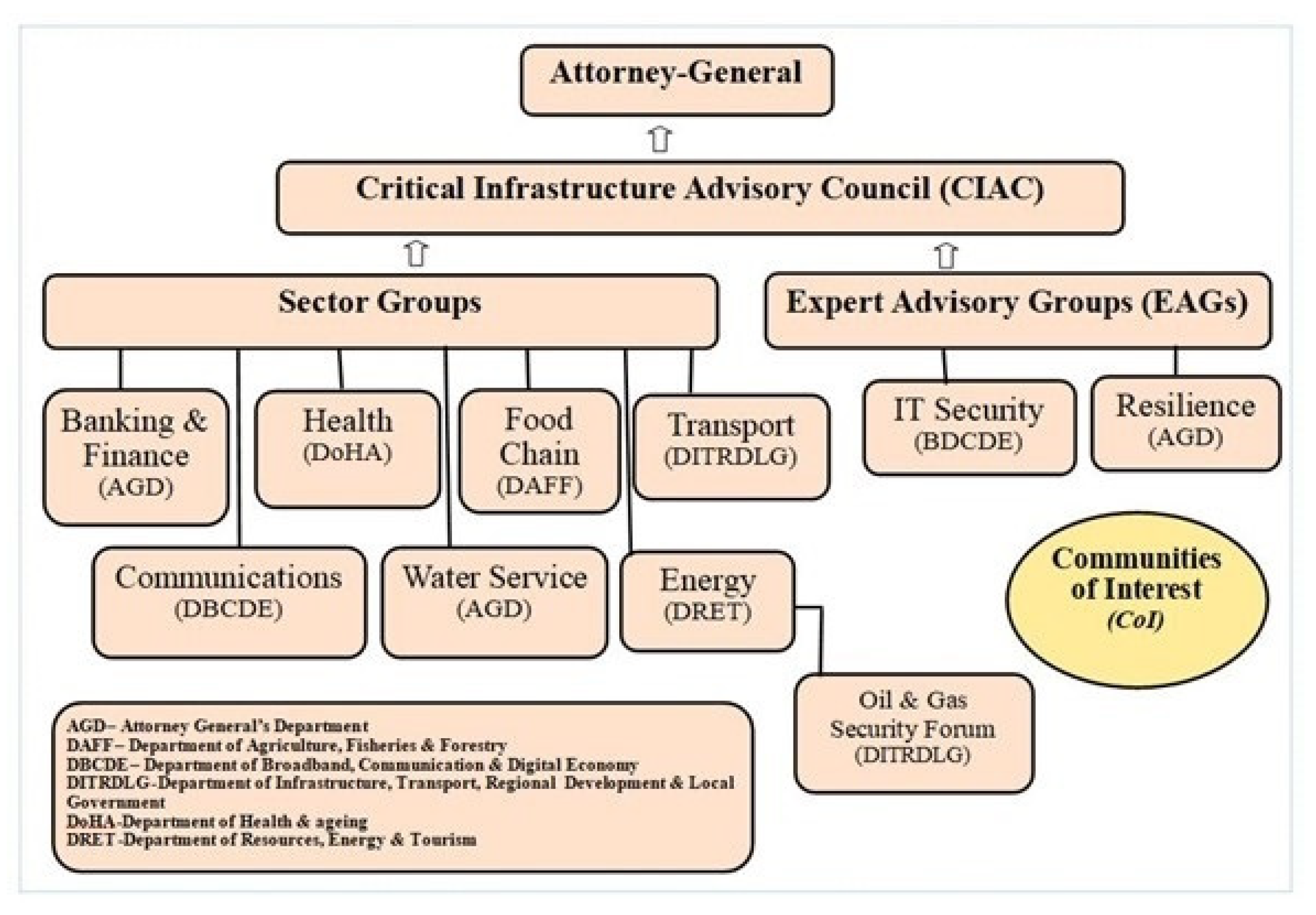

Figure 2. The Australian government’s structure for the Trusted Information Sharing Network (TISN) [39].
Figure 2. The Australian government’s structure for the Trusted Information Sharing Network (TISN) [39].
Water 15 00168 g002
As the private sector of Australia is not particularly committed to protecting SCADA systems, in 2005, the Computer Network Vulnerability Assessment Program (CNVA) was developed to reduce the SCADA system’s weaknesses. This program was developed to enhance the effectiveness of the Trusted Information Sharing Network (TISN) for Australia’s water infrastructure protection by identifying critical threats to the system and checking the performance of the system to control misuse [40]. The program provides dollar-for-dollar grants to assist the owners and operators of water infrastructure systems to:
  • Detect key exposures within ICT systems and assess the ability of the systems to withstand exploitation;
  • Analyse the safety implications of strategic changes to the infrastructure;
  • Evaluate the related physical and personnel safety issues.
In addition, the CNVA program ensures the suitability of the policies, processes, and infrastructure for the organisation’s existing environment. It also offers an opportunity to upgrade different approaches to safeguard critical services under various conditions and situations [41].
GovCERT (Government national computer emergency response team) is also another “plans and policy”-based scheme launched by the Australian government to protect Australia from severe data breaches. The main aim of this scheme is to incorporate plans and policies together to prepare and safeguard the national database infrastructure from a cyber-attack or potential cyber terrorism. GovCERT is responsible for:
  • Coordinating GovCERT with foreign governments regarding cybersecurity issues in Australia’s critical infrastructure systems, such as its water infrastructure;
  • Incorporating the Australian government’s policies with the private sector’s policies for securing and overcoming cyber-based attacks;
  • Providing cash grants to private sector organisations to carry out safety assessments of their systems and networks.
Furthermore, another online portal has been set up by the Australian government to enable collaboration between government organisations, academic institutions, and water infrastructure owners and operators to prevent cyber terrorism [31]. Lastly, the cross-sector-based SCADA Risk Management Framework (RMF) was introduced to assist water infrastructure system owners in managing risks.

3.4. Overseas Cybersecurity Management Standards for Water Infrastructure

Recently, several security standards have been developed and implemented worldwide to cope with cybersecurity challenges. The use of digital encryption standards is a popular approach to safeguarding water infrastructure systems against cyber terrorism. However, many old water infrastructure system owners are facing difficulties in adopting new technologies to secure their water infrastructure systems.
Likewise, the National Institute of Standards and Technology (NIST) has developed standards and process control safety requirement forums to protect water infrastructure, as well as the Industrial Control Systems Security (SP 800-82) framework [41]. This framework provides a set of core activities that can be used to reach specific cybersecurity goals. These activities include identifying, protecting, detecting, responding, and recovering.
Another standard ISA-SP99 was developed by the Instrumentation Systems and Automation Society (ISA) for systems security control in critical infrastructure. ISA-SP99 forms principles to build an automatically secure control system, as well as to assess the security performance of a system. In addition, in 2005, the National Infrastructure Security Coordination Centre (NISCC) of the UK established a security guide for risk management and firewall deployment for critical infrastructure systems [42].
Although several security standards have been developed and implemented worldwide to protect critical water infrastructure systems, the number of cyber threats to these platforms continues to rise. The annual Cyber Threat Report from the Australian Cyber Security Centre (ACSC) revealed that cyber-attacks continue to alarmingly increase throughout the world, which affects the economic status and reputation of critical infrastructure service organisations [43,44].
Sun et al. [44] noted that it is impossible to evaluate every security standard due to the different complex challenges and circumstances of a nation and its organisations. It is well known that cyber threats and cyber terrorism are advancing concurrently with the advancement of cybersecurity. This indicates that the system security of critical infrastructure, such as water infrastructure, needs to be upgraded with contemporary security standards.

3.5. Existing Research Developments around Cybersecurity Management for Water Infrastructure

A systematic review has been carried out for the current study. The critical information regarding the review analysis is presented in Table 2. A total of 271 studies were sorted manually from 210 sources over the timespan of 2003–2023, clearly demonstrating that the cybersecurity challenges for critical infrastructure issues emerged at the beginning of the 21st century. Among the 271 studies, 128 were found to be conference papers, which was more than the number of journal articles.

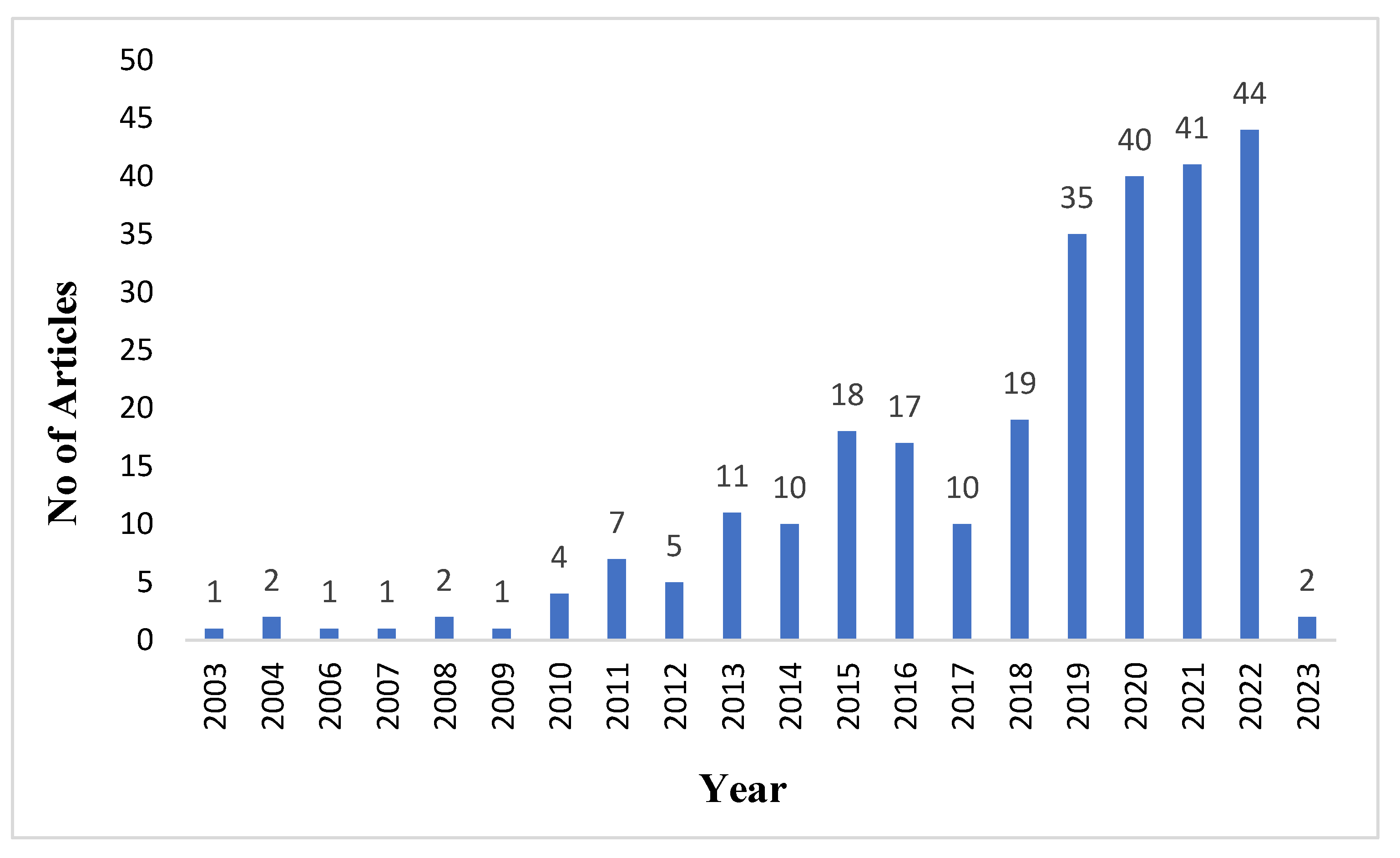

Figure 3 shows the number of publications over time. The earliest study on cybersecurity challenges in critical infrastructure systems was in the year 2003. The figure shows that from 2003 to 2009, a limited amount of research was published, which then began to increase from the year 2010 and reached its highest peak (44) in the year 2022. Answering RQ3.1, there has been growing attention given to the cybersecurity issues of water infrastructure systems over time, likely because of the advent of new technologies for water resource systems and subsequent efforts to make use of them.
Table 3 presents the numbers of studies per country across the world. From the table, it can be seen that the USA has published the highest number of studies (178), followed by China (136), India (111), South Korea (53), and the UK (51). Australia attained 6th position in terms of the number of publications (46).

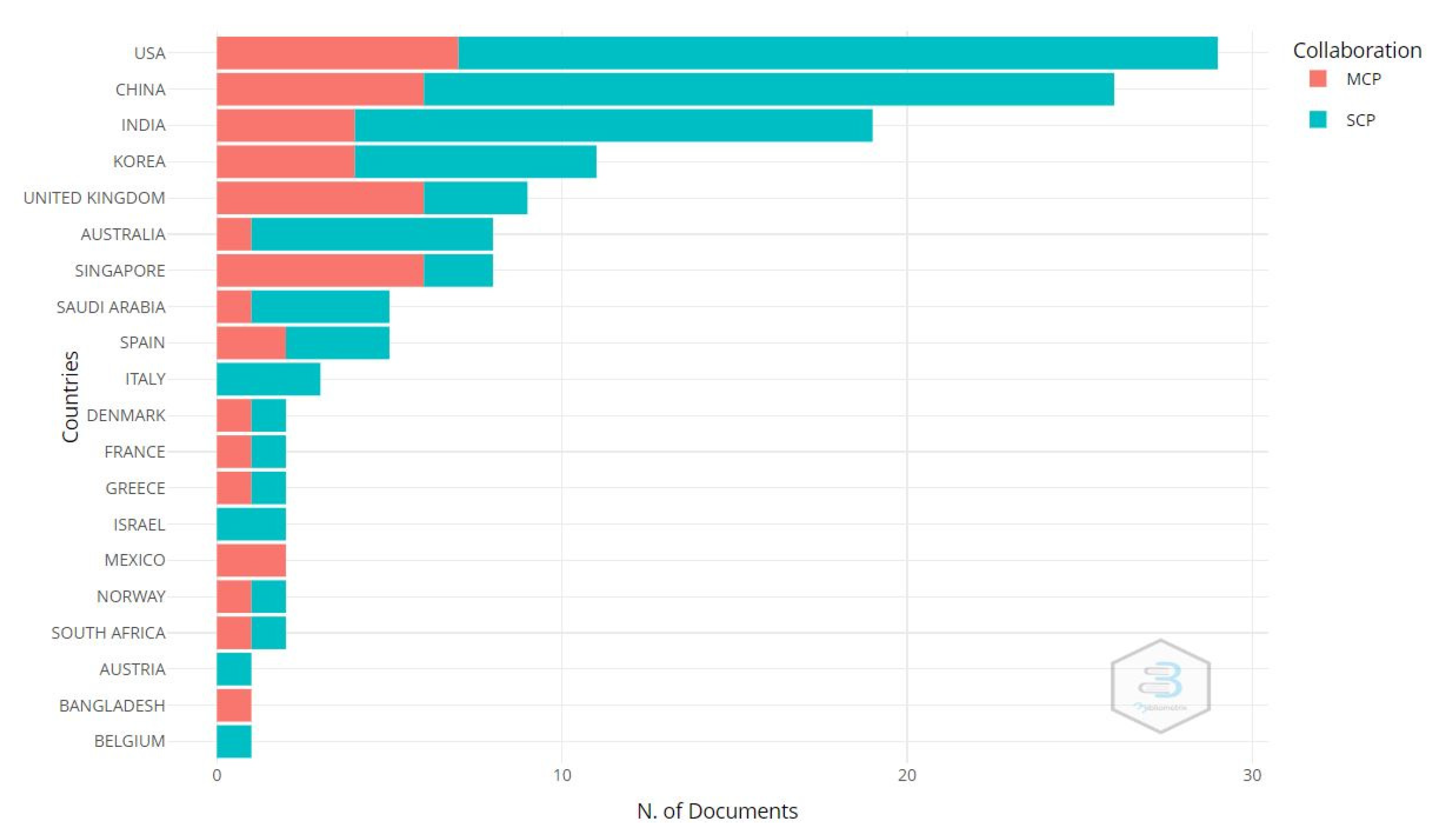

Figure 4 represents the research distribution based on the corresponding authors’ country of origin. The figure also shows whether the authors are from single or multiple countries. From the figure, it can be observed that the USA has the highest number of studies (29), of which 22 are SCPs (intra-country collaborations) and seven are MCPs (inter-country collaborations). China has the 2nd highest number of studies (26), of which 20 are SCPs and 6 are MCPs. Australia is the 6th highest country in terms of the corresponding authors, which has 7 SCPs and 1 MCP study.

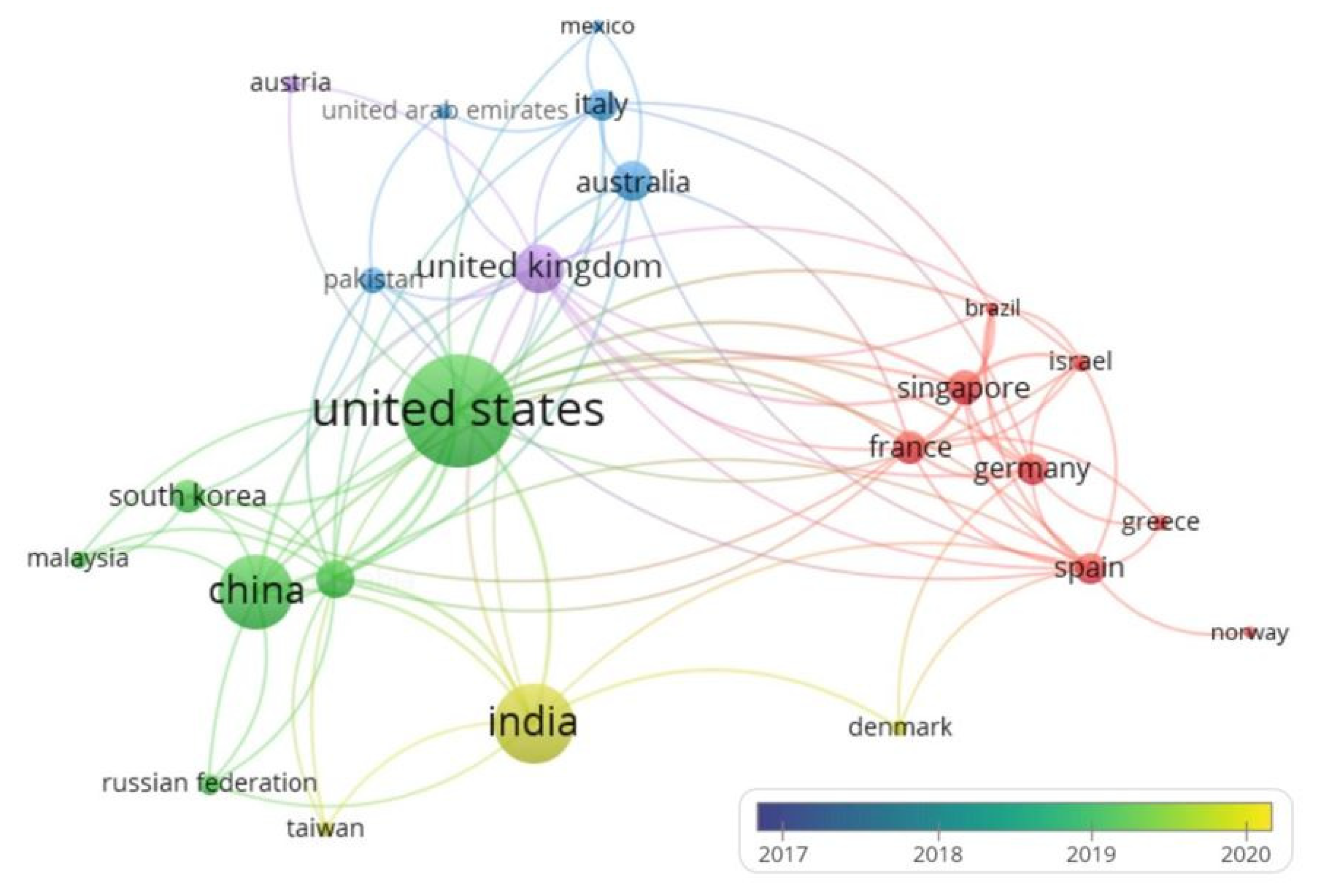

Figure 5 represents research on the cybersecurity issues for critical water infrastructure in recent years (2017–2020). The figure illustrates that between 2017 and 2018, Australia, Italy, and Pakistan performed some collaborative work with other countries. From mid-2018 to mid-2020, the USA, China, South Korea, Malaysia, and Russia contributed significant research in this area by collaborating with several countries worldwide. However, in 2020, India, Taiwan, and Denmark emerged as new countries focusing on cybersecurity issues for critical water infrastructure.
Table 3 and Figure 4 and Figure 5 answer RQ3.2 based on the geographical distribution of the research. Some additional information regarding RQ3.2 is provided in the Supplementary Materials (Table S1).

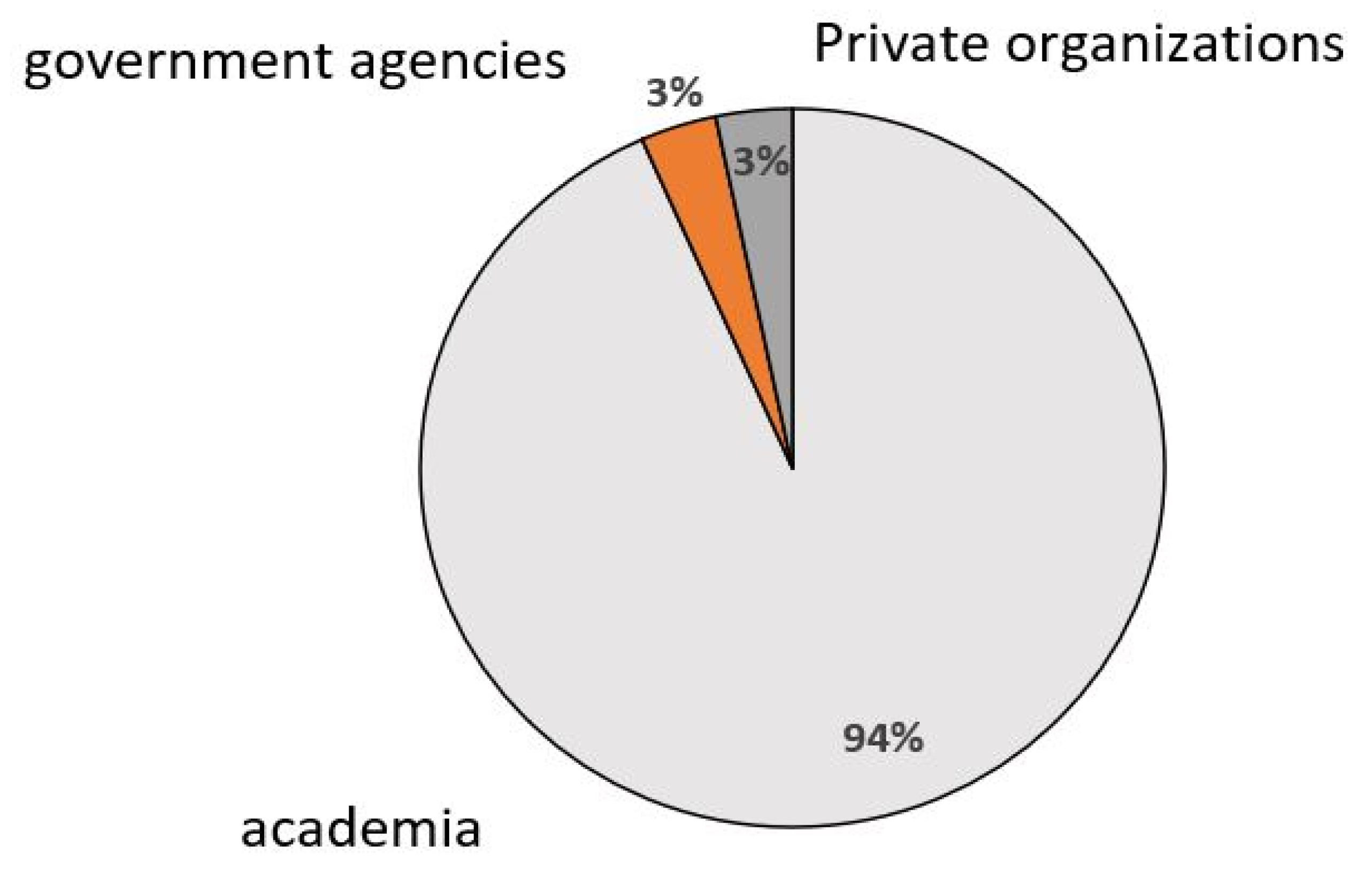

Figure 6 illustrates the answer to RQ3.3. From the figure, it is clear that approximately 94% of the research has been conducted by academics. Government agencies and private organisations have carried out only 3% of the research each. Interestingly, no research studies or documents that were collaboratively written by authors from water institutions or water organisations could be found.
The topmost globally mentioned and leading articles on cybersecurity issues for critical water infrastructure in Australia are shown in Table 4 below. RQ3.4 is answered in this table. The table clearly shows that urban water management, smart metering, and cybersecurity in Australia’s water sectors have gained the utmost attention (14 out of the top 15 articles are related to water sector management and cybersecurity issues). Fielding et al. [45] published the most cited article on strategies to promote urban water demand management in the Journal of Environmental Management. The article not only discussed the security issues in water systems but also covered the smart metering technologies in urban water demand management. The article by Stewart et al. [46] is the 2nd most cited article published in the Australian Planner, which discussed web-based smart metering technologies in water planning.
Table 5 answers RQ3.5 regarding identifying the target venues for publishing cybersecurity management for water infrastructure studies. The ACM International Conference Proceeding Series is the leading and most popular journal for publishing studies on the cybersecurity challenges related to critical water infrastructure. Among the journals, IEEE Access, Water (Switzerland), Electronics, Advances in Intelligent Systems and Computing, IEEE Internet of Things, and Journal of Water Resources Planning and Management are the most common publications for publishing cybersecurity challenges in the critical water infrastructure area.

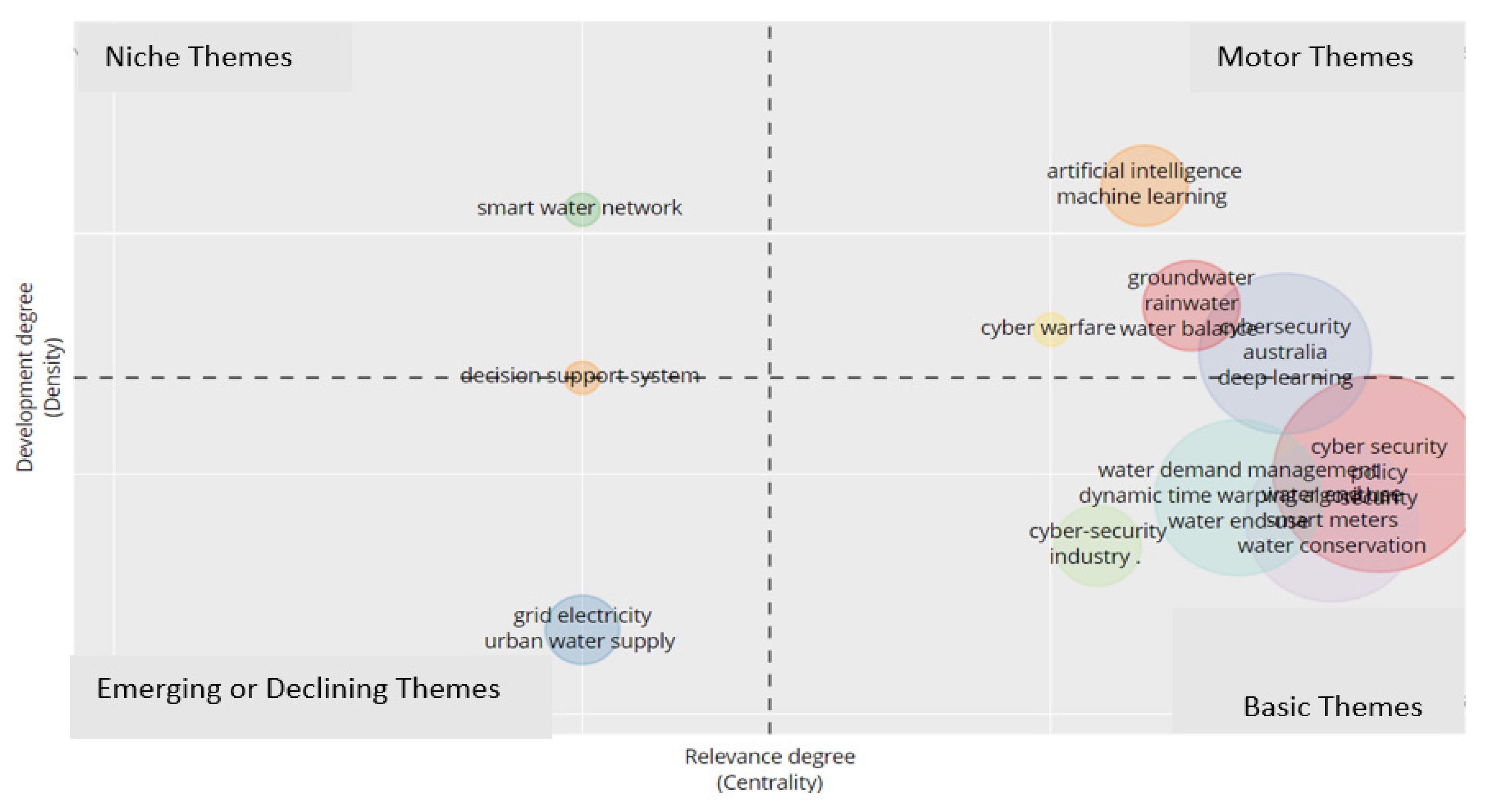

A thematic map (Figure 6) was prepared using author-nominated keywords and ten clusters of research themes to answer RQ3.6. We set the following criteria for creating the thematic map: the top 250 author-nominated keywords and a minimum cluster frequency rate of 5 with three labels for each cluster. The degree of development (x-axis) and the relevance degree (y-axis) measure the development of the selected theme and the importance of the chosen theme, respectively [47,48]. Figure 7 shows that ‘artificial intelligence’, ‘machine learning’, ‘rainwater’, and ‘ground water’ are motor themes, which implies that they are well-developed research fields. The figure also shows that the cluster that includes ‘cyber security’, ‘deep learning’, ‘Australia’, and ‘cyber warfare water balance’ contains important research fields that have not been fully developed until now. Likewise, the clusters that include ‘cyber security’, ‘policy’, ‘cyber security industry’, ‘water end use’, and ‘critical infrastructure’ are critically important and demand more attention for research in these areas. ‘Smart water network’ is the only cluster in the niche theme, which is well-developed but isolated from the other areas. There are two clusters that are emerging themes, which include the ‘decision support system’ and ‘urban water supply’ clusters and have low density and centrality.

3.6. Objective Functions and Evaluation Metrics for Measuring Cybersecurity in Water Infrastructure

This section answers RQ3.7, which discusses the evaluation metrics and objective functions applied in the studied literature. NIST has developed security standards to protect critical infrastructure along with water infrastructure. The analysed studies in this SLR mostly adopted objective functions centred around NIST standards, where the objective functions achieve three goals: confidentiality, integrity, and availability. Confidentiality ensures that no unauthorised party can access sensitive data, while integrity covers the improper modification and alteration of data. Availability ensures that authorised users can access the system and information in a timely and reliable manner [41]. The objective functions assure that the control properties such as the accuracy, responsiveness, rapid disturbance rejection, stability, observability, controllability, safety, and efficiency are met [26].
Most of the existing studies have shown a lack of standard evaluation metrics [26]. Many studies have used traditional machine learning metrics as the performance evaluation metrics for attack detection models of water infrastructure [3]. These metrics are normally the accuracy, precision, recall, F-score, false positive, and false negative values, which fail to report the detection latency [26].

4. Discussion

Germano (2018) [49] illustrated that a cyber-attack on critical water infrastructure operations could cause “outrageous harm to public health and safety and national security risks, consequently resulting in a huge cost for recovery and remediation, as well as big data loss” [49]. The audit reports for water and energy systems in Queensland, Australia, outline that critical water infrastructure systems are increasingly becoming among the most targeted for cyber-attacks worldwide [49]. Likewise, an annual assessment by the Department of Homeland Security, USA, reached the same conclusion. The audit reports from Victoria, Australia, concluded that the critical water providers in Australia lacked “a strategic approach to manage cybersecurity risks that incorporates their commercial and control system environments and associated guiding industry security standards for control systems” [50]. Moreover, they further stated that although the water suppliers are ramping up their efforts to incorporate some security controls into their systems against cyber threats, the constant advancement of the cyber threat landscape places the utmost emphasis on evaluating and strengthening the water system’s security [10].
Usually, critical water infrastructure systems use a number of incorporated technological control systems, including hardware and software, in their operation. In Australia, the system is more complex due to the vastness and remoteness of the infrastructure, which makes the system more prone to cyber threats and attacks. According to the American Water Works Association, a number of basic issues enhance the vulnerability of critical water infrastructure to cyber-attacks, such as inadequate and low-grade network protection instruments and a lack of firewall and antivirus protection [50].
The critical water infrastructure faces other threats associated with the control system and equipment companies’ services, including the vendor or manufacturer’s access to the water system for the purposes of updating the system, searching for faults, and performing remote maintenance. Failure to change the retailer’s default settings, upgrade the security measures, and consistently patch up the systems and software can introduce more vulnerabilities or lead to any existing vulnerabilities being exploited. The negligence of water system owners and operators in assessing cybersecurity risks can also cause the system to be more vulnerable. According to the American Water Works Association, “The reality and prevalence of cyber risk mandates that organisations and their leaders not only take meaningful action to prevent and detect harms, but also have a tested plan for responding swiftly and effectively when cyber incidents do occur. Failing to address cybersecurity risk in a proactive way can have devastating results”.
An array of technological and procedural standard security measures can assist in securing water systems against many cyber-attacks [3]. A significant cause of cybersecurity issues in critical water infrastructure is the lack of well-defined and documented tasks and responsibilities for employees to manage the security of the water systems, as stated by the Victorian Auditor-General’s Office [51].
A recent survey by Hassanzadeh et al. [16] revealed a range of threats and circumstances from a review of fifteen cybersecurity incidents in Australia’s critical water infrastructure sector, ranging from the Maroochy Shire Sewage Treatment Plant attack in 2001 to the ransomware attack on the Riviera Beach Water Utility in 2019. The study revealed that the sheer variety of the systems, the sophisticated and diverse attacking techniques, and the array of consequences related to these incidents create an urgent need for comprehensive and strategic approaches for risk assessment and mitigation, alertness, immediate response, and data recovery processes to deal with these emerging challenges. The study also emphasised the need for expert training and human resource development for individuals who are capable of constantly assessing the system’s security and identifying threats in the commercial network infrastructure and SCADA systems used in water infrastructure [16].

5. Conclusions

Smart water systems have become an integral part of modern infrastructure. These systems will enable the use of recycled water resources to overcome the scarcity of clean water at the global level. However, these systems are prone to growing cyber-attacks, like any other critical infrastructure system. As IoT technology is advancing, water infrastructure systems in Australia are gradually using smart systems technology, making them more susceptible to cyber-attacks. A systematic review was conducted to assess the current cybersecurity challenges related to the critical water infrastructure in Australia. The key the findings of the SLR are as follows:
  • Water infrastructure systems in Australia are frequently facing cyber-attacks due to their complex nature;
  • Many attacks remain undetected or unreported, or else undisclosed to safeguard consumers’ trust and the service providers’ reputations;
  • Although the Australian government is taking different initiatives (policies or strategies and financial aid) at the federal, state, and local levels to collaborate with the public and private sectors to protect Australia’s critical water infrastructure, there are still some significant gaps in addressing cyber risks and implementing adequate security controls;
  • There is an urgent need for expert training and human resource development for individuals who are capable of constantly assessing the system’s security and identifying threats in the commercial network infrastructure, as well as in the SCADA systems used in the water infrastructure.
Overall, this SLR has identified that the water infrastructure plays a crucial role in attaining the sustainable development of a nation through safeguarding and ensuring a safe water supply. Therefore, to ensure that secured and uninterrupted water distribution is possible, it is an important obligation to protect the database and sub-systems that form the backbone of the water control system.
