Long-Term Study of Antibiotic Presence in Ebro River Basin (Spain): Identification of the Emission Sources

Institute of Analytical Sciences and Physico-Chemistry for Environment and Materials (IPREM), Centre National de la Recherche Scientifique (CNRS), CEDEX 9, 64053 Pau, France
Water and Environmental Health Research Group, c/María de Luna 3, 50018 Zaragoza, Spain
Navarra de Infraestructuras Locales SA, av. Barañain 22, 31008 Pamplona, Spain
Analytical Spectroscopy and Sensors Group, Science Faculty, Environmental Science Institute, University of Zaragoza, 50009 Zaragoza, Spain
Author to whom correspondence should be addressed.
Water 2022, 14(7), 1033;
Submission received: 27 January 2022 / Revised: 16 March 2022 / Accepted: 23 March 2022 / Published: 24 March 2022
(This article belongs to the Section Water Quality and Contamination)


Water monitoring is key to determining the presence of potentially hazardous substances related to urban activities and intensive farming. This research aimed to perform a long-term (four years) quantitative monitoring of selected antibiotics (azithromycin, enrofloxacin, trimethoprim and sulfadiazine) both in rivers and wastewaters belonging to the Ebro River basin (North of Spain). The target antibiotics were chosen on the basis of a preliminary multispecies screening. The analysis of the antibiotics was carried out by LC-MS/MS on wastewater-treatment plant (WWTP) effluent, effluents of a slaughterhouse and hospital, rivers downstream and upstream of these WWTPs, and rivers close to extensive farming areas. The ANOVA test was performed to study the significant differences between the points exposed to concrete emission sources and antibiotic concentration. The monitoring, carried out from 2018 to 2020, has been essential to illustrating the presence of the most abundant antibiotics that were detected in the Ebro River basin. Enrofloxacin has appeared in river waters in significant concentrations, especially near intensive farming, meanwhile azithromycin has been frequently detected in wastewaters.

1. Introduction

The presence of emerging pollutants such as antibiotics and their metabolites have been demonstrated in natural waters in recent years. It is a consequence of the improvement of the analytical methods, which allow the quantification of these substances at concentrations down to the ng/L level by using tandem mass spectrometry (HPLC/MS/MS) [1,2,3,4]. These compounds enter the water cycle when they are partially metabolized and excreted by humans and animals. According to the bibliography, more than a half of administered antibiotics, as well as their metabolites, are introduced into urban wastewater [5,6,7].
It is widely known that conventional treatments applied in WWTPs are not planned to eliminate antibiotics; however, some processes involved in the treatment, such as biological and adsorption processes, tend to significantly reduce their concentration [8]. Conventional treatments usually do not achieve removal performances superior to 50–80%, depending of the physicochemical characteristics of each antibiotic and the type of treatment [8,9,10]. As a result, antibiotics and their metabolites are inevitably emitted into receiving rivers. WWTP effluents are an important emission source to the environment [11,12]. On the other hand, it should be mentioned that not only WWTPs are related to antibiotic pollution in waters. In fact, according to the European Centre for Disease Prevention and Control, the European Food Safety Authority, and the European Medicines Agency, the majority of antibiotics in Europe are consumed by animals [13], despite the fact that the preventive use of antibiotics in groups of animals is not allowed in the EC Regulation N° 2019/6 [14]. The environmental impact of antibiotics is expected to be especially acute in areas of farming and indeed, intensive farming represents one of the main sources of antibiotic pollution and the spread of gene resistance, since animals contribute to the dissemination of antibiotic-resistant genes (ARGs) in surface waters through the stool excretion during the free grazing [7]. Thus, it is very important to determine the real emission sources of antibiotics in a specific area.
Antibiotic impact on the aquatic environment has been widely discussed during the last decade [11,15,16,17,18]. These antibiotics are found in wastewater surface waters, plants and animals [19,20,21,22], confirming their introduction and persistence in the environment and ecosystem.
Nevertheless, the most important issue related to antibiotics is the development of antibiotic resistance, which occurs when bacteria and other microorganisms evolve and are no longer sensitive to medicines, resulting in infections that are hard to treat and increasing death risk [11,23,24]. This problem is mainly due to the misuse of antibiotics, which are excessively applied for human and veterinary treatments [25,26,27,28]. Antibiotic resistance is a significant public-health threat nowadays, since the coronavirus disease (COVID-19) has additionally contributed to the use of antibiotics and their subsequent emission into surface waters [29,30].
Despite the introduction of the Spanish National Plan against Antibiotic Resistance in 2014, which contributed to the reduction of 48% in the overall consumption of antimicrobial agents for veterinary use from 2014 to 2018 [29], the presence of antibiotics continues to be reported in surface waters, groundwater, and treated and untreated waters [8,16,31,32,33].
The occurrence of a wide variety of antibiotics has been reported in the North of Spain for many years [32,33]. However, little research has been carried out for systematically monitoring the most frequently detected antibiotics in this specific area. The main objective of this research was to establish a comprehensive long-term study of antibiotic presence in surface waters and wastewaters, determining their emission sources, seasonal behavior, and comparing with other reports.
This paper examines the concentration of enrofloxacin, azithromycin, sulfadiazine, and trimethoprim in 17 rivers, which are located near urban areas and intensive farming, wastewaters including the effluents and affluent of three WWTPs, and also hospital and slaughterhouses effluents. Moreover, the results are compared with other monitoring programs carried out in Ebro basin river and Europe.

2. Materials and Methods

2.1. Study Area

The Ebro River basin is located in the northeast of Spain (Figure 1). The extension is 85,000 km2 flowing out into the Mediterranean Sea, in the Province of Tarragona. In the Iberian peninsula, the Ebro ranks second in length after the Tajo River and second in discharge volume and drainage basin after the Duero River. It is the longest river entirely within Spain. The importance of studying this basin lies in the fact that it encompasses more than twenty urban areas, including large areas such as Pamplona, Zaragoza and Logroño. Moreover, one of the main economic activities of most of these areas is animal farming.
The area involved in this study includes 20 surface-water-sampling points corresponding to 17 rivers from the Ebro River basin (Spain), which are listed in Table 1 and shown in Figure 1. The selection criteria for surface-water-sampling points were: (i) their proximity to poultry- and pig-intensive farms (Figure 2 and Figure 3) and their selection was carried out in collaboration with the Ebro Hydrographic Confederation; (ii) their proximity to WWTPs, taking a sample upstream from the WWTP discharge and another one downstream.
Surface-water-sampling points were also characterized by the livestock and WWTP pressure associated with their location, which were determined by the Ebro Hydrographic Confederation, the organism that manages water quality in Ebro River basin. They characterized the rivers according to punctual and diffuse sources of pollution in four levels: null, low, medium and high [34].
Complementarily, this study monitored the affluent and effluent of three WWTPs, as well as one hospital and three slaughterhouse effluents twice a year over the period of 2018–2021. The characteristics of the studied WWTPs are given in Table 2. In summary, a total of 30 sampling points was examined. Out of these, 2/3 corresponded to surface waters and 1/3 to wastewaters.

2.2. Antibiotic Selection

The first selection criterion was a revision of the literature, determining which antibiotics show the most significant sales and use in Spain. It should be mentioned that several previous studies have been carried out on the surface waters of the Ebro River basin related to monitoring selected emerging pollutants, such as microplastics [35] or pharmaceuticals [32,36], and sulfonamide residues [37]. Several authors have also studied the presence of pharmaceuticals in wastewater-treatment plants located in the Ebro River [32], including some antibiotics [32,36]. According to the most recent studies, trimethoprims, macrolides, sulfonamides and fluoroquinolones are four of the most detected antibiotic groups in Spanish and European rivers and wastewaters [11]. The literature reports the concentrations of antibiotics up to µg/L for: sulfonamides [32], trimethoprim [38,39] fluoroquinolones [26] and macrolides [32,36,40], which all represent a potentially significant risk for the environment. The European Medicines Agency (EMA) annually publishes a report on the sales and use of veterinary antibiotics within the framework of the European Surveillance Survey of the Consumption of Veterinary Antimicrobial Medicines (ESVAC). According to the last ESVAC report, sales of tetracycline, penicillin, and sulfonamides represented almost 70% of all antibiotics sold in Europe [41].
The first step to establish a target antibiotic for quantitative analysis is a qualitative screening, which was carried out in the spring of 2018. Its results were grouped by antibiotic families, due to the great variety of antibiotics detected. As revealed in Figure 4, fluoroquinolones were the most detected species with enrofloxacin present in 70% of the samples. The second group of antibiotics that was more frequently detected is the family of sulfonamides (present in 30% of the samples). Sulfadiazine was detected in more than 70% of the samples. Finally, trimethoprim and azithromycin were present in 60% and 55% of the samples, respectively. As a result of the screening data, sulfadiazine (sulfonamide), enrofloxacin (fluoroquinolone), trimethoprim (trimethoprim) and azithromycin (macrolide) were selected as target antibiotics for quantitative analysis. Table 3 shows the group and CAS numbers as well as physicochemical properties of the target antibiotics, (acid-dissociation constant (pKa), molecular weight and molecular structure).

2.3. Sampling, Conditioning and Conservation Procedure

The main difficulties surrounding environmental aqueous samples are the lack of representativeness and repeatability of the matrix and the integrity of the sample. Consequently, in this research, samples were taken in spring and autumn for 4 years (2018–2021) and a storage procedure was developed to guarantee their integrity. According to the methodology USEPA1694 [42], 2 L of samples were taken in amber glass bottles to avoid possible UV degradation of the antibiotic. Moreover, bottles were filled to overflowing to minimize the presence of oxygen in the sample, which could also degrade the antibiotics. Samples were filtered in two stages, at first to avoid larger solids, by using glass fiber filters of Øp = 1.6 μm and, then using GVS nylon filters with a smaller pore size Øp = 0.45 μm [43,44]. Immediately after the sampling, the samples were placed in an ice-cold refrigerator. Subsequently, samples were refrigerated at 4 °C.

2.4. Antibiotic Quantification

The analytes were preconcentrated by solid-phase extraction. OASIS HLB, waters were conditioned with 32 mL of MeOH and 12 mL of water (pH 2 + 0.5). A 250 mL sample volume was loaded, and the retained species were eluted with MeOH (25 mL). The antibiotic concentration was determined by liquid chromatography coupled to a tandem mass spectrometer (LC-MS/MS). Samples were diluted to 1:1 with 0.1% (w/v) formic acid/methanol/acetonitrile (0.8/0.1/0.1 w/v), prior to LC-MS/MS analysis. Chromatographic separations were carried out using an Ultimate 3000 RSLC system (Thermo Fisher Scientific, Lyon, France). A 2.6 µm column Accucore C18 (100 × 2.1 mm) was used for the analysis. The mobile phases were (A) 0.4% formic acid and 5 mM ammonium formate and (B) 1: 1 (v/v) MeOH/ACN. A 20 µL sample aliquot was injected. The detection was performed by a QExactive Plus mass spectrometer (Thermo Fisher Scientific, Lyon, France). Resolution was 70,000. Operation was chosen in positive-ion selective monitoring. Samples were examined in triplicate. The limits of quantification and detection of selected antibiotics were: 2.0 ng/L for azithromycin, 1.2 ng/L for enrofloxacin, 0.8 ng/L for sulfadiazine and trimethoprim, and the limits of quantification were: 6.5 ng/L for azithromycin, 3.7 ng/L for enrofloxacin, 2.5 ng/L for sulfadiazine and trimethoprim.

2.5. Statistical Analysis

To complement this study, we studied the frequency of detection of the selected antibiotics, the average concentration among the 6 campaigns, the quartile values, the quartile differences of the average concentrations, and the mean and median for each antibiotic in surface-water-, WWTP- and wastewater-sampling points. The data were treated with Microsoft Excel, using this software to perform the ANOVA test between the points exposed to concrete emission sources and antibiotic concentration (p-value < 0.05 for significant differences, [45]). Complementarilyy, Tukey’s honestly significant-difference test (Turkey’s HSD) was used to determine significant differences between the concentration of selected antibiotics.

3. Results

3.1. Antibiotics Presence in Surface Waters

The overall results obtained for the concentrations of the target antibiotics in all surface-water-sampling points (2018–2021) are shown in Figure 5a. For a more detailed interpretation of the results, the data were processed by grouping the surface-water-sampling points into the different sub-basins that form the Ebro River basin (Figure 5b). It should be noticed that the boxplots of antibiotic concentrations have been elaborated by the concentration results shown in Tables S1–S4 from the different sampling campaigns. Unusual values are not represented in the boxplot graphs.
In order to complement the statistical analysis of this research, Tables S1–S4 list quantitative antibiotic-concentration results obtained during the 6 sampling campaigns that were carried out. Figure S1 shows the river flows of the six sampling campaigns. According to Figure 5a, enrofloxacin and sulfadiazine were frequently detected in concentrations from 20–180 ng/L in the surface-water-sampling points.
Tables S4–S6 present the ANOVA and Turkey’s HSD test results in high-livestock-pressure sampling points. Significant differences (p-value < 0.05) were found between the enrofloxacin concentration and the rest of antibiotic concentrations at points that represent high-livestock-pressure sampling points. This result, coupled to the high concentration detected of this veterinary-use antibiotic, in comparison with the rest of the selected antibiotics, points to the fact that the fluoroquinolone was present in higher concentration than the rest of the antibiotics in rivers near intensive-farming areas.
In addition, the sampling point ASE_19 can be considered as a reference point, because it is the only one that presents low wastewater pressure and low livestock pressure. As a result, the ANOVA test was used for the concentration of the different drugs at this point and others with medium or high livestock pressure. Significant differences (p-value < 0.05) were found for sulfadiazine concentration. The levels of drugs at this point were lower than the rest of the points in this study, except for enrofloxacin in the spring of 2019, which presented an unusual concentration (Table S2).
ANOVA and Turkey’s HSD test results in high-WWTP-pressure sampling points showed that a significant difference between the points exposed to this kind of pressure and the concentration of individual antibiotics in rivers does not exist. However, as revealed by Figure 5b, the areas that present the highest total concentrations of antibiotics are Arga, Ebro and Ega, which present a medium-high WWTP pressure.
In the Alcanadre River sub-basin, 46 ng/L average concentration of azithromycin appeared in Flumen River (Table S3). Moreover, the presence of enrofloxacin, trimethoprim and amoxicillin was also detected in concentrations close to the quantification limit; this might be associated with the presence of pig farms and low-flow rivers. In terms of detection frequency, sulfadiazine appeared in 40% of the samples, enrofloxacin in 20% of the surface-water-sampling points; these antibiotics can be associated with the presence of pig farms. In fact, trimethoprim was present only in 10% of the samples, and azithromycin was not detected in this area.
The Aragón River sub-basin presented an average concentration of 147 ng/L of enrofloxacin. Downstream, as it passes through the town of Caparroso, the Aragón River area has a significant presence of pigs, poultry and rabbit farms and, as a result, 40% of the total samples contained fluoroquinolone (Table S2) and 30% of the surface-water-sampling points were polluted by sulfadiazine (Table S1).
Regarding the Arga River sub-basin, the four target antibiotics were detected. The presence of sulfadiazine and enrofloxacin was detected in the concentration range of 100 to 130 ng/L (Tables S1 and S2). However, azithromycin and enrofloxacin appeared in average concentrations of up to 739 ng/L. It should be noted that this region is marked by the presence of an urban area (Pamplona). Concerning the detection frequency of target antibiotics, sulfadiazine and trimethoprim were found in 55% of the samples. Moreover, enrofloxacin was present in more than 50% of the river samples. These results might suggest that urban areas show a greater variety of antibiotics.
In the Cinca River sub-basin, where there is a notable presence of pig and poultry farms, average concentrations close to 150 ng/L of enrofloxacin, sulfadiazine and trimethoprim were detected. Enrofloxacin and sulfadiazine appeared in 60% of the samples, while trimethoprim was detected only in 10% of them. This behavior confirms that enrofloxacin mainly appears in rivers where diffuse pollution from intensive farming of pig and poultry and agriculture-activity occurs.
In the Ebro sub-basin, a high average concentration of enrofloxacin (1604 ng/L) was detected. It should be noted that the detection frequency of this fluoroquinolone antibiotic was about 75%. Sulfadiazine presented the average concentration of 270 ng/L; it appeared in 40% of the samples. It is interesting that all the target antibiotics appeared in this sub-basin, which is very close to urban areas such as Logroño or Zaragoza, so it is marked by both urban areas and intensive farming, in which pig farms predominate. Consequently, these results point to the fact that a greater number of antibiotics were detected near urban areas. Moreover, this trend could also suggest that enrofloxacin and sulfadiazine can be associated with farming. Enrofloxacin was also detected in the French rivers Seine, Marne and Oise, presenting a maximum concentration of 100 ng/L [46]. The presence of 249 ng/L of this substance was also reported in the Polish rivers Gościcina and Reda, which are also associated with livestock pressure [26]. This antibiotic was also detected in the Mondego River (Portugal), in the Lllobregat River (Spain) and in the Ebro River (Spain), presenting concentrations of 76–178 ng/L [47].
In the Gállego sub-basin, sulfadiazine and trimethoprim presented average concentrations of up to 60 ng/L. On the other hand, enrofloxacin significantly exceeded 700 ng/L. This behavior can be attributed to the fact that the sampling point (at San Mateo de Gállego) is located downstream of several pig farms, as well as receiving the contribution of other rivers that discharge upstream, in areas where there is also an important farming presence (Huesca).
Regarding the sub-basin of the Ega River, enrofloxacin once again presented high average concentrations, exceeding 1600 ng/L which can be linked to poultry and pig farming predominating in this area. Sulfadiazine was also detected at an average level close to 60 ng/L.
In the Alhama River sub-basin, an average concentration of 125 ng/L of enrofloxacin appeared, which can be associated with the presence, in this case, of poultry farming. There are a smaller number of poultry farms in this area than in others such as Segre or Ebro; however, in the areas where poultry farming predominates, antibiotic concentration is lower than in rivers that are located near pig farming. This behavior might suggest that pig-intensive farming presents a higher antibiotic load than poultry farming.
Finally, in the Segre River sub-basin, which is subject to high farming pressure due to the presence of a large number of pig farms, all the studied antibiotics appeared. Enrofloxacin was again the antibiotic that presented the highest average concentration (205 ng/L) and detection frequency (80%). This behavior confirms that the vast majority of rivers near pig farms tend to be polluted by enrofloxacin. In fact, sulfadiazine chronicity was around 40% and trimethoprim was detected in 30% of the samples, but their average concentrations were relatively low: 121 ng/L and 140 ng/L, respectively. Furthermore, azithromycin appeared only in 10% of the samples. This decrease could confirm that the macrolide is only present near large urban areas in the Ebro River basin. However, other authors report concentrations of this macrolide antibiotic up to 1000 ng/L in rivers of Spain and France [48,49].
Regarding the river-flow effect, despite the existence of a significant difference between the average flows on rainier days and a consequent dilution of the species (Figure S1), the concentration of the selected antibiotics remained quite similar in drier and rainier seasons. A relevant fluctuation of the levels of drugs in river water between the sampling campaigns was observed. This could be due to the different flows that have been observed during these campaigns, which are listed in Figure S1. Although the ANOVA test confirms that there are not significant differences between the antibiotic levels and river flow, the antibiotics enrofloxacin and sulfadiazine tended to present higher concentrations in the rainier seasons. The data showed an increase in the levels of these antibiotics in autumn of 2020, which could be due to the initial stage of the pandemic of COVID-19, when the use of antibiotics and their subsequent emission into surface waters was augmented, as other authors suggest [29,30].

3.2. Antibiotics Presence in Wastewaters

Tables S8 and S9 present the ANOVA and Turkey’s HSD test of antibiotic concentrations in wastewater-sampling points. Significant differences (p-value < 0.05) were found between the azithromycin concentration and the rest of the selected antibiotics This result, coupled to the high detected concentration of this macrolide antibiotic, in comparison with the rest of the selected antibiotic, points to the fact that azithromycin was present in higher concentration than the other antibiotics in WWTPs.
Concerning the average concentration results obtained for antibiotics in wastewater, which are shown in Figure 6a, the macrolide azithromycin presented the highest average levels. Regarding Figure 6b, the presence of this antibiotic was especially high in the WWT1, which is the one that presented the highest number of equivalent inhabitants, where the average azithromycin concentration exceeded 5000 ng/L. Other authors have reported the presence of this macrolide antibiotic in WWTPs in the range 20–2800 ng/L [11,50,51]. The total average concentrations of all the studied antibiotics reached 8000 and 5000 ng/L in the affluent and in the effluent, respectively.
According to Figure 6a, after azithromycin, enrofloxacin appeared in high concentration in the studied WWTPs, presenting average levels of 1300 ng/L. Enrofloxacin has been detected in 15 WWTPs of Croatia at a similar concentration [52]. Additionally, this antibiotic has also been found both in Slovakia in several WWTPs effluents [53] and in five WWTPs located in the Spanish territory [54]. The maximum level of azithromycin was reported at the entrance of WWTP1 and was up to 21,000 ng/L. These results are significantly superior to the ones reported in literature for other WWTPs located in Ebro River basin ten years before [32,55,56]. This increase might point to an incipient consumption of antibiotics, which is consistent with the reports published by the European Medicines Agency [41].
Sulfadiazine was also detected in the WWTP samples but in lower concentrations, reaching 300 ng/L. Comparing these outcomes with the literature, other authors detected the presence of this antibiotic in concentrations up to 846 ng/L in affluent and effluents from the Volos WWTP (Greece) [57,58]. The presence of sulfadiazine has also been evidenced in 22 treatment plants in Spain, with a concentration range of 49–1240 ng/L and 8–286 ng/L in in the affluents and effluents, respectively, which are similar to the concentrations found in this study [37].
The presence of trimethoprim in WWTPs was especially widespread in this study, appearing in the entirety of the effluents and showing an average concentration near 400 ng/L. However, concentrations of this substance up to 1866 ng/L have been reported in several WWTPs in Greece [59].
As revealed in Figure 6b, azithromycin was also present in smaller urban areas, such as WWTP3. The average concentration of this antibiotic in WWTP3 was higher than 5000 ng/L. Other authors have reported the same concentration in studies on wastewater quality [60,61]. This behavior is probably associated with the fact that both sampling points are subject to high urban and industrial pressure.
The results of the average antibiotic concentrations for the slaughterhouse and hospital effluents are shown in Figure 7. According to Figure 7a, azithromycin, again, was the antibiotic that presented the highest average concentration (2000 ng/L), especially in the hospital effluent, reaching 5000 ng/L (Figure 7b). It should be noted that this antibiotic was used to treat symptoms of COVID-19 in 2020 and 2021 [28]. In addition, the trimethoprim level was also relatively high in the hospital effluent (>1500 ng/L). These results confirmed that the presence of azithromycin and trimethoprim is commonly due to human medicine, whereas to a lesser extent, they could also be found in poultry and rabbit slaughterhouses. In the literature, azithromycin presence in European hospital effluents varies in the range 1–10 µg/L [54]. The sulfonamide antibiotic sulfadiazine was found in the hospital effluent in low concentration up to 80 ng/L. Sulfadiazine concentrations reported in the literature for hospital effluents in Valencia, Spain range from 9–137 ng/L [3]. According to the literature, trimethoprim has been detected in hospital effluents, reaching concentrations up to 1800 ng/L [50]. However, in our study, this antibiotic appeared only in the hospital effluent at a significant concentration (1368 ng/L) and in the poultry slaughterhouse at a concentration of 390 ng/L.
Compared to the rest of the studied slaughterhouses, only the duck slaughterhouse, where concentrations exceeding 1500 ng/L were detected, presented significant concentrations of azithromycin. Regarding enrofloxacin and sulfadiazine, the highest average concentrations were observed in the rabbit slaughterhouse (970 and 1835 ng/L, respectively).

4. Conclusions

This research work presents a long-term study of the presence of antibiotics among surface waters and wastewaters in the Ebro basin (northeast of Spain) for four years (2018–2021). The choice of the target antibiotics was made based on a multispecies screening campaign carried out in the spring of 2018 and supported by the information on the sales and use of veterinary antimicrobials in Spain. Despite the European and national measures taken to restrict the use of antibiotics and exposure to these substances [14,60,61], the collected data demonstrated that:
  • Enrofloxacin and sulfadiazine were present in almost all surface-water control points, which denotes high, direct exposure to these substances, especially in areas that are close to intensive farming. In fact, this fluoroquinolone antibiotic appears at very high concentrations in rivers of the Ebro basin near intensive farming, such as the Segre, Gallego or Cinca Rivers. Significant differences were found between the areas exposed to high livestock pressure and the concentration of enrofloxacin.
  • Azithromycin was detected at very high concentrations in WWTPs. Complementarily, trimethoprim and enrofloxacin were detected in wastewaters of the Ebro River basin, especially in areas near large urban cores (>100,000 equivalent inhabitants).
  • According to previous studies carried out in Ebro River basin in 2012 and 2010 [32,47], another important finding of this research is an increasing quantitative presence of antibiotics. Consequently, comprehensive studies of antibiotic assessment in Spanish rivers, wastewater, tap water, seawater and groundwater should be continued in order to establish water-quality standards for legislative guidance.

Supplementary Materials

The following supporting information can be downloaded at:, This section contains the concrete values of the selected antibiotics in the sampling network, the statistical analysis performed (one-way ANOVA test) and the flow control of the rivers among the 6 sampling campaings. Table S1. Sulfadiazine quantitative concentration results in surface control points (ng/L). D = detected (LOD < D < LOQ), n/d = not detected (<LOD). Table S2. Enrofloxacin quantitative concentration results (ng/L) in surface control points (ng/L). D = detected (LOD < D < LOQ), n/d = not detected (<LOD). Table S3. Azithromycin quantitative concentration results (ng/L) in surface control points (ng/L). D = detected (LOD < D < LOQ), n/d = not detected (<LOD). Table S4. Trimethoprim quantitative concentration results (ng/L) in surface control points. D = detected (LOD < D < LOQ), n/d = not detected (<LOD). Figure S1. River flow during the six sampling campaigns 2018–2021. Table S5. One-way ANOVA test of antibiotics concentration in high-livestock-pressure points Table S6. Tukey’s honestly significant difference test results in high-livestock pressure points. Table S7. One-way ANOVA test of sulfadiazine concentration between the reference point ASE19 and the points exposed to high and medium livestock pressure. Table S8. One-way ANOVA test of antibiotics concentration in WWTPs. Table S9. Tukey’s honestly significant difference test results in WWTPs.

Author Contributions

Conceptualization, R.M.; Data curation, S.M.; Formal analysis, S.G.; Investigation, J.G.; Methodology, M.P.O. and J.S.; Project administration, F.L.; Supervision, M.P.O., R.M. and J.S.; Writing—original draft, S.M.; Writing—review & editing, J.G. and J.S. All authors have read and agreed to the published version of the manuscript.


This research was funded by EFA 183/16/OUTBIOTICS.

Conflicts of Interest

We have no conflict of interest to declare.


  1. Conde-Cid, M.; Álvarez-Esmorís, C.; Paradelo-Núñez, R.; Nóvoa-Muñoz, J.C.; Arias-Estévez, M.; Álvarez-Rodríguez, E.; Fernández-Sanjurjo, M.J.; Núñez-Delgado, A. Occurrence of tetracyclines and sulfonamides in manures, agricultural soils and crops from different areas in Galicia (NW Spain). J. Clean. Prod. 2018, 197, 491–500. [Google Scholar] [CrossRef]
  2. Mirzaei, R.; Yunesian, M.; Nasseri, S.; Gholami, M.; Jalilzadeh, E.; Shoeibi, S.; Bidshahi, H.S.; Mesdaghinia, A. An optimized SPE-LC-MS/MS method for antibiotics residue analysis in ground, surface and treated water samples by response surface methodology- central composite design. J. Environ. Health Sci. Eng. 2017, 15, 21. [Google Scholar] [CrossRef] [PubMed]
  3. Mendoza, A.; Aceña, J.; Pérez, S.; de Alda, M.L.; Barceló, D.; Gil, A.; Valcárcel, Y. Pharmaceuticals and iodinated contrast media in a hospital wastewater: A case study to analyse their presence and characterise their environmental risk and hazard. Environ. Res. 2015, 140, 225–241. [Google Scholar] [CrossRef] [PubMed]
  4. Díaz-Bao, M.; Barreiro, R.; Miranda, J.M.; Cepeda, A.; Regal, P. Fast HPLC-MS/MS Method for Determining Penicillin Antibiotics in Infant Formulas Using Molecularly Imprinted Solid-Phase Extraction. J. Anal. Methods Chem. 2015, 2015, 959675. [Google Scholar] [CrossRef]
  5. Alygizakis, N.; Gago-Ferrero, P.; Borova, V.L.; Pavlidou, A.; Hatzianestis, I.; Thomaidis, N.S. Occurrence and spatial distribution of 158 pharmaceuticals, drugs of abuse and related metabolites in offshore seawater. Sci. Total Environ. 2016, 541, 1097–1105. [Google Scholar] [CrossRef] [Green Version]
  6. Gracia-Lor, E.; Rousis, N.I.; Zuccato, E.; Bade, R.; Lomba, J.A.B.; Castrignanò, E.; Causanilles, A.; Hernández, F.; Kasprzyk-Hordern, B.; Kinyua, J.; et al. Estimation of caffeine intake from analysis of caffeine metabolites in wastewater. Sci. Total Environ. 2017, 609, 1582–1588. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Gothwal, R.; Shashidhar, T. Antibiotic Pollution in the Environment: A Review. CLEAN–Soil Air Water 2014, 43, 479–489. [Google Scholar] [CrossRef]
  8. Moles, S.; Mosteo, R.; Gómez, J.; Szpunar, J.; Gozzo, S.; Castillo, J.R.; Ormad, M.P. Towards the Removal of Antibiotics Detected in Wastewaters in the POCTEFA Territory: Occurrence and TiO2 Photocatalytic Pilot-Scale Plant Performance. Water 2020, 12, 1453. [Google Scholar] [CrossRef]
  9. Abegglen, C.; Joss, A.; McArdell, C.S.; Fink, G.; Schlüsener, M.P.; Ternes, T.A.; Siegrist, H. The fate of selected micropollutants in a single-house MBR. Water Res. 2009, 43, 2036–2046. [Google Scholar] [CrossRef]
  10. Massé, D.I.; Saady, N.M.C.; Gilbert, Y. Potential of Biological Processes to Eliminate Antibiotics in Livestock Manure: An Overview. Animals 2014, 4, 146–163. [Google Scholar] [CrossRef] [Green Version]
  11. Rodriguez-Mozaz, S.; Vaz-Moreira, I.; Della Giustina, S.V.; Llorca, M.; Barceló, D.; Schubert, S.; Berendonk, T.U.; Michael-Kordatou, I.; Fatta-Kassinos, D.; Martinez, J.L.; et al. Antibiotic residues in final effluents of European wastewater treatment plants and their impact on the aquatic environment. Environ. Int. 2020, 140, 105733. [Google Scholar] [CrossRef]
  12. Barbosa, M.O.; Ribeiro, A.R.; Ratola, N.; Hain, E.; Homem, V.; Pereira, M.F.; Blaney, L.; Silva, A. Spatial and seasonal occurrence of micropollutants in four Portuguese rivers and a case study for fluorescence excitation-emission matrices. Sci. Total Environ. 2018, 644, 1128–1140. [Google Scholar] [CrossRef] [PubMed]
  13. European Centre for Disease Prevention and Control; European Food Safety Authority; European Medicines Agency. Antimicrobial Consumption and Resistance in Bacteria from Humans and Animals: Third Joint Inter-Agency Report on Integrated Analysis of Antimicrobial Agent Consumption and Occurrence of Antimicrobial Resistance in Bacteria from Humans and Food-Producing Animals in the EU/EEA: JIACRA III 2016–2018. European Medicines Agency. 2021. Available online: (accessed on 26 January 2022).
  14. European Parliament and the Council of the European Union. Regulation (EU) 2019/6 of the European Parliament and of the Council of 11 December 2018 on veterinary medicinal products and repealing Directive 2001/82/EC. Off. J. Eur. Union 2019, L4, 43–167. [Google Scholar]
  15. European Medicines Agency. Sales of Veterinary Antimicrobial Agents in 31 European Countries in 2017; Trends from 2010 to 2017; European Medicines Agency: UK. Available online: (accessed on 26 January 2022).
  16. García-Galán, M.J.; Díaz-Cruz, M.S.; Barceló, D. Determination of 19 sulfonamides in environmental water samples by automated on-line solid-phase extraction-liquid chromatography-tandem mass spectrometry (SPE-LC-MS/MS). Talanta 2010, 81, 355–366. [Google Scholar] [CrossRef]
  17. Chelliapan, S.; Wilby, T.; Sallis, P.J. Performance of an up-flow anaerobic stage reactor (UASR) in the treatment of pharmaceutical wastewater containing macrolide antibiotics. Water Res. 2006, 40, 507–516. [Google Scholar] [CrossRef]
  18. Reverté-Villarroya, S.; Borrull, F.; Pocurull, E.; Marcé-Recasens, R.M. Determination of antibiotic compounds in water by solid-phase extraction–high-performance liquid chromatography–(electrospray) mass spectrometry. J. Chromatogr. A 2003, 1010, 225–232. [Google Scholar] [CrossRef]
  19. Duarte-Davidson, R.; Jones, K.C. Screening the environmental fate of organic contaminants in sewage sludge applied to agricultural soils: II. The potential for transfers to plants and grazing animals. Sci. Total Environ. 1996, 185, 59–70. [Google Scholar] [CrossRef]
  20. Eggen, T.; Asp, T.N.; Grave, K.; Hormazabal, V. Uptake and translocation of metformin, ciprofloxacin and narasin in forage- and crop plants. Chemosphere 2011, 85, 26–33. [Google Scholar] [CrossRef]
  21. Hu, X.; Zhou, Q.; Luo, Y. Occurrence and source analysis of typical veterinary antibiotics in manure, soil, vegetables and groundwater from organic vegetable bases, northern China. Environ. Pollut. 2010, 158, 2992–2998. [Google Scholar] [CrossRef]
  22. Li, W.; Shi, Y.; Gao, L.; Liu, J.; Cai, Y. Occurrence of antibiotics in water, sediments, aquatic plants, and animals from Baiyangdian Lake in North China. Chemosphere 2012, 89, 1307–1315. [Google Scholar] [CrossRef] [PubMed]
  23. Matsubara, M.E.; Helwig, K.; Hunter, C.; Roberts, J.; Subtil, E.L.; Coelho, L.H.G. Amoxicillin removal by pre-denitrification membrane bioreactor (A/O-MBR): Performance evaluation, degradation by-products, and antibiotic resistant bacteria. Ecotoxicol. Environ. Saf. 2020, 192, 110258. [Google Scholar] [CrossRef]
  24. Moreira, N.; Narciso-Da-Rocha, C.; Polo-López, M.I.; Pastrana-Martínez, L.M.; Faria, J.L.; Manaia, C.M.; Fernández-Ibáñez, P.; Nunes, O.; Silva, A.M. Solar treatment (H2O2, TiO2-P25 and GO-TiO2 photocatalysis, photo-Fenton) of organic micropollutants, human pathogen indicators, antibiotic resistant bacteria and related genes in urban wastewater. Water Res. 2018, 135, 195–206. [Google Scholar] [CrossRef] [PubMed]
  25. Tian, L.; Khalil, S.; Bayen, S. Effect of thermal treatments on the degradation of antibiotic residues in food. Crit. Rev. Food Sci. Nutr. 2017, 57, 3760–3770. [Google Scholar] [CrossRef] [PubMed]
  26. Wagil, M.; Kumirska, J.; Stolte, S.; Puckowski, A.; Maszkowska, J.; Stepnowski, P.; Białk-Bielińska, A. Development of sensitive and reliable LC-MS/MS methods for the determination of three fluoroquinolones in water and fish tissue samples and preliminary environmental risk assessment of their presence in two rivers in northern Poland. Sci. Total Environ. 2014, 493, 1006–1013. [Google Scholar] [CrossRef] [PubMed]
  27. Nieuwlaat, R.; Mbuagbaw, L.; Mertz, D.; Burrows, L.L.; Bowdish, D.M.E.; Moja, L.; Wright, G.D.; Schünemann, H.J. Coronavirus Disease 2019 and Antimicrobial Resistance: Parallel and Interacting Health Emergencies. Clin. Infect. Dis. 2021, 72, 1657–1659. [Google Scholar] [CrossRef]
  28. Lagier, J.-C.; Million, M.; Gautret, P.; Colson, P.; Cortaredona, S.; Giraud-Gatineau, A.; Honoré, S.; Gaubert, J.-Y.; Fournier, P.-E.; Tissot-Dupont, H.; et al. Outcomes of 3,737 COVID-19 patients treated with hydroxychloroquine/azithromycin and other regimens in Marseille, France: A retrospective analysis. Travel Med. Infect. Dis. 2020, 36, 101791. [Google Scholar] [CrossRef]
  29. Madero, C.M. Primer año del plan estrategico y de acción para reducir el riesgo de selección y diseminación de resistencia a los antibióticos. Albeitar Public. Vet. Indep. 2016, 194, 4–6. [Google Scholar]
  30. Aliste, M.; Garrido, I.; Flores, P.; Hellín, P.; Vela, N.; Navarro, S.; Fenoll, J. Reclamation of agro-wastewater polluted with thirteen pesticides by solar photocatalysis to reuse in irrigation of greenhouse lettuce grown. J. Environ. Manag. 2020, 266, 110565. [Google Scholar] [CrossRef]
  31. López-Serna, R.; Jurado, A.; Vázquez-Suñé, E.; Carrera, J.; Petrović, M.; Barceló, D. Occurrence of 95 pharmaceuticals and transformation products in urban groundwaters underlying the metropolis of Barcelona, Spain. Environ. Pollut. 2013, 174, 305–315. [Google Scholar] [CrossRef]
  32. Gros, M.; Petrovic, M.; Ginebreda, A.; Barceló, D. Sources, Occurrence, and Environmental Risk Assessment of Pharmaceuticals in the Ebro River Basin. Ebro River Basin 2010, 13, 209–237. [Google Scholar] [CrossRef]
  33. López-Serna, R.; Petrovic, M.; Barceló, D. Development of a fast instrumental method for the analysis of pharmaceuticals in environmental and wastewaters based on ultra high performance liquid chromatography (UHPLC)–tandem mass spectrometry (MS/MS). Chemosphere 2011, 85, 1390–1399. [Google Scholar] [CrossRef] [PubMed]
  34. Solaun, O.; Franco, J.; Borja, A.; Menchaca, I.; Otaola, J.; Manzanos, A. Análisis de Presiones e Impactos; Confederación Hidrográfica del Ebro: Zaragoza, Spain, 2015; pp. 175–187. Available online: (accessed on 26 January 2022).
  35. Simon-Sánchez, L.; Grelaud, M.; Garcia-Orellana, J.; Ziveri, P. River Deltas as hotspots of microplastic accumulation: The case study of the Ebro River (NW Mediterranean). Sci. Total Environ. 2019, 687, 1186–1196. [Google Scholar] [CrossRef] [PubMed]
  36. da Silva, B.F.; Jelic, A.; López-Serna, R.; Mozeto, A.A.; Petrovic, M.; Barceló, D. Occurrence and distribution of pharmaceuticals in surface water, suspended solids and sediments of the Ebro river basin, Spain. Chemosphere 2011, 85, 1331–1339. [Google Scholar] [CrossRef] [PubMed]
  37. García-Galán, M.J.; Blanco, S.G.; Roldán, R.L.; Díaz-Cruz, S.; Barceló, D. Ecotoxicity evaluation and removal of sulfonamides and their acetylated metabolites during conventional wastewater treatment. Sci. Total Environ. 2012, 437, 403–412. [Google Scholar] [CrossRef] [PubMed]
  38. Tamtam, F.; Mercier, F.; Le Bot, B.; Eurin, J.; Dinh, Q.T.; Clément, M.; Chevreuil, M. Occurrence and fate of antibiotics in the Seine River in various hydrological conditions. Sci. Total Environ. 2008, 393, 84–95. [Google Scholar] [CrossRef]
  39. Al Aukidy, M.; Verlicchi, P.; Jelic, A.; Petrovic, M.; Barcelò, D. Monitoring release of pharmaceutical compounds: Occurrence and environmental risk assessment of two WWTP effluents and their receiving bodies in the Po Valley, Italy. Sci. Total Environ. 2012, 438, 15–25. [Google Scholar] [CrossRef]
  40. Dan, A.; Zhang, X.; Dai, Y.; Chen, C.; Yang, Y. Occurrence and removal of quinolone, tetracycline, and macrolide antibiotics from urban wastewater in constructed wetlands. J. Clean. Prod. 2020, 252, 119677. [Google Scholar] [CrossRef]
  41. European Medicines Agency. Sales of Veterinary Antimicrobial Agents in 30 European Countries in 2015. Seventh ESVAC Report. Seventh ESVAC Rep. 2017. Available online: (accessed on 17 November 2021).
  42. USEPA. Method 1694: Pharmaceuticals and Personal Care Products in Water, Soil, Sediment, and Biosolids by HPLC/MS/MS. EPA Method. 2007. Available online: (accessed on 26 January 2022).
  43. Santos, L.H.M.L.M.; Gros, M.; Rodriguez-Mozaz, S.; Delerue-Matos, C.; Pena, A.; Barceló, D.; Montenegro, M.C.B.S.M. Contribution of hospital effluents to the load of pharmaceuticals in urban wastewaters: Identification of ecologically relevant pharmaceuticals. Sci. Total Environ. 2013, 461–462, 302–316. [Google Scholar] [CrossRef] [Green Version]
  44. Vergeynst, L.; Haeck, A.; De Wispelaere, P.; Van Langenhove, H.; Demeestere, K. Multi-residue analysis of pharmaceuticals in wastewater by liquid chromatography–magnetic sector mass spectrometry: Method quality assessment and application in a Belgian case study. Chemosphere 2015, 119, S2–S8. [Google Scholar] [CrossRef]
  45. Pujar, P.M.; Kenchannavar, H.H.; Kulkarni, R.; Kulkarni, U.P. Real-time water quality monitoring through Internet of Things and ANOVA-based analysis: A case study on river Krishna. Appl. Water Sci. 2020, 10, 22. [Google Scholar] [CrossRef] [Green Version]
  46. Danner, M.C.; Robertson, A.; Behrends, V.; Reiss, J. Antibiotic pollution in surface fresh waters: Occurrence and effects. Sci. Total Environ. 2019, 664, 793–804. [Google Scholar] [CrossRef] [PubMed]
  47. Serna, R.L.; Petrovic, M.; Barceló, D. Occurrence and distribution of multi-class pharmaceuticals and their active metabolites and transformation products in the Ebro River basin (NE Spain). Sci. Total Environ. 2012, 440, 280–289. [Google Scholar] [CrossRef]
  48. Milaković, M.; Vestergaard, G.; Plaza, J.J.G.; Petrić, I.; Simatovic, A.; Senta, I.; Kublik, S.; Schloter, M.; Smalla, K.; Udiković-Kolić, N. Pollution from azithromycin-manufacturing promotes macrolide-resistance gene propagation and induces spatial and seasonal bacterial community shifts in receiving river sediments. Environ. Int. 2019, 123, 501–511. [Google Scholar] [CrossRef]
  49. Gonzalez, I.; Muga, I.; Rogríguez, J.; Blanco, M. Contaminantes emergentes en aguas residuales urbanas y efluentes hospi-talarios. Tecnoaqua 2018, 29, 42–54. [Google Scholar]
  50. Verlicchi, P.; Al Aukidy, M.; Galletti, A.; Petrovic, M.; Barceló, D. Hospital effluent: Investigation of the concentrations and distribution of pharmaceuticals and environmental risk assessment. Sci. Total Environ. 2012, 430, 109–118. [Google Scholar] [CrossRef] [PubMed]
  51. Osorio, V.; Marcé, R.; Pérez, S.; Ginebreda, A.; Cortina, J.L.; Barceló, D. Occurrence and modeling of pharmaceuticals on a sewage-impacted Mediterranean river and their dynamics under different hydrological conditions. Sci. Total Environ. 2012, 440, 3–13. [Google Scholar] [CrossRef] [PubMed]
  52. Senta, I.; Terzic, S.; Ahel, M. Occurrence and fate of dissolved and particulate antimicrobials in municipal wastewater treatment. Water Res. 2013, 47, 705–714. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Birošová, L.; Mackuľak, T.; Bodik, I.; Ryba, J.; Škubák, J.; Grabic, R. Pilot study of seasonal occurrence and distribution of antibiotics and drug resistant bacteria in wastewater treatment plants in Slovakia. Sci. Total Environ. 2014, 490, 440–444. [Google Scholar] [CrossRef] [PubMed]
  54. Garcia-Galan, M.J.; Diaz-Cruz, M.S.; Barcelo, D. Occurrence of sulfonamide residues along the Ebro river basin: Removal in wastewater treatment plants and environmental impact assessment. Environ. Int. 2011, 37, 462–473. [Google Scholar] [CrossRef]
  55. Golovko, O.; Kumar, V.; Fedorova, G.; Randak, T.; Grabic, R. Seasonal changes in antibiotics, antidepressants/psychiatric drugs, antihistamines and lipid regulators in a wastewater treatment plant. Chemosphere 2014, 111, 418–426. [Google Scholar] [CrossRef]
  56. Berges, J.; Moles, S.; Ormad, M.P.; Mosteo, R.; Gómez, J. Antibiotics removal from aquatic environments: Adsorption of enrofloxacin, trimethoprim, sulfadiazine, and amoxicillin on vegetal powdered activated carbon. Environ. Sci. Pollut. Res. 2020, 28, 8442–8452. [Google Scholar] [CrossRef]
  57. Guillossou, R.; Le Roux, J.; Mailler, R.; Pereira-Derome, C.S.; Varrault, G.; Bressy, A.; Vulliet, E.; Morlay, C.; Nauleau, F.; Rocher, V.; et al. Influence of dissolved organic matter on the removal of 12 organic micropollutants from wastewater effluent by powdered activated carbon adsorption. Water Res. 2020, 172, 115487. [Google Scholar] [CrossRef]
  58. Guillossou, R.; Le Roux, J.; Mailler, R.; Vulliet, E.; Morlay, C.; Nauleau, F.; Gasperi, J.; Rocher, V. Organic micropollutants in a large wastewater treatment plant: What are the benefits of an advanced treatment by activated carbon adsorption in comparison to conventional treatment? Chemosphere 2019, 218, 1050–1060. [Google Scholar] [CrossRef] [PubMed]
  59. Viana, P.; Meisel, L.; Lopes, A.; de Jesus, R.; Sarmento, G.; Duarte, S.; Sepodes, B.; Fernandes, A.; dos Santos, M.; Almeida, A.; et al. Identification of Antibiotics in Surface-Groundwater. A Tool towards the Ecopharmacovigilance Approach: A Portuguese Case-Study. Antibiotics 2021, 10, 888. [Google Scholar] [CrossRef]
  60. Directive 2013/11/EU of the European Parliament and of the Council. In Fundamental Texts on European Private Law; Hart Publishing: Oxford, UK, 2016; Volume 2013, pp. 1–17. [CrossRef]
  61. Unión Europea. Directiva (UE) 2020/2184 del Parlamento Europeo y del Consejo de 16 de diciembre de 2020 relativa a la calidad de las aguas destinadas al consumo humano (versión refundida). D Unión Eur. 2020, 53, 1–62. [Google Scholar]

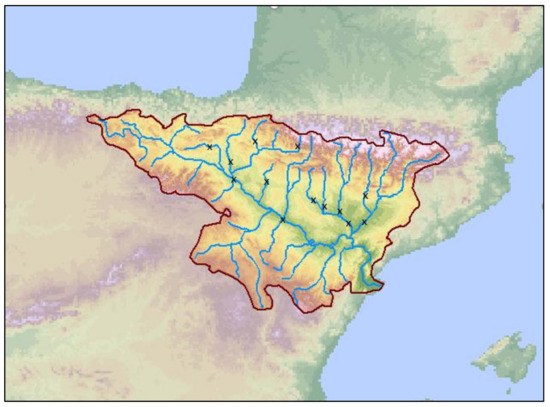

Figure 1. Surface-water-sampling points in the Ebro River basin (North of Spain).
Figure 1. Surface-water-sampling points in the Ebro River basin (North of Spain).
Water 14 01033 g001

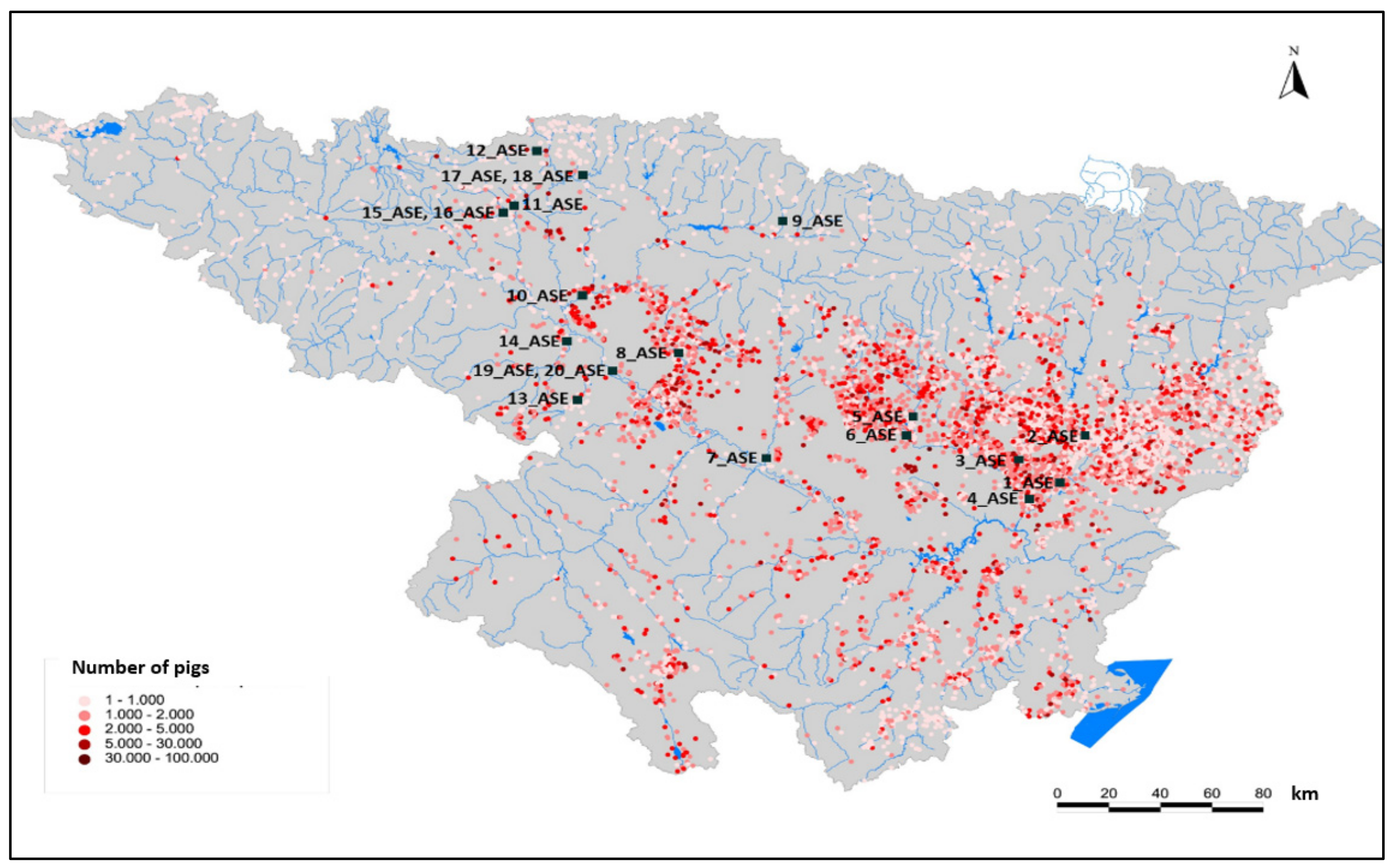

Figure 2. Distribution of number of pigs per farm in the Ebro River basin and sampling points (Source: Ebro Hydrographic Confederation, 2016).
Figure 2. Distribution of number of pigs per farm in the Ebro River basin and sampling points (Source: Ebro Hydrographic Confederation, 2016).
Water 14 01033 g002

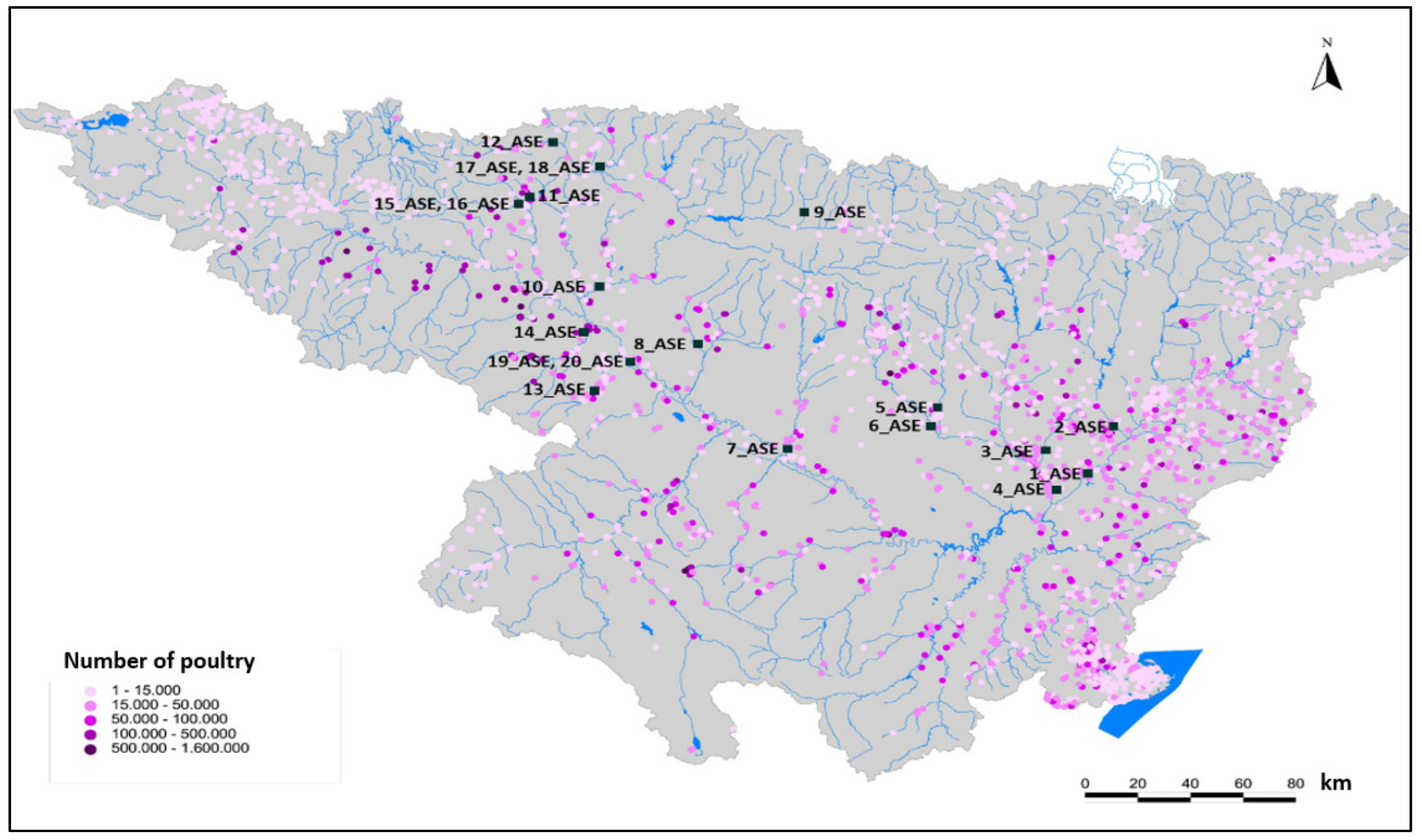

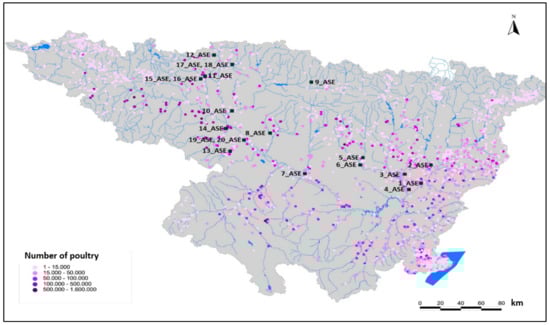

Figure 3. Distribution of number of poultry per farm in the Ebro River basin and sampling points (Source: Ebro Hydrographic Confederation, 2016).
Figure 3. Distribution of number of poultry per farm in the Ebro River basin and sampling points (Source: Ebro Hydrographic Confederation, 2016).
Water 14 01033 g003

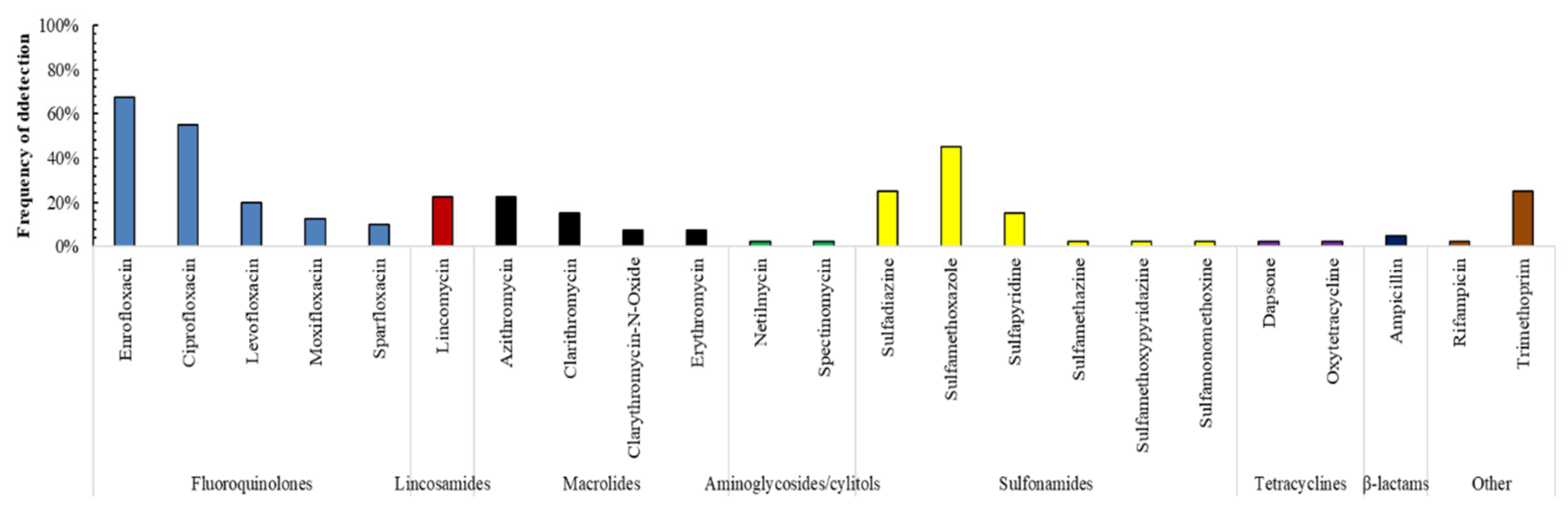

Figure 4. Frequency of occurrence of most detected antibiotics in the screening (2018).
Figure 4. Frequency of occurrence of most detected antibiotics in the screening (2018).
Water 14 01033 g004

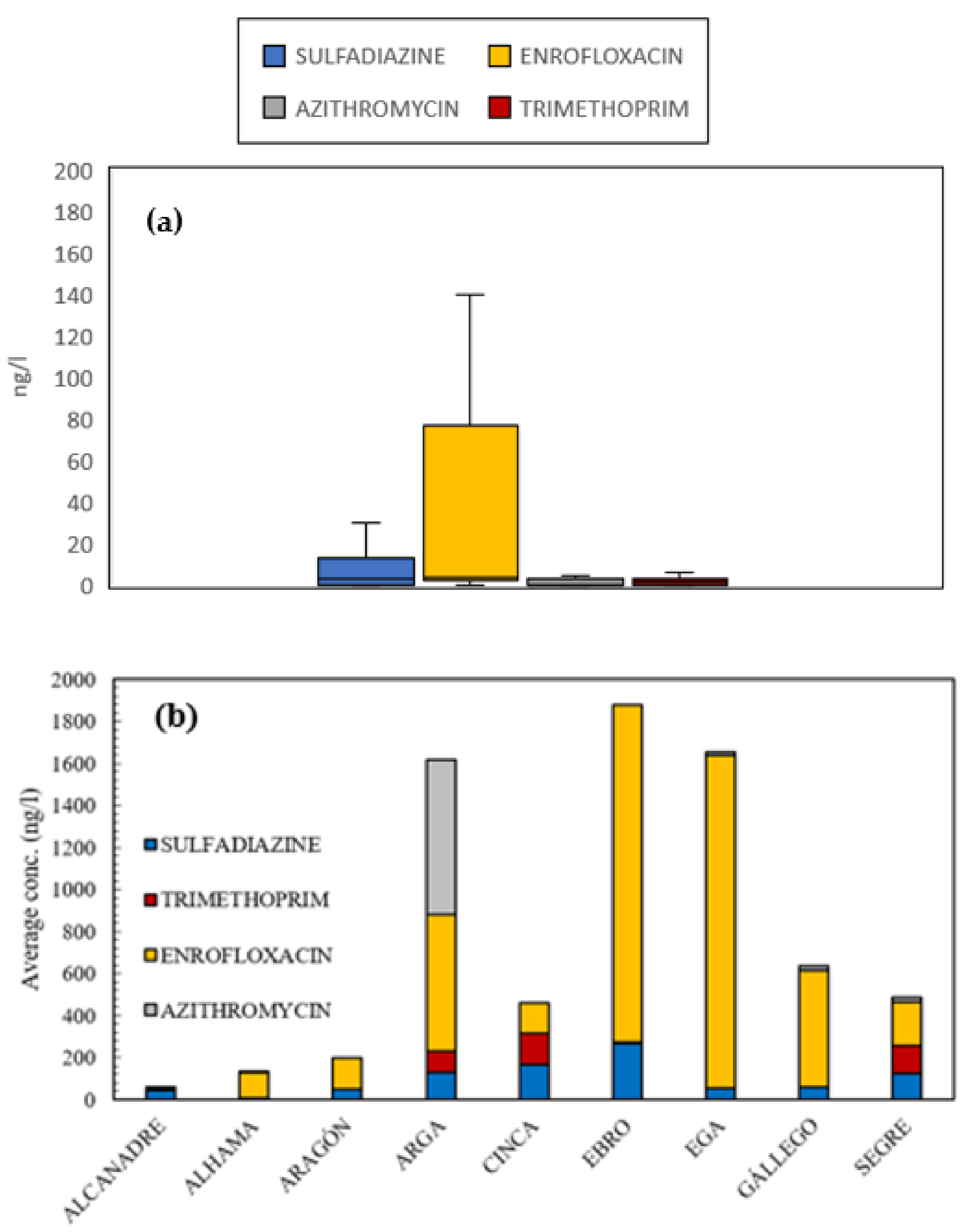

Figure 5. (a) Boxplots of selected antibiotics and (b) average concentration (ng/L) of target antibiotics among all surface-water-sampling points in the Ebro River basin area (2018–2021).
Figure 5. (a) Boxplots of selected antibiotics and (b) average concentration (ng/L) of target antibiotics among all surface-water-sampling points in the Ebro River basin area (2018–2021).
Water 14 01033 g005

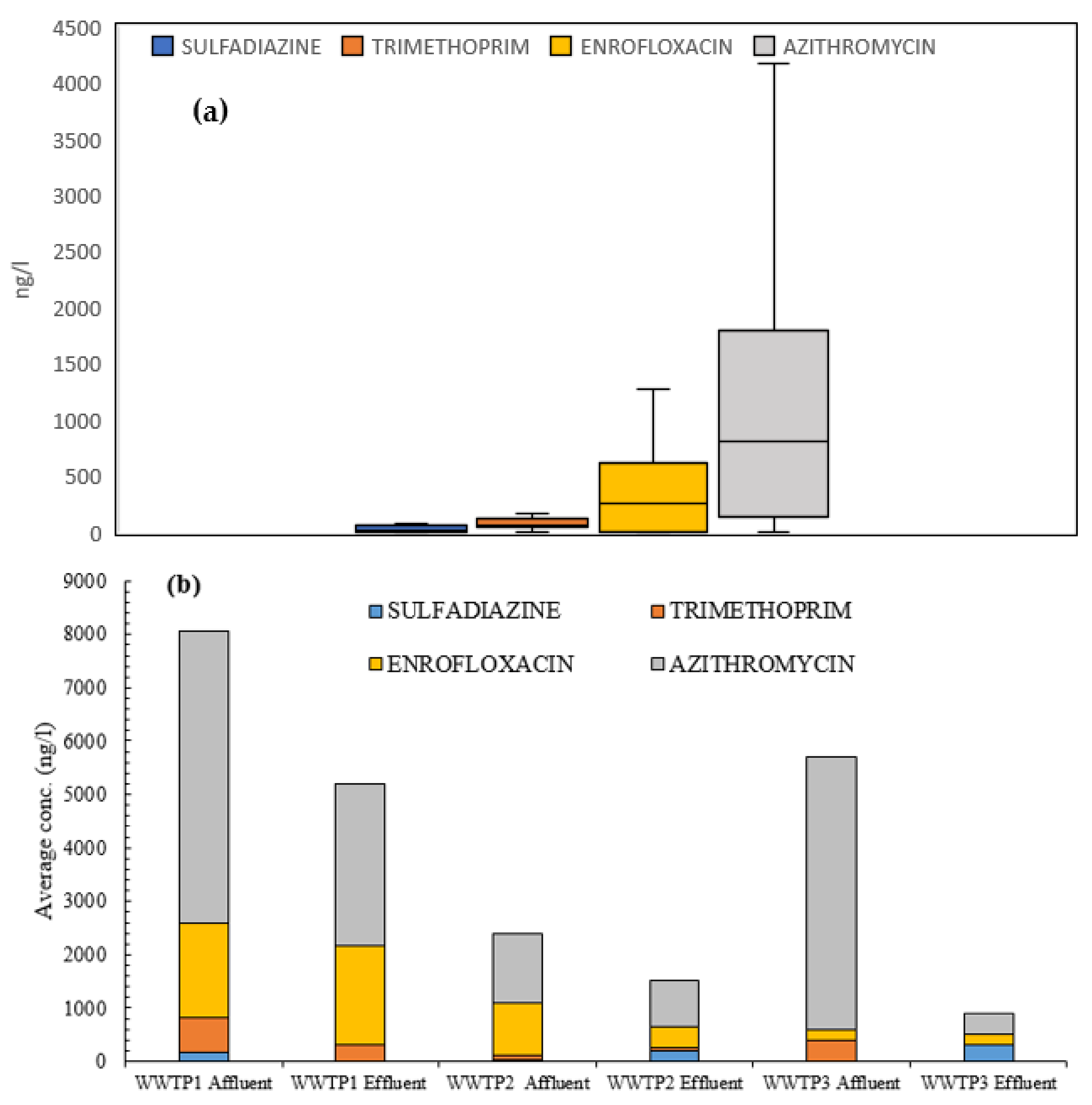

Figure 6. (a) Boxplots of selected antibiotics and (b) the average concentration of the target antibiotics in selected WWTPs (2018–2021) located in the Ebro River basin area.
Figure 6. (a) Boxplots of selected antibiotics and (b) the average concentration of the target antibiotics in selected WWTPs (2018–2021) located in the Ebro River basin area.
Water 14 01033 g006

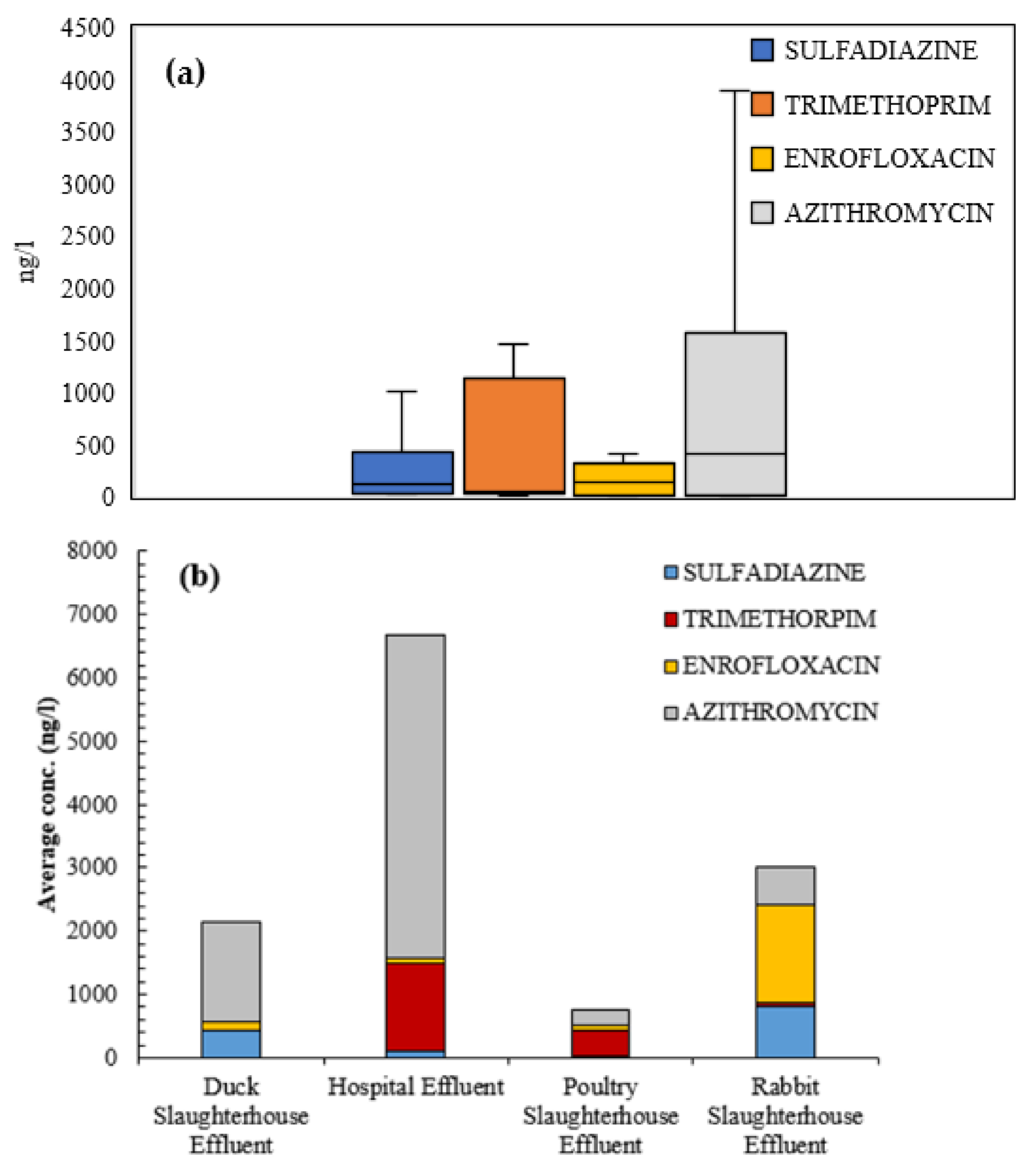

Figure 7. (a) Boxplots and (b) average concentration (ng/L) of target antibiotics in a hospital and three slaughterhouse effluents.
Figure 7. (a) Boxplots and (b) average concentration (ng/L) of target antibiotics in a hospital and three slaughterhouse effluents.
Water 14 01033 g007
Table 1. List of surface-water-sampling points: locations and pressures [34].
Table 1. List of surface-water-sampling points: locations and pressures [34].
RiverLocationSampling PointSub-BasinLivestock PressureWWTP
Segre RiverTorres de Segre01_ASESegreHighNull
Noguera Ribagorzana RiverCorbins02_ASESegreHighNull
Clamor Amarga RiverZaidín03_ASECincaHighHigh
Cinca RiverFraga04_ASECincaHighNull
Alcanadre RiverSariñena05_ASEAlcanadreHighNull
Flumen RiverAlbalatillo06_ASEAlcanadreHighNull
Gállego RiverSan Mateo de Gállego07_ASEGallegoLowNull
Arba de Ríquel RiverEjea de los Caballeros08_ASEEbroHighLow
Aragon Subordan RiverJavierregay09_ASEAragónLowNull
Aragon RiverCaparroso10_ASEAragónHighNull
Irantzu RiverEstella11_ASEEgaMediumNull
Arakil RiverIrañeta12_ASEArgaHighNull
Queiles RiverNovallas13_ASEQueilesHighHigh
Alhama RiverAlfaro14_ASEAlhamaHighNull
Ega River Estella15_ASEEgaLowMedium
Ega River Downstream Estella16_ASEEgaLowHigh
Ega River Upstream Pamplona17_ASEArgaNullLow
Arga River Downstream Pamplona18_ASEArgaNullHigh
Ebro River Upstream Tudela19_ASEEbroLowLow
Ebro River Downstream Tudela 20_ASEEbroLowMedium
ASE: assay-sampling Ebro River basin.
Table 2. Main characteristics of studied WWTPs.
Table 2. Main characteristics of studied WWTPs.
WWTPEquivalent InhabitantsInlet Flow
Table 3. Antibiotics characteristics.
Table 3. Antibiotics characteristics.
GroupAntibioticCASMolecular Weight (g/mol)Molecular
SulfonamideSulfadiazine26787-78-0365.4 Water 14 01033 i001
TrimethoprimTrimethoprim93106-60-6359.4 Water 14 01033 i002
FluoroquinoloneEnrofloxacin738-70-5290.3 Water 14 01033 i003
MacrolideAzithromycin83905-01-5749.0 Water 14 01033 i004
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Moles, S.; Gozzo, S.; Ormad, M.P.; Mosteo, R.; Gómez, J.; Laborda, F.; Szpunar, J. Long-Term Study of Antibiotic Presence in Ebro River Basin (Spain): Identification of the Emission Sources. Water 2022, 14, 1033.

AMA Style

Moles S, Gozzo S, Ormad MP, Mosteo R, Gómez J, Laborda F, Szpunar J. Long-Term Study of Antibiotic Presence in Ebro River Basin (Spain): Identification of the Emission Sources. Water. 2022; 14(7):1033.

Chicago/Turabian Style

Moles, Samuel, Sebastiano Gozzo, María P. Ormad, Rosa Mosteo, Jairo Gómez, Francisco Laborda, and Joanna Szpunar. 2022. "Long-Term Study of Antibiotic Presence in Ebro River Basin (Spain): Identification of the Emission Sources" Water 14, no. 7: 1033.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
