Future Rainfall Erosivity over Iran Based on CMIP5 Climate Models

Abstract

Soil erosion affects agricultural production, and industrial and socioeconomic development. Changes in rainfall intensity lead to changes in rainfall erosivity (R-factor) energy and consequently changes soil erosion rate. Prediction of soil erosion is therefore important for soil and water conservation. The purpose of this study is to investigate the effect of changes in climatic parameters (precipitation) on soil erosion rates in the near future (2046–2065) and far future (2081–2100). For this purpose, the CMIP5 series models under two scenarios RCP2.6 and RCP8.5 were used to predict precipitation and the R-factor using the Revised Universal Soil Loss Equation (RUSLE) model. Rainfall data from synoptic stations for 30 years were used to estimate the R- factor in the RUSLE model. Results showed that Iran’s climate in the future would face increasing rainfall, specially in west and decreasing rainfall in the central and northern parts. Therefore, there is an increased possibility of more frequent occurrences of heavy and torrential rains. Results also showed that the transformation of annual rainfall was not related to the spatial change of erosion. In the central and southern parts, the intensity of rainfall would increase. Therefore, erosion would be more in the south and central areas.

1. Introduction

Climate is a complex system and is impacted by anthropogenic factors, such as greenhouse gases [1]. Excessive consumption of fossil fuels, population growth, and land-use change have led to significant changes in the planet’s climate after the industrial revolution [2]. Climate change is a natural phenomenon [3] but negatively affects water resources, agriculture, environment, ecosystem, health, industry, and economy [4]. Increased greenhouse gases cause changes in the amount of solar radiation, temperature, rainfall regime, and the amount of surface flow [5]. Rising temperatures in recent decades have caused significant changes in the hydrological cycle, such as increasing water vapor in the atmosphere, changing patterns and intensity of precipitation, decreasing snow cover, and widespread melting of glaciers, and changing soil moisture and runoff [6].

According to the Intergovernmental Panel on Climate Change (IPCC), global temperatures have risen by about 0.74 °C in industrial areas due to increased greenhouse gas emissions [7]. The increase in temperature affects the world’s rainfall regime [8]. It is predicted that due to climate change, the intensity and frequency of rainfall in many parts of the world will increase in the future [9,10]. Therefore, the probability of encountering heavy rainfall and erosion has increased in the middle and upper latitudes.

Climate change has altered the rainfall regime in recent decades so that the amount of rainfall in high and middle latitudes is higher than in low latitudes [10]. Studies have shown that a 1% increase in rainfall increases the rate of erosion by 0.85%, if the intensity of rainfall does not change. On the other hand, if both characteristics of precipitation, i.e., amount and intensity of precipitation, change simultaneously, then for every 1% increase in the amount of precipitation, the amount of erosion increases by 1.7%. Rainfall changes, which include the amount and intensity of rainfall, directly affect runoff and soil erosion [11]. Some studies show that rapid changes in the rate of erosion occur in response to changes in precipitation that include the intensity, duration, and frequency of precipitation or seasonal patterns of precipitation. Climate change leads to changes in climate variables, such as precipitation, temperature, wind, and solar radiation, and these changes in turn affect soil erosion [12].

Rainfall is one of the most essential climatic characteristics that severely affect erosion [13]. Studies on the relationship between soil and climate change show that erosion reaches its maximum in regions where the average annual rainfall is 300 mm [14]. Rainfall erosivity is an important factor in the separation and transport of soil particles and can indicate the potential for erosion [15,16]. It is the most important climatic parameter for erosion [17]. Various factors have been proposed to calculate rainfall erosion, such as the amount, intensity, duration of rainfall; and diameter and kinetic energy of raindrops [18]. The term rain erosion was introduced by Wischmeier and Smith in 1978 to indicate the effect of climate on erosion [19]. To manage and protect the soil, it is necessary to determine the amount of rain erosivity under different climatic conditions [20].

The most critical factor of soil erosion is the erosive power of rainfall [21]. Changes in temperature and precipitation, such as changes in the volume and intensity of rainfall, changing the energy of rain, and the separation power of raindrops, followed by changes in the erosive power of rain [22]. Talchabhadel et al. [1] analyzed the effect of climate change on soil erosion by rainfall in the Westrapti watershed. Results showed that a change in precipitation pattern increased soil erosion. Due to global warming under climatic scenarios, soil losses would increase by about 10%, and the average soil loss would be estimated at 8.1 tons per hectare [1]. Xu et al. [23] studied the spatial and temporal development of rainfall erosivity stimuli affected by climate change in Huaihe watersheds. It has been shown that most of the effect of rainfall erosivity (R-factor) occurs in summer and then in spring and autumn and the main cause of which is heavy seasonal rainfall. Rainfall erosivity (R-factor) is higher in northern regions than in southern regions. Based on reported results, it can be stated that climate change has a significant effect on rainfall erosivity (R-factor) and soil erosion [23].

Azari et al. [24] investigated the forecasted impact of climate change on rainfall erosivity using CMIP5 climate models in Iran. Forecasts showed that in the period 2040–2060 under RCP4.5 the R-factor would increase from 2.5 to 22.5%. This increase of R-factor is more in the mountainous areas than in the northwest. The forecast under RCP 4.5 in the period 2060–2080 showed that in the arid regions of the southeast, center, and east, the R-factor would decrease [24].

The use of RUSLE and GCM to forecast soil erosion in the monsoon climate in eastern India was evaluated by Chakraborty et al. [25] who showed that due to climate change, there was a possibility of heavy rains with more kinetic energy. The average annual erosion was estimated between 1 and 6 tons per hectare per year. In areas susceptible to erosion, it was about 6 tons per hectare per year, which mostly occurred in the southern and southeastern regions. In areas with the lowest susceptibility to soil erosion, about 1–2 tons of soil erosion per hectare per year occurred in the western and northern regions [25].

Climate change and predicting its effects on soil erosion to reduce the resulting vulnerability are important. In this research, the Intergovernmental Panel on Climate Change (IPCC) models were used to predict rainfall erosivity in the whole country of Iran. The reason is the high accuracy of these models compared to other models. The more accurately the climate change is predicted, the better the rate of future soil erosion would be estimated. Accurate forecast can significantly help watershed management. Another important issue in climate change is its uncertainty and the analysis of future perspective of climate variables.

Despite the abundance of studies conducted in different regions worldwide, no studies have been conducted to evaluate climate change on the erosivity factor in Iran. In addition, the reliability of an erosivity map of Iran, which has been developed using the modified Fournier erosivity index has not yet been ascertained. Therefore, the present study aimed to calculate the R factor directly from maximum available rainfall data in the historical period and to study the temporal variation in rainfall erosivity (R-factor) in the future period under climate change using two scanerios in 2046–2065 and 2081–2100.

2. Materials and Methods

2.1. Study Area

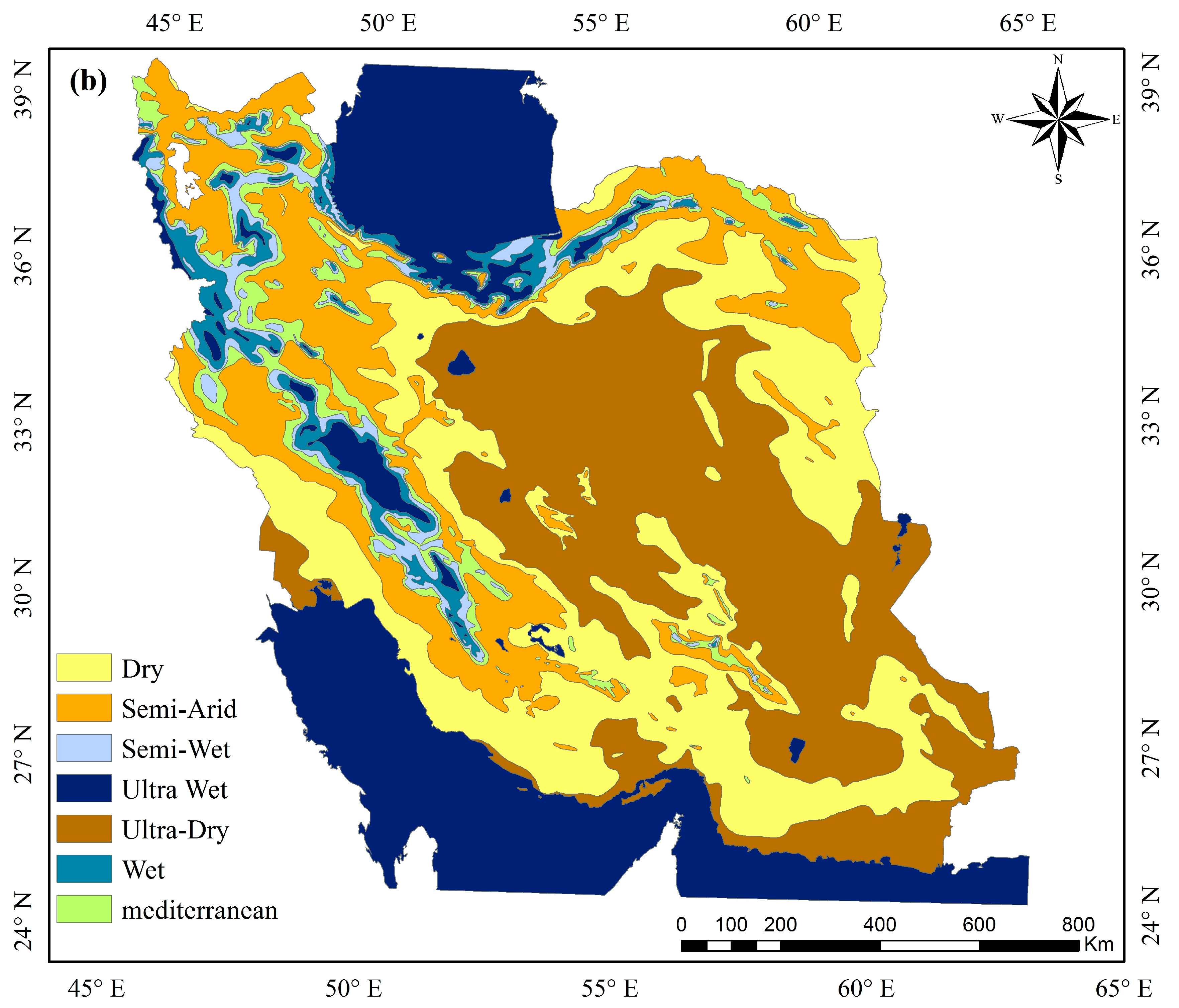

Iran is located in southwest Asia between 25°–40° north latitude and 44°–63° east longitude. Its population is 81 million and its area is approximately 1,648,195 km². Located at an altitude of 40 to 5670 m above sea level, the altitude changes have a significant impact on the climatic diversity. Thus, Iran has a wide range of climatic conditions in different regions with significant rainfall variation. Annual rainfall decreases from northwest (900 mm) to southeast (200 mm). Rainstorms occur with great intensity during spring and have a high erosion potential [26]. Figure 1 shows the spatial distribution of synoptic stations and climate classification of Iran.

Table 1. Stations with high-resolution data to calculate the R-factor.

Station	Elevation	Longitude	Latitude
Ahvaz	22.5	48°40′	31°20′
Arak	1708	49°46′	34°06′
Ardebil	1332	48°17′	38°15′
Banda Abbas	9.8	56°22′	27°13′
Birjand	1491	59°12′	32°52′
Bojnourd	1112	57°16′	37°28′
Boushehr	19.6	50°50′	28°59′
Gorgan	13.3	54°16′	36°51′
Hamedan	1679	48°43′	35°12′
Ilam	1337	46°26′	33°38′
Isfahan	1550	51°40′	32°37′
Karaj	1312	50°54′	35°55′
Kerman	1753	56°58′	30°15′
Kermanshah	1318	47°09′	34°24′
Khoramabad	1147	48°17′	33°26′
Qom	877	50°51′	32°42′
Qazvin	1279	50°03′	36°15′
Mashhad	999	59°38′	36°16′
Rasht	36.7	49°39′	37°12′
Sanandaj	1373	47°00′	35°20′
Semnan	1130	53°33′	35°35′
Shahre kord	2048	50°51′	32°17′
Shiraz	1484	52°36′	29°32′
Sari	23	53°00′	36°33′
Tabriz	1361	46°17′	38°50′
Tehran	1190	51°19′	35°41′
Urmia	1315	45°05′	37°32′
Yasouj	1831	51°41′	30°50′
Yazd	1273	54°17′	31°54′
Zahedan	1370	60°33′	29°28′
Zanjan	1663	48°29′	36°41′

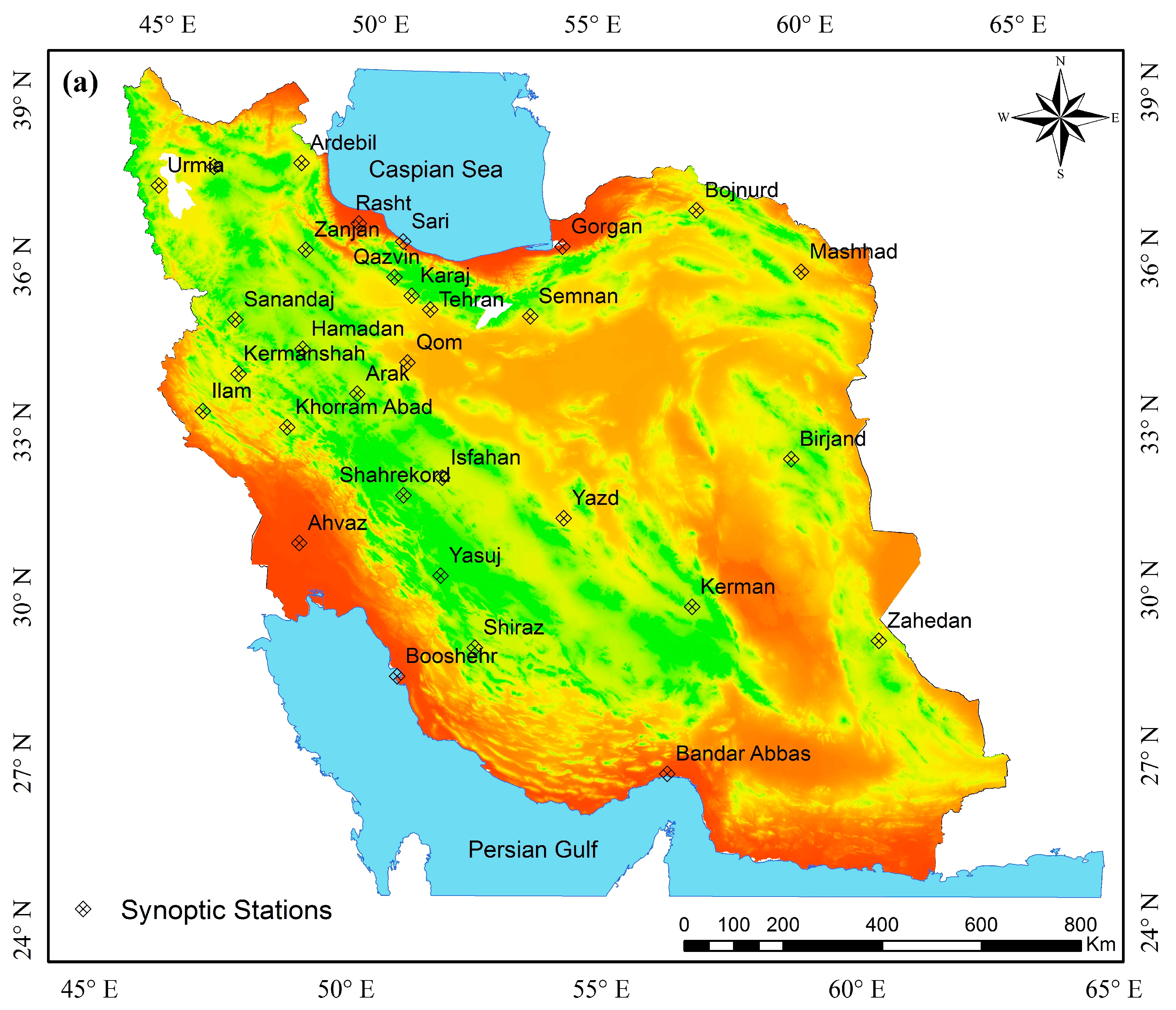

illustrates the geographical location of stations used to calculate the R-factor.

2.2. Climate Models

In recent years, simulations of the fifth phase of the Coupled Model Intercomparison Project (CMIP) have been completed [27]. and have been presented in the Fifth Assessment Report (AR5) by the Intergovernmental Panel on Climate Change (IPCC) [28]. The CMIP5 series models have higher resolution [29]. The greatest emphasis of these models is the climate impact on socio-economic issues and their role in sustainable development [30]. The general framework of these models is based on greenhouse gas reduction and climate adaptation methods [31].

These models use a new emission scenario to represent the greenhouse gas concentration path [32]. RCP scenarios include a severe reduction scenario (RCP2.6), and two intermediate scenarios (RCP4.5 and RCP6) and scenario (RCP8.5) [33]. These scenarios are named, based on their radiation level in 2100, which is 2.6, 4.5, 6, and 8.5 W/m², respectively [34].

Table 2. Features of Representative Concentration Pathway (RCPs).

Scenarios	Radiative Forcing	Concentration of Carbon Dioxide(ppm)	Temperature (C°)	Pathway
RCP2.6	3 W/m2	490–530	1.5	Peak and Decline
RCP4.5	4.5 W/m2	580–720	2.4	Stabilization without overshoot pathway
RCP6	6 W/m2	720–1000	3	Stabilization without overshoot pathway
RCP8.5	8.5 W/m2	$>1000$	4.8	Rising radiative forcing pathway

illustrates the features of the four emission scenarios.

Due to the better performance of CMIP5 series models, many studies around the world have used these models [35,36]. In this study, precipitation data of CMIP5 models under RCP2.6 and RCP 8.5 scenarios were used to forcast future precipitation and its effect on rainfall erosion. Global Circulation Models (GCMs) are the most reliable models for forecasting climate and for simulating climate parameters [37]. These models are used for predicting climate change [38] and provide information about the Earth’s condition, including the state of atmosphere, carbon cycle, and circulation of oceans They can simulate climate change under RCP scenarios [39]. Although the models can predict future global climate change, their output has a high spatial resolution [40]. Therefore, application of these models on a local scale is not appropriate [41]. The high spatial resolution makes the model output unsuitable for investigating the hydrological effects of climate change on a regional scale [42].

Sixty-one climate models have been used to simulate the baseline and future periods in the fifth report of the Intergovernmental Panel on Climate Change (IPPC). In this study 4 models were used that included CSIRO-Mk3.6.0, CCSM4, GFDL-ESM2g, and HadGEM2-es SRES CPs [43] (

Table 3. Specification of CMIP5 series models used in this study.

Models	Institute	Resolution
CSIRO-Mk3.6.0	Commonwealth Scientific and Industrial Research Organization (CSIRO), Canberra, Australia	1.88° × 1.88°
CCSM4	National Center for Atmospheric Research (NSAR), Boulder, CO, USA	1.25° × 0.94°
GFDL-ESM2g	Geophysical Fluid Dynamics Laboratory (NOAA), Princeton, NJ, USA	2.00° × 2.02°
HadGEM2-es	Met Office Hadley Center (MOHC), Exeter, UK	1.88° × 1.25°

). Using climatic parameters simulated by IPCC-CMIP5 series of models, possible changes in R-factor were estimated.

2.3. Downscaling Methods

Several methods have been proposed for downscaling the output of GCMs models [44]. In this research, the Delta or Change Factor (CF) downscaling method was used [45]. The change factor method is a common error correction method that is often used to reduce the error between GCM outputs and observational data [45] and is one of the simplest ways of statistical downscaling [46]. It is a ratio of changes between future forecasts and current climate simulations of a GCM model [47]. It uses monthly precipitation data recorded at synoptic stations. To obtain climate data on a local scale, the difference between precipitation ratios is used, based on the average of long-term monthly data for the future and current periods (base time). The CF values are calculated by dividing the average of each future weather month (evaluated by climate models) by the average of the same month at the base (recorded value of the synoptic station).

Precipitation parameter changes were calculated using the following equation [48]:

$$\Delta P_i=\left(\frac{{\overline{P}}_{GCM,FUT,i}}{{\overline{P}}_{GCM,BASE,i}}\right)$$

(1)

where $\Delta P_i$ indicates the scenario of climate change of precipitation parameter for 30 years, and $i$ is the number of months of a year that are between 1 and 12, ${\overline{P}}_{GCM,FUT,i}$ defines the 20-year average precipitation simulated by GCMs for the future periods per month; ${\overline{P}}_{GCM,BASE,i}$ describes the 30-year average precipitation simulated by the GCMs for the period similar to the base period for each month in this study is from 1986 to 2016.

To obtain the time series of future climate scenarios, the climate change scenarios were added to the observational values (1986–2016) that were obtained by the following equation [49]:

$$P=P_{obs}\times \Delta P_i$$

(2)

where P_obs describes the observed daily precipitation series in the 1986–2016 time period, P shows the time series of the future climate scenarios of precipitation, and $\Delta P_i$ defines the downscaled climate change scenarios.

In this study, the entire climate database was divided into four periods: the base time database was (1986–2016), the middle-time was (2046–2065), and the longtime future climate prediction was (2065–2081). Additionally, to evaluate precipitation forecasted by GCM, these forecasts were compared with the actual precipitation data recorded (1986–2016) at the synoptic stations.

2.4. Estimation of Rainfall-Runoff Erosivity (R-Factor)

To estimate rain erosivity (R-factor), the Revised Universal Soil Loss Equation (RUSLE) was used [50]. The RUSLE, revised as an experimental erosion model, is known as a standard method to estimate the mean risk of erosion on arable lands [51]. The Revised Universal Soil Loss Equation (RUSLE) has been developed by the U.S. Department of Agriculture Soil Conservation Service [52].

The RUSLE model estimates soil erosion as a combination of six factors that include rain erosivity (R), soil erodibility (K), slope length, and degree (LS), cultivation system (C), and management operations (P). This model was used to predict annual soil loss [52]

$$E=R\times K\times LS\times C\times P$$

(3)

where E is the annual soil loss.

The most important factor to be investigated is the rainfall erosivity (R-factor), which was obtained using the following equation [53]:

$$R=\frac{1}{n}{\displaystyle \sum }_{j=1}^n{\displaystyle \sum }_{k=1}^{m_j}\left(E{I}_{30}\right)K$$

(4)

in which $R$ denotes the average annual rainfall erosivity (${\mathrm{MJmmha}}^{-1}{\mathrm{h}}^{-1}{\mathrm{year}}^{-1}$), $n$ is the year’s number of data observations, $m_j$ defines the number of erosive events in the $j$ year, and $E{I}_{30}$ defines the rainfall erosivity index of a storm K.

Studies have shown that the product of kinetic energy of rainstorm (E) and its maximum rainfall intensity of 30 min ($I_{30 }$) is a suitable indicator for rainfall erosivity (R-factor). The $E{I}_{30 }$ index indicates the ability of rain to separate soil particles. The rainfall erosivity index ($E{I}_{30 }$) was calculated, based on the following Equation (3) [54]:

$$E{I}_{30 }=I_{30 }\left({\displaystyle \sum }_{r=1}^{m}KE.d\right)$$

(5)

where $KE$ defines rainstorm kinetic energy per unit height of the rainstorm (${\mathrm{MJha}}^{-1}{\mathrm{mm}}^{-1}$), and $d$ defines the height of rainstorm (mm).

$$KE=e_r\Delta v_r$$

(6)

where $e_r$ is the unit precipitation energy (${\mathrm{MJha}}^{-1}{\mathrm{mm}}^{-1}$), $\Delta v_r$ defines the rainstorm continuity (hr) in time $r$, and $I_{30 }$ describes the most precipitation intensity of 30 min (${\mathrm{mm} \mathrm{h}}^{-1}$).

$$e_r=0.29 [1-0.07\exp \left(-0.05i_r\right)]$$

(7)

where $i_r$ is the rainfall intensity throughout the period (${\mathrm{mm} \mathrm{h}}^{-1}$).

$I_{30 }$ was calculated using the following equations:

$$I_{30}=2p For D\le 30 min$$

(8)

$$I_{30}=\frac{2P.i_p}{b.t_p}\left(1-\exp \left(\frac{b.t_p}{2D}\right)\right)$$

(9)

where $t_p$ is the peak rain time, $D$ defines the rainfall duration, $b$ describes the base time of rainfall, $i_p$ is the maximum rainfall intensity, and $p$ is the rainfall.

R-factor was estimated using monthly and annual precipitation data recorded by Iranian synoptic stations for 32 years. The R-Factor values in Iran were between (1.17 and 5.5) compared to the R-factor values of the United States, which was in the range (20–550); it is very low, perhaps due to low rainfall [55].

2.5. Yearly Erosivity Density Ratio

According to Kinnell and [53], the erosion density coefficient is the R-factor ratio to precipitation. In practice, erosion is measured in units of precipitation (mm), the unit of which is MJ ha-1 h-1 that was obtained by the following equation:

$$ED=\frac{R}{P}$$

(10)

where $ED$ defines the erosion density, $R$ is the mean yearly precipitation erosivity, and $P$ describes the yearly rainfall.

2.6. Examination of R-Factor Performance

To validate the estimated R-factor, results were compared to the observational data of the synoptic stations by the following equations [56,57]:

$$RMSE=\sqrt{\frac{{{\displaystyle \sum }}_n^{i-1}{\left(y_o-y_e\right)}^2}{n}}$$

(11)

$$MAE=\frac{ {\displaystyle \sum }\left|y_o-y_e\right|}{n}$$

(12)

$$R=\frac{{{\displaystyle \sum }}_{i=1}^n{\left(y_0-{\overline{y}}_0\right)}^{}-\left(y_0-y_e\right)}{\sqrt{{{\displaystyle \sum }}_{i=1}^n{\left(y_0-{\overline{y}}_0\right)}^2{{\displaystyle \sum }}_{i=1}^n{\left(y_0-y_e\right)}^2}}$$

(13)

The lower error between estimated and observed results shows that the RUSLE model has a good performance in estimating rainfall erosivity.

3. Results

3.1. Analysis of Future Precipitation

The output of climate models to predict rainfall erosivity is often biased toward the required scale [56]. Therefore, to evaluate the performance of these models in predicting climatic parameters, the statistical criteria presented in Section 2.6 were used.

Table 4. Evaluation error index for precipitation of each station in historical duration.

Station	Model	RMSE	RMSE/SD < 0.65	MAE	Station	RMSE	RMSE/SD < 0.65	MAE
Ardebil	GFDL-ESM2g	10.64	0.43	8.32	Hamedan	15.57	0.29	12.33
	HadGEM2-es	69.39	2.83	38.15		42.06	0.78	136.63
	CSIRO-Mk3.6.0	10.1	0.41	8.31		29.03	0.54	21.73
	CCSM4	10.33	0.42	8.31		20.76	0.38	14.17
	SD observed	24.5	-	-	-	54	-	-
Arak	GFDL-ESM2g	10.28	0.27	6.76	Ilam	38.5	0.44	62.58
	HadGEM2-es	260.71	6.95	89.92		54.5	0.63	161.13
	CSIRO-Mk3.6.0	10.4	0.28	14.38		10.11	0.12	8.3
	CCSM4	11.44	0.31	8.54		136.74	1.57	49.44
	SD observed	37.5	-	-	-	87	-	-
Urmia	GFDL-ESM2g	15.64	0.12	11.82	Karaj	10.56	0.10	7.1
	HadGEM2-es	270.27	2.05	88.4		19.09	0.19	12.79
	CSIRO-Mk3.6.0	11.2	0.08	11.95		8.6	0.09	12.66
	CCSM4	12.84	0.10	9.24		9.06	0.09	4.97
	SD observed	132	-	-	-	101	-	-
Bandar abbas	GFDL-ESM2g	18.76	0.18	11.94	Kerman	8	0.14	4.97
	HadGEM2-es	108.99	1.04	45.63		11.5	0.20	7.57
	CSIRO-Mk3.6.0	20.1	0.19	14.14		7.2	0.12	6.98
	CCSM4	20.36	0.19	12.14		8.46	0.15	5.04
	SD observed	105	-	-	-	58	-	-
Birjand	GFDL-ESM2g	7.32	0.42	3.82	Kermanshah	41.24	0.21	17.54
	HadGEM2-es	24.84	1.42	14.66		73.45	0.37	21.32
	CSIRO-Mk3.6.0	6.53	0.37	5.08		24	0.12	11.25
	CCSM4	7.04	0.40	4.02		25.11	0.13	17.58
	SD observed	17.5	-	-	-	198	-	-
Bojnourd	GFDL-ESM2g	11.52	0.18	7.78	Khorram abad	8.05	0.06	4.97
	HadGEM2-es	22.27	0.34	15.18		11.5	0.09	7.57
	CSIRO-Mk3.6.0	10.9	0.17	8.89		11.2	0.08	6.98
	CCSM4	21.76	0.33	15.82		8.46	0.06	5.04
	SD observed	65	-	-	-	135	-	-
Boushehr	GFDL-ESM2g	83.75	0.88	142.12	Ahvaz	25.24	0.20	16.4
	HadGEM2-es	70.3	0.74	287.07		85.45	0.68	36.35
	CSIRO-Mk3.6.0	19.17	0.20	16.2		29.04	0.23	21.25
	CCSM4	34.3	0.36	34.3		29.49	0.24	17.58
	SD observed	95	-	-	-	125	-	-
Shahre kord	GFDL-ESM2g	2.65	0.10	16.15	Yasuj	1.44	0.06	16.19
	HadGEM2-es	6.36	0.24	52.17		6.36	0.25	75.17
	CSIRO-Mk3.6.0	9.6	0.36	7.65		5.4	0.22	15.65
	CCSM4	5.6	0.21	12.85		5.68	0.23	10.82
	SD observed	27	-	-	-	25	-	-
Isfahan	GFDL-ESM2g	5.67	0.16	4.13	Mashahd	58.55	2.34	34.05
	HadGEM2-es	64.61	1.82	29.48		10.96	0.44	8.94
	CSIRO-Mk3.6.0	5.1	0.14	3.62		7.8	0.31	11.51
	CCSM4	5.86	0.17	4.73		8.88	0.36	7.51
	SD observed	35.5	-	-	-	25	-	-
Qom	GFDL-ESM2g	11.11	0.13	7.15	Sanandaj	41.45	0.92	17.15
	HadGEM2-es	16.2	0.19	15.12		68.85	1.53	22.41
	CSIRO-Mk3.6.0	19.52	0.23	15.65		21.2	0.47	13.89
	CCSM4	8.56	0.10	7.85		22.11	0.49	16.75
	SD observed	84	-	-	-	45	-	-
Qazvin	GFDL-ESM2g	7.25	0.12	7.8	Semnan	6.58	0.14	5.15
	HadGEM2-es	9.59	0.15	12.65		6.4	0.14	36.65
	CSIRO-Mk3.6.0	7.75	0.12	8.81		5.1	0.11	3.62
	CCSM4	6.71	0.11	8.91		5.21	0.11	4.51
	SD observed	63	-	-	-	47	-	-
Gorgan	GFDL-ESM2g	13.39	0.23	9.58	Shiraz	3.52	0.05	19.19
	HadGEM2-es	29.95	0.52	19.35		9.98	0.15	25.17
	CSIRO-Mk3.6.0	24.59	0.42	16.5		1.2	0.02	7.85
	CCSM4	13.39	0.23	11.4		7.61	0.12	11.12
	SD observed	58	-	-	-	65	-	-

illustrates the average absolute errors at all stations studied. Low RMSE and MAE values indicate better performance of models. Based on previous studies the RMSE values less than half of the SD (Standard Deviation) of the observed data (RMSE/Sdobs < 0.65) may be considered low and acceptable [58,59]. Based on Table 4, this equation applies.

Therefore, the CSIRO-Mk3.6.0 can forecast climate variables with low error.

Results showed that the CSIRO-Mk3.6.0 model had the best performance (minimum error), and then CCSM4, GFDL-ESM2g, and HadGEM2-es models had the best performance, respectively. According to the results of Table 4, the CSIRO-Mk3.6.0 model was selected as the best model for Ardabil, Bojnourd, Bushehr, Shahrekord, Isfahan, Qazvin, Gorgan, Ilam, Kermanshah, Sanandaj, Semnan, Shiraz, and Tabriz stations. At Arak, Urmia, Yasuj, and Mashhad stations, the CCSM4 model had the best results compared to the observational data. The data obtained from the GFDL-ESM2g model at Hamedan, Kerman, Khorramabad, Sari, Tehran, Yazd, Zanjan stations were most consistent with observational data. Other stations used the HadGEM2-es output.

3.2. Precipitation Prediction under Climate Change

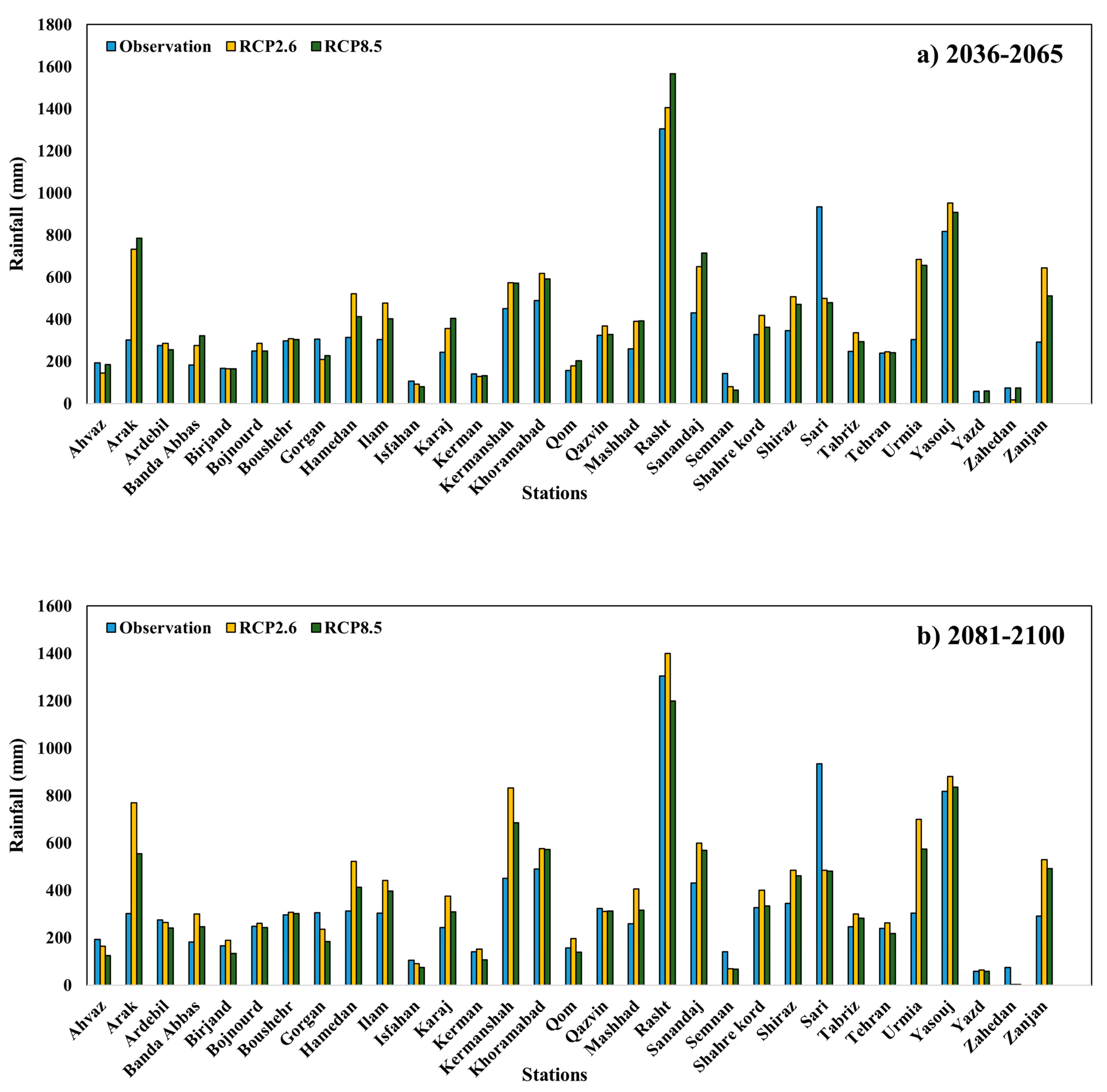

To assess the effect of different months of the year on rainfall erosivity, different months in the simulated periods and basis periods were compared. For this purpose, the average annual rainfall in the observed and simulated periods under RCP2.6 and RCP8.5 scenarios was used. Figure 2 shows the average annual precipitation predicted using the CSIRO-Mk3.6.0 model, during the near future (2046–2065) and the far future (2081–2100) under the RCP2.6 and RCP8.5 scenarios.

Results showed the selected models predicted an upward trend at some stations and a downward trend for precipitation at other stations. For example, the models predicted a decreasing trend for Semnan station compared with base times. Additionally, the models predicted an increasing trend of annual rainfall for Sanandaj station. Results of the models were moderately different from each other. Although the amount of rainfall at different stations during the near future (2046–2065) and the far future (2081–2100) under the RCP2.6 and RCP8.5 scenarios had different trends, the intensity of rainfall had a constantly increasing trend so that rainfall moved toward extreme precipitation which can increase the R-factor and can increase erosion in the coming years.

3.3. Spatial Distribution of R-Factor Erosivity in Current and Future Periods

Various studies have obtained R-factor using regression equations between precipitation and rainfall erosivity. To investigate the effect of climate change on rainfall erosivity, annual precipitation data was used. According to annual rainfall of each station and the values of relevant erosivity of rainfall, an appropriate regression relationship was selected.

Table 5. Relationship between indices of yearly precipitation and erosivity factor and evaluation of radial basis function to estimate rainfall erosivity index.

Station	Regression Equations	R2	RMSE	SD	RMSE/SD < 0.65	MAE
Ahvaz	R = 0.111P + 5.50	0.68	0.6	1.2	0.5	0.08
Arak	R = −0.4406P + 4.9161	0.55	0.29	2.33	0.12446352	0.08
Ardebil	R = −2.6982P2 + 4.423P + 2.29	0.87	0.26	2.65	0.09811321	0.04
Banda Abbas	R = −0.5223P + 7.15	0.85	1.12	2.68	0.41791045	0.13
Birjand	R = −1.2727P + 5.69	0.69	0.8	2.9	0.27586207	0.15
Bojnourd	R = 0.6157P + 3.53	0.71	0.58	3.2	0.18125	0.11
Boushehr	R = −3.401P2 + 6.329P + 5.63	0.85	2.21	5.6	0.39464286	0.23
Gorgan	R = −0.3555P + 4.25	0.9	0.16	2.5	0.064	0.03
Hamedan	R = 0.2458P + 4.10	0.91	0.34	3.96	0.08585859	0.07
Ilam	R = −0.6888P + 2.19	0.84	0.66	4.5	0.14666667	1.41
Isfahan	R = −0.2607P + 5.44	0.69	0.4	3.5	0.11428571	0.04
Karaj	R = 0.1628P + 4.59	0.54	0.35	2.1	0.16666667	0.07
Kerman	R = −3.1598P + 6.53	0.65	0.64	2.15	0.29767442	0.09
Kermanshah	R = −0.0102P + 4.64	0.78	0.28	3.1	0.09032258	0.05
Khoramabad	R = −0.2267P + 4.93	0.64	0.27	2.1	0.12857143	0.05
Qom	R = −35.975P2 + 27.186P − 3.1351	0.81	0.99	2.7	0.36666667	0.89
Qazvin	R = 0.0469P + 4.3155	0.63	0.23	3.2	0.071875	0.08
Mashhad	R = −0.128P + 4.67	0.9	0.31	2.5	0.124	0.06
Rasht	R = −1.2644P + 4.18	0.58	3.84	6.3	0.60952381	0.05
Sanandaj	R = 0.0737P + 4.3091	0.84	0.79	3.01	0.26245847	0.15
Semnan	R = −0.5948P + 4.99	0.52	0.56	2.2	0.25454545	0.1
Shahre kord	R = −0.2402P + 5.07	0.67	0.32	2	0.16	0.004
Shiraz	R = −0.174P + 5.7783	0.66	0.62	2	0.31	0.09
Sari	R = 0.0328P + 3.99	0.81	0.31	2	0.155	0.06
Tabriz	R = −1.2084P + 5.21	0.82	0.59	2	0.295	0.11
Tehran	R = −0.1245P + 4.37	0.63	0.3	2	0.15	0.08
Urmia	R = −0.1517P + 4.45	0.45	0.36	2	0.18	0.07
Yasouj	R = 0.0694P + 4.96	0.57	0.49	2	0.245	0.07
Yazd	R = −5.2782P + 6.3442	0.71	2.53	2	1.265	0.49
Zahedan	R = −2.1561P + 6.7889	0.58	1.22	2	0.61	0.15
Zanjan	R = 0.2839P + 3.5779	0.69	0.41	2	0.205	0.08

illustrates the R-factor calculated by the equation for each station. In the equations, P defines the average annual precipitation, and R denotes the rainfall erosivity (MJ mm ha⁻¹ h⁻¹ year⁻¹). Additionally, R², MAE and RMSE were used to select the best regression relationship for the estimation of the R-factor of the Smith—Wischmeier method. Based on previous studies that RMSE values less than half of the SD (Standard Deviation) of the observed data (RMSE/SD_obs < 0.65) may be considered low and acceptable [58,59]. Based on Table 4, this equation applies.

It is difficult to collect the data required to calculate the R-factor using the proposed method in all the regions of the country. The study of spatial variables of R-factor by these methods helps estimate the R-factor. Figure 3 shows the spatial distribution of R-factor for the historical period for all stations. Additionally, Figure 4 shows the scatter plot between observed and baseline annual rainfall erosivity values at sample Gorgan and Qazvin.

3.4. The Prediction of R-Factor under Climate Change

Using projected rainfall data, relative changes of mean annual R-factor were computed for future time periods (near and far-future) with respect to the baseline time period under two warming scenarios (RCP4.5 and RCP8.5). The spatial distributions of mean annual R-factor during the historical and the future time periods based on different scenarios are shown in Figure 5. Compared to the historical period, R-factor was expected to increase and decrease. It would change from 46.51% to 159% for the near future (2050), and from −48% to 154% for the far future (2090). In general, the central and southern regions of Iran are expected to have more climate change.

4. Discussion and Conclusions

The present study provides insights into the analysis of the R-factor for the historical and future periods under climate change in Iran.

In this study, four models CSIRO-Mk3.6.0, CCSM4, GFDL-ESM2g, HadGEM2-es from the 5th CMIP report were used for precipitation downscaling. Based on the obtained results, the CSIRO-Mk3.6.0 model had the lowest estimation error. The results of other researchers in the application of climate change models in Iran [45,60,61] confirmed this model.

Based on results, the average rainfall will increase significantly in the near and far future in the west of Iran. This situation is also significant for the southern regions of the country. However, a significant decrease is expected for the north of Iran, the southeast and some central regions. The results of other researchers [24,55,62,63] in Iran also confirmed these results.

Accordingly, the maximum difference in rainfall in the future was related to Arak station (483.82 mm), while the highest decrease was related to Sari station (453.51 mm). [14], also described the continued increase in rainfall during the 2050s and 2090s. Results showed significant variations in rainfall forecasts in western Iran.

Based on results, changes in precipitation compared to the historical period in the range of −51 mm and 48 mm were observed. Additionally, the most change under editer was under the RCP 8.5 scenario. Differences in the results indicated uncertainty in the scenarios as well as in the climate models used [64].

This study shows that the change in rainfall patterns has increased the R-factor the study area in recent times. Climate change has a significant impact on the R-factor. Precipitation rates are expected to increase in coming years, which could lead to increased R-factor and soil erosion rates. Additionally, it has been proven by [35,65,66] that the amount and intensity of the precipitation would have a negative effect on soil, so that it can increase the erosion rate.

Additionally, climate change can significantly affect land cover, which can reinforce a particular process of erosion. To predict future rainfall erosivity and soil erosion trends, the interaction between rainfall and land cover must be evaluated.

Considering the effect of climate change, soil erosion will increase in all parts of Iran in the future compared to the base period. According to the obtained results, the vulnerability of central and southern parts of Iran is more than of the northern parts, so twice as much management is required.
