A Concise Review of Theoretical Models and Numerical Simulations of Membrane Fouling

Abstract

Membrane fouling can cause severe flux drops and affect the quality of produced water, which is a major obstacle for membrane applications. Great efforts have been made to examine theoretical models and numerical simulations for fouling behavior and mechanisms in the past decades, but there is a lack of literature providing a systematic summary. This work aims to present a state-of-the-art review of the principles, applicability and advantages of fouling theoretical models (i.e., the concentration polarization, cake layer formation and blocking models), and numerical simulations (i.e., computational fluid dynamics, Monte Carlo simulation, and artificial neural networks) for fouling behavior and mechanisms. Through these models and simulations, the behaviors of foulant particles at the microscopic level are analyzed in detail from the perspective of force, energy, and particle trajectory during the fouling process. The concise summary of fouling modeling in this review gives guidelines for the selection and application of models to simulate the membrane fouling process accurately, and the optimization of the operation in membrane-based processes.

1. Introduction

Due to the effective removal of contaminants with various sizes, from suspended solids to emerging pollutants, easy-to-operate and cost-effective membrane filtration technology is broadly applied in wastewater and drinking water treatment, water reuse, and desalination. However, membrane fouling, mainly including inorganic fouling (e.g., scaling), organic fouling (e.g., humic acids, polysaccharides) and biofouling (e.g., bacteria, fungi), can lead to reduced water production, increased operating costs, and shortened membrane service lifespan. Membrane fouling is thus one of the major barriers restricting their sustainable applications [1,2].

Membrane fouling is the successive processes of concentration polarization, membrane pore blockage, and cake layer formation [3,4], which are highly affected by feed characteristics, solution chemistry, membrane properties, and operating conditions [4,5,6]. These factors can significantly affect the transport of foulants towards the membrane and back-diffusion of particles away from the membrane, as well as the interfacial interaction between foulants and the membrane, thereby regulating fouling [4,7,8,9]. Owing to the complicated fouling process, theoretical simulations are often applied to reveal the underlying mechanism. Compared with experimental tests, investigation via theoretical models can achieve expected aims effectively and economically, providing a theoretical basis for fouling control strategies.

Traditionally, the concentration polarization model, cake layer formation, and pore blocking model have been developed and widely used to describe fouling behaviors over the past few decades [10,11,12]. With the on-going development in computer science (e.g., computer calculation and programming), various numerical simulation methods such as computational fluid dynamics (CFD), Monte Carlo (MC) simulation, and artificial neural networks (ANNs) have been increasingly applied as powerful tools to the intensive simulation of membrane fouling [13,14,15], especially combined with those theoretical models. Compared to the conventional theoretical models (i.e., concentration polarization, cake formation, and pore blocking), these numerical simulations for separate or combined application can describe the fouling behavior of particles in fine detail. Specifically, CFD is used mainly to simulate the fouling process by describing flow hydrodynamics (e.g., mass transfer) during the membrane process, while the MC approach is used to simulate fouling by describing the random trajectory of foulant particles. Meanwhile, ANNs can predict the membrane process in a comprehensive environmental matrix with high accuracy and simplicity through its powerful capability to learn and recognize trends. Despite the fundamental importance of understanding fouling mechanisms, fouling characteristics, and fouling control strategies, few articles have been published giving an overall review of fouling modelling, especially for the numerical simulation of fouling.

The object of this review is to provide a concise and critical summary of theoretical models and the numerical simulation approaches for membrane fouling. Their principles, applicability, and advantages are discussed in detail. Firstly, the major theoretical models, including concentration polarization, cake layer formation, and pore blocking are introduced from the perspective of the membrane fouling formation process, followed by a summary of the numerical simulation approaches of CFD, MC simulation, and ANNs. Through these models and simulations, the behaviors of foulant particles at the microscopic level are analyzed from the perspective of force, energy, and particle trajectory during the fouling process. Unlike the previous reviews which focused on theoretical models solely, or only on one specific numerical simulation approach (e.g., CFD [16], ANN [17]), the present study summarizes the theoretical models and numerical simulations for membrane fouling overall, which is to provide guidelines for the accurate selection and application of models to simulate membrane fouling and further optimization of membrane-based water treatment.

2. Theoretical Models

2.1. Concentration Polarization

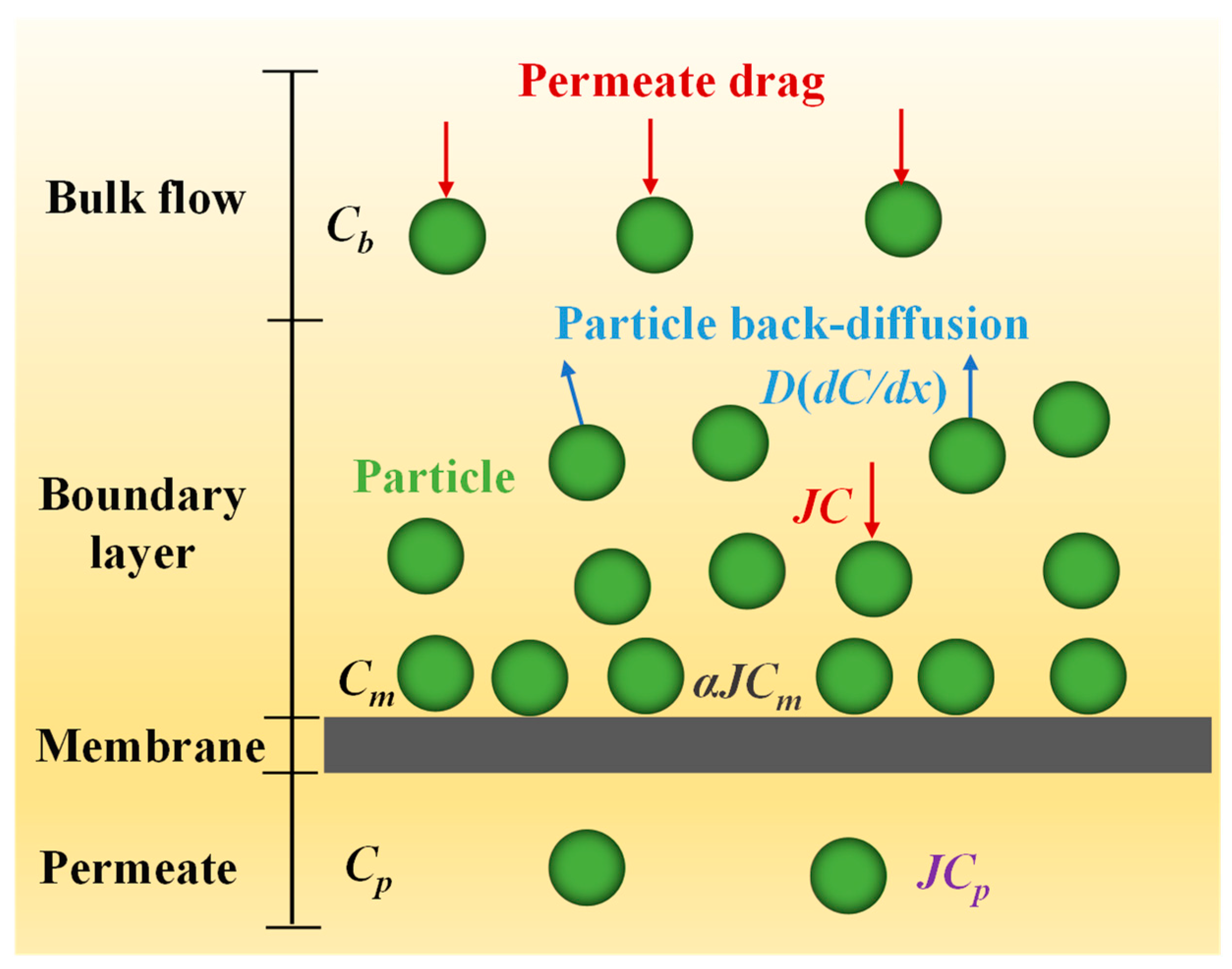

During membrane filtration, the foulant particles can transport towards the surface of the membrane by the permeate drag (Figure 1). The retention of foulants on the membrane can lead to an increased concentration of foulant near the membrane surface compared to that in the bulk flow. This phenomenon of the foulant concentration gradient is named concentration polarization (CP) [10]. At the same time, these foulant particles in the hydrodynamic boundary layer will back migrate towards the bulk flow due to the existence of the concentration gradient. In a steady state, the convection transport of solute towards the membrane surface (JC) is balanced by the back-diffusion transport D (dC ⁄ dx), and thus a film theory was proposed by Porker in 1972 to describe the CP phenomenon [10]:

$$JC=D\frac{dC}{dx}$$

(1)

where J and C are the solvent flux through the membrane, and the concentration of foulant at distance x away from membrane, respectively. D represents the particle diffusion coefficient, and $\frac{dC}{dx}$ represents the concentration gradient in the hydrodynamic boundary layer. The foulant concentration at x = 0 (i.e., at the membrane surface) is fixed at an upper limit (C_m) and the foulant concentration at x = δ (i.e., at the boundary layer near the bulk flow) is fixed at lower limit C_b [10]. Thus, the CP model enhances the integration of Equation (1) as:

$$J=\frac{D}{\delta }ln\frac{C_m}{C_b}$$

(2)

where $\delta$ is the thickness of the boundary layer. C_m and C_b are the foulant concentration at the membrane surface and bulk flow, respectively. Equation (2) shows that the flux through the membrane J is dependent on the solute characteristics of D and C_m/C_b, and the boundary layer thickness $\delta$. Operational management thus should be directed towards increasing D or decreasing δ. Here the diffusion coefficient D can be obtained according to the Stokes-Einstein equation [18]:

$$D=\frac{k_{B}T}{3\pi \mu d_P}$$

(3)

where k_B is the Boltzmann’s constant; T represents the absolute temperature; μ represents the solution viscosity; and d_p is the particle size. In addition, the term D/δ in the right part of Equation (2) is recognized as the mass transfer coefficient k [10]:

$$k=\frac{D}{\delta }$$

(4)

By substituting Equation (4) into Equation (2), one can obtain:

$$\frac{J}{k}=ln\frac{C_m}{C_b}$$

(5)

where J/k is Péclet number, the ratio of convective to diffusive transport in the boundary layer [6]. C_m/C_b is the CP modulus M, which represents the degree of CP [4]. It is worthwhile to note that the concentration of foulant in permeate C_p is not included in the mass balance (Equation (1)). Therefore, Equation (5) can be applied to model the CP behavior where the concentration of foulant in permeate C_p is negligible compared to that at the membrane surface C_m and bulk flow C_b (i.e., in the NF/RO process). When further considering the role of C_p, the convection transport of solute towards the membrane surface (JC) should be balanced by the sum of permeate JC_p and the back diffusion transport D(dC ⁄dx) away from the membrane. Thus, Equation (5) can be expressed as a common form [19]:

$$\frac{J}{k}=ln\frac{C_m-C_p}{C_b-C_p}$$

(6)

Equations (5) and (6) are the typical CP models, which were widely applied to scale the CP in processes such as reverse osmosis (RO), nanofiltration (NF), ultrafiltration (UF), and microfiltration (MF) [5,6,10,19].

An important assumption in conventional CP models (i.e., Equations (5) and (6)) is that the deposit of foulants onto the membrane is not considered in the mass balance. On this account, the influence of the deposited foulants on CP was further considered. For example, Kostoglou and Karabelas considered the probability of attachment which was expected to depend on the physical properties of the particles [20]. Furthermore, Liu and co-workers [5,6,18] recently proposed a modified CP model stating that the convection transport of foulant towards the membrane (JC) depended on the balance of the back diffusion D(dC/dx), the permeate JC_p, and the foulant loss from the solution phase because of their attachment onto the membrane αJC_m. Accordingly, the CP model can be given by [6]:

$$\frac{J}{k}=ln\frac{C_m-C_p-\alpha J{C}_m}{C_b-C_p-\alpha J{C}_m}$$

(7)

where α is the attachment coefficient, which describes the probability of the successful attachment of foulant when particles transport and collide with the membrane. The value of α is therefore between 0 and 1, which represents the conditions from that collision never resulting in fouling (α = 0), to that collision always leading to colloidal attachment (α = 1). To determine α, Liu et al. [6] further adopted the classical Boltzmann distribution to describe the number density of particles during their attachment in different energy states. For attachment of a free particle onto the membrane, the particle must overcome the potential energy barrier of ΔE_b inducing from the membrane–colloid interaction [21]. At the same time, a potential energy ΔE_d is provided to promote its attachment by the hydrodynamic drag force acting on the particle [18]. Therefore, the attachment coefficient α can be given by:

$$\alpha =\frac{1}{1+exp\left(\frac{\mathsf{\Delta }{E}_b}{k_{B}T}-\frac{\mathsf{\Delta }{E}_d}{k_{B}T}\right)}$$

(8)

A distinct feature of Equations (7) and (8) is that they can be applied to simulate the role of membrane-colloid interaction in CP, which is often overlooked in traditional CP models (Equations (5) and (6)).

2.2. Cake Formation

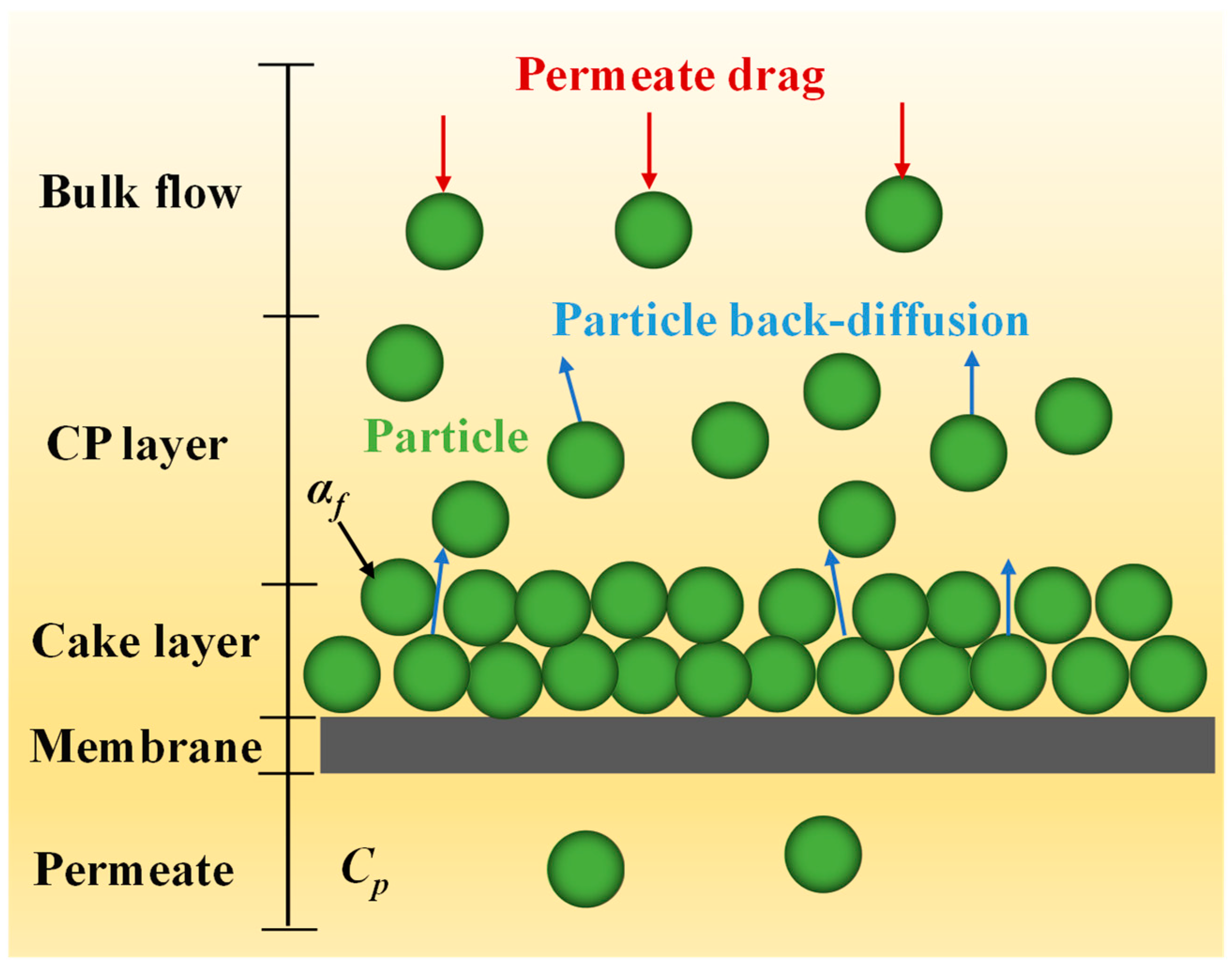

A fouling cake layer is formed with more and more foulant attaching onto the membrane surface (Figure 2), which results in an additional hydraulic resistance (i.e., the cake resistance R_f). The membrane permeate flux is thus decreased under constant applied pressure due to this cake resistance. Based on Darcy’s law [22], the permeate flux can be expressed as:

$$J=\frac{\mathsf{\Delta }P}{\mu \left(R_m+R_f\right)}$$

(9)

where $\mathsf{\Delta }P$ and $R_m$ are the applied pressure and membrane inherent resistance, respectively. The cake resistance R_f is decided by the foulant mass deposition m_f and specific cake resistance α_f as shown in Equation (10):

$$R_f={\alpha }_f{m}_f$$

(10)

It is well known that the specific cake resistance α_f exerts important roles in membrane fouling [23,24,25]. The value of α_f can be calculated by the Carmen–Kozeny equation [26]:

$${\alpha }_f=\frac{180\left(1-{\epsilon }_f\right)}{{\rho }_p{\epsilon }_f^3{d}_p^2}$$

(11)

where ${\epsilon }_f$, ${\rho }_p$ are the cake layer porosity and particle density, respectively. In addition, α_f can also be experimentally determined according to the foulant mass deposition m_f and flux variation [27]:

$${\alpha }_f=\frac{\mathsf{\Delta }P}{\mu m_f}\left(\frac{1}{J_f}-\frac{1}{J_0}\right)$$

(12)

where J₀ and J_f is the initial flux and final flux, respectively, for any given filtration period.

The cake layer is considered to be compressible and soft, in which case the specific cake resistance strengthens with the operational pressure [28,29,30]. An empirical power law is assumed as Equation (13) for practical purposes [30,31]:

$${\alpha }_f=\beta \mathsf{\Delta }{P}^s$$

(13)

where β and s represent an empirical coefficient and the cake compressibility, respectively. Notably, α_f cannot change with respect to ΔP when s = 0 for incompressible foulant cake layers, and the value of s is larger for a more compressible cake layer. It was reported that the value of s ranges from 0.4–1.0 for UF and MF membranes fouled by bentonite and kaolin particles [32]. In addition, the value of s is highly affected by the solution chemistry. For silica colloids fouling UF membranes, s is ~0.82 in distilled water, and it decreases to ~0.36 when ionic strength increases to 100 mM [33].

The cake layer filtration model considers the effects of deposition kinetics and the resistance of the deposit layer on the fouling process. It is suitable for the simulation of cake layer formation. Besides introducing an additional hydraulic resistance, the cake-enhanced osmotic pressure (CEOP) phenomenon is also induced by the foulant cake layer [34]. The CEOP phenomenon arises by the hindered back diffusion of salt ions and particles from the fouled membrane surface to the bulk solution, in which the foulants diffuse within the cake layer through tortuous paths [4]. This causes the osmotic pressure and the concentration of solute at the membrane wall to be significantly enhanced [34,35]. This CEOP is also a source of flux decline, which is expressed as a modified cake filtration model [34]:

$$J=\frac{\mathsf{\Delta }P-\mathsf{\Delta }{\pi }_m^{*}}{\mu \left(R_m+R_f\right)}$$

(14)

where $\mathsf{\Delta }{\pi }_m^{*}$ represents the drop of transient osmotic pressure. This CEOP model provides insights into membrane fouling driven by osmotic pressure, which successfully simulates the fouling process of forward osmosis (FO) [36], reverse osmosis (RO) [35], and pressure-retarded osmosis (PRO) [37], where the osmotic pressure cannot be neglected during membrane filtration.

2.3. Pore Blocking

For porous MF/UF membranes, pore blocking is also a significant factor leading to a drop in water flux. Particles with a smaller size compared to the size of the membrane pores will deposit or adsorb onto the pore wall. The attached particles will narrow the pore size, and thus reduce the flow cross-sectional area significantly [38,39,40], while particles with a larger size compared to the size of the membrane pores will block pore entrances, leading to increased filtration resistance, and form a contiguous cake layer which can block or attach on the membrane surface [3,41]. Based on the physical mechanisms of pore blockage, Hermans and Bredee [12] proposed four blocking models, which are complete pore blocking, standard pore blocking, intermediate pore blocking, and cake filtration (Figure 3).

After that, Hermia [3] proposed another mathematical equation for the above blocking processes using the common power law framework for non-Newtonian fluids, which can be given by:

$$\frac{d^{2}t}{d{V}^2}=K{\left(\frac{dt}{dV}\right)}^n$$

(15)

where V and t are the cumulative filtrate volume in unit area, and the filtration time, respectively. K is the resistance coefficient, and n represents the pore blocking index, a dimensionless filtration constant depended on the pore blocking situation. The value of n is 2, 1.5, 1 and 0, for complete pore blocking, standard pore blocking, intermediate pore blocking and cake filtration, respectively.

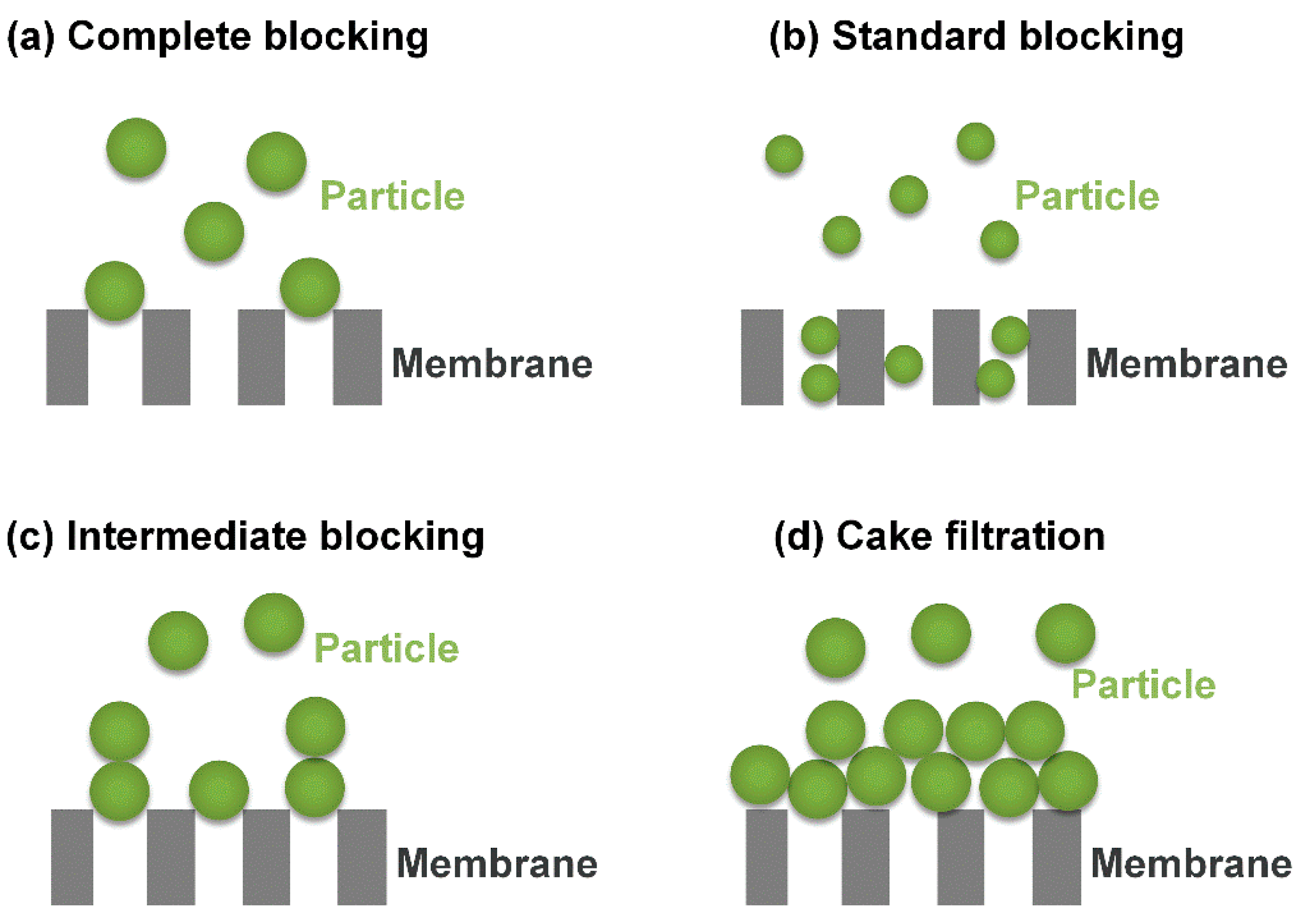

In complete pore blocking (Figure 3a), each particle completely blocks an open pore where the particle size is larger than that of the membrane. It is assumed that all particles deposited onto the membrane surface are ‘‘sealing’’ membrane pores [40]. It is idealized to assume that no particles are on the membrane surface or on top of other particles. The formula of complete pore blocking (n = 2) can be expressed as Equation (16) [39], where K_c represents the complete pore blocking coefficient.

$$Ln J=Ln J_0-K_c$$

(16)

In the standard pore blocking law (Figure 3b), the particle size is considerably smaller than the pore size. The flux decline therefore is caused by the constriction of membrane pores due to the small particles deposited onto the pore walls [3]. The equation of standard pore blocking (n = 1.5) can be given as [39]:

$${\left(\frac{1}{J}\right)}^{0.5}={\left(\frac{1}{J_0}\right)}^{0.5}+K_{s}t$$

(17)

where K_s represents the standard pore blocking coefficient.

For intermediate pore blocking (Figure 3c), those foulants reaching the membrane cause not only pore blocking, but also the attachment on other, already deposited, fouling particles [41]. The model of intermediate pore blocking (n = 1) can be described as [39,41]:

$$\left(\frac{1}{J}\right)=\left(\frac{1}{J_0}\right)+K_{i}t$$

(18)

where K_i is the intermediate pore blocking coefficient.

In the case of cake filtration (Figure 3d), the cake layer gradually grows as filtration proceeds. Particles do not change the membrane pores since the cake layer forms on the membrane surface, increasing hydraulic resistance [3]. The law of cake formation (n = 0) is given by [39,41]:

$${\left(\frac{1}{J}\right)}^2={\left(\frac{1}{J_0}\right)}^2+K_{cf}$$

(19)

where K_cf is the complete pore blocking coefficient.

Pore blocking is a critical factor controlling the overall performance of membrane filtration. The blocking filtration laws, including complete blocking, standard blocking, intermediate blocking, and cake filtration, are convenient to confirm fouling mechanisms from experimental data, and thus can provide guidelines in selecting the membrane module and fouling control strategies. It has been widely applied in the fouling simulation for MF [38,42], UF [39,43] and membrane bioreactors (MBR) [44,45]. However, an obvious shortcoming of the Hermia blocking models is the difficulty in identifying the behavior of solution chemistry and colloid-membrane interaction on fouling.

3. Numerical Simulation

3.1. Computational Fluid Dynamics (CFD)

CFD is a branch of the science of fluid mechanics that produces quantitative predictions of the fluid flow phenomena according to the conservation laws. In the CFD simulation, the governing equations of fluid flow are discretized through the finite difference, finite volume, or finite element methods; the numerical solutions of fluid flow (e.g., mass, momentum, and energy) are then developed at the desired boundary conditions using computer calculations. A variety of approaches are utilized in multiphase simulations of CFD, such as volume of fluid (VOF), coupled VOF and level-set (CLSVOF), the Lattice-Boltzmann and Eulerian methods [46]. As a result, CFD can provide a detailed quantitative description of flow hydrodynamics, which could hardly be achieved by conventional experimental tests [47,48,49,50].

CFD is an effective modeling tool for the study of membrane fouling. To describe the fouling process, the CFD model coupled with the Navier-Stokes equation and Darcy’s law has been developed for the simulation of fluid flow in porous tubes [51]. In this model, the governing equations (conservation equations of mass, momentum, and energy) are linearized and solved numerically using a finite difference scheme with dynamically updating boundary conditions. The continuity equation of mass is expressed as Equation (20), where $\rho$ is the fluid density, and $x_i$ and $u_i$ represent the distance and fluid velocity at i direction, respectively.

$$\frac{\partial \rho }{\partial t}+\frac{\partial }{\partial x_i}\left(\rho u_i\right)=0$$

(20)

The conservation equation of momentum is expressed as Equation (21), where p, ${\tau }_{ij}$ and f are pressure, viscous stress, and body force, respectively.

$$\frac{\partial \rho }{\partial t}\left(\rho u_i\right)+\frac{\partial }{\partial x_j}\left(\rho u_i{u}_j\right)=-\frac{\partial p}{\partial x_i}+\frac{\partial {\tau }_{ij}}{\partial x_j}+\rho f_i$$

(21)

The conservation equation of energy is expressed as Equation (22), where e, T and S_e are energy, temperature, and the source term of energy, respectively.

$$\frac{\partial }{\partial t}\left(\rho e\right)+\frac{\partial }{\partial x_j}\left(\rho e{u}_j\right)=-\rho \frac{\partial u_j}{\partial x_j}+\frac{\partial }{\partial x_j}\left(k\frac{\partial T}{\partial x_j}\right)+S_e$$

(22)

Compared with those approaches using simple equations, the spatial variation in driving force [52], and the physical properties dependent on concentrations [53] are considered in the CFD simulation. Thus, more comprehensive, and accurate solutions regarding flow field, the concentration distribution as well as the fouling resistance can be obtained. Due to the ability to predict local variables and time factors, CFD has been widely applied to explore the processes of fluid flow transmission and fouling, as well as the critical parameters for these processes in pressure-derived membranes, membrane distillation, MBR, reverse osmosis filtration and other membrane-based separations [54,55,56,57,58,59]. The recent applications of CFD in membrane simulations have been summarized in Table 1.

For example, CFD has been used successfully to simulate the fluid velocity for MF and UF filtration accurately [60,61], and explain the negligible impact of a powdered activated carbon layer on the permeation of mobile genetic elements [60]. In addition, 2D and 3D CFD simulations have been developed to study the comprehensive effects of operating conditions (e.g., feed and permeate velocities, temperatures, and salinities) and membrane modules (e.g., system length, membrane conductivity and thickness) on MD treatment [57,58,62,63]. The relationship between mass transfer and heat transfer have been explored for different MD configurations using a CFD simulation. For instance, temperature polarization was found to be more significant at high feed temperature and low feed velocity for vacuum MD [58]. Liang et al. also found that slip velocity was a major driving force of mass transfer and flux enhancement for the electro-osmosis process using a CFD simulation [64]. Additionally, CFD was applied to simulate the water quality, multiphase dynamics, and the backwashing process for MBR [56,65]. The simulation results suggested that the membrane fouling level can alter the backwash solution velocity inside fiber lumen and have a further effect on effective backwash length [56]. As a result, CFD modeling is also a useful tool to provide guidelines on the membrane module design, process optimization, as well as module scale-up through simulation of membrane processes under different conditions [58,63,65,66,67,68] (Table 1). The fluid velocity distribution of microfiltration simulated by CFD, combined with the experimental microfiltration test data, suggested that the optimal geometry of the turbulence promoter should be elliptical for enhancing filtration flux and mitigating fouling. Meanwhile, a 3D CFD model was developed to simulate the multiphase dynamics and water quality of MBR to obtain the optimized level of gas–liquid dispersion for membrane scouring, achieving cost-effective membrane scouring and nitrogen removal [65]. Zhang et al. [58] obtained a short module design for high thermal efficiency of vacuum membrane distillation through analyzing the effects of operating conditions and module dimensions on heat transfer by using a CFD model.

Table 1. Application of CFD for fouling simulation in different membrane systems from the literature.

Membranes	Aims	Highlights	References
RO/NF	Description of the effect of biofilm development on RO performance.	The model explained the loss of permeate flux and the increase of salt passage in time due to biofilm formation. Three mechanisms by which the biofilm contributed to the flux decline were identified.	[69]
	Investigation of flow transition behavior of commercial spacer geometries.	The flow transition was mainly ascribed to the interaction of the vortices’ attachment onto the filaments and the screw-vortex derived from the spacer cells. The minimization of CP was not effectively obtained by using this non-woven spacer design.	[66]
	Simulating and addressing the effectiveness of implementing directional freezing to seawater desalination.	The validation of the energy consumption model showed good agreement with those reported in the literature. Better partition and removal efficiency were achieved under lower salinity brine, top freezing instead of bottom or radial freezing.	[67]
	Studying the compression by evaluating CP extent over time.	The suppression effect on CP by transformed morphologies was due to the larger shear stress introduced by the flow field.	[70]
Electro-osmosis	Analyzing the effect of membrane permeance on the resonant frequency and the mass transfer.	The resonant frequency of the unsteady forced slip velocity was not affected by the membrane permeance. The permeate flux enhanced for greater membrane permeances (up to 23%) at the cost of a 5–7% higher pumping energy.	[55]
UF	Analysis of shear and elongational strain rates and associated hydrodynamic influences on mobile genetic elements (MGEs) retention.	Significant deformation of MGEs occurred at the distance of dozens of nm away from the membrane. The existence of the PAC particles presented a negligible impact on the permeation of MGEs through UF membrane pores.	[60]
MF	Examination of the fluid velocity distribution.	The velocity profile at different points was obtained by CFD models. The experimental data and CFD results suggested the cake resistance and mass of circular-type promoters decreased at high crossflow velocity.	[68]
	Predicting the permeate flux through a microfiltration membrane.	The results show that the predicted CFD flux values are more accurate compared with a simple calculation using the feed-side pressure in the Darcy equation.	[61]
MBR	A 3D CFD model developed the cost-effective optimization of a lab-scale AEC-MBR.	The height of gas–liquid dispersion for membrane scouring was optimized. Simultaneous cost-effective membrane scouring, and nitrogen removal was achieved.	[65]
	Investigating the effect of the dynamics of fouling on effective backwashing length.	The degree of fouling can change the backwashing velocity inside fiber lumen and have a further influence on effective backwash length. The signal variations of LBS correspond to the simulation data.	[56]
Distillation	A 2D CFD model was developed to study the coupled effects of temperature and concentration polarization in the direct contact membrane distillation treatment of hypersaline brines.	Dramatic increases were observed in solute concentration at the membrane surface, exceeding 1.6 times the feed value. The temperatures, concentration, and vapor flux vary considerably in the downstream direction.	[62]
	Description of the thermal and hydrodynamic conditions in a hollow fiber membrane module.	Thermal efficiency varied with feed temperature and feed velocity. Temperature polarization became more significant at higher feed temperature and lower feed velocity. A short module was better utilized for high efficiency of VMD.	[58]
	CFD Simulation of the MD process for desalination of high salinity feedwater.	The membrane conductivity and thickness had an important influence on the DCMD performance. Optimal membrane thickness was found to increase with salinity. Better desalination of low salinity feedwater was observed with a thinner membrane, whereas a thicker one resulted in higher separation performance.	[63]
Forward Osmosis (FO)	Modelling a FO system with an asymmetric membrane using a CFD model.	The process of FO was well simulated through CFD software. The volume fraction of NaCl in the sea water chamber reduced with each time step.	[71]

Table 1. Application of CFD for fouling simulation in different membrane systems from the literature.

Membranes	Aims	Highlights	References
RO/NF	Description of the effect of biofilm development on RO performance.	The model explained the loss of permeate flux and the increase of salt passage in time due to biofilm formation. Three mechanisms by which the biofilm contributed to the flux decline were identified.	[69]
	Investigation of flow transition behavior of commercial spacer geometries.	The flow transition was mainly ascribed to the interaction of the vortices’ attachment onto the filaments and the screw-vortex derived from the spacer cells. The minimization of CP was not effectively obtained by using this non-woven spacer design.	[66]
	Simulating and addressing the effectiveness of implementing directional freezing to seawater desalination.	The validation of the energy consumption model showed good agreement with those reported in the literature. Better partition and removal efficiency were achieved under lower salinity brine, top freezing instead of bottom or radial freezing.	[67]
	Studying the compression by evaluating CP extent over time.	The suppression effect on CP by transformed morphologies was due to the larger shear stress introduced by the flow field.	[70]
Electro-osmosis	Analyzing the effect of membrane permeance on the resonant frequency and the mass transfer.	The resonant frequency of the unsteady forced slip velocity was not affected by the membrane permeance. The permeate flux enhanced for greater membrane permeances (up to 23%) at the cost of a 5–7% higher pumping energy.	[55]
UF	Analysis of shear and elongational strain rates and associated hydrodynamic influences on mobile genetic elements (MGEs) retention.	Significant deformation of MGEs occurred at the distance of dozens of nm away from the membrane. The existence of the PAC particles presented a negligible impact on the permeation of MGEs through UF membrane pores.	[60]
MF	Examination of the fluid velocity distribution.	The velocity profile at different points was obtained by CFD models. The experimental data and CFD results suggested the cake resistance and mass of circular-type promoters decreased at high crossflow velocity.	[68]
	Predicting the permeate flux through a microfiltration membrane.	The results show that the predicted CFD flux values are more accurate compared with a simple calculation using the feed-side pressure in the Darcy equation.	[61]
MBR	A 3D CFD model developed the cost-effective optimization of a lab-scale AEC-MBR.	The height of gas–liquid dispersion for membrane scouring was optimized. Simultaneous cost-effective membrane scouring, and nitrogen removal was achieved.	[65]
	Investigating the effect of the dynamics of fouling on effective backwashing length.	The degree of fouling can change the backwashing velocity inside fiber lumen and have a further influence on effective backwash length. The signal variations of LBS correspond to the simulation data.	[56]
Distillation	A 2D CFD model was developed to study the coupled effects of temperature and concentration polarization in the direct contact membrane distillation treatment of hypersaline brines.	Dramatic increases were observed in solute concentration at the membrane surface, exceeding 1.6 times the feed value. The temperatures, concentration, and vapor flux vary considerably in the downstream direction.	[62]
	Description of the thermal and hydrodynamic conditions in a hollow fiber membrane module.	Thermal efficiency varied with feed temperature and feed velocity. Temperature polarization became more significant at higher feed temperature and lower feed velocity. A short module was better utilized for high efficiency of VMD.	[58]
	CFD Simulation of the MD process for desalination of high salinity feedwater.	The membrane conductivity and thickness had an important influence on the DCMD performance. Optimal membrane thickness was found to increase with salinity. Better desalination of low salinity feedwater was observed with a thinner membrane, whereas a thicker one resulted in higher separation performance.	[63]
Forward Osmosis (FO)	Modelling a FO system with an asymmetric membrane using a CFD model.	The process of FO was well simulated through CFD software. The volume fraction of NaCl in the sea water chamber reduced with each time step.	[71]

CFD is a powerful tool to study the parameters of fluid characteristic and distribution during the filtration process. It also has unparalleled flexibility in seeking optimal operating conditions and membrane module design. However, CFD cannot use a universal model for simulation of contaminant removal of both low pressure (e.g., UF and MF) and high pressure (e.g., RO and NF) membrane filtration due to their different mechanisms. The high accuracy achieved by CFD simulation requires huge calculations and computer power. In addition, the times required for calculations are lengthy.

3.2. Monte Carlo Simulation

The Monte Carlo (MC) simulation is an approach to describe the random movements of particles by capturing the fine details of distinct force and the resulting random particles displacement [14]. During an MC simulation, a stochastic modeling strategy is utilized for the selection of discrete particle displacements with statistical randomness and evaluation of the selection based on its physical validity. As the simulation proceeds, each particle trajectory can be mapped through the generation of a pool of statistically random and discrete particle movements at the microscopic level [14].

Among various numerical models in microscopic scale, the MC simulation is a computationally efficient algorithm for multiparticle interactions [72]. Briefly, the probability distribution is firstly developed according to the experimental conditions (e.g., effective membrane pore size and molecular solute). Sampling is then conducted by random number based on the Poisson probability distribution and the results are estimated based on the probability of particle random displacements. The particle i is supposed to be randomly displaced from the location of $r_i^m$ to $r_i^n$ using the algorithm:

$$r_i^n=r_i^m+\left(2a_0-1\right){\delta }^{\prime }{r}_{max}$$

(23)

where $a_0$ represents a random number with value of 0–1, and ${\delta \prime r}_{max}$ represents the maximum displacement allowed. The proposed displacement of the particle is then evaluated to be accepted or rejected, with a criterion of the change in potential energy ${\delta }^{\prime }{V}_{n,m}$ for the system calculated by Equation (24):

$${\delta }^{\prime }{V}_{n, m}=\left({\displaystyle \sum }_{j=1}^{N}V\left(r_{i,j}^n\right)-{\displaystyle \sum }_{j=1}^{N}V\left(r_{i,j}^m\right)\right)$$

(24)

If ${\delta }^{\prime }{V}_{n,m}$ > 0, the proposed move is uphill; if ${\delta }^{\prime }{V}_{n,m}$ < 0, the proposed move is downhill. Whether the move is accepted or not is dependent on the qualification of the probability ${\rho }_n/{\rho }_m$ which is corresponded to the Boltzmann factor for the energy difference in the Metropolis method:

$$\frac{{\rho }_n}{{\rho }_m}=\frac{exp\left(-{\beta }^{\prime }{V}_n\right)exp\left(-{\beta }^{\prime }\delta V_{n,m}\right)}{exp\left(-{\beta }^{\prime }{V}_n\right)}=exp\left(-{\beta }^{\prime }{\delta }^{\prime }{V}_{n,m}\right)$$

(25)

where β′ is equal to 1/k_BT. A uniform random number $\xi$ (0–1) is generated and compared with $exp\left(-{\beta }^{\prime }{\delta }^{\prime }{V}_{n,m}\right).$ When$\xi$ < $exp\left(-{\beta }^{\prime }{\delta }^{\prime }{V}_{n,m}\right)$, the uphill move is accepted. Otherwise ($\xi$ ≥ $exp\left(-{\beta }^{\prime }{\delta }^{\prime }{V}_{n,m}\right)$, the proposed move is rejected.

The MC simulation can capture the random movement of particles at the microscopic level and thus accurately describe the trajectory, collision, and energy of these particles in the short time step. In the past decades, the MC approach has been extensively applied to simulate the mass transport and fouling behavior during the membrane filtration processes of MF, UF, NF and RO, etc. The application of the MC approach for the simulation of membrane fouling is listed in Table 2.

For porous UF/MF membranes, the MC simulation can be adopted to model the behaviors of pore blocking [73,74,75], cake formation/structure [72,73] and phase transition phenomenon [14]. For instance, Chen et al. [74] performed the MC method to simulate particle capture and membrane pore blocking within the early stage of MF and found that a narrow pore distribution and high porosity of the membrane was unfavorable for pore blocking. Furthermore, Chen and co-workers [73] adopted the MC method coupled with DLVO theory for cake layer formation simulation and found that the morphology and density of the cake layer varied at different capture probabilities, which depended on the energy barrier and flow modes. In addition to the above factors, the roles of the foulant zeta potential, feed ionic strength, osmotic pressure, and the diffusion coefficient on the volume fraction of the particle deposit process (i.e., phase transition phenomenon), can also been simulated by the MC approach [76,77].

For nano/non-porous NF/RO membranes, an MC simulation can be utilized to model the effects of membrane properties, membrane defects as well as foulant–membrane interaction on mass transport and fouling. For example, Xu and Chen [78] adopted the MC approach to investigate the effect of nanoparticles (NPs) in the active layer of a thin film composite membrane on its flux enhancement, in which the addition of porous or even non-porous NPs was simulated to produce an obvious flux elevation. Membrane defects were unavoidable in membrane fabrication [2,79]. With the help of the MC model, Elimelech and co-workers [80] found that small imperfections in the stacking of 2D laminate nanosheets led to the emergence of microporous framework defects in the membrane’s matrix. They further found 2D nanomaterial frameworks with a packing density of 75% were projected to achieve <92% NaCl rejection at a water permeability of <1 Lm⁻² h⁻¹ bar⁻¹, even with ideal interlayer spacing [81]. Liu et al. [82] also dissected the different effects of local defects on fouling due to their local energy barrier towards the membrane surface. Through a collision–attachment-based MC approach, Liu and co-workers [5] systematically investigated the transitional fouling behavior from foulant–clean membrane interaction (F-M) to foulant–deposited-membrane interaction (F-F) for colloidal fouling of NF/RO membranes. They further applied the MC approach to dissect the effect of local defects of the local energy barrier of the membrane surface and found that when F-F repulsion (E_f) was above a critical value (E_c), flux stability was independent of defects; when E_f < E_c and E_m (F-M energy barrier) ≥ E_c, large coverage or a low energy barrier of defects enhanced fouling; for E_f < E_c and E_m < E_c, serious fouling occurred with/without defects [82].

Besides the MF/UF and RO/NF processes, the MC method can also be applied to model MD processes [83,84]. For example, Khayet and co-workers [83] performed the MC method to examine heat and mass transfer applying direct contact MD process. Their MC model can simultaneously simulate the vapor flux and membrane surface temperatures, with the results well in agreement with the experimental data. Imdakm et al. [84] adopted an MC simulation to describe the vapor flux in a vacuum distillation process, and found that the higher feed temperature and larger pore size didn’t necessarily result in an elevated vapor flux.

Despite the fundamental advances achieved, there are still some serious concerns in implementing the MC method for predicting membrane fouling, including (1) most reported MC models estimate the compressive force using only the cake volume fraction, but cannot simulate the force summation or transfer phenomenon; (2) colloidal particles can overcome the repulsive barrier, and directly contact and adhere to each other when the hydrodynamic drag force is enhanced too much. In this condition, the MC simulation thus cannot accurately evaluate the adhesion forces [72].

Table 2. Application of MC method for fouling simulation in different membrane systems from the literature.

Membrane	Aims	Highlights	References
MF	Examining the pore blocking phenomena in cross-flow microfiltration	Reduced pore blocking is observed in membranes with a high porosity and narrowed pore distribution. Particle concentration and size distribution have significant influences on particles passing through, being adsorbed, and sticking on the membrane pore.	[74]
	Investigating the particle capture at membrane surfaces in cross-flow MF.	Abrupt decline of permeability happens at short times, while the stationary flux is observed at long times. The quick reduction of permeability occurs with increased foulant concentration. The permeability is more affected in a thinner pore membrane.	[85]
	Simulation of the flux behavior during the MF of multi-dispersed iron oxide particles.	The major flux dominating parameter was cake resistance rather than pore blocking for non-flocculating situations. A porosity of 0.39 was obtained for mono-dispersed particles, while a porosity of 0.33 was acquired for multi-dispersity.	[86]
UF	Calculation of the osmotic pressure and the diffusion coefficient and characterizing the cake layer development.	Hypernetted Chain theory allowed the MC code verification. The simulated osmotic pressure agreed well with and the experimental data.	[76]
UF/MF	Investigating the influence of various operation conditions on cake structure.	A simple force balance model was developed for a rational explanation of the calculated cake volume fraction. The effects of operation parameters on the cake reversibility were evaluated. A force accumulation and transfer model was developed for the real filtration process.	[72]
	Simulating the pore blocking and cake layer formation of interfacial interactions.	The capture probability is dependent on the energy barrier and flow modes. The packing density reduces with the increased capture probability. The resistance of the cake layer elevated with higher capture probability.	[73]
RO	Understanding water and solute transport in thin film nanocomposite (TFN) membranes.	The addition of a small amount of porous or even non-porous NPs leads to an obvious flux elevation. Thicker intermediate layer with minimized NPs agglomeration is favorable to gain high flux.	[78]
RO/NF	Modeling the particle transport and membrane fouling.	Particle transport governed by the interplay of hydrodynamic and electric effects can achieve a more stable state than hydrodynamic effects considered alone. Larger Reynolds numbers originated from higher shear rates could keep more particles in the bulk flow.	[87]
RO/NF	Assessing the influences of framework defects on the performance of 2D nanomaterial laminate membranes.	2D nanomaterial frameworks are extremely tortuous (tortuosity ≈103) with water permeability decreasing from 20 to <1 Lm−2 h−1 bar−1 when thickness increased from 8 to 167 nm. Framework defects allow salt to percolate through the framework, hindering water–salt selectivity. 2D nanomaterial frameworks with a packing density of 75% are projected to achieve <92% NaCl rejection at a water permeability of <1 Lm−2 h−1 bar−1, even with ideal interlayer spacing.	[81]
	Revealing the origin of the defects in the stacked nanosheets and their impact on the overall water-solute selectivity of the lamellar 2D membrane.	Small imperfections in the stacking of MoS2 nanosheets lead to the emergence of microporous defects. These defects negated the interlayer sieving effect and thus impaired the selectivity of the lamellar structure.	[80]
	Simulating the fouling transition from foulant–clean-membrane interaction (F-M) to foulant-fouled-membrane interaction (F-F).	The long-term membrane flux maintained stability for high F-F energy barrier (Ef). Severe flux declines happened as both F-M energy barrier (Em) and Ef are weak. A metastable flux behavior presented at the combination of large Em but small Ef.	[5]
	Dissecting the role of membrane defects with a low-energy barrier on fouling development.	When Ef was above a critical value (Ec), flux stability was independent of defects. At Ef < Ec & Em ≥ Ec, large coverage or low energy barrier of defects enhanced fouling. For Ef < Ec & Em< Ec, serious fouling occurred w/o defects.	[82]
MD	Studying heat and mass transfer through hydrophobic membranes applying direct contact MD process.	The proposed model can simultaneously predict the vapor flux and membrane surface temperatures.	[83]
	Describing the vapor flux across the membrane in the membrane distillation process.	The higher feed solution temperature and higher pore size do not necessarily increase the vapor flux.	[84]

Table 2. Application of MC method for fouling simulation in different membrane systems from the literature.

Membrane	Aims	Highlights	References
MF	Examining the pore blocking phenomena in cross-flow microfiltration	Reduced pore blocking is observed in membranes with a high porosity and narrowed pore distribution. Particle concentration and size distribution have significant influences on particles passing through, being adsorbed, and sticking on the membrane pore.	[74]
	Investigating the particle capture at membrane surfaces in cross-flow MF.	Abrupt decline of permeability happens at short times, while the stationary flux is observed at long times. The quick reduction of permeability occurs with increased foulant concentration. The permeability is more affected in a thinner pore membrane.	[85]
	Simulation of the flux behavior during the MF of multi-dispersed iron oxide particles.	The major flux dominating parameter was cake resistance rather than pore blocking for non-flocculating situations. A porosity of 0.39 was obtained for mono-dispersed particles, while a porosity of 0.33 was acquired for multi-dispersity.	[86]
UF	Calculation of the osmotic pressure and the diffusion coefficient and characterizing the cake layer development.	Hypernetted Chain theory allowed the MC code verification. The simulated osmotic pressure agreed well with and the experimental data.	[76]
UF/MF	Investigating the influence of various operation conditions on cake structure.	A simple force balance model was developed for a rational explanation of the calculated cake volume fraction. The effects of operation parameters on the cake reversibility were evaluated. A force accumulation and transfer model was developed for the real filtration process.	[72]
	Simulating the pore blocking and cake layer formation of interfacial interactions.	The capture probability is dependent on the energy barrier and flow modes. The packing density reduces with the increased capture probability. The resistance of the cake layer elevated with higher capture probability.	[73]
RO	Understanding water and solute transport in thin film nanocomposite (TFN) membranes.	The addition of a small amount of porous or even non-porous NPs leads to an obvious flux elevation. Thicker intermediate layer with minimized NPs agglomeration is favorable to gain high flux.	[78]
RO/NF	Modeling the particle transport and membrane fouling.	Particle transport governed by the interplay of hydrodynamic and electric effects can achieve a more stable state than hydrodynamic effects considered alone. Larger Reynolds numbers originated from higher shear rates could keep more particles in the bulk flow.	[87]
RO/NF	Assessing the influences of framework defects on the performance of 2D nanomaterial laminate membranes.	2D nanomaterial frameworks are extremely tortuous (tortuosity ≈103) with water permeability decreasing from 20 to <1 Lm−2 h−1 bar−1 when thickness increased from 8 to 167 nm. Framework defects allow salt to percolate through the framework, hindering water–salt selectivity. 2D nanomaterial frameworks with a packing density of 75% are projected to achieve <92% NaCl rejection at a water permeability of <1 Lm−2 h−1 bar−1, even with ideal interlayer spacing.	[81]
	Revealing the origin of the defects in the stacked nanosheets and their impact on the overall water-solute selectivity of the lamellar 2D membrane.	Small imperfections in the stacking of MoS2 nanosheets lead to the emergence of microporous defects. These defects negated the interlayer sieving effect and thus impaired the selectivity of the lamellar structure.	[80]
	Simulating the fouling transition from foulant–clean-membrane interaction (F-M) to foulant-fouled-membrane interaction (F-F).	The long-term membrane flux maintained stability for high F-F energy barrier (Ef). Severe flux declines happened as both F-M energy barrier (Em) and Ef are weak. A metastable flux behavior presented at the combination of large Em but small Ef.	[5]
	Dissecting the role of membrane defects with a low-energy barrier on fouling development.	When Ef was above a critical value (Ec), flux stability was independent of defects. At Ef < Ec & Em ≥ Ec, large coverage or low energy barrier of defects enhanced fouling. For Ef < Ec & Em< Ec, serious fouling occurred w/o defects.	[82]
MD	Studying heat and mass transfer through hydrophobic membranes applying direct contact MD process.	The proposed model can simultaneously predict the vapor flux and membrane surface temperatures.	[83]
	Describing the vapor flux across the membrane in the membrane distillation process.	The higher feed solution temperature and higher pore size do not necessarily increase the vapor flux.	[84]

3.3. Artificial Neural Networks (ANN)

ANNs are biologically-inspired computational networks, with a large number of nerve cells or neurons which can work in parallel to promote rapid decision-making [88]. Due to its high speed, simplicity, and powerful capability to learn and recognize trends within a series of input and output data with high precision, the ANN is considered as a powerful, fast and competitive alternative method for membrane fouling modeling [89].

An ANN is able to accurately predict the complex non-linear relationships among variables in the system and simulate the impacts of these variables on fouling during MF, UF, MBR and RO processes [90,91]. For instance, membrane fouling during crossflow MF treatment of polydisperse suspensions was simulated by an ANN model previously, with a highly accurate simulation of time-variant specific fluxes for different feed solutions with a wide range of hydrodynamic parameters [92]. Meanwhile, the trans-membrane pressure and membrane permeability of a submerged MBR has also been successfully simulated using an ANN and the effects of simultaneous aeration on the membrane fouling and contaminant removal efficiency were investigated through ANN modeling [93]. In addition, ANNs have been applied in the dynamic simulation of protein crossflow UF, in which total hydraulic resistance and permeate flux were accurately simulated with excellent agreement with the actual data (average errors less than 1.1%) [94]. Moreover, a good consistency was also observed using an ANN model (trained by a multi-layered feed-forward network with a back-propagation algorithm) with the experimental flux data during NF treatment of leather plant effluents, with a deviation no more than 1% [95]. More application of the ANN approach to the simulation of membrane fouling are listed in

Table 3. Application of ANNs for fouling simulation in different membrane system from the literature.

Membranes	Aims	Highlights	References
RO	An MLP-ANN with back-propagation approach was performed to predict the dynamic Kw values for a RO desalination plant.	The Kw values were very closely to those acquired by the existing correlations for the operating pressure range and feed salinity. The effect of feed salinity on Kw value was more significant at low pressure.	[91]
	MLP and RBF neural networks were trained and developed to predict total TDS concentrations and permeate flow rates.	ANN models showed a better simulation of permeate flow rate. The accuracy of MLP (R = 0.9904) was slightly better than that of the RBF model (R = 0.9853).	[96]
	ANNs were used to dissect the crucial reasons for fouling in a full-scale RO plant.	Total chlorine, electrical conductance, and TDS were essential parameters for early fouling. Turbidity, nitrate, organic nitrogen, and nitrite were important indicators for later fouling.	[97]
	DNN was first time applied to simulate cake growth and flux decline based on real-time OCT images.	DNN could improve the prediction accuracy of fouling layer growth of NF/RO membranes with R2 > 0.99.	[98]
NF	A bootstrap-based ANN was developed to simulate the rejections of organic matters.	Good agreement was obtained between the predicted and experimental rejections for the bootstrap-based ANN model (R2 = 0.9862).	[99]
	ANN, SVM, and RF was employed to forecast the separation performance of an organic solvent NF process.	ANN obtained high accuracy in predicting the permeance (R2 = 0.90) and rejection (R2 = 0.91).	[100]
UF	Short-term fouling fluctuations were predicted during UF process by the ANN incorporate continuous fluorescence characterization data.	The trained neural networks offered a potentially powerful modeling approach in predicting the development of fouling resistance (mean absolute percentage error <5%).	[101]
	ANN combined Darcy’s law was to predict the specific cake resistance and total suspended solids in a UF pilot plant.	The predicted specific cake resistance and TSS data provided early indications of membrane fouling propensity. Model provides an easy implementation to in an industrial-scale UF plant.	[102]
MF	An ANN was developed to predict the characteristics of a MF system.	The prediction accuracy of permeation flux using ANN (R2 = 0.996) was better than that of complete blocking (R2 = 0.186), intermediate blocking (R2 = 0.988), standard blocking (R2 = 0.866), and cake filtration (R2 = 0.858).	[103,104]
MBR	A feed-forward ANN model was developed for the early prediction of OMBR system performance	The most effective input variables for predicting flux and fouling behavior were pH, conductivity, ammonia nitrogen, and total nitrogen concentrations.	[105]
	RBF-ANN was introduced to predict the interactions of sludge flocs—membranes.	The trained RBF-ANN saved up to 98% of computation time for quantification of the interfacial interactions in comparation with the XDLVO theory.	[106]
MD	A feed-forward ANN was used to model permeate flux in an air gap MD system.	The overall agreement between the ANN predictions and experimental data was good (R2 = 0.992).	[77]
	A combined ANN—GA was developed to evaluate the effects of operating parameters on membrane fouling in MD.	The model simulations were experimentally validated with R2 > 0.98.	[107]

Note(s): MLP: multilayer perceptron; RBF: radial basis function; DNN: deep neural network; SVM: support vector machine; RF: random forest; MD: Membrane Distillation.

.

Compared to the traditional test methods and mathematical models, the ANN has strong abilities of nonlinear mapping, self-learning, and self-adaption by using “black-box” methods. However, the disadvantages of ANN simulation therefore are (1) operation time, an important parameter for membrane separation, is ignored in ANN modeling; (2) in-depth analysis of the algorithm is lacking for its selection; (3) the input variables of the ANN are often selected based on experience without theoretical supports.

4. Conclusions

This review summarizes the application of mathematical modeling for fouling analysis and prediction with regard to the aspects of principle, applicability, advantages, and disadvantages. A series of fouling models and numerical simulation methods have been applied to successfully predict membrane fouling in a variety of membrane separation processes under different conditions. CP, cake layer formation, and pore blocking models have been developed to simulate the fouling formation processes. CFD, MC, and ANN simulations are the dominant algorithms for the microscopic behavior of foulant particles. CFD is used to describe flow hydrodynamics during membrane processes, while the MC approach is used to describe the random trajectory of foulant particles, and ANNs can predict the fouling process in a comprehensive environmental matrix through “black-box” learning methods. These models and algorithms are powerful tools for revealing the essential fouling process from the perspectives of force and energy under various complex conditions. Compared to the traditional experimental tests for the study of fouling, fouling analysis and prediction is more effective and rapid through mathematical models and algorithms. This concise summary of fouling models and numerical simulation approaches provides support for the appropriate selection and application of membrane fouling modeling. These fouling models and simulations can be a powerful and cost-effective tool to provide fouling control strategies for further field applications of membrane technology.
