Article

Zooplankton Compositions in the Danjiangkou Reservoir, a Water Source for the South-to-North Water Diversion Project of China

1
State Key Laboratory of Freshwater Ecology and Biotechnology, Institute of Hydrobiology, Chinese Academy of Sciences, Wuhan 430072, China
2
College of Advanced Agricultural Sciences, University of Chinese Academy of Sciences, Beijing 100049, China
*
Author to whom correspondence should be addressed.
Water 2022, 14(20), 3253; https://doi.org/10.3390/w14203253
Submission received: 26 September 2022 / Revised: 10 October 2022 / Accepted: 11 October 2022 / Published: 15 October 2022
(This article belongs to the Section Biodiversity and Functionality of Aquatic Ecosystems)

Abstract

:
The Danjiangkou Reservoir (DJKR) serves as the water source for the world’s biggest water diversion project, the Middle Route of the South-to-North Water Diversion Project (MR-SNWDP) in China, and this project concerns the water security of tens of millions of people in northern China. Hence, the maintenance of ecosystem health and optimization of management necessitate studies to assess the composition and dynamics of key aquatic living resources. Zooplankton represent a critical component of the reservoir ecosystem and are sensitive to environmental changes and anthropogenic disturbances. In this study, the zooplankton compositions in DJKR were quantified and compared in May, August, and November 2017. Simultaneously, the effects of water trophic states on the zooplankton community structure were analyzed at three levels (overall, taxonomic, and functional groups). A total of 65 zooplankton taxa were recorded, with the taxonomic richness of Rotifera (28 taxa) being the highest among taxonomic groups, which were further classified into 10 functional groups. The community was characterized by low diversity and high evenness. Compared with historical studies, the biomass had increased remarkably, while the abundance showed a decreasing trend in DJKR, and there were more large-bodied zooplankton in this study. The multivariate analysis revealed that zooplankton compositions changed significantly among the three sampling months without distinguishable spatial variations. Moreover, the zooplankton compositions at all three levels correlated significantly with total nitrogen, water transparency, and permanganate index in most situations, as verified by db-RDA and Mantel’s test. However, the contributions of chlorophyll a and total phosphorus were only significant for the LCF group, implying that the bottom-up effects of phytoplankton on zooplankton were weak in DJKR. Therefore, analysis based on functional groups may reflect a more accurate snapshot of the relationships. Our findings will contribute to enriching the long-term fundamental ecological knowledge of the DJKR and the MR-SNWDP, as well as provide key taxonomic information for ecosystem assessment and management.

1. Introduction

Reservoirs, formed by the construction of dams on natural rivers at enormous environmental and socioeconomic costs [1,2,3], are an essential human initiative for flood control and compensating for freshwater scarcity through anthropogenic regulation and impoundment, and play a crucial role in fulfilling human demands for food, water, and energy [4]. A thorough analysis of the key taxonomic variations and their influencing factors is necessary for the long-term viability of ecosystem functions and is a precondition for accurate assessment and scientific management of complex ecosystems. The environment in reservoirs, with characteristics of both rivers (away from the dam) and lakes (close to the dam), and couplings of natural (temperature, rainfall, etc.) and anthropogenic (regulation of water levels) factors, is more complicated than those in natural waters. Consequently, the driving forces determining community composition in reservoirs are more difficult to clarify and possess a higher degree of specificity [5]. In order to obtain adequate knowledge of the composition patterns in key taxa and environmental factors, more detailed relevant research is needed [6].
Zooplankton are one of the key biological components in aquatic ecosystems. Feeding mainly on algae, bacteria, and organic detritus (bottom-up effects, [7]), zooplankton are high-quality forage organisms for filter-feeding fish (top-down effects, [8]), and simultaneously promote the decomposition and recycling of organic matter through excretion and secretion. Therefore, zooplankton play a linkage role in the energy flow and material cycle of aquatic ecosystems [9]. Since zooplankton, especially large-sized Daphnia species, are efficient filter feeders and grazers of algae [10,11,12], they have been the focus of research in ecological restoration and biomanipulation, including algal bloom control and eutrophication remediation [13,14]. Furthermore, zooplankton, with their particular characteristics that include a short life cycle, wide distribution range, poor or nearly no swimming ability, and sensitivity to environmental changes, can be easily influenced by changes in water quality with respect to their species composition, abundance, biomass, community structure, and so on. Thus, zooplankton may be a useful biological indicator for assessing water quality and ecosystem health [15,16,17,18,19]. Hence, adequate knowledge of zooplankton compositions and responses of zooplankton communities to environmental changes is required, particularly in complicated ecosystems, whether for the purpose of conserving fisheries resources, maintaining ecosystem stability, effectively regulating the ecological environment, or accurately monitoring the water environment.
Among multiple environmental drivers, nutrients can affect zooplankton through bottom-up effects on both food quality and quantity. Meanwhile, an understanding of the relationships between zooplankton and nutrient levels could also provide vital information about the eutrophication risk of the ecosystem. However, owing to the fact that zooplankton are simultaneously affected by bottom-up and top-down effects as well as climatic conditions and anthropogenic disturbances, their relationships with water quality are not consistent across ecosystems. The role of the trophic state on zooplankton compositions has not yet been clearly ascertained, and there is controversy as to whether zooplankton can be used as an effective indicator [20,21,22].
The Danjiangkou Reservoir (DJKR) is one of the largest reservoirs in Asia, with its main functions being water supply, flood control, electric power generation, irrigation, and aquaculture. In terms of water supply, DJKR, the water source for the Middle Route of the South-to-North Water Diversion Project (MR-SNWDP), has delivered a total of 44.1 billion cubic meters of water to northern China since the official supply of water to the north commenced in December 2014. It supplies 24 large and medium-sized cities, including Beijing and Tianjin, and more than 190 counties (urban areas) with a population of 79 million residents benefit along the route. Considering the fact that the water quality and ecosystem health of DJKR are of critical importance, it has been designated as a National Water Source Protection Zone. Moreover, except for the common features of large reservoirs, such as unnatural water level fluctuations, DJKR has a unique reservoir morphology, constituted by the relatively independent and closely linked two reservoir zones, which possess different hydrodynamics and morphologies. Simultaneously, DJKR is also influenced by a large water diversion project, making it an ideal research site for exploring the responses of aquatic communities to the couplings of anthropogenic regulations and spatiotemporal environmental variations.
To date, there are relatively abundant studies on water quality assessment in DJKR [23,24,25,26], but ecological investigations and quantitative studies on aquatic organisms, including zooplankton, are still insufficient. Detailed studies on zooplankton in the reservoir were conducted before the construction of the dam [27] and after the completion of the dam in 1986–1987 [28] and 1992–1993 [29]. However, in recent years, there have been fewer relevant studies in the reservoir [30], especially after the dam was raised; only Wang et al. [31] have conducted preliminary studies on the community structure of planktonic crustaceans. Moreover, since the reservoir is in the early stage of water storage operation at a high water level [32], coupled with substantial fluctuations in water levels, zooplankton compositions could be affected by the changes in hydrological conditions and physicochemical environments. Accordingly, given the importance and peculiarity of the ecosystem, which is accompanied by uncertainties and controversies in the sustainability of ecosystem services [33,34,35], research on the zooplankton community patterns of DJKR need to be further strengthened.
Therefore, we conducted a reservoir-wide investigation and quantitative study at different water levels, focusing on the four broad taxonomic groups of zooplankton, i.e., Protozoa, Rotifera, Cladocera, and Copepoda and investigated physicochemical parameters of water trophic states in parallel. We hypothesized that (1) the abundance and biomass of zooplankton would increase considerably compared with historical studies; and (2) zooplankton compositions would correlate significantly with water trophic states (changing as the water level rose). Our findings are expected to deepen the understanding of zooplankton compositions in DJKR or analogous waters, which is critical to minimizing unintended consequences of reservoir regulations and providing basic support for surface water quality protection, ecosystem health maintenance, and management optimization.

2. Materials and Methods

2.1. Study Area and Sampling Design

DJKR (110°59′–111°49′ E, 32°33′–33°48′ N), completed in 1973, is located on the border of Henan and Hubei Provinces in China (Figure 1) and has a catchment area of 95,200 km2. It currently has a total surface area of 1050 km2 and a total storage capacity of 29.05 billion m3 after the dam was raised in 2012, and the normal water level increased from 157 m to 170 m. The reservoir is located in the subtropical monsoon climate region with four distinct seasons and an average annual temperature of 15–16 °C. The rainfall is concentrated in summer, with an average annual value of 881 mm, and the multi-year mean inflow is 39.48 billion m3. In addition, the land coverage types around the reservoir are mainly forest, cropland, urban land, and grassland, accounting for 59.8%, 18.0%, 4.4%, and 3.2% of the total watershed area, respectively [36]. Contrary to cropland, the percentage of urban land shows an increasing trend, whereas the proportion of cropland is still second only to forest [37].

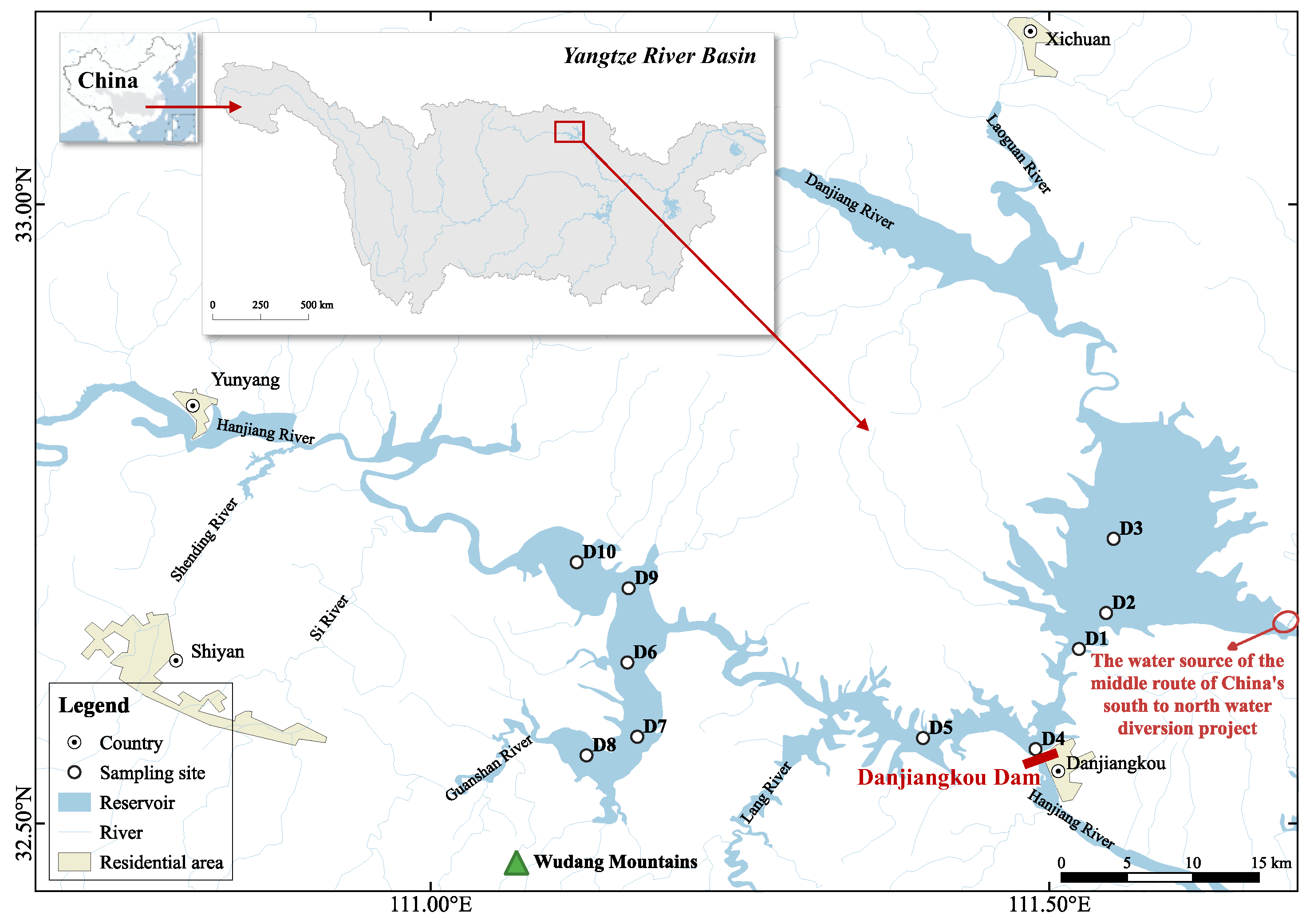

In this study, a total of 10 sampling sites were selected in the main lacustrine zones according to the morphological characteristics of the reservoir, including sites D1–D3 in the Danjiang reservoir zone (DR), site D4 in the proximity of Danjiangkou dam (BD), and sites D5–D10 in the Hanjiang reservoir zone (HR) (Figure 1). The sampling schedule was mainly based on the annual variations of water level and rainfall in the reservoir (Figure 2). During the sampling period, after dropping to the lowest in early March, the water level in the reservoir started to rise gradually and reached its highest value in October when the water storage filling was complete. The rainfall was mainly concentrated in June to October, with the maximum in September (89% higher than the multi-year average rainfall in that month) [32]. Accordingly, field samplings at each site were conducted during the early parts of May, August, and November in 2017.

2.2. Sampling Methods and Analytical Procedures

The quantitative samples (volume, 1 L) of small-bodied zooplankton (Protozoa, Rotifera, and Copepoda nauplii) were collected from the surface layer (0.5 m underwater, the same below) using a 5 L polycarbonate water sampler, then transferred to plastic bottles and fixed with 10 mL of Lugol’s solution. The samples were then concentrated to 30 mL after standing for 36 h. Meanwhile, 20 L quantitative samples of Cladocera and Copepoda juveniles and adults were collected from the surface layer and concentrated by a plankton net (mesh size 64 µm). Therefore, the zooplankton compositions mentioned in this study refer to those in the surface water. The specimens were preserved with a final concentration of 4% formalin solution. Thereafter, all samples were identified to the lowest possible taxonomic level according to Wang [38], Shen [39], Jiang and Du [40], and Zhou et al. [41], and counted with the aid of a light microscope (Olympus BX51, Tokyo, Japan) following the specific procedure given by Zhang and Huang [42]. The density of zooplankton was approximated to that of water (1 g/cm3). Then biomass (mg/L) was estimated by the volumetric method [42]. Furthermore, the identified taxa were classified into different functional groups based on the body size/length and feeding habits ([43,44], Table A1).
At each site, physicochemical parameters for water quality were simultaneously measured based on the Chinese Standard Methods for Monitoring Lake Eutrophication. Water transparency (Secchi disk depth, SD) was measured in situ by using a weighted Secchi disk (20 m). The potassium persulfate digestion method was used to measure total nitrogen (TN) and total phosphorus (TP). The permanganate index (CODMn) was determined by the acidic potassium permanganate method, and chlorophyll a (Chl.a) was analyzed with 90% acetone extraction followed by spectrophotometry. In general, these parameters are the main indicators used to examine water trophic levels in China. The water trophic state was further assessed using the comprehensive trophic level index (TLIc), a weighted sum based on the correlations between Chl.a and other sub-indices, as recommended by the Chinese National Environment Monitoring Center. All the five parameters mentioned above were used to calculate the TLIc, and detailed formulas are supplied in Table A2.
The Margalef richness index (Dm) [45], Shannon–Wiener diversity index (HN) [46] and Pielou evenness index (JN) [47] were chosen as indices to describe the biodiversity characteristics, with formulas being Dm = (S − 1)/lnN, HN = −∑(Pi × lnPi) and JN = HN/lnS, respectively, where S is the taxonomic richness, N is the total zooplankton abundance (ind./L) and Pi denotes the percentage of taxon i abundance to the total zooplankton abundance (%).

2.3. Statistical Analyses

Two-way ANOVA analysis or non-parametric test (Scheirer–Ray–Hare test) was performed to determine the significant difference in the zooplankton abundance, biomass, biodiversity indices, etc., across the sampling months (i.e., May, August, and November in 2017) or reservoir areas (i.e., HR, DR, BD), according to whether the data satisfied normality and homogeneity of variance among groups. The corresponding multiple comparison methods were Tukey’s Honest Significant Differences and Dunn’s Kruskal–Wallis Multiple Comparisons (p-value was corrected by the “Bonferroni” method), respectively.
Hierarchical Clustering (hclust, using a “UPGMA” linkage algorithm) and Nonmetric Multidimensional Scaling (NMDS) were conducted to show overall variations in the community composition [48]. Analysis of Similarities (ANOSIM) was used to test whether the differences were significant [49]. Furthermore, Permutational Multivariate Analysis of Variance (PERMANOVA) was conducted to analyze variations in the composition of each taxonomic group across different sampling months and areas [50], which were further revealed by Principal Coordinate Analysis (PCoA). Similarity Percentage Analysis (SIMPER) was implemented to identify the “responsible taxa” in each group with contributions to the variation > 5% and p < 0.05 [49].
To ascertain associations between zooplankton and water quality, distance-based Redundancy Analysis (db-RDA, also known as canonical analysis of principal coordinates) was performed [51]. The Monte Carlo permutation test [52] was used to examine whether the significance level was reached. The hierarchical partitioning method, which is an unordered assessment method of importance, was used to determine the explanation rate of each parameter and its significance [53].
Mantel’s test [54] was carried out to explore the relationships of each functional group with the water quality parameters and trophic state. The Euclidean distance matrix of both biomass data (“hellinger” transformed in advance) of each functional group and explanatory variables were used for the analysis. Moreover, Spearman’s correlation was implemented between each pair of water quality parameters.
The overall multivariate analysis was based on the presence/absence data to avoid the effects of different orders of magnitudes among the abundance of taxonomic groups, and abundance data was used for the analysis of each taxonomic group. Before the multivariate statistical methods were employed in this study, the abundance data was transformed by the ln(x + 1) algorithm to remove the effects of rare taxa and extreme values, and the environmental parameters were scaled to zero means and unit variances. If not specified, the Bray–Curtis dissimilarity matrix of the data was used for the multivariate analysis. The number of permutations was 999, and the significance level was 0.05. All the statistical analyses and data visualizations were performed in R 4.1.0 [55], using the packages “car” [56], “rcompanion” [57], “FSA” [58], “vegan” [59], “rdacca.hp” [53], “linkET” [60], “eulerr” [61], “ggplot2” [62], “ggtree” [63], “aplot” [64], and “ggpubr” [65].

3. Results

3.1. Zooplankton Composition and Biodiversity Indices

A total of 65 zooplankton taxa were identified in the study, including 28 taxa of Rotifera, 17 taxa of Protozoa, 10 taxa of Cladocera, and 10 taxa of Copepoda (Table S1). The number of taxa found in May, August, and November was 39, 35, and 26, respectively. The number of unique taxa occurring in May, August, and November was 21, 17, and 4, respectively, with 12 shared taxa in all the three sampling periods (Figure 3a). There were 22 taxa shared amongst the sampling areas, and HR possessed a higher total number of taxa as well as unique taxa (Figure 3b). Moreover, the mean taxa number in May (19.86 ± 1.44) was significantly higher than that in November (13.00 ± 1.79) (p = 0.021), whereas there were no apparent differences among the sampling areas (p > 0.05).

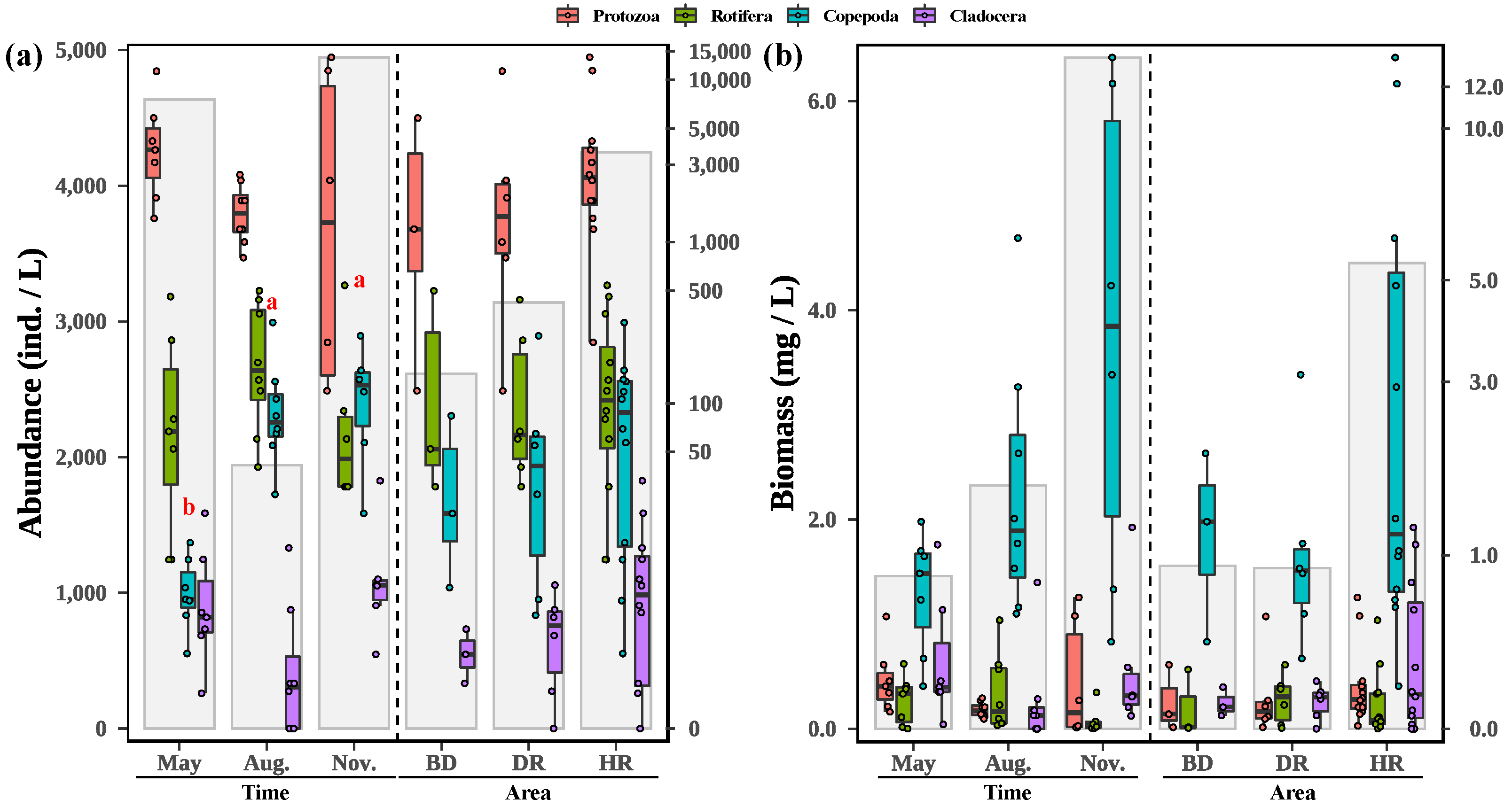

The average abundance of zooplankton in the three investigations was 3.84 × 103 ind./L, with Protozoa possessing the highest proportion (93.47%), followed by Rotifera (4.27%). The maximum and minimum values occurred in November at site D9 (1.41 × 103 ind./L) and site D4 (0.17 × 103 ind./L), respectively. Temporally, the mean zooplankton abundance reached a minimum in August (1.94 ± 0.26 × 103 ind./L) and a maximum in November (4.95 ± 2.61 × 103 ind./L). Spatially, the mean abundance was highest in HR (4.25 ± 1.24 × 103 ind./L). Overall, no significant temporal and spatial differences (p > 0.05) in zooplankton abundance were detected by the Scheirer–Ray–Hare test (Figure 4a). In terms of taxonomic groups, only the mean abundance of Copepoda in May was significantly lower than that in August (p = 0.006) and in November (p = 0.003).
Likewise, there were no significant spatiotemporal differences concerning zooplankton biomass (p > 0.05). The mean biomass of zooplankton in the three samples was 3.40 mg/L, with Copepoda, Cladocera, Rotifera and Protozoa accounting for 83.64%, 7.92%, 3.16% and 5.28%, respectively. The biomass was highest in November (6.42 ± 2.55 mg/L) among different sampling months, and regarding the sampling areas, it was highest in HR (4.45 ± 1.42 mg/L). The maximum value was observed at site D8 (14.13 mg/L) in November, with the minimum value at site D6 (0.42 mg/L) in May (Figure 4b). From the perspective of taxonomic groups, the mean biomass of Copepoda was consistently highest in the three sampling months and areas. None of the four taxonomic groups displayed significant spatiotemporal differences (p > 0.05).
The ranges of the three biodiversity indices, namely Dm, HN and JN, were 1.27–3.18, 0.41–2.38 and 0.17–0.72, respectively, with averages of 1.99, 1.46 and 0.53 (Table 1). No significant spatial differences were found in any indices (p > 0.05). Only HN was significantly higher in August (1.77 ± 0.11) than in November (1.03 ± 0.21) (p = 0.020).

3.2. Changes in Zooplankton among Different Sampling Months and Areas

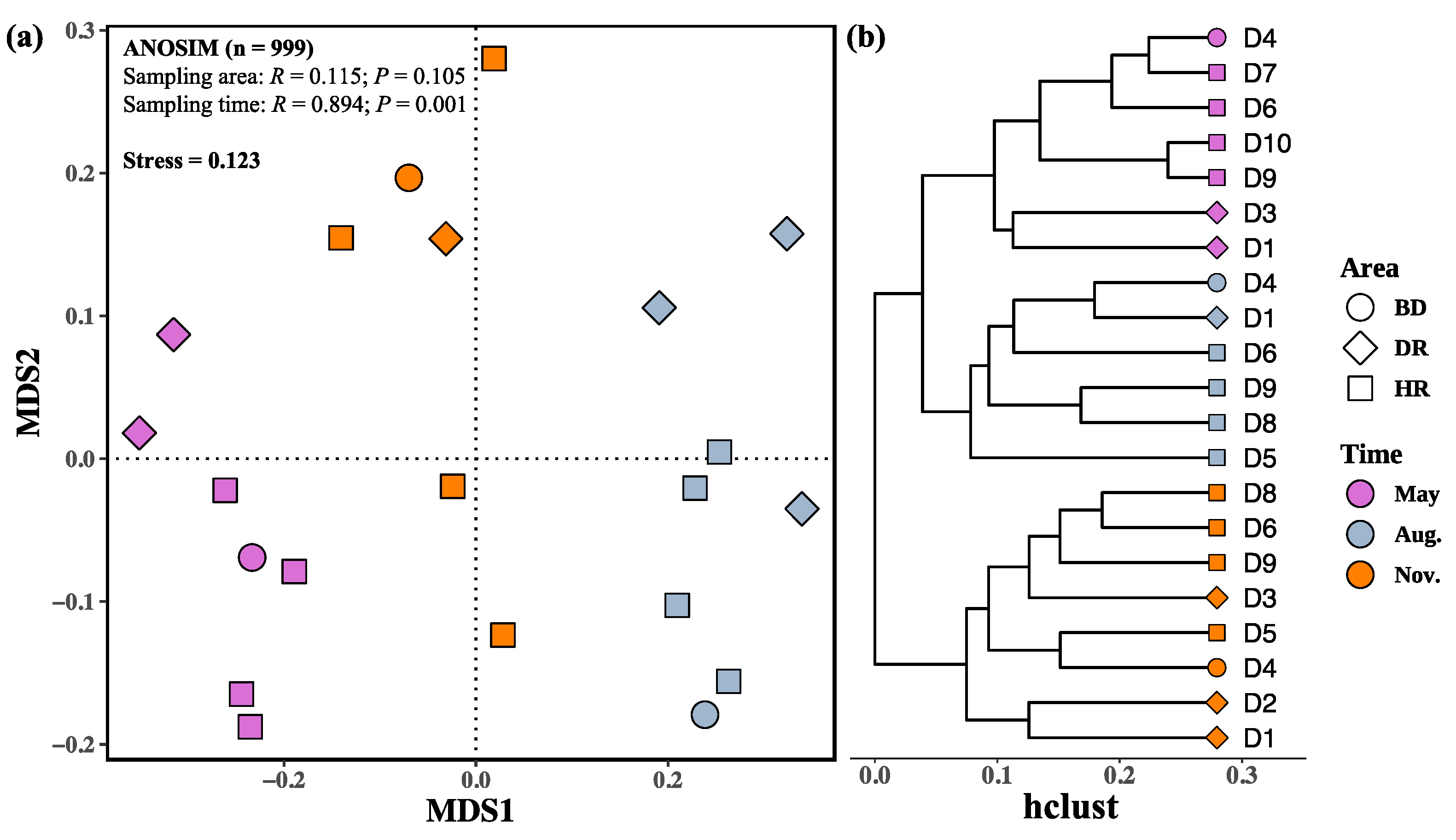

The result of NMDS based on the presence/absence of data of all the taxa in the four taxonomic groups showed that taxa composition was very dissimilar across the sampling months with no distinct spatial variations (Stress = 0.123 < 0.20) (Figure 5a). When the sites were clustered into three categories, Hierarchical Clustering using a “UPGMA” linkage algorithm demonstrated that sites in the same sampling month were essentially gathered into the same group (Figure 5b). Moreover, ANOSIM with multiple comparisons revealed statistically significant differences in zooplankton composition across the sampling months (R = 0.894; p = 0.001), whereas the spatial difference was not remarkable (R = 0.115; p = 0.105). This variation pattern was further supported by PERMANOVA and presented by PCoA on the four taxonomic groups, in which spatial differences were always indistinguishable and clear variations among sampling months were ascertained (Figure A1).
Additionally, the results of SIMPER considering each taxonomic group indicated that Halteria cirrifera, undetermined ciliates, Difflugia globulosa, Strobilidium gyrans, and Strombidium viride were the most influential taxa in Protozoa based on their contributions, with the mean dissimilarity among the three sampling months being 62.38% (May vs. Aug.), 64.96% (May vs. Nov.), and 53.99% (Aug. vs. Nov.), respectively. The mean dissimilarities in Rotifera were 95.91% between May and August, 96.89% between May and November, and 83.56% between August and November, respectively, which were mainly attributed to Trichocerca rousseleti, Ascomorpha saltans, and Collotheca pelagica. In Cladocera, the dissimilarities among the sampling months primarily resulted from Bosmina coregoni, Diaphanosoma dubium, and Daphnia cucullata. As to the variations in Copepoda among the three months, the responsible taxa were principally Copepoda nauplii, Cyclopoida copepodids, Sinocalanus dorrii, and Microcyclops varicans (Table A3).

3.3. Zooplankton Functional Groups Composition

The zooplankton taxa identified in DJKR were classified into 10 functional groups according to their body size/length and feeding mode (Figure 6, Table S1). Only the mean biomass of the LCF, SCF, and SCC functional groups changed significantly among the sampling months as determined by the Scheirer–Ray–Hare test (p < 0.05). The relative value of average biomass in the LCF group, represented by S. dorrii, D. cucullata, Daphnia hyalina, and Daphnia galeata, fell remarkably from 45.28% (May) to 0.27% (August) and recovered to 49.69% in November. In contrast, the relative values of mean biomass in the SCF (dominated by Calanoida copepodids, Copepoda nauplii, and B. coregoni) and SCC (only including Cyclopoida copepodids) groups showed the opposite trend across the three sampling months.

3.4. Relationships between Zooplankton and Water Trophic States

The physicochemical features in DJKR during the sampling periods are provided in Table 2. All the parameters except TP showed clear temporal differences (p < 0.05), whereas the spatial variations were not significant (p > 0.05). In general, the water quality was relatively poor during the period of high water levels (referring to November in this study) and in HR, with SD being lower and other parameters being higher. The mean TLIc among the three sampling months was 37.11, characterizing DJKR as mesotrophic, whereas the trophic state at site D8 in November was abnormally higher, reaching 61.53 (medium-eutrophic).

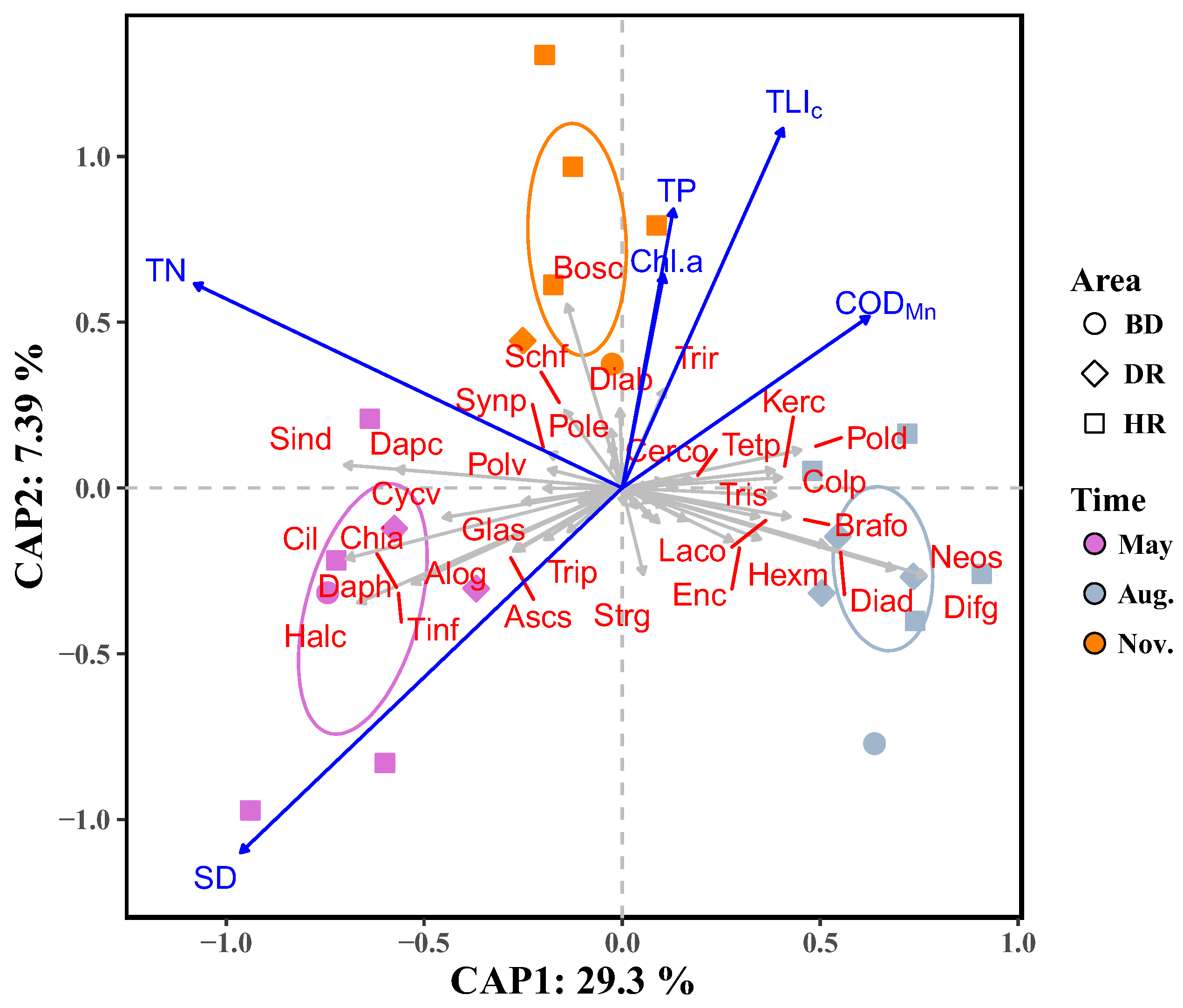

The results of Distance-based Redundancy Analysis (db-RDA) demonstrate that the selected environmental parameters explained 46.08% (Adjusted R2) of the total variation in the zooplankton based on the presence/absence data of all the taxa, and the statistical significance was verified by the Monte Carlo permutation test (pseudo-F: 3.32, p = 0.001). The canonical axes were further analyzed, and only the first axis reached significance levels (pseudo-F: 12.66, p < 0.05), explaining 29.30% of the variance (Figure 7). When we implemented db-RDA to the abundance data considering each of the four taxonomic groups, all the groups showed a significant correlation with the explanatory variables (p < 0.05, Figure A2). The adjusted R2 was 0.48 in Protozoa, 0.14 in Rotifera, 0.56 in Copepoda, and 0.49 in Cladocera, respectively.
Specifically, the sampling sites in May were located in the negative direction of the first axis, with higher SD and TN but lower CODMn, Chl.a, TP, and TLIc (Figure 7, Figure A2). At these sites, H. cirrifera, Chilodonella algivora, Tintinnidium fluviatile, and undetermined ciliates in Protozoa, A. saltans and Trichocerca pusilla in Rotifera, D. cucullate, and D. hyalina in Cladocera were more abundant. This was in contrast to the environmental characteristics of sampling sites in August, with D. globulosa, S. gyrans, and Lacrymaria olor in Protozoa, Keratella cochlearis, Polyarthra dolichoptera, Hexarthra mira, Encentrum sp., C. pelagica, Brachionus forficula, and Trichocerca similis in Rotifera, Copepoda nauplii and Calanoida copepodids in Copepoda, and D. dubium in Cladocera dominating at these sites. The sampling sites in November had intermediate results compared with those of May and August, with T. rousseleti in Rotifera, Copepoda nauplii, Cyclopoida copepodids, S. dorrii, and M. varicans in Copepoda, and B. coregoni in Cladocera prevailing at these sampling sites.
The individual effects of environmental parameters using hierarchical partitioning analysis indicated that among the selected parameters, TN, SD, and CODMn were important and significant explanatory variables for the differences in zooplankton composition based on the presence/absence data of all the taxa, with TN explaining the largest variance (18.07%, Figure 8). When it comes to the four taxonomic groups, consistent orders of importance were only obtained in Cladocera, whereas SD explained most of the variations in Protozoa, Rotifera, and Copepoda. Moreover, TP and Chl.a were always insignificant regardless of the overall analysis or separate analysis.

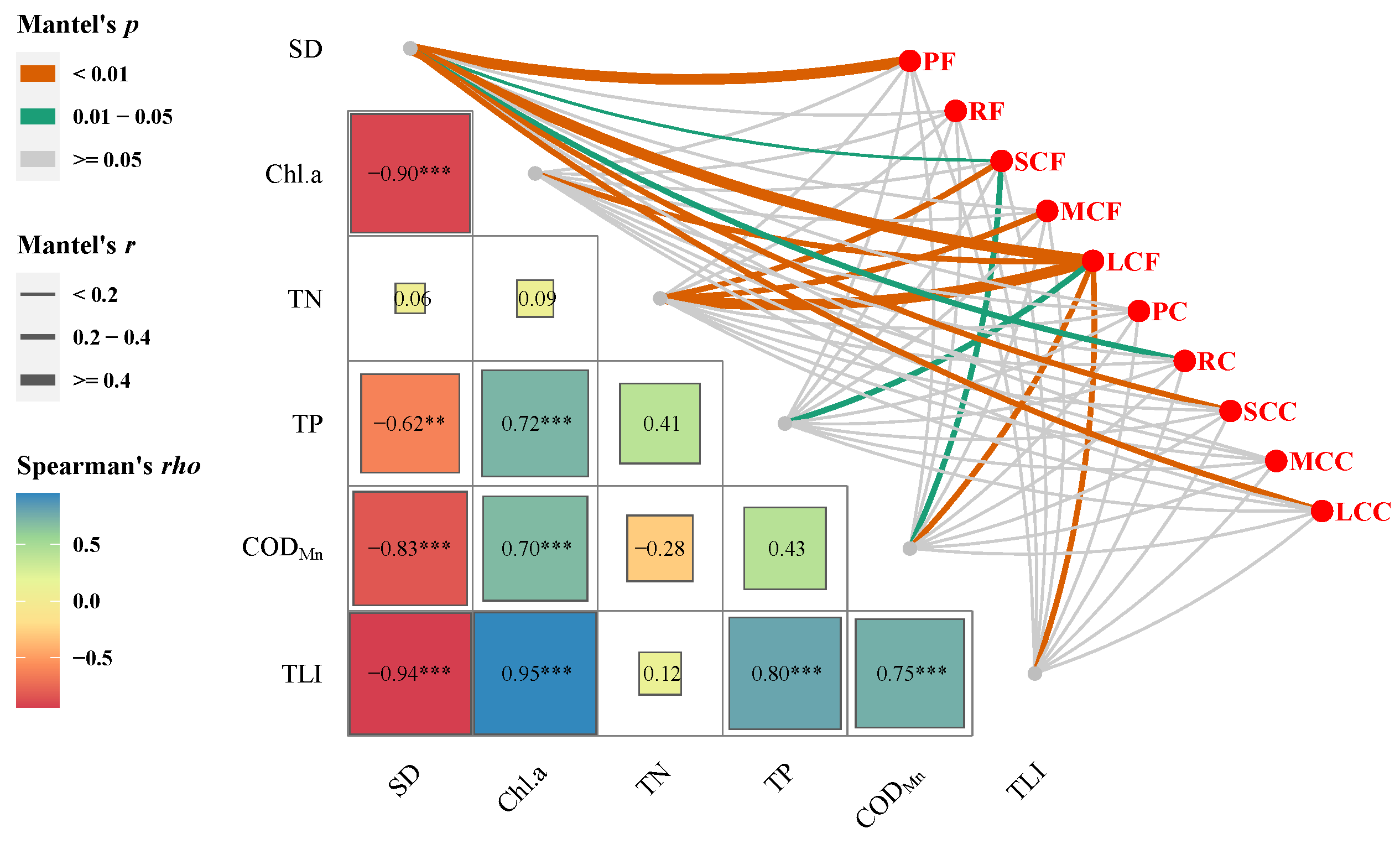

Mantel’s test showed that SD correlated significantly with most of the zooplankton functional groups, followed by TN and CODMn (p < 0.05, Figure 9). Moreover, significant correlations of the LCF group with Chl.a and TP were revealed (p < 0.05), which was not detected in the aforementioned analyses.

4. Discussion

4.1. Characteristics of the Zooplankton Composition and Biodiversity

Despite the great importance of DJKR, limited field studies on zooplankton, especially targeting the considered four taxonomic groups, have been published (Table S2). Our study indicated that the abundance and biomass of zooplankton increased remarkably after the reservoir was impounded, as predicted by experts before the construction of the dam [27]. This may be related to the environmental changes (i.e., decreased water flow, increased hydrological retention time, nutrients, and transparency; [66]) after river damming, which are more suitable for the survival of Cladocera and Copepoda compared with before damming [67]. This has also been observed in other studies [68]. After water storage in the reservoir, Alfonso et al. [68] suggested that in the absence of disturbance, planktonic communities tended to become more complex and to increase their species richness and abundance over time. However, the occurrence of disturbances may mask the age effect on zooplankton that leads to a decrease in the species richness and abundance with the aging of the system. Consequently, there could be a maximum of the richness and abundance, at least for Cladocera and Copepoda. Changes in zooplankton in DJKR were partly consistent with this phenomenon (Table S2), but the total abundance of zooplankton in this study showed a decreasing trend, in spite of not varying considerably, compared with Yang et al. [28] and Han et al. [29]. This was probably because the increase in Rotifera and crustacean zooplankton led to a decrease in the abundance of Protozoa through predation and competition.
The zooplankton biomass was roughly five times more than that in the two historical studies [28,29]. An increase of the large-bodied zooplankton was implied by the ratio of biomass/abundance (an approximation of the community abundance-weighted mean for body size trait). However, it was Copepoda that contributed to the increased biomass, whereas the biomass of Cladocera decreased to nearly half of that in Han et al. [29] and Cladocera’s ratio of biomass/abundance was lower in our study compared with the historical studies (Table S2). Since large-bodied zooplankton are more vulnerable to fish predation and Copepoda are less affected by filter-feeding fish than Cladocera [10,69], this phenomenon might be caused by high fish predation as a result of the continuous and large-scale stocking of silver carp (Hypophthalmichthys molitrix) and bighead carp (Aristichthys nobilis) in DJKR. Moreover, the extensive outbreak of icefish (Neosalanx taihuensis) population in DJKR, which predominantly feeds on Cladocera and Copepoda [70], may also contribute to suppressing the growth of macrozooplankton populations [71]. The size structure of zooplankton populations can be changed by the feeding selectivity of planktivorous fish through reducing the population of large-bodied species and increasing the dominance of smaller ones [72,73], especially in the fish growth season [74], which accounts for the scarcity of large-bodied Cladocera. In addition, the change of food quality could be another driver, as implied by the increase in the relative abundance of Cyanobacteria [75], indicating that inedible algae in DJKR became more abundant.
Furthermore, compared with recent studies on other taxa, the biodiversity of fish [76], phytoplankton [75], and zoobenthos [77] in DJKR were all present at low levels, indicating relatively simple biotic community structures. According to Dodson et al. [78], species would accumulate in a newly formed ecosystem over time until the available space is saturated. In addition, mature systems usually have higher biodiversity [79]. As DJKR is a man-made ecosystem mainly for water supply and flood control, the frequent anthropogenic disruptions, such as water storage regulation, fishing activities, and agricultural production around the reservoir, may continuously revert the assemblages to an earlier developmental stage and impede them from reaching a more mature state [68,80,81].

4.2. Changes of Zooplankton among the Sampling Months and Areas

Generally, zooplankton are sensitive to environmental changes and habitat heterogeneity, which can be partly reflected in the temporal and spatial dynamics of zooplankton taxonomic composition [5,82,83]. In this study, we observed a distinct shift in the zooplankton composition of DJKR between the three sampling months. Similar observations were made in previous studies [84,85], mainly due to seasonal changes in abiotic factors (i.e., water trophic state, temperature) and biotic factors (i.e., food resources availability and fish predation pressure). November became the most productive period compared with May and August, concerning the mass propagation of zooplankton (Figure 4). The increased nutrients (associated with increased rainfall, surface runoff, and the rising water level; Figure 2 and Table 2), suitable water temperatures, and the decreasing predation pressure due to fish harvesting may be responsible for the variation [27].
At the reservoir scale, damming is expected to cause biotic differentiation through increasing the heterogeneity of the environment with a spatially hydrological gradient that supports the colonization and population growth of different zooplankton species [83,86]. The environment close to the dam would reach a lacustrine state over time, as a nearly realized dam usually has an environment closer to the riverine state. Regarding the spatial dynamics in the main lacustrine zones of DJKR, the two surveys conducted in 1986–1987 [28] and 1992–1993 [29,87] revealed that the richness and abundance of zooplankton in HR were higher than those in DR, whereas the biomass of zooplankton in HR was lower (namely, there were fewer large-bodied zooplankton in HR than in DR). Compared with DR, HR had environmental conditions more similar to a natural river. In this study, the richness, abundance, and biomass of zooplankton in HR, or the four specific taxonomic groups, were all higher than those in DR, except for the biomass of Rotifera. Similar phenomena were observed in the historical studies on Rotifera [30] and crustacean zooplankton [31] in DJKR, which may be related to the higher water trophic state in HR (Table 2), indicating a higher availability of food resources. Meanwhile, the environment in HR is gradually approaching that of natural lakes, which makes it more suitable for the growth of large-bodied zooplankton than before [67]. However, the differences in zooplankton community structure between the two reservoir zones of DJKR, either in terms of the overall analysis or multivariate statistical analysis of taxon composition and biodiversity, were not statistically significant. The corresponding environmental parameters were also not significantly different. The limited sampling sites, only covering the main lacustrine zones, could be an important aspect not to be neglected in the insignificant results.

4.3. Relationships of Zooplankton with Water Trophic States

Relationships between zooplankton and water trophic levels may be influenced by biotic factors, abiotic factors, and their interactions. In this study, zooplankton taxa composition correlated notably with the factors related to water trophic states, as determined by the db-RDA analyses, and the selected parameters had an explanation rate of more than 45%, except for Rotifera (only 13.90%). The lower correlation between the factors and Rotifera could be caused by top-down pressure: the increase of Copepoda may have resulted in a high level of predation on Rotifera (Figure 4).
Moreover, hierarchical partitioning analysis revealed that the contributions of Chl.a and TP were always low and insignificant regardless of the overall analysis or separate analysis in this study. Mantel’s test based on the biomass data of functional groups detected that only the LCF group correlated significantly with Chl.a and TP. The results imply that analysis based on functional groups of zooplankton could provide a more accurate result about the relationship between zooplankton and water trophic levels (at least the related parameters). In addition, the results also indicated a weak bottom-up effect of phytoplankton on zooplankton compositions in DJKR.
TP, a main limiting factor for the growth of algae, could influence the zooplankton community through bottom-up effects. The value of Chl.a, as an index of food resources availability for zooplankton, is important in shaping zooplankton community structure [88]. Three possible processes may lead to the weak bottom-up effect: (i) the increase of inedible algae mentioned above [75]; (ii) crustacean zooplankton is dominated by Copepoda that are less efficient grazers than large-bodied Cladocera (Figure 4); and (iii) the potentially strong top-down effects on zooplankton. In waterbodies where top-down effects dominate, the zooplankton community composition, size distribution, and biodiversity are more likely to be influenced by fish predation, resulting in a weak relationship between zooplankton and water quality [21]. The relationship between zooplankton and phytoplankton could also be weakened, and even collapse [21,22,89].
The potentially strong top-down effects could be supported by the following phenomena. As far as we know, major fish harvests in DJKR were dominated by zooplanktivorous fish (silver carp, bighead carp, and icefish) ([71]; Table S3), with commercial fish harvest production reaching up to about 75 kg/ha. Furthermore, reductions of Cladocera abundance and biomass at the time of study (in August) were consistent with the massive outbreak of young-of-the-year juveniles of zooplanktivorous fish, e.g., Culter spp., icefish, and Hemiculter leucisculus; moreover, those of Cladocera increased after the commercial fish harvesting (Figure 4; [90]). Additionally, there was a shift from the LCF group (in May) to the SCC and SCF groups (in August) in functional groups of zooplankton. Given that this is not always the case [20,91,92], and TP did not differ statistically across the sampling areas or time in our study, more targeted and specific studies are needed.

4.4. Implications for Reservoir Ecological Conservation and Future Research

Last but not least, the zooplankton compositions in this study only covered the surface water in the main lacustrine zones of DJKR, which was insufficient to justify the correlations discovered for the entire reservoir. Considering the complexity and heterogeneity of large freshwater ecosystems, studies at a whole reservoir scale are needed to obtain more comprehensive knowledge of zooplankton compositions to ensure the sustainable development of ecosystem service functions in DJKR. Moreover, functional groups of zooplankton could be taken into consideration when evaluating the relationships between zooplankton and water trophic levels. In addition, given that large-bodied zooplankton are more effective in controlling algae [10], in the future management of DJKR, it is recommended that the fish stocking strategy be adjusted to increase the stocking of native piscivorous fish and control species similar to N. taihuensis, and thereby allow the proportion of large-bodied zooplankton to increase gradually [73].

5. Conclusions

In this study, we reported the zooplankton composition targeting three levels (overall, taxonomic, and functional groups) and their relationships with the environmental factors related to the trophic levels in DJKR. We identified 65 zooplankton taxa, including 28 taxa of Rotifera, 17 taxa of Protozoa, 10 taxa of Cladocera, and 10 taxa of Copepoda, which were further classified into 10 functional groups. The lower level of diversity indices and higher evenness demonstrated that the zooplankton community structure was relatively simple. The zooplankton composition varied significantly over the three sampling months but showed no distinct spatial differences in the main lacustrine zones of DJKR. Significant correlations between zooplankton and water trophic states could be only detected in some of the main indicators of water trophic states and zooplankton compositions. Moreover, analysis based on functional groups could provide a more accurate snapshot of the relationships. This study improved our understanding of zooplankton composition patterns and highlighted the different performances of methods when exploring relationships between zooplankton and water trophic levels in the surface layer of DJKR.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/w14203253/s1, Table S1: A list of zooplankton taxa and abbreviations in DJKR, and their occurrence in each sampling month and area; Table S2: Records on the number of taxa (NS), mean abundance (D, ind./L), and mean biomass (B, mg/L) of the four zooplankton taxonomic groups in DJKR investigated in this study and documented in the literature, as well as water quality parameters for each period; Table S3: A list of fish species composition and major characteristics in DJKR, compiled from our survey data during 2013–2018.

Author Contributions

Conceptualization, M.X., R.L., T.Z. and S.Y.; Data curation, M.X., R.L. and G.Y.; Formal analysis, M.X.; Funding acquisition, T.Z.; Investigation, M.X., R.L. and G.Y.; Project administration, T.Z., J.Y. and J.L.; Resources, T.Z., J.Y. and J.L.; Supervision, T.Z.; Validation, M.X., R.L., T.Z., C.L., G.Y., J.Y., J.L. and S.Y.; Visualization, M.X. and T.Z.; Writing—original draft, M.X.; Writing—review and editing, M.X., R.L., T.Z., C.L. and S.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Key Research and Development Program of China, grant number 2019YFD0900703; the National Science and Technology Support Program of China, grant number 2015BAD13B02; and the National Natural Science Foundation of China, grant number 32072983.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

The authors would like to acknowledge the invaluable help of Puze Wang, Xiang Liu, Yaocheng Fan, Youxin Chen, and Lingjun Xiao for their extensive assistance in the study.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

Appendix A

Table A1. The classification method of zooplankton functional groups in Danjiangkou Reservoir.
Table A1. The classification method of zooplankton functional groups in Danjiangkou Reservoir.
Functional GroupAbbreviationFeeding HabitsBody Size/Length
Protozoan filter feedersPFFilter-feeding, feeding on bacteria, phytoplankton, and organic detritus
Protozoan carnivoresPCCarnivorous-feeding, feeding on small protozoans
Rotifer filter feedersRFFilter-feeding, feeding on bacteria, phytoplankton, and organic detritus
Rotifer carnivoresRCCarnivorous-feeding, feeding on protozoans, other rotifers, and small crustacean
Small copepod and cladoceran filter feedersSCFFilter-feeding, feeding on bacteria, phytoplankton, organic detritus, and protozoans<0.7 mm
Small copepod and cladoceran carnivoresSCCCarnivorous-feeding, feeding on rotifers, cladocerans, dipster (chironomidae larvae), and oligochaeta<0.7 mm
Middle copepod and cladoceran filter feedersMCFFilter-feeding, feeding on bacteria, phytoplankton, organic detritus, and protozoans0.7–1.5 mm
Middle copepod and cladoceran carnivoresMCCCarnivorous-feeding, feeding on rotifers, cladocerans, dipster (chironomidae larvae), and oligochaeta0.7–1.5 mm
Large copepod and cladoceran filter feedersLCFFilter-feeding, feeding on bacteria, phytoplankton, organic detritus, and protozoans>1.5 mm
Large copepod and cladoceran carnivoresLCCCarnivorous-feeding, feeding on rotifers, cladocerans, dipster (chironomidae larvae), and oligochaeta>1.5 mm
Table A2. The formulas used to calculate the comprehensive trophic level index and its assessment criteria.
Table A2. The formulas used to calculate the comprehensive trophic level index and its assessment criteria.
EquationMeaning of AbbreviationNotesAssessment Criteria
TLIc = j = 1 m ( r i j 2 / j = 1 m r i j 2 ) × T L I j (1)m: number of indicators
r i j : coefficients of each parameters j
T L I j : sub-index of TLIc
r i j : Chl.a, 1; TP, 0.84; TN, 0.82; SD, −0.83; CODMn, 0.83Oligotrophic: <30
Mesotrophic: 30–50
Eutrophic: >50
(light-eutrophic: 50–60;
medium-eutrophic: 60–70;
hyper-eutrophic: >70)
TLI(Chl.a) = 10(2.5 + 1.086lnChl.a) (2)Chl.a: chlorophyll a (μg/L)
TLI(TP) = 10(9.436 + 1.624lnTP) (3)TP: Total phosphorus (mg/L)
TLI(TN) = 10(5.453 + 1.694lnTN) (4)TN: Total nitrogen (mg/L)
TLI(SD) = 10(5.118 − 1.94lnSD) (5)SD: Secchi disk depth (m)
TLI(CODMn) = 10(0.109 + 2.661lnCODMn) (6)CODMn: Permanganate index (mg/L)
Table A3. Results of SIMPER analysis for taxa with contribution to the variation among the three sampling months > 5% and p < 0.05, based on the four taxonomic groups.
Table A3. Results of SIMPER analysis for taxa with contribution to the variation among the three sampling months > 5% and p < 0.05, based on the four taxonomic groups.
Taxonomic GroupsMonthsTaxa CodeAverage DissimilarityStandard DeviationContributionp
ProtozoaMay vs. Aug.Halc0.11970.03170.19190.001
Cil0.09500.01870.15230.001
Difg0.09100.01640.14590.009
Chia0.06360.04400.10190.002
Tinf0.05820.03770.09330.001
May vs. Nov.Halc0.14570.04650.22430.001
Cil0.09220.04170.14190.003
Chia0.07590.05430.11680.001
Tinf0.06910.04560.10630.001
Glas0.03690.04670.05680.01
Aug. vs. Nov.Difg0.16040.03650.29700.001
Strg0.09040.06980.16750.003
Strv0.08580.07190.15890.005
Laco0.05830.07090.10790.017
Tetp0.03750.06710.06950.034
RotiferaMay vs. Aug.Colp0.08640.10950.09010.048
Brafo0.06700.07440.06980.01
Hexm0.06460.08680.06740.012
Enc0.05500.09100.05730.043
May vs. Nov.Trir0.17880.18890.18450.002
Ascs0.10110.09760.10430.005
Trip0.08540.14970.08820.02
Synp0.06050.08410.06250.037
Polv0.04870.06580.05030.037
Aug. vs. Nov.Colp0.09430.11160.11290.025
Brafo0.07000.07720.08380.007
Hexm0.06750.08930.08080.023
Enc0.05770.09370.06900.049
Tris0.05530.05910.06610.038
CladoceraMay vs. Aug.Dapc0.30490.14080.33720.003
Diad0.20990.13730.23210.001
Daph0.17320.12620.19150.002
May vs. Nov.Bosc0.27180.14750.41330.018
Aug. vs. Nov.Bosc0.29960.21890.37820.014
Diad0.17870.11520.22550.007
Cerco0.05140.07950.06490.021
CopepodaMay vs. Aug.Nau0.27210.08010.46900.001
Cycc0.11160.05440.19230.003
May vs. Nov.Nau0.22370.08030.37030.001
Cycc0.12870.05240.21310.002
Sind0.07890.04780.13060.005
Micv0.05420.03700.08970.009

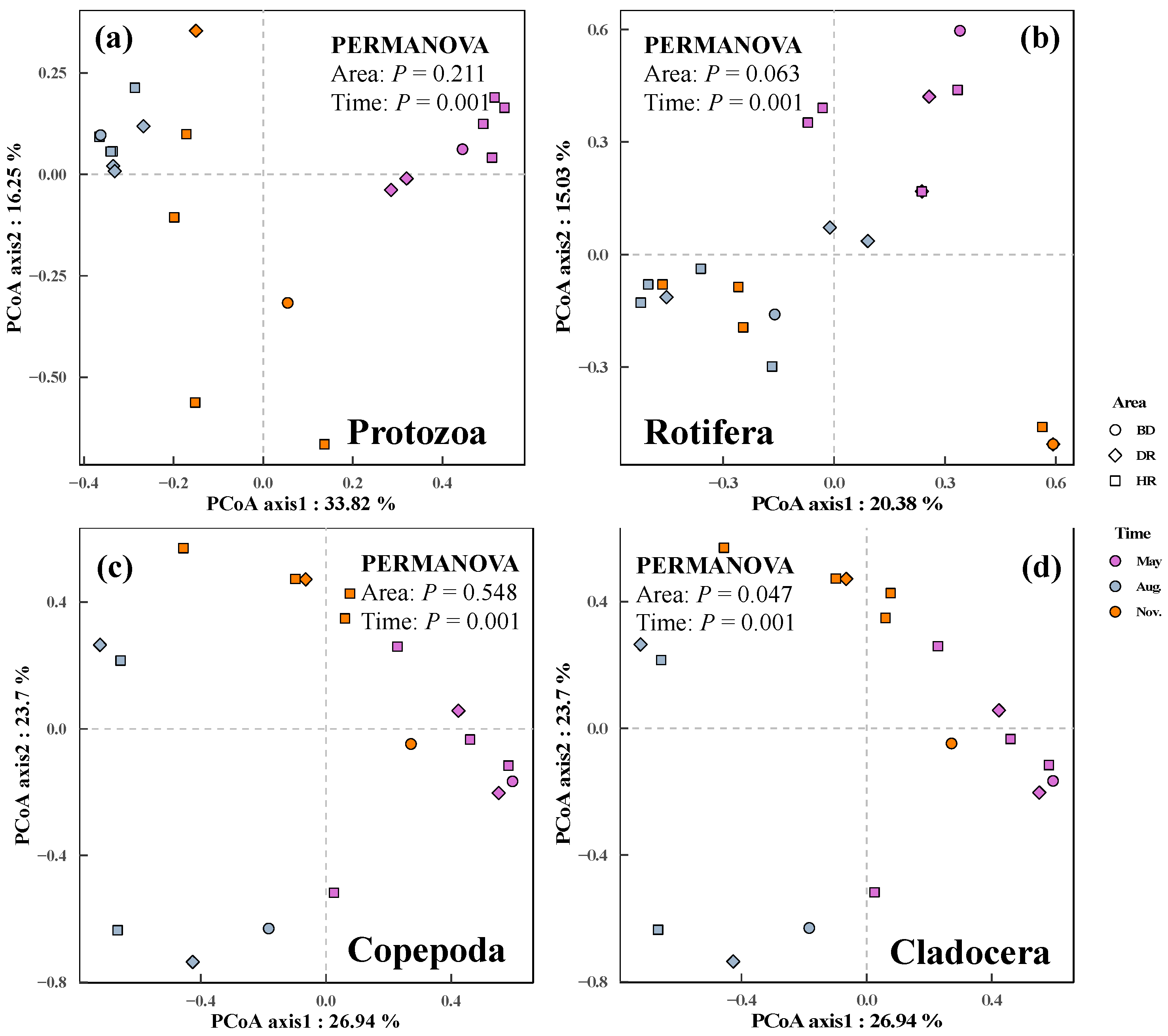

Figure A1. Plots of Principal Coordinate Analysis (PCoA) of the composition in the four taxonomic groups, with results of Permutational Multivariate Analysis of Variance (PERMANOVA) shown in top and right (or left) corner. (a) Protozoa, (b) Rotifera, (c) Copepoda, (d) Cladocera.
Figure A1. Plots of Principal Coordinate Analysis (PCoA) of the composition in the four taxonomic groups, with results of Permutational Multivariate Analysis of Variance (PERMANOVA) shown in top and right (or left) corner. (a) Protozoa, (b) Rotifera, (c) Copepoda, (d) Cladocera.
Water 14 03253 g0a1

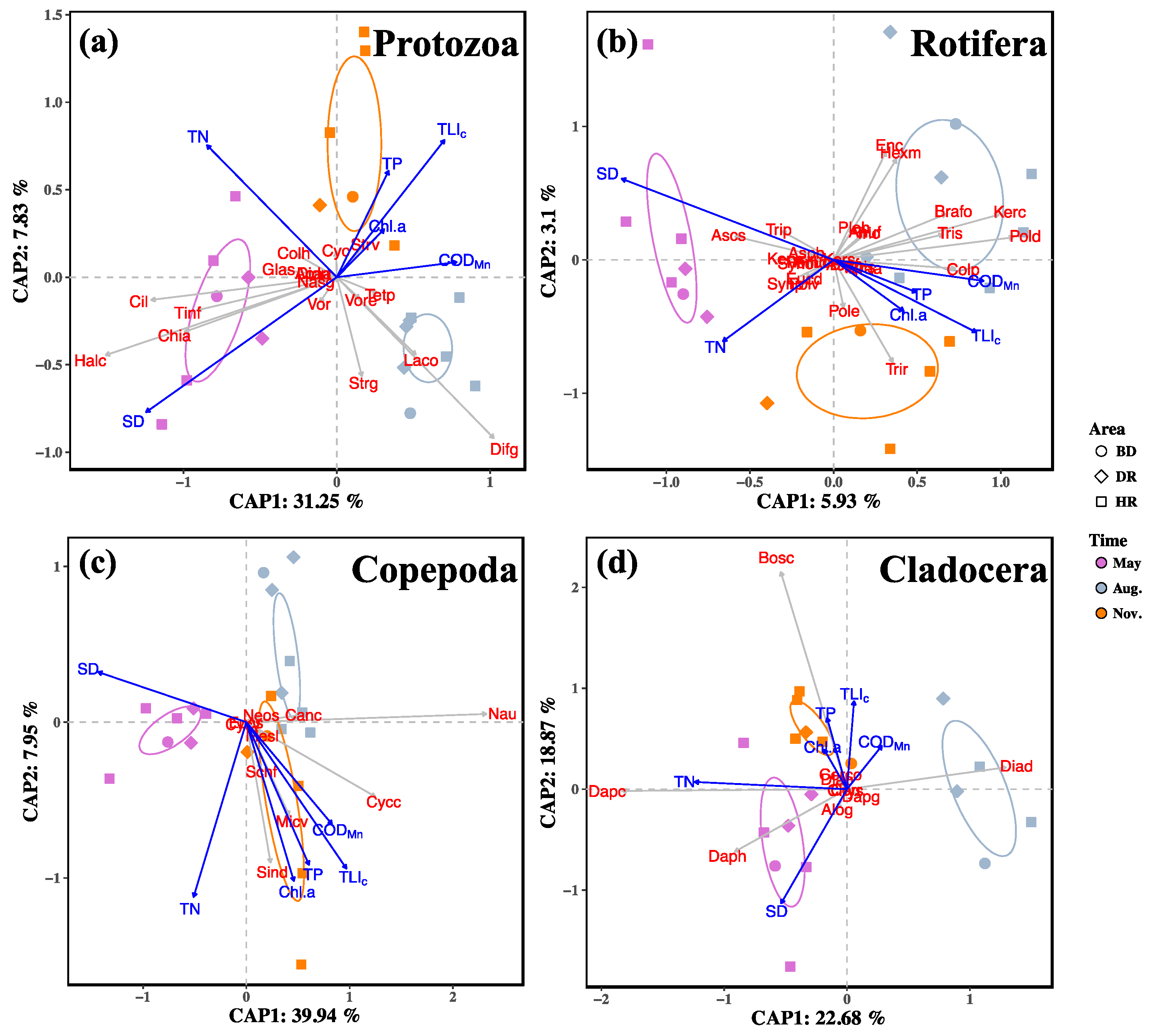

Figure A2. Plots of distance-based Redundancy Analysis (db-RDA) on the relationships between each taxonomic group (based on the abundance data) and environmental parameters (scaling = 2). Confidence intervals for the sites in different sampling months are represented by the ellipses (confidence level: 0.95). (a) Protozoa, (b) Rotifera, (c) Copepoda, (d) Cladocera. SD: Secchi disk depth, Chl.a: chlorophyll a, TN: total nitrogen, TP: total phosphorus, CODMn: permanganate index. HR: Hanjiang reservoir area, DR: Danjiang reservoir area, BD: the area close to the dam. The full names of taxa codes are listed in Table S1.
Figure A2. Plots of distance-based Redundancy Analysis (db-RDA) on the relationships between each taxonomic group (based on the abundance data) and environmental parameters (scaling = 2). Confidence intervals for the sites in different sampling months are represented by the ellipses (confidence level: 0.95). (a) Protozoa, (b) Rotifera, (c) Copepoda, (d) Cladocera. SD: Secchi disk depth, Chl.a: chlorophyll a, TN: total nitrogen, TP: total phosphorus, CODMn: permanganate index. HR: Hanjiang reservoir area, DR: Danjiang reservoir area, BD: the area close to the dam. The full names of taxa codes are listed in Table S1.
Water 14 03253 g0a2

References

  1. Stone, R. The Legacy of the Three Gorges Dam. Science 2011, 333, 817. [Google Scholar] [CrossRef] [PubMed]
  2. Fan, H.; He, D.; Wang, H. Environmental Consequences of Damming the Mainstream Lancang-Mekong River: A Review. Earth-Sci. Rev. 2015, 146, 77–91. [Google Scholar] [CrossRef]
  3. Fan, P.; Cho, M.S.; Lin, Z.; Ouyang, Z.; Qi, J.; Chen, J.; Moran, E.F. Recently Constructed Hydropower Dams Were Associated with Reduced Economic Production, Population, and Greenness in Nearby Areas. Proc. Natl. Acad. Sci. USA 2022, 119, e2108038119. [Google Scholar] [CrossRef] [PubMed]
  4. Mulligan, M.; van Soesbergen, A.; Sáenz, L. GOODD, a Global Dataset of More than 38,000 Georeferenced Dams. Sci. Data 2020, 7, 31. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Zhao, K.; Wang, L.; Riseng, C.; Wehrly, K.; Pan, Y.; Song, K.; Da, L.; Pang, W.; You, Q.; Tian, H.; et al. Factors Determining Zooplankton Assemblage Difference among a Man-Made Lake, Connecting Canals, and the Water-Origin River. Ecol. Indic. 2018, 84, 488–496. [Google Scholar] [CrossRef]
  6. Ejsmont-Karabin, J. Does the World Need Faunists? Based on Rotifer (Rotifera) Occurrence Reflections on the Role of Faunistic Research in Ecology. Internat. Rev. Hydrobiol. 2019, 104, 49–56. [Google Scholar] [CrossRef]
  7. Taipale, S.; Kankaala, P.; Hämäläinen, H.; Jones, R.I. Seasonal Shifts in the Diet of Lake Zooplankton Revealed by Phospholipid Fatty Acid Analysis. Freshw. Biol. 2009, 54, 90–104. [Google Scholar] [CrossRef]
  8. Jayasinghe, U.A.D.; García-Berthou, E.; Li, Z.; Li, W.; Zhang, T.; Liu, J. Co-Occurring Bighead and Silver Carps Show Similar Food Preference but Different Isotopic Niche Overlap in Different Lakes. Environ. Biol. Fishes 2015, 98, 1185–1199. [Google Scholar] [CrossRef]
  9. Persson, J.; Brett, M.T.; Vrede, T.; Ravet, J.L. Food Quantity and Quality Regulation of Trophic Transfer between Primary Producers and a Keystone Grazer (Daphnia) in Pelagic Freshwater Food Webs. Oikos 2007, 116, 1152–1163. [Google Scholar] [CrossRef]
  10. Brooks, J.L.; Dodson, S.I. Predation, Body Size, and Composition of Plankton. Science 1965, 150, 28–35. [Google Scholar] [CrossRef]
  11. Iglesias, C.; Mazzeo, N.; Meerhoff, M.; Lacerot, G.; Clemente, J.M.; Scasso, F.; Kruk, C.; Goyenola, G.; García-Alonso, J.; Amsinck, S.L.; et al. High Predation Is of Key Importance for Dominance of Small-Bodied Zooplankton in Warm Shallow Lakes: Evidence from Lakes, Fish Exclosures and Surface Sediments. Hydrobiologia 2011, 667, 133–147. [Google Scholar] [CrossRef]
  12. Ye, L.; Chang, C.Y.; García-Comas, C.; Gong, G.C.; Hsieh, C. Increasing Zooplankton Size Diversity Enhances the Strength of Top-down Control on Phytoplankton through Diet Niche Partitioning. J. Anim. Ecol. 2013, 82, 1052–1061. [Google Scholar] [CrossRef] [PubMed]
  13. Shapiro, J.; Lamarra, V.; Lynch, M. Biomanipulation, an Ecosystem Approach to Lake Restoration. In Proceedings of the Symposium on Water Quality Management Through Biological Control, Gainesville, FL, USA, 23–30 January 1975; pp. 85–96. [Google Scholar]
  14. Rosińska, J.; Romanowicz-Brzozowska, W.; Kozak, A.; Gołdyn, R. Zooplankton Changes during Bottom-up and Top-down Control Due to Sustainable Restoration in a Shallow Urban Lake. Environ. Sci. Pollut. Res. 2019, 26, 19575–19587. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Liang, D.; Wang, Q.; Wei, N.; Tang, C.; Sun, X.; Yang, Y. Biological Indicators of Ecological Quality in Typical Urban River-Lake Ecosystems: The Planktonic Rotifer Community and Its Response to Environmental Factors. Ecol. Indic. 2020, 112, 106127. [Google Scholar] [CrossRef]
  16. Min, C.; Johansson, L.S.; Søndergaard, M.; Lauridsen, T.L.; Chen, F.; Sh, T.; Jeppesen, E. Copepods as Environmental Indicator in Lakes: Special Focus on Changes in the Proportion of Calanoids along Nutrient and PH Gradients. Aquat. Ecol. 2021, 55, 1241–1252. [Google Scholar] [CrossRef]
  17. Ochocka, A. ZIPLAS: Zooplankton Index for Polish Lakes’ Assessment: A New Method to Assess the Ecological Status of Stratified Lakes. Environ. Monit. Assess. 2021, 193, 664. [Google Scholar] [CrossRef]
  18. Perbiche-Neves, G.; Pomari, J.; Serafim-Júnior, M.; Nogueira, M.G. Cyclopoid Copepods as Indicators of Trophic Level in South American Reservoirs: A New Perspective at Species Level Based on a Wide Spatial-Temporal Scale. Ecol. Indic. 2021, 127, 107744. [Google Scholar] [CrossRef]
  19. Stamou, G.; Katsiapi, M.; Moustaka-Gouni, M.; Michaloudi, E. The Neglected Zooplankton Communities as Indicators of Ecological Water Quality of Mediterranean Lakes. Limnetica 2021, 40, 359–373. [Google Scholar] [CrossRef]
  20. García-Chicote, J.; Armengol, X.; Rojo, C. Zooplankton Abundance: A Neglected Key Element in the Evaluation of Reservoir Water Quality. Limnologica 2018, 69, 46–54. [Google Scholar] [CrossRef]
  21. Li, Y.; Chen, F. Are Zooplankton Useful Indicators of Water Quality in Subtropical Lakes with High Human Impacts? Ecol. Indic. 2020, 113, 106167. [Google Scholar] [CrossRef]
  22. Wang, L.; Chen, J.; Su, H.; Ma, X.; Wu, Z.; Shen, H.; Yu, J.; Liu, J.; Wu, Y.; Ding, G.; et al. Is Zooplankton Body Size an Indicator of Water Quality in (Sub)Tropical Reservoirs in China? Ecosystems 2022, 25, 308–319. [Google Scholar] [CrossRef]
  23. Shen, H.; Cai, Q.; Zhang, M. Spatial Gradient and Seasonal Variation of Trophic Status in a Large Water Supply Reservoir for the South-to-North Water Diversion Project, China. J. Freshw. Ecol. 2015, 30, 249–261. [Google Scholar] [CrossRef] [Green Version]
  24. Liu, Y.; Zhu, Y.; Qiao, X.; Zheng, B.; Chang, S.; Fu, Q. Investigation of Nitrogen and Phosphorus Contents in Water in the Tributaries of Danjiangkou Reservoir. R Soc. Open Sci. 2018, 5, 170624. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Li, N.X.; Xu, J.F.; Yin, W.; Chen, Q.Z.; Wang, J.; Shi, Z.H. Effect of Local Watershed Landscapes on the Nitrogen and Phosphorus Concentrations in the Waterbodies of Reservoir Bays. Sci. Total Environ. 2020, 716, 137132. [Google Scholar] [CrossRef]
  26. Li, N.; Wang, J.; Yin, W.; Jia, H.; Xu, J.; Hao, R.; Zhong, Z.; Shi, Z. Linking Water Environmental Factors and the Local Watershed Landscape to the Chlorophyll a Concentration in Reservoir Bays. Sci. Total Environ. 2021, 758, 143617. [Google Scholar] [CrossRef] [PubMed]
  27. Borutsky, E.B.; Wu, H.W.; Pai, K.T.; Ko, M.S.; Wang, C.L.; Wang, S.T.; Chen, S.T. Hydrobiological Survey of the Region of the Projected Dam-Reservoir of Danjiangkou, with Propositions for Fisheries Management. Acta Hydrobiol. Sinica 1959, 1, 33–56. (In Chinese) [Google Scholar]
  28. Yang, G.; Yang, G.R.; Liu, J.L. Plankton Resource Survey of Dan Jiangkou Reservoir. J. Hubei Agric. Coll. 1996, 16, 38–42. (In Chinese) [Google Scholar]
  29. Han, D.J.; Pen, J.H.; Jian, D.; Zhou, Q.; Wu, H.J. The Assessment of Food Organism Resources and Trophic States of Danjiangkou Reservoir. J. Lake Sci. 1997, 09, 57–62. (In Chinese) [Google Scholar]
  30. Kong, L.H.; Cai, Q.H.; Xu, Y.Y.; Wang, L.; Zhang, M. Seasonal Change Features of Rotifer Community and Its Correlation with Environmental Factors in Danjiangkou Reservoir. J. Lake Sci. 2010, 22, 941–949. (In Chinese) [Google Scholar]
  31. Wang, J.J.; Liu, W.J.; Zhu, L.Y.; Zhang, M.L. Community Structure of Planktonic Crustaceans in Danjiangkou Reservoir and Effects of Environmental Factors on It. Trans. Oceanol. Limnol. 2016, 77–87. (In Chinese) [Google Scholar]
  32. Wan, Y.S.; Zhang, L.Q.; Huang, Z.; Lin, L.; Wu, M.; Jin, H.Y. Analysis of Water Quality Changes and Pollution Countermeasures for Water Source Region of the Middle Route of South to North Water Diversion Project. China Water Resour. 2018, 27–30+58. (In Chinese) [Google Scholar]
  33. Barnett, J.; Rogers, S.; Webber, M.; Finlayson, B.; Wang, M. Sustainability: Transfer Project Cannot Meet China’s Water Needs. Nature 2015, 527, 295–297. [Google Scholar] [CrossRef] [Green Version]
  34. Yu, M.; Wood, P.; van de Giesen, N.; Liu, X.; Li, Q.; Wang, G.; Zhang, J. Enhanced Potential Ecological Risk Induced by a Large Scale Water Diversion Project. Stoch. Environ. Res. Risk Assess. 2020, 34, 2125–2138. [Google Scholar] [CrossRef]
  35. Zhao, P.; Li, Z.; Zhang, R.; Pan, J.; Liu, Y. Does Water Diversion Project Deteriorate the Water Quality of Reservoir and Downstream? A Case-Study in Danjiangkou Reservoir. Glob. Ecol. Conserv. 2020, 24, e01235. [Google Scholar] [CrossRef]
  36. Wang, Y.; Liu, X.; Wang, T.; Zhang, X.; Feng, Y.; Yang, G.; Zhen, W. Relating Land-Use/Land-Cover Patterns to Water Quality in Watersheds Based on the Structural Equation Modeling. CATENA 2021, 206, 105566. [Google Scholar] [CrossRef]
  37. Li, X.; Liu, R.; Gan, L. Study on Spatial and Temporal Changes of Landscape Pattern in Danjiangkou Reservoir Wetland in Recent 20 Years. China Resour. Compr. Util. 2020, 38, 45–50. (In Chinese) [Google Scholar]
  38. Wang, J.J. The Freshwater Rotifers Fauna of China; Science Press: Beijing, China, 1961; pp. 1–343. (In Chinese) [Google Scholar]
  39. Shen, J.R. Fauna Sinica, Crustacea, Freshwater Copepoda; Science Press: Beijing, China, 1979; pp. 1–450. (In Chinese) [Google Scholar]
  40. Jiang, X.Z.; Du, N.S. Fauna Sinica, Crustacea, Freshwater Cladocera; Science Press: Beijing, China, 1979; pp. 1–297. (In Chinese) [Google Scholar]
  41. Zhou, F.X.; Chen, J.H. Atlas of Freshwater Microflora and Benthos (Second Edition); Chemical Industry Press: Beijing, China, 2011; pp. 1–410. (In Chinese) [Google Scholar]
  42. Zhang, Z.S.; Huang, X.F. Research Methods of Freshwater Plankton; Science Press: Beijing, China, 1991; pp. 1–414. (In Chinese) [Google Scholar]
  43. Wang, H.; Huo, T.; Du, X.; Wang, L.; Song, D.; Huang, X.; Zhao, C. Zooplankton Community and Its Environmental Driving Factors in Ulungur Lake, China. J. Freshw. Ecol. 2022, 37, 387–403. [Google Scholar] [CrossRef]
  44. Mwagona, P.C.; Chengxue, M.; Hongxian, Y. Seasonal Dynamics of Zooplankton Functional Groups in Relation to Environmental Variables in Xiquanyan Reservoir, Northeast China. Ann. Limnol. Int. J. Lim. 2018, 54, 33. [Google Scholar] [CrossRef]
  45. Margalef, R. Information Theory in Ecology. Gen. Syst. 1958, 3, 36–71. [Google Scholar]
  46. Shannon, C.E.; Weaver, W. The Mathematical Theory of Communications; University of Illinois Press: Urbana, IL, USA, 1949. [Google Scholar]
  47. Pielou, E.C. An Introduction to Mathematical Ecology; Wiley-Interscience: New York, NY, USA, 1969. [Google Scholar]
  48. Kruskal, J.B. Nonmetric Multidimensional Scaling: A Numerical Method. Psychometrika 1964, 29, 115–129. [Google Scholar] [CrossRef]
  49. Clarke, K.R. Non-Parametric Multivariate Analyses of Changes in Community Structure. Austral. Ecol. 1993, 18, 117–143. [Google Scholar] [CrossRef]
  50. Anderson, M.J. A New Method for Non-Parametric Multivariate Analysis of Variance. Austral. Ecol. 2001, 26, 32–46. [Google Scholar] [CrossRef]
  51. Legendre, P.; Anderson, M.J. Distance-based redundancy analysis: Testing multispecies responses in multifactorial ecological experiments. Ecol. Monogr. 1999, 69, 1–24. [Google Scholar] [CrossRef]
  52. Legendre, P.; Oksanen, J.; Ter Braak, C.J.F. Testing the Significance of Canonical Axes in Redundancy Analysis. Methods Ecol. Evol. 2011, 2, 269–277. [Google Scholar] [CrossRef]
  53. Lai, J.; Zou, Y.; Zhang, J.; Peres-Neto, P.R. Generalizing Hierarchical and Variation Partitioning in Multiple Regression and Canonical Analyses Using the Rdacca.Hp R package. Methods Ecol. Evol. 2022, 13, 782–788. [Google Scholar] [CrossRef]
  54. Mantel, N. The Detection of Disease Clustering and a Generalized Regression Approach. Cancer Res. 1967, 27, 209–220. [Google Scholar] [PubMed]
  55. R: A Language and Environment for Statistical Computing. Available online: https://www.R-project.org/ (accessed on 7 July 2022).
  56. Fox, J.; Weisberg, S. An R Companion to Applied Regression, 3rd ed.; Sage: Thousand Oaks, CA, USA, 2019. [Google Scholar]
  57. Rcompanion: Functions to Support Extension Education Program Evaluation, R package version 2.4.6.; The Comprehensive R Archive Network: London, UK, 2016; Available online: https://CRAN.R-project.org/package=rcompanion (accessed on 7 July 2022).
  58. FSA: Fisheries Stock Analysis. R Package Version 0.9.1. Available online: https://github.com/droglenc/FSA (accessed on 7 July 2022).
  59. Vegan: Community Ecology Package. R Package Version 2.6-2. Available online: https://CRAN.R-project.org/package=vegan (accessed on 7 July 2022).
  60. Huang, H. LinkET: Everything Is Linkable. R Package Version 0.0.2.4. 2021. Available online: https://github.com/Hy4m/linkET (accessed on 7 July 2022).
  61. eulerr: Area-Proportional Euler and Venn Diagrams with Ellipses. R Package Version 6.1.1. 2021. Available online: https://CRAN.R-project.org/package=eulerr (accessed on 7 July 2022).
  62. ggplot2: Elegant Graphics for Data Analysis. Available online: https://ggplot2.tidyverse.org (accessed on 7 July 2022).
  63. Yu, G. Using ggtree to Visualize Data on Tree-Like Structures. Curr. Protoc. Bioinform. 2020, 69, e96. [Google Scholar] [CrossRef]
  64. aplot: Decorate a “ggplot” with Associated Information. R Package Version 0.1.1. Available online: https://CRAN.R-project.org/package=aplot (accessed on 7 July 2022).
  65. ggpubr: “ggplot2” Based Publication Ready Plots. R Package Version 0.4.0.999. Available online: https://rpkgs.datanovia.com/ggpubr/ (accessed on 7 July 2022).
  66. Thornton, K.W.; Kimmel, B.L.; Payne, F.E. Reservoir Limnology: Ecological Perspectives, 1st ed.; Wiley-Interscience: New York, NY, USA, 1990. [Google Scholar]
  67. Havel, J.E.; Medley, K.A.; Dickerson, K.D.; Angradi, T.R.; Bolgrien, D.W.; Bukaveckas, P.A.; Jicha, T.M. Effect of Main-Stem Dams on Zooplankton Communities of the Missouri River (USA). Hydrobiologia 2009, 628, 121–135. [Google Scholar] [CrossRef]
  68. Alfonso, G.; Belmonte, G.; Marrone, F.; Naselli-Flores, L. Does Lake Age Affect Zooplankton Diversity in Mediterranean Lakes and Reservoirs? A Case Study from Southern Italy. Hydrobiologia 2010, 653, 149–164. [Google Scholar] [CrossRef]
  69. Lin, Q.; Jiang, X.; Han, B.-P.; Jeppesen, E. Does Stocking of Filter-Feeding Fish for Production Have a Cascading Effect on Zooplankton and Ecological State? A Study of Fourteen (Sub)Tropical Chinese Reservoirs with Contrasting Nutrient Concentrations. Hydrobiologia 2014, 736, 115–125. [Google Scholar] [CrossRef]
  70. Hu, C.; Guo, L.; Wang, S. Diet and Feeding Ecology of Invasive Icefish Neosalanx Taihuensis in Erhai Lake, a Chinese Plateau Mesoeutrophicated Lake. Chin. J. Oceanol. Limnol. 2015, 33, 372–380. [Google Scholar] [CrossRef] [Green Version]
  71. Yuan, J.; Xia, Y.; Li, Z.; Yin, Z.; Liu, J. Changes in Fisheries Resources in the Hanjiang River and Danjiangkou Reservoir, China. In Fishery Resources, Environment, and Conservation in the Mississippi and Yangtze (Changjiang) River Basins; Chen, Y., Chapman, D.C., Jackson, J.R., Chen, D., Li, Z., Killgore, K.J., Phelps, Q., Eggleton, M.A., Eds.; American Fisheries Society: Bethesda, MD, USA, 2016; Volume 84, pp. 179–191. [Google Scholar]
  72. Ślusarczyk, M. Impact of fish predation on a small-bodied cladoceran: Limitation or Stimulation? Hydrobiologia 1997, 342–343, 215–221. [Google Scholar] [CrossRef]
  73. Hansson, L.; Gyllstrom, M.; Stahl-Delbanco, A.; Svensson, M. Responses to Fish Predation and Nutrients by Plankton at Different Levels of Taxonomic Resolution. Freshw. Biol. 2004, 49, 1538–1550. [Google Scholar] [CrossRef] [Green Version]
  74. Havens, K.E.; Beaver, J.R.; Manis, E.E.; East, T.L. Inter-Lake Comparisons Indicate That Fish Predation, Rather than High Temperature, Is the Major Driver of Summer Decline in Daphnia and Other Changes among Cladoceran Zooplankton in Subtropical Florida Lakes. Hydrobiologia 2015, 750, 57–67. [Google Scholar] [CrossRef]
  75. Xiong, M.T.; Wang, P.Z.; Ye, S.W.; Yu, G.L.; Yuan, J.; Liu, J.S.; Zhang, T.L. Spatio-Temporal Characteristics of the Phytoplankton Community and Assessment of Fish Productivity in the Danjiangkou Reservoir, the Water Source for the South-to-North Water Diversion Project, China. J. Fish. Sci. China 2021, 28, 715–727. (In Chinese) [Google Scholar]
  76. Bai, J.P.; Huang, G.; Jiang, C.J.; Zhang, W.C.; Wang, Q.D.; Yao, L.G. Characteristics and Historical Changes of the Fish Assemblage in Danjiangkou Reservoir. Biodivers. Sci. 2020, 28, 1202–1212. (In Chinese) [Google Scholar] [CrossRef]
  77. Chi, S.Y.; Zhao, X.F.; Gao, S.B.; Zhang, A.J.; Hu, J.; Li, S.X.; Hu, J.X.; Dong, F.Y. The Spatial Distribution Pattern of Autumn Macroinvertebrates in Relation to Environmental Factors in Danjiangkou Reservoir. Acta Ecol. Sin. 2020, 41, 1229–1241. (In Chinese) [Google Scholar]
  78. Dodson, S.I.; Everhart, W.R.; Jandl, A.K.; Krauskopf, S.J. Effect of Watershed Land Use and Lake Age on Zooplankton Species Richness. Hydrobiologia 2007, 579, 393–399. [Google Scholar] [CrossRef]
  79. Odum, E.P. The Strategy of Ecosystem Development. Science 1969, 164, 262–270. [Google Scholar] [CrossRef] [Green Version]
  80. Simões, N.R.; Nunes, A.H.; Dias, J.D.; Lansac-Tôha, F.A.; Velho, L.F.M.; Bonecker, C.C. Impact of Reservoirs on Zooplankton Diversity and Implications for the Conservation of Natural Aquatic Environments. Hydrobiologia 2015, 758, 3–17. [Google Scholar] [CrossRef]
  81. Simões, N.R.; Braghin, L.S.M.; Duré, G.A.V.; Santos, J.S.; Sonoda, S.L.; Bonecker, C.C. Changing Taxonomic and Functional β-Diversity of Cladoceran Communities in Northeastern and South Brazil. Hydrobiologia 2020, 847, 3845–3856. [Google Scholar] [CrossRef]
  82. Jeppesen, E.; Nõges, P.; Davidson, T.A.; Haberman, J.; Nõges, T.; Blank, K.; Lauridsen, T.L.; Søndergaard, M.; Sayer, C.; Laugaste, R.; et al. Zooplankton as Indicators in Lakes: A Scientific-Based Plea for Including Zooplankton in the Ecological Quality Assessment of Lakes According to the European Water Framework Directive (WFD). Hydrobiologia 2011, 676, 279–297. [Google Scholar] [CrossRef]
  83. Rizo, E.Z.C.; Liu, P.; Niu, H.; Yang, Y.; Lin, Q.; Papa, R.D.S.; Dumont, H.J.; Han, B.-P. Zooplankton in a Continuous Waterscape: Environmental and Spatial Factors Shaping Spring Zooplankton Community Structure in a Large Canyon Reservoir at the Tropic of Cancer. Hydrobiologia 2020, 847, 3621–3635. [Google Scholar] [CrossRef]
  84. Sommer, U.; Adrian, R.; De Senerpont Domis, L.; Elser, J.J.; Gaedke, U.; Ibelings, B.; Jeppesen, E.; Lürling, M.; Molinero, J.C.; Mooij, W.M.; et al. Beyond the Plankton Ecology Group (PEG) Model: Mechanisms Driving Plankton Succession. Annu. Rev. Ecol. Evol. Syst. 2012, 43, 429–448. [Google Scholar] [CrossRef]
  85. Murphy, C.A.; Evans, A.; Coffin, B.; Arismendi, I.; Johnson, S.L. Resilience of Zooplankton Communities in Temperate Reservoirs with Extreme Water Level Fluctuations. Inland Waters 2020, 10, 256–266. [Google Scholar] [CrossRef]
  86. Vieira, M.C.; Ortega, J.C.G.; Vieira, L.C.G.; Velho, L.F.M.; Bini, L.M. Evidence That Dams Promote Biotic Differentiation of Zooplankton Communities in Two Brazilian Reservoirs. Hydrobiologia 2022, 849, 697–709. [Google Scholar] [CrossRef]
  87. Peng, J.H. The Crustacean Zooplankton in the Danjiangkou Reservoir. J. Lake Sci. 1995, 7, 240–248. (In Chinese) [Google Scholar]
  88. Liu, P.; Xu, S.; Lin, J.; Li, H.; Lin, Q.; Han, B.-P. Urbanization Increases Biotic Homogenization of Zooplankton Communities in Tropical Reservoirs. Ecol. Indic. 2020, 110, 105899. [Google Scholar] [CrossRef]
  89. Nicolle, A.; Hansson, L.-A.; Brodersen, J.; Nilsson, P.A.; Brönmark, C. Interactions between Predation and Resources Shape Zooplankton Population Dynamics. PLoS ONE 2011, 6, e16534. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  90. Arunjith, T.S.; Cheng, F.; Wang, Z.; Divya, K.R.; Xie, S. Diurnal Distribution of Fish Abundance and Size Composition in the Danjiangkou Reservoir, China. Indian J. Fish. 2022, 69. [Google Scholar] [CrossRef]
  91. Jeppesen, E.; Peder Jensen, J.; SØndergaard, M.; Lauridsen, T.; Landkildehus, F. Trophic Structure, Species Richness and Biodiversity in Danish Lakes: Changes along a Phosphorus Gradient. Freshw. Biol. 2000, 45, 201–218. [Google Scholar] [CrossRef]
  92. Jeppesen, E.; Jensen, J.P.; Jensen, C.; Faafeng, B.; Hessen, D.O.; Søndergaard, M.; Lauridsen, T.; Brettum, P.; Christoffersen, K. The Impact of Nutrient State and Lake Depth on Top-down Control in the Pelagic Zone of Lakes: A Study of 466 Lakes from the Temperate Zone to the Arctic. Ecosystems 2003, 6, 313–325. [Google Scholar] [CrossRef]
Figure 1. Geographical location and contour map of DJKR, showing the distribution of the sampling sites (D1~D10). The inset map indicates the location of DJKR in the Yangtze River Basin, China.
Figure 1. Geographical location and contour map of DJKR, showing the distribution of the sampling sites (D1~D10). The inset map indicates the location of DJKR in the Yangtze River Basin, China.
Water 14 03253 g001
Figure 2. Temporal variation of water levels and precipitation in DJKR during the sampling periods in 2017. The area plot with the bottom x-axis and left y-axis represents the changes in water level. The histogram with the top x-axis and right y-axis represents the accumulated precipitation in each month. The sampling months of this study are indicated with grey bars.
Figure 2. Temporal variation of water levels and precipitation in DJKR during the sampling periods in 2017. The area plot with the bottom x-axis and left y-axis represents the changes in water level. The histogram with the top x-axis and right y-axis represents the accumulated precipitation in each month. The sampling months of this study are indicated with grey bars.
Water 14 03253 g002
Figure 3. Changes in zooplankton taxa compositions among different sampling months and areas in DJKR. Number of shared taxa (overlapping parts of the circles) and unique taxa (parts of the circles with no overlaps) among the sampling months and areas are shown with Venn diagrams (a) and (b), respectively.
Figure 3. Changes in zooplankton taxa compositions among different sampling months and areas in DJKR. Number of shared taxa (overlapping parts of the circles) and unique taxa (parts of the circles with no overlaps) among the sampling months and areas are shown with Venn diagrams (a) and (b), respectively.
Water 14 03253 g003
Figure 4. Zooplankton (a) abundance and (b) biomass among different sampling months and areas in DJKR. Mean values (left y-axis) of zooplankton are represented by the grey histogram. Values (right y-axis) for each group (Protozoa, Rotifera, Copepoda, Cladocera) are represented by boxplots with original data points, and different letter labels indicate a significant difference (p < 0.05) between the months or the areas. To decrease the effects of the existing maximum value and improve the visual appearance, the right y-axes of the graphs are shown with ln(x + 1)-transformed scales. HR: Hanjiang reservoir area, DR: Danjiang reservoir area, BD: the area close to the dam.
Figure 4. Zooplankton (a) abundance and (b) biomass among different sampling months and areas in DJKR. Mean values (left y-axis) of zooplankton are represented by the grey histogram. Values (right y-axis) for each group (Protozoa, Rotifera, Copepoda, Cladocera) are represented by boxplots with original data points, and different letter labels indicate a significant difference (p < 0.05) between the months or the areas. To decrease the effects of the existing maximum value and improve the visual appearance, the right y-axes of the graphs are shown with ln(x + 1)-transformed scales. HR: Hanjiang reservoir area, DR: Danjiang reservoir area, BD: the area close to the dam.
Water 14 03253 g004
Figure 5. Plots of multivariable analysis results for the zooplankton in DJKR. (a) Nonmetric Multidimensional Scaling (NMDS) analysis (Stress < 0.2), and results of Analysis of Similarities (ANOSIM) are shown in the top and left corner of the plot. (b) Hierachical clustering (hclust) analysis on the samples over different sampling months and areas. HR: Hanjiang reservoir area, DR: Danjiang reservoir area, BD: the area close to the dam.
Figure 5. Plots of multivariable analysis results for the zooplankton in DJKR. (a) Nonmetric Multidimensional Scaling (NMDS) analysis (Stress < 0.2), and results of Analysis of Similarities (ANOSIM) are shown in the top and left corner of the plot. (b) Hierachical clustering (hclust) analysis on the samples over different sampling months and areas. HR: Hanjiang reservoir area, DR: Danjiang reservoir area, BD: the area close to the dam.
Water 14 03253 g005
Figure 6. The composition of zooplankton functional groups. The relative biomass of functional groups and total biomass of zooplankton at each site in different sampling months are shown using a stacked histogram (left y-axis) and lollipop chart (right y-axis), respectively. HR: Hanjiang reservoir area, DR: Danjiang reservoir area, BD: the area close to the dam.
Figure 6. The composition of zooplankton functional groups. The relative biomass of functional groups and total biomass of zooplankton at each site in different sampling months are shown using a stacked histogram (left y-axis) and lollipop chart (right y-axis), respectively. HR: Hanjiang reservoir area, DR: Danjiang reservoir area, BD: the area close to the dam.
Water 14 03253 g006
Figure 7. Results of Distance-based redundancy analysis (db-RDA) on the relationship between zooplankton (based on the presence/absence data of all the taxa) and environmental parameters (scaling = 2). Confidence intervals for the sites in different sampling months are represented by the ellipses (confidence level: 0.95). SD: Secchi disk depth, Chl.a: chlorophyll a, TN: total nitrogen, TP: total phosphorus, CODMn: permanganate index. HR: Hanjiang reservoir area, DR: Danjiang reservoir area, BD: the area close to the dam. The full names of taxa codes are listed in Table S1.
Figure 7. Results of Distance-based redundancy analysis (db-RDA) on the relationship between zooplankton (based on the presence/absence data of all the taxa) and environmental parameters (scaling = 2). Confidence intervals for the sites in different sampling months are represented by the ellipses (confidence level: 0.95). SD: Secchi disk depth, Chl.a: chlorophyll a, TN: total nitrogen, TP: total phosphorus, CODMn: permanganate index. HR: Hanjiang reservoir area, DR: Danjiang reservoir area, BD: the area close to the dam. The full names of taxa codes are listed in Table S1.
Water 14 03253 g007
Figure 8. The individual effects of environmental factors on zooplankton composition. The histogram shows the results of hierarchical partitioning for the variables’ explanation rate in the overall analysis (based on the presence/absence data of all the taxa) and separate analysis (based on the abundance data of each taxonomic group). **: p < 0.01, *: p < 0.05, ns: not significant. SD: Secchi disk depth, Chl.a: chlorophyll a, TN: total nitrogen, TP: total phosphorus, CODMn: permanganate index, HR: Hanjiang reservoir area, DR: Danjiang reservoir area, BD: the area close to the dam.
Figure 8. The individual effects of environmental factors on zooplankton composition. The histogram shows the results of hierarchical partitioning for the variables’ explanation rate in the overall analysis (based on the presence/absence data of all the taxa) and separate analysis (based on the abundance data of each taxonomic group). **: p < 0.01, *: p < 0.05, ns: not significant. SD: Secchi disk depth, Chl.a: chlorophyll a, TN: total nitrogen, TP: total phosphorus, CODMn: permanganate index, HR: Hanjiang reservoir area, DR: Danjiang reservoir area, BD: the area close to the dam.
Water 14 03253 g008
Figure 9. Correlations between functional groups and environmental parameters. The color gradient denotes Spearman’s correlation coefficients between each pair of the environmental factors. The label in each of the squares indicates the specific value of the correlation coefficient (***: p < 0.001, **: p < 0.01). The composition of all functional groups (based on the Euclidean distance of “hellinger” transformed biomass data) was related to each environmental factor (based on the Euclidean distance) by Mantel’s test. Edge width corresponds to the Mantel’s r statistic for the correlation of the two corresponding distance matrices, and edge color indicates the statistical significance based on 999 permutations. SD: Secchi disk depth, Chl.a: chlorophyll a, TN: total nitrogen, TP: total phosphorus, CODMn: permanganate index.
Figure 9. Correlations between functional groups and environmental parameters. The color gradient denotes Spearman’s correlation coefficients between each pair of the environmental factors. The label in each of the squares indicates the specific value of the correlation coefficient (***: p < 0.001, **: p < 0.01). The composition of all functional groups (based on the Euclidean distance of “hellinger” transformed biomass data) was related to each environmental factor (based on the Euclidean distance) by Mantel’s test. Edge width corresponds to the Mantel’s r statistic for the correlation of the two corresponding distance matrices, and edge color indicates the statistical significance based on 999 permutations. SD: Secchi disk depth, Chl.a: chlorophyll a, TN: total nitrogen, TP: total phosphorus, CODMn: permanganate index.
Water 14 03253 g009
Table 1. Changes in the zooplankton biodiversity indices among different sampling months and areas in DJKR.
Table 1. Changes in the zooplankton biodiversity indices among different sampling months and areas in DJKR.
Biodiversity IndicesMonthAreaMonth: AreaAnalysis Method
May (N = 7)Aug. (N = 8)Nov. (N = 6)F/Hp ValueBD (N = 3)DR (N = 6)HR (N = 12)F/Hp ValueF/Hp Value
Margalef richness index (Dm)1.71~3.18
(2.30 ± 0.18) a
1.43~2.94
(2.04 ± 0.19) a
1.27~2.13
(1.64 ± 0.14) a
5.710.0181.94~2.94
(2.32 ± 0.31) a
1.32~2.35
(1.67 ± 0.15) a
1.27~3.18
(2.11 ± 0.15) a
4.630.0321.190.363Anova
Shannon–Wiener diversity index (HN)0.61~2.38
(1.58 ± 0.20) ab
1.40~2.23
(1.77 ± 0.11) a
0.41~1.68
(1.03 ± 0.21) b
6.720.0111.43~2.23
(1.78 ± 0.24) a
0.61~1.80
(1.34 ± 0.16) a
0.41~2.38
(1.50 ± 0.18) a
2.090.1671.490.266Anova
Pielou evenness index (JN)0.22~0.72
(0.53 ± 0.06) a
0.58~0.71
(0.64 ± 0.02) a
0.17~0.70
(0.42 ± 0.09) a
5.300.0710.48~0.71
(0.63 ± 0.07) a
0.22~0.61
(0.52 ± 0.06) a
0.17~0.72
(0.52 ± 0.06) a
1.300.5224.700.320Scheirer–Ray–Hare test
Notes: The indices are represented by the minimum and maximum values with the mean and standard error in parentheses. The H statistic is derived from the Scheirer–Ray–Hare test, and the F statistic is produced by the Two-way Anova. Different letters and p values in bold indicate a significant difference (p < 0.05) between the months, the areas, or their interactions. HR: Hanjiang reservoir area, DR: Danjiang reservoir area, BD: the area close to the dam.
Table 2. Variations in water quality parameters in DJKR with the comparison results between different sampling time and areas.
Table 2. Variations in water quality parameters in DJKR with the comparison results between different sampling time and areas.
ParametersMonthAreaMonth: Area
May (N = 7)Aug. (N = 8)Nov. (N = 6)Hp ValueBD (N = 3)DR (N = 6)HR (N = 12)Hp ValueHp Value
SD (m)6.10~10.20
(7.75 ± 0.57) a
2.70~4.30
(3.71 ± 0.21) b
0.90~4.50
(2.48 ± 0.59) b
13.97<0.0013.50~7.40
(5.07 ± 1.19) a
3.90~7.30
(5.11 ± 0.60) a
0.90~10.20
(4.42 ± 0.90) a
2.120.3462.140.711
Chl.a (μg/L)1.28~2.68
(1.96 ± 0.17) b
1.66~5.91
(4.18 ± 0.60) ab
3.31~91.29
(21.42 ± 14.10) a
9.860.0071.84~4.74
(2.81 ± 0.96) a
1.61~5.58
(2.96 ± 0.61) a
1.28~91.29
(12.46 ± 7.25) a
3.420.1811.440.837
TN (mg/L)1.45~1.95
(1.79 ± 0.06) a
0.83~1.19
(1.05 ± 0.04) b
1.50~2.69
(1.91 ± 0.18) a
12.820.0021.12~1.86
(1.52 ± 0.22) a
0.96~1.73
(1.32 ± 0.12) a
0.83~2.69
(1.65 ± 0.16) a
2.340.3102.020.732
TP (mg/L)0.01~0.04
(0.02 ± 0.00) a
0.01~0.04
(0.03 ± 0.00) a
0.02~0.10
(0.05 ± 0.01) a
4.360.1130.02~0.03
(0.02 ± 0.00) a
0.01~0.04
(0.02 ± 0.00) a
0.01~0.10
(0.04 ± 0.01) a
3.340.1883.790.436
CODMn (mg/L)1.63~1.80
(1.72 ± 0.03) b
2.14~2.77
(2.45 ± 0.07) a
1.82~5.48
(2.72 ± 0.56) a
14.07<0.0011.79~2.68
(2.21 ± 0.26) a
1.68~2.40
(2.06 ± 0.13) a
1.63~5.48
(2.42 ± 0.30) a
0.450.8001.200.878
TLIc26.99~33.86
(30.95 ± 0.90) b
30.12~38.85
(36.08 ± 1.04) a
33.75~61.53
(44.29 ± 4.06) a
10.680.00530.85~38.24
(34.30 ± 2.15) a
28.72~38.32
(33.22 ± 1.56) a
26.99~61.53
(39.07 ± 2.63) a
3.800.1501.070.899
Notes: SD: Secchi disk depth, Chl.a: chlorophyll a, TN: total nitrogen, TP: total phosphorus, CODMn: permanganate index. HR: Hanjiang reservoir area, DR: Danjiang reservoir area, BD: the area close to the dam. The parameters in each group are represented by the minimum and maximum values, with the mean and standard error in parentheses. The H statistic was obtained by the Scheirer–Ray–Hare test. Different letters and p values in bold indicate a significant difference (p < 0.05) between the months, the areas, or their interactions.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Xiong, M.; Li, R.; Zhang, T.; Liao, C.; Yu, G.; Yuan, J.; Liu, J.; Ye, S. Zooplankton Compositions in the Danjiangkou Reservoir, a Water Source for the South-to-North Water Diversion Project of China. Water 2022, 14, 3253. https://doi.org/10.3390/w14203253

AMA Style

Xiong M, Li R, Zhang T, Liao C, Yu G, Yuan J, Liu J, Ye S. Zooplankton Compositions in the Danjiangkou Reservoir, a Water Source for the South-to-North Water Diversion Project of China. Water. 2022; 14(20):3253. https://doi.org/10.3390/w14203253

Chicago/Turabian Style

Xiong, Mantang, Ruojing Li, Tanglin Zhang, Chuansong Liao, Gongliang Yu, Jing Yuan, Jiashou Liu, and Shaowen Ye. 2022. "Zooplankton Compositions in the Danjiangkou Reservoir, a Water Source for the South-to-North Water Diversion Project of China" Water 14, no. 20: 3253. https://doi.org/10.3390/w14203253

APA Style

Xiong, M., Li, R., Zhang, T., Liao, C., Yu, G., Yuan, J., Liu, J., & Ye, S. (2022). Zooplankton Compositions in the Danjiangkou Reservoir, a Water Source for the South-to-North Water Diversion Project of China. Water, 14(20), 3253. https://doi.org/10.3390/w14203253

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
