Low-Cost Adsorbents for the Removal of Phenol/Phenolics, Pesticides, and Dyes from Wastewater Systems: A Review

Faculty of Health and Life Sciences, INTI International University, Putra Nilai 71800, Nilai, Negeri Sembilan, Malaysia
Water 2022, 14(20), 3203;
Received: 5 September 2022 / Revised: 19 September 2022 / Accepted: 29 September 2022 / Published: 12 October 2022
(This article belongs to the Special Issue Solid/Liquid Adsorption in Water and Wastewater Treatment)


The huge development of industrial production and human activities throughout the world has resulted in serious water pollution. Pesticides, dyes, phenol, and phenolic compounds may be life-threatening to humans and marine aquatic animals, even at low concentrations. These pollutants must be removed by using different techniques to provide high-quality water. So far, the adsorption process has been considered an effective method to remove pollutants from an aqueous solution. The adsorption method has several advantages, such as low cost, easy operation, and high performance. This article reviewed the removal of dye, pesticides, phenol, and phenolic compounds through zeolite, activated carbon, clay, ash fly, and carbon nanotubes by reviewing the existing literature from 2000 to 2022. The properties of the adsorbent, adsorption studies, the method of design, and optimization conditions were reported. The thermodynamic studies were conducted to determine Gibbs free energy change, standard entropy change, and standard enthalpy change. Adsorption isotherms (Langmuir, Freundlich, and Temkim models) revealed the relationship between the amount of adsorbates per unit adsorbent in the equilibrium process. The adsorption kinetic investigations (pseudo-first-order and pseudo-second-order kinetic model) were carried out to determine the rate of adsorption and correlate the experimental data. Experimental results indicated that a higher adsorption capacity can be observed when the adsorbents have a high surface area and high-porosity structure. The removal percentage of pollutants increased when the adsorbent dosage was increased due to the availability of a larger number of adsorption sites. In conclusion, cheaper adsorbents can be used in wastewater treatment to improve water quality and protect the environment.

1. Introduction

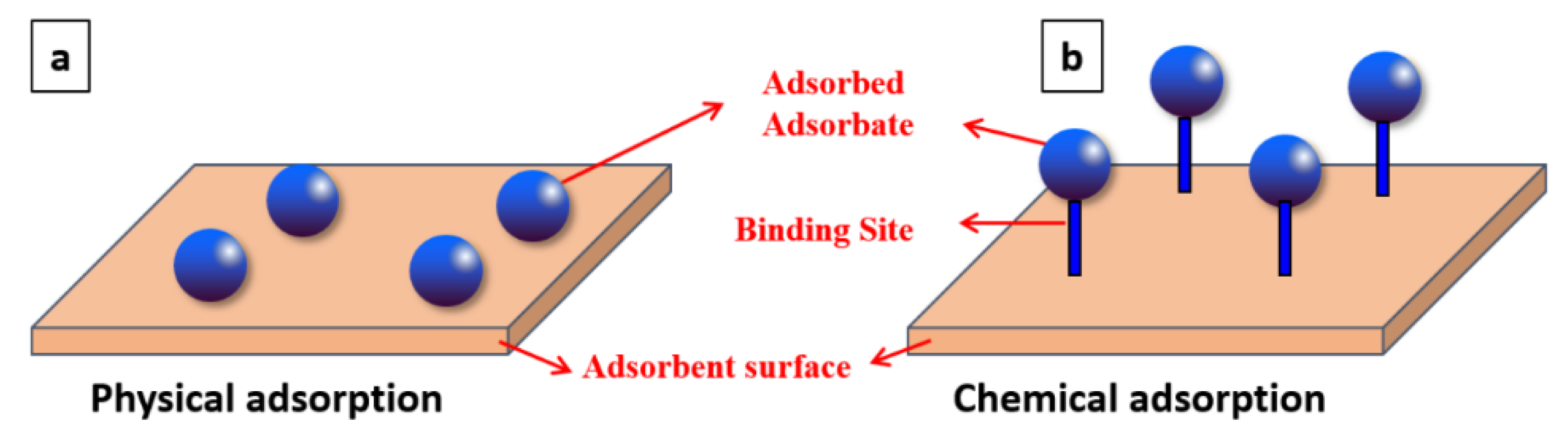

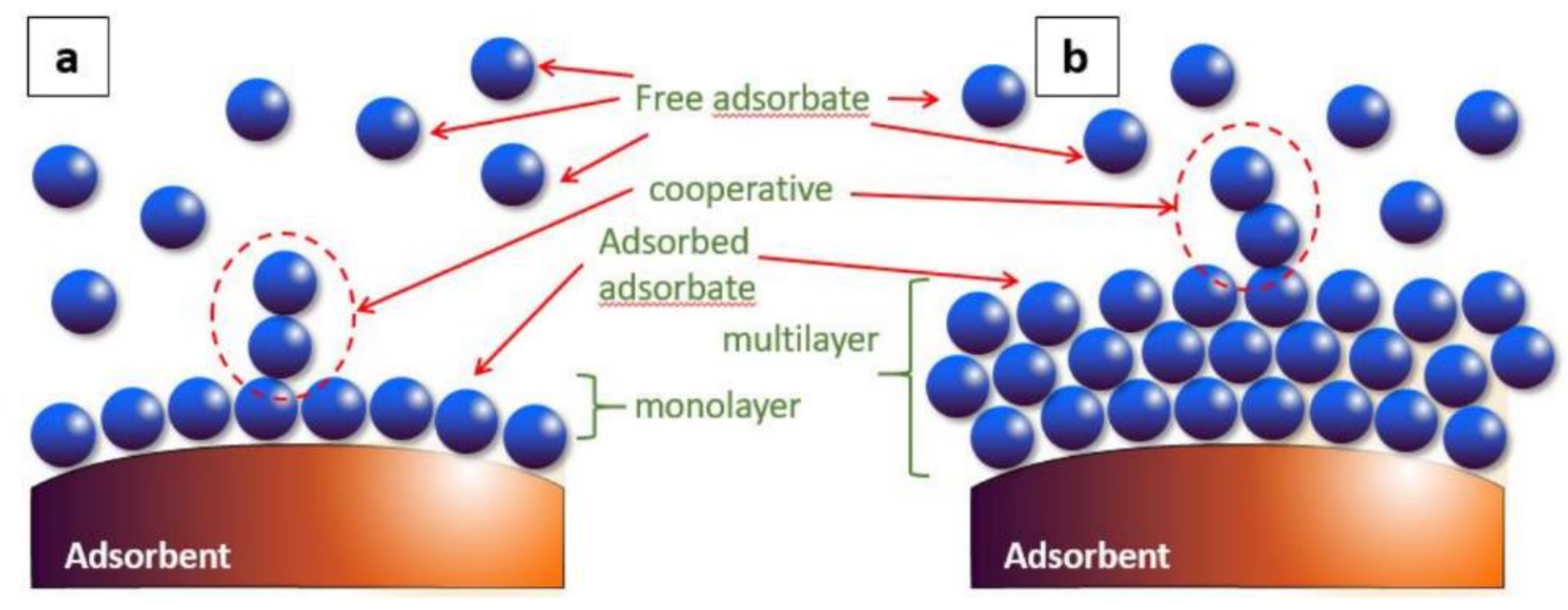

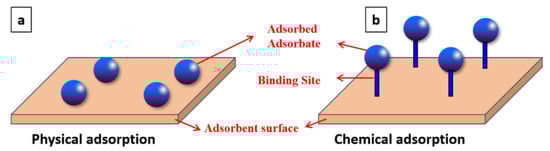

The rapid development of industrial production throughout the globe has been followed by increasing wastewater. The discharge of wastewater (e.g., brine) degrades water quality [1], and thus water cannot be directly used for potable water (via desalination) and industrial applications [2,3]. Wastewater containing pesticides, dyes, phenol, and phenolic compounds may be life-threatening to humans and marine aquatic species, even at low concentrations. Phenols are employed in the manufacture of nylon, resins, and fibers. It is classified as highly toxic due to being carcinogenic in nature [4] and very difficult to degrade through biological methods. Pesticides (including herbicides, insecticides, and fungicides) are used to control pests and cultivate plants [5]. However, they can cause acute and chronic effects on humans and animals. Dyes, described as a colored substance [6], are utilized to impart color in several industries (paper, ink, leather, textiles). Highly colored wastewater should be treated prior to discharge in order to comply with environmental-protection laws. In recent years, numerous techniques [7] have been reported by different researchers from around the globe to remove these pollutants. The advantages of these methods were highlighted such as ozonation (no sludge production), oxidative process (simplicity of application), fenton reagents (high efficiency of water soluble, non-water soluble pollutants), photo chemical degradation (no sludge production), adsorption (high efficiency for removal of different types of dyes and metal ions), ionic exchange (regeneration-no adsorbent loss), electro kinetic coagulation (low cost), irradiation (effective oxidation at lab scale), biological process (ecological feasible) and coagulation/flocculation (low cost). However, some of these techniques have major issues. For example: high sludge production (electro kinetic coagulation), low adsorption capacity (ionic exchange), high costs (irradiation), very slow process (biological process) and Heavy chemical consumption (coagulation/flocculation). The adsorption process (so-called surface phenomenon) has some advantages [8], such as simple design, lower capital cost, and lower operating cost. Recently, researchers have been looking for low-cost adsorbents that can be produced by using agricultural wastes, industrial wastes, and natural materials. The selection of adsorbent mainly depends on factors [9] such as low-cost production, adsorption capacity, re-generability properties, high surface area, and high pore volumes. During the adsorption process, the solute will be deposited onto the adsorbent’s surface due to the forces of attraction [10]. Eventually, it can form a monolayer [8] or multilayer (Figure 1) based on the experimental results. Researchers observed that the adsorption process was spontaneous, a low temperature is favorable, and the concentration of substance will be increased (on the adsorbent surface) over longer timeframes. The adsorption process can be classified into two groups (Figure 2), namely, physical adsorption and chemical adsorption [11]. We can distinguish these processes based on Table 1.
The adsorption capacity at equilibrium (qe, mmol/g) can be determined based on the following equation (Equation (1)).
q e = V ( C o C e ) M
where V, M, Co, and Ce represent the volume (L), mass of adsorbent (g), initial adsorbate concentration (mmol/L), and equilibrium adsorbate concentration (mmol/L). The Langmuir model and Freundlich model can be used to describe the adsorption data. The adsorption isotherm explains the amount of solute adsorbed on the surface of the adsorbent under constant temperature. The monolayer adsorption capacity and heterogeneous surface adsorption process can be represented by using the Langmuir isotherm (Equation (2)) and Freundlich model (Equation (3)), respectively.
C e q e = 1 ( b ) X m + C e X m
where   C e ,   X m , b   represent the equilibrium adsorbate concentration (mmol/L), theoretic maximum adsorption capacity (mmol/g), and constant value (L/mmol), respectively.

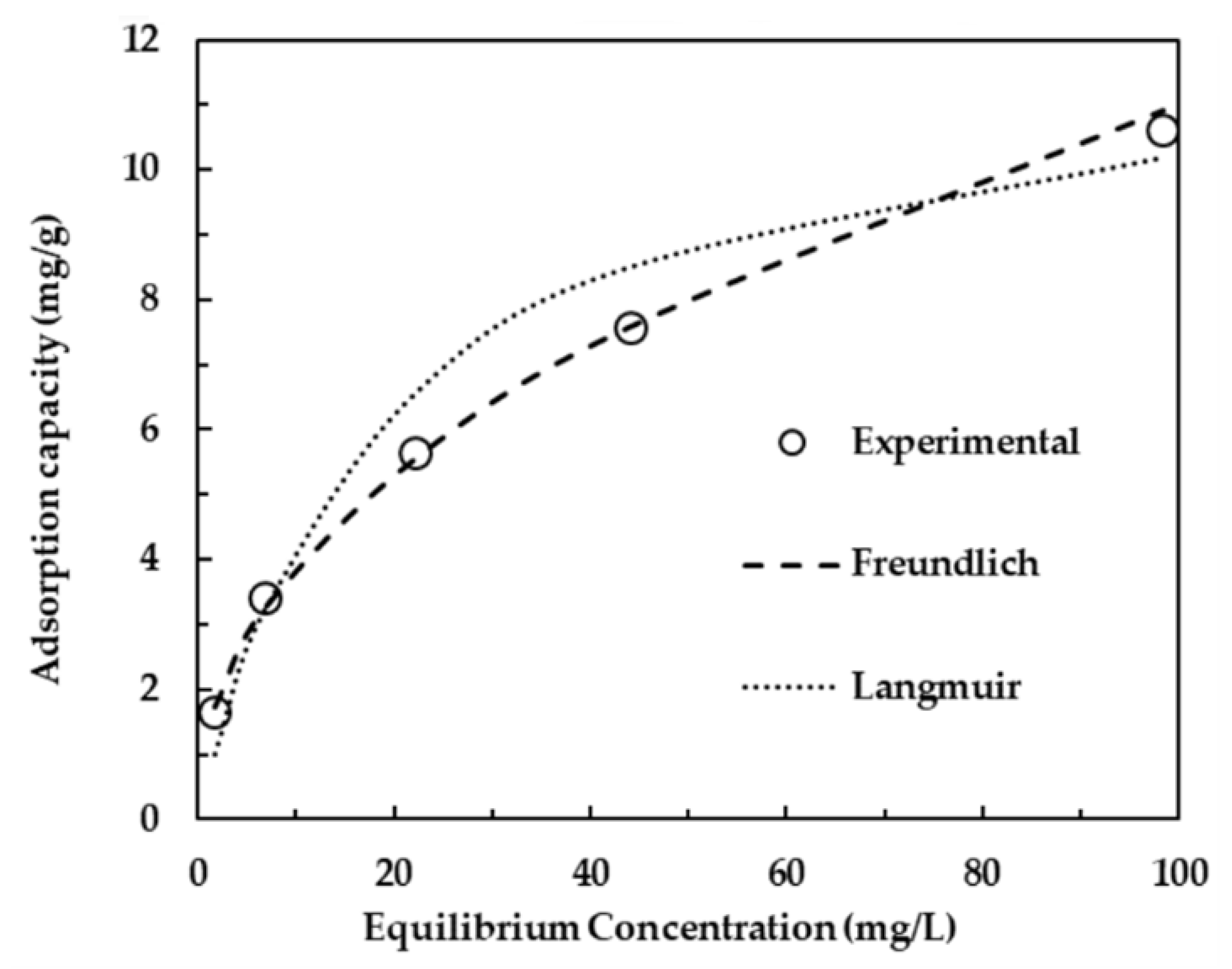

L o g q e = L o g k + 1 n L o g C e
where C e , k , 1 n   represent the equilibrium adsorbate concentration (mmol/L), constant value (mmol/g), and constant value, respectively.
In this work, the removal of dyes, pesticides, phenols, and phenolic compounds from wastewater by using various adsorbents is reported. The properties of the prepared adsorbent and the adsorption capacity of the adsorbate are highlighted based on the literature survey.

2. Types of Adsorbents

There are two types of adsorbents, namely, natural and synthetic adsorbents [12]. Several examples of natural adsorbents include clay and zeolite (abundant and cheap). On the other hand, researchers can produce synthetic adsorbents (activated carbon) via agricultural waste, industrial waste, and household waste. Each of these adsorbents has a unique surface area [13] and porosity structure that enhance the adsorption capacities.

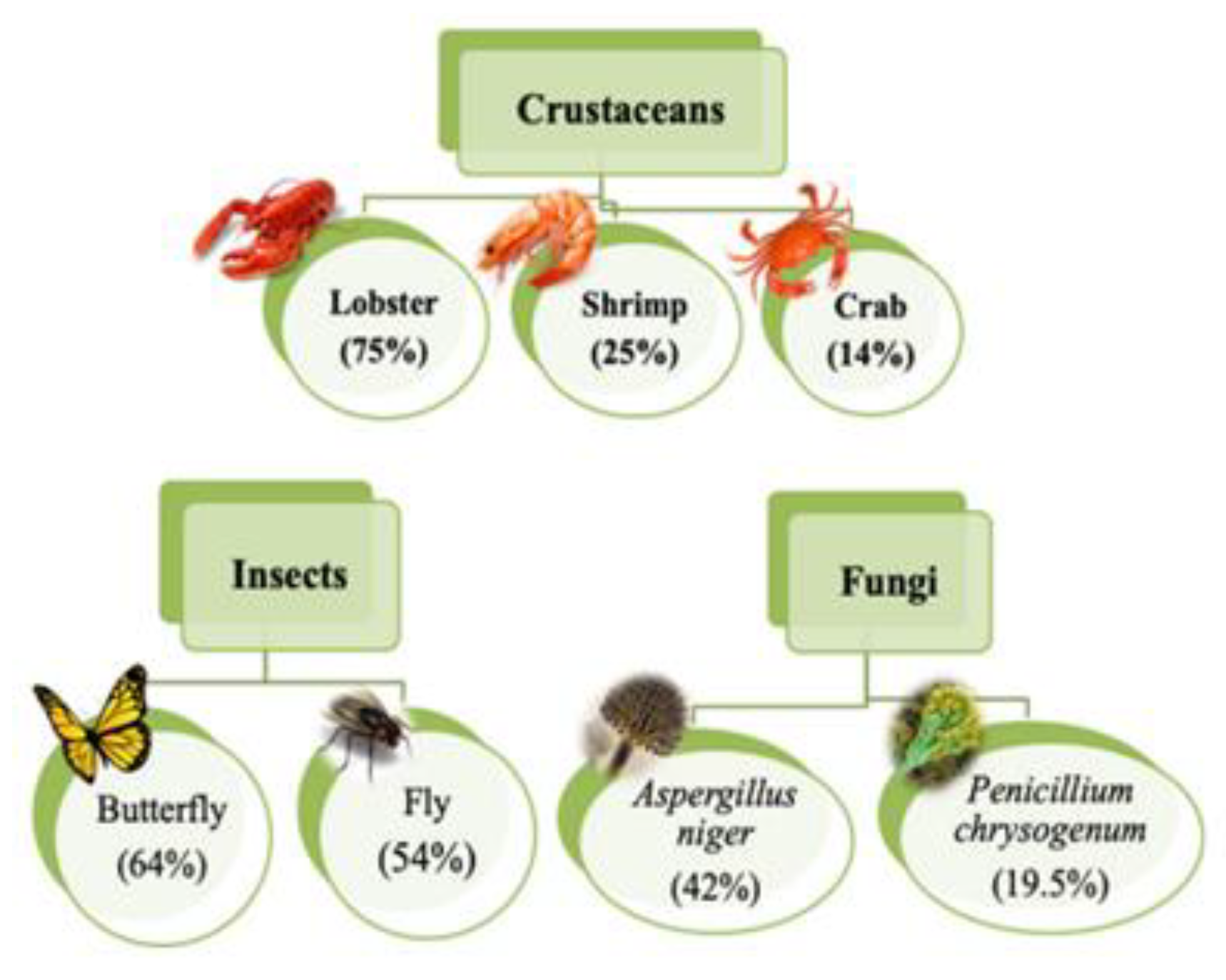

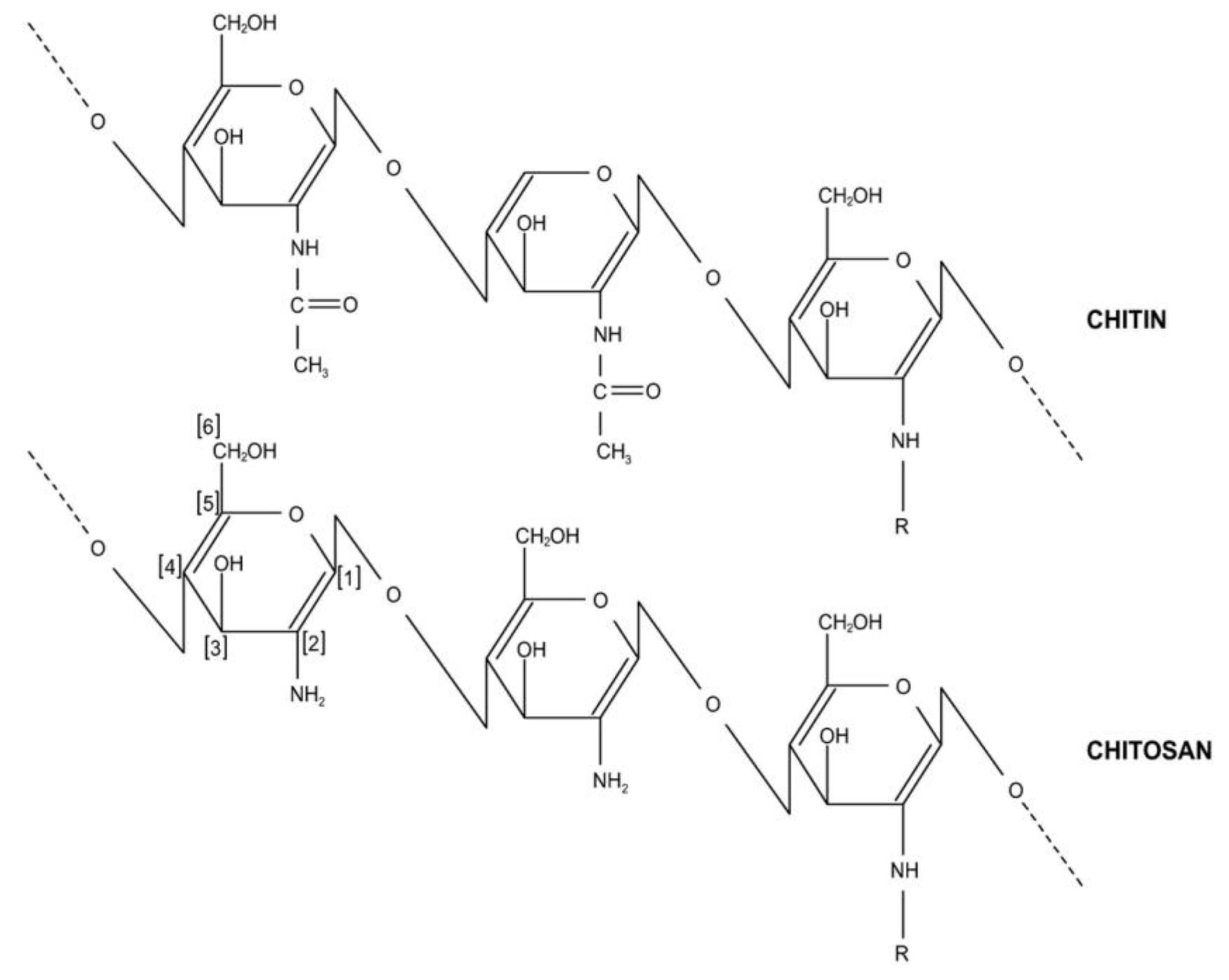

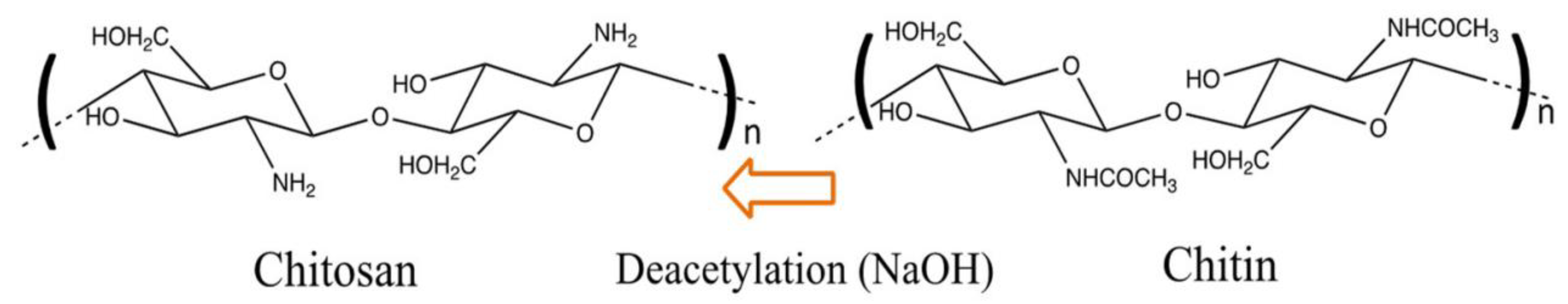

Chitosan can be prepared from chitin (aminopolysaccharide polymer). Chitin occurs in nature (skeletons of crab, shrimp, and lobster), as indicated in Figure 3, contributing to the second most abundant polysaccharide. Chitosan is a non-toxic biopolymer [14], biodegradable, and biocompatible. Chitosan consists of β-(1–4)-D-glucosamine [15], which can be considered a partially deacetylated product of chitin (Figure 4). Chitosan contains nitrogen, in contrast to other polysaccharides, and the hydroxyl group in cellulose is replaced by an amino group at carbon-2 in chitosan (Figure 5) in terms of structure. It has been noted that flake chitosan is a non-porous material with a lower surface area (less than 10 m2/g). Therefore, physical and chemical modifications are required to enhance the surface area and improve the adsorption capacity. Chitosan has been used to remove pollutants due to several advantages [16], such as chemical stability, being the cheapest adsorbent, excellent reactivity (due to hydroxyl and amino groups), and selectivity. The world chitosan market size was USD 1.7 billion in 2019 and is expected to reach USD 4.7 billion in 2027 due to a rapid growth in waste (seafood industry) and full support from the government [17]. Nowadays, the top global chitosan manufacturers include Primex (Siglufjordur, Iceland), AgraTech (New Jersey, United States), Advanced Biopolymers (Haugesund, Norway), NovaMatrix (Sandvika, Norway) and Dainichiseika Color & Chemicals Mfg. Co., Ltd. (Tokyo, Japan), Bioline (Chonburi, Thailand).

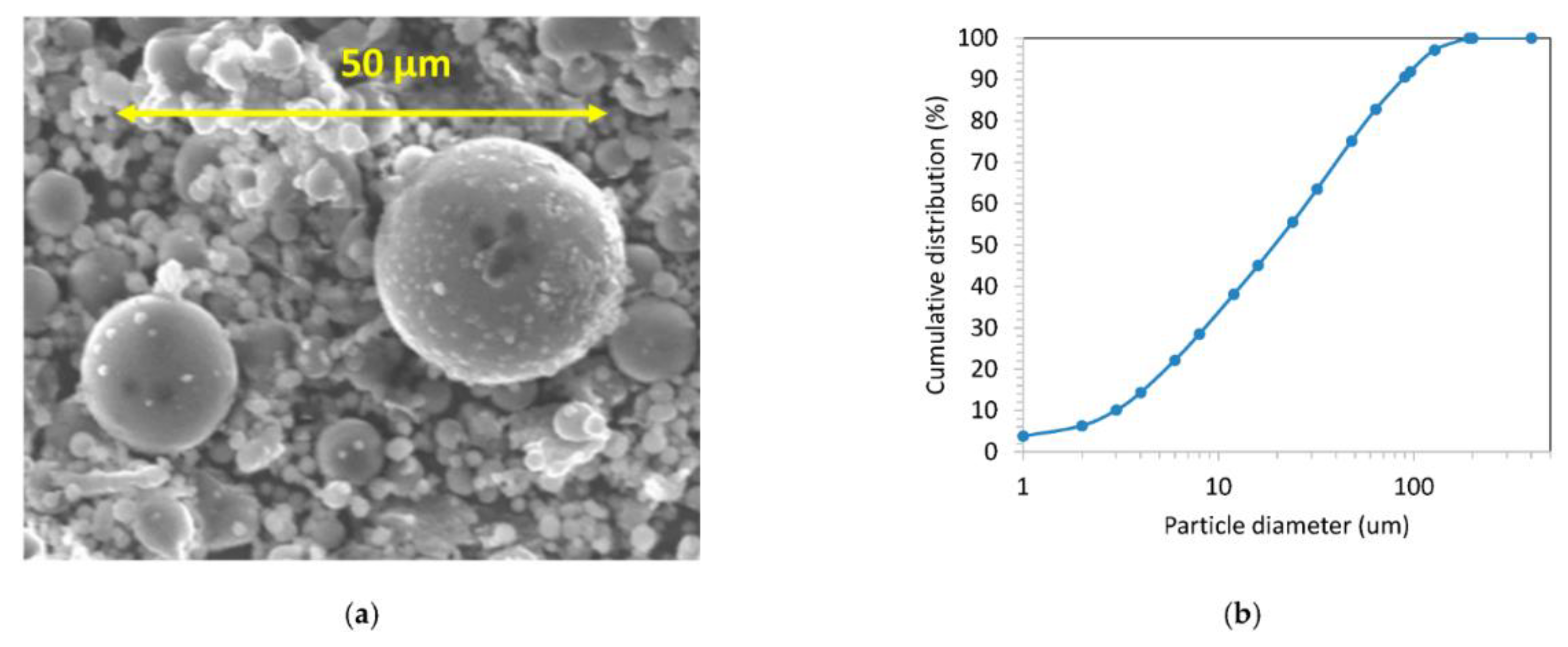

Fly ash is considered a waste residue from the coal-combustion process and results in water, air, and soil pollution if not treated well [18]. It is deposited in different ways, such as in dry landfills and ash ponds [19]. Fly ash is considered a natural adsorbent and shows unique properties, such as very high carbon content, excellent adsorptive capacity (hydrophilic surface), highly porous structure with a large surface area [20], and large pore volume. In addition, it is composed of SiO2 (93%) and Al2O3 (90.79%) with small amounts of Fe2O3, TiO2, CaO, P2O5, MgO, Na2O, BaO, K2O, SrO, MnO, Cr2O3, and NiO. Some researchers have concluded that fly ash is readily available and cheaper compared to activated carbon. Activated carbon is costly and has high production costs. Experimental results showed that chemically modified fly ash successfully improved the surface area and pore volume, with low energy consumption and better adsorption capacity. For example, the surface area and total pore volume were found to be 4.975 and 45.716 m2/g and 0.0137 and 0.157 cm3/g in raw fly ash and acid-treated (hydrochloric acid) fly ash, respectively [21]. A variety of factors, such as combustion conditions, the type of coal, collector setup, and air–fuel ratio, may have an effect on the properties of fly ash. Experimental findings showed that the average size and bulk density were 20 µm and 0.54–0.86 g/cm3, respectively. Morphology analysis revealed that 70–90% of the particles were solid glassy spheres, while the balance consisted of magnetite, hematite, mullite, quartz, and a small part of unburned carbon. Sanjuan and co-workers [22] studied the morphology of coal fly ash obtained from a coal-fired power station (Spain). Figure 6 indicates the SEM image and particle size distribution of the samples. The scanning electron microscopy (SEM) image showed that the coal fly ash contained many fine particles that were spherically shaped and had a predominantly amorphous structure. Fly ash is fine powder that is a by-product of burning coal in power plant. Most of the fly ash is mainly spherical, produced in high temperature conditions. Particle sizes were in the range of 0.3 µm to 250 µm. The major fraction was observed in the range of 20 µm to 25 µm.

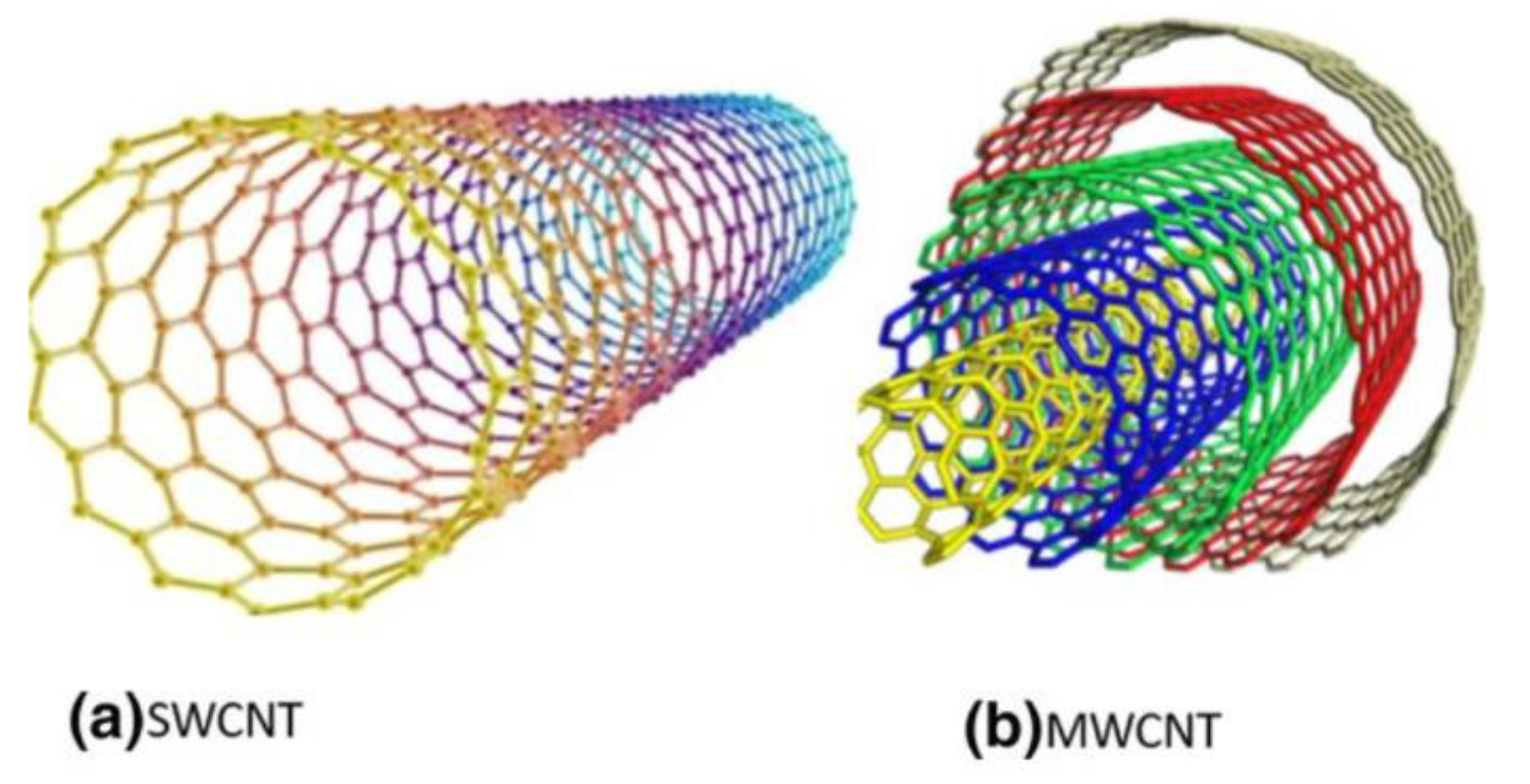

Carbon nanotubes were identified as carbon-based materials [23] and successfully discovered by Sumio Iijima in the 1990s. They can be divided into single-walled (single graphite sheet) carbon nanotubes and multi-walled (multiple concentric) carbon nanotubes [24] based on the number of layers (Figure 7). There are several methods (laser deposition, chemical vapor deposition, and arc discharge method) that can be used to produce carbon nanotubes from different sources (xylene, methane, acetylene, benzene, and carbon monoxide ethylene). Chemical vapor deposition has several advantages (low temperature, economical, and potential for mass production) compared to the arc discharge method (which requires high temperatures such as 900–1200 °C). Danikiewicz and co-workers [25] have produced a multi-walled carbon nanotube using the chemical vapor deposition technique. A high-resolution transmission electron microscopy (HRTEM) image confirmed homogeneity morphology with a diameter of 10 nm. A Raman spectrum showed that three peaks appeared at 1345 cm−1 (structure disorder (D)), 1576 cm−1 (nanotube graphitization (G)), and 2685 cm−1 (stresses (2D)). Several researchers found that carbon nanotubes were more attractive than activated carbon and clay because of their high selectivity and favorable physico-chemical stability [26]. Other unique properties, such as excellent electric properties, large specific surface area (Table 2), good superior thermal conductivity (2000–6000 W/(m.K)), high elastic modulus (1000–3000 GPa), and high tensile strength (50–100 GPa) were also highlighted. In 2017, the world carbon nanotube market was USD 15.3 billion and is expected to achieve USD 103.2 billion in 2030 [27]. Currently, major global carbon nanotube producers are Arkema SA (multi-walled CNT), Nanocyl SA (multi-walled CNT), Nanoshell LLC (multi-walled CNT), Carbon Solutions Inc. (single-walled CNT), Hyperion Catalysis International (multi-walled CNT), SHOWA DENKO KK (CNT), and Klean Commodities (single-walled CNT).
Activated carbon can be synthesized from any carbonaceous materials (agricultural waste, different parts of the plants, biomass) containing high amounts of carbon and less inorganic content [36]. The obtained activated carbon (powdered, granular, fibers, and extruded form) showed a high surface area and high-porosity structure [37] and can be used to remove pollutants from aqueous solutions. Granular activated carbon can be used in the food and beverage industry, wastewater treatment, and air and gas purification [38]. There is a high demand for the granular form due to its simple regeneration and reusability [39]. On the other hand, powdered activated carbon showed a larger surface-area-to-volume ratio with a particle size less than 0.177 mm. It can be employed for the removal of unwanted odor, taste, and color. Generally, activated carbon can be categorized into three groups, namely, microporous (smaller than 2 nm), mesoporous (2 to 50 nm), and macroporous (more than 50 nm), depending on pore sizes based on the IUPAC definition. During the preparation of activated carbon, there are various types of precursors that can be converted into activated carbon through physical activation (under an inert atmosphere in the carbonization process) and chemical activation (activating agent: acidic, basic, or salt). Octoli and co-workers [40] have produced sago waste-based activated carbon by using different activating agents, such as phosphoric acid, zinc chloride, potassium permanganate, and potassium hydroxide. The textural properties of these activated carbons are highlighted in Table 3. Mistar and co-workers [41] pointed out that the surface area was strongly dependent on the experimental conditions (pyrolysis temperature and weight ratio between carbon and sodium hydroxide (NaOH)). The Bambusa vulgaris-based activated carbon produced by using a weight ratio of 1:1 (carbon to NaOH) at a temperature of 700 °C and at 800 °C showed that the surface area was 308 m2/g and 560 m2/g, respectively. In addition, experimental results revealed that a higher surface area could be obtained when the weight ratio was increased from 1:2 (635 m2/g) to 1:3 (1041 m2/g). It was noted that a similar trend result was observed in the total pore volume as well. When the residual loss of hydrocarbons increased, it resulted in more pores, an increased surface area, and contributed to a bigger pore diameter. Based on Equation (4), NaOH reacted with carbon (C) to produce carbon dioxide (CO2) gas, corroded the carbon wall, and formed new pores.
4 NaOH + C 4 Na + CO 2 + 2 H 2 O
Toni and co-workers [42] have reported the influence of zinc chloride on the properties of peat-based activated carbon. The percentage of yield reduced (45.7% to 14.2%), while total carbon increased (87.2% to 96%) with an increase in the carbonizing temperature (723 K to 1073 K). The volatilization process and decomposition of the carbon occurred rapidly (enhanced pore development) when the carbonization temperature was increased. The percentage of yield increased when reducing the impregnation ratio (from 2 to ¼) due to zinc chloride reacting with hydrogen atoms and oxygen atoms to form a water molecule and hydrogen molecule, respectively. However, the mesoporosity structure increased when the impregnation ratio was increased from ¼ (57.9% to 65.5%) to 2 (65.7% to 80.2%). Jiang and co-workers [43] compared the psychical properties of commercial activated carbon and acid-treated carbon (sulfuric acid). Research findings confirmed that BET surface area (1126 to 1234 m2/g), acidic surface oxygen complexes (0.071 to 1.986 meq/g), and mesoporous volume (0.243 to 0.452 mL/g) were increased after the impregnation process (concentrated sulfuric acid). When the treatment temperature was at 250 °C, several observations could be described. These included the opening of micro pores, the destruction of pore walls, and the production of carboxyl and hydroxyl groups.
The world’s activated carbon market volume increased from 2015 (2.7 million metric tons), 2017 (3.4 million metric tons), 2019 (4.3 million metric tons) to 2021 (5.4 million metric tons) due to the environmental regulations [44]. Activated carbon has been used in water treatment (38%), air purification (24%), and food processing (19%). China accounted for the world′s largest consumption [45] of activated carbon in 2020, followed by the United States and Western Europe (Figure 8). Currently, the major activated carbon manufacturers globally include Jacobi Carbons Groups located in Kalmar, Sweden (coconut shell), Kuraray Co. Ltd. Located in Tokyo, Japan (coal and coconut shell), Haycarb (Pvt) Ltd. Located in Chennai, India (coconut shell), General Carbon Corp located in New Jersey, United States (wood, coal, coconut shell), and Cabot Norit located in Amersfoort, The Netherlands and Texas, United States (wood, peat, coconut shell).

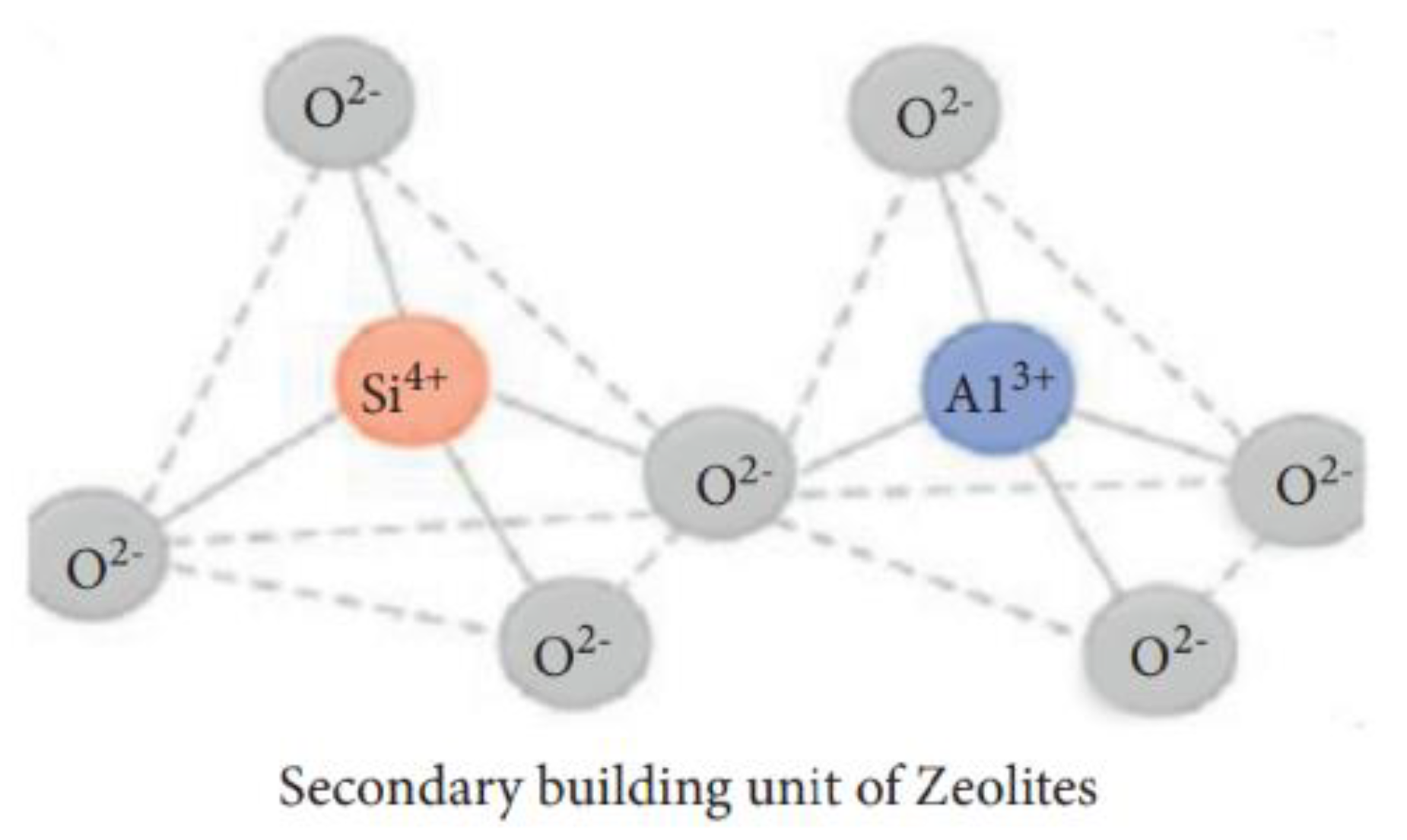

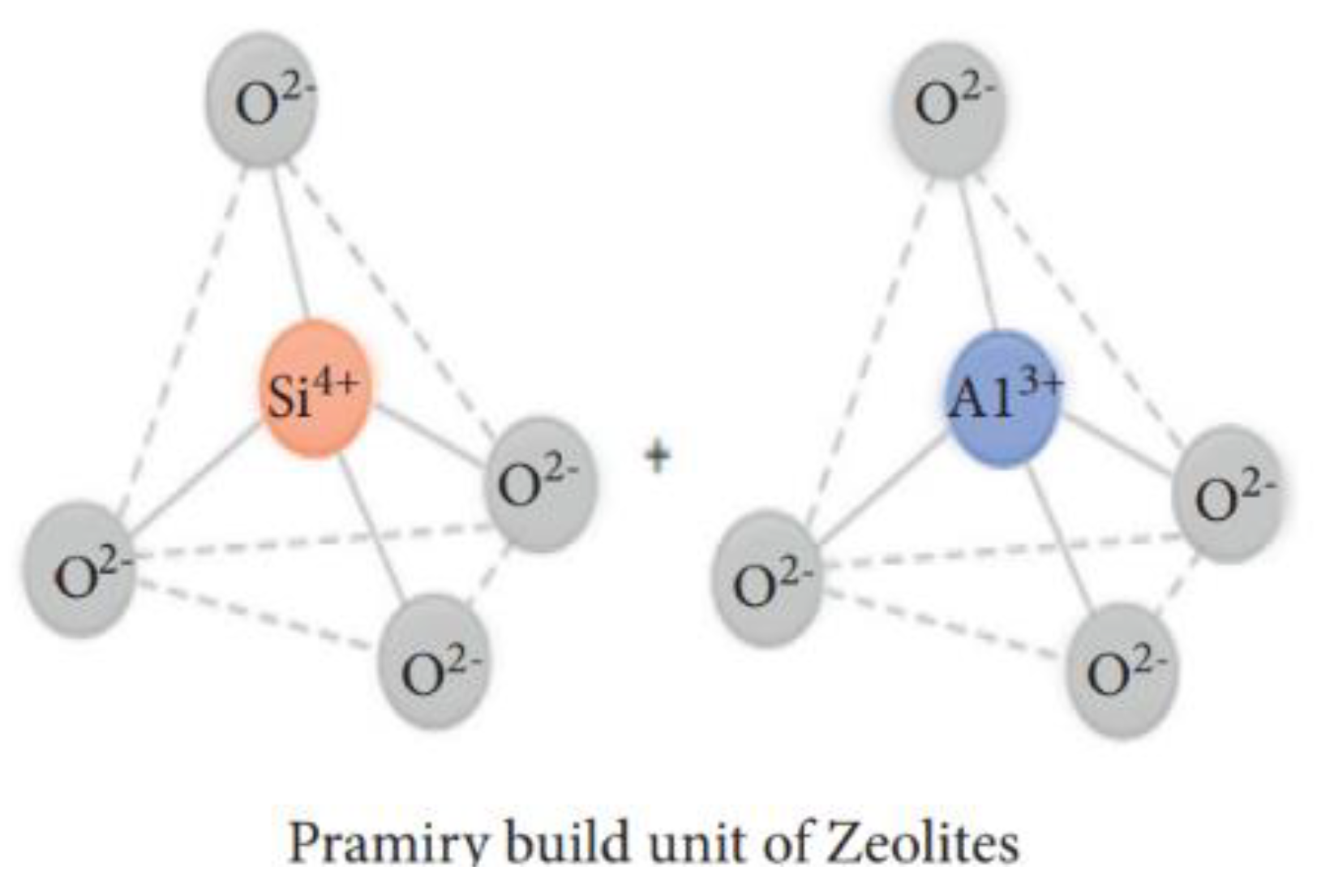

Zeolite has been used in gas adsorption [46], water treatment, soil amendment, construction, agriculture, petroleum refining, detergent builders, catalysts, and animal feed additives. Zeolite is produced from alumina (Al O 4 5 ) and silica ( SiO 4 4 ) via the interlinkage of oxygen atoms [47]. The primary (consisting of the central atom and terminal oxygen) and secondary building blocks (bridging via oxygen–oxygen atoms) can be observed (Figure 9) in zeolites [48]. Generally, zeolite can be classified into natural zeolites (volcanic and sedimentary rocks) and synthetic zeolites, which account for 37% and 63% of the total zeolite consumption, respectively. Currently, China is the largest producer (of natural zeolite) in the world, followed by South Korea and Slovakia.
Synthetic zeolite can be produced by using different methods, including hydrothermal, solvothermal, and inothermal methods. Zeolite X and zeolite Y showed a bigger void space with a rigid structure. Zeolite A, produced from sodium aluminosilicate, had an excellent ion-exchange capacity with a specific particle size (4 to 10 µm). Zeolite can be prepared by using natural sources. These zeolites are low in cost and exhibit interesting properties (hydrophilic in nature, highly porous cavities, and specific surface area). In addition, experimental results showed that the size was estimated to be 0.3 to 1 nm, and thermal stability and resistance to acid were increased when the silicon to aluminum ratio was increased [49].
Sometimes, modified zeolite (to improve adsorption capacity) is created in the laboratory through different methods such as physical modification (thermal and ultrasonic modification), chemical modification (by using salt, acid, base, a cationic surfactant, and rare earth), and composite modification. Thermal (muffle or microwave heating) and ultrasonic modification (sound waves) have been observed to reduce surface resistance and eliminate impurities in the pores. Acid has the potential to dissolve impurities in the pores; the H+ ions replaced K+, Ca2+, and Mg2+ in order to increase porosity. In the alkali-modification process, NaOH reduced the ratio of silicon to aluminum and formed a mesoporous structure. Salt modification can be carried out through ammonium chloride, aluminum chloride, sodium chloride, and magnesium chloride. During the modification process, the salt solution removed impurities and exchanged the zeolite cations with cations from the salt solution.

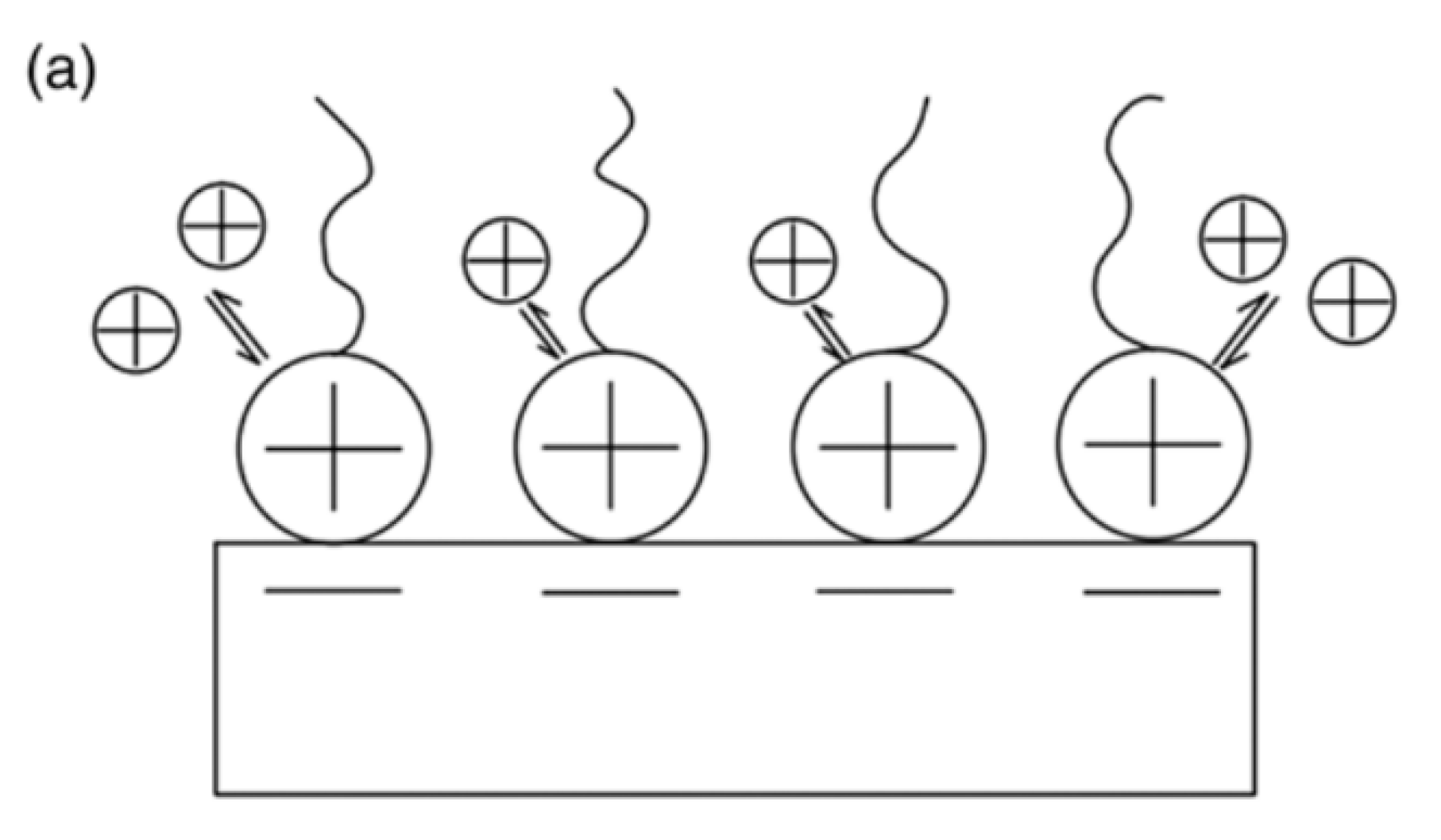

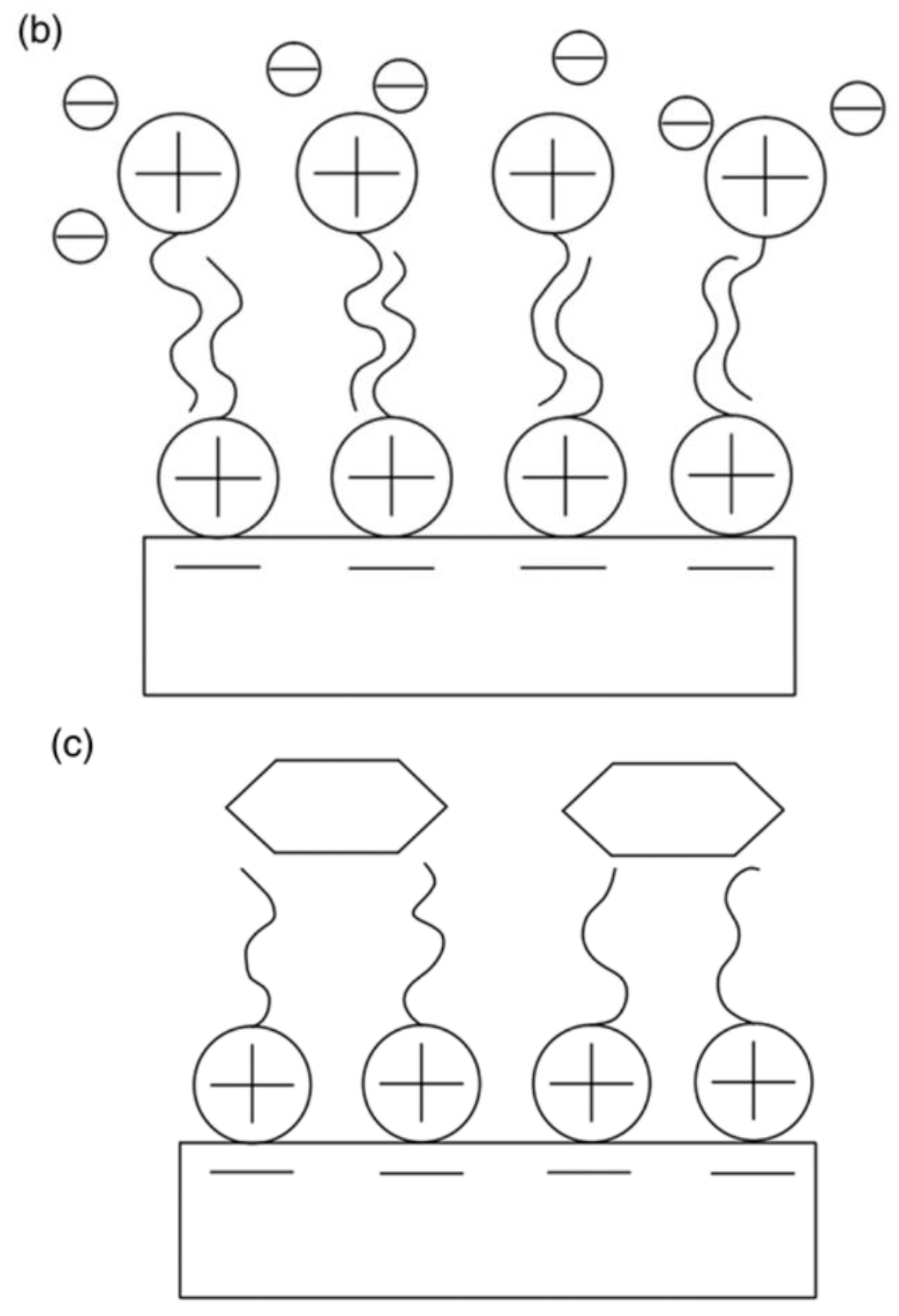

The surfactant-modified zeolite [50] was created by mixing a cationic surfactant with natural zeolite (Figure 10). The negative charge (zeolite surface) could adsorb surfactant cations through electrostatic force when the concentration of surfactant was equal to or smaller than the critical micelle concentration. However, the alkyl chain of the surfactant was attracted via hydrophobic interaction when the concentration of the surfactant exceeded the critical micelle concentration. Eventually, a positive charge was produced on the zeolite to remove anionic contaminants.
Rare earth modification can be achieved through lanthanum, zirconium, and cerium hydroxide. These zeolites can remove ammonium (cation exchange with zeolite) and phosphate (exchange of the ligand and electrostatic attraction) effectively. Composite modification can be carried out through several techniques. Alkali/acid/salt composite modification can reduce the adsorption period. Zeolite was treated at high temperatures to increase the porosity under heating composite modification. The ultrasound and salt-modification process can dissolve impurities and reduce the reaction time as well [50].

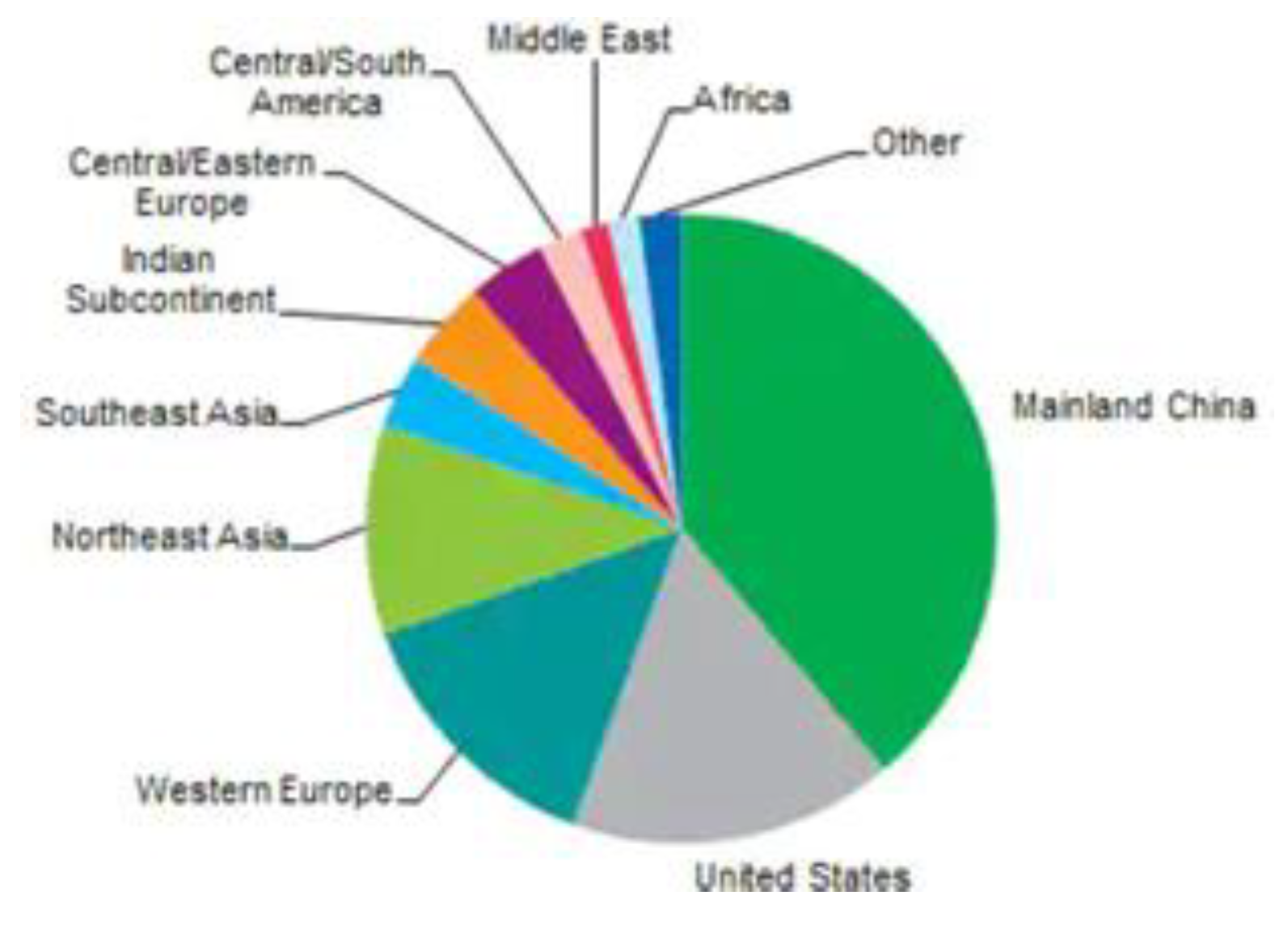

Currently, the largest manufacturing companies [51] include Zeolyst International located in Pennsylvania, United States (zeolite Y, zeolite beta, ZSM-5, ferrierite, Mordenite), Rota Mining Co located in Istanbul, Turkey (clinoptilolite), Clariant located in Bitterfeld, Germany (advanced zeolite powder), W.R. Grace & Co. located in Maryland, United States (zeolite molecular sieves), Zeocem AG, located in Bystre, Slovak Republic (natural zeolite), CWK Chemiewerk Bad Kostritz GmbH, located in Bad Kostritz, Germany (zeolite molecular sieves), Bear River Zeolite Co, located in Montana, United States (natural zeolite), Northern Filter Media Inc located in Lowa, United States (resin zeolite), Grace & Co, located in Worms, Germany (zeolite catalysts), Zeo Inc. located in Texas, United States (natural zeolite), Anten Chemical Co. Ltd. Located in Xiamen, China (zeolite powder), Arkema located in Paris, France (molecular sieves), and ZeoliteMin located in Xiamen, China (natural zeolite).

3. Adsorption of Phenol and Phenolic Compounds Using Different Adsorbents

Phenol is an organic compound that appears as a colorless liquid and is more soluble in water [52]. Phenol can be used in many applications (bisphenol-A, alkyl phenolphenol-formaldehyde resin industry, adipic acid). The global market value increased [53] between 2015 (19.17 billion USD) and 2021 (21.61 billion USD). There are various sources of phenolic compounds, such as medical and household products, industrial waste, agricultural waste, decomposition of organic matter, and municipal waste, synthesized by plants and microorganisms. Phenol is a very toxic substance due to hydrophilic and lipophilic behaviors [54], resulting in necrosis and denatured protein. Table 4 shows the structure, sources, and unhealthy effects of various types of phenol and phenolic compounds. It has been noted that phenol can distribute widely within a few minutes via multiple routes, such as dermal contact, ingestion, and inhalation. The major sources of phenol can be observed in industrial, agricultural, and human activities. For example, coke processing (1000 mg/L) and resin plants (12–300 mg/L) produced a higher concentration of phenol. Based on the Environmental Protection Agency (EPA) and World Health Organization (WHO) guidelines, the limit of phenol concentration is 0.1 mg/L (wastewater) and 0.001 mg/L (portable water), respectively. According to the experimental findings, the removal of the phenol from wastewater has been carried out by using different techniques, such as photocatalytic degradation, membrane-based separation, ion exchange, ozonation, electro-Fenton, extraction, biological method, and adsorption.
Based on X-ray fluorescence (XRF) studies, the formula of neat clay is Mg3.27Zn1.01Al2(OH)12.83CO3.nH2O [55]. The highest adsorption efficiency was observed to be 85% when the clay calcined at 500 °C (majority periclase phase with the highest specific surface area (30 m2/g)) compared to other temperatures, such as 1100 °C (50%) and 250 °C (6%). The adsorption rate decreases as the pH increases. When the number of hydroxyl ions increases at a higher pH value, the LDH reconstruction rate will also be increased, but reduced in the intercalation of phenolate ions. The heterogeneous process can be identified based on the Freundlich model (R2 = 0.998), and the heterogeneity factor was 2.2, representing physical adsorption (Figure 11). The adsorption data followed the Langmuir model (maximum adsorption capacity was 12 mg/g) and pseudo-second-order kinetic model (R2 = 0.9991). In clay regeneration and reusability studies, experimental findings revealed that the clay loses adsorption capacity after four adsorption cycles (drops 25%) compared to the first–third cycles (drops 2%) due to a reduction in its crystallinity.
Coconut-based activated carbon with a surface area of 236 m2/g and a total pore volume of 47 cm3/g was synthesized via carbonization and physical activation process [56]. The adsorption of phenol is fast at the preliminary stage (up to 800 min) and then slows down, eventually reaching equilibrium at 1440 min. The chemical activation of African beech wood sawdust in the presence of KOH creates activated carbon with a high surface area (1236–1553 m2/g) with well-developed pores, as reported by Abdel-Ghani and co-workers [57]. The highest removal of phenol can be seen under optimum preparation conditions of a pH of 7 (phenol exists as a neutral species when the pH is 7) and a contact time of 300 min. Phenol is a weak acid; the anionic form and molecular form can be observed in alkaline and acidic conditions, respectively. The pseudo-first-order kinetic isotherm and Langmuir model (maximum adsorption capacity = 1.73–4.33 mg/g) were used to represent adsorption data because the homogeneous distribution of active sites can be detected on the surface of the activated carbon. On the other hand, coir pith-based activated carbon was successfully prepared by Namasivayam and Kavitha [58]. The adsorption kinetics obeyed the pseudo-second-order kinetic isotherm; the rate-constant values were observed to be 0.0098–0.0672, 0.0949–0.88, and 0.172–0.305 in phenol, 2,4,6-trichlorophenol, and pentachlorophenol, respectively. The highest adsorption capacity of phenol and pentachlorophenol was 48.3 mg/g and 3.7 mg/g (in acidic conditions), as indicated in the Langmuir model. The overall results confirmed the process was chemisorption and an endothermic reaction (positive value of enthalpy: 8.9 to 24.99 kJ/mol).
The South African coal fly ash contained a large amount of quartz, mullite, and a small amount of calcium oxide and hematite [59]. Scanning electron microscopy (SEM) analysis revealed a spherical shape with a smooth surface in the obtained samples. The adsorption kinetics can be described using the pseudo-first-order Lagergen equation, and the rate constant values were 1.15 × 10−3/h, 1 × 10−3 /h and 6.32 × 10−3/h for phenol, 2-nitrophenol, and 4-nitrophenol, respectively. Experimental findings showed that the highest adsorption capacity (lower solubility and non-polar compound) was 2.6 × 10−2 mg/g in 4-nitrophenol compared to other adsorbates. The removal of phenol using fly ash was reported [60]. Phenol removal increases (until 82.92–88.73%) when increasing the adsorbent dosage because of an increased number of active sites and surface area of the adsorbent. However, overcrowding of phenol can be seen at higher adsorbent doses. It was evident from the experimental results that the optimized conditions were pH = 6, contact time = 120 min, adsorbent dosage = 40 g/L, and adsorbate concentration = 20 mg/L. The chemical modification of fly ash through iron and aluminum was proposed by Neeru and co-workers [61]. Adsorption studies confirmed the highest removal efficiency was found when using aluminum-impregnated fly ash (85.6%) compared to iron (82.1%). The pseudo-second-order kinetic model and Redlich–Peterson isotherm were observed to represent the equilibrium data. According to the thermodynamic investigations, enthalpy and entropy values were 30.79 kJ/mol and 104.92 kJ/mol.K, respectively.
The use of various pairs of cations in the synthesis of layered double hydroxide (LDH) was studied by Ruiz and co-workers [62]. SEM images confirmed the different morphologies can be observed in TiO2/MgAl (irregular surface), TiO2/MgFe, and TiO2/ZnAl (smooth and more homogeneous). Energy-dispersive X-ray (EDX) analysis revealed that the highest atomic percentage was of carbon (10.7%), oxygen (61.4%), and titanium (32.3%) in TiO2/MgAl, TiO2/MgFe, and TiO2/ZnAl, respectively. The surface area (45.29–49.34 m2/g), pore total volume (11.12–15.53 cm3/g), and pore medium diameter (9.82–12.59 nm) in all samples were studied. Researchers concluded that a smaller surface area was obtained in theTiO2/LDH compared to LDH material due to TiO2, iron, and zinc having smaller surface areas. The surface fractal dimension (2.08–2.14) represented a rough surface and mesoporous structure in the obtained samples. In the adsorption studies, TiO2/ZnAl and TiO2/MgFe showed a better adsorption capacity than TiO2/MgAl.
Nourrdine and co-workers [63] studied the removal of phenol by using zeolite Y modified by silylation (to improve hydrophobic behavior). A study concluded that the rate of adsorption had increased by 30% after modification because of the replacement of the H atom (silanol group) by the trimethylsilyl group ((CH3)3Si). Saravanakumar [64] observed that the maximum adsorption capacity of phenol was 13.05 mg/L onto sodium zeolite based on the Langmuir isotherm (R2 = 0.9988).
Marijana and co-workers [65] reported that the original multi-walled carbon nanotube has unique properties (high purity with 99.8% carbon and hydrophobicity). The surface area (61.3 to 600 m2/g) and pore volume (0.974 to 4.22 cm3/g) increased significantly after acid treatment (nitric acid). Experimental results revealed that the original multiwalled carbon nanotube (OMWCNT) has higher adsorption affinities for larger molecules (molecular weight of 2,3,4,5-tetrachlorophenol = 232 g/mol, pentachlorophenol = 266 g/mol) due to the surface interaction being dominant. Smaller molecules (molecular weight of 2,4-dichlorophenol = 163 g/mol, 2,4,6-trichlorophenol = 197 g/mol) could penetrate deeper into the mesoporous structure of the adsorbent easily. The presence of carboxylic (0.208–0.67 mmol/g) and phenolic groups (0.009–0.618 mmol/g) on the MWCNT surface increased the adsorption of electron donors but reduced the adsorption of electron acceptors. Hadi and co-workers [66] synthesized a single-walled carbon nanotube via the catalytic chemical vapor method and treated it with acidic solutions (nitric acid and sulfuric acid). The length, outer diameter, inner diameter, and specific surface area were 10 µm, 1–2 nm, 0.8–1.1 nm, and 700 m2/g, respectively. The percentage removal of phenol increased with time (until it reached 30 min); however, it reduced when the phenol concentration was increased (less-favorable sites). Chemical modification improved the properties of the adsorbent and enhanced the adsorption process at pH 3–9. Phenol adsorption was low when the pH was more than pH 9 because more oxygen-containing groups were ionized, absorbed more water, and blocked the access of phenol to active sites. As highlighted in the Langmuir model (R2 = 0.983), the maximum adsorption capacity reached 50.5 mg/g (phenol concentration = 50 mg/L, adsorbent dose = 1.97 g/L, contact time = 36 min, pH = 6.57). The adsorption kinetics obeyed the pseudo-second-order kinetic, Freundlich model, and Redlich–Peterson isotherm.
Many researchers have reported the removal of phenol and phenolic compounds using chitosan. The adsorption data obeyed the Langmuir model (correlation coefficient = more than 0.97) in all samples. The maximum adsorption capacities were 8.5 mg/g and 34.93 mg/g, 20.49 mg/g and 179.73 mg/g, and 44.92 mg/g and 20.56 mg/g in salicylidene–chitosan and β-cyclodextrin-6-chitosan for phenol, p-chloro phenol, and p-nitro phenol, respectively, at pH 7 and temperature of 30 °C. The highest adsorption capacity of p-chloro phenol was observed in β-cyclodextrin-6-chitosan due to the formation of hydrogen bonding (chlorine, oxygen, and hydrogen) with hydroxyl in both chitosan and β-cyclodextrin. At the same time, researchers predicted that the removal of phenol by using aalicylidene–chitosan was predominated by the π-π interaction between the phenol and aromatic ring (salicylidene in salicylidene–chitosan). Meng and co-workers [67] have confirmed that KCl has little impact on the removal of phenol onto chitosan, indicating phenolate anions did not become involved in the adsorption process. In addition, it can be concluded that this adsorption process was not predominated by electrostatic interaction. On the other hand, a low temperature is favorable for the adsorption process. The removal of p-nitro phenol on salicylidene–chitosan (through π-π interaction between the aromatic ring) and p-chloro phenol onto β-cyclodextrin-6-chitosan (predominated by hydrogen bonding) was reduced when the temperature was increased (30 °C to 60 °C), indicating the interaction between chitosan and adsorbate was multiform. The influence of pH was studied (pH 5–11.5), and the obtained results reflected that the removal of phenolic compounds did not change when increasing the pH (until pH 10). However, the adsorption process reduced rapidly when the pH was more than pH 10. The pKa values were found to be pH 7.15, 9.41, and 9.89 for p-nitro phenol, p-chloro phenol, and phenol, respectively. Depending on its pKa, the phenol exists as either negative phenolate ions (above pKa value) or molecules (below pKa). The kinetics, thermodynamics, and isotherms of adsorption have been studied by many researchers (Table 5). The removal of phenol and phenolic compounds from wastewater using different adsorbents, such as layered double hydroxide clays, activated carbon, zeolite, pumice, bentonite, chitosan, and fly ash was reported based on the literature survey.

4. Adsorption of Pesticides by Using Different Adsorbents

A pesticide was employed to control the pests and to protect particular plants [90]. It included insecticide, herbicide, and fungicide. The chemical formula, structure, and molar mass of the different pesticides are highlighted in Table 6. Generally, pesticides could cause short-term and long-term adverse health effects on humans and animals. Using narrow-spectrum pesticides to prevent specific pests and minimize the impact of natural enemies has been recommended [91]. Research findings showed that a variety of pesticide residues could be observed in foods, soil, plants, and waterways. Table 7 shows the pesticide toxicity [92] based on the World Health Organization (WHO) guidelines.
The waste rubber tire was utilized to produce activated carbon via a chemical and thermal treatment process. The obtained activated carbon showed favorable surface chemistry with mesoporous and macroporous structures. The adsorption capacities for methoxychlr (112 mg/g), atrazine (104.9 mg/g), and methyl parathion (88.9 mg/g) were reported under specify conditions (pH = 2, contact time = 1 h, initial adsorbate concentration = 12 mg/L). Adsorption data fit well with the Langmuir model and pseudo-first-order kinetic model. The adsorption process had exothermic, spontaneous, and random behavior. Methoxychlor, a synthetic organochloride insecticide (to replace dichlorodiphenyltrichloroethane), was employed to protect livestock, crops, and pets against insects (chiggers, biting flies, mosquitoes, houseflies, fleas, and cockroaches). Sprayed methoxychlor can be detected in sediments. It takes a few months for the degradation process to occur. When methoxychlor is absorbed by a living organism, it can accumulate in the food chain. Exposure to methoxychlor causes tremors and reproductive system disturbance. Atrazine, an herbicide, can be categorized in the triazine class. It is employed to control broadleaf weeds and grasses before they emerge. Generally, it is sprayed on sugarcane, corn, and sorghum. It is a common contaminant of drinking water and groundwater. It can cause severe problems, such as lymphoma, leukemia, and cancer (breast, tumor, ovarian, uterine). Parathion methyl is a so-called organophosphate insecticide (on crops such as cotton, soybean, and vegetables). Exposure to parathion methyl results in diarrhea, sweating, dizziness, nausea, blurred vision, muscle twitching, and headache.
The removal of malathion was achieved using fly ash (surface area = 143.6 m2/g, pore volume = 0.1247 cm3/g, particle size = 149 µm) produced from the Anpara thermal power plant, India [93]. The experimental results confirmed that the adsorption process increased with the contact time, reached maximum, and then remained constant. A pH of 4.5 (99%) is considered favorable for the highest removal of malathion compared to pH 3 (96%) and pH 7 (95%). Additional experimental findings showed that adsorption increased (90% to 97.5%) with an increase in the temperature (35 °C to 55 °C); however, it decreased from 99% to 90% when increasing the initial malathion concentration (1 mg/L to 10 mg/L). Thermodynamic parameters were obtained, and it was found that the adsorption was an endothermic reaction (enthalpy value = +2.53 kJ/mol). Malathion is a so-called organophosphate insecticide (kills mealybugs, aphids, red spider mites, and whiteflies within a few minutes by damaging the nervous system) and is employed in public recreation areas, agricultural sectors (vegetable, tree, fruit, and grass crops), and residential landscaping to combat West Nile virus and mosquitoes. However, it can cause sensitization and skin irritation. The boiler fly ash [94] was used to remove herbicides (paraquat dichloride and glyphosate). The fly ash was soaked in nitric acid to wash off any soluble biomolecules and open up the pores. The obtained results showed that the amount of paraquat dichloride and glyphosate adsorbed onto the adsorbent were 13 mg/L and 12.33 mg/L when the contact time was 10 min; however, the adsorption amount dropped to 9.6 mg/L and 9 mg/L, respectively, after 40 min. Adsorption kinetics followed the pseudo-second-order kinetic model, and the rate of the constant was controlled by the chemisorption process. Furthermore, results (based on the Freundlich model) showed that the adsorbent has a high adsorption capacity for glyphosate compared to paraquat dichloride (longer half-life = 1000 days, higher soil adsorption coefficient = 1,000,000 µg/g). Paraquat, classified as viologen, is employed as an herbicide (to control grasses and weeds). Exposure to paraquat can damage the liver, kidney, and esophagus. Glyphosate is classified as an organophosphorus compound and is considered a non-selective herbicide because it can kill most plants and stop enzyme pathways. It is toxic and is known to cause genetic damage in birds and fish.
Several types of zeolites have been produced by Smedt and co-workers [95] for the removal of pesticides from aqueous solutions. Clopyralid adsorption by zeolite was found to be very low (2.72% to 16.94%) due to high water solubility (143,000 mg/L) and a low adsorption coefficient (5 mg/L). Zeolite beta (BEA) and zeolite Y (FAU) showed the highest adsorption capacity compared to other zeolites because of a higher surface area (348 to 661 m2/g) and limiting pore diameter (PLD) value (6.7 Å). The adsorption percentage of bentazone, clopyralid, imidacloprid, isoproturon, and metalaxyl m was observed to be 69.56%, 9.12%, 98.78%, 100%, and 42% in BEA zeolite, while 63.2%, 10.67%, 99.7%, 100%, and 99.8% in FAU zeolite. Experimental results indicated that hydrophobic behaviors were reduced when decreasing the aluminum content. Chabazite, clinoptilolite, and zeolite 4A displayed lower Si/Al values (1.12 to 5.6) and did not adsorb the pesticides well. Adsorption kinetics showed that the pseudo-second-order kinetic model (R2 = 0.9999) could fit the data better than other isotherms. The pseudo-second-order constant (k2) provides an indication of the adsorption rate and it has units of g/mg.h. The higher the k2 value, the faster the equilibrium has been achieved. It was noted that a higher adsorption rate could be observed for isoproturon (25.96 to 1666.67 g/mg.h) and metalaxyl-m (500 to 20,000 g/mg.h) and could reach equilibrium within 15 and 30 min, respectively. Freundlich isotherm shows the best correlation coefficient compared to the Langmuir model. Non-ionic pesticides such as metalaxyl-m and isoproturon showed higher adsorption intensity based on the Freundlich model. Bentazon is classified as a thiadiazine group and is employed in herbicides (to control the spread of weeds). It is sprayed on food crops (bean, pepper, rice, peas, maize, and peanuts). Exposure to bentazon causes skin and eye irritation. Isoproturon is a selective herbicide used to control broad-leaved weeds and annual grasses. It is very toxic to oysters (370 µg/L), algae (13 µg/L), and fish (1 mg/L) with long-term exposure in specific concentrations. Metalaxyl, an acylalanine fungicide, is employed to control pythium (in vegetable crops) and phytophthora (in peas). Long-term exposure to metalaxyl may cause skin allergies and is harmful to aquatic life. Clopyralid is known as a selective herbicide used to control broadleaf weeds (clover, dandelions, and thistles). Clopyralid enters the plant, replaces natural auxins, and results in unusual growth patterns. It shows low toxicity; however, clopyralid vapor causes eye irritations. Imidacloprid is a systematic insecticide (causes insect paralysis by blocking the nicotinic acetylcholine receptors) and is used to control soil insects, termites, and fleas. Chronic exposure results in drowsiness, diaphoresis, emesis, and disorientation. Table 8 highlights the information collected from various investigations, including the type of adsorbents and the pesticides used, experimental conditions, and results (isotherms, thermodynamics, and kinetics) of each work based on a literature survey.

5. Adsorption of Dye Compounds Using Different Adsorbents

Dye is a colored compound, and it contains very complex aromatic molecular structures [111]. Dyes can be divided into natural dyes (from fruit, plant, and mineral) and synthetic dyes (made from chemicals) [112]. The world synthetic dye market was valued at USD 31.97 billion in 2019, and is expected to reach USD 50.38 billion by 2023 due to the high demand in the packaging, paper, ink, leather, and textile industries [113]. Synthetic dye is cheaper compared to natural dye; however, it creates water pollution [114] and can be very harmful to humans (mutation, skin allergies, skin irritation) and animals. Common examples of synthetic dyes are basic dye, acid dye, direct dye, disperse dye, reactive dye, azo dye, and mordant dye. Currently, China is the largest manufacturer and exporter of dyes, followed by India, the United States, Brazil, and the United Kingdom [115]. There are several dye manufacturers, such as Bodal Chemicals Ltd located in Gujarat, India (more than 170 dyestuffs), Atul Chemicals Ltd located in Gujarat, India (Vat dyes and Sulphur Black dyes), Colourtex Industries Private Limited located in Pandesara Surat, India (disperse dye, brilliant and reactive dyes), Huntsman located in Delaware, United states (cationic dye, reactive dyes), Zhejiang Longsheng Dyestuff Chemicals Co Ltd located in Hangzhou Harbor Shaoxing, China (vat dyes, reactive dyes, acid dyes), Zhejiang Runtu Co. Ltd., located in Shanxi, China (disperse dyes, reactive dyes, direct dyes), Jiangsu Yabang Dyestuff Co. Ltd., located in Changzhou, China (vat dyes, disperse dye, solvent dyes), and BASF located in Ludwigshafen, Germany (vat dyes, solvent dyes). Many techniques have been used to remove dye from wastewater. However, some of these techniques have several disadvantages, such as ion exchange (very expensive), membrane process (very low flow rate), and bio-degradation (very slow process and nutrition requirement) method. In general, experimental results showed that different removal rates can be observed for a particular dye. For example, approximately 90% (cationic, acid, and mordant dyes), 40% (reactive, sulfur, direct, and disperse dyes), and 20% (vat dyes) removal rates can be seen by using activated carbon [116]. Table 9 presents the collection of various types of adsorbents employed to remove the different dye compounds from aqueous solutions. The adsorption kinetics, isotherms, and thermodynamics were reported from the selected literature survey. In this work, the application of different types of adsorbents for the removal of pollutants from wastewater has been reviewed. As highlighted by many researchers, the adsorption technique has many advantages, such as low cost, high performance, and easy operation compared to membrane filtration (which is very expensive). Table 10, Table 11, Table 12 and Table 13 showed the preparation costs and operation costs of activated carbon, fly ash, zeolite and carbon nanotubes, respectively. On the other hand, literature survey revealed that the average price of kaolin was increased from 2010 (137 US dollars per ton), 2012 (149 US dollars per ton), 2015 (151 US dollars per ton), 2017 (158 US dollars per ton), 2019 (162 US dollars per ton), and 2021 (160 US dollars per ton) in the United States, due to the high demand for zeolite in construction, agriculture and petrochemical sector [117].

6. Conclusions and Future Perspective

The presence of dyes, pesticides, phenols, and phenolic compounds has caused water pollution. It is a very serious environmental problem, the result of human activities and the development of industrialization. The experimental findings obtained from the literature review revealed that several low-cost adsorbents, such as activated carbon, zeolite, clay, fly ash, LDH, and carbon nanotubes, can be used to remove these pollutants in wastewater. These adsorbents showed a very high surface area and excellent porosity structure useful for improving the adsorption capacity. Adsorption is considered an effective and low-cost technique to adsorb undesired pollutants and produce high-quality treated effluent. Thermodynamic studies indicated that adsorption is a spontaneous process.
In the future, raw materials for activated carbon should be obtained from agricultural wastes due to an enhanced crop value, reduced solid waste management, increased profitability, and reduced environmental pollution. From the consumer’s point of view, the price plays a very important role in the market-analysis process. The price affects the huge demand for the adsorbent and the way these adsorbents are introduced into the market. Currently, researchers prepare adsorbate in the laboratory using analytical-grade chemicals. Pilot plant testing should be conducted rather than using an experimental scale. Wastewater samples can be collected directly from different plants/locations (from different industries).


This research is supported by the Office of Research and Development Consultancy, INTI International University.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.


The author would like to express sincere thanks to the editors and the reviewers for their constructive comments that have greatly enhanced the quality of this paper.

Conflicts of Interest

The authors declare no conflict of interest.
