# Three-Dimensional Hydrostatic Curved Channel Flow Simulations Using Non-Staggered Triangular Grids

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Governing Equations

## 3. Hydrostatic Calculations on Unstructured Prism Grids

## 4. Numerical Discretization

#### 4.1. Integral Form of Equations

#### 4.2. Integral Approximation of the Momentum Equation

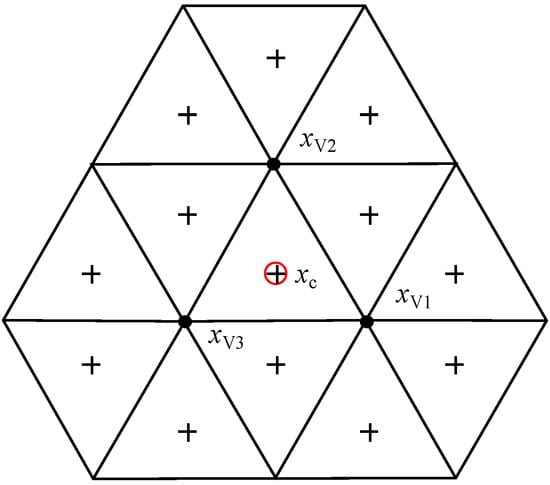

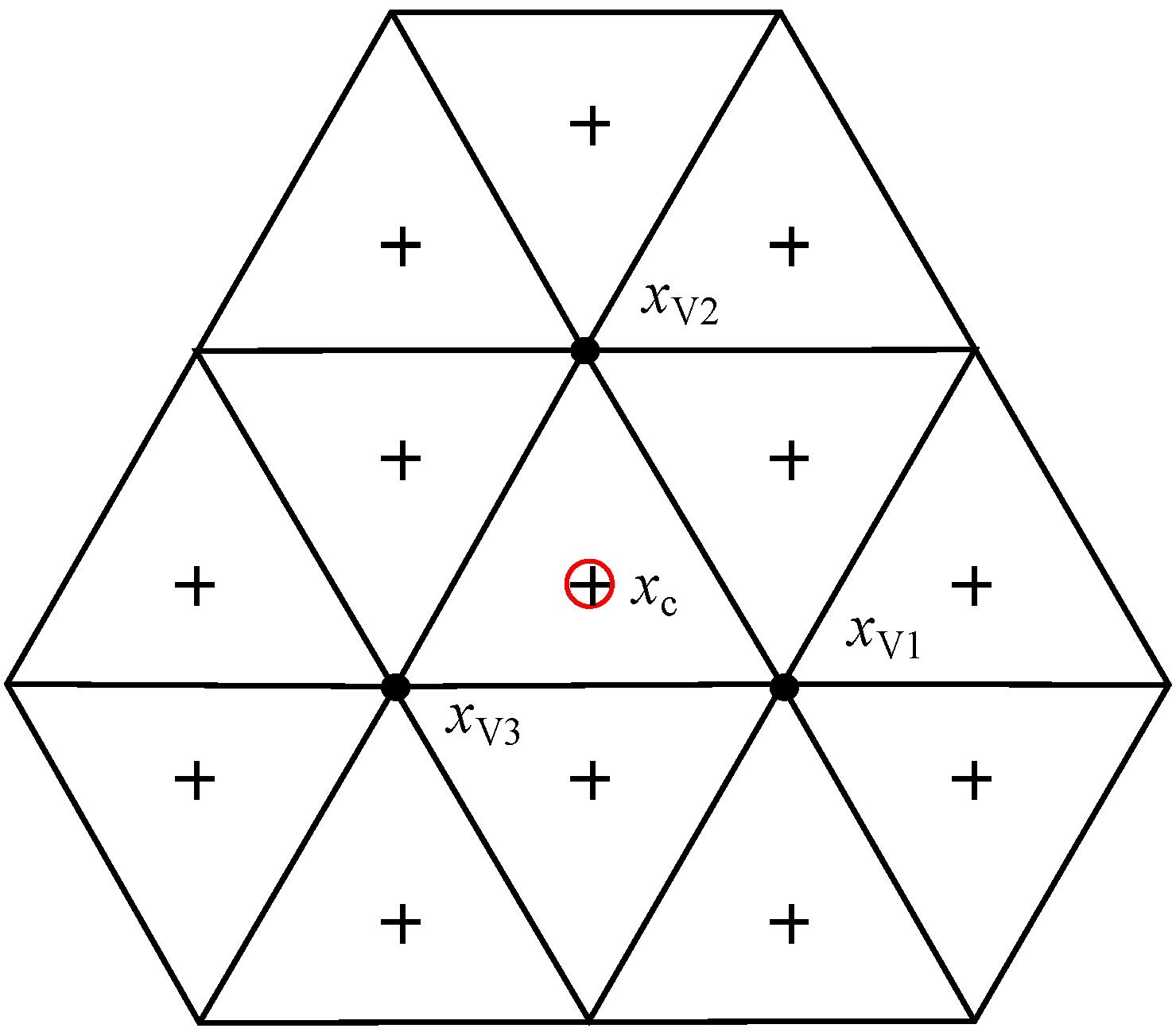

#### 4.3. Interpolation of Face-Normal Velocities

## 5. Divergence Noise Analysis

#### 5.1. Divergence Noise Control and Implementation

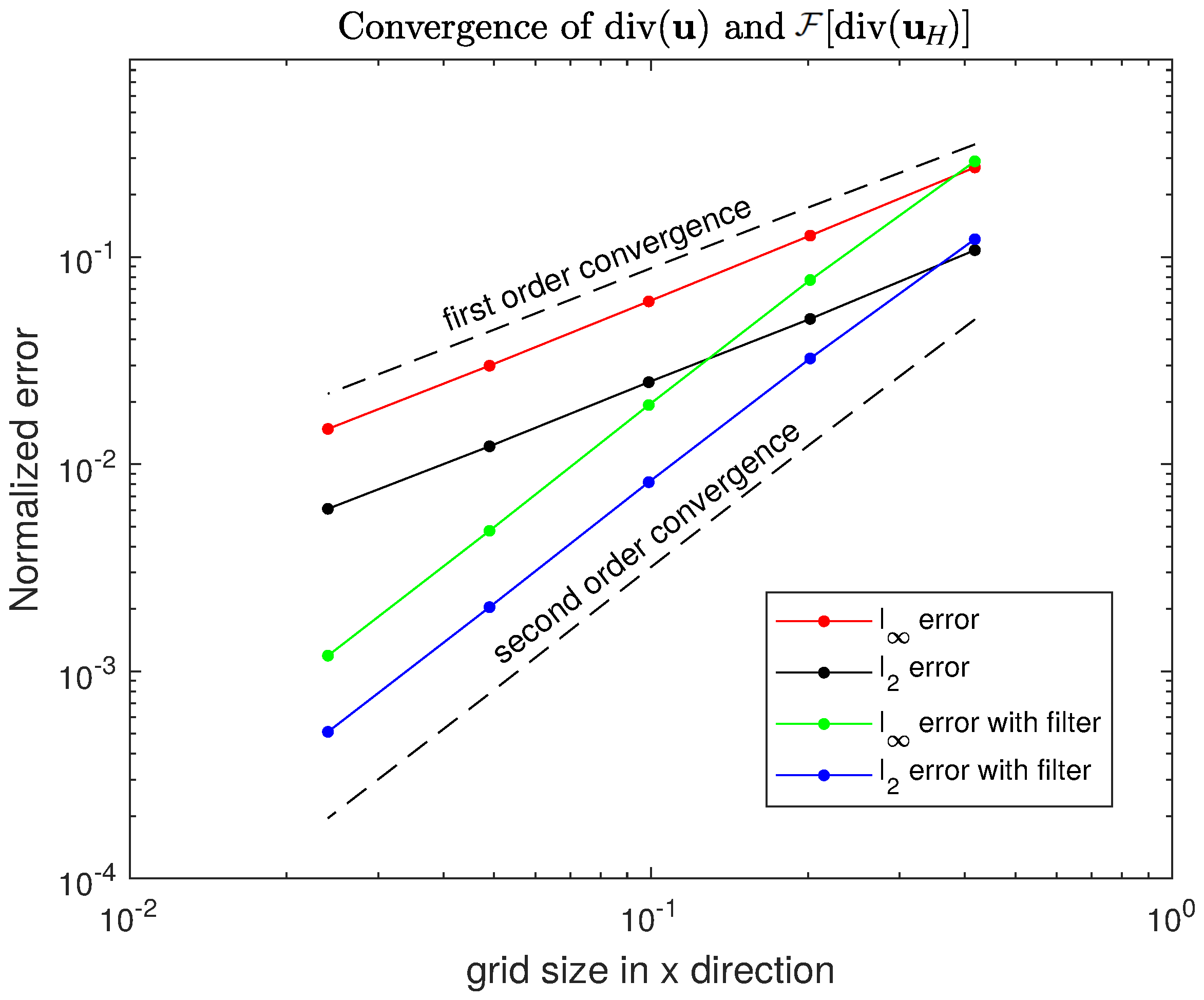

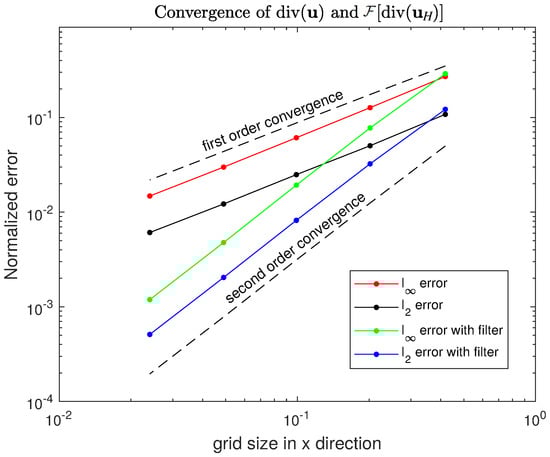

#### 5.2. An Example of the Divergence Noise Control

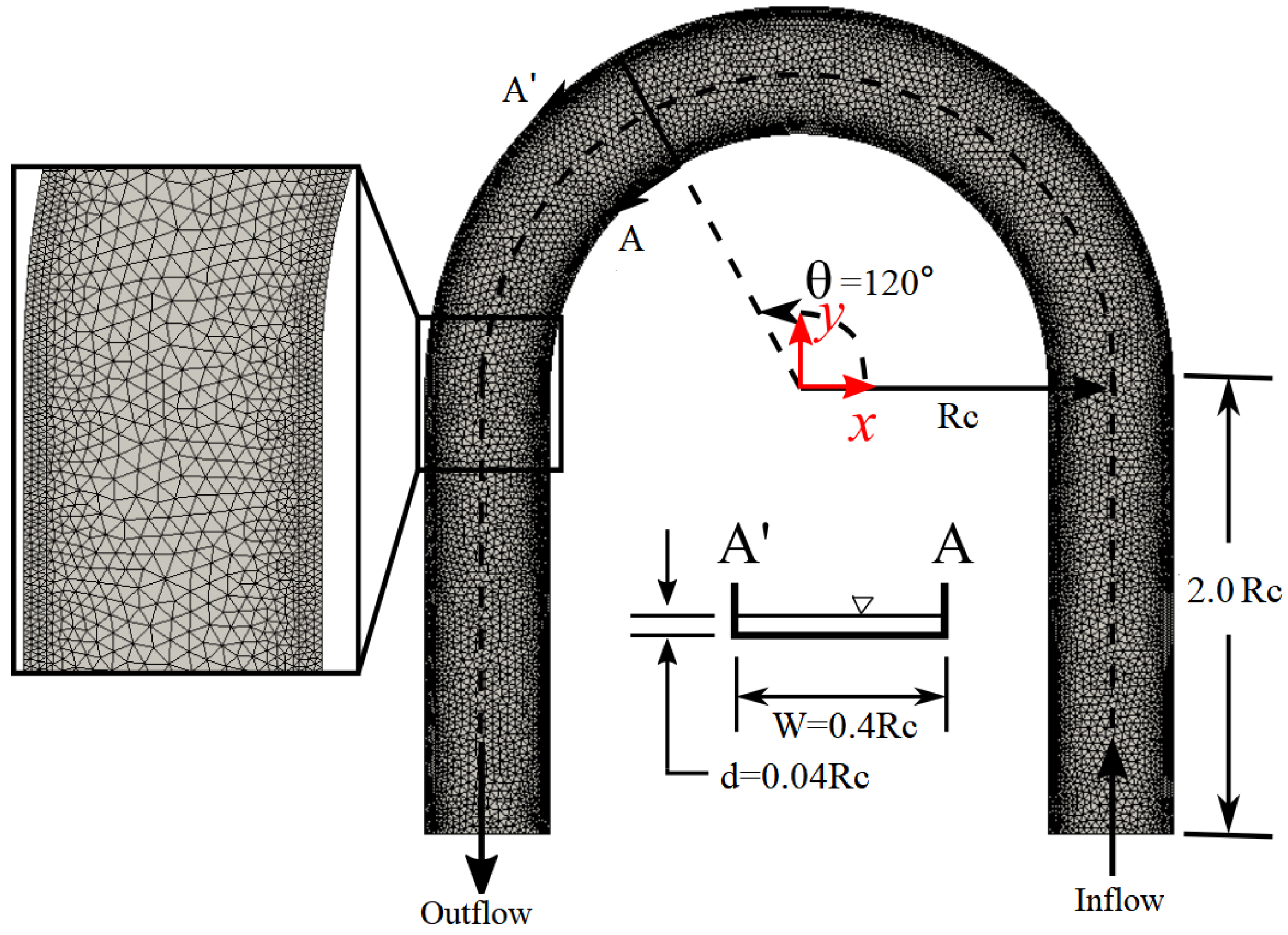

## 6. Numerical Results

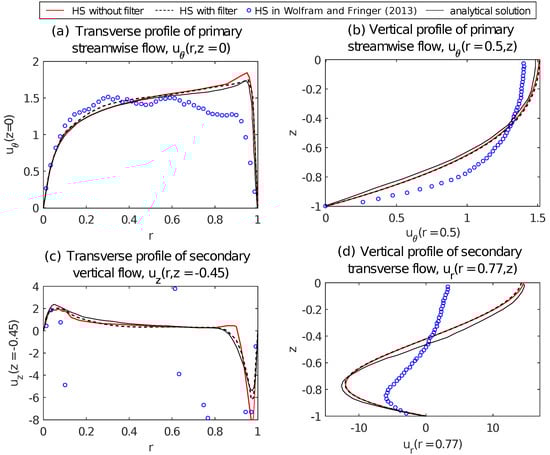

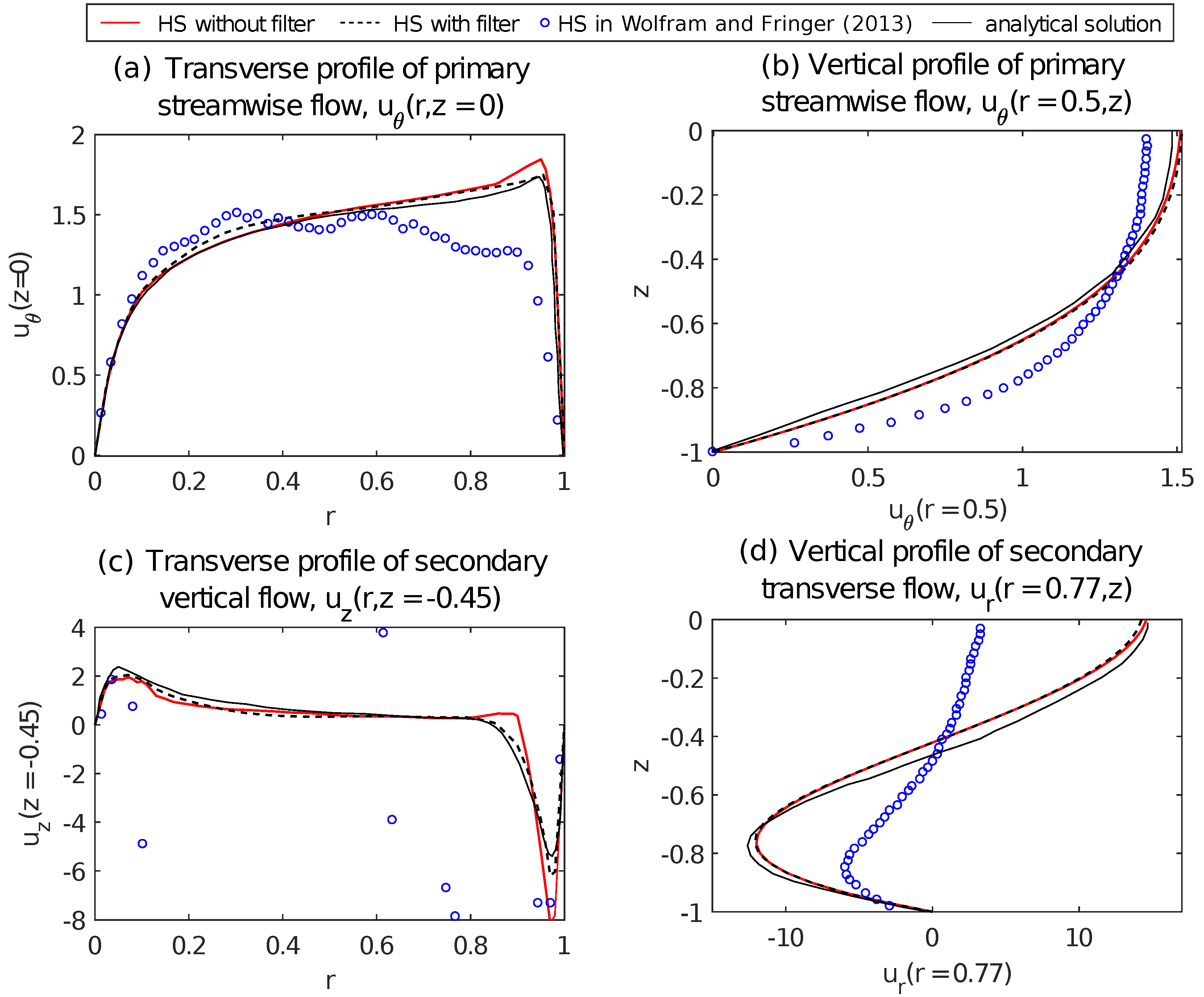

#### 6.1. Velocity Profiles

#### 6.2. Water Surface Elevations

#### 6.3. Secondary Flow Effects

## 7. Discussion

## 8. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Arakawa, A.; Lamb, V.R. Computational design of the basic dynamical processes of the UCLA general circulation model. Gen. Circ. Model. Atmos.
**1977**, 17, 173–265. [Google Scholar] - Wolfram, P.J.; Fringer, O.B. Mitigating horizontal divergence checker board oscillations on unstructured triangular C grids for nonlinear hydrostatic and nonhydrostatic flows. Ocean Model.
**2013**, 69, 64–78. [Google Scholar] [CrossRef] - Wan, H.; Giorgetta, M.A.; Zängl, G.; Restelli, M.; Majewski, D.; Bonaventura, L.; Fröhlich, K.; Reinert, D.; Rípodas, P.; Kornblueh, L.; et al. The ICON-1.2 hydrostatic atmospheric dynamical core on triangular grids—Part 1: Formulation and performance of the baseline version. Geosci. Model Dev.
**2013**, 6, 735–763. [Google Scholar] [CrossRef][Green Version] - Perot, B. Conservation Properties of Unstructured Staggered Mesh Schemes. J. Comput. Phys.
**2000**, 159, 58–89. [Google Scholar] [CrossRef][Green Version] - Fringer, O.; Gerritsen, M.; Street, R. An unstructured-grid, finite-volume, nonhydrostatic, parallel coastal ocean simulator. Ocean Model.
**2006**, 14, 139–173. [Google Scholar] [CrossRef] - Uh Zapata, M.; Zhang, W.; Pham Van Bang, D.; Nguyen, K.D. A parallel second-order unstructured finite volume method for 3D free-surface flows using a σ coordinate. Comput. Fluids
**2019**, 190, 15–29. [Google Scholar] [CrossRef] - Zhang, W.; Uh Zapata, M.; Bai, X.; Pham Van Bang, D.; Nguyen, K.D. An unstructured finite volume method based on the projection method combined momentum interpolation with a central scheme for three-dimensional nonhydrostatic turbulent flows. Eur. J. Mech.-B/Fluids
**2020**, 84, 164–185. [Google Scholar] [CrossRef] - Steffler, P.M.; Rajaratnam, N.; Peterson, A.W. Water Surface at Change of Channel Curvature. J. Hydraul. Eng.
**1985**, 111, 866–870. [Google Scholar] [CrossRef] - Odgaard, A.J. River Meander Model. I: Development. J. Hydraul. Eng.
**1989**, 115, 1433–1450. [Google Scholar] [CrossRef] - Odgaard, A.J. River Meander Model. II: Applications. J. Hydraul. Eng.
**1989**, 115, 1451–1464. [Google Scholar] [CrossRef] - Jin, Y.; Steffler, P.M. Predicting Flow in Curved Open Channels by Depth Averaged Method. J. Hydraul. Eng.
**1993**, 119, 109–124. [Google Scholar] [CrossRef] - Ippen, A.T. An Analytical and Experimental Study of High Velocity Flow in Curved Sections of Open Channels. Ph.D. Thesis, California Institute of Technology, Pasadena, CA, USA, 1936. [Google Scholar]
- Molls, T.; Chaudhry, M.H. Depth-Averaged Open-Channel Flow Model. J. Hydraul. Eng.
**1995**, 121, 453–465. [Google Scholar] [CrossRef] - de Vriend, H.J. Velocity redistribution in curved rectangular channels. J. Fluid Mech.
**1981**, 107, 423. [Google Scholar] [CrossRef] - Hodskinson, A.; Ferguson, R.I. Numerical modeling of separated flow in river bends: Model testing and experimental investigation of geometric controls on the extent of the flow separation at the concave bank. Hydrol. Process
**1998**, 12, 1323–1338. [Google Scholar] [CrossRef] - Rameshwaran, P.; Naden, P. Three-dimensional modelling of free surface variation in a meandering channel. J. Hydraul. Res.
**2004**, 42, 603–615. [Google Scholar] [CrossRef] - Kashyap, S.; Constantinescu, G.; Rennie, C.D.; Post, G.; Townsend, R. Influence of Channel Aspect Ratio and Curvature on Flow, Secondary Circulation, and Bed Shear Stress in a Rectangular Channel Bend. J. Hydraul. Eng.
**2012**, 138, 1045–1059. [Google Scholar] [CrossRef] - Zeng, J.; Constantinescu, G.; Weber, L. 3D Calculations of Equilibrium Conditions in Loose-Bed Open Channels with Significant Suspended Sediment Load. J. Hydraul. Eng.
**2010**, 136, 557–571. [Google Scholar] [CrossRef] - Sin, K.S. Three-Dimensional Computational Modeling of Curved Channel Flow. Ph.D. Thesis, Colorado State University, Fort Collins, CO, USA, 2014. [Google Scholar]
- Xu, D.; Ji, C.; Bai, Y.; Song, X. Three-dimensional numerical investigation on the influence of geometric shape on flow in river bends. J. Hydroinform.
**2017**, 19, 666–685. [Google Scholar] [CrossRef] - Kim, D.; Choi, H. A second-order time-accurate finite volume method for unsteady incompressible flow on hybrid unstructured grids. J. Comput. Phys.
**2000**, 162, 411–428. [Google Scholar] [CrossRef] - Miguel, U.Z.; Damien, P.V.B.; Kim Dan, N. Parallel SOR methods with a parabolic-diffusion acceleration technique for solving an unstructured-grid Poisson equation on 3D arbitrary geometries. Int. J. Comput. Fluid Dyn.
**2016**, 30, 370–385. [Google Scholar] - Vidović, D.; Segal, A.; Wesseling, P. A superlinearly convergent Mach-uniform finite volume method for the Euler equations on staggered unstructured grids. J. Comput. Phys.
**2006**, 217, 277–294. [Google Scholar] [CrossRef] - Davidson, L. A pressure correction method for unstructured meshes with arbitrary control volumes. Int. J. Numer. Methods Fluids
**1996**, 22, 265–281. [Google Scholar] [CrossRef] - Xue, S.C.; Barton, G. A finite volume formulation for transient convection and diffusion equations with unstructured distorted grids and its applications in fluid flow simulations with a collocated variable arrangement. Comput. Methods Appl. Mech. Eng.
**2013**, 253, 146–159. [Google Scholar] [CrossRef] - Jankowski, J.A. Parallel implementation of a non-hydrostatic model for free surface flows with semi-Lagrangian advection treatment. Int. J. Numer. Methods Fluids
**2009**, 59, 1157–1179. [Google Scholar] [CrossRef] - Drinker, P.A. Boundary Shear Stresses in Curved Trapezoidal Channels. Ph.D. Thesis, Massachusetts Institute of Technology, Cambridge, MA, USA, 1961. [Google Scholar]
- Blanckaert, K.; de Vriend, H.J. Nonlinear modeling of mean flow redistribution in curved open channels: Nonlinear modeling of mean flow. Water Resour. Res.
**2003**, 39, 1375. [Google Scholar] [CrossRef] - Blanckaert, K.; Kleinhans, M.G.; McLelland, S.J.; Uijttewaal, W.S.J.; Murphy, B.J.; van de Kruijs, A.; Parsons, D.R.; Chen, Q. Flow separation at the inner (convex) and outer (concave) banks of constant-width and widening open-channel bends: Flow separation in contant-width and winding open-channel bends. Earth Surf. Process. Landf.
**2013**, 38, 696–716. [Google Scholar] [CrossRef][Green Version] - Dean, W. Note on the motion of fluid in a curved pipe. Lond. Edinb. Dublin Philos. Mag. J. Sci.
**1927**, 4, 208–223. [Google Scholar] [CrossRef] - Ligrani, P.; Choi, S.; Schallert, A.; Skogerboe, P. Effects of Dean vortex pairs on surface heat transfer in curved channel flow. Int. J. Heat Mass Transf.
**1996**, 39, 27–37. [Google Scholar] [CrossRef] - Nivedita, N.; Ligrani, P.; Papautsky, I. Dean Flow Dynamics in Low-Aspect Ratio Spiral Microchannels. Sci. Rep.
**2017**, 7, 44072. [Google Scholar] [CrossRef][Green Version] - Abad, J.D.; Garcia, M.H. Experiments in a high-amplitude Kinoshita meandering channel: 1. Implications of bend orientation on mean and turbulent flow structure: KINOSHITA CHANNEL, 1. Water Resour. Res.
**2009**, 45. [Google Scholar] [CrossRef][Green Version] - Cheng, Z.; Constantinescu, G. Stratification effects on hydrodynamics and mixing at a river confluence with discordant bed. Environ. Fluid Mech.
**2020**, 20, 843–872. [Google Scholar] [CrossRef]

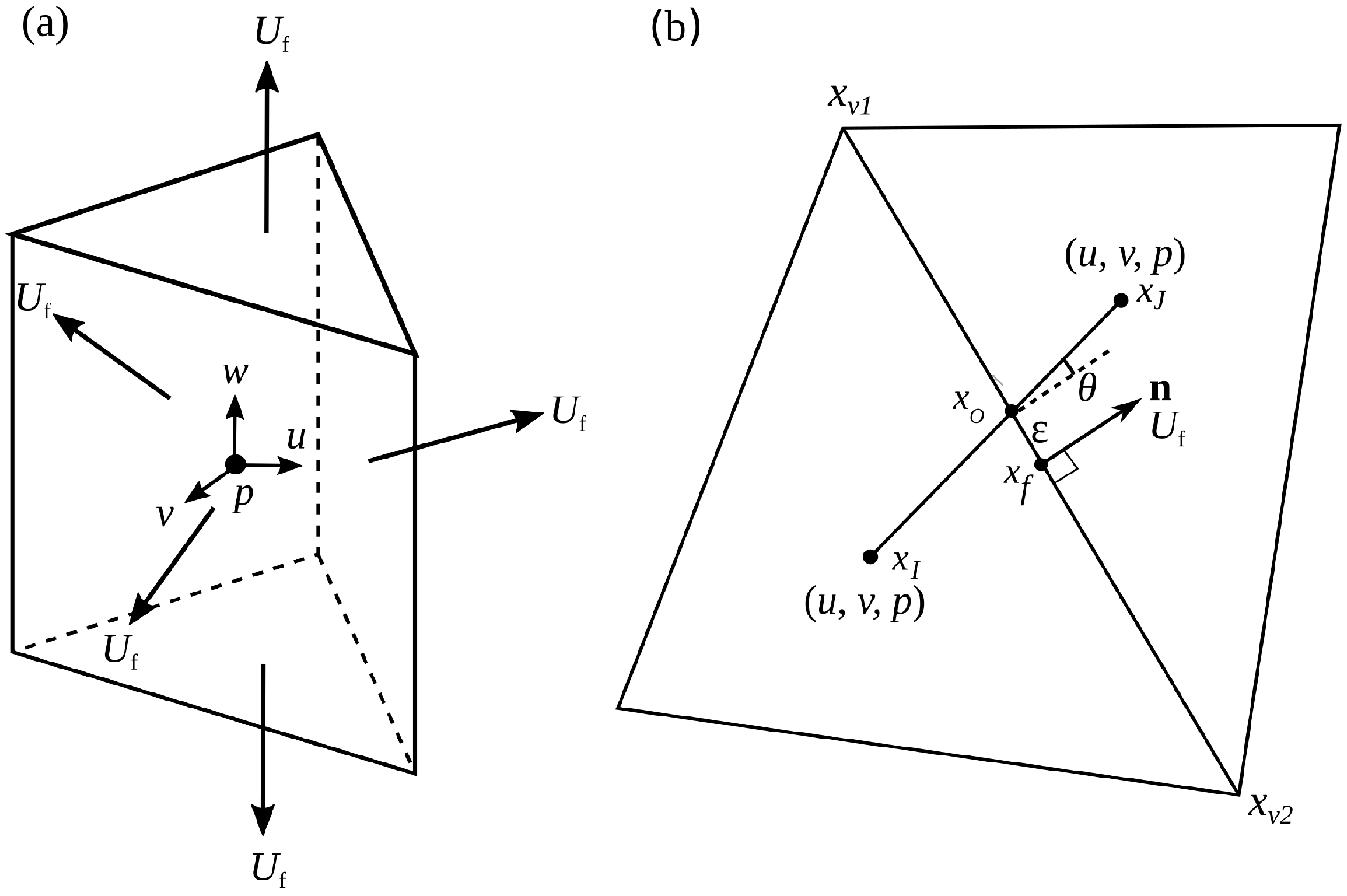

**Figure 1.**(

**a**) Variables defined in the cell-centers for non-staggered grids in each control volume; (

**b**) Prism grids projected into two dimensions.

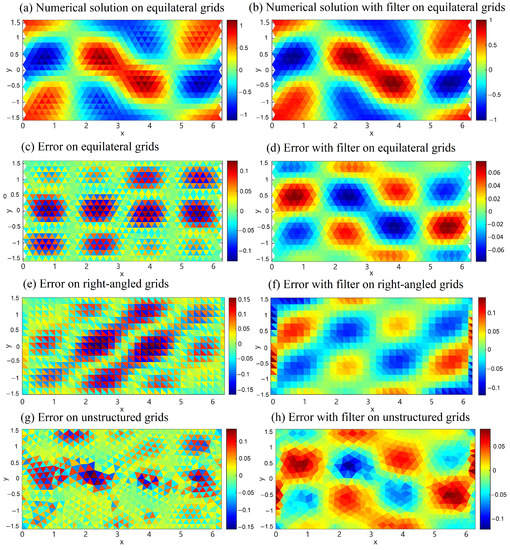

**Figure 3.**The numerical solution and divergence error of the velocity field calculated by different triangular grids without and with filtering.

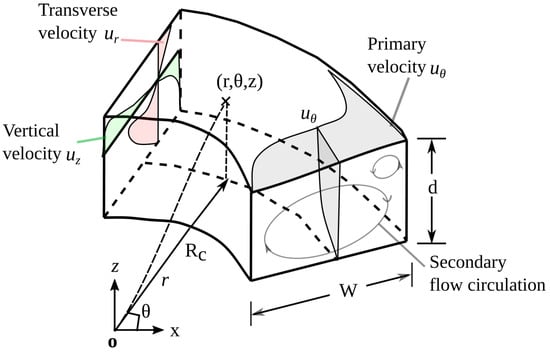

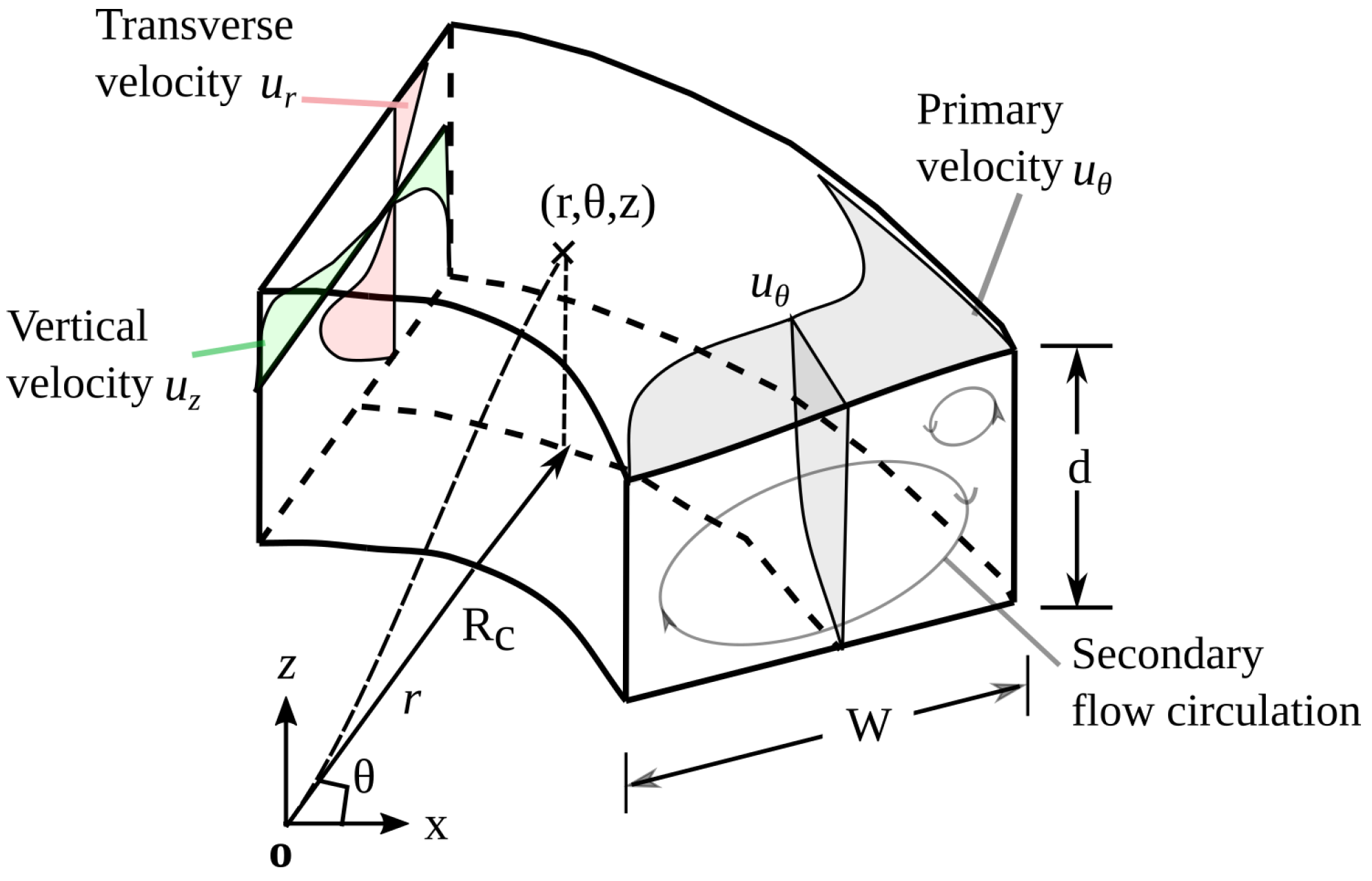

**Figure 5.**Curved channel flow with secondary flow circulations. ${R}_{c}$ represents the radius of curvature to the channel centerline, W is the channel width, and d is the channel depth.

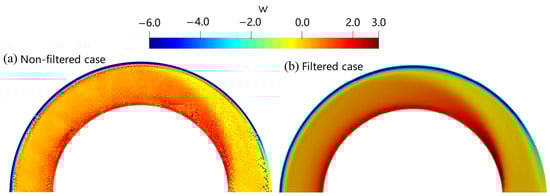

**Figure 8.**Comparison of vertical velocity fields $w(r,\theta ,z=-0.5)$ between the non-filtered and filtered hydrostatic case.

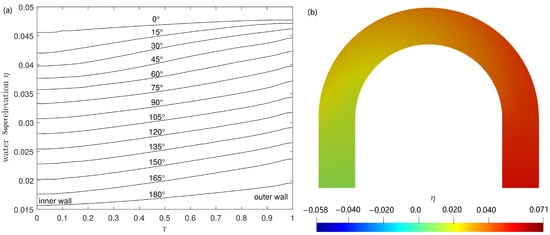

**Figure 9.**(

**a**) Transverse water superelevation across different channel sections; (

**b**) Surface elevation distribution along the curved channel at $Fr=0.1$.

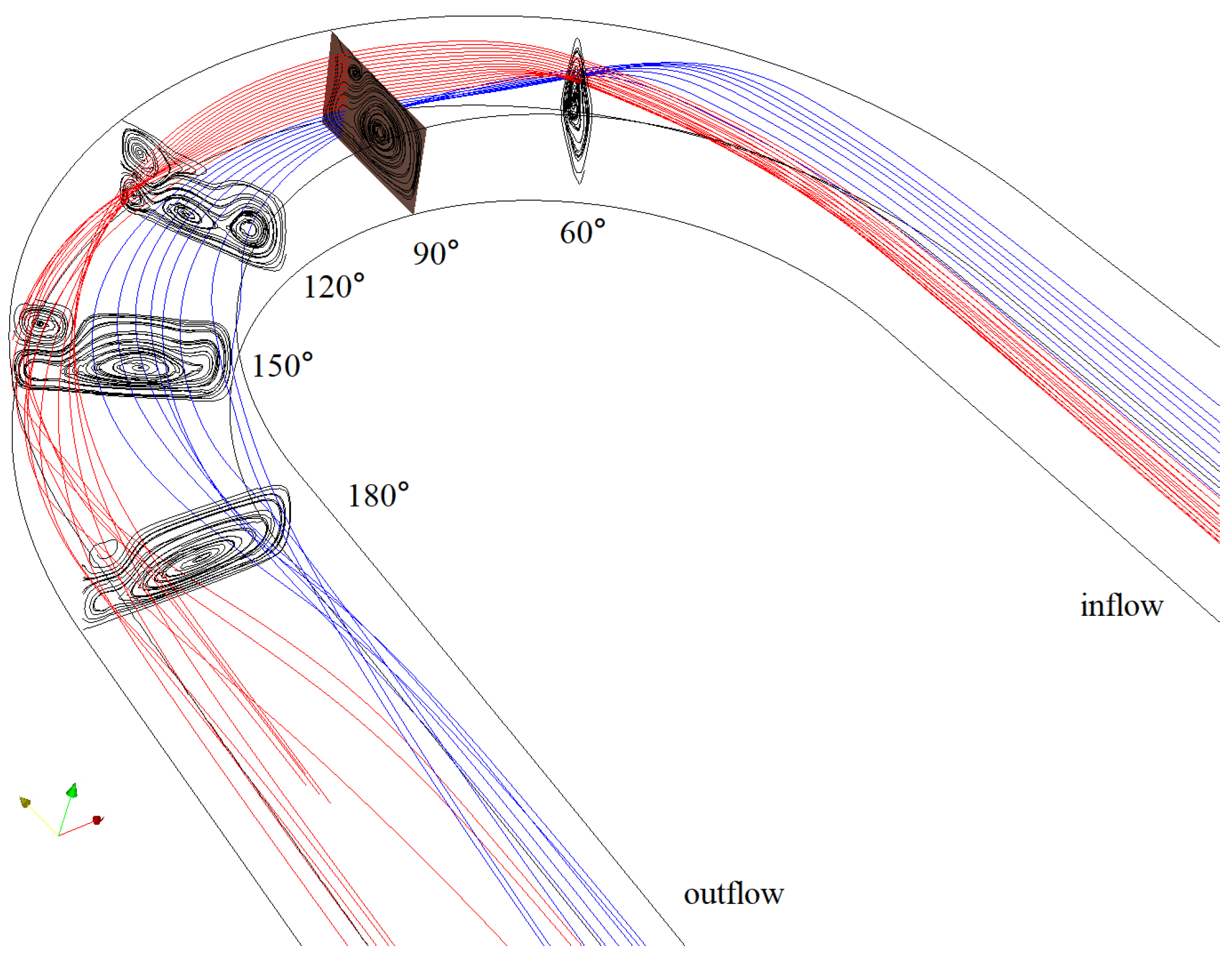

**Figure 10.**Three-dimensional streamlines in the curved channel at $Fr=0.4$. Red and blue lines represent primary flow and black lines represent secondary flows.

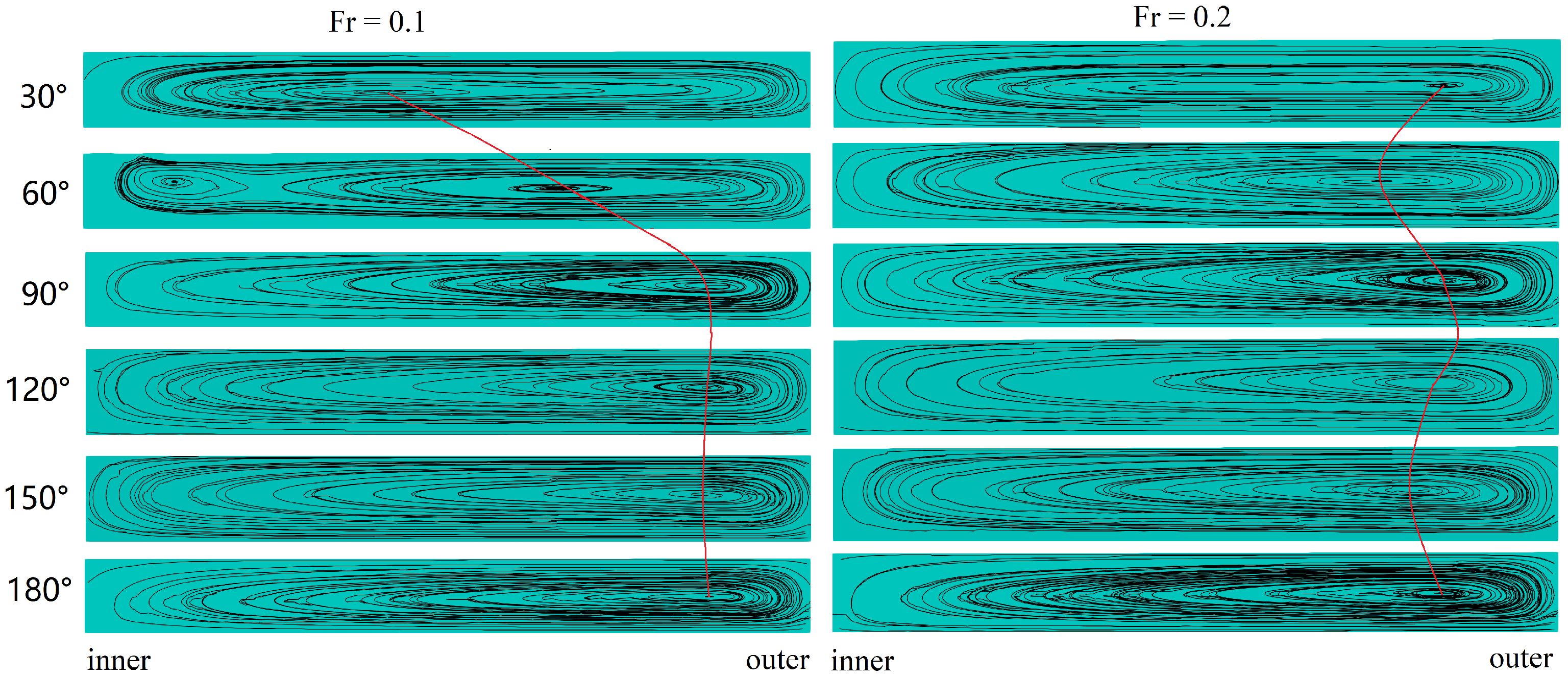

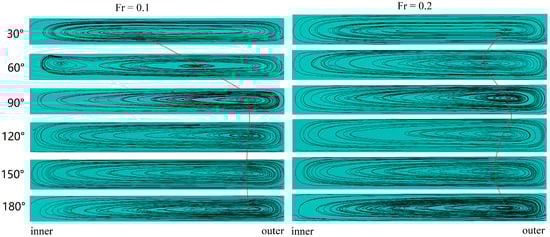

**Figure 11.**Comparison of streamlines at ${30}^{\circ}$, ${60}^{\circ}$, ${90}^{\circ}$, ${120}^{\circ}$, ${150}^{\circ}$, and ${180}^{\circ}$ cross-sections in filtered hydrostatic calculations between $Fr=0.1$ and $Fr=0.2$.

**Figure 12.**Comparison of streamlines at ${30}^{\circ}$, ${60}^{\circ}$, ${90}^{\circ}$, ${120}^{\circ}$, ${150}^{\circ}$, and ${180}^{\circ}$ cross-sections in filtered hydrostatic calculations between $Fr=0.3$, $Fr=0.4$, and $Fr=0.6$.

**Table 1.**The summary of the use of different models in the simulation of curved channel flows from the previous studies.

Reference | Method | Dimension | Curvature | Surface |
---|---|---|---|---|

Ippen [12] | Experiment | 3D | $22.{5}^{\circ},{45}^{\circ}$ bends | Free surface |

de Vriend [14] | Analytical | 3D | ${180}^{\circ}$ bend | Rigid surface |

Steffler et al. [8] | Analytical Experiment | 2D | ${180}^{\circ}$ bend | Free surface |

Odgaard [9], Odgaard [10] | Numerical | 2D | ${60}^{\circ}$ bend | Rigid surface |

Jin and Steffler [11] | Numerical | 2D | ${90}^{\circ}$ bend | Rigid surface |

Hodskinson and Ferguson [15] | Numerical Experiment | 3D | ${60}^{\circ}$, ${90}^{\circ}$ bends | Rigid surface |

Rameshwaran and Naden [16] | Numerical (RANS) | 3D | ${120}^{\circ}$ bend | Free surface Rigid surface |

Zeng et al. [18] | Numerical (RANS) Experiment | 3D | ${120}^{\circ}$ bend | Free surface |

Kashyap et al. [17] | Numerical (RANS) | 3D | ${135}^{\circ}$ bend | Rigid surface |

Wolfram and Fringer [2] | Numerical (DNS) | 3D | ${180}^{\circ}$ bend | Rigid surface |

Sin [19] | Numerical (RANS) | 3D | ${60}^{\circ},{90}^{\circ}$, ${120}^{\circ},{150}^{\circ}$ bends | Free surface |

Xu et al. [20] | Numerical (RANS) Experiment | 3D | ${180}^{\circ}$ bend | Rigid surface |

Present study | Numerical (DNS) | 3D | ${180}^{\circ}$ bend | Free surface |

**Table 2.**The diagram of divergence, $\mathrm{div}\left(\mathbf{u}\right)$, sequence in hydrostatic calculations.

Hydrostatic Calculations |
---|

(0) ${U}_{f}^{n}={\mathbf{u}}_{f}^{n}\xb7\mathbf{n}$; |

(1) Calculate ${\mathbf{u}}^{n+1}$ and ${\mathrm{v}}^{n+1}$ based on ${U}_{f}^{n}$; Calculate ${U}_{f}^{n+1}={\mathbf{u}}_{f}^{n+1}\xb7\mathbf{n}$; |

(2) Calculate $\mathrm{div}\left({\mathbf{u}}_{H}^{n+1}\right)$ based on ${U}_{f}^{n+1}$; |

(3) ${w}_{k+1}^{n+1}$ based on ${w}_{k}^{n+1}$ and $\mathrm{div}\left({\mathbf{u}}_{H}^{n+1}\right);$ ${\eta}^{n+1}$ based on $\mathrm{div}\left({\mathbf{u}}_{H}^{n+1}\right)$ |

(4) ${p}_{h}^{n+1}=\rho g({\eta}^{n+1}-z)$ and go to step 1 |

**Table 3.**Water superelevations versus Froude numbers ($F{r}_{1}$ and $\Delta {h}_{1}$ correspond to the case: $Fr=0.1$).

$\mathit{Fr}$ | ${\mathit{\eta}}_{\mathit{inner}}$ | ${\mathit{\eta}}_{\mathit{outer}}$ | $\mathbf{\Delta}\mathit{h}$ | ${(\mathit{Fr}/{\mathit{Fr}}_{1})}^{2}$ | $\mathbf{\Delta}\mathit{h}/\mathbf{\Delta}{\mathit{h}}_{1}$ |
---|---|---|---|---|---|

0.1 | 0.0254 | 0.03175 | 0.00635 | - | - |

0.2 | 0.1290 | 0.1575 | 0.0285 | 4 | 4.4 |

0.3 | 0.4133 | 0.4800 | 0.0667 | 9 | 10.5 |

0.4 | 0.9210 | 1.0297 | 0.1087 | 16 | 17.1 |

0.6 | 2.1498 | 2.3752 | 0.2254 | 36 | 35.5 |
