Seasonal Variation and Vertical Distribution of Inorganic Nutrients in a Small Artificial Lake, Lake Bulan, in Mongolia

Division of Material Chemistry, Graduate School of Natural Science and Technology, Kanazawa University, Kanazawa 920-1192, Ishikawa, Japan
Department of Environment and Forest Engineering, School of Engineering and Applied Sciences, National University of Mongolia, Ulaanbaatar 14201, Mongolia
Institute for Sustainable Development, National University of Mongolia, Ulaanbaatar 210646, Mongolia
Institute of Nature and Environmental Technology, Kanazawa University, Kanazawa 920-1192, Ishikawa, Japan
Department of Geography, School of Art and Sciences, National University of Mongolia, Ulaanbaatar 210646, Mongolia
Division of Global Environmental Science and Engineering, Graduate School of Natural Science and Technology, Kanazawa University, Kanazawa 920-1192, Ishikawa, Japan
Department of Transdisciplinary Science and Engineering, School of Environment and Society, Tokyo Institute of Technology, Yokohama 226-8502, Kanagawa, Japan
Author to whom correspondence should be addressed.
Water 2022, 14(12), 1916;
Received: 17 May 2022 / Revised: 8 June 2022 / Accepted: 10 June 2022 / Published: 14 June 2022


This is the first seasonal observation study on nutrient dynamics undertaken in a small freshwater lake with eutrophication in Mongolia. The vertical profile and seasonal fluctuation of nutrients are crucial to understanding the biogeochemical cycles in aquatic systems. In this study, field research was carried out at a small and shallow lake, Lake Bulan, in the lower Kharaa River basin. The area has been receiving increased nutrient loads from the water catchment area for the last 20 years. Water samples were collected seasonally from the lake from 2019–2022 and analyzed for nutrients, major cations, trace metals, and dissolved organic carbon. The average concentration of dissolved inorganic nitrogen (DIN) in the surface lake water had a wide seasonal variation from 0.26 ± 0.11 mg N/L in August to 1.44 ± 0.08 mg N/L in January. Seasonal differences were also observed in the vertical profiles. Concentrations were relatively similar at the various water depths in April and September at turnover time. Thermal stratification was observed when the lake was covered in ice, with the maximum concentrations being observed in the bottom layer in the months of January and August. The phosphate concentration showed a similar variation trend. These results indicate that both the summer and winter stratifications are important for regeneration of nutrients in the bottom layer, biochemical cycling, and mitigating impacts of global warming on small and shallow lakes in Mongolia.

1. Introduction

Eutrophication of freshwater lakes has become a serious environmental problem due to anthropogenic activity and climate change [1,2]. According to the Water Research Commission, 28 to 54% of lakes globally are facing eutrophication problems such as enriched dissolved nutrients, phytoplankton overgrowth, decline in dissolved oxygen, and fish-mortality [3]. Eutrophication, as a result of industrial, agricultural, and other activities, is considered to be the most notable negative impact on water bodies [4,5]. These anthropogenic impacts can cause water bodies with low nutrient levels to transition to a eutrophic state resulting in dramatically reduced ecosystem services [4]. The effects of climate change on freshwater flow and rates of nutrient cycling are resulting in increased eutrophication due to the increase in temperature and change in precipitation patterns.
Shallow lakes are more common than deep lakes and provide many ecosystem services including subsistence, drinking water, irrigation water, pollution dilution, transportation, recreation, and aesthetic enjoyment [5]. Shallow lakes are considerably more vulnerable than deep-water ecosystems because they have a low capacity for diluting contaminants and nutrient loads [6], limited oxygen storage capacity, and reduced oxygen availability due to decomposition of organic matter [7]. Small shallow lakes are also more vulnerable as there is lower inflow and outflow, which affects the level of water mixing and vertical transportation of settling particles, thereby influencing pollution dispersion capability [8].
Small lakes at temperate latitudes provide important indicators of the impacts of anthropogenic activity and global warming on water quality, which include the duration of thermal stratification in summer and lake mixing regime [9,10]. Stable stratification prevents the exchange of water between the surface and bottom layers and has a significant impact on the physical and chemical parameters of the water quality [10]. Thermal stratification obstructs the reaeration pathway to the bottom layer, and when dissolved oxygen (DO) in the water is consumed during organic matter decomposition, it results in the formation of an anaerobic environment in this layer [11,12]. Under anoxic conditions, organic matter mineralization promotes the release of ammonium nitrogen and phosphorus from sediments [13]. The changes in lake mixing regimes result in changes to nutrient dynamics and ultimately lake productivity [14]. The speed of DO depletion in the hypolimnion of eutrophic lakes caused by summer stratification is increased due to the earlier onset of thermal stratification combined with higher vertical stability. These phenomena have been observed in several temperate lakes, including Lake Mendota [15] and Lake Mohonk [4] in the northern part of the USA and Lake Blelham Tarn in the United Kingdom [12].
Interest in winter nutrient concentrations and biogeochemical cycles in lakes under ice cover has grown rapidly in recent years [16,17,18]. Winter stratification caused by ice cover may affect nutrient availability for phytoplankton in the spring and summer seasons that follow. Nutrients are released into the hypolimnion, resulting in the decomposition of dead organic material in the benthic sediments [19,20,21]. Additionally, during winter, nutrients are released from water during the freezing process, which leads to an increase in concentration in the water beneath the ice [16]. The findings from the study at the shallow Lake Ulansuhai, in central Mongolia, confirmed that ice cover can dramatically increase nutrient concentrations in water during the winter [22]. Higher concentrations of PO   4 3 - P   and NO   3 - N   were observed in ice-covered water during winter in Lake Arakhley [23] and Lake Gusinoe [24] in the Transbaikal Region of Russia. Powers et al. [25] reported that the nitrate accumulation was strongly correlated to the number of days from the onset of ice cover in the temperate lakes Allequash, Big Muskellunge, Crystal, Sparkling, and Trout in North America.
Vertical profiles of water quality parameters (WQP) and nutrients, and their seasonal variations, are crucial to understanding biogeochemical cycles and nutrient dynamics. In Mongolia, the seasonal thermal regime, distribution of physicochemical parameters, and biogenic substances have primarily been studied in large, deep lakes such as Lake Khuvsgul [26] and Lake Uvs [27], as well as in western saline lakes, Lake Telmen, Lake Oigon, Lake Tsegeen, and Lake Khag [28]. However, even though 85% of lakes in Mongolia are classified as small with a water surface area of less than 1 km2, and considering small lakes and reservoirs are considerably impacted by anthropogenic pollution and nutrient load, they have not yet been investigated [29]. Tao et al. reported that rapid loss of lakes occurred in the Mongolian Plateau (Mongolia, central Mongolia) from 1980–2010 [30]. In particular, the number of small lakes with a water area between 1–10 km2 decreased significantly, with 58 lakes with a combined surface area of 220.2 km2 drying up. This is similar to the trend observed in a study by Davaa [31], who noted that the lake area in Mongolia was reduced by 373 km2 from 1940s–2000s. Both studies linked this issue to the impact of climate change on precipitation patterns and increase in mean annual temperature [32,33,34,35]. It is important to establish the current situation in these lakes for a better understanding of potential future changes in biogenic substances in Mongolian shallow lakes. The aim of our study was to identify the nutrient dynamics and distribution profile in a small shallow eutrophic lake, Lake Bulan, which has a high nutrient load as a result of anthropogenic activity, and is located in the lower part of the Kharaa River basin [36]. Field research was performed seven times over the time period 2019–2022. The nutrient dynamics and changes in the vertical profiles were investigated for each season, including the ice-covered winter period.

2. Materials and Methods

Lake Bulan is an artificial freshwater lake formed from open cast sand and gravel mining during the construction of Darkhan city in the 1960s. The biophysical features are as follows: eutrophic green color, permanent water body; surface area of 0.45 km2 [37] and depth of 6–15 m; 1.1 km long and 0.6 km wide; and elevation of 678 m a.s.l. Lake Bulan is a lentic water body without inflow or outflow water courses. The main recharge sources are precipitation and groundwater from the Kharaa River valley [38]. Ice forms on the lake surface at the beginning of November. The lake is poor in terms of floating and bottom species [38]. It is fed by groundwater, and the growth of animals is low, depending on the depth and temperature of the water. Crayfish and leeches have spread to the rocks on the shores of the lake [38]. Lake Bulan is representative of the lakes of the Khangai–Khentei mountainous region, due to its geographical position. This mountainous region is characterized by the predominance of small and medium lakes [29].
To identify temporal changes in nutrient concentration levels and water quality conditions in Lake Bulan, water samples were collected in winter (3 January 2020 and 30 January 2021), spring (30 April 2020), summer (27 August 2020), and autumn (24 September 2021). Surface and bottom water samples were collected from two stations (Bulan 1 and Bulan 3) (Figure 1). To evaluate the vertical distribution of nutrients, major cations, and trace metals, samples were also collected from the Bulan 2 station at depth intervals of 1 m. Water quality parameters (WQP) were measured in the field using a portable multi-parameter water quality meter WQC-24 (TOA-DKK Corp., Tokyo, Japan) on 24 September 2021 (autumn), 25 February 2022 (winter), and 30 April 2022 (spring). In summer, vertical WQPs were measured using a portable multi-parameter meter WN-32EP and DO-31P (TOA-DKK Corp., Tokyo, Japan). Water samples were obtained using a transfer pump GEO-pump-CFC-a (Geo Science Laboratory Ltd., Kanagawa, Japan).
To compare nutrient concentrations in Lake Bulan with other small freshwater lakes, surface water samples were collected from Lake Bornuur on 26 September 2019 and from Lake Ugii on 22 August 2020 (Table 1, Figure 2). Lake Bornuur is a small artificial lake in the upper catchment area of the Kharaa River basin and was formed between 1968–1970. Lake Ugii is a natural freshwater lake with drainage to the Orkhon River on the eastern edge of the Khangai Mountains [39].
A small boat and a sampling pumper were used to collect samples during the seasons without ice cover. Winter samples were collected using an ice drill and the sampling pumper. The thickness of the ice cover on Lake Bulan was approximately 0.9–1.0 m. The spring and summer samples were collected in two 50 mL polypropylene bottles in the field after filtering the water through a 0.45 µm membrane filter. The winter water samples were collected in a 1000 mL plastic bottle, filtered through a 0.45 µm membrane filter, and separated into two 50 mL polypropylene bottles. One sample was frozen at −20 °C for nutrient and dissolved organic carbon (DOC) analyses. The second sample was preserved by adding 0.5 mL of ultrapure nitric acid (60%). The concentrations of inorganic nitrogen ( NH 4 + - N , NO 2 - N , NO 3 - N ), phosphorus ( PO 4 3 - P ), and silicate ( SiO 2 - Si ) were analyzed using the segmented flow analyzer QuAAtro39 (Seal Analytical, Mequon, WI, USA). The DOC concentrations were measured using a TOC analyzer TOC-V SCN (Shimadzu Corp., Kyoto, Japan). The concentrations of major cations ( Na + ,   K + ,   Ca 2 + ,   and   Mg 2 + ), trace metals (Fe and Mn), and total phosphorus (TP) were measured using inductive coupled plasma optical emission spectrometry Varian-710 (Varian Inc., Palo Alto, CA, USA). Statistical analysis was provided by Originlab, 2021 version (OriginLab corporation, Northampton, MA, USA).

3. Results

3.1. Physical and Chemical Characteristics of Lake Bulan

Water quality characteristics and seasonal variation of surface water at the Bulan 2 station are presented in Table 2. The pH ranged from 6.99–9.06, water temperature (WT) variation was 0.1–20.1 °C, and electrical conductivity (EC) was 72.2–100 mS/m. The DO concentration ranged from 2.78–16.8 mg/L, which, barring the spring measurement, was lower than the national standard MNS 4586-98 [41].
The cationic composition in Lake Bulan is shown in Figure 3. The water from Lake Bulan had a high Na + concentration. Gibb’s plot showed that major processes controlling the water chemistry of Lake Bulan were related to evaporation dominance rates (Supplementary Table S1).
The results of the winter WQP measurements at three stations are shown in Figure 4a. Ice cover was approximately 0.88 m and WT, pH, EC, DO and turbidity were 0.13 ± 0.06 °C, 7.07 ± 0.15, 99.9 ± 0.17 mS/m, 2.48 ± 1.32 mg/L, and 3.33 ± 0.61 NTU in lake water under ice (1 m water depth from the ice surface), respectively. The water temperature had an increasing trend corresponding to depth from 0.1 °C at 1 m to 4.2 °C at 8.8 m at the Bulan 2 station. Bulan 1 and Bulan 3 showed a similar profile. These results indicate that winter stratification was formed due to the surface ice cover [42]. The pH ranged from 7.33–5.5 with lower pH observed at greater depth. A decrease was observed in EC at all three stations up to a depth of 6 m, but increased to 104 mS/m at the deepest Bulan 2 sampling point. The DO concentration profile differed between the three stations. Bulan 1 had a low DO concentration with the lowest concentration present in the surface layer. The DO concentration steadily increased with depth at Bulan 3, while at Bulan 2 DO concentration showed a decrease. Turbidity was consistent at Bulan 1 and Bulan 3; however, it increased sharply to the bottom at Bulan 2.
Results of the spring WQP measurements are presented in Figure 4b. Consistent with a previous study undertaken at Lake Bulan, WT ranged from 8.03–10.2 °C [38]. The water pH ranged from 8.03–8.73 at the three stations. Surface water EC at the three stations ranged from 80.2–84.1 mS/m. The DO concentration was approximately 14.9–18.35 mg/L in surface water. At station Bulan 1, the highest DO concentration of 18.5 mg/l was observed in the bottom layer. The vertical turbidity profile was similar at the three stations, increasing from the surface to 8 m depth from 12.5 ± 0.4 NTU–16.4 NTU, 15 NTU, and 15.3 NTU in the bottom layers of Bulan 1, Bulan 2, and Bulan 3, respectively.
Summer WQP results are presented in Figure 4c. There was a slight decreasing trend in WT, which was approximately 19–21 °C. The average pH was 9.03 ± 0.09 in the surface layer and decreased steadily to 8.58 in the bottom layer. The EC was 76.7 ± 0.6 mS/m in the surface water and 78.6 ± 2.55 mS/m in the bottom layer. The DO concentration observed was 2.7 ± 0.4 mg/L in surface water and decreased with depth until it reached 1.45 mg/L at a depth of 7 m. The WT, pH and DO concentration profiles indicate that stratification most likely formed at a depth of 4–5 m.
The autumn WQP results are shown in Figure 4d. The average WT, pH, EC, DO, and turbidity values at the three sampling sites were 14.8 ± 0.2 °C, 8.37 ± 0.12, 72.9 ± 1.04 mS/m, 4.41 ± 0.28 mg/L, and 14.7 ± 1.47 NTU, respectively. The WT decreased slightly until reaching a depth of 4 m and then remained constant until reaching a depth of 8 m (maximum). The vertical pH profile was mostly similar at each depth; however, the pH at the Bulan 1 station ranged from 8.00–8.98. The vertical DO concentration profile increased until a depth of 2 m and then decreased thereafter. The vertical turbidity profiles at stations Bulan 2 and Bulan 3 were similar, showing a decreasing trend until reaching a depth of 3 and 4 m, respectively, and remaining constant thereafter until reaching a depth of 8 m (maximum). The turbidity profile trend at Bulan 1 differed in that it increased from 13.0 NTU at the surface to 18.3 NTU at 7 m depth.

3.2. Variation of Nutrients and DOC Concentration and Their Vertical Profiles

The average concentrations of nutrients and DOC in surface water at three surface stations from Lake Bulan are presented in Table 3. Higher NH4+, NO3, and PO 4 3 concentrations were observed in January. The concentration of DOC was higher in the autumn sample.
Figure 5 presents vertical profiles of nutrients and DOC concentrations at the three stations. In winter, NH 4 + - N , NO 2 - N , and NO 3 - N concentrations steadily decreased up to a depth of 5–6 m and then increased sharply beyond that. The concentration of PO 4 3 - P increased steadily from a depth of 2 m until the bottom layer (Figure 5a). The higher concentration directly beneath the ice surface was a result of the release of nutrients during ice formation [22]. Spring (Figure 5b) and autumn (Figure 5d) profiles showed relatively constant concentrations in the water column. The summer profile (Figure 5c) showed a sharp increase in NH 4 + - N and   PO 4 3 - P concentrations with water depth, while NO 2 - N   and NO 3 - N concentrations were lowest in the bottom layer.
The NH 4 + - N concentration was mostly similar at different depths in April, but in August, it increased substantially from a depth of 5 m, reaching 2.5 mg/L. The January observation results showed an increasing trend with water depth, though the concentrations differed from each other for the bottom layer. The NO 2 - N concentration showed a wide variation from 0.005 mg/L in August to 0.06 mg/L in September. The January samples showed an increase in NO 2 - N concentration from a depth of 6 m to the bottom layer. The vertical profiles of NO 3 - N concentration showed a variation trend similar to the profiles of NO 2 - N concentration. The January profile of NO 3 - N concentration varied relatively widely and decreased until a depth of 6 m, but then increased to 1.46 mg/L in the bottom layer. Phosphate concentration increased in the bottom layer in January, August, and September. The PO 4 3 - P concentration increased dramatically and reached its maximum (0.075 mg/L) in the bottom layer in August. The silica concentrations showed a vertical profile similar to that of the phosphate concentrations, with SiO2-Si concentration fluctuating from 0.5–3.0 mg/L and reaching its maximum in August. There were no notable changes in the DOC concentration profile in April and August. However, the concentration fluctuated from 2.5–12 mg/L during the ice cover period. The DOC concentration was constant over ranging depth in April and August but showed wide variation with a maximum peak at a depth of 7 m in January and September.
We compared the Lake Bulan results to those of other freshwater lakes in similar geographical and meteorological zones in the Mongolian Plateau, Russia, and China. The summarized results are presented in Table 4. Lake Bulan had a relatively high concentration of nutrients—in particular, the dissolved inorganic nitrogen (DIN) concentration (0.77–1.44 mg N/L). The maximum phosphate concentration of Lake Bulan was an order of magnitude higher than in the other Mongolian lakes.

3.3. Seasonal Variation of DIN in Lake Bulan

The percentage of the composition and the amplitude of seasonal fluctuations in the DIN concentration can serve as indicators of the eutrophication of a water body [46]. Average DIN concentration and percentages of NH 4 + - N ,   NO 3 - N , and NO 2 - N at the three stations are shown in Figure 6a for the surface water sample, and in Figure 6b for the 7 m depth sample.
The DIN concentration in the surface water ranged from 0.26 ± 0.11 mg/L in August to 1.37 ± 0.17 mg/L in January. Higher concentrations of DIN (1.74 ± 0.19 mg/L) were observed in the bottom layer in January. The average percentage of DIN showed clear seasonal differences between surface and 7 m depth water. With eutrophication, the concentration of NO 3 - N increased, as well as its share in the total amount of inorganic nitrogen [46]. The dominant DIN in surface water was NH 4 + - N in August and September, but it changed to NO 3 - N in April. At a depth of 7 m, NH 4 + - N   was dominant in August (96%) and lowest in April (14%). The concentrations of nitrites and their share of total nitrogen content were higher in September but decreased to 0–2% in other seasons.

4. Discussion

4.1. Seasonal Variation of Tropic Status in Lake Bulan

Inorganic phosphates and total phosphorus are used to assess the trophic status of a water body. Phosphorus is a biogenic element used by bacteria and plants in primary production and is often absent from water during the summer. In winter, the phosphate reserve recovers due to phosphorus transition in mineral phosphorus, from dead organisms. The seasonal variation of phosphorus in the surface water samples ranged from 0.03 ± 0.005 in August to 0.17 ± 0.09 mg/L in January (Supplementary Table S1), while the phosphate concentration ranged from 0.002 ± 0.001 in April to 0.085 ± 0.07 mg/L in January. In interannual changes, the average ratio of phosphate/total phosphorus (TP) was 0.04 in April, 0.11 in August, and 0.49 in January. This increase provides an indication of the intense biochemical processes in the ecosystem leading to the production of nutrients and decomposition of organic matter in the bottom layer in winter. The lack of DO eventually leads to anoxia, which may impact benthic fish and invertebrates, and increases the internal loading of phosphorus from sediments. The release of phosphate from the benthic sediments in a declining environment has been reported for freshwater lake systems [23]. Some studies have shown that the incidence of DIN: PO 4 3   > 16 is conditionally conducive to the bloom of Cyanophyta and Chlorophyta [46,47,48]. Nutrient availability by molar mass ratios of DIN: PO 4 3 in Lake Bulan were 117, 1083, 192, and 118 in January, April, August, and September, respectively. Based on molar ratios of DIN: PO 4 3 , Lake Bulan phytoplankton are limited by phosphorus availability during the year. Low concentrations of phosphorus in North American Lake Michigan pointed to eutrophication from increased anthropogenic phosphate inputs to the lake, which consequently increased diatom uptake of dissolved silica [49]. The lower SiO2 concentrations observed in April in Lake Bulan could be linked to lower concentrations of phosphate and spring bloom of diatoms. This is evidenced by the result of the diatom richness study in the Kharaa River basin [50], which is explained by low temperatures that limit competition from other algal groups and by increased nutrient content due to runoff of snowmelt, soil, and livestock. Increased DOC concentrations often have a significant impact on nutrient cycling due to changes in light attenuation, thermal stratification, and phytoplankton and zooplankton depth distribution caused by its induction. The DOC concentration may also influence the rate of oxygen depletion in lakes through photochemical oxidation, and the availability of critical nutrients such as iron and phosphorus [50,51]. Increased DOC concentrations from 5.82 ± 0.14 in April to 9.44 ± 0.68 in September result in brown coloration in Lake Bulan, and may be the cause of the relatively low DO concentrations, as they limit UV penetration in the water column [51] (Supplementary Table S1).

4.2. Dynamic of the DIN Profile in Lake Bulan

It is notable that the winter and summer profiles of DIN contrast considerably (Figure 7). The NO 3 - N concentration and vertical profile beneath the ice were similar to those of NH 4 + - N in winter. This provides evidence of metabolic activity in the lake bottom water. Nitrification is an oxygen consumptive process. High N loading and N cycling have the potential to increase winter depletion rates [16]. The concentration of NH 4 + - N in bottom water increased over time during summer and winter stratification owing to decomposition of organic matter [21,52,53]. The low DO concentration at a depth of 7 m in August (Figure 4c) can be explained as similar to the thermal classification and summer stratification [10]. Jaeger [54] reported that the lowest DO concentrations were observed during summer in the hypolimnion (6–10 m depth) and surface sediments of a small urban lake, Lake Krupunder in Germany. The depletion of DO is one of the most important phenomena in nutrient load and eutrophication and can directly affect the biogeochemical processes in the water column. Summer and winter stratifications were important regulators of the nutrient cycle in the lake system. Winter nutrient concentrations were higher due to the ice formation on the lake surface and were consumed via primary production periods without ice cover [22]. Bengtsson et al. [55] studied the DO consumption in shallow ice-covered lakes, namely Lake Velen and Lake Vendyurskoe, and argued that the decrease in DO was mainly due to loss in sediments during periods of ice cover, which leads to an increase in the concentration of NH 4 + - N and   NO 3 - N .
The Darkhan city area is characterized as a relatively low winter precipitation region [56]. Lakes in northern Mongolia are covered by ice for four months from November to March [35] and form winter stratification, which leads to the decomposition of organic matter in the bottom layer. With the contribution of snowmelt water, the ice melting process inhibits mixing by wind and increases the WT of the surface layer to 8–10 °C [38]. Lake Bulan experienced the spring change in April, so the concentrations of   NO 3 - N   and   NH 4 + - N were mostly similar at different depths, with average values of 0.67 and 0.09 mg/L, respectively (Figure 7b). The decreased concentration of NH 4 + - N was possibly due to decreased phytoplankton activity. The lower DIN concentration in the surface water during August is indicative of a phytoplankton bloom using NO 3 -N for growth and strong summer stratification, which occurs in the late growth season in the Mongolian Plateau region [57]. On the other hand, a sharp increase in the NH 4 + - N concentration was observed in the bottom layer, but NO 3 - N and NO 2 - N concentrations were reduced (Figure 7c). The concentration of Mn also increased sharply from a water depth of 5 m to the maximum concentration at 7 m, more than 2 m from the benthic sediments (Supplementary Table S1), but dissolved Fe was less than 16 µg/L. As a result, an Mn oxide reducing condition was formed in the bottom layer at a depth exceeding 7 m and/or at the benthic sediment. A decrease in WT from 20.1 °C in August to 14.8 °C in September was observed, and the lake stratification weakened. The vertical distribution of DIN concentrations was mostly constant with depth due to autumn mixing in Lake Bulan, as shown in Figure 7d. Higher DIN concentrations in January were related to low phytoplankton activity and DO used in the nitrification process. Cavaliere et al. [19] described the winter nitrification rate in ice-covered lakes in relation to higher   NH 4 +   - N concentrations.
In many eutrophic lakes, oxygen deficiency in the bottom layer occurs annually during summer stratification [15]. The temporal and spatial extent of summer hypolimnetic anoxia is determined by interactions between the lake and its external and internal feedback mechanisms [15]. The knowledge of how these factors have resulted in anoxia in the lake over previous decades will, in part, help to determine the quality of the lake’s water in the future.
The predicted acceleration of global warming seems to have significant impacts [9,57] on the thermal conditions of lake water. If air temperature is warmer in late winter and early spring, earlier ice melting [34,58,59] will lead to longer summer stratification and shorter winter stratification. This will possibly increase nutrient concentrations in the bottom layer and in the water column in the summer season with turnover time in autumn. The shorter winter season may result in a decline in nutrient concentrations in the bottom layer. Therefore, continued monitoring research is needed to quantify the effects of global warming and to identify mitigation measures for these effects.

5. Conclusions

Mongolian lake environments have been subjected to the effects of climate change and anthropogenic activity such as urbanization. Lake systems provide livelihood ecosystem services as they are water resources for agriculture and recreational activities. Nutrient concentration and dynamics play an important role in maintaining natural ecosystem diversity. This study focused on a small artificial lake with eutrophication, Lake Bulan, located in the lower reaches of the Kharaa River basin where anthropogenic activity is increasing. Field research was carried out at three sites on Lake Bulan from April 2019 to April 2022. The water samples were analyzed for nutrients, trace metals, and DOC concentrations to understand the present lake environment and to have information for future assessments. The concentrations and vertical profiles of nutrients varied considerably over four seasons. Higher concentrations of DIN and PO 4 3 - P   in surface lake water were observed in January with values of 1.44 ± 0.08 mg/L and 0.08 ± 0.07 mg/L, respectively. During winter stratification, the NH 4 + - N and   NO 3 - N   concentrations increased with depth, with the highest concentrations observed in the bottom layer. During summer stratification, increases in nutrients and Mn concentrations in the bottom layer were observed, with concentrations of 2.35 mg/L, 0.08 mg/L, and 0.37 mg/L for NH 4 + -N, PO 4 3 - P , and Mn, respectively. These results suggest that change in the bottom layer and benthic sediments due to organic matter decomposition during the summer and winter seasons is evidence of a declining environment. Water stratification is one of the factors controlling nutrient concentration, which is related to phytoplankton activity in Lake Bulan. Future detailed studies will be necessary to understand the effects of global warming and anthropogenic activity on small lakes in Mongolia, among which are periods of shorter winter stratification and longer summer stratification.

Supplementary Materials

The following supporting information can be downloaded at:, Table S1: Dynamics of inorganic nutrients, cations and trace metals in water Lake Bulan.

Author Contributions

A.B. and S.N. wrote the paper and analyzed the data. A.B., S.T., K.F. and B.G. performed the experiments. A.O., E.M., B.G., B.Z., A.Y. and D.D. carried out the fieldwork. All authors have read and agreed to the published version of the manuscript.


Financial support was provided by the Higher Engineering Education Development Project; Functional material based on Mongolian Natural Minerals for Environmental Engineering, Cementitious and Float Process (No. J11A15), under collaborative research (20012 and 21002) of the Joint Usage/Research Program of Kanazawa University and the Japanese Society for the Promotion of Science (JP18KK0296 and JPJSBP120219915).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.


The authors thank T. Yoshimura and Y. Yamashita of Hokkaido University and R. Sugimoto of Fukui Prefectural University for their assistance with nutrient and DOC analysis.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Zhang, Y.; Liang, J.; Zeng, G.; Tang, W.; Lu, Y.; Luo, Y.; Xing, W.; Tang, N.; Ye, S.; Li, X.; et al. How climate change and eutrophication interact with microplastic pollution and sediment resuspension in shallow lakes: A review. Sci. Total Environ. 2020, 705, 135979. [Google Scholar] [CrossRef]
  2. Rodgers, E.M. Adding climate change to the mix: Responses of aquatic ectotherms to the combined effects of eutrophication and warming. Biol. Lett. 2021, 17, 20210442. [Google Scholar] [CrossRef]
  3. Kutyavina, T.I. Study of the Processes of Eutrophication of Water Bodies in the Kirov Region. Ph.D. Thesis, Vyatka State University, Vyatka City, Russia, 2017. [Google Scholar]
  4. Richardson, D. Variability in Water Quality and the Effect of Climate Change and Teleconnections on lake Thermal Structure in the Sky Lakes of Shawangunk Ridge; World Resources Institute: New York, NY, USA, 2017. [Google Scholar]
  5. Dokulil, M.T.; Teubner, K. Eutrophication and restoration of shallow lakes—The concept of stable equilibria revisited. Hydrobiologia 2003, 506–509, 29–35. [Google Scholar] [CrossRef]
  6. Jørgensen, E.S. Modelling eutrophication of shallow lakes. Dev. Environ. Model 1988, 12, 177–188. [Google Scholar] [CrossRef]
  7. Xu, Z.; Xu, Y.J. Determination of trophic state changes with diel dissolved oxygen: A case study in a shallow lake. Water Environ. Res. 2015, 87, 1970–1979. [Google Scholar] [CrossRef]
  8. Lap, B.Q.; Van Tuan, N.; Hamagami, K.; Iguchi, S.; Mori, K.; Hirai, Y. Formation and disappearance of thermal stratification in a small shallow lake. J. Fac. Agric. Kyushu Univ. 2009, 54, 251–259. [Google Scholar] [CrossRef]
  9. Woolway, R.I.; Merchant, C.J. Worldwide alteration of lake mixing regimes in response to climate change. Nat. Geosci. 2019, 12, 271–276. [Google Scholar] [CrossRef]
  10. Shi, J.; Wang, L.; Yang, Y.; Huang, T. Effects of seasonal thermal stratification on ammonia nitrogen transformation in a source water reservoir. Processes 2021, 9, 2218. [Google Scholar] [CrossRef]
  11. Li, W.; Wu, F.; Liu, C.; Fu, P.; Wang, J.; Mei, Y.; Wang, L.; Guo, J. Temporal and spatial distributions of dissolved organic carbon and nitrogen in two small lakes on the Southwestern China Plateau. Limnology 2008, 9, 163–171. [Google Scholar] [CrossRef]
  12. Foley, B.; Jones, I.D.; Maberly, S.C.; Rippey, B. Long-term changes in oxygen depletion in a small temperate lake: Effects of climate change and eutrophication. Freshw. Biol. 2012, 57, 278–289. [Google Scholar] [CrossRef]
  13. Yan, X.; Wang, M.; Xu, X.; Wang, G.; Sun, H.; Yang, Y.; Shi, A. Migration of carbon, nitrogen and phosphorus during organic matter mineralization in eutrophic lake sediments. Hupo Kexue/J. Lake Sci. 2018, 30, 306–313. [Google Scholar] [CrossRef][Green Version]
  14. Verburg, P.; Hecky, R.E. The physics of the warming of Lake Tanganyika by climate change. Limnol. Oceanogr. 2009, 54, 2418–2430. [Google Scholar] [CrossRef]
  15. Ladwig, R.; Hanson, P.C.; Dugan, H.A.; Carey, C.C.; Zhang, Y.; Shu, L.; Duffy, C.J.; Cobourn, K.M. Lake thermal structure drives interannual variability in summer anoxia dynamics in a eutrophic lake over 37 years. Hydrol. Earth Syst. Sci. 2021, 25, 1009–1032. [Google Scholar] [CrossRef]
  16. Powers, S.M.; Hampton, S.E. Winter limnology as a new frontier. Limnol. Oceanogr. Bull. 2016, 25, 103–108. [Google Scholar] [CrossRef]
  17. Ozersky, T.; Bramburger, A.J.; Elgin, A.K.; Vanderploeg, H.A.; Wang, J.; Austin, J.A.; Carrick, H.J.; Chavarie, L.; Depew, D.C.; Fisk, A.T.; et al. The changing face of winter: Lessons and questions from the Laurentian great lakes. J. Geophys. Res. Biogeosci. 2021, 126, e2021JG006247. [Google Scholar] [CrossRef]
  18. Hrycik, A.R. Effects of Changing Winter Severity on Plankton Ecology in Temperate Lakes. Ph.D Thesis, University of Vermont, Burlington, VT, USA, 2021. [Google Scholar]
  19. Cavaliere, E.; Baulch, H.M. Winter nitrification in ice-covered lakes. PLoS ONE 2019, 14, e0224864. [Google Scholar] [CrossRef][Green Version]
  20. Wetzel, R.G. Limology Lake and River Ecosystems, 3rd ed.; Academic Press: Cambridge, MA, USA, 2001; ISBN 9780127447605. [Google Scholar]
  21. De Haan, H.; Boschker, H.T.S.; Buis, K.; Cappenberg, T.E. Functioning of land-water ecotones in relation to nutrient cycling. Hydrobiologia 1993, 82, 27–32. [Google Scholar] [CrossRef]
  22. Yang, F.; Li, C.; Matti, L.; Shi, X.; Zhao, S.; Zhang, C. Notable increases in nutrient concentrations in a shallow lake during seasonal ice growth. Water Sci. Technol. 2016, 74, 2773–2783. [Google Scholar] [CrossRef][Green Version]
  23. Matveeva, M.O.; Ts Tsybekmitova, G. The dynamics of biogenic elements in the ecosystem of Lake Arakhley (Eastern Transbaikal Region). IOP Conf. Ser. Earth Environ. Sci. 2019, 320, 012032. [Google Scholar] [CrossRef]
  24. Peryazeva, E.G.; Sanzhanova, S.S.; Zhambalova, D.I. Nutrients, organic matter, and trace elements in Lake Gusinoe (Transbaikalia). Water 2021, 13, 2958. [Google Scholar] [CrossRef]
  25. Powers, S.M.; Labou, S.G.; Baulch, H.M.; Hunt, R.J.; Lottig, N.R.; Hampton, S.E.; Stanley, E.H. Ice duration drives winter nitrate accumulation in north temperate lakes. Limnol. Oceanogr. Lett. 2017, 2, 177–186. [Google Scholar] [CrossRef][Green Version]
  26. Tarasova, E.; Mamontova, E.A. The spatial and time change ability of chemical composition of water of Lake Hovsgol (Mongolia). Environ. Chem. 2017, 26, 87–100. [Google Scholar]
  27. Paul, M. Limnological aspects of the Uvs Nuur Basin in Northwest. Ph.D. Thesis, Technische Universitat Dresden, Dresden, Germnay, 2012. [Google Scholar]
  28. Baatar, B.; Chuluun, B.; Tang, S.L.; Bayanjargal, O.; Oyuntsetseg, B. Vertical distribution of physical–chemical features of water and bottom sediments in four saline lakes of the Khangai mountain region, Western Mongolia. Environ. Earth Sci. 2017, 76, 130. [Google Scholar] [CrossRef]
  29. Dgebuadeze, Y.Y. Limnology and Paleolimnology of Mongolia, 2nd ed.; Biological Resources and Natural Conditions of Mongolia; Joint Russian-Mongolian Complex Biological Expedition RAS and MAS: Moskow, Russia, 2014; Volume 60, pp. 15–20. [Google Scholar]
  30. Tao, S.; Fang, J.; Zhao, X.; Zhao, S.; Shen, H.; Hu, H.; Tang, Z.; Wang, Z.; Guo, Q.; Turner, B.L. Rapid loss of lakes on the Mongolian Plateau. Proc. Natl. Acad. Sci. USA 2015, 112, 2281–2286. [Google Scholar] [CrossRef][Green Version]
  31. Davaa, G. Climate change impacts on water resources in Mongolia. In Proceedings of Consultative Meeting on Integration of Climate Change Adaptation into Sustainable Development in Mongolia; Ulaanbaatar, Mongolia, 17–18 June 2011, Institute for Global Environmental Strategies (IGES): Hayama, Japan, 2011; pp. 30–36. [Google Scholar]
  32. Ministry of the Environment (Japan). Climate Change in Mongolia, Outputs from GCM; Ministry of the Environment: Tokyo, Japan, 2011; p. 11.
  33. Orkhonselenge, A.; Komatsu, G.; Uuganzaya, M. Climate-driven changes in lake areas for the last half century in the valley of lakes, Govi region, southern Mongolia. Nat. Sci. 2018, 10, 263–277. [Google Scholar] [CrossRef][Green Version]
  34. Punsalmaa, B.; Myagmarjav, B.; Batnasan, N.; Jadambaa, N.; Khishigsuren, P. Urban Water Vulnerability to Climate Change in Mongolia; Ministry of Nature, Environment and Tourism, Water Authority: Ulaanbaatar, Mongolia, 2011; p. 71.
  35. Punsalmaa, B.; Batnasan, N.; Bolormaa, B. Trends in River and Lake Ice in Mongolia. AIACC Working Papers. 2004. Available online: (accessed on 17 May 2022).
  36. Hofmann, J.; Hürdler, J.; Ibisch, R.; Schaeffer, M.; Borchardt, D. Analysis of recent nutrient emission pathways, resulting surface water quality and ecological impacts under extreme continental climate: The Kharaa River Basin (Mongolia). Int. Rev. Hydrobiol. 2011, 96, 484–519. [Google Scholar] [CrossRef]
  37. Alonso, M.; Foronda, M.; Palau, A.; Nergui, S.; Pretus, J.L.; Erdenebileg, S. Limnological Catalog of Mongolian Lakes. Available online: (accessed on 20 September 2019).
  38. Institute of Veterinary Medicine and Institute of Biology at the Mongolian Academy of Sciences. Study of Pond Fish, Viruses, Parasites, Bacteria Disease; Mongolian Academy of Sciences: Ulaanbaatar, Mongolia, 2018; p. 81. [Google Scholar]
  39. Wang, W.; Ma, Y.; Feng, Z.; Narantsetseg, T.; Liu, K.B.; Zhai, X. A prolonged dry mid-Holocene climate revealed by pollen and diatom records from Lake Ugii Nuur in central Mongolia. Quat. Int. 2011, 229, 74–83. [Google Scholar] [CrossRef]
  40. Environmental Information Centre at the Ministry of Nature, Environment and Turism of Mongolia Home Page. Available online: (accessed on 5 January 2022).
  41. MNS:45861998; Water Quality: General Requirements. Mongolian Agency for Standardization and Metrology of Mongolia: Ulaanbaatar, Mongolia, 1998; p. 4. Available online: (accessed on 5 January 2022).
  42. Boehrer, B.; Schultze, M. Stratification of lakes. Rev. Geophys. 2008, 46, RG2005. [Google Scholar] [CrossRef][Green Version]
  43. Song, S.; Li, C.; Shi, X.; Zhao, S.; Tian, W.; Li, Z.; Bai, Y.; Cao, X.; Wang, Q.; Huotari, J.; et al. Under-ice metabolism in a shallow lake in a cold and arid climate. Freshw. Biol. 2019, 64, 1710–1720. [Google Scholar] [CrossRef]
  44. Khuan, Z.Z. Trophic Status of Fresh-Water Lakes in China. Ph.D Thesis, Russian State Hydrometeorological University, St. Petersburg, Russia, 2013. [Google Scholar]
  45. Wang, W.; Zheng, B.; Jiang, X.; Wang, S. Characteristics and source of dissolved organic matter in Lake Hulun, a large shallow eutrophic steppe lake in Northern China. Water 2020, 12, 953. [Google Scholar] [CrossRef][Green Version]
  46. Stepanova, I.E.; Bikbulatova, E.M. Importance of the biogenic element form ratio for assessing the current status of the Ry- binsk Reservoir. Povolzhkiy Ecol. J. 2015, 3, 330–337. [Google Scholar]
  47. Ye, L.; Cai, Q. Spring phytoplankton blooms in Xiangxi Bay of Three Gorges Reservoir spatiotemporal dynamics across sharp nutrient gradients. J. Freshw. Ecol. 2011, 26, 11–18. [Google Scholar] [CrossRef]
  48. Maberly, S.C.; Pitt, J.A.; Davies, P.S.; Carvalho, L. Nitrogen and phosphorus limitation and the management of small productive lakes. Inl. Waters 2020, 10, 159–172. [Google Scholar] [CrossRef][Green Version]
  49. Johnson, T.C.; Eisenreich, S.J. Silica in Lake Superior: Mass balance considerations and a model for dynamic response to eutrophication. Geochim. Cosmochim. Acta 1979, 43, 77–92. [Google Scholar] [CrossRef]
  50. Tsegmid, B. Diatom richness in the temporal and spatial variability of biotopes in Khara River catchment, Mongolia. Inl. Water Biol. 2022, 15, 122–128. [Google Scholar] [CrossRef]
  51. Williamson, C.E.; Morris, D.P.; Pace, M.L.; Olson, O.G. Dissolved organic carbon and nutrients as regulators of lake ecosystems: Resurrection of a more integrated paradigm. Limnol. Oceanogr. 1999, 44, 795–803. [Google Scholar] [CrossRef][Green Version]
  52. Khatun, S.; Iwata, T.; Kojima, H.; Ikarashi, Y.; Yamanami, K.; Imazawa, D.; Kenta, T.; Shinohara, R.; Saito, H. Linking stoichiometric organic carbon-nitrogen relationships to planktonic cyanobacteria and subsurface methane maximum in deep freshwater lakes. Water 2020, 12, 402. [Google Scholar] [CrossRef][Green Version]
  53. Wei, Y.; Zhang, M.; Cui, L.; Pan, X.; Liu, W.; Li, W.; Lei, Y. Winter decomposition of emergent macrophytes affects water quality under ice in a temperate shallow lake. Water 2020, 12, 2640. [Google Scholar] [CrossRef]
  54. Jaeger, D. Effects of hypolimnetic water aeration and iron-phosphate precipitation on the trophic level of Lake Krupunder. Hydrobiologia 1994, 275–276, 433–444. [Google Scholar] [CrossRef]
  55. Bengtsson, L.; Ali-Maher, O. The dependence of the consumption of dissolved oxygen on lake morphology in ice covered lakes. Hydrol. Res. 2020, 51, 381–391. [Google Scholar] [CrossRef]
  56. Yembuu, B. The Physical Geography of Mongolia; Yembuu, B., Ed.; Springer Nature: Cham, Switzerland, 2021; ISBN 9783030614331. [Google Scholar]
  57. Ma, C.; Mwagona, C.P.; Yu, H.; Sun, X.; Liang, L.; Al-Ghanim, K.A.; Mahboob, S. Spatial and temporal variation of phytoplankton functional groups in extremely alkaline Dali Nur Lake, North China. J. Freshw. Ecol. 2019, 34, 91–105. [Google Scholar] [CrossRef]
  58. Maberly, S.C.; O’Donnell, R.A.; Woolway, R.I.; Cutler, M.E.J.; Gong, M.; Jones, I.D.; Merchant, C.J.; Miller, C.A.; Politi, E.; Scott, E.M.; et al. Global lake thermal regions shift under climate change. Nat. Commun. 2020, 11, 1232. [Google Scholar] [CrossRef] [PubMed]
  59. Sharma, S.; Blagrave, K.; Magnuson, J.J.; O’Reilly, C.M.; Oliver, S.; Batt, R.D.; Magee, M.R.; Straile, D.; Weyhenmeyer, G.A.; Winslow, L.; et al. Widespread loss of lake ice around the Northern Hemisphere in a warming world. Nat. Clim. Chang. 2019, 9, 227–231. [Google Scholar] [CrossRef]

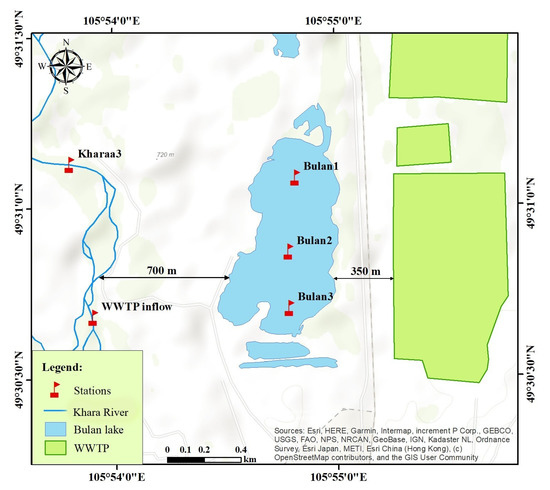

Figure 1. Research area: stations at Lake Bulan. Map cited from Sources: Esri. HERE. Garmin. Intermap. Increment P Corp., GEBCO, USGS, FAO. NPS, NRCAN. GeoBase. IGN. Kadaster NL. Ordnance Survey. Esri Japan, METI, Esri China (Hong Kong), Open Street map contributors, and the GIS User Community and is modified.
Figure 1. Research area: stations at Lake Bulan. Map cited from Sources: Esri. HERE. Garmin. Intermap. Increment P Corp., GEBCO, USGS, FAO. NPS, NRCAN. GeoBase. IGN. Kadaster NL. Ordnance Survey. Esri Japan, METI, Esri China (Hong Kong), Open Street map contributors, and the GIS User Community and is modified.
Water 14 01916 g001

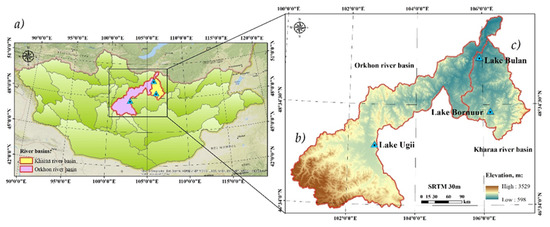

Figure 2. Research area: (a) River basins in Mongolia; (b) Orkhon River basin; and (c) Kharaa River basin. The map cited from Environmental Information Center (EIC) meta data [40], WGS84: 49N, Map cited from Sources: National Geographic, Esri, Garmin, HERE, UNEP-WCMC, USGS, NASA, ESA, METI, NRCAN, GEBCO, NOAA, increment P Corp. and is modified.
Figure 2. Research area: (a) River basins in Mongolia; (b) Orkhon River basin; and (c) Kharaa River basin. The map cited from Environmental Information Center (EIC) meta data [40], WGS84: 49N, Map cited from Sources: National Geographic, Esri, Garmin, HERE, UNEP-WCMC, USGS, NASA, ESA, METI, NRCAN, GEBCO, NOAA, increment P Corp. and is modified.
Water 14 01916 g002

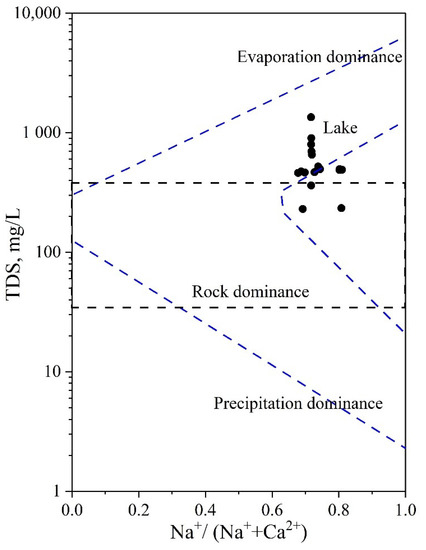

Figure 3. Gibbs plot of surface and bottom water samples from Lake Bulan. Note: closed circles—the ratio of cations [(Na +)/(Na+ + Ca2+)] against TDS in water Lake Bulan.
Figure 3. Gibbs plot of surface and bottom water samples from Lake Bulan. Note: closed circles—the ratio of cations [(Na +)/(Na+ + Ca2+)] against TDS in water Lake Bulan.
Water 14 01916 g003

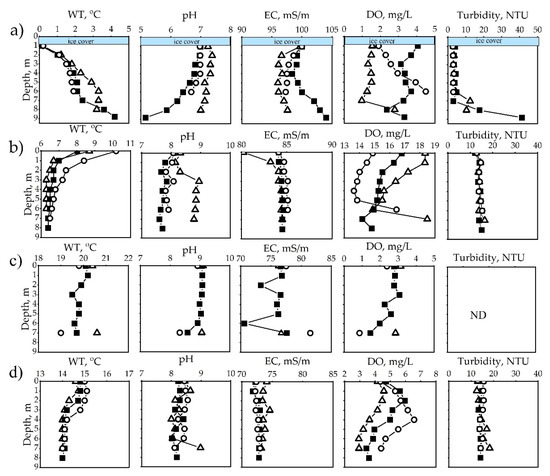

Figure 4. Vertical profiles of WQP of Lake Bulan. Note: (a) winter (25 February 2022), (b) spring (30 April 2022), (c) summer (27 August 2020), and (d) autumn (26 September 2021); WT—water temperature, EC—electrical conductivity, DO—dissolved oxygen, NTU—nephelometric turbidity unit; open triangle—Bulan 1, closed square—Bulan 2, open circle—Bulan 3; ND—no data.
Figure 4. Vertical profiles of WQP of Lake Bulan. Note: (a) winter (25 February 2022), (b) spring (30 April 2022), (c) summer (27 August 2020), and (d) autumn (26 September 2021); WT—water temperature, EC—electrical conductivity, DO—dissolved oxygen, NTU—nephelometric turbidity unit; open triangle—Bulan 1, closed square—Bulan 2, open circle—Bulan 3; ND—no data.
Water 14 01916 g004

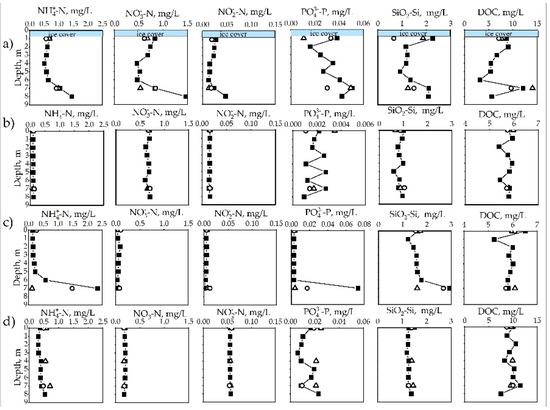

Figure 5. Spatial variation and vertical profiles of nutrient and DOC concentrations in Lake Bulan. Note: (a) winter (January 2020), (b) spring (April 2020), (c) summer (August 2020), and (d) autumn (September 2021); open triangle—Bulan 1, closed square—Bulan 2, open circle —Bulan 3.
Figure 5. Spatial variation and vertical profiles of nutrient and DOC concentrations in Lake Bulan. Note: (a) winter (January 2020), (b) spring (April 2020), (c) summer (August 2020), and (d) autumn (September 2021); open triangle—Bulan 1, closed square—Bulan 2, open circle —Bulan 3.
Water 14 01916 g005

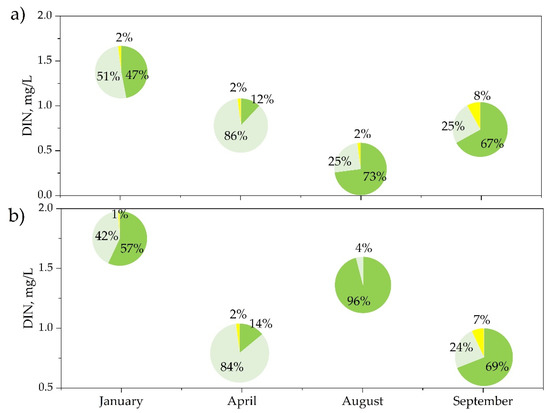

Figure 6. Percentages of NH 4 + - N (green), NO 3 - N (light green), and NO 2 - N   (yellow) in total DIN concentrations in the water from three sites at Lake Bulan; (a) surface and (b) bottom layer (7 m depth).
Figure 6. Percentages of NH 4 + - N (green), NO 3 - N (light green), and NO 2 - N   (yellow) in total DIN concentrations in the water from three sites at Lake Bulan; (a) surface and (b) bottom layer (7 m depth).
Water 14 01916 g006

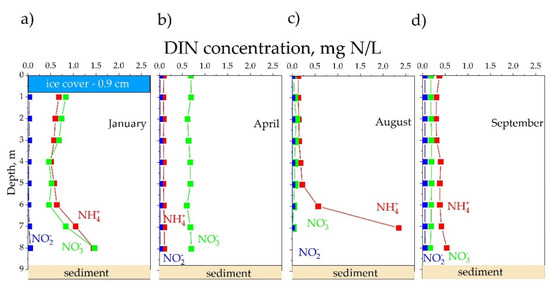

Figure 7. DIN concentration profiles at Bulan 2 station in (a) winter, (b) spring, (c) summer, and (d) autumn.
Figure 7. DIN concentration profiles at Bulan 2 station in (a) winter, (b) spring, (c) summer, and (d) autumn.
Water 14 01916 g007
Table 1. Sampling sites and their locations in Lake Bulan, Lake Ugii, and Lake Bornuur.
Table 1. Sampling sites and their locations in Lake Bulan, Lake Ugii, and Lake Bornuur.
Station NameCoordinateDescription
Bulan 149°31′5″105°54′49″7 m water depth
Bulan 2 49°30′52″105°54′47″9 m water depth
Bulan 349°30′42″105°54′47″7 m water depth
Bornuur48°26′48″106°13′8″Upper reaches of Kharaa River basin, area 0.25 km2, 4.6 m water depth
Ugii 47°46′17.35″107°46′29.89″Khangai Mountains, area 25.7 km2, 15 m water depth
Table 2. Water quality characteristics of surface lake water at Bulan 2 station.
Table 2. Water quality characteristics of surface lake water at Bulan 2 station.
Parameter30 April 202227 August 202024 September 202125 February 2022
WT, °C8.03 *
DO, mg/L16.82.784.724.00
EC, mS/m84.176.672.2100
Turbidity, NTU12.1-15.54.00
Note: (-) no determination, * WT was ~8–10 °C in surface water in May 2018 [38].
Table 3. Averaged concentrations of nutrients and DOC in surface water from three stations at Lake Bulan.
Table 3. Averaged concentrations of nutrients and DOC in surface water from three stations at Lake Bulan.
Sampling Date Concentration, mg/L
NH 4 + -   N NO 3 -   N NO 2 - N PO 4 3 - P SiO2-SiDOC
3 January 20200.64 ± 0.070.71 ± 0.110.02 ± 0.0040.03 ± 0.011.59 ± 0.837.81 ± 0.82
30 January 20210.49 ± 0.040.91 ± 0.080.05 ± 0.0050.09 ± 0.072.69 ± 0.376.19 ± 0.28
30 April 20200.09 ± 0.020.68 ± 0.010.02 ± 0.0000.002 ± 0.0010.85 ± 0.165.82 ± 0.14
27 August 20200.19 ± 0.070.06 ± 0.0350.005 ± 0.0010.003 ± 0.001.63 ± 0.096.19 ± 0.28
27 September 20190.25 ± 0.060.10 ± 0.040.03 ± 0.010.034 ± 0.0092.21 ± 0.33-
24 September 20210.48 ± 0.100.18 ± 0.01 0.06 ± 0.0020.016 ± 0.0031.38 ± 0.119.44 ± 0.68
Note: (-) no analyses.
Table 4. Comparison of nutrient concentrations in surface water from Lake Bulan and other lakes.
Table 4. Comparison of nutrient concentrations in surface water from Lake Bulan and other lakes.
CountryLakeLake TypeAltitude (m)Area (km2)Water Depth (m) NH 4 +
mg   N / L
NO 3
mg   N / L
NO 2
mg   N / L
PO 4 3
mg   P / L
Sampling TimeReference
MongoliaKhuvsugulDeep freshwater lake16452760138Seasonal range0.006–0.030.005–0.0010.0001–0.00260.002–0.0062008–2011[26]
UgiiShallow freshwater lake133225.76.6August0.0040.10.0010.0052020This study
BornuurShallow freshwater10070.251.6September0.0320.0310.0010.0032019This study
BulanShallow freshwater lake6780.457January 0.49 ± 0.040.91 ± 0.090.05 ± 0.0060.08 ± 0.072020–2021This study
April0.09 ± 0.020.68 ± 0.010.02 ± 0.00.002 ± 0.001
August0.18 ± 0.070.005 ± 0.0010.06 ± 0.040.003 ± 0.0
September 0.48 ± 0.110.18 ± 0.010.06 ± 0.000.02 ± 0.01
ChinaWuliangsuhaiShallow freshwater lake10193051.5Winter0.46 ± 0.05---2017[43]
KelukePlateau freshwater lake281754.75Annual average0.50.0090.0070.0391999[44]
HulunInland brackish lake545.623395.75October 0.19 ± 0.04---2018–2019[45]
March0.20 ± 0.08---
May 0.24 ± 0.13---
July 0.16 ± 0.04---
RussiaArahleyShallow freshwater lake9655410.2Annual average 0.002–0.0040.25–0.74 0.005–0.0350.009–0.014 2008–2009[23]
GusinoeShallow freshwater lake88.31642–4Winter0.003 ± 0.0030.09 ± 0.11-0.006 ± 0.0052016–2018[24]
Spring0.009 ± 0.0070.12 ± 0.08-0.001 ± 0.002
Summer0.007 ± 0.0060.09 ± 0.08-0.003 ± 0.002
(-) no data.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Baterdene, A.; Nagao, S.; Zorigt, B.; Ochir, A.; Fukushi, K.; Davaasuren, D.; Gankhurel, B.; Munkhsuld, E.; Tsetsgee, S.; Yunden, A. Seasonal Variation and Vertical Distribution of Inorganic Nutrients in a Small Artificial Lake, Lake Bulan, in Mongolia. Water 2022, 14, 1916.

AMA Style

Baterdene A, Nagao S, Zorigt B, Ochir A, Fukushi K, Davaasuren D, Gankhurel B, Munkhsuld E, Tsetsgee S, Yunden A. Seasonal Variation and Vertical Distribution of Inorganic Nutrients in a Small Artificial Lake, Lake Bulan, in Mongolia. Water. 2022; 14(12):1916.

Chicago/Turabian Style

Baterdene, Ariunsanaa, Seiya Nagao, Baasanjav Zorigt, Altansukh Ochir, Keisuke Fukushi, Davaadorj Davaasuren, Baasansuren Gankhurel, Enkhuur Munkhsuld, Solongo Tsetsgee, and Ariuntungalag Yunden. 2022. "Seasonal Variation and Vertical Distribution of Inorganic Nutrients in a Small Artificial Lake, Lake Bulan, in Mongolia" Water 14, no. 12: 1916.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
