From Domestic Sewage to Potable Water Quality: New Approach in Organic Matter Removal Using Natural Treatment Systems for Wastewater
2. Materials and Methods

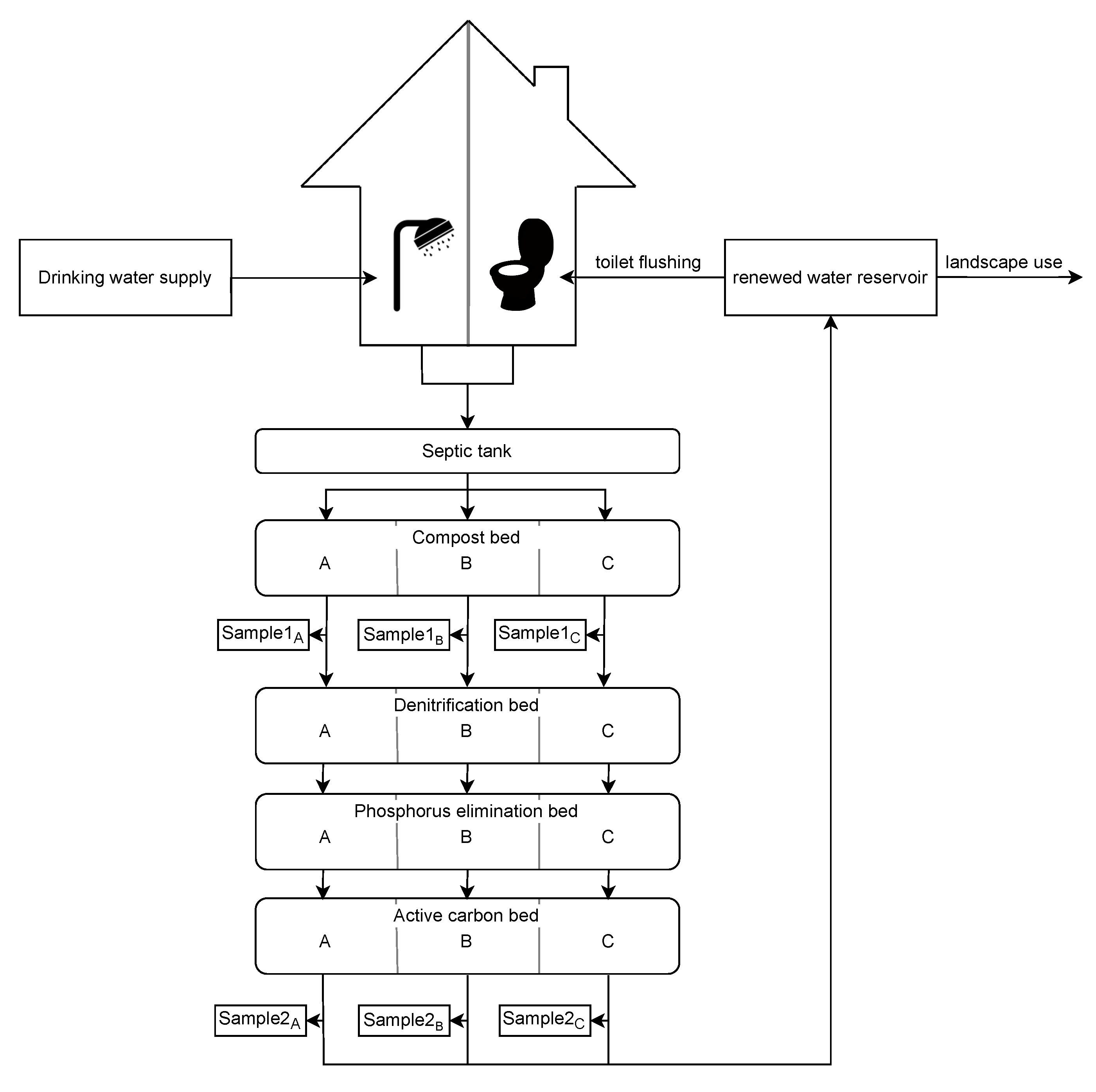

2.1. Characteristics of the NTSW Pilot Plant
- The septic tank has a capacity of 3 m3, and it receives raw sewage from the IES building. Mechanical and partly biological wastewater treatment takes place here.
- The compost bed has an area of 3 m2. This bed is a key element in the process of removing organic matter from wastewater. It consists of three separate beds, each of them with a surface area of 1 m2, working under a different daily hydraulic load, namely 70, 100, and 130 l/m2 for the A, B, and C beds, respectively. The three beds have the same composition and structure. From the top, the beds consist of: an 80 cm layer of compost, a 10 cm layer of coarse sand (granulation from 0.2 to 2 mm), and a 10 cm layer of gravel (granulation from 4 to 16 mm). The compost consists of a mixture of wood chips (80%) and peat soil (20%). The entire compost bed was placed in a greenhouse to reduce the emission of odors and to reduce the negative impact of low temperatures in winter.
- The denitrification bed is used to remove nitrates from wastewater treated in the compost bed. In addition, in this case, there were three beds with an area of 1 m2, each of which was supplied with sewage treated in the corresponding part (A, B, or C) of the compost bed. The beds are filled from the top with a 40 cm layer of swamp sediments and are overgrown with wetland vegetation. Under the sediment layer, there is a 30 cm layer of coarse sand (granulation from 0.2 to 2 mm) and then a 10 cm layer of gravel (granulation from 4 to 16 mm). The bed is not involved in the removal of organic matter contained in the treated water. On the contrary, the mineralization of the sludge in the denitrification process causes a slight increase in the concentration of organic matter in the outflow.
- The phosphorus elimination bed is designed to remove phosphorus compounds from treated wastewater. In addition, in this case, there were three beds with an area of 1 m2 each, and they were supplied with outflows from the corresponding (A, B, or C) denitrification beds. The beds are filled from the top with a 50 cm layer of coarse sand (granulation from 0.2 to 2 mm) mixed with building lime (25 kg). Then, there is a 10 cm layer of gravel (granulation 4 to 16 mm). A slight elimination of organic matter occurs in the phosphorus deposits. The use of building lime to remove phosphorus contributes to an increase in the pH of the renewed water. As a result, the pH of the renewed water ultimately ranges from 9 to 10.5 and shows a constant slight downward trend.
- The active carbon bed is designed to remove organic matter remaining in the treated water. In addition, in this case, there were three beds with an area of 1 m2 each, and they were supplied with outflows from the corresponding (A, B, or C) phosphorus elimination beds. Each bed is filled from the top with a 50 cm layer of coarse sand (granulation from 0.2 to 2 mm) mixed with activated carbon (25 kg). Then, there is a 10 cm layer of gravel (granulation 4 to 16 mm).
- The renewed water reservoir (with a capacity of 5 m3) serves as a store of water recovered from sewage.
2.2. Water Sampling and Quality Assessment
2.3. Water Purification Process

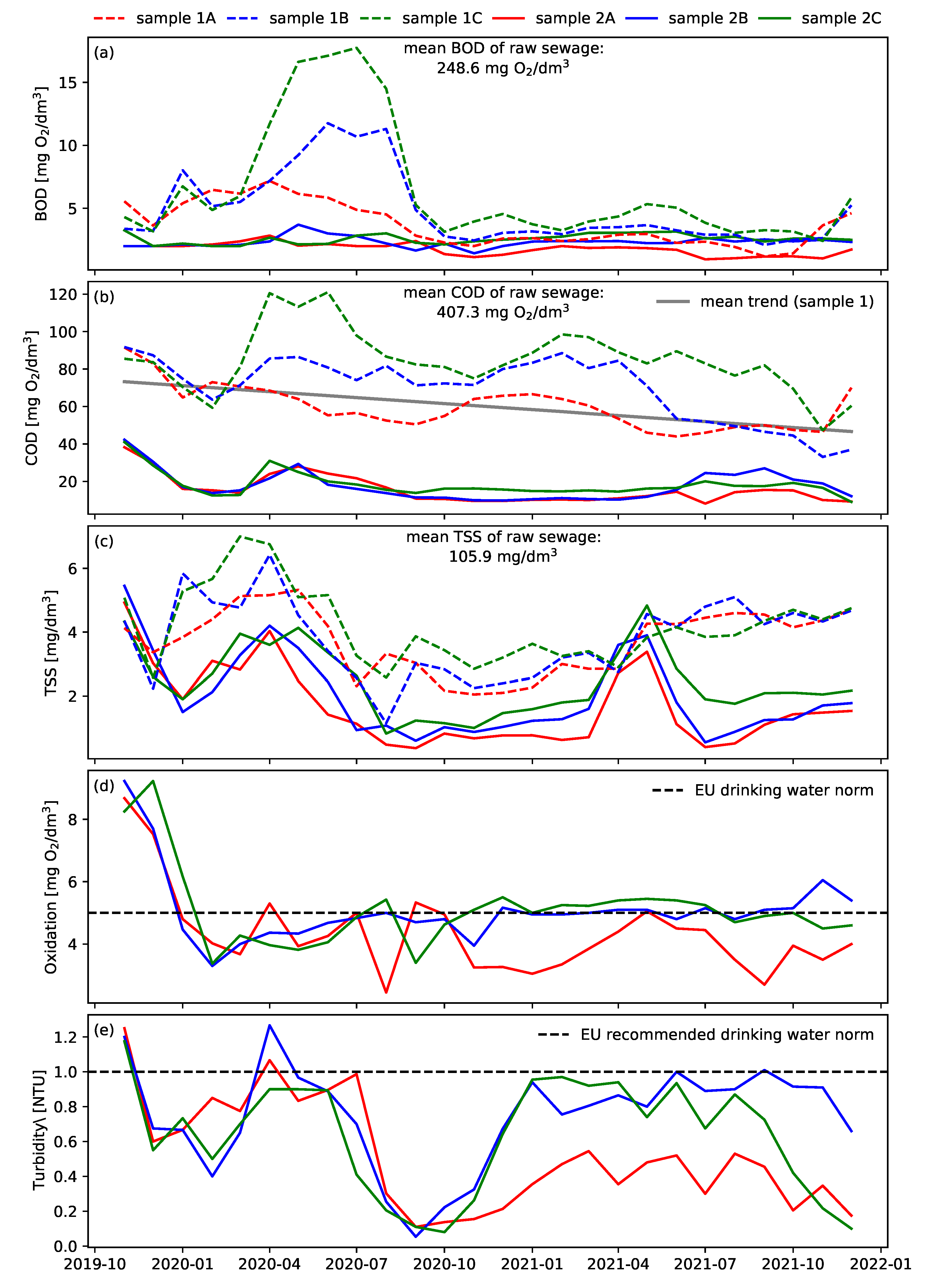

3.1. Wastewater Treatment
3.1.1. Organic Pollutants Removal in the Septic Tank
3.1.2. Elimination of Organic Matter and Suspended Solids in the Compost Beds
3.2. Elimination of Organic Matter and Suspended Solids in the Water Renewal Beds

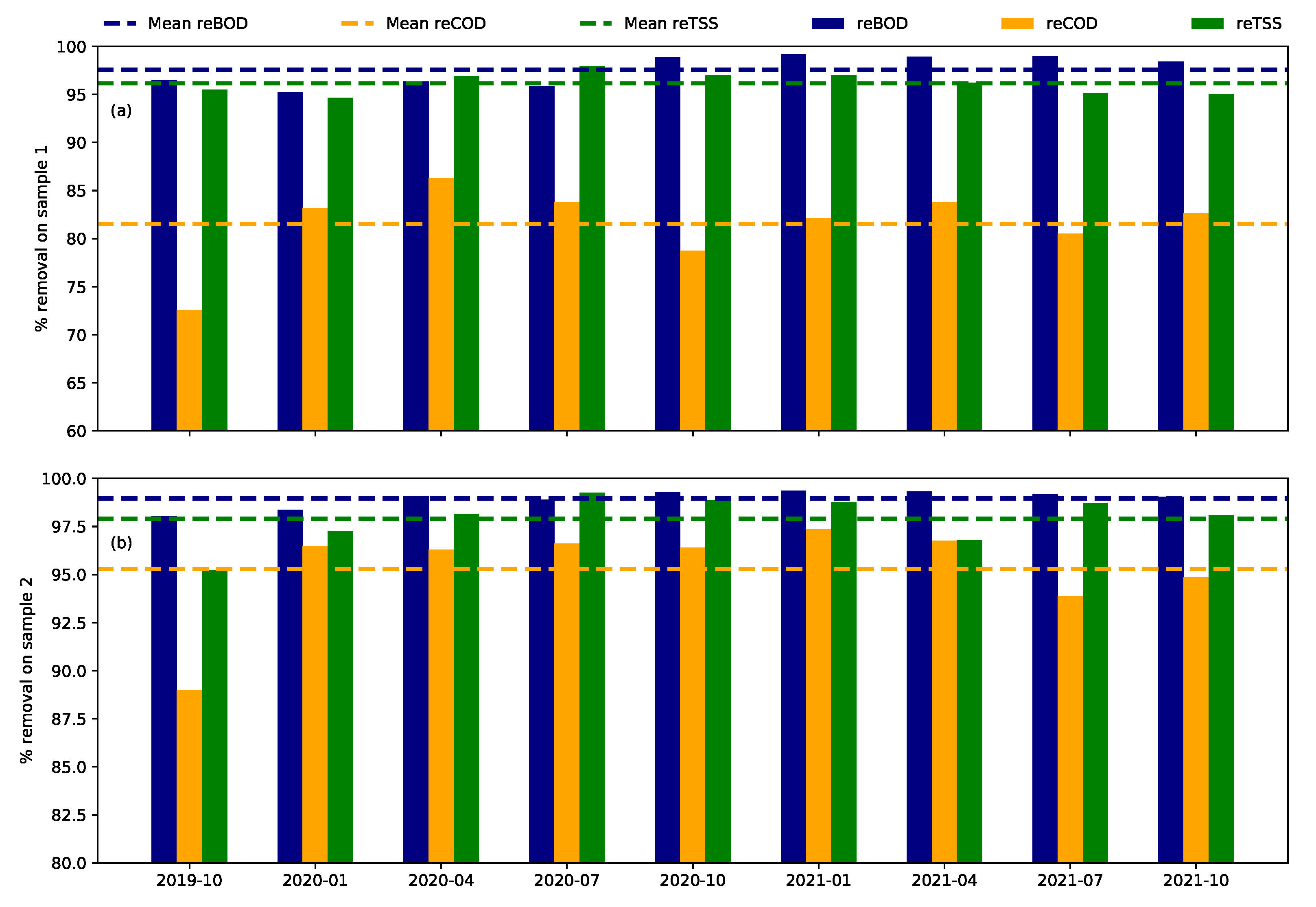

4.1. Removal Efficiency in the Septic Tank
4.2. Removal Efficiency in the Compost Beds
4.3. Removal Efficiency in the Water Renewal Beds
4.4. Possibility of Reusing the Reclaimed Water
Conflicts of Interest
|BOD||Biological Oxygen Demand|
|COD||Chemical Oxygen Demand|
|IES||Instytut Ekologii Stosowanej (Institute of Applied Ecology)|
|HRT||Hydraulic Residence Time|
|NTSW||Natural Treatment System for Wastewater|
|NTU||Nephelometric Turbidity Unit|
|TSS||Total Suspended Solids|
- UNESCO. Water in a Changing World: The United Nations World Water Development Report 3; World Water Assessment Programme; UNESCO: Paris, France, 2009. [Google Scholar]
- Halicki, W.; Kita, K. Removal of Organic Compounds Using Improved Wetland Systems for Wastewater Reuse as an Example of Local Sustainable Water Management. EMSD 2016, 5, 319. [Google Scholar] [CrossRef]
- Browne, W.; Jenssen, P.D. Exceeding Tertiary Standards with a Pond/Reed Bed System in Norway. Water Sci. Technol. 2005, 51, 299–306. [Google Scholar] [CrossRef] [PubMed]
- Regulation (EU) 2020/741 of the European Parliament and of the Council of 25 May 2020 on Minimum Requirements for Water Reuse. Available online: https://eur-lex.europa.eu/eli/reg/2020/741/oj (accessed on 10 March 2022).
- Tal, A. Rethinking the sustainability of Israel’s irrigation practices in the Drylands. Water Res. 2016, 90, 387–394. [Google Scholar] [CrossRef] [PubMed]
- California Department of Water Resources. California Water Plan Update 2009; California Department of Water Resources: Sacramento, CA, USA, 2009; Available online: https://www.cakex.org/sites/default/files/documents/CA-Water-Plan_vol1_2009.pdf (accessed on 10 March 2022).
- Instituto Nacional de Estadística. Statistics on Water Supply and Sanitation; Serie 2000–2016; Instituto Nacional de Estadística: Madrid, Spain, 2018; Available online: https://www.ine.es/prensa/essa_2018.pdf (accessed on 10 March 2022).
- Stefanakis, A.; Akratos, C.; Tsihrintzis, V. Vertical Flow Constructed Wetlands: Eco-Engineering Systems for Wastewater and Sludge Treatment; Elsevier Publishing: Amsterdam, The Netherlands, 2014; ISBN 9780124046122. [Google Scholar]
- Calheiros, C.S.C.; Almeida, C.M.R.; Mucha, A.P. Multiservices and Functions of Constructed Wetlands. In Wetland. Function, Services, Importance and Threats; Halicki, W., Ed.; Environmental Research Advances; Nova Science Publisher: New York, NY, USA, 2018; pp. 269–299. ISBN 9781536135633. [Google Scholar]
- Ayaz, S.Ç.; Akca, I. Treatment of wastewater by constructed wetland in small settlements. Water Sci. Technol. 2000, 41, 69–72. [Google Scholar] [CrossRef]
- Shepherd, H.L.; Grismer, M.E.; Tchobanoglous, G. Treatment of High-Strength Winery Wastewater Using a Subsurface-Flow Constructed Wetland. Water Environ. Res. 2001, 73, 394–403. [Google Scholar] [CrossRef]
- Belmont, M.A.; Cantellano, E.; Thompson, S.; Williamson, M.; Sánchez, A.; Metcalfe, C.D. Treatment of domestic wastewater in a pilot-scale natural treatment system in central Mexico. Ecol. Eng. 2004, 23, 299–311. [Google Scholar] [CrossRef]
- Masi, F.; Rochereau, J.; Troesch, S.; Ruiz, I.; Soto, M. Wineries wastewater treatment by constructed wetlands: A review. Water Sci. Technol. 2015, 71, 1113–1127. [Google Scholar] [CrossRef] [PubMed]
- Gholipour, A.; Zahabi, H.; Stefanakis, A.I. A novel pilot and full-scale constructed wetland study for glass industry wastewater treatment. Chemosphere 2020, 247, 125966. [Google Scholar] [CrossRef] [PubMed]
- Mendieta-Pino, C.A.; Pérez-Báez, S.O.; Ramos-Martín, A.; León-Zerpa, F.; Brito-Espino, S. Natural treatment system for wastewater (NTSW) in a livestock farm, with five years of pilot plant management and monitoring. Chemosphere 2021, 285, 131529. [Google Scholar] [CrossRef] [PubMed]
- Halicki, W.; Kita, K. Implementation of improved wetland systems as a ‘zero-discharge-technology’ in Poland. Water Environ. J. 2017, 31, 168–175. [Google Scholar] [CrossRef]
- Baird, R.; Rice, E.W.; Eaton, A.D.; Bridgewater, L. Standard Methods for the Examination of Water and Wastewater; American Public Health Association: Washington, DC, USA, 2017; ISBN 9780875532875. [Google Scholar]
- Ni’matuzahroh; Affandi, M.; Fatimah; Trikurniadewi, N.; Khiftiyah, A.M.; Sari, S.K.; Abidin, A.Z.; Ibrahim, S.N.M.M. Comparative study of gut microbiota from decomposer fauna in household composter using metataxonomic approach. Arch. Microbiol. 2022, 204, 210. [Google Scholar] [CrossRef] [PubMed]
- Halicki, W.; Ehrnsberger, R. Veränderung der organischen Substanz und der Bodeneigenschaften in einem vertikalen Pflanzenbeet durch Zusammenwirken von Bakterien, Bodentieren und Pflanzen. GWF Wasser Abwasser 2000, 141, 854–860. [Google Scholar]
- Regulation of the Minister of Infrastructure of 14 January 2002 on Determining the Average Standards of Water Consumption, Polish Journal of Laws 2002.8.70. Available online: http://isap.sejm.gov.pl/isap.nsf/download.xsp/WDU20020080070/O/D20020070.pdf (accessed on 10 March 2022).
- Imhoff, K.; Imhoff, K.R. Taschenbuch der Stadtentwicklung; Oldenbourg: Munich, Germany, 1993. [Google Scholar]
- EU Council Directive of 3 November 1998 on the Quality of Water Intended for Human Consumption. Available online: https://eur-lex.europa.eu/legal-content/EN/TXT/PDF/?uri=CELEX:31998L0083&from=EN (accessed on 10 March 2022).
- Regulation of the Minister of Health of 7 December 2017 on the Quality of Water Intended for Human Consumption, Polish Journal of Laws 2017.2294. Available online: https://isap.sejm.gov.pl/isap.nsf/download.xsp/WDU20170002294/O/D20172294.pdf (accessed on 10 March 2022).
- Halicki, W. Ekologia Stosowana w Zrównoważonej Gospodarce Wodno-ściekowej. Projektowanie i Budowa Naturalnych Systemów Oczyszczania Ścieków; Wydawnictwo Instytutowe, Instytut Ekologii Stosowanej: Skórzyn, Poland, 2015; ISBN 9788392227342. [Google Scholar]
- Colares, C.J.G.; Sandri, D. Efficiency of sewage treatment with septic tanks followed by constructed wetlands with different support materials. Rev. Ambiente Água 2013, 8, 172–185. [Google Scholar] [CrossRef][Green Version]
- Nasr, F.A.; Haroun, B.M. Treatment of domestic wastewater using conventional and baffled septic tanks. Environ. Technol. 2013, 34, 2337–2343. [Google Scholar] [CrossRef] [PubMed]
- Hütter, L.A. Wasser und Wasseruntersuchung, 6th ed.; Otto Salle Verlag: Frankfurt am Mein, Germany, 1994. [Google Scholar]
- EU Council Directive of 21 May 1991 Concerning Urban Waste Water Treatment. Available online: https://eur-lex.europa.eu/LexUriServ/LexUriServ.do?uri=CONSLEG:1991L0271:20081211:EN:PDF (accessed on 10 March 2022).
- Regulation of the Minister of Maritime Economy and Inland Navigation of 12 July 2019 on Substances Particularly Harmful to the Aquatic Environment and the Conditions to Be Met When Discharging Sewage into Waters or Soil, as Well as When Discharging Rainwater or Meltwater into Waters or into Water Appliances. Polish Journal of Laws 2019.1311. Available online: https://isap.sejm.gov.pl/isap.nsf/download.xsp/WDU20190001311/O/D20191311.pdf (accessed on 10 March 2022).
- Libhaber, M.; Orozco-Jaramillo, Á. Sustainable Treatment and Reuse of Municipal Wastewater: For Decision Makers and Practicing Engineers; IWA Publishing: London, UK, 2012; ISBN 9781780400631. [Google Scholar]
- Chandrappa, R.; Das, D.B. Sustainable Water Engineering: Theory and Practice, 1st ed.; Wiley: Chichester, UK, 2014; ISBN 978-1-118-54104-3. [Google Scholar]
- Chapman, D.V.; Kimstach, V. Selection of water quality variables. In Water Quality Assessments: A Guide to the Use of Biota, Sediments and Water in Environmental Monitoring, 2nd ed.; Chapman, D.V., Ed.; E&FN Spon: London, UK, 1996; ISBN 0419216006. [Google Scholar]
- Regulation of the Minister of Maritime Economy and Inland Navigation of 11 October 2019 on the Classification of Ecological Status, Ecological Potential and Chemical Status and the Method of Classification of the State of Surface Water Bodies, as Well as Environmental Quality Standards for Priority Substances. Polish Journal of Laws 2019.2149. Available online: https://isap.sejm.gov.pl/isap.nsf/download.xsp/WDU20190002149/O/D20192149.pdf (accessed on 10 March 2022).
- Crites, R.W.; Middlebrooks, E.J.; Bastian, R.K. Natural Wastewater Treatment Systems, 2nd ed.; CRC Press: Boca Raton, FL, USA, 2014; ISBN 9781466583269. [Google Scholar]
- Canadian Minister of Health. Canadian Guidelines for Domestic Reclaimed Water for Use in Toilet and Urinal Flushing; Canadian Minister of Health: Ottawa, ON, Canada, 2010; Available online: https://www.canada.ca/content/dam/canada/health-canada/migration/healthy-canadians/publications/healthy-living-vie-saine/water-reclaimed-recyclee-eau/alt/reclaimed-water-eaux-recyclees-eng.pdf (accessed on 10 March 2022).
- United States Environmental Protection Agency. Guidelines for Water Reuse; United States Environmental Protection Agency: Washington, DC, USA, 2012. Available online: https://www.epa.gov/sites/default/files/2019-08/documents/2012-guidelines-water-reuse.pdf (accessed on 10 March 2022).
- Avisar, D.; Ronen-Eliraz, G. HESS Opinions: Agricultural irrigation with effluent – Pharmaceutical residues that we should worried about. Hydrol. Earth Syst. Sci. Discuss. 2018, preprint. [Google Scholar] [CrossRef][Green Version]
- National Research Council. Understanding Water Reuse: Potential for Expanding the Nation’s Water Supply Through Reuse of Municipal Wastewater; The National Academies Press: Washington, DC, USA, 2012; ISBN 978-0-309-26520-1. [Google Scholar]
|Biological Oxygen Demand (BOD) mg O2/dm3||87||410||248.58|
|Chemical Oxygen Demand (COD) mg O2/dm3||256||915||407.27|
|Total Suspended Solids (TSS) dm3||51.50||213.50||105.89|
|Value||Sample 1||Sample 2|
|BOD (A) mg O2/dm3||1.14||8.90||4.08||0.52||4||1.81|
|BOD (B) mg O2/dm3||1.25||12.68||5.46||0.80||4.20||2.30|
|BOD (C) mg O2/dm3||1.50||19.68||7.23||1.32||5||2.52|
|BOD total mg O2/dm3||1.14||19.68||5.59||0.52||5||2.21|
|COD (A) mg O2/dm3||41||112||61.14||4||42||16.77|
|COD (B) mg O2/dm3||29.60||111||72.04||9||56||17.90|
|COD (C) mg O2/dm3||44.30||131||85.87||8||52||18.85|
|COD total mg O2/dm3||29.6||131||73.02||4||56||17.84|
|TSS (A) mg/dm3||0.90||6.80||3.77||0||5.80||1.8|
|TSS (B) mg/dm3||0.50||7.40||3.87||0.10||6.80||2.13|
|TSS (C) mg/dm3||1.40||9.80||4.31||0.30||6.80||2.49|
|TSS total mg/dm3||0.50||9.80||3.98||0||6.80||2.14|
|Oxidation (A) mg O2/dm3||-||-||-||1.40||10.20||4.51|
|Oxidation (B) mg O2/dm3||-||-||-||2.50||12||5.10|
|Oxidation (C) mg O2/dm3||-||-||-||2.50||12||5.16|
|Oxidation total mg O2/dm3||-||-||-||1.40||12||4.92|
|Turbidity (A) NTU||-||-||-||0.02||2||0.55|
|Turbidity (B) NTU||-||-||-||0.01||2.10||0.71|
|Turbidity (C) NTU||-||-||-||0.01||2||0.61|
|Turbidity total NTU||-||-||-||0.01||2.10||0.63|
|BOD (A) mg O2/dm3||1.14||4.70||2.56|
|BOD (B) mg O2/dm3||1.25||5.78||3.10|
|BOD (C) mg O2/dm3||2.22||6.57||3.89|
|BOD total mg O2/dm3||1.14||6.57||3.18|
|COD (A) mg O2/dm3||41||71.80||55.01|
|COD (B) mg O2/dm3||29.60||89||63.39|
|COD (C) mg O2/dm3||44.30||101||79.56|
|COD total mg O2/dm3||29.60||101||65.99|
|TSS (A) mg/dm3||1.80||5.20||3.48|
|TSS (B) mg/dm3||2||5.50||3.70|
|TSS (C) mg/dm3||2.50||5.20||3.78|
|TSS total mg/dm3||1.80||5.20||3.65|
|Parameter||Unit||Treatment Plant Size, Expressed by the Number of Inhabitants|
|40 (N/A)||25 (70–90)||25 (70–90)||15 (90)|
|CW Type||Hydraulic Residence Time (Days)||BOD (mg O2/dm3)||TSS (mg/dm3)|
|Free water surface||7–15||5–10||5–15|
|BOD (mg O2/dm3)||2||≤10||≤10||≤10|
