Preservation of Modern and MIS 5.5 Erosional Landforms and Biological Structures as Sea Level Markers: A Matter of Luck?

Abstract

The Mediterranean Basin is characterized by a significant variability in tectonic behaviour, ranging from subsidence to uplifting. However, those coastal areas considered to be tectonically stable show coastal landforms at elevations consistent with eustatic and isostatic sea level change models. In particular, geomorphological indicators—such as tidal notches or shore platforms—are often used to define the tectonic stability of the Mediterranean coasts. We present the results of swim surveys in nine rocky coastal sectors in the central Mediterranean Sea using the Geoswim approach. The entire route was covered in 22 days for a total distance of 158.5 km. All surveyed sites are considered to have been tectonically stable since the last interglacial (Marine Isotope Stage 5.5 [MIS 5.5]), because related sea level markers fit well with sea level rise models. The analysis of visual observations and punctual measurements highlighted that, with respect to the total length of surveyed coast, the occurrence of tidal notches, shore platforms, and other indicators accounts for 85% of the modern coastline, and only 1% of the MIS 5.5 equivalent. Therefore, only 1% of the surveyed coast showed the presence of fossil markers of paleo sea levels above the datum. This significant difference is mainly attributable to erosion processes that did not allow the preservation of the geomorphic evidence of past sea level stands. In the end, our research method showed that the feasibility of applying such markers to define long-term tectonic behaviour is much higher in areas where pre-modern indicators have not been erased, such as at sites with hard bedrock previously covered by post-MIS 5.5 continental deposits, e.g., Sardinia, the Egadi Islands, Ansedonia, Gaeta, and Circeo. In general, the chances of finding such preserved indicators are very low.

1. Introduction

Sea level rise and fall are due to planetary-scale processes, and constitute one of the major climate-driven effects on the coastal landscape. The main factors are global warming—which is driving the melting of ice and the thermal expansion of the oceans—and the vertical tectonic movements of the coasts, which may increase or reverse the submersion processes of the coastal zones. Tectonic movements are particularly significant along the coasts of the Mediterranean Sea, due to the active tectonism in many parts of the basin [1]—the latter also shaped by geological and geomorphological processes driven by changes in sea level over millions of years [1]. About 60% of the Mediterranean Basin is bordered by rocky coasts [2], which are characterised by landforms related to paleo sea levels, such as tidal notches, marine terraces, vermetid reefs, etc. (e.g., [1,3,4,5]).

Fossil markers of former sea levels provide fundamental information related to changes in climate during glacial and interglacial periods, regional ice-sheet variations, rate and geographic source of meltwater influx, as well as on the rheological structure of the solid Earth—a key parameter for understanding mantle flow and the tectonic evolution of our planet (e.g., [6,7,8]).

The presence of fossil shorelines above or below the present mean sea level is not continuous, because their preservation is likely related to the complex interplay between erosion and deposition, which has been scantily investigated in a comprehensive way—notably along the rocky coasts.

The Mediterranean’s sea level history has been studied by a number of authors (e.g., [1,9,10,11,12,13,14,15]). These studies provide important notions about the tectonic behaviour of the Mediterranean coastal zones from comparisons of measured data with eustatic and glacio-hydro-isostatic sea level rise models. Sea level indicators can be related to past sea levels thanks to their morphometric, biological, chemical, or sedimentological features. Common sea level indicators include tidal notches (e.g., [14,15]), marine terraces (e.g., [16]), vermetid reefs [17,18,19], beach rocks ([20,21]), submerged speleothems (e.g., [22] and references therein), etc. Archaeological artefacts also play an important role in defining past sea levels, as reviewed by [23]. On rocky coasts, geomorphological and biological indicators of paleo sea levels can be easily found thanks to favourable topographical setting and good preservation [2]. However, very short sections of rocky coasts were extensively surveyed in the field [24], mainly because of their difficult accessibility. In recent years, the Geoswim programme aimed at collecting visual observations and instrumental data along wide sections of rocky coasts and correlate these data with sea level change [2,25,26] in 16 coastal areas [21]. This approach facilitates uninterrupted surveys of long sections of rocky coasts through the mapping, description, and measurement of sea level markers.

In this paper we present and discuss data on modern and relict erosional landforms—such as tidal notches and shore platforms—and bioconstructions surveyed in nine coastal sectors in the central Mediterranean area in the framework of the Geoswim programme [24]. The study was carried out on the islands of Marettimo, Favignana, and Levanzo (the Egadi Islands, Strait of Sicily), in Gaeta, Circeo, and Ansedonia (mid-northern Tyrrhenian Sea), Capo Caccia, on the islands of Razzoli, Budelli, Santa Maria, and Tavolara (Sardinia), and the island of Malta. In addition, we achieved a detailed data collection along 500 m of coast in the Arenella harbour (Palermo, Sicily), with measurements taken at every 20 m of coast.

Finally, we also report and measure the presence/absence of both modern and fossil shorelines along the rocky coastlines in areas that are considered tectonically stable (e.g., far from the major Mediterranean faults and characterized by negligible historical tectonic activity). Geomorphological and biological observations encompassing the supratidal, intertidal, and nearshore zones are made to discuss the possible factors that may favour the preservation of fossil markers of sea level change with respect to lithology and environmental setting.

2. Geological and Geomorphological Setting of the Study Area

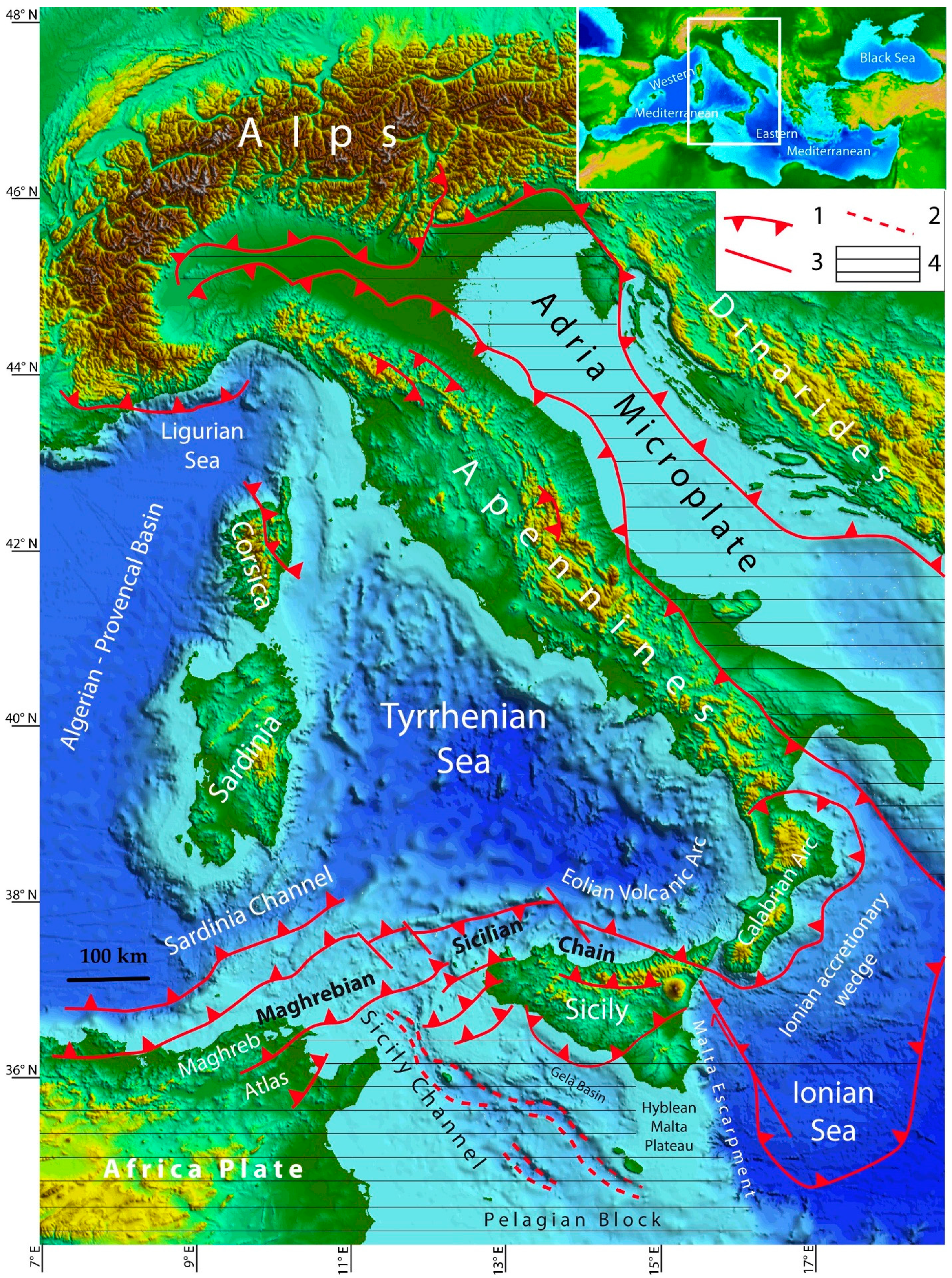

The Mediterranean coastline extends for approximately 46,000 km, with ca. 50% of it made up of rocky coasts [27] in the forms of plunging cliffs, sloping coasts, screes, shore platforms, and pocket beaches [28,29]. The Mediterranean has a long and complex geological history that began about 250 Mya ago, following the breakup of the continent of Pangaea and the formation of the Tethys Ocean—the forerunner of the Mediterranean [30]. The Mediterranean is usually divided into the Western and Eastern Mediterranean along an imaginary axis in correspondence to the Strait of Sicily and Tunisia [31], and many authors also identify an undefined “central Mediterranean area” (e.g., [5,32]). The central Mediterranean includes many large islands, of which Sicily is the largest, followed by Sardinia.

Inside this central Mediterranean area, we positioned the location of our surveys corresponding to two main sectors: the Tyrrhenian Sea, and the Strait of Sicily (Figure 1). These two distinct sectors were characterized by very different geological evolution during the late Neogene–Quaternary time interval, and currently are characterized by very different physiographic settings. The Tyrrhenian Sea—the location of most (seven) of the studied sites (Figure 1)—is a late Neogene deep basin characterized by a complex morphostructural setting. It opened during the middle Miocene [33] inside the suture zone between the European and African plates as a back-arc basin, related to the north-westward subduction of the Ionian Sea lithospheric slab beneath the Calabrian Arc [34,35].

The Tyrrhenian Sea displays an almost triangular shape, and is a landlocked basin bordered by the Apennine mountain belt and Calabrian Arc to the east, by the Sicilian–Maghrebian mountain belt to the south, and by the Corsica–Sardinia Block to the west (Figure 1). The main exchanges of water masses take place to the north with the Ligurian Sea and to the southwest with the Algerian–Provençal Basin through the Sardinian Channel.

Around the Tyrrhenian Sea, the continental shelf is usually less than 20 km wide, seaward-bounded by a shelf break positioned at an average water depth of about 128 m [36]. Except in front of major fluvial deltas, the shelf displays thin, locally absent, modern sedimentary coverage. Along the shelf edge, prograding accretionary wedges alternate [37], in a direction parallel to the margin and with structural-type shelf breaks. All around the Tyrrhenian margins, across the continental shelf it is possible to separate an inner and an outer segment, showing different morphological features: the inner segment could display a mostly regular seabed morphology as a consequence of accumulation of Holocene aggrading to prograding sediments or, alternatively, it could be characterized by a rough seabed morphology as a consequence of subaerial exposure that occurred during the latest Pleistocene global sea level lowstand; the outer segment is mostly devoid of a sedimentary cover and, eventually, characterized by a sharp erosional surface originating during the shoreface retreat related to the last sea level rise (the Holocene transgression).

Along the Sicilian coast, the continental shelf is less wide (usually less than 10 km) as a consequence of a reduced sedimentary supply due to the absence of major rivers; the maximum width is found in the Castellammare Gulf (up to 12 km; [38]) and in the Termini Imerese Gulf (up to 11 km; [39]).

Along the Sardinian coast the continental shelf is no more than 14 km wide, because of a moderate sedimentary supply and a series of faults arranged north–south parallel to the margin.

The eastern Sardinian margin shows a morphostructural setting interpreted as a passive continental margin related to a Tortonian rifting episode, resulting in a tilted fault block setting from where both the Sardinian Basin and Cornaglia Terrace originated. The latter is bounded eastwards by a prominent northeast–southwest trending fault scarp—the Selli Line—that separates the Sardinian passive margin from the Vavilov bathyal plain with a relief of about 1000 m above the sea bottom.

Only in the eastern and southern margins did the lower segment of the continental slope record a rifting episode and intense crustal thinning with kilometre-scale fault scarps; however, the upper slope is associated with seismicity, active volcanism, and elevated uplift rates of mainland areas, represented by the Apennine and Maghrebian mountain belts, respectively.

Similarly, along the margins there is evidence of the effects generated by eustatic sea level changes and by major sedimentary transport processes that have accumulated Neogene–Quaternary deposits in the intraslope basins and in the bathyal plains.

In the Strait of Sicily area, we focused our investigation (four sites) inside its eastern sector—the Hyblean–Maltese Plateau, which has acted as the foreland of the Sicilian fold-and-thrust belt since the Miocene [39]. The plateau is bounded by the outer front of the Sicilian–Maghrebian thrust belt to the north, the Malta Escarpment to the east, the Malta–Linosa graben to the south, and the Gela foredeep basin to the west (Figure 2). The Malta Escarpment plunges steeply to the deeper floors of the Ionian Sea (>2000 m); to the west, the boundary of the plateau is not well defined: indeed, in this sector, the sea floor slightly deepens toward the Gela Basin, which represents the present-day foredeep of the Sicilian–Maghrebian fold-and-thrust belt filled with Quaternary to recent (mostly) siliciclastic sediments.

During the lowstand related to LGM (about 20–18 ka B.P.), the Hyblean–Maltese Plateau was almost completely exposed to subaerial processes, and an enhanced erosional surface developed extensively across the plateau, which truncated Pleistocene and older rocks. Presently, the submerged sector of the Hyblean–Maltese Plateau represents an extensive continental shelf area with a mostly smooth, regular seabed [43], and a shelf break at a depth between 140 and 160 m, in the eastern and western sectors, respectively.

On the Maltese Islands, faults trend mostly northwest–southeast, as well as east-northeast–west-southwest, bounding horst and graben structures that pond and trap sediments; most of the faulting occurred at approximately middle Pliocene time, but some faulting also occurred during Pleistocene time [43]. The fault system could be currently active [44] in the framework of a transtensional fault system accounting for dextral strike–slip focal mechanisms of recent earthquakes and active gas seepage/fluid ascent and venting. The islands are among the few onshore parts in the Strait of Sicily’s rift zone, and provide evidence as to the channel’s intricate northeast–southwest-oriented faulting system (Great Fault) of the early Miocene (23–16 ma) by displaying a fractured Maltese sedimentary landscape. The latter shows a series of ridges and flat-floored valleys on the hinterland and headlands and bays (and rias) along its coast [44,45]. Tectonic upwarping and associated rifting during the Pliocene developed both a second set of faults in a northwest–southeast direction on the southern coast of Malta (Magħlaq Fault), and most importantly, a north-east structural tilt to the archipelago between 5.3 ma and 1.8 ma ago [46,47]. The northeastern tilting shaped the southern coast of Malta, with elevated vertical cliff faces in full stratigraphic sequence and, conversely, dipped most of the northeastern and eastern coast as low sloping profiles.

The coastal topographies, coupled with seismic activity generated by geodynamics, drive most erosional processes within the area. The resultant geomorphic features on rocky coasts include sea cliffs and shore platforms, plunging cliffs, etc., which are located at different altitudes with respect to the modern sea level [27]. The combination of raised and drowned shorelines defines the active nature of tectonics in the Mediterranean. The spatial variation in uplift can be highlighted, e.g., by geomorphological markers, such as tidal notches, marine terraces, or other tidal landforms, together with other well-defined markers, such as archaeological and sedimentological ones (e.g., [1,5]).

For the aforementioned reasons, rocky coastal landforms in the Mediterranean Sea are closely connected with its sea level history [5]. These coastal landforms can be found from a few metres up to more than 100 m ASL in elevation, due to the relevant tectonic uplift that patchily affects the basin’s coastline [1]. Pleistocene high stands have mainly been responsible for the formation of stepped flights of terraces along the rocky sections of the Mediterranean Sea.

The typical Mediterranean climate comprises hot, dry summers and mild and rainy winters [48]. Water circulation and environmental evolution in the Mediterranean Sea are tightly controlled by the Strait of Gibraltar. Water circulation is driven by interactive factors, such as climate, topography and depth, which can lead to precipitation of evaporites. In the Mediterranean, evaporation greatly exceeds precipitation and river runoff, and this also affects the circulation of water within the basin [49]. Evaporation is especially high in the eastern Mediterranean, and causes the water level to decrease and salinity to increase [50]. This pressure gradient pushes relatively cool, low-salinity water from the Strait of Gibraltar across the basin. Here, it warms and becomes saltier as it moves eastwards, before sinking in the eastern Mediterranean and moving back westwards, to spill out as deep waters through the Strait of Gibraltar. Thus, following [48], there is an exchange of an eastward inflow through the strait as surface waters, and a westward outflow as deeper waters.

The mean vertical variation of tides is ca. 0.4 m, as a result of the narrow connection with the Atlantic Ocean [50]. Site-specific topographic features can reduce or amplify tide amplitudes [51].

3. Erosional Landforms Related to the Sea Level

The amount of deformation that has occurred is defined by identifiable features that have been displaced due to tectonic processes [52]. The authors recognize that the best tectonic markers meet three criteria: a known initial undeformed geometry, a known age, and a high preservation potential with respect to the timescale of the studied processes. Sea level geomorphological markers potentially fit all three criteria very well. In a coastal area, the tectonic behaviour is defined by a set of indicators of various kinds. Apart from the geomorphological indicators, additional markers—such as sedimentological, biological, and archaeological markers—can contribute to the evaluation of the tectonic rates. MIS 5.5 markers represent the most useful ones because they encompass a period of 125 ka, from the last interglacial period. In some cases, coastal markers represent the only local available data to establish the tectonic attitude of an area.

Marine processes have operated on rocky coasts at the modern sea level to model shore-zone landforms totally or partly related to the sea level, such as tidal notches, marine terraces, and sea caves. We chose these landforms because they are the ones most commonly used in sea level studies on rocky coasts, and they are also part of the data collected within the Geoswim programme [24].

Regarding the elevation of MIS 5.5 sea level markers, we have considered an area that is tectonically stable when the altitudes of sea level markers range from 0 m to 10 m ASL.

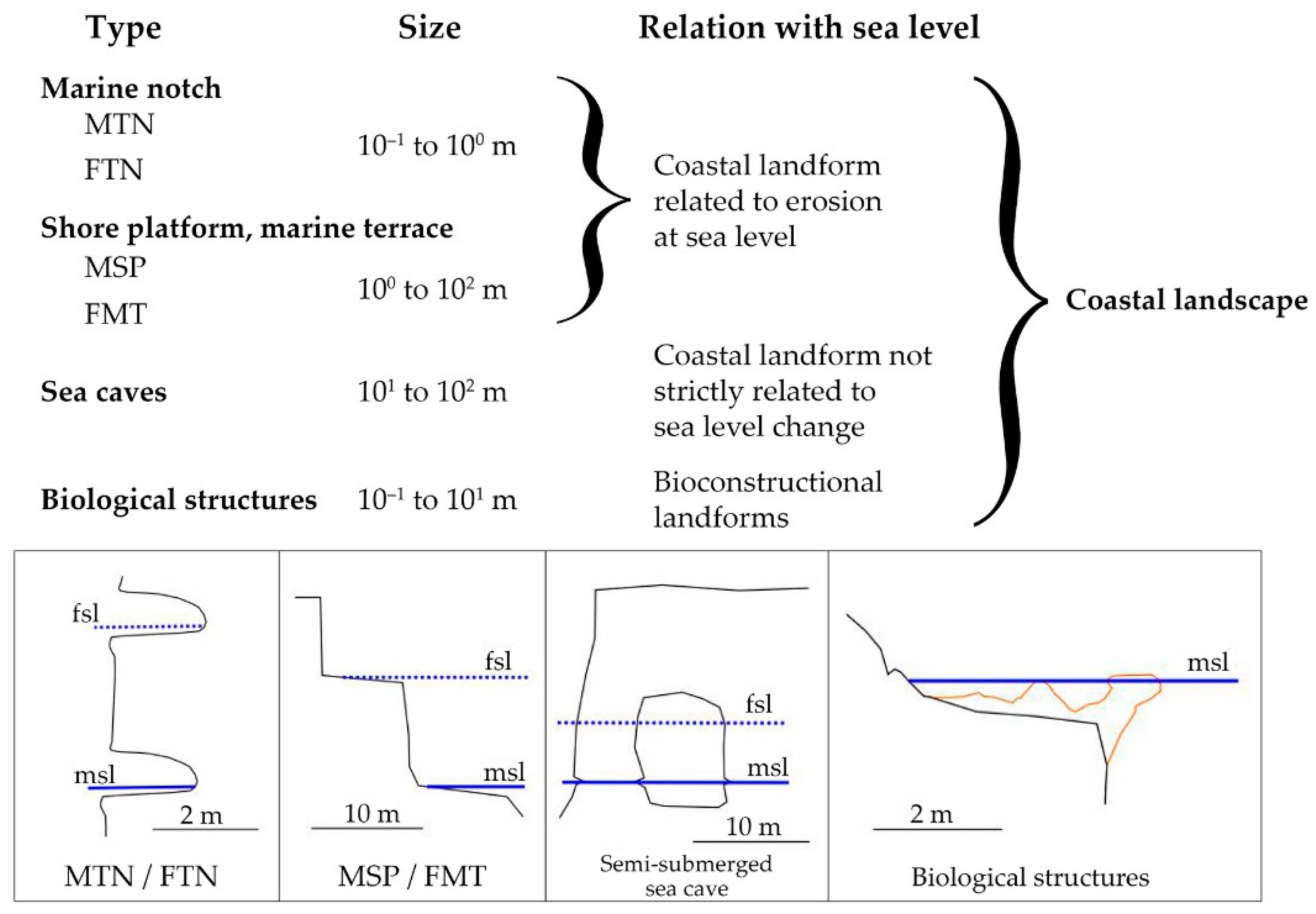

In our surveys, we identified, mapped, and measured the coastal landforms as shown in Figure 3. We added the terms “modern” and “fossil” to the aforementioned coastal landforms because the discussion regards their evolution within the sea level history of the studied areas. In the following sections, we describe these landforms and their relation to modern and fossil sea levels.

3.1. Modern Tidal Notches (MTNs) and Fossil Tidal Notches (FTNs)

A tidal notch is a laterally extending hollow at the base of a cliff, or at the sea level, with the width being greater than its depth [53,54]. The authors of [14] described the morphometric parameters of 73 sites with MTNs in the Mediterranean area. They ascribed the occurrence of MTNs to a range of marine processes—such as bioweathering, chemical dissolution, and wave processes—that have a regime that is often difficult to separate. The authors of [13] suggested that over the last 6.8 ka, MTNs have changed their shape following the relative sea level rise, causing sea cliff retreat. The authors of [55] described FTNs at 80 sites in the same area. They found that FTNs’ shape is similar to that of MTNs, but FTNs are always a few centimetres wider than MTNs—probably due to the lack of a biological reef, and to the weathering/erosion processes that have occurred since their formation.

3.2. Modern Shore Platforms (MSPs) and Fossil Marine Terraces (FMTs)

Modern shore platforms (MSPs) are horizontal or gently sloping surfaces developed along shore by wave erosion and other weathering processes. The authors of [53,56] identified two types of shore platforms: the first are gently sloping—also called ramps—while the second type are sub-horizontal platforms—either supra-, inter-, or subtidal—which terminate with a low-tide cliff. The former is mainly developed in macrotidal regions, while the latter in meso- and microtidal ones [56]. Although shore platforms and marine terraces are used almost interchangeably, the term marine terrace is often used to refer to fossil marine terraces (FMTs), in particular in sea level change studies.

3.3. Sea Caves

Although sea caves are not considered to be indicators of sea level variation, they may preserve sea level change markers, such as fossil tidal notches or speleothems ([57], this article).

Sea caves can be divided into two major types: sea caves, and flooded caves [58]. The first type includes caves formed by marine processes, while the second type includes caves developed under subaerial processes that occurred in dry conditions, which were then submerged by the Holocene marine transgression. Tidal effects, together with the mixing of seawater and fresh water, can also be fundamental in the shaping of extensive coastal karst systems [59,60]. Sea caves can be actively forming along modern coastlines, or they can be relict sea caves on former coastlines, e.g., at the elevation of MIS 5.5 sea level. The formation of sea caves is mainly controlled by geological weakness, such as bedding planes, joints, and faults along sea cliffs [53]. The authors of [61] identified a third group, called flank margin caves; these are dissolution landforms whose genesis is due to water mixing in sealed chambers. Coastal caves can develop in different salinity environments.

3.4. Biogenic Structures

Vermetid reefs are bioconstructions built by gregarious gastropods, occurring in the warmer sections of the Mediterranean Sea. They are found mainly on the coasts, with average surface temperatures not lower than 14 °C in winter and 24 °C in summer. The northern limit of distribution does not seem to exceed 38° N. They are considered excellent biological markers of sea level change over the last two millennia because of their quite restricted bathymetric distribution and considerable extent [18]. The authors of [62] codified the main biogenic morphologies useful to define vermetid reefs, although a discussion about hydrodynamics or the role of substrates was not fully contemplated.

Vermetid reefs and minor bioconstructions live in the lower mediolittoral and in the upper infralittoral zones only on the rocky coasts, with less impressive structures in descending order from calcarenites, limestones, dolomites, and basalts through to flysch [63,64]. The presence of an abrasion platform and surface hydrodynamic activities, however, are the fundamental conditions for the construction of a real reef, while the inclination of the coast regulates the shape and size of these bioconstructions (the larger reefs are found between 15° and 40° with respect to the horizontal line assumed at the value 0 [65]).

Vermetid reefs and minor bioconstructions are the most widely distributed biogenic structures in the Egadi Islands—above all around Favignana and Levanzo—between the headland of Cefalù and the coast of Trapani, and in the Maltese Islands. Some thick incrustations and cornices are reported in the province of Syracuse, while there is a point relief on the southern side of the island of Lampedusa. Small formations are also present in Ustica, Capo di Milazzo [66], and Taormina. They can be found as crusts (a thin formation made by a single layer of Dendropoma spp. shells cemented by encrusting red algae), ledges or rims (usually less than 1 m wide and 20–30 cm thick), and true reefs, often wider than 4–5 m and thicker than 30–40 cm [61,66]. Israel has the widest platforms in the Mediterranean—up to 20 metres. Microatolls or mushroom-like pillars (according to [62]) were found around the Egadi Islands, in particular on the northern coast of Favignana.

4. Material and Methods

4.1. Field Survey Approach

The 11 sites were surveyed using the Geoswim approach described in [24]. The snorkel surveys were carried out using a specially built raft (Figure 4) to support the swimming activities and to host all the instruments, such as cameras, GPS, CTD sensors, and echosounders [24]. The raft was 1.15 m long, 0.57 m wide, and 0.13 m high, with a weight of 3 kg. It was made about 0.98 g/cm³ of from ethylene-vinyl acetate (EVA)—a light polymer with excellent resistance to UV—and it was certified to be unsinkable by the producers. The raft was modified by adding L-section aluminium bars fixed from bow to stern above and below the boat, in order to facilitate the housing of the instruments (Figure 4a,b). A set of cable holders firmly fixed the instruments on the raft in order to prevent detachment and loss of instruments. Moreover, a removable homemade plastic dome was fixed to the bow of the raft (Figure 4c) to collect videos and images at water level. The dome was 0.40 m in diameter, and could host two cameras to collect videos and images, or to document the surveying activities. An aluminium roll bar was set on the stern of the raft. In the bow there was also a scuba gear dive flag for the safety of surveyors. The raft was usually pushed by swimming during the surveying activities.

One or more cameras can be set in waterproof housings and allow for the collection of ongoing videos and time-lapse images of the coastline being surveyed, both above and below the waterline (Figure 4d). Different settings of cameras were adopted during the expeditions (

Table 1. The routes and navigational parameters of the swim survey expeditions from 2014 to 2018 during the Geoswim expeditions.

A Site No.	B Year	C Location	D Number of Surveyors	E Type of Rocks	F Type of Survey	G Total Length of the Route (km)	H Days of Survey
1 (par. 4.2.1)	2014	Egadi Islands (Italy)	7	Calcarenites, dolomites, limestones	Snorkelling	63.5	7
2 (par. 4.2.2)	2014	Gaeta Promontory (Latium, Italy)	4	Hard limestones	Snorkelling	3.1	1
3 (4.2.3)	2014	Circeo Promontory (Latium, Italy)	2	Hard limestones	Kayaking	8.1	1
4 (par. 4.2.4)	2015	Razzoli, Budelli, Santa Maria (Sardinia, Italy)	7	Igneous rocks	Snorkelling	26.3	3
5 (par. 4.2.5)	2015	Capo Caccia (Sardinia, Italy)	6	Soft to hard limestones, marlstone, dolomites	Snorkelling	14.6	2
6 (par. 4.2.6)	2015	Tavolara (Sardinia, Italy)	7	Dolomites and hard limestones, igneous rocks	Snorkelling	13.5	2
7 (par. 4.2.7)	2015	Malta E (Malta)	7	Soft to hard limestones, calcarenites	Snorkelling	19.5	3
8 (par. 4.2.8)	2016	Mondello-Palermo (Sicily, Italy)	5	Soft limestones, calcarenites, hard limestones	Snorkelling	6.4	1
9 (par. 4.2.9)	2018	Ansedonia (Tuscany, Italy)	7	Hard limestones	Snorkelling	3.4	2
TOTAL			22			158.5	22

) for the collection of videos or images as needed. The cameras were set laterally with respect to the raft in order to collect time-lapse images every second in the direction of navigation. The cameras set below the waterline included a TELESIN plastic dome 6 inches in diameter for superior optical performance in the seawater (Figure 4c). In the homemade dome fixed to the bow (Figure 4c), the cameras could collect videos above and below the waterline simultaneously thanks to the geometry of the lens itself; these were used to document the field surveys. The raft could also support waterproof LED lamps for the surveys within sea caves.

A portable H22PX digital sonar echosounder (HawkEye^® Electonics, FL, USA), with a minimum depth of 0.6 m and maximum depth of 61 m, was housed on the boat to collect any additional depth data at prominent sites. A radio and an additional GPS were also used during the surveys.

The survey followed pre-planned routes at roughly 1–5 m from the coastline in order to identify the lateral variations in coastal erosional landforms. Small changes in the route could occur with respect to the planned route due to the local topography or due to sea conditions. The latter could force the swimmers to move out from the coast for safety reasons. The navigation usually proceeded at a constant speed, ranging between 1 and 2 km/h, unless the swimmers encountered topographical obstacles or prominent geomorphological features.

4.2. The Methodological Approach

In this paper, we surveyed, measured, and mapped the erosional landforms described in Figure 3. The morphometric parameters of coastal landforms were measured using common field instruments, such as invar rods, compasses, stainless steel metric folding rules, and tape measures for submerged environments. Depths were measured with the aforementioned echosounders. The geographic positioning was taken with a Garmin Montana 650T GPS (Garmin Internatiol, Olath, KS, USA) and plotted on Google Earth maps (S1 in SM). All coordinates are expressed as latitude/longitude in the WGS84 reference system. Accuracy of location was within 10 m. All measurements were taken in calm sea conditions, and were referred to mean sea level using the tide gauge data from the nearest tidal stations [67,68], including corrections for atmospheric pressure at the time of measurement.

The tidal amplitude in the studied sites was evaluated from the Mediterranean database of the tidal prediction software developed at the Oregon State University [69]. The model is a state-of-the-art tidal model that uses most of the available satellite altimetric data: TOPEX/Poseidon, 531 cycles (all available data); TOPEX Tandem, 114 cycles (all available data); about 9000 data sites; ERS, about 20,000 data points (m2 and k1 only), and in situ observations (e.g., tide gauges, shipborne ADCP). The model for the Mediterranean Sea has a resolution of 1/30 (~3.7 km) and uses the GEBCO 1′ database for the bathymetric data. The model considers eight tidal components that account for 99% of the total tidal elevation.

Regarding MTNs and FTNs, we evaluated the extent of these landforms from field observations and the image dataset collected during the swim campaigns. The locations of tidal notches reported on maps correspond to sites where detailed measurements or specific observations were made. The morphometric parameters of MTNs and FTNs were estimated following the methods of [14,69,70,71,72], using a metric invar rod. Detailed morphometric parameters were measured considering the average notch width and depth, bottom reef depth, and presence of vermetid reefs [14]. These parameters represent a mean value of repeated measures with a small error bar (less than ±0.10 m). During the surveying period, uncertainties in the elevation measurements with respect to the sea surface or tidal level were negligible, because the tidal amplitude was 0.10 m in the study area [14].

The location of the erosional markers along the studied sectors was compared to local lithotypes using data from the geological literature—in particular, [73] for the Egadi Islands, [74] for the Circeo Promontory, and [75] for the Gaeta Promontory; for northern Sardinia, we used the webpage of the Sardinian regional geological service, and the webpage of the Tuscany regional geological service for the Ansedonia Promontory [76].

Lithologies can be conveniently divided into (1) Quaternary deposits, (2) soft limestone/calcarenite/marlstone, (3) medium limestone/carbonate breccia, (4) dolomite or hard limestone, and (5) igneous rocks. These lithologies correspond to increasing strength values, from very soft (1) to very hard (5), respectively. These characteristics of resistance have been mapped as a buffer zone from the coast inland.

Coastal morphotypes have been classified and mapped considering the topography of the emerged and the submerged parts of the coast (Figure 3). The morphotypes were recognized in the field and mapped using ArcGIS10 according to the methdoologies of [27] and [28,29].

In order to describe the main morphologies, the nomenclature in [62] was used for the vermetid reefs.

5. Results

The route and navigational parameters of the swim survey expeditions are summarized in Table 1. The total length of the route was 158.5 km, which was covered in 22 surveying days over 7 expeditions from 2014 to 2018. The results are not homogeneous, mainly because of technological and methodological improvements [24], weather and navigational conditions, and team composition. Moreover, due to adverse weather conditions, the promontory of Circeo was surveyed only with a kayak and with additional land surveys. Data have been divided into subsections, from 5.1 to 5.6, following the temporal subdivision described in Table 1.

In

Table 2. Extent and altitude ASLASL of sea level change markers studied during the field campaigns.

A Site No.	B Location	C Type of Rocks	D Total Length (m)	E MTN (m)	F Coverage (%)	G FTN (Y/N)	H Coverage (%)	L Altitude of the FTN (m ASLASL)	G Type of Data	H Vermetid Structures (Y/N)	I Coverage (%)	L Sea Caves (n)
1	Marettimo Island	Limestones, dolomites, siltite, breccias	19,300	10,300	53.4	45	0.2	8.10 ± 0.2	Video, estimated length	5641	29.2	17
2	Favignana Island	Limestones, dolomites, breccias, siltite	32,200	7350	22.8	0	0.0	/	Video, estimated length	26,034	80.9	16
3	Levanzo Island	Limestones, dolomites, siltite, breccias	12,000	750	6.3	80	0.7	8.50 ± 0.3	Video, estimated length	13,256	93.0	4
4	Gaeta Promontory	Limestones	3115	3043	97.7	28	0.9	5.92 ± 0.3	Video, measured length	0	/	11
5	Circeo Promontory	Limestones	8154	0	0.0	80	1.0	9.28 ± 0.2	Video, estimated length	0	/	8
6	Razzoli, Budelli, Santa Maria Islands	Granites, local calcarenite outcrops	26,300	20	0.1	0	0.0	/	Time-lapse images, estimated length	0	/	0
7	Capo Caccia	Limestones	14,600	12500	85.6	210	1.4	3.10–4.25 ± 0.03	Time-lapse images, measured length	0	/	22
8	Tavolara Island	Limestones, granites	13,500	8516	63.1	150	1.1	6.05–7.08 ± 0.15	Time-lapse images, measured length	0	/	8
9	Malta Island (East)	Limestones	19,500	2240	11.5	0	0.0	/	Time-lapse images	2050 **	/	19
10	Mondello-Palermo	Limestones, breccias	6453	1300	20.1	0	0.0	/	Time-lapse images, measured length	857	10.5	8
11	Ansedonia	Limestones, breccias, dolomites	3390	1368	40.4	10	0.3	4.5 ± 0.50	Time-lapse images, video, measured length	0	13.3	20

are reported the lateral extent of MTNs, FTNs, and vermetid structures in the studied sites, the percentage of the length of sea level landforms with respect to the total length of the surveyed area, which data were used to process these data—such as videos or time-lapse images—the altitude of FTNs, and the method of evaluation (estimated from images/videos or measured).

5.1. Egadi Islands

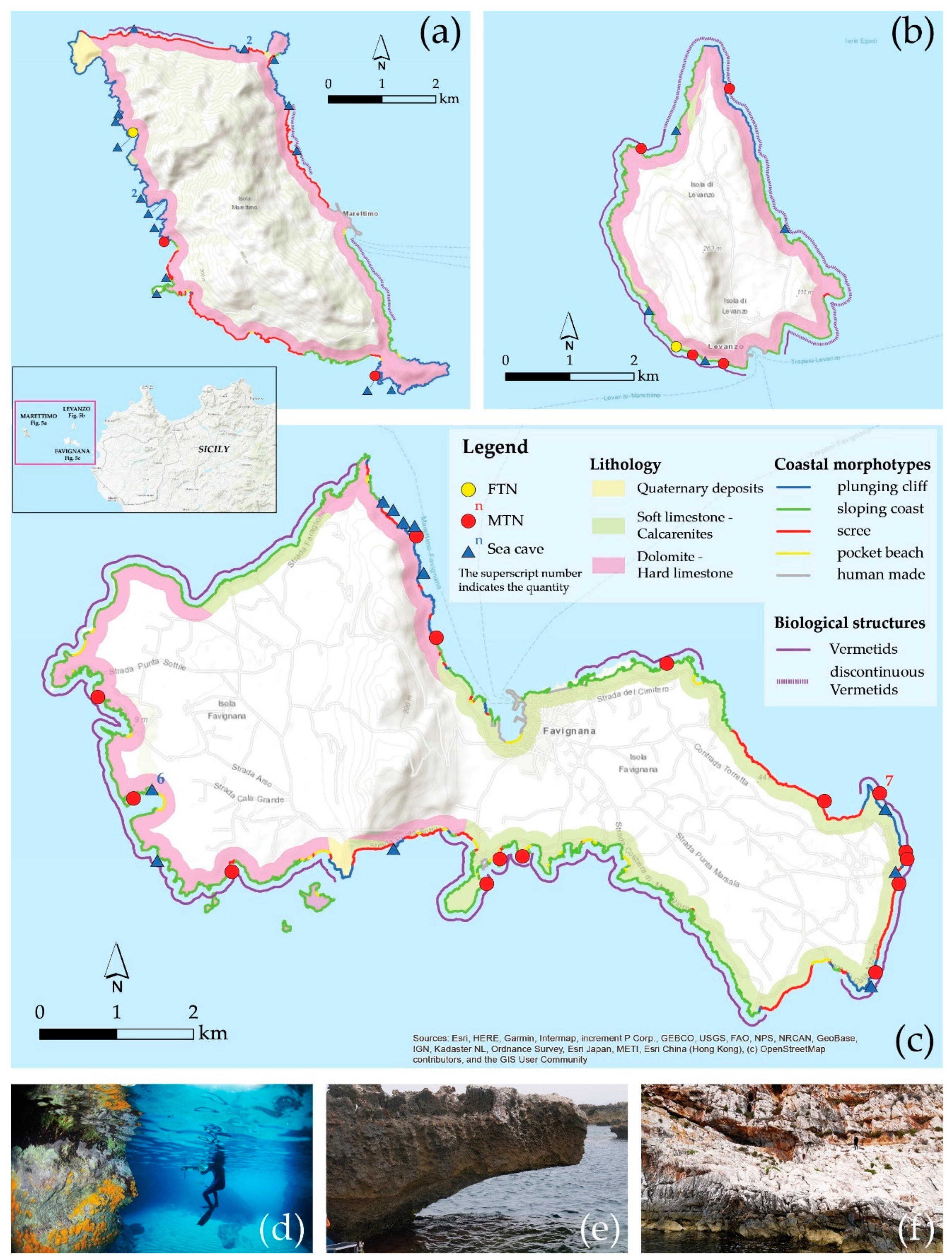

We surveyed the entire perimeter of the Egadi Islands, for a total length of 63.5 km (Table 1, Figure 5). In the following 3 subsections we describe the data collected in Marettimo (5.1.1), Favignana (5.1.2), and Levanzo (5.1.3).

5.1.1. Marettimo Island

The perimeter of the island is 19.3 km. The route was covered in 3 days (Table 1). Rocky coasts occupy the entire perimeter of the island. Sloping coasts typify most of the southern coasts, while the western part of the island is characterized by very high plunging cliffs. The northern part of the island is dominated by coastal screes, while the eastern sector is more complex, with an interplay between plunging cliffs, alternating with screes and sloping coasts. In the latter sector there is also the village of Marettimo, representing the only urban area on the island. The southern promontory is fringed by plunging cliffs (Figure 5a).

The survey of the tidal notches in Marettimo highlighted that both MTNs and FTNs occur. MTNs develop along short sectors—roughly some tens of metres—in the locations reported in Figure 5a, for a total length of 10.3 km. FTNs occur at two sites along the northwestern coast of Marettimo, for a total length of 45 m (Table 2, Figure 5a).

We surveyed 17 sea caves all around the island (Figure 5a), most of them developed in stromatolitic or limestone dolomites along plunging cliffs on the western side of the island. These caves generally developed along vertical or subvertical fractures or faults. Twelve of them were previously known and published by [77], while four of them are here reported for the first time. Seven of the sea caves reported in Figure 5a have a local name due to their scenic value. No sea level change markers occured within the surveyed caves.

No MSPs or FMTs were found in the southwestern sector of the island, although some Tyrrhenian deposits were reported [78].

The island is rimmed by vermetid reefs in its northern part only. Over the rest of the island, the coasts are colonized by Lithophyllum rims and vermetid encrustations.

5.1.2. Favignana Island

Favignana is the largest island of the Egadi Islands. It is 19 km² in area and has a perimeter of 32.2 km, which was surveyed in five surveying days. The island’s coastline consists mainly of sloping coasts (66%), with a slope from 5° to 45°, and plunging cliffs (17%), mostly located along the eastern sector. The remaining coastal stretches of the island are composed of screes, pocket beaches, and built-up coast, the latter represented by the town of Favignana.

MTNs in Favignana are widely spread both in microcrystalline dolomites and in calcarenites, and their development is almost continuous, with an average size of 0.70 m in width and 1.00 m in depth. They are highly continuous on the eastern side of the island. Tidal notches are smaller at sloping coasts, with a width of 40 cm and a depth of 50 cm.

No MSPs were found, while FMTs were found along more than 3 km of coastline in both the northern and southern sectors of the island (Figure 5c).

We surveyed 16 sea caves (Table 2) that were cut in microcrystalline dolomites and calcarenites and situated along the plunging cliffs skirting the eastern side of the island. Three of them were discussed in [77], while thirteen are here reported for the first time. We also discovered a new cave, which we called Geoswim; it is characterized by an entrance at less than 1 m in height ASL, and the sea bottom lays at about 2 m BSL. Inside the cave, three corridors, each of them parallel to one another and to the coastline, elongate for about 70 m each. In the inner part of the three corridors, we found small gravel beaches.

The most relevant bioconstruction bordering the island is produced by vermetids (Dendropoma cristatum) that developed on the sloping coast and created reefs that increase continuously up to 2 metres from the coastline. This type of bioconstruction only develops at the mean sea level, and thus constitutes a reliable indicator of the relative sea level change [9,79,80]. Vermetid reefs were found in Favignana, on the northwestern coast between Faraglione Point and Ferro Point, the southwestern coast between Fanfalo Point and Burrone Point, and near Vituzzo.

Lithophyllum byssoides rims that developed along the plunging cliffs, and where the hydrodynamism is particularly intense, are less common. They contribute to the construction of a limestone sidewalk (“trottoir”), which plays an important protective role for the cliff.

5.1.3. Levanzo Island

Levanzo is the smallest of the Egadi Islands, with a perimeter of 12 km, which was surveyed in one day. It is completely formed from dolomites and dolomitic limestone, and it is mainly composed of plunging cliffs (69%) in the north, northeast, and northwest sectors of the island. The southern sector is characterized by an alternation of sloping coasts and screes.

MTNs occur at three sites on the island, for a total length of 0.75 km, while FTNs occur at one site on the northwestern side of the island, for a total length of 80 m.

There are no MSPs on Levanzo, while FMTs occur on both the eastern and western sides of the island, at an elevation of about 8.50 m ASL, sometimes associated with FTNs.

We surveyed only four sea caves (Figure 5b) cut into plunging cliffs; two of them were discussed in [77].

Small vermetid reefs could be found only along the northern and southwestern coasts.

5.2. Gaeta and Circeo Promontory

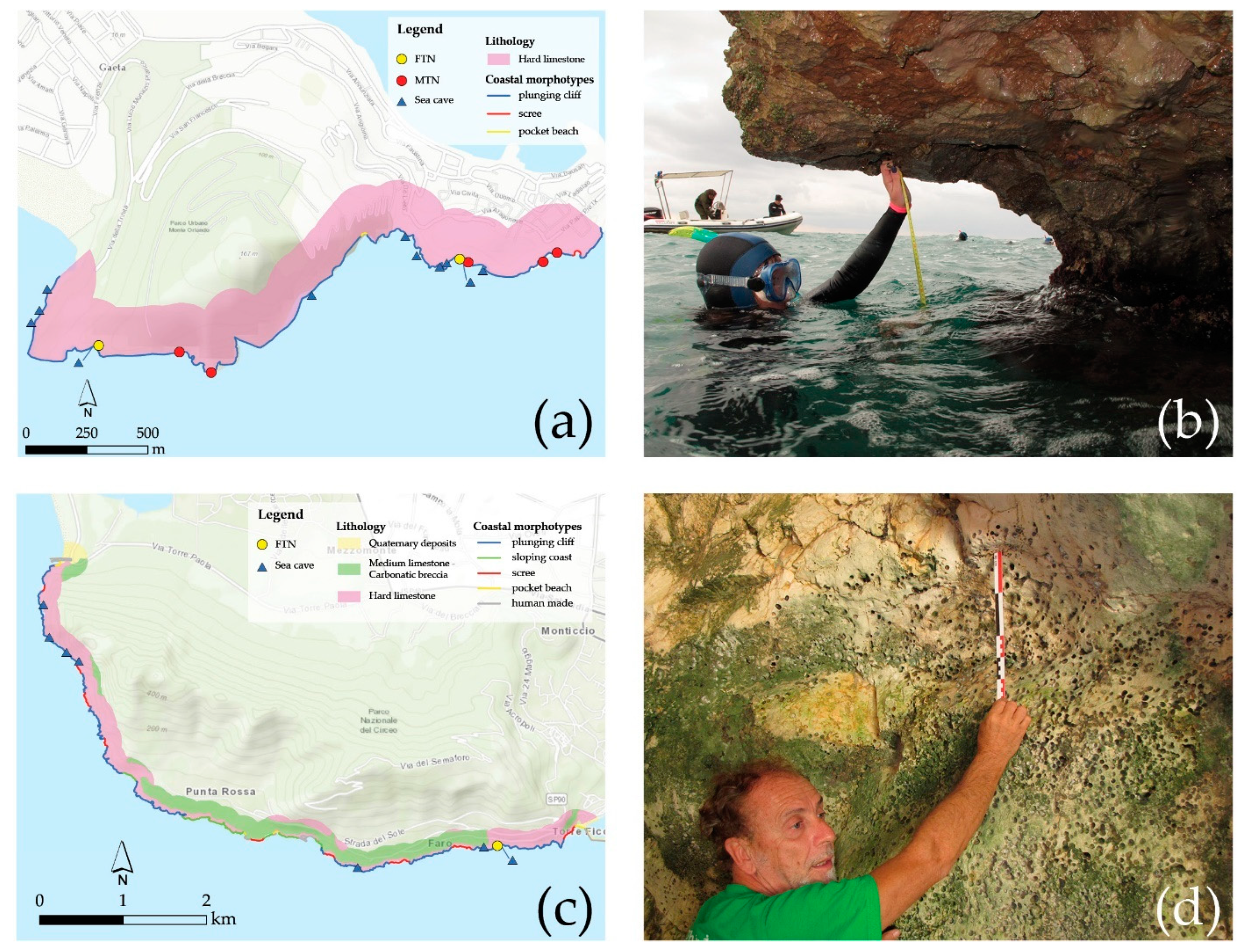

The promontory of Monte Orlando (Gaeta, Latium, Italy) is 171 m in height, while the coastline is 2.2 km long, and it was surveyed in one day (Table 1, Figure 6a). It is cut from Mesozoic limestones, and is entirely composed of rocky coasts—in particular, plunging cliffs exposed to southern winds. These cliffs are up to 70 m in height. The depth below the cliffs ranges from 10 m to 18 m BSL. Part of the data were published in [14,55].

MTNs are almost continuous along the promontory of Monte Orlando. They were measured within the Grotta del Turco, and are 0.35 m high and 0.40 m deep (Figure 6b). Along the entire promontory, MTN size remains stable, with the concavity ranging from 0.35 m to 0.40 m. At one site only, an FTN occurs with a depth of 1.20 m.

We surveyed 10 sea caves all around the promontory (Figure 6a), most of them developed in Mesozoic limestone. These caves generally developed along vertical or subvertical fractures or faults. The most famous is Grotta del Turco—85 m in height, 100 m in width. The maximum depth is about 6 m at the entrance. Some sea caves surveyed have a local name due to their scenic and tourist importance.

A cave developed along limestone beds that rise from vertical to 60° and facilitated the widening at another site, where a fault passes through. The latter was sealed by continental breccias older than MIS 5.5. On this deposit, there are also rounded pebbles and cobbles that are cut to form a marine terrace at 5.10 m ASL and, while at the inner margin, an FTN occurs. The age is the same as that of the FTN measured within the Grotta del Turco, as measured in [55] at 5.9 m ASLASL and aged to MIS 5.5.

Near Grotta del Turco, three fractures, in a northern direction and following the local morphology, cut the entire cliff from the cliff top to the cliff toe below the sea level. One of these fractures, 0.80/0.90 m in width, was surveyed for at least 50 m within the promontory, and possibly crosses the promontory. At one site, Chthamalidae colonies occur in shape of stalactites. Overall, Chthamalidae and Patella caerulea are uncommon along the promontory.

A Lithophyllum sp. structure occurs along the entire promontory. It is 1 m in thickness at the Grotta del Tuono, while it is tighter outside the caves.

The promontory of Circeo (Latium, Italy) is 541 m in height, while the coastline is 2 km long, and it was surveyed in one day (Table 1, Figure 6c). It is entirely composed of rocky coasts cut from Mesozoic limestones. The cliffs are exposed to southern winds. The cliffs are up to 50 m in height. The depth below the cliffs ranges from 2 m to 18 m BSL.

The MTN at the Promontory of Circeo is completely absent (Table 2), but along the entire perimeter of the promontory there is a large Lithophyllum trottoir up to 0.40 m ASL in depth. Close to sea level, colonies of Balanidae and Mytilus galloprovincialis are common in the area. Regarding the latter, it is not clear if they are related to the occurrence of freshwater, because we did not use the same swimming method as in the other sites.

The promontory hosts several sea caves containing Tyrrhenian fauna, previously described in [80,81] at an elevation ranging between 5 m ASL and 8 m ASL. In particular, an MIS 5.5 tidal notch occurs within the Grotta delle Capre—a sea cave with prehistoric deposits, dated back to the middle Palaeolithic [81]. The FTN begins at 9.28 ± 0.2 m, and it occurs throughout almost the entire cave. The width ranges between 0.32 m and 0.25 m—the smallest in the central Mediterranean area (mean, 0.28 m)—with a depth ranging between 0.20 m and 0.12 m (mean, 0.16 m), while maximum local tide amplitude is 0.369 m. Several other caves occur along the promontory, such as Grotta Guattari, with Neanderthal skulls [82] Riparo Blanc, with remains of Mesolithic Age meals; Grotta del Fossellone, with Senegalese fauna dating back to MIS 5.5; and Grotta Breuil, with fossil fauna of the middle Pleistocene and human remains dating back to the upper Palaeolithic.

5.3. North Sardinia

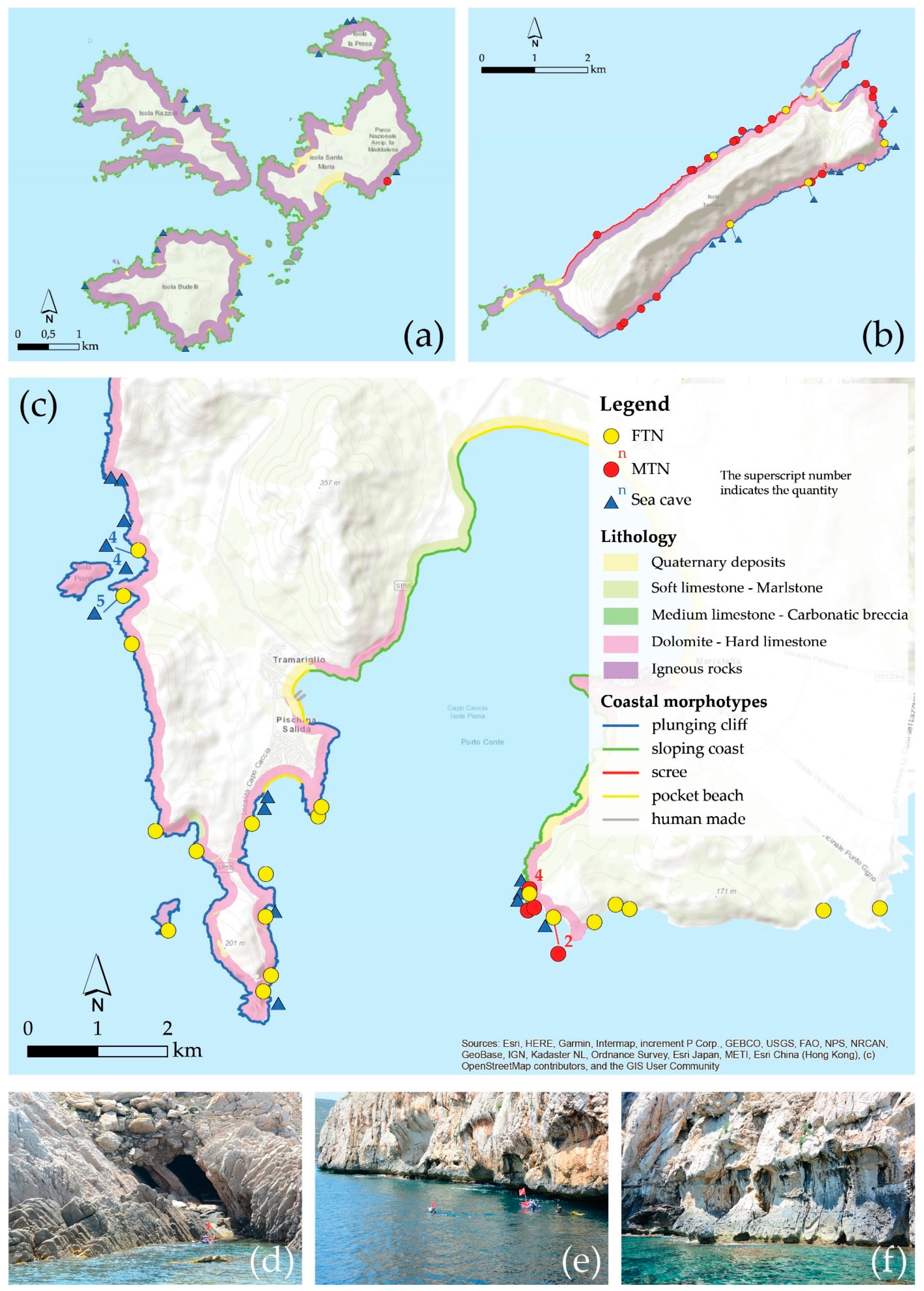

We surveyed the entire perimeter of the islands of Razzoli, Budelli, and Santa Maria, which are part of the Maddalena archipelago (5.3.1.); the promontory of Capo Caccia (5.3.2.); and the island of Tavolara (5.3.3.), for a total length of 54.4 km (Table 1) surveyed in 7 days. The coastal morphotypes and the locations of the surveyed coastal erosional landforms relative to the sea level are reported in Figure 7a–c.

5.3.1. Razzoli, Budelli, and Santa Maria Islands (Maddalena Archipelago, Northeastern Sardinia)

These islands are entirely made from Palaeozoic intrusive magmatic rocks. The coastline is highly indented, with plunging cliffs, sloping coasts, and small pocket beaches, but the morphotypes were not mapped because of the high complexity of the coastline.

Patella caerulea, Chthamalus, and red coralline algae “trottoirs” of about 25 cm in width, were recognized at the sea level together with Dendropoma sp., Serpulidae from 2 m BSL, Lithophyllum from up to 0.6 cm ASL, and Patella ferruginea from SL to 0.40 m ASL.

An MTN was recognized at one site at an aeolianite outcrop (Figure 7a), with a depth and width of about 0.5 m, while no FTNs were surveyed. MSPs and FMTs were not identified along the studied coastline.

5.3.2. Capo Caccia (Northwestern Sardinia)

Capo Caccia is a limestone promontory in the northwestern part of Sardinia. The Capo Caccia promontory mainly consists of plunging cliffs, with some small pocket beaches and very short sectors of coastal screes (Figure 7c).

MTNs occur almost all over the coastal sector, while FTNs are up to 210 m long. No MSPs or FMTs occur in the studied sectors. We identified and surveyed 22 sea caves.

5.3.3. Tavolara Island (Northeastern Sardinia)

Tavolara is a northeast-elongated island, about 6.8 km in length and about 1.7 km in width. It is mainly composed of Mesozoic limestones, while short sectors of its western part are made from Hercynian magmatic intrusive rocks, with some small continental and marine deposits, mostly MIS 5.5 in age. The limestone section is almost entirely cut into plunging cliffs and short sectors of screes. In the northern part of the island there is a pocket beach that we did not survey since it is a military zone, while the southernmost sector of the island is fringed by low-lying rocky coasts and pocket beaches.

MTNs were measured at 22 sites along the eastern part of the island, where they are almost continuous along 8.5 km of coastline (Table 2). MTNs occur along 150 m of coastline. Eight sea caves were surveyed on the limestone section of the island (Figure 7b).

The mesolittoral zone displays a variety of organisms, including abundant red coralline algae, Lithophyllum sp., green algae, Cystoseira terraces, and large populations of Patella rustica and Patella ferruginea occupying the upper fringe. The occurrence of the sublittoral Spondylus gaederopus at ca 50 cm BSL is noticeable, given its common occurrence in MIS 5.5 outwash deposits.

5.4. The Maltese Islands (Eastern Malta)

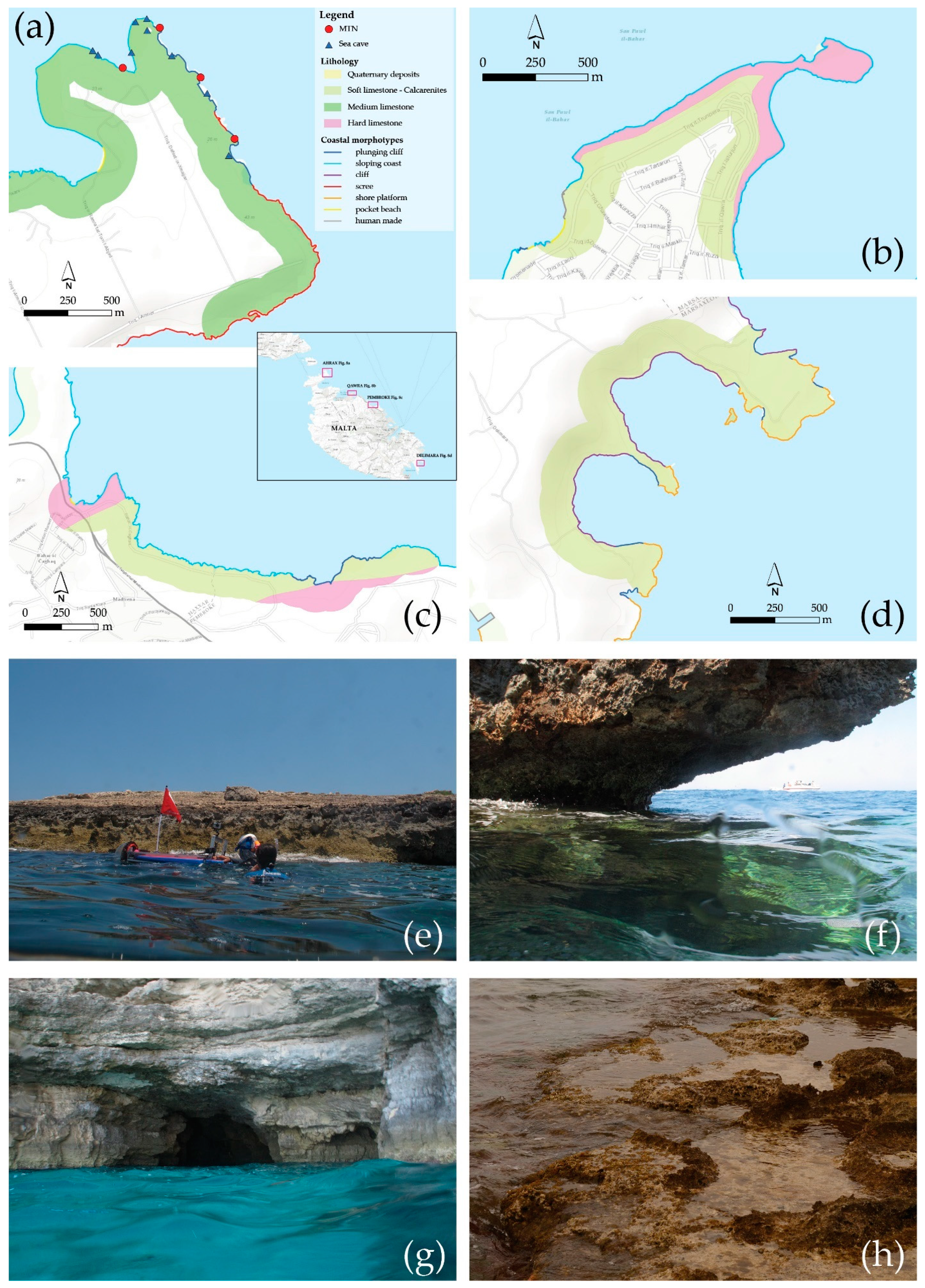

We report here the results of the survey of four sites situated along the northeastern coast of Malta, totalling a coastal survey of 8.37 km: Aħrax, Qawra Point, Pembroke, and Delimara (Ħofra l-Kbira). Rocky coasts characterize 100% of the surveyed shorelines (Figure 8).

5.4.1. Aħrax (Mellieħa)

The total stretch of coast we surveyed is 2.47 km. The Aħrax site consists of a northeast-exposed linear coastline and two promontories (north–north-northwest-oriented) along the eastern tip of Marfa Ridge (Malta), and faces the structurally faulted Comino Channel (5 km wide, 7 km long) situated between the islands of Malta and Comino. The survey at Aħrax (~2.47 km) covered a coastal terrain characterized by fault-elevated vertical plunging cliffs in Upper Coralline Limestone (UCL, Tal-Pitkal and Mtarfa member) along both the Aħrax and White Tower peninsulas (maximum elevation, ~25 m ASL) and a sheltered north-facing col in between the two peninsulas (depth ~7 m). Aħrax terrain is typified by a range of erosional and depositional signatures from extreme-wave events such as onshore clustered and imbricated boulders, surface sockets, scarps, ramps, and submerged boulders [29,83,84].

Notch-like features occur along the entire stretch, but at four sites MTNs are prominently hewn out. At two sites, the maximum depth is 2.5 m. We did not survey FTNs. No MSPs or FMTs were discovered in the area. In the area we surveyed nine sea caves (Figure 8a); one of them is a post-Miocene collapsed sinkhole on the Aħrax Peninsula up to ~10 m ASL, reported in [85]. An MTN occurs within the sinkhole.

The vermetid crusts are formed by Dendropoma sp. The seaward accretion of vermetid reef is a maximum of 1.0 m, while the thickness is about 50 cm.

5.4.2. Qawra

The total stretch of the surveyed coast was 2 km. The surveyed site at the Qawra Peninsula (~2 km) covered a low rocky coastline in Lower Coralline Limestone (LCL, Xlendi member), and which outcrops at sea level as a sub-horizontal terraced platform and is capped by a low, overlying cliff (3–5 m in height) in Lower Globigerina Limestone (LGL). Erosional and depositional signatures from extreme-wave events—such as joint-bounded and imbricated boulders, elongated detachment scarps, sediment-filled sockets, and a conjugate network of joints—are present in lithologies and scattered along the north–northeast-oriented terraced coast, to a maximum elevation of ~10 m ASL. The seaward tip of the peninsula, apart from being the most northeast-exposed part of the site, is totally composed of coarse-grained LCL (Xlendi member) lithology, and partially disconnected from land access due to the semi-submerged conditions of its connecting isthmus with the landward side of the peninsula. The coastal terrain is relatively more low-sloping, and a cluster of north-facing boulders are distributed at an average elevation of 1–3 m ASL.

A well-carved MTN has developed at Qawra point, where the coast is a plunging cliff. We did not observe any FTNs in this survey. No MSPs or FMTs were discovered in the area. In the area we surveyed one sinkhole at Qawra point (Figure 8b).

The vermetid crusts are formed by Dendropoma sp. and Vermetus triquetrus, as previously reported in [84]. The seaward accretion of vermetid reef is 1.0 m, while the thickness is about 30–40 cm.

5.4.3. Pembroke

The Pembroke survey covered a 2.12 km stretch from the eastern end of Baħar iċ-Ċagħaq Bay to the western limits of the coast overlooked by Madliena Tower (Pembroke). This site represents the eastern limit of the island’s great fault system, in which a series of norrtheast–southwest faults run transversally through the coast, creating a sequence of lithological outcrops that alternate from LCL (Xlendi member) to LGL and back to LCL (Xlendi member) in a west–east direction along the coast. The northeastern exposure of the site, coupled with the presence of intensely jointed LGL, has resulted in the development of an elongated scatter of joint-bounded boulders, detachment scarps, and sediment-filled sockets along the low-lying shores of this area.

Notch-like features occur along the entire stretch, but at four sites MTNs are very developed. At two sites, the maximum depth is 2.5 m. FTNs were not observed in this part of the survey.

No MSPs or FMTs were discovered in the area. However, near the Qawra Tower, a supratidal MSP at about 1.0 m ASL has developed along a length of ca. 600 m.

The vermetid crusts are formed by Dendropoma sp., Vermetus triquetrus, and Neogoniolithon brassica-florida, as previously reported in [86]. We confirm data reported by the authors, and the length of vermetid reef is 70 m, while the thickness is about 30 cm.

5.4.4. Delimara (Xrobb l-Għaġin, Ħofra l-Kbira)

The total stretch of the surveyed coast was 2.14 km (Figure 8d). The Delimara survey covered the southeast-oriented coastline (2.14 km) around one of two sub-circular embayments present at the Xrobb l-Għaġin area, known as Ħofra il-Kbira, which is enclosed between the promontories of Ras il-Fenek and Xrobb-l-Għaġin Point. The landward part of the bay is in relatively softer Middle Globigerina Limestone (MGL), while more resistant outcrops of a 3–5^° dip were Upper Globigerina Limestone (UGL) outcrops at both promontories. The morphogenesis of the surveyed bay is attributed to the presence of an ancient drainage line that converged into the bay [87]. The combination of fluvial erosional notches at the exposed unit of UGL and selective marine erosion created a retrogressive erosion of the dipped UGL, and subsequently led to the inland semi-circular removal of the MGL beds.

We did not encounter MTNs or FTNs in this embayment and found neither MSPs nor FMTs. A wide sea cave occurs, 50 m in length, 3 m in width, and 1.5 m ASL and BSL.

5.5. North Coast of Palermo

In this section we report the results of the survey of two rocky stretches between Addaura and Arenella Harbour (Palermo, Sicily), with respective lengths of 371 m and 534 m (Figure 9a). At Arenella we collected detailed measurements on the morphometric parameters of MTNs at 25 sites.

The area is affected by east–west-, north–south-, and north-northeast–south-southwest-trending extensional fault systems with predominant vertical displacement. The coast is cut into Mesozoic limestone, and is mainly composed of sloping coasts. A 390-m-long pocket beach, called Vergine Maria, and a human-made embankment lie in the midsection between the start and end points of the survey.

We measured MTNs at nine sites, together with 25 other detailed measurements over about 500 m (Figure 9a), in order to detail the site of Arenella. In the study area, the MTN width ranges between 0.30 and 0.60 m, and its depth was measured between 0.40 and 2.20 m. At Arenella, the MTN width ranges between 0.39 and 0.52 m, and lies at a depth between 0.65 m and 2.20 m. The width is usually smaller than the MTN, ranging between 0.37 m and 0.50, with a mean value of 0.44 m. Here, the mean tide is 0.37, as reported previously in [14]. FTNs associated with Lithophaga lithophaga holes were detected at an elevation ranging between 3 and 7 m ASL. In the conglomerate outcrops the notch base is usually 0.10 to 0.15 m higher than limestone notches. A submarine spring occurs near the deeper FTNs.

No MSPs were recognized, while a small FMT with an annexed FTN of about 10 m in length was recognized.

We surveyed eight sea caves along the surveyed sectors; two of them contain MIS 5.5 deposits and fossils.

In the tidal zone, biological structures are almost continuous, and consist of vermetid bioconstructions with a thickness ranging between 0.5 m and 0.12 m. At some sites they are replaced by large balanids.

Detailed Measurements in Palermo

We surveyed a stretch of coast of 311 m in Palermo (Figure 10). Here we measured the morphometric parametres of FTNs at 25 sites (

Table 3. The morphometric parametres of MTNs in the short stretch at the Arenella harbour (Palermo).

Site	Photo No.	MTN Width (cm)	MTN Depth (cm)	MTN Bottom Depth (cm)	Depth of Cliff Toe (cm)	Freshwater Spring (Y/N)	Lithology	Notes
1	1	39	78	38	112	N	limestone	Pebbles 1–2 cm in size at submerged cliff toe.
2	-	41	65	65	139	N	limestone	Pebbles 10 cm in size at submerged cliff toe.
3	2	43	174	76	165	N	limestone	-
4	-	45	-	-	-	N	limestone	-
5	-	44	78	84	147	N	limestone	-
6	-	42	104	95	260	N	limestone conglomerate	MTN base lays 0.12 m ASL. Dissolution forms and conglomerates within the notch.
7	-	52	73	139	188	N	conglomerate	Blocks 10 cm in size at the sea bottom due to recent collapse phenomena.
8	-	50	73	57	>200	N	conglomerate	The base of the MTN lays 1 cm BSL.
9	-	48	150	67	>200	N	limestone	The base of the MTN lays 5 cm ASL.
10	-	49	127	71	>300	N	limestone	The base of the MTN is 10 cm ASL.
11	-	-	-	-	-	N	limestone	A stack occurs just in front of the site, and could be responsible for the absence of MTN.
12	-	-	-	-	-	N	limestone and conglomerate	Submerged platform.
13	-	37	95	18	300	N	conglomerate	Small emerged platform, cut in limestones and conglomerates. The presence of boulders distorts the depth of the sea bed.
14	3	45	70	100	300	N	conglomerate	Conglomerates and platform 20 cm higher than mean tide
15	4–5	42	130	75	350	N	conglomerate	The base of the MTN is 15 cm ASL.
16	6–7	~45	-	-	-	N	conglomerate	Large and small barnacles within the MTN. Platform collapse, presence of boulders, no MTN.
17	8–9	49	137	118	300	N	conglomerate	The base of the MTN is 15 cm ASL.
18	10–11	48	152	30	300	Y	conglomerate and limestone	The base of the MTN does not always occur. There are large blocks below the sea level, and large balanids.
19	-	40	152	46	300	Y	conglomerate and limestone	The coast is plunging with a large freshwater spring.
20	-	48	107	82	350	Y	conglomerate and limestone	Calcareous red algae inside the notch. There are several sea caves below the base of the notch, and a large freshwater spring.
21	12–14	44	143	78	250	Y	conglomerate and limestone	Fossils of cervids and pulmonates. The MTN is partly collapsed.
22	-	44	135	74	350	Y	conglomerate and limestone	Red continental deposits seal Lithophaga holes containing pulmonata and cervid bones.
23	15–17, 19	43	140	54	20	N	limestone	Medium–large balanids replace corallinae algae.
24	18	45	109	58	40	N	limestone
25	20–22	41	220	65	100	Y	limestone	The sea level is 10–12 cm higher than the starting point, and the base of the notch was roughly at sea level. A spectacular mushroom-like rock, 6 × 4 m in size and up to 2 m ASL in height. A slightly submerged platform lays all around the aforementioned landform. Limpets were found inside the notch.
Mean value		44,3	119.6	70.9	220.6

) during a sunny day with no waves. FTNs appear very well carved.

The biological trottoirs always consist of red coralline algae with a thickness between 5 and 12 cm. At the beginning of the survey, at 09:15 a.m., 31 January 2020, all of the bases of the biological trottoirs were dry, while at the end of the survey, after about 3 h from the starting point, the tide had risen by almost 20 cm, so perhaps for this reason some branches of Ellisolandia elongata were bleached (Figure 11: photos 16 and 19) due to light shock.

At tidal level, coralline algae always occur, but in some places were almost replaced by large balanids. From the base of the grooves to ca. 55 cm in height, Patella spp. occur. The notches are often very well preserved, with varying dimensions, as shown in Table 3 and Figure 10 and Figure 11. The width represents a rather small natural variability, with a maximum value of 50 cm, minimum of 37 cm, and an average of 44.3 cm—a value that compared with the local mean tide of 37.5 cm [14] appears quite normal (normally the width of the MTN has values between 8 and 20 cm wider than the mean local tide. Furthermore, the natural variability (25 measurements in 500 m) is also certainly very low considering the measurement error (2.5 cm). As far as the depth of the furrow is concerned, it shows great variability, from 65 to 220 cm. A remarkable aspect is visible in Figure 10, documenting a good correlation between the water spring and the depth of the MTN. This is a confirmation of how the presence of freshwater floating on top of marine water is able to deepen the MTN, near the outflow of submerged springs with a flow rate of 1000–3000 litres per second (such as at the resurgence of Cala Luna in the Gulf of Orosei, eastern Sardinia, where MTN depth exceeds 4.5 m). The blue squares in Figure 10 indicate the spring waters that we have clearly recognized as coming out of small caves without any scientific equipment. Where the lithology changes from limestone to conglomerate, the base of the groove is oddly located 10–15 cm higher than that measured on limestone. Finally, between stations 15 and 17 we found small karst cavities completely filled with very well-cemented pinkish limestone together with a decimetric breccia containing fossil vertebrate fauna and pulmonate gastropods (Figure 11: photos 12–14).

5.6. Ansedonia Promontory

The total length of the route around the promontory of Ansedonia was 3.9 km (Figure 12). The route was covered in 1 day, from the Taglio di Ansedonia, on its western part, to the so-called “Tagliata” channel in the eastern sector. Geologically, the promontory of Ansedonia is made of Mesozoic cavernous limestone, with a minor contribution of calcareous breccias. The promontory is mainly dominated by plunging cliffs, and a small sector of screes.

Field surveys led to the mapping and measurement of 17 sites with MTNs. Their mean width was 0.56 m while their mean depth was 0.45 m. is the sites were widely spread along the promontory. MTNs were found along 1368 m of coastline along plunging cliffs. There are two isolated mushroom-like limestone rocks with well-carved MTNs. An FTN was discovered for the first time at Ansedonia at an elevation of 4.5 ± 0.50 m (Figure 12d), over a length of 10 m. No MSPs were discovered, while a very small FMT-like landform was found at an altitude of about 3.0 ± 0.50 m ASL, with well-carved potholes and other rounded landforms.

We surveyed 20 sea caves (Table 2); most of them are cut in limestone, with only one in carbonate breccia, and the inclusion of bauxite blocks on the eastern side of the promontory.

Among the characteristic species are Melarhaphe neritoides and Echinolittorina punctata in the supratidal zone; Patella rustica and Chthamalus stellatus inhabit substrates up to 1.5 m ASL, while Mytilus galloprovincialis appears localized next to freshwater springs.

6. Discussion

The analysis of data collected during the swim surveys allowed us to describe the rocky coastlines in the study areas and discuss the relations between modern and fossil geomorphological sea level markers.

The swim surveys were carried out along 158.5 km of rocky coasts, mainly plunging cliffs and sloping coasts (78% of morphotypes). This is mainly due to an initial choice because, following [24], these morphotypes are more suitable for the acquisition of continuous perpendicular videos and time-lapse images, while the raft can be used more successfully as it can be simply pushed along predetermined routes at the same distance from the coast, rather than along scree coasts. Moreover, plunging cliffs and sloping coasts are good geomorphological environments for the formation of MTNs and FTNs. Several small pocket beaches were mapped, but generally not surveyed because they were not made of rocky outcrops. Some short sectors dominated by screes were also monitored along the routes, and in some cases the largest boulders at the sea level could host small sectors with MTNs, also in the shape of mushroom-like morphologies. Rocky coast shape depends mainly on the geological setting of the area [28,29,60]. Hard rocks allow the development of plunging cliffs or sloping coasts, while soft rocks, or soft layers of rocks, which are less resistant to the combined action of marine and subaerial processes, preferentially produce shore platforms or screes. MSPs were almost absent in our sites because very few useful data on sea level change can be collected from these types of coasts. In particular, 28% of the studied coasts are typified by plunging cliffs, 50% by sloping coasts, 10% by screes, <1% by shore platforms, 5% by pocket beaches, and 6% are modified by human activity; these latter morphotypes were not included in the survey.

Our results show specific geomorphic associations related to the present and past sea levels, as described by many authors in tectonically stable areas [55,88]. The analysis carried out in the studied areas highlighted how a defined pattern of sea level markers can be established, mainly depending on the local lithology.

Data collected on erosional landforms show that MTNs occur over an average value of 36.4% of the total length of surveyed coasts. As is well known, tidal notches are present almost exclusively on carbonate coasts ([14] and references therein), apart from short sectors of extra-carbonatic coasts—such as volcanic coasts—that include short sectors of carbonate pockets [25]. Moreover, in this work, we have identified some short sectors of coasts in the granitic islands of Budelli with calcarenite layers with MTNs (Santa Maria Island, Section 5.3.1). The percentage of coverage of MTNs ranges from 0% on the carbonate promontory of Circeo up to 97.7% of the promontory of Gaeta. The first value is very anomalous because carbonate coasts in tectonic stable areas usually display tidal notches at sea level [14]. Even though we have no data, this could be due to local physical/chemical conditions of the sea water, or to the presence of Mytilus galloprovincialis, which could slow the erosion processes rather than the tectonic behaviour. On the Egadi Islands, MTNs could be potentially cut on large sectors of coast, but local lithology—dominated by dolostones—allows the development of small notches in relatively short sectors.

FTNs are quite rare, with values ranging from a few metres up to a maximum of 210 m in extent at Capo Caccia. Sometimes marine landforms occur at elevations lower than FTNs, showing that during MIS 5.5 the sea acted at elevations higher than today, but these landforms are only rarely coupled with fossil tidal notches. This is the case for Ansedonia, where we discovered an FTN at the promontory of Ansedonia at an elevation of 4.5 ± 0.5 m ASL along a stretch of 10 metres. In some sea caves along the aforementioned promontory, there is clear evidence of the activity of paleo sea processes, with the occurrence of marine potholes, abraded smooth surfaces, and rounded blocks. These landforms are also common in the stretch between Mondello and Palermo. At the Circeo promontory, an FTN occurs within the Grotta delle Capre sea cave—as reported in [55]—which occurs above the present-day sea level. The geomorphological features associated with this notch are very well-preserved, probably because, as detailed in [55], it was covered by late Pleistocene and Holocene continental deposits that filled the cave (Figure 6d). Moreover, in this cave, Lithophaga lithophaga holes were found up to 0.3 m above the FTN, probably due to local mechanisms of wave pressure within the cave. The same mechanism took place in the sea caves at the Gaeta promontory. On Egadi Islands and in the carbonatic part of Sardinia, FTNs are relatively abundant, because of the occurrence of dolostones and hard carbonates, respectively. The percentage of coverage of FTNs with respect to the total length of the coast ranges from 0% to 1.4% at Capo Caccia (Table 2). Considering that such tidal notches should have been formed in lithological, weather, and sea conditions comparable to today’s, this means that an average of 99.5% of fossil notches have been worn away by erosion, lowering rates of carbonates in the Mediterranean area outside the sea level range between 0.01 mm/yr and 0.1 mm/yr [89,90]. In other words, the total denudation rate in 125 kyrs is able to erase 99.5% of landforms, leaving no trace, or almost no trace, of past environments. Fortunately, studies of past sea levels can make use of sedimentological data found in nearby areas, and may allow assessment of the behaviour of larger areas (e.g., [55], making up for the lack of purely geomorphological data). In other cases, the stability of an area is also assessed based on geomorphological data, so one must be lucky enough to identify sites that have been preserved. The most difficult aspect of evaluating the maximum information from a displaced geomorphic feature is the absence of a well-documented age for the landforms [52], but this is surpassed in the aforementioned case by a certain age of FTNs and FMTs.

Regarding MSPs, we found them only along short sectors of the Maltese coast, which has already been reported in [28] and discussed in [91,92]. MSPs are near-horizontal, with a gradient of about 1° or less, following the features described in [60] for microtidal environments. However, the studied MSPs are above the maximum tide level, at about 1 m ASL, so they are supratidal landforms. They can be formed partly due to selective erosion rather than cliff retreat. The maximum measured width in the study area for MSPs was some tens of metres. All of the surveyed MSPs had a scarp at the seaward edge. The size and width of such surveyed landforms depend on the rock resistance of the shore platform [60], dipping of strata [56], retreat rates of landward cliffs, and [93] the time when they were initiated at the beginning of the Holocene stillstand (about 7 kyrs BP). On the other hand, FMTs were not reported, probably because the soft nature of local limestones prevents their preservation. Other authors also never reported the presence of these terraces [91,94,95,96,97]. For the opposite reason, MSPs and FMTs were not discovered in the other studied sites. Carbonate rocks in the studied sites are very resistant to erosion processes, and it is likely that during the MIS 5.5 transgression there was not enough time to carve out shore platforms. Only at Favignana Island does an FMT occur at about 5 m [95], while in the stretch of coast between Mondello and Palermo and at the Ansedonia promontory, marine-like features—such as potholes, rounded blocks, and smoothed features—occur above the modern sea level.

Vermetid reefs are well-developed in the eastern and southern parts of the studied area, in particular at Capo Caccia and the Egadi Islands. Their width ranges in size between few centimetres to several metres on low-lying rocky coasts. The morphometry of Vermetid reefs indicates that these are fairly extensive forms—more on shallow sectors, less on sloping shorelines, with no “steps” related to co-seismic events (terraces on trottoirs, etc.), consistent with stable island tectonics.

7. Conclusions

All of the studied areas are considered to be tectonically stable. The results of swim surveys in the central Mediterranean Sea showed that the network of coastal erosional landforms of tectonically stable areas can partially be found in the typical assemblages, which mainly depend on the lithology and the shape of the coast, or coastal morphotypes. The extent, shape, and morphometric features reflect lithology and local sea level history, considering the eustatic contribution to the sea level, the tectonics, and the GIA component.

MTNs occur along wide sectors of carbonate coasts—up to 97.7% of the local coastline, mainly on plunging cliffs and sloping coasts. The measurement of the lateral extent of these landforms indicates that MTNs are present in all of the study areas except for the Circeo Promontory. Here, MTNs do not occur, possibly because of local physical/chemical conditions of the sea water. On the other hand, FTNs are very rare, covering a maximum of a few hundred metres at Capo Caccia (Sardinia). FTNs also occur at Marettimo and Levanzo islands, Gaeta, Ansedonia Promontory, Capo Caccia, and Tavolara, at elevations ranging from 4.5 to 9 m ASL. Furthermore, at the Circeo Promontory, an FTN is well carved inside a sea cave. In general, FTNs are preserved only where they could have been previously covered by continental deposits that were almost totally removed by the Holocene transgression. In the other cases, weathering and erosion processes that occurred between MIS 5.5 and today removed such landforms. These results also support the theory that current bedrock lowering values measured on limestones—in the Mediterranean and outside it, however few microns per year [58]—can consume a notch-sized landform within a hundred thousand years.

The ratio between modern and fossil tidal notches provides the amount of denudation over the last 125 kyrs. We calculated that the average denudation rate of erosional landforms was 99.5% over this timeframe. This means that only very small features have a chance to last, so a lot of luck is needed for them to be preserved, and also for scientific research to eventually discover them.
