Article

Experimental Study on the Influence of the Transition Section in the Middle of a Continuous Bend on the Correlation of Flow Movement in the Front and Back Bends

State Key Laboratory of Water Resources and Hydropower Engineering Science, Wuhan University, Wuhan 430072, China
*
Author to whom correspondence should be addressed.
Water 2020, 12(11), 3213; https://doi.org/10.3390/w12113213
Received: 27 September 2020 / Revised: 12 November 2020 / Accepted: 14 November 2020 / Published: 17 November 2020
(This article belongs to the Special Issue Research on Hydraulics and River Dynamics)

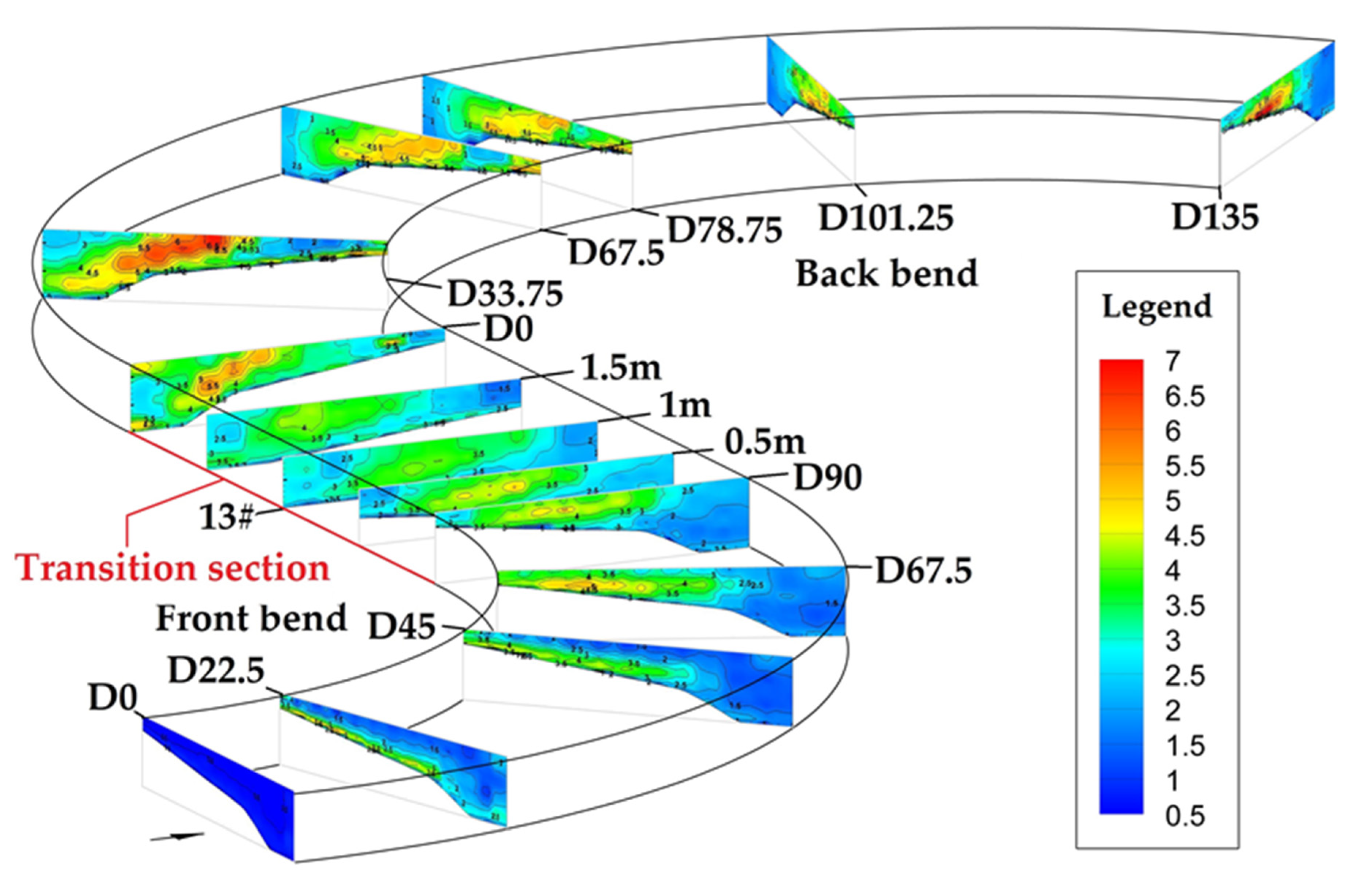

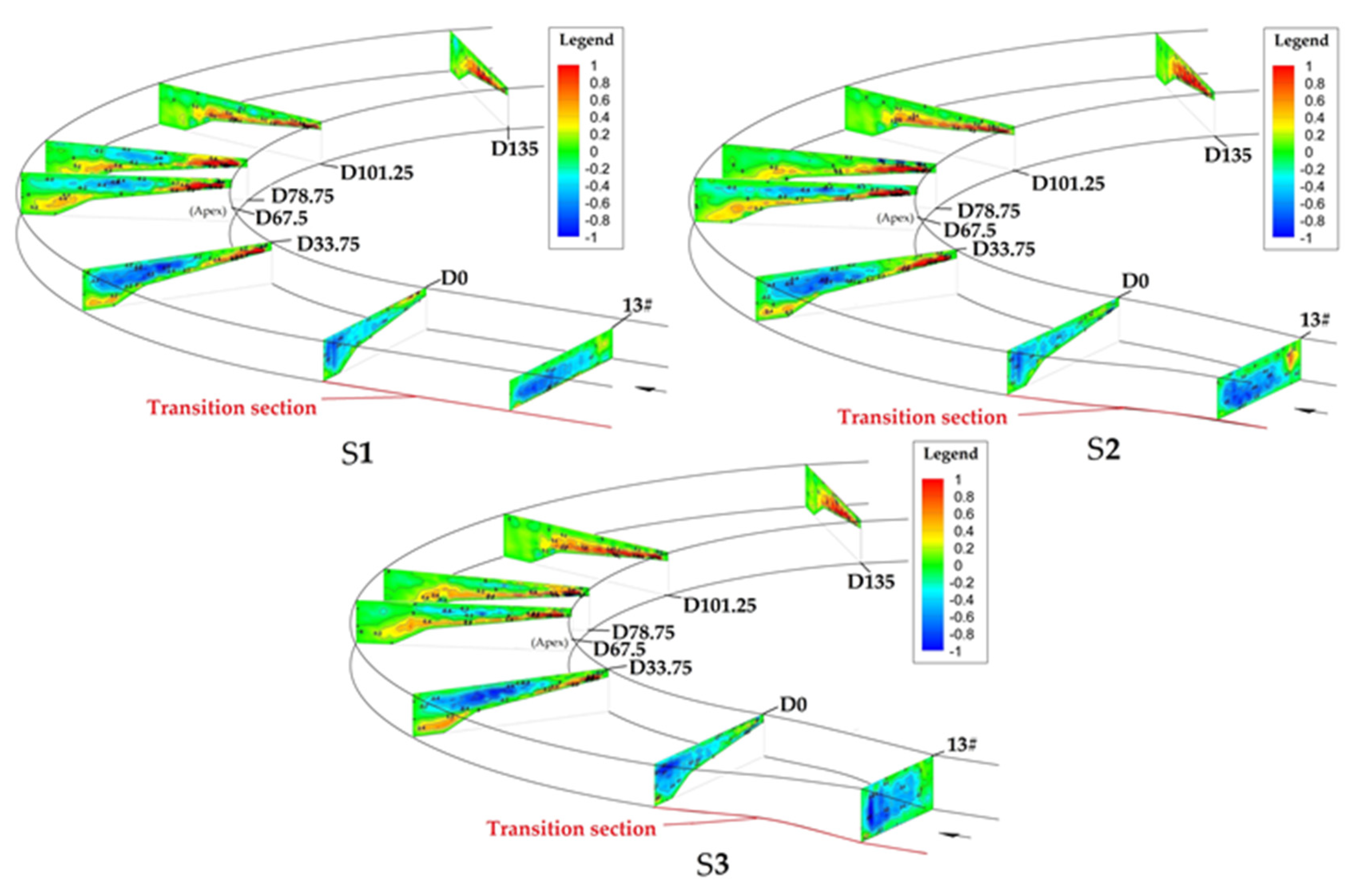

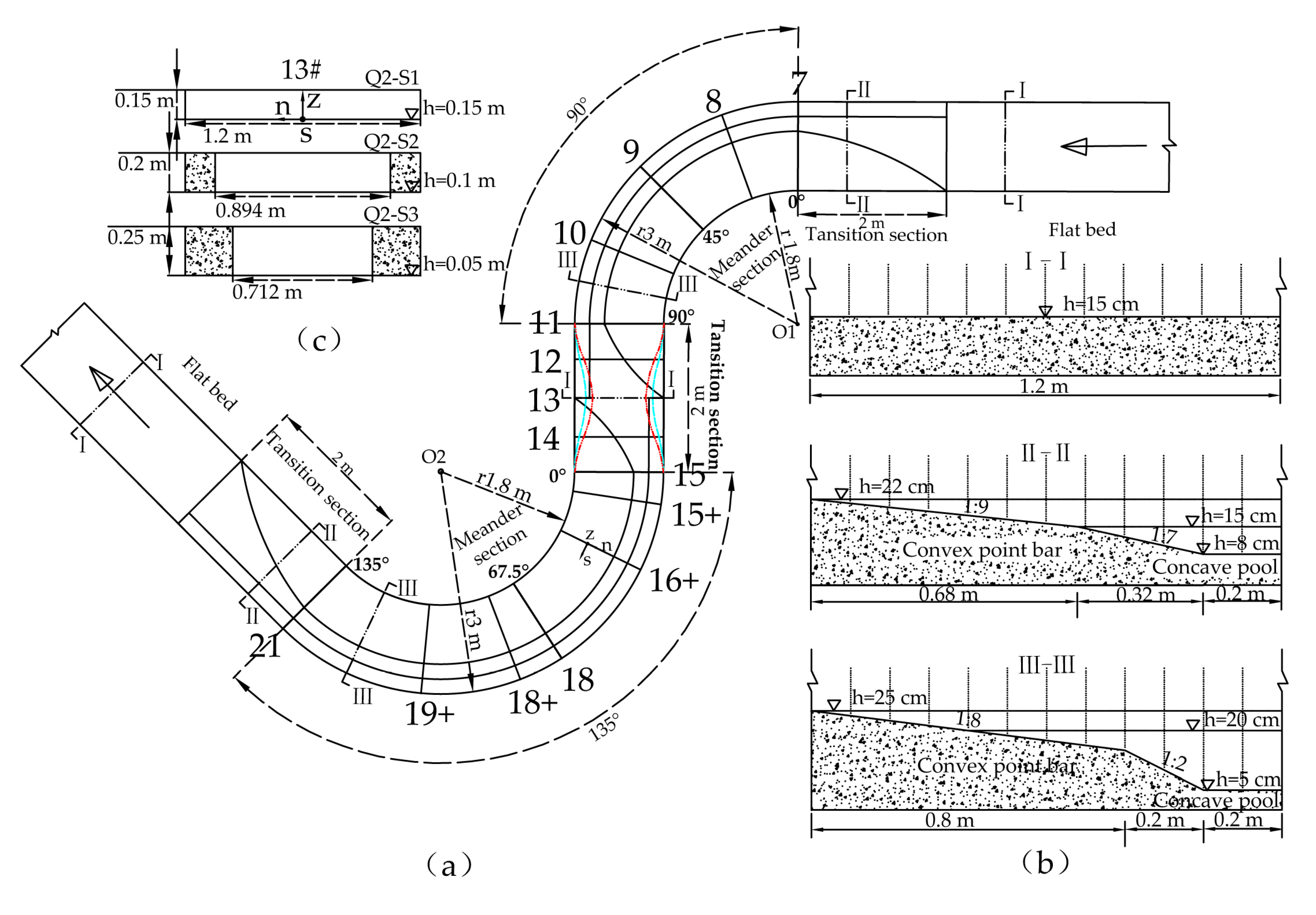

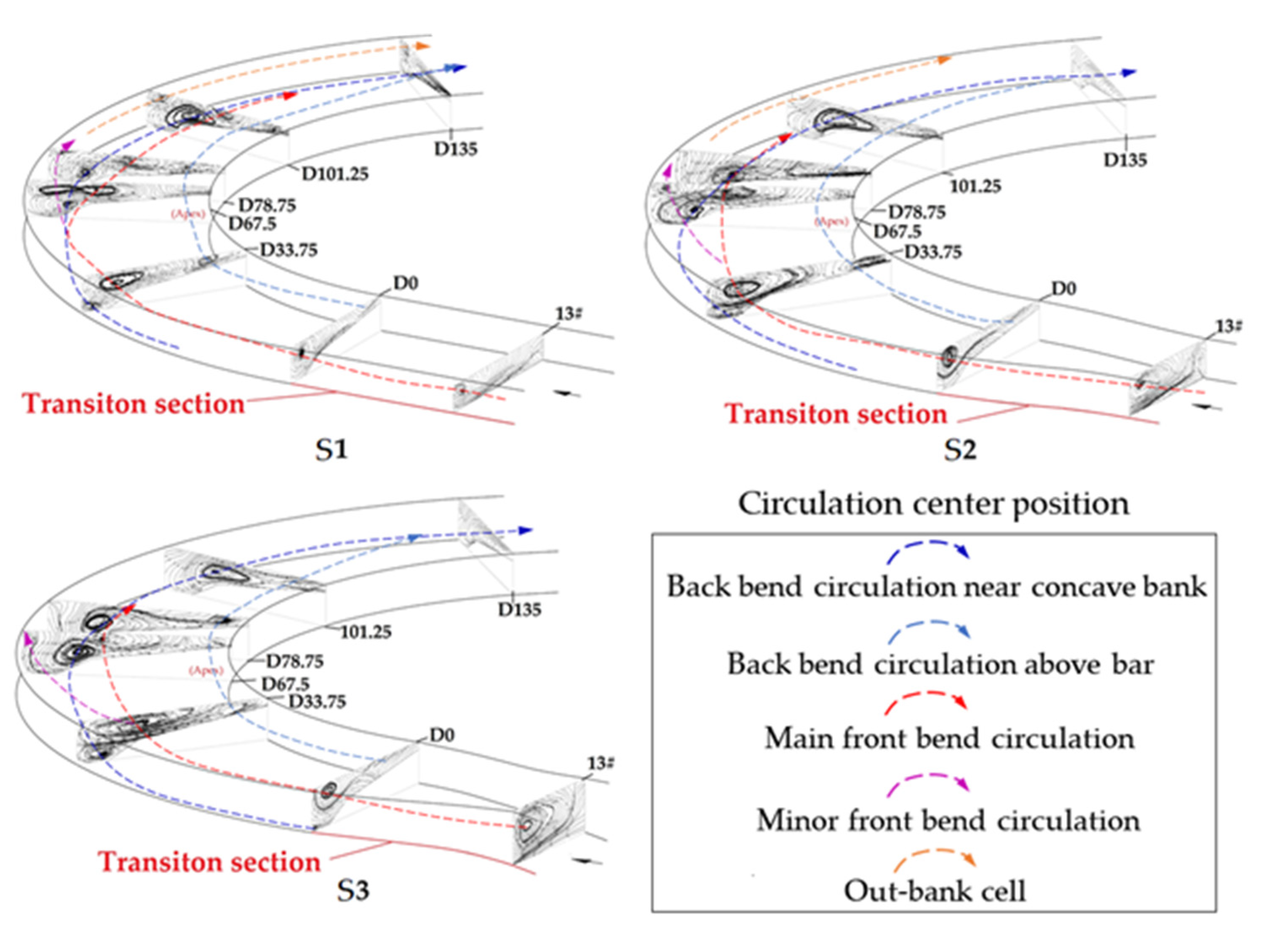

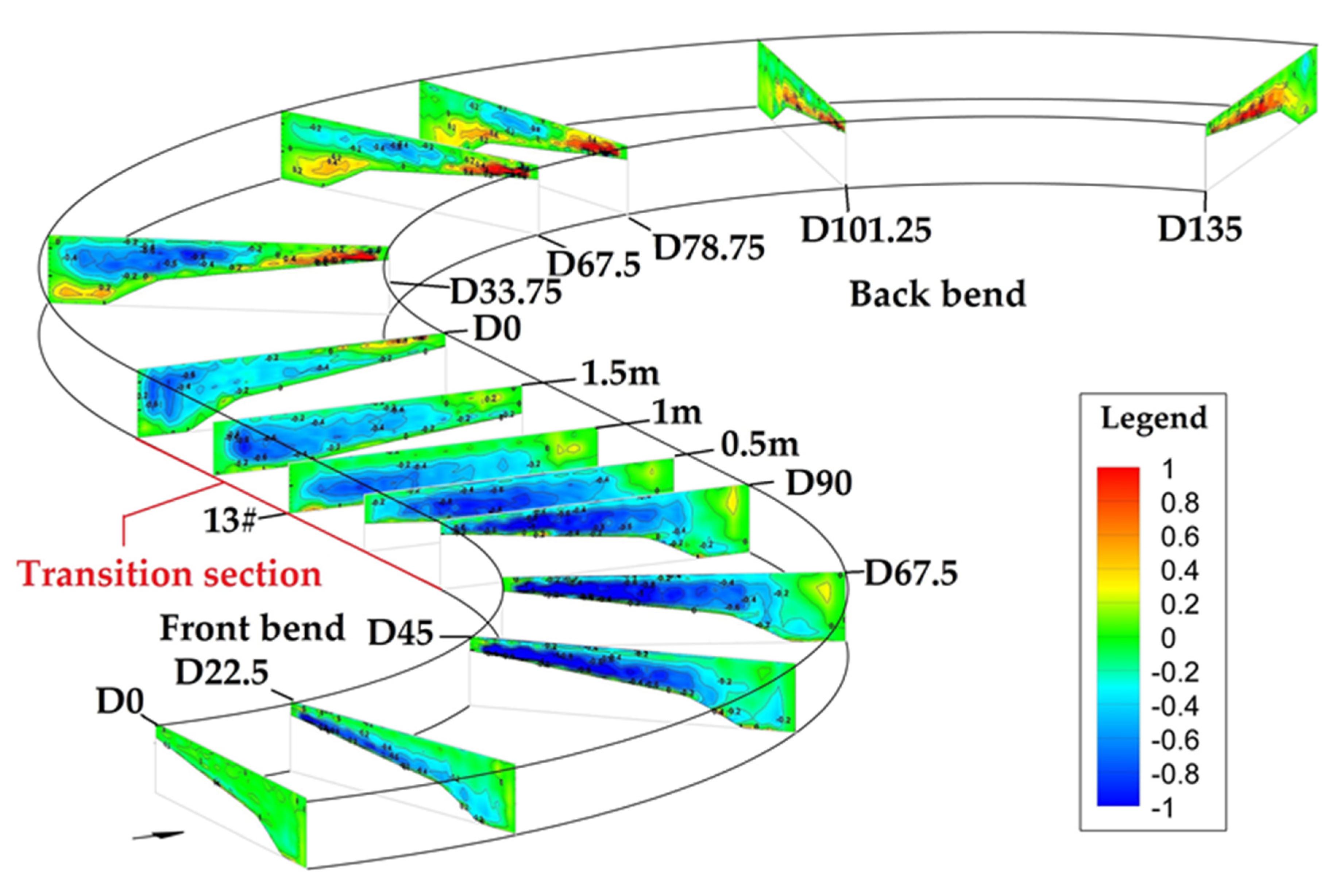

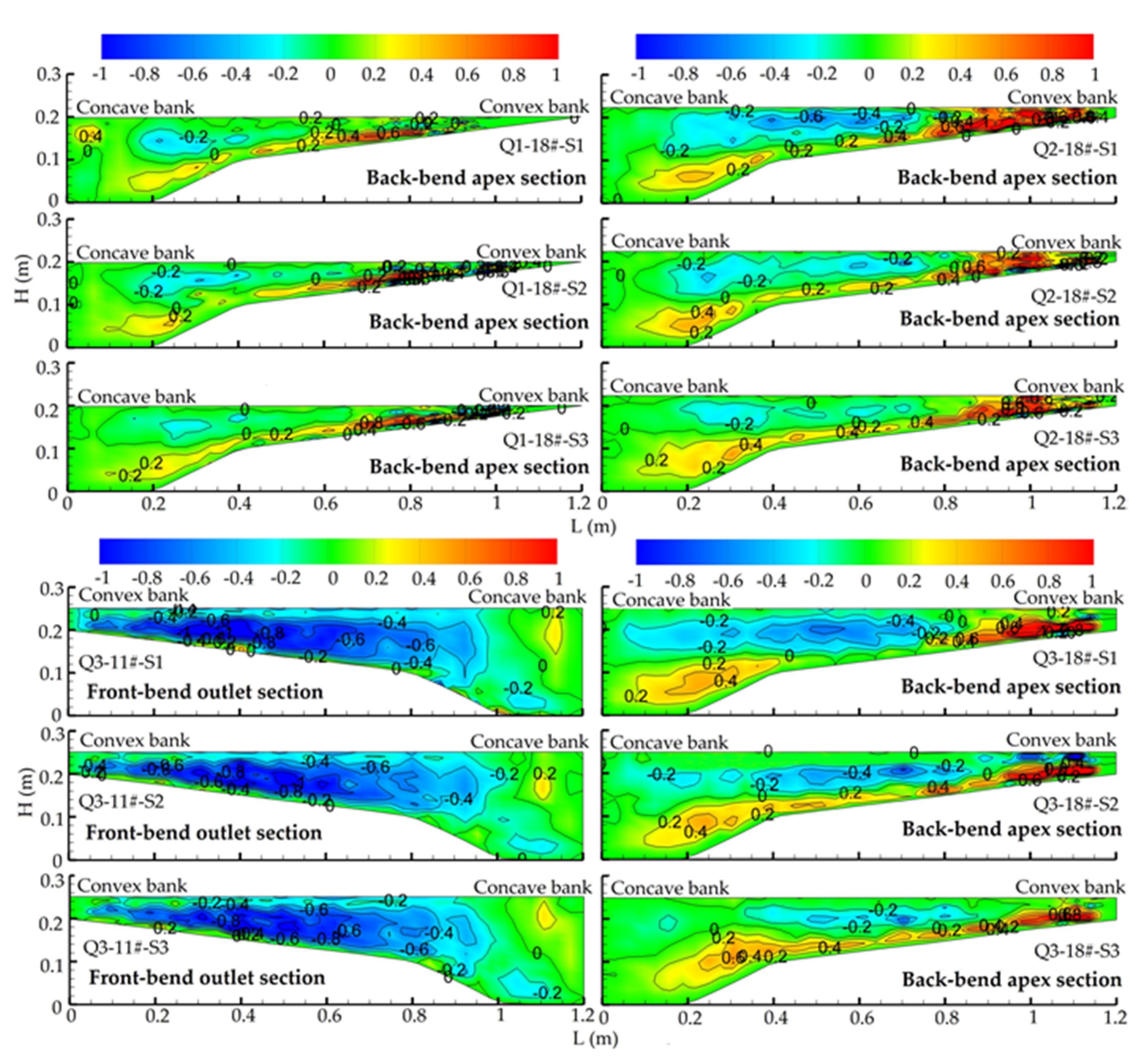

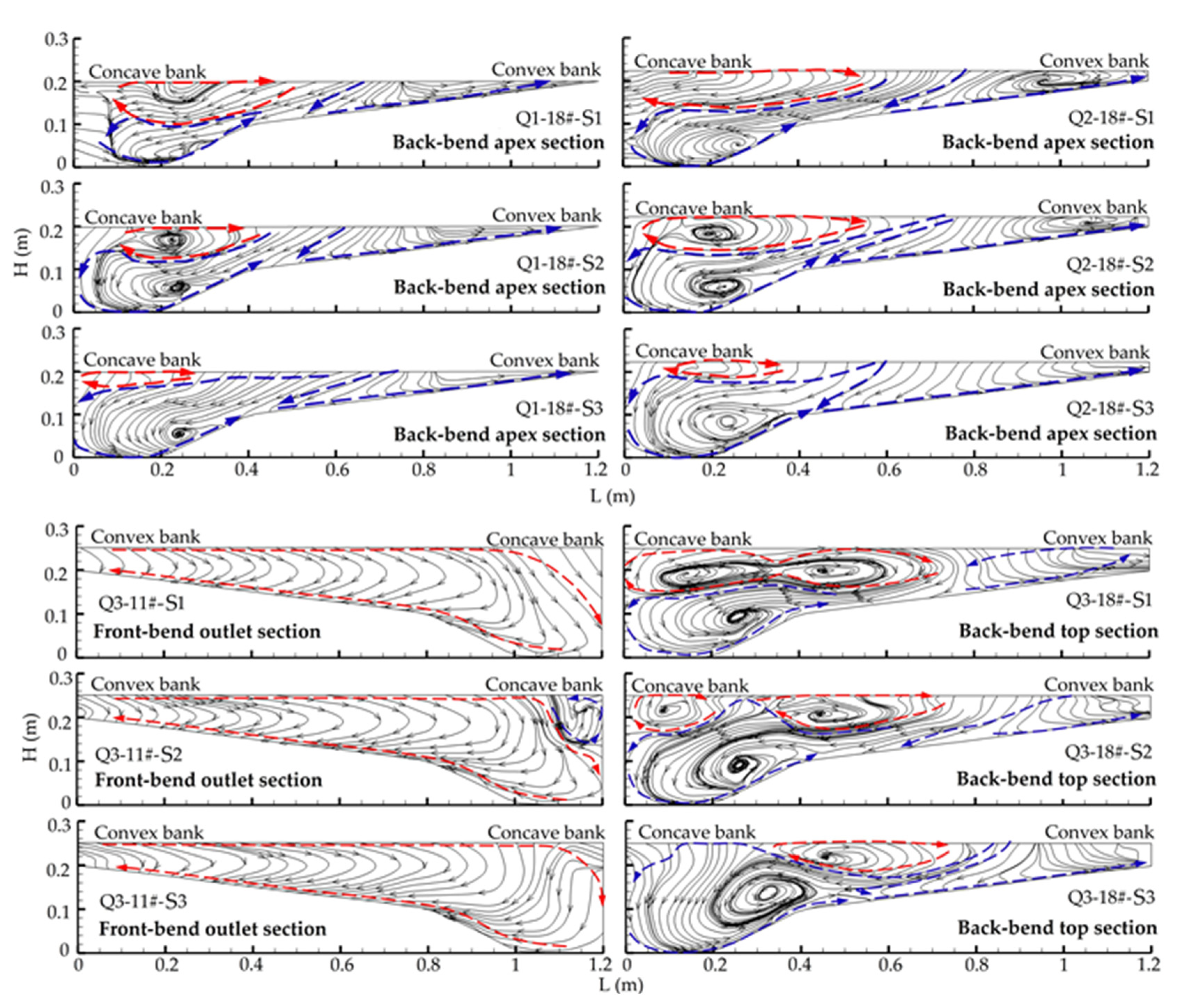

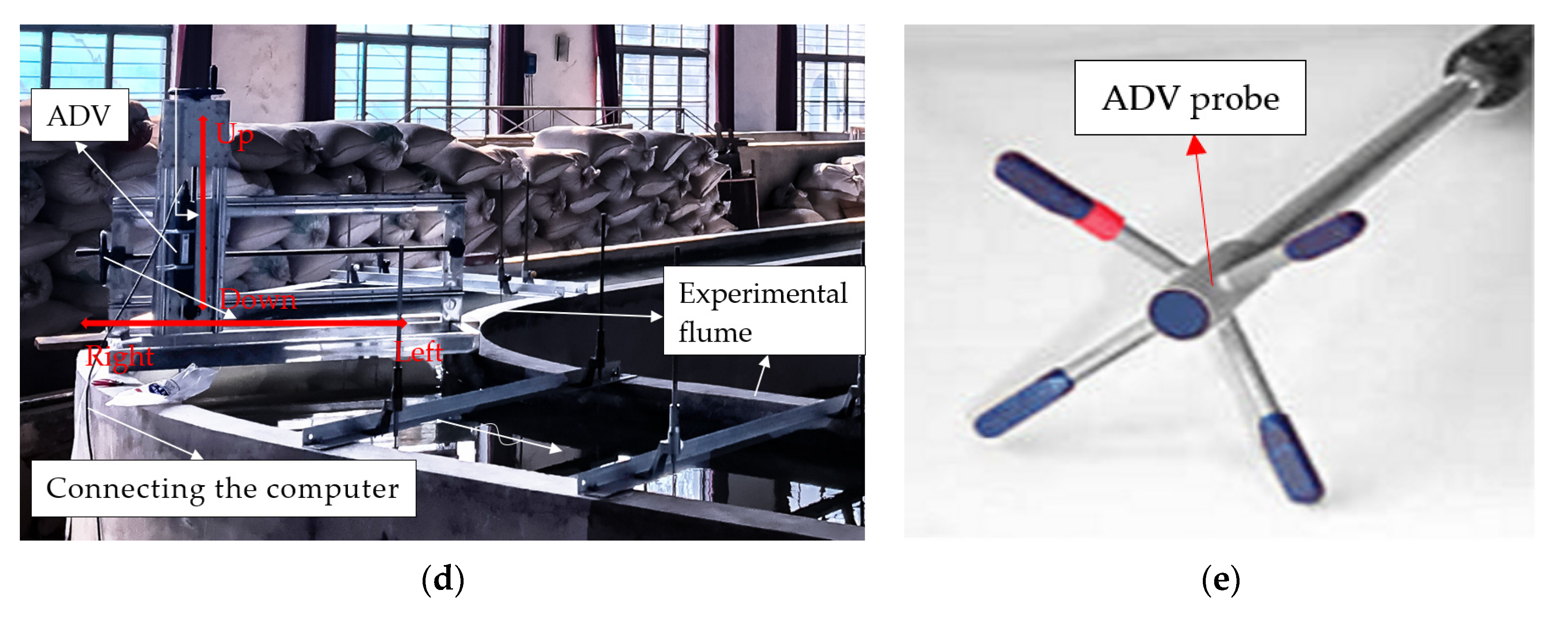

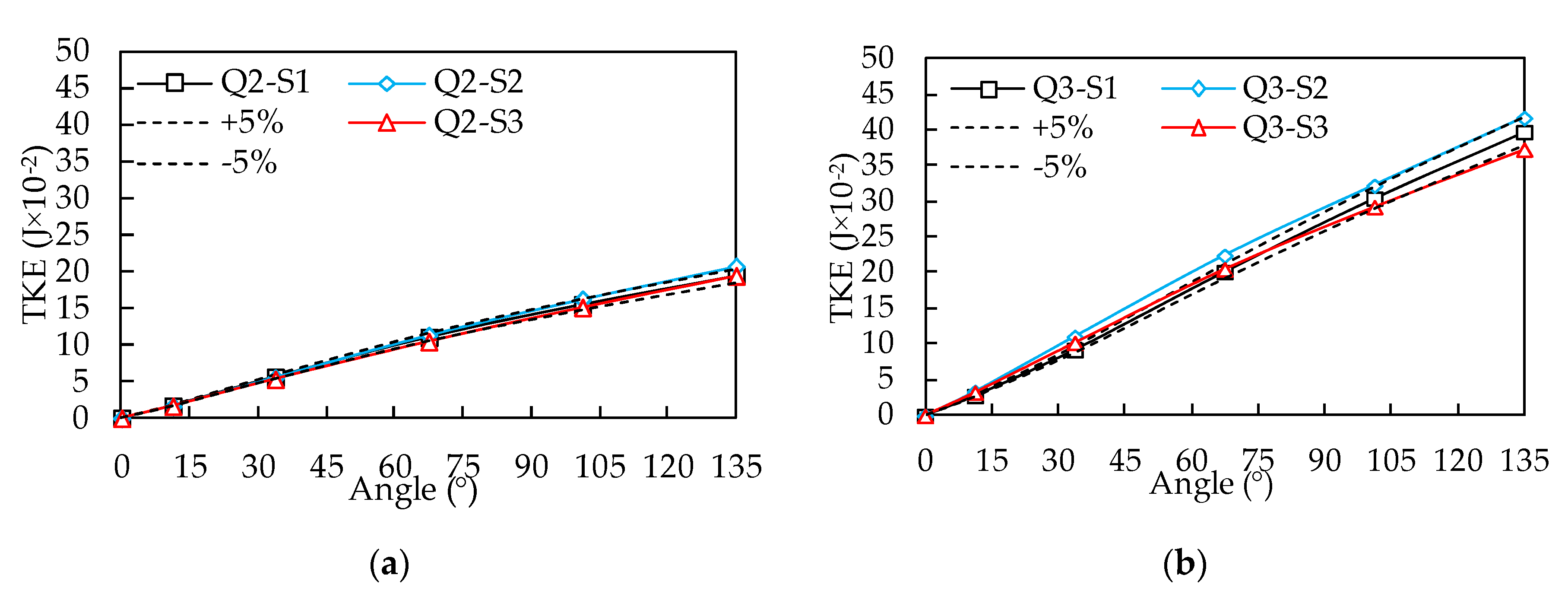

There exists a correlation in the flow movement between the front and back bends of a continuous bend, and the change in the transition section configuration influences this correlation. In this paper, laboratory experiments were conducted to systematically measure the three-dimensional velocity in a continuous bend with different width/depth ratios of the transition section. Based on this work, the flow movement characteristics of a continuous bend were analysed, including the circulation structure, circulation intensity and Turbulent Kinetic Energy (TKE). The flow movement correlation between the front and back bends of the continuous bend was also analysed. The influence of the width/depth ratio of the transition section on the correlation of the flow movement of the front and back bends and their relationship with discharge were explored. This research could help to elucidate the development and evolution laws of the continuous bend and provide theoretical support for flow movement, flood routing, sediment transport and riverbed evolution. It is found that in addition to the circulation structure and intensity, the TKE of the front and back bends of the continuous bend also shows a strong correlation. With increasing discharge, the correlation between the front and back bends increases, and the larger the discharge is, the greater the influence of the same amplitude of variation in the discharge on the correlation. At the same time, the larger the discharge is, the greater the influence of the same amplitude of variation in the width/depth ratio of the transition section on the correlation of the front and back bends. When the discharge is constant, the correlation between the front and back bends decreases with the decrease in the width/depth ratio of the transition section, and the smaller the width/depth ratio, the greater the influence of the same amplitude of variation in the width/depth ratio on the correlation. There is no linear relationship between the amplitudes of variation in both the discharge and width/depth ratio and the corresponding amplitude of variation in the correlation. With increasing discharge, the amplitude of variation in the correlation caused by the same amplitude of the variation in discharge slightly increases. However, there is an exponential relationship between the amplitude of variation in the width/depth ratio and the corresponding correlation. The influence of the width/depth ratio on the correlation is clearly greater than that of the discharge. View Full-Text
Keywords: continuous bend; transition section; correlation of flow movement; width/depth ratio; circulation structure; circulation intensity; turbulent kinetic energy continuous bend; transition section; correlation of flow movement; width/depth ratio; circulation structure; circulation intensity; turbulent kinetic energy
Show Figures

Figure 1
