# A WCSPH Particle Shifting Strategy for Simulating Violent Free Surface Flows

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Governing Equations

## 3. Numerical Method

#### 3.1. The Discrete System of Equations

#### 3.2. Enhanced Particle Shifting Technique

#### 3.2.1. Free Surface Detection Algorithm

#### 3.2.2. Modified Particle Shifting Equation

## 4. Validation

#### 4.1. Oscillating Droplet Uunder a Central Conservative Force Field

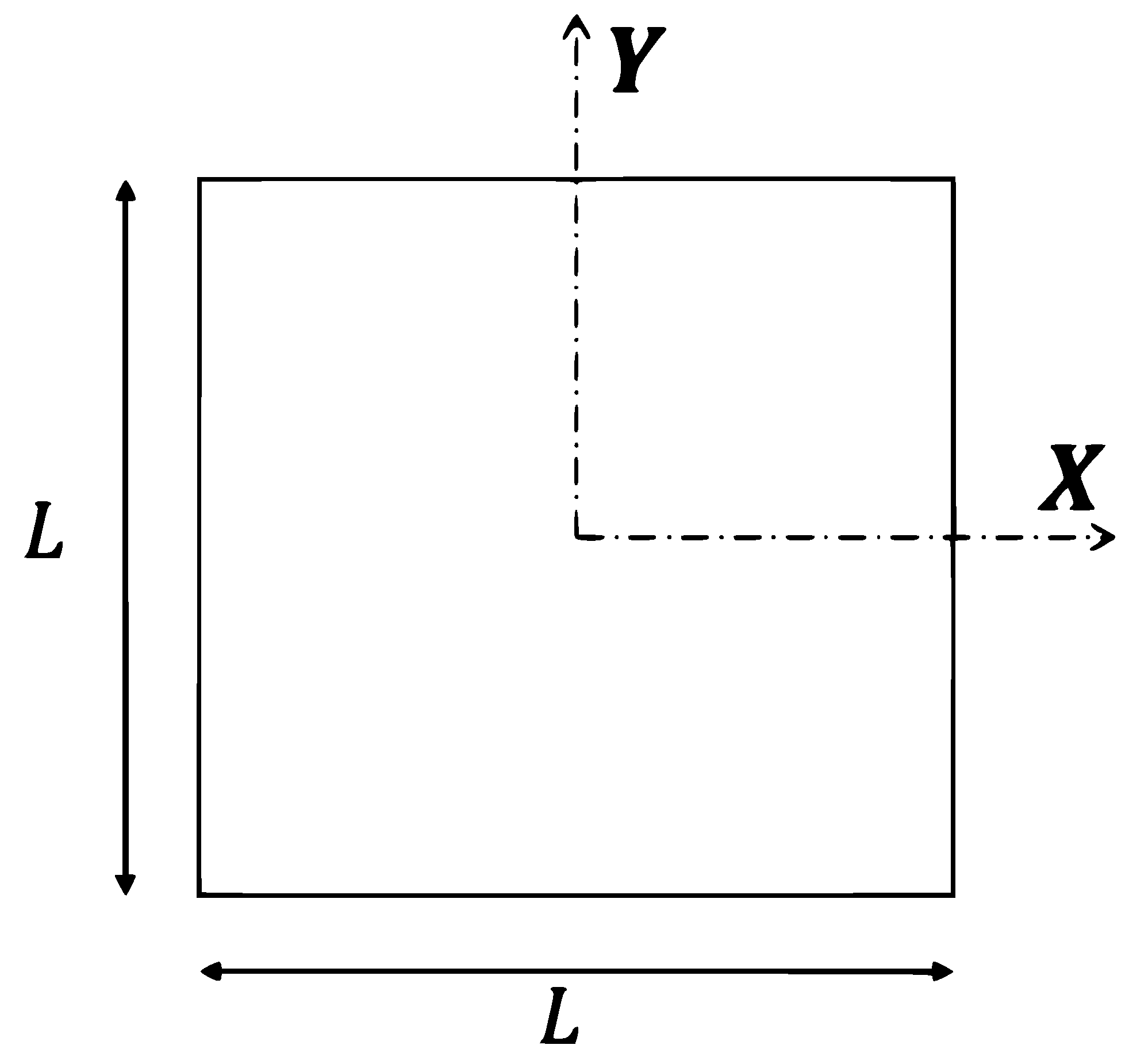

#### 4.2. Evolution of an Initially-Square Fluid Patch

#### 4.3. Dam Break Problem

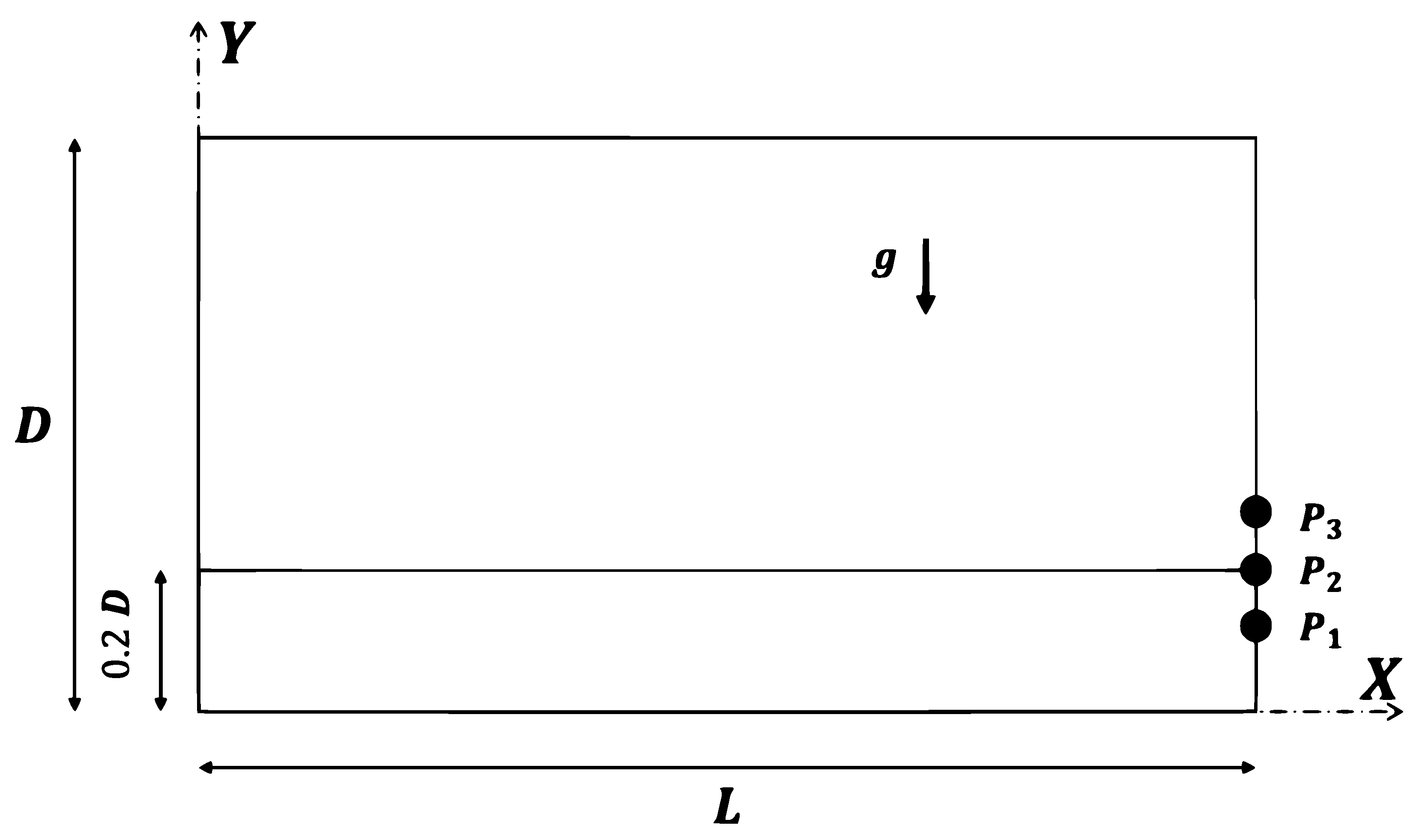

#### 4.4. Sloshing in a Rectangular Tank

## 5. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Gingold, R.A.; Monaghan, J.J. Smoothed particle hydrodynamics: Theory and application to non-spherical stars. Mon. Not. R. Astron. Soc.
**1977**, 181, 375–389. [Google Scholar] [CrossRef] - Monaghan, J.J. Smoothed particle hydrodynamics and its diverse applications. Ann. Rev. Fluid Mech.
**2012**, 44, 323–346. [Google Scholar] [CrossRef] - Ramírez, L.; Nogueira, X.; Khelladi, S.; Krimi, A.; Colominas, I. A very accurate Arbitrary Lagrangian– Eulerian meshless method for Computational Aeroacoustics. Comput. Methods Appl. Mech. Eng.
**2018**, 342, 116–141. [Google Scholar] [CrossRef][Green Version] - Tafuni, A.; Sahin, I. Hydrodynamic loads on vibrating cantilevers under a free surface in viscous fluids with SPH. In ASME International Mechanical Engineering Congress and Exposition; American Society of Mechanical Engineers: New York, NY, USA, 2013; Volume 56321, p. V07BT08A013. [Google Scholar]
- González-Cao, J.; Altomare, C.; Crespo, A.; Domínguez, J.; Gómez-Gesteira, M.; Kisacik, D. On the accuracy of DualSPHysics to assess violent collisions with coastal structures. Comput. Fluids
**2019**, 179, 604–612. [Google Scholar] [CrossRef] - Mogan, S.C.; Chen, D.; Hartwig, J.; Sahin, I.; Tafuni, A. Hydrodynamic analysis and optimization of the Titan submarine via the SPH and Finite–Volume methods. Comput. Fluids
**2018**, 174, 271–282. [Google Scholar] [CrossRef] - Verbrugghe, T.; Domínguez, J.M.; Altomare, C.; Tafuni, A.; Vacondio, R.; Troch, P.; Kortenhaus, A. Non-linear wave generation and absorption using open boundaries within DualSPHysics. Comput. Phys. Commun.
**2019**, 240, 46–59. [Google Scholar] [CrossRef] - Domínguez, J.M.; Crespo, A.J.; Hall, M.; Altomare, C.; Wu, M.; Stratigaki, V.; Troch, P.; Cappietti, L.; Gómez-Gesteira, M. SPH simulation of floating structures with moorings. Coast. Eng.
**2019**, 153, 103560. [Google Scholar] [CrossRef] - Kazemi, E.; Koll, K.; Tait, S.; Shao, S. SPH modelling of turbulent open channel flow over and within natural gravel beds with rough interfacial boundaries. Adv. Water Res.
**2020**, 140, 103557. [Google Scholar] [CrossRef] - Krimi, A.; Rezoug, M.; Khelladi, S.; Nogueira, X.; Deligant, M.; Ramírez, L. Smoothed particle hydrodynamics: A consistent model for interfacial multiphase fluid flow simulations. J. Comput. Phys.
**2018**, 358, 53–87. [Google Scholar] [CrossRef][Green Version] - Krimi, A.; Khelladi, S.; Nogueira, X.; Deligant, M.; Ata, R.; Rezoug, M. Multiphase smoothed particle hydrodynamics approach for modeling soil–water interactions. Adv. Water Res.
**2018**, 121, 189–205. [Google Scholar] [CrossRef][Green Version] - Omidvar, P.; Kheirkhahan, M.; Hosseini, K. Simulation of two-phase Newtonian and non-Newtonian systems using smoothed particle hydrodynamics and herschel-bulkley model. J. Hydraul.
**2019**, 14, 19–33. [Google Scholar] - Omidvar, P.; Nikeghbali, P. Simulation of violent water flows over a movable bed using smoothed particle hydrodynamics. J. Marine Sci. Technol.
**2017**, 22, 270–287. [Google Scholar] [CrossRef] - Lo, E.Y.; Shao, S. Simulation of near-shore solitary wave mechanics by an incompressible SPH method. Appl. Ocean Res.
**2002**, 24, 275–286. [Google Scholar] - Ataie-Ashtiani, B.; Shobeyri, G. Numerical simulation of landslide impulsive waves by incompressible smoothed particle hydrodynamics. Int. J. Numer. Methods Fluids
**2008**, 56, 209–232. [Google Scholar] [CrossRef] - Fatehi, R.; Rahmat, A.; Tofighi, N.; Yildiz, M.; Shadloo, M.S. Density-based smoothed particle hydrodynamics methods for incompressible flows. Comput. Fluids
**2019**, 185, 22–33. [Google Scholar] [CrossRef] - Nogueira, X.; Ramírez, L.; Clain, S.; Loubère, R.; Cueto-Felgueroso, L.; Colominas, I. High-accurate SPH method with multidimensional optimal order detection limiting. Comput. Methods Appl. Mech. Eng.
**2016**, 310, 134–155. [Google Scholar] [CrossRef][Green Version] - Vila, J. On particle weighted methods and smooth particle hydrodynamics. Math. Models Methods Appl. Sci.
**1999**, 9, 161–209. [Google Scholar] [CrossRef] - Inutsuka, S.I. Reformulation of smoothed particle hydrodynamics with Riemann solver. J. Comput. Phys.
**2002**, 179, 238–267. [Google Scholar] [CrossRef][Green Version] - Zhang, C.; Hu, X.; Adams, N.A. A weakly compressible SPH method based on a low-dissipation Riemann solver. J. Comput. Phys.
**2017**, 335, 605–620. [Google Scholar] [CrossRef] - Fourtakas, G.; Stansby, P.; Rogers, B.; Lind, S. An Eulerian–Lagrangian incompressible SPH formulation (ELI-SPH) connected with a sharp interface. Comput. Methods Appl. Mech. Eng.
**2018**, 329, 532–552. [Google Scholar] [CrossRef] - Lind, S.J.; Stansby, P. High-order Eulerian incompressible smoothed particle hydrodynamics with transition to Lagrangian free-surface motion. J. Comput. Phys.
**2016**, 326, 290–311. [Google Scholar] [CrossRef] - Marrone, S.; Antuono, M.; Colagrossi, A.; Colicchio, G.; Le Touzé, D.; Graziani, G. δ-SPH model for simulating violent impact flows. Comput. Methods Appl. Mech. Eng.
**2011**, 200, 1526–1542. [Google Scholar] [CrossRef] - Meringolo, D.D.; Marrone, S.; Colagrossi, A.; Liu, Y. A dynamic δ-SPH model: How to get rid of diffusive parameter tuning. Comput. Fluids
**2019**, 179, 334–355. [Google Scholar] [CrossRef] - Krimi, A.; Ramírez, L.; Khelladi, S.; Navarrina, F.; Deligant, M.; Nogueira, X. Improved δ-SPH Scheme with Automatic and Adaptive Numerical Dissipation. Water
**2020**, 12, 2858. [Google Scholar] [CrossRef] - Monaghan, J.J. Smoothed particle hydrodynamics. Ann. Rev. Astron. Astrophys.
**1992**, 30, 543–574. [Google Scholar] [CrossRef] - Antuono, M.; Colagrossi, A.; Marrone, S. Numerical diffusive terms in weakly-compressible SPH schemes. Comput. Phys. Commun.
**2012**, 183, 2570–2580. [Google Scholar] [CrossRef] - Shadloo, M.S.; Oger, G.; Le Touzé, D. Smoothed particle hydrodynamics method for fluid flows, towards industrial applications: Motivations, current state, and challenges. Comput. Fluids
**2016**, 136, 11–34. [Google Scholar] [CrossRef] - Swegle, J.; Hicks, D.; Attaway, S. Smoothed particle hydrodynamics stability analysis. J. Comput. Phys.
**1995**, 116, 123–134. [Google Scholar] [CrossRef] - Monaghan, J.J. SPH without a tensile instability. J. Comput. Phys.
**2000**, 159, 290–311. [Google Scholar] [CrossRef] - Oger, G.; Marrone, S.; Le Touzé, D.; De Leffe, M. SPH accuracy improvement through the combination of a quasi-Lagrangian shifting transport velocity and consistent ALE formalisms. J. Comput. Phys.
**2016**, 313, 76–98. [Google Scholar] [CrossRef] - Antuono, M.; Bouscasse, B.; Colagrossi, A.; Marrone, S. A measure of spatial disorder in particle methods. Comput. Phys. Commun.
**2014**, 185, 2609–2621. [Google Scholar] [CrossRef] - Matsunaga, T.; Koshizuka, S.; Hosaka, T.; Ishii, E. Moving surface mesh-incorporated particle method for numerical simulation of a liquid droplet. J. Comput. Phys.
**2020**, 409, 109349. [Google Scholar] [CrossRef] - Sun, P.; Colagrossi, A.; Marrone, S.; Zhang, A. The δ-plus-SPH model: Simple procedures for a further improvement of the SPH scheme. Comput. Methods Appl. Mech. Eng.
**2017**, 315, 25–49. [Google Scholar] [CrossRef] - Lind, S.J.; Xu, R.; Stansby, P.K.; Rogers, B.D. Incompressible smoothed particle hydrodynamics for free-surface flows: A generalised diffusion-based algorithm for stability and validations for impulsive flows and propagating waves. J. Comput. Phys.
**2012**, 231, 1499–1523. [Google Scholar] [CrossRef] - Sun, P.; Colagrossi, A.; Marrone, S.; Antuono, M.; Zhang, A.M. A consistent approach to particle shifting in the δ-Plus-SPH model. Comput. Methods Appl. Mech. Eng.
**2019**, 348, 912–934. [Google Scholar] [CrossRef] - Wang, P.P.; Meng, Z.F.; Zhang, A.M.; Ming, F.R.; Sun, P.N. Improved particle shifting technology and optimized free-surface detection method for free-surface flows in smoothed particle hydrodynamics. Comput. Methods Appl. Mech. Eng.
**2019**, 357, 112580. [Google Scholar] [CrossRef] - Shao, S.; Lo, E.Y. Incompressible SPH method for simulating Newtonian and non-Newtonian flows with a free surface. Adv. Water Res.
**2003**, 26, 787–800. [Google Scholar] [CrossRef] - Shao, S. Incompressible SPH simulation of wave breaking and overtopping with turbulence modelling. Int. J. Numer. Methods Fluids
**2006**, 50, 597–621. [Google Scholar] [CrossRef] - Khayyer, A.; Gotoh, H.; Shao, S. Corrected incompressible SPH method for accurate water-surface tracking in breaking waves. Coast. Eng.
**2008**, 55, 236–250. [Google Scholar] [CrossRef][Green Version] - Khayyer, A.; Gotoh, H.; Shao, S. Enhanced predictions of wave impact pressure by improved incompressible SPH methods. Appl. Ocean Res.
**2009**, 31, 111–131. [Google Scholar] [CrossRef][Green Version] - Khayyer, A.; Gotoh, H. Modified moving particle semi-implicit methods for the prediction of 2D wave impact pressure. Coast. Eng.
**2009**, 56, 419–440. [Google Scholar] [CrossRef] - Schwaiger, H.F. An implicit corrected SPH formulation for thermal diffusion with linear free surface boundary conditions. Int. J. Numer. Methods Eng.
**2008**, 75, 647–671. [Google Scholar] [CrossRef] - Lee, E.S.; Moulinec, C.; Xu, R.; Violeau, D.; Laurence, D.; Stansby, P. Comparisons of weakly compressible and truly incompressible algorithms for the SPH mesh free particle method. J. Comput. Phys.
**2008**, 227, 8417–8436. [Google Scholar] [CrossRef] - Marrone, S.; Colagrossi, A.; Le Touzé, D.; Graziani, G. Fast free-surface detection and level-set function definition in SPH solvers. J. Comput. Phys.
**2010**, 229, 3652–3663. [Google Scholar] [CrossRef] - Barecasco, A.; Terissa, H.; Naa, C.F. Simple free-surface detection in two and three-dimensional SPH solver. arXiv
**2013**, arXiv:1309.4290. [Google Scholar] - Jandaghian, M.; Shakibaeinia, A. An enhanced weakly-compressible MPS method for free-surface flows. Comput. Methods Appl. Mech. Eng.
**2020**, 360, 112771. [Google Scholar] [CrossRef] - Monaghan, J.J. Simulating free surface flows with SPH. J. Comput. Phys.
**1994**, 110, 399–406. [Google Scholar] [CrossRef] - Morris, J.P. Simulating surface tension with smoothed particle hydrodynamics. Int. J. Numer. Methods Fluids
**2000**, 33, 333–353. [Google Scholar] [CrossRef] - Liu, M.; Liu, G.; Lam, K. Constructing smoothing functions in smoothed particle hydrodynamics with applications. J. Comput. Appl. Math.
**2003**, 155, 263–284. [Google Scholar] [CrossRef][Green Version] - Wendland, H. Piecewise polynomial, positive definite and compactly supported radial functions of minimal degree. Adv. Comput. Math.
**1995**, 4, 389–396. [Google Scholar] [CrossRef] - Dehnen, W.; Aly, H. Improving convergence in smoothed particle hydrodynamics simulations without pairing instability. Mon. Not. R. Astron. Soc.
**2012**, 425, 1068–1082. [Google Scholar] [CrossRef][Green Version] - Sun, P.; Colagrossi, A.; Marrone, S.; Antuono, M.; Zhang, A. Multi-resolution Delta-plus-SPH with tensile instability control: Towards high Reynolds number flows. Comput. Phys. Commun.
**2018**, 224, 63–80. [Google Scholar] [CrossRef] - Antuono, M.; Colagrossi, A.; Marrone, S.; Molteni, D. Free-surface flows solved by means of SPH schemes with numerical diffusive terms. Comput. Phys. Commun.
**2010**, 181, 532–549. [Google Scholar] [CrossRef] - Williamson, J. Low-storage runge-kutta schemes. J. Comput. Phys.
**1980**, 35, 48–56. [Google Scholar] [CrossRef] - Monaghan, J.J. Smoothed particle hydrodynamics. Rep. Prog. Phys.
**2005**, 68, 1703. [Google Scholar] [CrossRef] - Adami, S.; Hu, X.Y.; Adams, N.A. A generalized wall boundary condition for smoothed particle hydrodynamics. J. Comput. Phys.
**2012**, 231, 7057–7075. [Google Scholar] [CrossRef] - Khayyer, A.; Gotoh, H.; Shimizu, Y. Comparative study on accuracy and conservation properties of two particle regularization schemes and proposal of an optimized particle shifting scheme in ISPH context. J. Comput. Phys.
**2017**, 332, 236–256. [Google Scholar] [CrossRef] - Meringolo, D.; Colagrossi, A.; Marrone, S.; Aristodemo, F. On the filtering of acoustic components in weakly-compressible SPH simulations. J. Fluids Struct.
**2017**, 70, 1–23. [Google Scholar] [CrossRef] - Monaghan, J.J.; Rafiee, A. A simple SPH algorithm for multi-fluid flow with high density ratios. Int. J. Numer. Methods Fluids
**2013**, 71, 537–561. [Google Scholar] [CrossRef] - Le Touzé, D.; Colagrossi, A.; Colicchio, G.; Greco, M. A critical investigation of smoothed particle hydrodynamics applied to problems with free-surfaces. Int. J. Numer. Methods Fluids
**2013**, 73, 660–691. [Google Scholar] [CrossRef] - Dormand, J.R.; Prince, P.J. A family of embedded Runge-Kutta formulae. J. Comput. Appl. Math.
**1980**, 6, 19–26. [Google Scholar] [CrossRef][Green Version] - Zheng, X.; Shao, S.; Khayyer, A.; Duan, W.; Ma, Q.; Liao, K. Corrected first-order derivative ISPH in water wave simulations. Coast. Eng. J.
**2017**, 59, 1750010. [Google Scholar] [CrossRef] - Colagrossi, A. A Meshless Lagrangian Method for Free-Surface and Interface Flows with Fragmentation. Ph.D. Thesis, University Roma, Roma, Italy, 2005; pp. 1–234. [Google Scholar]
- Khayyer, A.; Gotoh, H. Enhancement of stability and accuracy of the moving particle semi-implicit method. J. Comput. Phys.
**2011**, 230, 3093–3118. [Google Scholar] [CrossRef] - Oger, G.; Doring, M.; Alessandrini, B.; Ferrant, P. An improved SPH method: Towards higher order convergence. J. Comput. Phys.
**2007**, 225, 1472–1492. [Google Scholar] [CrossRef] - Martin, J.C.; Moyce, W.J.; Martin, J.; Moyce, W.; Penney, W.G.; Price, A.; Thornhill, C. Part IV. An experimental study of the collapse of liquid columns on a rigid horizontal plane. Philos. Trans. R. Soc. Lond. Ser. A Math. Phys. Sci.
**1952**, 244, 312–324. [Google Scholar] - Zhou, Z.; De Kat, J.; Buchner, B. A nonlinear 3D approach to simulate green water dynamics on deck. In Proceedings of the Seventh International Conference on Numerical Ship Hydrodynamics, Nantes, France, 19–22 July 1999; pp. 1–15. [Google Scholar]
- Buchner, B. Green Water on Ship-Type Offshore Structures. Ph.D. Thesis, Delft University of Technology, Delft, The Netherlands, 2002. [Google Scholar]
- Colagrossi, A.; Landrini, M. Numerical simulation of interfacial flows by smoothed particle hydrodynamics. J. Comput. Phys.
**2003**, 191, 448–475. [Google Scholar] [CrossRef] - Mokos, A.; Rogers, B.D.; Stansby, P.K.; Domínguez, J.M. Multi-phase SPH modelling of violent hydrodynamics on GPUs. Comput. Phys. Commun.
**2015**, 196, 304–316. [Google Scholar] [CrossRef] - Chen, Z.; Zong, Z.; Liu, M.; Zou, L.; Li, H.; Shu, C. An SPH model for multiphase flows with complex interfaces and large density differences. J. Comput. Phys.
**2015**, 283, 169–188. [Google Scholar] [CrossRef] - Zhang, T.; Koshizuka, S.; Xuan, P.; Li, J.; Gong, C. Enhancement of stabilization of MPS to arbitrary geometries with a generic wall boundary condition. Comput. Fluids
**2019**, 178, 88–112. [Google Scholar] [CrossRef] - Greco, M. A Two-Dimensional Study of Green-Water Loading. Ph.D. Thesis, Norwegian University of Science and Technology, Trondheim, Norway, 2001. [Google Scholar]
- Cherfils, J.M. Développements et Applications de la Méthode SPH Aux écoulements Visqueux à Surface Libre. Ph.D. Thesis, CNRS-Université du Havre, Le Havre, France, 2011. [Google Scholar]
- Ritter, A. Die fortpflanzung der wasserwellen. Z. Ver. Dtsch. Ing.
**1892**, 36, 947–954. [Google Scholar] - Rezavand, M.; Zhang, C.; Hu, X. A weakly compressible SPH method for violent multi-phase flows with high density ratio. J. Comput. Phys.
**2020**, 402, 109092. [Google Scholar] [CrossRef][Green Version] - Bellezi, C.A.; Cheng, L.Y.; Okada, T.; Arai, M. Optimized perforated bulkhead for sloshing mitigation and control. Ocean Eng.
**2019**, 187, 106171. [Google Scholar] [CrossRef] - ARAI, M.; Hata, R.; Cheng, L.Y. Sloshing in vertical and horizontal axisymmetric tanks. J. Jpn. Soc. Naval Arch. Ocean Eng.
**2018**, 27, 117–123. [Google Scholar] [CrossRef] - Rafiee, A.; Pistani, F.; Thiagarajan, K. Study of liquid sloshing: Numerical and experimental approach. Comput. Mech.
**2011**, 47, 65–75. [Google Scholar] [CrossRef] - Cao, X.; Ming, F.; Zhang, A. Sloshing in a rectangular tank based on SPH simulation. Appl. Ocean Res.
**2014**, 47, 241–254. [Google Scholar] [CrossRef] - Winkler, D.; Meister, M.; Rezavand, M.; Rauch, W. gpuSPHASE—A shared memory caching implementation for 2D SPH using CUDA. Comput. Phys. Commun.
**2017**, 213, 165–180. [Google Scholar] [CrossRef]

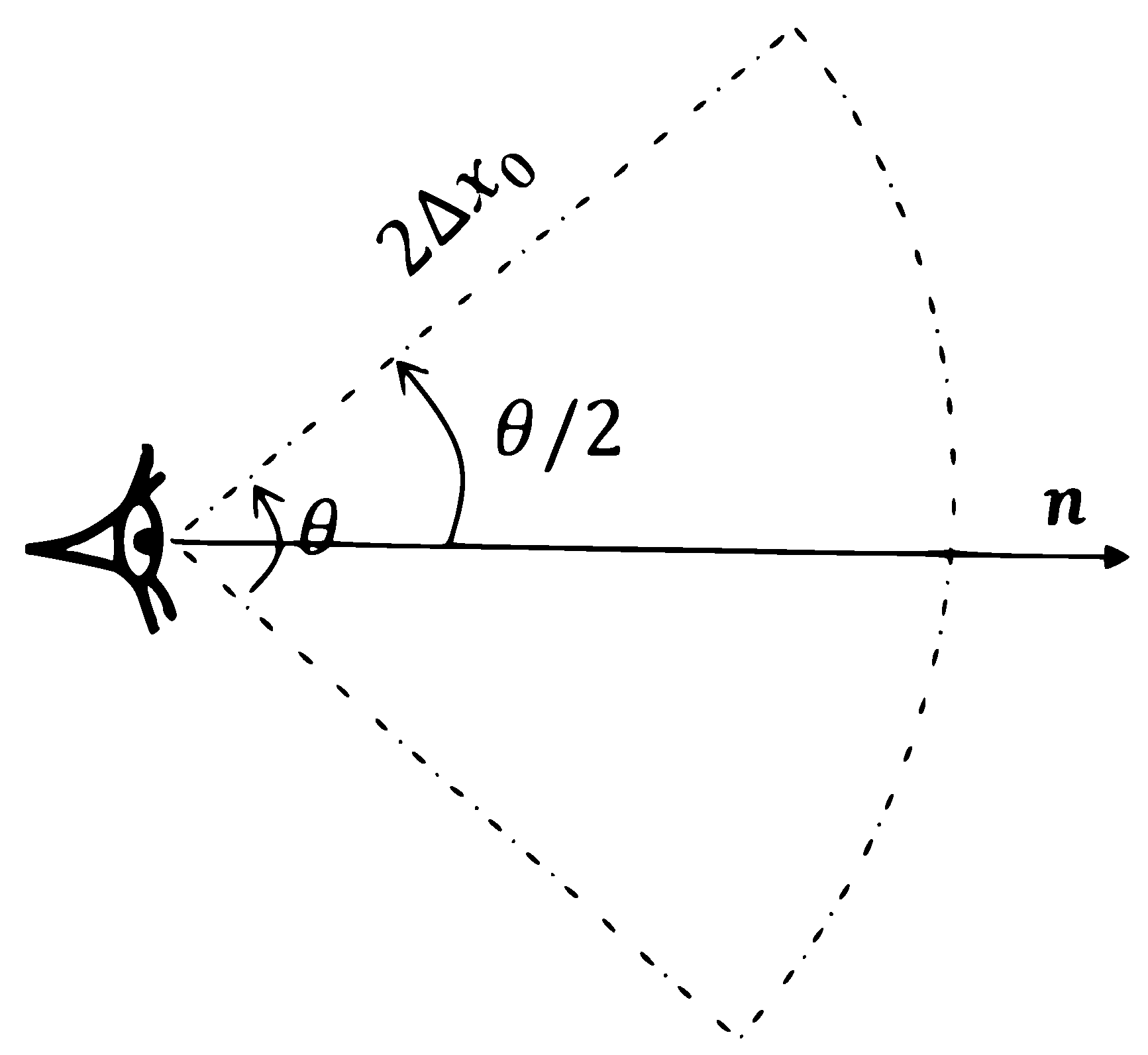

**Figure 1.**Free surface particle detection concept. $\theta $ is the angle of vision and $2\Delta {x}_{0}$ is the vision distance. Where $\Delta {x}_{0}$ denotes the initial particle spacing.

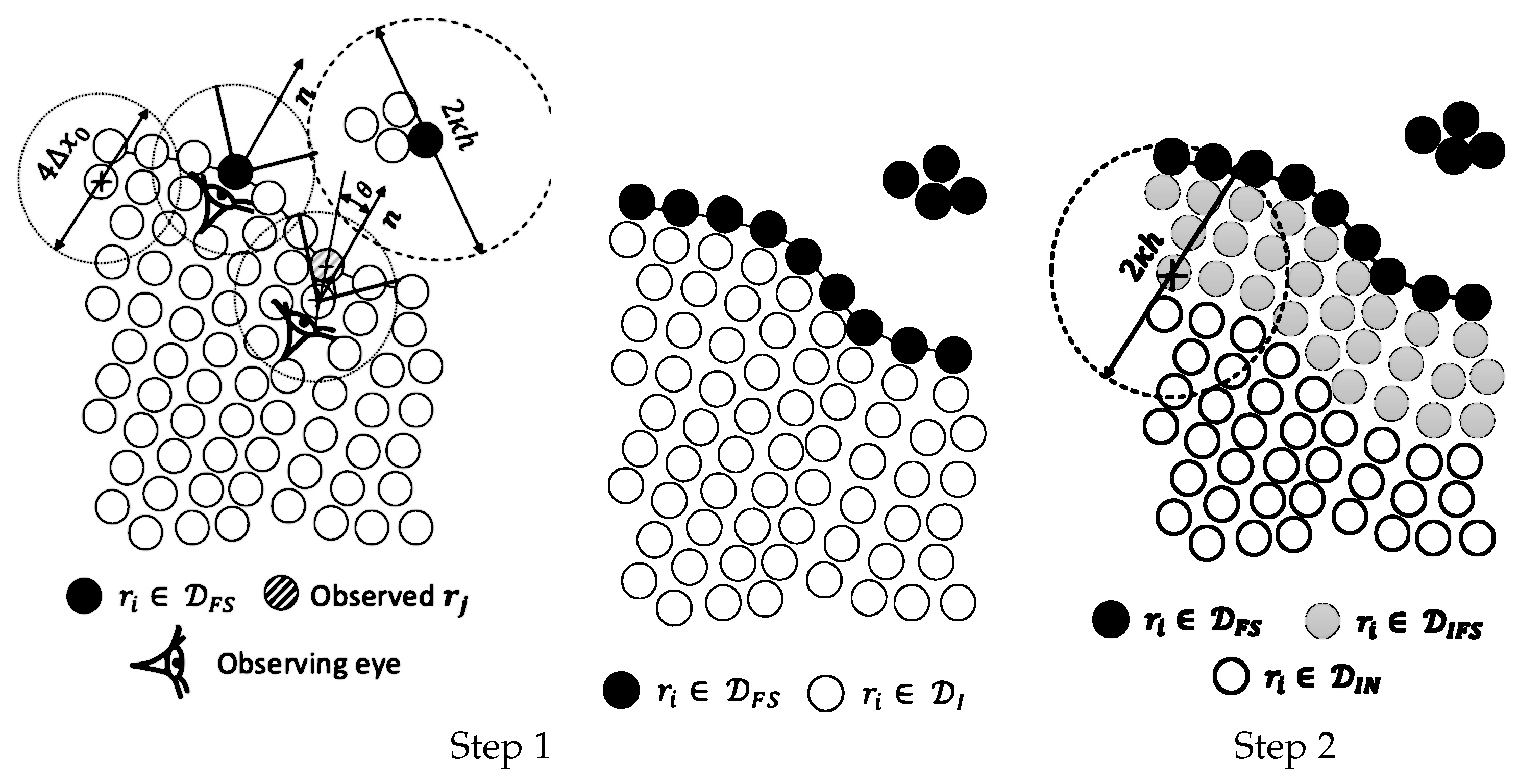

**Figure 2.**Principals of the free surface particles detection, Step 1 presents the free surface particles detection conditions and Step 3 presents the definition of inner particles near to the free surface particles.

**Figure 3.**The free surface particles detected for the dam-break example. The free surface particle of the fluid are colored with black color (${D}_{FS}$), whereas for the particle colored with yellow and green colors represent respectively, the inner particle near (${D}_{IFS}$) and far (${D}_{IN}$) from the free surface region. The first row (

**a**) shows the results via the method proposed by Marrone et al. [45], while the rows (

**b**,

**c**) represent the results using Jandaghian and Shakibaeinia [47] and the present approaches, respectively.

**Figure 4.**Different parameters used to define $\varphi $ for particle i as ${\mathit{r}}_{\mathit{i}}\in {D}_{IFS}$.

**Figure 5.**Oscillating droplet under a central conservative force field. R is the raduis of the intial circular drop, a and b are the semi-major and semi-minor axis of the evolving ellipse, respectively.

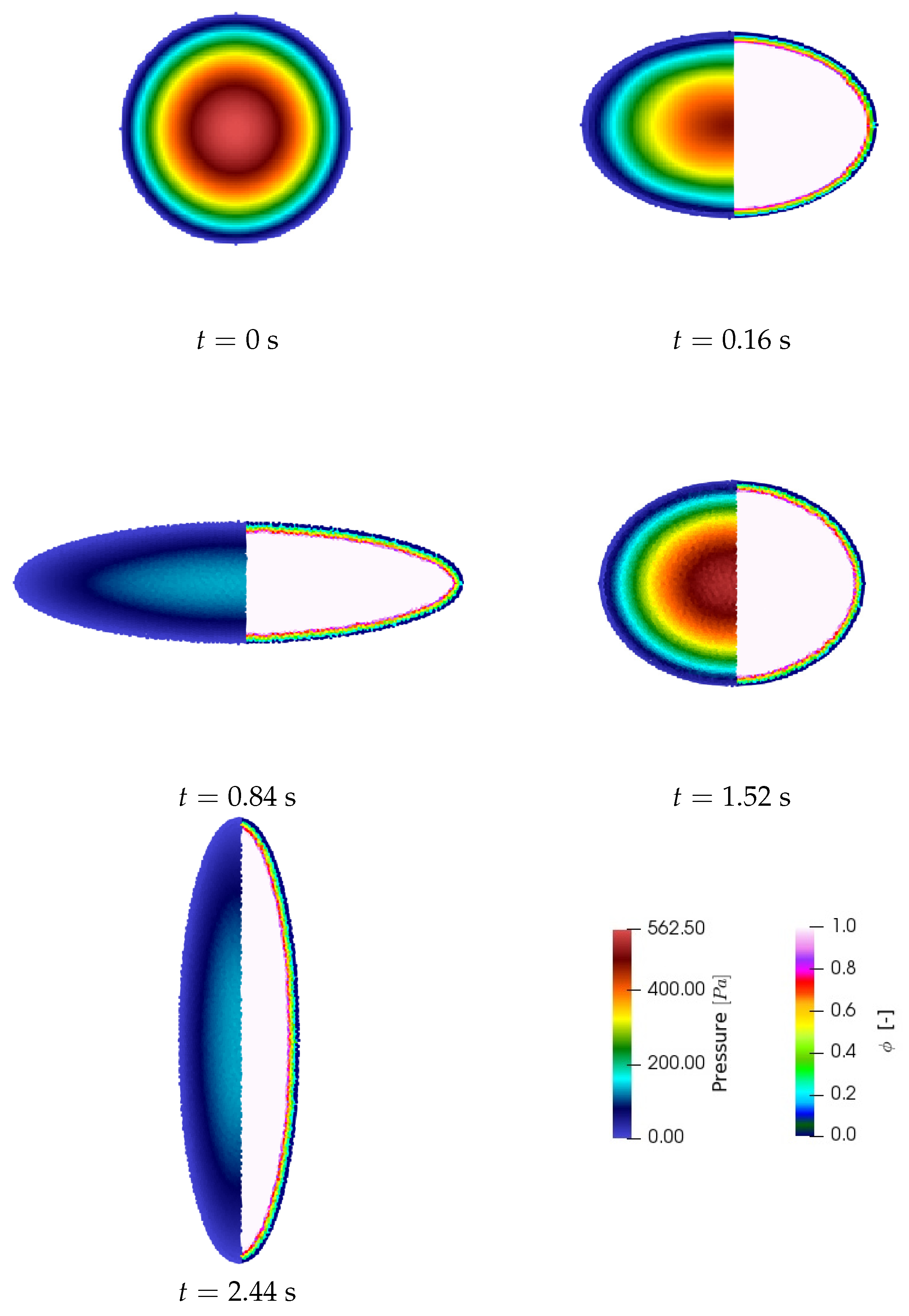

**Figure 6.**Oscillating droplet under a central conservative force field: Pressure and the dimensionless parameter $\varphi $ evolution in time. The right half of the droplet is colored by the pressure field, and the left half is colored by the $\varphi $ paremeter field.

**Figure 7.**Oscillating droplet under a central conservative force field: The particle are colored with pressure and dimensionless $\varphi $- parameter on the left and the right half of the fluid droplet, respectively at the time $t=2.44$ s. (

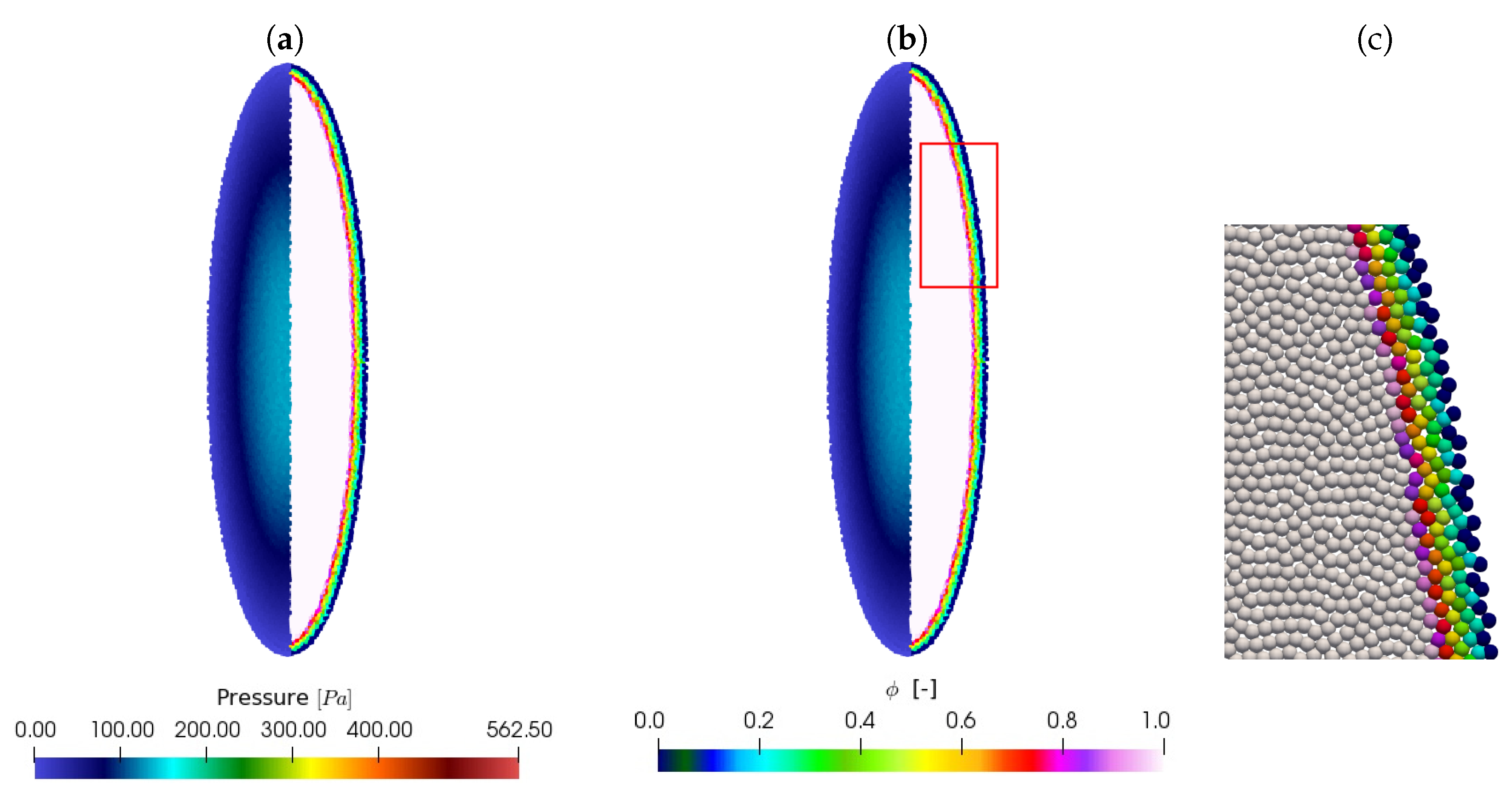

**a**) under the resolution of $dx=\frac{R}{100}$ in the snapshot (

**a**) and $dx=\frac{R}{50}$ in (

**b**). The snapshot (

**c**) shows a zoom on the $\varphi $ field obtained through the selected red rectangle of the snapshot (

**b**).

**Figure 8.**Oscillating droplet under a central conservative force field: horizontal semi major axis evolution in time $a\left(t\right)$. The black solid line presents the theoretical results obtained by solving the system (18) [60]. The red dotted line represents the results obtained by the present particle shifting formulation for the fluid droplet of resolution $dx=\frac{R}{50}$, whereas for the magenta dash-dot line is for $dx=\frac{R}{100}$. The blue dashed line represents the results obtained by the particle shifting technology (IPST) proposed by Wang et al. [37]. The bottom part (

**b**) of the figure represents the zoom of selected red rectangle in (

**a**).

**Figure 9.**Oscillating droplet under a central conservative force field: Vertical semi minor axis evolution in time $b\left(t\right)$. The black solid line presents the theoretical results obtained by solving the system (18) [60]. The red dotted line represents the results obtained by the present particle shifting formulation for the fluid droplet of resolution $dx=\frac{R}{50}$, whereas for the magenta dash-dot line is for $dx=\frac{R}{100}$. The blue dashed line represents the results obtained by the particle shifting technology (IPST) proposed by Wang et al. [37]. The bottom part (

**b**) of the figure represents the zoom of selected red rectangle in (

**a**).

**Figure 10.**Oscillating droplet under a central conservative force field: Kinetic energy evolution in time ${E}_{k}\left(t\right)$. The black solid line presents the theoretical results obtained by solving the system (18) [60]. The red dotted line represents the results obtained by the present particle shifting formulation for the fluid droplet of resolution $dx=\frac{R}{50}$, whereas for the magenta dash-dot line is for $dx=\frac{R}{100}$. The blue dashed line represents the results obtained by the particle shifting technology (IPST) proposed by Wang et al. [37]. The bottom part (

**b**) of the figure represents the zoom of selected red rectangle in (

**a**).

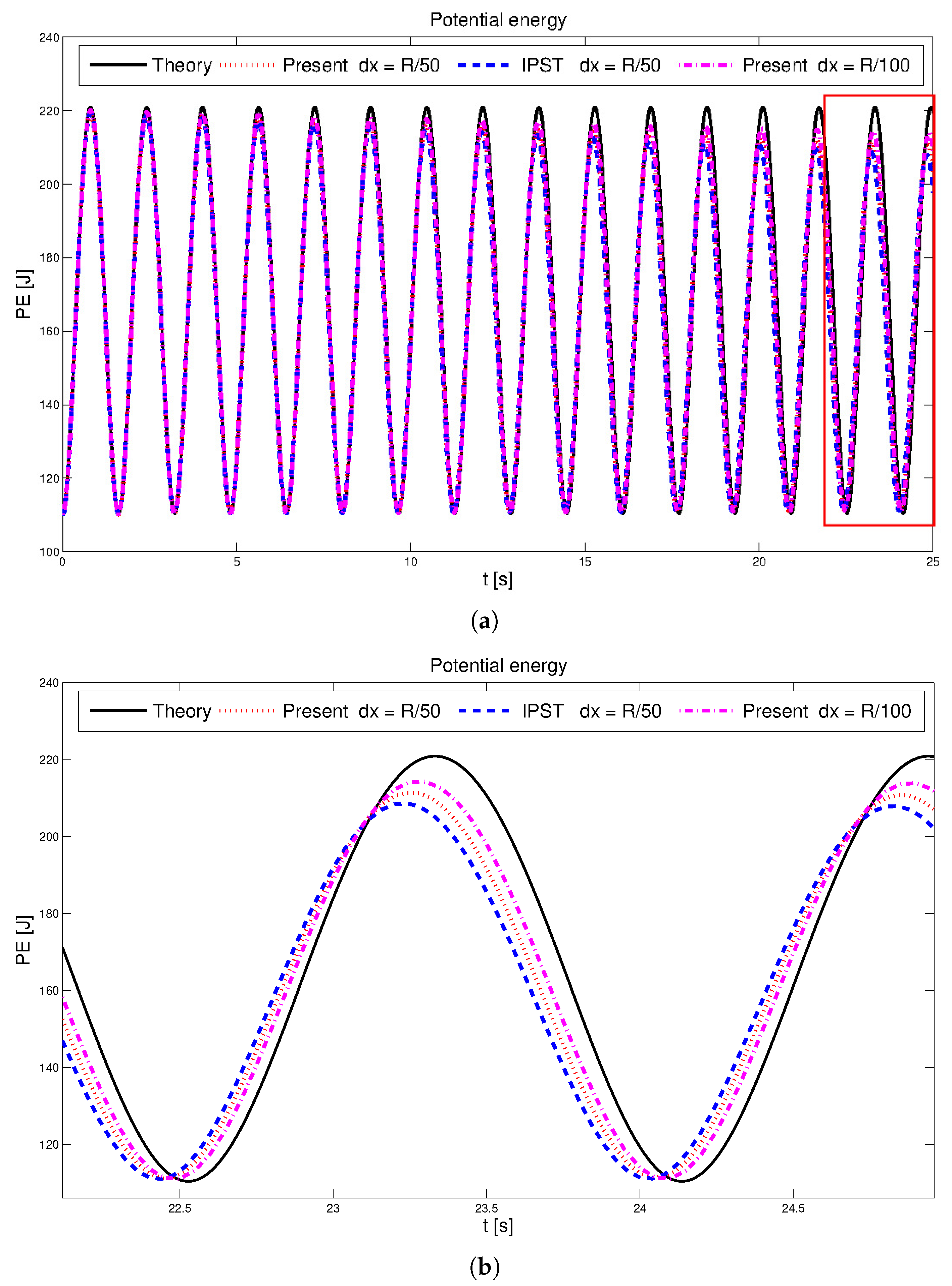

**Figure 11.**Oscillating droplet under a central conservative force field: Potential Energy evolution in time ${E}_{p}\left(t\right)$. The black solid line presents the theoretical results obtained by solving the system (18) [60]. The red dotted line represents the results obtained by the present particle shifting formulation for the fluid droplet of resolution $dx=\frac{R}{50}$, whereas for the magenta dash-dot line is for $dx=\frac{R}{100}$. The blue dashed line represents the results obtained by the particle shifting technology (IPST) proposed by Wang et al. [37]. The bottom part (

**b**) of the figure represents the zoom of selected red rectangle in (

**a**).

**Figure 12.**Oscillating droplet under a central conservative force field: Total energy evolution in time ${E}_{T}\left(t\right)$. The black solid line presents the theoretical results obtained by solving the system (18) [60]. The red dotted line represents the results obtained by the present particle shifting formulation for the fluid droplet of resolution $dx=\frac{R}{50}$, whereas for the magenta dash-dot line is for $dx=\frac{R}{100}$. The blue dashed line represents the results obtained by the particle shifting technology (IPST) proposed by Wang et al. [37].

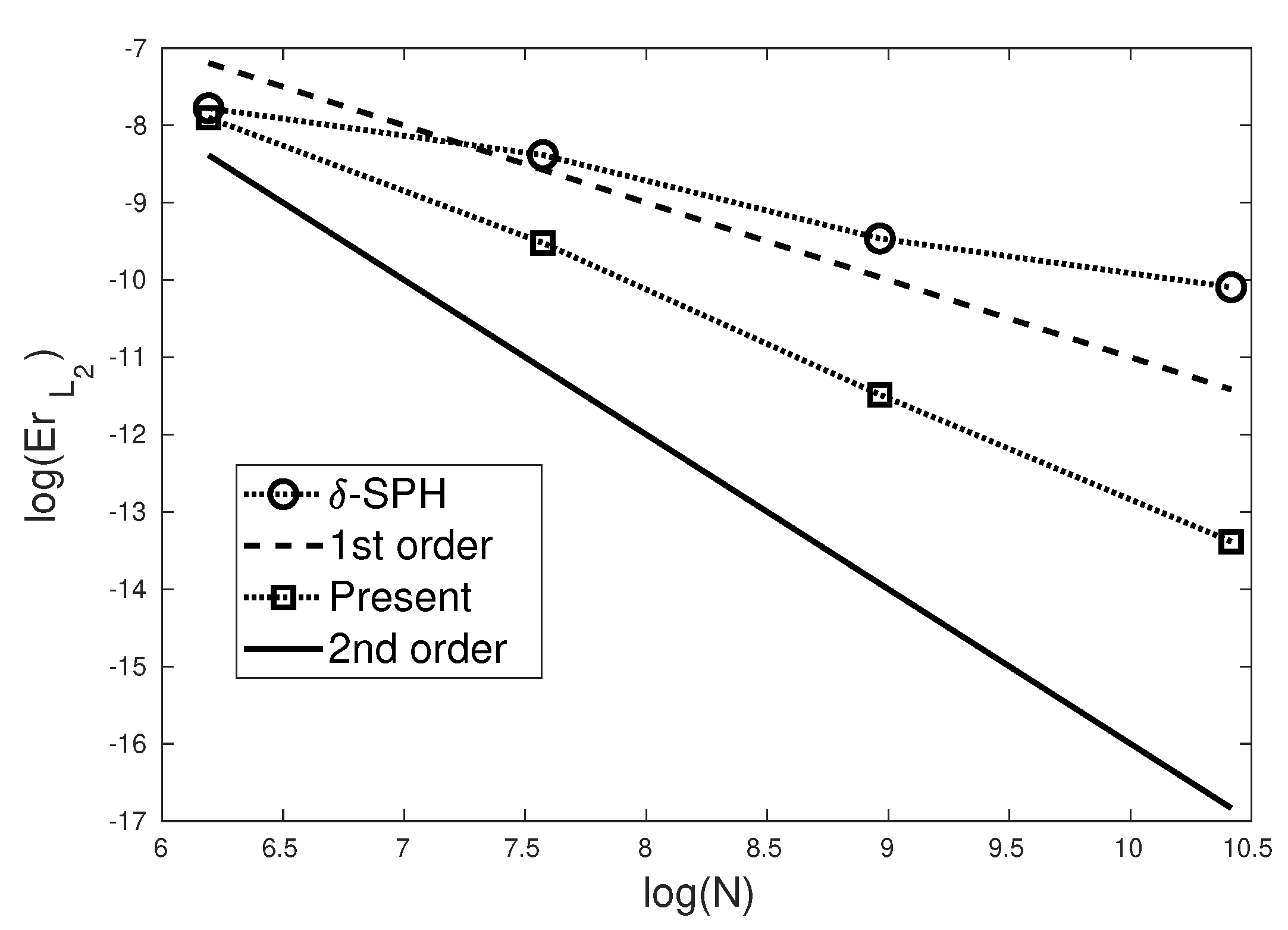

**Figure 13.**Oscillating droplet under a central conservative force field: Convergence studies with present SPH and $\delta $-SPH [23] schemes. The dotted line with small circles denotes the convergence curve of the $\delta $-SPH scheme and the dotted line with small squares denotes the convergence curve of the present SPH model. The dashed and continues lines represent $1\mathrm{st}$ and $2\mathrm{nd}$ order of convergence slops, respectively.

**Figure 15.**Evolution of an initially-square fluid patch: Pressure field obtained at dimentionless times $t\omega =\{0.6,1.2,2.04\}$. The black bold points present the free surface evaluated by the Lagrangian Finite Difference Method [61].

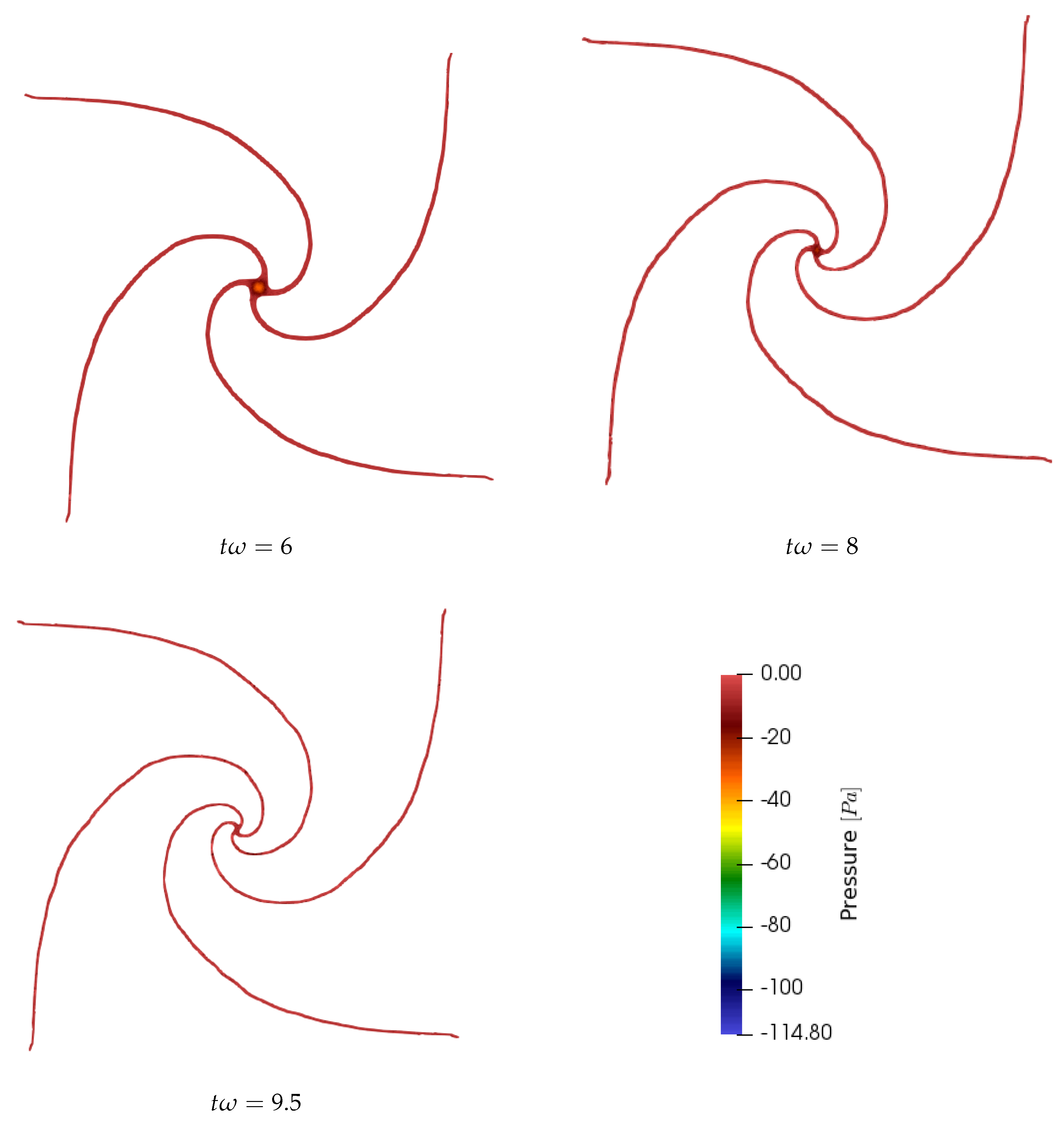

**Figure 16.**Evolution of an initially-square fluid patch: Pressure field obtained and evolving shape of the square path at dimensionless times $t\omega =\{6,8,9.5\}$.

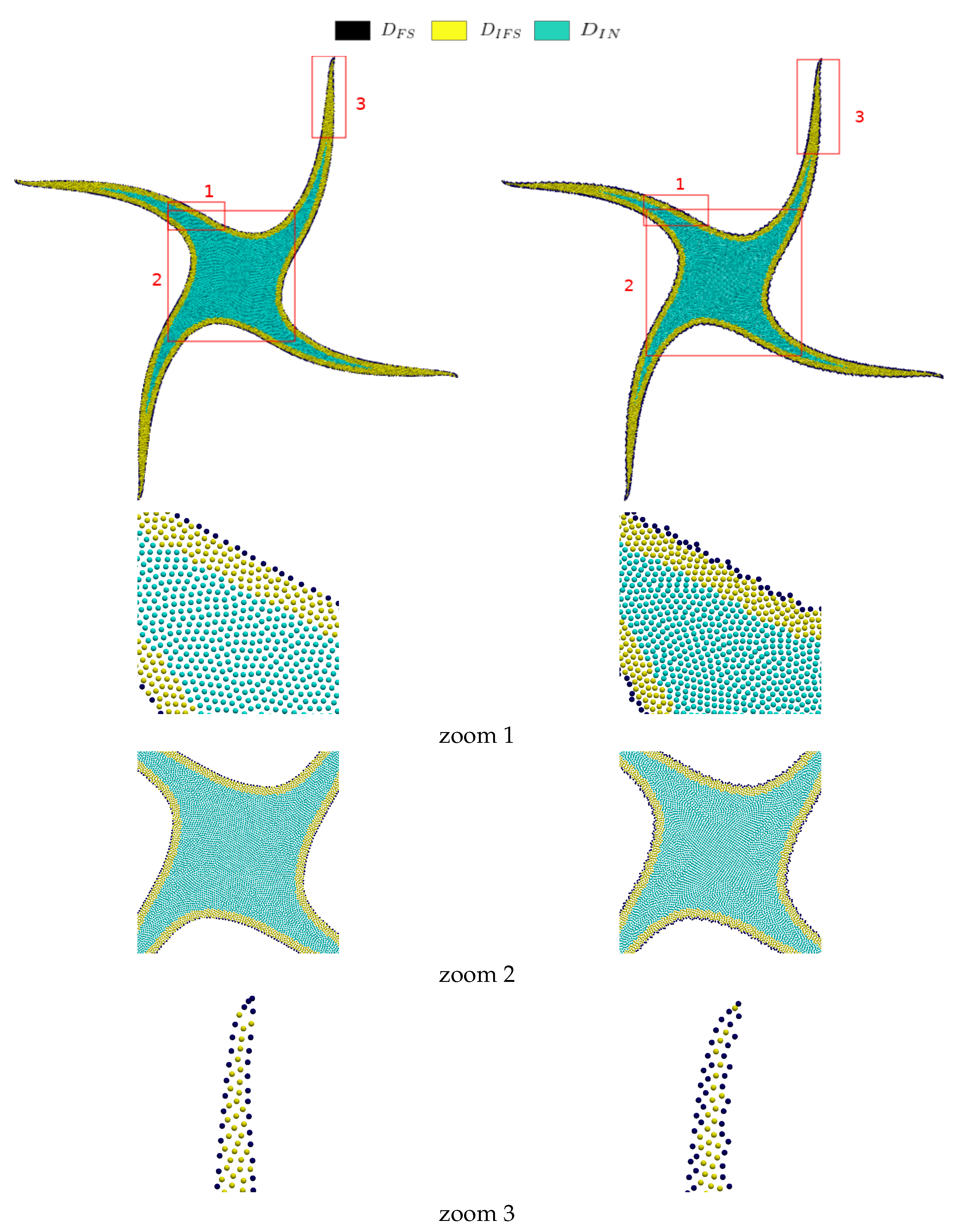

**Figure 17.**Evolution of an initially-square fluid patch: The fluid particles distribution at the dimensionless time $t\omega =2.2$. The left column presents the results obtained by using our particle shifting approach (here a poor detection free surface is presented), whereas for the right column shows the results obtained using by using IPST [37]. The three last rows of the figure present the zooms on the three selected regions.

**Figure 18.**Evolution of an initially-square fluid patch: The fluid particles distribution at the dimensionless time $t\omega =2.2$ in the case of poor detection free surface. The particles are colored with dimensionless $\varphi $-parameter field. The second row presents the zooms on the three selected regions.

**Figure 19.**Evolution of an initially-square fluid patch: Time evolution of the pressure at the center of the fluid path. The red dotted line represents the results obtained by the present particle shifting formulation for the particle resolution of $dx=\frac{L}{100}$, whereas for the magenta dash-dot line, it corresponds to the particle resolution of $dx=\frac{L}{200}$. The black dotted line with diamond marker denotes the pressure results obtained by BEM-MEL solver [61]. The second row of the figure presents a zoom region.

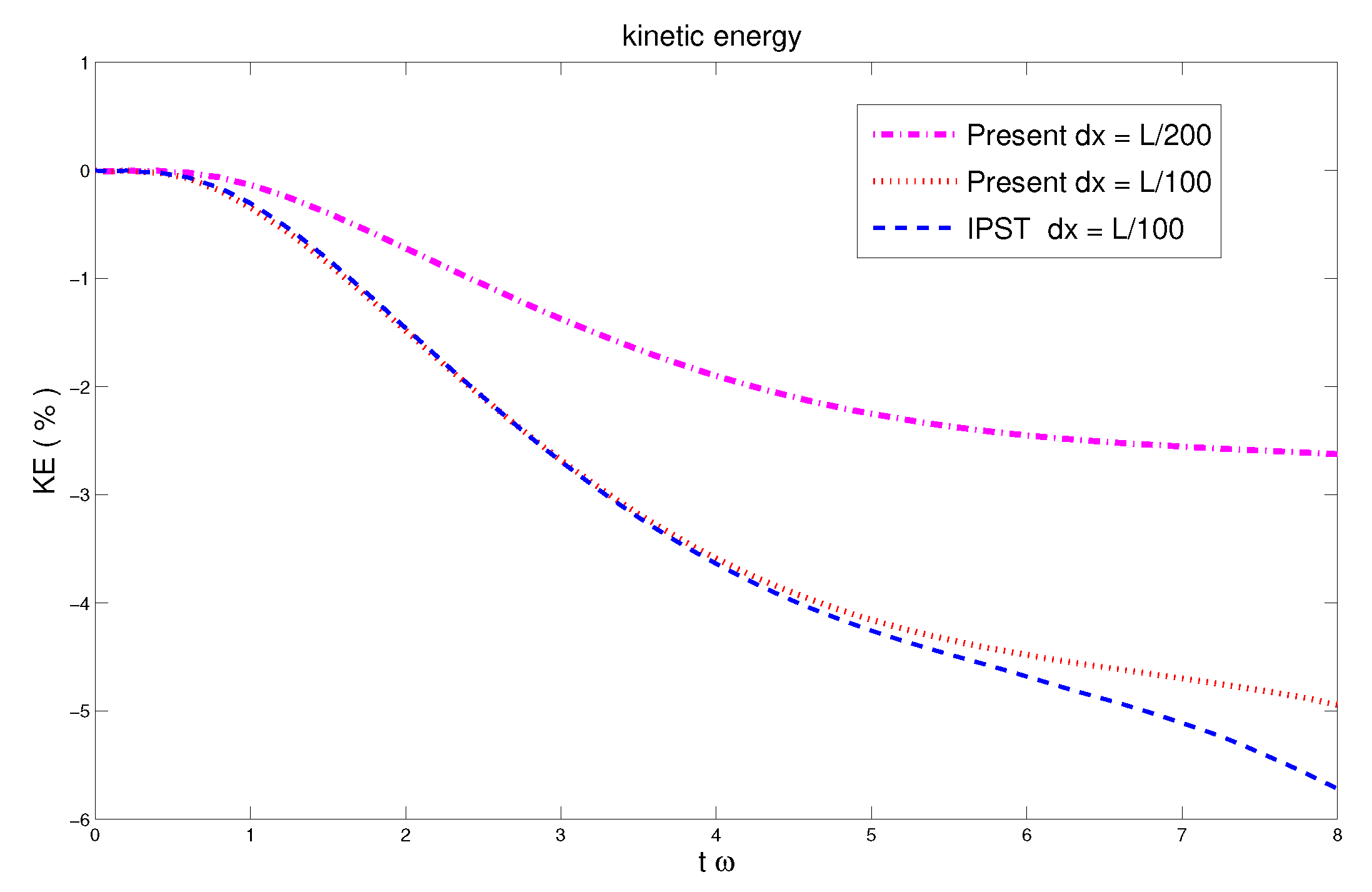

**Figure 20.**Evolution of an initially-square fluid patch: Dissipation of the kinetic energy. The red dotted line presents the results obtained by the present particle shifting formulation for the particle resolution of $dx=\frac{L}{100}$, The blue dashed line represents the results obtained by using IPST [37] for the particle resolution of $dx=\frac{L}{100}$. whereas for the magenta dash-dot line presents the results obtained by the present particle shifting formulation for the particle resolution of $dx=\frac{L}{200}$.

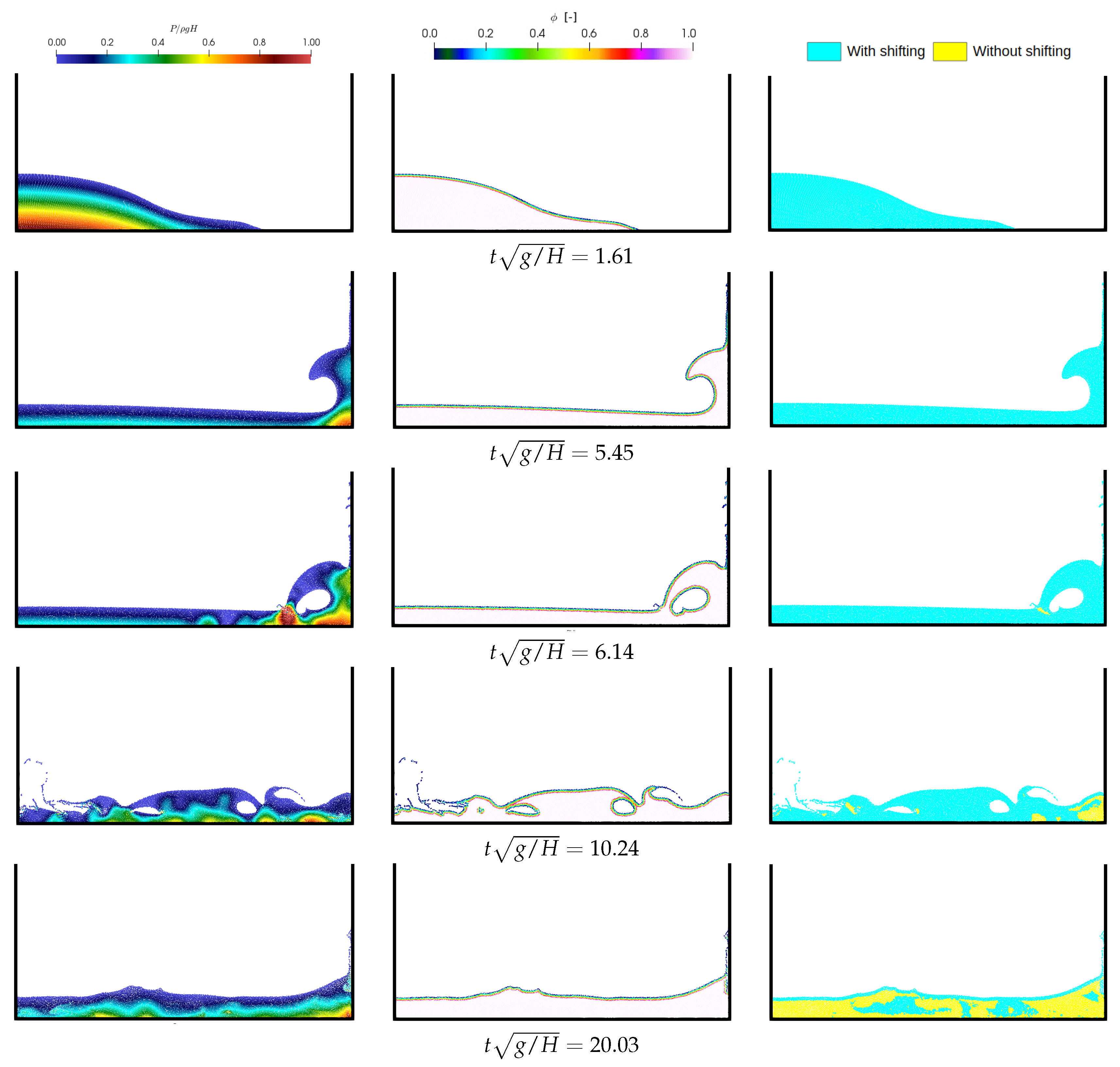

**Figure 22.**Dam break flow: Snapshots of the computational results at dimensionless times $t\sqrt{g/H}=\{1.61,5.45,6.14,10.24,20.02\}$. The left column presents the pressure field, the middle column denotes the $\varphi $-parameter field and the right column presents the restriction field (no shifting is applied on the yellow region).

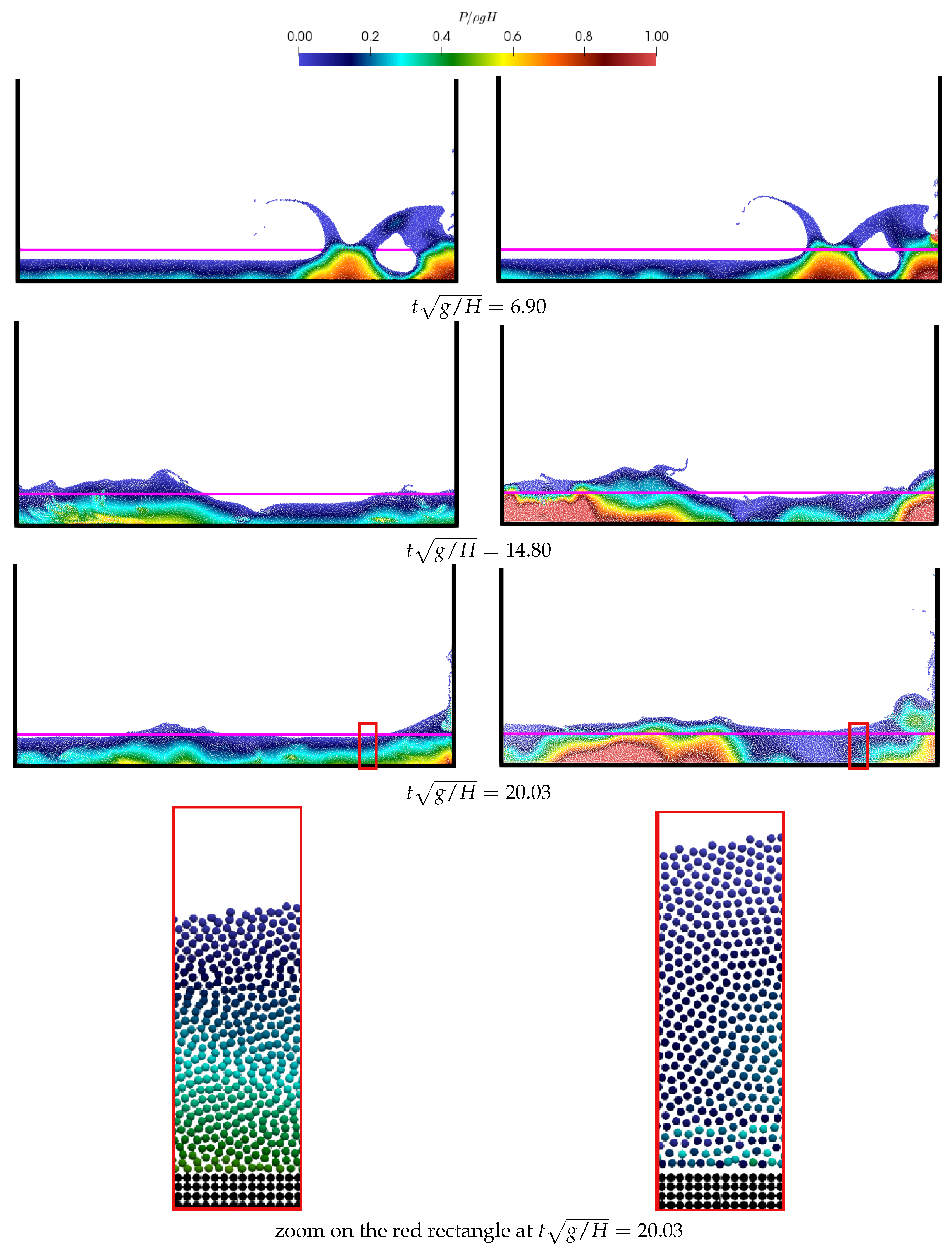

**Figure 23.**Dam break flow: Snapshots of pressure field at dimensionless times $t\sqrt{g/H}=\{6.00,14.80,20.03\}$, The left column depicts the results obtained by the present method. The right column presents the results obtained with IPST [37]. The solid magenta line shows the position of final free surface at equilibrium, should the total volume conserve.

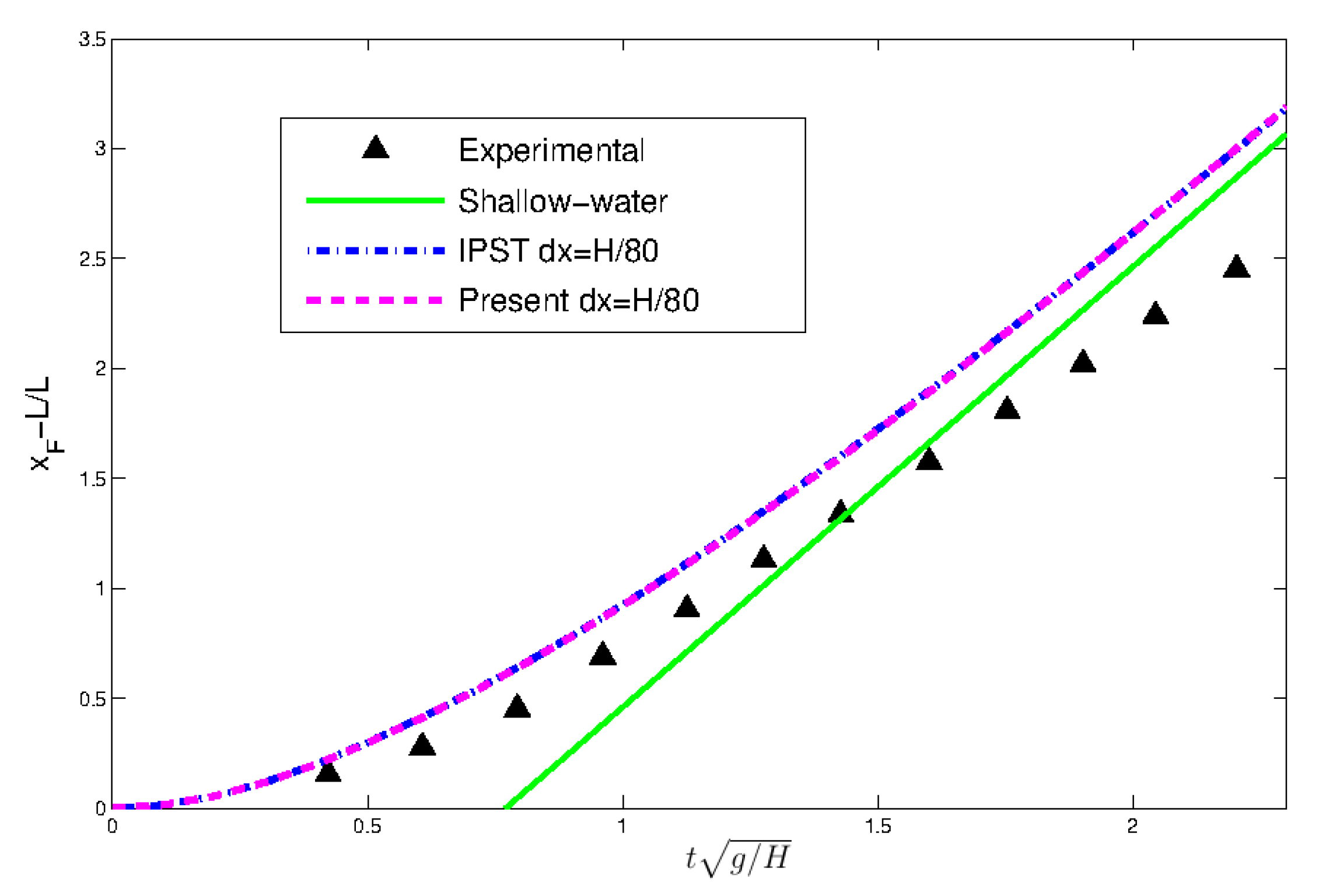

**Figure 24.**Dam break flow: time evolution of the water front, the green solid line presents the analytical solution from shallow water theory [76], The black triangles denotes the experimental data given by Buchner [69]. The blue dash-dot line represents the results obtained by using IPST [37], whereas for the magenta dashed line presents the results obtained by the present particle shifting formulation.

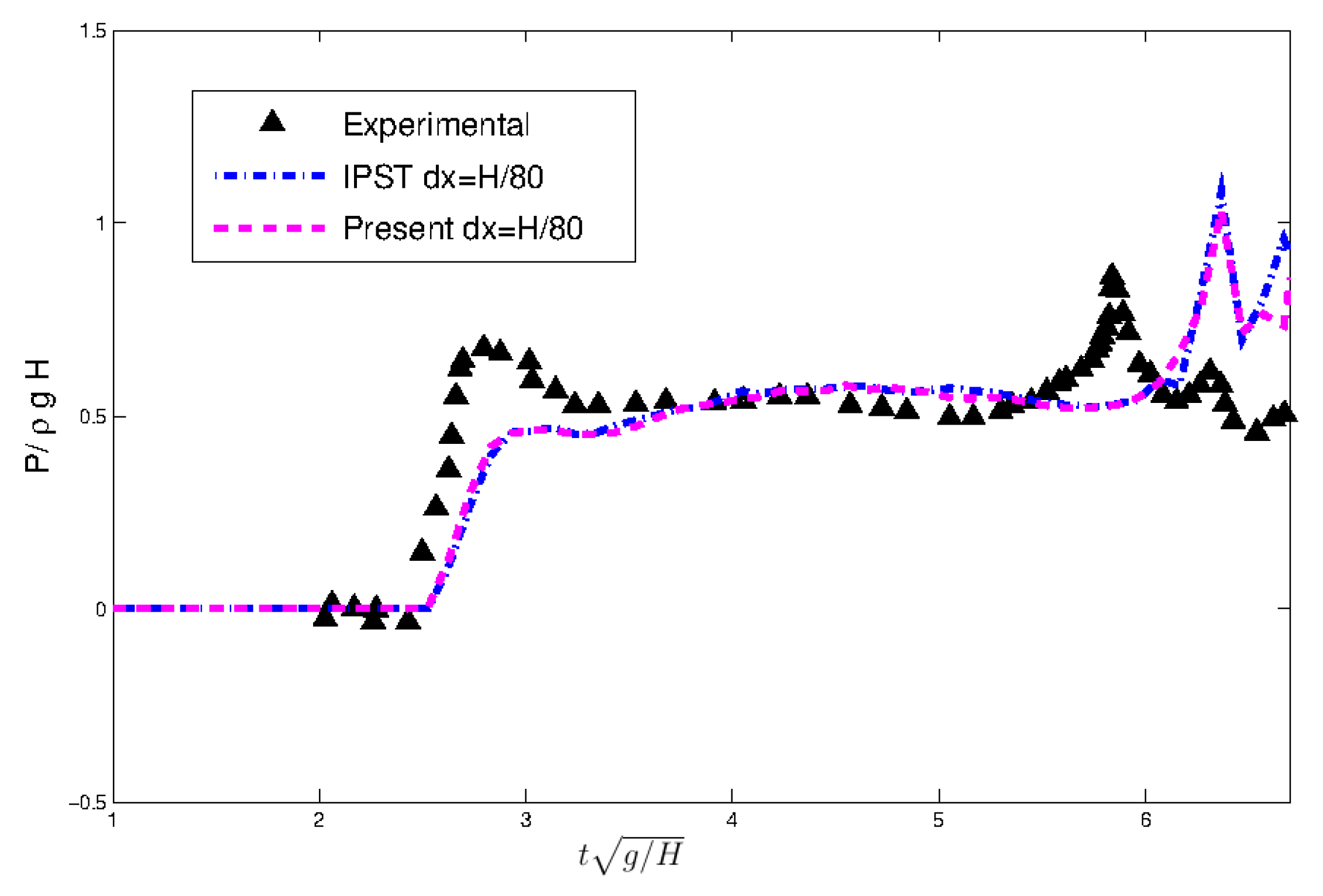

**Figure 25.**Dam break flow: History of the pressure signals recorded at P. The black triangles denotes the experimental data given by Buchner [69]. The blue dash-dot line represents the results obtained by using IPST [37], whereas for the magenta dashed line presents the results obtained by the present particle shifting formulation.

**Figure 26.**Dam break flow: Time evolution of mechanical energy. The blue dash-dot line represents the results obtained by using IPST [37], whereas for the magenta dashed line presents the results obtained by the present particle shifting formulation. The black reference curve is taken from Marrone et al. [23].

**Figure 28.**Sloshing in a rectangular tank: Snapshots of the computational results at times $t=\{1.74,2.32,3.00,3.99,6.90,7.60\}$ s. The left column presents the pressure filed, the middle column denotes the $\varphi $-parameter filed and the right column presents the restriction field (no shifting is applied on the yellow region).

**Figure 29.**Sloshing in a rectangular tank: Snapshots of pressure field at times $t=\{6.80,8.00,8.50\}$ s, The first row depicts the results obtained by the present method. The second row presents the results obtained with IPST [37].

**Figure 30.**Sloshing in a rectangular tank: time history of the impact pressure at the three installed probes ${P}_{1}$, ${P}_{2}$ and ${P}_{3}$. figures (

**a**–

**c**) present the comparison between the present numerical and experimental pressure signals obtained at the probes ${P}_{1}$, ${P}_{2}$ and ${P}_{3}$, respectively. The black triangles denotes the experimental data given by Rafiee et al. [80]. The blue dashed line represents the results obtained by using IPST [37], whereas for the magenta dash-dot line presents the results obtained by the present particle shifting formulation.

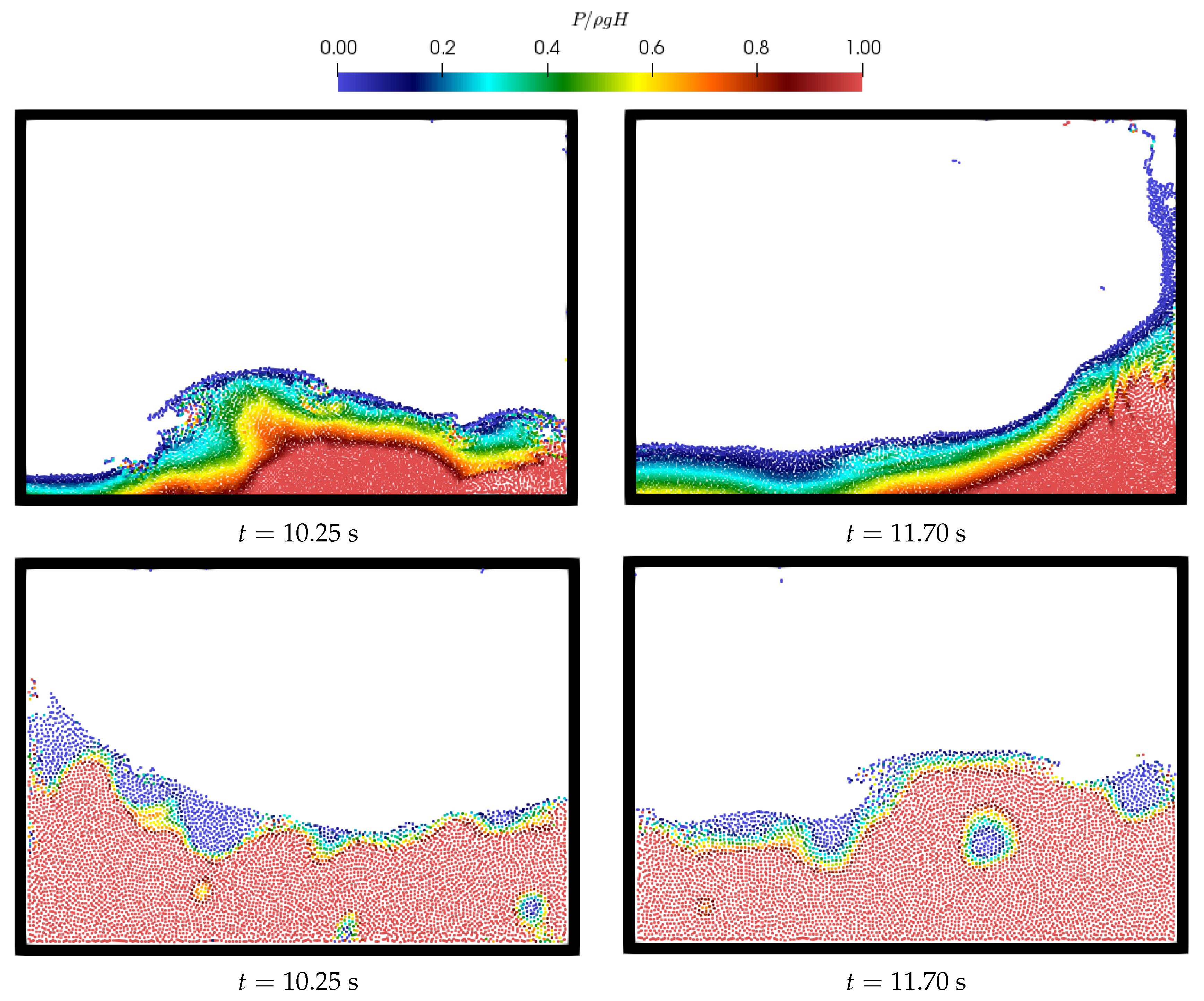

**Figure 31.**Sloshing in a rectangular tank: Snapshots of pressure field at times $t=10.25$ s and $t=11.70$ s. The first row depicts the results obtained by the present method. The second row presents the results obtained with IPST [37].
