Article

Major Controls on Streamflow of the Glacierized Urumqi River Basin in the Arid Region of Northwest China

School of Geography and Planning, Sun Yat-Sen University, Guangzhou 510275, China
*
Author to whom correspondence should be addressed.
Water 2020, 12(11), 3062; https://doi.org/10.3390/w12113062
Received: 10 October 2020 / Revised: 27 October 2020 / Accepted: 27 October 2020 / Published: 1 November 2020
(This article belongs to the Section Hydrology and Hydrogeology)

Abstract

Understanding the main drivers of runoff availability has important implications for water-limited inland basins, where snow and ice melt provide essential input to the surface runoff. This paper presents an analysis on the runoff response to changes in climatic and other controls of water-energy balance in an inland glacierized basin, the Urumqi River basin, located in the arid region of northwest China, and identifies the major control to which runoff is sensitive across the basin’s heterogeneous subzones. The results indicate that the runoff is more sensitive to change in precipitation in the mountainous headwaters zone of the upper reach, and followed by the impact of basin characteristics. In contrast, the runoff is more sensitive to changes in the basin characteristics in the semiarid and arid zones of the mid and lower reaches. In addition, the change in basin characteristics might be represented by the distinct glacier recession in the mountainous upper reach zone and the increasing human interferences, i.e., changes in land surface condition and population growth, across the mid and lower reach zones. The glacier wasting contributed around 7% on average to the annual runoff between 1960 and 2012, with an augmentation beginning in the mid-1990s. Findings of this study might help to better understand the possible triggers of streamflow fluctuation and the magnitude of glacier wasting contribution to runoff in inland glacierized river basins.
Keywords: runoff; climatic factors; basin characteristics; glacier; the Urumqi River; Budyko framework runoff; climatic factors; basin characteristics; glacier; the Urumqi River; Budyko framework

1. Introduction

Facing a warming climate, unraveling the dominant factors responsible for streamflow change is an important step for water resource management [1,2]. In general, the prevailing climatic factors (e.g., precipitation) and the integrative factors (e.g., the landform features) that exclude climatic factors (referred as other factors hereafter) are two types of factors that trigger streamflow changes, and many efforts have been made to assess their effects on streamflow [3,4]. For climatic factors, precipitation ( P ) and potential evapotranspiration ( E 0 ) are considered to be two major factors that cause fluctuations in the hydrological cycle [5,6]. Integrative other factors consist of a wide range of controls, and the components often vary across regions characterized by different climatic conditions [7]. A correct assessment of the effects of the two types of factors on runoff requires a good understanding of the physical nature of the water and energy balance between the Earth’s surface and the atmosphere, which accounts for the partition of precipitation into evaporation ( E ) and runoff ( Q ) [8,9].
Budyko frameworks couple the water and energy balances [10], estimating that the long-term annual average E is primarily controlled by available water, i.e., P , and energy, i.e., E 0 [11,12]. This framework quantifies impacts of changes in climatic and other factors on runoff [1,2,3,4,5,6,7,8,9]. Particularly, the parametric Budyko frameworks [13,14,15] that integrate the elasticity method [16] are often used to assess the climate elasticity and joined influence of other factors on runoff [1,2,3,4,5,6]. A vast amount of applications has shown that the Budyko frameworks are efficient and robust in assessing the water-energy balance problems and hydrological responses at various scales of time and space [6,7,8,9,10,11].
Alpine glaciers are important natural solid reservoirs because they contribute considerably to the water supply in many catchments across the world [17]. However, global warming seems to have enhanced glaciers’ melting [18] and their contribution to a rise in global sea level [19] and runoff [20]. At a basin scale, the enhanced glacier melting may change the water-energy balance by lowering the ice surface albedo, which in turn induces faster melting and snow to rain transitions [21]. This makes ice caps in glacierized basins further vulnerable to warming. One of the anticipated trends is that shrinking glaciers augment runoff in the first instance, then induce water deficiency, if water from other sources remain unchanged [22]. Enhanced glacier wasting thus challenges the water resources sustainability in the long term [23] and raises a strong concern about the future function of glaciers as a source of freshwater [22].
The arid regions in northwest China are characterized by fragile ecosystem and scarce water resources [23]. Warming-induced water issues are very distinct in these regions [24,25], especially across basins where glacier and snow melt provide important input to surface runoff. Remarkable shrinking in alpine glaciers and associated changes in water resources have been reported [18,22]. For example, glaciers in the Tianshan Mountains have been retreating since the mid-nineteenth century [22], resulting in significant changes in runoff in many inland rivers across Central Asia [26,27]. Moreover, changes in water availability caused by other factors cannot also be ignored [23,25]. With the impact of warming, the effect of precipitation, glacier melting, and other factors on runoff tend to be amplified [28]. Therefore, it is crucial to identify runoff response to warming and understand the local effects of glacier wasting on river flow.
The objective of this study is to examine the spatial heterogeneity of factors responsible for runoff availability in arid water tense regions, where the water resource system relies on precipitation and meltwater from glacier and snowpack. Toward this end, this study selected the Urumqi River basin located in the arid region of northwest China as the study area. The Urumqi River is the lifeblood of many communities in this region, and a good case where basin characteristics differ significantly spatially and where management strategies need to be carefully issued. In addition, the distinct glacier wastage, i.e., the wastage of the Glacier No.1 at the headwaters of the Urumqi River basin, has received much attention [29], and understanding its implication for water resources in the water scares glacierized basin is essential [30]. Such an investigation can help us to see clearly the situations in the past and serve the water management strategies in the future.

2. Methods and Materials

2.1. Water Balance Equation

Over a long-term scale, water–energy balance in a catchment can be expressed as:
P = E + Q + Δ S
where Δ S is the change in moisture storage of glacier, snow, and groundwater.
Hydrological attributes of the glacierized basins vary from that of the non-glacierized basins because the existence of ice and snow [31]. In the glacierized upper reach zone of the Urumqi River basin (Figure 1a), the contribution of the glacier melting to runoff should be considered, which is represented by Δ S in Equation (1). In the non-glacierized mid and lower reach zones (Figure 1a), water balance depends mainly on the partition of precipitation into E and Q , Δ S can be assumed to be zero on a long-term basis [11].

2.2. Budyko Framework

Assume that the available water is represented by P and the energy is measured as E 0 , the functional relationship between E and P can be expressed as:
E = E 0 ( 1 + P E 0 ( 1 + ( P E 0 ) m ) 1 / m )
where m represents the watershed properties, including all factors other than the climatic variables of P and E 0 , such as vegetation cover [32,33], soil water [34], topography [35], temperature [36], effects of CO2 on plant water use [37], population density [8], irrigation [38], and construction of reservoirs [4,38].
The Budyko framework estimates the impacts of climate change and other factors on runoff regime by the partial derivatives of streamflow with respect to the target variables, which is generally referred to as elasticity [16]. Combining water balance equation, Equation (1), and the Budyko curve, Equation (2), the streamflow of a watershed can be expressed as:
Q ( P , E 0 , m ) = P ( E 0 P + ( 1 + ( E 0 P ) m ) 1 m )
Berghuijs et al. (2017) derived the elasticity of streamflow to climatic variables and watershed properties as follows [1]:
ξ ( Q , P ) = Q P   P Q = ( ( E 0 / P ) m + 1 ) 1 m 1 E 0 / P + ( 1 + ( E 0 / P ) m ) 1 / m
ξ ( Q , E 0 ) = Q E 0   E 0 Q = ( E 0 / P ) m ( ( E 0 / P ) m + 1 ) 1 m 1 E 0 / P E 0 / P + ( 1 + ( E 0 / P ) m ) 1 / m
ξ ( Q , m ) = Q m   m Q = ( 1 + ( E 0 / P ) m ) 1 / m ( ( E 0 / P ) m ln ( E 0 / P ) 1 + ( E 0 / P ) m ln ( 1 + ( E 0 / P ) m ) m ) E 0 / P + ( 1 + ( E 0 / P ) m ) 1 / m
Equations (4)–(6) account for the relative change in runoff due to relative changes in P , E 0 , and other factors, respectively.
Obviously, to calculate the change in runoff due to shifts in climate and other factors, the basin characteristic parameter, i.e., m , must be estimated first. Usually, the basin characteristic parameter is estimated using a nonlinear least square regression model, e.g., Equations (2) or (3). In this paper, calibration of the regression is made by minimizing the difference between water balance based and simulated E [39], and the accuracy was tested using the coefficient of determination (R2), the Nash–Sutcliffe efficiency (NSE) and the root mean square error (RMSE).
After clarifying the elasticity of runoff to climatic and other factors, the most important control on runoff can be distinguished from those having the least importance by evaluating the relative importance of each factor to runoff as:
ε x = | ξ ( Q , x ) | | ξ ( Q , P ) | + | ξ ( Q , E 0 ) | + | ξ ( Q , m ) |
where ε x is the relative sensitivity of runoff to a given factor, and varies from zero to one; the ε p , ε E 0 , and ε m are summed up to a unity. The higher the value of the relative importance, the stronger the influence from an investigated factor on runoff [1].

2.3. Galcier-Melt Contribution

Change in glacier mass balance can be used to explain glacier wasting contribution to runoff [40,41]. Among all existing glaciers in the mountainous catchment of the Urumqi River basin, the Glacier No.1 has the longest continuing series of mass balance measurements starting in the 1950s. It is a northwest-facing valley glacier, with elevations ranging between 3740–4486 m [42], and representative among the existing glaciers in the arid region of northwest China [43]. We use the mass balance measurements of the Glacier No.1 to estimate the melting of entire glaciers in the basin. For this purpose, the mass balance of the Glacier No.1 [44,45,46,47] is extrapolated to the entire glaciers in the mountainous catchment using an area proportion method [48]. The area of the Glacier No.1 [29,47,49,50,51] and that of the entire glaciers in the Urumqi River basin [52] are collected from the existing literature, and time series glacier areas are interpolated using the rate of area change between two given time periods. Finally, the estimated mass balance of the entire glaciers was converted into runoff depth, and its contribution to the runoff at the river outlet is estimated.

2.4. The Urumqi River Basin

The Urumqi River basin is located in the northern slopes of the Tianshan Mountains in China and covers 4684 km2 (Figure 1). The Urumqi River originates from the Glacier No.1 in the Tianshan Mountains in China and flows northward through the city of Urumqi. It has a total length of 214 km before disappearing in the northwestern Gurbantunggut Desert [53]. With respect to the climatic and hydrological conditions, the basin can be divided into three zones: the upper, mid, and lower reach zones (Figure 1a) [54,55]. The upper reach zone, Daxigou, spreads from the river heads to the Baiyanggou confluence and has a total area of approximately 1488 km2. The mid reach, named the Urumqi River, starts from the Baiyanggou confluence, flows through the city of Urumqi, and ends near the Mengjin reservoir. This zone covers an area of 2437 km2. The lower reach, named the Laolong River, refers to the section to the north of the Mengjin Reservoir. This section has an area of 773 km2.
To date, the mountainous upper reach zone has been minimally affected by human activities, while the mid and lower reach zones are highly impacted by urbanization, agricultural, and industrial activities. For example, the streams in the mid and lower reach zones are now maintained as irrigation channels and supply water to a number of small reservoirs. It should also be noted that the segmentation of the basin reaches considers both the natural boundaries of the catchments and the practical segmentation of the three reaches in the Urumqi River basin [54,55]. By doing so, the basin segmentation has practical meaning, and the subsequent results will be more applicable to water resources management in this basin.

2.5. Hydrometeorological Data

The runoff data were collected from the Yingxiongqiao hydrological station and spanned from 1962 to 2012. Since there are no regular hydrological stations in the mid and lower reach zones, river runoff for the mid and lower reach zones are extrapolated using the observed runoff from the upper reach zone. The relevant long-term average annual runoff records at the mid and lower reach zones are obtained from “The Urumqi River Basin Chronicles” [55]. A detailed description of the extrapolation method is described in Appendix A.
The meteorological data from seven national meteorological stations scattered along the river course were provided by the National Meteorological Information Center of China. These meteorological stations are as follows: (1) Daxigou and Mushizhan, located in the upper reach zone; (2) Urumqi and Changji in the mid reach zone; and (3) Caijiahu, Fukang, and Miquan, located near the lower reach zone. Based on the collected meteorological data, daily E 0 at the Daxigou, Mushizhan, Urumqi, Caijiahu and Miquan stations is estimated using the FAO Pennman–Monteith method. Given the lack of observed wind speed and humidity at the Fukang and Changji stations, the temperature-based method [56] is employed to estimate daily E 0 at these two stations. Daily E 0 is aggregated to obtain annual values for analysis. The mean annual E is estimated considering the glacier ablation in the upper reach zone and as the difference between P and Q in the mid and lower reach zones. A summary of the hydrometeorological variables used in this study is presented in Table 1.

2.6. Basin Characteristics

For a given region, aridity index ( φ ) can be related to the characteristics of regional climate types [13,50]. Regions where φ is greater than unity (water limited) are generally classified as dry since the atmospheric evaporative demand cannot be met by precipitation [8,11]. Conversely, regions where φ is less than unity (energy limited) are described as wet since the available energy is insufficient for evaporating all coming precipitation [8,11]. Thus, studies have proposed that aridity can reflect the characteristics of regional climate types and that the aridity within the range of 12 > φ 5 , 5 > φ 2 , 2 > φ 0.75 , and 0.75 > φ 0.375 can represent the arid, semiarid, subhumid, and humid regions, respectively [11]. Table 1 shows that the Urumqi River basin is characterized by a semiarid climate with a basin-wide average aridity of 4.1. However, there are noticeable differences in aridity index among different subzones, which vary between 1.5 and 6.1. Based on the aforementioned classification criteria, the upper, mid, and lower reach zones of the Urumqi River basin can be characterized as subhumid, semiarid, and arid zones, respectively. Thus, the runoff sensitivity to changes in climatic and other factors can be separately analyzed. These three reaches, by their up-to-date characteristics, can be described as mountainous zone, urban areas, and near-desert zone.

3. Results

3.1. Simulation of Water-Energy Balance

The basin characteristic parameter m was estimated for each climatic station and spatially averaged across each zone to evaluate the zonal value (Table 2). Within the Budyko framework, the parameter m is essential to accurately assessing the water balance, and spatial variation in this parameter is affected by the properties of underlying surface [57]. Our results show that the basin parameter m varies noticeably between 1.86 and 2.49 across the three subzones, suggesting that the underlying surface and climatic conditions differ across space in the Urumqi River basin.
The Budyko framework with the zone-specific m values simulates the water-balance based evaporation with considerably high accuracy (Figure 2 and Table 2). It can be seen that the evaporation derived, respectively, from the water balance equation and Budyko framework exhibits good agreement with R2 ranging from 0.80 to 0.99, NSE from 0.54 to 0.99, and RSME from 4.58 to 53.00 mm. However, compared with the upper reach mountainous watershed, the mid and lower reach zones have higher simulation accuracies with greater R2 and NSE, and smaller RSME.

3.2. Major Controls on Runoff across Heterogeneous Subzones

Table 2 shows the elasticity of runoff to climatic and other factors. It can be seen that in the headwaters of the Urumqi River basin, the elasticity of runoff to P and E 0 is 1.64 and −0.64, respectively, implying that a 10% increase in mountain precipitation would increase runoff by 16.4% on average, while a 10% increase in E 0 would decrease streamflow by 6.4%. In the mid reach zone, the average elasticity of runoff to P and E 0 is 1.96 and −0.96, respectively, indicating that a 10% increase in P would increase runoff nearly by 20%, while a 10% increase in E 0 would decrease runoff approximately by 10%. When compared with those of the upper and mid reach zones, the lower reach zone has greater P and E 0 elasticity, which are 2.48 and −1.48, respectively. Regarding the impacts of other factors, the elasticity of runoff to other factors is higher than that of the climatic factors, especially in the mid and lower reach zones where the climate is drier. As shown in Table 2, for each 10% change in other factors, the runoff decreases by 13.5%, 40.8%, and 52.1% in the upper, mid, and lower reach zones, respectively.
To discern the major controls on runoff in different zones, the relative importance was calculated using Equation (7), and the results are shown in Figure 3. It can be seen that both P and other factors play important roles in the runoff regime in the glacierized headwaters with greater impact from P . For example, the relative sensitivity of runoff to changes in P and other factors are 45% and 37%, respectively. For the mid and lower reach zones, the impact of other factors is stronger than that of P and E 0 . Noticeably, in the mid and lower reach zones, changes in other factors account for major variation, i.e., nearly 60%, in runoff, and the variation in climatic variables becomes less significant. In particular, the relative importance of E 0 is small across the basin, which is less than 20%, indicating that the effect of change in E 0 on runoff may not be significant.

3.3. Glacier Wasting Contribution to Runoff

There was a total of 155 glaciers at the headwaters of the Urumqi River basin in the 1960s [52]. However, the glacier area decreased from 48.04 km2 to 23.61 km2, for the entire basin, and from 1.95 km2 to 1.59 km2, for the Glacier No.1 at the headwaters, between 1960s and early 2010s (Table 3). The consecutive retreat of the Glacier No.1 has been observed, with a faster shrinkage beginning in 1990s, resulting in the glacier body completely separated into two small glaciers, the west and east branches, in 1993 [29]. In addition, most pronounced shrinkage or disappearance is found on smaller glaciers due to the greater sensitivity of small and fragile glaciers to warming [22].
The changes in glacier mass balance shows a mostly negative balance in the Urumqi River basin (Figure 4), suggesting a glacier wastage. According to the records on the Glacier No.1, nearly 70% of observed values revealed glacier mass losses, which began to augment in mid-1980s, especially pronounced after mid-1990s, and largest in 2010, when the mass balance for the Glacier No.1 was −219 × 104 m3 water equivalent (w.e.).
Certain proportion of the surface streamflow is fed by glacier melting in the Urumqi River basin [48]. Our results showed that the annual glacier mass loss contribution to the runoff at the river outlet does not exceed 15% between 1960 and 2012 (Figure 5a), with an average of nearly 7% each year (averaged for the years with negative mass balances). Particularly, the contribution of glacier wasting to runoff has augmented since mid-1990s (Figure 5a), and the decadal average contribution reached its highest value, which is 9.5%, in the 2000s (Figure 5b).

4. Discussion

Climatic factors (i.e., P ) are the dominant controls on runoff in the mountainous catchment of the Urumqi River basin. This is consistent with the findings of Chen et al. (2012) and Ma et al. (2008) for mountainous catchments in arid settings which are close to the Urumqi River basin [58,59]. The significance of P and other factors were also stressed by He et al. (2019), indicating that P and changes in basin characteristics have the strongest control on the runoff availability in northwest China [60]. Existence of glaciers is one of the important features of basin characteristics across the mountainous catchment in the arid regions of northwest China. In addition to climate variables, one of the most important factors which might influence runoff is the change in glacier melting. Previous studies have shown that change in glaciers melting affects river flow [30], and has become one of the critical controls on runoff perturbations in the Urumqi River basin [25]. However, mountain glaciers across the world have experienced a general recession under warming since the early twentieth century, due to their strong dependency on climatic conditions [18]. The observed drastic warming in the arid regions of northwest China [24] also exacerbated the fragility of mountain glaciers in this region. For example, an intensive glacier retreat was found in the southeast Tibetan Plateau and Karakorum Mountains in the northwest China [30]. Sun et al. (2013) found that the Glacier No.1 in the headwaters of the Urumqi River basin shrank by approximately 15% during last five decades [29]. Li et al. (2011) reported that smaller glaciers in an area of 0.5 km2 on the Eastern Tianshan Mountains had shrunk or even disappeared at the same time period [61]. Particularly, the impact of warming on the glaciers is pronounced after 1990s in the northwest China and has led to a great amount of glacial volume loss [30,41]. We found that ablation of the Glacier No.1 has accelerated since mid-1980s and especially pronounced after mid-1990s. Li et al. (2011) also found that the acceleration of the mass loss for the Glacier No.1 commenced first in 1985 and further augmented in 1996 [62]. Such a phenomenon may be related to the albedo reduction at the ice surface caused by the augmentation of mineral and organic dust [63] and/or warming in the melting season [22,30]. In addition, Braithwaite and Raper (2007) argued that [19] glaciers in dry-cold climate have lower mass balance sensitivity to changes in precipitation and air temperature than those in warm-wet climate. The acceleration of glacier ablation in the Urumqi River basin thus might reflect the observed climate shift from warm-dry to warm-wet in the arid regions of northwest China [64]. However, due to the enhanced glacier melting, the glacier wasting contribution to runoff has increased by more than 5.5% since the 1990s in the northwest China [30]. In the Urumqi River basin, we found that the glacier wasting contribution to runoff has increased considerably since min-1990s, i.e., 1996, which concurs with the findings of Sun et al. (2013) [29]. As to the magnitude of this contribution, Shi et al. (1992) estimated that glacier melting in the Urumqi River basin contributes approximately 8.7% to the total runoff, which is close to our results [48].
In the mid and lower reach zones, impacts of changes in basin characteristics, which is represented by the parameter m in the Budyko framework, plays an important role in runoff fluctuation. Changes in basin characteristics, to some degree, can be explained by the changes in land use and land cover, since surface conditions reflect basin properties [2], and some other factors, such as population growth [8]. Land surface conditions in the Urumqi River basin have experienced drastic changes (Figure 1b,c) over the last few decades [65]. For example, the expansion of settlements was evident in the mid and lower reach zones [66]. Especially, the areal extensions of settlements, water body, and glacier had exhibited remarkable variations. The settlements were mainly distributed in the urbanized mid reach zone before 1980; however, over the recent 35 years, the area of settlements in the mid reach zone expanded while new settlements were also developed in the lower reach zone; the total area of settlements in Urumqi River basin, therefore, increased by around 200% in comparison to the areal extension in 1980 (Table 4). The expansion of settlements implies, undoubtedly, that human interferences and their impacts on the surface condition had been growing. For example, without much increase in total available runoff in the basin, there is nearly 23 times more population in the Urumqi River basin in the early 2010s than it was in early 1950s [67,68], implying huge increase in water consumption due to a larger population. This can support our results that the influences of non-climatic factors are dominant on water availability in the mid and lower reach zones. Other studies also found that human interferences are the major cause of streamflow perturbations in the downstream of water tense arid inland river basins [69,70,71].

5. Conclusions

Surface runoff across the glacierized inland river basins are extremely fragile to variation in climatic and other factors. Identifying the major controls on runoff has important implication for water resources management in these regions. In the glacierized mountainous catchments of the Urumqi River basin, runoff variation is most sensitive to change in P , and followed by the impact of change in basin characteristics. Across the drier mid and lower reach zones, variation in basin characteristics plays a dominant role and accounts for nearly 60% of the change in runoff alteration. In addition, the enhanced glacier recession represents the most pronounced change in basin characteristics in the mountainous upper reach zone, whereas human interferences are dominant in the mid and lower reach zones. In the long term, the enhanced glacier wasting contributes around 7% to the annual runoff in the Urumqi River basin. Our results highlight that the major control on runoff varies noticeably over the heterogeneous basin surface, and is needed to be identified separately. In addition, the importance of change in glacier melting and intensity of human interferences should be considered in water resources management over the arid inland glacierized river basins.

Author Contributions

M.S. finished data collection, calculation, and original draft preparation; G.T. analyzed the results and edited the manuscript; H.F. finished data processing and formula analysis. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the national key research and development program of China (Grant No. 2017YFC0405900), the National Natural Science Foundation of China (Grant No. 41901033), Basic Research Fund for Young Scholars at Sun Yat-sen University (Grant No. 191gpy57), and China postdoctoral science foundation (Grant No:2020M672940).

Acknowledgments

The land use/land cover data with spatial resolution of 30 m × 30 m in 1980 and 2015 were obtained from the Data Center of Resources and Environment, Chinese Academy of Sciences; data developers are specified in reference [65]. The meteorological data were obtained from National Meteorological Information Center of China (http://data.cma.cn/en). The mass balance data of the Glacier No.1 at the headwaters of the Urumqi River basin is provided by the National Cryosphere Desert Data Center, China (www.ncdc.ac.cn); data developers are specified in references [44,45]. The population data were collected from the Xinjiang Statistical Yearbook, compiled by the Statistics Bureau of Xinjiang Uygur Autonomous Region.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A. Extrapolation of Runoff across the Three Reaches

Hydrological stations are sparse in the inland river basins in the northwest China. Usually, there is one hydrological station available at the river outlet, and calculating the runoff depth at the remainder of the basin is challenging. In the Urumqi River basin, the Yingxiongqiao station is available at the upper reach. Thus, for the upper reach, the below equation is used to calculate the runoff depth by spreading the observed runoff at the hydrological station over the contributing area as:
Q u =   Q   A u
where Q u is the runoff depth at the upper reach (mm), Q is runoff observation at the hydrological station (mm3), and A u is the runoff contributing area of the upper reach (mm2).
In the mid and lower reach zones, a number of seasonal streams contribute to the streamflow. Because observations are scare, streamflow for the mid and lower reach zones are extrapolated, respectively, using the observed runoff from the upper reach zone. For this purpose:
First, the ratio of long-term average annual runoff at the upper reach over the long-term average annual runoff at the mid and lower reaches are calculated respectively as:
C m = Q ¯ m Q ¯
C l = Q ¯ l Q ¯
where Q ¯ , Q ¯ m , and Q ¯ l are, respectively, long-term average annual runoff at the upper, mid, and lower reaches of the Urumqi River basin (mm).
Second, the annual runoff at the upper reach was multiplied by the runoff ratio of mid and lower reaches to estimate the annual runoff at mid and lower reaches respectively as:
Q m i = C m Q i
Q l i = C l Q i
where Q i is the given annual runoff at the upper reach (mm). Q m i and Q l i are, respectively, the annual runoff at the mid and lower reaches (mm).
Finally, the annual runoff depths of mid and lower reach zones were calculated, respectively, by multiplying the annual runoff and the areal ratio, which is the ratio of the runoff contributing area over the zone area as:
R m i = Q m i A m
R l i = Q l i A l
where R m i and R l i are annual runoff depth for the mid and lower reaches (mm), and A m and A l are the areal ratios for the mid and lower reaches, respectively, without unit.

References

  1. Berghuijs, W.R.; Larsen, J.R.; van Emmerik, T.H.M.; Woods, R.A. A global assessment of runoff sensitivity to changes in precipitation, potential evaporation, and other factors. Water Resour. Res. 2017, 53, 8475–8486. [Google Scholar] [CrossRef]
  2. Liu, J.; Zhang, Q.; Singh, V.P.; Shi, P. Contribution of multiple climatic variables and human activities to streamflow changes across China. J. Hydrol. 2017, 545, 145–162. [Google Scholar] [CrossRef]
  3. Sun, Y.; Tian, F.; Yang, L.; Hu, H. Exploring the spatial variability of contributions from climate variation and change in catchment properties to streamflow decrease in a mesoscale basin by three different methods. J. Hydrol. 2014, 508, 170–180. [Google Scholar] [CrossRef]
  4. Zhao, G.; Tian, P.; Mu, X.; Jiao, J.; Wang, F.; Gao, P. Quantifying the impact of climate variability and human activities on streamflow in the middle reaches of the Yellow River basin, China. J. Hydrol. 2014, 519, 387–398. [Google Scholar] [CrossRef]
  5. Wang, X. Advances in separating effects of climate variability and human activity on stream discharge: An overview. Adv. Water Resour. 2014, 71, 209–218. [Google Scholar] [CrossRef]
  6. Zhang, L.; Potter, N.; Hickel, K.; Zhang, Y.; Shao, Q. Water balance modeling over variable time scales based on the Budyko framework–Model development and testing. J. Hydrol. 2008, 360, 117–131. [Google Scholar] [CrossRef]
  7. Padrón, R.S.; Gudmundsson, L.; Greve, P.; Seneviratne, S.I. Large-scale controls of the surface water balance over land: Insights from a systematic review and meta-analysis. Water Resour. Res. 2017, 53, 9659–9678. [Google Scholar] [CrossRef]
  8. Wang, D.; Hejazi, M. Quantifying the relative contribution of the climate and direct human impacts on mean annual streamflow in the contiguous United States. Water Resour. Res. 2011, 47. [Google Scholar] [CrossRef]
  9. Xu, X.; Liu, W.; Scanlon, B.R.; Zhang, L.; Pan, M. Local and global factors controlling water-energy balances within the Budyko framework. Geophys. Res. Lett. 2013, 40, 6123–6129. [Google Scholar] [CrossRef]
  10. Greve, P.; Gudmundsson, L.; Orlowsky, B.; Seneviratne, S.I. Introducing a probabilistic Budyko framework. Geophys. Res. Lett. 2015, 42, 2261–2269. [Google Scholar] [CrossRef]
  11. Arora, V.K. The use of the aridity index to assess climate change effect on annual runoff. J. Hydrol. 2002, 265, 164–177. [Google Scholar] [CrossRef]
  12. Andréassian, V.; Mander, Ü.; Pae, T. The Budyko hypothesis before Budyko: The hydrological legacy of Evald Oldekop. J. Hydrol. 2016, 535, 386–391. [Google Scholar] [CrossRef]
  13. Fu, B. On the calculation of the evaporation from land surface. Sci. Atmos. Sin. 1989, 5, 23–31. [Google Scholar]
  14. Yang, H.; Yang, D.; Lei, Z.; Sun, F. New analytical derivation of the mean annual water-energy balance equation. Water Resour. Res. 2008, 44, W03410. [Google Scholar] [CrossRef]
  15. Zhang, L.; Dawes, W.R.; Walker, G.R. Response of mean annual evapotranspiration to vegetation changes at catchment scale. Water Resour. Res. 2001, 37, 701–708. [Google Scholar] [CrossRef]
  16. Sankarasubramanin, A.; Vogel, R.M.; Limbrunner, J.F. Climate elasticity of streamflow in the United States. Water Resour. Res. 2001, 37, 1771–1781. [Google Scholar] [CrossRef]
  17. Yang, Z. Glacier meltwater runoff in China and its nourishment to river. Chin. Geogr. Sci. 1995, 5, 66–76. [Google Scholar] [CrossRef]
  18. Roger, G.B. The status of research on glaciers and global glacier recession: A review. Prog. Phys. Geogr. 2006, 30, 285–306. [Google Scholar] [CrossRef]
  19. Braithwaite, R.J.; Raper, S.C.B. Glaciological conditions in seven contrasting regions estimated with the degree-day model. Ann. Glaciol. 2007, 46, 297–302. [Google Scholar] [CrossRef]
  20. Neal, E.G.; Hood, E.; Kathy, S. Contribution of glacier runoff to freshwater discharge into the Gulf of Alaska. Geophys. Res. Lett. 2010, 37, L06404. [Google Scholar] [CrossRef]
  21. Fujita, K.; Ohta, T.; Ageta, Y. Characteristics and climatic sensitivities of runoff from a cold-type glacier on the Tibetan Plateau. Hydrol. Process. 2007, 21, 2882–2891. [Google Scholar] [CrossRef]
  22. Sorg, A.; Bolch, T.; Stoffel, M.; Solomina, O.; Beniston, M. Climate change impacts on glaciers and runoff in Tien Shan (Central Asia). Nat. Clim. Chang. 2012, 2, 725–731. [Google Scholar] [CrossRef]
  23. Chen, Y.; Li, B.; Fan, Y.; Sun, C.; Fang, G. Hydrological and water cycle processes of inland river basins in the arid region of Northwest China. J. Arid Land 2019, 11, 161–179. [Google Scholar] [CrossRef]
  24. Li, B.; Chen, Y.; Shi, X. Why does the temperature rise faster in the arid region of northwest China? J. Geophys. Res. Atmos. 2012, 117, D16115. [Google Scholar] [CrossRef]
  25. Chen, Y.; Li, Z.; Fan, Y.; Wang, H.; Fang, G. Research progress on the impact of climate change on water resources in the arid region of Northwest China. Acta Geogr. Sin. 2014, 69, 1295–1304. [Google Scholar] [CrossRef]
  26. Duethmann, D.; Bolch, T.; Farinotti, D.; Kriegel, D.; Vorogushyn, S.; Merz, B.; Pieczonka, T.; Jiang, T.; Su, B.; Guntner, A. Attribution of streamflow trends in snow and glacier melt-dominated catchments of the Tarim River, Central Asia. Water Resour. Res. 2015, 51, 4727–4750. [Google Scholar] [CrossRef]
  27. Gao, X.; Ye, B.; Zhang, S.; Qiao, C.; Zhang, X. Glacier runoff variation and its influence on river runoff during 1961–2006 in the Tarim River Basin, China. Sci. China Earth Sci. 2010, 53, 880–891. [Google Scholar] [CrossRef]
  28. Seoane, R.; López, P. Assessing the effects of climate change on the hydrological regime of the Limay River basin. GeoJournal 2008, 70, 251–256. [Google Scholar] [CrossRef]
  29. Sun, M.; Li, Z.; Yao, X.; Jin, S. Rapid shrinkage and hydrological response of a typical continental glacier in the arid region of northwest China-taking Urumqi Glacier No.1 as an example. Ecohydrology 2013, 6, 909–916. [Google Scholar] [CrossRef]
  30. Yao, T.; Wang, Y.; Liu, S.; Pu, J.; Shen, Y.; Lu, A. Recent glacial retreat in High Asia in China and its impact on water resource in Northwest China. Sci. China Ser. D Earth Sci. 2004, 47, 1065–1075. [Google Scholar] [CrossRef]
  31. Willis, I. Hydrology of glacierized basins. In Encyclopedia of Hydrological Sciences; University of Cambridge: Cambridge, UK, 2006. [Google Scholar]
  32. Donohue, R.J.; Roderick, M.L.; McVicar, T.R. On the importance of including vegetation dynamics in Budyko’s hydrological model. Hydrol. Earth Syst. Sci. 2006, 3, 1517–1551. [Google Scholar] [CrossRef]
  33. Li, D.; Pan, M.; Cong, Z.; Zhang, L.; Wood, E. Vegetation control on water and energy balance within the Budyko framework. Water Resour. Res. 2013, 49, 969–976. [Google Scholar] [CrossRef]
  34. Donohue, R.J.; Roderick, M.L.; McVicar, T.R. Roots, storms and soil pores: Incorporating key ecohydrological processes into Budyko’s hydrological model. J. Hydrol. 2012, 436–437, 35–50. [Google Scholar] [CrossRef]
  35. Devito, K.; Creed, I.; Gan, T.; Mendoza, C.; Petrone, R.; Silins, U.; Smerdon, B. A framework for broad-scale classification of hydrologic response units on the Boreal Plain: Is topography the last thing to consider? Hydrol. Process. 2005, 19, 1705–1714. [Google Scholar] [CrossRef]
  36. Milly, P.C.D.; Kam, J.; Dunne, K.A. On the sensitivity of annual streamflow to air temperature. Water Resour. Res. 2018, 54, 2624–2641. [Google Scholar] [CrossRef]
  37. Roderick, M.L.; Farquhar, G.D. A simple framework for relating variations in runoff to variations in climatic conditions and catchment properties. Water Resour. Res. 2011, 47. [Google Scholar] [CrossRef]
  38. Jaramillo, F.; Destouni, G. Developing water change spectra and distinguishing change drivers worldwide. Geophys. Res. Lett. 2014, 41, 8377–8386. [Google Scholar] [CrossRef]
  39. Bai, P.; Liu, X.; Zhang, D.; Liu, C. Estimation of the Budyko model parameter for small basins in China. Hydrol. Process. 2020, 34, 125–138. [Google Scholar] [CrossRef]
  40. Braithwaite, R.J.; Hughes, P.D. Regional geography of glacier mass balance variability over seven decades 1946–2015. Front. Earth Sci. 2020, 8, 302. [Google Scholar] [CrossRef]
  41. Radić, V.; Hock, R. Glaciers in the earth’s hydrological cycle: Assessments of glacier mass and runoff changes on global and regional scales. Surv. Geophys. 2014, 35, 813–837. [Google Scholar] [CrossRef]
  42. Li, X.; Ding, Y.; Ye, B.; Han, T. Changes in physical features of Glacier No.1 of the Tianshan Mountains in response to climate change. Chin. Sci. Bull. 2011, 56, 2820–2827. [Google Scholar] [CrossRef]
  43. Liu, S.; Xie, Z.; Wang, N.; Ye, B. Mass balance sensitivity to climate change: A case study of the Glacier No.1 at Urumqi riverhead, Tianshan Mountains, China. Chin. Geogr. Sci. 1999, 9, 134–140. [Google Scholar] [CrossRef]
  44. Li, Z.; Wang, F. Mass Balance of the Glacier No.1 at the Headwater of Urumqi River during 1958–1995. National Cryosphere Desert Data Center. 2016. Available online: www.ncdc.ac.cn (accessed on 11 October 2016). [CrossRef]
  45. Li, Z.; Wang, F. Mass Balance of the Glacier No.1 at Urumqi Riverhead during 2006–2012. National Cryosphere Desert Data Center. 2016. Available online: www.ncdc.ac.cn (accessed on 28 September 2016). [CrossRef]
  46. Dong, Z.; Qin, D.; Ren, J.; Li, K.; Li, Z. Variations in the equilibrium line altitude of Urumqi Glacier No.1, Tianshan Mountains, over the past 50 years. Chin. Sci. Bull. 2012, 57, 4776–4783. [Google Scholar] [CrossRef]
  47. Li, Z.; Han, T.; Jin, Z.; Yang, H.; Jiao, K. A summary of 40-year observed variation facts of climate and Glacier No.1 at headwater of Urumqi River, Tianshan, China. J. Glaciol. Geocryol. 2003, 25, 117–123. [Google Scholar]
  48. Shi, Y. Formation and Estimation of Mountain Water Resources in the Urumqi River Basin; Science Press: Beijing, China, 2011; ISBN 7-03-003004-4/P.591. [Google Scholar]
  49. Hu, R. Physical Geography of the Tianshan Mountainous in China; China Environmental Science Press: Beijing, China, 2004; ISBN 7-80163-951-0/X.556. [Google Scholar]
  50. Wang, G.; Shen, Y. The effect of change in glacierized area on the calculation of mass balance in the Glacier No.1 at the headwaters of Urumqi River. J. Glaciol. Geocryol. 2011, 33, 1–7. [Google Scholar]
  51. Yao, H.; Li, Z.; Wang, P.; Huai, B.; Zhang, H. Area variation analysis of the Urumqi Glacier No.1 in the past 5 decades. Arid Zone Res. 2015, 32, 442–447. [Google Scholar] [CrossRef]
  52. Meng, Y.; Li, Z.; Xu, C.; Huai, B. Glacier change of Western China since the Little Ice Age: A case of the Urumqi River Watershed. Arid Land Geogr. 2016, 39, 486–494. [Google Scholar] [CrossRef]
  53. Saydi, M.; Ding, J.; Sagan, V.; Qin, Y. Snowmelt modeling using two melt-rate models in the Urumqi River watershed, Xinjiang Uyghur Autonomous Region, China. J. Mt. Sci. 2019, 16, 2271–2284. [Google Scholar] [CrossRef]
  54. Wang, S. The Complete Book of Rivers and Lakes, Xingjiang China; China Water & Power Press: Beijing, China, 2010; ISBN 9787508480336. [Google Scholar]
  55. Li, X. The Urumqi River Basin Chronicles; People’s Publishing House of Xinjiang, China: Urumqi, China, 2000; ISBN 7-228-05739-2/K.821. [Google Scholar]
  56. Hargreaves, G.H.; Allen, R.G. History and Evaluation of Hargreaves Evapotranspiration Equation. J. Irrig. Drain. Eng. 2003, 129, 53–63. [Google Scholar] [CrossRef]
  57. Liu, J.; Zhang, Q.; Singh, V.P.; Song, C.; Zhang, Y.; Sun, P.; Gu, X. Hydrological effects of climate variability and vegetation dynamics on annual fluvial water balance in global large river basins. Hydrol. Earth Syst. Sci. 2018, 22, 4047–4060. [Google Scholar] [CrossRef]
  58. Chen, Z.; Chen, Y.; Li, B. Quantifying the effects of climate variability and human activities on runoff for Kaidu River Basin in arid region of northwest China. Theor. Appl. Climatol. 2013, 111, 537–545. [Google Scholar] [CrossRef]
  59. Ma, Z.; Kang, S.; Zhang, L.; Tong, L.; Su, X. Analysis of impacts of climate variability and human activity on streamflow for a river basin in arid region of northwest China. J. Hydrol. 2008, 352, 239–249. [Google Scholar] [CrossRef]
  60. He, Y.; Jiang, X.; Wang, N.; Zhang, S.; Ning, T.; Zhao, Y.; Hu, Y. Changes in mountainous runoff in three inland river basins in the arid Hexi Corridor, China, and its influencing factors. Sustain. Cities Soc. 2019, 50. [Google Scholar] [CrossRef]
  61. Li, K.; Li, H.; Lin, W. On the relationship between local topography and small glacier change under climatic warming on Mt. Bogda, Eastern Tian Shan, China. J. Earth Sci. 2011, 22, 515–527. [Google Scholar] [CrossRef]
  62. Li, Z.; Li, H.; Chen, Y. Mechanisms and simulation of accelerated shrinkage of continental glaciers: A case study of Urumqi Glacier No.1 in Eastern Tianshan, Central Asia. J. Earth Sci. 2011, 22, 423–430. [Google Scholar] [CrossRef]
  63. Takeuchi, N.; Li, Z. Characteristics of surface dust on Urumqi Glacier No.1 in the Tien Shan Mountains, China. Arct. Antarct. Alp. Res. 2008, 40, 744–750. [Google Scholar] [CrossRef]
  64. Shi, Y.; Shen, Y.; Li, D. Discussion on the present climate change from warm-dry to warm-wet in northwest China. Quat. Sci. 2003, 23, 152–164. [Google Scholar] [CrossRef]
  65. Xu, X.; Liu, J.; Zhang, S.; Li, R.; Yan, C.; Wu, S. China’s Multi-Period Land Use Land Cover Remote Sensing Monitoring Dataset (CNLUCC); Resource and Environment Data Cloud Platform: Beijing, China, 2018. [Google Scholar] [CrossRef]
  66. Xie, J.; Zhao, Z. Temporal and spatial change of land use /cover in the area of lower reaches of the Urumqi River. Acta Sci. Nat. Univ. Pekin. 2010, 46, 358–364. [Google Scholar] [CrossRef]
  67. Statistics Bureau of Xinjiang Uygur Autonomous Region. Xinjiang Statistical Yearbook (1989); China Statistics Press: Beijing, China, 1989.
  68. Statistics Bureau of Xinjiang Uygur Autonomous Region. Xinjiang Statistical Yearbook (2013); China Statistics Press: Beijing, China, 2013.
  69. Dong, W.; Cui, B.; Liu, Z.; Zhang, K. Relative effects of human activities and climate change on the river runoff in an arid basin in northwest China. Hydrol. Process. 2014, 28, 4854–4864. [Google Scholar] [CrossRef]
  70. Tao, H.; Gemmer, M.; Bai, Y.; Su, B.; Mao, W. Trends of streamflow in the Tarim River Basin during the past 50 years: Human impact or climate change? J. Hydrol. 2011, 30, 1–9. [Google Scholar] [CrossRef]
  71. Xue, L.; Yang, F.; Yang, C.; Chen, X.; Zhang, L.; Chi, Y.; Yang, G. Identification of potential impacts of climate change and anthropogenic activities on streamflow alterations in the Tarim River Basin, China. Sci. Rep. 2017, 7, 8254. [Google Scholar] [CrossRef] [PubMed]

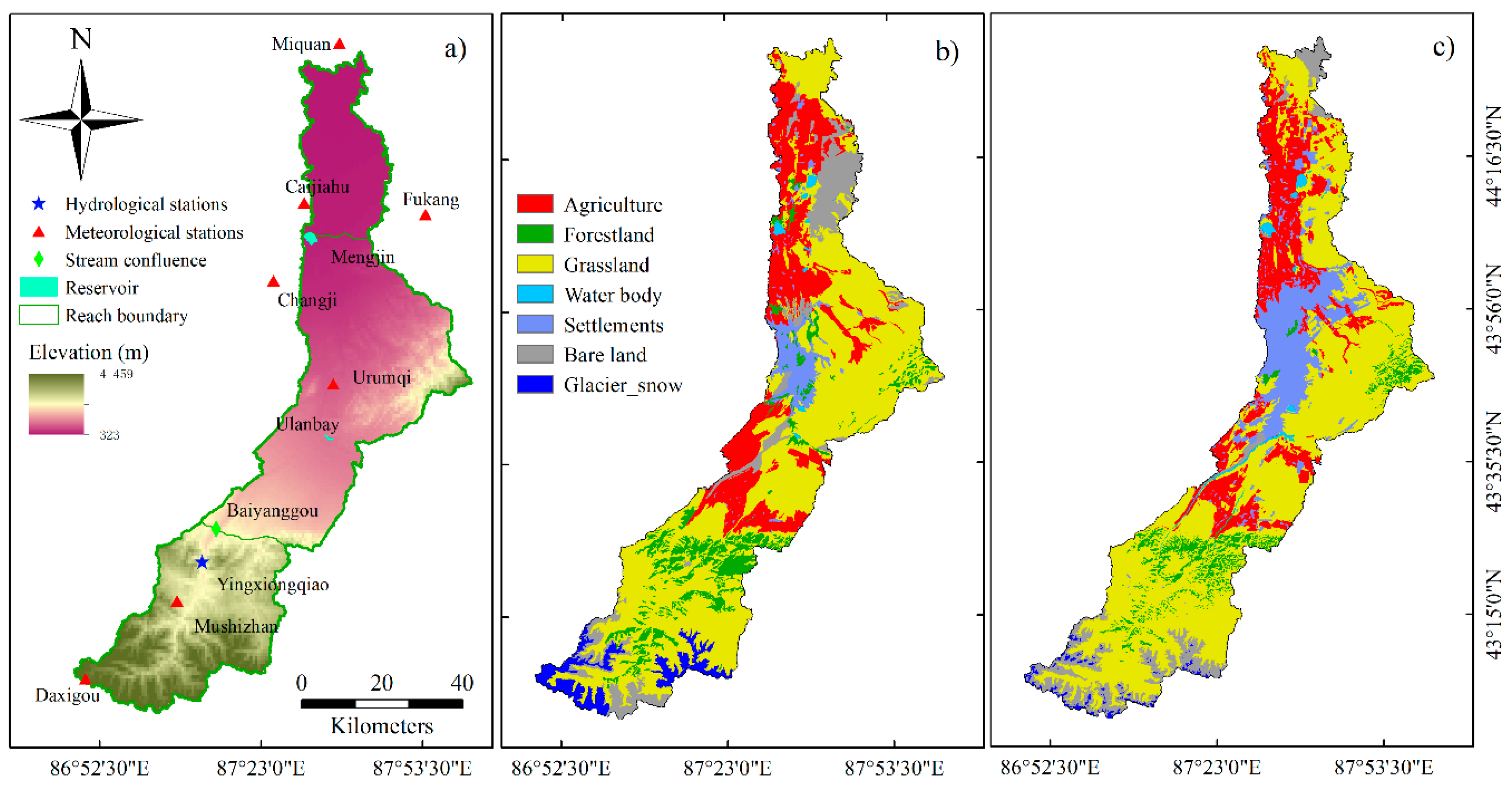

Figure 1. (a) Location of the Urumqi River basin and spatial layout of land surface condition in (b) 1980 and (c) 2015.
Figure 1. (a) Location of the Urumqi River basin and spatial layout of land surface condition in (b) 1980 and (c) 2015.
Water 12 03062 g001

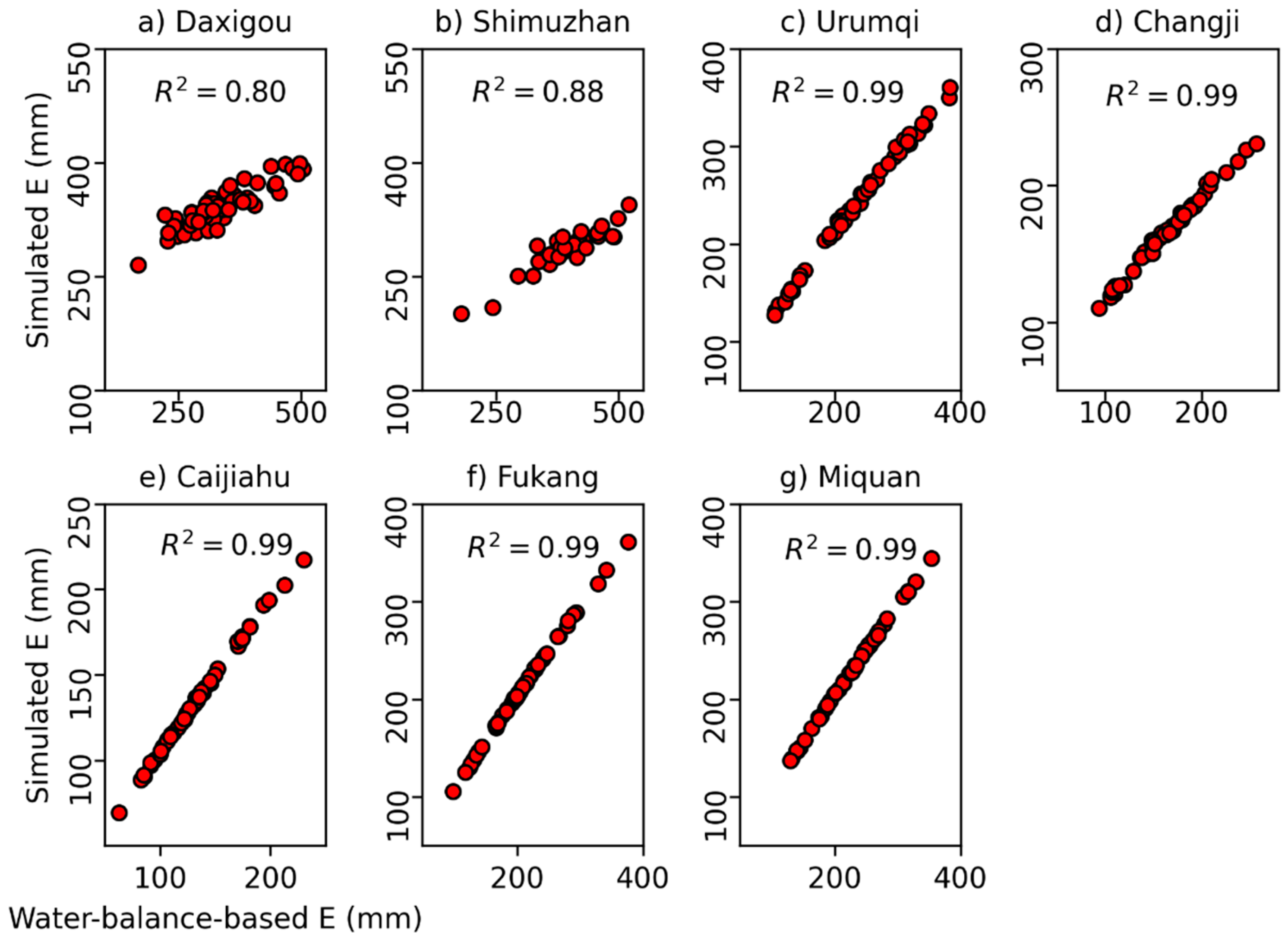

Figure 2. Comparison of the water-balance-based evaporation (x-axis) and simulated evaporation (y-axis) using Budyko framework across the representative climate stations in the basin.
Figure 2. Comparison of the water-balance-based evaporation (x-axis) and simulated evaporation (y-axis) using Budyko framework across the representative climate stations in the basin.
Water 12 03062 g002

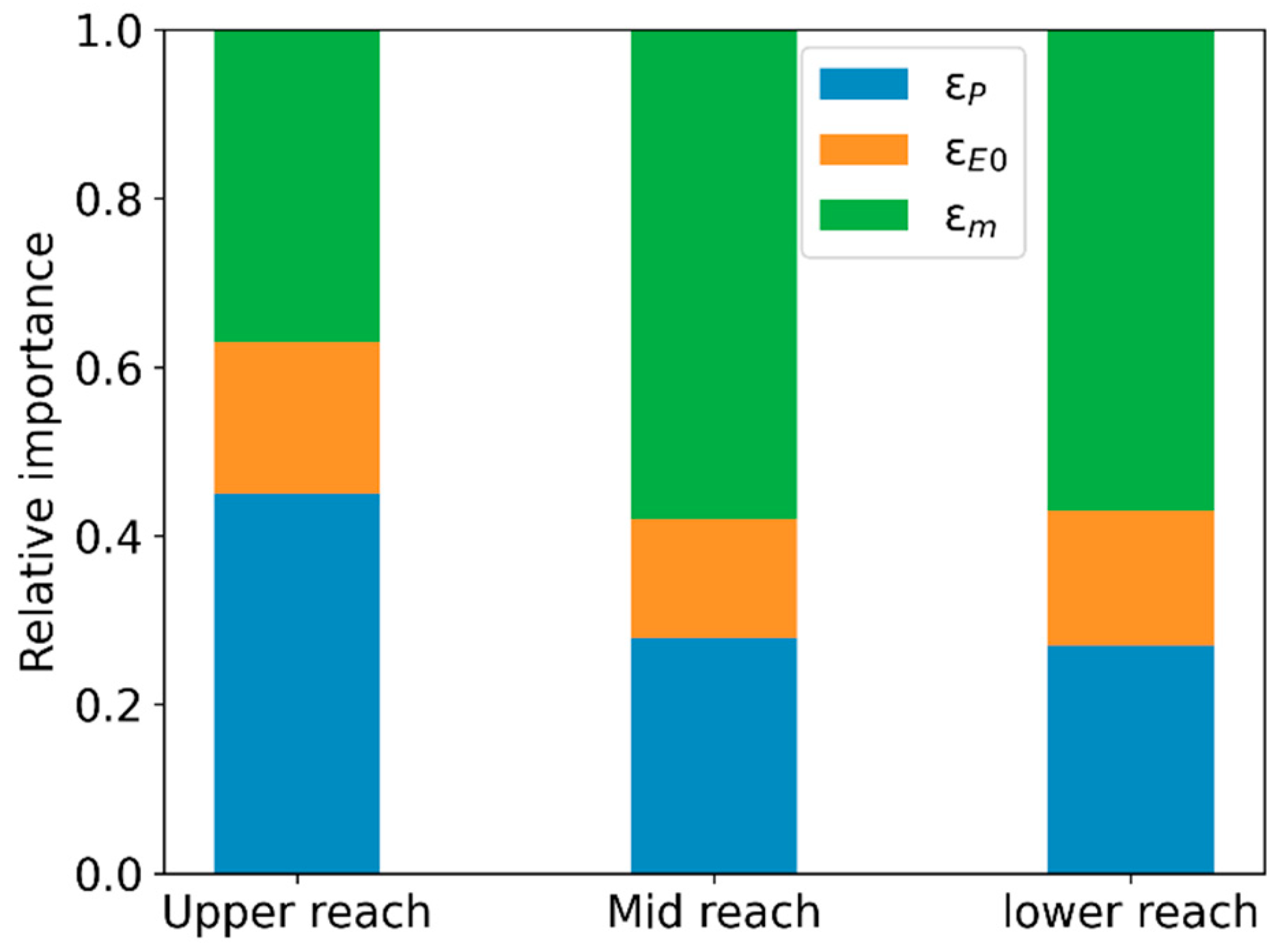

Figure 3. Relative importance of P (stacks at the bottom), E 0 (stacks at the middle), and other factors (stacks at the top) across the subzones of the Urumqi River basin.
Figure 3. Relative importance of P (stacks at the bottom), E 0 (stacks at the middle), and other factors (stacks at the top) across the subzones of the Urumqi River basin.
Water 12 03062 g003

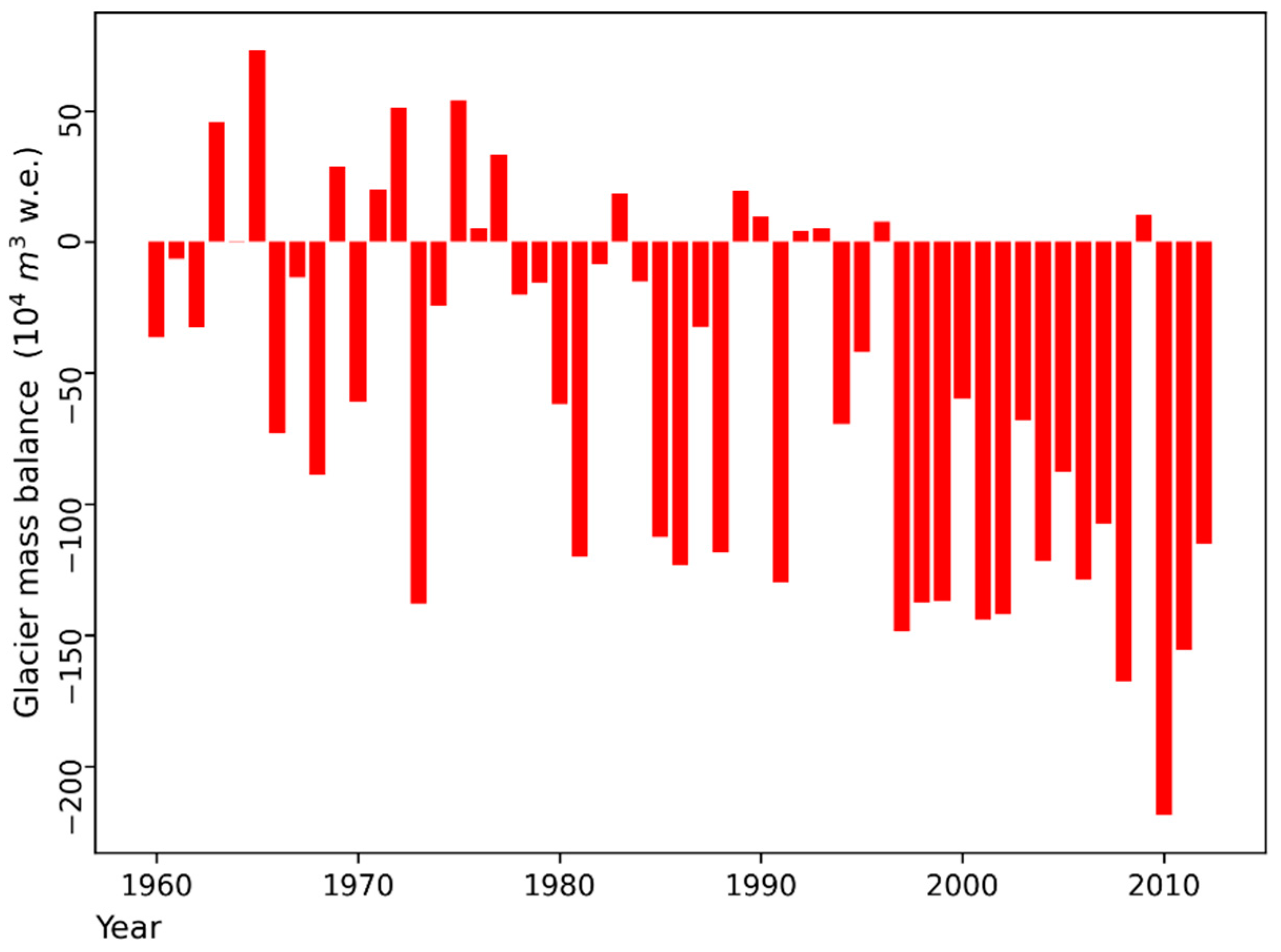

Figure 4. Mass balance of the Glacier No.1 in the Urumqi River basin.
Figure 4. Mass balance of the Glacier No.1 in the Urumqi River basin.
Water 12 03062 g004
Figure 5. Glacier wasting contribution to the runoff at the river outlet: (a) in each year, and (b) decadal average.
Figure 5. Glacier wasting contribution to the runoff at the river outlet: (a) in each year, and (b) decadal average.
Water 12 03062 g005
Table 1. Hydrometeorological characteristics of the Urumqi River basin.
Table 1. Hydrometeorological characteristics of the Urumqi River basin.
Basin ZonesArea
/km2
Mean Elevation/mTemperature
/°C
P
/mm
E0
/mm
φ Meteorological StationData Extension
Upper reach zone14882922−1.64586651.5Daxigou
Mushizhan
1960–2012
1978–2012
Mid reach zone243711637.222810914.8Urumqi
Changji
1960–2012
1960–2012
Lower reach zone7734487.519612056.1Caijiahu
Fukang
Miquan
1960–2012
1963–2012
1962–2012
Temperature, P, E0, and φ at each zone are calculated by averaging the mean of a variable from the available stations over the given time scale.
Table 2. Simulation accuracy of E and elasticity of runoff to changes in climatic and other factors across the Urumqi River basin.
Table 2. Simulation accuracy of E and elasticity of runoff to changes in climatic and other factors across the Urumqi River basin.
IndicesUpper Reach ZoneMid Reach ZoneLower Reach Zone
m1.861.952.49
R20.840.990.99
NSE0.540.950.99
RMSE53.0012.774.58
ζ(Q,P)1.641.962.48
ζ(Q,E0)−0.64−0.96−1.48
ζ(Q,m)−1.35−4.08−5.21
Table 3. Summary of the changes in glaciers in the Urumqi River basin.
Table 3. Summary of the changes in glaciers in the Urumqi River basin.
Year Glacier Area/km2Retreated Glacier Area/km2Rate of Area Change/km2 a−1References
Glacier No.1 at the headwaters of the Urumqi River basin
1921–19621.950−0.030−0.0007[47,49,50]
1963–19731.872−0.078−0.0071
1974–19801.858−0.014−0.0020
1981–19881.828−0.030−0.0038
1989–19931.800−0.028−0.0056
1994–20001.733−0.067−0.0096
2001–20091.646−0.087−0.0097[29]
2010–20121.590−0.056−0.0280[51]
Glaciers at the mountainous upper reach catchment of the Urumqi River basin
196448.04 [52]
1964–198934.42−13.62−0.5448
1990–200528.00−6.42−0.4013
2006–201423.61−4.39−0.4878
Table 4. Changes in land use/land cover during 1980 and 2015.
Table 4. Changes in land use/land cover during 1980 and 2015.
Land Use ClassProportion (%)Relative Change (%)Trend
19802015
Agriculture18.716.7−10.8decreasing
Forestland8.04.8−39.8decreasing
Grassland54.956.73.3increasing
Water body 0.50.975.0increasing
Glacier and snow4.10.8−80.1decreasing
Settlements4.012.2204.0increasing
Bare land9.77.9−18.8decreasing
Total100 100--
The data shown in this table is driven from the dataset, which is specified in the reference [65].
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Back to TopTop
