# Development of a Maximum Entropy-Archimedean Copula-Based Bayesian Network Method for Streamflow Frequency Analysis—A Case Study of the Kaidu River Basin, China

^{1}

^{2}

^{3}

^{4}

^{5}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Methodology

#### 2.1. Maximum Entropy Method

#### 2.2. Archimedean Copula

#### 2.3. Maximum Entropy-Archimedean Copula Method

#### 2.4. Maximum Entropy-Archimedean Copula-Based Bayesian Network

## 3. Study Area and Measures

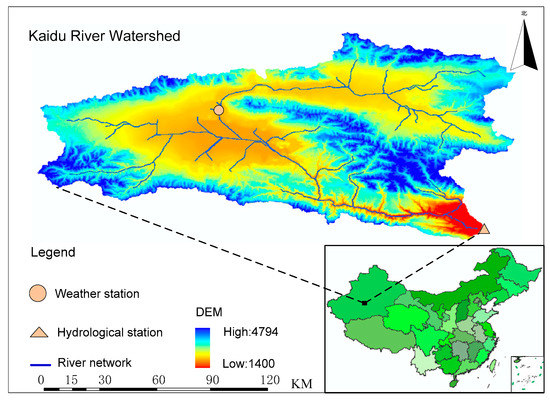

#### 3.1. Study Area

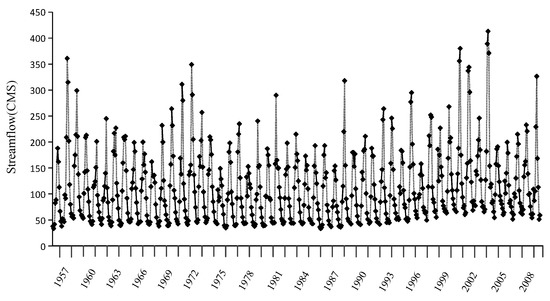

^{2}with the mean elevation of 3100 m. The data of streamflow records are obtained from the Dashankou hydrological station for the period of 1957–2009. The unit for streamflow is in cubic meter per second (CMS). The monthly variation of streamflow is shown in Figure 3, with a maximum value of 413, a minimum value of 33.2, a mean of 110.54, a standard deviation of 68.77, a skewness of 1.37, and a kurtosis of 5.07.

#### 3.2. Dependence Measures

#### 3.3. Goodness-of-Fit (GOF)

## 4. Results and Discussion

#### 4.1. Marginal Distributions

#### 4.2. Joint Distributions

#### 4.3. Conditional Distributions

_{5|4}indicates the small change of PDF for streamflow in May when the scaled streamflow of April changes from 0.95 to 0.99. These results show that: (a) in general, high magnitudes of two adjacent streamflow corresponds to a low dependence coefficient among them, and vice versa; (b) the two minimum adjacent streamflows exhibit the highest dependence, but the two maximum streamflows do not show the minimum dependent coefficent, which indicates the interaction between streamflow and dependence coefficient is non-linear. That is mainly because (a) there are a variety of factors which affect the streamflow in the Kaidu River Basin, such as rainfall, snow melting, evapotranspiration rate, requirement of water use, and so on; (b) the conditions of streamflow are more complex under flooding season in the Kaidu River Basin, which leads to the situation that months with high streamflow values under flooding season have weak correlations with their adjacent months. In addition, the dependence coefficient between April and May is minimum mainly due to the types of streamflow contributors being different in April and May. It has been concluded before that snow melting is the main source in April in the Kaidu River Basin. However, both rainfall and snow melting make major contributions to the runoff in May. Otherwise, the conditions that the evapotranspiration rate increases with increasing temperature and the requirement of water increases due to the growth of the plants and the impact of human use may also affect the interaction of streamflow pairs between April and May.

## 5. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Hu, Q.; Huang, G.H.; Liu, Z.F.; Fan, Y.R.; Li, W. Inexact fuzzy two-stage programming for water resources management in an environment of fuzziness and randomness. Stoch. Environ. Res. Risk Assess.
**2012**, 26, 261–280. [Google Scholar] [CrossRef] - Huang, G.H.; Cohen, S.J.; Yin, Y.Y.; Bass, B. Incorporation of inexact dynamic optimization with fuzzy relation analysis for integrated climate change impact study. J. Environ. Manag.
**1996**, 48, 45–68. [Google Scholar] [CrossRef] - Cheng, G.H.; Huang, G.H.; Dong, C.; Baetz, B.W.; Li, Y.P. Interval recourse linear programming for resources and environmental systems management under uncertainty. J. Environ. Inform.
**2017**, 30, 119–136. [Google Scholar] [CrossRef] - Huang, Y.; Qin, X.S. A pseudospectral collocation approach for flood inundation modelling with random input fields. J. Environ. Inform.
**2017**, 30, 95–106. [Google Scholar] [CrossRef] - Li, Y.P.; Huang, G.H.; Nie, S.L.; Liu, L. Inexact multistage stochastic integer programming for water resources management under uncertainty. J. Environ. Manag.
**2008**, 88, 93–107. [Google Scholar] [CrossRef] [PubMed] - Fan, Y.R.; Huang, G.H.; Baetz, B.W.; Li, Y.P.; Huang, K. Development of a copula-based particle filter (CopPF) approach for hydrologic data assimilation under consideration of parameter interdependence. Water Resour. Res.
**2017**, 53, 4850–4875. [Google Scholar] [CrossRef] - Fan, Y.R.; Huang, W.W.; Huang, G.H.; Huang, K.; Zhou, X. A PCM-based stochastic hydrological model for uncertainty quantification in watershed systems. Stoch. Environ. Res. Risk Assess.
**2015**, 29, 915–927. [Google Scholar] [CrossRef] - Chen, B.; Li, P.; Wu, H.J.; Husain, T.; Khan, F. MCFP: A monte carlo simulation-based fuzzy programming approach for optimization under dual uncertainties of possibility and continuous probability. J. Environ. Inform.
**2017**, 29, 88–97. [Google Scholar] [CrossRef] - Han, J.C.; Huang, G.H.; Zhang, H.; Li, Z.; Li, Y.P. Bayesian uncertainty analysis in hydrological modeling associated with watershed subdivision level: A case study of SLURP model applied to the Xiangxi River watershed, China. Stoch. Environ. Res. Risk Assess.
**2014**, 28, 973–989. [Google Scholar] [CrossRef] - Pastori, M.; Udías, A.; Bouraoui, F.; Bidoglio, G. A multi-objective approach to evaluate the economic and environmental impacts of alternative water and nutrient management strategies in Africa. J. Environ. Inform.
**2017**, 29, 16–28. [Google Scholar] [CrossRef] - Jordan, Y.C.; Ghulam, A.; Chu, M.L. Assessing the impacts of future urban development patterns and climate changes on total suspended sediment loading in surface waters using Geoinformatics. J. Environ. Inform.
**2014**, 24, 65–79. [Google Scholar] [CrossRef] - Li, Z.; Huang, G.H.; Fan, Y.R.; Xu, J.L. Hydrologic Risk Analysis for Nonstationary Streamflow Records under Uncertainty. J. Environ. Inform.
**2016**, 26, 41–51. [Google Scholar] - Kong, X.M.; Huang, G.H.; Li, Y.P.; Fan, Y.R.; Zeng, X.T.; Zhu, Y. Inexact copula-based stochastic programming method for water resources management under multiple uncertainties. J. Water Resour. Plan. Manag.
**2018**, 144, 04018069. [Google Scholar] [CrossRef] - Fan, Y.R.; Huang, G.H.; Zhang, Y.; Li, Y.P. Uncertainty quantification for multivariate eco-hydrological risk in the Xiangxi River within the Three Gorges Reservoir Area in China. Engineering
**2018**, 4, 617–626. [Google Scholar] [CrossRef] - Fan, Y.R.; Huang, W.W.; Huang, G.H.; Huang, K.; Li, Y.P.; Kong, X.M. Bivariate hydrologic risk analysis based on a coupled entropy-copula method for the Xiangxi River in the Three Gorges Reservoir area, China. Theor. Appl. Climatol.
**2016**, 125, 381–397. [Google Scholar] [CrossRef] - Fan, Y.R.; Huang, W.W.; Huang, G.H.; Li, Y.P.; Huang, K.; Li, Z. Hydrologic risk analysis in the Yangtze River basin through coupling Gaussian mixtures into copulas. Adv. Water Resour.
**2016**, 88, 170–185. [Google Scholar] [CrossRef] - Asztalos, J.R.; Kim, Y. Lab-Scale Experiment and model study on enhanced digestion of wastewater sludge using bioelectrochemical systems. J. Environ. Inform.
**2017**, 29, 98–109. [Google Scholar] [CrossRef] - Kong, X.M.; Huang, G.H.; Fan, Y.R.; Li, Y.P.; Zeng, X.T.; Zhu, Y. Risk analysis for water resources management under dual uncertainties through factorial analysis and fuzzy random value-at-risk. Stoch. Environ. Res. Risk Assess.
**2017**, 31, 1–16. [Google Scholar] [CrossRef] - Kong, X.M.; Huang, G.H.; Fan, Y.R.; Li, Y.P. A duality theorem-based algorithm for inexact quadratic programming problems: Application to waste management under uncertainty. Eng. Optim.
**2016**, 48, 562–581. [Google Scholar] [CrossRef] - Lima, C.H.R.; Lall, U. Spatial scaling in a changing climate: A hierarchical Bayesian model for non-stationary multi-site annual maximum and monthly streamflow. J. Hydrol.
**2010**, 383, 307–318. [Google Scholar] [CrossRef] - Erro, J.; Lόpez, J.J. Regional frequency analysis of annual maximum streamflow in Gipuzkoa (Spain). Geophys. Res. Abstr.
**2012**, 14, 8274. [Google Scholar] - Schnier, S.; Cai, X.M. Prediction of regional streamflow frequency using model tree ensembles. J. Hydrol.
**2014**, 517, 298–309. [Google Scholar] [CrossRef] - Zhang, Q.; Gu, X.H.; Singh, V.P.; Xiao, M.Z.; Xu, C.Y. Flood frequency under the influence of trends in the Pearl River basin, China: Changing patterns, causes and implications. Hydrol. Process.
**2015**, 29, 1406–1417. [Google Scholar] [CrossRef] - Chan, T.U.; Hart, B.T.; Kennard, M.J.; Pusey, B.J.; Shenton, W.; Douglas, M.M.; Valentine, E.; Patel, S. Bayesian network models for environmental flow decision making in the Daly River, Northern Territory, Australia. River Res. Appl.
**2012**, 28, 283–301. [Google Scholar] [CrossRef] - Nagarajan, K.; Krekeler, C.; Slatton, K.C.; Graham, W.D. A scalable approach to fusing spatiotemporal data to estimate streamflow via a Bayesian network. IEEE Trans. Geosci. Remote Sens.
**2010**, 48, 3720–3732. [Google Scholar] [CrossRef] - Mediero, L.; Santillán, D.; Garrote, L. Flood quantile estimation at ungauged sites by Bayesian networks. Geophys. Res. Abstr.
**2012**, 14, 11998. [Google Scholar] - Zhang, D.; Yan, X.P.; Yang, Z.L.; Wall, A.; Wang, J. Incorporation of formal safety assessment and Bayesian network in navigational risk estimation of the Yangtze River. Reliab. Eng. Syst. Saf.
**2013**, 118, 93–105. [Google Scholar] [CrossRef] - D’Addabbo, A.; Refice, A.; Pasquariello, G. A Bayesian network approach to perform SAR/InSAR data fusion in a flood detection problem. Proc. SPIE
**2014**, 9224, 9244. [Google Scholar] - Madadgar, S.; Moradkhani, H. A Bayesian framework for probabilistic seasonal drought forecasting. J. Hydrometeorol.
**2013**, 14, 1685. [Google Scholar] [CrossRef] - Madadgar, S.; Moradkhani, H. Spatio-temporal drought forecasting within Bayesian networks. J. Hydrol.
**2014**, 512, 134–146. [Google Scholar] [CrossRef] - Kong, X.M.; Huang, G.H.; Fan, Y.R.; Li, Y.P. Maximum entropy-Gumbel-Hougaard copula method for simulation of monthly streamflow in Xiangxi River, China. Stoch. Environ. Res. Risk Assess.
**2015**, 29, 833–846. [Google Scholar] [CrossRef] - Hao, Z.; Singh, V.P. Entropy-based parameter estimation for extended three-parameter Burr III distribution for low-flow frequency analysis. Trans. ASABE
**2009**, 52, 1193–1202. [Google Scholar] [CrossRef] - Genest, C.; Favre, A.C. Everything you always wanted to know about copula modeling but were afraid to ask. J. Hydrol. Eng.
**2007**, 12, 347–368. [Google Scholar] [CrossRef] - Genest, C.; MacKay, J. The joy of copulas: Bivariate distributions with uniform marginal (Com: 87V41 P248). Am. Stat.
**1986**, 40, 280–283. [Google Scholar] - Nelsen, R.B. An Introduction to Copulas; Springer: New York, NY, USA, 1999. [Google Scholar]
- Wang, C.X.; Li, Y.P.; Zhang, J.L.; Huang, G.H. Assessing parameter uncertainty in semi-distributed hydrological model based on type-2 fuzzy analysis—A case study of Kaidu River. Hydrol. Res.
**2015**. [Google Scholar] [CrossRef] - Huang, Y.; Chen, X.; Li, Y.P.; Huang, G.H.; Liu, T. A fuzzy-based simulation method for modelling hydrological processes under uncertainty. Hydrol. Process.
**2010**, 24, 3718–3732. [Google Scholar] [CrossRef] - Fu, A.H.; Chen, Y.N.; Li, W.H.; Li, B.F.; Yang, Y.H.; Zhang, S.H. Spatial and temporal patterns of climate variations in the Kaidu River Basin of Xinjiang, Northwest China. Quat. Int.
**2013**, 311, 117–122. [Google Scholar] [CrossRef] - Poulin, A.; Huard, D.; Favre, A.C.; Pugin, S. Importance of tail dependence in bivariate frequency analysis. J. Hydrol. Eng.
**2007**, 12, 394–403. [Google Scholar] [CrossRef] - Willmott, C.J.; Matsuura, K. Advantages of the Mean Absolute Error (MAE) over the Root Mean Square Error (RMSE) in assessing average model performance. Clim. Res.
**2005**, 30, 79–82. [Google Scholar] [CrossRef] - Massey, F.J. The Kolmogorov-Smirnov test for goodness of fit. J. Am. Stat. Assoc.
**1951**, 46, 68–78. [Google Scholar] [CrossRef] - Razali, N.M.; Wah, Y.B. Power comparisions of Shapiro-Wilk, Kolmogorov-Smirnov, Lilliefors and Anderson-Darling tests. J. Stat. Model. Anal.
**2011**, 2, 21–33. [Google Scholar]

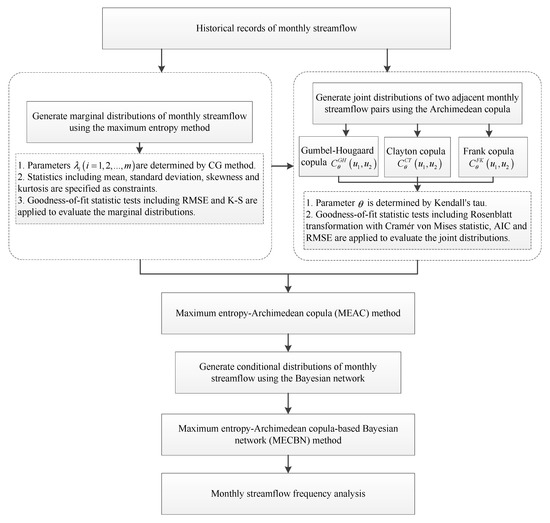

**Figure 1.**General framework of the maximum entropy-Archimedean copula-based Bayesian network (MECBN).

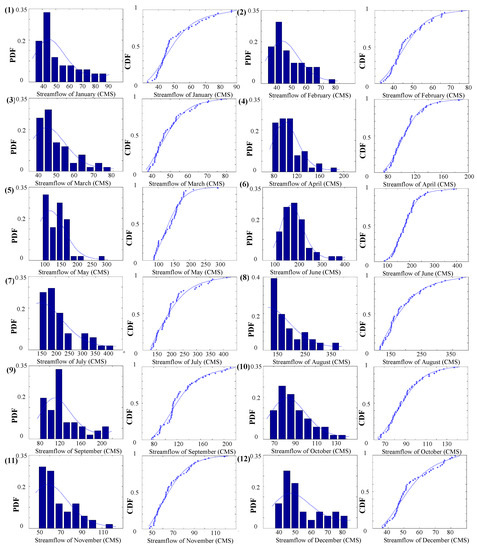

**Figure 4.**Comparison of theoretical and empirical marginal probability density function (PDF) and cumulative density function (CDF). The values are calculated monthly from 1957 to 2009. The abscissa represents streamflow values. The corresponding size varies from month to month. PDF describes the output of variables, and indicates the frequency at a given streamflow value. CDF describes the integrate of PDF, and indicates the probability of a given streamflow value. Lines in PDFs and CDFs show the performance of generated values. Bars and dots depict the empirical values in PDFs and CDFs, respectively.

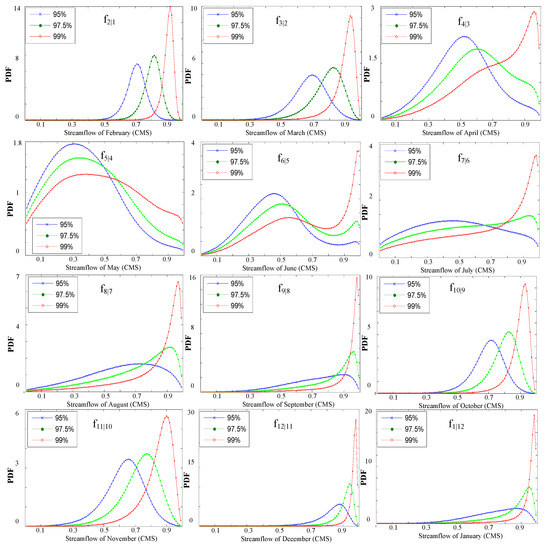

**Figure 5.**Distribution of streamflow in each month given the streamflow status (0.95, 0.975, 0.99) in the previous month. The values are calculated monthly from 1957 to 2009. The abscissa represents streamflow values, which are scaled into [0,1]. f

_{K+1|K}indicates the conditional PDF of two adjacent monthly streamflows, K and K+1. 0.95, 0.975 and 0.99 mean the steamflow status of K’s streamflow.

**Table 1.**Estimation of Lagrange multipliers for maximum entropy (ME)-based marginal distribution of monthly streamflow.

Month | ${\mathit{\lambda}}_{1}$ | ${\mathit{\lambda}}_{2}$ | ${\mathit{\lambda}}_{3}$ | ${\mathit{\lambda}}_{4}$ |
---|---|---|---|---|

1 | −6.78 | 16.35 | −1.14 | −7.60 |

2 | −6.34 | 13.51 | 0.39 | −5.47 |

3 | −4.27 | 12.13 | −0.62 | −4.89 |

4 | −8.62 | 19.32 | 2.04 | −10.77 |

5 | −3.83 | 10.90 | 5.20 | −8.47 |

6 | −13.78 | 26.80 | 5.40 | −17.66 |

7 | −1.12 | 7.93 | −1.07 | −3.26 |

8 | −0.28 | 6.29 | −0.53 | −3.07 |

9 | −7.05 | 14.75 | 1.53 | −8.55 |

10 | −6.57 | 12.78 | 1.53 | −5.80 |

11 | −3.29 | 9.95 | 0.27 | −3.98 |

12 | −4.73 | 10.39 | −0.99 | −3.82 |

**Table 2.**The root means square error (RMSE) value and Kolmogorov–Smirnov (K–S) test for marginal distribution of monthly streamflow.

Month | RMSE | K–S test | |
---|---|---|---|

$T$ | p-Value | ||

1 | 2.28 | 0.135 | 0.145 |

2 | 1.46 | 0.099 | 0.347 |

3 | 1.20 | 0.081 | 0.490 |

4 | 2.31 | 0.074 | 0.546 |

5 | 8.62 | 0.100 | 0.340 |

6 | 5.06 | 0.055 | 0.706 |

7 | 10.28 | 0.086 | 0.447 |

8 | 5.41 | 0.058 | 0.684 |

9 | 4.44 | 0.096 | 0.371 |

10 | 1.52 | 0.054 | 0.722 |

11 | 1.82 | 0.087 | 0.436 |

12 | 2.06 | 0.107 | 0.290 |

**Table 3.**Comparison of Cramér von Mises statistic for joint distribution of different streamflow pairs.

Month | Gumbel-Hougaard | Frank | Clayton | |||
---|---|---|---|---|---|---|

${\mathit{S}}_{\mathit{n}}^{\left(\mathit{B}\right)}$ | p-Value | ${\mathit{S}}_{\mathit{n}}^{\left(\mathit{B}\right)}$ | p-Value | ${\mathit{S}}_{\mathit{n}}^{\left(\mathit{B}\right)}$ | p-Value | |

1–2 | 34.03 | 0.383 | 32.30 | 0.782 | 35.79 | 0.053 |

2–3 | 33.89 | 0.368 | 32.31 | 0.762 | 35.28 | 0.063 |

3–4 | 32.62 | 0.552 | 32.46 | 0.667 | 32.40 | 0.063 |

4–5 | 34.31 | 0.303 | 34.22 | 0.408 | 37.56 | 0.023 |

5–6 | 33.83 | 0.437 | 33.32 | 0.612 | 33.43 | 0.068 |

6–7 | 33.15 | 0.542 | 32.93 | 0.662 | 33.96 | 0.048 |

7–8 | 33.53 | 0.482 | 33.00 | 0.672 | 33.20 | 0.093 |

8–9 | 33.27 | 0.507 | 32.38 | 0.752 | 33.46 | 0.088 |

9–10 | 34.70 | 0.288 | 32.53 | 0.697 | 36.36 | 0.043 |

10–11 | 33.39 | 0.527 | 32.47 | 0.722 | 34.08 | 0.078 |

11–12 | 32.49 | 0.637 | 32.16 | 0.752 | 33.63 | 0.083 |

12–1 | 33.39 | 0.437 | 32.34 | 0.792 | 34.15 | 0.063 |

**Table 4.**Comparison of Akaike information criterion (AIC) and RMSE values for joint distribution of different streamflow pairs.

Month | Gumbel–Hougaard | Frank | ||
---|---|---|---|---|

AIC | RMSE | AIC | RMSE | |

1–2 | −311.52 | 0.0462 | −202.87 | 0.1342 |

2–3 | −321.77 | 0.0418 | −223.97 | 0.1091 |

3–4 | −347.22 | 0.0329 | −284.88 | 0.0601 |

4–5 | −327.10 | 0.0397 | −326.69 | 0.0399 |

5–6 | −341.56 | 0.0345 | −325.32 | 0.0404 |

6–7 | −360.95 | 0.0285 | −320.81 | 0.0422 |

7–8 | −341.83 | 0.0344 | −277.97 | 0.0643 |

8–9 | −321.79 | 0.0418 | −224.64 | 0.1084 |

9–10 | −338.00 | 0.0357 | −257.98 | 0.0782 |

10–11 | −358.19 | 0.0293 | −239.11 | 0.0941 |

11–12 | −299.66 | 0.0520 | −215.47 | 0.1186 |

12–1 | −294.01 | 0.0549 | −229.85 | 0.1030 |

Month | Spearman’s Rho | Kendall’s Tau | Upper Tail Dependence Coefficient |
---|---|---|---|

${\widehat{\mathit{\rho}}}_{\mathit{s}}$ | $\widehat{\mathit{\tau}}$ | ${\mathit{\lambda}}_{\mathit{U}}^{\mathit{G}\mathit{H}}$ | |

1–2 | 0.931 | 0.784 | 0.838 |

2–3 | 0.856 | 0.678 | 0.750 |

3–4 | 0.541 | 0.392 | 0.476 |

4–5 | 0.292 | 0.180 | 0.235 |

5–6 | 0.435 | 0.312 | 0.389 |

6–7 | 0.410 | 0.280 | 0.353 |

7–8 | 0.595 | 0.435 | 0.521 |

8–9 | 0.716 | 0.527 | 0.612 |

9–10 | 0.853 | 0.678 | 0.750 |

10–11 | 0.753 | 0.603 | 0.683 |

11–12 | 0.856 | 0.691 | 0.761 |

12–1 | 0.775 | 0.597 | 0.678 |
