# Global Sensitivity Analysis of a Water Quality Model in the Three Gorges Reservoir

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Study Area

^{2}[27]. Its annual flow is 951.3 km

^{3}. The TGD, located at the end of the upper Yangtze River, is 185 m high. Construction began in 1998 and was completed in 2003. The TGR is currently the one of the largest reservoirs in the world, with a capacity of 39.3 billion m

^{3}over a length of 663 km and an average width of 1.1 km [28,29].

^{2}, a length of 33 km, and an annual average discharge of 7.5 m

^{3}s

^{−1}. After impoundment of the TGR, a 7-km-long bay was formed, which was influenced by TGR regulation, which ranges the water level from 145 m to 175 m. Hereafter, this area is called Caotang Bay (CB) in this paper. The CB’s average depth is 18.39 m when the TGR is at the lowest level in the summer (up to 145 m). The CB’s average depth is 33.54 m and its maximum depth is 70 m when the TGR is at the highest level in the winter (up to 175 m).

## 3. Materials and Methods

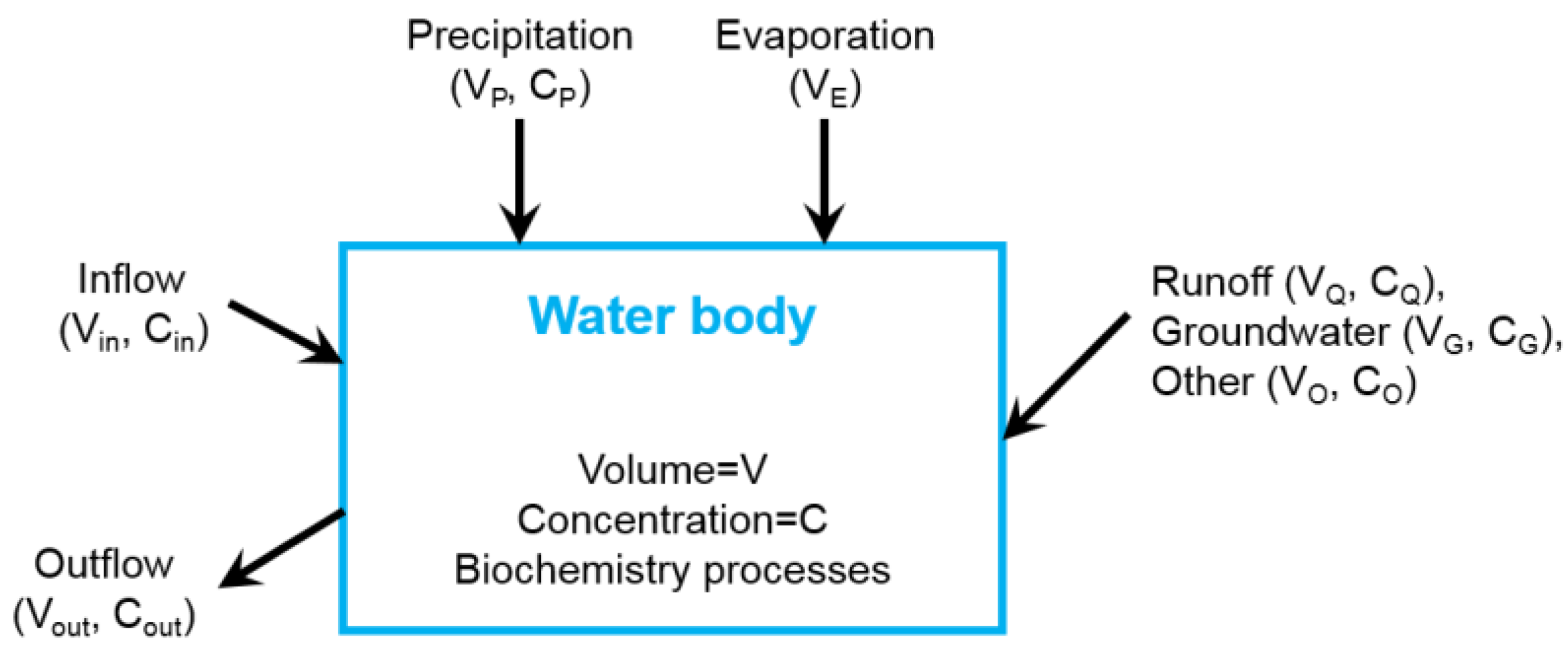

#### 3.1. Tributary Bay Water Quality Model

_{Q}is the stream runoff, V

_{P}is the direct precipitation, V

_{G}is the groundwater, V

_{O}is the set of other inflows, such as sewage, V

_{in}is the hydrographically driven advective inflow, V

_{out}is the advective outflow of water from the system, and V

_{E}is the evaporation. In this study, precipitation, groundwater, other inflows, and evaporation are smaller than 5% of V

_{Q}, so we assume V

_{P}= V

_{G}= V

_{O}= V

_{E}= 0.

#### 3.2. Global Sensitivity Analysis

_{i}is the variance contribution of individual parameter X

_{i}to the total variance, V

_{ij}is a part of the total variance caused by the interactions between X

_{i}and X

_{j}, and V

_{12…k}is the variance due to the interactions between all parameters. Using this variance decomposition, the first-order sensitivity S

_{i}and the total sensitivity index S

_{ti}are given as (see notations in Table 2):

#### 3.3. Design of Numerical Experiments

#### 3.4. Initial Conditions

^{−1}; detritus: 0.24 mmolC L

^{−1}; dissolved oxygen: 9.11 mg L

^{−1}; nitrate: 1.76 mg L

^{−1}; ammonium: 0.08 mg L

^{−1}; phosphate: 0.11 mg L

^{−1}; and dissolved silicon: 8.16 mg L

^{−1}. The physical and biological state variables were assumed to be vertically and horizontally homogenous in the numerical domain.

## 4. Results

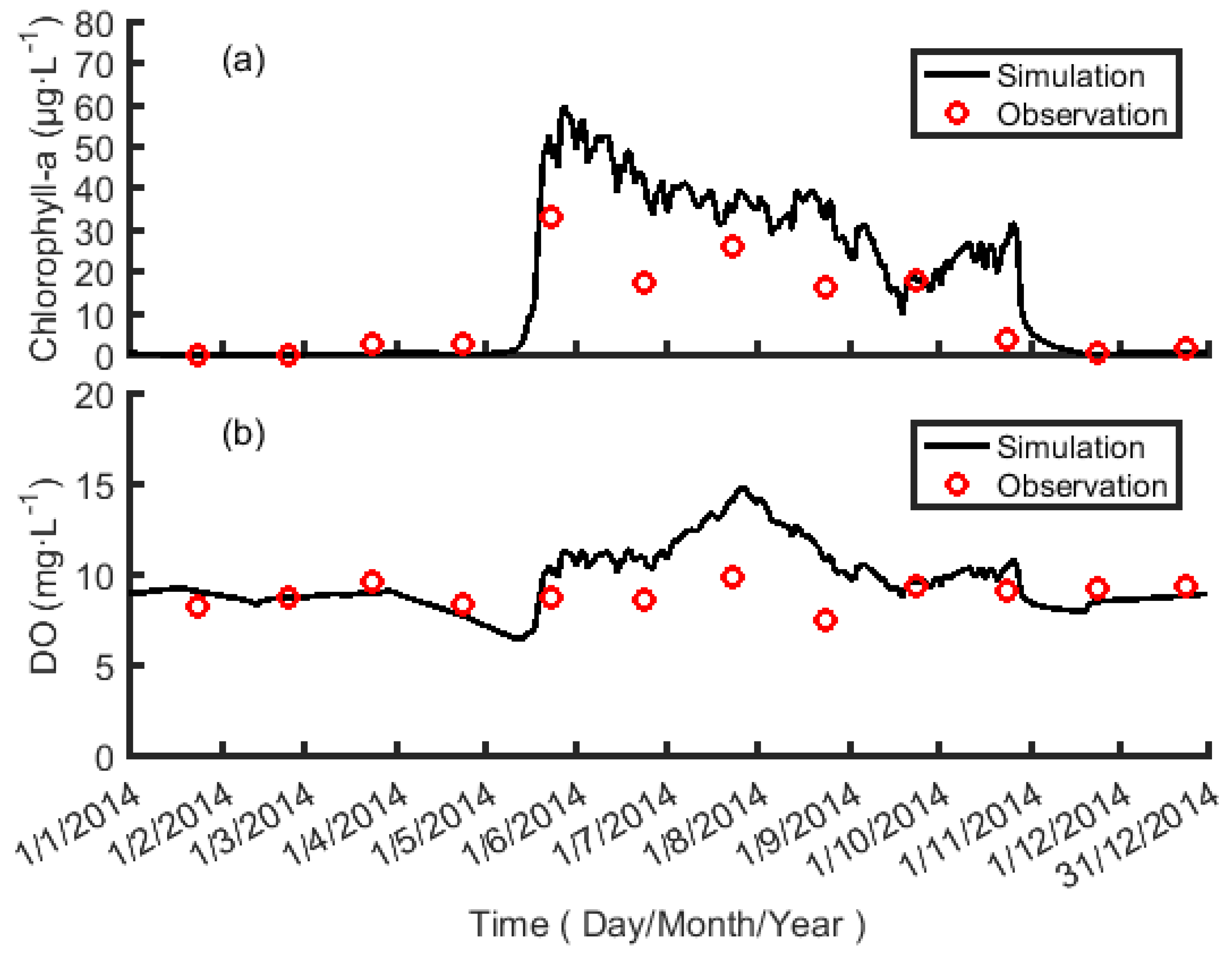

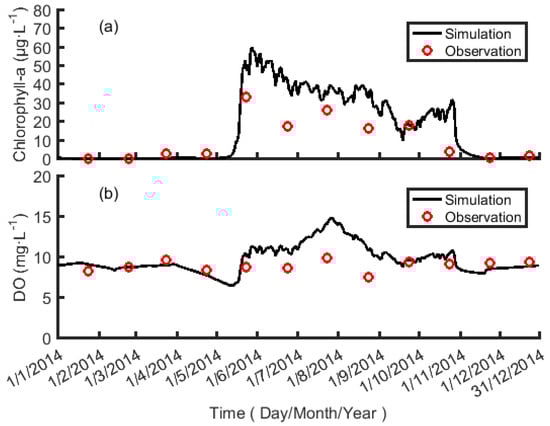

#### 4.1. Simulation Result for the Water Quality Model

^{−1}and the RMSE of DO is 1.92 mg L

^{−1}. The parameter sensitivity will be analyzed in the following section.

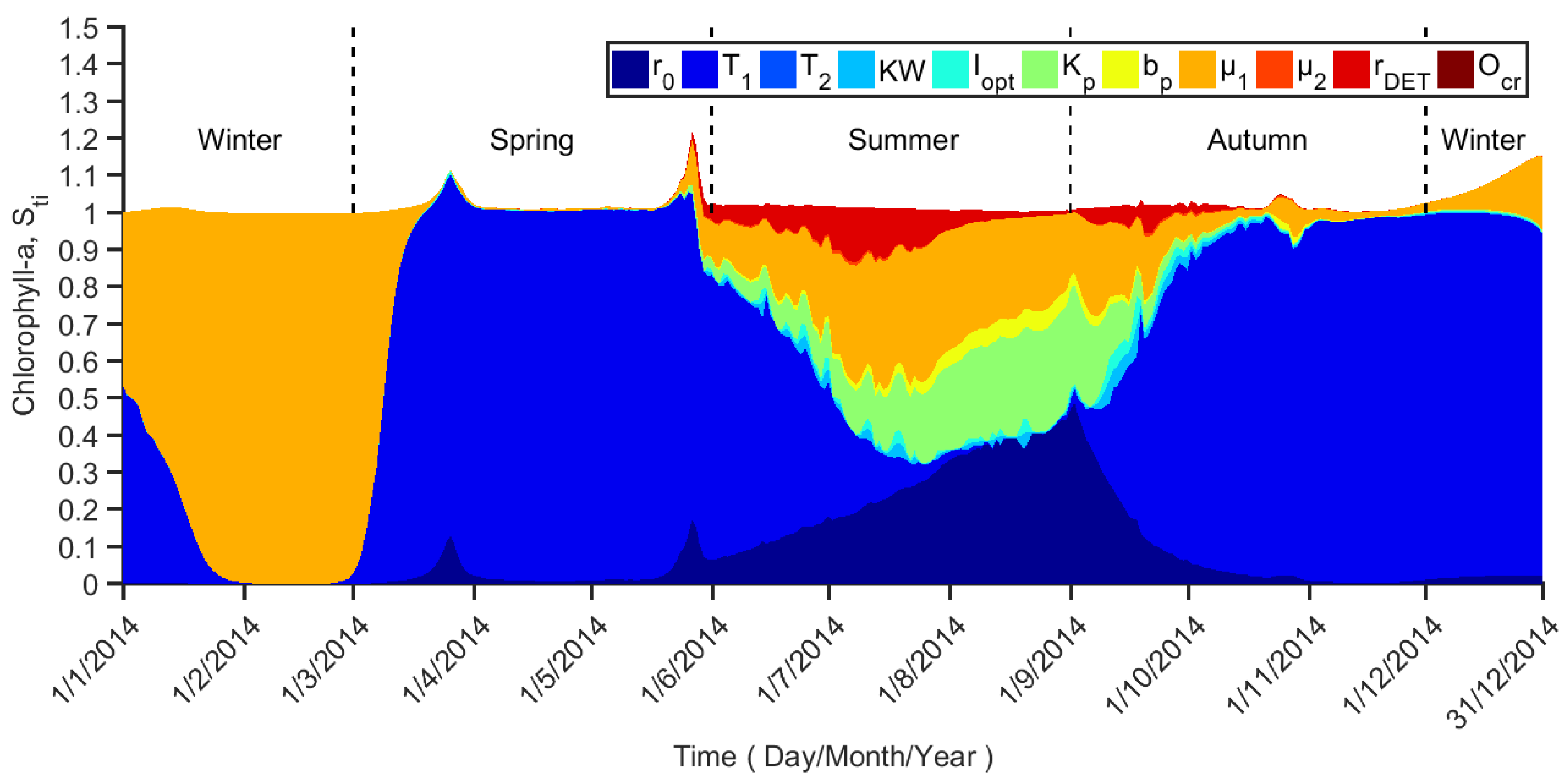

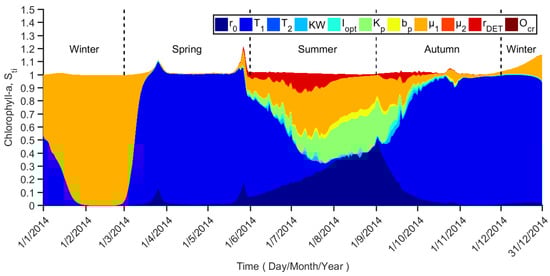

#### 4.2. Parameter Sensitivity Temporal Variation for Chlorophyll-a

_{ti}) for chlorophyll-a.

_{0}(maximum phytoplankton growth rate), T

_{1}(lower optimum temperature for algal growth), K

_{p}(phosphate half saturation constant for algal), and μ

_{1}(phytoplankton linear mortality rate). Although none of these parameters can be classified as an important parameter according to Table 3, the summation over these four parameters explains around 82% of chlorophyll-a variance. The remaining parameters are irrelevant during this season. These indicate that the algae growth in summer is a combined effect of several factors instead of one key factor. In the early autumn, it is the same as in the summer, while in the middle and later autumn, T

_{1}becomes a very important parameter. In winter and spring, T

_{1}and μ

_{1}become very important parameters alternatively.

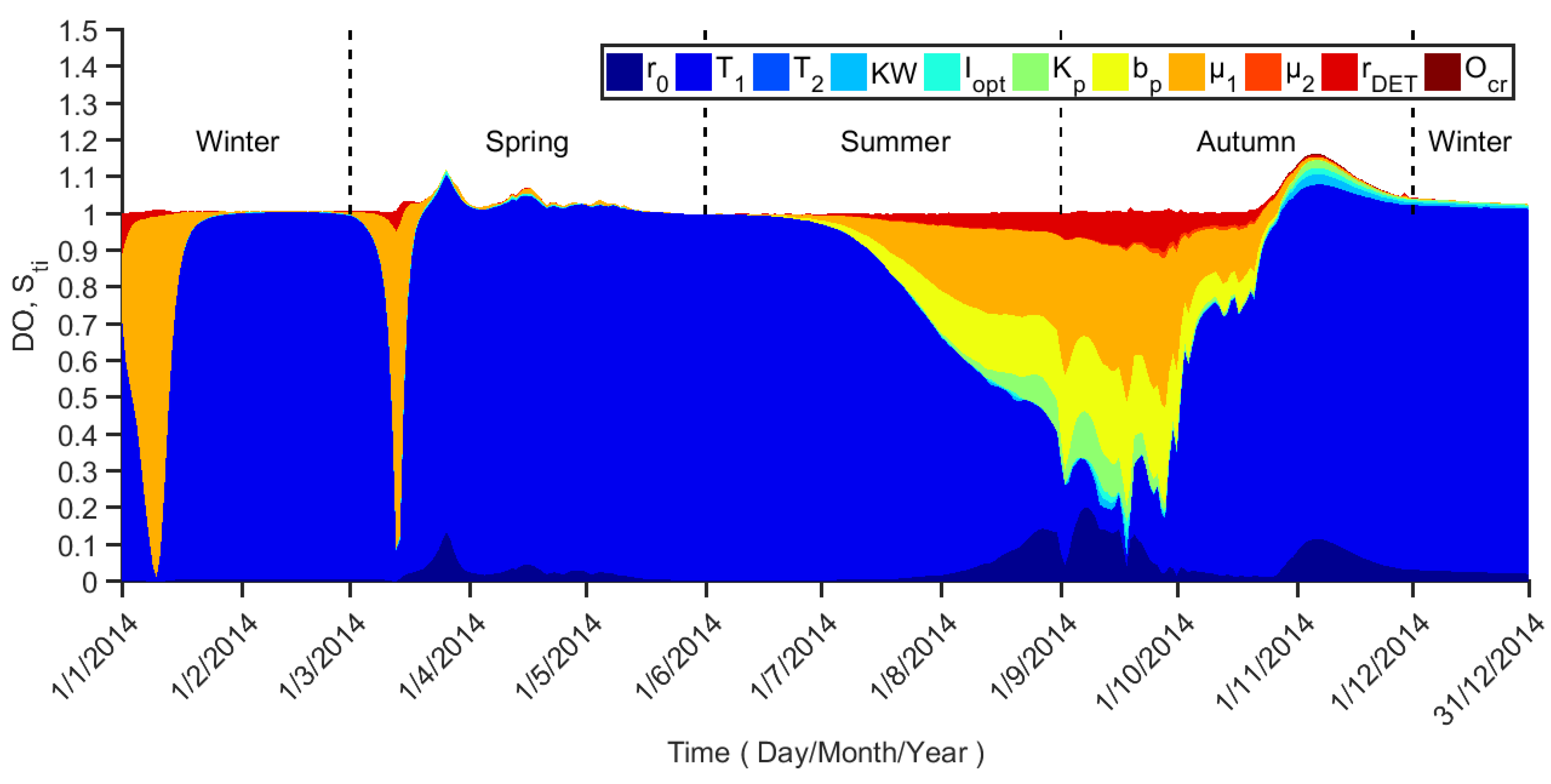

#### 4.3. Parameter Sensitivity Temporal Variation for DO

_{1}, μ

_{1}, b

_{p}(Phytoplankton basal respiration rate), and r

_{DET}(Detritus remineralization rate). The summation over these four parameters explains around 93% of DO concentration variance. The remaining parameters are irrelevant during this period. During the rest of the year, T

_{1}and μ

_{1}become very important parameters alternatively.

_{ti}is seldom equal to 1, because the summation of the sensitivity indices is a measure of model additivity [8].

## 5. Discussion

#### 5.1. Ecological Implication from Parameter Sensitivity for Chlorophyll-a

_{0}, T

_{1}, K

_{p}, and μ

_{1}) have a greater influence compared with other parameters, which indicates that the TGR tributary bay is similar to other water bodies and has difference with them as well. A GSA on Lake Dianchi [42], which is a shallow lake with an average depth of 5.2 m in China, shows that the max growth rate of algae, the basal respiration rate, the chlorophyll-a induced light extinction coefficient, and the lower bound of optimal temperature for algae have an important influence on Chlorophyll-a. These indicate that there are sufficient nutrient or no nutrient limits in Lake Dianchi. A GSA on the Paso de las Piedras Reservoir [43], which is a shallow reservoir with an average depth of 8.2 m in Argentina, shows that the most important parameters for phytoplankton are the organic phosphorus mineralization rate, phytoplankton death and respiration, and the background light attenuation coefficient. These indicate that there are also no nutrient limits due to organic phosphorus mineralization in the Paso de las Piedras Reservoir. Therefore, light is not an important parameter in the TGR compared with shallow lakes and reservoirs.

#### 5.2. Ecological Implication from Parameter Sensitivity for DO

## 6. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## Appendix A

_{3}, NH

_{4}, PO

_{4}and Si are phytoplankton, detritus, dissolved oxygen, nitrate, ammonium, phosphate, and dissolved silicon, respectively. Superscript represents the biochemistry process, subscript represents the related variables. gpp, mor, exc, res, rmn, denit, nit and upt represent gross primary production, respiration, excretion, mortality, remineralization, denitrification, nitrification and uptake.

## References

- Chen, C.; Ji, R.; Schwab, D.J.; Beletsky, D.; Fahnenstiel, G.L.; Jiang, M.; Johengen, T.H.; Vanderploeg, H.; Eadie, B.; Budd, J.W. A model study of the coupled biological and physical dynamics in Lake Michigan. Ecol. Model.
**2002**, 152, 145–168. [Google Scholar] [CrossRef] - Park, K.; Jung, H.S.; Kim, H.S.; Ahn, S.M. Three-dimensional hydrodynamic-eutrophication model (HEM-3D): Application to Kwang-Yang Bay, Korea. Mar. Environ. Res.
**2005**, 60, 171–193. [Google Scholar] [CrossRef] [PubMed] - Jin, K.R.; Ji, Z.G.; James, R.T. Three-dimensional water quality and SAV modeling of a large shallow lake. J. Great Lakes Res.
**2007**, 33, 28–45. [Google Scholar] [CrossRef] - Wan, Y.; Ji, Z.G.; Shen, J.; Hu, G.; Sun, D. Three dimensional water quality modeling of a shallow subtropical estuary. Mar. Environ. Res.
**2012**, 82, 76–86. [Google Scholar] [CrossRef] [PubMed] - Leon, L.F.; Smith, R.E.H.; Hipsey, M.R.; Bocaniov, S.A.; Higgins, S.N.; Hecky, R.E.; Antenucci, J.P.; Imberger, J.A.; Guildford, S.J. Application of a 3D hydrodynamic-biological model for seasonal and spatial dynamics of water quality and phytoplankton in lake Erie. J. Great Lakes Res.
**2011**, 37, 41–53. [Google Scholar] [CrossRef] - Warren, I.R.; Bach, H.K. Mike 21: A modelling system for estuaries, coastal waters and seas. Environ. Softw.
**1992**, 7, 229–240. [Google Scholar] [CrossRef] - Los, F.J.; Villars, M.T.; Van der Tol, M.W.M. A 3-dimensional primary production model (BLOOM/GEM) and its applications to the (southern) North Sea (coupled physical–chemical–ecological model). J. Mar. Syst.
**2008**, 74, 259–294. [Google Scholar] [CrossRef] - Saltelli, A.; Tarantola, S.; Campolongo, F.; Ratto, M. Sensitivity Analysis in Practice: A Guide to Assessing Scientific Models; John Wiley & Sons: Hoboken, NJ, USA, 2004. [Google Scholar]
- Griensven, A.V.; Meixner, T.; Grunwald, S.; Bishop, T.; Diluzio, M.; Srinivasan, R. A global sensitivity analysis tool for the parameters of multi-variable catchment models. J. Hydrol.
**2006**, 324, 10–23. [Google Scholar] [CrossRef] - Hill, M.C.; Østerby, O. Determining extreme parameter correlation in ground water models. Groundwater
**2003**, 41, 420–430. [Google Scholar] [CrossRef] - Tian, W. A review of sensitivity analysis methods in building energy analysis. Renew. Sustain. Energy Rev.
**2013**, 20, 411–419. [Google Scholar] [CrossRef] - Oakley, J.E.; O’Hagan, A. Probabilistic sensitivity analysis of complex models: A Bayesian approach. J. R. Stat. Soc.
**2004**, 66, 751–769. [Google Scholar] [CrossRef] - Saltelli, A.; Chan, K.; Scott, E.M. Sensitivity Analysis; Wiley: New York, NY, USA, 2000. [Google Scholar]
- Saltelli, A.; Ratto, M.; Tarantola, S.; Campolongo, F. Sensitivity analysis practices: Strategies for model-based inference. Reliab. Eng. Syst. Saf.
**2006**, 91, 1109–1125. [Google Scholar] [CrossRef] - Soboĺ, I.M. Quasi-monte carlo methods. Prog. Nucl. Energy
**1990**, 24, 55–61. [Google Scholar] [CrossRef] - Saltelli, A.; Ratto, M.; Andres, T.; Campolongo, F.; Cariboni, J.; Gatelli, D.; Saisana, M.; Tarantola, S. Global Sensitivity Analysis: The Primer; Wiley: New York, NY, USA, 2008. [Google Scholar]
- Morris, M.D. Factorial sampling plans for preliminary computational experiments. Technometrics
**1991**, 33, 161–174. [Google Scholar] [CrossRef] - Makler-Pick, V.; Gal, G.; Gorfine, M.; Hipsey, M.R.; Carmel, Y. Sensitivity analysis for complex ecological models—A new approach. Environ. Model. Softw.
**2011**, 26, 124–134. [Google Scholar] [CrossRef] - Ciric, C.; Ciffroy, P.; Charles, S. Use of sensitivity analysis to identify influential and non-influential parameters within an aquatic ecosystem model. Ecol. Model.
**2012**, 246, 119–130. [Google Scholar] [CrossRef] - Zheng, W.; Shi, H.; Fang, G.; Hu, L.; Peng, S.; Zhu, M. Global sensitivity analysis of a marine ecosystem dynamic model of the Sanggou Bay. Ecol. Model.
**2012**, 247, 83–94. [Google Scholar] [CrossRef] - Stone, R. Three gorges dam: Into the unknown. Science
**2008**, 321, 628–632. [Google Scholar] [CrossRef] [PubMed] - Ye, L.; Xu, Y.; Han, X.; Cai, Q. Daily dynamics of nutrients and chlorophyll a during a spring phytoplankton bloom in Xiangxi Bay of the three gorges reservoir. J. Freshw. Ecol.
**2006**, 21, 315–321. [Google Scholar] [CrossRef] - Zhang, S.; Li, C.M.; Fu, Y.C.; Zhang, Y.; Zheng, J. Trophic states and nutrient output of tributaries bay in three gorges reservoir after impoundment. Environ. Sci.
**2008**, 29, 7–12. [Google Scholar] - Liu, L.; Liu, D.; Johnson, D.M.; Yi, Z.; Huang, Y. Effects of vertical mixing on phytoplankton blooms in Xiangxi Bay of three gorges reservoir: Implications for management. Water Res.
**2012**, 46, 2121–2130. [Google Scholar] [CrossRef] [PubMed] - Mao, J.; Jiang, D.; Dai, H. Spatial-temporal hydrodynamic and algal bloom modelling analysis of areservoir tributary embayment. J. Hydro-Environ. Res.
**2015**, 9, 200–215. [Google Scholar] [CrossRef] - Ma, J.; Liu, D.; Wells, S.A.; Tang, H.; Ji, D.; Yang, Z. Modeling density currents in a typical tributary of the three gorges reservoir, China. Ecol. Model.
**2015**, 296, 113–125. [Google Scholar] [CrossRef] - Chen, C.; Li, J.; Shen, H.; Wang, Z. Yangtze River of China: Historical analysis of discharge variability and sediment flux. Geomorphology
**2001**, 41, 77–91. [Google Scholar] [CrossRef] - Nilsson, C.; Reidy, C.A.; Dynesius, M.; Revenga, C. Fragmentation and flow regulation of the world’s large river systems. Science
**2005**, 308, 405–408. [Google Scholar] [CrossRef] [PubMed] - Yang, S.L.; Zhang, J.; Dai, S.B.; Li, M.; Xu, X.J. Effect of deposition and erosion within the main river channel and large lakes on sediment delivery to the estuary of the Yangtze River. J. Geophys. Res. Earth Surf.
**2007**, 112, 111–119. [Google Scholar] [CrossRef] - Gordon, D.C., Jr.; Boudreau, P.R.; Mann, K.H.; Ong, J.E.; Silvert, W.L.; Smith, S.V.; Wattayakorn, G.; Wulff, F.; Yanagi, T. LOICZ Biogeochemical Modelling Guidelines; Netherlands Institute for Sea Research: Den Burg, The Netherlands, 1996. [Google Scholar]
- Bowie, G.L.; Mills, W.B.; Porcella, D.B.; Campbell, C.L.; Pagenkopf, J.R.; Rupp, G.L.; Johnson, K.M.; Chan, P.W.H.; Gherini, S.A. Rates, Constants, and Kinetics Formulations, Surface Water Quality Modeling; Environmental Protection Agency: Washington, DC, USA, 1985.
- Jørgensen, S.E.; Nielsen, S.N.; Jørgensen, L.A. Handbook of Ecological Parameters and Ecotoxicology; Elsevier: Amsterdam, The Netherlands, 1991; Volume 29, p. 791. [Google Scholar]
- Chen, C.; Ji, R.; Zheng, L.; Zhu, M.; Rawson, M. Influences of physical processes on the ecosystem in Jiaozhou Bay: A coupled physical and biological model experiment. J. Geophys. Res. Oceans
**1999**, 104, 29925–29930. [Google Scholar] [CrossRef] - Cannavó, F. Sensitivity analysis for volcanic source modeling quality assessment and model selection. Comput. Geosci.
**2012**, 44, 52–59. [Google Scholar] [CrossRef] - Baklouti, M.; Faure, V.; Pawlowski, L.; Sciandra, A. Investigation and sensitivity analysis of a mechanistic phytoplankton model implemented in a new modular numerical tool (Eco3M) dedicated to biogeochemical modelling. Prog. Oceanogr.
**2006**, 71, 34–58. [Google Scholar] [CrossRef] - Bierman, V.J.; James, R.T. A preliminary modeling analysis of water quality in Lake Okeechobee, Florida: Diagnostic and sensitivity analyses. Water Res.
**1995**, 29, 2767–2775. [Google Scholar] [CrossRef] - Omlin, M.; Reichert, P.; Forster, R. Biogeochemical model of Lake Zürich: Model equations and results. Ecol. Model.
**2001**, 141, 77–103. [Google Scholar] [CrossRef] - Chu, P.C.; Ivanov, L.M.; Margolina, T.M. On non-linear sensitivity of marine biological models to parameter variations. Ecol. Model.
**2007**, 206, 369–382. [Google Scholar] [CrossRef] - Fragoso, J.C.R.; Marques, D.M.L.M.; Collischonn, W.; Tucci, C.E.M.; Nes, E.H.V. Modelling spatial heterogeneity of phytoplankton in Lake Mangueira, a large shallow subtropical lake in South Brazil. Ecol. Model.
**2008**, 219, 125–137. [Google Scholar] [CrossRef] - Arhonditsis, G.B.; Brett, M.T. Eutrophication model for Lake Washington (USA): Part I. Model description and sensitivity analysis. Ecol. Model.
**2005**, 187, 140–178. [Google Scholar] [CrossRef] - Guven, B.; Howard, A. Identifying the critical parameters of a cyanobacterial growth and movement model by using generalised sensitivity analysis. Ecol. Model.
**2007**, 207, 11–21. [Google Scholar] [CrossRef] - Yi, X.; Zou, R.; Guo, H. Global sensitivity analysis of a three-dimensional nutrients-algae dynamic model for a large shallow lake. Ecol. Model.
**2016**, 327, 74–84. [Google Scholar] [CrossRef] - Estrada, V.; Diaz, M.S. Global sensitivity analysis in the development of first principle-based eutrophication models. Environ. Model. Softw.
**2010**, 25, 1539–1551. [Google Scholar] [CrossRef]

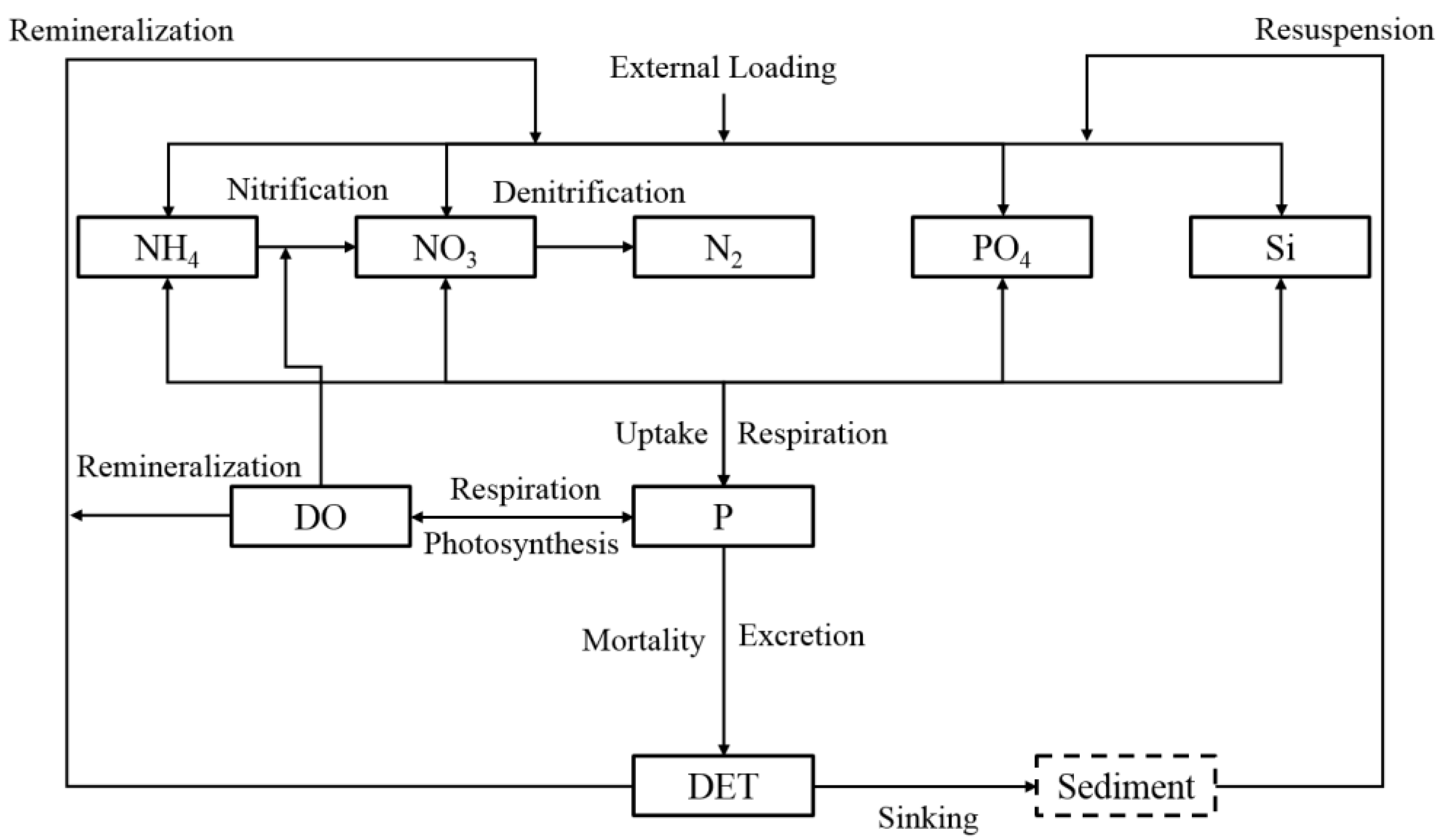

**Figure 3.**Schematic of the water quality model in TGR. P, DET, DO, NO
