Quantifying the Effects of Dramatic Changes in Runoff and Sediment on the Channel Morphology of a Large, Wandering River Using Remote Sensing Images

1,2, 1,2,*, 1,2 and 3
1
Key Lab. of Water Cycle and Related Land Surface Processes, Institute of Geographic Sciences and Natural Resources Research, Chinese Academy of Sciences, Beijing 100101, China
2
College of Resources and Environment, University of the Chinese Academy of Sciences, Beijing 100049, China
3
Key Lab. of the Yellow River Sediment of the Ministry of Water Resources, Institute of Hydraulic Research, Yellow River Water Conservancy Commission, Zhengzhou 450003, China
*
Author to whom correspondence should be addressed.
Water 2018, 10(12), 1767; https://doi.org/10.3390/w10121767
Received: 17 October 2018 / Revised: 16 November 2018 / Accepted: 27 November 2018 / Published: 1 December 2018
(This article belongs to the Special Issue Applications of Remote Sensing and GIS in Hydrology)
  |
PDF [11917 KB, uploaded 13 December 2018]
  |

Abstract

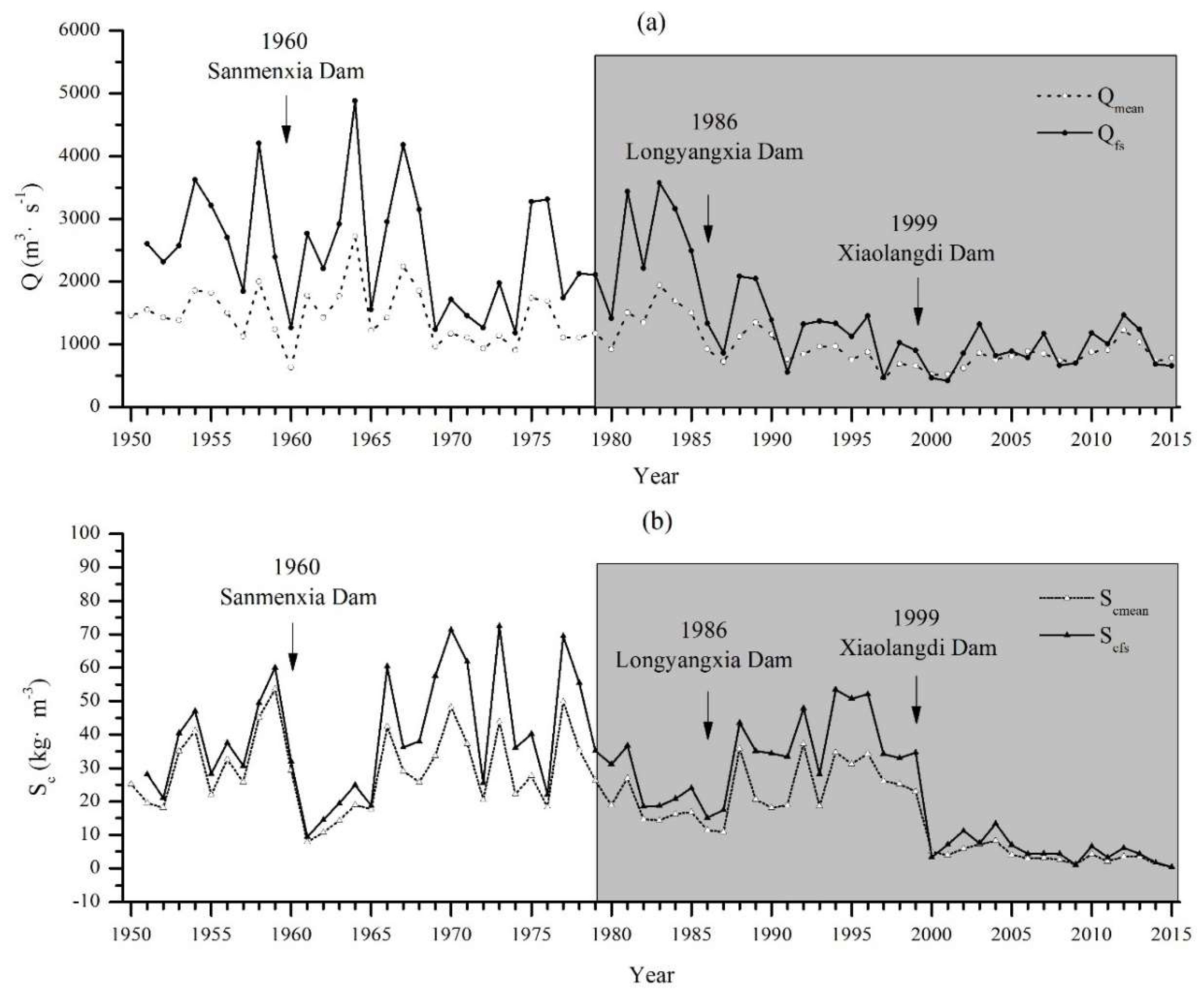

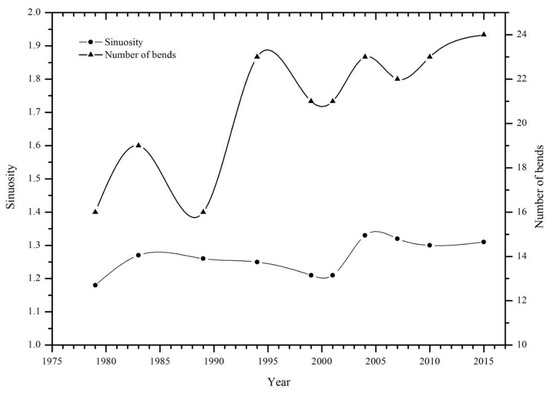

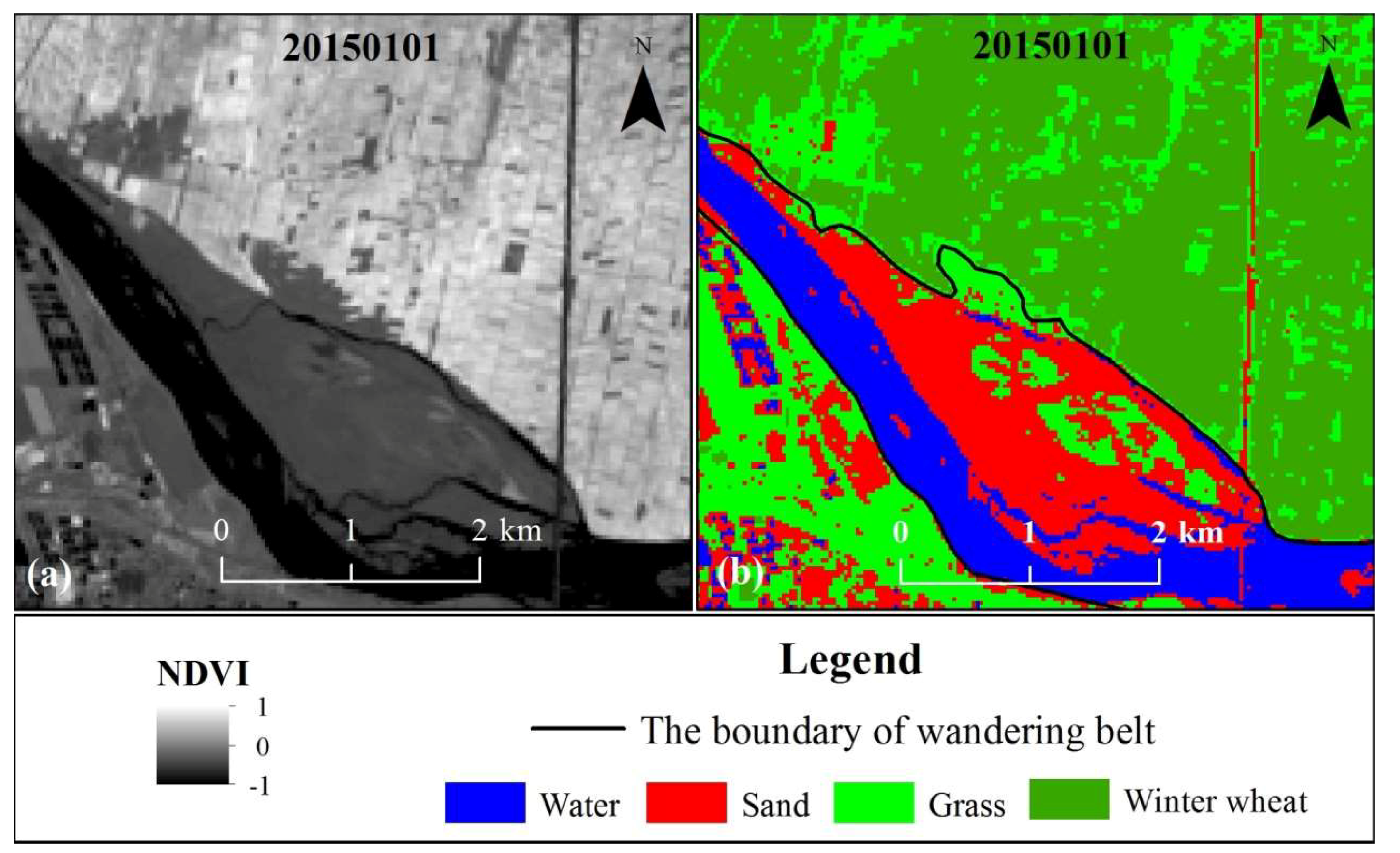

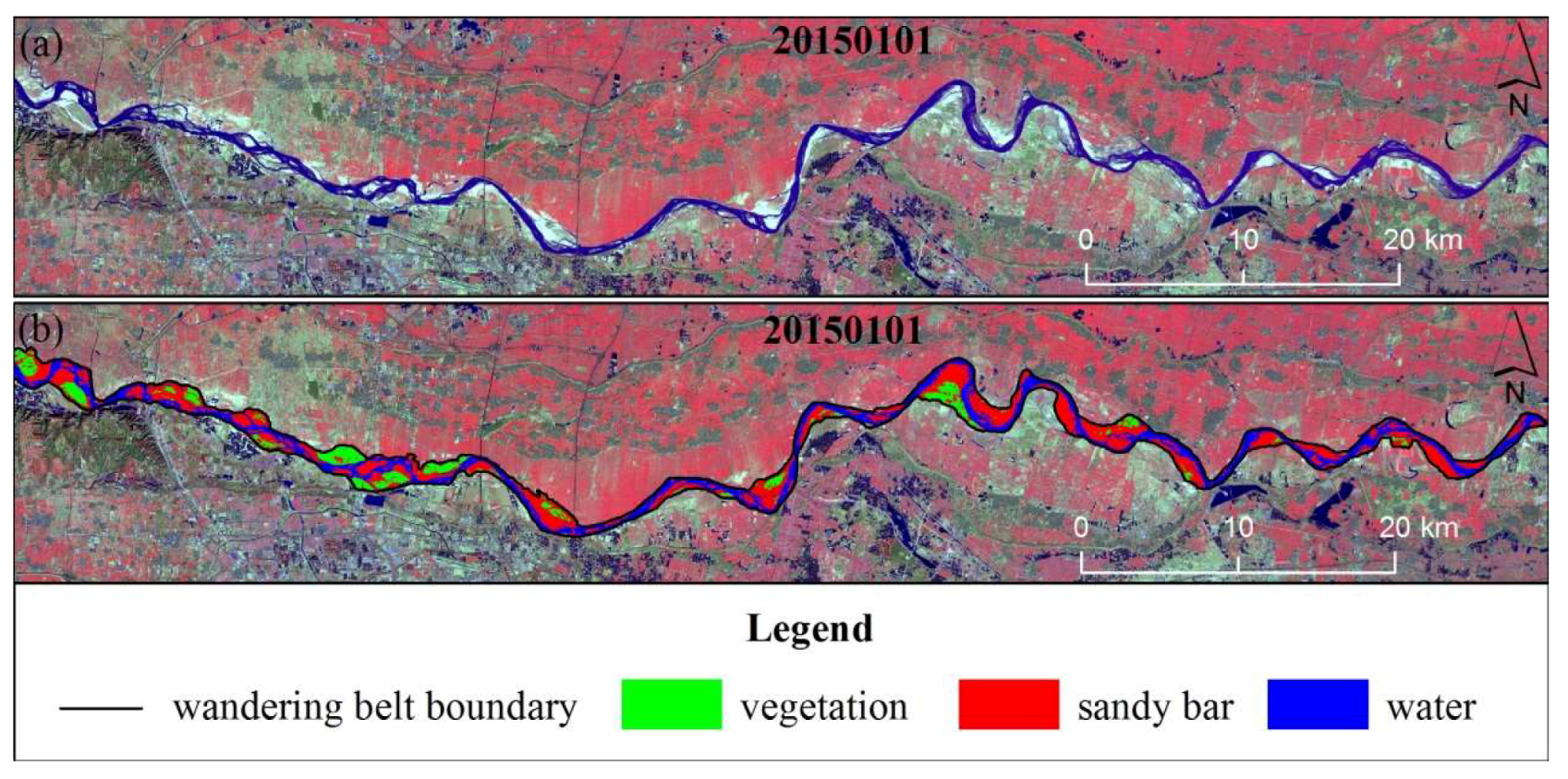

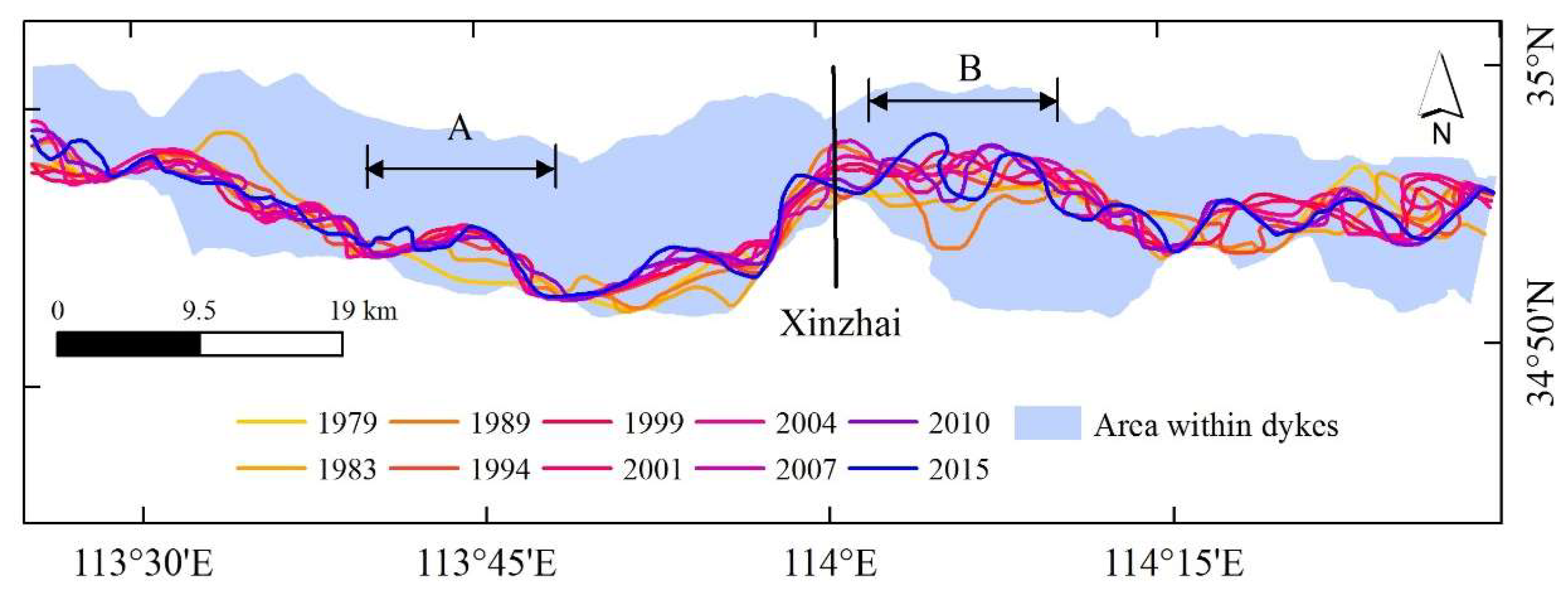

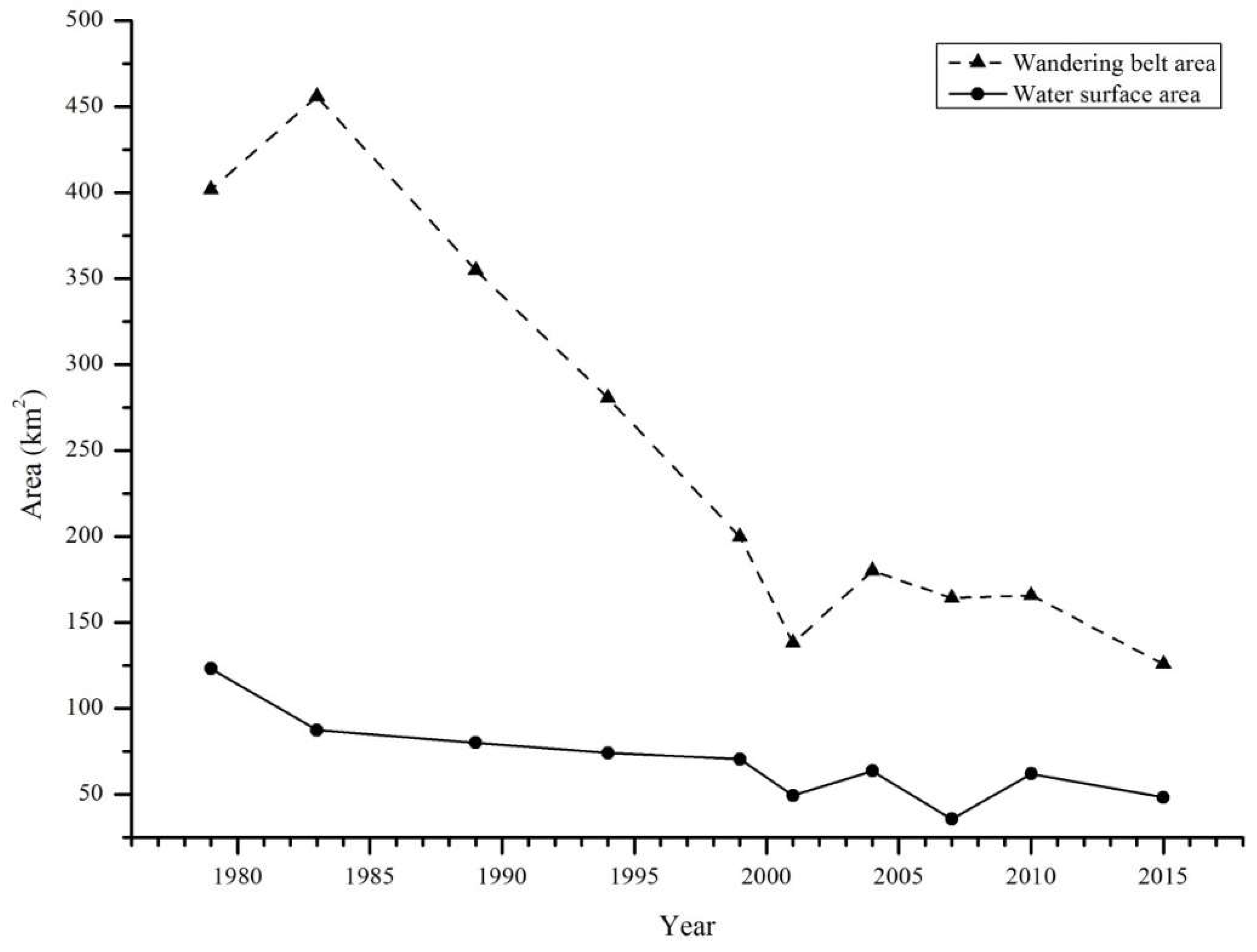

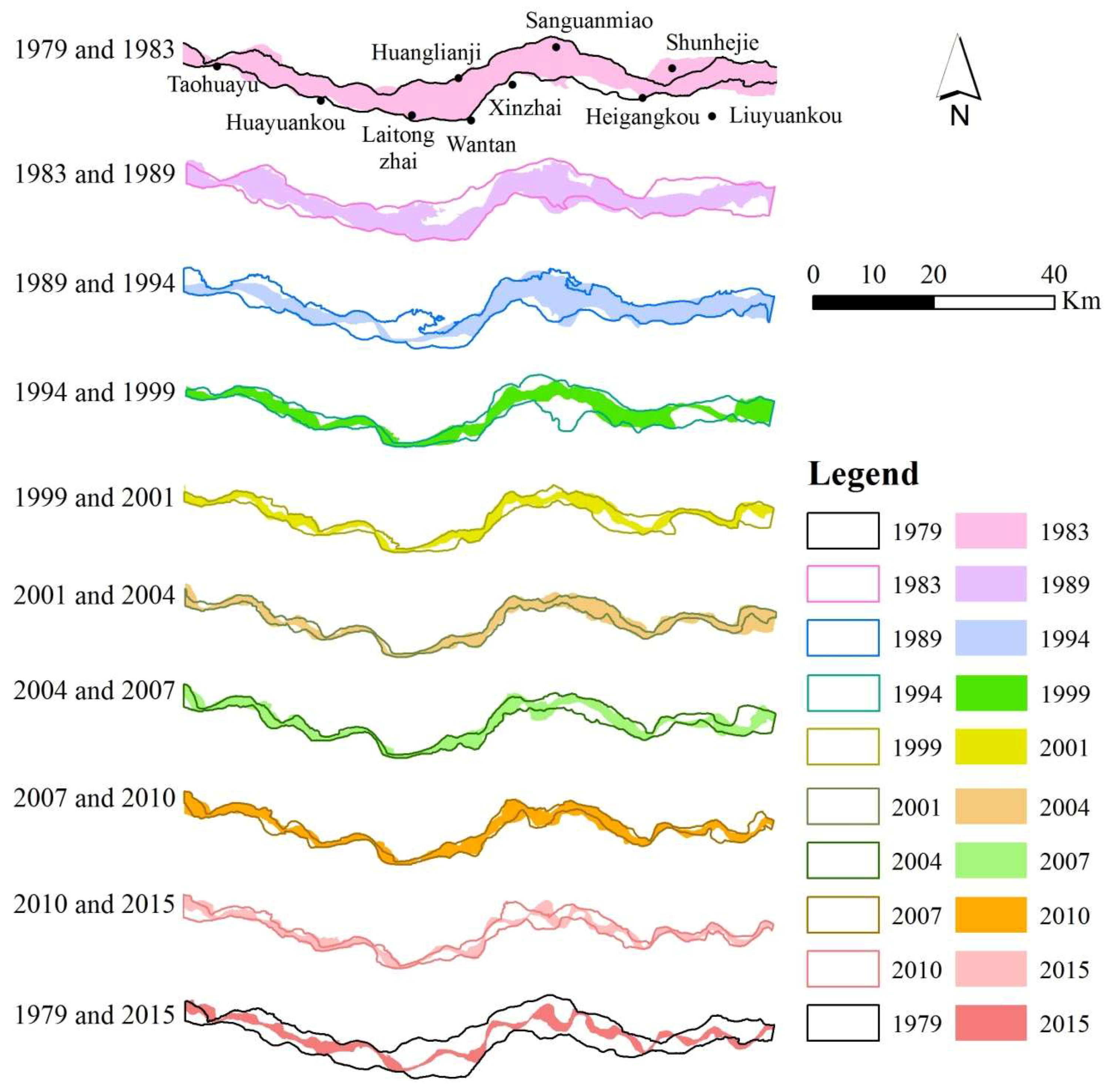

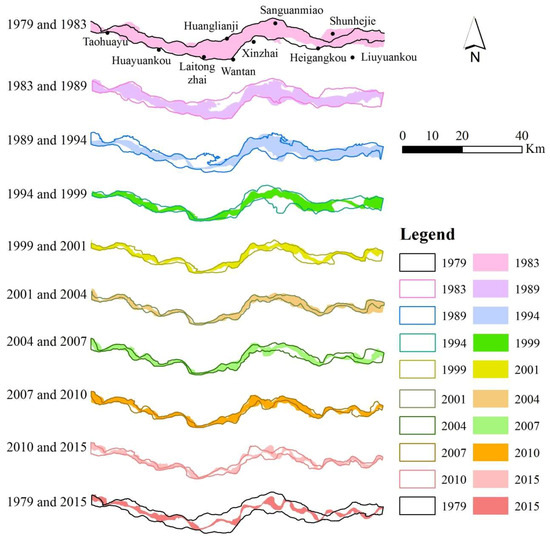

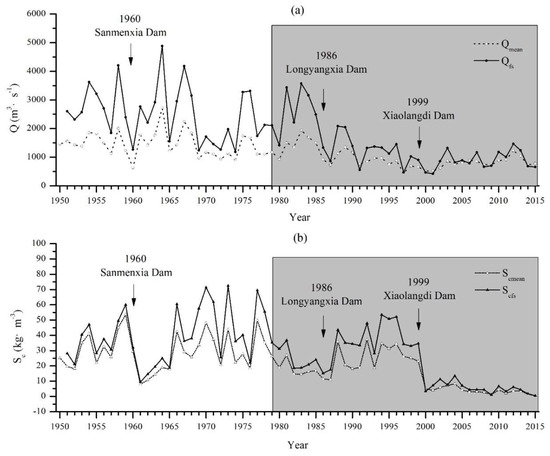

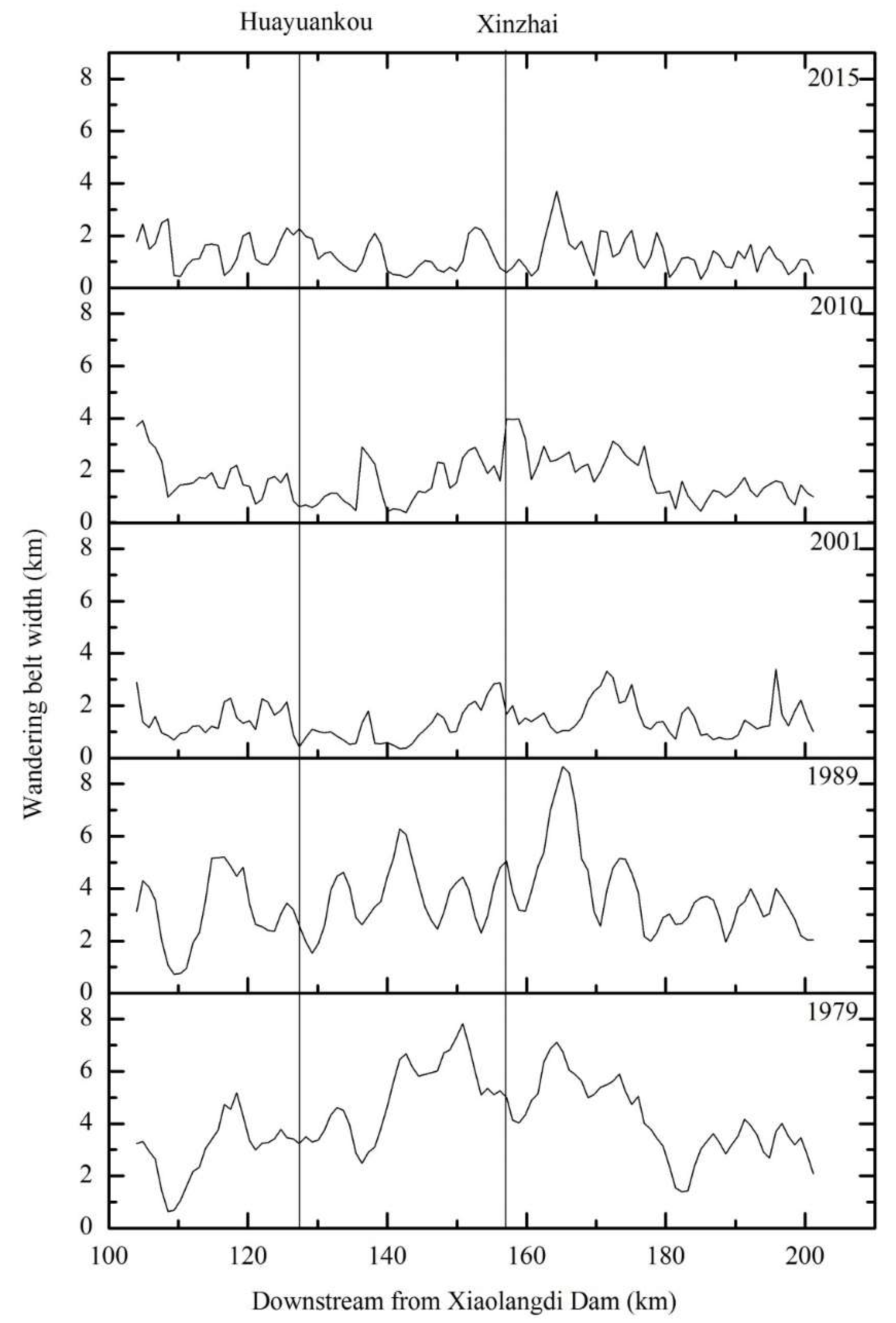

The Yellow River (Huanghe River), which is the second largest river in China, has experienced dramatic changes in both runoff and sediment over the last 60 years. To quantify the effects on the channel morphology of the wandering reach on the Lower Yellow River (LYR), this study extracts morphological indices from Landsat imageries taken between 1979 and 2015. Over the dynamically adjusting complex channel-floodplain system, the spatial distribution of NDVI (Normalized Difference Vegetation Index) is found helpful for identifying the wandering belt created by the frequent migrations of the pathways of the main flow, which are determined from the reflection of the sediment-laded water body in remote sensing images taken at low flows. The extracted results show clearly that the average width and area of the wandering belt over the entire study reach declined in a dramatic fashion between 1979 and 2000 and yet both varied respectively within very narrow ranges from 2000 to 2015. Although the number of bends increased significantly since the 1990s, the sinuosity of the pathways of the main flow remained almost unchanged. By combining the morphological indices extracted from the remote sensing images with field hydrological and geomorphological measurements, our regression analysis identifies that the width of the wandering belt changes at the highest degree of correspondence with the width/depth ratio of the main channel and the variations of both are related most closely to the average flow discharge and then to sediment concentration during the flood seasons. These implicate that a significant reduction of the magnitude of floods and sediment concentration is beneficial not only for making the main channel transit from a wider and shallower cross-section into a narrower and deeper profile but also for narrowing the wandering range of the LYR. View Full-Text
Keywords: morphological change; remote sensing; wandering river; runoff and sediment change; Lower Yellow River morphological change; remote sensing; wandering river; runoff and sediment change; Lower Yellow River
Figures

Figure 1
