Water 2018, 10(10), 1428; doi:10.3390/w10101428

Article
Remote Sensing of Water Quality Parameters over Lake Balaton by Using Sentinel-3 OLCI
1
Department of Physics and Technology, UiT the Arctic University of Norway, P.O. Box 6050 Langnes, NO-9037 Tromsø, Norway
2
Balaton Limnological Institute, Hungarian Academy of Science, Centre for Ecological Research, Klebelsberg K. street 3, 8237 Tihany, Hungary
*
Author to whom correspondence should be addressed.
Received: 23 July 2018 / Accepted: 4 October 2018 / Published: 11 October 2018

Abstract

:
The Ocean and Land Color Instrument (OLCI) onboard Sentinel 3A satellite was launched in February 2016. Level 2 (L2) products have been available for the public since July 2017. OLCI provides the possibility to monitor aquatic environments on 300 m spatial resolution on 9 spectral bands, which allows to retrieve detailed information about the water quality of various type of waters. It has only been a short time since L2 data became accessible, therefore validation of these products from different aquatic environments are required. In this work we study the possibility to use S3 OLCI L2 products to monitor an optically highly complex shallow lake. We test S3 OLCI-derived Chlorophyll-a (Chl-a), Colored Dissolved Organic Matter (CDOM) and Total Suspended Matter (TSM) for complex waters against in situ measurements over Lake Balaton in 2017. In addition, we tested the machine learning Gaussian process regression model, trained locally as a potential candidate to retrieve water quality parameters. We applied the automatic model selection algorithm to select the combination and number of spectral bands for the given water quality parameter to train the Gaussian Process Regression model. Lake Balaton represents different types of aquatic environments (eutrophic, mesotrophic and oligotrophic), hence being able to establish a model to monitor water quality by using S3 OLCI products might allow the generalization of the methodology.
Keywords:
shallow lake; Chl-a; CDOM; TSM; Gaussian process regression; automatic model selection algorithm

1. Introduction

Large freshwater lakes play an important role in the earth’s ecosystems, not only because they contain 68% of the global fresh water reservoir, but also because of their economic, social and biological importance as they provide habitats for wildlife, irrigation for agriculture, energy, transport and most importantly water for drinking [1]. The large areal extent of some of these lakes makes traditional water monitoring time and resource consuming, hence inefficient, yet continuous water quality monitoring of lakes is of great importance in detecting environmental changes [2].
Lake Balaton, which covers an area of 596 km 2 , is the largest lake in Central Europe and one the most important natural and tourist attractions in Hungary and Central Europe. It provides recreational facilities, and is an aesthetics and cultural resort, which attracts the largest tourist industry in the country [3]. There are several ongoing ecosystem monitoring programs at Lake Balaton. These programs aim to monitor important biological and ecological aspects of biodiversity and food web interactions in the lake. Examples for former monitoring programs for Lake Balaton can be found in [4,5].
The lake has gone through significant changes in the past decades, and only lately were these changes experienced as advantageous. In the 1970s, increased nutrient loads of anthropogenic origin, such as inadequate wastewater management and agricultural runoff, and abiotic factors resulted in degradation of water quality of Balaton. Anthropogenic impacts, i.e., intensification of agricultural activities and increase in the number of settlements along the shore, caused eutrophication of the lake. The eutrophication process was successfully stopped and reversed by introducing a combination of technological and management solutions [6,7]. Recent unpublished data suggests that the lake has recovered and returned to the pre-eutrophic conditions.
As a result of these past events, there is an increasing demand for continuous monitoring of biotic and abiotic changes of the lake. Advances in remote sensing technology allow for the use of satellites for monitoring water constituents. The European Space Agency’s (ESA) Ocean and Land Color Instrument (OLCI) onboard the Sentinel 3A and 3B satellites collects data of high spectral and spatial resolutions, and due to the frequent revisit time, they provide the possibility to monitor the water quality of Lake Balaton. In this work, we will study the water monitoring capabilities of Sentinel 3 (S3) for this lake, focusing on three important water quality parameters that affect the lake’s water color through scattering and/or absorption: Chlorophyll-a (Chl-a), Colored Dissolved Organic Matter (CDOM) and Total Suspended Matter (TSM).
Chl-a is a major photosynthetic pigment which occurs in phytoplankton, i.e., in the ubiquitous, microscopic, free-floating and suspended organisms found in the illuminated (euphotic) layer of the lakes. The amount of phytoplankton in the water collectively accounts for the trophic state of the lake. Although these organisms are the base of the aquatic food web, their excess could be harmful. Phytoplankton face a great number of abiotic and biotic limitations (light, temperature, other algae, herbivores, etc.), which influence the phytoplankton growth [8]. Nutrient enrichment is very important, since it leads to the eutrophication of lakes, which can lead to alternate states [9].
CDOM is the colored (optically active) fraction of the dissolved organic matter (DOM) of waters, consisting mostly of humic and fulvic acids. Although CDOM is considered as an indicator of DOM [10,11], its origin can vary, as the amount of CDOM is affected by external factors and diffuse sources from the catchment. CDOM in waters is autochtonous, i.e., coming from degradation of algae or macrophytes in the given water body, and/or allochtonous, i.e., coming from the catchment area.
TSM includes a wide range of particulate material for the given water column. The origin of TSM can be local, such as wind induced resuspension and/or distant, for instance from tributaries [12]. TSM contains both organic and inorganic matter, and has a significant impact on the spatial and temporal aspects of the optical properties of the water bodies [13].
Ocean color remote sensing methodology could potentially be a useful tool to track the variability and monitor these water quality parameters [14,15,16]. In situ observations have documented that Lake Balaton shows a large spatial and temporal variation in the amount and the distribution of Chl-a, CDOM and TSM. This, and the fact that Lake Balaton is regularly monitored by field sampling and measurements, makes the lake particularly well suited for validating retrieval of water quality products for complex aquatic environments from the Copernicus S3 OLCI instrument. The computation of the standard Chl-a, CDOM and TSM maps from OLCI is generally performed by using a Neural Network (NN) method [17,18].
However, optical properties of local environments might show large deviations from the data used for training state-of-the-art models. This can lead to erroneous retrieval of water quality parameters [19]. Therefore, it is often required to use a local model, adjusted to the given area. An alternative powerful regression approach, the Gaussian Process Regression (GPR) model, has lately been investigated for biophysical parameter retrieval from remotely sensed data. The GPR model has been shown to outperform some other parameteric and non-parameteric machine learning methods, such as NNs, in the estimation of these biophysical parameters [20,21,22,23,24]. Hence, the GPR model can be an alternative candidate for estimating water quality parameters from data acquired by S3 OLCI in Lake Balaton.
In this work, our primary objective is to investigate the quality of the global S3 OLCI complex water products for Lake Balaton. For this, we compare the OLCI Level 2 (L2) water quality products (Chl-a, CDOM and TSM) against in situ measurements collected at six fixed stations in the lake in 2017. Hence, the first part of the work is a preliminary study, which aims to investigate the possibility of using S3 OLCI L2 water quality products to monitor Lake Balaton, and at the same time evaluate the performance of S3 OLCI L2 products for this highly complex aquatic environment.
Our secondary objective is to investigate the performance of the Machine Learning GPR approach, tuned locally for Lake Balaton. The GPR model is noted to have several advantageous properties. In addition to it’s powerful regression strength, it also provides the possibility to access feature relevance, through feature ranking. As shown in [24,25], the regression strength and the efficiency of the model can be improved by using features selected by using ranking methods. In order to select the most suitable number and combination of spectral bands to be used in the GPR model for estimating Chl-a content of Lake Balaton, we applied the recently published Automatic Model Selection Algorithm (AMSA) [25] to data from the lake, extended with synthesised data of the same Chl-a ranges.
Finally, we visually compare the estimates for S3 OLCI L2 Chl-a products with the locally trained GPR model. Note, we do not specifically aim to compare the estimates of the NN with the locally trained GPR model, since the NN was trained on a dataset which differs in optical properties and size from the matchup data we used to train the local GPR model. Hence, our contribution in this work is to test S3 OLCI L2 water quality products for the diverse Lake Balaton conditions, and to comparatively assess the value of using a locally tuned Machine Learning GPR model.

2. Materials and Methods

2.1. Study Area

Lake Balaton is the largest shallow lake in Central Europe, situated in western Hungary (46 50 N, 17 40 E, Figure 1). The surface area of the lake is 596 km 2 with an average depth of 3.5 m, and the volume is about 2 × 10 9 m 3 . Geomorphologically, the lake could be divided into four basins. One half to two thirds of the inflow is discharged by the main tributary, the Zala River, that enters the lake at the westernmost, Keszthelyi Basin. In past decades, the Zala River has carried a great amount of nutrients into Lake Balaton [26]. This resulted in the deterioration of water quality, mostly in the westernmost, Keszthelyi Basin, which led to a prominent trophic gradient in the lake in the 70s–90s [27]. Although phytoplankton biomass in Lake Balaton has significantly decreased during the last two decades, the trophic gradient along the SW-NE axis still exists.
The northern shore of Lake Balaton is steeper than in the south, which results in a difference in depth between the northern and southern shore. This can allow light to reach the bottom near the southern shore in particular. The bottom of the lake is dominated by fine grain size magnesite-bearing calcareous sediments [28]. This can be easily re-suspended under windy weather conditions, resulting in high turbidity. The spatial variability of algal biomass, bathymetry and bottom sediment content lead to high complexity of the optical properties of Lake Balaton.
In situ measurements are collected monthly in ice free periods. Six stations are visited, from the westernmost part of the lake, at the outflow of Zala River (Station 1), ending with Station 6 at the easternmost part of the lake (Figure 1 and Table 1). Usually, the data collection is performed at positions assumed to represent typical characteristics of the lake in those areas.

2.2. Data

2.2.1. Water Sampling

Chlorophyll-a concentration was determined from integrated water samples, which were collected from the whole water column. Water samples of known volume in replicates of 3 were filtered into GF-C filter (Whatman). Chl-a was spectrophotometrically measured after hot methanol extraction [29].
The concentration of CDOM was measured in Pt (platina) units (mg Pt L 1 ). Water samples of known volume were filtered through a 0.45 μ m pore size cellulose acetate filter, buffered with borate buffer and measured against a blank of buffered Milli-Q water at 440 nm and 750 nm using a Shimadzu UV 160A spectrophotometer. Pt units were calculated from the absorbance values according to [30].
TSM content was determined gravimetrically after sample filtration through a 0.4 μ m pore size cellulose acetate filters.

2.2.2. Sentinel-3A OLCI Level-2 Products

Water Quality Products

We used the latest reprocessed (14 February 2018) Sentinel-3A OLCI Full Resolution (FR) Level-2 water quality products for complex waters for validation. These products include Chl-a, CDOM and TSM, retrieved from the spectral measurements by using NN techniques. Even though some part of Lake Balaton seems to show oligotrophic conditions, most of the lake is highly complex. Hence, it is reasonable to use water quality products for complex waters retrieved by NN. For further details on the NN retrieval algorithm we refer to [17,18,31].
There were six cloud free images available for the validation study. We located the coordinates of the six stations in the images, and used a 3 × 3 pixel matrix as described in [32], and applied the recommended flags. Images were acquired at the days of the in situ measurements or one of the neighboring days. We assume weather conditions were similar. We used the Sentinel Application Platform (SNAP) version 5.0 for processing and preparing the matchups. In total, we could obtain 36 matchups for Chl-a, CDOM and TSM.
We converted the S3 OLCI retrieved CDOM absorbance (m 1 ) to color (Pt units) by using the expression: Color 440 (g Pt m 3 ) = 18.216 × a 440 − 0.209 [30,33].

Remote Sensing Reflectance (Rrs)

We have also extracted the Level-2 Rrs for the spectral bands summarized in Table 2, by following the same procedure as described above. This data was included in the dataset used for training and testing the alternative GPR approach to retrieve the Chl-a water quality parameter.

2.2.3. Synthetic Dataset

An additional synthetic dataset was generated by using HydroLight simulation. The dataset includes Chl-a concentrations over a wide range, with corresponding Rrs values of the S3 OLCI bands. We extracted the values corresponding to the ranges of in situ Chl-a measurements from Lake Balaton. This dataset was used for evaluating the alternative model to estimate Chl-a concentration in Lake Balaton.

2.3. Methodology

2.3.1. Statistical Analysis

We evaluated the S3 OLCI products by comparing the retrieved values to in situ measurements of Chl-a, CDOM and TSM, respectively. For each water quality parameter, we quantified the correspondence in terms of three statistical measure. These measures are the Bias, the Normalized Root Mean Squared Errors (NRMSE), and the Squared Correlation Coefficient (r 2 ). They are defined by:
Bias = 1 N i = 1 N | ( y i y ^ i ) | ,
NRMSE = 1 y max y min 1 N i = 1 N ( y i y ^ i ) 2 ,
r 2 = i = 1 N ( y ^ i y ¯ ) 2 i = 1 N ( y i y ¯ i ) 2 ,
where N is the number of observations, y is the in situ measurement, y ^ is the S3 OLCI product, y max is the maximum observed value, y min is the minimum observed value, and y ¯ is the mean of the in situ measurements. We have also computed the p-value for assessing the level of significance. The p-value ranges between 0 and 1. A low p-value indicates that the null-hypothesis, which states there is no relationship between the results and the data, can be rejected. The cut off value is user-defined, and usually set to 0.05. Hence a p-value < 0.05, means that the results are significant, while a p-value > 0.05 indicate little or no significance.

2.3.2. Machine Learning Gaussian Process Regression for Water Quality Estimation

GPR Model

Machine Learning by Gaussian Process Regression (GPR) has been demonstrated to perform excellently in the prediction of water quality parameters from remotely sensed data [20,21,23,24]. Therefore, we have chosen to evaluate this methodology on the matchup data obtained for Lake Balaton in 2017.
The GPR model is a flexible, non-linear kernel method, which learns the functional relationship between the input and output by using a Bayesian framework [34]. In this work, the input data ( { x n R D } n = 1 N ) is formed by using the spectral bands from S3 OLCI Rrs (Table 2), where n = 1 , , N is the number of measurements, and d = 1 , , D is the number of spectral bands. The output ( y n = 1 N ) is the in situ and synthetic measurements for Chl-a.
The functional relationship between the input and output can be written by y n = f( x n ) + ε n , for n = 1 , , N , where the noise term, ε n , is assumed to be additive, independently, identically Gaussian distributed, with zero mean and constant variance, i.e., ε n N ( 0 , σ 2 ) . The GPR model fits a multivariate joint Gaussian distribution over the function values f ( x 1 ) , , f ( x N ) N ( 0 , K ) , with zero mean and covariance matrix K . Using a Bayesian inversion, the posterior distribution can be analytically computed for the predicted output ( y * ) for the corresponding new input ( x * ). This can be written by p ( y * | x * , D ) = N ( y * | μ GP * , σ GP * 2 ) , where μ GP * is the predicted Chl-a, σ GP * 2 is the certainty level of the estimate, and D is the training data. The predicted Chl-a can be expressed by μ GP * = k * ( K + σ 2 I n ) 1 y , where k * is the transposed covariance between the training vector and the test point. For further details on the GPR model we refer to [34].

Automatic Model Selection Algorithm

We used the Automatic Model Selection Algorithm (AMSA), described in [25], to determine the most suitable Chl-a retrieval GPR model for Lake Balaton. AMSA uses feature ranking methods to select the combination of features that results in the strongest regression, based on some predefined quantitative regression performance measures.
Since different ranking methods, may rank the features differently, we used four feature ranking methods here. These are the Sensitivity Analysis (SA) of the GPR and Support Vector Regression (SVR) models, the Automatic Relevance Determination (ARD), and the Variable Importance in Projection (VIP).
For each station, the spectral bands were ranked by these four methods. Then the ranked bands were fed into the GPR model to perform regression, starting with the most relevant band, then the second most important band, and subsequently, the next ranked bands in decreasing order of importance. At each iteration, regression performance measures are computed, and used for evaluating the strength of the GPR with the combination of features. The computation is done until no further improvement is achieved, and is repeated for all the four sets of ranked spectral bands resulting from the SA GPR, SA SVR, ARD and VIP feature ranking methods. This process was done for each station.

Machine Learning GPR for Lake Balaton

We had six matchups available for each of the stations. These matchups were merged with synthetic data of the corresponding Chl-a contents. This allowed us to obtain a larger representative dataset. We used the procedure described above to determine a ‘best’ GPR model, i.e., a best spectral combination for each station. The purpose of this exercise was to assess if the GPR model is spectrally sensitive to the observed changes in the water conditions.
We also wanted to find a ‘best’ GPR model for the whole Lake Balaton. Hence, in order to find a GPR model that generalizes best for the whole lake, each of the station-wise ‘best’ models was next trained and tested on the whole data set. The training and testing were done by carrying out cross validation in 500 iterations. We also evaluated the GPR model using all spectral bands in the input vector.

3. Results

3.1. Data Acquisition

The optical properties of the stations show great spatial and temporal variation. Station 1 is rich in CDOM, hence the color of the water appears dark-brown, while stations 5 and 6 are usually oligotrophic, resulting in blue water color, similarly to open oceans. Figure 2 shows an RGB image acquired in August 2017 by S3 OLCI, supplemented by photos taken at the stations, when the corresponding sampling was carried out. As can be clearly observed the color of the water is changing from station to station.

3.1.1. In Situ Measurements

Table 3 summarizes the results of the in situ measurements for every month and station. It can be observed that every month shows large spatial variation in all water quality parameters. More details of these variations are depicted in Figure 6, where the temporal variations of the water quality parameters at each station, together with the S3 OLCI L2 products, are presented. Note that the temporal variations at the stations seem to show differences between the measured parameters. In case of Chl-a, stations 1, 2 and 3 have the largest variations, while stations 4, 5 and 6 have quite steady values. The range of CDOM concentration decreases from station 1 to 6, following the trophic gradient of the lake.
For most of the measurements, we can disregard the contribution of bottom reflectance to the measured signal, since the depth of the euphotic zone does not reach the bottom. However, there were three measurements (in June at station 5 and 6, and in August at station 5), which might include contribution from bottom reflectance. This presumption based on evaluation of the respective computed light extinction coefficients.

3.1.2. Satellite Products

Figure 3 shows the Rrs values of the six stations. It can be observed that the CDOM rich stations show a greater variation in the spectrum (Figure 3 top-row) than stations with low CDOM concentrations (Figure 3 bottom-row). This may be explained by the overlapping absorption spectra of Chl-a and CDOM. It might also be a result of the higher Chl-a concentration in itself, since stations with higher CDOM also have higher Chl-a in general. Station 1 and 2 have similar spectra, they are comparable in terms of Chl-a, but they significantly differ in CDOM (and in TSM too) concentration.

3.2. Validation

First, we compared the in situ measurements with the S3 OLCI-derived products for all the available data. This allowed us to have an overall understanding about the accuracy of the estimation of the parameters.
Figure 4 shows the correspondence between the histograms of the S3 products and the in situ measurements. It can be observed that for the Chl-a (Figure 4 top) the histograms show similar and overlapping distributions of the estimated values. However, there are no satellite-derived estimates above 30 mg m 3 . In case of CDOM (Figure 4 bottom-left), the histograms also reveal similar distributions, although the satellite estimates are shifted to higher values. Furthermore, the satellite estimates could not capture values above 50 g Pt m 3 . The histograms of the TSM concentrations (Figure 4 bottom-right) show little agreement. Satellite estimates have a more uniform spread, with a significant shift towards higher values, compared to the in situ measurements.
Figure 5 shows scatter-plots of the measured in situ water quality parameters versus the corresponding satellite-derived products for all stations. It can be observed that in case of the Chl-a content (Figure 5 top), the S3 OLCI Chl-a retrieval algorithm does not estimate concentrations above 30 mg m 3 . The opposite of this tendency can be seen for the CDOM (Figure 5 bottom-left) and TSM (Figure 5 bottom-right) concentrations. The satellite products show significantly higher values than the in situ measurements.
With reference to Figure 5, the corresponding r 2 measure showed no correlation for Chl-a, but some correlation for CDOM and TSM. However, the lowest bias was computed for Chl-a, while both for CDOM and TSM the bias were higher. Finally, the NRMSE values were similar for Chl-a and CDOM, and higher for TSM.
In order to detect both monthly and station wise variations in the estimation of water quality products by using S3 OLCI, we compared the in situ measurements with the L2 products for every station and month. The results of the computed statistical measures can be seen in Table 4 and Table 5.

Station Wise Analysis

Analyzing the computed statistical measures station-wise revealed poor correspondence between the satellite retrievals and in situ measurements for all water quality parameters (Table 4). Stations 6 and 5 seemed to show the best values for S3 OLCI Chl-a and CDOM retrieval, respectively. These stations correspond to the area where both Chl-a and CDOM concentrations are low (Table 3). For the estimated TSM concentration, station 3 seemed to show the best computed statistical measures.
In order to visually assess the temporal variations of the water quality parameters at the stations, we have depicted the in situ measurements and the S3 OLCI-derived values for every station in Figure 6.
It can be seen that Chl-a is underestimated for stations 1, 2 and 3, with the exception of the May month. For stations 4, 5 and 6 S3 the OLCI algorithm both over- and underestimates Chl-a content. However, these biases seem to decrease as in situ Chl-a content decreases and shows less variations. CDOM is overestimated almost at all stations, with the exception of station 1, where it is underestimated for all months. The TSM concentration is also overestimated at all stations. The largest deviation seems to occur at station 1, while the smallest difference occurs at station 3. This is in good agreement with the computed statistical measures.

Monthly Analysis

Analyzing the data for each month revealed that the poorest performance was obtained in May for all the three parameters (Table 5). This might be related to the mixing of the water layers, which may cause the sensitivity of the NN algorithm to be biased towards the TSM. However, the computed biases were large for all months and parameters. The highest agreement between in situ observations and S3 OLCI products were found for the Chl-a concentration, with the exception for May. The computed correlation coefficients were found to be low for both the CDOM and TSM concentrations for most of the months.

3.3. GPR for Lake Balaton Chlorofyll: A Content Retrieval

The validation results above indicate that there is a need for a local model in the estimation of water quality parameters over Lake Balaton based on S3 OLCI data. Therefore, in the following section we present the results of a locally tuned GPR model for Chl-a content.

3.3.1. AMSA for Improving the GPR Model for Chl: A Content Retrieval

We used AMSA to determine the number and positions of the most important spectral bands for the six stations for Chl-a. This was done by extracting the Chl-a and Rrs pairs from the synthetic dataset corresponding to the in situ Chl-a ranges for every station. Then the synthetic dataset was merged with the in situ data. This was used as input to AMSA. Then the first stage of AMSA, feature ranking, was done by using all the available samples (Table 6 Nr. of samples) for each station. The feature selection and evaluation part of AMSA were performed by splitting the data to training and testing samples. The test samples were formed by the in situ measurements, while the training samples held the rest of the samples. Table 6 summarizes the results for the stations. The p-value was below 0.0001 for all cases. Note, the results in Table 6 show the strongest models for the stations. However, using only few ranked bands as input to the GPR model already resulted in strong performance. The goal is to determine the ‘best’ model, therefore, these results are not reported here.
The spectral bands needed to achieve the ‘best’ GPR model are summarized in Figure 7. It can be observed that for all stations, bands centered at 673.25 and 681.25 nm were needed to obtain the strongest regression for Chl-a content estimation in the GPR model. For station 6, using only three bands were already enough to determine the ‘best’ model. These three bands are centered at 442.5, 673.75 and 681.25 nm, which is in good correspondence with the Chl-a absorption and fluorescence spectrum. Station 6 is known to be less affected by CDOM, hence possibly the first absorption peak of Chl-a is not masked by CDOM.

3.3.2. Determining a General Model for Chl-a Content Retrieval

We used the results of the station-wise feature ranking from AMSA to determine a general GPR model tuned for the whole lake. Firstly, we used all the available spectral bands in the GPR model. This was defined as our reference model. Then we used the results of the ranking methods presented in Figure 7 for the stations to perform regression experiment involving the complete merged dataset.
Table 7 shows the computed statistics for the GPR models. Note that for Station 3, AMSA suggested that all bands were needed. All stations considered, the general observation was that the lowest bias was achieved by using bands centered at 412.5, 510, 620, 673.75 and 681.25 nm, and the lowest NRMSE was obtained with the bands centered at 442.5, 673.75 and 681.25 nm. Hereafter, we refer to these models as the all bands, the 5-band and the 3-band models, respectively, The p-value, which was very low in all cases, and r 2 measure could not reveal any differences between the models.

3.3.3. Cross Validation

We used all bands, 5-band and 3-band models to perform cross-validation. For this purpose, we merged the synthetic and in situ data for all stations. In order to reduce computational time we used a subset of this merged dataset. This data was formed by sampling from the values from every station, hence the data was still representative for the whole lake. The total number of samples were 624.
We used this representative dataset to randomly draw samples from both the synthetic and in situ measurements for training the models, while the rest of the data was used for testing. The total number of samples used for training and testing, was 430 and 194, respectively. Then we computed the statistical measures on the test set. This was done for 500 times. The results are summarized in Table 8. It can be seen that both the 5-band and 3-band models resulted in improved performance in comparison to the all band model. The lowest NRMSE and bias were achieved by the 5-band model, and the highest r 2 was obtained with the 3-band model. The p-value were low in all cases. Note, both models include bands centered at 673.75 and 681.25 nm. These results confirm the importance of using these bands to estimate Chl-a in optically highly complex waters.

3.3.4. Chl-a Maps

By comparing the satellite products with the ground-truth measurements for all months, revealed that May had the largest deviations according to the statistical measures for all water quality parameters (Table 5).
The RGB image of Lake Balaton acquired at the 22 May 2017 can be seen in Figure 8. The yellowish pattern are most likely due to the mixing of the bottom layers. These patterns show good correspondence with the dominating wind direction, Northern winds, and the geography of the Northern shore of the lake. Note, the patches, which appear green in the image, are in areas well-known to be shadowed for the Northern winds.
Figure 9 shows the estimated Chl-a content by using S3 OLCI NNs (left) and the 5-band GPR model (right). It can be observed that the S3 OLCI product overestimates Chl-a content. This might be due to a too strong sensitivity to TSM. Comparing the RGB image and the Chl-a estimates-derived by S3 OLCI, we see that it follows the pattern of thoroughly mixed waters with higher TSM. the 5-band GPR model seem to show less (no) sensitivity to the TSM concentration. Chl-a estimates show higher values in the western basin, around the Tihany passage and also around the eastern basin. Fine details and patterns can also be observed in the image produced by the 5-band GPR model.
Patches with higher Chl-a content seem to appear in areas, where the primary productivity is assumed to be increased. The map (Figure 9 right) revealed regions with higher Chl-a values, in the western and eastern side of the Tihany passage. This is an interesting feature, which can be explained by the bathymetry of the lake. The water depth drops around the southern part of the passage [35,36], allowing benthic algae to appear in surface waters under suitable mixing conditions. The RGB image showed heavy mixing in the particular month we chose for this illustration. Favorable wind direction and speed might have caused the occurrence of a current in the Tihany passage, transporting Chl-a rich waters from the western part to the eastern side.

4. Discussion

In this work, we studied the possibility of using S3 OLCI L2 products to monitor water quality parameters in Lake Balaton. For this, we first used in situ measurements of Chl-a, CDOM and TSM to evaluate the performance of the state-of-the-the-art complex water algorithm for S3 OLCI. The overall finding was that the correlation between in situ measurements and the S3 OLCI L2 products was low and not significant. It was the lowest value for Chl-a content, and somewhat higher for CDOM and TSM. Note, there are few published validation results for S3 OLCI L2 water quality parameters for complex waters, since S3 OLCI data only lately has become available. However, for the MEdium Resolution Imaging Spectrometer (MERIS), which had similar spectral and spatial resolution as S3 OLCI, similar validation results have been documented using NN algorithms to retrieve water quality parameters. This includes the over and underestimation of Chl-a concentration [37], and large overestimation of TSM [31].
The station-wise study resulted in the best qualitative correspondence, i.e., lowest NRSME and bias, and highest correlation, for Chl-a and CDOM at stations representing oligotrophic waters (Stations 5 and 6). The range of the in situ measurements at these stations were between 2 and 5 mg m 3 for Chl-a and 2–7 g Pt m 3 for CDOM, which are the lowest of all stations. Here, the TSM concentrations were also in the lower ranges, in comparison to the other stations. The computed measures did not reveal any significant differences between the stations for TSM.
The monthly analyses showed that the S3 OLCI estimates were in quite good correspondence with the observations for Chl-a. CDOM and TSM estimates had less agreement with the in situ measurements. We found that May resulted in the poorest fit in terms the computed statistical measures. The in situ Chl-a ranges were lowest in May, but conversely, for this month the CDOM and TSM ranges were large.
These results might be related to inaccuracies in the atmospheric correction and water quality retrieval algorithms because of the lack of training data from Lake Balaton in the dataset used to establish the state-of-the-the-art models for complex waters [38].
The above results motivated us to investigate the capabilities of a locally trained GPR model for monitoring the complex environment of Lake Balaton. The overall findings for the S3 OLCI products showed the poorest performance for Chl-a content retrieval, which is the most important water quality parameter. Therefore, we studied the possibility of improving Chl-a content estimation in Lake Balaton by using the alternative approach. We obtained a larger, more representative dataset suitable for evaluating a locally tuned model by extending the in situ measurements with a synthetic dataset for S3 OLCI, generated for complex waters.
Using the AMSA approach to determine the most suitable number and combination of spectral bands to be used in the GPR model, we obtained significant improvements in regression strength. Even though the four feature ranking methods currently implemented in AMSA are-derived from different mathematical principles, the ranking showed high consistency. Our station-wise feature ranking experiment showed that the most relevant bands were highly dependent of the water properties and the water quality parameter in question. Our study suggested that for Chl-a estimation in Lake Balaton the bands 1, 4, 6, 8 and 9 are the most important in the GPR model. These bands have been previously shown to be sensitive to Chl-a in different datasets [24]. Bands positioned in the red part of the electromagnetic spectrum, corresponding to the longer wavelengths, might be important due to the second absorption peak of the Chl-a molecule [39]. Recent studies have presented the benefit of using S3 OLCI red bands to monitor Chl-a in optically complex environments [40,41]. Chl-a estimation can be improved by using models with these red bands. This is in good correspondence with our results. The station-wise analysis of AMSA showed that inclusion of red bands were necessary to obtain the ‘best’ GPR model for all cases. The 5-band model for Lake Balaton also was found to use these red bands as inputs to achieve improved Chl-a retrieval. The inclusion of additional blue-green bands has been shown to be advantageous, when the aquatic environment has large variation in Chl-a content [42]. Our results also indicated that bands corresponding to lower relative wavelengths are also required to optimize the GPR model for the lake.
We visually compared the predictive power of the locally tuned 5-band GPR model with S3 OLCI L2 Chl-a products for Chl-a estimation. The Chl-a map produced by using S3 OLCI L2 NN algorithm seemed to show high sensitivity to the TSM content. The estimated Chl-a contents were significantly above the in situ measurements, indicating overestimation. This is in good agreement with the validation results, which showed that S3 OLCI assigns high values to Chl-a content below about 10 mg m 3 . This is a surprising finding, since the state-of-the-the art NN was trained on samples containing values up to 30 mg m 3 . A possible explanation for this overestimation is that complex optical properties of the lake results in sensitivity to other water constituents, such as TSM. This might lead to erroneous Chl-a content estimates. This also suggests the importance of using an alternative flexible approach for local, highly complex aquatic environment. The Chl-a map produced by the 5-band GPR model seemed to show better correspondence with the measured Chl-a content range for the particular month. The model could capture fine details and patches, which can be explained by the bathymetry and currents in the lake.

5. Conclusions

Our analysis showed that S3 OLCI provides the excellent possibility to monitor Lake Balaton, due to its spectral and spatial resolution and the good quality of the data. However, our validation results indicate the need of algorithm development for optically highly complex waters. We can conclude that based on the evaluation study of the alternative approach on the composite dataset, the GPR model seems to be able to improve the estimation of Chl-a concentration in Lake Balaton.
We believe that the development of an accurate, fast and robust water quality retrieval model for Lake Balaton would certainly be generally beneficial. This is due to the fact that Lake Balaton’s optical properties represent different kinds of aquatic environments: eutrophic, mesotrophic, oligotrophic, turbid and clear waters, and possible contribution of bottom reflectance. Hence, the lake represents a unique test site for the development of retrieval models for water quality parameters for optically complex waters.
For future work, we will collect in situ radiometric data, which might allow to further exploit the optical properties of Lake Balaton and understand eventual challenges with regard to the atmospheric correction algorithm. Furthermore, we will further test and validate the alternative model presented here on data originating from various other water bodies. This might allow us to understand the generalization capabilities of the 5-band GPR model.

Author Contributions

K.B. conceived the idea, methodology, performed the implementations, validation, formal analysis, data processing and analysis, visualization and prepared the original draft. K. P., V. R. T. and T. E. contributed to the investigation, interpretation of the results, writing-review and editing. T. E. supervised the work.

Funding

This research received no external funding.

Acknowledgments

This research is partly funded by CIRFA partners and the Research Council of Norway (grant number 237906). We thank the Hungarian Academy of Science, Center for Ecological Research, Balaton Limnological Institute for providing the data, and to Balázs Németh for his useful comments and discussions. We thank EUMETSAT for producing and distributing the S3 OLCI L2 data. We thank Nima Pahlevan (National Aeronautics and Space Administration/Goddard Space Flight Center) for providing the synthetic dataset.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Beeton, A.M. Large freshwater lakes: Present state, trends, and future. Environ. Conserv. 2002, 29, 21–38. [Google Scholar] [CrossRef]
  2. Palmer, S.; Zlinszky, A.; Balzter, H.; Perea, V.N.; Tóth, V. Copernicus Framework for Monitoring Lake Balaton Phytoplankton. In Earth Observation for Land and Emergency Monitoring; Wiley-Blackwell: Hoboken, NJ, USA, 2017; Chapter 10; pp. 173–191. [Google Scholar] [CrossRef]
  3. Rátz, T.; Michalkó, G.; Kovács, B. The influence of Lake Balaton’s tourist milieu on visitors’ quality of life. Tourism Int. Interdiscip. J. 2008, 56, 127–142. [Google Scholar]
  4. Mózes, A.; Présing, M.; Vörös, L. Seasonal Dynamics of Picocyanobacteria and Picoeukaryotes in a Large Shallow Lake (Lake Balaton, Hungary). Int. Rev. Hydrobiol. 2006, 91, 38–50. [Google Scholar] [CrossRef]
  5. Riddick, C.A.L.; Hunter, P.D.; Tyler, A.N.; Martinez-Vicente, V.; Horváth, H.; Kovács, A.W.; Vörös, L.; Preston, T.; Présing, M. Spatial variability of absorption coefficients over a biogeochemical gradient in a large and optically complex shallow lake. J. Geophys. Res. Oceans 2015, 120, 7040–7066. [Google Scholar] [CrossRef]
  6. Somlyódy, L.; van Straten, G. Background to the Lake Balaton Eutrophication Problem. In Modeling and Managing Shallow Lake Eutrophication with Application to Lake Balaton; Springer: Berlin, Germany, 1986; pp. 3–18. [Google Scholar]
  7. Istvánovics, V.; Clement, A.; Somlyody, L.; Specziár, A.; László, G.; Padisak, J. Updating water quality targets for shallow Lake Balaton (Hungary), recovering from eutrophication. Hydrobiologia 2007, 581, 305–318. [Google Scholar] [CrossRef]
  8. Reynolds, C.S.; Scheiz, Z. The response of phytoplankton communities to changing lake environments. Swiss J. Hydrol. 1987, 49, 220–236. [Google Scholar] [CrossRef]
  9. Scheffer, M.; Hosper, S.; Meijer, M.L.; Moss, B.; Jeppesen, E. Alternative equilibria in shallow lakes. Trends Ecol. Evol. 1993, 8, 275–279. [Google Scholar] [CrossRef]
  10. Brezonik, P.L.; Olmanson, L.G.; Finlay, J.C.; Bauer, M.E. Factors affecting the measurement of CDOM by remote sensing of optically complex inland waters. Remote Sens. Environ. 2015, 157, 199–215. [Google Scholar] [CrossRef]
  11. Toming, K.; Kutser, T.; Tuvikene, L.; Viik, M.; Nõges, T. Dissolved organic carbon and its potential predictors in eutrophic lakes. Water Res. 2016, 102, 32–40. [Google Scholar] [CrossRef] [PubMed]
  12. Madsen, J.D.; Chambers, P.A.; James, W.F.; Koch, E.W.; Westlake, D.F. The interaction between water movement, sediment dynamics and submersed macrophytes. Hydrobiologia 2001, 444, 71–84. [Google Scholar] [CrossRef]
  13. Giardino, C.; Oggioni, A.; Bresciani, M.; Yan, H. Remote Sensing of Suspended Matter in Himalayan Lakes. Mt. Res. Dev. 2010, 30, 157–168. [Google Scholar] [CrossRef]
  14. Büttner, G.; Korándi, M.; Gyömörei, A.; Köte, Z.; Szabó, G. Satellite remote sensing of inland waters: Lake Balaton and reservoir Kisköre. Acta Astronaut. 1987, 15, 305–311. [Google Scholar] [CrossRef]
  15. Palmer, S.C.; Hunter, P.D.; Lankester, T.; Hubbard, S.; Spyrakos, E.; Tyler, A.N.; Présing, M.; Horváth, H.; Lamb, A.; Balzter, H.; et al. Validation of Envisat MERIS algorithms for chlorophyll retrieval in a large, turbid and optically-complex shallow lake. Remote Sens. Environ. 2015, 157, 158–169. [Google Scholar] [CrossRef]
  16. Tyler, A.N.; Svab, E.; Preston, T.; Présing, M.; Kovács, W.A. Remote sensing of the water quality of shallow lakes: A mixture modelling approach to quantifying phytoplankton in water characterized by high-suspended sediment. Int. J. Remote Sens. 2006, 27, 1521–1537. [Google Scholar] [CrossRef]
  17. Doerffer, R.; Schiller, H. The MERIS Case 2 water algorithm. Int. J. Remote Sens. 2007, 28, 517–535. [Google Scholar] [CrossRef]
  18. Brockmann, C.; Doerffer, R.; Peters, M.; Kerstin, S.; Embacher, S.; Ruescas, A. Evolution of the C2RCC Neural Network for Sentinel 2 and 3 for the Retrieval of Ocean Colour Products in Normal and Extreme Optically Complex Waters. In Living Planet Symposium, Proceedings of the Conference, Prague, Czech Republic, 9–13 May 2016; ESA Special Publication: Paris, France, 2016; Volume 740, p. 54. [Google Scholar]
  19. Blondeau-Patissier, D.; Gower, J.F.; Dekker, A.G.; Phinn, S.R.; Brando, V.E. A review of ocean color remote sensing methods and statistical techniques for the detection, mapping and analysis of phytoplankton blooms in coastal and open oceans. Prog. Oceanogr. 2014, 123, 123–144. [Google Scholar] [CrossRef]
  20. Pasolli, L.; Melgani, F.; Blanzieri, E. Gaussian Process Regression for Estimating Chlorophyll Concentration in Subsurface Waters From Remote Sensing Data. IEEE Geosci. Remote Sens. Lett. 2010, 7, 464–468. [Google Scholar] [CrossRef]
  21. Verrelst, J.; Muñoz, J.; Alonso, L.; Rivera, J.P.; Camps-Valls, G.; Moreno, J. Machine learning regression algorithms for biophysical parameter retrieval: Opportunities for Sentinel-2 and -3. Remote Sens. Environ. 2012, 118, 127–139. [Google Scholar] [CrossRef]
  22. Verrelst, J.; Alonso, L.; Camps-Valls, G.; Delegido, J.; Moreno, J. Retrieval of Vegetation Biophysical Parameters Using Gaussian Process Techniques. IEEE Trans. Geosci. Remote Sens. 2012, 50, 1832–1843. [Google Scholar] [CrossRef]
  23. Blix, K.; Camps-Valls, G.; Jenssen, R. Gaussian Process Sensitivity Analysis for Oceanic Chlorophyll Estimation. IEEE J. Sel. Top. Appl. Earth Observ. Remote Sens. 2017, 10, 1265–1277. [Google Scholar] [CrossRef]
  24. Blix, K.; Eltoft, T. Evaluation of feature ranking and regression methods for oceanic chlorophyll-a estimation. IEEE J. Sel. Top. Appl. Earth Observ. Remote Sens. 2018, 11, 1403–1418. [Google Scholar] [CrossRef]
  25. Blix, K.; Eltoft, T. Machine Learning Automatic Model Selection Algorithm for Oceanic Chlorophyll-a Content Retrieval. Remote Sens. 2018, 10, 775. [Google Scholar] [CrossRef]
  26. Somlyódy, L.; Jolánkai, G. Nutrient loads. In Modeling and Managing Shallow Lake Eutrophication with Application Toe Lake Balaton; Springer: Berlin, Germany, 1986; pp. 125–156. [Google Scholar]
  27. Herodek, S.; Laczkó, L.; Virág, A. Lake Balaton: Research and Management; NEXUS Press: Budapest, Hungary, 1988. [Google Scholar]
  28. Tompa, E.; Nyiro-Kósa, I.; Rostási, A.; Cserny, T.; Pósfai, M. Distribution and composition og Mg-calcite and dolomite in the water and sediments of Lake Balaton. Centrel Eur. Geol. 2014, 57, 113–136. [Google Scholar] [CrossRef]
  29. Iwamura, T.; Nagai, H.; Ichimura, S.E. Improved methods for determining contents of chlorophyll, protein, ribonucleic acid, and deoxyribonucleic acid in planktonic populations. Int. Revue ges. Hydrobiol. 1970, 55, 131–147. [Google Scholar] [CrossRef]
  30. Cuthbert, I.D.; del Giorgio, P. Toward a standard method of measuring color in freshwater. Limnol. Oceanogr. 1992, 37, 1319–1326. [Google Scholar] [CrossRef]
  31. Alikas, K.; Reinart, A. Validation of the MERIS products on large European lakes: Peipsi, Vänern and Vättern. Hydrobiologia 2008, 599, 161–168. [Google Scholar] [CrossRef]
  32. Cristina, S.C.V.; Moore, G.F.; Goela, P.R.F.C.; Icely, J.D.; Newton, A. In situ validation of MERIS marine reflectance off the southwest Iberian Peninsula: assessment of vicarious adjustment and corrections for near-land adjacency. Int. J. Remote Sens. 2014, 35, 2347–2377. [Google Scholar] [CrossRef]
  33. V.-Balogh, K.; Németh, B.; Vörös, L. Specific attenuation coefficients of optically active substances and their contribution to the underwater ultraviolet and visible light climate in shallow lakes and ponds. Hydrobiologia 2009, 632, 91–105. [Google Scholar] [CrossRef]
  34. Rasmussen, C.E.; Williams, C.K.I. Gaussian Processes for Machine Learning; The MIT Press: Cambridge, MA, USA, 2005. [Google Scholar]
  35. Torma, P.; Krámer, T. Modeling the effect of waves on the diurnal stratification of a shallow lake. Period. Polytech. Civ. Eng. 2016, 61, 165–175. [Google Scholar] [CrossRef]
  36. Zlinszky, A.; Molnár, G. Georeferencing the first bathymetric maps of Lake Balaton, Hungary. Acta Geod. Geoph. Hung. 2009, 44, 79–94. [Google Scholar] [CrossRef]
  37. Nimit, K.; Lotlikar, A.; Kumar, T.S. Validation of MERIS sensor’s CoastColour algorithm for waters off the west coast of India. Int. J. Remote Sens. 2016, 37, 2066–2076. [Google Scholar] [CrossRef]
  38. Toming, K.; Kutser, T.; Uiboupin, R.; Arikas, A.; Vahter, K.; Paavel, B. Mapping water quality parameters with sentinel-3 ocean and land colour instrument imagery in the Baltic Sea. Remote Sens. 2017, 9, 1070. [Google Scholar] [CrossRef]
  39. O’Reilly, J.E.; Maritirena, S.; Mitchell, B.G.; Siegel, D.A.; Carder, K.L.; Garver, S.A.; Kahru, M.; McClain, C. Ocean color chlorophyll algorithms for SeaWiFS. J. Geophys. Res. 1998, 103, 24937–24953. [Google Scholar] [CrossRef]
  40. Watanabe, F.; Alcântara, E.; Imai, N.; Rodrigues, T.; Bernardo, N. Estimation of chlorophyll-a concentration from optimizing a semi-analytical algorithm in productive inland waters. Remote Sens. 2018, 10, 227. [Google Scholar] [CrossRef]
  41. Lins, R.C.; Martinez, J.M.; Motta Marques, D.D.; Cirilo, J.A.; Fragoso, C.R. Assessment of chlorophyll-a remote sensing algorithms in a productive tropical estuarine-lagoon System. Remote Sens. 2017, 9, 516. [Google Scholar] [CrossRef]
  42. Smith, M.E.; Lain, L.R.; Bernard, S. An optimized chlorophyll a switching algorithm for MERIS and OLCI in phytoplankton-dominated waters. Remote Sens. Environ. 2018, 215, 217–227. [Google Scholar] [CrossRef]
Figure 1. Location of Lake Balaton and the investigated stations.
Figure 1. Location of Lake Balaton and the investigated stations.
Water 10 01428 g001
Figure 2. Color gradient in Lake Balaton. The RGB image was acquired by S3 OLCI at 18 August 2017, and the photos were taken at the stations, while the corresponding is situ measurements were collected.
Figure 2. Color gradient in Lake Balaton. The RGB image was acquired by S3 OLCI at 18 August 2017, and the photos were taken at the stations, while the corresponding is situ measurements were collected.
Water 10 01428 g002

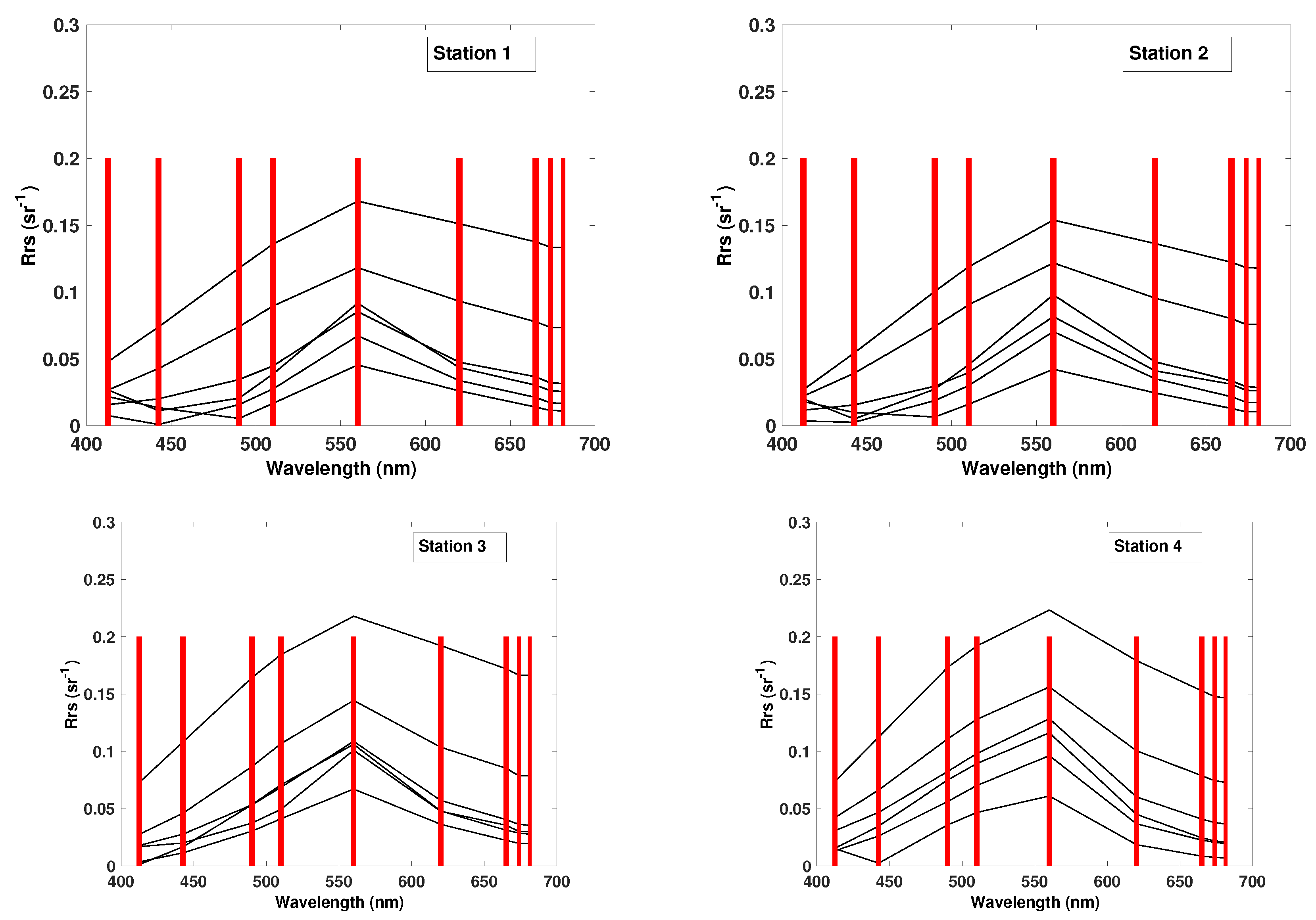

Figure 3. S3 retrieved Rrs values for the 9 spectral bands at the 6 stations. The red bars indicate the position of the bands, and their widths illustrate the relative proportion of the width of the bands.
Figure 3. S3 retrieved Rrs values for the 9 spectral bands at the 6 stations. The red bars indicate the position of the bands, and their widths illustrate the relative proportion of the width of the bands.

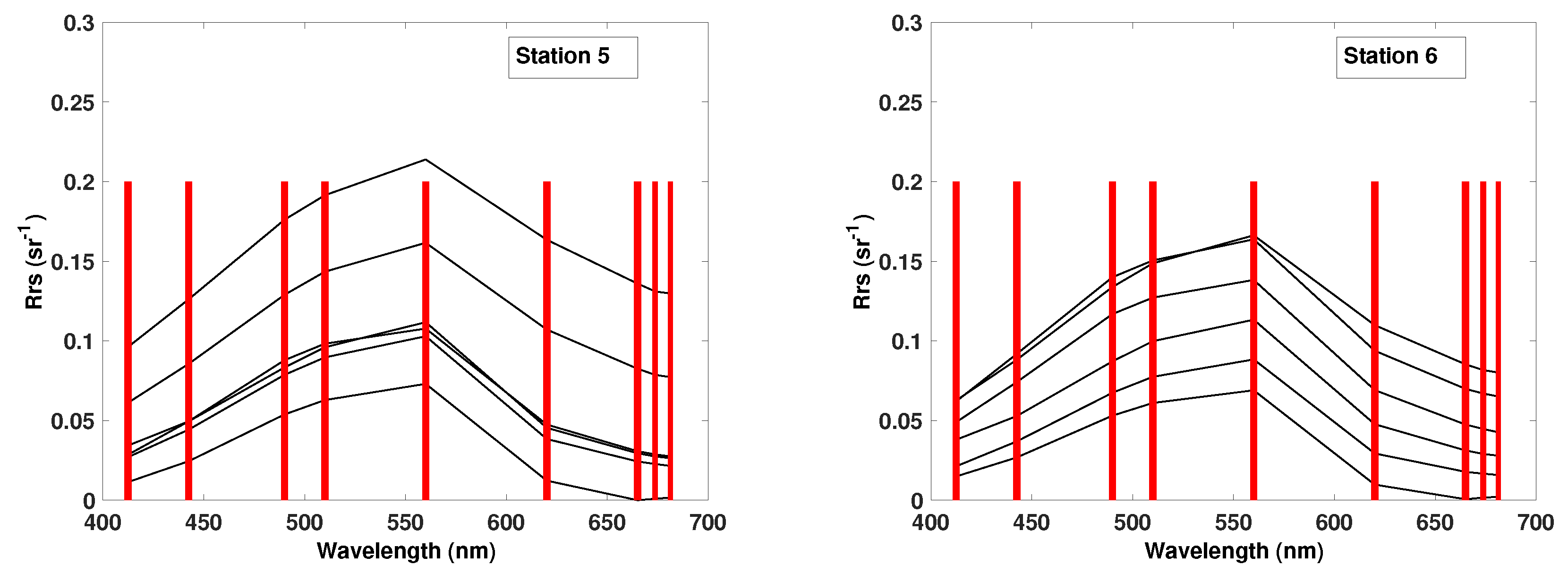

Water 10 01428 g003aWater 10 01428 g003b

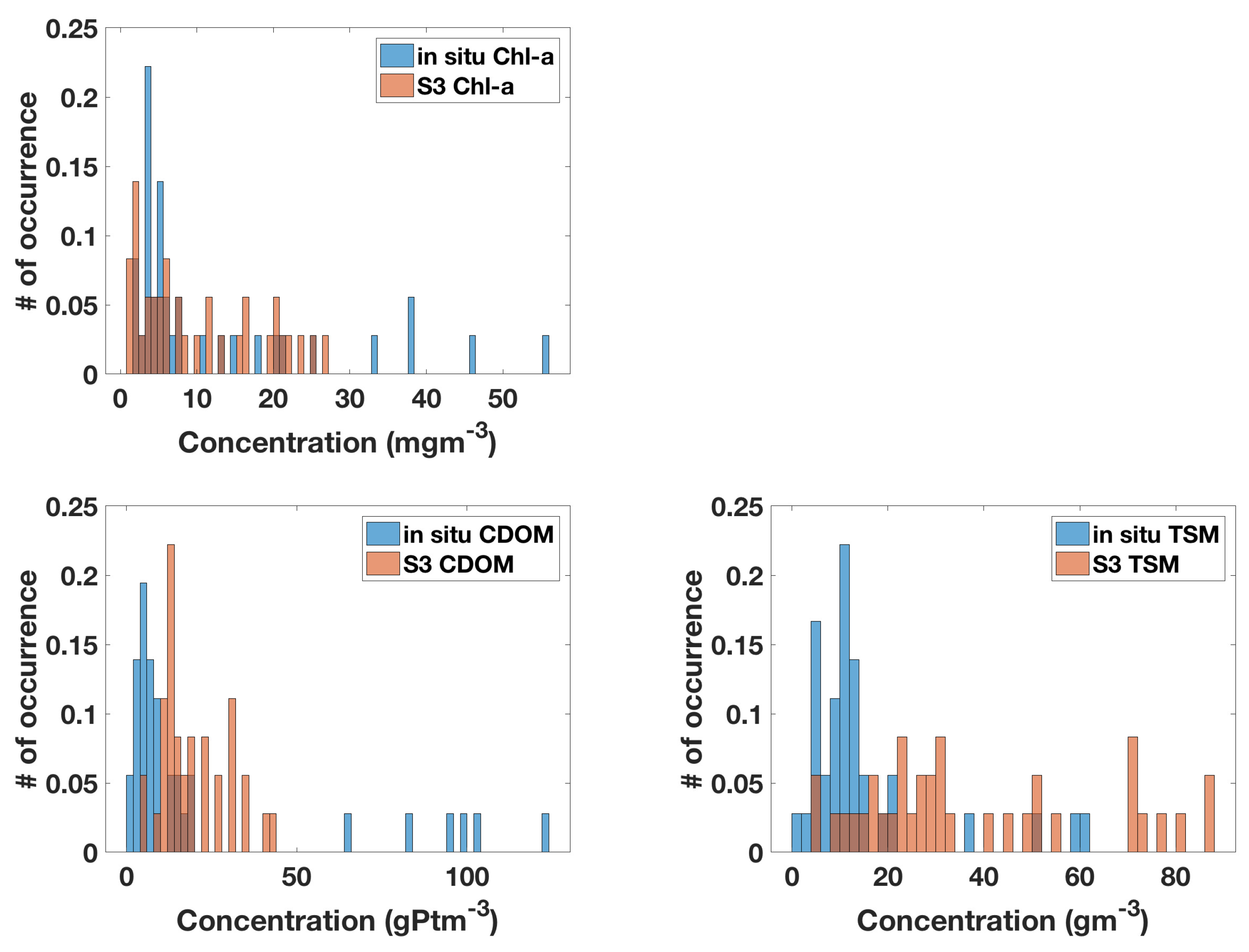

Figure 4. Histogram of the in situ and satellite-derived (S3) water quality concentrations: Chl-a (top), CDOM (bottom-left) and TSM (bottom-right).
Figure 4. Histogram of the in situ and satellite-derived (S3) water quality concentrations: Chl-a (top), CDOM (bottom-left) and TSM (bottom-right).
Water 10 01428 g004

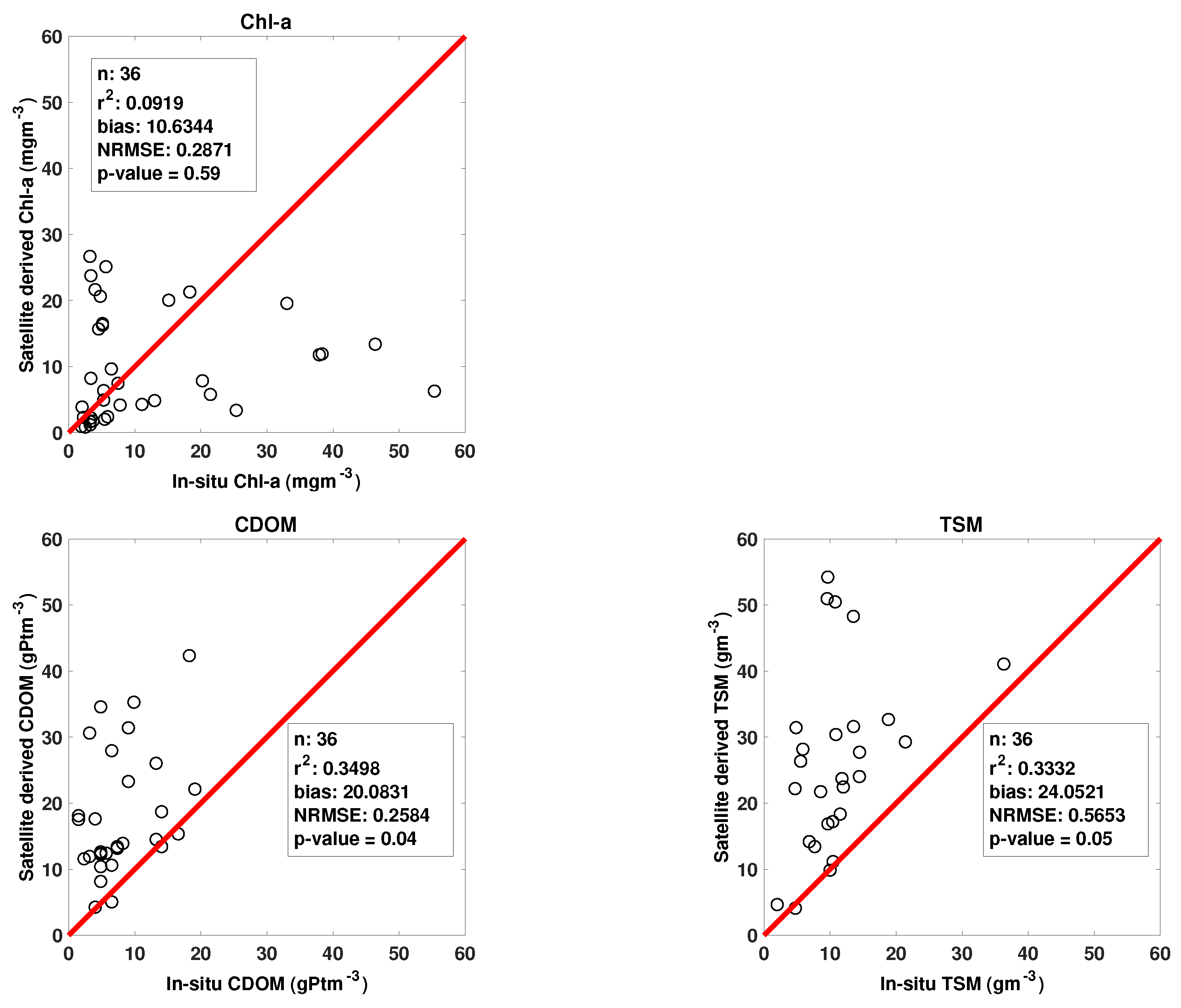

Figure 5. In situ versus satellite-derived water quality concentrations: Chl-a (top), CDOM (bottom-left) and TSM (bottom-right).
Figure 5. In situ versus satellite-derived water quality concentrations: Chl-a (top), CDOM (bottom-left) and TSM (bottom-right).
Water 10 01428 g005

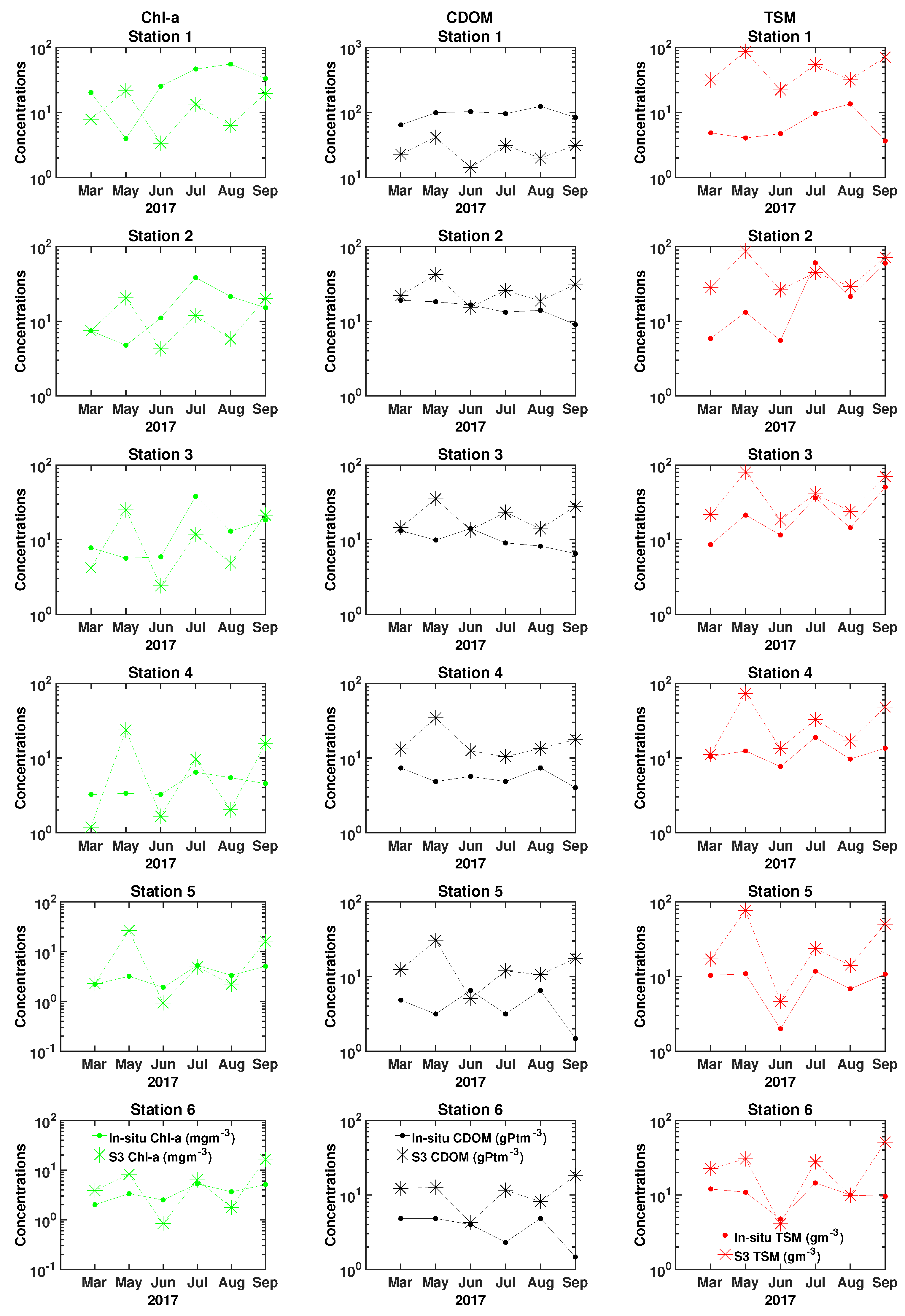

Figure 6. In situ versus satellite-derived water quality products for the stations. Chl-a is shown in the left panel, CDOM in the middle, and TSM in the right panel. Y-axis is presented on a logarithmic scale.
Figure 6. In situ versus satellite-derived water quality products for the stations. Chl-a is shown in the left panel, CDOM in the middle, and TSM in the right panel. Y-axis is presented on a logarithmic scale.
Water 10 01428 g006

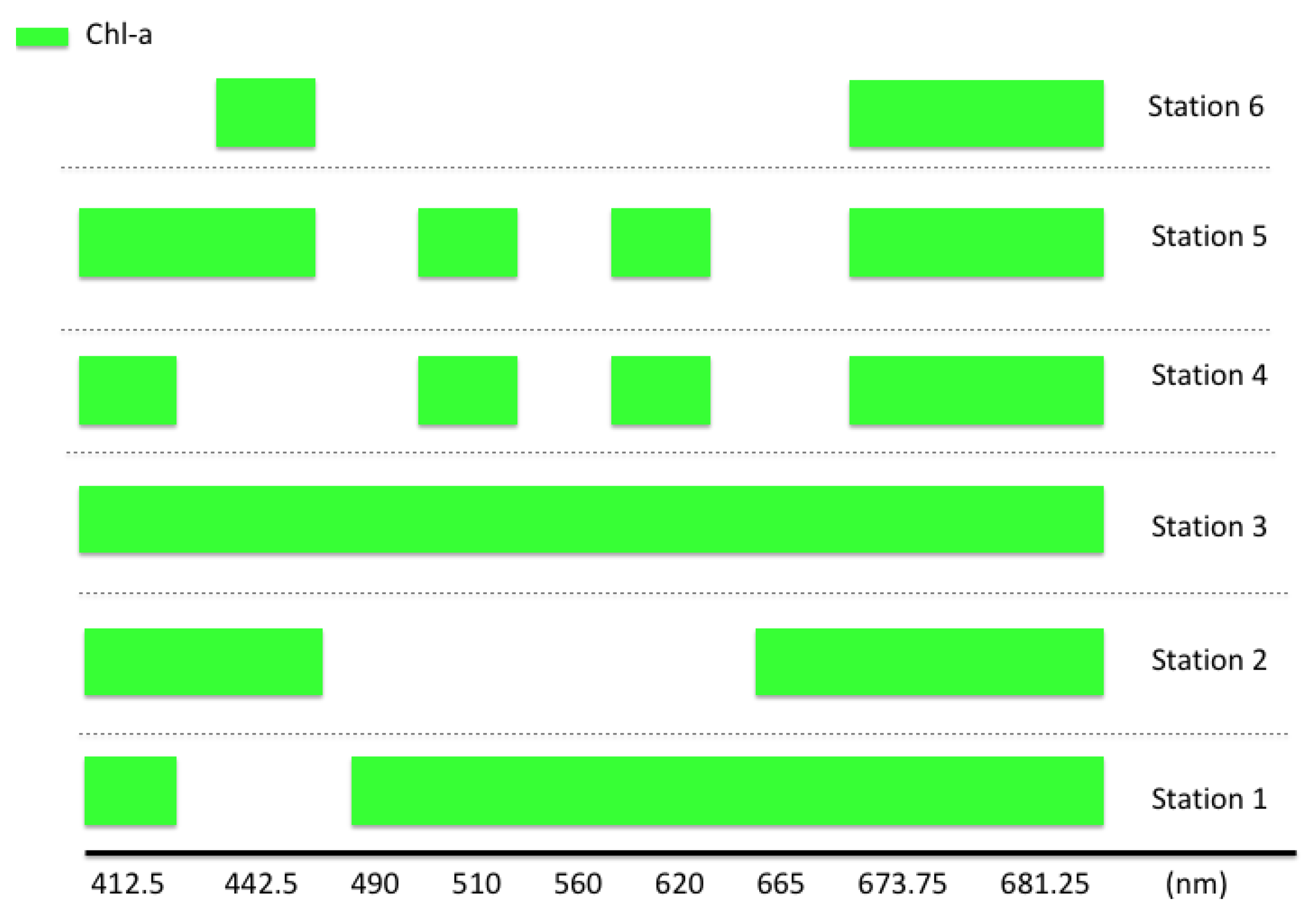

Figure 7. The most important spectral bands of Chl-a for each station.
Figure 7. The most important spectral bands of Chl-a for each station.
Water 10 01428 g007
Figure 8. The RGB image of Lake Balaton at the 22 May 2017.
Figure 8. The RGB image of Lake Balaton at the 22 May 2017.
Water 10 01428 g008

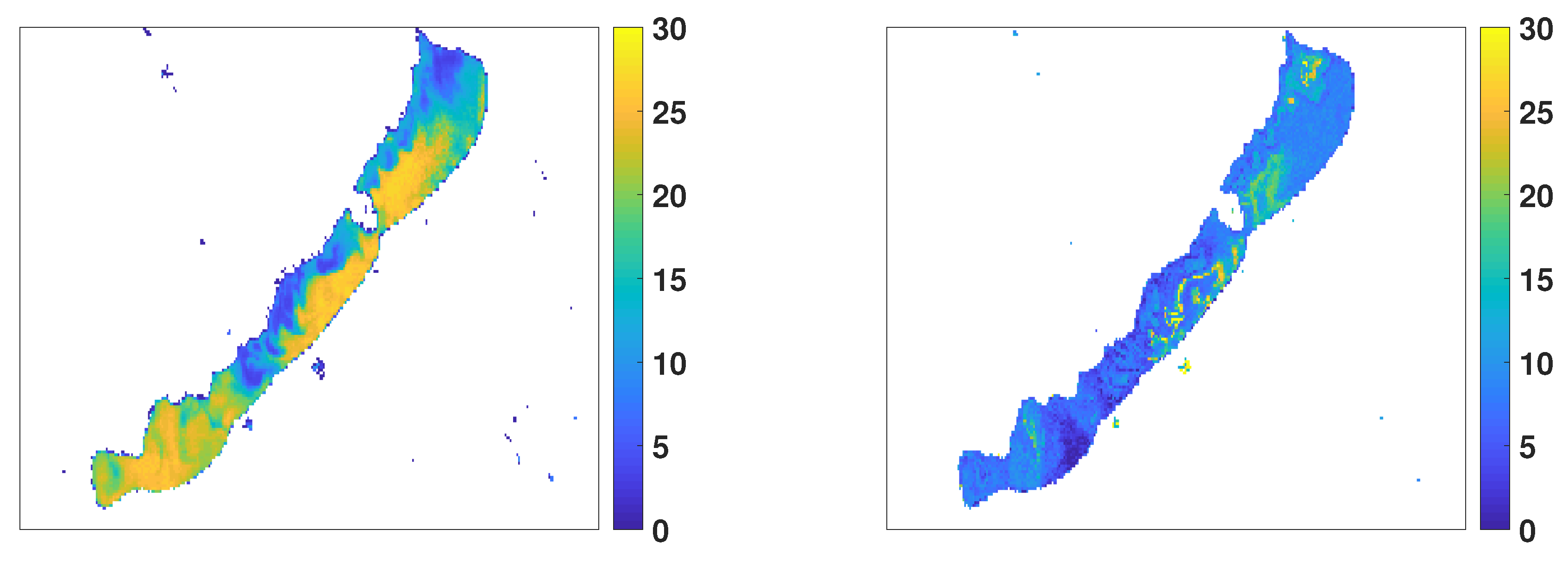

Figure 9. Chl-a content estimates by S3 OLCI (left) and the 5-band GPR (right). The units are in mg m 3 .
Figure 9. Chl-a content estimates by S3 OLCI (left) and the 5-band GPR (right). The units are in mg m 3 .
Water 10 01428 g009
Table 1. Geographical information of the investigated stations in Lake Balaton.
Table 1. Geographical information of the investigated stations in Lake Balaton.
StationBasinLatitudeLongitudeDepth (m)Area (km 2 )
1Mouth of Zala river46 42 15.65 N17 15 39.16 E2.00.14
2Keszthely basin46 44 09.5 N17 16 58.3 E2.538.00
3Szigliget basin46 45 11.2 N17 25 14.5 E3.5145.42
4Szemesi basin46 50 66.1 N17 44 59.5 E3.5185.36
5Siófok basin (T)46 55 32.7 N17 55 64.9 E3.575.69
6Siófok basin (Bf)46 59 15.7 N18 04 74.7 E4.0151.38
Table 2. Summary of the Sentinel 3A OLCI spectral bands.
Table 2. Summary of the Sentinel 3A OLCI spectral bands.
Nr. of BandCenter Wavelength (nm)Bandwidth (nm)
1412.515
2442.510
349010
451010
556010
662010
766510
8673.757.5
9681.257.5
Table 3. Summary of the range of the in situ measured water quality parameters in 2017. See also Figure 6 for further representation of the variablility of the water quality parameters for every station.
Table 3. Summary of the range of the in situ measured water quality parameters in 2017. See also Figure 6 for further representation of the variablility of the water quality parameters for every station.
Monthly Range
MonthChl-a (mg m 3 )CDOM (g Pt m 3 )TSM (g m 3 )
March2–205–645–11
May3–63–1004–21
June2–254–1032–12
July5–462–9512–61
August3–555–1247–21
September5–332–844–60
Station Wise Range
StationChl-a (mg m 3 )CDOM (g Pt m 3 )TSM (g m 3 )
14–5564–1244–14
25–389–196–60
36–386–149–51
43–64–78–14
52–52–72–12
62–52–55–15
Table 4. Validation results: summary of the computed measures for the water quality parameters for every station.
Table 4. Validation results: summary of the computed measures for the water quality parameters for every station.
Chl-a
StationNRMSEBiasr 2 p-Value
10.540524.5915  0.15380.442
20.432611.6173  0.02000.789
30.431110.6361  0.01040.847
43.04616.9700  0.00260.92
53.16406.1978  0.08630.571
61.60213.7935  0.41630.166
CDOM
MonthNRMSEBiasr 2 p-Value
11.198568.0526  0.02900.747
21.449211.3669  7.3 4 0.959
31.982411.4616  0.26000.301
44.253411.2679  0.12970.483
52.770310.9008  0.37680.195
62.68777.4488  0.29420.266
TSM
MonthNRMSEBiasr 2 p-Value
15.003442.8140  0.13220.478
20.615625.4804  0.11380.51
30.631118.8408  0.41600.166
42.638420.5351  0.16620.42
53.274622.4133  0.35220.21
62.048614.2292  0.17310.41
Table 5. Validation results: summary of the computed measures for the water quality parameters for each month.
Table 5. Validation results: summary of the computed measures for the water quality parameters for each month.
Chl-a
StationNRMSEBiasr 2 p-Value
March    0.29553.33250.59230.074
May    7.42116.96510.06840.617
June    0.40776.08090.50640.113
July    0.494915.03530.80980.015
August    0.410613.21520.67980.044
September    0.34899.17720.54590.093
CDOM
MonthNRMSEBiasr 2 p-Value
March    0.298411.13370.64530.054
May    0.335728.60140.22960.336
June    0.367016.50930.19720.378
July    0.300219.15730.55000.092
August    0.358621.33100.45140.144
September    0.330523.76580.34200.22
TSM
MonthNRMSEBiasr 2 p-Value
March    2.235413.33170.59280.073
May    3.686460.47560.00120.948
June    1.22969.02690.14440.4575
July    0.420617.32750.10490.5313
August    0.67878.36100.57970.079
September    0.708935.78990.36940.20
Table 6. Summary of the stationwise evaluation of AMSA for Chl-a for the merged dataset.
Table 6. Summary of the stationwise evaluation of AMSA for Chl-a for the merged dataset.
StationNr. of SamplesNr. of BandsNRMSEr 2
176980.01870.9995
267560.06530.9984
364690.02730.9988
478450.01871.0000
569560.05010.9979
674530.06571.0000
Table 7. Summary of the computed statistical measures for the six GPR models. The p-value was significantly below 0.0001 for all cases.
Table 7. Summary of the computed statistical measures for the six GPR models. The p-value was significantly below 0.0001 for all cases.
StationBands Used in the GPR ModelNRMSEBiasr 2
All0.004480.20561.0000
11, 3, 4, 5, 6, 7 and 80.00460.20471.0000
21, 2, 6, 7 and 80.00470.20371.0000
3All0.004480.20561.0000
41, 4, 6, 8 and 90.00310.13511.0000
51, 2, 4, 6, 8 and 90.00341.14141.0000
62, 8 and 90.0030.13651.0000
Table 8. Summary of the cross validation. The results show the mean values of the NRMSE, Bias, r 2 and p-value by using the GPR model with all bands, 5-bands and 3-band models for 500 iterations.
Table 8. Summary of the cross validation. The results show the mean values of the NRMSE, Bias, r 2 and p-value by using the GPR model with all bands, 5-bands and 3-band models for 500 iterations.
GPR ModelNRMSEBiasr 2 p-Value
All bands0.11362.25320.7909<0.0001
5-bands0.10422.05630.8253<0.0001
3-bands0.10432.12470.8298<0.0001

© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Water EISSN 2073-4441 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
