Continuous Cropping and Moist Deep Convection on the Canadian Prairies

by
Bharat M. Shrestha
1,
Richard L. Raddatz
2,
Raymond L. Desjardins
1,* and
Devon E. Worth
1
1
Eastern Cereal and Oilseed Research Center, Agriculture and Agri-Food Canada, 960 Carling Avenue, K. W. Neatby Building, Ottawa, ON K1A 0C6, Canada
2
Centre for Earth Observation Science, University of Manitoba, Winnipeg, MB R3T 2N2, Canada
*
Author to whom correspondence should be addressed.
Atmosphere 2012, 3(4), 573-590; https://doi.org/10.3390/atmos3040573
Submission received: 29 August 2012 / Revised: 27 November 2012 / Accepted: 4 December 2012 / Published: 13 December 2012
Browse Figures
Versions Notes

Abstract

:
Summerfallow is cropland that is purposely kept out of production during a growing season to conserve soil moisture. On the Canadian Prairies, a trend to continuous cropping with a reduction in summerfallow began after the summerfallow area peaked in 1976. This study examined the impact of this land-use change on convective available potential energy (CAPE), a necessary but not sufficient condition for moist deep convection. All else being equal, an increase in CAPE increases the probability-of-occurrence of convective clouds and their intensity if they occur. Representative Bowen ratios for the Black, Dark Brown, and Brown soil zones were determined for 1976: the maximum summerfallow year, 2001: our baseline year, and 20xx: a hypothetical year with the maximum-possible annual crop area. Average mid-growing-season Bowen ratios and noon solar radiation were used to estimate the reduction in the lifted index (LI) from land-use weighted evapotranspiration in each study year. LI is an index of CAPE, and a reduction in LI indicates an increase in CAPE. The largest reductions in LI were found for the Black soil zone. They were −1.61 ± 0.18, −1.77 ± 0.14 and −1.89 ± 0.16 in 1976, 2001 and 20xx, respectively. These results suggest that, all else being equal, the probability-of-occurrence of moist deep convection in the Black soil zone was lower in 1976 than in the base year 2001, and it will be higher in 20xx when the annual crop area reaches a maximum. The trend to continuous cropping had less impact in the drier Dark Brown and Brown soil zones.

Graphical Abstract

1. Introduction

Summerfallow is cropland that is purposely kept out of production during a growing season. Traditionally farmers used this practice as a risk management strategy to improve their chances of growing a crop the following year. This practice reached a maximum in 1976, but as soil conservation practices improved, this management practice decreased and the annual crop area increased. As the demand for bioenergy crops as well as the demand for food from the increasing population increases [1], a further increase in annual crop land is anticipated.
Land-use change in agriculture such as reduction in summerfallow area is also an option to mitigate climate change [2]. However, land-use change influences regional climates by altering the partitioning of surface net radiation (Rn) between latent heat flux, QE, and sensible heat flux, QH [3,4,5,6,7,8,9,10,11]. In some cases, human alterations to the earth's surface that modify the surface energy budget can be as impactful as the greenhouse gas (GHG) emissions arising from the land disturbances [12,13,14]. Higher concentration of GHGs changes snow-albedo feedback and increases precipitation in many regions [15]. Along with the plant-available soil moisture, the ratio of QH to QE, the Bowen ratio (Bo), is determined, in large part, by the type of vegetation and stage of growth which control physiological parameters such as leaf area, stomatal conductance, and rooting depth.
Alterations to the vegetative cover that modify the partitioning of surface net radiation, Rn, influence the heating and moistening of the convective boundary layer (CBL). While upward sensible heat flux (QH) determines the depth of the CBL [16] and modifies its temperature profile, upward latent heat flux (QE), i.e., evapotranspiration (ET), moistens the CBL. Both increase the convective available potential energy (CAPE), if conditions above the CBL remain unchanged. CAPE is a necessary but not sufficient condition for moist deep convection. A lifting mechanism (e.g., cold front, daytime heating) is required to initiate the buoyant or free rise of CBL air parcels that convert CAPE into the kinetic energy of convective clouds. Succinctly, CAPE is the energy available to a CBL air parcel rising freely through the atmosphere [17,18]. All else being equal, an increase in CAPE increases the probability-of-occurrence of moist deep convection (convective cloud with associated rainfall and severe weather), and its severity if it occurs [9,19].
Advection generally sets the base specific humidity of the CBL while ET from the land surface incrementally modifies its moisture level. For example, if the entrainment of air from above is small, ET produces an equivalent increase in the specific humidity of a well-mixed 1,000 m deep CBL, or an increase equal to one-half of ET for a 2,000 m deep CBL [20]. Above the lifting condensation level (LCL), a positively buoyant air parcel follows the saturated adiabat defined by the wet-bulb potential temperature at the LCL, and an increase in the specific humidity of the CBL increases this wet-bulb potential temperature. Thus, ET (equivalently QE) generally produces a large increase in CAPE, especially if the CBL is already moist [19]. In contrast, sensible heat flux, QH deepens the CBL, which may lead to the entrainment of drier air from above. It warms the CBL and this may spawn the widespread development of shallow non-precipitating convective clouds (i.e., fair-weather cumulus clouds), which also dries the CBL [21]. Thus, QH usually produces only a small increase in CAPE [22,23].
Pielke [15] reported that Nair and Welch examined the sensitivity of CAPE to a small increase in near surface temperature and humidity over the continental United States. A 1 °C increase in the surface dew point temperature produced a large increase in CAPE, particularly in southern regions where the absolute humidity of the lower atmosphere was already high. However, a 1 °C increase in air temperature had a much smaller impact on CAPE. Their analysis clearly demonstrated the high sensitivity of CAPE to regional ET as it increases the surface dew-point temperature (Td).
Segal et al. [19] showed that for the same value of noon global shortwave radiation, the smaller the Bowen ratio, the higher the thermodynamic potential for moist deep convection due to an increase in CAPE. Zawadzki et al. [24] correlated convective rainfall rates with CAPE and found that it explained about 60% of the observed storm-to-storm variability. The lifted index (LI) is often used to indicate the magnitude of CAPE. LI = TA − TP, where TA is the temperature of the ambient air at 50 kPa, and TP is the temperature of a CBL air parcel after it has risen to that level [23,25]. LI is generally scaled as follows [26]: LI > 6 very stable, 6 ≥ LI ≥ 1 stable, 0 ≥ LI ≥ −2 slightly unstable (thunderstorms are possible with a lifting mechanism), −2 ≥ LI ≥ −6 unstable (thunderstorms are likely—some severe with a lifting mechanism), and LI < −6: very unstable (severe thunderstorms are likely with a lifting mechanism). While LI is primarily determined by the synoptic situation, regional ET reduces the LI by moistening the CBL.
Raddatz [27] examined the impact of agricultural cultivation on surface energy partitioning on the Canadian Prairies. Representative growing-season Bowen ratio curves, based on modeled ET [28] for native perennial grasses and for annual field crops, were derived. Prior to the emergence of annual crops, and again during their senescence and in the post-harvest period, Bowen ratios are generally higher now (i.e., ET rates are lower) than they would have been if the Prairies had remained in perennial grasses. Thus in the early and late portions of the growing season, widespread agricultural cultivation has reduced the CAPE, and this reduction in CAPE has likely reduced the frequency of thunderstorms. In contrast, during the mid-growing season, a period of rapid foliar expansion and seed production for annual crops, Bowen ratios are generally lower now (i.e., ET rates are higher) than they would have been without cultivation. Thus, it is likely that thunderstorms are now more frequent in the middle of the growing season, and the increase in CAPE may have made them more intense.
The influence of the relatively homogeneous agro-ecosystem of the Canadian Prairies, comprised primarily of annual field crops, on CBL moisture has been related to the seasonal pattern of tornado days by Raddatz and Cummine [29]. Average (1988–2000) wheat (Triticum spp.) phenology curves, at representative sites, were plotted along with the average number of tornado days per week for the entire Prairie region. Wheat phenology was depicted by the average weekly water-use fraction (actual ET as a fraction of potential ET) which increases through the foliar expansion stage of annual crops, peaking at 1.0 with full vegetative cover during the reproductive stage then drops as the crop ripens [28]. The average weekly fractional water-use at representative sites explained about 80% of the variance in the average weekly number of tornado days for the region. It was concluded that the moisture flux from the Prairie agro-ecosystem translates directly into changes in CBL moisture, which subsequently affects the magnitude of the potential energy available for moist deep convection, and the seasonal pattern of tornado days.
Gameda et al. [7] reported that the widespread change-over from a crop rotation, which included summerfallow to continuous cropping on the Canadian Prairies has influenced the regional climate during the foliar expansion period from mid-June to mid-July. The area under summerfallow generally increased until 1976, peaking at 11 Mha. It decreased to 4.3 Mha in 2010 [30]. Gameda et al. [7] found a decrease of 1.7 °C∙decade−1 in the daily maximum temperature, as well as an increase in precipitation of 10.3 mm∙decade−1 from 1976 to 2001. This negative trend in maximum temperatures is opposite to what would be expected from anthropogenic greenhouse warming. Dow and DeWalle [31] reported that, due to urbanization, there has been a significant decrease in ET and a significant increase in QH between 1920 and 1990 in some eastern watersheds of the United States, and this change has effected near surface temperatures. Increasing correlation between CAPE and precipitation extreme were found indicating the storm intensification in impounded basins of Mediterranean and arid climes due to large dams [32]. On the Canadian Prairies, the reduction of the summerfallow area in recent decades has increased ET and decreased QH [7,9]. However, an examination of the impact of this change on near surface temperatures is beyond the scope of this study.
This study examined the impact of the trend to continuous cropping (reduced summerfallow area) on CAPE on the Canadian Prairies. All else being equal, an increase in CAPE increases the probability-of-occurrence of convective clouds and their intensity if they occur. Representative Bowen ratios for the Black, Dark Brown, and Brown soil zones were determined for 1976: the maximum summerfallow year, 2001: our baseline year, and 20xx: a hypothetical year with the maximum-possible annual field crop area. Mean mid-growing-season Bowen ratios, mean solar noon global radiation values and Segal et al.’s [23] relationship were used to estimate the reduction in the LI, indicative of an increase in CAPE, associated with the land-use weighted ET in each study year.

2. Data and Methodology

On the Canadian Prairies, about 21% of the cultivated land is in the Brown soil zone, 22% is in the Dark Brown soil zone, with most of the remaining cultivated land in the more humid Black soil zone [33]. At least one weather station in each soil zone of each province was selected based on data availability (Figure 1). Edmonton, Nipawin and Brandon were selected to represent the Black soil zone, Lethbridge and Saskatoon to represent the Dark Brown soil zone, and Medicine Hat and Vauxhall to represent the Brown soil zone (Table 1). Meteorological data for these sites were obtained from the Meteorological Service, Environment Canada [34], or from Agriculture and Agri-Food Canada [35]. Surface-specific mean daily growing season values for each term of the surface energy budget for spring wheat (Triticum aestivum L.), representing all annual crops, perennial forages, and for summerfallow were determined as outlined in the following sections.
Atmosphere 03 00573 g001 1024

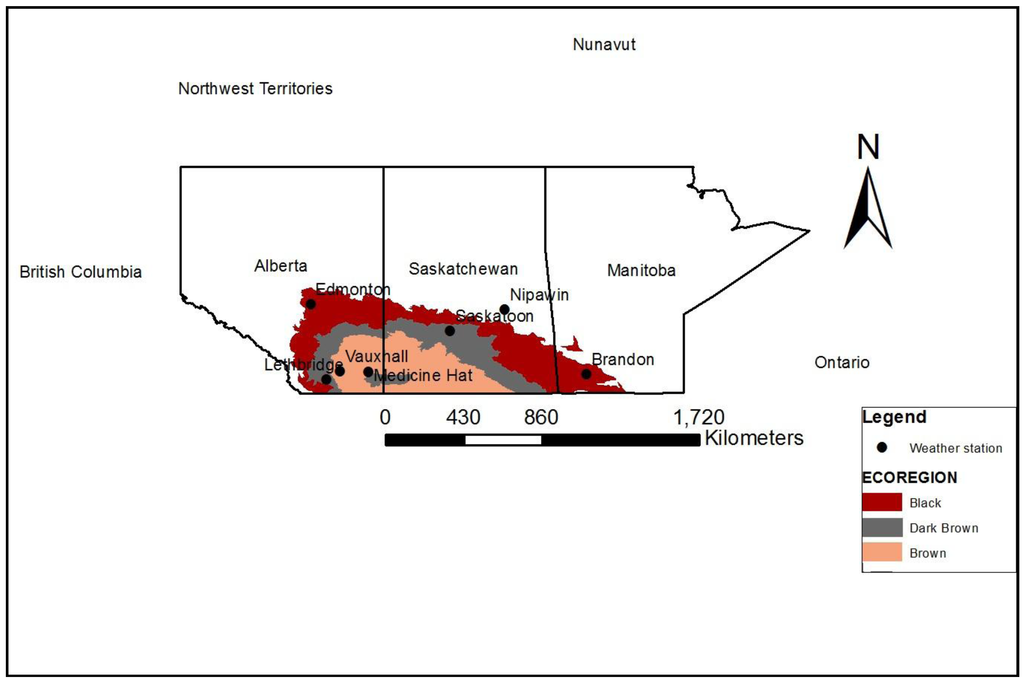

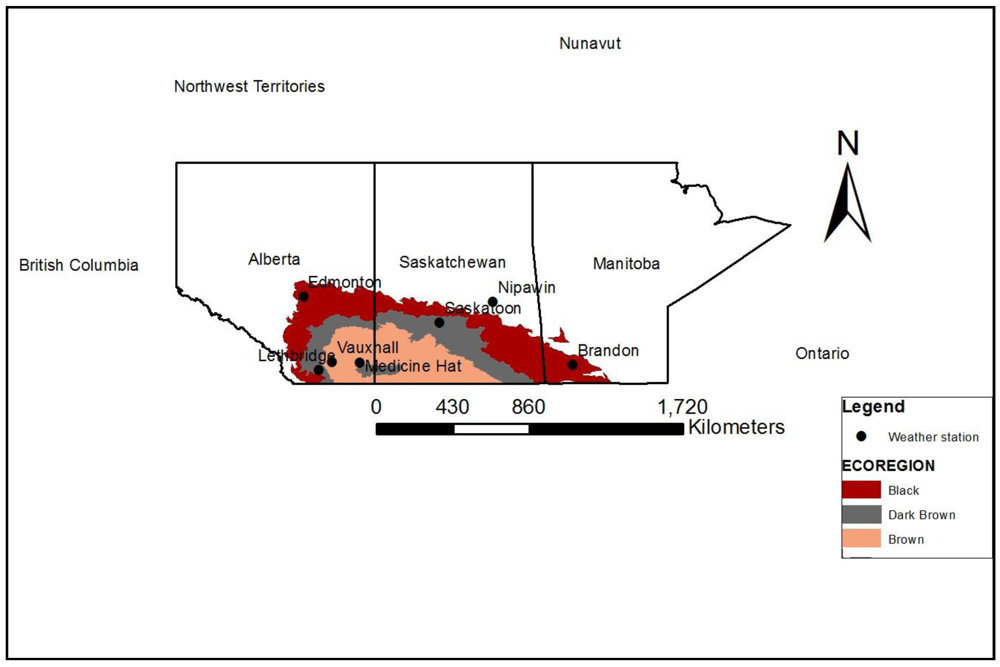

Figure 1. Map of the study area showing the three major soil zones with representative weather stations.
Figure 1. Map of the study area showing the three major soil zones with representative weather stations.
Atmosphere 03 00573 g001
Table
Table 1. Representative weather stations for the three major soil zones in the Canadian Prairies †.
Table 1. Representative weather stations for the three major soil zones in the Canadian Prairies †.
SNStation nameLatitude (° N)Longitude (° W)Elevation (m)Province †Soil zone
1Edmonton53.3113.58723.3ABBlack
2Nipawin53.33104.0371.9SKBlack
3Brandon49.9199.9409.4MBBlack
4Lethbridge49.63112.79928.7ABDark Brown
5Saskatoon52.16106.72504.1SKDark Brown
6Medicine hat50.02110.72 716.9ABBrown
7Vauxhall50.05112.13779.0ABBrown
† AB = Alberta, SK = Saskatchewan, MB = Manitoba.

2.1. Mean Daily Net Radiation

Observations of daily net radiation, Rn, were only available at Lethbridge. For all of the other sites, daily Rn values were estimated using the method described in the FAO (Food and Agriculture Organization of the United Nations) Irrigation and Drainage, Paper No. 56 [36]. In brief, net shortwave radiation (Rns) was estimated as a function of the incoming shortwave radiation (Rs), and the albedo (α) of the surface, which varies with the type and the stage of the vegetation. Net longwave radiation (Rnl) was estimated as a function of vapor pressure, maximum and minimum temperatures, and the ratio of the solar radiation from a clear sky to the observed solar radiation. Rn was then estimated as the sum of Rns and Rnl.
To account for the fact that the radiation observations at Lethbridge were made over a short grass surface, and to adjust for the difference in albedo between annual field crops, summerfallow and perennial forages, the Rn values calculated by the FAO method were modified by an adjustment factor. The adjustment factor was based on the difference between the monthly average albedo at Lethbridge over grass, and the monthly average albedo for annual crops, perennial forage and summerfallow determined from Moderate Resolution Imaging Spectroradiometer (MODIS) satellite image analysis from 2000 to 2003 for the province of Saskatchewan (Wang S., unpublished data). This adjustment increased the average Rn value by 2% for areas under fallow, 2.5% for annual field crops, and 4% for perennial forage.
To verify the accuracy of the FAO method, daily Rn values were calculated for Lethbridge, and compared with the observed values for the growing seasons from 1991 to 1995. The measured and calculated daily Rn values were highly correlated with a small offset (Figure 2). A similar result for correlation between the measured and calculated Rn for data from Ottawa (data not shown) showed reliability of the method. The relationship between the observed and calculated daily Rn values at Lethbridge was subsequently used to adjust the calculated Rn values for the other study sites.
Atmosphere 03 00573 g002 1024

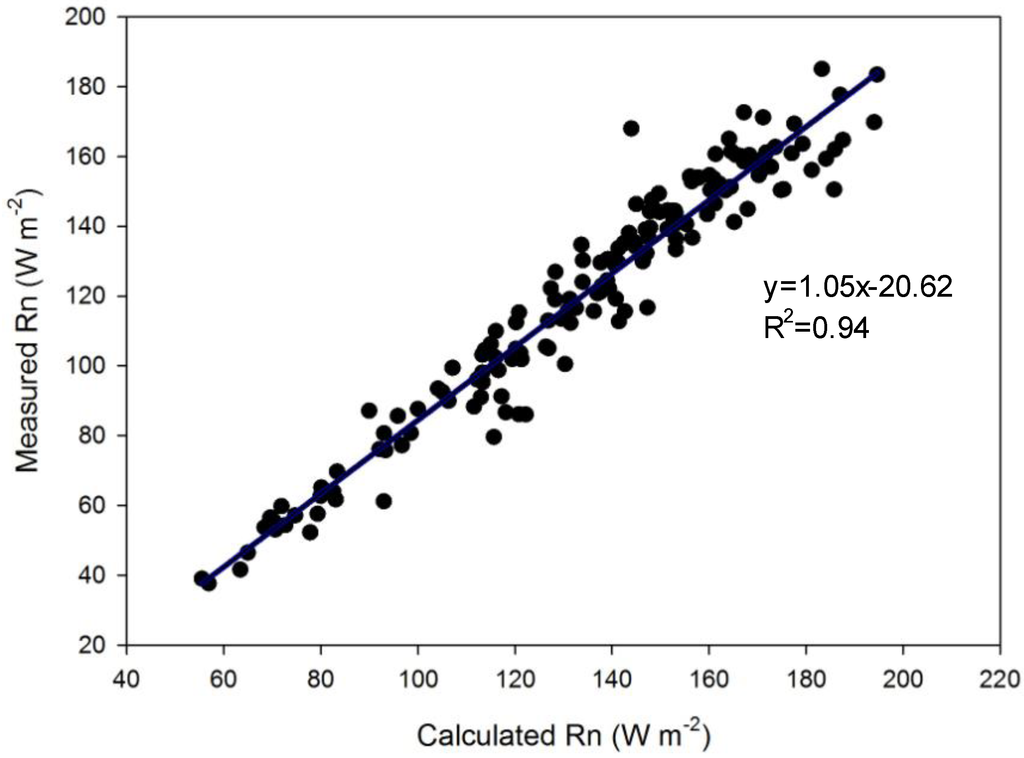

Figure 2. Comparison of daily calculated and observed net radiation at Lethbridge during the growing seasons of 1991 to 1995.
Figure 2. Comparison of daily calculated and observed net radiation at Lethbridge during the growing seasons of 1991 to 1995.
Atmosphere 03 00573 g002

2.2. Mean Daily Latent Heat Flux

Archived modeled weekly growing season ET values for spring wheat (representing all annual crops), for summerfallow, and for perennial forages were available for the 1997–2004 growing seasons at the study sites. For each growing season, the weeks were numbered from 1 to 14 (week #1 = last week of May, week #2 = first week of June, and so on with week #14 = first week of September), and average weekly ET values for the 1997–2004 period encompassing our base year, 2001, were calculated. Mean daily ET values were interpolated from the average weekly values. Mean daily latent heat flux values, QE (W·m−2), were then calculated with Equation (1):
Atmosphere 03 00573 i001
where, Lv is the latent heat of vaporization, and ρw is the density of water.
A model had been used to simulate the daily ET values that were summed and archived as weekly estimates. This model [24] simulated the phenological development of spring wheat from planting date, daily temperatures and photoperiods using the biometeorological time scale developed by Robertson [37]. For perennial forages, growth was assumed to begin after April 1st following the first occurrence of 5 consecutive days with mean air temperatures ≥5 °C. Potential daily ET was estimated using a linear relationship with daily climatological observations, and the incident solar radiation at the top of the atmosphere [38]. The water demand of spring wheat at the various stages of development was estimated by multiplying potential ET by a consumptive-use factor (pre-emergence and post-senescence = 0.3; the factor peaks at 1.0 during the reproductive stage) [39]. To obtain the water demand of perennial forages, the consumptive-use factor was increased from 0.3 to 1.0 after the active growth date and it was kept constant until the first killing frost in the fall. Available moisture in the root zone was used to limit ET. The actual ET as a percentage of water demand dropped linearly when the soil moisture was <50% of the root zone’s available water-holding capacity, and it became zero when there was no available soil moisture. This simulated the closing of stomata in response to depleted soil moisture. For spring wheat, the root zone depth (5–120 cm), and thus the size of the soil moisture reservoir, was a function of the crop stage [40]. For perennial forages, an established root system was assumed, and the root zone depth was kept at 120 cm. Water budget accounting was used to track the addition of infiltrating precipitation and the loss of moisture from the root zone by ET and deep percolation as in Baier [38]. The wheat model was also used to simulate evaporation from summerfallow by simply keeping the crop at the pre-emergence stage.

2.3. Mean Daily Heat Conducted into the Soil

The mean (1997–2004) heat conducted into the soil, QG, at Lethbridge was derived from average daily soil temperatures, rough soil moisture estimates, and the average daily changes to the heat stored in the soil during the growing season. Average daily QG values were calculated as the sum of heat conducted between the 5 and 10 cm soil depths (first term on right side of Equation (2)), and the change in heat stored in the top 5 cm of the soil (second term on right hand side of Equation (2)):
Atmosphere 03 00573 i002
where, ks = thermal conductivity (W∙m−1∙K−1), T10 = soil temperature at 10 cm soil depth (°K), T5 = soil temperature at 5 cm soil depth (°K), Tt+1 = soil temperature at time t+1 (°K), Tt = soil temperature at time t (°K), ∆t = time interval (s), ∆z = effective soil depth (m) and Cv = soil heat capacity (J∙m−3∙K−1).
As the QG is generally much less than the QE and QH terms, soil drying over the growing season was approximated by assuming that ks decreased linearly from 1.89 on 1 May to 0.28 on 31 August, and simultaneously Cv decreased linearly from 3.03 × 106 to 1.35 × 106 J∙m−3∙K−1 [16]. In order to estimate heat storage in the first 5 cm, the soil temperature at 2.5 cm was estimated by extrapolating from the temperatures measures at the 5, 10 and 20 cm soil depths.
The mean daily heat transferred to the soil, QG, as a percentage of the observed Rn at Lethbridge was plotted against the week number through the growing season (Figure 3). The linear fit of QG versus week number at Lethbridge was then used to estimate QG at the other sites in this study. QG was assumed to be similar for annual crops and perennial forages at all locations. The percentage was the highest in week 1, and it remained around 13% until week 7. It decreased continuously to <5% during the foliar expansion period of the annual field crops. For summerfallow, QG was assumed to be 13% throughout the growing season, the mean value observed at Lethbridge from week 2 to week 7. Our QG:Rn ratios are similar to the lower level of the range found in the literature. Clothier et al. [41] reported that, depending on the vegetation and soil moisture level, the ratio between the heat transferred to the soil and the net radiation (QG:Rn) can range from 0.10 to 0.50. From a literature survey, Santanello and Friedl [42] found that this ratio varies from 0.15 to 0.40 depending on the vegetation cover.
Atmosphere 03 00573 g003 1024

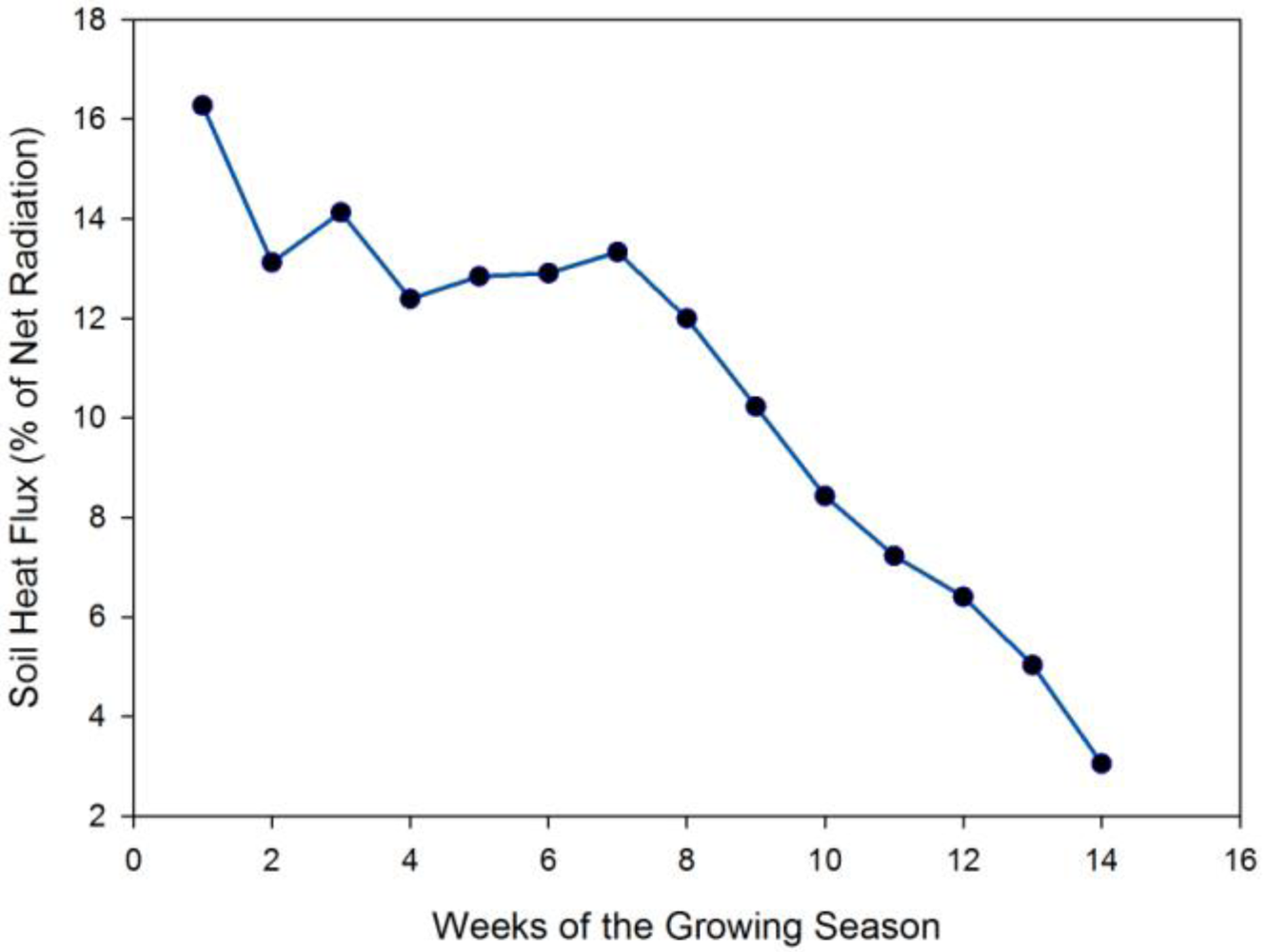

Figure 3. Mean soil heat flux conducted into the soil as a percentage of the net radiation during the growing season at Lethbridge.
Figure 3. Mean soil heat flux conducted into the soil as a percentage of the net radiation during the growing season at Lethbridge.
Atmosphere 03 00573 g003

2.4. Mean Daily Sensible Heat Flux

The mean daily sensible heat flux values, QH, for the growing season were determined from the surface energy budget (Equation (3)) by deducting QG and QE from Rn:
Atmosphere 03 00573 i003

2.5. Land-use Weighted Mean Daily Energy Terms and Bowen Ratios

Land-use data for each Census Agricultural Region (CAR) in the Canadian Prairies were obtained for agricultural census years 2001 and 2006 [43]. These data were allocated to the major soil zones using the method employed by Campbell et al. [33]. Land-use data were grouped into annual field crops, summerfallow, improved pasture, unimproved pasture and other lands (Table 2). Land-use data for 1976 were only available at the Census Division level, and two additional land-use categories were included, namely other improved lands and woodlands [44,45,46]. Thus, the Census Division land-use data for 1976 were first allocated to CARs, and then allocated to soil zones. The other improved land area was combined with the improved pasture category, and the woodlands area was added to the other lands category to be consistent with the census data for 2001 and 2006 (Table 2). The potential-maximum annual field crop area for the hypothetical year 20xx was created by adding the 2006 areas in summerfallow and in improved pasture to the area in annual field crops (Table 2).
Table
Table 2. Area (Mha) covered by annual crops, summerfallow, improved pasture, unimproved pasture and other lands in 1976, 2001 and 20xx for the three soil zones of the Canadian Prairies.
Table 2. Area (Mha) covered by annual crops, summerfallow, improved pasture, unimproved pasture and other lands in 1976, 2001 and 20xx for the three soil zones of the Canadian Prairies.
Census YearSoil ZoneAnnual CropsSummer FallowImproved PastureUnimproved PastureOther Lands †Total
1976Black13.14.62.19.21.430.4
Dark Brown5.23.20.63.40.112.5
Brown3.72.90.55.60.012.7
2001Black17.11.42.56.32.429.7
Dark Brown7.01.10.72.00.411.4
Brown6.71.50.73.20.512.7
20xx ‡Black20.50.00.06.03.029.5
Dark Brown8.90.00.02.00.611.5
Brown8.90.00.03.20.612.7
† Other lands = Forest, swamps, sloughs and other non-agricultural uses, “other lands” in 1976 is forest (woodlands) only. ‡ 20xx = Hypothetical future scenario if all summerfallow and improved pasture areas are seeded with annual crops.

3. Results

Vegetation or surface-specific mean daily values for each term on the right-hand side of Equation (3), the surface energy budget, for spring wheat (representing all annual field crops), for perennial forages, and for summerfallow at representative weather stations were plotted to illustrate growing season curves for the Black, Dark Brown and Brown soil zones (Figure 4). Land-use weighted growing season curves for Rn, QE, QG and QH (not shown) were calculated using the surface-specific mean daily values, and the land-use data for 1976 (maximum summerfallow area), for 2001 (baseline year near the mid-point of our primary data period), and 20xx (a hypothetical year when all arable lands have been seeded to annual crops). Year 20xx, assumes an extreme demand for food, fiber and biofuel. In this scenario, only unimproved pasture and other lands have been left uncultivated.
In the Black soil zone, the mean daily QE accounted for 70–80% of the total convective heat flux, QA, during the foliar expansion and reproductive period (i.e., weeks 5 to 10) for annual crops in 1976, 2001 and 20xx. In the same period, QE accounted for about 50% of QA for perennial forages in the Black soil zone, and about 25–30% for land in summerfallow. In weeks 5 to 10 in the Dark Brown soil zone, the QE of annual crops accounted for 55–60% of QA, whereas it accounted for 30–40% for perennial forages, and for 30% for land in summerfallow. For the Brown soil zone, QE accounted for 50–60%, 45%, and 30% of QA, respectively.
Atmosphere 03 00573 g004 1024

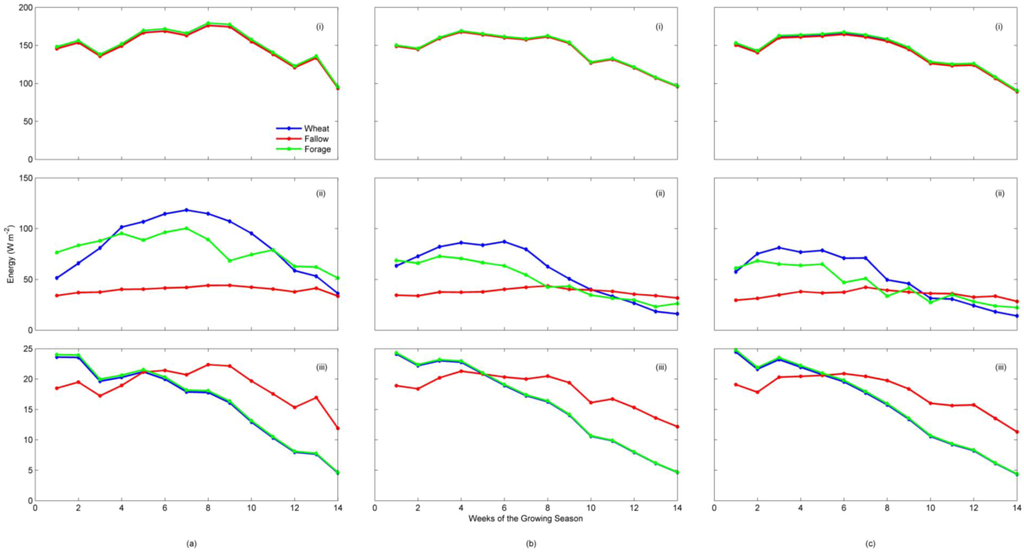

Figure 4. Mean (1997–2004) daily energy fluxes over specified vegetation covers: (i) net radiation, (ii) latent heat, and (iii) soil heat at representative weather stations (a) Brandon-Black soil zone, (b) Lethbridge-Dark Brown soil zone, and (c) Vauxhall-Brown soil zone during the growing season. Week #1 is the last week of May.
Figure 4. Mean (1997–2004) daily energy fluxes over specified vegetation covers: (i) net radiation, (ii) latent heat, and (iii) soil heat at representative weather stations (a) Brandon-Black soil zone, (b) Lethbridge-Dark Brown soil zone, and (c) Vauxhall-Brown soil zone during the growing season. Week #1 is the last week of May.
Atmosphere 03 00573 g004
Atmosphere 03 00573 g005 1024

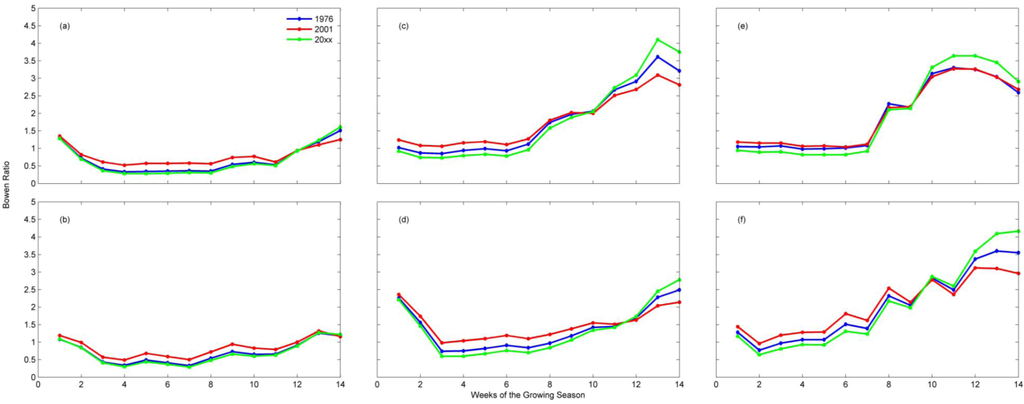

Figure 5. Mean daily land-use-weighted growing-season Bowen ratios in 1976, 2001 and 20xx at representative weather stations; (a) Nipawin, (b) Brandon, (c) Lethbridge, (d) Saskatoon, (e) Medicine Hat, and (f) Vauxhall. Stations (a) and (b) represent Black soil zone, (c) and (d) represent Dark Brown soil zone and (e) and (f) represent Brown soil zone. Year 20xx is a hypothetical year for which all arable lands are assumed to be covered by annual crops. Week #1 is the last week of May.
Figure 5. Mean daily land-use-weighted growing-season Bowen ratios in 1976, 2001 and 20xx at representative weather stations; (a) Nipawin, (b) Brandon, (c) Lethbridge, (d) Saskatoon, (e) Medicine Hat, and (f) Vauxhall. Stations (a) and (b) represent Black soil zone, (c) and (d) represent Dark Brown soil zone and (e) and (f) represent Brown soil zone. Year 20xx is a hypothetical year for which all arable lands are assumed to be covered by annual crops. Week #1 is the last week of May.
Atmosphere 03 00573 g005
Atmosphere 03 00573 g006 1024

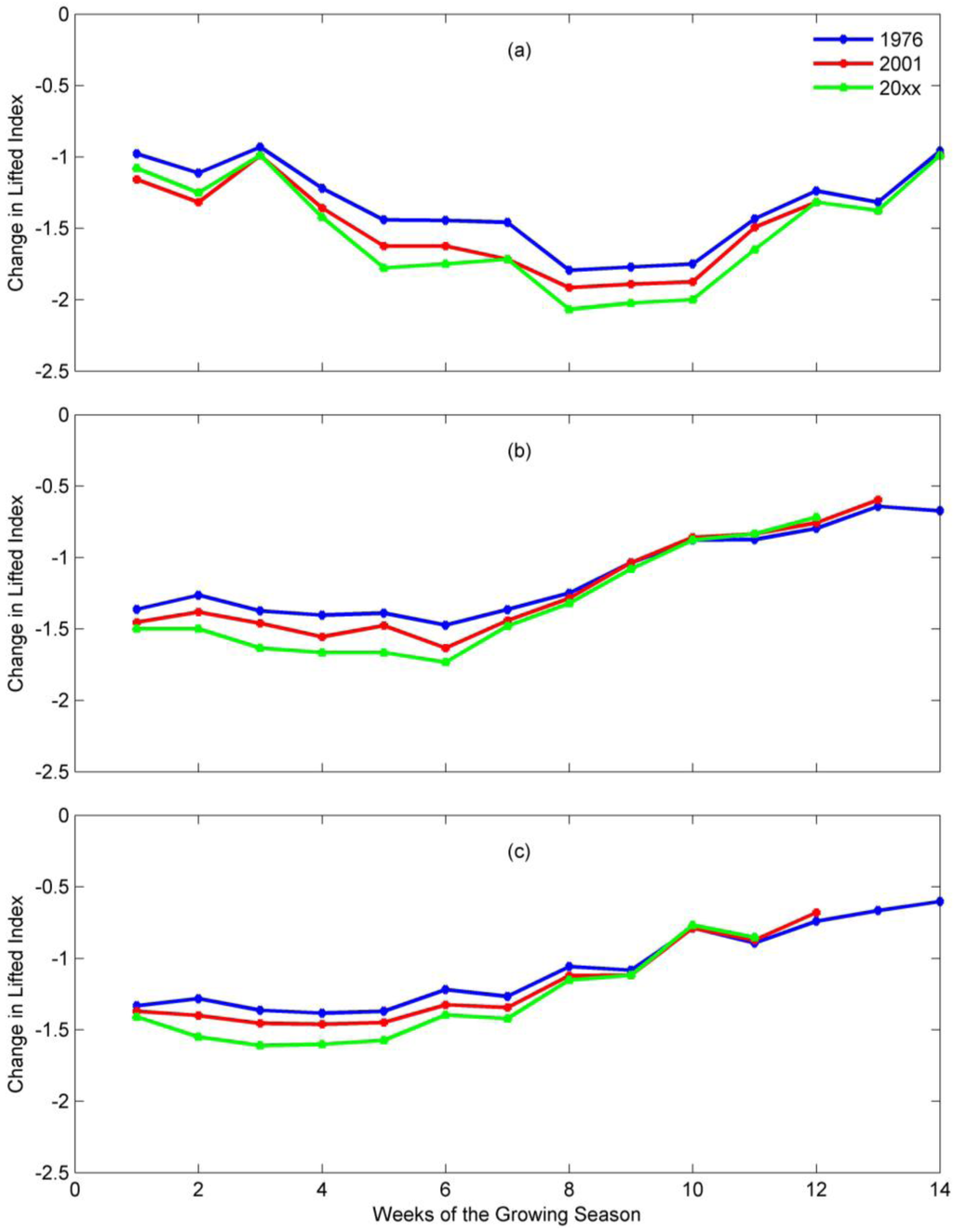

Figure 6. Mean change in lifted index for 1976, 2001 and 20xx during the growing season at representative weather stations for three soil zones; (a) Edmonton-Black soil zone, (b) Lethbridge-Dark Brown soil zone, and (c) Vauxhall -Brown soil zone. Week #1 is the last week of May.
Figure 6. Mean change in lifted index for 1976, 2001 and 20xx during the growing season at representative weather stations for three soil zones; (a) Edmonton-Black soil zone, (b) Lethbridge-Dark Brown soil zone, and (c) Vauxhall -Brown soil zone. Week #1 is the last week of May.
Atmosphere 03 00573 g006
For each land-use scenario year, mean daily growing season Bowen ratio values at sites representing each of the three soil zones were calculated (Figure 5), and along with mean solar noon global radiation values, were used to estimate the daily reductions in the LI (Figure 6) due to land-use weighted ET [19]. In applying this relationship, it was assumed that the ET modified the absolute humidity of an afternoon CBL that averaged 2,000 m in depth [47]. In the Black soil zone, the mean Bowen ratios for weeks 5 to 10 averaged 0.68 ± 0.04, 0.50 ± 0.07 and 0.44 ± 0.06 for 1976, 2001 and 20xx, respectively. In the Dark Brown soil zone, they averaged 1.55 ± 0.02, 1.25 ± 0.32 and 1.23 ± 0.16, and they averaged 1.90 ± 0.18, 1.82 ± 0.06 and 1.72 ± 0.04 in the Brown soil zone for 1976, 2001 and 20xx, respectively. The average solar-noon global radiation values were around 780, 850, 860 W·m−2 in the Black, Dark Brown and Brown soil zones, respectively. The corresponding average daily reductions in LI (ΔLI ± sd) during this foliar expansion and reproductive period for annual field crops were −1.61 ± 0.18 in 1976, −1.77 ± 0.14 in 2001 and −1.89 ± 0.16 in 20xx in the Black soil zone; −1.23 ± 0.23, −1.29 ± 0.29, and −1.36 ± 0.3 in the Dark Brown soil zone, and −1.13 ± 0.20, −1.19 ± 0.24, and −1.24 ± 0.29, respectively in the Brown soil zone. These results indicate that in all soil zones, during the foliar expansion and reproductive period for annual crops (mid-growing season weeks 5 to 10), the probability-of-occurrence of moist deep convection, and its intensity if it occurred, would be the lowest in 1976 (maximum summerfallow area), and the highest in 20xx when all of the potential agricultural areas have been seeded to annual crops.

4. Discussion and Conclusions

Our results are consistent with earlier land-use studies conducted for the Canadian Prairies. Raddatz [27] reported that 60–75% of the Rn was partitioned into QE by perennial forages, and 75–85% by annual crops in wetter areas, and about 60% for both perennial forages and annual crops in drier areas. Gameda et al. [7] reported a shift in the energy budget from QH to QE with a decrease in summerfallow area. In our study, land-use weighted ET was the highest in the Black soil zone followed by the Dark Brown and Brown soil zones. In 2001, ET in the Black soil zone was, on averaged, 10% higher than in 1976; in 20xx it was 13% higher than 1976. The increases were slightly less in the Dark Brown soil zone and even less for the Brown soil zone (Table 3).
Table
Table 3. Land-use weighted evapotranspiration (mm) during the growing season † in the three soil zones of the Canadian Prairies.
Table 3. Land-use weighted evapotranspiration (mm) during the growing season † in the three soil zones of the Canadian Prairies.
Soil zoneYear% Change compared to 1976
1976200120xx200120xx
Black2442692771013
Dark Brown169182191813
Brown15916617349
† Growing season was 14 weeks from the last-week of May to the first-week of September (week #1 is the last week of May, week #2 is the first week of June and so on with week #14 the first week of September).
The land-use weighted mean Bowen ratios values were generally the largest in 1976, and the smallest in 20xx throughout the growing season at all locations. This illustrates the influence that the relative areas of the three vegetation types had on surface energy partitioning. During the foliar expansion and reproductive period for annual field crops, the mean Bowen ratios were around 0.5 in the Black soil zone (Figure 5). In the Dark Brown soil zone, the average Bowen ratio was around 1.0 during the same period. In contrast, the Bowen ratios in the Brown soil zone were higher than 1.0 during the entire growing season indicating that QE was always equal to or less than QH in this soil zone. Soils in the Black soil zone are usually the wettest and in the Brown soil zone soils are usually the driest [48,49]. Thus, differences in available water for ET likely led to the differences in land-use weighted mean Bowen ratios between soil zones. A change in land-use from the maximum summerfallow area in 1976 to a potential future maximum crop area in 20xx, where all except the unimproved grasslands have been seeded to annual crops, had a greater impact on the ΔLI, and in turn, on the probability-of-occurrence and intensity of moist deep convection in the generally wetter Black soil zone than in either the Dark Brown or the Brown soil zones.
A multi-model assessment of land-atmosphere coupling strength, the Global Land-Atmosphere Coupling Experiment [50], identified regions where soil moisture anomalies have a substantial impact on summer rainfall. These ‘‘hot spots’’ include portions of the Canadian Prairies. Hot spots are generally areas where adding moisture to the atmospheric boundary layer can lead to moist deep convection, and where ET is relatively high but still sensitive to soil moisture. Our results support this assessment. Our conclusion about reduce summerfallow area leading to lower Bowen ratios and increased CAPE, especially in the Black soil zone, are consistent with the observed increase in the frequency of lightning during the growing season from 1999 to 2008 [51] at Edmonton and Brandon (Black soil zone). The increase was two to three times greater than the increase at Lethbridge (Dark Brown soil zone) [51].
Raddatz and Hanesiak [52] evaluated significant summer rain events on the Canadian Prairies from 2000 to 2004, and found that 79% of the events were solely or partially convective. Gameda et al. [53] found a significant increase in daytime cloud cover between 1972 and 2002, a period corresponding to declining summerfallow area. Several researchers have reported an increase in precipitation, and the frequency of rainfall events [54,55,56,57] on the Canadian Prairies. Cutforth [58] found that the annual rainfall amount and frequency-of-occurrence have increased since the 1970s in the Brown soil zone. Our findings suggest that the recent changes in the rainfall regime of the Canadian Prairies may be due, in part, to the land-use change from a crop rotation that includes summerfallow to continuous cropping. While larger CAPE due to increased land-use weighted ET does not guarantee more precipitation, all else being equal, it does increase its probability-of-occurrence, and larger CAPE may increase the intensity of moist deep convection, if it occurs.
There are several potential sources of uncertainties associated with our results. The FAO method of estimating net radiation, and the adjustment factor derived from the observed and the calculated net radiation at Lethbridge is inexact. Lethbridge is in the Dark Brown soil zone, and the adjustment factor may not be appropriate for the Black and Brown soil zones. The assumptions regarding both the physical and the biological parameters (soil moisture, soil heat capacity, thermal conductivity, surface albedo, and the water demand of plants at different stages of crop growth) may have influenced the accuracy of our Bowen ratio estimates. More detailed site-specific information about the vegetation and the soil moisture parameters would have improved the modeling of ET [59]. Further analysis with more spatial and temporal resolution might help to fine tune our results.
In summary, this analysis has shown that the trend to continuous cropping (reduction in summerfallow acreage) on Canadian Prairies has already had an impact on land-use weighted ET. By lowering the Bowen ratios, this land-use change has and will influence the probability-of-occurrence of moist deep convection and its intensity when it occurs (i.e., convective clouds with associated rainfall and severe weather). The impact of reduced summerfallow area was greater in the wetter Black soil zone than in the drier Dark Brown and Brown soil zones. In 1976 (maximum summerfallow area), Bowen ratios were the highest, thus the probability-of-occurrence of moist deep convection was the lowest. In 2001, the trend to continuous cropping had increased the land-use weighted ET and lowered the Bowen ratios, thereby increasing the probability-of-occurrence of moist deep convection, and possibly its intensity. ET would increase further, and the Bowen ratios would be even smaller if all of the arable land in the Canadian Prairies were planted to annual crops. This could further increase the probabilities-of-occurrence and intensity of moist deep convection.

Acknowledgements

We acknowledge Dirk Anderson, AAFC Ottawa for technical assistance. Similarly, we would like to thank Elizabeth Pattey for providing data to test the FAO method. The senior author acknowledges the NAHARP program for the opportunity given to work as a NSERC visiting fellow at Agriculture and Agri-food Canada, Ottawa.

References

  1. Msangi, S.; Sulser, T.; Rosegrant, M.; Valmonte-Santos, R. Global Scenarios for Biofuels: Impacts and Implications for Food Security and Water Use. In Tenth Annual Conference on Global Economic Analysis; Purdue University: West Lafayette, IN, USA, 2007. [Google Scholar]
  2. Dumanski, J.; Desjardins, R.L.; Tarnocai, C.; Monreal, C.; Gregorich, E.G.; Kirkwood, V.; Campbell, C.A. Possibilities for future carbon sequestration in canadian agriculture in relation to land use changes. Climatic Change 1998, 40, 81–103. [Google Scholar] [CrossRef]
  3. Adegoke, J.O.; Pielke, R., Sr.; Carleton, A.M. Observational and modeling studies of the impacts of agriculture-related land use change on planetary boundary layer processes in the central US. Agri. Forest Meteorol. 2007, 142, 203–215. [Google Scholar] [CrossRef]
  4. Beltrán-Przekurat, A.; Pielke, R.A., Sr.; Eastman, J.L.; Coughenour, M.B. Modelling the effects of land-use/land-cover changes on the near-surface atmosphere in Southern South America. Int. J. Climatol. 2012, 32, 1206–1225. [Google Scholar] [CrossRef]
  5. Betts, R.A.; Falloon, P.D.; Goldewijk, K.K.; Ramankutty, N. Biogeophysical effects of land use on climate: Model simulations of radiative forcing and large-scale temperature change. Agri. Forest Meteorol. 2007, 142, 216–233. [Google Scholar] [CrossRef]
  6. Chase, T.N.; Pielke, R.A., Sr.; Kittel, T.G.F.; Nemani, R.R.; Running, S.W. Simulated impacts of historical land cover changes on global climate in northern winter. Clim. Dynam. 2000, 16, 93–105. [Google Scholar] [CrossRef]
  7. Gameda, S.; Qian, B.; Campbell, C.A.; Desjardins, R.L. Climatic trends associated with summerfallow in the Canadian prairies. Agri. Forest Meteorol. 2007, 142, 170–185. [Google Scholar] [CrossRef]
  8. Pielke, R.A., Sr.; Adegoke, J.O.; Chase, T.N.; Marshall, C.H.; Matsui, T.; Niyogi, D. A new paradigm for assessing the role of agriculture in the climate system and in climate change. Agri. Forest Meteorol. 2007, 142, 234–254. [Google Scholar] [CrossRef]
  9. Raddatz, R.L. Evidence for the influence of agriculture on weather and climate through the transformation and management of vegetation: Illustrated by examples from the canadian prairies. Agri. Forest Meteorol. 2007, 142, 186–202. [Google Scholar] [CrossRef]
  10. Pielke, R.A., Sr.; Pitman, A.; Niyogi, D.; Mahmood, R.; McAlpine, C.; Hossain, F.; Goldewijk, K.K.; Nair, U.; Betts, R.; Fall, S.; et al. Land use/land cover changes and climate: Modeling analysis and observational evidence. WIREs Clim. Change 2011, 2, 828–850. [Google Scholar] [CrossRef]
  11. Nair, U.S.; Wu, Y.; Kala, J.; Lyons, T.J.; Pielke, R.A., Sr.; Hacker, J.M. The Role of land use change on the development and evolution of the west coast trough, convective clouds, and precipitation in Southwest Australia. J. Geophys. Res. 2011. [Google Scholar] [CrossRef]
  12. Desjardins, R.L.; Sivakumar, M.V.K.; de Kimpe, C. The contribution of agriculture to the state of climate: Workshop summary and recommendations. Agri. Forest Meteorol. 2007, 142, 314–324. [Google Scholar] [CrossRef]
  13. Solomon, S.; Qin, D.; Manning, M.; Chen, Z.; Marquis, M.; Averyt, K.B.; Tignor, M.; Miller, H.L. Contribution of Working Group I to the Fourth Assessment Report of the Intergovernmental Panel on Climate Change, 2007; Cambridge University Press: Cambridge, UK, 2007. [Google Scholar]
  14. Avila, F.B.; Pitman, A.J.; Donat, M.G.; Alexander, L.V.; Abramowitz, G. Climate model simulated changes in temperature extremes due to land cover change. J. Geophys. Res. 2012. [Google Scholar] [CrossRef]
  15. Pitman, A.J.; Avila, F.B.; Abramowitz, G.; Wang, Y.P.; Phipps, S.J.; de Noblet-Ducoudre, N. Importance of background climate in determining impact of land-cover change on regional climate. Nature Clim. Change 2011, 1, 472–475. [Google Scholar] [CrossRef]
  16. Lee, S.-H.; Kimura, F. Comparative studies in the local circulations induced by land-use and by topography. Bound. Lay. Meteorol. 2001, 101, 157–182. [Google Scholar] [CrossRef]
  17. Clark, C.A.; Arritt, R.W. Numerical simulations of the effect of soil moisture and vegetation cover on the development of deep convection. J. Appl. Meteor. 1995, 34, 2030–2045. [Google Scholar]
  18. Weisman, M.L.; Klemp, J.B. Characteristics of Isolated Convective Storms in Mesoscale Meteorology and Forecasting. In Mesoscale Meteorology and Forecasting; Ray, P.S., Ed.; American Meteorological Society: Boston, MA, USA, 1986; pp. 331–358. [Google Scholar]
  19. Pielke, R.A., Sr. Influence of the spatial distribution of vegetation and soils on the prediction of cumulus convective rainfall. Rev. Geophys. 2001, 39, 151–177. [Google Scholar] [CrossRef]
  20. Oke, T.R. Boundary Layer Climates, 2nd ed; Routledge: London, UK, 1987; p. 435. [Google Scholar]
  21. Mahrt, L.; Pierce, D. Relationship of moist convection to boundary-layer properties: Application to a semiarid region (Colorado). Mon. Weather Rev. 1980, 108, 1810–1815. [Google Scholar] [CrossRef]
  22. Rabin, R.M.; Stensrud, D.J.; Stadler, S.; Wetzel, P.J.; Gregory, M. Observed effects of landscape variability on convective clouds. Bull. Amer. Meteorol. Soc. 1990, 71, 272–280. [Google Scholar] [CrossRef]
  23. Segal, M.; Arritt, R.W.; Clark, C.; Rabin, R.; Brown, J. Scaling evaluation of the effect of surface characteristics on potential for deep convection over uniform terrain. Mon. Weather Rev. 1995, 123, 383–400. [Google Scholar] [CrossRef]
  24. Zawadzki, I.; Torlaschi, E.; Sauvageau, R. The relationship between mesoscale thermodynamic variables and convective precipitation. J. Atmos. Sci. 1981, 38, 1535–1540. [Google Scholar] [CrossRef]
  25. Blanchard, D.O. Assessing the vertical distribution of convective available potential energy. Weather Forecast. 1998, 13, 870–877. [Google Scholar] [CrossRef]
  26. Galway, J.G. The lifted index as a predictor of latent instability. Bull. Amer. Meteor. Soc. 1956, 37, 528–529. [Google Scholar]
  27. Raddatz, R.L. Anthropogenic vegetation transformation and the potential for deep convection on the canadian prairies. Can. J. Soil Sci. 1998, 78, 657–666. [Google Scholar] [CrossRef]
  28. Raddatz, R.L. An operational agrometeorological information system for the canadian prairies. Climatol. Bull. 1989, 23, 83–97. [Google Scholar]
  29. Raddatz, R.L.; Cummine, J.D. Inter-annual variability of moisture flux from the prairie agro-ecosystem: Impact of crop phenology on the seasonal pattern of tornado days. Bound. Lay. Meteorol. 2003, 106, 283–295. [Google Scholar] [CrossRef]
  30. Statistics Canada. Preliminary Estimates of Principal Field Crop Areas. Available online: www.statcan.gc.ca/daily-quotidien/120627/t120627a001-eng.htm (accessed on 7 December 2012).
  31. Dow, C.L.; de Walle, D.R. Trends in evaporation and Bowen ratio on urbanizing watersheds in Eastern United States. Water Resour. Res. 2000, 36, 1835–1843. [Google Scholar] [CrossRef]
  32. Degu, A.M.; Hossain, F.; Niyogi, D.; Pielke, R., Sr.; Shepherd, J.M.; Voisin, N.; Chronis, T. The influence of large dams on surrounding climate and precipitation patterns. Geophys. Res. Lett. 2011. [Google Scholar] [CrossRef]
  33. Campbell, C.A.; Zentner, R.P.; Gameda, S.; Blomert, B.; Wall, D.D. Production of annual crops on the canadian praries: trends during 1976–1998. Can. J. Soil Sci. 2002, 82, 45–57. [Google Scholar]
  34. Environment Canada. National Climate Data and Information Archive. Available online: climate.weatheroffice.gc.ca/climateData/canada_e.html (accessed on 3 April 2012).
  35. Agriculture and Agri-Food Canada. AAFC-AAC Real Time Weather Data System. Available online: ablethr2/weather/weathermain.aspx?Language=0 (accessed on 27 March 2012).
  36. Allen, R.G.; Pereira, L.S.; Raes, D.; Smith, M. Crop Evapotranspiration (Guidelines for Computing Crop Water Requirements); FAO Irrigation and Drainage Paper No. 56; Food and Agriculture Organization of the United Nations (FAO): Rome, Italy, 1998. [Google Scholar]
  37. Robertson, G.W. A biometeorological time scale for a cereal crop involving day and night temperatures and photoperiod. Int. J. Biometeorol. 1968, 12, 191–223. [Google Scholar] [CrossRef]
  38. Baier, W. Evaluation of latent evaporation estimates and their conversion to potential evaporation. Can. J. Plant. Sci. 1971, 51, 255–266. [Google Scholar] [CrossRef]
  39. Hobbs, E.H.; Krogman, K.K. Observed and estimated evapotranspiration in Southern Alberta. T. ASAE 1968, 11, 502–503. [Google Scholar]
  40. Rasmussen, V.P.; Hanks, R.J. Spring wheat yield model for limited moisture conditions. Agron. J. 1978, 70, 940–944. [Google Scholar] [CrossRef]
  41. Clothier, B.E.; Clawson, K.L.; Pinter Jr, P.J.; Moran, M.S.; Reginato, R.J.; Jackson, R.D. Estimation of soil heat flux from net radiation during the growth of Alfalfa. Agri. Forest Meteorol. 1986, 37, 319–329. [Google Scholar] [CrossRef]
  42. Santanello, J.A.; Friedl, M.A. Diurnal covariation in soil heat flux and net radiation. J. Appl. Meteorol. 2003, 42, 851–862. [Google Scholar] [CrossRef]
  43. Statistics Canada. Total Farm Area, Land Tenure and Land in Crops, by Province (Census of Agriculture, 1986–2006). Available online: www.statcan.gc.ca/tables-tableaux/sum-som/l01/cst01/agrc25a-eng.htm (accessed on 27 August 2012).
  44. Statistics Canada, Census of Agriculture. Alberta; Agriculture Division, Statistics Canada: Ottawa, ON, Canada, 1977; p. 153.
  45. Statistics Canada, Census of Agriculture. Manitoba; Agriculture Division, Statistics Canada: Ottawa, ON, Canada, 1977; p. 177.
  46. Statistics Canada, Census of Agriculture.Saskatchewan; Agriculture Division, Statistics Canada: Ottawa, ON, Canada, 1977; p. 189.
  47. Raddatz, R.L.; Noonan, M. Monthly mean afternoon mixing-layer depths “tuned” to the eco-climatic regions of the canadian prairie provinces. Environ. Model. Assess. 2005, 9, 147–158. [Google Scholar] [CrossRef]
  48. Ash, G.H.B.; Shaykewich, C.F.; Raddatz, R.L. Moisture risk assessment for spring wheat on the eastern prairies: A water-use simulation model. Climatol. Bull. 1992, 26, 65–78. [Google Scholar]
  49. Raddatz, R.L.; Shaykewich, C.F.; Bullock, P.R. Prairie crop yield estimates from modelled phenological development and water use. Can. J. Plant. Sci. 1994, 74, 429–436. [Google Scholar] [CrossRef]
  50. Koster, R.D.; Suarez, M.J. Suggestions in the observational record of land-atmosphere feedback operating at seasonal time scales. J. Hydrometeorol. 2004, 5, 567–572. [Google Scholar] [CrossRef]
  51. Environment Canada, National Inventory Report 1990–2006—Greenhouse Gas Sources and Sinks in Canada; Environment Canada: Gatineau, QC, Canada, 2008.
  52. Raddatz, R.L.; Hanesiak, J.M. Significant summer rainfall in the canadian prairie provinces: Modes and mechanisms 2000–2004. Int. J. Climatol. 2008, 28, 1607–1613. [Google Scholar] [CrossRef]
  53. Gameda, S.; Qian, B.; Campbell, C.A.; Desjardins, R. Summerfallow Trends and Climate in the Canadian Prairies. Available online: ams.confex.com/ams/BLTAgFBioA/techprogram/paper_111162.htm (accessed on 24 March 2012).
  54. Bonsai, B.R.; Zhang, X.; Hogg, W.D. Canadian prairie growing season precipitation variability and associated atmospheric circulation. Climate Res. 1999, 11, 191–208. [Google Scholar] [CrossRef]
  55. Zhang, X.; Vincent, L.A.; Hogg, W.D.; Niitsoo, A. Temperature and precipitation trends in canada during the 20th Century. Atmos. Ocean. 2000, 38, 395–429. [Google Scholar] [CrossRef]
  56. Akinremi, O.O.; McGinn, S.M.; Cutforth, H.W. Seasonal and spatial patterns of rainfall trends on the canadian prairies. J. Climate 2001, 14, 2177–2182. [Google Scholar] [CrossRef]
  57. Shepherd, A.; McGinn, S.M. Assessment of climate change on the canadian prairies from downscaled gcm data. Atmos. Ocean. 2003, 41, 301–316. [Google Scholar] [CrossRef]
  58. Cutforth, H.W. Climate change in the semiarid prairie of southwestern saskatchewan: Temperature, precipitation, wind, and incoming solar energy. Can. J. Soil Sci. 2000, 80, 375–385. [Google Scholar] [CrossRef]
  59. Brimelow, J.C.; Hanesiak, J.M.; Raddatz, R.L.; Hayashi, M. Validation of ET estimates from the canadian prairie agrometeorological model for contrasting vegetation types and growing seasons. Can. Water Resour. J. 2010, 35, 209–230. [Google Scholar] [CrossRef]

Share and Cite

MDPI and ACS Style

Shrestha, B.M.; Raddatz, R.L.; Desjardins, R.L.; Worth, D.E. Continuous Cropping and Moist Deep Convection on the Canadian Prairies. Atmosphere 2012, 3, 573-590. https://doi.org/10.3390/atmos3040573

AMA Style

Shrestha BM, Raddatz RL, Desjardins RL, Worth DE. Continuous Cropping and Moist Deep Convection on the Canadian Prairies. Atmosphere. 2012; 3(4):573-590. https://doi.org/10.3390/atmos3040573

Chicago/Turabian Style

Shrestha, Bharat M., Richard L. Raddatz, Raymond L. Desjardins, and Devon E. Worth. 2012. "Continuous Cropping and Moist Deep Convection on the Canadian Prairies" Atmosphere 3, no. 4: 573-590. https://doi.org/10.3390/atmos3040573

APA Style

Shrestha, B. M., Raddatz, R. L., Desjardins, R. L., & Worth, D. E. (2012). Continuous Cropping and Moist Deep Convection on the Canadian Prairies. Atmosphere, 3(4), 573-590. https://doi.org/10.3390/atmos3040573

Article Metrics

Back to TopTop
