Exploring the Variable Phenotypes of RPGR Carrier Females in Assessing Their Potential for Retinal Gene Therapy
1
Oxford Eye Hospital, John Radcliffe Hospital, Oxford University Hospitals NHS Foundation Trust, Oxford OX3 9DU, UK
2
Eye Clinic, Sacco Hospital, University of Milan, 20157 Milan, Italy
3
Oxford Medical Genetics Laboratories, The Churchill Hospital, Oxford University Hospitals NHS Foundation Trust, Oxford OX3 7LE, UK
4
Nuffield Department of Clinical Neurosciences, Level 6, West Wing, John Radcliffe Hospital, Oxford OX3 9DU, UK
*
Author to whom correspondence should be addressed.
Received: 23 October 2018 / Accepted: 13 December 2018 / Published: 18 December 2018

Abstract

:
Inherited retinal degenerations are the leading cause of blindness in the working population. X-linked retinitis pigmentosa (XLRP), caused by mutations in the Retinitis pigmentosa GTPase regulator (RPGR) gene is one of the more severe forms, and female carriers of RPGR mutations have a variable presentation. A retrospective review of twenty-three female RPGR carriers aged between 8 and 76 years old was carried out using fundoscopy, autofluorescence imaging (AF), blue reflectance (BR) imaging and optical coherence tomography (OCT). Confirmation of the genetic mutation was obtained from male relatives or Sanger genetic sequencing. Fundus examination and AF demonstrate phenotypic variability in RPGR carriers. The genetic mutation appears indeterminate of the degree of change. We found four distinct classifications based on AF images to describe RPGR carriers; normal (N) representing normal or near-normal AF appearance (n = 1, 4%); radial (R) pattern reflex without pigmentary retinopathy (n = 14, 61%); focal (F) pigmentary retinopathy (n = 5, 22%) and; male (M) phenotype (n = 3, 13%). The phenotypes were precisely correlated in both eyes (rs = 1.0, p < 0.0001). Skewed X-inactivation can result in severely affected carrier females—in some cases indistinguishable from the male pattern and these patients should be considered for RPGR gene therapy. In the cases of the male (M) phenotype where the X-inactivation was skewed, the pattern was similar in both eyes, suggesting that the mechanism is not truly random but may have an underlying genetic basis.
Keywords:
inherited retinal degeneration; retinitis pigmentosa; pigmentary retinopathy; X-linked retinitis pigmentosa; retinitis pigmentosa GTPase regulator gene (RPGR); female carriers; X-inactivation; skewed X-inactivation; gene therapy

1. Introduction

Retinitis pigmentosa is the most-common inherited retinal dystrophy with a worldwide prevalence of 1 in 4000. It is a heterogeneous group of disorders that can be inherited as autosomal dominant (30%–40% of cases), autosomal recessive (50%–60% of cases) or X-linked (5%–15%) [1]. To date, only three genes have been identified to cause X-linked retinitis pigmentosa (XLRP) with approximately 70%–80% attributed to the Retinitis Pigmentosa GTPase Regulator (RPGR) gene [2].
RPGR-related RP is one of the most severe forms of retinitis pigmentosa in males, with symptoms of nyctalopia within the first 10 years of life and progression to blindness within the third or fourth decade [3]. Typical progression with the loss of rod photoreceptors, pigmentary retinopathy and perivascular changes occur with degeneration, eventually encroaching on the central macular area [4].
Despite the X-linked inheritance of RPGR, the severe phenotype can also be seen in female carriers [5] and is caused by the preferential inactivation of the normal X chromosome [6]. X-linked RP can, therefore, be mistakenly characterised as autosomal dominant with every generation, including females, showing typical disease characteristics [7].
In this study, we categorise the female RPGR phenotypes using fundus autofluorescence (FAF) imaging and blue reflectance imaging to define the different levels of disease. With RPGR gene therapy currently undergoing clinical trials for males, there must be the consideration for therapeutic intervention in females who also suffer from the severe phenotype of retinitis pigmentosa.

2. Materials and Methods

We reviewed 23 female carriers of X-linked Retinitis Pigmentosa who had been examined and imaged at the Oxford Eye Hospital. Patients were identified through ongoing gene therapy clinical trials for RPGR retinitis pigmentosa (NCT03116113) and via specialist genetic eye clinics. All females were confirmed as carriers either through male relatives screened and/or enrolled in the RPGR gene therapy trial (with genetic sequencing performed as per protocol) or through analysis of familial RPGR mutations.
All patients underwent a complete ophthalmic examination, including logMAR best-corrected visual acuity (BCVA), standardized anterior and posterior segment examination and imaging. Imaging included fundus photography (Optos, Inc., Marlborough, MA, USA), spectral domain optical coherence tomography (SD-OCT), Spectralis HRA + OCT, (Heidelberg Engineering, Heidelberg, Germany), blue autofluorescence (B-AF) and, in some patients where AF categorization was not obvious, blue reflectance (BR) (both Spectralis HRA and HRA II; Heidelberg Engineering, Heidelberg, Germany). B-AF images were obtained using a blue light excitation wavelength of 488 nm and recorded emission wavelengths were limited by a barrier filter to wavelengths between 500 and 700 nm.

3. Results

A total of 46 eyes of 23 consecutive RPGR patients (average age 38 years, range 8 to 76 years) were included in this study. Differences in the fundus appearance on B-AF and BR imaging allowed us to identify four different patterns of presentation: N-pattern—normal or near-normal fundus appearance, the R-pattern—radial-spoke shaped reflexes extending from the central macular area in a radial pattern; the F-pattern—focal pigmentary retinopathy patchy pigmentation with a radial reflex pattern and the M-pattern—male pattern retinitis pigmentosa. In all cases, the pattern observed in one eye matched the other in the same patient. It is possible, however, that eyes of the same patient may be functionally discordant [8] or between the boundaries of classification. These eyes can be individually categorized using the same criteria. Other similar classifications have been used to grade XLRP carriers using fundus appearance and fundus photographs [9,10].
The normal (N) pattern (n = 1) was identified in one female with an X-linked family history and confirmed RPGR mutation but no retinal signs or symptoms of RP, see Figure 1. The N-pattern carrier did not have any fundus abnormalities on B-AF or BR imaging, see Figure 1b. In this one case, genetic testing was carried out to confirm the carrier status of the RPGR mutation observed in affected males of the same family. It is possible that with the progression of the disease, a radial reflex pattern may become more obvious.
The radial (R) pattern (n = 14) shows a radial reflex without pigmentary retinopathy, see Figure 2. This is specific to X-linked RP female carriers. The retinal sheen creates a wedged-shaped pattern that begins at the peri-macular region and extends towards the periphery. The fovea is typically spared. Recently, cellular resolution provided by adaptive optics scanning laser ophthalmoscope at points identified with a radial reflex pattern has shown features of reduced cone density, increased inner segment diameters, and increased rod outer segment reflectivity [11].
In the focal (F) pattern (n = 5), the radial pattern is still present, but with areas of focal pigmentary retinopathy, as shown in Figure 3. Similar to the pattern described in males, the areas of pigmentation in the AF corresponds to areas of degeneration of photoreceptors. Patients may complain of night blindness or visual field loss.
Lastly, male (M) pattern (n = 3) represents females with the same male RP phenotype and a clinically significant visual impairment within the third or fourth decade of life, see Figure 4. This can be severe enough to cause complete sight loss, as evidenced by one female RPGR carrier who had sufficiently severe vision loss to be enrolled in a clinical trial for an electronic retinal implant [12]. Her son subsequently underwent RPGR gene therapy as part of another trial. Pedigrees for patients 21, 22, and 23 are shown in Figure 5a–c, respectively.
In all 23 cases, the pattern was the same between the two eyes, suggesting that the underlying mechanism of X-inactivation was not random but somehow genetically determined. However, different patterns were seen in a mother and daughter pair and two sisters, who would be predicted to carry a similar X-chromosome (with the exception of the small autosomal regions). There was no specific correlation between the location of the mutation and phenotype category; however, other studies such as Commander et al. have noted functional differences between mutations in the ORF15 region and exon 1–14 in RPGR [9]. The results from patients are summarized in Table 1.

4. Conclusions

Here, we describe the spectrum of retinal degeneration in 23 female carriers of X-linked RP. In three patients (13%), we found a pattern indistinguishable to the male phenotype, verifying the previous finding that RPGR mutations are the third most common cause of dominant RP. In our cases, the family history of the three male pattern patients would be indistinguishable from the classic dominant inheritance [7]. Genetic testing has revealed the true identity of the disease and these cases should be considered with regard to RPGR gene therapy.
The RPGR gene is located on the short arm of the X chromosome. It is ubiquitously expressed, playing a role in cilia-related body functions including the ears and respiratory tract. RPGRORF15 is the retinal-specific isoform located in the connecting cilium of photoreceptors and is thought to aid in the trafficking of molecules between the inner and outer segments [13]. The repetitive glutamic acid and glycine-rich sequence in the ORF15 region creates a mutational hotspot in the terminal exon [14].
Mutations in the RPGR gene are associated with a cone-rod or rod-cone phenotype. The male phenotype of XLRP is well documented, but it has long been recognised that female carriers of X-linked retinitis pigmentosa can also suffer from visual dysfunction and display a retinal phenotype even without symptoms [5]. The distinct patterns described in this cohort show the four different clinical phenotypes of RPGR female carriers that are thought to occur due to X-inactivation in early embryological development.
X-inactivation is a chromosomal process in females. Either the maternal or paternal X chromosome is chosen at random and is passed down to daughter cells. A 50:50 ratio of the maternal and paternal X chromosome is expected [6]. Xist, located on the long arm of chromosome X, is a non-translated region of RNA in the X-inactivation centre (XIC). It aids in the counting, choosing and silencing process when deciding which X chromosome should be translated [15,16]. The X-inactivation centre has both repressing and activating non-translating RNA regions that become active, dependent on the choice made—Xist RNA is crucially translated in the inactive chromosome that is maintained throughout the cell line [17].
Mutations may skew the inactivation process with the mutant allele being preferentially selected or inactivated, altering the ratio of mutant to wildtype X chromosomes selected. This may occur at any stage of X-inactivation and independently in the inner and outer retina due to their differing embryological origins. It is also possible that mutations in RPGR or adjacent genes affect the translation or selection ability of the Xist RNA. Peripheral blood samples in this cohort and in other studies [18] have not shown any correlation between the percentage of X-inactivation and phenotype severity. This is probably because the inactivation pattern in haemopoietic cells is different compared with the retina. Retinal biopsies are likely to be required for correlation of percentage inactivation and XLRP disease severity. Other studies have proposed alternate genetic influences to be the cause of a difference in presentation [18].
Furthermore, Table 1 demonstrates that mutation location does not correlate with a specific phenotype category. Related females 1 and 19 (sisters) have different phenotype patterns with the same mutation in RPGR. Additionally, patients two and three are twins and display similar phenotypes; however, twin 1 has a worse symptomatology. A long-term follow-up of patients is required to look at the progression of XLRP carrier phenotypes in more detail.
At the other end of the spectrum, carriers with the M-pattern have the most severe phenotype with similar patterns described in men and visual acuities affected early in life. Gene therapy for RPGR-related retinitis pigmentosa (e.g., NCT: 03116113) is currently in clinical trials for males. Additional interventional trials for severely affected females should, therefore, also be considered. Those female carriers categorised into the M-pattern are the most likely candidates for treatment; however, further formal assessments, such as visual field, scotopic microperimetry, electroretinography and assessment of stability and/or progression over time should be investigated to identify potential female candidates.

Author Contributions

Writing—original draft preparation, A.N.; writing—review and editing, A.P.S., P.C., S.M.D., R.E.M.

Funding

This research received funding support from NIHR Oxford Biomedical Research Center.

Acknowledgments

The authors thank the imaging team at Oxford Eye Hospital for conducting patient OCT, B-AF, BR and Optos imaging.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Hartong, D.T.; Berson, E.L.; Dryja, T.P. Retinitis pigmentosa. Lancet 2006, 368, 1795–1809. [Google Scholar] [CrossRef]
  2. Tee, J.J.; Smith, A.J.; Hardcastle, A.J.; Michaelides, M. RPGR-associated retinopathy: Clinical features, molecular genetics, animal models and therapeutic options. Br. J. Ophthalmol. 2016, 100, 1022–1027. [Google Scholar] [CrossRef] [PubMed]
  3. Flaxel, C.; Jay, M.; Thiselton, D.; Nayudu, M.; Hardcastle, A.; Wright, A.; Bird, A. Difference between RP2 and RP3 phenotypes in X linked retinitis pigmentosa. Br. J. Ophthalmol. 1999, 83, 1144–1148. [Google Scholar] [CrossRef] [PubMed][Green Version]
  4. Campochiaro, P.A.; Mir, T.A. The mechanism of cone cell death in Retinitis Pigmentosa. Prog. Retin. Eye Res. 2017. [Google Scholar] [CrossRef] [PubMed]
  5. Bird, A.C. X-linked retinitis pigmentosa. Br. J. Ophthalmol. 1975, 59, 177–199. [Google Scholar] [CrossRef] [PubMed]
  6. Fahim, A.T.; Daiger, S.P. The role of X-chromosome inactivation in retinal development and disease. Adv. Exp. Med. Biol. 2016, 854, 325–331. [Google Scholar] [CrossRef]
  7. Churchill, J.D.; Bowne, S.J.; Sullivan, L.S.; Lewis, R.A.; Wheaton, D.K.; Birch, D.G.; Branham, K.E.; Heckenlively, J.R.; Daiger, S.P. Mutations in the X-linked retinitis pigmentosa genes RPGR and RP2 found in 8.5% of families with a provisional diagnosis of autosomal dominant retinitis pigmentosa. Investig. Ophthalmolo. Vis. Sci. 2013, 54, 1411–1416. [Google Scholar] [CrossRef]
  8. Jacobson, S.G.; Yagasaki, K.; Feuer, W.J.; Roman, A.J. Interocular asymmetry of visual function in heterozygotes of X-linked retinitis pigmentosa. Exp. Eye Res. 1989, 48, 679–691. [Google Scholar] [CrossRef]
  9. Comander, J.; Weigel-DiFranco, C.; Sandberg, M.A.; Berson, E.L. Visual function in carriers of X-linked Retinitis Pigmentosa. Ophthalmology 2015, 122, 1899–1906. [Google Scholar] [CrossRef]
  10. Talib, M.; van Schooneveld, M.J.; Van Cauwenbergh, C.; Wijnholds, J.; Ten Brink, J.B.; Florijn, R.J.; Schalij-Delfos, N.E.; Dagnelie, G.; van Genderen, M.M.; De Baere, E.; et al. The spectrum of structural and functional abnormalities in female carriers of pathogenic variants in the RPGR gene. Investig. Ophthalmol. Vis. Sci. 2018, 59, 4123–4133. [Google Scholar] [CrossRef]
  11. Kalitzeos, A.; Samra, R.; Kasilian, M.; Tee, J.J.L.; Strampe, M.; Langlo, C.; Webster, A.R.; Dubra, A.; Carroll, J.; Michaelides, M. Cellular imaging of the tapetal-like reflex in carriers of RPGR-associated retinopathy. Retina 2017. [Google Scholar] [CrossRef]
  12. Stingl, K.; Bartz-Schmidt, K.U.; Besch, D.; Chee, C.K.; Cottriall, C.L.; Gekeler, F.; Groppe, M.; Jackson, T.L.; MacLaren, R.E.; Koitschev, A.; et al. Subretinal visual implant alpha IMS—Clinical trial interim report. Vis. Res. 2015, 111, 149–160. [Google Scholar] [CrossRef]
  13. Megaw, R.D.; Soares, D.C.; Wright, A.F. RPGR: Its role in photoreceptor physiology, human disease, and future therapies. Exp. Eye Res. 2015, 138, 32–41. [Google Scholar] [CrossRef]
  14. Vervoort, R.; Lennon, A.; Bird, A.C.; Tulloch, B.; Axton, R.; Miano, M.G.; Meindl, A.; Meitinger, T.; Ciccodicola, A.; Wright, A.F. Mutational hot spot within a new RPGR exon in X-linked retinitis pigmentosa. Nat. Genet. 2000, 25, 462–466. [Google Scholar] [CrossRef] [PubMed]
  15. Brown, C.J.; Ballabio, A.; Rupert, J.L.; Lafreniere, R.G.; Grompe, M.; Tonlorenzi, R.; Willard, H.F. A gene from the region of the human X inactivation centre is expressed exclusively from the inactive X chromosome. Nature 1991, 349, 38–44. [Google Scholar] [CrossRef] [PubMed]
  16. Ng, K.; Pullirsch, D.; Leeb, M.; Wutz, A. Xist and the order of silencing. EMBO Rep. 2007, 8, 34–39. [Google Scholar] [CrossRef][Green Version]
  17. Heard, E. Recent advances in X-chromosome inactivation. Curr. Opin. Cell Biol. 2004, 16, 247–255. [Google Scholar] [CrossRef] [PubMed]
  18. Banin, E.; Mizrahi-Meissonnier, L.; Neis, R.; Silverstein, S.; Magyar, I.; Abeliovich, D.; Roepman, R.; Berger, W.; Rosenberg, T.; Sharon, D. A non-ancestral RPGR missense mutation in families with either recessive or semi-dominant X-linked retinitis pigmentosa. Am. J. Med. Genet. Part A 2007, 143a, 1150–1158. [Google Scholar] [CrossRef] [PubMed]

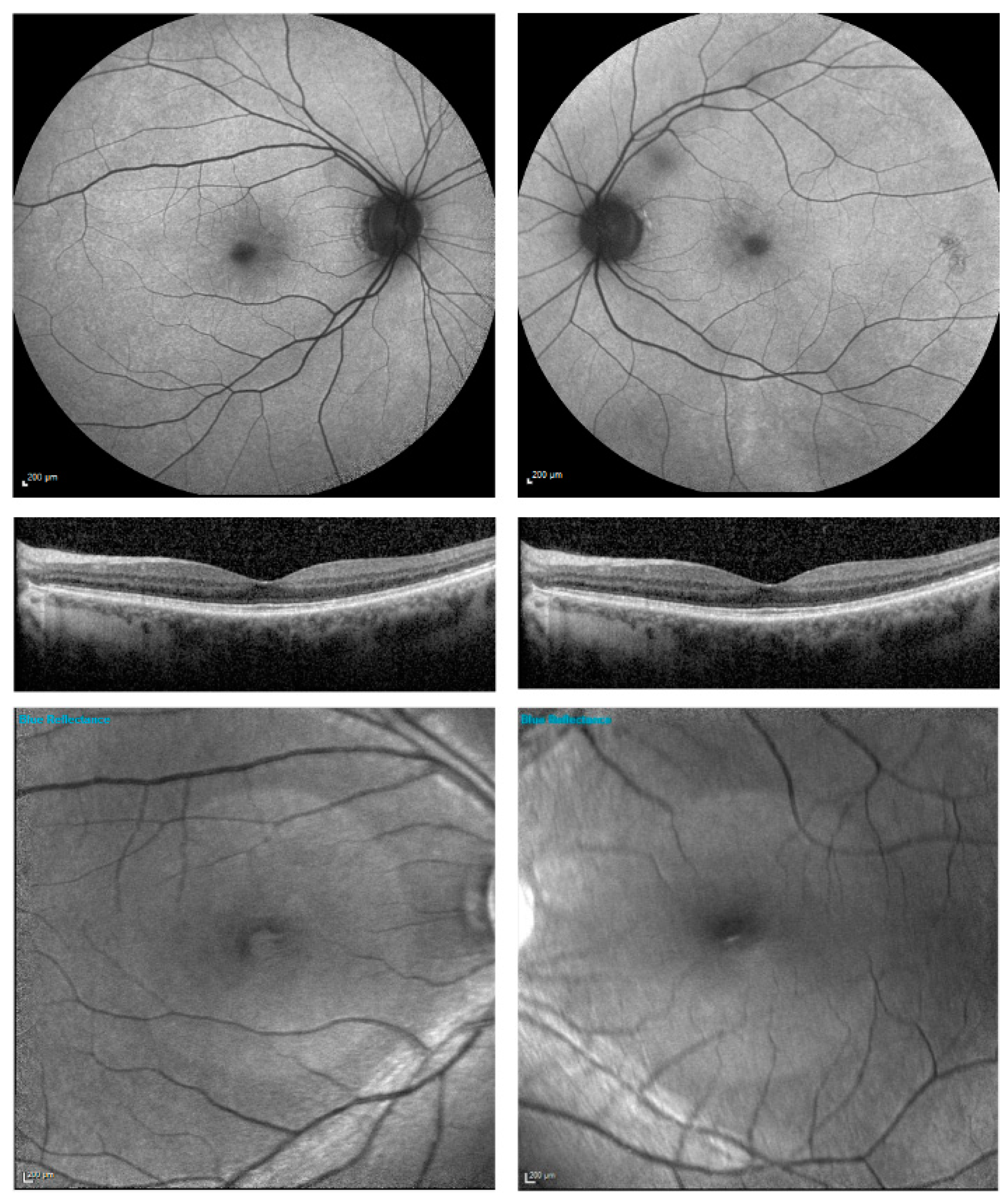

Figure 1. Autofluorescence imaging (AF), optical coherence tomography (OCT) and blue reflectance imaging BR of patient one classified as normal (N) pattern. There is no obvious radial pattern or pigmentary retinopathy visible on AF or 488-nm blue reflectance imaging. A radial reflex pattern may become more obvious with disease progression or with age.
Figure 1. Autofluorescence imaging (AF), optical coherence tomography (OCT) and blue reflectance imaging BR of patient one classified as normal (N) pattern. There is no obvious radial pattern or pigmentary retinopathy visible on AF or 488-nm blue reflectance imaging. A radial reflex pattern may become more obvious with disease progression or with age.
Genes 09 00643 g001
Figure 2. AF and OCT imaging of Radial pattern (R). A wedge-shaped reflex extends from the central retina to the periphery, sparing the macular with no pigmentary changes. The OCT shows good retinal anatomy with an intact ellipsoid layer and outer limiting membrane. Patients in this category have no symptoms of retinitis pigmentosa.
Figure 2. AF and OCT imaging of Radial pattern (R). A wedge-shaped reflex extends from the central retina to the periphery, sparing the macular with no pigmentary changes. The OCT shows good retinal anatomy with an intact ellipsoid layer and outer limiting membrane. Patients in this category have no symptoms of retinitis pigmentosa.
Genes 09 00643 g002

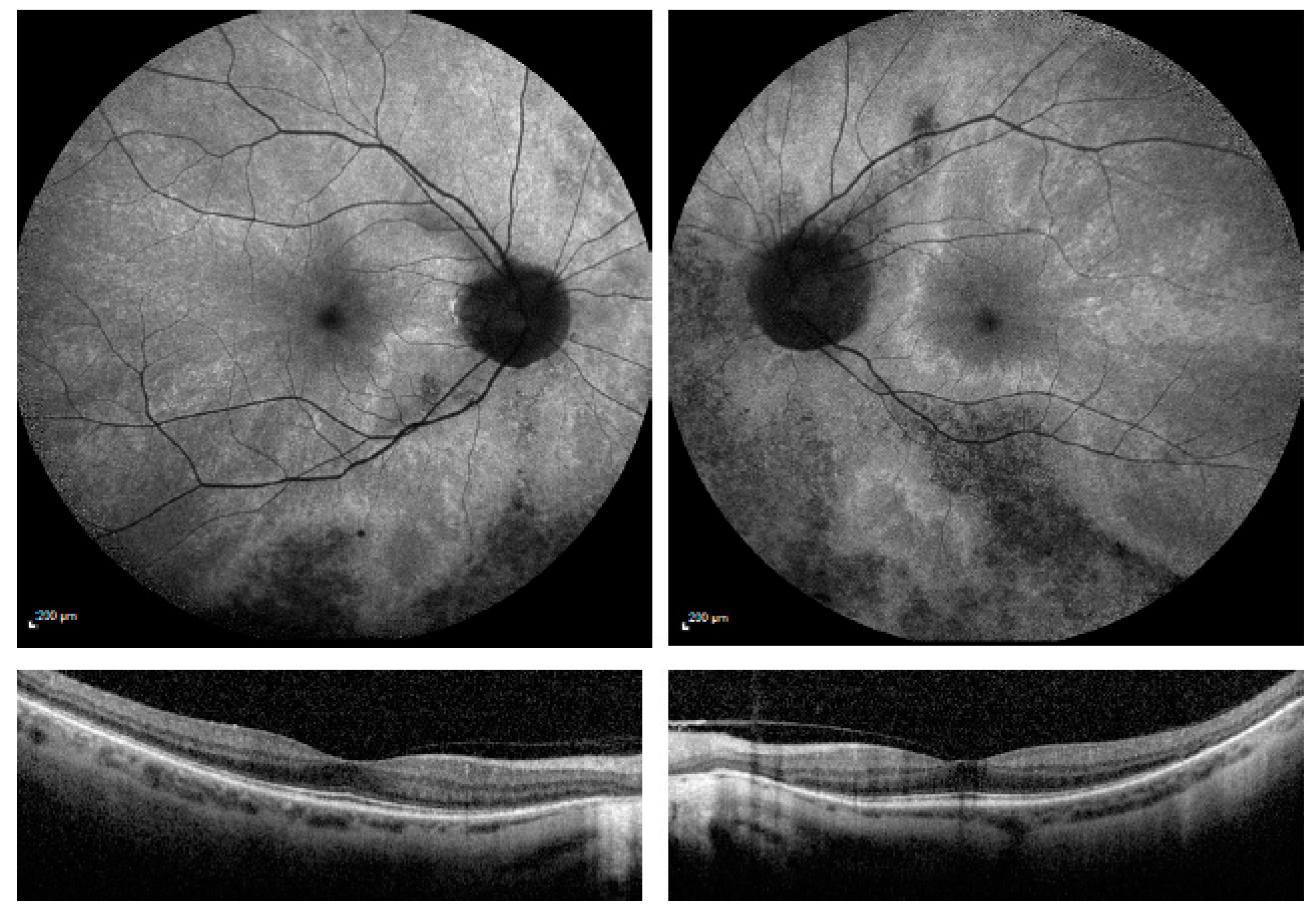

Figure 3. AF and OCT imaging of a Focal pigmentary pattern (F). AF images show focal pigmentary changes in the inferior retina with the radial reflex pattern sparing the macular and extending to the periphery. Area of pigmentary changes denote the areas with disrupted photoreceptors. Pigment migrates to areas devoid of photoreceptors following the pathway of the retinal vasculature. Areas of pigmentation in F-pattern appear to be random but both eyes are affected and are classified into the same category.
Figure 3. AF and OCT imaging of a Focal pigmentary pattern (F). AF images show focal pigmentary changes in the inferior retina with the radial reflex pattern sparing the macular and extending to the periphery. Area of pigmentary changes denote the areas with disrupted photoreceptors. Pigment migrates to areas devoid of photoreceptors following the pathway of the retinal vasculature. Areas of pigmentation in F-pattern appear to be random but both eyes are affected and are classified into the same category.
Genes 09 00643 g003

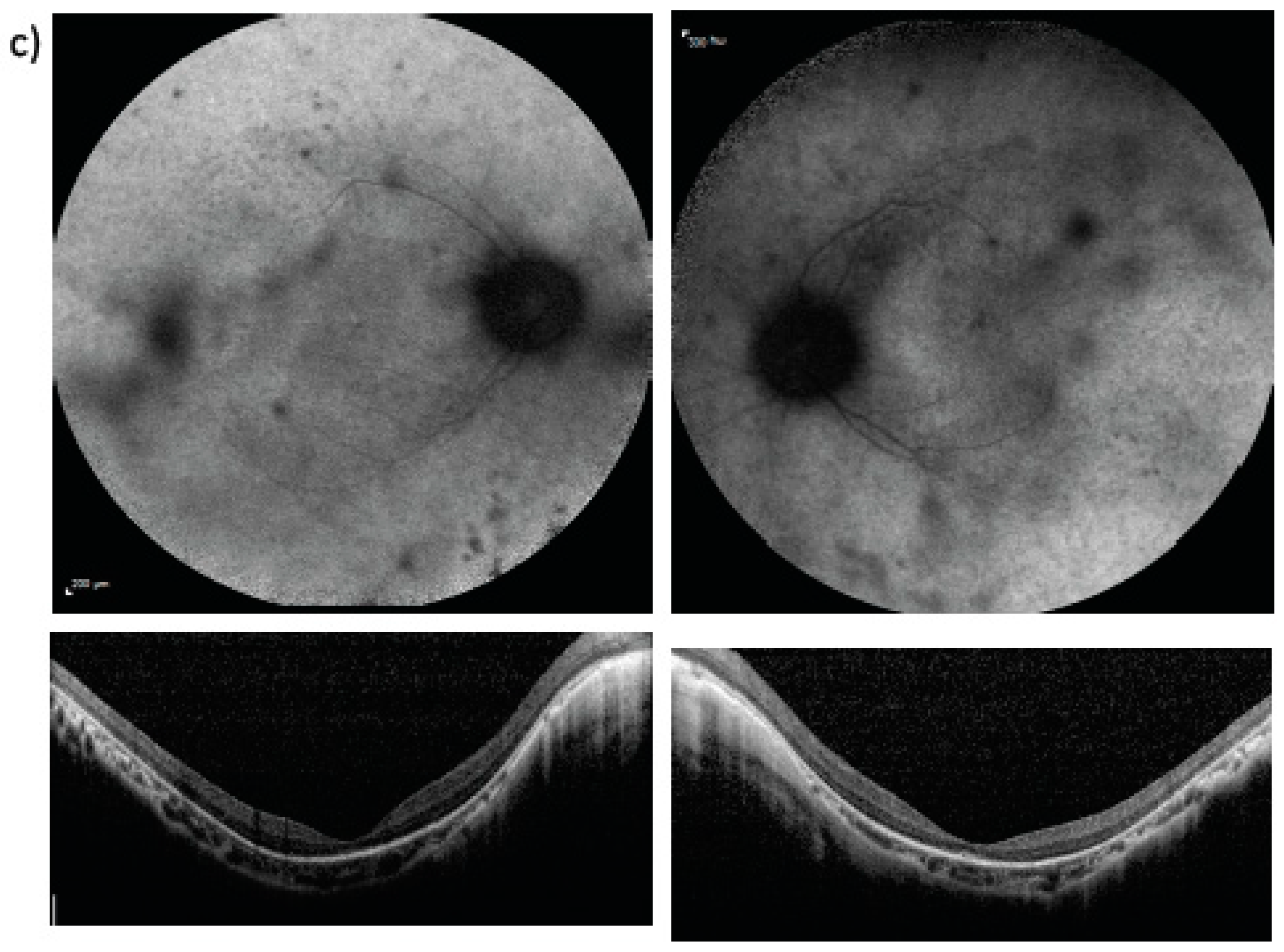

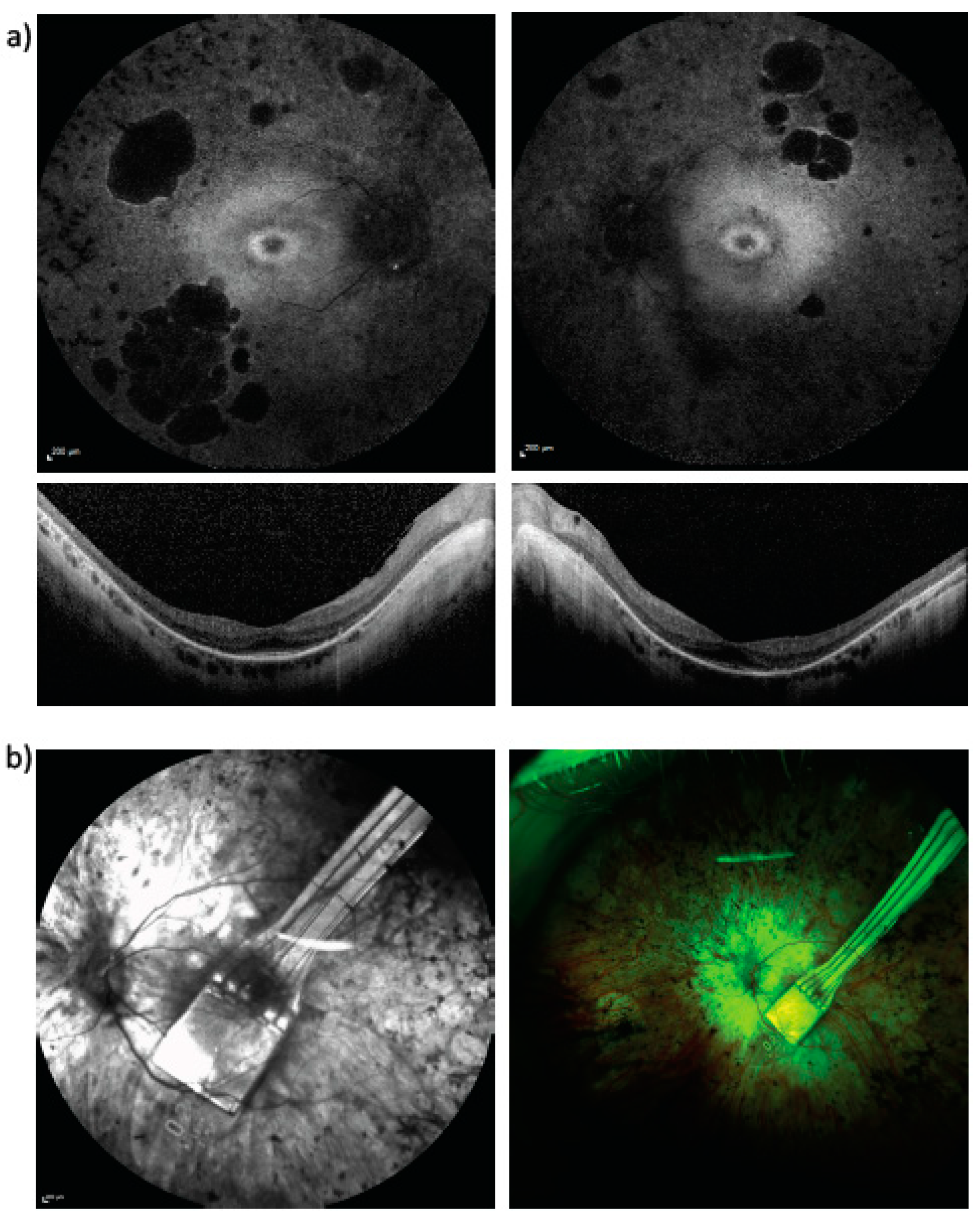

Figure 4. AF, OCT and Optos imaging of male pattern (M) X-linked retinitis pigmentosa (XLRP) phenotype. (a) (Patient 21) is a simplex case of retinitis pigmentosa GTPase regulator (RPGR)-associated retinitis pigmentosa with a mutation within the highly variable ORF15 region. AF imaging shows large atrophic patches with extensive peripheral pigmentary changes. A small, intact ellipsoid zone can be seen on OCT imaging, denoting the area of visual field remaining. Part (b) is the oldest of three patients, at 60 years old. Due to the severity of her disease she was enrolled into the retinal implant surgery trial. The AF and Optos images show the location of the implant overlying the macular with extensive pigmentary changes extending from the macular to the periphery. Part (c) is the youngest patient with male-phenotype retinitis pigmentosa changes and a small ellipsoid zone on OCT imaging.
Figure 4. AF, OCT and Optos imaging of male pattern (M) X-linked retinitis pigmentosa (XLRP) phenotype. (a) (Patient 21) is a simplex case of retinitis pigmentosa GTPase regulator (RPGR)-associated retinitis pigmentosa with a mutation within the highly variable ORF15 region. AF imaging shows large atrophic patches with extensive peripheral pigmentary changes. A small, intact ellipsoid zone can be seen on OCT imaging, denoting the area of visual field remaining. Part (b) is the oldest of three patients, at 60 years old. Due to the severity of her disease she was enrolled into the retinal implant surgery trial. The AF and Optos images show the location of the implant overlying the macular with extensive pigmentary changes extending from the macular to the periphery. Part (c) is the youngest patient with male-phenotype retinitis pigmentosa changes and a small ellipsoid zone on OCT imaging.
Genes 09 00643 g004aGenes 09 00643 g004b

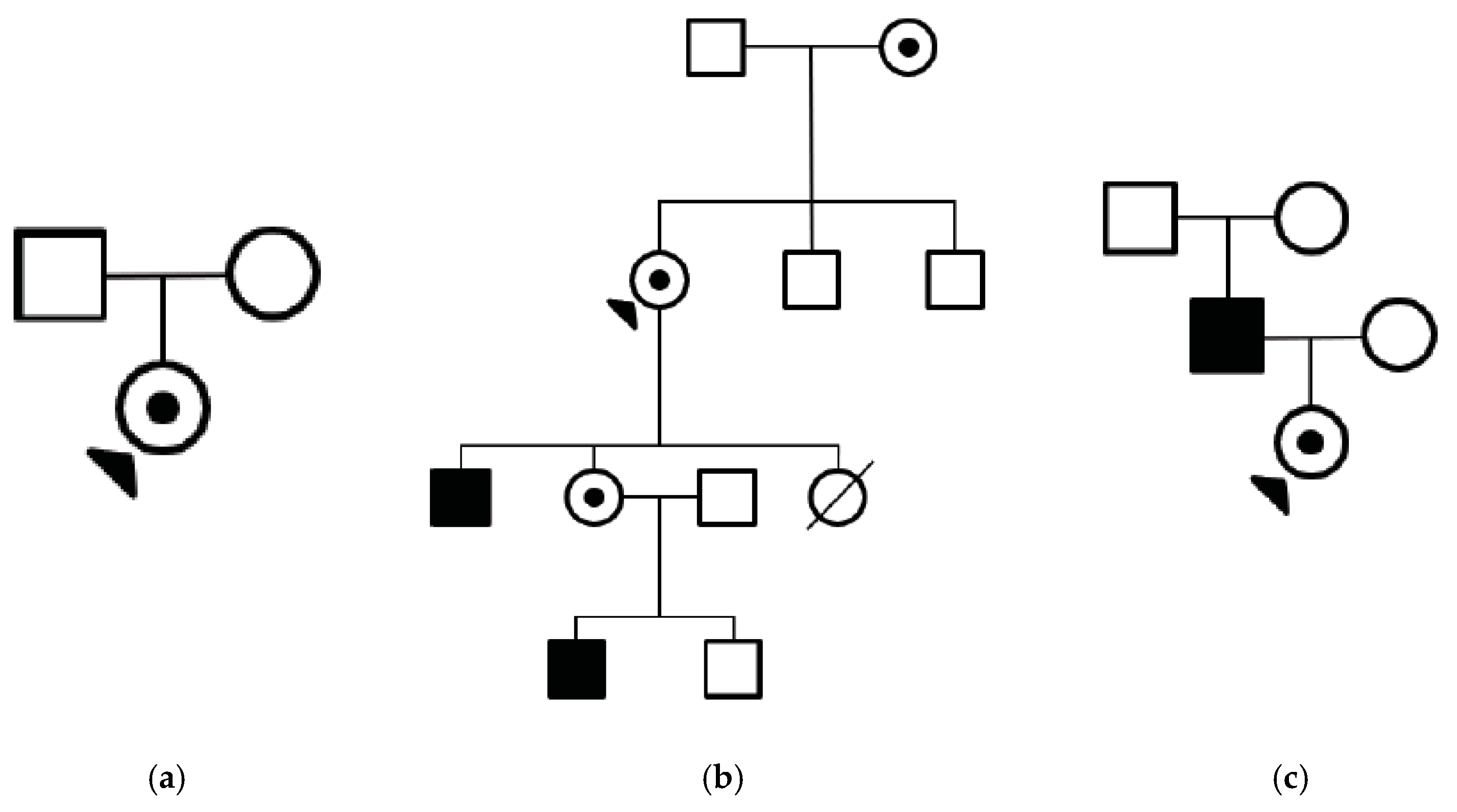

Figure 5. (a) Family pedigree of female patient 21 with Male-pattern RPGR retinitis pigmentosa. (b) Family pedigree of female patient 22 with Male-pattern RPGR retinitis pigmentosa. (c) Family pedigree of female patient 23 with Male-pattern RPGR retinitis pigmentosa.
Figure 5. (a) Family pedigree of female patient 21 with Male-pattern RPGR retinitis pigmentosa. (b) Family pedigree of female patient 22 with Male-pattern RPGR retinitis pigmentosa. (c) Family pedigree of female patient 23 with Male-pattern RPGR retinitis pigmentosa.
Genes 09 00643 g005
Table 1. Table of results showing the age of female carrier, location of the RPGR mutation and the category of autofluorescence image assigned according to grading classification outlined above.
Table 1. Table of results showing the age of female carrier, location of the RPGR mutation and the category of autofluorescence image assigned according to grading classification outlined above.
Patient NumberCurrent AgeRPGR Mutation Confirmed in Male Relative Suffering with RPGR Retinitis PigmentosaRPGR Exon LocationAutofluorescence Imaging Category
151c.581G > A (p.Trp194Ter)6Normal
252c.779-5T > G8Radial
326c.904T > G8Radial
48c.1047delT10Radial
58c.1047delT10Radial
650c.1377_137811Radial
757c.2405_2406delAGORF15Radial
876c.3092delAORF15Radial
930c.2993_2997delAAGGGORF15Radial
1055c.2426_2427 del AGORF15Radial
1164c.2628_2629delGGORF15Radial
1239c.3178_3179delGAORF15Radial
1321c.2426_2427delAGORF15Radial
1426c.2650G > TORF15Radial
1560c.2405_2406delAGORF15Radial
1643c.215delA3Focal
1750c.408delT5Focal
1852c.581G > A6Focal
1964c.2426_2427delAGORF15Focal
2048c.2993_2997delAAGGGORF15Focal
2147c.1379T > A11Male
2260c.1571delA13Male
2321c.2405_2406delAGORF15Male
