Splicing Analysis of Exonic OCRL Mutations Causing Lowe Syndrome or Dent-2 Disease

Lorena Suarez-Artiles
Ana Perdomo-Ramirez
Elena Ramos-Trujillo
Felix Claverie-Martin
Unidad de Investigación, Hospital Nuestra Señora de Candelaria, 38010 Santa Cruz de Tenerife, Spain
Author to whom correspondence should be addressed.
Genes 2018, 9(1), 15;
Submission received: 9 November 2017 / Revised: 11 December 2017 / Accepted: 27 December 2017 / Published: 4 January 2018
(This article belongs to the Special Issue Aberrant Pre-mRNA Splicing in Disease)


Mutations in the OCRL gene are associated with both Lowe syndrome and Dent-2 disease. Patients with Lowe syndrome present congenital cataracts, mental disabilities and a renal proximal tubulopathy, whereas patients with Dent-2 disease exhibit similar proximal tubule dysfunction but only mild, or no additional clinical defects. It is not yet understood why some OCRL mutations cause the phenotype of Lowe syndrome, while others develop the milder phenotype of Dent-2 disease. Our goal was to gain new insights into the consequences of OCRL exonic mutations on pre-mRNA splicing. Using predictive bioinformatics tools, we selected thirteen missense mutations and one synonymous mutation based on their potential effects on splicing regulatory elements or splice sites. These mutations were analyzed in a minigene splicing assay. Results of the RNA analysis showed that three presumed missense mutations caused alterations in pre-mRNA splicing. Mutation c.741G>T; p.(Trp247Cys) generated splicing silencer sequences and disrupted splicing enhancer motifs that resulted in skipping of exon 9, while mutations c.2581G>A; p.(Ala861Thr) and c.2581G>C; p.(Ala861Pro) abolished a 5′ splice site leading to skipping of exon 23. Mutation c.741G>T represents the first OCRL exonic variant outside the conserved splice site dinucleotides that results in alteration of pre-mRNA splicing. Our results highlight the importance of evaluating the effects of OCRL exonic mutations at the mRNA level.

1. Introduction

Altered pre-mRNA splicing is currently recognized as the underlying cause of many hereditary diseases [1,2,3,4]. Present knowledge reveals that, in addition to their protein coding potential, exonic sequences are also involved in the regulation of pre-mRNA splicing. Exons may contain splicing regulatory elements such as exonic splicing enhancers (ESEs) and exonic splicing silencers (ESSs) that promote or inhibit the recognition of the neighboring splice sites, respectively [1]. Also, the last three positions and the first two in the exons are an integral part of the 5′ and 3′ splice sites consensus sequences, respectively. Therefore, exonic mutations may affect splicing by altering regulatory elements, by abolishing or reducing the strength of the splice sites, or by creating new splice sites [1,5].
Lowe syndrome (OMIM #309000) and Dent disease type-2 (Dent-2; OMIM #300555) are two rare X-linked renal tubulopathies progressing to chronic kidney failure [6,7,8]. Lowe syndrome, a severe disorder, is also characterized by congenital cataracts, mental disabilities, and hypotonia. Dent-2 disease shows no, or only mild, additional clinical defects suggesting that Dent-2 represents a mild form of Lowe syndrome [9,10]. The dysfunction of the renal proximal tubule results in urinary loss of low-molecular weight proteins, phosphate and bicarbonate [11]. Similar renal tubular defects are also characteristics of Dent-1, another X-linked disease that is caused by mutations in the gene CLCN5 that encodes for the endosomal proton-chloride exchanger ClC-5 [6]. Lowe syndrome and Dent-2 disease are caused by mutations in the OCRL gene located on chromosome Xq26.1 [12,13]. This gene encodes OCRL1, an inositol polyphosphate 5-phosphatase that preferentially hydrolyses phosphatidylinositol 4,5-bisphosphate, a key regulator in intracellular trafficking [12,14]. The full-length OCRL mRNA transcript contains 24 exons, and produces two splice isoforms, called A and B [15]. Isoform B lacks exon 19 (also referred to as 18a) encoding 8 amino acids that is present in isoform A (901 amino acids). Isoform A is ubiquitously expressed while the B isoform is expressed in all tissues except the brain. Isoform A binds clathrin with higher affinity than isoform B and is involved in endocytosis of low-molecular weight proteins and intracellular membrane traffic in the proximal tubule [16]. The OCRL1 protein contains several domains, including an N-terminal pleckstrin homology (PH) domain, a central 5-phosphatase catalytic domain, an ASH (ASPM, SPD-2, Hydin) domain, and a C-terminal noncatalytic Rho-GTPase activating protein (GAP) domain [8,17]. In addition, OCRL1 contains several protein binding motifs that facilitate its interaction with different proteins, which mostly assist its targeting to different cell compartments such as the plasma membrane, trans-Golgi network, early endosomes, clathrin-coated vesicles, primary cilium and lysosomes [8,17].
According to the Human Gene Mutation Database (HGMD) [18], approximately 250 OCRL disease-causing mutations have been described, including missense and nonsense mutations (49%), splicing mutations (12%), small deletions (20%), and small insertions (9%), and gross deletions and insertions. Missense and nonsense mutations occur throughout the OCRL gene, but mainly in exons 9 to 24 that contain the 5-phosphatase domain, the ASH domain, and the RhoGAP domain [8,19,20]. It is not yet understood why some OCRL mutations cause the phenotype of Lowe syndrome, while others develop the milder phenotype of Dent-2 disease. Also, we know that in Dent-2 disease nonsense mutations cluster in exons 4 to 8. Therefore, it would be interesting to investigate these OCRL missense and nonsense mutations for their potential effect on pre-mRNA splicing.
The aim of our study was to gain insights into the consequences of previously described OCRL missense and synonymous mutations on pre-mRNA splicing. A total of 45 mutations located mainly in exons 9, 11, 12, 15, 21, 22 and 23 were analyzed with bioinformatics tools. Thirteen missense mutations and one synonymous mutation affecting splicing regulatory elements or splice sites were selected and their mRNAs were studied using a minigene system.

2. Materials and Methods

The nomenclature for the description of mutations followed the guidelines of the Human Genome Variation Society [21]. Nucleotide numbering was based on the OCRL cDNA sequence (GenBank accession number NM_000276.3), with c.1 denoting the first position of the translation start codon.

2.1. Bioinformatics Predictions

All missense and synonymous OCRL mutations were selected from the HGMD [18], except c.1070G>T, c.1567G>T, c.2418G>T and c.2581G>C [22], and c.1221G>A, p.(Pro407Pro), that was identified in one of our patients [23]. In silico analysis were performed with different web-based bioinformatics tools in order to select mutations with potential effect in pre-mRNA processing. Splice site prediction by neural network (NNSplice) was used to analyze exon definition and to predict the putative effect of mutations on the consensus splice site regions [24]. To identify the presence of potential splicing regulatory sequences such as ESEs and ESSs, and determine the putative effect of mutations on splicing regulatory motifs, we used ESEfinder 3.0 [25], RESCUE-ESE [26], and FAS-ESS [27]. Additionally, we used two new tools, MutPred Splice v1.3.2 [28] and splicing-based analysis of variants (SPANR) [29] to identify exonic mutations possibly affecting pre-mRNA splicing and to determine whether mutations can cause splicing misregulation leading to disease. For the experimental analysis of our study, we selected OCRL mutations based on the following criteria: (a) location of mutations in poorly defined exons (exons that have 5′ or 3′ splice sites with NNSplice score below 0.85); (b) predicted activation of a cryptic splice site within the exon; (c) predicted effect of the mutation on the natural 5′ or 3′ splice sites; (d) predicted effect the mutation on exonic splicing regulatory elements (loss of ESEs or/and gain of ESSs).

2.2. Amplification of OCRL Genomic Fragments

OCRL genomic segments encompassing exons 9 and 10 and intron 9 (179 bp upstream of exon 9 and 62 bp downstream of exon 10), exons 11 and 12 and intron 11 (155 bp upstream of exon 11 and 138 bp downstream of exon 12), exon 15 (118 bp upstream of the exon and 330 bp downstream of the exon), exons 21 to 23 and introns 21 and 22 (115 bp upstream of exon 21 and 117 bp downstream of exon 23) and the corresponding flanking intronic sequences were amplified by PCR from genomic DNA extracted from peripheral blood of a healthy control. PCR reactions were carried out using AccuTaq LA polymerase (Sigma-Aldrich, Saint Louis, MO, USA), and forward and reverse primers. These primers contained at their 5′ ends sequences for restriction enzymes XhoI and XbaI or BamHI (Thermo Fisher Scientific, Waltham, MA, USA) for directional cloning. Polymerase chain reaction (PCR) products were purified using GenElute™ PCR Clean-Up kit (Sigma-Aldrich). Primers were designed using the web-based sources Primer3 [30] and Primer BLAST [31], and the software Gene Runner [32]. Primer sequences are shown in Table S1. Extraction of DNA from the healthy control was carried out with the written consent of the subject and was approved by the Clinical Research Ethics Committee of Hospital Nuestra Señora de la Candelaria, Santa Cruz de Tenerife, Spain.

2.3. Generation of Minigene Constructs

Amplified fragments were cloned into the expression vector Exontrap (pET01, MoBiTech, Göttingen, Germany). Fragments and vector were separately digested using the appropriate combination of restriction enzymes. Ligation reactions were performed using T4 DNA ligase (Kapa Biosystems, Wilmington, MA, USA) according to the manufacturer’s instructions. XL1 Blue competent cells were transformed with 5 μL of reaction product by heat-shock and grown in Luria Broth (LB) agar plates supplemented with ampicillin. Colonies carrying recombinant plasmids were grown overnight in LB with ampicillin at 37 °C. Plasmid DNA extraction was carried out with GenElute™ Plasmid Miniprep Kit (Sigma-Aldrich), and recombinant plasmids were confirmed by double digestion with the same restriction enzymes used for cloning. Minigenes were analyzed by sequencing the entire OCRL insert with BigDye® Terminator v3.1 Cycle Sequencing Kit (Thermo Fischer Scientificusing primers ETprim04 and ETprim05 (MoBiTech) that anneal to vector pET01 sequences.

2.4. Site-Directed Mutagenesis

Mutations of interest were introduced in the minigenes using the QuickChange® Lightning Site-Directed Mutagenesis Kit (Agilent Technologies, Santa Clara, CA, USA) following the manufacturer’s recommendations. Reaction products were transformed into XL10-Gold ultracompetent cells. Primers for mutagenesis were designed using the bioinformatics tool QuickChange® Primer Design Program [33] according to the guidelines described in the QuickChange® commercial kit (Table S1). To confirm the presence of the desired mutation, all constructs were analyzed by directed sequencing using the primers designed for the amplification of each fragment.

2.5. Cell Culture, Transient Transfection and RT-PCR Assay

COS7 cells were cultured in Dulbecco’s Modified Eagle Medium (DMEM, Sigma-Aldrich) with low glucose (1 g/L), supplemented with 10% fetal bovine serum and 1% penicillin/streptomycin and incubated at 37 °C and 5% CO2 in a humidified incubator. Transfections with wild-type and mutant minigenes were carried out using JetPRIME® reagent (Polyplus Transfection, Illkirch, France) following the recommendations of the manufacturer. Transfected cells were incubated for 48 h, and total RNA was extracted using the High Pure RNA Isolation kit (Roche, Indianapolis, IN, USA). RNA was quantified using the Nanodrop Lite (Thermo Scientific). cDNA synthesis was performed with iScript cDNA synthesis kit (Bio-Rad, Hercules, CA, USA) using random primers. cDNAs were amplified by PCR using primers ETprim02 and ETprim03 (MoBiTech) complementary to sequences of the 5′ and 3′ pET01 exons. Reverse transcription (RT)-PCR products were analyzed by agarose gel electrophoresis together with molecular weight marker DirectLoad PCRbp Low Ladder (Sigma-Aldrich). Products were recovered from the gel using GenElute™ Agarose Spin Columns (Sigma-Aldrich) and sequenced as previously described. DNA sequences were compared to the reference OCRL sequence of (GenBank entry number NM_000276.3) using the bioinformatics online program Basic Local Alignment Search Tool (BLAST) [34]. The exact size of each product was determined from the DNA sequence.

3. Results

In many instances in which pre-mRNA splicing is affected by an exonic mutation, the exon that is involved appears to be weakly defined [1]. Also, it is known that ESE elements are commonly present in exons with weak splice sites [35]. Therefore, we sought to select OCRL mutations located in exons that have a weak 5′ or 3′ splice site (those with a NNSplice score below 0.85). According to the analysis performed with the bioinformatics tool NNSplice, OCRL exons 9, 11, 12, 15, 21, 22 and 23 were considered as weak or poorly defined exons (Table S2). A total of 45 mutations affecting nucleotides located on the cited exons were analyzed using the bioinformatics tools FAS-ESS, ESE Finder, Rescue ESE and MutPred Splice (Table S2).
From the results of these in silico analyses we selected thirteen mutations (12 missense and 1 synonymous) for minigene analysis, including those that involved the generation of an ESS site or the alteration of an ESE site, the activation of a cryptic splice site, or the loss of a natural 5′ splice site (Table 1). For the minigene analysis, we also included variant c.2389G>C located in the middle of exon 22. Although this variant did not meet the criteria mentioned above, we included it because it could be informative as a negative control. It is worth mentioning that exon 22 has a very weak natural 3′ splice site (NNsplice score of 0.05, Table S2). On the other hand, variant c.1598T>G in exon 15 was selected because it was predicted as a splicing affecting variant (SAV) by MutPred Splice (Table S2); however, regrettably we could not create the corresponding nucleotide change in the minigene. Four different control minigenes were generated comprising OCRL wild-type sequences of exons 9-10 (pET-Ex9-10), 11-12 (pET-Ex11-12), 15 (pET-Ex15) and 21-22-23 (pET-Ex21-23) respectively (Figure 1). To construct these minigenes, PCR products were cloned into the pET01 vector as described previously [36]. All the mutations studied were introduced into the minigenes by site-directed mutagenesis using their corresponding control constructs as a template.

3.1. Mutation c.741G>T Prevents Incorporation of Exon 9 into the Mature mRNA

Mutation c.741G>T; p.(Trp247Cys) is located at position +19 from the 5′ end of exon 9 within a sequence containing two potential overlapping ESE sites, UUGGAA and UGGAAU (according to Rescue-ESE, affected nucleotide in bold face). Bioinformatics analysis indicated that the mutation eliminates these ESEs. To investigate the effect of mutation c.741G>T, we created a minigene composed of exons 9 and 10, intron 9, and flanking intronic sequences (Figure 1). The wild-type and mutant minigenes were transfected separately into COS7 cells, and RT-PCR analysis was performed. The RT-PCR products obtained from the RNA were examined by agarose gel electrophoresis. The results revealed a different electrophoresis band pattern in the wild-type and mutant minigenes. The wild-type minigene generated the expected splicing product with a size of 467 bp whereas the mutant minigene produced two splicing products: a smaller band of 365 bp and a faint larger band corresponding to the wild-type product (Figure 2). Sequencing analysis showed that the smaller product did not contain exon 9 of OCRL but the 5′ exon of pET01 followed by OCRL exon 10 and the 3′ exon of pET01 (Figure 3). Examination of the complementary DNA (cDNA) sequence indicated that absence of exon 9 did not result in alteration of the open reading frame. The OCRL1 protein encoded by this altered mRNA would be missing 34 amino acids of the central 5-phosphatase domain (residues 241 to 275). In order to better understand the cause of this splicing defect, we decided to examine further the surrounding sequence that includes mutation c.741G>T. We utilized Human Splicing Finder v3.0 (HSF) [43], a tool that integrates different existing matrices to identify exonic and intronic motifs, including ESS sites. The results of this analysis showed that c.741G>T also generates four overlapping silencer motif sequences, CUUGUAAU, UGUAAUGU, GUAAUG and UAAUGU, which correspond to the putative binding site for the splicing repressor heterogeneous nuclear ribonucleoprotein A1 (hnRNPA1), a protein that usually binds to ESSs and inhibits exon recognition. We postulate that an ESS element is created by mutation c.741G>T that would recruit the hnRNPA1 protein and trigger the exon 9 skipping observed. It is worth noting that mutation c.725T>C located also in exon 9 at position +3 relative to the 3′ splice site did not have any effect on pre-mRNA splicing (Figure 1 and Figure 2).
A properly spliced transcript was observed in the minigene containing mutation c.725T>C; p.(Phe242Ser) located in exon 9 (Figure 2). This mutation affects the third nucleotide of the exon, further upstream from the ESS motif generated by mutation c.741G>T, and according to MutPred Splice was a splice-affecting variant. However, analysis of c.725T>C with HSF showed no significant splicing motif alteration. Therefore, this mutation has probably no impact on pre-mRNA splicing.

3.2. Mutations c.2581G>A and c.2581G>C Result in Skipping of Exon 23

Putative OCRL missense mutations c.2581G>A; p.(Ala861Thr) and c.2581G>C; p.(Ala861Pro) result from substitutions at the last nucleotide of exon 23 upstream of the 5′ splice site. Bioinformatics analysis with NNSplice revealed that both mutations drastically decreased the score of the wild-type 5′ splice site (AUGAUCGguaa, the nucleotide affected by the mutations appears in bold face, and the conserved GU dinucleotide of the 5′ splice site in intron 23 is underlined) from 0.99 to 0.36 (AUGAUCAguaa) and 0.75 (AUGAUCCguaa), respectively (Table S2). Analysis of both mutations with MutPred Splice predicted the loss of the 5′ splice site (Table 1). Taken together, these results suggested that exon 23 splicing is altered by these mutations. To determine the experimental effect of mutations c.2581G>A and c.2581G>C we used a minigene containing exons 21, 22 and 23, introns 21 and 22 and flanking intronic sequences (Figure 1). The results of the RT-PCR analysis showed a unique product of 463 bp in both mutant minigenes and a larger band of 575 bp produced by the wild-type minigene (Figure 2). Direct sequencing of these products confirmed that the smaller fragments correspond to skipping of exon 23 in the mRNA, and that the wild-type construct product corresponds to correctly spliced exons (Figure 3). The absence of exon 23 in the spliced mRNA would lead to an aberrant joining of exons 22 and 24 that at the protein level causes the loss of 37 amino acids (residues 824 to 861), a frameshift and the introduction of a premature stop codon nine positions downstream in exon 24. This would eliminate part of the Rho-GAP domain located at the carboxy terminus of the OCRL1 protein. It is also worth noting that, in general, premature stop codons within the last exon of a gene do not activate nonsense-mediated mRNA decay and yield stable mRNAs that direct the synthesis of truncated polypeptides [44].

3.3. Mutations in Exons 12, 15 and 22 Did Not Alter Pre-mRNA Splicing

Analysis of the minigenes containing mutations c.1060A>C; p.(Asn354His), c.1070G>T; p.(Gly357Val), c.1070G>A; p.(Gly357Glu), c.1221G>A; p.(Pro407Pro) (exon 12), c.1484C>T; p.(Pro495Leu), c.1489T>G; p.(Trp497Gly), c.1493G>A; p.(Cys498Tyr), c.1576C>T; p.(Pro526Ser), c.1577C>T; p.(Pro526Leu) (exon 15) and mutation c.2389G>C; p.(Ala797Pro) (exon 22) resulted in RT-PCR products that matched in size to those generated by the respective wild-type constructs (Figure 2). This was also confirmed by DNA sequencing. Therefore, these variants did not affect pre-mRNA splicing. As these results were in disagreement with the bioinformatics predictions, we used a recently published computational approach, SPANR [29], to analyze the mutations. This tool extracts more than a thousand features from each exon, its flanking introns, and its adjacent exons, and uses a computational model to predict with great precision if a mutation alters the percentage of transcripts with the exon spliced in. The results showed that none of these ten mutations would lead to a decrease of mRNAs containing the respective exons in contrast with the wild-type sequences (Table 1). Whereas as expected, the three OCRL mutations that altered pre-mRNA splicing in the minigene system, c.741G>T, c.2581G>A and c.2581G>C, were predicted to result in a reduction of transcripts containing exons 9 and 23, respectively. Interestingly, the SPANR approach predicted that mutation c.725T>C increases RNA transcripts containing exon 9.

4. Discussion

Defects in pre-mRNA splicing play a main role in the development of many genetic diseases [2,4]. It is still not very well known how large is the fraction of disease-causing mutations that lead to splicing alterations. Estimates ranging from 15% to 50% are often cited in the literature [45,46,47]. These mutations affect splicing not only by disrupting splice sites, but also by altering splicing regulatory sequences or by creating new splice sites [1,2]. The important fraction of splicing mutations reflects the necessity to characterize mutations at the mRNA level since exonic mutations outside the conserved splice site dinucleotides could certainly be misclassified as missense or synonymous mutations if only the DNA is examined.
Several bioinformatics tools can be used to predict potential consequences of mutations on pre-mRNA splicing. Those used to predict the effect of splice site mutations, such as NNSplice and HSF [24,43], have a good performance since the consensus splice site regions are well established. Conversely, evaluating precisely how mutations influence the loss or gain of splicing regulatory elements (ESEs or ESSs) and its effects on pre-mRNA splicing is more complicated, and the algorithms available, like RESCUE-ESE, ESEfinder and MutPred Splice [25,26,28], still present considerable degrees of inaccuracy [48,49,50]. Therefore, their findings need to be confirmed using experimental methods. The ideal experimental approach to evaluate the effect of mutations on pre-mRNA splicing is to analyze the RNA from the patient. However, it is not always possible to obtain these kinds of samples.
A functional splicing assay based on a minigene construct represents an interesting alternative when patients’ samples are not available [51]. In this approach a genomic fragment, containing the exon with the mutation of interest and adjacent intronic sequences, is amplified and cloned into a minigene vector. After transient transfection into cultured cells, the splicing patterns of the mRNAs produced by wild-type and mutant constructs are compared by RT-PCR analysis and DNA sequencing. The effectiveness of minigene systems has been confirmed by different studies that showed a high level of concordance between results obtained with these assays and results from patient’s RNA [52,53,54,55,56,57]. In previous studies, we have used this system to assess the consequences on pre-mRNA splicing of presumed missense and synonymous PKD1 and PKD2 mutations, and found that six of them were indeed splicing mutations [36,58].
Single-base substitutions in the OCRL gene, many of which are predicted to lead to missense mutations, are often found in patients with Lowe syndrome or Dent-2 disease [19,22]. Here, we assumed that the primary pathogenic effect for some of these OCRL mutations is at the level of pre-mRNA splicing. Using bioinformatics tools, we selected 12 missense and 1 synonymous variants located in exons 9, 12, 15, 22 and 23 and tested them with a minigene assay. These mutations were predicted to modify splicing regulatory sequences (disrupt ESEs or create ESSs), generate new splice sites or induce a significant reduction of splice site strength. We constructed minigene plasmids ligated to either wild-type or mutant OCRL genomic sequences spanning exons 9 to 10, 11 to 12, 15 and 21 to 23. The constructs were transfected into COS7 cells, and the mRNA was analyzed by RT-PCR and DNA sequencing. This approach allowed us to categorize three exonic OCRL mutations associated with Lowe syndrome, c.741G>T; p.(Trp247Cys), c.2581G>A; p.(Ala861Thr) and c.2581G>C; p.(Ala861Pro) as splicing mutations. Our results showed that mutation c.741G>T prevents exon 9 inclusion in the mRNA probably by affecting a functional ESE site and/or creating a functional ESS site that binds hnRNPA1. The bioinformatics analysis predicted loss of two ESE and gain of four ESS motifs. We hypothesized that the ESE sequences affected by this mutation are necessary for correct splicing since the first nucleotide of exon 9 is A (instead of the conserved G) and the −3 position of intron 8 is a U (instead of the more common C), which weakens the 3′ splice site of intron 8. The mutation would allow the binding of the repressor, causing exon skipping. Unfortunately, the patient’s RNA was not available for analysis. Therefore, it remains to be determined if OCRL mutation c.741G>T has the same effect in the context of its natural gene using patient-derived RNA. Mutations in other genes associated with different diseases have been shown to have similar effects [58,59,60,61,62].
Transcript analysis by quantitative PCR of three OCRL mutations (c.824G>C, c.1466G>A, c.2581G>A), involving the last nucleotide of exons 9, 14 and 23, has shown that they affect pre-mRNA splicing [19]. Mutations c.824G>C and c.1466G>A were initially reported as missense mutations p.(Gly275Ala) and p.(Ser489Asn), respectively, while c.2581G>A was predicted both as splice mutation and missense p.(Ala861Thr). In fact, these are the only OCRL exonic mutations of this type described thus far. Our NNSplice analysis of mutations c.2581G>A and c.2581G>C showed a reduction in the score of the 5′ splice site (Table S2). The minigene analysis of these two mutations revealed that they certainly caused skipping of the entire exon 23. Similar cases have been described in the literature. For instance, the substitution c.2103G>C, in the last position of exon 18 of MLH1, does not give rise to a missense mutation (p.(Gln701His)) as hypothetically predicted, but leads to a total loss of exon 18 in the mRNA [45]. Moreover, mutations in the first position of an exon, such as BRCA2 mutation c.517G>T located in exon 7, also causes exon skipping [63]. The minigene splicing assay for presume missense mutation c.741G>T, p.(Trp247Cys), showed an aberrant transcript that lacks exon 9. We hypothesize that this is probably due to the disruption of a functional ESE site and/or the generation of a functional ESS site, which binds hnRNPA1. Although the main RT-PCR product for this mutant was the transcript lacking exon 9, the effect on pre-mRNA splicing was only partial since it still produced some transcripts with the size of the wild-type product. Therefore, variant c.741G>T probably has a double damaging effect; while the major part of the OCRL transcript is deleterious due to exon 9 skipping, which would cause loss of part of the 5′-phosphatase catalytic domain in the mutated OCRL1 protein, the remaining mRNA is damaging due to the resulting amino acid change of Trp to Cys in position 247 of the polypeptide, which could lead to a non-functional OCRL1 protein. The splicing effect of mutation c.741G>T needs to be confirmed analysing the mRNA from the patient, which we did not have. As far as we know, this mutation has been described in only one patient with Lowe syndrome [37], and there is no additional evidence for its pathogenicity. Consequently, in the absence of further information, c.741G>T should be considered as a variant of unknown clinical significance [64].
Eleven of the fourteen OCRL mutations tested with the minigene system did not produce any aberrant transcripts, even though the bioinformatics tools we used (ESEfinder, RESCUE-ESE, FASS-ESS and MutPred Splice) predicted gain of ESSs, loss of ESEs and/or generation of cryptic 5′ splice sites (Table 1). This indicated poor concordance between the in silico predictions and the experimental results. Conversely, the SPANR tool applied retrospectively to analyze the selected variants was more accurate than the other tools showing 100% concordance with the experimental results. Notably, the retrospective SPANR analysis of the remaining 31 variants yielded 7 that were predicted to result in reduction of transcripts containing the corresponding exons. From our results, the use of the SPANR approach seems appropriate for the selection of OCRL exonic mutations with potential effect in pre-mRNA splicing. The other in silico tools rendered many false positives and seemed unsuitable for the pre-selection of variants. Recently, Soukarieh et al. used experimental data from both minigene splicing assays and analysis of patient’s RNA to compare the performance of SPANR and two other in silico splice-affecting variant predictors [65]. The results of this study showed that the other two tools outperformed SPANR identifying exonic splicing mutations in specific exons of BRCA1, BRCA2, MLH1, CFTR and NF1. However, the authors could not exclude that the SPANR method may be suitable for the analysis of other exons or genes.
Knowledge of the consequences of exonic splicing mutations may have potential therapeutic implications for patients with Lowe syndrome. Exon-skipping approaches to correct mutations that disrupt normal pre-mRNA splicing have been effectively assessed in several rare diseases [66]. Recently, Rendu et al. designed a successful exon-skipping strategy able to restore significant levels of OCRL mRNA and protein in a Lowe syndrome patient with an intronic mutation that induces incorporation of intronic sequences in the mRNA and leads to loss of OCRL1 protein [67].
In summary, we have carried out an extensive analysis of exonic OCRL mutations using bioinformatics tools and minigenes. The results indicate that mutations c.741G>T, c.2581G>A and c.2581G>C cause significant pre-mRNA splicing alterations which should be taken into account with regard to their pathogenicity. Presume missense mutation c.741G>T; p.(Trp247Cys) affects ESE elements, and at the same time generates ESS motifs that are potential binding sites for the splicing repressor hnRNPA1. This mutation represents the first OCRL exonic variant outside the consensus splice site regions that leads to alteration of pre-mRNA splicing. We propose that mutation c.741G>T should be classified as a splicing mutation. These results highlight the importance of evaluating the effects of missense and synonymous mutations at the mRNA level in Lowe syndrome.

Supplementary Materials

The following are available online at Table S1. Primers used in construction of minigenes and site-directed mutagenesis, Table S2. Mutations analyzed with bioinformatics tools.


This work has been funded by project PI17/00153, integrated in the Plan Nacional de I+D+I 2013–2016 and co-financed by the ISCIII-Subdirección General de Evaluación y Fomento de la Investigación (Spain) and the European Regional Development Fund “Another way to build Europe”. Parts of this work were presented at the European Human Genetics Conference 2016, May 21–24, 2016, Barcelona, Spain.

Author Contributions

L.S.-A. and F.C.-M. conceived and designed the experiments; L.S.-A. performed the experiments and the bioinformatics analysis; L.S.-A., F.C.-M., A.P.-R. and E.R.-T. analyzed the data; L.S.-A., F.C.-M., A.P.-R. and E.R.-T. wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Cartegni, L.; Chew, S.L.; Krainer, A.R. Listening to silence and understanding nonsense: Exonic mutations that affects splicing. Nat. Rev. Genet. 2002, 3, 285–298. [Google Scholar] [CrossRef] [PubMed]
  2. Wang, G.S.; Cooper, T.A. Splicing in disease: Disruption of the splicing code and the decoding machinery. Nat. Rev. Genet. 2007, 8, 749–761. [Google Scholar] [CrossRef] [PubMed]
  3. Sterne-Weiler, T.; Howard, J.; Mort, M.; Cooper, D.N.; Sanford, J.R. Loss of exon identity is a common mechanism of human inherited disease. Genome Res. 2011, 21, 1563–1571. [Google Scholar] [CrossRef] [PubMed]
  4. Scotti, M.M.; Swanson, M.S. RNA mis-splicing in disease. Nat. Rev. Genet. 2016, 17, 19–32. [Google Scholar] [CrossRef] [PubMed]
  5. Claverie-Martin, F.; Gonzalez-Paredes, F.J.; Ramos-Trujillo, E. Splicing defects caused by exonic mutations in PKD1 as a new mechanism of pathogenesis in autosomal dominant polycystic kidney disease. RNA Biol. 2015, 12, 369–374. [Google Scholar] [CrossRef] [PubMed]
  6. Claverie-Martin, F.; Ramos-Trujillo, E.; García-Nieto, V. Dent’s disease: Clinical features and molecular basis. Pediatr. Nephrol. 2011, 26, 693–704. [Google Scholar] [CrossRef] [PubMed]
  7. Bökenkamp, A.; Ludwig, M. The oculocerebrorenal syndrome of Lowe: An update. Pediatr. Nephrol. 2016, 31, 2201–2212. [Google Scholar] [CrossRef] [PubMed]
  8. De Matteis, M.A.; Staiano, L.; Emma, F.; Devuyst, O. The 5-phosphatase OCRL in Lowe syndrome and Dent disease 2. Nat. Rev. Nephrol. 2017, 13, 455–470. [Google Scholar] [CrossRef] [PubMed]
  9. Bökenkamp, A.; Böckenhauer, D.; Cheong, H.I.; Hoppe, B.; Tasic, V.; Unwin, R.; Ludwig, M. Dent-2 disease: A mild variant of Lowe syndrome. J. Pediatr. 2009, 155, 94–99. [Google Scholar] [CrossRef] [PubMed]
  10. Shrimpton, A.E.; Hoopes, R.R., Jr.; Knohl, S.J.; Hueber, P.; Reed, A.A.; Christie, P.T.; Igarashi, T.; Lee, P.; Lehman, A.; White, C.; et al. OCRL1 mutations in Dent2 patients suggest a mechanism for phenotypic variability. Nephron Physiol. 2009, 112, 27–36. [Google Scholar] [CrossRef] [PubMed]
  11. Bockenhauer, D.; Bokenkamp, A.; van’t Hoff, W.; Levtchenko, E.; Kist-van Holthe, J.E.; Tasic, V.; Ludwig, M. Renal phenotype in Lowe Syndrome: A selective proximal tubular dysfunction. Clin. J. Am. Soc. Nephrol. 2008, 3, 1430–1436. [Google Scholar] [CrossRef] [PubMed]
  12. Attree, O.; Olivos, I.M.; Okabe, I.; Bailey, L.C.; Nelson, D.L.; Lewis, R.A.; McInnes, R.R.; Nussbaum, R.L. The Lowe’s oculocerebrorenal syndrome gene encodes a protein highly homologous to inositol polyphosphate-5-phosphatase. Nature 1992, 358, 239–242. [Google Scholar] [CrossRef] [PubMed]
  13. Hoopes, R.R., Jr.; Shrimpton, A.E.; Knohl, S.J.; Hueber, P.; Hoppe, B.; Matyus, J.; Simckes, A.; Tasic, V.; Toenshoff, B.; Suchy, S.F.; et al. Dent Disease with mutations in OCRL1. Am. J. Hum. Genet. 2005, 76, 260–267. [Google Scholar] [CrossRef] [PubMed]
  14. Zhang, X.; Jefferson, A.B.; Auethavekiat, V.; Majerus, P.W. The protein deficient in Lowe syndrome is a phosphatidylinositol-4,5-bisphosphate 5-phosphatase. Proc. Natl. Acad. Sci. USA 1995, 92, 4853–4856. [Google Scholar] [CrossRef] [PubMed]
  15. Nussbaum, R.L.; Orrison, B.M.; Jänne, P.A.; Charnas, L.; Chinault, A.C. Physical mapping and genomic structure of the Lowe syndrome gene OCRL1. Hum. Genet. 1997, 99, 145–150. [Google Scholar] [CrossRef] [PubMed]
  16. Choudhury, R.; Noakes, C.J.; McKenzie, E.; Kox, C.; Lowe, M. Differential clathrin binding and subcellular localization of OCRL1 splice isoforms. J. Biol. Chem. 2009, 284, 9965–9973. [Google Scholar] [CrossRef] [PubMed]
  17. Mehta, Z.B.; Pietka, G.; Lowe, M. The cellular and physiological functions of the Lowe syndrome protein OCRL1. Traffic 2014, 15, 471–487. [Google Scholar] [CrossRef] [PubMed]
  18. Cooper, D.N.; Ball, E.V.; Stenson, P.D.; Phillips, A.D.; Evans, K.; Heywood, S.; Hayden, M.J.; Azevedo, L.; Mort, M.E.; Hussain, M. The Human Gene Mutation Database. Available online: (accessed on 9 November 2017).
  19. Hichri, H.; Rendu, J.; Monnier, N.; Coutton, C.; Dorseuil, O.; Poussou, R.V.; Baujat, G.; Blanchard, A.; Nobili, F.; Ranchin, B.; et al. From Lowe syndrome to Dent disease: Correlations between mutations of the OCRL1 gene and clinical and biochemical phenotypes. Hum. Mutat. 2011, 32, 379–388. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  20. Zaniew, M.; Bökenkamp, A.; Kołbuc, M.; La Scola, C.; Baronio, F.; Niemirska, A.; Szczepańska, M.; Bürger, J.; La Manna, A.; Miklaszewska, M.; et al. Long-term renal outcome in children with OCRL mutations: Retrospective analysis of a large international cohort. Nephrol. Dial. Transplant. 2016, 5, gfw350. [Google Scholar] [CrossRef] [PubMed]
  21. Den Dunnen, J.T. Sequence variant nomenclature. Available online: (accessed on 9 November 2017).
  22. Recker, F.; Zaniew, M.; Böckenhauer, D.; Miglietti, N.; Bökenkamp, A.; Moczulska, A.; Rogowska-Kalisz, A.; Laube, G.; Said-Conti, V.; Kasap-Demir, B.; et al. Characterization of 28 novel patients expands the mutational and phenotypic spectrum of Lowe syndrome. Pediatr. Nephrol. 2015, 30, 931–943. [Google Scholar] [CrossRef] [PubMed]
  23. Claverie-Martin, F. Identification of a New Synonymous OCRL Variant in a Patient with Dent Disease; Unidad de Investigación, Hospital Nuestra Señora de Candelaria: Santa Cruz de Tenerife, Spain, 2015. [Google Scholar]
  24. Reese, M.G.; Eeckman, F.H.; Kulp, D.; Haussler, D. Improved splice site detection in Genie. J. Comput. Biol. 1997, 4, 311–323. [Google Scholar] [CrossRef] [PubMed]
  25. Cartegni, L.; Wang, J.; Zhu, Z.; Zhang, M.Q.; Krainer, A.R. ESEfinder: A web resource to identify exonic splicing enhancers. Nucl. Acids Res. 2003, 31, 3568–3571. [Google Scholar] [CrossRef] [PubMed]
  26. Fairbrother, W.G.; Yeh, R.F.; Sharp, P.A.; Burge, C.B. Predictive identification of exonic splicing enhancers in human genes. Science 2002, 297, 1007–1013. [Google Scholar] [CrossRef] [PubMed]
  27. Wang, Z.; Rolish, M.E.; Yeo, G.; Tung, V.; Mawson, M.; Burge, C.B. Systematic identification and analysis of exonic splicing silencers. Cell 2004, 119, 831–845. [Google Scholar] [CrossRef] [PubMed]
  28. Mort, M.; Sterne-Weiler, T.; Li, B.; Ball, E.V.; Cooper, D.N.; Radivojac, P.; Sanford, J.R.; Mooney, S.D. MutPred Splice: Machine learning-based prediction of exonic variants that disrupt splicing. Genome Biol. 2014, 15, R19. [Google Scholar] [CrossRef] [PubMed]
  29. Xiong, H.Y.; Alipanahi, B.; Lee, L.J.; Bretschneider, H.; Merico, D.; Yuen, R.K.; Hua, Y.; Gueroussov, S.; Najafabadi, H.S.; Hughes, T.R.; et al. The human splicing code reveals new insights into the genetic determinants of disease. Science 2015, 347, 1254806. [Google Scholar] [CrossRef] [PubMed]
  30. Untergasser, A.; Cutcutache, I.; Koressaar, T.; Ye, J.; Faircloth, B.C.; Remm, M.; Rozen, S.G. Primer3—New capabilities and interfaces. Nucleic Acids Res. 2012, 40, e115. [Google Scholar] [CrossRef] [PubMed]
  31. Ye, J.; Coulouris, G.; Zaretskaya, I.; Cutcutache, I.; Rozen, S.; Madden, T. Primer-BLAST: A tool to design target-specific primers for polymerase chain reaction. BMC Bioinformatics 2012, 13, 134. [Google Scholar] [CrossRef] [PubMed]
  32. Gene runner. Available online: (accessed on 9 November 2017).
  33. QuikChange Primer Design. Available online: (accessed on 9 November 2017).
  34. Basic Local Alignment Search Tool (BLAST). Available online: (accessed on 9 November 2017).
  35. Wu, Y.; Zhang, Y.; Zhang, J. Distribution of exonic splicing enhancer elements in human genes. Genomics 2005, 86, 329–336. [Google Scholar] [CrossRef] [PubMed]
  36. Gonzalez-Paredes, F.J.; Ramos-Trujillo, E.; Claverie-Martin, F. Defective pre-mRNA splicing in PKD1 due to presumed missense and synonymous mutations causing autosomal dominant polycystic disease. Gene 2014, 546, 243–249. [Google Scholar] [CrossRef] [PubMed]
  37. Addis, M.; Loi, M.; Lepiani, C.; Cau, M.; Melis, M.A. OCRL mutation analysis in Italian patients with Lowe syndrome. Hum. Mutat. 2004, 23, 524–525. [Google Scholar] [CrossRef] [PubMed]
  38. Monnier, N.; Satre, V.; Lerouge, E.; Berthoin, F.; Lunardi, J. OCRL1 mutation analysis in French Lowe syndrome patients: Implications for molecular diagnosis strategy and genetic counseling. Hum. Mutat. 2000, 16, 157–165. [Google Scholar] [CrossRef]
  39. Tasic, V.; Lozanovski, V.J.; Korneti, P.; Ristoska-Bojkovska, N.; Sabolic-Avramovska, V.; Gucev, Z.; Ludwig, M. Clinical and laboratory features of Macedonian children with OCRL mutations. Pediatr. Nephrol. 2011, 26, 557–562. [Google Scholar] [CrossRef] [PubMed]
  40. Schneider, J.F.; Boltshauser, E.; Neuhaus, T.J.; Rauscher, C.; Martin, E. MRI and proton spectroscopy in Lowe syndrome. Neuropediatrics 2001, 32, 45–48. [Google Scholar] [CrossRef] [PubMed]
  41. Kaneko, K.; Hasui, M.; Hata, A.; Hata, D.; Nozu, K. Focal segmental glomerulosclerosis in a boy with Dent-2 disease. Pediatr. Nephrol. 2010, 25, 781–782. [Google Scholar] [CrossRef] [PubMed]
  42. Röschinger, W.; Muntau, A.C.; Rudolph, G.; Roscher, A.A.; Kammerer, S. Carrier assessment in families with lowe oculocerebrorenal syndrome: Novel mutations in the OCRL1 gene and correlation of direct DNA diagnosis with ocular examination. Mol. Genet. Metab. 2000, 69, 213–222. [Google Scholar] [CrossRef] [PubMed]
  43. Desmet, F.O.; Hamroun, D.; Lalande, M.; Collod-Béroud, G.; Claustres, M.; Béroud, C. Human Splicing Finder: An online bioinformatics tool to predict splicing signals. Nucl. Acids Res. 2009, 37, e67. [Google Scholar] [CrossRef] [PubMed]
  44. Lindeboom, R.G.H.; Supek, F.; Lehner, B. The rules and impact of nonsense-mediated mRNA decay in human cancers. Nat. Genet. 2016, 48, 1112–1118. [Google Scholar] [CrossRef] [PubMed]
  45. Pagenstecher, C.; Wehner, M.; Friedl, W.; Rahner, N.; Aretz, S.; Friedrichs, N.; Sengteller, M.; Henn, W.; Buettner, R.; Propping, P.; et al. Aberrant splicing in MLH1 and MSH2 due to exonic and intronic variants. Hum. Genet. 2006, 119, 9–22. [Google Scholar] [CrossRef] [PubMed]
  46. Lim, K.H.; Ferraris, L.; Filloux, M.E.; Raphael, B.J.; Fairbrother, W.G. Using positional distribution to identify splicing elements and predict pre-mRNA processing defects in human genes. Proc. Natl. Acad. Sci. USA 2011, 108, 11093–11098. [Google Scholar] [CrossRef] [PubMed]
  47. Baralle, D.; Buratti, E. RNA splicing in human disease and in the clinic. Clin. Sci. 2017, 131, 355–368. [Google Scholar] [CrossRef] [PubMed]
  48. Lastella, P.; Surdo, N.C.; Resta, N.; Guanti, G.; Stella, A. In silico and in vivo splicing analysis of MLH1 and MSH2 missense mutations shows exon- and tissue-specific effects. BMC Genom. 2006, 7, 243. [Google Scholar] [CrossRef] [PubMed]
  49. Hartmann, M.; Skryabin, B.V.; Müller, T.; Gazinski, A.; Schröter, J.; Gassner, B.; Nikolaev, V.O.; Bünemann, M.; Kuhn, M. Alternative splicing of the guanylyl cyclase-A receptor modulates atrial natriuretic peptide signaling. J. Biol. Chem. 2008, 283, 28313–28320. [Google Scholar] [CrossRef] [PubMed]
  50. Houdayer, C.; Dehainault, C.; Mattler, C.; Michaux, D.; Caux-Moncoutier, V.; Pagès-Berhouet, S.; d’Enghien, C.D.; Laugé, A.; Castera, L.; Gauthier-Villars, M.; et al. Evaluation of in silico splice tools for decision-making in molecular diagnosis. Hum. Mutat. 2008, 29, 975–982. [Google Scholar] [CrossRef] [PubMed]
  51. Gaildrat, P.; Killian, A.; Martins, A.; Tournier, I.; Frébourg, T.; Tosi, M. Use of splicing reporter minigene assay to evaluate the effect on splicing of unclassified genetic variants. Methods Mol. Biol. 2010, 653, 249–257. [Google Scholar] [CrossRef] [PubMed]
  52. Tournier, I.; Vezain, M.; Martins, A.; Charbonnier, F.; Baert-Desurmont, S.; Olschwang, S.; Wang, Q.; Buisine, M.P.; Soret, J.; Tazi, J.; et al. A large fraction of unclassified variants of the mismatch repair genes MLH1 and MSH2 is associated with splicing defects. Hum. Mutat. 2008, 29, 1412–1424. [Google Scholar] [CrossRef] [PubMed]
  53. Bonnet, C.; Krieger, S.; Vezain, M.; Rousselin, A.; Tournier, I.; Martins, A.; Berthet, P.; Chevrier, A.; Dugast, C.; Layet, V.; et al. Screening BRCA1 and BRCA2 unclassified variants for splicing mutations using reverse transcription PCR on patient RNA and an ex vivo assay based on a splicing reporter minigene. J. Med. Genet. 2008, 45, 438–446. [Google Scholar] [CrossRef] [PubMed]
  54. Van der Klift, H.M.; Jansen, A.M.; van der Steenstraten, N.; Bik, E.C.; Tops, C.M.; Devilee, P.; Wijnen, J.T. Splicing analysis for exonic and intronic mismatch repair gene variants associated with Lynch syndrome confirms high concordance between minigene assays and patient RNA analyses. Mol. Genet. Genom. Med. 2015, 3, 327–345. [Google Scholar] [CrossRef] [PubMed]
  55. Théry, J.C.; Krieger, S.; Gaildrat, P.; Révillion, F.; Buisine, M.P.; Killian, A.; Duponchel, C.; Rousselin, A.; Vaur, D.; Peyrat, J.P.; et al. Contribution of bioinformatics predictions and functional splicing assays to the interpretation of unclassified variants of the BRCA genes. Eur. J. Hum. Genet. 2011, 19, 1052–1058. [Google Scholar] [CrossRef] [PubMed]
  56. Steffensen, A.Y.; Dandanell, M.; Jønson, L.; Ejlertsen, B.; Gerdes, A.M.; Nielsen, F.C.; Hansen, T. Functional characterization of BRCA1 gene variants by mini-gene splicing assay. Eur. J. Hum. Genet. 2014, 22, 1362–1368. [Google Scholar] [CrossRef] [PubMed]
  57. Nakanishi, K.; Nozu, K.; Hiramoto, R.; Minamikawa, S.; Yamamura, T.; Fujimura, J.; Horinouchi, T.; Ninchoji, T.; Kaito, H.; Morisada, N.; et al. A comparison of splicing assays to detect an intronic variant of the OCRL gene in Lowe syndrome. Eur. J. Med. Genet. 2017, 60, 631–634. [Google Scholar] [CrossRef] [PubMed]
  58. Gonzalez-Paredes, F.J.; Ramos-Trujillo, E.; Claverie-Martin, F. Three exonic mutations in polycystic kidney disease-2 gene (PKD2) alter splicing of its pre-mRNA in a minigene system. Gene 2016, 578, 117–123. [Google Scholar] [CrossRef] [PubMed]
  59. Cartegni, L.; Hastings, M.L.; Calarco, J.A.; de Stanchina, E.; Krainer, A.R. Determinants of exon 7 splicing in the spinal muscular atrophy genes, SMN1 and SMN2. Am. J. Hum. Genet. 2006, 78, 63–77. [Google Scholar] [CrossRef] [PubMed]
  60. Kashima, T.; Rao, N.; David, C.J.; Manley, J.L. hnRNP A1 functions with specificity in repression of SMN2 exon 7 splicing. Hum. Mol. Genet. 2007, 16, 3149–3159. [Google Scholar] [CrossRef] [PubMed]
  61. Goina, E.; Skoko, N.; Pagani, F. Binding of DAZAP1 and hnRNPA1/A2 to an exonic splicing silencer in a natural BRCA1 exon 18 mutant. Mol. Cell. Biol. 2008, 28, 3850–3860. [Google Scholar] [CrossRef] [PubMed]
  62. Hernández-Imaz, E.; Martín, Y.; de Conti, L.; Melean, G.; Valero, A.; Baralle, M.; Hernández-Chico, C. Functional Analysis of Mutations in Exon 9 of NF1 Reveals the Presence of Several Elements Regulating Splicing. PLoS ONE 2015, 10, e0141735. [Google Scholar] [CrossRef] [PubMed]
  63. Gaildrat, P.; Krieger, S.; Di Giacomo, D.; Abdat, J.; Révillion, F.; Caputo, S.; Vaur, D.; Jamard, E.; Bohers, E.; Ledemeney, D.; et al. Multiple sequence variants of BRCA2 exon 7 alter splicing regulation. J. Med. Genet. 2012, 49, 609–617. [Google Scholar] [CrossRef] [PubMed]
  64. Thompson, B.A.; Spurdle, A.B.; Plazzer, J.P.; Greenblatt, M.S.; Akagi, K.; Al-Mulla, F.; Bapat, B.; Bernstein, I.; Capellá, G.; den Dunnen, J.T.; et al. Application of a 5-tiered scheme for standardized classification of 2,360 unique mismatch repair gene variants in the InSiGHT locus-specific database. Nat. Genet. 2014, 46, 107–115. [Google Scholar] [CrossRef] [PubMed]
  65. Soukarieh, O.; Gaildrat, P.; Hamieh, M.; Drouet, A.; Baert-Desurmont, S.; Frébourg, T.; Tosi, M.; Martins, A. Exonic splicing mutations are more prevalent than currently estimated and can be predicted by using in silico tools. PLoS Genet. 2016, 12, e1005756. [Google Scholar] [CrossRef]
  66. Veltrop, M.; Aartsma-Rus, A. Antisense-mediated exon skipping: Taking advantage of a trick from Mother Nature to treat rare genetic diseases. Exp. Cell Res. 2014, 325, 50–55. [Google Scholar] [CrossRef] [PubMed]
  67. Rendu, J.; Montjean, R.; Coutton, C.; Suri, M.; Chicanne, G.; Petiot, A.; Brocard, J.; Grunwald, D.; Pietri-Rouxel, F.; Payrastre, B.; et al. Functional Characterization and Rescue of a Deep Intronic Mutation in OCRL Gene Responsible for Lowe Syndrome. Hum. Mutat. 2017, 38, 152–159. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Schematic representation of the four minigenes constructed with expression vector pET01 and OCRL wild-type sequences (yellow boxes) containing exons 9-10 (pET-Ex9-10), 11-12 (pET-Ex11-12), 15 (pET-Ex15) and 21-22-23 (pET-Ex21-23), respectively. Purple boxes depict pET01 exons and horizontal lines in between indicate OCRL intron sequences. The different mutations introduced by site-directed mutagenesis in each minigene are shown.
Figure 1. Schematic representation of the four minigenes constructed with expression vector pET01 and OCRL wild-type sequences (yellow boxes) containing exons 9-10 (pET-Ex9-10), 11-12 (pET-Ex11-12), 15 (pET-Ex15) and 21-22-23 (pET-Ex21-23), respectively. Purple boxes depict pET01 exons and horizontal lines in between indicate OCRL intron sequences. The different mutations introduced by site-directed mutagenesis in each minigene are shown.
Genes 09 00015 g001
Figure 2. RT-PCR analysis of the spliced transcripts expressed from the OCRL minigenes containing wild-type and mutant exons. (A) Of the two mutations introduced in exon 9, only c.741G>T; p.(Trp247Cys) generated an altered mRNA product; (B,C) None of the mutations introduced in exons 12 and 15 showed alterations in splicing; (D) Mutations c.2581G>A; p.(Ala861Thr) and c.2581G>C; p.(Ala861Pro) in exon 23 resulted in altered mRNAs. MWM: Molecular weight marker.
Figure 2. RT-PCR analysis of the spliced transcripts expressed from the OCRL minigenes containing wild-type and mutant exons. (A) Of the two mutations introduced in exon 9, only c.741G>T; p.(Trp247Cys) generated an altered mRNA product; (B,C) None of the mutations introduced in exons 12 and 15 showed alterations in splicing; (D) Mutations c.2581G>A; p.(Ala861Thr) and c.2581G>C; p.(Ala861Pro) in exon 23 resulted in altered mRNAs. MWM: Molecular weight marker.
Genes 09 00015 g002

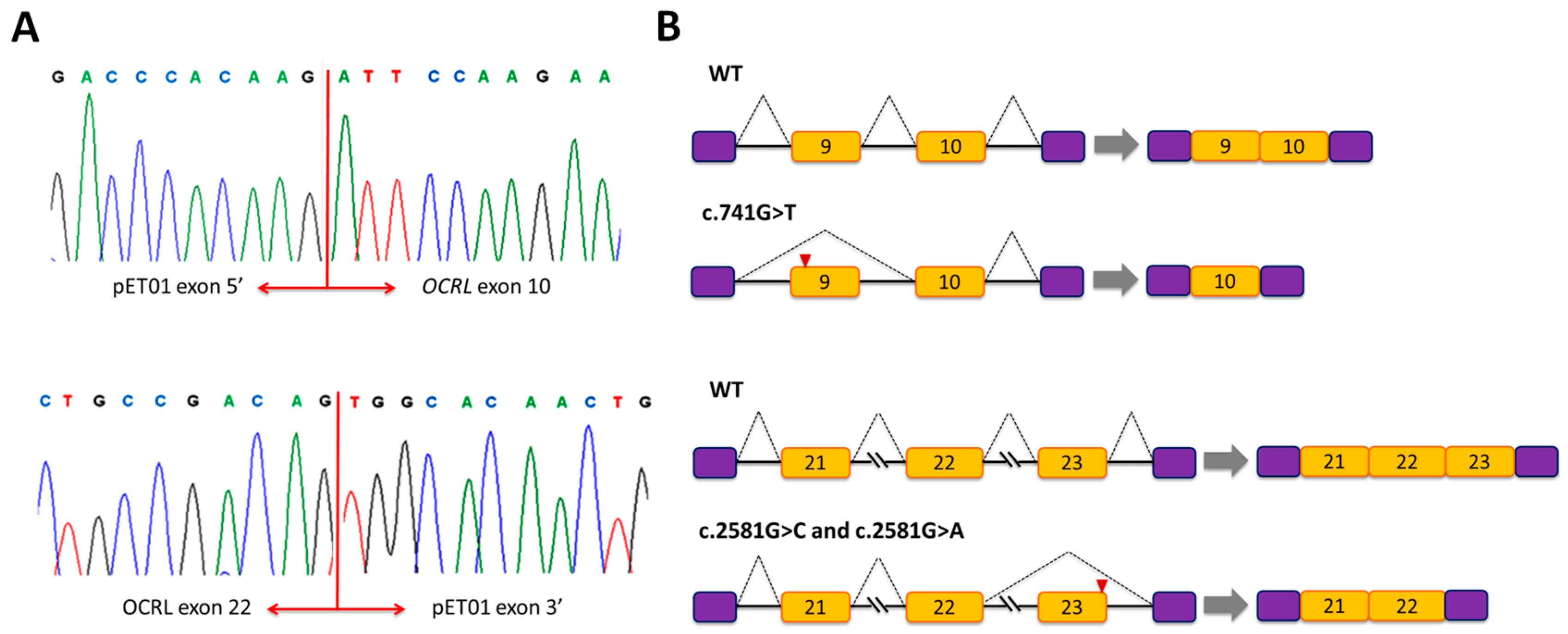

Figure 3. (A) DNA sequencing results of the altered RT-PCR products obtained with mutations c.741G>T; p.(Trp247Cys) (top panel) and with mutations c.2581G>A; p.(Ala861Thr) and c.2581G>C; p.(Ala861Pro) (bottom panel) showing the joining of exon 5 of the vector′ with the 5′ end of OCRL exon 10, and the joining of the 3′ end of OCRL exon 22 with exon 3′ of the vector (B) Schematic representation of pre-mRNA splicing in wild-type (WT) and mutants minigenes. Exon 9 and exon 23 are missing in the mRNA from c.741G>T and c.2581G>A /c.2581G>C mutants, respectively.
Figure 3. (A) DNA sequencing results of the altered RT-PCR products obtained with mutations c.741G>T; p.(Trp247Cys) (top panel) and with mutations c.2581G>A; p.(Ala861Thr) and c.2581G>C; p.(Ala861Pro) (bottom panel) showing the joining of exon 5 of the vector′ with the 5′ end of OCRL exon 10, and the joining of the 3′ end of OCRL exon 22 with exon 3′ of the vector (B) Schematic representation of pre-mRNA splicing in wild-type (WT) and mutants minigenes. Exon 9 and exon 23 are missing in the mRNA from c.741G>T and c.2581G>A /c.2581G>C mutants, respectively.
Genes 09 00015 g003
Table 1. Mutations analyzed with the minigene system.
Table 1. Mutations analyzed with the minigene system.
MutationReferenceDiseaseExonPosition 1FAS-ESSESE FinderRescue ESEMutPred Splice 3SPANRSplice Effect Observed
Gained ESS 2Disrupted ESE 2Result Confident HypothesisPSI
c.725T>C p.(Phe242Ser)[19]Lowe S.9+3000SAV---IncreasedNone
c.741G>T p.(Trp247Cys)[37]Lowe S.9+19002SAVESE loss, ESS gainDecreasedExon 9 skipping
c.1060A>C p.(Asn354His)[19]Dent-212+4012SAV------None
c.1070G>T p.(Gly357Val)[22]Lowe S.12+14000SAVCryptic 5′ SS---None
c.1070G>A p.(Gly357Glu)[38]Lowe S.12+14100SAVESS loss, Cryptic 5′ SS---None
c.1221G>A p.(Pro407Pro)This studyDent-212−24010SNV------None
c.1484C>T p.(Pro495Leu)[39]Lowe S.15+18230SAVESE loss, ESS gain---None
c.1489T>G p.(Trp497Gly)[40]Lowe S.15+23200SAVESE loss, ESS gain---None
c.1493G>A p.(Cys498Tyr)[38]Lowe S.15+27000SAVCryptic 5′ SS---None
c.1576C>T p.(Pro526Ser)[41]Dent-215−27000SAVESE loss---None
c.1577C>T p.(Pro526Leu)[42]Lowe S.15−26100SAVESE loss, ESS gain---None
c.2389G>C p.(Ala797Pro)[38]Lowe S.22+48000SNV------None
c.2581G>A p.(Ala861Thr)[11]Lowe S.23−1000SAVLoss of natural 5′ SSDecreasedExon 23 skipping
c.2581G>C p.(Ala861Pro)[22]Lowe S.23−1000SAVLoss of natural 5′ SSDecreasedExon 23 skipping
SAV, Splicing Affecting Variant; SNV, Splicing Neutral Variant; ESE, Exonic Splicing Enhancer; ESS, Exonic Splicing Silencer; FAS-ESS, fluorescence-activated screen for ESS; SS, Splice Site; SPANR, Splicing-based Analysis of Variants; PSI, Percentage of transcripts with the exon spliced in; (---), No predicted effect. 1 Position of variant relative to the nearest splice site. 2 Values 0, 1, 2 and 3 indicate number of splicing regulatory elements gained or disrupted. 3 Score ≥ 0.6 corresponds to SAV; additional supporting evidence is provided by a “confidence hypothesis” which is not available for all SAVs.
